. 2000 Oct;74(20):9610–9616. doi: 10.1128/jvi.74.20.9610-9616.2000

Prevention of Adult T-Cell Leukemia-Like Lymphoproliferative Disease in Rats by Adoptively Transferred T Cells from a Donor Immunized with Human T-Cell Leukemia Virus Type 1 Tax-Coding DNA Vaccine

Takashi Ohashi 1, Shino Hanabuchi 1, Hirotomo Kato 1, Hiromi Tateno 1, Fumiyo Takemura 1,2, Tomonori Tsukahara 1, Yoshihiro Koya 1, Atsuhiko Hasegawa 1, Takao Masuda 1, Mari Kannagi 1,2,*
PMCID: PMC112393  PMID: 11000233

Abstract

Human T-cell leukemia virus type 1 (HTLV-1) causes adult T-cell leukemia (ATL) in infected individuals after a long incubation period. To dissect the mechanisms of the development of the disease, we have previously established a rat model of ATL-like disease which allows examination of the growth and spread of HTLV-1 infected tumor cells, as well assessment of the effects of immune T cells on the development of the disease. In the present study, we induced HTLV-1 Tax-specific cytotoxic T lymphocyte (CTL) immunity by vaccination with Tax-coding DNA and examined the effects of the DNA vaccine in our rat ATL-like disease model. Our results demonstrated that DNA vaccine with Tax effectively induced Tax-specific CTL activity in F344/N Jcl-rnu/+ (nu/+) rats and that these CTLs were able to lyse HTLV-1 infected syngeneic T cells in vitro. Adoptive transfer of these immune T cells effectively inhibited the in vivo growth of HTLV-1-transformed tumor in F344/N Jcl-rnu/rnu (nu/nu) rats inoculated with a rat HTLV-1 infected T cell line. Vaccination with mutant Tax DNA lacking transforming ability also induced efficient anti-tumor immunity in this model. Our results indicated a promising effect for DNA vaccine with HTLV-1 Tax against HTLV-1 tumor development in vivo.

Human T-cell leukemia virus type 1 (HTLV-1) is etiologically associated with human adult T-cell leukemia (ATL) (17, 36). ATL is a malignant lymphoproliferative disease affecting a subgroup of middle aged HTLV-1 carriers characterized by the presence of mature T-cell phenotype (47). ATL is also characterized by a low cure rate, which is mainly due to resistance to chemotherapy. Thus, establishment of an effective therapy against ATL is desirable, particularly in areas, such as Japan and Latin America, where the disease is endemic.

HTLV-1 genome contains a unique 3′ region, designated pX, which encodes the viral transactivator protein, Tax (39). Tax transactivates not only the viral long terminal repeat (8, 40, 43) but also the promoters of cellular genes such as interleukin-2 (IL-2) (42), IL-2 receptor (18), myc (7), and fos (12). Thus, it is speculated that Tax plays a central role in HTLV-1-associated immortalization and transformation of T cells, which may lead to the development of ATL.

Tax is also known as a major target protein recognized by cytotoxic T lymphocytes (CTLs) of HTLV-1 carriers (21, 22). It has been reported that the levels of HTLV-1-specific CTLs are quite diverse among HTLV-1 carriers and that ATL patients have impaired levels of HTLV-1 specific CTLs in contrast to the high levels of CTL response in HTLV-1 carriers with HAM/TSP (21, 23–25, 33). Since HTLV-1 Tax-specific CTLs can recognize and lyse ATL cells in vitro, it is reasonable to assume that the low CTL activity in ATL patients is disadvantageous as it may allow uncontrolled proliferation and evolution of HTLV-1 infected cells in vivo. Therefore, stimulation of CTL response to Tax in ATL and preleukemic patients may be therapeutically beneficial and a useful prophylactic strategy against ATL.

To test this hypothesis experimentally, it is very important to use a suitable animal model system. Although several experimental trials of various treatment modalities have been reported in a variety of animal models of HTLV-1 infection (30, 31, 41), these studies did not examine the relationship between the therapeutic effects and HTLV-1-specific CTL activities. We recently established a novel rat model of ATL-like disease (32). In this model, fatal systemic lymphomas reproducibly occur in athymic F344/Jcn-rnu/rnu (nu/nu) rats inoculated with syngeneic HTLV-1-infected FPM1-V1AX cells. The model seems to be useful for evaluating the antitumor effects of vaccination by immune cells adoptively transferred from vaccinated syngeneic euthymic F344/Jcn-rnu/+ (nu/+) rats.

The recently developed technique of DNA vaccination represent a form of subunit vaccination strategy, which stimulates the immune response to a defined antigen (6). Delivery of naked DNA into a muscle or via a gene gun affects antibody formation, as well as both major histocompatibility complex class I (MHC-I)- and MHC-II-restricted T-cell responses (34, 38, 48). Moreover, using this technique, protection or at least partial protection has been induced in different animal models against viral pathogens, including human immunodeficiency virus (HIV) (1, 2, 13, 27), hepatitis B virus (37), and influenza virus (48). However, it has not been determined whether DNA vaccination with HTLV-1 antigens is effective against the virus-induced lymphoproliferative disease.

In the present study, we used our rat model to investigate the therapeutic effects of HTLV-1 Tax-directed DNA vaccine against ATL-like lymphoproliferative disease. Our results demonstrated that DNA vaccine with Tax was able to induce CTL activity against Tax-expressing cells and that adoptive transfer of these CTLs effectively suppressed in vivo growth of HTLV-1-transformed tumor cells. Vaccination with mutant Tax DNA lacking transformed ability also induced efficient antitumor immunity in this model. These results suggest the potential usefulness of Tax-directed DNA vaccination against the development of HTLV-1 tumor.

MATERIALS AND METHODS

Animals.

Female F344/N Jcl-rnu/rnu (nu/nu) rats and F344/N Jcl-rnu/+ (nu/+) rats were purchased from Clea Japan, Inc. (Tokyo, Japan). All rats were maintained at the experimental animal facilities at Tokyo Medical and Dental University. The experimental protocol was approved by the Animal Ethics Review Committee of our University.

Cell lines.

An HTLV-1-immortalized cell line, FPM1, was established in our laboratory by cocultivating thymocytes of a nu/+ rat with the HTLV-1-producing human cell line, MT-2, which was treated with mitomycin C (50 μg/ml) for 30 min at 37°C (26). The cells were maintained in RPMI 1640 with 10% heat-inactivated fetal calf serum (FCS) (Whittaker, Walkersville, Md.), penicillin, and streptomycin. IL-2 (10 U/ml; Shionogi, Osaka, Japan) was added at the beginning of coculture. Cells were eventually freed from exogenous IL-2. FPM1-V1AX is a subclone of FPM1 cells, which possesses in vivo growth ability in nu/nu rats (32). Another HTLV-1-immortalized rat T-cell line, derived from a WKA rat, TARS-1 (46), was kindly provided by Takashi Yoshiki (Hokkaido University School of Medicine, Sapporo, Japan).

HTLV-1-negative simian virus 40 (SV40)-transformed rat kidney cell line (FPM-SV) was established in our laboratory from kidney cells of a nu/+ rat (26). Briefly, kidney cells cultured for 1 week were infected with SV40 at 37°C for 1 h and then washed and cultured for 3 weeks with replacement of culture medium twice a week. A focus growing in the culture was picked up and sequentially expanded to a stable line.

Establishment of G14 and G14-Tax cell lines.

An IL-2-dependent HTLV-1-negative rat cell line, G14, was established from a nu/+ rat initially for the purpose of obtaining FPM1-specific CTLs. Briefly, nylon wool column-purified splenic T cells of an HTLV-1-infected nu/+ rat were stimulated in vitro with formalin-fixed FPM1 cells twice in a month in the presence of IL-2. These T cells maintained FPM1-specific cytotoxic activities for the first 3 months of coculture and then started to lose the specific activities. After 4 months, these cells became capable of continuously growing in a medium containing 10 U of IL-2 per ml in the absence of FPM1 for stimulation. We designated these cells as the G14 cell line. This cell line was positive for rat CD5, CD8, CD25, MHC-I, and MHC-II (H. Kato et al., unpublished data). To establish G14-Tax cells, G14 cells were electrically transfected with Tax-expressing plasmids by using Gene Pulser II systems (Bio-Rad, Hercules, Calif.), and stable transfectants were selected with 400 μg of geneticin (Gibco-BRL, Rockville, Md.) per ml. The expression of Tax in the resulting G14-Tax cells was confirmed by Western blotting using human serum containing Tax antibody (a generous gift from Kayoko Matsumoto, Osaka Red Cross Blood Center, Osaka, Japan). G14-Tax cells were maintained in RPMI 1640 medium with 10% FCS and 10 U of IL-2 per ml.

Preparation of DNA vaccine.

Wild-type Tax (pβMT-2Tax) and a mutant Tax (Tax410) cloned into pHβPr.1-neo expression vectors were kindly provided by Kayoko Matsumoto (28). Protein expression was controlled by a β-actin promoter in these vectors. Wild-type Tax expression vector expresses the full length of the wild-type Tax protein, whereas Tax410 mutant has two-amino-acid substitutions of GluGlu to AlaSer at positions 310 and 311. Fifty milligrams of Au particles (radius, 1.6 μm; Bio-Rad) were coated with 100 μg of the expression vectors. The DNA-coated Au particles were introduced in Tefzel tubing (Bio-Rad) placed on a Tubing Prep Station and dried by rotation of the tubing under nitrogen flow (0.3 to 0.4 ml/min) for 15 min. The tubing was then cut into 12-mm-long cartridges, which were used in the Helios Gene Gun (Bio-Rad).

Inoculation of DNA in vivo.

The Helios Gene Gun system was used for the inoculation of the expression vectors. nu/+ rats were anesthetized with ketamine, and their fur was completely removed by using a commercial depilatory agent. DNA-coated Au particles in a cartridge were accelerated by pressurized helium gas for penetration through cell membranes and multiple layers of cells in the epidermis. The concentrations of DNA and Au were 1 μg/shot and 0.5 mg/shot, respectively. Immunization was performed twice, with a 1-week interval, and 10 shots were given per immunization.

Protein analysis.

G14 or G14-Tax cells were resuspended in ice-cold extraction buffer (20 mmol of HEPES [pH 7.9] per liter, 10 mmol of KCl per liter, 1 mmol of MgCl2 per liter, 150 mmol of NaCl per liter, 1% Triton X-100, 0.5 mmol of dithiothreitol per liter, 0.5 mmol of phenylmethylsulfonyl fluoride per liter, 1 μg of aprotinin per ml, and 1 μg of leupeptin per ml) and gently rocked for 30 min. After centrifugation at 14,000 × g for 20 min at 4°C, the supernatant was collected as a whole-cell extract. The protein concentration of each sample was determined using a protein assay kit (Bio-Rad). Then, 50 μg of the whole-cell extracts was separated by sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) on a 12.5% gel and transferred to a nitrocellulose filter. After incubation with blocking buffer (2% bovine serum albumin in 10 mmol of Tris-HCl [pH 7.5] and 100 mmol of NaCl per liter), the filter was incubated with 1:1,000-diluted sera containing anti-Tax antibody and then with an anti-human immunoglobulin antibody conjugated to horseradish peroxidase (Amersham, Arlington Heights, Ill.). Antibodies bound to the filter were detected by the enhanced chemiluminescence method (Amersham).

51Cr-release cytotoxicity assay.

CTL activity against Tax-expressing or HTLV-1-infected cells was measured by 6-h 51Cr-release assay at various effector/target (E/T) ratios, as described previously (3). Splenocytes from each immunized rat were passed through a nylon wool column, cocultured with formalin-fixed FPM1-V1AX cells for a week, and then used as effector cells. 51Cr-labeled FPM1-V1AX or FPM-SV and G14-Tax or G14 cells were used as HTLV-1-infected and Tax-expressing target cells, respectively. The 51Cr-labeled target cells (104 cells/well) were cocultured with various numbers of effector cells in 96-well U-bottom culture plates at 37°C for 6 h, and then the 51Cr activities released in the supernatants were measured. Specific cytotoxicity was calculated as follows: [(experimental 51Cr release − spontaneous 51Cr release)/(maximum 51Cr release − spontaneous 51Cr release)] × 100%.

Generation of HTLV-1-specific CTL cell lines.

For induction of HTLV-1-specific CTL in long-term cultivation, splenic T cells (2.5 × 106 cell/well) were cocultured with the same number of formalin-fixed FPM1-V1AX cells in 24-well flat-bottom culture plates in RPMI 1640 medium with 10% FCS and 20 U of IL-2 per ml, with periodic stimulation using formalin-fixed FPM1-V1AX cells every 2 weeks. The T cells that maintained HTLV-1-specific CTL activities for more than 3 months were judged as the CTL lines and were used in the experiments.

T-cell proliferation assay.

Splenic T cells from immunized rats were purified through a nylon wool column (105 cells/well) and were cocultured with formalin-fixed FPM1-V1AX, G14-Tax, or G14 cells (5 × 104 cells/well) in 96-well U-bottom culture plates at 37°C for 72 h. Cultures were pulsed with [3H]thymidine ([3H]TdR; 37 kBq/well) for the last 18 h to assess cell proliferation. Cells were harvested with a Micro 96 Harvester (Skatron, Lier, Norway), and [3H]TdR uptake into cells (reported as the mean ± the standard deviation [SD]) was measured in a microplate β counter (Micro Beta Plus; Wallac, Turku, Finland).

Adoptive transfer of splenic T cells into nude rats.

Two weeks after primary immunization and one week after booster immunization, 107 freshly isolated T-cell-enriched splenocytes from vaccinated rats were intraperitoneally inoculated into 4-week-old nu/nu rats, which were simultaneously inoculated subcutaneously with 2 × 107 FPM1-V1AX cells. nu/nu rats inoculated with FPM1-V1AX alone or with splenocytes from age-matched nu/+ rats inoculated with pHβPr.1-neo plasmids served as controls. The size of each subcutaneous tumor was measured every other day.

Measurement of growth of subcutaneously inoculated HTLV-1-immortalized cells.

The growth of subcutaneous tumor was measured every other day and recorded as the longest surface length (a [in millimeters]) and width (b [in millimeters]). Tumor volume (V [in cubic millimeters]) was calculated according to the following formula: V = a × b2 × 0.5, as described previously (32).

RESULTS

DNA vaccine with Tax induces CTL responses specific to Tax without the production of Tax antibody.

We first investigated whether DNA vaccination with Tax was capable of inducing specific CTL activity against Tax. For the analysis of Tax-specific CTL activities, we introduced Tax expression vectors into the HTLV-1-negative G14 cell line and established G14-Tax cells, which expressed detectable levels of Tax protein (Fig. 1A).

FIG. 1.

FIG. 1

Open in a new tab

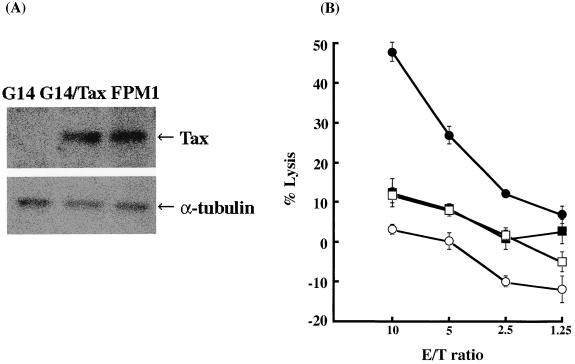

DNA vaccination with Tax induces CTL responses specific to Tax. (A) Whole-cell extracts (50 μg) were prepared from G14 or G14-Tax cells, separated by SDS–12.5% PAGE and transferred to a nitrocellulose filter. The filter was incubated with 1:1,000-diluted sera containing anti-Tax antibody and then with an anti-human immunoglobulin antibody conjugated to horseradish peroxidase. Antibodies bound to the filter were detected by the enhanced chemiluminescence method. (B) G14-Tax (solid symbols) or G14 (open symbols) cells were labeled with 51Cr for 1 h and used as target cells. Nylon wool-passed splenic T cells from nu/+ rats inoculated with Tax-expressing vectors (circles) or with pHβPr.1-neo control vectors (squares) were stimulated with FPM1-V1AX cells for 1 week and used as effectors at the indicated E/T ratios. Results are expressed as the mean percent lysis ± the SD of triplicate wells. Similar results were obtained in four independent experiments.

As a Tax-coding DNA, we used pβMT-2Tax plasmids which contained the entire length of wild-type Tax cDNA driven by β-actin promoter. For vaccination, gold particles coated with the plasmids were shot by a gene gun into the skin of nu/+ rats twice with a 1-week interval. One week after the second immunization, spleen T cells isolated from a vaccinated rat were restimulated in vitro for a week with the HTLV-1-infected cell line, FPM1-V1AX, and then were subjected to 51Cr release CTL assay. The representative result of four individual experiments is shown in Fig. 1B. Spleen T cells from rats immunized with Tax plasmids specifically recognized and killed G14-Tax cells but not parental G14 cells. In contrast, spleen T cells from rats inoculated with control pHβPr.1-neo plasmids did not show CTL activity against G14-Tax cells. These results indicated that DNA vaccine with Tax effectively induced Tax-specific CTLs in vivo. On the other hand, sera from rats with Tax-coding DNA vaccine did not contain any detectable levels of antibodies specific to Tax during the period tested when analyzed by Western blotting (data not shown).

Tax-specific CTLs induced by DNA vaccine specifically lyse HTLV-1-infected cells.

We next examined whether these Tax-specific CTLs can lyse HTLV-1-infected cells. HTLV-1-infected FPM1-V1AX cells and HTLV-1-negative FPM-SV cells served as targets of CTL assays. Figure 2A shows the representative result of three independent experiments. Splenocytes from a rat inoculated with the control pHβPr.1-neo vector did not show CTL activity against FPM1-V1AX or FPM-SV cells. On the other hand, splenic T cells from a rat immunized with pβMT-2Tax showed a strong cytotoxic activity against FPM1-V1AX cells but not against FPM-SV cells. MHC restriction of the Tax-specific cytotoxicity was further investigated by using spleen T cells from rats immunized with pβMT-2Tax, cells which were cultured with periodic stimulation using formalin-fixed FPM1-V1AX cells every 2 weeks for 3 months. Figure 2B shows a representative result of three individual experiments. These cells significantly lysed syngeneic FPM1-V1AX cells but not the allogenic HTLV-1-infected cell line, TARS-1. A control CD8+ T-cell line, G14, did not show detectable levels of CTL activity against FPM1-V1AX or TARS-1 cells. These results indicated that the vaccine-induced CTLs were able to specifically kill syngeneic HTLV-1-infected cells.

FIG. 2.

FIG. 2

Open in a new tab

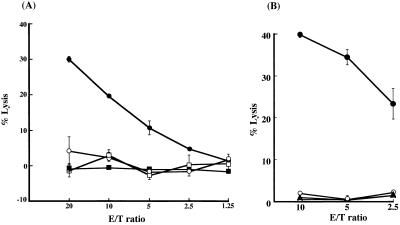

HTLV-1-specific CTL activities of T cells isolated from rats inoculated with Tax-directed DNA vaccine. (A) FPM1-V1AX (solid symbols) or FPM-SV (open symbols) cells were labeled with 51Cr for 1 h and used as target cells. Nylon wool-passed splenic T cells from nu/+ rats inoculated with Tax-expressing vectors (circles) or with pHβPr.1-neo control vectors (squares) were stimulated with FPM1-V1AX cells for 1 week and used as effectors at the indicated E/T ratios. (B) FPM1-V1AX (solid symbols) or an allogenic cell line, TARS-1 (open symbols) cells were labeled with 51Cr for 1 h and used as target cells. CTL cells established from splenic T cells of nu/+ rats inoculated with Tax-expressing vectors (circles) or the CD8+ T-cell line G14 (triangles) were used as effectors at the indicated E/T ratios. Results are expressed as the mean percent lysis ± the SD of triplicate wells. Similar results were obtained in three independent experiments.

Induction of HTLV-1-specific proliferative responses by Tax-coding DNA vaccine.

To confirm that the Tax-coding DNA vaccine induces HTLV-1-specific T-cell immunity in the hosts, we examined T-cell proliferative responses against HTLV-1 antigens in rats inoculated with the DNA vaccine. We used HTLV-1-infected FPM1-V1AX cells, Tax-expressing G14-Tax cells, and HTLV-1-negative G14 cells for stimulator cells of a proliferation assay. T-cell-enriched spleen cells from Tax-coding DNA vaccine or control plasmid inoculated rats were incubated in the presence or absence of formalin-fixed stimulator cells, and thymidine incorporation in the splenic T cells was measured. As shown in Fig. 3, spleen T cells from rats inoculated with control plasmid hardly proliferated in response to any stimulator cells used. In contrast, spleen T cells from Tax-coding DNA vaccine-inoculated rats showed significant levels of proliferative response against FPM1-V1AX cells. This proliferative response was specific to Tax, since these splenic T cells also respond to Tax-expressing G14-Tax cells but not to parental G14 cells.

FIG. 3.

FIG. 3

Open in a new tab

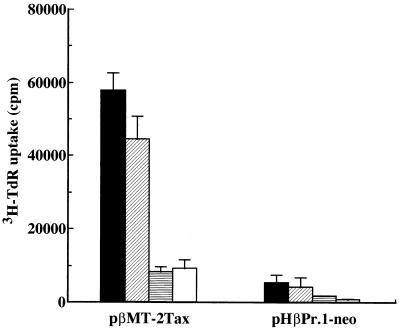

HTLV-1-specific proliferative response of T cells isolated from rats inoculated with Tax-directed DNA vaccine. Splenic T cells from a rat inoculated with pβMT-2Tax or pHβPr.1-neo were isolated on day 7 after the last immunization and were cocultured without (□) or with formalin-fixed FPM1-V1AX (■), G14-Tax (▨), or G14 (▤) cells for 3 days. [3H]TdR incorporation was measured during the last 18 h. The data represent the mean ± the SD of triplicate wells. Similar results were obtained in three independent experiments.

T cells induced by Tax-coding DNA vaccine inhibit the growth of HTLV-1-infected cells in vivo.

We further examined whether splenocytes from Tax-immunized rats have protective activities against the growth of HTLV-1-infected lymphomas in vivo. Freshly isolated spleen T cells from rats immunized with Tax plasmids or control pHβPr.1-neo vectors were intraperitoneally transferred into each group of six nu/nu rats at the time of subcutaneous inoculation of FPM1-V1AX cells. Tumor growth was evaluated by measuring the size of subcutaneous tumors. As shown in Fig. 4, significant suppression of tumor growth was observed in rats treated with Tax-DNA-immunized T cells in the first week of FPM1-V1AX inoculation, compared with other groups of rats that were untreated or treated with control vector-immunized T cells. After 10 days, tumors showed a complete regression in rats treated with Tax-immunized T cells (Fig. 5a). During the same period, tumor regression was also noted in a lesser degree in rats treated with control vector-immunized T cells (Fig. 5b), probably because of the delayed induction of the tumor-specific T cells from reconstituted T cells in nude rats after the transfer of naive T cells. In contrast, subcutaneous tumors continued to grow in untreated rats (Fig. 5c).

FIG. 4.

FIG. 4

Open in a new tab

Regression of the growth of FPM1-V1AX cells induced by adoptively transferred Tax-immunized T cells. Four-week-old nu/nu rats were subcutaneously inoculated with 2 × 107 of FPM1-V1AX cells alone (□) or simultaneously with intraperitoneal inoculation of 107 of freshly isolated T cells from nu/+ rats that had been immunized with Tax-expressing vectors (●) or with pHβPr.1-neo control vectors (○). The tumor size was measured every other day and expressed in cubic millimeters using the formula described in Materials and Methods. Results are expressed as the mean ± the SD for each group of six rats.

FIG. 5.

FIG. 5

Open in a new tab

Macroscopic examination of nu/nu rats inoculated subcutaneously with FPM1-V1AX cells, simultaneously with intraperitoneal inoculation of T cells immunized with Tax-expressing vectors (a and d) or with pHβPr.1-neo control vectors (b and e). (c and f) A representative rat inoculated subcutaneously with FPM1-V1AX cells alone is also shown. Note the growth of the subcutaneous tumors at the site of inoculation (a to c) and the metastatic tumors (arrows) in the lungs (d to f).

At autopsy, there were no metastatic lesions in rats treated with Tax DNA-immunized T cells (Fig. 5d), whereas two of six rats treated with control pHβPr.1-neo vector-immunized T cells had metastasis in the lymph nodes. One of these rats also showed metastasis in the lung (Fig. 5e). In untreated rats, metastases were consistently present in the lungs (Figure 5f), liver, and lymph nodes. Thus, adoptively transferred T cells induced by Tax-coding DNA vaccination inhibited ATL-like lymphoproliferative disease more promptly and efficiently in vivo than did control T cells.

Protective effects on the growth of HTLV-1-infected cells by DNA vaccine with mutant Tax are equivalent to those by wild-type Tax.

Although Tax DNA vaccination induce HTLV-1-specific T-cell responses effective to suppress in vivo growth of HTLV-1 tumor cells, wild-type Tax is not suitable for clinical use because of its potential oncogenicity. In the next series of experiments, we assessed the antitumor effects of mutant Tax DNA vaccination in the same animal model. Mutant Tax410, which lacks transforming activities, induced the expression of Tax protein in rat fibroblasts, similar to wild-type Tax (data not shown). We then examined the ability of spleen T cells from rats vaccinated with DNA coding the wild-type Tax or Tax410 to induce specific CTL activities against HTLV-1-infected cells. As shown in Fig. 6A, DNA vaccine with Tax410 induced almost equivalent levels of CTL activity against HTLV-1-infected FPM1-V1AX cells to those of wild-type Tax-immunized rats. T cells from rats immunized with the mutant Tax also showed a significant level of inhibitory activity in vivo against the growth of HTLV-1-infected lymphoma cells in nu/nu rats (Fig. 6B), indicating that similar vaccine effects were induced by Tax410.

FIG. 6.

FIG. 6

Open in a new tab

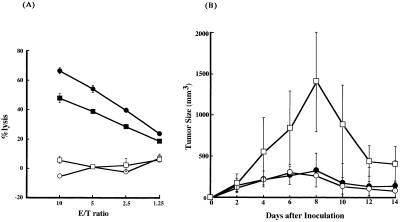

Regression of the growth of FPM1-V1AX cells induced by T cells immunized with mutant Tax410. (A) FPM1-V1AX (solid symbols) or FPM-SV (open symbols) cells were labeled with 51Cr for 1 h and used as target cells. Nylon wool-passed splenocytes from nu/+ rats inoculated with expression vectors of wild-type Tax (circles) or mutant Tax410 (squares) were stimulated with FPM1-V1AX cells for 1 week and used as effectors at the indicated E/T ratios. Results are expressed as mean percent lysis ± the SD of triplicate wells. Similar results were obtained in three independent experiments. (B) Splenic T cells were isolated from nu/+ rats that had been inoculated with wild-type Tax (○)- or mutant Tax410 (●)-expressing vectors or with pHβPr.1-neo control vectors (□). Four-week-old nu/nu rats were subcutaneously inoculated with 2 × 107 of FPM1-V1AX cells simultaneously with intraperitoneal inoculation of 107 of splenic T cells. Tumor size was measured every other day and is expressed in cubic millimeters using the formula described in Materials and Methods. Results are expressed as the mean ± the SD for each group of four (Tax410) or six (wild-type Tax and control vector) rats.

DISCUSSION

Our study demonstrated that HTLV-1 Tax-coding DNA vaccination induced Tax specific T-cell proliferative and CTL responses and that the vaccine-induced T cells were capable of suppressing the growth of HTLV-1 infected tumor cells in vivo. These results suggest that HTLV-1 Tax served as a tumor-specific transplantation antigen in HTLV-1-infected lymphoproliferative disease. This is in agreement with previous observations in the human system in vitro that Tax is a major target antigen of HTLV-1 specific CTLs (21, 22), that this CTL activity is poorly detectable in ATL patients (23, 24), and that ATL cells are susceptible to these CTLs in vitro (23, 24).

Although DNA administered by a gene gun tends to induce Th2-cell and B-cell responses (4, 9, 14, 35), several studies have demonstrated the induction of CTL responses against a variety of pathogens, including influenza virus (11, 20), lymphocytic choriomeningitis virus (50), Listeria sp. (10), HIV (16), and Sendai virus (5). Under the experimental conditions used in our study, delivery of the Tax-coding DNA by the gene gun induced Tax-specific CTLs but not antibody responses during the 2 weeks after vaccination. We continued to check the production of Tax-specific antibodies in the DNA vaccine-inoculated rats for 3 months but failed to detect them. Furthermore, Tax-specific antibodies were not detected in the sera of nu/nu rats subjected to the adoptive transfer of immune T cells (data not shown). These results indicate that Tax-specific T-cell immunity but not antibodies was critical for the rejection of HTLV-1 tumor cells. This conclusion is further strengthened by our recent findings that inhibition of T-cell activation by in vivo treatment with anti-CD80 and anti-CD86 antibodies allowed the growth of HTLV-1 tumors in rats (15).

Rats have been used in studies of HTLV-1 because they are susceptible to the virus and because the virus-transformed T-cell lines can be established in rats in vitro (19, 46). Moreover, CTLs specific to HTLV-1 Gag, Env, and PX proteins could be induced in various strains of rats infected with HTLV-1 (44, 45). Although these CTLs have been shown to exhibit cytolytic activities against cells expressing corresponding antigens, whether they are able to inhibit the growth of HTLV-1 infected cells in vivo has not yet been determined. In this regard, we have recently shown in a rat model system the importance of HTLV-1-specific T cells in inhibiting the growth of HTLV-1-infected tumor cells in vivo (32). Furthermore, our present results clearly showed that Tax-specific CTLs induced by the gene gun vaccination were able to inhibit the growth of HTLV-1-infected tumor cells in vivo. These results suggest that DNA vaccines with Tax are potentially useful for the treatment of ATL and that our rat model is suitable for further investigation of the possible application of the vaccine for ATL.

There is ample evidence to suggest that the expression of viral proteins is repressed in vivo in HTLV-1 carriers (23). However, the extent and exact site of in vivo HTLV-1-infected cells expressing HTLV-1 antigens remain controversial. The HTLV-1-infected FPM1-V1AX cells used in our study predominantly express Tax proteins in vitro, although the expression of other HTLV-1 structural proteins are repressed (26). Thus, it is possible that the protective effects of Tax-specific CTLs were easily detected in our model compared to ATL patients. Nevertheless, we could still expect that the Tax-specific CTLs would be effective against HTLV-1-infected cells during the course of development of ATL, because Tax-specific CTLs have actually been detected in HTLV-1 carriers (25, 33), indicating that Tax is actually expressed in HTLV-1 infected cells at a certain stage of HTLV-1 infection.

Tax is thought to be a critical factor in leukemogenesis because of its transforming activity in various experimental systems (49). This means that the inoculation of Tax expressing vectors may induce inappropriate effects which lead to the transformation of normal cells in vivo. To avoid this adverse effect, we examined the effects of vaccines prepared using Tax410 mutant, which lacks transforming activities. Our results demonstrated that the immune responses induced by Tax410 mutant were almost identical to those induced by wild-type Tax, indicating that Tax410 is a safer agent to induce effective immune response against HTLV-1 tumor. This finding also suggests that the transactivation effect of Tax, which can induce a number of cellular genes associated with immune responses, such as IL-2, IL-2 receptor, and IL-6 (18, 29, 42), is not related to the effective induction of Tax-specific CTLs by gene gun application.

In conclusion, we demonstrated in the present study that adoptively transferred T cells induced by Tax-coding DNA vaccine prevented the development of experimentally induced ATL-like lymphoproliferative disease in rats. Furthermore, we also demonstrated that mutant Tax, which lacks transforming activities, also induced efficient antitumor activities in vivo. These findings provide important implications of safe and effective vaccine design for the prophylaxis and treatment of ATL.

ACKNOWLEDGMENTS

We thank Takashi Yoshiki (Hokkaido University, Sapporo, Japan) for providing TARS-1 cells and Kayoko Matsumoto (Osaka Red Cross Blood Center, Osaka, Japan) for wild-type Tax and Tax410 mutant expression vectors and human sera containing Tax antibody. We are grateful to Mitsuhiko Yanagisawa and Shu Endo for cooperation with the maintenance of animals at the P3 level facilities. We also thank F. G. Issa (Word-Medex, Sydney, Australia) for careful reading and editing of the manuscript.

This work was supported in part by grants from the Ministry of Education, Science, Culture, and Sports of Japan and the Japan Science and Technology Corporation.

REFERENCES

  • 1.Boyer J D, Ugen K E, Wang B, Agadjanyan M, Gilbert L, Bagarazzi M L, Chattergoon M, Frost P, Javadian A, Williams W V, Refaeli Y, Ciccarelli R B, McCallus D, Coney L, Weiner D B. Protection of chimpanzees from high-dose heterologous HIV-1 challenge by DNA vaccination. Nat Med. 1997;3:526–532. doi: 10.1038/nm0597-526. [DOI] [PubMed] [Google Scholar]
  • 2.Boyer J D, Wang B, Ugen K E, Agadjanyan M, Javadian A, Frost P, Dang K, Carrano R A, Ciccarelli R, Coney L, Williams W V, Weiner D B. In vivo protective anti-HIV immune responses in non-human primates through DNA immunization. J Med Primatol. 1996;25:242–250. doi: 10.1111/j.1600-0684.1996.tb00022.x. [DOI] [PubMed] [Google Scholar]
  • 3.Brunner K T, Mauel J, Cerottini J C, Chapuis B. Quantitative assay of the lytic action of immune lymphoid cells on 51Cr-labelled allogeneic target cells in vitro: inhibition by isoantibody and by drugs. Immunology. 1968;14:181–196. [PMC free article] [PubMed] [Google Scholar]
  • 4.Cardoso A I, Sixt N, Vallier A, Fayolle J, Buckland R, Wild T F. Measles virus DNA vaccination: antibody isotype is determined by the method of immunization and by the nature of both the antigen and the coimmunized antigen. J Virol. 1998;72:2516–2518. doi: 10.1128/jvi.72.3.2516-2518.1998. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 5.Chen Y, Webster R G, Woodland D L. Induction of CD8+ T cell responses to dominant and subdominant epitopes and protective immunity to Sendai virus infection by DNA vaccination. J Immunol. 1998;160:2425–2432. [PubMed] [Google Scholar]
  • 6.Donnelly J J, Ulmer J B, Shiver J W, Liu M A. DNA vaccines. Annu Rev Immunol. 1997;15:617–648. doi: 10.1146/annurev.immunol.15.1.617. [DOI] [PubMed] [Google Scholar]
  • 7.Duyao M P, Kessler D J, Spicer D B, Bartholomew C, Cleveland J L, Siekevitz M, Sonenshein G E. Transactivation of the c-myc promoter by human T cell leukemia virus type 1 tax is mediated by NF kappa B. J Biol Chem. 1992;267:16288–16291. [PubMed] [Google Scholar]
  • 8.Felber B K, Paskalis H, Kleinman-Ewing C, Wong-Staal F, Pavlakis G N. The pX protein of HTLV-I is a transcriptional activator of its long terminal repeats. Science. 1985;229:675–679. doi: 10.1126/science.2992082. [DOI] [PubMed] [Google Scholar]
  • 9.Feltquate D M, Heaney S, Webster R G, Robinson H L. Different T helper cell types and antibody isotypes generated by saline and gene gun DNA immunization. J Immunol. 1997;158:2278–2284. [PubMed] [Google Scholar]
  • 10.Fensterle J, Grode L, Hess J, Kaufmann S H. Effective DNA vaccination against listeriosis by prime/boost inoculation with the gene gun. J Immunol. 1999;163:4510–4518. [PubMed] [Google Scholar]
  • 11.Fomsgaard A, Nielsen H V, Kirkby N, Bryder K, Corbet S, Nielsen C, Hinkula J, Buus S. Induction of cytotoxic T-cell responses by gene gun DNA vaccination with minigenes encoding influenza A virus HA and NP CTL-epitopes. Vaccine. 1999;18:681–691. doi: 10.1016/s0264-410x(99)00279-0. [DOI] [PubMed] [Google Scholar]
  • 12.Fujii M, Sassone-Corsi P, Verma I M. c-fos promoter trans-activation by the tax1 protein of human T-cell leukemia virus type I. Proc Natl Acad Sci USA. 1988;85:8526–8530. doi: 10.1073/pnas.85.22.8526. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 13.Fuller D H, Simpson L, Cole K S, Clements J E, Panicali D L, Montelaro R C, Murphey-Corb M, Haynes J R. Gene gun-based nucleic acid immunization alone or in combination with recombinant vaccinia vectors suppresses virus burden in rhesus macaques challenged with a heterologous SIV. Immunol Cell Biol. 1997;75:389–396. doi: 10.1038/icb.1997.61. [DOI] [PubMed] [Google Scholar]
  • 14.Fynan E F, Webster R G, Fuller D H, Haynes J R, Santoro J C, Robinson H L. DNA vaccines: protective immunizations by parenteral, mucosal, and gene gun inoculations. Proc Natl Acad Sci USA. 1993;90:11478–11482. doi: 10.1073/pnas.90.24.11478. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 15.Hanabuchi S, Ohashi T, Koya Y, Kato H, Takemura F, Hirokawa K, Yoshiki T, Yagita H, Okumura K, Kannagi M. Development of human T-cell leukemia virus type 1-transformed tumors in rats following suppression of T-cell immunity by CD80 and CD86 blockade. J Virol. 2000;74:428–435. doi: 10.1128/jvi.74.1.428-435.2000. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 16.Hanke T, Neumann V C, Blanchard T J, Sweeney P, Hill A V, Smith G L, McMichael A. Effective induction of HIV-specific CTL by multi-epitope using gene gun in a combined vaccination regime. Vaccine. 1999;17:589–596. doi: 10.1016/s0264-410x(98)00238-2. [DOI] [PubMed] [Google Scholar]
  • 17.Hinuma Y, Nagata K, Hanaoka M, Nakai M, Matsumoto T, Kinoshita K I, Shirakawa S, Miyoshi I. Adult T-cell leukemia: antigen in an ATL cell line and detection of antibodies to the antigen in human sera. Proc Natl Acad Sci USA. 1981;78:6476–6480. doi: 10.1073/pnas.78.10.6476. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 18.Inoue J, Seiki M, Taniguchi T, Tsuru S, Yoshida M. Induction of interleukin 2 receptor gene expression by p40x encoded by human T-cell leukemia virus type 1. EMBO J. 1986;5:2883–2888. doi: 10.1002/j.1460-2075.1986.tb04583.x. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 19.Ishiguro N, Abe M, Seto K, Sakurai H, Ikeda H, Wakisaka A, Togashi T, Tateno M, Yoshiki T. A rat model of human T lymphocyte virus type I (HTLV-I) infection. 1. Humoral antibody response, provirus integration, and HTLV-I-associated myelopathy/tropical spastic paraparesis-like myelopathy in seronegative HTLV-I carrier rats. J Exp Med. 1992;176:981–989. doi: 10.1084/jem.176.4.981. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 20.Iwasaki A, Dela Cruz C S, Young A R, Barber B H. Epitope-specific cytotoxic T lymphocyte induction by minigene DNA immunization. Vaccine. 1999;17:2081–2088. doi: 10.1016/s0264-410x(98)00411-3. [DOI] [PubMed] [Google Scholar]
  • 21.Jacobson S, Shida H, McFarlin D E, Fauci A S, Koenig S. Circulating CD8+ cytotoxic T lymphocytes specific for HTLV-I pX in patients with HTLV-I associated neurological disease. Nature. 1990;348:245–248. doi: 10.1038/348245a0. [DOI] [PubMed] [Google Scholar]
  • 22.Kannagi M, Harada S, Maruyama I, Inoko H, Igarashi H, Kuwashima G, Sato S, Morita M, Kidokoro M, Sugimoto M, et al. Predominant recognition of human T cell leukemia virus type I (HTLV-I) pX gene products by human CD8+ cytotoxic T cells directed against HTLV-I-infected cells. Int Immunol. 1991;3:761–767. doi: 10.1093/intimm/3.8.761. [DOI] [PubMed] [Google Scholar]
  • 23.Kannagi M, Matsushita S, Shida H, Harada S. Cytotoxic T cell response and expression of the target antigen in HTLV-I infection. Leukemia. 1994;8:S54–S59. [PubMed] [Google Scholar]
  • 24.Kannagi M, Sugamura K, Kinoshita K, Uchino H, Hinuma Y. Specific cytolysis of fresh tumor cells by an autologous killer T cell line derived from an adult T cell leukemia/lymphoma patient. J Immunol. 1984;133:1037–1041. [PubMed] [Google Scholar]
  • 25.Kannagi M, Sugamura K, Sato H, Okochi K, Uchino H, Hinuma Y. Establishment of human cytotoxic T cell lines specific for human adult T cell leukemia virus-bearing cells. J Immunol. 1983;130:2942–2946. [PubMed] [Google Scholar]
  • 26.Koya Y, Ohashi T, Kato H, Hanabuchi S, Tsukahara T, Takemura F, Etoh K, Matsuoka M, Fujii M, Kannagi M. Establishment of a seronegative human T-cell leukemia virus type 1 (HTLV-1) carrier state in rats inoculated with a syngeneic HTLV-1-immortalized T-cell line preferentially expressing Tax. J Virol. 1999;73:6436–6443. doi: 10.1128/jvi.73.8.6436-6443.1999. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 27.Letvin N L, Montefiori D C, Yasutomi Y, Perry H C, Davies M E, Lekutis C, Alroy M, Freed D C, Lord C I, Handt L K, Liu M A, Shiver J W. Potent, protective anti-HIV immune responses generated by bimodal HIV envelope DNA plus protein vaccination. Proc Natl Acad Sci USA. 1997;94:9378–9383. doi: 10.1073/pnas.94.17.9378. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 28.Matsumoto K, Shibata H, Fujisawa J I, Inoue H, Hakura A, Tsukahara T, Fujii M. Human T-cell leukemia virus type 1 Tax protein transforms rat fibroblasts via two distinct pathways. J Virol. 1997;71:4445–4451. doi: 10.1128/jvi.71.6.4445-4451.1997. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 29.Muraoka O, Kaisho T, Tanabe M, Hirano T. Transcriptional activation of the interleukin-6 gene by HTLV-1 p40tax through an NF-kappa B-like binding site. Immunol Lett. 1993;37:159–165. doi: 10.1016/0165-2478(93)90026-x. [DOI] [PubMed] [Google Scholar]
  • 30.Murata K, Fujita M, Yamada Y, Higami Y, Shimokawa I, Tsukasaki K, Tanaka Y, Maeda M, Furukawa K, Yoshiki T, Shiku H, Tomonaga M. In vivo retrovirus-mediated herpes simplex virus thymidine kinase gene therapy approach for adult T cell leukemia in a rat model. Jpn J Cancer Res. 1997;88:492–500. doi: 10.1111/j.1349-7006.1997.tb00408.x. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 31.Obaru K, Fujii S, Matsushita S, Shimada T, Takatsuki K. Gene therapy for adult T cell leukemia using human immunodeficiency virus vector carrying the thymidine kinase gene of herpes simplex virus type 1. Hum Gene Ther. 1996;7:2203–2208. doi: 10.1089/hum.1996.7.18-2203. [DOI] [PubMed] [Google Scholar]
  • 32.Ohashi T, Hanabuchi S, Kato H, Koya Y, Takemura F, Hirokawa K, Yoshiki T, Tanaka Y, Fujii M, Kannagi M. Induction of adult T-cell leukemia-like lymphoproliferative disease and its inhibition by adoptive immunotherapy in T-cell-deficient nude rats inoculated with syngeneic human T-cell leukemia virus type 1-immortalized cells. J Virol. 1999;73:6031–6040. doi: 10.1128/jvi.73.7.6031-6040.1999. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 33.Parker C E, Daenke S, Nightingale S, Bangham C R. Activated, HTLV-1-specific cytotoxic T-lymphocytes are found in healthy seropositives as well as in patients with tropical spastic paraparesis. Virology. 1992;188:628–636. doi: 10.1016/0042-6822(92)90517-s. [DOI] [PubMed] [Google Scholar]
  • 34.Pertmer T M, Eisenbraun M D, McCabe D, Prayaga S K, Fuller D H, Haynes J R. Gene gun-based nucleic acid immunization: elicitation of humoral and cytotoxic T lymphocyte responses following epidermal delivery of nanogram quantities of DNA. Vaccine. 1995;13:1427–1430. doi: 10.1016/0264-410x(95)00069-d. [DOI] [PubMed] [Google Scholar]
  • 35.Pertmer T M, Roberts T R, Haynes J R. Influenza virus nucleoprotein-specific immunoglobulin G subclass and cytokine responses elicited by DNA vaccination are dependent on the route of vector DNA delivery. J Virol. 1996;70:6119–6125. doi: 10.1128/jvi.70.9.6119-6125.1996. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 36.Poiesz B J, Ruscetti F W, Gazdar A F, Bunn P A, Minna J D, Gallo R C. Detection and isolation of type C retrovirus particles from fresh and cultured lymphocytes of a patient with cutaneous T-cell lymphoma. Proc Natl Acad Sci USA. 1980;77:7415–7419. doi: 10.1073/pnas.77.12.7415. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 37.Prince A M, Whalen R, Brotman B. Successful nucleic acid based immunization of newborn chimpanzees against hepatitis B virus. Vaccine. 1997;15:916–919. doi: 10.1016/s0264-410x(96)00248-4. [DOI] [PubMed] [Google Scholar]
  • 38.Schirmbeck R, Bohm W, Ando K, Chisari F V, Reimann J. Nucleic acid vaccination primes hepatitis B virus surface antigen-specific cytotoxic T lymphocytes in nonresponder mice. J Virol. 1995;69:5929–5934. doi: 10.1128/jvi.69.10.5929-5934.1995. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 39.Seiki M, Hikikoshi A, Taniguchi T, Yoshida M. Expression of the pX gene of HTLV-I: general splicing mechanism in the HTLV family. Science. 1985;228:1532–1534. doi: 10.1126/science.2990031. [DOI] [PubMed] [Google Scholar]
  • 40.Seiki M, Inoue J, Takeda T, Yoshida M. Direct evidence that p40x of human T-cell leukemia virus type I is a trans-acting transcriptional activator. EMBO J. 1986;5:561–565. doi: 10.1002/j.1460-2075.1986.tb04247.x. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 41.Shingu M, Chinami M, Taguchi T, Shingu M., Jr Therapeutic effects of bovine enterovirus infection on rabbits with experimentally induced adult T cell leukaemia. J Gen Virol. 1991;72:2031–2034. doi: 10.1099/0022-1317-72-8-2031. [DOI] [PubMed] [Google Scholar]
  • 42.Siekevitz M, Feinberg M B, Holbrook N, Wong-Staal F, Greene W C. Activation of interleukin 2 and interleukin 2 receptor (Tac) promoter expression by the trans-activator (tat) gene product of human T-cell leukemia virus, type I. Proc Natl Acad Sci USA. 1987;84:5389–5393. doi: 10.1073/pnas.84.15.5389. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 43.Sodroski J, Rosen C, Goh W C, Haseltine W. A transcriptional activator protein encoded by the x-lor region of the human T-cell leukemia virus. Science. 1985;228:1430–1434. doi: 10.1126/science.2990028. [DOI] [PubMed] [Google Scholar]
  • 44.Tanaka Y, Isobe A, Masuda M, Tozawa H, Koyanagi Y, Yamamoto N, Shida H. Immunogenicity of human T cell leukemia virus type-I (HTLV-I) antigens for cytotoxic T lymphocytes in the rat system. J Immunol. 1991;147:3646–3652. [PubMed] [Google Scholar]
  • 45.Tanaka Y, Tozawa H, Koyanagi Y, Shida H. Recognition of human T cell leukemia virus type I (HTLV-I) gag and pX gene products by MHC-restricted cytotoxic T lymphocytes induced in rats against syngeneic HTLV-I-infected cells. J Immunol. 1990;144:4202–4211. [PubMed] [Google Scholar]
  • 46.Tateno M, Kondo N, Itoh T, Chubachi T, Togashi T, Yoshiki T. Rat lymphoid cell lines with human T cell leukemia virus production. I. Biological and serological characterization. J Exp Med. 1984;159:1105–1116. doi: 10.1084/jem.159.4.1105. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 47.Uchiyama T, Yodoi J, Sagawa K, Takatsuki K, Uchino H. Adult T-cell leukemia: clinical and hematologic features of 16 cases. Blood. 1977;50:481–492. [PubMed] [Google Scholar]
  • 48.Ulmer J B, Donnelly J J, Parker S E, Rhodes G H, Felgner P L, Dwarki V J, Gromkowski S H, Deck R R, DeWitt C M, Friedman A, et al. Heterologous protection against influenza by injection of DNA encoding a viral protein. Science. 1993;259:1745–1749. doi: 10.1126/science.8456302. [DOI] [PubMed] [Google Scholar]
  • 49.Yoshida M, Suzuki T, Fujisawa J, Hirai H. HTLV-1 oncoprotein tax and cellular transcription factors. Curr Top Microbiol Immunol. 1995;193:79–89. doi: 10.1007/978-3-642-78929-8_4. [DOI] [PubMed] [Google Scholar]
  • 50.Zarozinski C C, Fynan E F, Selin L K, Robinson H L, Welsh R M. Protective CTL-dependent immunity and enhanced immunopathology in mice immunized by particle bombardment with DNA encoding an internal virion protein. J Immunol. 1995;154:4010–4017. [PubMed] [Google Scholar]
