Assessing and predicting water quality index with key water parameters by machine learning models in coastal cities, China

Abstract

The water quality index (WQI) is a widely used tool for comprehensive assessment of river environments. However, its calculation involves numerous water quality parameters, making sample collection and laboratory analysis time-consuming and costly. This study aimed to identify key water parameters and the most reliable prediction models that could provide maximum accuracy using minimal indicators. Water quality from 2020 to 2023 were collected including nine biophysical and chemical indicators in seventeen rivers in Yancheng and Nantong, two coastal cities in Jiangsu Province, China, adjacent to the Yellow Sea. Linear regression and seven machine learning models (Artificial Neural Network (ANN), Self-Organizing Maps (SOM), K-Nearest Neighbor (KNN), Support Vector Machines (SVM), Random Forest (RF), Extreme Gradient Boosting (XGB) and Stochastic Gradient Boosting (SGB)) were developed to predict WQI using different groups of input variables based on correlation analysis. The results indicated that water quality improved from 2020 to 2022 but deteriorated in 2023, with inland stations exhibiting better conditions than coastal ones, particularly in terms of turbidity and nutrients. The water environment was comparatively better in Nantong than in Yancheng, with mean WQI values of approximately 55.3–72.0 and 56.4–67.3, respectively. The classifications "Good" and "Medium" accounted for 80 % of the records, with no instances of "Excellent" and 2 % classified as "Bad". The performance of all prediction models, except for SOM, improved with the addition of input variables, achieving R² values higher than 0.99 in models such as SVM, RF, XGB, and SGB. The most reliable models were RF and XGB with key parameters of total phosphorus (TP), ammonia nitrogen (AN), and dissolved oxygen (DO) (R² = 0.98 and 0.91 for training and testing phase) for predicting WQI values, and RF using TP and AN (accuracy higher than 85 %) for WQI grades. The prediction accuracy for "Medium" and "Low" water quality grades was highest at 90 %, followed by the "Good" level at 70 %. The model results could contribute to efficient water quality evaluation by identifying key water parameters and facilitating effective water quality management in river basins.

Highlights

• •Water pollution was more serious in coastal stations and TN polluted most.
• •Water quality improved from 2020 to 2022 but deteriorated in 2023.
• •80 % records were assessed as “Good” and “Medium” level and no “Excellent” existed.
• •TP, AN and DO were selected as key water parameters to predict WQI by RF and XGB.
• •Prediction accuracies of WQI grades were more than 85 % from RF with TP and AN.

1. Introduction

With the rapid urbanization, industrialization and agricultural activities, large amount of river pollution from point or non-point sources have posed increasingly challenges over the world [1,2]. The ongoing deterioration of water quality has put safe water supplies at risk, causing water pollution incidents and damaging aquatic ecosystems [3,4], especially in coastal cities with more prosperous economic development and intensive anthropogenic activities [5,6].

Researchers have reported water pollution problems in various coastal cities worldwide. For instance, discharge of domestic sewage and industrial effluents in Surat, which locates in river Tapi and extends up to the Arabian Sea in western India [7]; Sevastopol Bay near the Black Sea has high levels of petroleum hydrocarbons and organic matter [8]; while Boston Harbor in the USA suffers from nutrient (N and P) and organic pollution [9]. Similarly, water pollution exists in coastal cities in China due to earlier development and stronger policy support compared to inland cities [10]. For example, Wu et al. [11] used cluster analysis and fuzzy logic approach to evaluate trophic status in Daya Bay, South China Sea, indicated that Chlorophyll a and phosphorus were major water pollution; Liu et al. [12] applied Organic Pollution Index and Eutrophication Index to quantify water quality status and reported heavy water pollution near Luanhe River in Hebei Province, western Bohai Sea; Zhang et al. [13] reviewed heavy metal pollution in coastal cities of the East China Sea and found that Cd pollution was serious and posed ecological risks in Hangzhou and Quanzhou. The water quality deterioration problems in the Yellow Sea have also garnered attention [14]. Dong et al. [15] analyzed a 16-month water quality dataset in Yantai, Shandong Province and reported that water temperature and nutrients were main causes of trophic status in coastal waters; Sun et al. [16] evaluated spatiotemporal variations of nutrients in the northern Yellow Sea (Shandong Province) and highlighted the influence of human activities. While previous studies have primarily focused on water pollution in Shandong Province adjacent to the Yellow Sea [[17], [18], [19]], few have comprehensively evaluated water quality in coastal cities in Jiangsu Province, which has millions of residents and is an important part of China's coastal economic belt [20], suffering from serious water deterioration problems [21].

A scientific assessment of water quality is fundamental for local governments to take effective and efficient measures in river management [22,23]. Recently, evaluation methods have been developed from separate water quality parameters to comprehensive indices, such as pollution index (PI), heavy metal pollution index (HPI), fuzzy comprehensive evaluation, best management practices (BMPs), total maximum daily loads (TMDLs) and the European Water Framework Directive [[24], [25], [26], [27], [28]]. Among these, the Water Quality Index (WQI) is a non-dimensional index derived from various water quality parameters such as water temperature, pH, dissolved oxygen, total suspended solids, ammonia nitrogen and total phosphorus, depending on the availability of data, has become one of the most popular tools for evaluating water quality due to its simple architecture compared to physical-processed or hydrological models [[29], [30], [31]]. The first WQI model was developed in the 1960s using ten water quality parameters and was later modified to a more rigorous version defining parameter selection and weighting [32,33]. As WQI models were applied in different areas and fields, several revisions were made based on the original, such as BCWQI developed by the British Columbia Ministry for Environment, Lands and Parks or CCME WQI developed by the Canadian Council of Ministers of the Environment [34,35]. Based on summary from Uddin et al. [36], WQI calculation process involves selecting water quality parameters, determining parameter weights, and computing the overall index. Many researchers employed WQI tools to assess water quality in rivers or lakes in China, such as Lake Taihu, Lake Chaohu, Dongjiang River and Luanhe River [[37], [38], [39], [40]]. These studies involved selecting water quality parameters and modifying the corresponding relative weights and normalization factors to suit the conditions of water bodies in China, based on previous literature [41,42].

While the WQI provides an easy-to-understand statistical information and comprehensive evaluation of water quality status by integrating biophysical and chemical indicators [43,44], it requires as many water quality parameters as possible, which necessitates considerable time and cost for field sample collection and laboratory analysis [39,45]. To address this limitation, the WQI_min was proposed, where key water parameters are selected from the original set to calculate WQI_min, which had applied by many researchers [42,46]. For example, Chen et al. [47] selected six key parameters from ten water quality parameters by principal component analysis to calculate the WQI_min in Huaihe River, Northeast China; Pan et al. [48] and Qi et al. [49] applied stepwise regression to selected six water parameters from fifteen and five from ten, with predicted R² of 0.938 and 0.903 respectively. While previous studies have highlighted the benefits of time and cost savings by predicting the WQI using five or six key water parameters selected through traditional statistical analysis methods, there are situations where it may be beneficial to further reduce the number of key parameters selected. For instance, the ability to quickly evaluate water quality status with minimal field or laboratory measurements is crucial during sudden water pollution incidents or when there is a need to alert authorities about deteriorating water quality [50].

Over the decades, with the development of state-of-the-art artificial intelligence algorithms, machine learning models have been widely applied in water resources management due to their advantages in describing non-linear or complex relationships between input and output variables without considering physical mechanism or dynamic processes [[51], [52], [53]]. Many studies have developed machine learning models for water quality prediction, such as Kulisz and Kujawska [54] used five physicochemical parameters as input layers to predict WQI in river Warta, Poland by artificial neural networks (ANN) and Najafzadeh and Ghaemi [55] applied support vector machines (SVM) to predict biochemical/chemical oxygen demand by nine parameters, highlighting the successes of artificial intelligence techniques. Recently, some studies have recommended that ensemble tree-based algorithms, such as random forest (RF) and extreme gradient boosting (XGB) performed better in WQI prediction [56,57]. The great potential of machine learning models makes it possible to apply even fewer key parameters to obtain higher precision in WQI prediction compared to the WQI_min model [58,59]. The factors affecting model performance are not only related to the model type or dataset size but also depend on the input independent variables used in developing the machine learning models, highlighting the importance of comparing model performances between different input datasets [50]. However, to our knowledge, few studies have focused on developing machine learning models to predict the WQI and comparing these performances with large dataset in coastal cities adjacent to the Yellow Sea, especially in Jiangsu Province, one of the most developed regions in China suffering from water pollution problems [60,61]. These achievements are crucial in determining the minimum numbers of key water parameters and the most reliable model to achieve the highest precision in prediction of WQI values or grades (such as “excellent”, “Good” or “Bad” water quality classified by different ranges of WQI values), which could provide a time- and cost-saving way in efficient and effective water environment protection.

In the study, a four-year water quality dataset (2020–2023) containing nine water quality indicators from seventeen rivers in Yancheng and Nantong, two coastal cities in Jiangsu Province adjacent to the Yellow Sea, was collected. The main objectives were to (1) develop statistical and machine learning models to predict the WQI based on various groups of input variables; (2) select the key water parameters and most reliable models in predicting WQI values and grades; and (3) assess spatio-temporal variations of key water parameters in the two coastal cities. The research is expected to contribute to effective and efficient river management in the coastal cities adjacent to the Yellow Sea, and the methodological framework can also be applied in other rivers worldwide.

2. Material and methods

2.1. Study area

Yancheng and Nantong are two coastal cities in Jiangsu Province, east-central China, situated east of the Yellow Sea (Fig. 1). Yancheng (119.45–120.90°N, 32.57–34.47°E) is located in the middle of the northern plain of Jiangsu Province, covering an area of 16,931 km² with over six million inhabitants [62]. Yancheng has the largest land area and longest coastline in Jiangsu Province, occupying 70 % of the tidal flat and 56 % of the coastline length [63]. The terrain of Yancheng is plain landform, including the Huanghuai Plain, the Lixiahe Plain, and the Binhai Plain. Over 1000 m of loose alluvial deposits, consisting of clay, sub-clay, and sandstone, were formed in Yancheng due to the rise and fall of sea levels and the interaction of the Yangtze River, Yellow River, and Huai River throughout history [64].

Fig. 1.

The map of research area which is lying in eastern China and the locations of nineteen water quality monitor stations in Yancheng and Nantong cities.

Nantong is situated south of Yancheng, at the forefront of the Yangtze River Delta alluvial plain, lying between 31.68–32.77°E and 120.20–121.91°N, with an area of 8001 km² and a population of over eight million [65]. The average altitude of Nantong city is below 5 m, with vast marine plains, salt fields and beaches. Yancheng is in the north-to-south transitional zone from a temperate to subtropical monsoon climate, while Nantong lies in the subtropical monsoon climate zone. The average temperature ranges from 13.7 to 15.1 °C, with an annual precipitation of around 1000 mm and an average evaporation capacity of approximately 1300 mm [66,67].

Both cities have numerous rivers, such as Mangshe River and Sheyang River in Yancheng, and Beiling River and Tongqi Canal in Nantong, with high river network density of 3.1 km/km² and 2.22 km/km², respectively, mainly flowing into the Yellow Sea [68]. The Sheyang River is one of the largest rivers in Jiangsu Province, with a maximum depth of about 8 m [69]. The thickness of the aquifer is about 10–15 m and depth of groundwater is about 1–4 m in Yancheng [70]. The groundwater depth in Nantong is about 0.45–2.88 m, influenced by annual periodic changes of rainfall and tidal water levels along the Yangtze River [71].

Farmland is the dominated land use type in Yancheng, with paddy fields and dry land accounting for approximately 35 % and 43 % of the area, respectively [72]. Farmland accounts for a lesser percentage in Nantong, around 44 % [73]. In addition to non-point pollution caused by agricultural cultivation, rapid urbanization and economic development in the two cities recently caused serious problems in environmental deterioration and ecological damage. Simultaneously, several water pollution incidents have occurred, posing risks to safe drinking water sources for more than ten million people [74,75].

2.2. Water quality dataset and WQI calculation

To evaluate the water environment in rivers and select the key water parameters for predicting the WQI in the two coastal cities, water quality data from nineteen monitor stations (S1 to S19) were collected from Environmental Protection Department in Jiangsu province (see Table 1). Stations S1 to S11 are located in Yancheng, while S12 to S19 are in Nantong. In Yancheng, eight monitor stations (S2, S3, S5, S6, S7, S8, S9 and S11) were situated at coastal ports alongside the Yellow Sea, with S1 and S4 being upstream water quality stations for S7 and S8, respectively. In Nantong, two costal port stations (S18 and S19), one port station to the Yangtze River (S13), three stations at floodgates in the coastal regions (S12, S15 and S16) and two stations at canals flowing into sea (S14 and S17) were included.

Table 1.

Details of water quality monitoring stations in the research area.

Station name	Code	Longitude	Latitude	River	River length (km)	Area(km2)
Fenghuangqiao	S1	120.048	33.359	Mangshe River	46	870
Touzengzha	S2	120.092	34.373	Abandoned Yellow River	728	4291
Liuduozha	S3	120.255	34.093	Main Irrigation Channel of North Jiangsu	168	564
Datuanqiao	S4	120.316	33.243	Doulong Port	4428	4428
Sheyanghezha	S5	120.346	33.804	Sheyang River	198	4036
Huangshagangzha	S6	120.399	33.736	Huangsha Port	89	865
Xinyanggangzha	S7	120.481	33.621	Xinyang Port	70	2478
Doulonggangzha	S8	120.588	33.460	Doulong Port	55	4428
Wanggangzha	S9	120.708	33.190	Wanggang River	44	498
Fuminqiao	S10	120.774	32.690	Dongtai River	55	479
Chuandongzha	S11	120.805	33.057	Chuandong Port	49	648
Beilingxinzha	S12	120.953	32.606	Beiling River	45	323
Jiuweigangqiao	S13	121.042	32.306	Jiuwei Port	47	2123
Xiaoyangkou	S14	121.049	32.567	Bencha Canal	79	446
Huandongzhakou	S15	121.186	32.479	Jucha River	17	300
Donganzhaqiao	S16	121.376	32.278	Rutai Canal	155	452
Junandaqiao	S17	121.568	31.941	Tongqi Canal	93	530
Dayanggangqiao	S18	121.598	32.063	Tonglv Canal	79	2294
Tanglugangzha	S19	121.829	31.936	Tongqi Canal	93	530

Nine water quality parameters were considered in the research based on data availability and literature on WQI calculation: water temperature (WT/($°C$)), pH, dissolved oxygen (DO/(mg/L)), electrical conductivity (EC/($\mu$ s/cm)), turbidity (Tur/(NTU)), permanganate index (COM/(mg/L)), ammonia nitrogen (AN/(mg/L)), total phosphorus (TP/(mg/L)) and total nitrogen (TN/(mg/L)) [76,77]. The dataset ranged from November 2020 to August 2023 and included a total of 18084 records. To compare the water quality status in Yancheng and Nantong, a t-test was used to analyze whether significant differences existed between the two cities.

The WQI values were calculated by:

$$WQI=\frac{{\sum }_{i=1}^n{C}_i{P}_i}{{\sum }_{i=1}^n{P}_i}$$ (1)

where the C_i represents normalized value of parameter i and P_i represents the weight of parameter i. The normalized values and weights of all water quality parameters are shown in Table S1, which were recommended by previous literature evaluating water quality in the area having similar meteorology and hydrology conditions with the research area in the article [37,38]. Based on the calculated WQI values, the water quality can be categorized into five grades (Table S2), accordingly, “excellent” level (91–100), “good” level (71–90), “medium” level (51–70), “low” level (26–50) and “bad” level (0-25).

2.3. Model development

In the research, various models were applied to predict the WQI using different input groups of water quality parameters, including Linear regression Model (LM) and machine learning models. The LM is a simple and fundamental model in statistical analysis, widely used to describe linear relationships between one or more independent variable and dependent variable. Seven common machine learning models were applied for WQI prediction: Artificial Neural Network (ANN), Self-Organizing Maps (SOM), K-Nearest Neighbors (KNN), Support Vector Machines (SVM), Random Forest (RF), Extreme Gradient Boosting (XGB), Stochastic Gradient Boosting (SGB) [78,79].

ANN is a popular machine learning models reported to be an efficient and accurate tool for water quality analysis due to its robustness and capability in solving nonlinear and nonstationary problems [80,81]. An ANN model consists of three kinds of layers (input, hidden, and output), which can increase the ability to describe complex relationships. SVM is a kernel-based model that includes regularization and kernel function (linear, polynomial or radial basis function), providing high flexibility and global optimization by constructing expert information [82,83]. KNN is a simple but computationally complex algorithm for classification and prediction, where nearby records tend to have similar values based on distance measures such as Euclidean, Manhattan, Minkowski distance [84]. SOM is a type of non-supervised artificial neural advantageous for visualizing high-dimensional data and interpreting nonlinear relationships between multi-dimensional data. In an SOM network, the input layer and output layer (competitive layer) are fully connected. In competition, the weights of the winning neuron and its neighboring neurons are adjusted following input patterns, allowing the model to achieve self-organizing learning capabilities [85,86]. RF is an ensemble learning algorithm consisting of multiple decision trees selected randomly from samples and features, contributing to improved prediction/classification accuracy and reduced model variance [[86], [87], [88]]. XGB and SGB are two types of ensemble tree methods that improve prediction accuracy by constructing multiple weak learners (classification and regression trees) using the gradient descent architecture [89,90].

To minimize the water quality parameters in WQI prediction, different groups of input variables, including partial or the entire water quality dataset, were collected. The input variables were determined by Pearson's correlation analysis, where the corresponding water quality parameters were added sequentially into input groups according to their correlation coefficients in descending order. These different input groups were set as independent variables to predict the WQI using various statistical and machine learning models. The entire dataset was standardized (0–1 standardization) and then split into two group, with 70 % of the data used for model training and the remaining 30 % for model testing [91]. The developed models were validated by a 10-fold cross-validation approach, which is widely used for comparing and optimizing model performances during the development of machine learning models [92].

2.4. Model evaluation

The model performances and sensitivity were evaluated using mean absolute error (MAE), root mean squared error (RMSE) and coefficients of determination (R²), which are common statistical measures employed in literatures [[93], [94], [95]]. Model efficiency was analyzed by the Nash–Sutclife efficiency (NSE) index, widely used in hydrological model assessment initially and recently utilized in selection the best machine learning models [96,97]. The calculation formulas are as follows [98]:

$$MAE=\frac{1}{n}{\sum }_{i=1}^n\left|P_i-A_i\right|$$ (2)

$$NSE=1-\frac{{\sum }_{i=1}^n{\left(A_i-P_i\right)}^2}{{\sum }_{i=1}^n{\left(A_i-\overline{A_i}\right)}^2}$$ (3)

$$RMSE=\sqrt{\frac{{\sum }_{i=1}^n{\left(P_i-A_i\right)}^2}{n}}$$ (4)

$$R^2=\frac{{\left[{\sum }_{i=1}^n\left(A_i-\overline{A_i}\right)\left(P_i-\overline{P_i}\right)\right]}^2}{{\sum }_{i=1}^n{\left(A_i-\overline{A_i}\right)}^2{\sum }_{i=1}^n{\left(P_i-\overline{P_i}\right)}^2}$$ (5)

where A_i and P_i represent the actual and predicted WQI at the ith data; $\overline{A_i}$ and $\overline{P_i}$ represent the average value of the actual and predicted WQI respectively; and n represents the number of WQI records.

To analyze the levels of model uncertainty, four statistical indices, including average, maximum, minimum and standard deviation, were calculated at all stations [99,100]. Overall, five steps were considered in the research: data collection and pre-processing, determining different input variables groups for WQI prediction, development of WQI prediction models, selection of key water parameters and the most reliable model, and assessment of key water parameters in the two coastal cities. The methodological framework of the research is shown in Fig. 2. In the study, all data processing and model developments were completed using the R statistical computing platform [101].

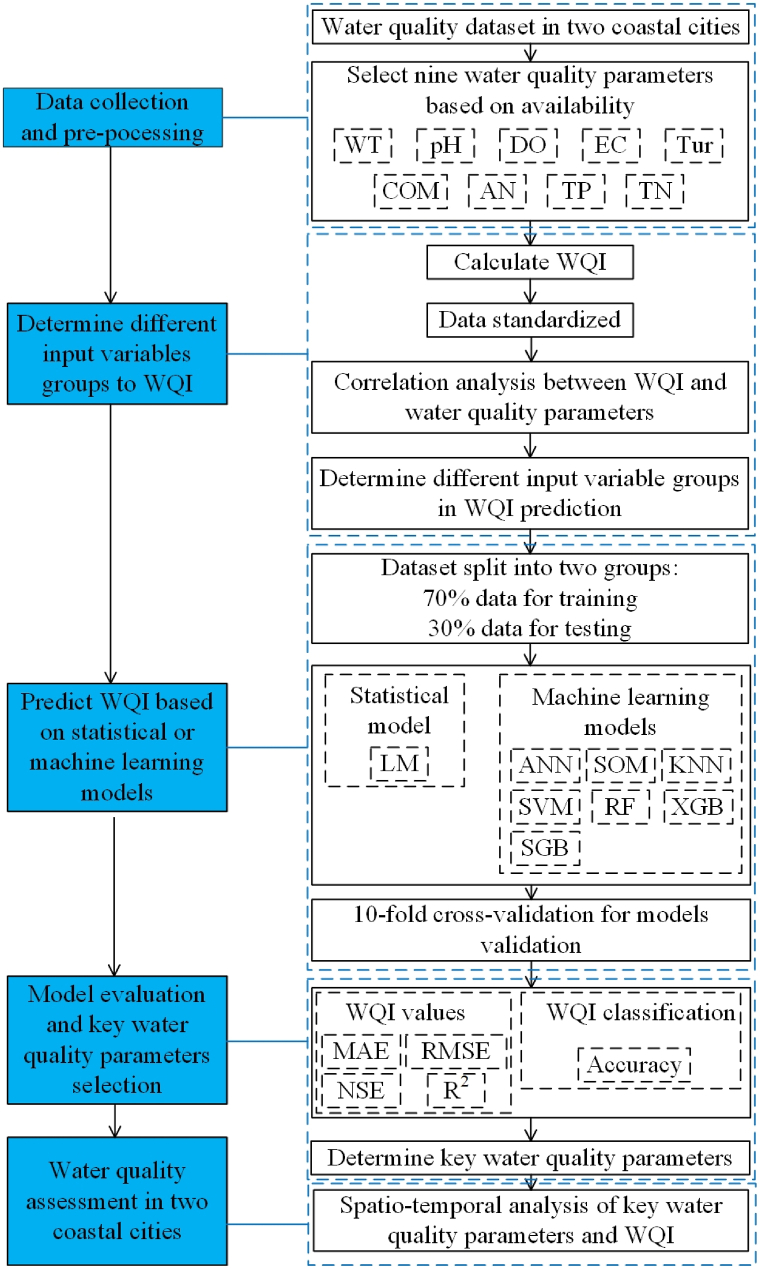

Fig. 2.

The methodological framework for WQI prediction and key water quality parameters selection in the two coastal cities.

3. Results and discussion

3.1. Summary of water quality indicators

The summary of nine water quality parameters and corresponding WQI at nineteen monitor stations were shown in Table 2. The average WT ranged from 17.6 °C to 19.9 °C with the highest WT recorded in Nantong (S12 and S18) and the lowest WT in Yancheng (S3, S5 and S9). The WT in Yancheng was significantly lower than in Nantong (Table 3), mainly due to the geographic locations of the cities (Yancheng is north to Nantong city). The S1 and S4 had the lowest pH (7.51), while relatively higher pH existed at S2, S13 and S19. The dissolved oxygen (DO) concentration showed no significant difference between the two cities, but variations existed among the monitoring stations. Accordingly, the S10 experienced the worst DO conditions (5.93 mg/L), while S3 had the best DO conditions (8.71 mg/L), implying the presence of biodegradable organic pollution in the Dongtai River [102].

Table 2.

Summary of nine water quality parameters and WQI at each monitoring station.

Code	WT (°C)	pH	DO (mg/L)	EC (μS/cm)	Tur (NTU)	COM (mg/L)	AN (mg/L)	TP (mg/L)	TN (mg/L)	WQI	Records number
S1	18.2 $\pm$ 8.4	$7.51\pm 0.31$	$6.91\pm$ 3.20	$572\pm 83$	41.3 $\pm$ 18.0	$4.25\pm 1.17$	0.19 $\pm$ 0.14	0.10 $\pm$ 0.03	2.00 $\pm$ 0.53	$61.4\pm 8.9$	976
S2	17.8 $\pm$ 8.7	8.06 $\pm$ 0.39	$8.49\pm$ 3.09	652 $\pm$ 126	$59.0\pm 36.9$	3.73 $\pm 0.71$	0.08 $\pm$ 0.06	0.07 $\pm$ 0.03	1.81 $\pm$ 0.56	67.0 $\pm$ 7.6	897
S3	$17.5\pm 8.7$	7.95 $\pm 0.42$	8.71 $\pm$ 2.86	659 $\pm$ 154	79.9 $\pm$ 69.0	3.66 $\pm$ 1.17	0.10 $\pm$ 0.08	0.08 $\pm$ 0.05	1.77 $\pm$ 0.57	67.3 $\pm$ 6.9	961
S4	$18.4\pm 8.4$	7.51 $\pm 0.31$	6.60 $\pm 2.79$	664 $\pm$ 129	58.8 $\pm$ 20.1	$4.18\pm 1.39$	0.22 $\pm 0.22$	0.14 $\pm 0.06$	$2.13\pm 0.58$	58.9 $\pm$ 8.0	982
S5	$17.6\pm 8.4$	7.78 $\pm 0.35$	7.62 $\pm 3.10$	888 $\pm 386$	$55.0\pm 35.9$	5.55 $\pm 1.41$	0.28 $\pm 0.23$	$0.13\pm 0.05$	2.56 $\pm 0.58$	58.1 $\pm 10.1$	954
S6	$17.9\pm 8.7$	$7.73\pm 0.41$	6.62 $\pm 3.39$	$921\pm 252$	$39.5\pm 37.1$	$5.41\pm 1.40$	0.28 $\pm 0.26$	$0.17\pm 0.06$	$2.49\pm 0.52$	56.4 $\pm 10.5$	957
S7	17.9 $\pm 8.4$	$7.74\pm$ 0.36	$7.75\pm 3.20$	1032 $\pm$ 446	91.8 $\pm$ 43.8	4.94 $\pm$ 1.16	0.23 $\pm 0.17$	$0.13\pm 0.05$	$2.62\pm 0.63$	$56.6\pm 7.8$	951
S8	18.4 $\pm 8.6$	$7.78\pm 0.41$	$6.92\pm 3.25$	1024 $\pm$ 462	$41.4\pm 20.0$	$4.62\pm 1.57$	0.25 $\pm 0.27$	$0.13\pm 0.06$	$2.53\pm 0.69$	58.9 $\pm 10.9$	958
S9	$17.6\pm 8.4$	$7.85\pm 0.41$	$7.38\pm 4.11$	1330 $\pm$ 518	$27.4\pm 16.0$	5.21 $\pm 1.39$	0.32 $\pm 0.34$	$0.17\pm 0.09$	$2.91\pm 1.04$	57.7 $\pm 11.6$	911
S10	$18.7\pm 8.7$	$7.75\pm 0.42$	$5.93\pm 2.64$	$904\pm 383$	$29.3\pm 37$.2	4.23 $\pm 1.47$	0.15 $\pm 0.23$	$0.14\pm 0.10$	$2.21\pm 0.70$	62.4 $\pm 10.7$	942
S11 S12 S13 S14 S15 S16 S17 S18 S19	18.9 $\pm 8.5$ 19.9 $\pm 7.9$ 19.6 $\pm 7.2$ 19.3 $\pm 7.8$ 19.2 $\pm 8.1$ 18.9 $\pm 8.3$ 19.1 $\pm 8.1$ 19.9 $\pm 7.7$ 18.7 $\pm 7.8$	7.9 $2\pm 0.47$ 7.91 $\pm 0.39$ 8.08 $\pm 0.17$ 7.82 $\pm 0.36$ 7.86 $\pm 0.41$ 7.87 $\pm 0.32$ 7.80 $\pm 0.37$ 7.95 $\pm 0.25$ 8.03 $\pm 0.34$	8.18 $\pm 3.17$ 7.89 $\pm 4.20$ 7.74 $\pm 1.53$ 6.97 $\pm 3.84$ 7.62 $\pm 4.79$ 7.46 $\pm 3.22$ 7.18 $\pm 4.09$ 6.69 $\pm 2.16$ 7.40 $\pm 3.57$	1532 $\pm$ 809 1675 $\pm 496$ 361 $\pm 56$ 1100 $\pm 282$ 1442 $\pm 820$ 1066 $\pm 732$ 611 $\pm 126$ 527 $\pm 216$ 2263 $\pm 1277$	$37.9\pm 31.2$ 23.5 $\pm 15.0$ 47.3 $\pm 68.6$ 27.9 $\pm 19.8$ 32.7 $\pm 25.9$ 37.3 $\pm 28.9$ 12.3 $\pm 7.7$ 85.7 $\pm 47.7$ 33.9 $\pm 32.6$	$5.06\pm 1.53$ 6.47 $\pm 1.25$ 1.81 $\pm 0.59$ 5.39 $\pm 1.38$ 5.41 $\pm 1.49$ 4.28 $\pm 1.48$ 3.67 $\pm 0.84$ 2.34 $\pm 1.15$ 4.80 $\pm 1.06$	0.31 $\pm 0.40$ 0.54 $\pm 0.55$ 0.07 $\pm 0.14$ 0.45 $\pm 0.54$ 0.36 $\pm 0.49$ 0.36 $\pm 0.39$ 0.12 $\pm 0.09$ 0.19 $\pm 0.15$ 0.28 $\pm 0.26$	$0.17\pm 0.11$ 0.26 $\pm 0.15$ 0.09 $\pm 0.04$ 0.21 $\pm 0.12$ 0.21 $\pm 0.12$ $0.19\pm 0.11$ 0.09 $\pm 0.04$ 0.15 $\pm 0.07$ 0.16 $\pm 0.07$	$3.29\pm 1.04$ 2.82 $\pm 1.06$ 2.23 $\pm 1.97$ 2.50 $\pm 1.83$ 2.75 $\pm 1.23$ 2.16 $\pm 0.76$ 1.69 $\pm 0.45$ 2.04 $\pm 0.49$ 2.43 $\pm 1.74$	59.6 $\pm 11.1$ 55.3 $\pm 10.9$ 72.0 $\pm 6.3$ 57.2 $\pm 11.5$ 57.0 $\pm 11.7$ 59.9 $\pm 10.2$ 69.3 $\pm 8.7$ 62.2 $\pm 8.4$ 58.3 $\pm 9.6$	927 926 974 948 961 963 981 950 965

Table 3.

The comparison of water quality in Yancheng and Nantong city with T-test.

Water quality parameter	Yanhceng	Nantong	p-value
WT (°C)	18.1	19.3	<2 × 10−16***
pH	7.78	7.92	<2 × 10−16***
DO (mg/L)	7.36	7.37	0.929
EC (μS/cm)	922	1127	<2 × 10−16***
Tur (NTU)	51.1	37.5	<2 × 10−16***
COM (mg/L)	4.62	4.26	<2 × 10−16***
AN (mg/L)	0.22	0.30	<2 × 10−16***
TP (mg/L)	0.13	0.17	<2 × 10−16***
TN (mg/L)	2.39	2.32	1 × 10−4***
WQI	60.4	61.5	3 × 10−11***

### The asterisk means significant different existing between the two coastal cities.

The EC tended to be higher at stations closer to the sea. Consequently, S1, S4 and S13, which were upstream stations of estuary of the Yellow Sea or ports to the Yangtze River, had relatively lower EC (<700 μS/cm), while the ports or floodgates in the coastal regions had higher EC (ranging from 1330 to 2263 μS/cm). Turbidity values were significant higher in Yancheng than in Nantong, with S7 in Yancheng having the highest turbidity (91.8 NTU) and S17 in Nantong having the lowest (12.3 NTU). Turbidity, an index of light scattering by suspended particles, has been seen as a surrogate index for suspended sediment in waterbody, and the high turbidity was an important cause in formation of coastal tidal flat wetlands in Yancheng [103,104]. Additionally, the construction of floodgates in Xinyang Port altered the hydrodynamic characteristics of the river and resulted to sediment deposition alongside the river section, providing an explanation for the highest turbidity at S7 [105]. COM and TN concentrations in Yancheng were significantly higher than in Nantong, while AN and TP exhibited the opposite pattern.

According to China's Environmental Quality Standards for Surface Water (GB 3838-2002), water quality at most stations failed to meet the standard of V grade because of high TN concentration. Due to river nitrogen exports were the largest pollution sources in the Yellow Sea, our result indicated the importance to control TN pollution in the two coastal cities in order to protect the costal water ecosystem [106].

3.2. WQI characteristics

3.2.1. WQI values and grades in the two coastal cities

The WQI values were slightly higher in Nantong (mean values about 55.3–72.0) than in Yancheng (mean values about 56.4–67.3), implying that the water environment was relatively better in Nantong. Based on the WQI values at all monitor stations, the grades of WQI could be classified (Table S2). According to the average WQI values, the water quality grades were “Medium” at almost all stations except “Good” level in S12.

The percentage of each WQI grades in all stations were shown in Table 4. Based on the calculated WQI values, no record met the criteria of “Excellent” water quality. S13 had the most records of “Good” water quality, with percentage of 71.3 %, while S4 had the least, with a percentage of 0.9 %. The percentage of "Good" level water quality was below 5 % at four stations in Yancheng (S4, S5, S6, and S7) and one station in Nantong (S12). The “Medium” level occupied the most records, with the percentage exceeding 70 % at nine out of eleven monitoring stations (S1, S4, S5, S6, S7, S8, S9, S10, and S11) in Yancheng and three out of eight stations (S16, S18, and S19) in Nantong. The percentage of “Medium” water quality at other stations were less than 70 %, with a minimum was 27 % in the S13. Two stations (S6 and S9) in Yancheng and three stations in Nantong (S12, S14 and S15) had more than 20 % records assessed as “Low” level, while four stations (S2 and S3 in Yancheng and S13 and S17 in Nantong) had the least percentage, which less than 5 %. The percentage of “Bad” level were less than 2 % and even zero at all monitor stations.

Table 4.

summary of the WQI classification at all monitoring stations.

Station	Excellent (%)	Good (%)	Medium (%)	Low (%)	Bad (%)
S1	0.0	7.6	78.1	14.3	0.0
S2	0.0	38.4	59.1	2.6	0.0
S3	0.0	33.8	63.9	2.3	0.0
S4	0.0	0.9	87.3	11.7	0.1
S5	0.0	4.8	77.0	17.9	0.2
S6	0.0	2.0	72.1	25.7	0.2
S7	0.0	1.2	79.4	19.5	0.0
S8	0.0	9.9	70.1	19.8	0.1
S9	0.0	5.5	72.0	20.9	1.6
S10	0.0	16.7	71.0	11.9	0.4
S11	0.0	13.3	70.6	15.5	0.6
S12	0.0	1.6	68.7	28.9	0.8
S13	0.0	71.3	27.0	1.5	0.2
S14	0.0	6.5	69.3	23.6	0.5
S15	0.0	7.6	66.8	24.9	0.7
S16	0.0	9.9	74.6	15.5	0.1
S17	0.0	49.4	47.3	3.3	0.0
S18	0.0	8.7	82.1	9.2	0.0
S19	0.0	5.4	74.8	19.6	0.2

3.2.2. Correlation between water quality parameters and WQI

To select the key water parameters that had an important effect on WQI prediction, the correlation between different water quality parameters and WQI values was analyzed (Fig. 3). TP was the variable with the most important negative influence on WQI, with a correlation coefficient of −0.72, followed by AN and DO, with correlation coefficients were −0.66 and 0.63, respectively. COM and pH were the next two parameters, with correlation coefficients of −0.56 and 0.54, respectively. Although TN was the most polluted contaminant in the research area based on the results in Section 3.1, it had a relatively weak impact on WQI values, with a correlation coefficient of −0.31. Tur and EC had the lowest correlation coefficients of −0.22 and −0.12, respectively, suggesting that they may have a minor influence on WQI predictions and could contribute to cost-saving in sample collection by reducing the sampling frequencies of these two parameters.

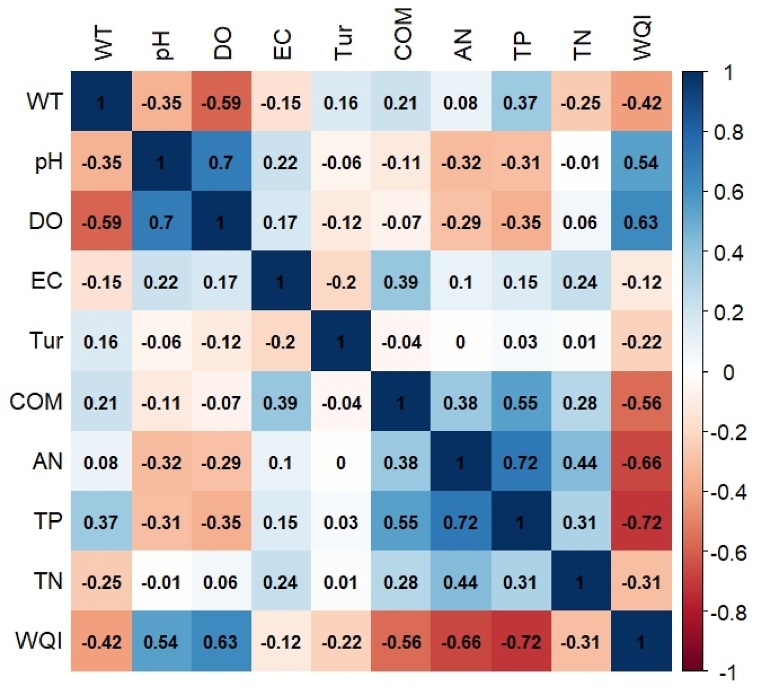

Fig. 3.

The correlation coefficient between all water quality parameters and the WQI.

Based on the result of the correlation analysis, nine groups of input water quality parameters were determined, as shown in Table 5, where one variable was added to each group according to the descending order of correlation coefficients.

Table 5.

Different combinations of input variables to predict the WQI.

Group number	Input variables
1	TP
2	TP, AN
3	TP, AN, DO
4	TP, AN, DO, COM
5	TP, AN, DO, COM, pH
6	TP, AN, DO, COM, pH, WT
7	TP, AN, DO, COM, pH, WT, TN
8	TP, AN, DO, COM, pH, WT, TN, Tur
9	TP, AN, DO, COM, pH, WT, TN, Tur, EC

3.3. Model evaluation and selection of key water parameters

3.3.1. Model evaluation in prediction of WQI values

The nine input groups, which included different numbers of water quality parameters, acted as independent variables for LM and seven machine learning models. All models were validated by 10-fold cross-validation, and the optimized tuning parameters were summarized in Table 6. The performance metrics, including MAE, NSE, RMSE and R² from the training and testing phases, were shown in Table S3.

Table 6.

Details of tuning parameters and settings of the optimal models for WQI predicting.

Models	Tuning parameters
LM	intercept = True
ANN	size = 5, decay = 1 × 10−4
SOM	xdim = 3, ydim = 4, user.weights = 0.5,topo = hexagonal
KNN	kmax = 9, distance = 2, kernel = optimal
SVM	radial basis function kernel, sigma = 0.152, C = 1
RF	mtry = 5
XGB	nrounds = 150, lambda = 0, alpha = 0.1, eta = 0.3
SGB	n.trees = 150, interaction.depth = 3, shrinkage = 0.1, n.minobsinnode = 10

#All optimal models were selected by the smallest RMSE except the LM.

For the LM, the MAE and RMSE decreased with an increasing number of input variables, while NSE and R² increased from 0.513 to 0.825 in the training phase and from 0.508 to 0.838 in the testing phase, indicating that model performance improved with the addition of input variables. The performances of most machine learning models were similar to the LM, except for the SOM, whose performance improved with an increase in input variables from one to four (TP, AN, DO and COM) but declined when more variables were added. This may be related to model optimization to different local optima, resulting in diverse model performance caused by various input groups [107,108]. The R² and NSE for all models that predicted using one variable (TP) ranged from 0.5 to 0.6, except for KNN, where the NSE values were 0.412 and 0.381 for the training and testing phases, respectively. For LM and SOM, the highest values of NSE and R² were about 0.8 with nine input variables (all water quality parameters) and four variables (TP, AN, DO, COM) respectively. The NSE and R² were higher than 0.95 for the other models applying nine water quality parameters to predict the WQI, and the NSE and R² from RF, XGB and SGB even higher than 0.99. Similar WQI prediction with ten water quality parameters in North of Vietnam reported R² from RF and SVM were 0.92 and 0.72 respectively, however, it pointed out that RF seemed to have the best model performance [109]. The application of RF models in prediction of river WQI were also indicated by previous studies, such as six water quality variables to predict WQI grades in the Klang River Basin, Malaysia [110] and prediction from twelve input combinations of water quality parameters (the highest R² = 0.998) in the Illizi region, Algerian [111].

The MAE ranged from 0.07 to 0.1 for one input variable and decreased with the addition of water quality parameters, reaching less than 0.05 or even 0.01 (XGB) with nine input variables except SOM. The RMSE values had similar characteristics to the MAE and the lowest value was obtained with nine water quality parameters by XGB (0.006 in train phase and 0.011 in testing phase). Khoi et al. [112] highlighted the highest accuracy of WQI prediction by XGB (R² = 0.989 and RMSE = 0.107) among boosting-based, decision tree-based and ANN-based algorithms in La Buong River. Analysis of water quality in Ujjain city, India reported that XGB had superiority than ANN, SVM and RF with R² = 0.969/0.987 in training and testing phase [113]. Uddin et al. [114] also indicated that KNN and XGB algorithms outperformed than other commonly used machine learning models in accuracy of WQI prediction in Cork Harbour, Ireland. In general, the decision tree-based or ensemble trees algorithms outperformed statistical and neural network models due to their ensemble learning ability from multiple weak learning machines or simple trees, which was consistent with previous studies [4,115].

A model could be considered satisfactory with R² higher than 0.9 in both the training and testing phases based on recommended from Grassi et al. [116]. The LM and SOM with all input groups failed to meet this criterion, while the ANN, KNN, SVM and SGB with four water quality parameters (TP, AN, DO, COM) could meet it. The RF and XGB had better performance, with R² values in the training and testing phases higher than 0.9 with three independent variables (TP, AN and DO) to predict the WQI. The comparisons between actual and predicted WQI from LM and machine learning models were shown in Fig. 4. The red lines were 1:1 line and if all points located in the lines indicated the predicted values were the same as the actual ones and model could exactly describe all influence factors [117]. According to the figure, it was convenient to find that RF and XGB had the best model performance where all points were alongside the red lines and the distances between scatter points and the lines were shrunk with more variables added. The points from ANN, KNN, SCM and SGB had the similar patterns with the RF and XGB, but the points distribution strips were wider. The points from LM had a reverse L-shaped, which had no visible changes with added input variables, indicating that the LM failed to provide suitable prediction for low WQI values. The performance of SOM did not significantly improve more input variables, suggesting that it was unsuited for WQI prediction in the research area.

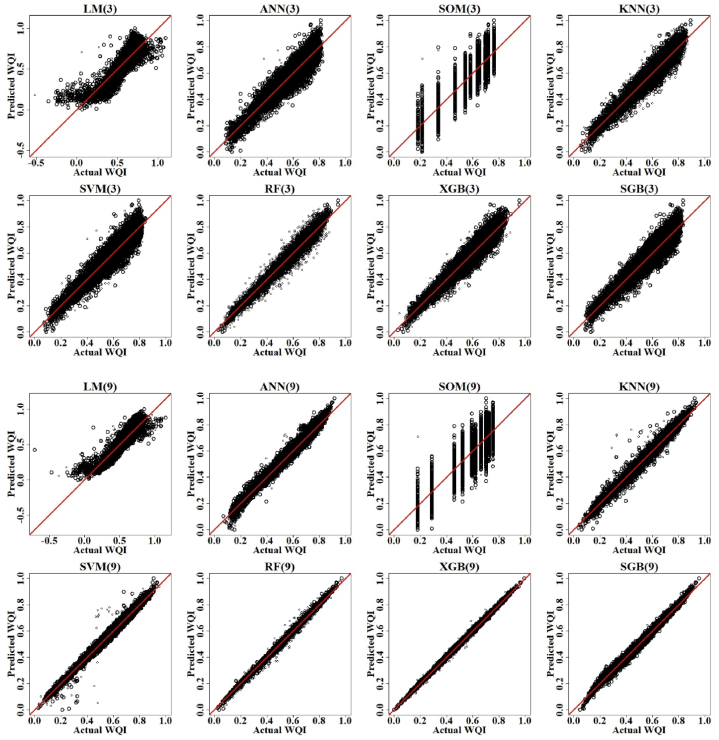

Fig. 4.

The actual vs. predicted WQI which were predicted by three (key water parameters determined in the article) and nine (all water parameters) water quality parameters from different statistical and machine learning models. The comparisons between actual vs. predicted WQI from other numbers of variables were present in Fig. S1.

3.3.2. Model evaluation in prediction of WQI grades

In addition to WQI values, WQI grades are also widely applied in water quality evaluation, which had five levels: “Excellent”, “Good”, “Medium”, “Low” and “Bad” water quality. In the dataset, most records were assessed as “Medium” water quality (69.0 %) while “Good” (15.5 %) and “Low” (15.2 %) levels had similar numbers of records. No record was evaluated as “Excellent” and less than 0.5 % record as “Bad” level. The prediction accuracy based on each level and the results are summarized in Table 7. The accuracies with one variable (TP) from all models ranged from 70 % to 77 %, and the accuracies generally increased with the addition of more variables into the models. The maximum accuracies from LM and SOM were about 80 %, and they were about 93 % from ANN and KNN with nine independent variables, except SOM (seven independent variables). The accuracies from SVM, RF, XGB and SGB were even higher than 95 %. A prediction accuracy of WQI levels higher than 0.85 was considered satisfactory based on the recommendation from Freeman and Moisen [118]. Therefore, the ANN, KNN, SVM, XGB and SBG performed well enough with three input variables (TP, AN and DO). The RF had even better performance than the XGB, as only two water quality parameters (TP and AN) could provide more than 85 % accuracy in predicting WQI levels.

Table 7.

Accuracy of grades of water quality based on predicted WQI values from different statistical or machine learning models with nine groups of variables.

		E	G	M	L	B	Sum
Actual WQI		0	2812	12476	2741	55	18084
Model							Accuracy
LM	1	0	63	12164	927	18	72.8 %
	2	0	7	12322	872	20	73.1 %
	3	0	461	11857	1385	27	75.9 %
	4	0	863	11789	1718	35	79.7 %
	5	0	991	11771	1718	35	80.3 %
	6	0	990	11778	1722	35	80.3 %
	7	0	1007	11745	1754	35	80.4 %
	8	0	1175	11830	1767	39	81.9 %
	9	0	1259	11812	1804	37	82.5 %
ANN	1	0	654	11599	1421	0	75.6 %
	2	0	654	11644	1550	0	76.6 %
	3	0	1690	11445	2266	6	85.2 %
	4	0	1866	11571	2327	16	87.3 %
	5	0	1886	11518	2342	24	87.2 %
	6	0	1893	11565	2364	19	87.6 %
	7	0	1851	11634	2458	9	88.2 %
	8	0	2257	11851	2547	0	92.1 %
	9	0	2304	11982	2565	4	93.2 %
SOM	1	0	1277	10938	1427	0	75.4 %
	2	0	1925	10353	1495	0	76.2 %
	3	0	1009	11754	1616	0	79.5 %
	4	0	1068	10954	2514	0	80.4 %
	5	0	1210	11650	1697	0	80.5 %
	6	0	849	11538	1405	0	76.3 %
	7	0	677	11948	1970	0	80.7 %
	8	0	702	11906	1541	0	78.2 %
	9	0	925	10616	2377	0	77.0 %
KNN	1	0	462	10644	1922	0	72.0 %
	2	0	1332	11557	1680	2	80.6 %
	3	0	1936	11693	2339	12	88.4 %
	4	0	2056	11876	2429	17	90.6 %
	5	0	2080	11947	2406	15	91.0 %
	6	0	2214	11958	2447	19	92.0 %
	7	0	2266	12022	2498	18	92.9 %
	8	0	2369	12126	2492	22	94.1 %
	9	0	2358	12128	2471	23	93.9 %
SVM	1	0	707	11551	1427	0	75.7 %
	2	0	1389	11390	1468	0	78.8 %
	3	0	1825	11461	2296	11	86.2 %
	4	0	1901	11614	2378	16	88.0 %
	5	0	1901	11690	2396	20	88.5 %
	6	0	1974	11730	2396	16	89.1 %
	7	0	2035	11805	2464	16	90.2 %
	8	0	2448	12099	2570	30	94.8 %
	9	0	2461	12124	2593	33	95.2 %
RF	1	0	818	11554	1403	7	76.2 %
	2	0	1611	11865	1928	11	85.2 %
	3	0	2149	11977	2460	26	91.9 %
	4	0	2275	12084	2528	32	93.6 %
	5	0	2283	12131	2525	29	93.8 %
	6	0	2312	12186	2526	27	94.3 %
	7	0	2355	12231	2587	33	95.1 %
	8	0	2553	12350	2646	41	97.3 %
	9	0	2548	12373	2644	42	97.4 %
XGB	1	0	866	11454	1428	2	76.0 %
	2	0	1338	11572	1632	1	80.4 %
	3	0	1911	11656	2347	18	88.1 %
	4	0	2129	11876	2470	33	91.3 %
	5	0	2211	11942	2498	38	92.3 %
	6	0	2260	11983	2519	34	92.9 %
	7	0	2360	12076	2575	36	94.3 %
	8	0	2609	12317	2666	49	97.6 %
	9	0	2672	12340	2679	52	98.1 %
SGB	1	0	824	11471	1422	0	75.9 %
	2	0	1281	11482	1464	0	78.7 %
	3	0	1879	11515	2174	11	86.1 %
	4	0	1943	11678	2306	20	88.2 %
	5	0	1964	11733	2318	26	88.7 %
	6	0	2067	11722	2323	21	89.2 %
	7	0	2101	11829	2379	21	90.3 %
	8	0	2538	12190	2517	28	95.5 %
	9	0	2590	12266	2567	27	96.5 %

#The E, G, M, Land B mean the Excellent, Good, Medium, Low and Bad water quality, which were five levels of WQI in the research.

The models whose prediction accuracies were higher than 85 % with the least numbers of input variables in each WQI grade were further analyzed, and the results are shown in Fig. 6. Due to two input variables and three variables in RF providing more than 85 % and 90 % accuracy, respectively, the model performances for both were included in the analysis. When the WQI level was “Good”, the predicted result was about 60 % “Good” level and 40 % “Medium” level. No record was erroneously predicted to be “Excellent”, “Low” or “Bad” levels. The RF_3 (RF with three parameters) had the highest prediction accuracy in the “Good” level (76 %).

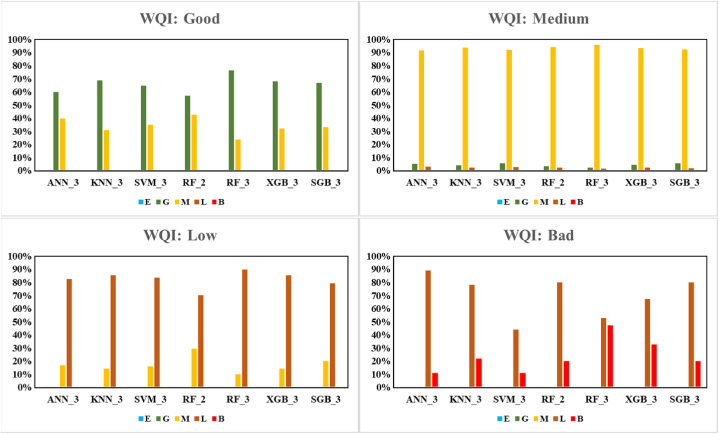

Fig. 6.

The prediction accuracy of models which obtained 85 % accuracy in prediction of WQI classification with the least water quality parameters. The ANN, KNN, SVM, XGB and SGB with three water quality parameters obtained 85 % accuracy. The prediction accuracies from RF with two and three water quality parameters were higher than 85 % and 90 % respectively. Due to no excellent WQI existed in the dataset, four rating of WQI (good, medium, low and bad) were shown in the figures.

Models preformed best when the actual WQI level was “Medium”, with prediction accuracies all higher than 90 % (about 92 %–96 %) and the mistaken evaluations were mainly lying in the “Good” and “Low” levels. When the WQI level was “Low”, the prediction accuracies were mainly about 85 % while the highest accuracy (90 %) also from RF_3. The prediction performance in “Low” level was not as good as the previous levels, with the highest accuracy of 47 % from RF_3, indicating the need for further research to improve model performance in predicting “Low” water quality. Overall, the RF model had the best performance in WQI grade prediction comparing to other models applied in the research, consistent with Uddin et al. [97] which reported that decision-tree models had better performance for prediction coastal water quality.

3.3.3. Selection of key water parameters

Based on the performance of prediction models, the input variables group which could explain more than 90 % variance in WQI values or have 85 % prediction accuracy in WQI grades, could be identified as the key water parameters. Accordingly, the R² values from RF or XGB models with TP, AN and DO were higher than 0.9. For predicting WQI grades, an accuracy of 85 % was obtained using just TP and AN with the RF model, and TP, AN, and DO with ANN, KNN, SVM, XGB, and SGB models. Wu et al. [119] used the stepwise multiple linear regression to select six parameters from thirteen water quality indicator to calculate WQI_min and Yongo et al. [120] selected three key parameters from eight to calculate the WQI_min with the R² of 0.783, which indicated that the most reliable models selected in the study had superior performance in applying less number of key parameters and getting higher prediction performance. Our result was corresponding to Kisi et al. [121] which pointed out that the tree-based algorithms with no hidden layers like RF had better model performance than ANN and Chen et al. [50] proved that tree-based models had significantly better performance than other machine learning models in prediction water quality levels.

Therefore, the three key parameters TP, AN, and DO were determined for predicting WQI values using RF and XGB models, while TP and AN were the key parameters for predicting WQI grades with the RF model. Sang et al. [122] identified chlorophyll-a, DO, AN, WT, pH, and TN as key water parameters by RF models when analyzed the long-term water quality the Three Gorges Reservoir. Pan et al. [48] selected six parameters including total suspended solids, AN, COM, EC, DO, and nitrate-nitrogen to established WQI prediction models in the Yellow River. Previous studies pointed out that AN and TP were meaningful key parameters in streams influenced by rural and agricultural activities [123,124]. The findings from Zhang et al. [125] supported the result by reporting the highest contribution to nutrients loadings from increase of build-up and agricultural land use, indicating the influence of intensive human activities exceeded the power of influence of natural processes on rivers.

3.3.4. Model uncertainty of RF and XGB

Based on the results from predicting the WQI, the RF and XGB models were selected as the most reliable, with three key water parameters identified. To assess the reliability of these models, an analysis of their uncertainty was conducted at each monitoring station (Fig. 5).

Fig. 5.

The mean, maximum (MAX), Minimum (MIN) and standard deviation (SD) of actual and predicted WQI from the RF and XGB with three key water parameters.

The mean of the actual and predicted WQI values were nearly identical across stations, except at S17, where the predicted mean was slightly lower than the actual mean during the testing phase. The maximum and minimum predicted values did not significantly differ from the actual values, with the exception of stations S15–S17, where the predicted maximum values were lower than the actual maximums. The SD of the predicted WQI were similar or slight lower than the actual SD, indicating that the range of predicted WQI values was slightly narrower than the actual range. This narrower range is consistent with the finding that the model prediction accuracy was around 50 % for the "Low" water quality grade, suggesting directions for further model improvement. Overall, however, the predicted WQI values from the RF and XGB models using the key parameters were reliable when compared to the actual WQI values.

3.4. Spatio-temporal variations of key water parameters

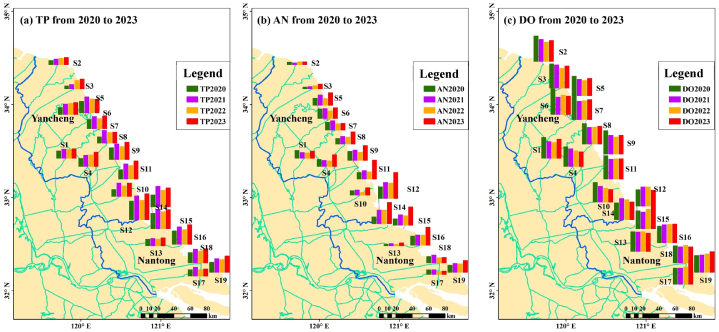

The spatio-temporal patterns of the three key water parameters were present in Fig. 7. Generally, TP concentration increased from inland to coastal stations (Fig. 7 (a)). Nantong exhibited more severe TP pollution compared to Yancheng, with the most polluted areas located along the regional borders of the two cities (stations S9, S10, S11 in Yancheng and S12, S14, S15 in Nantong). Although some stations showed relatively low TP levels in 2022, the overall trend was an increase over the study period. According to water resources bulletins, the lower annual rainfall in 2022 (407 mm and 180 mm less than 2021 in the two cities, respectively) suggests that TP pollution likely originated from non-point sources, such as fertilizer and pesticide runoff from farmlands, and livestock and poultry manure [[126], [127], [128], [129]].

Fig. 7.

The variations of key water quality parameters (TP, AN, DO) and the WQI calculated by all water quality parameters from 2020 to 2023 at nineteen monitor stations.

AN concentration exhibited a similar spatial pattern to TP, increasing from inland to coastal stations (Fig. 7 (b)). This finding was corresponding to results from Chabuk et al. [130] which pointed out area downstream of the Tigris River was more polluted. Among the coastal stations, the most polluted areas were in the central region and northern part of Yancheng (S2 and S3) and the southern part of Nantong (S17, S18, and S19). While AN concentration was relatively stable from 2020 to 2022, nearly all stations witnessed a 60 % increase in 2023, highlighting the need for river management efforts to control AN pollution.

DO concentrations in the southern stations were slightly higher than in the northern stations, suggesting better self-purification capacity of the water bodies in Nantong compared to Yancheng (Fig. 7 (c)). Contrary to the spatial variations of TP and AN, DO concentrations were lower in upstream stations (S1 and S4) than in coastal stations. DO levels decreased from 2020 to 2022 and increased in 2023 at most stations, except for S4 and S10 in Yancheng, which exhibited a continued decline, while DO remained stable or slightly increased over the study period in Nantong.

3.5. Implications and limitations

The findings of this research have significant practical and policy implications for river protection in coastal cities of Jiangsu Province, and could also be applicable to other regions with similar natural processes and anthropogenic disturbances. Accordingly, the results contribute to acceptable prediction of river water environment levels in Yancheng and Nantong cities using just two or three water quality parameters and machine learning models. This could help local governments take quick measures to control pollutants or jointly regulate water quality and quantity during sudden pollution incidents [131,132]. The scientific implications lie in promoting the advantages of machine learning models for environmental evaluation, especially when data availability is limited due to discontinuous or insufficient monitoring caused by time or funding constraints. This research aims to further propel the development and application of artificial intelligence in river protection.

This research provides clear insights that nutrients are main factors affecting water quality in these coastal cities adjacent to the Yellow Sea. This is supported by Rao et al. [72] who reports of high nutrients concentrations and loads in rivers near rural land in Yancheng, which still exceed national standard, emphasizing the need for continuous monitoring to combat water pollution and ensure water safety. By determining key water parameters using machine learning models, not only can the cost of water quality monitoring be effectively reduced, but also valuable guidance can be provided for agricultural practices and industrial production to ensure sustainable development of the water environment.

In this study, RF and XGB models demonstrated excellent performance in predicting WQI values and grades. However, the prediction accuracy for the “Bad” level (<50 %) was not satisfactory compared to other levels (“Good”, “Medium” and “Low” water quality). This could be due to the small quantity of data (<0.3 %) or relatively low WQI values in this category. To further improve model performance for the "Low" water quality level, which is crucial for identifying and providing early warning of water pollution incidents, more water quality data should be collected, and model improvements should be made.

4. Conclusions

In this study, the WQI was efficiently assessed and predicted using key water parameters and reliable models for two coastal cities, Yancheng and Nantong, adjacent to the Yellow Sea in Jiangsu province, China. The key findings are.

• (1)Water quality improved from 2020 to 2022 but deteriorated in 2023. Inland stations exhibited better water quality than coastal stations, particularly in terms of turbidity and nutrient levels. The water environment in Nantong was relatively better than Yancheng, with mean WQI values of 55.3–72.0 and 56.4–67.3, respectively. TN was the most serious pollution, failing to meet even the Grade V criteria.
• (2)"Good" and "Medium" water quality classifications accounted for 80 % of the stations. The highest "Good" percentage was 71 % (S13, Nantong), while the lowest was about 1 % (S4, S7 in Yancheng and S12 in Nantong). No station achieved "Excellent" level, and "Bad" level was recorded at less than 2 %. TP showed the strongest negative correlation (−0.72) with WQI, followed by AN, DO, COM and pH, all of which had correlations above 0.5.
• (3)Performance of all model in predicting WQI values improved with the addition of input variables, except for SOM. The NSE and R² values were even higher than 0.99 with nine input variables from machine learning models such as SVM, RF, XGB and SGB. The satisfactory prediction models with the minimum key parameters were RF and XGB with TP, AN and DO, whose NSE and R² values were higher than 0.9.
• (4)For predicting WQI grades, SVM, RF, XGB, and SGB achieved 95 % accuracy with nine inputs. RF performed best, with over 85 % accuracy using just TP and AN. Accuracies exceeded 90 % for "Medium" and "Low" grades and around 70 % for "Good", but below 50 % for "Bad" grade with TP, AN, and DO.

The model approaches to determine the most reliable machine learning models and key water parameters could also be appliable in other rivers. This could contribute to quicker WQI predictions by saving costs and reducing time spent on sample collection and laboratory analysis, thereby facilitating improvements in water resources management and pollution control in rivers. Model performance in predicting of bad water quality conditions still had a margin to be satisfactory in the article, thus, further research should focus on modifying model structures to address the limitation. Although records of poor water conditions, such as sudden pollution incidents, occupy a small portion of the data, accurate predictions are crucial for the protection of the water environment. Moreover, seasonal changes in water quality may impact WQI prediction; therefore, developing seasonal WQI prediction models to explore the influence of seasonal variations will be a focus of further research.

Data availability

Data will be made available on request.

CRediT authorship contribution statement

Jing Xu: Writing – original draft, Visualization, Validation, Software, Methodology, Investigation, Funding acquisition, Formal analysis, Data curation, Conceptualization. Yuming Mo: Writing – review & editing, Investigation. Senlin Zhu: Writing – review & editing, Methodology. Jinran Wu: Writing – review & editing, Methodology. Guangqiu Jin: Writing – review & editing. You-Gan Wang: Validation, Methodology, Investigation. Qingfeng Ji: Software, Methodology. Ling Li: Writing – review & editing, Supervision, Conceptualization.

Declaration of competing interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Appendix ASupplementary data

The following is the Supplementary data to this article.
