. 2024 Oct 9;14:23542. doi: 10.1038/s41598-024-75243-1

High-precision and lightweight small-target detection algorithm for low-cost edge intelligence

Linsong Xiao 1, Wenzao Li 1,✉, Sai Yao 1, Hantao Liu 2, Dehao Ren 1
PMCID: PMC11464687  PMID: 39384977

Abstract

The proliferation of edge devices driven by advancements in Internet of Things (IoT) technology has intensified the challenge of achieving high-precision small target detection, as it demands extensive computational resources. This amplifies the conflict between the need for precise detection and the requirement for cost-efficiency across numerous edge devices. To solve this problem, this paper introduces an enhanced target detection algorithm, MSGD-YOLO, built upon YOLOv8. The Faster Implementation of CSP Bottleneck with 2 convolutions (C2f) module is enhanced through the integration of the Ghost module and dynamic convolution, resulting in a more lightweight architecture while enhancing feature generation. Additionally, Spatial Pyramid Pooling with Enhanced Local Attention Network (SPPELAN) replaces Spatial Pyramid Pooling Fast (SPPF) to expand the receptive field, optimizing multi-level feature aggregation for improved performance. Furthermore, a novel Multi-Scale Ghost Convolution (MSGConv) and Multi-Scale Generalized Feature Pyramid Network (MSGPFN) are introduced to enhance feature fusion and integrate multi-scale information. Finally, four optimized dynamic convolutional detection heads are employed to capture target features more accurately and improve small target detection precision. Evaluation on the VisDrone2019 dataset shows that compared with YOLOv8-n, MSGD-YOLO improves mAP@50 and mAP@50–95 by 14.1% and 11.2%, respectively. In addition, the model not only achieves a 16.1% reduction in parameters but also attains a processing speed of 24.6 Frames Per Second (FPS) on embedded devices, thereby fulfilling real-time detection requirements.

Subject terms: Computer science, Information technology

Introduction

With the emergence of numerous IoT applications, the deployment of edge-embedded devices has become increasingly prevalent. This trend is particularly prominent in intelligent surveillance systems, where a range of target detection methods have been adopted. Currently, deep learning-based target detection algorithms are generally divided into two categories based on their process characteristics1. The first category encompasses two-stage object detection algorithms, primarily exemplified by the Region-based Convolutional Neural Networks (R-CNN) family2. While these algorithms achieve high detection accuracy, they are unsuitable for edge-embedded devices due to their high computational demands. The second category comprises single-stage object detection algorithms, such as the Single Shot Multi-Box Detector (SSD)3, You Only Look Once (YOLO)4, and anchorless models5. While the accuracy of these algorithms is generally inferior to that of two-stage methods, their fast detection speed renders them suitable for deployment on edge-embedded devices with limited computational resources. In urban environments, both detection approaches often perform poorly due to the prevalence of small target objects. Small object recognition is particularly challenging due to low resolution and occlusion. Therefore, achieving high-accuracy recognition of small target objects on edge-embedded devices while minimizing deployment and operating costs continues to pose a major challenge. Ensuring the efficient operation of target detection algorithms on low-computation-power edge devices while maintaining high recognition precision remains a primary research focus. Convolutional Neural Networks (CNN) have significantly advanced target detection, with the YOLO series widely adopted for real-time performance6. However, as performance requirements for small target detection rise, the number of network parameters also increases. Since YOLO predicts both bounding boxes and categories using a single network with multiple convolutional layers, the computational load has increased significantly.

Numerous researchers have developed diverse algorithms built upon the YOLO network to improve small object detection precision while maintaining real-time performance on low-computation-power devices. Guo et al7. proposed a lightweight algorithm, CS-YOLO, that enhances small-target detection precision at the cost of FPS, rendering it unsuitable for edge devices. Likewise, Zhao et al8. developed an algorithm that boosts inference speed but remains inadequate in complex scenes. The BD-YOLO algorithm by Lou et al9. faces a similar issue, offering marginal improvements in mAP while retaining real-time performance. These approaches fail to strike an effective balance between detection precision and operational cost. Therefore, constructing a target detection model that substantially reduces operational costs while improving small target detection precision remains a valuable task.

The development of small target detection algorithms on edge-embedded devices currently faces two main challenges: one is improving small target detection precision, and the other is reducing operational cost without compromising precision. Therefore, finding an effective method to enhance overall performance is a complex process. To tackle these challenges, this paper proposes the MSGD-YOLO algorithm. The main contributions of this paper are as follows:

  1. Building upon the original YOLOv8-n backbone network, a new Ghost Dynamic-C2f (GD-C2f) module replaces the original C2f module, leading to more comprehensive information retention, significantly reducing the number of parameters, and steadily enhancing detection precision. Moreover, SPPELAN10 replaces SPPF to capture finer details of small targets.

  2. The MSGConv and MSGFPN structures are introduced to efficiently fuse high-level semantic information with low-level details. Additionally, MSGFPN effectively integrates feature map information across different scales while reducing the number of parameters in the model.

  3. In the network’s head structure, the Dynamic Head (DyHead)11 is employed to replace the original detection head, enhancing feature adaptability and representational capability.

  4. Ablation experiments were performed on the VisDrone2019 dataset12, and comparative experiments on the neck structure were carried out to demonstrate the method’s effectiveness. On this dataset, our model demonstrated optimal performance compared to the baseline and other mainstream small target detection models.

Related work

Small target detection using CNNs

Small target detection, a key area of research in machine vision, aims to accurately locate and identify small objects using specialized algorithms. However, CNN-based target detection algorithms continue to face challenges in achieving high precision, particularly due to low resolution and scale variation in small targets. Researchers have focused on six key strategies to improve small target detection performance:

  1. Data enhancement: for instance, Kisantal et al.13, Bochkovskiy et al.14, and Cubuk et al.15 utilize techniques such as copying and pasting small targets in data images or adding additional image data to enhance the model’s robustness, addressing issues related to the subtle features and limited information of small targets, thereby improving detection performance. However, poorly designed enhancement strategies may introduce noise, impair feature extraction performance, and pose challenges for algorithm design.

  2. Multi-scale feature fusion: works such as Xu et al.16, Ghiasi et al.17, and Luo et al.18 leverage high resolution at the bottom of the network and strong semantic feature information at the top to enhance the detection accuracy of small targets. However, during the process of multiscale feature fusion, issues such as semantic gaps and noise can arise.

  3. Super-resolution techniques: studies by Radford et al.19, Li et al.20, and Bai et al.21 address the low resolution of small targets by employing feature mapping, learning high-resolution feature representations of small targets, and other methods to reduce the feature disparity between small-scale and large-scale targets, thereby improving detection accuracy. However, the Generative Adversarial Network (GAN)22 models used can be difficult to train and unstable.

  4. Contextual information learning: research by Zhu et al.23, Xue et al.24, and Qiao et al.25 enrich the expression of target feature information in images by leveraging the connections between detected targets and their surrounding objects or environments, thereby enhancing the detection of small targets. However, small objects have fewer pixels, and the weak correlation between objects and their surrounding environment can complicate context learning.

  5. Anchor-Free mechanisms: methods proposed by Fu et al.26, Qiao et al.25, and Ge et al.27 design strategies conducive to the detection of small targets through reasonable anchor-free approaches, improving detection accuracy to some extent. Nevertheless, these methods can cause imbalances between positive and negative samples and semantic ambiguity, leading to unstable detection results.

  6. Attention mechanisms: techniques developed by Xu et al.28, Vajgl et al.29, and Zheng et al.30 allocate resources efficiently to address the susceptibility of small targets in complex scenes to background interference. These techniques quickly identify regions of interest and ignore distracting information, helping the model obtain global spatial information from feature maps and enriching their contextual semantic information. However, this increases the computational cost of the network model and can affect its ability to extract target features.

These studies demonstrate that each approach to improving small target detection has inherent limitations. To overcome these challenges, it is essential to combine multiple techniques and design tailored network structures for specific scenarios.

Lightweight network structure

With the ongoing advancements in target detection technology, algorithms have shifted from traditional methods based on handcrafted features to those utilizing deep neural networks. However, current CNN-based detection algorithms demand significant computational resources and memory, leading to higher costs31. In contrast, lightweight networks have attracted considerable attention for their ability to trade slight accuracy losses for substantial improvements in detection speed.

Neural network compression techniques can be broadly categorized into four main approaches: parameter pruning and quantisation32, low-rank decomposition33, lightweight module design34, and knowledge distillation35. Many researchers have developed various lightweight methods for neural network models. Mardieva et al36. designed a lightweight and efficient super-resolution model, optimised specifically for IoT devices. They introduced a Deep Residual Feature Distillation Block (DRFDB), using a Depth-wise Separable Convolution Block (DCB) for efficient feature extraction. This design reduces computational and memory demands while maintaining high image quality, supporting object detection tasks on embedded devices. Wang et al37. used YOLOv4 as the framework, incorporating EfficientNet38for feature extraction and introducing the lightweight Efficient Channel Attention (ECA)39mechanism to mitigate the adverse effects of Path Aggregation Network (PANet)40in multi-scale feature fusion. Chen et al41. proposed a structural innovation based on the YOLOv5-MobileNetv3-Small model, integrating the MobileNetv342architecture and enhancing the backbone. Tests showed that the improved YOLO algorithm reduced network memory usage by 72.4%. Shen et al43. proposed a lightweight convolutional neural network, L-Net, designed for low-computing devices. It achieves a lightweight structure by introducing a Residual Enhanced Channel Attention (R-ECA) module and replacing the traditional Rectified Linear Unit (ReLU) with an Exponential Linear Unit (ELU). Compared to models like MobileNet on image datasets, L-Net achieves higher accuracy and faster operation speed. Hu et al44. replaced the convolutional layers in YOLOv3-Tiny with Depth-wise Separable Convolution (DSConv)45 and Mobile inverted Bottleneck Convolution (MBConv) and developed a progressive channel-level pruning algorithm to minimize parameters and maximize detection performance, resulting in Micro-YOLO based on YOLOv3-Tiny. While these studies have improved detection speed and reduced parameters for lightweight models in embedded devices, the detection accuracy in real-world applications still requires improvement. Compared to existing methods, this study balances the trade-off between accuracy and operational cost in small target detection, offering a more optimised approach.

Proposed network

Overview of the proposed network

YOLOv8’s backbone uses the CSPDarknet53 architecture, which incorporates multiple C2f modules and an SPPF module to enhance the receptive field. As feature extraction largely depends on the C2f module, enhancements were made to improve its capability. Furthermore, a new SPPF module was introduced to further expand the receptive field. The neck of YOLOv8 retains the Feature Pyramid Network (FPN) and Path Aggregation Network (PAN) for feature fusion, with improvements for better integration of shallow and deep information. The head, originally composed of multiple convolutional modules, was enhanced with dynamic convolution to improve detection. These improvements culminate in the proposed MSGD-YOLO, as shown in Fig. 1.

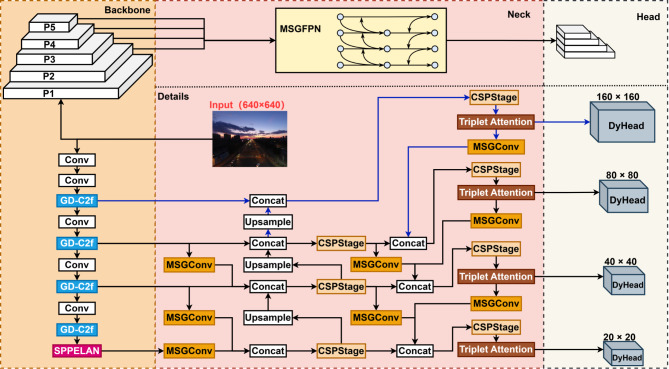

Fig. 1.

Fig. 1

Open in a new tab

The network structure of MSGD-YOLO consists of three main parts: the backbone, the neck, and the head. The output of the head generates feature maps with sizes of 160 × 160, 80 × 80, 40 × 40, and 20 × 20.

The MSGD-YOLO network structure introduces GD-C2f and SPPELAN modules to reconstruct the backbone. The FPN and PAN structures in the neck are replaced by the more efficient MSGFPN to improve multiscale feature fusion. Finally, DyHead replaces the original detection head for improved detection performance.

Reconfigured backbone network

Conventional CNNs typically require many parameters and floating-point operations (FLOPs) to achieve satisfactory accuracy. Given the significant redundancy in intermediate feature maps produced by mainstream CNNs, the Ghost module, a convolution module proposed by GhostNet46, has been introduced. This module employs more efficient linear operations to generate additional feature maps, achieving the same results as traditional convolution. This building block generates more feature maps with fewer parameters and computations. Each convolution operation that generates n feature maps from input data Inline graphic with C input channels is expressed in Eq. (1), where h and w are the height and width of the input data, respectively.

graphic file with name M2.gif 1

Here, Inline graphic represents the output feature map, while Inline graphic represents the convolution kernels, and b is the bias term. The FLOPs required for this convolution are calculated as Inline graphic. This value typically reaches hundreds of thousands, as the number of convolution kernels n and the number of channels C are often very large.

According to Eq. (1), the input and output dimensions clearly determine the number of parameters to be optimized. The Ghost module suggests that feature maps generated by mainstream CNN operations contain a large amount of redundancy, with many being similar to each other. These redundant feature maps can be generated individually using more efficient operations. The feature extraction process of the Ghost module to generate m feature maps Inline graphic can be expressed as Eq. (2):

graphic file with name M7.gif 2

where Inline graphic represents the filters, with Inline graphic. Other hyperparameters, such as kernel size, stride, and padding, remain consistent with ordinary convolution to ensure the same output feature map size. Linear operations are applied to generate repeating features, as shown in the following Eq. (3):

graphic file with name M10.gif 3

Where Inline graphic represents the i-th feature map in Inline graphic, and Inline graphic is the j-th linear operation for each Inline graphic​ to generate the j-th Ghost feature map Inline graphic. The final feature map is obtained by splicing the feature map generated by the Ghost module with that from the original convolution. After applying the Ghost module, set the linear convolution kernel size to Inline graphic. By comparing the computation cost between the Ghost module and standard convolution, the theoretical improvement can be derived. As shown in Eq. (4).

graphic file with name M17.gif 4

Where Inline graphic approximates Inline graphic in size, and Inline graphic. Thus, the computation cost of the Ghost module is quantitatively Inline graphic of that of standard convolution. The parameter calculation follows a similar approach and can also be simplified to s.

Leveraging the lightweight nature of the Ghost module, we integrated it into C2f to generate ghost feature maps, replacing some standard convolutions. However, ghost feature maps lack diversity, and the fixed convolution kernel fails to capture dynamic input features. Dynamic convolution replaces the standard operations in the Ghost module, enhancing feature diversity and adaptability. The final GD-C2f structure is shown in Fig. 2.

Fig. 2.

Fig. 2

Open in a new tab

In the GD-C2f structure, the Ghost module replaces the original bottleneck structure, and dynamic convolution is introduced to replace standard convolutional layers within the Ghost module.

First, the standard convolution in the C2f module’s branch processing is replaced by Ghost module. Ghost module consists of two stages: preliminary feature generation and lightweight operations. In the preliminary feature generation stage, dynamic convolution replaces traditional convolution, dynamically selecting the most suitable kernel based on input features via a routing network, enhancing the flexibility and adaptability of feature extraction. In the lightweight operation stage of the Ghost module, dynamic convolution replaces the simple linear operation, further enhancing the accuracy and efficiency of feature generation. The branching structure and feature splicing mechanism of the C2f module are retained, fusing features processed by the Ghost module with skipped features, with final results output through 1 × 1 convolution. This improvement not only reduces computation and parameter cost but also enhances dynamic adaptability and feature expression.

YOLOv8 originally employed the SPPF module for spatial pyramid pooling, enhancing the receptive field and capturing multi-scale features. However, it has limitations, such as suboptimal feature fusion. Replacing SPPF with the simpler and more efficient SPPELAN module enhances multi-scale feature extraction. The architecture of SPPELAN is shown in Fig. 3.

Fig. 3.

Fig. 3

Open in a new tab

Structure of SPPELAN.

SPPELAN is an enhanced Spatial Pyramid Pooling-based architecture consisting of a convolutional module and three MaxPool modules for pooling. SPPELAN employs multiple MaxPools with a 5 × 5 kernel size to extract feature information at different scales. This enables a richer combination of receptive fields, capturing global context and target features more effectively at different scales. In contrast, SPPF uses only a single kernel size for multiple blending operations and has a relatively limited diversity of receptive fields. Additionally, SPPELAN’s tandem structure facilitates smoother gradient flow through the network. Each MaxPool module acts as a separate layer, allowing gradients to backpropagate through multiple paths, effectively mitigating vanishing or exploding gradients.

Neck with multi-scale feature fusion

In the neck section of YOLOv8, FPN and PAN fuse multiscale feature maps to enhance feature representation and detection performance. However, this fixed fusion approach lacks adaptability. Thus, MSGFPN was redesigned based on the flexible and efficient fusion strategy of the Generalized Feature Pyramid Network (GFPN)47.

The structure of MSGFPN is shown in Fig. 4. During feature extraction, FPN performs multiple downsampling operations, leading to significant information loss during feature fusion. To mitigate the loss or blurring of small-target features, a small-target detection layer is added to GFPN. In MSGFPN’s feature transfer, MSGConv replaces ordinary convolution, reducing the computation and enhancing multi-scale feature extraction. CSPStage, derived from the Cross Stage Partial Network (CSPNet)48, uses RepConv instead of ordinary convolution to improve inference speed, and CSPStage replaces the 3 × 3 convolution-based feature fusion module in the original GFPN. During training, RepConv uses multiple branches to extract features of different scales and characteristics, while in inference, it merges these branches into a single equivalent convolutional layer through reparameterisation. This reparameterisation process significantly improves inference speed while reducing hardware demands without sacrificing model accuracy. Triple Attention39 is applied at the end of each information transfer branch to enhance the extraction of small-target information before sending the features to the network head.

Fig. 4.

Fig. 4

Open in a new tab

Structure of MSGFPN.

Figure 5 illustrates the structure of the MSGConv proposed in this paper. The process begins with a 1 × 1 convolution applied to the input features, then the data are split and enter 3 × 3 and 5 × 5 Ghost modules, and finally merged. To prevent gradient vanishing and explosion, a residual block design is adopted, comprising DSConv and a convolution module to form the residual module.

Fig. 5.

Fig. 5

Open in a new tab

Structure of MSGConv. This module uses multi-scale concepts to enhance feature extraction at various scales.

As shown in Fig. 6, the Triplet Attention49 enhances the neck’s performance in handling complex feature interactions. The bottom branch computes attention weights between the channel (C) and width (W). The middle branch calculates the weights between the channel (C) and height (H) dimensions, while the top branch computes the spatial correlation between height (H) and width (W). In the first two branches, a rotation operation connects the channel to the spatial dimensions, and the weights are averaged. The Z-pool reduces the tensor in the C to two dimensions, represented as shown in Eq. (5):

graphic file with name M22.gif 5

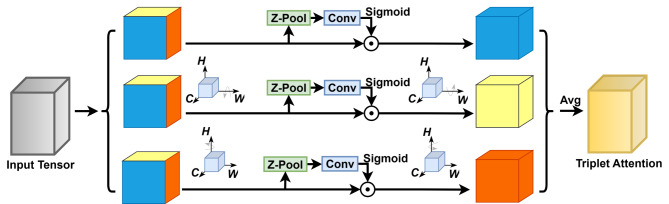

Fig. 6.

Fig. 6

Open in a new tab

Structure of Triplet Attention. The attention consists of three branches that calculate the weights of the different dimensions of the features.

The inclusion of Triplet Attention can capture the complex relationships between features more comprehensively, thus improving the feature representation capability of the model.

DyHead

Although YOLO’s traditional detection head is simple and fast, it has limitations in specific detection tasks. In contrast, DyHead enhances detection precision for small targets. By incorporating three self-attention mechanisms into the detection head, DyHead redefines the four-dimensional tensor Inline graphic as a three-dimensional tensor Inline graphic. This approach applies scale-aware, space-aware, and task-aware attention in the Inline graphic, Inline graphic, and Inline graphic dimensions, respectively. The structure of DyHead is illustrated in Fig. 7, where Inline graphic, Inline graphic, and Inline graphic correspond to the scale-aware attention, space-aware attention, and task-aware attention modules, respectively.

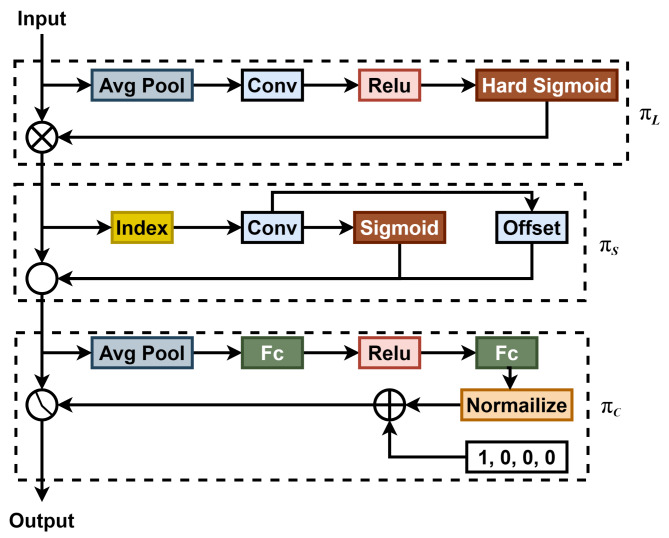

Fig. 7.

Fig. 7

Open in a new tab

Structure of a DyHead. It consists of 3 attention modules, improved using a multi-step fusion.

By leveraging attention mechanisms across feature hierarchies for scale perception, spatial locations for spatial perception, and output channels for task perception, this detection head significantly enhances the model’s expressive power without increasing computational complexity.

Experiments and analysis

This section presents the implementation, experimental procedure, and results of the MSGD-YOLO network. The small target detection dataset (VisDrone2019) used for the experiments in this paper is presented, and based on performance results from the VisDrone2019 dataset, we demonstrate the superiority of the proposed model over YOLOv8-n and other benchmark models. Additionally, ablation experiments were conducted to verify the model’s validity.

Dataset introduction

Due to our focus on small target detection, the VisDrone2019 dataset was selected for model training and testing. This dataset was collected by the AISKYEYE team at the Machine Learning and Data Mining Laboratory of Tianjin University and includes 8,599 still images across 10 categories. It includes numerous small targets (less than 32 × 32 pixels) and features diverse scenes and target scales.

In Fig. 8, the dataset contains 10 common target objects, addressing daily detection needs. In the right figure, the target occupies a small portion of the image, aligning with small target detection requirements. From previous work, the VisDrone2019 dataset presents three key detection challenges: significant changes in object proportions, dense small objects, and blurred targets in low-light environments. These challenges demand high robustness in detection models and precision in small target recognition.

Fig. 8.

Fig. 8

Open in a new tab

Number of species and instances and scale size in the VisDrone2019 dataset.

Experimental setup and evaluation metrics

The experiment was conducted on a Windows 10 system with the following environment: Python version 3.11.2, PyTorch version 2.0.1, and CUDA version 12.4. All networks were trained on an NVIDIA GeForce RTX 3090 GPU (24 GB). The specific hyperparameter settings are detailed in Table 1.

Table 1.

Training setup of the network.

Hyperparameter Value
Epochs 300
Optimizer SGD
Learning rate 0.01
Image size 640
Batch size 16
Momentum 0.937
Open in a new tab

In this experiment, the performance of the MSGD-YOLO model was evaluated via the following metrics: Precision (P), Recall (R), Mean Average Precision (mAP), number of parameters (Params), Giga Floating Point of Operations (GFLOPs), and FPS. The formulas for P, R, mAP, and mAP@50–95 are shown in Eqs. (6), (7), (8) and (9):

graphic file with name M31.gif 6
graphic file with name M32.gif 7
graphic file with name M33.gif 8
graphic file with name M34.gif 9

Among the metrics assessed, precision measures the proportion of predicted positives that are true positives. True Positives (TP) are correctly predicted positives, while False Positives (FP) are incorrectly predicted positives. Recall measures the proportion of actual positives correctly identified by the model. False Negatives (FN) are actual positives misclassified as negative by the model. The mAP@50 represents the mean precision at an Intersection over Union (IoU) threshold of 0.5, while the mAP@50–95 is the mean precision averaged over IoU thresholds from 0.5 to 0.95, in steps of 0.05.

The number of parameters represents the total weighting parameters in the model, used to evaluate its memory consumption. GFLOPs represent the number of floating-point operations during inference, estimating the model’s complexity. FPS is the number of images processed per second, indicating the model’s inference speed.

Validity analyses and ablation experiments

In this section, we conduct several comparative experiments on the VisDrone2019 dataset and analyse the feasibility of the results. To validate the effectiveness of the proposed MSGFPN structure, a comparative experiment was conducted. In the baseline YOLOv8-n model, we replaced the neck with FPN16, BiFPN50, and NAS-FPN17 as the control group. The YOLOv8-n model with MSGFPN served as the experimental group. To ensure fairness, four detection heads were tested in the same experimental environment. The results after training on the same dataset are presented in Table 2.

Table 2.

The performance of different feature pyramid networks and the MSGFPN on VisDrone 2019.

Method mAP@50 mAP@50–90 Params(M) GFLOPs
YOLOv8-n + FPN 35.1 19.3 3.01 15.8
YOLOv8-n + BiFPN 35.9 19.7 2.88 12.8
YOLOv8-n + NAS-FPN 37.5 20.3 2.80 13.2
YOLOv8-n + MSGFPN 40.5 23.4 2.77 12.5
Open in a new tab

As shown in Table 2, the proposed MSGFPN outperforms FPN, BiFPN, and NAS-FPN in mAP, GFLOPs, and Params. This demonstrates that MSGFPN is more suitable for small target detection than the other feature pyramid networks. Additionally, it is lighter and better suited for deployment on mobile-embedded devices.

Similarly, we explored the impact of varying numbers of DyHead blocks on the network. The results are shown in Table 3. Based on the results, we determined that the optimal number of DyHead blocks is 2.

Table 3.

Comparison of the number of different DyHead blocks.

Number mAP@50 Params(M) GFLOPs
1 32.7 3.01 9.4
2 34.0 3.32 10.7
3 34.8 4.06 12.1
4 35.1 4.87 14.7
5 35.5 5.73 16.1
6 35.8 6.89 18.5
Open in a new tab

To further verify the effectiveness of the proposed enhancement strategy, we conducted an ablation experiment to explore the impact of different strategies on object detection performance. Under the same test conditions, YOLOv8-n was used as the benchmark model, and the proposed improvement strategies were gradually incorporated. No pre-trained weights were used during training to ensure fairness. The experimental results are presented in Table 4.

Table 4.

Ablation experiment.

GD-C2f SPPELAN MSGFPN DyHead mAP@50 Map@50–95 Params(M)
31.1 16.3 3.11
✓ 32.7 17.8 2.43
✓ 31.9 17.0 2.85
✓ 42.7 23.2 2.59
✓ ✓ 43.1 24.1 2.83
✓ ✓ ✓ 39.6 21.1 2.77
✓ ✓ ✓ ✓ 45.2 27.5 2.61
Open in a new tab

As shown in Table 4, integrating different enhancement strategies improves mAP and reduces the number of parameters compared to the baseline model. The ablation experiments lead to the following conclusions: (1) GD-C2f and SPPELAN effectively address the limited feature expression of C2f in the baseline model and reduce the model’s parameters. (2) Replacing the neck with MSGFPN improves detection precision and reduces parameters. (3) Dyhead enhances detection across scales and increases mAP.

Figure 9 shows that after the changes, MSGD-YOLO’s P, R, and mAP during training are significantly higher than those of the benchmark model, YOLOv8-n. MSGD-YOLO’s ability to achieve a higher mAP with fewer parameters than YOLOv8-n validates the effectiveness of our proposed method.

Fig. 9.

Fig. 9

Open in a new tab

Diagram of the training process of MSGD-YOLO with YOLOv8-n.

Comparative experiments with other target detection algorithms

To verify the performance of MSGD-YOLO, we compared the proposed model with current mainstream YOLO models (including the latest state-of-the-art model, YOLOv1051) and variants of the YOLO model applied in the field of small target detection on the VisDrone2019 dataset. The comparison results are shown in Table 5.

Table 5.

Performance comparison between MSGD-YOLO and other mainstream models.

Method mAP@50 mAP@50–95 Params(M) GFLOPs
Faster R-CNN52 31.0 17.2 41.2 118.8
YOLOv3-tiny53 15.8 6.9 8.7 12.9
YOLOv3 35.4 16.8 61.5 154.7
YOLOv5-n54 24.2 12.2 1.8 4.5
YOLOv5-s 30.6 15.6 7.2 15.8
YOLOv7-tiny55 25.2 11.8 6.0 13.1
YOLOv8-n56 31.1 16.3 3.1 8.7
YOLOv8-s 38.5 21.4 11.1 28.5
YOLOv10-n 32.1 18.3 2.7 8.4
YOLOv10-s 37.6 21.1 8.1 24.8
RT-DETR-R1857 44.1 25.1 20.1 30.4
RT-DETR-R34 45.1 26.8 31.1 91.8
BDH-YOLO58 42.9 26.2 9.4 -
MS-YOLO-s59 44.3 25.0 9.6 -
EM-YOLO60 43.0 25.1 8.9 25.6
MSGD-YOLO 45.2 27.5 2.6 21.5
Open in a new tab

As shown in Table 5, MSGD-YOLO achieves higher mAP@50 and mAP@50–95 than other mainstream YOLO models. It achieves the best performance across all evaluation metrics. MSGD-YOLO has only 2.6 MB of parameters, slightly larger than YOLOv5-n but significantly smaller than other models. In terms of GFLOPs, MSGD-YOLO achieves the highest mAP with fewer computations than other YOLO variants. These results demonstrate that MSGD-YOLO identifies small target objects more accurately and quickly, making MSGD-YOLO more suitable for embedded deployment.

Performance on embedded devices

To compare the performance of the proposed method with other lightweight object detection algorithms, inference speed was tested on the Jetson Orin Nano, equipped with 16 tensor cores and 512 Nvidia ampere architecture GPU cores. The Jetson Orin Nano is shown in Fig. 10.

Fig. 10.

Fig. 10

Open in a new tab

Actual pictures of the Jetson Orin Nano.

The FPS of various lightweight models, including MSGD-YOLO, was tested on this device, along with other metrics for a comprehensive comparison. The results are shown in Table 6.

Table 6.

Performance of MSGD-YOLOv8n and other lightweight target detection models on the Jetson Orin Nano.

Method mAP@50 Params(M) FPS
YOLOv8-n 31.1 3.1 39.2
YOLOv8-s 38.5 11.1 19.3
YOLOv10-n 32.1 8.1 40.6
MSGD-YOLO 45.2 2.6 24.6
Open in a new tab

The table shows that although the FPS of MSGD-YOLO is reduced, it still meets the real-time detection requirements for practical applications. In scenarios requiring high-precision small target detection, MSGD-YOLO sacrifices some FPS compared to the baseline model but significantly improves accuracy. Thus, the proposed method achieves a good balance between real-time detection and accuracy.

Visual analysis

To demonstrate MSGD-YOLO’s detection performance across different scenes, images from five scenes were selected for detection and analysis. The scenes include an open field with dense pedestrians, a complex road, an intersection in low-light conditions, an overhead view of small targets, and a heavily occluded target detection scene. Objects in these images were detected using YOLOv8-n and MSGD-YOLO, and the detection results are shown in Fig. 11.

Fig. 11.

Fig. 11

Open in a new tab

MSGD-YOLO (middle) and YOLOv8-n (right) detection results.

The detection results show that MSGD-YOLO achieves a significantly higher detection rate than the baseline model for distant tiny targets. Under low-light conditions, the proposed model continues to identify small targets accurately, with no false detections compared to YOLOv8-n. In the overhead view, the model maintains a high detection rate for small targets occupying very few pixels. In the heavily occluded scene, despite limited feature information, MSGD-YOLO successfully detects the targets. These results demonstrate that MSGD-YOLO exhibits strong robustness and a high detection rate.

In Fig. 12, the heatmaps reflect the model’s regions of interest and localisation accuracy. The improved MSGD-YOLO exhibits superior feature extraction and localisation capabilities. This is evident in the concentrated and intensified high-response regions, which are highly noticeable. In contrast, the baseline model shows more dispersed highlights, unevenly distributed over the target area. As they do not fully cover the target, this causes localisation bias in small targets, reducing detection efficiency. Additionally, bright colours in the background hinder the model’s ability to distinguish targets from non-targets, increasing the false alarm rate. In the improved MSGD-YOLO heat map, bright-coloured regions of the target area have clear boundaries, aligning with the actual contours of the targets. No overlap occurs between the highlighted regions of different targets, indicating that the model accurately locates and separates multiple targets. As a result, MSGD-YOLO is more capable of detecting small targets than the baseline model.

Fig. 12.

Fig. 12

Open in a new tab

Heatmaps of MSGD-YOLO (right) and YOLOv8-n (left).

Conclusions

To detect small objects with limited computing and storage resources on embedded devices accurately, the structure of each part of the YOLOv8-n network was analysed and redesigned. An MSGD-YOLO network for small target detection on embedded devices is subsequently proposed.

The MSGD-YOLO network was tested on the VisDrone2019 dataset. Compared with the YOLOv8-n network, MSGD-YOLO improves target detection accuracy and reduces the number of parameters. Compared with other lightweight networks, the MSGD-YOLO network achieves the best detection accuracy with the second smallest number of parameters and a moderate amount of computation. Compared with larger networks, MSGD-YOLO achieves the highest detection accuracy with the fewest parameters and computations. Furthermore, compared with other lightweight models on embedded devices, it meets the requirements for real-time detection. These results verify the effectiveness of the proposed network.

Currently, MSGD-YOLO has several limitations and has only been tested on the VisDrone2019 dataset. The algorithm needs further optimization to ensure real-time detection on embedded devices with ultralow computing power. Further research is needed to enhance its effectiveness in practical applications.

Acknowledgements

Sichuan Province Science and Technology Department, Sichuan Province major science and technology project, (No. 24JBGS0050). Sichuan Province Philosophy and Social Science Research Project, (No. SC23TJ006). Meteorological Information and Signal Processing Key Laboratory of Sichuan Higher Education Institutes of Chengdu University of Information Technology, the fund of the Scientific and Technological Activities for Overseas Students of Sichuan Province (2022) and Funded by the Sichuan Provincial Department of Human Resources and Social Welfare “Researches on Key issues of Edge Computing Server Deployment and Computing task Offloading”. Network and Data Security Key Laboratory of Sichuan Province, UESTC (No. NDS2024-3).

Author contributions

L. X. conceived the experiments and wrote the manuscript. W. L. and L. X. performed the experiments. S. Y. and H. L. performed the statistical analyses and plotted the graphs. D. R. revised the formatting. All the authors reviewed the manuscript.

Data Availability

The experimental test images in this paper are from the open source VisDrone dataset. (https://github.com/VisDrone/VisDrone-Dataset).

Competing interests

The authors declare no competing interests.

Footnotes

Publisher’s note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

References

  • 1.Zhao, Z. Overview of target detection based on deep learning. Int. Core J. Eng. 8, 269–277 (2022). [Google Scholar]
  • 2.He, K., Gkioxari, G., Dollár, P. & Girshick, R. Mask r-cnn. In Proceedings of the IEEE international conference on computer vision, 2961–2969 (2017).
  • 3.Liu, W. et al. Ssd: Single shot multibox detector. In Computer Vision–ECCV 2016: 14th European Conference, Amsterdam, The Netherlands, October 11–14, Proceedings, Part I 14. 21–37 (2016). (2016).
  • 4.Redmon, J., Divvala, S., Girshick, R. & Farhadi, A. You only look once: Unified, real-time object detection. In Proceedings of the IEEE conference on computer vision and pattern recognition, 779–788 (2016).
  • 5.Zhang, S., Chi, C., Yao, Y., Lei, Z. & Li, S. Z. Bridging the gap between anchor-based and anchor-free detection via adaptive training sample selection. In Proceedings of the IEEE/CVF conference on computer vision and pattern recognition, 9759–9768 (2020).
  • 6.Chandana, R. K. & Ramachandra, A. C. Real time object detection system with YOLO and CNN models: A review. arXiv Prepr. arXiv2208 773 (2022).
  • 7.Guo, J. et al. A new detection algorithm for alien intrusion on highway. Sci. Rep.13, 10667 (2023). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 8.Zhao, H., Chu, K., Zhang, J., Luo, H. & Sun, Y. YOLO-FSD: an improved target detection algorithm on remote sensing images. IEEE Sens. J. 23, 30751–30764 (2023).
  • 9.Lou, H., Liu, X., Bi, L., Liu, H. & Guo, J. BD-YOLO: detection algorithm for high-resolution remote sensing images. Phys. Scripta. 99, 066003 (2024). [Google Scholar]
  • 10.Wang, C. Y., Yeh, I. H. & Liao, H. Y. M. Yolov9: Learning what you want to learn using programmable gradient information. arXiv preprint arXiv:2402.13616 (2024).
  • 11.Dai, X. et al. Dynamic head: Unifying object detection heads with attentions. In Proceedings of the IEEE/CVF conference on computer vision and pattern recognition, 7373–7382 (2021).
  • 12.Du, D. et al. VisDrone-DET2019: The vision meets drone object detection in image challenge results. In Proceedings of the IEEE/CVF international conference on computer vision workshops, 0–0 (2019).
  • 13.Kisantal, M. Augmentation for small object detection. arXiv preprint arXiv:1902.07296 (2019).
  • 14.Bochkovskiy, A., Wang, C. Y. & Liao, H. Y. M. Yolov4: Optimal speed and accuracy of object detection. arXiv preprint arXiv:10934 (2020). (2004).
  • 15.Cubuk, E. D. et al. Learning augmentation strategies from data. In Proceedings of the IEEE/CVF conference on computer vision and pattern recognition, 113–123 (2019).
  • 16.Xu, H., Yao, L., Zhang, W., Liang, X. & Li, Z. Auto-fpn: Automatic network architecture adaptation for object detection beyond classification. In Proceedings of the IEEE/CVF international conference on computer vision, 6649–6658 (2019).
  • 17.Ghiasi, G., Lin, T. Y. & Le, Q. V. Nas-fpn: Learning scalable feature pyramid architecture for object detection. In Proceedings of the IEEE/CVF conference on computer vision and pattern recognition, 7036–7045 (2019).
  • 18.Luo, Y. et al. CE-FPN: enhancing channel information for object detection. Multimed Tools Appl. 81, 30685–30704 (2022). [Google Scholar]
  • 19.Radford, A., Metz, L. & Chintala, S. Unsupervised representation learning with deep convolutional generative adversarial networks. arXiv preprint arXiv:1511.06434 (2015).
  • 20.Li, J. et al. Perceptual generative adversarial networks for small object detection. In Proceedings of the IEEE conference on computer vision and pattern recognition, 1222–1230 (2017).
  • 21.Bai, Y., Zhang, Y., Ding, M. & Ghanem, B. Sod-mtgan: Small object detection via multi-task generative adversarial network. In Proceedings of the European conference on computer vision (ECCV), 206–221 (2018).
  • 22.Creswell, A. et al. Generative adversarial networks: an overview. IEEE. Signal. Process. Mag. 35, 53–65 (2018). [Google Scholar]
  • 23.Zhu, Y. et al. Couplenet: Coupling global structure with local parts for object detection. In Proceedings of the IEEE international conference on computer vision, 4126–4134 (2017).
  • 24.Xue, H. et al. Danet: Divergent activation for weakly supervised object localization. In Proceedings of the IEEE/CVF International Conference on Computer Vision, 6589–6598 (2019).
  • 25.Qiao, S., Chen, L. C., Yuille, A. & Detectors Detecting objects with recursive feature pyramid and switchable atrous convolution. In Proceedings of the IEEE/CVF conference on computer vision and pattern recognition, 10213–10224 (2021).
  • 26.Fu, J., Sun, X., Wang, Z. & Fu, K. An anchor-free method based on feature balancing and refinement network for multiscale ship detection in SAR images. IEEE Trans. Geosci. Remote Sens. 59, 1331–1344 (2020). [Google Scholar]
  • 27.Ge, Z., Liu, S., Wang, F., Li, Z. & Sun, J. Yolox: Exceeding yolo series in 2021. arXiv preprint arXiv:2107.08430 (2021).
  • 28.Xu, Z., Li, J., Meng, Y. & Zhang, X. CAP-YOLO: Channel attention based pruning YOLO for coal mine real-time intelligent monitoring. Sensors. 22, 4331 (2022). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 29.Vajgl, M., Hurtik, P. & Nejezchleba, T. Dist-yolo: fast object detection with distance estimation. Appl. Sci. 12, 1354 (2022). [Google Scholar]
  • 30.Zheng, Y., Wang, Y., Li, F. & Zhu, Y. FA-SSD: A small object detection algorithm based on feature alignment. In 5th International Conference on Pattern Recognition and Artificial Intelligence (PRAI), 375–380 (2022). (2022).
  • 31.Yang, L., Wang, L. & Wu, S. Real-time object recognition algorithm based on deep convolutional neural network. In IEEE 3rd International Conference on Cloud Computing and Big Data Analysis (ICCCBDA), 331–335 (2018). (2018).
  • 32.Liang, T., Glossner, J., Wang, L., Shi, S. & Zhang, X. Pruning and quantization for deep neural network acceleration: a survey. Neurocomputing. 461, 370–403 (2021). [Google Scholar]
  • 33.Yu, X., Liu, T., Wang, X. & Tao, D. On compressing deep models by low rank and sparse decomposition. In Proceedings of the IEEE conference on computer vision and pattern recognition, 7370–7379 (2017).
  • 34.Zhou, Y., Chen, S., Wang, Y. & Huan, W. Review of research on lightweight convolutional neural networks. In 2020 IEEE 5th Information Technology and Mechatronics Engineering Conference (ITOEC), 1713–1720 (2020).
  • 35.Gou, J., Yu, B., Maybank, S. J. & Tao, D. Knowledge distillation: a survey. Int. J. Comput. Vis. 129, 1789–1819 (2021). [Google Scholar]
  • 36.Mardieva, S., Ahmad, S., Umirzakova, S., Rasool, M. J. A. & Whangbo, T. K. Lightweight image super-resolution for IoT devices using deep residual feature distillation network. Knowledge-Based Syst. 285, 111343 (2024). [Google Scholar]
  • 37.Wang, C., Zhou, Y. & Li, J. Lightweight YOLOv4 target detection algorithm fused with ECA mechanism. Processes. 10, 1285 (2022). [Google Scholar]
  • 38.Koonce, B. Convolutional neural networks with swift for tensorflow: Image recognition and dataset categorization. (Springer, (2021).
  • 39.Wang, Q. et al. ECA-Net: Efficient channel attention for deep convolutional neural networks. In Proceedings of the IEEE/CVF conference on computer vision and pattern recognition, 11534–11542 (2020).
  • 40.Liu, S., Qi, L., Qin, H., Shi, J. & Jia, J. Path aggregation network for instance segmentation. In Proceedings of the IEEE conference on computer vision and pattern recognition, 8759–8768 (2018).
  • 41.Chen, Y. et al. UAV lightweight object detection based on the improved YOLO algorithm. In Proceedings of the 2021 5th International Conference on Electronic Information Technology and Computer Engineering, 1502–1506 (2021).
  • 42.Howard, A. et al. Searching for mobilenetv3. In Proceedings of the IEEE/CVF international conference on computer vision, 1314–1324 (2019).
  • 43.Shen, H., Wang, Z., Zhang, J. & Zhang, M. L-Net: a lightweight convolutional neural network for devices with low computing power. Inf. Sci. 660, 120131 (2024). [Google Scholar]
  • 44.Hu, L. & Li, Y. Micro-YOLO: Exploring Efficient Methods to Compress CNN based Object Detection Model. In ICAART (2), 151–158 (2021).
  • 45.He, Y. et al. Depth-wise decomposition for accelerating separable convolutions in efficient convolutional neural networks. arXiv preprint arXiv:1910.09455 (2019).
  • 46.Han, K. et al. Ghostnet: More features from cheap operations. In Proceedings of the IEEE/CVF conference on computer vision and pattern recognition, 1580–1589 (2020).
  • 47.Jiang, Y. et al. GiraffeDet: A heavy-neck paradigm for object detection. arXiv preprint arXiv:2202.04256 (2022).
  • 48.Wang, C. Y. et al. CSPNet: A new backbone that can enhance learning capability of CNN. In Proceedings of the IEEE/CVF conference on computer vision and pattern recognition Workshops, 390–391 (2020).
  • 49.Misra, D., Nalamada, T., Arasanipalai, A. U. & Hou, Q. Rotate to attend: Convolutional triplet attention module. In Proceedings of the IEEE/CVF winter conference on applications of computer vision, 3139–3148 (2021).
  • 50.Chen, J., Mai, H., Luo, L., Chen, X. & Wu, K. Effective feature fusion network in BIFPN for small object detection. In 2021 IEEE international conference on image processing (ICIP), 699–703 (2021).
  • 51.Wang, A. et al. Yolov10: Real-time end-to-end object detection. arXiv preprint arXiv:2405.14458 (2024).
  • 52.Ren, S., He, K., Girshick, R., Sun, J. & Faster, R-C-N-N. Towards real-time object detection with region proposal networks. IEEE Trans. Pattern Anal. Mach. Intell. 39, 1137–1149 (2016). [DOI] [PubMed] [Google Scholar]
  • 53.Redmon, J. & Farhadi, A. Yolov3: An incremental improvement. arXiv preprint arXiv:1804.02767 (2018).
  • 54.Jocher, G. et al. ultralytics/yolov5: v6. 2-yolov5 classification models, apple m1, reproducibility, clearml and deci.ai integrations. Zenodo (2022).
  • 55.Wang, C. Y., Bochkovskiy, A. & Liao, H. Y. M. YOLOv7: Trainable bag-of-freebies sets new state-of-the-art for real-time object detectors. In Proceedings of the IEEE/CVF conference on computer vision and pattern recognition, 7464–7475 (2023).
  • 56.Reis, D., Kupec, J., Hong, J. & Daoudi, A. Real-time flying object detection with YOLOv8. arXiv preprint arXiv:2305.09972 (2023).
  • 57.Zhao, Y. et al. Detrs beat yolos on real-time object detection. In Proceedings of the IEEE/CVF conference on computer vision and pattern recognition, 16965–16974 (2024).
  • 58.Sui, J., Chen, D., Zheng, X. & Wang, H. A new algorithm for small target detection from the perspective of unmanned aerial vehicles. IEEE Access. 12, 29690–29697 (2024).
  • 59.Cao, X., Duan, M., Ding, H. & Yang, Z. MS-YOLO: integration-based multi-subnets neural network for object detection in aerial images. Earth Sci. Inf. 17, 2085–2106 (2024).
  • 60.Wu, M., Yun, L., Wang, Y., Chen, Z. & Cheng, F. Detection algorithm for dense small objects in high altitude image. Digit. Signal. Process. 146, 104390 (2024). [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Data Availability Statement

The experimental test images in this paper are from the open source VisDrone dataset. (https://github.com/VisDrone/VisDrone-Dataset).

Articles from Scientific Reports are provided here courtesy of Nature Publishing Group

RESOURCES
