Very high-power short duration 90 W/4 s (vHPSD) vs. vHPSD-combined ablation index–guided 50W ablation (hybrid) approach for pulmonary vein isolation in treating atrial fibrillation: have we found the best radiofrequency recipe?

Catheter ablation–based electrical pulmonary vein isolation (PVI) is an effective rhythm control strategy in treating atrial fibrillation (AF) [1, 2]. Point-by-point ablation using radiofrequency (RF) energy guided by 3D mapping system has remained the most common energy source for interventional AF treatment to date despite the emergence of alternative technologies using different energy sources and catheter designs.

Procedural success in PVI is the creation of a contiguous, irreversible, transmural, and durable ablation lesion encircling the pulmonary veins, while sparing collateral tissue damage, e.g., the esophagus, the coronary arteries, and the phrenic nerve.

One-year single‐procedure freedom from tachyarrhythmia recurrence after PVI in paroxysmal AF has been reported to be ~ 60% assessed by continuous monitoring using implantable loop recorder [3]. PV electrical reconnection has been recognized as one important factor responsible for AF recurrence after primary PVI [4].

Aiming at enhanced ablation lesion quality, there has been a large interest in using the high-power short duration (HPSD) ablation in the last years. The definition/concept of HPSD varies arbitrarily. Different from the traditional low power long duration ablation (20–40 W/30 s), HPSD mainly refers to “very high-power short duration 90 W/4 s (vHPSD)” or “ablation index–guided HPSD (50 W)” ablation strategies, both represent highly efficient ablation approach [5, 6] and studies on searching the best RF ablation “recipe” for PVI are under ongoing research.

In this issue of Journal of Interventional Cardiac Electrophysiology, Kariki et al. reported on different vHPSD ablation strategies for PVI in paroxysmal AF [7]. This was a prospective, single-center study randomly comparing vHPSD ablation only (vHPSD group) vs. combined vHPSD ablation posteriorly and ablation index (AI)–guided HPSD (50 W) ablation anteriorly (hybrid group) strategies for PVI. The endpoints included procedural characteristics and one year arrhythmia recurrence.

The researchers mainly found that the hybrid approach led to a higher rate of first-pass PVI but similar procedural duration compared to PVI using vHPSD only. Both hybrid approach and vHPSD only approach exhibit high efficacy in terms of freedom from clinical recurrence, and no major complications occurred during the study period. This study supports that the hybrid approach appears to be an optimal ablation strategy to achieve efficient PVI; both hybrid approach and vHPSD only approach seems to be a safe and effective ablation strategy.

The main workflow of the study included: conscious sedation, transseptal puncture, 3D reconstruction of the left atrium using an advanced multipolar mapping catheter (OctaRayTM, Biosense Webster, Inc. CA), and ablation using the QDOT Micro catheter (Biosense Webster, Inc., CA). The temperature controlled QDOT Micro catheter enables ablation in two modes: QMODE + (90 W/4 s) or QMODE (AI-guided 50 W). Other important settings were also provided, e.g., the “target” contact force was 10–25 g, and the inter-lesion distance was 5–6 mm.

Interestingly, compared with the hybrid group the rate of first-pass PVI was significantly lower in the vHPSD group (51% vs. 73%) although vHPSD showed a substantially shorter RF time (424.8 ± 222.4 s vs. 864.5 ± 179.8 s). In patients without first-pass isolation, gaps were more likely to be found in the region of (right) carina in both groups.

First-pass PVI is generally considered a favorable procedural outcome, representing accurate, effective, and contiguous point-by-point lesion set applied in the initial RF encirclement. Moreover, first-pass PVI gives positive impact on procedural efficiency, with less time spent in searching gaps and decreased risk of over-ablation related complications. A low first-pass isolation rate indicates suboptimal initial ablation lesion quality.

Lesion formation and lesion geometry in relation to applied ablation power, duration, contact force, and other parameters remains not fully assessed. A recent preclinical study by Nakagawa et al. demonstrated that tissue temperatures and lesion size (depth, diameter, and volume) were the lowest/smallest for RFs at 90 W/4 s, followed by 50 W/10 s, and the greatest for 30 W/30 s, increasing contact force can significantly increase lesion depth in all three ablation modalities [8]. Moreover, in another recent paper by Pérez et al. found that in low energy setting (360 J) vHPSD (90 W) and HPSD (50 W) produced similar size lesions compared with 30 W/12 s [9].

The “best” RF ablation setting under different conditions remains to be investigated. Nonetheless, the low first-pass PVI in the study from Kariki et al. may be attributed to insufficient contact force, catheter instability, and/or shallow ablation lesion, particularly at the “thick” and “slippery” carina area. Given a fixed power setting, adequate catheter-tissue contact force and catheter stability for a sufficient ablation time are essential for effective lesion formation.

However, both sufficient contact force and catheter stability are sometimes not easy to obtain simultaneously, especially when ablating the “carina” or “ridge” areas. The vHPSD approach, on one hand, using 4-s application time may reduce the chance of catheter instability; on the other hand, instability of the catheter, when it happens, is likely to have a greater impact on lesion formation during such ultra-short application time.

Carefully shortening the inter-lesion distance (≤ 4 mm), using supporting pool, e.g., steerable sheath, and adjustment of respiratory movement may help further improve the lesion quality and increase the rate of first-pass isolation or even PVI durability (Fig. 1).

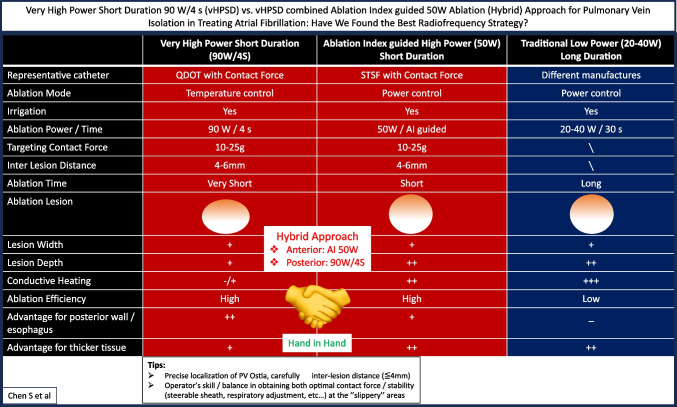

Fig. 1.

Very high-power short duration 90 W/4 s (vHPSD) vs. vHPSD-combined ablation index–guided 50W ablation (hybrid) approach for pulmonary vein isolation in treating atrial fibrillation: have we found the best radiofrequency strategy?

With respect to the procedural safety, the study by Kariki et al. reported no major complications from both ablation strategies during the study period except one puncture site bleeding in the hybrid group. The safety profile of the vHPSD ablation has been consistently reported by recent studies where low rate of silent cerebral lesion, very low risk of esophageal lesion, phrenic nerve injury, or PV stenosis were found [10].

To conclude, this cohort study by Kariki et al. demonstrated the high procedural efficiency, safety, and similar clinical success rate of both hybrid and vHPSD ablation strategies for PVI in treating paroxysmal AF. Of note, the hybrid approach led to a higher rate of first-pass PVI.

We seem to have found an optimal answer, but we are still on our way to find the best one.

Author contribution

Writing: Chen.

Funding

Open Access funding enabled and organized by Projekt DEAL.

Data availability

There are not data available in this article.

Declarations

Competing interests

The author declares no competing interests.
