Regulation of Drosophila brain development and organ growth by the Minibrain/Rala signaling network

Abstract

The human dual specificity tyrosine phosphorylation regulated kinase 1A (DYRK1A) is implicated in the pathology of Down syndrome, microcephaly, and cancer; however the exact mechanism through which it functions is unknown. Here, we have studied the role of the Drosophila ortholog of DYRK1A, Minibrain (Mnb), in brain development and organ growth. The neuroblasts (neural stem cells) that eventually give rise to differentiated neurons in the adult brain are formed from a specialized tissue in the larval optic lobe called the neuroepithelium, in a tightly regulated process. Molecular marker analysis of mnb mutants revealed alterations in the neuroepithelium and neuroblast regions of developing larval brains. Using affinity purification-mass spectrometry (AP-MS), we identified the novel Mnb binding partners Ral interacting protein (Rlip) and RALBP1 associated Eps domain containing (Reps). Rlip and Reps physically and genetically interact with Mnb, and the three proteins may form a ternary complex. Mnb phosphorylates Reps, and human DYRK1A binds to the Reps orthologs REPS1 and REPS2. Mnb also promotes re-localization of Rlip from the nucleus to the cytoplasm in cultured cells. Furthermore, Mnb engages the small GTPase Ras-like protein A (Rala) to regulate brain and wing development. This work uncovers a previously unrecognized role of Mnb in the neuroepithelium and defines the functions of the Mnb/Reps/Rlip/Rala signaling network in organ growth and neurodevelopment.

Introduction

The kinase Minibrain (Mnb) and its ortholog dual specificity tyrosine phosphorylation regulated kinase 1A (DYRK1A) control the development of the brain and other tissues in Drosophila and mammals (Tejedor et al. 1995; Guimera et al. 1999; Degoutin et al. 2013; Yang et al. 2016). In Drosophila, both loss and gain of mnb function can result in abnormal development. Reduction of mnb function results in decreased brain and wing size, disrupted wing vein patterning, abnormal visual and food intake behavior, and defects in dendrite development (Tejedor et al. 1995; Hong et al. 2012; Degoutin et al. 2013; Ori-McKenney et al. 2016; Yang et al. 2016). Gain of Mnb is associated with morphological defects, a shortened lifespan, impaired neuronal function, and accelerated decline in motor performance (Kim et al. 2016; Lowe et al. 2019). Likewise, the homolog of Mnb, dual specificity tyrosine phosphorylation regulated kinase 1A (DYRK1A), is critical for mammalian development and exhibits both loss and gain of function phenotypes (Ahn et al. 2006; Dowjat et al. 2007; van Bon et al. 2011; Ji et al. 2015; Raveau et al. 2018; Arbones et al. 2019). In humans, the DYRK1A gene is located on chromosome 21, and through studies in mouse models, DYRK1A copy number has been shown to play a causative role in Down syndrome neurodevelopmental defects (Ahn et al. 2006; Garcia-Cerro et al. 2014). Loss of function mutations in DYRK1A that lead to decreased DYRK1A protein levels result in primary microcephaly and developmental delays, reminiscent of mnb mutant phenotypes (Ji et al. 2015; Luco et al. 2016; Raveau et al. 2018). Given its disease phenotypes, it is clear that DYRK1A plays a critical role in neuronal development and physiology. DYRK1A has also been implicated in the control of the cell cycle and cell proliferation. Depending on the cellular context, DYRK1A can either promote or inhibit cell proliferation, and has both oncogenic and tumor suppressor characteristics (Yabut et al. 2010; Litovchick et al. 2011; Fernandez-Martinez et al. 2015; Rammohan et al. 2022).

Drosophila is a useful model system to study brain development, given the availability of genetic tools and similarities in neurogenesis between flies and mammals. In both Drosophila and mammalian brain development, there are stem cell populations that divide symmetrically to amplify a progenitor population, which then transitions to asymmetric divisions (Matsuzaki and Shitamukai 2015; Holguera and Desplan 2018; Mishra et al. 2018). In the optic lobe of the fly larval brain, the symmetrically dividing population is the neuroepithelium (NE), which gives rise to asymmetrically dividing stem cells, known as the neuroblasts (NBs) (Egger et al. 2007; Li et al. 2013; Neriec and Desplan 2016; Hakes et al. 2018). The inner proliferation center (IPC) of the optic lobe generates the lobula and lobula plate neurons, and the outer proliferation center (OPC) gives rise to the lamina and medulla neurons (Neriec and Desplan 2016).

Mnb is required for the development of the optic lobes, as this region of the brain is the one most affected in mnb mutants (Tejedor et al. 1995). Previous work has suggested that Mnb promotes cell cycle exit and neuronal differentiation of asymmetrically dividing neuronal precursors by controlling the expression of a transcription factor network involving Asense (Ase), Prospero (Pros) and Deadpan (Dpn) (Shaikh et al. 2016; Shaikh and Tejedor 2018). These transcription factors converge to upregulate expression of the cyclin dependent kinase inhibitor 1B ortholog Dacapo (Dap). Reduction of mnb function disrupts NB divisions, induces cell cycle defects, and results in mis-specification of neuronal precursors, which ultimately leads to apoptosis and a decrease in the adult brain size (Shaikh et al. 2016; Shaikh and Tejedor 2018). Despite this evidence, the molecular mechanisms of how Mnb controls the formation and functions of symmetrically dividing neural stem cells are incompletely understood.

Here we uncovered a previously unknown early developmental role of Mnb in controlling the transition between the neuroepithelium and neuroblasts. Using affinity purification-mass spectrometry (AP-MS), we identified the protein interaction network of Mnb and characterized RALBP1 Eps domain containing (Reps) and Ral interacting protein (Rlip) as novel binding partners of Mnb. We show that Reps and Rlip function together with Mnb to regulate the growth and development of the brain and the wing. We also determined that Mnb phosphorylates Reps, and that the physical interaction between Mnb and Reps is conserved across their human orthologs, DYRK1A and REPS1/2. Lastly, we investigated a connection between Mnb and the small GTPase Ras-like protein A (Rala), whose function is closely related to that of Rlip, and found that Mnb and Rala jointly control brain and wing growth. Collectively, this work establishes a novel role of Mnb in the neuroepithelium and identifies the Mnb/Reps/Rlip/Rala signaling axis as a regulator of brain development and organ growth.

Materials and methods

Fly stocks

All Drosophila stocks were maintained on standard yeast-cornmeal-agar medium at 25°C or 18°C as indicated. Fly lines used in this study: mnb^d419 (Hong et al. 2012), UAS-mnbRNAi (Kyoto #7826R-3), da-GAL4 (Wodarz et al. 1995), MS1096-GAL4 (Capdevila and Guerrero 1994), UAS-RepsRNAi1 (VDRC #24719), UAS-RepsRNAi2 (VDRC #110704), UAS-RlipRNAi (VDRC #105976). The following lines were obtained from the Bloomington Drosophila stock center: c855a-GAL4 (#6990) (Egger et al. 2007), UAS-wRNAi (#33762), UAS-Rala^S25N (#32094), Dp(1;3)DC337 (#30441), Dp(1;3)RC033 (#38493).

Immunostaining and fluorescence microscopy

3rd instar larval brains were dissected in 1× PBS with 0.3% Triton X-100 (Sigma Aldrich) and fixed in 4% paraformaldehyde (Electron Microscopy Sciences) in 1× PBS for 20 minutes at room temperature (RT) in darkness. Brains were washed three times for 5 minutes at RT with 1× PBS before blocking for 30 minutes with 5% normal goat serum (Fisher) in 1× PBS with Triton X-100. Brains were incubated in primary antibody (rat anti D-Cad2, Developmental Studies Hybridoma Bank, 1:20, rabbit anti cleaved Dcp-1, Cell Signaling Technology, 1:100, or rat anti Miranda, Abcam, 1:500) diluted in 1× PBS 0.3% Triton X-100 overnight. To immunostain two genotypes in the same well, eye discs and the mouth hooks were removed from brains from one genotype and were kept attached in the other genotype. Following primary antibody incubation, brains were washed 3 times for 20 minutes with 1× PBS before incubation with secondary antibody (goat anti rat Alexa Fluor 555, Thermo, 1:500 or goat anti rabbit Alexa Flour 555, Thermo) diluted in 1× PBS 0.3% Triton X-100 for 3 hours. Brains were washed following secondary antibody 3 times for 20 minutes with 1× PBS before 10–15 brains per slide were mounted between two coverslips placed approximately 0.5 cm apart in 15 µL of ProLong Gold Antifade Mountant, With DAPI (Fisher).

Fluorescent images were acquired using a Zeiss LSM 880 confocal microscope at 40× objective with 1 Airy Unit pinhole. Z-stacks were acquired with optimal slice numbers and maximum-intensity projections were performed in Zen Blue software. Arrowheads and neuroepithelium-neuroblast boundary lines were added in Adobe Illustrator 2023. Corrected total fluorescence was calculated as: raw intensity of Dcp-1 in optic lobe—(average background intensity × optic lobe area) in Fiji (Schindelin et al. 2012).

Affinity purification from embryos and mass spectrometry analysis

Flies from the Mnb-TagRFP-T line (Yang et al. 2016) and yw controls were set up in 5 L fly cages with apple juice plates. Flies were allowed to lay eggs for 15 hours at RT, then apple juice plates containing embryos were aged for 3 hours at 25°C. Approximately 1 g of embryos were dechorionated with 50% bleach for 1.5 minutes and washed with water. Embryos were then lysed on ice with 4 mL of ice-cold default lysis buffer (DLB) (50 mM Tris (pH 7.5), 5% glycerol, 0.2% IGEPAL, 1.5 mM MgCl₂, 125 mM NaCl, 25 mM NaF, 1 mM Na₃VO₄, with 2× cOmplete Protease Inhibitor, MilliporeSigma, 1 tablet per 25 mL of lysis buffer) with additional IGEPAL added to a final concentration of 0.5%, in a glass homogenizer using 30 strokes with a tight pestle. The lysates were incubated on ice for 20 minutes and then centrifuged at 16,000 rcf for 20 minutes at 4°C. The supernatant was then filtered through a pre-chilled 0.45 µm filter (Fisher). The filtered supernatant was then incubated with 50 µL of packed Pierce Control Agarose beads (Thermo) at 4°C for 30 minutes with rotation. The lysate was then incubated with 20 µL of packed RFP-trap Agarose beads (Bulldog Bio) for 2 hours at 4°C with rotation. After binding, the beads were washed 5 times with 1 mL of DLB with 0.5% IGEPAL. Then 40 µL of 4× SDS sample buffer were added to beads and the samples were heated at 95°C for 6 minutes. Samples were analysed on a NuPAGE 4–12% Bis-Tris Protein Gel (Fisher) and SilverQuest Silver Staining Kit (Fisher) to confirm sample quality. Protein samples for mass spectrometry were prepared by running 1 cm into an 8% Tris-Glycine SDS-PAGE gel followed by Coomassie blue staining. Two gel pieces (>75 kDa and <75 kDa) were cut from the gel for each sample and sent for mass spectrometry (MS) analysis. The MS analysis was conducted on two biological replicates for experimental samples (Mnb-TagRFP-T) and three control samples (yw).

Samples were analysed by liquid chromatography/tandem mass spectrometry (nanoLC-MS/MS) using Thermo Scientific Orbitrap mass spectrometer by the Taplin Mass Spectrometry Facility at Harvard Medical School. Mass spectrometry data were analysed using Sequest and searches were run using a database of annotated Drosophila proteins, with the following search parameters: mass tolerance = 2, mass units = amu, fragment ion tolerance = 1, ion series = nB;nY;b;y, Mods = 15.9949146221 M 14.0157 C, enzyme = trypsin. MS results from two gel pieces for each sample were combined by summing unique peptide counts for each protein. The results for experimental and control samples were compared using the Significance Analysis of INTeractome (SAINT) (v2.5.0) (Choi et al. 2011) using peptide counts identified for each protein. Any protein with the SAINT score (AvgP) above 0.8 was considered a high-confidence interactor and was included in the interactome (Supplementary File 1).

The Mnb protein interactome was generated using the STRING database app in Cytoscape (Shannon et al. 2003) using the following standard options: Network type: Full STRING Network, Confidence Score (Cutoff): 0.40, Maximum additional interactors: 0, Use smart delimiters: checked. The resulting STRING network was clustered using the clusterMaker MCL Cluster app in Cytoscape. The following MCL cluster settings were used: Granularity parameter: 2.5, Array Source: None, Edge cut off: 0, Assume edges are undirected: check, Adjust loops before clustering: check, Create new clustered network: check. To analyze Gene Ontology of the resulting clustered network, highly interconnected clusters were analysed using STRING enrichment.

Plasmid construction

pMT-Reps-Flag and pMT-Reps-HA were generated by cloning Reps-RA isoform from FMO04419 (DGRC) into pMT-V5-His vector (Invitrogen). pMT-Mnb-V5 was generated by cloning Mnb-RH isoform from FMO12028 (DGRC) into pMT-V5-His vector. pMT-Rlip-HA was generated by cloning the Rlip-RA isoform from GH01995 (DGRC) into pMT-V5-His vector. pMT-mCherry-Rlip and pMT-Rlip-mCherry were cloned from pMT-Rlip-HA using NEB HiFi Assembly kit (NEB) to exclude the retained intron and incorporate the mCherry open reading frame into pMT-V5-His vector. pcDNA3.1-DYRK1A-V5 was generated by cloning DYRK1A from pMH-SFB-DYRK1A (Addgene) into pcDNA3.1(−) (ThermoFisher). pcDNA3.1-REPS2-Flag was obtained from Sinobiological. pcDNA3.1-REPS1-Flag was generated by cloning REPS1 from pcMV-REPS1 (Sinobiological) into pcDNA3.1(−).

Co-immunoprecipitation (co-IP)

Drosophila S2 cells were transfected with the indicated plasmids or blank pMT-V5-His vector (Invitrogen) using Effectene transfection reagent (Qiagen). 24 hours after transfection, cells were induced with 0.35 mM CuSO₄ overnight at 25°C. Cells were then collected, washed with 10 mL of 1× PBS (Fisher), and lysed on ice for 20 minutes with 700 µL of ice-cold DLB. The lysate was centrifuged at 20,000 rcf for 20 minutes at 4°C. To generate lysate samples, 50 µL of lysate were added to 25 µL of 4× SDS sample buffer and heated for 5 minutes at 95°C. 450 µL of the lysate were incubated with 20 µL of packed anti-V5 beads (MilliporeSigma), anti-Flag beads (MilliporeSigma), anti-HA beads (MilliporeSigma), or anti-RFP beads (Bulldog Bio) for 2 hours at 4 °C. The beads were then washed 5 times with 1 mL of DLB. 40 µL of 4× SDS sample buffer was added and the beads were incubated at 95°C for 5 minutes to generate IP samples. The lysate and IP samples were run on SDS-PAGE followed by western blot.

Phos-tag analysis and western blotting

Samples were prepared using EDTA-free DLB (composition as above, except with 2× cOmplete EDTA-free Protease Inhibitor, MilliporeSigma, 1 tablet per 25 mL of lysis buffer) and immunoprecipitated with anti-Flag beads. IP sample was analyzed by standard SDS-PAGE and Phos-tag analysis. A 6% Phos-tag gel with 50 µM Phos-tag (FujiFilm Wako Chemicals) and 100 µM MnCl₂ was run at 80 V for 4 hours at 4°C. Following electrophoresis, the Phos-tag gel was washed with 10 mM EDTA in 1× Transfer Buffer 2 times for 10 minutes followed by one wash with 1× Transfer Buffer for 10 minutes. The gel was then wet transferred at 90 V for 2 hours at 4°C. The blots were then blocked in blocking buffer (LI-COR) for 30 minutes before incubation with primary antibody (rabbit anti-FLAG, Sigma-Aldrich, 1:1000) and secondary antibody donkey anti-rabbit IgG (1:20,000, LI-COR). Blots were scanned on LI-COR Odyssey CLx Imaging System. Other antibodies used for western blotting were mouse anti-V5 (MilliporeSigma, 1:1000), rabbit anti-HA (MilliporeSigma, 1:1000), rabbit anti-dsRed (Takara, 1:1000), and Goat anti-Mouse IgG (LI-COR, 1:20,000).

Wing and brain analysis

Adult female wings were removed and mounted in 3:1 CMCP-10 Mounting Medium (Fisher)/lactic acid. Wing images were taken with a Zeiss Axiocam 712 camera on an Olympus BX60 Microscope. The wing size was calculated as the wing area and analyzed using Fiji. Adult female heads were removed and fixed in 4% paraformaldehyde in 1× PBS for 20 minutes at RT in darkness. Following fixation, heads were washed 3 times in 1× PBS for 5 minutes at RT. Brains were dissected from fixed heads before mounting. 10–15 brains per slide were mounted between two coverslips placed approximately 0.5 cm apart in 15 µL of ProLong Gold Antifade Mountant, With DAPI (Fisher). Slides were stored overnight in darkness at RT before sealing the edges with clear nail polish. Fluorescent images of brains were taken with a Zeiss Axiocam 712 camera on an Olympus BX60 Microscope with a 10× objective. Brain size was measured in Fiji as the area of the DAPI positive brain tissue.

Results

Mnb regulates neuroepithelium development

Previous work investigating the role of Mnb in larval brain development primarily focused on neuroblasts and their progeny in the central brain (CB) (Shaikh et al. 2016; Shaikh and Tejedor 2018). Given the significant size reduction of the adult optic lobes observed in mnb mutants (Tejedor et al. 1995; Yang et al. 2016), we investigated Mnb's role during the larval stages of optic lobe development. The optic lobes originate from NBs that are in turn produced from the neuroepithelial (NE) cells encompassing the inner and outer proliferation centers (Fig. 1a) (Hofbauer and Campos-Ortega 1990; Li et al. 2013). The NE cells must undergo a highly regulated transition from NE to NB, which is mediated by a proneural wave that is controlled by various signaling pathways including EGFR and Notch (Fig. 1a) (Yasugi et al. 2010; Jorg et al. 2019).

Fig. 1.

Mnb is required for neuroepithelium and neuroblast organization. a) Top: overall view of third instar larva with central nervous system shown. A horizontal square indicates imaging plane (ventral view). Bottom: Neuroepithelium (NE) to neuroblast (NB) transition is mediated by Notch and EGFR signaling. CB, central brain. Adapted from (Homem et al. 2015; Contreras et al. 2018). b-g) Confocal maximum intensity projections of larval brains of the indicated genotypes immunostained for E-cad. Brackets indicate the E-cad expression domain corresponding to the NE. RNAi (Ri) for the white gene (wRi) was used as a control in knockdown experiments. da, da-GAL4 driver; c855a, c855a-GAL4 driver. h-m) Confocal maximum intensity projections of larval brains of the indicated genotypes immunostained for Miranda (Mira), with the DAPI signal showing the DNA. Dotted line marks a boundary between the NE and the NB. Scale bars, 25 µm. n) Schematic representing NE/NB outcomes in wild type and mnb mutant conditions.

We used the mutant allele mnb^d419 (Hong et al. 2012) which deletes part of the kinase domain in the Mnb protein (Supplementary Fig. 1d) and results in smaller 3rd instar larval brains in hemizygous males (Yang et al. 2016). These hemizygous larvae formed pharate adults that died during eclosion, which is a more severe phenotype than the one observed for the kinase-inactive mnb¹ mutant allele that is homozygous viable (Tejedor et al. 1995; Ori-McKenney et al. 2016). Heterozygous female flies containing one copy of mnb^d419 and one copy of mnb¹ were viable (Supplementary Fig. 1). To ensure that mnb^d419 male lethality was not due to a mutation outside the mnb locus, we crossed mnb^d419 to two lines carrying duplications of the X chromosome containing the mnb gene and found that these lines rescued mnb^d419 lethality (Supplementary Fig. 2). These results demonstrate that the mnb^d419 allele is a strong loss of function mutation in mnb.

To visualize the NE, we stained for the epithelium marker E-cadherin (E-cad) (Simoes et al. 2017; Shard et al. 2020). yw/Y males were used as controls, and mnb^d419/Y male larvae were used to analyze expression in the mutants. In control animals, E-cad staining revealed the typical NE organization with columnar epithelial cells expressing E-cad at their basal and apical sides (Fig. 1, b, d, and f, bracketed region). A few dividing epithelium cells can be identified as the rounded cells within the NE band and only a few cells within the NB region are E-cad positive. In contrast, the NE organization in mnb^d419 was disrupted, resulting in fewer columnar cells and expansion of E-cad staining into the NB region (Fig. 1c). Larval brains expressing UAS-mnb RNAi (Ri) under the control of the ubiquitous da-GAL4 driver or the NE-specific driver c855a-GAL4 showed a similar phenotype, compared to larval brains expressing UAS-w (white) RNAi as a control (Fig. 1d-g). These results suggest that Mnb is required for the proper organization and development of the NE in the optic lobe.

Given that NE cells give rise to NBs, we assessed the organization of NBs through staining for the NB marker Miranda (Mira) (Shen et al. 1997; Schuldt et al. 1998). Wild-type larval brains showed a distinct band of tightly packed Mira positive NBs (Fig. 1i). The boundary between Mira positive NBs and the Mira negative NE cells was straight and smooth in wild-type brains (Fig. 1h-j, dotted line). In contrast, the boundary between NE and NB in mnb^d419/Y mutant brains was jagged and uneven (Fig. 1k-m), suggesting there may be Mira negative, E-cad positive cells persisting into the NB region. This disruption suggests a defect in NE to NB transition, a process that is tightly regulated by Notch and EGFR signaling (Contreras et al. 2018).

Increased apoptosis was observed in mnb^d419/Y larval brains, based on cleaved Death caspase-1 (Dcp-1) staining (Supplementary Fig. 3), in agreement with previously reported results using other mnb mutants (Shaikh et al. 2016). Based on the significant increase in Dcp-1 intensity within the NB region and the mis-localization of the E-cad and Mira markers within this same region, we speculate that these cells are mis-specified and undergo programmed cell death, ultimately resulting in a smaller adult brain. Collectively, these data have uncovered a previously unknown early role of Mnb in regulating NE function (Fig. 1n).

Reps and Rlip interact with Mnb

To further characterize the mechanisms through which Mnb regulates brain development, we identified Mnb interacting proteins using AP-MS in embryos from endogenously tagged Mnb-TagRFP-T (Yang et al. 2016) and control flies. Peptide counts were analyzed by Significance Analysis of INTeractome (SAINT), and proteins with interaction probability score above 0.8 were considered significant (Supplementary File 1) (Choi et al. 2011). The resulting interaction network of significant hits was generated in Cytoscape using the STRING protein interaction database and clustered using the clusterMaker MCL Cluster app (Supplementary Fig. 4, see Materials and Methods) (Szklarczyk et al. 2015). Apart from Mnb itself, one of the top hits was the known Mnb interactor Wings apart (Wap) (Degoutin et al. 2013; Yang et al. 2016) (Fig. 2a). We also found Regulator of eph (Reph) which was previously identified as a Mnb interactor in the Drosophila Protein Interaction Map (Guruharsha et al. 2011) (Fig. 2a). Identification of these known interactors validates our AP-MS approach. Gene Ontology (GO) analysis of clusters showed several significantly enriched categories such as nuclear import (FDR = 4.9E−13), ribosome biogenesis (FDR = 8.01E−21), and endocytosis (FDR = 1.64E−8) (Supplementary Fig. 4).

Fig. 2.

Mnb interacts with Reps and Rlip. a) Network clusters identified in Mnb AP-MS include known Mnb interactors Wap and Reph (left cluster) and a highly interconnected group of endocytosis related proteins (right cluster). b-g) Co-immunoprecipitation (co-IP) experiments in Drosophila S2 cells showing the binding interactions among Mnb, Reps, and Rlip using the indicated protein combinations and IP directions. Mnb showed pairwise interactions with Reps (b, c) and Rlip (d, e), and a ternary interaction with Reps and Rlip (f, g). h) Phos-tag analysis of Reps phosphorylation by Mnb. Bottom: regular SDS/PAGE gel. Mnb-KR, a kinase dead version of Mnb (Mnb^K193R mutant) (Degoutin et al. 2013). i) Co-IP of DYRK1A and REPS1/2 in HEK293T cells through IP of REPS1/2. IP: immunoprecipitation, IB: immunoblot.

The highly enriched complex of endocytic regulators (Fig. 2a) was interesting due to its potential impact on signaling, and we pursued characterization of two novel Mnb interactors from that cluster, RALBP1 associated Eps domain containing (Reps) and Ral interacting protein (Rlip). The mammalian orthologs of these proteins, REPS1/2 and RalA binding protein 1 (RALBP1), interact with activated small GTPase RalA and AP2 components to regulate receptor endocytosis (Ikeda et al. 1998; Nakashima et al. 1999; Jullien-Flores et al. 2000). RALBP1 also has mitosis-specific roles and serves as an essential adaptor between Cdk1 and Epsin, enabling Cdk1-mediated phosphorylation of Epsin which renders it endocytosis-incompetent and functions as a molecular off switch for endocytosis during mitosis (Rosse et al. 2003).

Co-immunoprecipitation (co-IP) of overexpressed tagged proteins confirmed the binding of Reps and Rlip to Mnb in Drosophila S2 cells (Fig. 2b-e). When expressed together, both Reps and Mnb can interact with Rlip, suggesting that these three proteins may form a ternary complex (Fig. 2f-g). Given the canonical role of Mnb as a kinase (Tejedor et al. 1995; Tejedor and Hammerle 2011; Yang et al. 2016), we investigated whether Mnb could phosphorylate Reps and Rlip. Phos-tag gel analysis of Reps revealed a mobility shift upon co-expression with wild type Mnb but not kinase dead Mnb (Fig. 2h), suggesting that Mnb is sufficient to phosphorylate Reps and Mnb kinase activity is required for this phosphorylation. These findings validate Reps and Rlip as bona fide Mnb protein interactors.

In mammals, REPS1/2 and RALBP1 also physically interact (Ikeda et al. 1998; Wang et al. 2023) but their interaction with the Mnb ortholog DYRK1A has not been reported. We found that REPS1 and REPS2 co-immunoprecipitated with DYRK1A in cultured HEK293T cells (Fig. 2i), whereas RALBP1 showed only a weak interaction with DYRK1A (Supplementary Fig. 5). These data show that the Mnb/Reps interaction is conserved, suggesting a possible involvement of DYRK1A in the regulation of REPS1/2 functions in human cells.

Mnb promotes cytoplasmic Rlip localization

To probe the role of Mnb in the Mnb-Reps-Rlip complex, we investigated the localization patterns of these proteins in cultured Drosophila S2 cells. Mnb localized to the cytoplasm in a diffused pattern with a few distinct puncta in each cell (Fig. 3b-b″). Rlip was found mostly in the nucleus, where it formed puncta, but was also occasionally distributed throughout the cell (Fig. 3c-c″, quantified in Fig. 3a). Reps localized in a diffused cytoplasmic pattern (Fig. 3e-e″). Co-expression of Mnb and Rlip resulted in subcellular redistribution of Rlip from mostly nuclear to primarily cytoplasmic or uniform localization (Figs. 3d-d‴ and 3a). Mnb is therefore sufficient for retaining Rlip in the cytoplasm. This is significant because other Rlip interactors such as Rala are also localized in the cytoplasm, and Mnb may thus be promoting Rlip's interaction with those factors. Reps localization remained unchanged upon co-expression with Mnb (Fig. 3f-f‴).

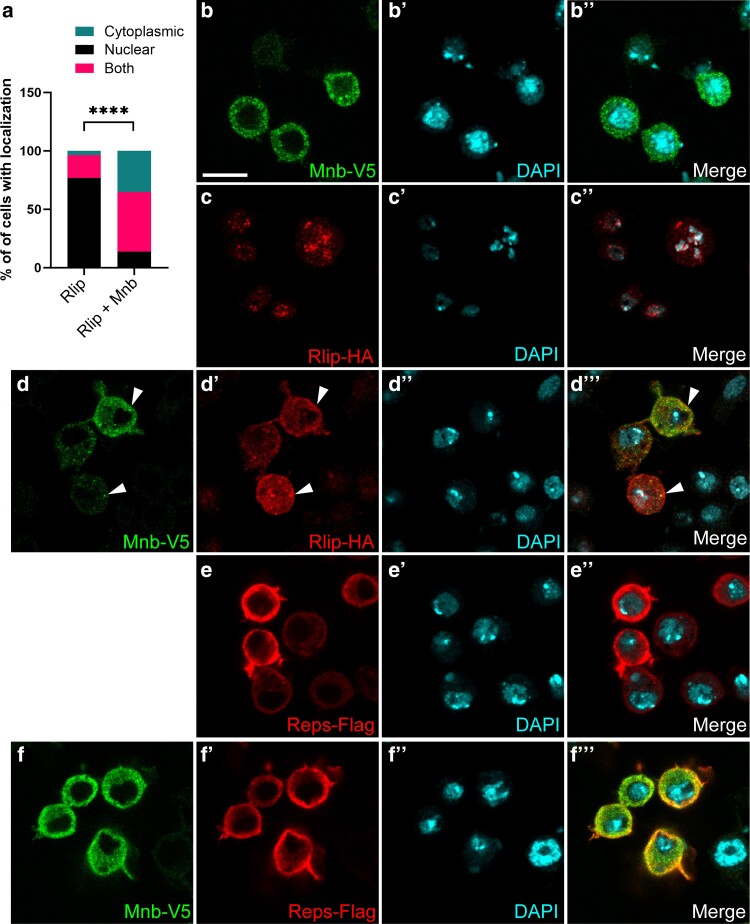

Fig. 3.

Mnb promotes cytoplasmic localization of Rlip. a) Quantification of data for (c-d‴). b-f‴) Confocal images of immunostained Drosophila S2 cells expressing Mnb-V5 (b-b″), Rlip-HA (c-c″), Mnb-V5 with Rlip-HA (d-d‴), Reps-Flag (e-e″), and Mnb-V5 with Reps-Flag (f-f‴). Arrowheads indicate Mnb-Rlip co-localization in cytoplasmic puncta (d-f‴). Scale bar in (b), 10 µm. Statistics calculated by chi-squared analysis, n > 100 for each condition, **** P ≤ 0.0001.

Reps and Rlip work together with Mnb to regulate wing growth

To determine whether Mnb, Reps, and Rlip are involved in common developmental processes, we tested the effects of knockdown of Rlip and Reps on the known mnb small wing phenotype. Knockdown of mnb with the wing-specific driver MS1096-GAL4 resulted in a smaller wing than the control, consistent with previous observations (Degoutin et al. 2013; Yang et al. 2016) (Fig. 4, a, b and g). The knockdown of Reps did not alter wing growth but knockdown of Rlip resulted in a smaller wing than the control (Fig. 4, c, e and g). Double knockdown of either Reps or Rlip in conjunction with mnb led to a further reduction in wing size, compared to the knockdown of mnb alone (Fig. 4, d, f and g). These results suggest that Mnb, Reps, and Rlip work together to regulate wing growth.

Fig. 4.

Mnb, Reps and Rlip work together to control wing growth and organism development. a-f) Wings from adult female flies expressing the indicated RNAi (Ri) transgenes using the wing-specific MS1096-GAL4 driver. g) Quantification of the wing areas shown in (a-f) (n ≥ 14 for each genotype). ***P < 0.0001. P value calculated using ANOVA, error bars represent SD. Scale bar in (a), 300 µm. h-j) Adult brains from female flies grown at 18°C expressing the indicated RNAi transgenes using the ubiquitous da-GAL4 driver. k) Quantification of brain size shown in (h-j) (n ≥ 5 for each genotype). Brain size was measured as total area. DAPI signal is shown in green. ****P < 0.0001, P value was calculated using ANOVA. Error bars represent SD. Scale bar in (H), 100 µm.

Rlip functions together with Mnb to regulate organism development

Given the critical role of Mnb in brain development (Tejedor and Hammerle 2011; Yang et al. 2016), we asked whether Reps and Rlip also regulate brain growth. Knockdown of mnb with the ubiquitously expressed driver da-GAL4 led to a decrease in adult brain size, particularly in the optic lobes (Supplementary Fig. 6a, b). Knockdown of Reps with the same driver resulted in a larger brain than the control (Supplementary Fig. 6a, c), however double knockdown of Reps and mnb resulted in a brain that was similar in size to that of mnb knockdown alone (Supplementary Fig. 6a-e). Joint knockdown of mnb and Reps or Rlip with the NE-specific driver c855a-GAL4 did not further decrease the size of the brain, compared to knockdown of mnb alone (Supplementary Fig. 7). These outcomes suggest that Mnb was epistatic to Reps and Rlip in these assays.

Using the da-GAL4 driver, knockdown of either Rlip alone or Rlip in combination with mnb was lethal at 25°C. However, when shifted to 18°C, RlipRi flies were viable and did not show an altered brain size, compared to control flies also grown at 18°C (Fig. 4, j and k). da-GAL4 driven knockdown of mnb at 18°C resulted in smaller brains than the control as expected (Fig. 4, h, i and k), however double knockdown of mnb and Rlip was lethal even at 18°C (Fig. 4k), suggesting a strong synergistic effect. The results of this experiment suggest that Mnb and Rlip function together to control Drosophila development, and the requirement for Rlip becomes apparent in the sensitized genetic background of reduced mnb function. Given the lethal phenotype of a joint knockdown of mnb and Rlip using a ubiquitously expressed driver, it is likely that their developmental functions are not limited to the brain.

Since reduction in mnb function results in the disruption of NE development (see Fig. 1), we asked whether a further reduction in Reps or Rlip would exacerbate this phenotype. A joint knockdown of mnb with Reps or Rlip using da-GAL4 showed defects in E-cad staining that were similar to those observed for mnb alone (Supplementary Fig. 8). We note however that knockdown of Rlip alone also showed disorganization of the NE (Supplementary Fig. 8d), though this effect was not as strong as the phenotype obtained with knockdown of mnb (Supplementary Fig. 8b).

Mnb engages Rala for growth control

Rlip is a functional partner of the small GTPase Ras-like protein A (Rala) in the regulation of endocytosis and exocytosis of signaling receptors (Cantor et al. 1995; Nakashima et al. 1999; Wang et al. 2023). The Rlip ortholog preferentially interacts with activated GTP-bound Rala in S. cerevisiae (Cantor et al. 1995). We compared Rlip interactions with wild type Rala and a constitutively active variant Rala^G20V (Sawamoto et al. 1999). In Drosophila S2 cells, Rala^G20V bound to Rlip better than wild type Rala (Fig. 5a), confirming that Drosophila Rlip also preferentially interacts with activated Rala.

Fig. 5.

Mnb functions with Rala to regulate wing and brain development. a) Co-IP of Rlip, wild type Rala, and Rala^G20V in Drosophila S2 cells through IP of Rlip. Bb-e) Wings from adult female flies expressing the indicated transgenes using the MS1096-GAL4 driver. A cross to yw (b) was used as a control. Scale bar in (b), 300 µm. f-h) Adult brains from female flies expressing the indicated RNAi (Ri) transgenes using the ubiquitous da-GAL4 driver. Scale bar in (f), 100 µm. i) Quantification of the brain areas shown in (f-h) (n7 for each genotype). j) Quantification of the wing areas shown in (b-e) (n$\ge$19 for each genotype). k-n) Adult brains from female flies expressing the indicated transgenes using the NE-specific c855a-GAL4 driver. o) Quantification of brain size (area) shown in K-N (n$\ge$8 for each genotype). ****P < 0.0001, **P < 0.001, *P < 0.01, P value calculated using ANOVA, error bars represent SD.

Given this connection between Rlip and Rala, we tested whether Rala and mnb interact genetically. We used a dominant-negative form of Rala (Rala^S25N) that contains a serine to asparagine substitution at position 25 and as a result has a high affinity for GDP and cannot be activated (Sawamoto et al. 1999). In the wing, overexpression of Rala^S25N slightly reduced wing size (Fig. 5, b, d and j). Knockdown of mnb in conjunction with Rala^S25N overexpression reduced wing size more than either of these conditions alone (Fig. 5b-e, j). This suggests that Mnb and Rala cooperate to regulate wing growth. We also investigated the genetic interaction between Rala and Mnb in the adult brain. Interestingly, Rala^S25N overexpression phenocopied Rlip-RNAi in combination with mnb-RNAi: on its own, expression of Rala^S25N did not significantly alter adult brain size; however, when combined with mnb knockdown, this combination was lethal and adult brains could not be analyzed (Fig. 5f-i).

To determine whether Rala and Mnb function together in the NE, we used the NE-specific driver c855a-GAL4 (Egger et al. 2007). Overexpression of Rala^S25N alone did not alter the brain size, while knockdown of mnb alone reduced the brain size (Fig. 5k-m). Importantly, combined Rala^S25N expression and mnb knockdown in the NE resulted in an even smaller brain than mnb knockdown alone (Fig. 5, n and o). Overall, these results suggest that Mnb and Rala jointly control the development of the wing and the brain, and in the brain their function is required specifically in the NE.

Discussion

In this work, we have identified a previously unappreciated function of Mnb in the developing Drosophila brain. Mnb is required for proper organization of the NE, which harbors precursors of the neural stem cells (NBs), and for maintaining distinct cell fates in the NE and the NB regions. By using a strong loss of function allele, mnb^d419, as well as NE-specific knockdowns, we show that loss of mnb disrupts NE integrity and compromises the boundary between the NE and the NBs, allowing aberrant expansion of E-cad positive cells into the NB region. The mnb small brain phenotype may therefore derive from increased apoptosis of mis-specified cells, resulting in fewer properly specified NBs and ultimately fewer neurons in the adult brain. Increased levels of apoptosis in mnb mutants have been reported previously (Shaikh et al. 2016), and we confirmed this observation for the mnb^d419 allele (Supplementary Fig. 3).

We identified a network of in vivo Mnb interacting proteins via AP-MS and uncovered several functional protein groups that may be targeted by or work together with Mnb. Among the proteins in a highly connected endocytosis related cluster, we identified Mnb interactors Reps and Rlip that may form a ternary complex with Mnb. Mnb/DYRK1A and Reps/REPS1/2 physically interact in both Drosophila and human cells, suggesting conservation of this interaction and a potential novel regulatory axis for DYRK1A-related diseases such as microcephaly. At the subcellular level, Mnb can recruit Rlip into the cytoplasmic puncta but did not affect Reps localization that was already cytoplasmic (Fig. 3). Beyond physical interactions, Mnb, Reps, and Rlip work together in controlling wing growth, and a ubiquitous joint knockdown of mnb and Rlip results in lethality, suggesting a more general common function in organism development. Given the functional connection between Rlip and Rala, we investigated a possible interaction between Mnb and Rala, and found that they similarly have a joint function in controlling wing and brain development. In the brain, the functions of Mnb and Rala are required specifically in the NE, suggesting that Rala contributes to Mnb activity in that tissue. Collectively, this evidence establishes a regulatory axis involving Mnb, Reps, Rlip, and Rala (Fig. 6a, b). These proteins may work together to regulate NE integrity and NB specification during brain development and are likely involved in the growth of other tissues.

Fig. 6.

A model for the function of the Mnb/Reps/Rlip/Rala signaling network. a) Mnb participates in at least three regulatory pathways that control organ growth: Hippo/Warts (Wts)/Yorkie (Yki) (Degoutin et al. 2013), ERK/Cic (Yang et al. 2016), and the Reps/Rlip/Rala pathway described in this work. b) A possible molecular mechanism for Mnb-mediated control of brain development and organ growth. Mnb engages Reps and Rlip to activate Rala, which in turn controls receptor signaling via regulation of endo- and exocytosis. Reps is thought to dissociate from Rlip after Rala activation (Wang et al. 2023).

We have previously established that Mnb contributes to the control of organ growth and tissue patterning in Drosophila via downregulation of the Hippo pathway kinase Warts (Degoutin et al. 2013) and via inactivation of the transcriptional repressor Capicua in parallel with ERK (Yang et al. 2016). Our current study delineates a third important signaling function of Mnb that involves trafficking regulators Reps, Rlip, and Rala (Fig. 6a). In the future, it would be of interest to determine how these pathways are coordinated to mediate proper development of the brain and other tissues.

It is possible that the Mnb/Reps/Rlip/Rala network controls signaling receptors at the level of intracellular trafficking. Rala is involved in the regulation of different signaling pathways such as c-Jun N-Terminal Kinase (JNK) (Sawamoto et al. 1999), EGFR/ERK (Douguet et al. 1988), and Notch (Cho and Fischer 2011), in various developmental contexts. The Rala-Rlip-Reps complex has been implicated in both endocytosis and exocytosis of signaling receptors (Nakashima et al. 1999; Wang et al. 2023). Given the central role for EGFR and Notch signaling in controlling NE development and orchestrating a proper propagation of the proneural wave in the transition to NBs (Egger et al. 2010; Yasugi et al. 2010; Contreras et al. 2018; Jorg et al. 2019), we speculate that the Mnb/Reps/Rlip/Rala signaling network contributes to the regulation of these pathways, possibly at the level of endo- or exocytosis (Fig. 6b). Another likely candidate for Mnb-mediated trafficking regulation is E-cad, whose subcellular localization is tightly controlled by both endo- and exocytosis (Bruser and Bogdan 2017). Consistent with this possibility, E-cad localization in the NE was disrupted in mnb mutants (Fig. 1 and Supplementary Fig. 8).

We have shown that Mnb can phosphorylate Reps and that this phosphorylation requires Mnb's kinase activity, but the significance of this effect is unclear. In S2 cells, the addition of Mnb does not reduce or enhance the Rlip-Reps interaction (Fig. 2). Therefore, we predict that Mnb phosphorylation of Reps has other mechanistic consequences outside of Mnb/Reps/Rlip interactions. It is possible that Mnb-mediated phosphorylation of Reps alters its interactions with Epsins which could affect recruitment of the Reps/Rlip complex to endocytic compartments (Morinaka et al. 1999; Kariya et al. 2000; Kim et al. 2021), thus regulating signaling. We note that Mnb is likely not the only kinase that phosphorylates Reps, because the Reps bands on a Phos-tag gel are not further slowed down with the addition of Mnb but rather the lower, hypo-phosphorylated forms of Reps gain additional phosphorylations (Fig. 2h). Given the role Reps plays as an adapter protein between Rlip/RALBP1 and Rala in mammalian cells (Wang et al. 2023), it is possible that it plays a similar role in Drosophila. A recent study found that mammalian REPS1 does not interact with RALA but instead helps stabilize RALBP1 until it interacts with RALA, and then Reps dissociates from the RALA-RALBP1 complex (Wang et al. 2023). The ability of Mnb to phosphorylate Reps and the formation of the Mnb/Reps/Rlip complex may contribute to a similar dynamic control of Reps/Rlip/Rala interactions in flies (Fig. 6b). Such dynamics may be critical for the proper regulation of signaling pathways responsible for the NE to NB transition, as well as for the development of other organ systems.

Data availability

Strains and plasmids are available upon request. A complete SAINT output is provided in Supplementary File 1. The mass spectrometry proteomics data have been deposited to the ProteomeXchange Consortium via the PRIDE partner repository with the dataset identifier PXD052378.

Supplemental material available at G3 online.

Funding

This work was supported by the National Institutes of Health (NIH) grant GM141843 to A.V. M.B. was supported by the University of Massachusetts Boston Doctoral Fellowship, E.S. was supported by the University of Massachusetts Boston College of Science and Mathematics Undergraduate Research Fellowship.
