. 2024 Nov 9;14:27357. doi: 10.1038/s41598-024-78249-x

Sublethal effects of nanoformulated Mentha pulegium L. essential oil on the biological and population growth parameters of the greenhouse whitefly, Trialeurodes vaporariorum, (Hemiptera: Aleyrodidae)

Mohammad Sharifiyan 1, Fariba Mehrkhou 1,✉, Maryam Negahban 2
PMCID: PMC11550315  PMID: 39521817

Abstract

We evaluated the toxicity and sublethal effects of essential oil (Mentha pulegium L.) and its nanoformulation against greenhouse whitefly, Trialeurodes vaporariorum, which is one of the most destructive pests of a wide range of crops. The essential oil was extracted from the plant by steam distillation using a Clevenger apparatus, and 14 chemical components of M. pulegium were identified using gas chromatography-mass spectrometry. The results illustrated that monoterpenoids were main characterized components including pulegone (%66), menthofren (%10.54), 1, 8 Cineole (%8.36), betapenin (%3.49) and limonene (%2.01). The nanoformulation was characterized using dynamic light scattering (DLS), transmission electron microscopy (TEM), and scanning electron microscopy (SEM), revealing that the particles were spherical in shape with an average size of 156.40 nm. The leaf dipping was used for the bioassays. The obtained LC50 and LC25 values of treatments indicated that the nanoformulation of essential oil (LC50: 2418.96 and LC25: 1724. 25 ppm) was more toxic than the pure of M. pulegium oil (LC50: 3223.083 and LC25: 779.439 ppm ppm) against greenhouse whitefly adults after 24 h. The life table data were analyzed based on the age-stage, two-sex life table theory using computer program of TWOSEX–MSChart. Also, the sublethal concentration (LC25) of its nanoformulation led to delaying in preadult stage and decreased the adult longevity, and fecundity compared to treatments. Moreover, the sublethal concentration of either M. pulegium oil or its nanoformulation affected the population growth parameters of T.vaporariorum compared to the control. However, the net reproductive rate (R0), intrinsic rate of increase (r), finite rate of increase (λ), of adults who exposed to the nanoformulation was lower than the pure form of M. pulegium. The overall results demonstrated that the nanoformulation of M. pulegium has the most lethal and sublethal effects on greenhouse whitefly compared with the pure form of essential oil which can be consider in integrated pest management program (IPM) of this pest.

Keywords: Mentha pulegium, Nanoformulaion, Greenhouse whitefly, Bioassays, Two-sex life table

Subject terms: Ecology, Engineering, Nanoscience and technology

Introduction

Insect pests reduce food security by affecting crop yield and the quality of agricultural products1, and transmission of plant pathogens as well2,3.

The greenhouse whitefly, Trialeurodes vaporariorum, Westwood (Hemiptera: Aleyrodidae) is an economically important agricultural pest in worldwide4,5 (Fig. 1A). It is known as a polyphagous pest, which feeds over 275-300 different range of host plants, including vegetables, fruits and ornamental crops6. Either nymphs or adults cause direct damage by feeding on the plant juices and indirect damage by production of honeydew, which led to growth of black sooty mold fungus, and transmission of plant viruses as well7–9. The management of greenhouse whitefly is difficult owing to the polyphagous and polyvoltine behavior of greenhouse whitefly, which ultimately enable it to overcome the plant allelochemicals and resistance to synthetic insecticides6. Exclusive use of synthetic insecticides has led crucial side effects such as pest resistance, toxic residue in food substance, and environmental pollution10,11.

Fig. 1.

Fig. 1

Open in a new tab

The life cycle of greenhouse whitefly, T.vaporariorum, (A) and Mentha pulegium (B).

In recent years, entomologists have tried to find new potential substances, Essential oils (EOs), with insecticidal properties12. They are known as a volatile plant secondary metabolites which have various insecticidal activity against insect pests encompassing repellency, toxicity, anti-oviposition, and antifeedant activity13–16. Some advantages of essential oils such as eco-friendly, economic, efficiency against a variety of pests, numerous modes of action, low toxicity of residues after application, and relatively inexpensive production procedure make them a potential and suitable option17,18. Hence, essential oils owing to the complex mixtures of constituents and their various sites of activity on target insects, it is likely that resistance will develop more slowly against T. vaporariorum19,20. These features imply that insecticides based on plant essential oils could be used in different ways to control insect pests21.

Mentha pulegium L. as a medicinal and aromatic plant (Lamiales: Lamiaceae), has a cosmopolitan distribution2,22, which grows commonly in Iran23 (Fig. 1B). It is well known for biological properties including antimicrobial, antioxiditant, anticholinesterase and insecticidal activities17. The insecticidal potential and repellency activity against different insects makes it as a good source of active substances for the development of botanical insecticides17. However, high volatility properties, low solubility in aqueous phase and sensitivity to physical (temperature, light, ultra violet, etc) and chemical agents (oxidative and polymerization processes) of EOs resulted in a loss of their efficiency and stability10,24,25. Nowadays, with the development of nanotechnology, the advancement of essential oil nanoformulations have become as a promising alternative25,26. Due to the nanometric size of nonoformulations, the physicochemical stability and contact surface area would be increase, which led to better dispersion of EOs in aqueous phase, and increasing their interaction with the target sites8,24,27.

In the most studied documents, the insecticidal, antifeedant, contact and fumigant toxicity of M. pulegium using the lethal concentration against different insect pests such as Drosophila melanogaster Meigen29, Aphis spiraecola Patch, Aphis gossypii Fitch30, Tribolium castaneum Herbst31, and Culex pipiens Linnaeus12, were evaluated. There are a few information regarding the sublethal concentration of another essential oils on insect pests9,32. To our knowledge there is no comprehensive information regarding the sublethal effects of M. pulegium and its nano-formulated against whitefly greenhouse. The sublethal concentration are involved in biological, physiological, demographic or behavioral changes of individual, or populations of insects33. Owing to the physiological changes, prolonging in the developmental time, reduction in adult longevity, fecundity, and fertility of insect pests may occur during generations9,12,34. Also, the sublethal concentrations of botanical insecticides are involved in physiological processes by inhibition the ecdysis process and the acetylcholinesterase activity, as well33. So, besides the lethal effects, survey on the sublethal effects of M. pulegium and its nano-formulated can give a comprehensive insight into their use as a biopesticide in integrated pest management programs9,35, that could be obtain by demographic toxicological studies34,36, in which life tables and the projected population growth of the targeted pests could be estimate37–40.

To gain insight into the lethal and sublethal effects of M. pulegium essential oil and its nanoformulation, we used the two-sex life table method by analyzing life table and population growth rate parameters of T. vaporariorum. Therefore, the present study provides a comprehensive information focusing on biological (developmental time traits, adult longevity and fecundity), and population parameters such as intrinsic rate of increase, net reproductive rate, life expectancy, reproductive value and etc. of T. vaporariorum.

Results

Chemical constituents of M. pulegium essential oil

The chemical constituents, retention index, retention time and percentage of M. pulegium EO are shown in Table 1. The results indicated about 14 compounds in which, pulegone (66.00%), menthofuran (10.54%), 1, 8-cineole (8.36%), β-pinene (3.49%), limonene (2.01%), and α-pinene (1.76%) were the six most abundant constituents of M. pulegium EO. Their retention time were obtained 23.01, 20.17, 14.60, 12.59, 14.39 and 10.96 min, respectively.

Table 1.

Characterization of chemical constituents of Mentha pulegium essential oil using GC/MS.

Components Retention index Retention time (min) Percentage (%)
α-pinene 946.516 10.96 1.76
Sabinene 981.705 12.30 1.08
β-pinene 988.814 12.59 3.49
Limonene 1041.766 14.39 2.01
1,8-cineole 1047.112 14.60 8.36
p-menth-3-en-8-ol 1151.047 19.35 1.60
Menthone 1158.223 19.73 0.76
Menthofuran 1166.362 20.17 10.54
cis-dihydro carvone 1174.682 20.63 0.75
a-terpineol 1176.467 20.73 0.79
Pulegone 1257.727 23.51 66.00
Piperitenone 1350.493 27.93 0.69
Piperitenone oxide 1368.504 28.88 1.06
E-caryophyllene 1447.904 31.53 0.56
Open in a new tab

Nanoformulation surface morphology, particle size distribution and encapsulation efficiency

TEM images (Fig. 2A) show nucleus and wall structure of nanoformulation. Nanoparticle sizes by using TEM were approximately 100 nm with spherical shape. In the scanning electron microscopy (SEM) the mean size of particles were 156.40nm (Fig. 2B). Dynamic light scattering (DLS) is a technique used to measure colloidal stability through the measurement of the particle/droplet size and size distribution. The average size of particle droplet was 63.02nm (Fig. 2C). The encapsulation efficiency (EE) was obtained 88 % for M. pulegium of EONF.

Fig. 2.

Fig. 2

Open in a new tab

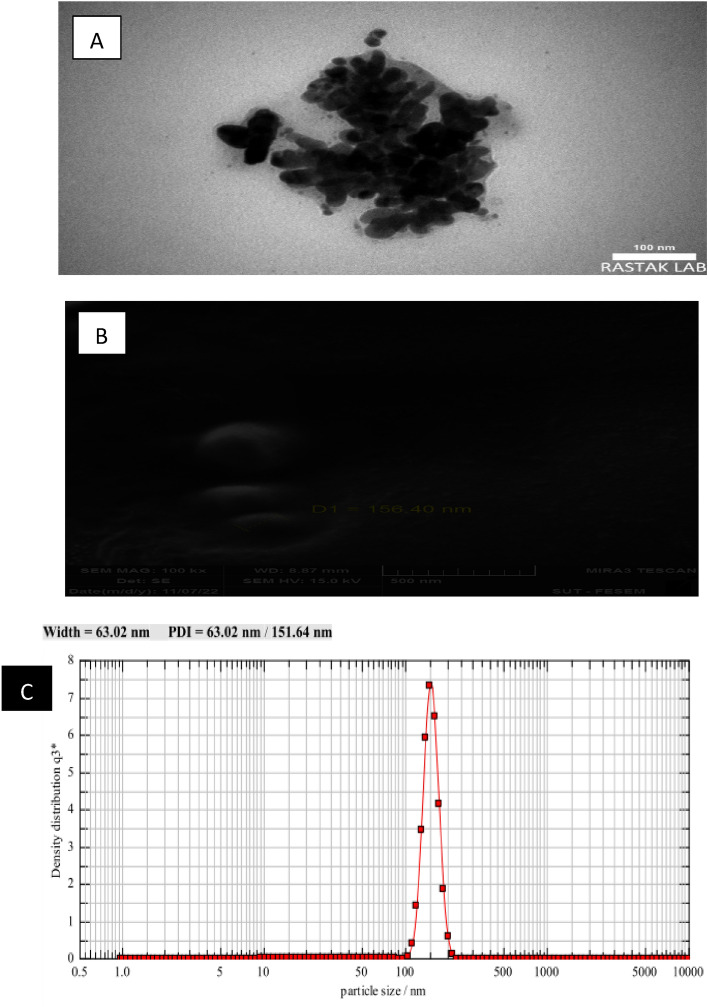

Transmission electron micrographs (TEM) (A), scanning electron microscopy (SEM) image (B), and size distribution by dynamic light scattering (DLS) of Mentha pulegium nanoformulation (C).

Insecticidal activity of M. pulegium essential oil and its nanoformulation

Probit analysis revealed that LC50 values of the pure and nanoformulation essential oil of M. pulegium against adults of T. vaporariorum 24h after treatment were 3223.083 and 2418.96 ppm, respectively (Table 2).

Table 2.

Susceptibility of Trialeurodes vaporariorum adults to Mentha pulegium essential oil and it’s nanoeformulation 24 h after treatment.

LC25 (ppm) LC 50 (ppm) LC 90 (ppm) Slope ± SE X2 (df) P value RMP 95% C. L.
Mentha pulegium

1724.526

(1208.8–2181.44)

3223.08

(2596.7–4033.75)

10576

(7512–19167)

 2.483± 0.387 1.372 (3) 0.457 1.33 (1.35–1.36)
Nanoformulation of M.pulegium

779.439

(428.71–1098.560)

2418.968

(1922.976-2968.633)

7507.2

(5577.9–12405)

 2.606±0.404 1.768 0.589
Open in a new tab

LC lethal concentration, CL confidence limits, X2 Chi-square value, df degrees of freedom, RMP relative median potency.

Sublethal effects of M. pulegium EO and its nanoformulation on life span of T. vaporariorum

The developmental time, survival, reproduction, adult longevity, and total life span of greenhouse whitefly exposed to the M. pulegium EO and its nanoformulation are shown in Table 3. The longest egg incubation period in the greenhouse whitefly’s F1 generation observed in the nanoformulation treatment followed by the M. pulegium EO, and control treatments. Exposure to sublethal concentration of M. pulegium EO and its nanoformulation led to prolonged developmental time of the F1 generation of the greenhouse whitefly. The developmental time duration (egg to adult emergence) obtained for the cohort in the nanoemoulsion group was significantly longer than those exposed to M. pulegium EO. The highest and lowest immature/preadult survival rates were obtained in the control (0.933±0.23) and M. pulegium nanoformulation (0.716±0.18), respectively. The longest female (8.04±0.2) and male (7.54±0.16) longevity were recorded in the control group. The effects of the M. pulegium EO and its nanoformulation on the total prereproductive period (TPRP), adult prereproductive period (APRP), oviposition days, as well as fecundity are shown in Table 3. Retardation in egg laying was observed in the population of adult female progeny of parents exposed to the sublethal concentration of (LC25). The longest and shortest APRP were obtained control (0.93±0.05 days) and nanoformulation of essential oil (0.89±0.08 days) populations, respectively (Table3).

Table 3.

Sublethal concentrations of Mentha pulegium and its nanoformulation on developmental time, adult longevity and fecundity of Trialeurodes vaporariorum.

Stages Control (n*) Mentha pulegium (LC25) (n*) Nanoformulation (LC25) (*) df (F value)
Egg (days) 7.22±0.124c (60) 8.04±0.15b (57) 8.51±0.162a (51) 238 (970.72)
Nymph (days) 11.55±0.16c (56) 12.61±0.16b (49) 13.02±0.14a (43) 752 (3971.101)
Pupa (days) 4.12±0.09c (56) 5.06±0.12b (49) 5.67±0.15a (43) 1298 (11516.896)
Preadult (day) 22.88±0.22c (56) 25.80±0.25b (49) 27.21±0.27a (43) 970 (17001.099)
Preadult survival rate (%) 0.933± 0.23a (56) 0.817±0.15b (49) 0.716±0.18b (43) 1147 (881.185)
Female longevity (days) 8.04±0.20a (28) 6.33±0.16b (21) 5.67±0.16c (18) 372 (456.720)
Male longevity (days) 7.54±0.16a (28) 5.93±0.16b (28) 6.00±0.17b (25) 520 (6060.004)
APRP (day) 0.93±0.05a (28) 0.90±0.07ab (21) 0.89±0.08b (18) 67(1.384)
TPRP (day) 24.21±0.32c (28) 26.52±0.32b (21) 28.11±0.35a (18) 1365 (8214.447)
Reproductive days (day) 5.14±0.23a (28) 3.76±0.22b (21) 3.06±0.19c (18) 819 (4152.637)
Fecundity (eggs/♀) 25.68±1.41a (28) 17.67±1.35b (21) 13.44±1.40c (18) 305 (1354.280)
Open in a new tab

The means followed by different letters in each row are significantly different (paired-bootstrap at 5 % significance level).

APRP adult prereproductive period, TPRP total prereproductive period.

*n = sample size of each stage of Trialeurodes vaporariorum.

The sublethal effects of M. pulegium and its nanoemoulsion on the age-stage specific survival rate (sxj) of greenhouse whiteflies’ F1 generation are demonstrated in Figure 3. The survival probability of a newly born greenhouse whiteflies to adulthood was considerably lower in the nanoformulation group and the adult females emerged with delay. The age-specific survival rate (lx), fecundity (mx), maternity (lxmx), the age-stage specific fecundity (fxj), and cumulative net reproductive rate (Rx) values of the greenhouse whiteflies are displayed in Figure 4. In the nanoformulation group, the appearance of the peak of the age-specific fecundity (mx) and age-specific maternity (lxmx) was occurred with delay and the gap between them was much higher due to the lower survival rate. Exposure to M. pulegium EO and its nanoformulation affected the age-stage-specific life expectancy (exj) of T. vaporariorum (Fig. 5). The life expectancy of first day egg were 29.82, 29.03, and 27.77 days in the control, pure EO and the nanoformulation group, respectively. These results showed that the life expectancy of the greenhouse whiteflies increased with exposure to control group and decreased with exposure to treatments. The sublethal effects of M. pulegium and its nanoformulation on the age-stage specific reproductive value (vxj) of greenhouse whiteflies’ F1 generation is presented in Figure 6. The maximum vxj peak values obtained in greenhouse whiteflies control cohorts were higher than that obtained in the treated group and the peak of vxj occurred much later in the nanoformulation group, then followed by the pure EO, and control, respectively.

Fig. 3.

Fig. 3

Open in a new tab

Sublethal effects of M. pulegium and NF of M. pulegium on age-stage specific survival rate (sxj) against T.vaporariorum.

Fig. 4.

Fig. 4

Open in a new tab

Age-specific survival rate (lx), female age-specific fecundity (fx), age-stage specific fecundity of the total population (mx), and net maternity (lx mx) of T. vaporariorum after exposure to sublethal concentration of M. pulegium and NF of M. pulegium.

Fig. 5.

Fig. 5

Open in a new tab

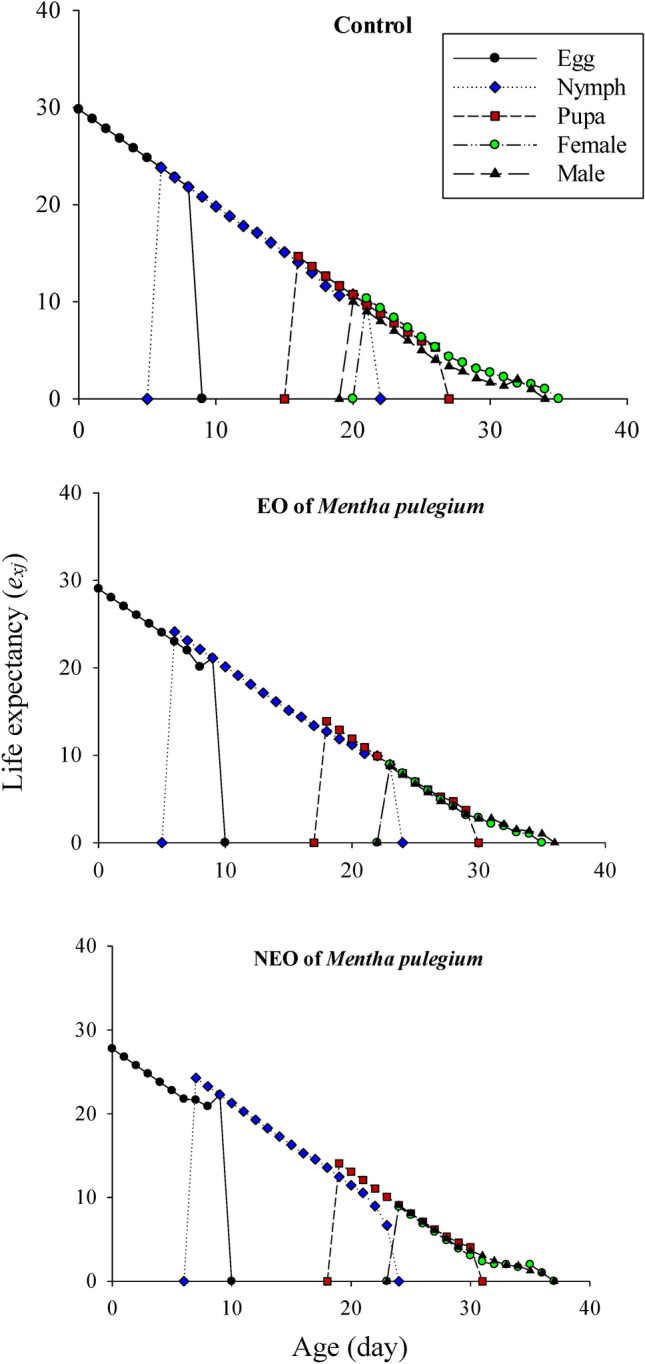

Age-stage specific life expectancy (exj) of T. vaporariorum after exposure to sublethal concentrations of M. pulegium and its NF.

Fig. 6.

Fig. 6

Open in a new tab

Age-stage specific reproductive value (vxj) of T. vaporariorum after exposure to sublethal concentrations of M. pulegium and its NF.

Sublethal effects of M. pulegium EO and its nanoformulation on the population parameters of T. vaporariorum

Our results indicated that the treatment of M. pulegium Eo and its nanoemoulsion affected population parameters of the greenhouse whitefly. The net reproductive rate (F = 11.062; df = 3, 33; p ≤ 0.001), the intrinsic rate of increase (F = 11.720; df =3, 33; p ≤ 0.001), the finite rate of increase (F = 12.767; df = 3, 33; p ≤ 0.001), and the mean generation time (F = 3.762; df = 3,33; p ≤ 0.01) are shown in Table 4. The net reproductive rate (R0), the intrinsic rate of increase (r), and finite rate of increase (λ) were the lowest and the mean generation time (T) was the longest in the nanoformulation group (Table 4).

Table 4.

The sublethal effects of Mentha pulegium and its nanoformulation on population growth parameters of Trialeurodes vaporariorum.

Population Parameters Control (n*) Mentha pulegium (LC25) (n*) nanoformulation (LC25) ) (n*) df (F value)
R0 (off spring/individual) 11.983±1.78a 6.183±1.18b 4.03±0.89c 1896 (3627.154)
r (d −1) 0.0940±0.0060a 0.0640±0.0070b 0.0470±0.0080c 2073 (4889.963)
λ (d −1) 1.098±0.006a 1.066±0.004ab 1.048±0.008b 1719 (4123.109)
T(d) 26.55±0.31b 28.55±0.34ab 29.75±0.46a 2250 (7305.858)
GRR (offspring/individual) 14.48±2.00a 8.74±1.63b 6.38±1.45c 1542 (1966.205)
Open in a new tab

The means followed by different letters in each column are significantly different (paired-bootstrap at 5 % significance level).

R0 net reproductive rate, r intrinsic rate of increase, λ finite rate of increase, T mean generation time, GRR Gross reproductive rate.

*n = sample size of each stage of T. vaporariorum.

Discussion

Due to the side effects of synthetic insecticides, survey on the insecticidal activity of essential oils (EOs) have been increasingly in recent years. Since, the major compounds consider in the synthetize and formulation of biopesticides, essential oils41, so we discussed on the bioactivity of pulegone, as a major compound of M. pulegium on the biological traits of greenhouse whitefly. In the current study, pulegone was obtained with the most abundant among the analyzed compounds of M. pulegium. Pulegone, belongs to monoterpene ketones, with a mint-like odor, which is the major component of the essential oils such as M. pulegium42. Some biological activities of pulegone including antioxidant, antimicrobial, insecticidal, anticholinesterase activity, and anti-inflammatory actions were considered by some researchers43,44. Franzios et al.45 stated that pulegone, showed strong insecticide activity among the studied constituents against D. melanogaster. The insecticidal activity of M. pulegium in the current study could be due to the highest rate of Pulegone in M. pulegium. Similarly, Heydarzaed et al.31 reported the highest amount of Pulegone in M. pulegium. Regardless the difference in the amounts of composition of M. pulegium reported in the present study, the same compounds have been reported previously31,46,47. The variations in environmental conditions, extraction and analysis methods of EO, plant used parts, growth stages of used plant and genetic factors could be effect on the type and amount of compounds in a plant9,12,48,49. However, in the current study, the percentage of the other compounds such as Menthone (%0.7) and Piperitenone (%0.7), 1-8, cineole (%8.35) were obtained in lower concentrations, their insecticidal activity have been reported by Boukhebti et al.50.

One promising application of M.pulegium essential oil is in the form of nanoformulation. In general, nanoformulations are defined as formulations with droplet sizes between 20 and 200 nanometers51. Characterization and determination of the nano-scald of M. pulegium EO is verified by using TEM, SEM, and DLS analysis. The size of M. pulegium oils’ nanoemulsion particle in scanning electron microscopy (SEM) was approximately less than 200 nm. Also, obtained data from TEM was coincidence with our DLS analyses. Similarly, Heydarzade et al.31 stated that the nano-scaled of M. pulegium was spherical in shape and the average size of them was around 100 and 98.99 nm using TEM and DLS instruments, respectively. Sharifiyan et al.9 reported that, the nanoparticle size of M. piperita was around 179.74nm which was higher than those of M. pulegium (156.40 nm) in our study. Differences in the size of nano particles and their shapes could be due to the preparation method, the type of used polymer, type of essential oil species13, formulation compounds (presence of surfactant), and production technique31.

Our results showed that lethal (LC50) concentration of nanoformulation essential oil had a greater effect on the adult stage of greenhouse whitefly than similar concentration (LC50) of the pure essential oil tested. The contact toxicity results illustrated that, the insecticidal activity increases with increasing in concentrations either M. pulegium oil or its nanoformulation. Also, the adults of T. vaporariorum were more susceptible to form of nanoformulation M. pulegium than pure form of essential oil after 24 h exposure. In the current study, the insecticidal activity of M. pulegium and its NF were more effective than those of M. piperita on T. vaporariorum9. It may be due to the nanoparticle size52. So, in our study, the obtained nanoparticle size of M. pulegium (156.40 nm) was smaller than those of M. piperita (179.74 nm)9. Subsequently, a smaller amount of active ingredient per area would be sufficient for application, and it can be provided sustained delivery of active ingredients which may remain effective for extended periods52. Also, The LC50 of M. pulegium in this research was found to be more effective on adults of T. vaporariorum than similar treatments on Tribolium castaneum Herbst (LC50: 7.939 µl/ml)31. However, Ramzi et al.12, reported the LC50 (72.94 and µl/L air,) of M. pulegium against C. pipiens after 24 h. This variation could be due to differences in the bioassay method, the species of the insect pest, developmental stages of insect, and the exposure time12.

Since, one of the principal aims of this work was to explore the possible lethal and sublethal effects of treatments on the life table parameters of the greenhouse whitefly over 24 h exposure, the lethal time was not consider in this research. The longer exposure time, may be increased the effectiveness of nanoformulation by increasing the solubility of the nanoformulation M. pulegium. However, the lethal time and stability of either pure or nanoformulation are another important subject that would be better to investigate. Finally, by reducing the dose requirement, the cost of application can be also reduced53. El-Medany et al.54 estimated the lethal concentrations (LC50) values of M. pulegium nanoemoulsion 6.645 % and 7.898 % after 48 h against Pectinophora gossypiella Saunders and Earias insulana Boisduval, respectively.

It is well known that botanic pesticides, essential oils, not only have lethal effects on insect pests in short-term, but also, they have sublethal effects in long-term by prolonging the development time, reduction in adult longevity, and fecundity on F1 generation of insect pests9,12. Our results demonstrated that exposure of the adults to sublethal concentration of nanoformulation was more effective than pure essential oil of M. pulegium on biological parameters and had noticeable effects on their offspring’s population growth rate against greenhouse whitefly. This was reflected in the combined effect exposure had on their developmental time, survival rate, first reproductive age, and fecundity, as well as the population growth parameters. In this study, the fecundity of M. pulegium decreased in nanoformulation treatment compared to another treatments. This finding is similar with flupyradifurone, as a novel botanical insecticide, Aphis gossypii (Hemiptera: Aphididae)40.

The population growth parameters (e. g. R0, r and λ) were significantly lower in the progeny of nanoformulation -treated parents than in the control group. In the current study, the obtained sublethal effects of NF M. pulegium on biological traits and population growth parameters of T. vaporariorum were more effective and lower than those of M. piperita NF9. The effectiveness of nanoformulation may be due the nano-scale structure and slow release of nanoformulation in which, the volatile properties of M. pulegium ingredients have been conserved during application52. This finding verified that M. pulegium nanoformulation was more effective than nanoformulated essential oil of M. piperita9 and could be a promising natural pesticide against T. vaporariorum.

In conclusion, our study demonstrated that M. pulegium essential oil and its nanoformulation have potent bioactivity against the greenhouse whitefly, T. vaporariorum, under laboratory conditions. This plant caused adverse effects on the biology and population growth parameters of greenhouse whitefly. The results also suggest that the nanoformulation may have enhanced efficacy compared to the pure essential oil. These findings highlight the potential of M. pulegium essential oil and its nanoformulation as eco-friendly alternatives for the management of T. vaporariorum in greenhouse production systems. However, the safety and side effects of examined essential oil and its nanoformulated form would be better to evaluate on non-target organisms.

Materials and methods

The extraction of M. pulegium EO was carried out according to Sharifiyan et al.9 producer. Briefly, aerial parts of M. pulegium were collected from Piranshahr (36°41′44″N 45°08′48″E), West Azerbaijan, Iran during the summer 2021. The identification of M. pulegium was occurred by Dr. Larti, and deposited at the herbarium at Agricultural Research, Education and Extension Organization (AREEO), West Azerbaijan, Urmia, Iran with voucher specimen 11052. The gathered specimens were dried in shade, then the hydrodistillation (50 g/650 mL) method was done for 3 h using a Clevenger instrument (J3230, Sina glass, Tehran, Iran). Afterward, the obtained solution was incubated in darkness at room temperature for 24 h to obtain maximum essential oil extraction. Anhydrous sodium sulfate (Na2SO4) was used to dehydrate the EO. The distilled essential oil was transferred into darkness glass vials and stored at 4°C until being used in the experiments.

Characterization of chemical constituents of M. pulegium by GC‑MS

Analysis of chemical constituents of M. pulegium were done at phytochemistry laboratory in Research Institute of Forests and Rangelands, Tehran, Iran. M. pulegium essential oil was analyzed by an Agilent 7890 gas chromatograph coupled with a 5975A mass spectrometry (GC-MS) using a flame ionization detector (FID) and BP-5 MS (non-polar) capillary column (30 m × 0.25 mm; film thickness 0.25 μm). The beginning oven temperature was set at 80 °C and kept for 3 min, and then increased with 8 °C/min intervals to reach up to 180°C for 10 min. Helium gas was selected as a carrier gas at a flow rate of 1 ml per min. The electron impact (EI) for ionization was 70 eV. The injector was set in a split mode, with the mass-to-charge ratio (m/z) of 40–500 m/z. The identification of components was obtained by comparing their mass spectral fragmentation patterns and linear retention indices with those described in the MS computer library55.

Preparation of nanoformulation of M. pulegium essential oil

The synthetize of the emulsion contained nanocapsulated essential oil carried out according to our previous study9 using the self-assembly method and a high-speed homogenizer. The components of the aforementioned formulation were included polyethylene glycol 4000 (as a polymer), Lauryl-myristyl alcohol ethoxylates (KELAs) 3 and 7 M (as an emulsifier with hydrophilic property), Glycerol (as a cross-linker), and acetic acid (pH=3)56,57. For this purpose, initially to make the aqueous-based solvent of essential oil based on a new formula, 10 g of maleic anhydride was mixed with 30 g of 2-ethylhexanol and 3 ml of 98% sulfuric acid, which left for 3 h at a speed of 400 rpm to be mixed (Overhead stirres; Heidolph-TQRQUE, Germany). The resulting product was washed twice with 1 g of sodium bicarbonate to separate the two phases. The separated organic phase was left to be stirred for two hours at a speed of 500 rpm. Afterwards, the resulting material was mixed with 1 g of sodium sulfate and homogenized for 5 h at a speed of 400 rpm. The amount used in the final formulation is approximately (30-40% w/w). Next, the obtained solution was mixed with 5% soybean oil, as a synergist, 10% essential oil and a polyethylene glycol biopolymer solvent (1–5%) and stirrer at a speed of 500 rpm for 1 h. Then, the Lauryl myristyl alcohol ethoxylates (1-3% w/w) added to the mixture and homogenized at a speed of 1000 rpm for 20 min. After that, by adding Glycerol as a cross-linker (1–3% w/w) to the obtained solution, it let to stirrer at a 1000 rpm for 30 min. Finally, acetic acid (pH=3) was added to the solution drop wisely to obtain the neutral formulation (pH=6–7) and left to stirrer at 1200 rpm for 30 min to create nanoparticles of capsulated essential oil in a stable emulsion.

Morphology, nanoparticle size and encapsulation efficiency (EE) of nanoformulation

Transmission Electron Microscopy (TEM) was carried out to visualize the shape and size of the nano-scaled emulsion droplets. First, a drop of the nano-scaled emulsion dispersion in distilled water was dripped onto a carbon- coated copper grid and dried at room temperature. Then, it was subjected to the TEM device (TEM, Zeiss-EM 10C-100KV, Oberkochen, Germany). Particle size and polydispersity index (PDI) of nanoemulsion was estimated by dynamic light scattering (DLS) (Nuremberg, Germany). Scanning electron microscopy (SEM) (TESCAN, Model: MIRA3) was used to measure the particle size of nanoformulation particles. The encapsulation efficiency was conducted according to Heydarzade et al.31 method by constructing the standard curve using the pulegone (% 66) as the most important constituent of M. pulegium EO.

Trialeurodes vaporariorum rearing conditions

The original cohort of T. vaporariorum were collected using an aspirator from the greenhouse at Iranian Research Institute of Plant Protection, Tehran, Iran. In order to obtain the same aged of adults to use in experiments, 20–30 adults of T. vaporariorum were transferred into the ventilated plastic cages (8 cm diameter × 9 cm height) on the tomato plants (Rubi variety). After 24 h, the adults were removed, and the nymphs were monitored until they reached the desired stage for carrying out the bioassays. The colony of T. vaporariorum was reared in the greenhouse conditions (at 27±2°C and 60±10 % R. H. and a photoperiod of 16:8 L: D).

Bioassays

Seven concentrations (500, 1000, 2000, 3000, 5000, 10,000 and 11,000 ppm), were selected to do preliminary bioassay tests for each treatment, in which the mortality ranges were considered between 10-90% for EO and its NF58. The ranges of final concentrations for the pure EO and its NF were obtained (900–10,600 ppm) and (700–8000 ppm), respectively. Due to the providing uniform treated area on the leaf surface, the dipping method was used in experiments59 For this purpose, the tomato leaves containing ten adults were dipped in 500 ml of each concentration of M. pulegium essential oil and its nanoformulation for 10 s and kept in Petri dish (8 cm in diameter). Each concentration was replicated four times. Ethanol 5% (Merck, Germany) was used as the essential oil solvent. Ethanol and nanoformulation without essential oil were selected as controls for EO and its nanoformulation, respectively. Mortality was recorded after 24 h. These experiments were carried out under greenhouse conditions as mentioned earlier. All of the used tomato leaves were in the same growth stage during experiments.

Sublethal effects of M. pulegium essential oil and nanoformulation on life table parameters

The sublethal effects (LC25) of M. pulegium (1724.526 ppm) and its nanoformulation (779.439 ppm) were studied on the life history and population growth rate of T. vaporariorum. Briefly, tomato leaflets containing thirty adults were dipped in aforementioned sublethal concentrations (LC25) of treatments for 10s53. Then, the treated leaflets were transferred into Petri dishes (8 cm diameter) (three replicates). All adult insects were removed after 24 h, and the sixty numbers of the same aged eggs were used for each treatment and control. Afterward, the eggs were transferred individually into the ventilated Petri dishes (8 cm diameter). The leaves in each container replaced with fresh ones daily. The development and survival of preadult stages were recorded for each individual daily. After adult emergence, they were differentiated sexually by Gerling and Sinai60 method. Each pair was transferred in a transparent plastic container (11.5 cm in diameter ×5.5 8cm in height) containing tomato leave. The total prereproductive period (TPRP), adult prereproductive period (APRP), the number of eggs produced, number of reproductive days, adult longevity (in days), and total lifespan of the progeny of the treated parents were recorded daily.

Statistical analysis

The LC values were determined by the Polo-Plus software (2002) using probit analysis, in which the insecticide bioassays (quantal response data) were analyzed by the techniques of probit. Also, it is able to compare the dosage-response lines by means of likelihood ratio tests. The parameters of life table were analyzed using age-stage two-sex life table37,61. The age-stage specific survival rate (Sxj; where x = age, and j = stage), the age-stage specific fecundity (fxj), cumulative net reproductive rate (Rx) values, the mean fecundity (F) (i.e. the contribution of an individual of age x and stage j to the future population), the age-specific survival rate (lx), the age-specific fecundity (mx), and the population parameters including the intrinsic rate of increase (r), the finite rate of increase (λ), the net reproductive rate (R0), and the mean generation time (T) were calculated according to Chi37 method. The bootstrap technique with 100,000 iterations was used to estimate the variance and standard errors of the biological and population parameters62. Also, the paired bootstrap test at a 5% significance level based on the confidence interval of differences was used to analyze the differences among treatments. Either bootstrap method or paired bootstrap test are included in the computer program TWOSEX–MSChar63.

Acknowledgements

We are appreciated to Urmia University for financial support.

Author contributions

Fariba Mehrkhou and Maryam Negahban conceived and designed the experiments. Mohammad Reza Sharifiyan performed the experiments and analyzed the bioassay and life table data.

Funding

This project was funded by Urmia University

Data availability

All data generated or analyzed during this study are included in this published article

Declarations

Competing interests

The authors declare no competing interests.

Footnotes

Publisher’s note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
