The variegated canalized-1 tomato mutant is linked to photosystem assembly

Micha Wijesingha Ahchige; Josef Fisher; Ewelina Sokolowska; Rafe Lyall; Nicola Illing; Aleksandra Skirycz; Dani Zamir; Saleh Alseekh; Alisdair R Fernie

doi:10.1016/j.csbj.2024.10.028

. 2024 Oct 24;23:3967–3988. doi: 10.1016/j.csbj.2024.10.028

The variegated canalized-1 tomato mutant is linked to photosystem assembly

Micha Wijesingha Ahchige ^a, Josef Fisher ^b, Ewelina Sokolowska ^a, Rafe Lyall ^c,^d, Nicola Illing ^d, Aleksandra Skirycz ^a, Dani Zamir ^b, Saleh Alseekh ^a,^c,^⁎, Alisdair R Fernie ^a,^c,^⁎

PMCID: PMC11584773 PMID: 39582891

Abstract

The recently described canal-1 tomato mutant, which has a variegated leaf phenotype, has been shown to affect canalization of yield. The corresponding protein is orthologous to AtSCO2 -SNOWY COTYLEDON 2, which has suggested roles in thylakoid biogenesis. Here we characterize the canal-1 mutant through a multi-omics approach, by comparing mutant to wild-type tissues. While white canal-1 leaves are devoid of chlorophyll, green leaves of the mutant appear wild-type-like, despite an impaired protein function. Transcriptomic data suggest that green mutant leaves compensate for this impaired protein function by upregulation of transcription of photosystem assembly and photosystem component genes, thereby allowing adequate photosystem establishment, which is reflected in their wild-type-like proteome. White canal-1 leaves, however, likely fail to reach a certain threshold enabling this overcompensation, and plastids get trapped in an undeveloped state, while additionally suffering from high light stress, indicated by the overexpression of ELIP homolog genes. The metabolic profile of white and to a lesser degree also green tissues revealed upregulation of amino acid levels, that was at least partially mediated by transcriptional and proteomic upregulation. These combined changes are indicative of a stress response and suggest that white tissues behave as carbon sinks. In summary, our work demonstrates the relevance of the SCO2 protein in both photosystem assembly and as a consequence in the canalization of yield.

Keywords: Canalization, Variegation, Photosynthesis, Photosystem assembly, Multi-omics, Tomato

Graphical Abstract

Highlights

•
Green and white leaves of canal-1 mutant show differences on all omics levels.
•
green leaves show transcriptional upregulation of photosystem assembly genes.
•
white leaves show downregulation of photosystem genes and proteins.
•
white leaves are largely defective in photosynthesis and act as carbon sinks.
•
SCO2 likely plays an important role as a photosystem assembly factor.

1. Introduction

Crop yield remains one of the major focal points in plant breeding being necessary to feed a growing population. Additionally, in the face of increasing environmental variability, it seems necessary to utilize plant breeding to decrease the variability of crop performance. Many studies have investigated mean yield levels in different crop species and found genetic regions or individual genes that affect crop yield. That said the stability of yield has also been long understood to be desirable with this being the focus of studies in barley as early as 1963 [2]. Such studies were extended to include oats and maize [3] and more recently a wide variety of further species including tomato, eggplant, pepper, melon, watermelon, and sunflower [4]. While tomato is not one of the main crops responsible for providing the majority of calories for human consumption, it does play an important role in many diets. It is, furthermore, regarded as a model plant for other fruit-bearing crops [5], as well as being an excellent genetic model system for which a wide range of genomic and post-genomic resources are available [3], [6], [7], [8], [9]. By utilization of different mapping populations, many quantitative trait loci have also been identified in tomato that are responsible for fruit yield [10], [11], [12], [13], [14], [15]. However, in tomato or other crops, much less is known about the genetic factors influencing the variation of yield from plant to plant. A concept to describe the lack of this sort of variation, canalization, was coined by Waddington in 1942 [16]. This has mainly been used in a developmental context, but the concept has recently been applied to also describe quantitative traits [17], [18], [19], [20], [21], [22]. For the purposes of this study, we define canalization as the stability of a phenotype across genetically identical plants.

A recent study of the Zamir lab, using archived mapping data, found a bimodal distribution of stable and variable traits [4]. This study further confirmed this tendency of more and less variable traits, in a common crop garden experiment with many different varieties of crop plants. Further studies in tomatoes have found loci exhibiting both positive and negative effects on yield stability [23]. They also identified a yield canalization mutant with variegated leaves, named canal-1. Field-grown plants can vary largely in plant size and accordingly show a strong variation in fruit yield. Fine mapping pinpointed the gene to Solyc01g108200, which is an orthologous gene to SNOWY COTYLEDON 2 (SCO2/AT3G19220) in Arabidopsis thaliana. As the name suggests, A. thaliana mutants of this gene have snowy white cotyledons but develop regular green leaves under normal conditions [24], [25]. Indeed, the snowy cotyledon mutants came out of a genetic screen that was aimed at identifying genes required for proper chloroplast development, particularly in cotyledons. The screen specifically selected mutants with pale cotyledons but normal green true leaves. As yet sco1, sco2, and sco3 have been identified and characterized. Sco1 was identified in a gene encoding the plastid elongation factor G [26]. Sco2 was identified as a chloroplastic DNA-J-like zinc finger protein that was essential for early seedling survival in Arabidopsis [24], as well as playing a role in leaf variegation in both Arabidopsis [24] and Lotus japonicus [27]. By contrast, although Sco3 could be partially complemented by phytochrome B overexpression the function of the protein remains unknown and intriguingly some mutant alleles also affect the color of the adult leaves [28]. The lack of functional annotation of the protein aside, it is clearly important in normal chloroplast and embryonic development as well as in flowering time and rosette formation [28]. By contrast to the unknown function of SCO3, SCO2 is a protein disulfide isomerase and has been shown to play a role in chloroplast biogenesis [29]. More specifically it is involved in thylakoid development and interacts with other photosystem complex proteins [27]. SCO2 shows co-expression with genes of the tetrapyrrole biosynthesis pathway but an interaction of the protein to the tetrapyrrole biosynthesis protein HEMA1 could not be shown [29]. Experiments to test whether the protein, interacts with itself, to form a homomer have yielded opposing results [29], [30]. The protein has a conserved zinc finger domain, resembling that of E. coli DnaJ, which itself is involved in many processes, related to the transport and folding of proteins as well as the degradation of misfolded proteins [25]. The SCO2 zinc finger domain contains four cysteines that have been shown to be relevant for the catalytic activity of the isomerase activity, for which it likely uses glutathione as an electron donor [30].

As mentioned above in A. thaliana mutants of the gene primarily show a cotyledon phenotype but under short-day conditions, true leaves also appear slightly paler [27]. Mutants in Lotus japonicus show a variegation phenotype, that resembles the one in tomato [27]. This interesting phenotype led us to characterize the canal-1 tomato mutant at the molecular level. In the current study, we employ a multi-omics approach encompassing transcriptomics, proteomics, and metabolomics as well as measuring a range of photosynthetic parameters to shed light on the mechanism of yield canalization exhibited by canal-1.

2. Materials and methods

2.1. Cloning and transformation

The gateway cloning system was used to create vectors expressing SCO2 fused C-terminally to eGFP under the 35S-promoter. To achieve this, cDNA was generated from tomato leaf tissue with the maxima first strand cDNA synthesis kit (ThermoFisher Scientific, Waltham MA USA) and used as template for a two-step PCR using Phusion DNA Polymerase (ThermoFisher Scientific, Waltham MA USA) to add adapter sequences to the PCR product. This PCR product was then used in a BP reaction with pDONR221 and then in an LR reaction with pK7FWG2 to create the final construct. Agrobacterium tumefaciens GV2260 was transformed with the final construct via electroporation. Tomato plants of the cultivar MoneyMaker were generated via agrobacterium-mediated plant transformation following published protocols [31]. Successful transformation of putative transformants was confirmed by PCR amplification of a portion of the transformed construct, integrated into the plant genome. PCR positive, agrobacterium-free, T0 plants were transferred to the greenhouse for propagation.

2.2. Plant material and growth conditions

The canal-1 mutant was described previously and seeds were supplied by the Zamir Lab [23]. The ghost-2 mutant, together with the Sioux wild-type plant was ordered from the TGRC. Plants overexpressing the SCO2 protein were generated as described above and used in the generation of T2 plants for experiments. Plants were grown in multiple seasons in different locations. The first growth season was 2017 in a greenhouse in Ashkelon, Israel on a so-called lysimeter assay, which is a high-throughput screening system that monitors water relations for each plant [32]. Seeds of canal-1 plants and M82 plants were sown at Histill nursery, Ashkelon on September 3rd 2017 and supplied with organic treatment, devoid of dwarfing hormones. The experiment started October 3rd 2017 and tissue samples were collected on November 6th 2017.

Consecutive experiments were conducted at the MPIMP in Potsdam-Golm, Germany and plants were grown as described previously [21]. Plants were grown in 2018 and 2019 in a greenhouse. The experiment including plants overexpressing the SCO2 protein was conducted in 2021. Seeds were directly sown to soil, kept in a growth chamber (York International/Johnson Controls; Cork Ireland), in a (16 h/8 h)-(22 °C/18 °C)-(70 % RH/70 % RH)-(day/night)-cycle, with 150 µmol m^-2 s^-1 of additional light. Plants were transferred to individual pots after cotyledons were fully expanded. After four weeks, plants were potted into 18 cm diameter pots and transferred to a greenhouse chamber. Here plants were grown in a (16 h/8 h)-(22 °C/20 °C)-(50 % RH/50 % RH)-(day/night)-cycle and automatically irrigated several times a day by a drip irrigation system. A subset of the plants grown in 2019 received a drought treatment, comprising 50 % of the optimal irrigation. Since plants are irrigated by turning on the valves of the irrigation system, which dispenses water at a steady flow rate, irrigation lines for drought treatment plants were turned on half the respective time. Irrigation rates were adapted according to the growth of wild type plants under optimal conditions and scaled accordingly for plants under drought treatment. Sodium discharge lamps supplied additional light in order to compensate for seasonal differences in light intensity. Plants were fertilized once after potting, onset of flowering and onset of fruit ripening.

2.3. Phenotyping

During the growth period, plants were checked three times a week in order to score for the first flower and the first red ripe fruit. For any plants that had not produced fruit at the end of the experiment, we assigned the date of the next regular fruit checking as the date for red ripe fruit. Fruits were harvested when around 80 % of fruits were ripe. At the harvest date, the number of all ripe and unripe fruits per plant was counted and the total fruit weight determined on a scale (Sartorius, Göttingen, Germany). Average fruit weight was determined by dividing the total fruit weight per plant by the total fruit number per plant.

2.4. Sampling

Mature non-senescing leaves were sampled and directly snap-frozen in liquid nitrogen. For leaves from canal-1 mutant plants, whole leaves, leaflets or leaf-parts were selected, which were either almost exclusively pale white or green, trying to minimize highly variegated leaf area. For fruit samples, a section of the pericarp was cut out of a whole red ripe tomato fruit. The cuticle of the fruit was removed and the sample was directly snap frozen in liquid nitrogen. All samples were stored at −80 °C until further processing.

For transcriptomics, proteomics and a subset of metabolomics the same 15 tissue samples, from the 2017 experiment, were used as shown below (Table 1).

Table 1.

Sample table.

#	Plant ID	Tissue	Genotype	Sample name
1	B11d	white leaves	canal−1	Muwl1
2	B14d	white leaves	canal−1	Muwl2
3	B11c	white leaves	canal−1	Muwl3
4	B11d	green leaves	canal−1	Mugl1
5	B14a	green leaves	canal−1	Mugl2
6	B11c	green leaves	canal−1	Mugl3
7	B17c	green leaves	M82	Wtgl1
8	B17a	green leaves	M82	Wtgl2
9	I06c	green leaves	M82	Wtgl3
10	B14a	stem	canal−1	Mus1
11	B14d	stem	canal−1	Mus2
12	B12d	stem	canal−1	Mus3
13	I05b	stem	M82	Wts1
14	B05b	stem	M82	Wts2
15	B06c	stem	M82	Wts3

Open in a new tab

2.5. RNA extraction

Total RNA was extracted according to a published lithium chloride precipitation protocol [33]. A NanoDrop_TM One spectrophotometer (ThermoFisher Scientific, Waltham, MA, U.S.A.) was used to estimate RNA concentration. For the digestion of residual DNA, 10 µg of raw RNA was digested with the Invitrogen Turbo DNAse free kit (Invitrogen/Thermo Fisher Scientific, Waltham, MA, U.S.A.). The Bioanalyzer 2100 (Agilent; Santa Clara, CA, U.S.A.) was used to determine RNA quality and quantity.

2.6. Orthology

For orthology search, OrthoFinder v2.5.2 (Emms and Kelly, 2019) was utilized, using the diamond_ultra_sens algorithm with proteomes using only the primary transcript of Arabidopsis thaliana Araport11, tomato (Solanum lycopersicum) ITAG4.0, potato (Solanum tuberosum v6.1), Lotus japonicus Lj1.0v1, maize (Zea mays RefGen_V4) and rice (Oryza sativa v7.0) obtained from Phytozome [34], [35], [36], [37], [38], [39]. Orthologs of photosynthetic genes were found by matching genes from Arabidopsis thaliana found in literature [40], [41], [42], [43], [44], [45] to the discovered orthogroups. A resolved gene tree of the glutaredoxin orthogroup was constructed with ggtree [46].

2.7. Protein visualization

Putative protein structure was obtained from AlphaFold [47], [48] and visualized with Mol* Viewer [49].

2.8. RNAseq analysis

Library preparation and RNA sequencing was performed by the MPIPZ Cologne. Libraries were prepared by a polyA enrichment. Reads were acquired by a HiSeq3000 sequencer (Illumina, CA, U.S.A.) as 2 × 150 bp paired-end reads, with a sequencing depth of 20,000,000 reads. Raw reads were mapped to the nuclear and organellar genome via LSTrAP [50]. Differential gene expression was performed with deseq2. Genes with an FDR-adjusted p-value ≤ 0.1 and a log2-fold-change ≥ 1 were considered differentially expressed based on recommendations in the literature [51], [52]. The expression matrix as produced by LSTrAP and a deseq2-normalized expression matrix together with log2-fold changes and adjusted p-values of the respective contrasts can be found with the supporting information (Supplementary Data S 3 + Supplementary Data S 4).

Solgenomics Gene ID to Entrez Gene ID correspondence was inferred by aligning the ITAG4.0 proteome against the NCBI Refseq SL3.1 proteome with Diamond v.0.9.9. Alignments were filtered for 100 % identity and at least 95 % query cover as well as being on the same chromosome in both assemblies. Solgenomics Gene IDs mapping to more than one Entrez Gene ID were ranked based on the absolute distance of their start regions and only the entry with the smallest distance was retained. A correspondence table can be found with the supporting information (5).

Gene ontology enrichment analysis and gene set enrichment analysis (GSEA) was performed with the help of the packages topGO and fgsea. Bubble plots were inspired by the GOplot package [53]. Accordingly the z-score was calculated as detailed below (Formula 1).

z - score = \frac{(up - down)}{\sqrt{(count)}}

Formula 1: Z-score calculation for bubble plots. up: number of upregulated genes, down: number of downregulated genes, count: total number of genes.

2.9. Metabolite extraction

Plant tissue was ground to fine powder with a mixing mill (Retsch; Haan, Germany). Here, plant tissue was added to a pre-cooled stainless steel grinding jar loaded with a 20 mm steel ball and milled for 1 min at 30 Hz. Aliquots of 50 mg plant tissue powder were weighed with a fine scale and used for combined extraction of metabolites, proteins and pigments, which was carried out exactly according to a previously described protocol [54].

2.10. Pigment determination

The aliquot of 100 µl taken from the lipophilic phase of the MTBE extraction was diluted 10-fold with methanol and the extracts were measured under an Epoch2 96-well plate reader (Biotek/Agilent; Santa Clara, CA, U.S.A.). Spectrum was measured at 470 nm, 652 nm and 665 nm. Assuming a pure methanolic extract, pigment concentration was calculated with a pathlength correction of 0.51 as described previously [55], [56].

2.11. Proteomics

Proteins were purified from the pellet of the MTBE extraction according to previously published protocols [54], [57]. Here, the protein pellet was dissolved in 50 µl denaturation buffer (50 mM Ammonium bicarbonate pH 8 (Ambic), 2 M Thiourea, 6 M Urea) and sonicated in a sonication bath for 15 min. After determining protein concentration by Bradford Assay (Bio-rad, Hercules, CA, USA), a volume containing 50 µg of protein was added to a new tube and filled to 20 µl with denaturation buffer. After adding 2 µl of reduction buffer (5 mM DTT) samples were incubated for 30 min at room temperature. Samples were then incubated for another 30 min at room temperature before adding 2 µl alkylation buffer (30 mM iodoacetamide). To the samples 5 µl LysC/Trypsin mix (50 mM AmBic; 20 µg protein) was added and an additional 15 µl AmBic buffer (50 mM Ambic pH 8) was added to achieve a final urea concentration of 4 M. Samples were then incubated for 2 h at 37 °C. After adding 120 µl Ambic buffer to achieve a urea concentration of 1 M, samples were incubated at 37 °C overnight. After that, samples were acidified with 1.65 µl Trifluoroacetic acid (TFA) to a final TFA concentration of 1 % (v/v).

For protein desalting, Sep-Pak filter columns were placed on top of a vacuum manifold, washed first with 1 ml MeOH, then with 1 ml Solution B (0.1 % TFA (v/v), 80 % acetonitrile (v/v)) and then two times with 1 ml Solution A (0.1 % TFA (v/v)), making sure to apply vacuum until all liquid passed through the column between each wash. Samples were then loaded onto columns and vacuum was applied until all liquid had passed through the column. Columns were again washed two times with 1 ml Solution A, letting all liquid pass through the column, before placing 2 ml tubes under the outlets. Peptides were eluted with 600 µl Solution C (0.1 % TFA (v/v), 60 % acetonitrile (v/v)) and the flow through was collected. Peptides were transferred to 1.5 ml tubes and dried in the Speed vacuum concentrator for 3 h and stored at −20 °C until further use.

Proteomics mass spectrometry was performed as described before [58]. Isolated peptides were resuspended with MS loading buffer and run on an ACQUITY UPLC M-Class System (Waters, Wilmslow UK) coupled to a Q Exactive HF Orbitrap mass spectrometer (Thermo Fisher Scientific, Waltham MA, USA).

Proteomics data were analyzed with the MaxQuant software [59] and the tidyproteomics package [60]. Missing values were imputed by the half minimum per protein and differentially expressed proteins were estimated with two-sided t-tests after normalization with limma [61]. Proteins were considered differentially expressed at a log2-fold-change ≥ 1 and an FDR-adjusted p-value ≤ 0.1. Protein groups, that contained multiple proteins were split into all individual proteins. The raw data as produced by the MaxQuant software as well as a table showing raw intensities together with log2-foldchanges and p-values can be found in the Supporting information (Supplementary Data S6 + Supplementary Data S7).

2.12. Metabolomics

Primary metabolites were measured via gas chromatography-mass spectrometry (GC-MS) according to previously used protocols [62]. Secondary and lipophilic metabolites were measured via polar liquid chromatography-mass spectrometry (LC-MS) exactly according to the described protocols [63].

Metabolites were annotated according to in-house libraries, the Golm Metabolome Database (GMD, http://gmd.mpimp-golm.mpg.de/) and literature [64], [65], [66]. Heatmaps were created with the ComplexHeatmap package [67]. Metabolic pathway enrichment was performed with the web-version of MetaboAnalyst 5.0 (https://www.metaboanalyst.ca/MetaboAnalyst/home.xhtml) [68].

Metabolite values from samples extracted from the same source material in 2017 and 2021 were averaged, after normalization to wild type samples, as they constitute technical replicates. All metabolite data are reported following recently updated metabolite reporting standards Supplementary Data S 1 [69], [70].

2.13. Photosynthesis measurements

Photosynthetic parameters were estimated in two independent experiments. The first measurement was done on control plants in the experiment from 2019, using a LI-6400–40 fluorometer (LI-COR Biosciences GmbH, Bad Homburg, Germany). Measurements were done on light-adapted leaves under 400 µE m^-2 s^-1 PAR, with 10 % blue light, 400 ppm CO₂, leaf temperature of 25 °C and a flow of 300 µmol s^-1 as described before [71]. The second measurement was done on plants in the experiment from 2021 including overexpressing plants, using a handheld MultispeQ device V2.0 (Photosynq Inc., East Lansing, MI, U.S.A.)[72]. Measurements were performed under ambient light and CO₂ concentration, using the Rides 2.0 protocol. To account for fluctuating light intensity throughout the measurement, the time of day and the square root of PAR were added as factors to the anova. Outlier values, which were more than three times the interquartile range below the lower or above the upper quartile were removed before statistical analysis.

2.14. Omics integration

Different omics datasets were integrated by the help of Pathview [73] and SBGNview [74]. First Vanted (v2.8.3) [75] and the SBGN-ED plugin [76] were used to download KEGG pathway maps, which were transformed into SBGN process description maps. KEGG REST API was used for gene and compound mapping (https://www.kegg.jp/kegg/rest/keggapi.html). For the glycine cleavage system (EC 1.4.1.27) we manually combined the ECs 1.4.4.2, 1.8.1.4 and 2.1.2.10 and their corresponding KEGG orthologies. Pathway maps were labelled accordingly, and their layout optimized with the help of Vanted and newt editor [75], [77], [78]. Finally, omics data was mapped to pathway maps with the SBGNview package [74] with minor modifications currently forked to https://github.com/micwij/SBGNview.

2.15. Correlation network

Correlation networks were constructed by calculating the Spearman-correlation value for the 15 samples for which all omics-data were available (Table 1). Different thresholds were used for different networks, but to reduce computational burden correlation values below 0.75 were directly filtered out, when gathering data. Correlation networks were generated with igraph and network graphs were created with the help of ggraph and graphlayouts [79], [80], [81].

2.16. Computational analysis, used packages, webtools and software

Computational analysis and visualization was performed with R statistical software v4.2.1 in the Rstudio environment or on our in-house high performance computing platform. In addition to previously mentioned packages we also used the following packages for data handling and visualization: tidyverse, ggtext, ggpubr, gggenes, ggrepel, ggbeeswarm, cowplot, openxlsx, broom, car, deseq2, apeglm, topGO, fgsea, clusterprofiler, viridisLite, lme4, broom.mixed, here, extrafont [82], [83], [84], [85], [86], [87], [88], [89], [90], [91], [92], [93], [94], [95], [96], [97], [98], [99]. Benchling [Biology Software] (https://benchling.com) was used for sequence alignments. Serial Cloner v2.6.1 (SerialBasics http://serialbasics.free.fr/Serial_Cloner.html) and Benchling [Biology Software] (https://benchling.com) were used to plan cloning of constructs. Colors were picked from a colorblind-friendly scale as suggested previously [100] with the help of a webtool (https://davidmathlogic.com/colorblind/#%23D81B60-%231E88E5-%23FFC107-%23004D40), which was also used to pick additional colors. The bibtex package was used to export R package citations into.bib files [101].

2.17. Statistical analysis

As many experiments had an uneven number of samples a pairwise-wilcox test was performed. Equally distributed samples were analyzed by two-sided t-tests. Unless otherwise stated unadjusted p-values are shown.

2.18. Accession Numbers

Sequence data from this article can be found in the solgenomics database. Accession numbers of genes and proteins are listed in the supporting information (Supplementary Data S 3 - Supplementary Data S 7).

3. Results

3.1. Genetic, phenotypic and physiological characterization of the canal-1 mutant

The canal-1 mutant has a missense mutation from T to G, 923 bp downstream of the start codon of Solyc01g108200, leading to a Trp (W) 147 to Gly (G) conversion (Fig. 1 A + B)[23].

We obtained a 3-D model of the protein in tomato from alphafold and visualized the spatial orientation of different key residues (Fig. 1 C). The altered amino acid residue (TRP147; red side chain and blue label) is in close proximity to four conserved cysteines (CYS151, CYS154, CYS174, CYS177; yellow side chain sulfur atoms and pink label), which are putatively responsible for the catalytic activity (Fig. 1 C) [25], [30]. The variegation phenotype of canal-1 mutant leaves ranges from almost completely green over differently patterned variegated to completely pale white-beige (Fig. 1 D-F). Additionally, the distribution of green and white leaf area varies from plant to plant (Fig. 1 G-J). This is in agreement with what has been observed in the field [23]. We estimated the content of different pigments in wild-type green leaves as well as in mutant leaves, through spectroscopic measurements (Fig. 1 K). As expected, white canal-1 leaves were almost completely devoid of both chlorophyll a and b and also of carotenoids. Interestingly, there were no statistically significant differences in any of these pigments, when comparing green mutant leaves to wild-type leaves. Stems from canal-1 plants appeared as intermediate, having a strongly reduced albeit detectable level of chlorophyll (Supplementary Figure S 1). We also measured the fruit yield at maturity of plants grown in the greenhouse under both control and drought conditions (Fig. 1 L). Unsurprisingly, canal-1 plants produced lower fruit yield than wild-type plants under control and drought conditions. We also wanted to estimate the effect of the mutation on yield stability as seen in the field. However, given that our experiments did not have the same layout as the so-called canalization replication trials performed in the field [23], instead of using the coefficient of variation (CV), we estimated variation by the scaled absolute deviation from the median (Fig. 1 M). Indeed, canal-1 mutants showed a much higher relative variation of fruit yield when compared to wild-type plants, despite not showing the large variation in plant size that was observed in the field [23]. This effect was, however, only significant under control conditions. However, it is possible that it was masked by the small number of plants that we subjected to drought stress.

3.2. Transcriptomics reveal upregulation of photosystem assembly factors in green canal-1 leaves

Due to the pigmentation phenotype, we considered that leaf tissues would be the most interesting tissue for a detailed characterization. We, therefore, selected three samples from wild-type leaves and stems as well as green and white leaves and stems from canal-1 plants for RNA sequencing (Table 1). We mapped transcript reads with LSTrAP and analyzed differentially expressed genes (DEGs) via deseq2. The PCA already showed a clear separation of tissues and also highlighted white mutant leaves as being more distinct from green leaves of both mutant and wild type plants (Supplementary Figure S 2). For the analysis, we compared mutant white leaves to both mutant green leaves and wild-type green leaves, as well as green leaves and stems between wild-type and mutant (see Venn diagrams in Supplementary Figure S 3 A + B). Perhaps to be anticipated, we saw the most DEGs when comparing white canal-1 leaves to green M82 leaves (4873 DEGs), followed by white versus green leaves of the mutant (2390 DEGs, Fig. 2 A).

With 1404 DEGs the comparison between green leaves of canal-1 and M82 green leaves still showed some substantial differences. However, these were relatively minor as demonstrated by the smaller log2-fold change and –log10(p)-values in the volcano plot (Fig. 2 A).

We next investigated which kinds of genes were changed in the different comparisons by conducting gene ontology (GO) enrichment analysis (Fig. 2B). Since GO enrichment does not consider up- or downregulation of genes within an enriched term, we calculated a z-score by subtracting the number of downregulated genes from the number of upregulated genes and divided this by the square root of the total count of genes in each term (see Formula 1). Accordingly, a positive z-score indicates more upregulated, than downregulated genes and a negative z-score indicates more downregulated than upregulated genes. When comparing white canal-1 leaves to M82 leaves we found terms such as “photosystem I reaction center” and “protein disulfide oxidoreductase activity” enriched (Fig. 2B left and Supplementary Table S 1). Although photosynthesis as a GO term for a biological process was also enriched here the enrichment was much clearer when comparing white leaves of canal-1 to green leaves (Fig. 2B right and Supplementary Table S 1 and Supplementary Table S 2). The comparison of green mutant and wild-type leaves yielded similar terms as the other comparisons (Supplementary Table S 3). Interestingly, the term “photosystem II oxygen evolving complex” is slightly upregulated in green leaves of canal-1 plants compared to M82 leaves (Fig. 2 B, Supplementary Table S 1 and Supplementary Table S 3). Furthermore, terms related to aminoacylation were also enriched (Fig. 2B middle and Supplementary Table S 3). Enriched terms in the comparison of stem samples were rather related to cell wall processes (Supplementary Table S 4).

We also utilized gene set enrichment analysis (GSEA), which not only considers DEGs but takes all genes into consideration and ranks them according to their fold-change and p-value (Fig. 2 C). GSEA highlighted translation as the most strongly enriched term in both comparisons of white and green leaves of mutant plants compared to wild type plants, but not when comparing the two different leaf types of the mutant (Supplementary Table S 6 - Supplementary Table S 8). Photosynthesis was the strongest downregulated term in the comparisons of white mutant leaves either to wild type leaves or to green mutant leaves (Fig. 2 C). In agreement with the GO analysis, photosynthesis is upregulated in the green leaves of mutant plants, when compared to wild type plants. Irrespective of their color, mutant leaves showed an upregulation of different DNA-, RNA, and protein-related terms, when compared to M82 leaves. The stem comparison only revealed a small number of enriched terms, related to lignin or protein (Supplementary Figure S 6, Supplementary Table S 9).

Because we cannot exclude that some of the observations from white mutant leaves are pleiotropic effects from incomplete photosystems, rather than their cause we turned our attention again towards the comparison of green leaves of mutant and wild type. One individual gene that is highly upregulated in green canal-1 leaves but not in white canal-1 leaves in comparison to wild type leaves is Solyc08g048410 (Supplementary Data S 4), which codes for a protein annotated as Ubiquitin carboxyl-terminal hydrolase 21[102]. Proteins belonging to this type of enzyme are deubiquitilating enzymes, meaning they can remove ubiquitin monomers to restore proteins to their original form [103]. Together with the enriched aminoacylation terms from GO and the enrichment of protein folding in GSEA, this could mean that more proteins are available in green leaves that survive degradation and can be correctly folded to contribute to photosystem assembly.

The discovery of the enriched protein disulfide oxidoreductase GO term (GO:0015035) and the fact, that SCO2 is a protein disulfide isomerase prompted us to investigate genes related to protein disulfide activity. Among genes belonging to the GO:0015035 one group of genes stood out (Supplementary Figure S 5). All of the genes showed, relatively consistently, low or no expression in wild type green leaves, an increased level in canal-1 green leaves, and even higher expression in white mutant leaves. We noticed that these genes carry consecutive gene IDs and when checking the results from our orthology search, we realized, that they all belong to the same orthogroup, also including the CC-type glutaredoxin (ROXYs), ROXY16 and ROXY17 [104], [105](Supplementary Figure S 7). We also investigated the terms photosystem I reaction center and photosystem II oxygen evolving complex (Supplementary Figure S 8 & Supplementary Figure S 9). Genes from the photosystem I reaction center term showed a regular pattern of differential expression between white mutant leaves to both mutant and wild-type green leaves, with a lower abundance in white mutant leaves (Supplementary Figure S 8). For the term photosystem II oxygen evolving center, expression was also mostly significantly lower in white mutant leaves than in green mutant leaves and/or green wild type leaves but for some genes, the expression was significantly higher in green canal-1 leaves in comparison to green M82 leaves (Supplementary Figure S 9).

Due to the likely role of the SCO2 protein and the photosynthesis-related terms appearing in the enrichment analysis, we investigated the expression of different genes involved in photosystem assembly more deeply (Fig. 3).

Fig. 3 — Transcriptome of different photosystem components in *canal-1* and M82 leaves based on deseq2-normalized counts. A, Expression of Solyc01g108200. B, Expression of photosystem assembly components. C, Heatmap of level-scaled expression levels for individual photosystem assembly components with color scale ranging from −1 to 1. D, Expression of orthologs to Deg7, ELIP1, CPRabA5e and Ycf3. E, Expression of protein complex genes of photosystems. Boxes and points are filled according to tissue (green leaves: green, white leaves: beige). To facilitate scaling to wild type samples, zero values were imputed by the half-minimum per gene. Statistical significance was estimated by pairwise-wilcox test for B and E and extracted from differential gene expression analysis for A + D. Significant differences are indicated by a bracket and asterisks for A + D (*: p ≤ 0.05 & |log2FC= ≥ 1) and for B and E (*: p ≤ 0.05; **: p ≤ 0.005; ***: p ≤ 0.0005).

First, as the protein under investigation is itself putatively involved in thylakoid assembly, we checked its expression in mutant and wild-type leaves (Fig. 3 A). The gene, however, did not appear to be differentially expressed in any of the comparisons. To expand our scope to all potential photosystem assembly genes, we curated a list of known photosystem components and photosystem assembly genes in A. thaliana from the literature [40], [41], [42], [43], [44], [45] and matched them to the tomato genes via orthology searches (Supplementary Table S 5). When considering all these genes, we could see that green leaves of canal-1 plants showed a significant upregulation of the expression in comparison to both white canal-1 leaves and wild-type leaves (Fig. 3 B). White canal-1 leaves, however, showed a wild-type level of expression of photosystem assembly genes, with the exception of a few outliers that displayed a strong upregulation. We visualized the level-scaled expression of these genes individually in a heatmap and could confirm that the vast majority shows the highest expression in green mutant leaves, with the exception of a small cluster of genes that showed the highest expression in white mutant leaves and another cluster of genes with the highest expression in wild-type leaves (Fig. 3 C). The assembly genes, which are highly expressed in white canal-1 leaves are orthologs of ELIP1 (Solyc09g082690/700) and DEG7 (Solyc03g043660) as well as CPRabA5e (Solyc11g012460) and Ycf3 (Solyc00g500145), some of which are differentially expressed between white mutant leaves and/or green mutant and wild type leaves (Fig. 3 C + D). We were interested to see how these differences affect the gene expression of the proteins which finally comprise the photosystems. We, therefore, filtered the transcriptome dataset for genes orthologous to known photosystem components in A. thaliana (Fig. 3 E). In contrast to the assembly factors, the photosystem components are significantly reduced in the white leaves of the mutant compared to mutant and wild-type green leaves. Additionally, expression of these genes is also significantly increased in green canal-1 leaves, relative to M82 leaves.

3.3. Proteomics reveals a wild type like proteome of green canal-1 leaves

Having assessed transcriptional changes we next investigated which of these translated to changes at the proteome level, for which we again selected samples from white and green canal-1 leaves and M82 leaves. When performing a PCA, we could once again see the separation of several groups of samples (Supplementary Figure S 10). Interestingly here, the white mutant leaves clustered even further away from green mutant and wild type leaves as compared to the PCA of RNAseq data (Supplementary Figure S 2). Similarly, as for the transcriptome data, we determined differentially abundant proteins (DAPs) (Fig. 4).

For this purpose, we used an established shotgun proteomics platform and mapped the peptides to the tomato proteome UP000004994. We were able to identify a total of 6315 protein groups in this manner which could be further split, yielding 7729 different proteins. Interestingly, canal-1 green leaves appeared to be wild-type like at the proteome level (Fig. 4). When comparing the canal-1 white leaves to canal-1 and M82 green leaves, we found 1105 and 1443 DAPs, with 869 DAPs overlapping between them (Fig. 4A). In addition to 868 overlapping between these comparisons, there was a single protein A0A3Q7EIF5, which additionally showed differential expression when comparing canal-1 green leaves to M82 leaves, making it the only protein showing differential abundance between green mutant and wild type leaves (Fig. 4 A). This protein was annotated as a component of the oxygen evolving center (OEC) of photosystem II (Fig. 4B). This is surprising, considering that on a transcriptomic level the term “photosystem II oxygen evolving complex” showed enrichment in the comparison of green mutant and wild type leaves and expression was generally higher in green mutant leaves (Fig. 2, Supplementary Figure S 9). This result is further interesting, under the same assumption made for the transcriptome, that results from white leaves may contain a number of pleiotropic effects, whereas observations from green mutant leaves may be characteristic of direct effects of the mutation. We used the GO terms to perform another enrichment analysis (Fig. 4C). For the comparison of white mutant leaves and green wild type leaves the most significantly enriched term was photosynthesis and for the comparison of white and green mutant leaves it was chlorophyll binding (Fig. 4C). Besides other terms related to photosynthesis, we found also terms related to RNA binding and ATP-dependent protein folding chaperone (Fig. 4C, Supplementary Table S 11 and Supplementary Table S 12).

Having the opportunity to directly translate UniprotIDs into EntrezIDs, we also performed an enrichment analysis using KEGG terms (Fig. 4D). Again, we found photosynthesis terms enriched, but also the terms “Spliceosome”, “Ribosome” and “Proteasome”. (Supplementary Table S 13 + Supplementary Table S 14). In general, the pattern of enriched terms seems relatively congruent between both comparisons, highlighting the common differences between white canal-1 leaves to both green canal-1 and M82 leaves (Fig. 4C and D).

Similar to the transcriptome data, we also took a closer look at protein levels of components and assembly factors of the photosystems (Fig. 5).

Unfortunately, we were not able to detect the protein of interest SCO2 itself among the 7729 proteins and thus could not draw any conclusions concerning its abundance. When considering other assembly factors, we could see a slightly different pattern to that observed with the transcriptome with no significant differences at the proteome level between the two groups (Fig. 5A). Despite showing mostly lower values than green leaves, white mutant leaves did also not show any significant changes in the cumulative abundance of assembly factors (Fig. 6A). When looking at the level-scaled mean abundance of individual proteins, we could again see that orthologs of ELIP1 and DEG7 as well as orthologs of FtsH11, HCF106, PDI6/PDIL1–2#2 built a cluster of proteins with higher abundance in white leaves of canal-1 in comparison to green leaves of the mutant and wild type plants (Fig. 5B). When looking at the individual proteins, we could see that while orthologs of ELIP1, DEG7 and FtsH11, showed some relatively high individual values only the orthologs of HCF106 and PDI6/PDIL1–2 displayed differential abundance between white leaves of the mutant and green leaves of wild type and mutant plants (Fig. 5 C). We also investigated the abundance of the proteins that finally make up the photosystem components (Fig. 5 D). The levels for white mutant leaves were extremely low and significantly lower than the protein levels in green leaves of mutant and wild type plants. Green canal-1 leaves additionally showed a slightly but significantly reduced amount of photosystem components in comparison to green M82 wild type leaves (Fig. 5D).

Fig. 6 — RNA and protein levels of photosystem components. Each rectangular glyph representing a photosystem component is split into 4 panels. The first two panels represent transcript levels, while the second two represent protein levels. In both the transcript and the protein section, the left panel shows the contrast of green *canal-1* leaves to wild type leaves, while right panel shows the contrast of white *canal-1* leaves to wild type leaves. Color mapping corresponds to log10-fold changes relative to wild type leaves as displayed by the color key in the top right corner. Image of photosystem components is adapted from [106] and overlaid with data mapped to SBGN glyphs.

3.4. Integrating transcriptomic and proteomic data highlights stronger downregulation of photosystem components in white canal-1 leaves

Having both transcriptomic and proteomic data available, we set out to visualize both regarding the photosystem components on the basis of both. For this purpose we took the log10-fold changes of the contrasts comparing mutant green leaves to wild-type leaves as well as comparing mutant white leaves to wild-type leaves (Fig. 6).

At the transcript level, many of the photosystem components show a moderate upregulation in green leaves of canal-1 leaves in comparison to wild-type leaves. White canal-1 leaves, however, show a downregulation, when compared to green wild-type leaves. When considering the proteome, we could see that the previously detected upregulation in green leaves of the mutant in comparison to those of the wild-type, translates to normal wild-type-like protein levels. By contrast, white canal-1 leaves displayed a reduction of photosystem component protein abundances, in comparison to wild-type leaves.

3.5. Metabolomics reveal amino acid accumulation in white canal-1 leaves

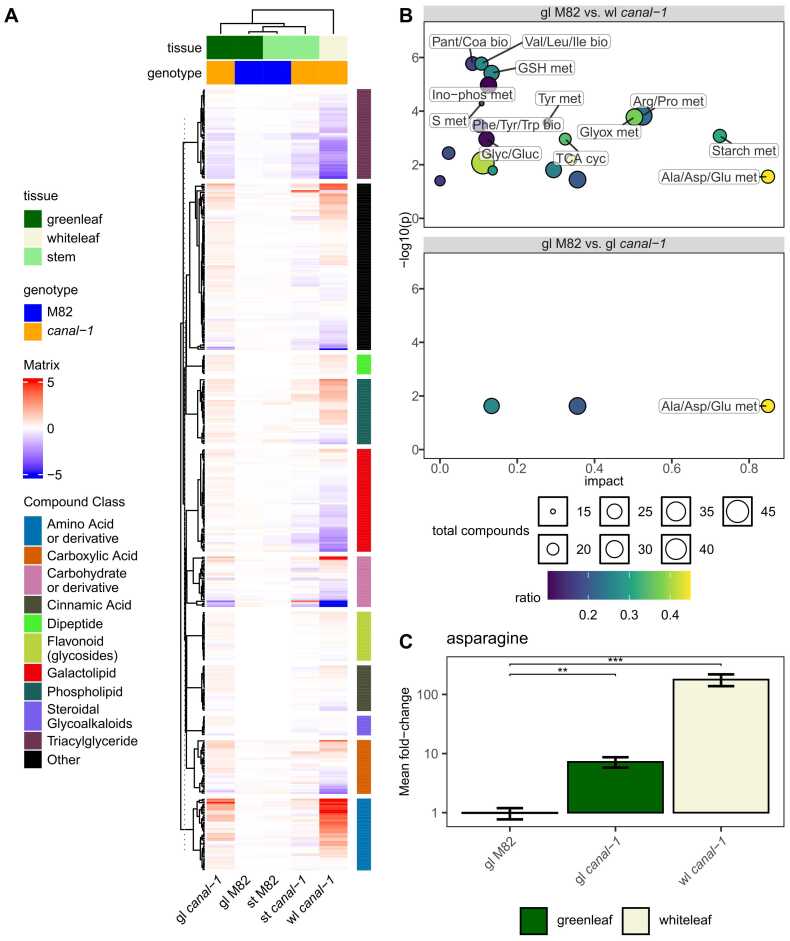

We next measured metabolites, extracted from leaves of mutant and wild-type plants (Fig. 7).

For this purpose, we used established protocols for the GC-MS-based profiling of primary metabolites[62] and the LC-MS measurement of polar secondary metabolites [63] and lipophilic metabolites [107], allowing the quantification of 126, 116 and 210 compounds, respectively (Supplementary Data S 1). We saw the strongest changes in the white leaves of canal-1 plants (Fig. 7 A). At the bottom of the heatmap we can see a the group of amino acids and derivatives thereof, that display a strong upregulation in white leaves of canal-1 plants under control and also drought conditions, in comparison to the respective wild-type leaves. Compounds of the classes triacylglycerides (TAGs) and galactolipids, mostly show a moderate to strong downregulation in white canal-1 leaves. Green leaves of canal-1 plants show similar patterns for these clusters, albeit to a much lesser extent (Fig. 7 A).

To gain a better idea of the altered pathways of primary metabolism we used Metaboanalyst to perform a KEGG pathway enrichment (Fig. 7 B). The pathway with the highest impact was “Alanine, Aspartate and Glutamate metabolism” in both comparisons (Supplementary Table S 15 and Supplementary Table S 16). We found many other pathways related to the biosynthesis and metabolism of various amino acids but also some related to carbohydrates (Fig. 7 B, Supplementary Table S 15). The compound which showed the strongest changes was asparagine. In comparison to wild-type leaves it shows roughly a ten-fold increase in green mutant leaves and a 100-fold increase in white mutant leaves (Fig. 7 C).

3.6. Multi-omics integration reveal shift of white mutant leaves from source to sink tissues

Having transcriptomic, proteomic and metabolomics data at our disposal, we took the opportunity to visualize them together and investigate more deeply the pathways, revealed by KEGG pathway enrichment. Starting at the reductive part of the pentose phosphate pathway (Calvin-Benson-Cycle; CBC), we could see that green canal-1 plants showed some upregulation of genes on a transcriptomic level, which related to a minor upregulation on the proteomic level for example for phosphoribulokinase (PRK) and RuBisCO (Fig. 8).

Fig. 8 — Pathway maps derived from KEGG pathways designed in SBGN format showing relative transcript, protein and metabolite levels of green and white *canal-1* leaves in comparison to wild-type leaves. Rounded rectangular glyphs are split into four sections, where the first two depict transcript levels and the last two depict protein levels. For both transcript and protein levels, the first panel displays the relative level of green mutant leaves and the second panel the relative level of white mutant leaves in comparison to wild-type leaves. Circular glyphs depict metabolites, which are split in the same way as the transcript and protein panels. Colors correspond to log10-fold changes limited from −1 to 1 as depicted by legend in upper right corner (green to red for genes and proteins, blue to yellow for metabolites). Nodes without mapping data are uncolored. Subsections correspond to separate pathways. Entities that had to be duplicated within a pathway to optimize the layout carry a black bar as a clone marker on the lower end of the glyph. Full names of genes/enzymes and compounds are found in Supplementary Data S 8. S/S: Starch and Sucrose Metabolism; G/G: Glycolysis/Gluconeogenesis; CBC: Calvin-Benson-Cycle; PPP: Pentose Phosphate Pathway; VLI: Valine, Leucine and Isoleucine Biosynthesis; TCA: TCA cycle; AAG: Alanine, Aspartate and Glutamate Metabolism; GDM: Glyoxylate and Dicarboxylate Metabolism.

White canal-1 leaves however showed a downregulation of transcripts and most proteins. Again, this is exemplified by PRK and RuBisCO, which are downregulated at both transcriptomic and proteomic levels. Several enzymes of the (oxidative) pentose phosphate pathway (PPP), some of which are shared with the Calvin-Cycle however showed an upregulation and additionally the compound 6-phospho-D-gluconate were reduced in white canal-1 leaves (Fig. 8). In the starch and sucrose metabolism (S/S) and the glycolysis and gluconeogenesis (G/G), the compounds sucrose, glucose, fructose and maltose are strongly reduced in white canal-1 leaves, whereas in green mutant leaves sucrose shows wild-type levels and maltose even an increase in comparison to wild type leaves. Several enzymes such as beta-glucosidase (BGLU), endoglucanase (NGLU), 6-phosphofructokinase (PFK), fructose-1,6-bisphosphatase/bisphosphate aldolase (FBPA) and fructose-1,6-bisphosphatase (FBP) show different or even opposite responses in white and green mutant leaves, suggesting that carbohydrates are catabolized in white leaves and synthesized in green leaves of the mutant (Fig. 8). Also in the TCA cycle and the glyoxylate and dicarboxylate metabolism (GDM), several catabolic enzymes are upregulated on a proteomic level in white canal-1 leaves and downregulated in green canal-1 leaves. In the valine, leucine and isoleucine biosynthesis pathway (VLI), the amino acids valine, leucine and isoleucine, were upregulated in green leaves but even more strongly in white leaves of the mutant. We could also see that enzymes involved in this biosynthetic pathway, namely acetolactate synthase (ALS), ketol-acid reductoisomerase (ILVC), dihydroxy-acid dehydratase (ILVD) and branched-chain amino acid aminotransferase (ILVE) displayed an upregulation, which was stronger in white leaves than in green leaves of canal-1 plants. Similarly, in the alanine, aspartate and glutamate metabolism (AAG), the amino acids glutamate, glutamine, alanine, aspartate and asparagine were upregulated in mutant leaves. For glutamate and glutamine, we could see the upregulation of ferredoxin-dependent glutamate synthase (GLUS), NAD(P)⁺-dependent glutamate dehydrogenase (GLUD) and NADH-dependent glutamate synthase (GOGAT) which could explain the elevated amino acid levels. In aspartate and asparagine biosynthesis we found glutamine-hydrolysing asparagine synthase (ASNS) and in white leaves also aspartate aminotransferase (AAT) to be upregulated (Fig. 8). These observations thus supported the results from the KEGG pathway enrichment.

3.7. Correlation network construction supports a hub function of SCO2

The availability of this multi-omics dataset for the 15 samples from mutant and wild type stems and leaves also gave us the opportunity to explore how transcript-, protein- and metabolite levels correlate to one another. We therefore calculated the Spearman-correlation value for all pairwise-combinations, resulting in over 900 million correlation values. In order to reduce the number of correlations to a manageable amount we directly filtered out correlation values below 0.75, which still left us with more than 29 million correlations. For an overview, we applied an even more stringent threshold of 0.95, created a correlation network graph using absolute correlation values as edge-weights and only retained the largest connected graph for a visualization (Fig. 9 A). This resulted in a graph with 12478 vertices and 326539 edges. (Fig. 9 A).

Fig. 9 — Correlation network graph, subnetworks and network metrics. A, Single connected correlation network graph based on spearman`s correlation value between levels of transcripts, proteins, primary metabolites, secondary metabolites and lipophilic compounds across leaf and stem wild-type and mutant samples. Vertices correspond to individual transcripts, proteins or compounds and are displayed by filled points, colored according to their vertex class. Vertices are connected through edges colored by the sign of the correlation. Graph layout was generated by a progressive multidimensional-scaling algorithm, using the inverse of the edge-weights. Correlation-value threshold = 0.95, n_vertex = 12478; n_edge = 326539. B, Betweenness, closeness and degree of SCO2 transcript in relation to the overall network. All boxplots show the interquartile range (IQR) between the first and the third quartile as the box, with the median indicated by a black center line. Whiskers extend from quartiles to most extreme points with a maximum of 1.5 x IQR. Points beyond that range are considered outliers but overlaid by individual data points, shown as quasirandom. The respective SCO2 value is indicated by a red cross-circle. Y-axis is transformed by log(1 +x) to accommodate 0 values as well as large outliers. C. Correlation network graph of direct SCO2 neighbors at correlation value threshold 0.95. D, Correlation network graph of photosystem assembly factor genes and proteins at correlation value threshold of 0.75. In C + D, vertices correspond to individual transcripts or proteins and are displayed by filled points, colored according to their vertex class. Vertices are connected through edges colored by the sign of the correlation. In D the outline of the points (stroke) is colored according to the functional grouping. Graph layout was generated by a circular layout algorithm for C and a progressive multidimensional-scaling algorithm for D, using the inverse of the edge-weights. Statistical significance was estimated by single-wilcox test for B. Significant differences are indicated by asterisks for B (*: p ≤ 0.05; **: p ≤ 0.005; ***: p ≤ 0.0005).

Due to its function in canalization of yield, we wondered, whether SCO2 shows typical properties of a network hub and therefore compared different network metrics of SCO2 to those of the overall network (Fig. 9 B).

When comparing the degree, closeness and betweenness of SCO2 to the rest of the filtered network, we realized that the values of SCO2 were indeed significantly higher than the (pseudo-)median of the overall network (Fig. 9 B, Supplementary Table S 17). While the degree of 29 of SCO2 is only somewhat higher than the median degree of the network, the metrics closeness and betweenness both exceed the third quartile of the overall network (Fig. 9 B). Focusing further on our gene of interest we queried the direct neighbors that SCO2 has at the 0.95 threshold (Fig. 9 C). As already observed by the degree of SCO2, we could now see the 29 neighbors which strongly correlated to SCO2 and also among themselves (Fig. 9 C, Table 2).

Table 2.

Direct neighbors of SCO2 transcript with absolute correlation-value above 0.95.

Gene	ITAG4.0 annotation	Correlation value
Solyc06g053710.3	ethylene receptor homolog (ETR4)	−0.971428571
Solyc09g091270.3	cotton fiber protein	−0.964285714
Solyc01g105010.3	Non-specific lipid-transfer protein-like protein	−0.960714286
Solyc02g087740.3	Plant cysteine oxidase 2	−0.957142857
Solyc07g018070.4	Double Clp-N motif-containing P-loop nucleoside triphosphate hydrolases superfamily protein	−0.957142857
Solyc03g119390.4	bHLH transcription factor 026	−0.95
Solyc01g106380.2	hypothetical protein	0.95
Solyc01g110270.3	RNA-binding CRS1 / YhbY (CRM) domain protein	0.95
Solyc03g082560.3	Aldo-keto reductase/ oxidoreductase	0.95
Solyc12g094630.2	Low-density receptor-like protein	0.95
Solyc01g105340.4	Chaperone protein DnaJ	0.953571429
Solyc02g071190.4	Carboxyl-terminal-processing protease-like protein	0.953571429
Solyc03g026200.4	protein COFACTOR ASSEMBLY OF COMPLEX C SUBUNIT B CCB2, chloroplastic	0.953571429
Solyc03g044470.4	red chlorophyll catabolite reductase	0.953571429
Solyc03g062710.4	protein NDH-DEPENDENT CYCLIC ELECTRON FLOW 5	0.953571429
Solyc12g096100.2	Protein PAM68, chloroplastic	0.953571429
A0A3Q7HR44	NA	0.953571429
Solyc00g500066.1	Photosystem I assembly protein Ycf4	0.957142857
Solyc03g063240.3	Pyridoxamine 5'-phosphate oxidase-related FMN-binding protein	0.957142857
Solyc03g124060.3	Polyketide cyclase/dehydrase and lipid transport superfamily protein	0.957142857
Solyc08g075100.4	Initiation factor 4 F subunit (DUF1350)	0.957142857
Solyc11g007130.2	Major facilitator superfamily	0.957142857
A0A3Q7H1X6	NA	0.967432647
Solyc07g064100.1	Chlororespiratory reduction 41	0.967857143
Solyc12g009440.2	DnaJ/Hsp40 cysteine-rich domain superfamily protein	0.967857143
A0A3Q7G7J3	NA	0.967857143
Solyc05g006110.3	Serine/Threonine-kinase	0.971428571
Solyc10g005870.4	Peptidylprolyl isomerase	0.971428571
Solyc09g010110.3	Chaperone protein dnaJ-related protein	0.975

Open in a new tab

The first observation we could make is that most of the SCO2-neighbors are transcript nodes, with only 3 protein nodes. Out of the correlations to SCO2 only 6 were negative, while 23 were positive. The strongest negative correlation was to the transcript Solyc06g053710.3, which is annotated as ethylene receptor homolog (ETR4) (Fig. 9 C, Table 2). The strongest positive correlation was to the transcript Solyc09g010110.3 which is annotated as Chaperone protein dnaJ-related protein. Besides this gene we also found two more transcripts carrying an annotation relating to DnaJ proteins, namely Solyc12g009440.2 and Solyc01g105340.4. Solyc09g010110.3 is orthologous to the ORANGE gene in Arabidopsis (AT5G06130.2), which has been shown to be involved in carotenoid biosynthesis by binding to phytoene synthase [108]. Other interesting correlation partners were Solyc12g096100.2 and Solyc00g500066.1, which carry the annotations Protein PAM68, chloroplastic and Photosystem I assembly protein Ycf4, respectively. These are also orthologous to the Arabidopsis assembly factors PAM68 (AT4G19100) and Ycf4 (ATCG00520), respectively, which we found in our orthology search before (Supplementary Table S 5). This observation made us wonder whether SCO2 transcript abundance also correlates to the abundance of other photosystem assembly factor transcripts or proteins, albeit with a lower correlation value and how strong the correlation is to the components that the photosystem finally consists of. We therefore reinvestigated the whole dataset with the more relaxed threshold of 0.75 and looked at correlations between photosystem components and assembly factor transcripts and proteins. This resulted in a dense network of transcript and protein nodes connected mostly through positive correlations (Fig. 9 D). Both transcripts and protein nodes connected more strongly to members of their own class than to members of other classes. We found that SCO2 clustered together mostly with transcripts of other assembly factors such as Ycf4 and PAM68 towards the left of the network. Towards the middle we found a cluster with mostly transcript nodes of assembly factors and towards the right half of the network we found more protein nodes, with a densely connected cluster of protein nodes of photosystem components (Fig. 9 D). Using a hierarchical clustering algorithm of all raw unfiltered correlation values of the previously discussed transcripts and proteins and plotting them on a heatmap (Supplementary Figure S 11), resulted in a similar observation.

3.8. Photosynthesis in green leaves of canal-1 is increased to compensate impaired photosynthesis in white leaves

We were additionally interested to see, whether the changes observed via the –omics analysis were also reflected in the photosynthetic activity and therefore estimated several photosynthetic parameters using a LiCOR (Fig. 10 A-D).

Fig. 10 — Photosynthetic measurements as conducted by LiCOR in the light (A-D) and yield and photosynthetic parameters on wild type, mutants and overexpression lines as conducted by multispeq device (E-H). A, Photosynthetic assimilation rate. B, Stomatal conductance. C, Transpiration rate. D, Quantum yield of photosystem II (ϕPSII). E, Total fruit weight (g) of different lines. F, Baseline Fluorescence (Fs). G, Non-photochemical quenching (NPQt). H, Quantum yield of photosystem II (ϕPSII). Boxes and points are filled according to tissue (gl = green leaves: green, vl = variegated leaves: bright green, wl = white leaves: beige). Statistical significance was estimated by pairwise-wilcox test for A-D and pairwise-t-test for E-H. Significant differences are indicated by a bracket and asterisks (*: p ≤ 0.05; **: p ≤ 0.005; ***: p ≤ 0.0005).

The assimilation rate of green leaves of the canal-1 plant was significantly increased in comparison to wild-type leaves, whereas white mutant leaves showed a negative assimilation rate, which means, that they were actually carrying out net respiration (Fig. 10 A). Additionally, green leaves of the canal-1 mutant had a significantly increased stomatal conductance and transpiration rate compared to wild-type leaves, whereas white mutant leaves showed wild-type levels (Fig. 10 B and C). Regarding the quantum yield of photosystem II, green leaves of mutant and wild-type showed similar levels, whereas white canal-1 showed a statistically significant lower level (Fig. 10 D).

In a final experiment, we grew the canal-1 mutant, the allelic ghost-2 mutant, and three over-expressing lines, together with their respective wild-type cultivars, M82, Sioux (SX) and MoneyMaker (MM) in a greenhouse experiment (Fig. 10 E-H).

As observed before, the canal-1 mutant displayed a significantly decreased yield, as did the ghost-2 mutant (Fig. 10 E). In fact, the effect of the ghost-2 mutant, was so strong, that neither of the plants was able to produce any fruit (Fig. 10 E). Lines overexpressing SCO2 did not show significant differences regarding fruit weight in relation to the MoneyMaker wild-type (Fig. 10 E). However, Line CANAL-OX31 displayed a significantly earlier flowering time and an increased number of fruits per plant (Supplementary Figure S 12), traits that could be of high agronomic interest.

Due to the increased sample size, we did not use the LiCor for photosynthetic measurements in this experiment but rather used a small multispeq handheld device. On the other hand, as an intermediate between green leaves and white leaves, we now also included variegated leaves, i.e. leaves that had both white as well as green sectors, in the measurement. The steady-state fluorescence measurements revealed significantly reduced levels for variegated mutant leaves and an even greater reduction for white leaves, when compared to the green leaves of the corresponding wild-type (Fig. 10 F). Green mutant leaves on the other hand showed wild-type fluorescence levels. Interestingly, green leaves from the CANAL-OX25 line also showed a significant reduction in Fs, when compared to MoneyMaker leaves. More or less the opposite effect could be observed for non-photochemical quenching (NPQt) (Fig. 10 G). Here, variegated mutant leaves showed an increase in NPQt. White leaves of canal-1 also showed an NPQt increase, whereas white leaves of ghost-2 showed a reduction. Finally, the quantum yield of photosystem II was similar to that observed with the LiCor (Fig. 10 H), while overexpressor lines were invariant from wild-type plants.

4. Discussion

In the current study, we presented the molecular characterization of the variegated canal-1 mutant in tomato. Leaves showed different patterns and degrees of variegation, from almost completely green over variegated to completely white, with white leaves being devoid of photosynthetic pigments, whereas green mutant leaves contained wild-type levels. Transcriptomic analysis revealed the enrichment of photosynthesis-related terms and highlighted upregulation of photosystem assembly and photosystem component genes in green mutant leaves, while white mutant leaves showed wild type levels of photosystem assembly genes, with the exception of orthologs of ELIP and DEG genes, which showed high outlying values. These changes seen at the transcriptomic level, were paralleled at the proteome level, with the proteome of green canal-1 leaves being largely invariant from wild-type leaves, but white canal-1 leaves displayed strong deficiencies in proteins related to photosynthesis. Here we did not only see changes in the thylakoid membrane proteins, but also in RuBisCO, which was downregulated in white mutant leaves. More generally we do see some differences between proteome and transcriptome. While a certain discrepancy could be expected and has been shown before [109], [110], some additional variation may result from the fact that proteomics more easily pick up the products of plastid-encoded genes, than the transcriptomic analysis. The metabolome showed a strong upregulation of amino acids and a downregulation of TAGs and galactolipids in white canal-1 leaves. The results of our study report similar findings to the earlier more focused studies in Arabidopsis thaliana and Lotus japonica. Indeed, the tomato canal-1 mutant more similar resembles the sco2 mutants of Lotus in that their true leaves are affected and display a variegated phenotype under long-day conditions and similarly the levels of PsaB, PsaL, PsbC and PsbD are also decreased in white mutant leaves as was shown for Lotus. By contrast to the results described in Lotus, PsbO and PsbQ are not more abundant at the protein level in tomato. In fact, PsbP - which is also part of the oxygen-evolving complex- was the only differentially abundant protein in green canal-1 leaves. On the other hand, all three of these proteins (PsbO, PsbP and PsbQ) show transcriptional upregulation in green leaves but downregulation in white leaves (Fig. 6). This is underlined by the fact that PSII oxygen evolving center was one of the most significantly upregulated terms in green mutant leaves compared to wild type but also compared to white mutant leaves. Considering that results from green leaves might be less disturbed by pleiotropic effects, and thus more accurately show the direct effect of the mutation, these results could suggest that SCO2 is particularly relevant in aiding the (re-)assembly of PsbP into OEC-less PSII precursors during regular assembly or repair of PSII [111]. Also similar to previous results is the reduction of lhcb1 in white canal-1 leaves, which has been shown on a transcriptomic level in Arabidopsis [29] and on a proteomic level in Lotus [27]. A reduction of D1 and LhcB protein had also been shown for Arabidopsis by an earlier study, which however found little changes in gene expression [24].

Given that correlation analysis clustered the SCO2 transcript closer to assembly genes than to other components of the photosystems, we doubt that SCO2 directly affects transcription or translation of photosystem components and feel that they are more likely to be secondary consequences. Rather, as we discuss in detail below, we feel that SCO2s primary role is in photosystem assembly and that the chloroplast biogenesis may be affected due to the function as assembly component. That said, correlation analysis revealed above median levels of different network metrics (degree, closeness and betweenness), for the SCO2 transcript and high correlation values to a range of other putative photosystem assembly genes. Furthermore, pathway integration highlighted the increased carbohydrate catabolism in white leaves and confirmed the upregulation of amino acid biosynthetic pathways. Moreover, photosynthetic measurements showed a reduction of activity in variegated and white leaves of canal-1, whereas green mutant leaves showed an upregulation of some parameters. Thus, whilst falling short of defining the exact underlying causal mechanisms, we want to highlight two characteristics of our work that distinguish it from the existing literature. First, we have quantitative data for the whole transcriptome and are able to observe changes in gene expression on a much broader range and with higher precision than this has been done previously [24], [29] and secondly, we separately analyzed white and green leaves/leaf sectors and could contrast them against each other. This of course was not possible for Arabidopsis but was also not performed for Lotus [27]. We discuss below the collective results both with respect to the function of SCO2 and with regard to its previous identification as a canalization gene [23].

Due to the changes observed in the multi-omics analysis, we suggest that an adequate amount of SCO2 activity is indispensable for appropriate thylakoid development. The mutation of the canal-1 mutant is in close proximity to a conserved zinc finger binding domain that is crucial for catalytic activity [23], [30]. Unfortunately, due to the absence of an available antibody we were not able to detect the levels of the SCO2 protein. This is also underlined by the phenotype of other mutants described in literature. Two CRISPR mutants have previously been described [23]. The strongest phenotype is displayed by a mutant with an early stop codon before the conserved zinc finger domain, which produces a truncated protein. It has pale cotyledons and fails to build true leaves. Slightly less severe was the phenotype of another CRISPR/Cas9 mutant, with a frame shift that resulted in a change of amino acids 15 to 43. This mutant also developed variegated leaves, but did not survive past the first true leaves. The ghost-2 mutant, similarly to canal-1, is an EMS mutant with a single point mutation, leading to the change of an amino acid within the conserved zinc finger domain. Despite also showing a variegated leaf phenotype, this mutant has been described to not show the unstable variegation phenotype and produce uniformly large plants [23]. This is, however, in disagreement with our observation that plants harboring this mutation show a more severe phenotype and are characterized by being unable to produce any fruit. Additionally, despite the increased variation in fruit yield, canal-1 mutant plants did not vary as strongly in the greenhouse as was observed in the field. Therefore, the discrepancies between our results and the field trials may be attributed to the effect the different environments had.

The RNAseq experiment did not yield any significant differences in gene expression in the causal gene SCO2 between mutant and wild type leaves suggesting that the protein was expressed and likely transcribed but non-functional. Moreover, despite being able to detect 7729 proteins, which is similar to the number reported in previous experiments or even higher [112], [113], [114], we were not able to detect SCO2 among them and cannot say whether protein levels were changed. This was most likely just the technical limitation of the proteomics in achieving complete coverage of the whole proteome. More generally however, the upregulation of gene expression, specifically of photosystem assembly components, in green mutant leaves in comparison to wild type leaves, suggests an overcompensation in response to an, at least partially, impaired protein function in SCO2. The correlation network analysis confirmed the high correlation of this expression pattern between the SCO2 transcript and other photosystem assembly components. Our overcompensation hypothesis is further supported by the wild-type-like protein levels in these leaves. Indeed, white canal-1 leaves showed wild-type transcript levels of most photosystem assembly components. Exceptions to this statement were the upregulation of genes orthologous to ELIP and DEG genes. In de- etiolating seedlings ELIPs were demonstrated to be responsible for the etioplast to chloroplast transition [115], however since the true leaves develop in the light, ELIP accumulation may be rather indicative of high photooxidative stress in white leaf sectors [116]. This could lead white leaf sectors to get trapped in a stage similar to pre-de-etiolation, wherein thylakoid development is arrested and misfolded proteins get degraded by DEG protease. As a consequence of such a scenario proper thylakoids would be unable to develop and protein levels of photosystem components would be significantly reduced. Being unable to photosynthesize, white mutant leaves rather behave as a sink tissue on a metabolic level. This can be seen by the depletion of several mono- and disaccharides like sucrose, maltose, glucose and fructose and the upregulation of enzymes involved in their catabolism in the glycolysis, like PFK and GAPDH. On the other hand, enzymes along the same pathway in the anabolic direction, like GAPA and FBPA are downregulated. By contrast, green mutant leaves seem to be able to compensate for the lack of photosynthates by an upregulation of photosynthesis and an altered carbon allocation. This can also be seen for example in the enzymes GAPA and FBPA showing the opposite effect than white leaves towards an increased sugar anabolism. The upregulation of amino acids is likely a secondary effect, as a general response to stress, which is supported by transcriptomic and proteomic changes in enzymes involved in the biosynthesis of amino acids, like ASNS, GOGAT, ILVC, ILVD and ILVE. Downregulation of TAGs and galactolipids may be related to the missing thylakoid membranes. The increased photosynthesis in green mutant leaves is displayed by a higher assimilation rate. This in turn, however, requires green leaves to open their stomata wider, which consequently comes at the cost of increased transpiration.

The compensation response described above fits to a threshold model described for other variegation mutants [117], [118]. This model suggests a base-level of either protein function or abundance, to be necessary for the development of functioning photosystems. Furthermore, it is well known that the stoichiometry of proteins is important for thylakoid development [27]. In this regard, SCO2 has previously been described as a “scale” that balances different photosystem components [27]. All of this applied to the observations in the canal-1 mutant, could mean that there is a certain critical level of SCO2 function, which if surpassed enables the formation of thylakoids and consecutively the development of green leaf sectors. If this level is however undershot, thylakoid formation is not achieved and leaf sectors stagnate in an undeveloped state. This may be exacerbated by the fact that at least photosystem II is especially vulnerable to photodamage in early development [119]. It seems reasonable to suggest that the larger the total area of photosynthetically active tissue, the larger the fruit mass it can sustain. Each wild type plant will usually have a relatively uniformly green canopy, thus the percentage of photosynthetically active tissue can be considered to be close to 100 %. As described earlier, the variegation in canal-1 mutant plants leads to a large variation of green and white tissue area within a single leaf and plant and thus also a variation from plant to plant. A recent study, describing an FtsH mutant with a similar phenotype to the one described in our study, has nicely quantified the shades of green in separate variegated mutant leaves and demonstrated exactly this variance from leaf to leaf [120]. While we have not quantified this variance ourselves in the canal-1 mutant an increased variation seems plausible based on the fluorescence measurement we performed on white, green and randomly selected variegated leaves. From here it seems obvious that a plant-to-plant variation of total photosynthetically active tissue, may lead to a variation in yield, which may be further aggravated according to our hypothesis that white leaves act as additional sink tissues, thus linking the variation of photosynthetic tissue to the variation in yield. This theory could also explain why our results from greenhouse experiments were different from those obtained in the field. Light intensity is usually much higher in the field in comparison to a greenhouse. For young mutant plants, with an impaired photosystem assembly protein, this may present a stress factor, which could early on lead to the development of white sectors. Additionally, a necessary increase in stomatal conductance in mutant green leaves, likely makes mutant plants more vulnerable to heat and drought stress. This may be an additional fact that explains the large variance of small and large plants in the field.

As we are interested in SCO2 as a canalization gene, we felt this data should put it into the context of known canalization genes. It has been suggested that such genes are so-called hub genes [121]. The most well-described canalization gene, in this respect, is the chaperone heat shock factor 90 (HSP90)[122]. Another hub gene, which was found to affect the variation of glucosinolate levels, circadian periodicity as well as flowering time, is the gene EARLY FLOWERING 3 (ELF3), which is known to be generally involved in the circadian pathway [123], [124]. Similarly, the ERECTA gene, which is a known pleiotropic developmental regulator, was suggested to influence canalization of rosette leaf number [18], [125]. Based on these examples, we could say that there are some hub genes, which are more directly involved in specific gene networks as well as those, like HSP90, that are only peripherally connected but affect many processes [122].

In congruence with these examples, we can see several overlaps to SCO2. Firstly, on the molecular level SCO2 is also a DnaJ-like chaperone that is suggested to interact with other proteins [25], [29]. The demonstrated catalytic activity of SCO2 as a disulfide isomerase further suggests it might accelerate the folding of photosystem subunits, which contain cysteine residues [30]. Even though the specific function of SCO2 in thylakoid assembly, would qualify it as a gene of a specific gene network, we know that it also has a global effect on yield [23]. We would also argue that SCO2 is involved in a larger gene network, which extends beyond its immediate interaction partners. Our correlation analysis has shown that SCO2 has 29 direct neighbors, which makes its node degree already significantly higher than the median node degree of the correlation network, again highlighting the role of SCO2 as a hub gene. Beyond that SCO2 also displayed a higher betweenness than the median of the network, suggesting its involvement in a larger network. Our results also revealed that SCO2 expression correlates more closely with the expression of other putative assembly factors and only more distantly to photosystem components. SCO2 transcript showed the highest positive correlation to Solyc09g010110, an ortholog to the ORANGE gene in Arabidopsis, which has been shown to play a key role in chromoplast differentiation by posttranscriptionally regulating phytoene synthase [108]. Similarly, Solyc09g010110 in tomato (also called OR-like) has also been suggested to play an important role in tomato fruit ripening and carotenoid accumulation [126]. Other interesting genes that showed a high correlation to SCO2 transcripts were orthologs of Ycf4 and PAM68, which are known factors in the assembly of photosystem I and II respectively [45], [127]. Ycf4 binds to different PSI subunits, but in tobacco seems to be non-essential for photosystem I assembly [128]. PAM68 has been shown to be involved in early PSII assembly, interacting both with early assembly intermediates as well as other assembly factors [129]. Similarly, SCO2 may fulfill analogous roles to ensure the proper folding of photosystem proteins during photosystem assembly or repair. The proper establishment of photosystem components, in which SCO2 likely plays an important role, could be described as a multi-layered regulation mechanism as detailed below.

The proper assembly of photosystem components requires a tight coordination between nucleus and plastid on multiple levels [130]. On a first level, during chloroplast biogenesis, there is a two-phase transcriptional regulation, with anterograde and retrograde signaling between nuclear and plastid genome [131]. Through a second layer of control, the translation of some photosystem subunits is autoregulated by the assembly state, to ensure the correct stoichiometry [132]. As mentioned above SCO2 has been assigned a similar role balancing the correct ratio of PSI/PSII complexes and LHC proteins in Arabidopsis thaliana and Lotus japonicus [27] and our results suggest a similar mechanism in tomato. As this step concerns readily translated proteins, this could be regarded as a third layer to ensure appropriate stoichiometry, where SCO2 plays a key role. It therefore seems plausible that reduced SCO2 function could decanalize the development of proper photosynthetic tissue and as a consequence increase variation of plant yield.

5. Conclusion

Although we are largely satisfied with our explanation of how SCO2 affects canalization of plant yield, further, more targeted experiments with higher spatial and temporal resolution would likely be required to gain a more precise understanding of the exact mechanistic role of the SCO2 protein. Nevertheless, our work underlines the importance of the SCO2 protein in thylakoid formation and explains the differences between white and green sectors of the canal-1 mutant, by different responses on a transcriptome, proteome and metabolome level as well as physiological response. It also largely explains how SCO2 can stabilize both metabolism and morphology. It is our contention that our work alongsided the earlier work on Hsp90 suggests that other chaperone-like proteins may be interesting candidate genes as a means to gain a fuller understanding of how this important and highly agriculturally relevant phenomenon is achieved. Overexpression of SCO2 did not result in increased yield under greenhouse conditions but may be tested in future studies in relation to field conditions or simulated stress. Whether this is transferable and indeed if it is useful for breeding of superior agronomic traits awaits future research.

CRediT authorship contribution statement

Josef Fisher: Resources. Micha Wijesingha Ahchige: Writing – review & editing, Writing – original draft, Visualization, Formal analysis, Data curation. Alisdair Fernie: Writing – review & editing, Supervision, Project administration, Funding acquisition, Conceptualization. Dani Zamir: Supervision, Resources. Saleh Alseekh: Writing – review & editing, Supervision, Project administration, Funding acquisition, Conceptualization. Nicola Illing: Supervision. Aleksandra Skirycz: Supervision. Ewelina Sokolowska: Methodology, Formal analysis, Data curation. Rafe Lyall: Software, Methodology, Formal analysis.

Declaration of generative AI and AI-assisted technologies in the writing process

During the preparation of this work the authors used Grammarly (©Grammarly Inc., CA, USA) in order to check grammar, interpunctation and improve readability of the text. After using this tool, the authors reviewed and edited the content as needed and take full responsibility for the content of the publication.

Declaration of Competing Interest

The authors declare no conflict of interest.

Acknowledgments

We would like to thank Menachem Moshelion for setting up the Lysimeter assay. Further we would like to thank Karin Köhl and the green team for plant transformation and excellent plant care. We would also like to thank José Vallarino for help with LI-COR measurements. We would like to acknowledge the RESIST project for enabling the cooperation between the MPIMP and the University of Cape Town. We would like to thank John F. Allen, Wilson B.M. de Paula, Sujith Puthiyaveetil and Jon Nield for letting us make an adaptation of their photsosystem components figure. We would also like to acknowledge the support of the DataPLANT consortium and the German Research foundation (DFG) through grant number NFDI 7/1. A.R.F. and S.A. acknowledge the European Union’s Horizon 2020 research and innovation programme, project PlantaSYST (SGA-CSA No. 739582 under FPA No. 664620), and the BG05M2OP001–1.003-001-C01 project, financed by the European Regional Development Fund through the Bulgarian’ Science and Education for Smart Growth´ Operational Programme. S.A. acknowledges the NatGenCrop project: HORIZON-WIDERA-2022-TALENTS-01, No. 101087091. M.W.A. acknowledges the International Max Planck Research School Primary Metabolism and Plant Growth (now called IMPRS Mol Plant) for funding of his doctoral studies.

Contributions

MWA, SA and ARF planned the work. JF and DZ supplied plant material and seeds from the canal-1 mutant. MWA performed the experimental work and computational analysis. ES performed proteomics analysis. RL and NI advised the transcriptomics analysis. MWA, SA and ARF wrote and edited the manuscript.

Footnotes

^{Appendix A}

Supplementary data associated with this article can be found in the online version at doi:10.1016/j.csbj.2024.10.028.

Contributor Information

Micha Wijesingha Ahchige, Email: Wijesingha@mpimp-golm.mpg.de.

Josef Fisher, Email: josef.fisher@gmail.com.

Ewelina Sokolowska, Email: sokolowskaewka87@gmail.com.

Rafe Lyall, Email: rafelyall@gmail.com.

Nicola Illing, Email: Nicola.illing@uct.ac.za.

Aleksandra Skirycz, Email: as4258@cornell.edu.

Dani Zamir, Email: dani.zamir@mail.huji.ac.il.

Saleh Alseekh, Email: alseekh@mpimp-golm.mpg.de.

Alisdair R. Fernie, Email: Fernie@mpimp-golm.mpg.de.

Appendix A. Supplementary material

Supplementary material

mmc1.docx^{(3MB, docx)}

Supplementary Data S 1: List of metabolic features measured across all platforms. Supplementary Data S 2: Metabolite levels of all individual samples relative to respective wild type samples. Supplementary Data S 3: Expression matrix of raw sequencing reads as produced by LSTrAP. Supplementary Data S 4: Expression matrix of deseq2-normalized reads and log2-fold changes and p-values of respective contrasts. Supplementary Data S 5: Correspondence table between Solgenomics and Entrez Gene IDs. Supplementary Data S 6: Table of protein Groups as produced by MaxQuant software. Supplementary Data S 7: Table of quantile-normalized LFQ values of protein abundance and log2-fold changes and p-values of respective contrasts. Supplementary Data S 8: EC number, enzyme name, symbol, KO and corresponding KEGG maps used in SGBNview figures. Supplementary Data S 9: KEGG Compound ID, compound name and symbol used in SBGNview figures.

mmc2.xlsx^{(27.2MB, xlsx)}

Data availability statement

Raw data, scripts and metadata, necessary to reproduce the results are publicly available in an annotated research context (ARC), hosted on the DataHUB of the DataPLANT consortium for FAIR data management [1] under https://git.nfdi4plants.org/projects/487 and published under a CC-BY 4.0 license (https://doi.org/10.60534/ecjy4-re035). The tools SWATE, ARCCommander and ARCitect were used to create and manage the ARC.

References

1.Weil H.L., et al. scp>PLANTdataHUB</scp>: a collaborative platform for continuous <scp>FAIR</scp> data sharing in plant research. Plant J. 2023;116(4):974–988. doi: 10.1111/tpj.16474. [DOI] [PubMed] [Google Scholar]
2.Finlay K.W., Wilkinson G.N. The analysis of adaptation in a plant-breeding programme Aust J Agric Res. 1963;14(6):742. doi: 10.1071/ar9630742. -01-01 1963. [DOI] [Google Scholar]
3.H.C. Becker and J. Leon, Analysis in Plant-Breeding, (in English), Plant Breeding, https://doi.org/10.1111/j.1439–0523.1988.tb00261.x vol. 101, no. 1, pp. 1–23, Aug 1988, doi: DOI 10.1111/j.1439–0523.1988.tb00261.x.
4.Fisher J., Bensal E., Zamir D. Bimodality of stable and plastic traits in plants, (in eng) Tag Theor Appl Genet Theor und Angew Genet. 2017;130(9):1915–1926. doi: 10.1007/s00122-017-2933-1. [DOI] [PubMed] [Google Scholar]
5.Kimura S., Sinha N. Tomato (Solanum lycopersicum): a model fruit-bearing crop, (in eng) CSH Protoc. 2008;2008 doi: 10.1101/pdb.emo105. pdb.emo105. [DOI] [PubMed] [Google Scholar]
6.Klee H.J., Giovannoni J.J. Genetics and control of tomato fruit ripening and quality attributes, (in eng) Annu Rev Genet. 2011;45:41–59. doi: 10.1146/annurev-genet-110410-132507. [DOI] [PubMed] [Google Scholar]
7.Zhu G., et al. Rewiring of the fruit metabolome in tomato breeding, (in eng) Cell. 2018;172(1-2):249–261. doi: 10.1016/j.cell.2017.12.019. e12. [DOI] [PubMed] [Google Scholar]
8.Genome C.Tomato. The tomato genome sequence provides insights into fleshy fruit evolution. Nature. 2012;485(7400):635–641. doi: 10.1038/nature11119. [DOI] [PMC free article] [PubMed] [Google Scholar]
9.Gao L., et al. The tomato pan-genome uncovers new genes and a rare allele regulating fruit flavor. Nat Genet. 2019;51(6):1044–1051. doi: 10.1038/s41588-019-0410-2. [DOI] [PubMed] [Google Scholar]
10.Eshed Y., Zamir D. An introgression line population of Lycopersicon pennellii in the cultivated tomato enables the identification and fine mapping of yield-associated QTL, (in eng) Genetics. 1995;141(3):1147–1162. doi: 10.1093/genetics/141.3.1147. [DOI] [PMC free article] [PubMed] [Google Scholar]
11.Gur A., Zamir D. Mendelizing all components of a pyramid of three yield QTL in tomato, (in eng) Front Plant Sci. 2015;6:1096. doi: 10.3389/fpls.2015.01096. [DOI] [PMC free article] [PubMed] [Google Scholar]
12.Ofner I., Lashbrooke J., Pleban T., Aharoni A., Zamir D. Solanum pennellii backcross inbred lines (BILs) link small genomic bins with tomato traits, (in eng) Plant J: Cell Mol Biol. 2016;87(2):151–160. doi: 10.1111/tpj.13194. [DOI] [PubMed] [Google Scholar]
13.Tieman D., et al. A chemical genetic roadmap to improved tomato flavor, (in eng) Science. 2017;355(6323):391–394. doi: 10.1126/science.aal1556. [DOI] [PubMed] [Google Scholar]
14.Fridman E., Carrari F., Liu Y.S., Fernie A.R., Zamir D. Zooming in on a quantitative trait for tomato yield using interspecific introgressions, (in eng) Science. 2004;305(5691):1786–1789. doi: 10.1126/science.1101666. [DOI] [PubMed] [Google Scholar]
15.Zemach I., et al. Multi-year field trials provide a massive repository of trait data on a highly diverse population of tomato and uncover novel determinants of tomato productivity, (in English) Plant J. 2023;116(4):1136–1151. doi: 10.1111/tpj.16268. [DOI] [PubMed] [Google Scholar]
16.Waddington C.H. Canalization of development and the inheritance of acquired characters. Nature. 1942;150(3811):563–565. doi: 10.1038/150563a0. /11/01 1942. [DOI] [Google Scholar]
17.Alseekh S., et al. Canalization of Tomato Fruit Metabolism, (in eng) Plant Cell. 2017;29(11):2753–2765. doi: 10.1105/tpc.17.00367. [DOI] [PMC free article] [PubMed] [Google Scholar]
18.Hall M.C., Dworkin I., Ungerer M.C., Purugganan M. Genetics of microenvironmental canalization in Arabidopsis thaliana, (in eng) Proc Natl Acad Sci USA. 2007;104(34):13717–13722. doi: 10.1073/pnas.0701936104. [DOI] [PMC free article] [PubMed] [Google Scholar]
19.Lee C.R., Anderson J.T., Mitchell-Olds T. Unifying genetic canalization, genetic constraint, and genotype-by-environment interaction: QTL by genomic background by environment interaction of flowering time in Boechera stricta, (in eng) PLoS Genet. 2014;10(10) doi: 10.1371/journal.pgen.1004727. [DOI] [PMC free article] [PubMed] [Google Scholar]
20.Queitsch C., Sangster T.A., Lindquist S. Hsp90 as a capacitor of phenotypic variation, (in eng) Nature. 2002;417(6889):618–624. doi: 10.1038/nature749. [DOI] [PubMed] [Google Scholar]
21.Wijesingha Ahchige M., Fernie A.R., Alseekh S. Pantothenate kinase4, loss of gdu2, and transposon protein1 affect the canalization of tomato fruit metabolism, (in eng) Plant Physiol. 2023;192(1):442–468. doi: 10.1093/plphys/kiad093. [DOI] [PMC free article] [PubMed] [Google Scholar]
22.Lachowiec J., Mason G.A., Schultz K., Queitsch C. Redundancy, feedback, and robustness in the arabidopsis thaliana bzr/beh gene family. Front Genet. 2018;9 doi: 10.3389/fgene.2018.00523. [DOI] [PMC free article] [PubMed] [Google Scholar]
23.Fisher J., Zamir D. Genes for Yield Stability in Tomatoes, (in eng) Adv Genet (Hoboken, N J ) 2021;2(4):2100049. doi: 10.1002/ggn2.202100049. [DOI] [PMC free article] [PubMed] [Google Scholar]
24.Albrecht V., Ingenfeld A., Apel K. Snowy cotyledon 2: the identification of a zinc finger domain protein essential for chloroplast development in cotyledons but not in true leaves, (in eng) Plant Mol Biol. 2008;66(6):599–608. doi: 10.1007/s11103-008-9291-y. [DOI] [PubMed] [Google Scholar]
25.Shimada H., et al. Arabidopsis cotyledon-specific chloroplast biogenesis factor CYO1 is a protein disulfide isomerase, (in eng) Plant Cell. 2007;19(10):3157–3169. doi: 10.1105/tpc.107.051714. [DOI] [PMC free article] [PubMed] [Google Scholar]
26.Albrecht V., Ingenfeld A., Apel K. Characterization of the snowy cotyledon 1 mutant of Arabidopsis thaliana: the impact of chloroplast elongation factor G on chloroplast development and plant vitality, (in eng) Plant Mol Biol. 2006;60(4):507–518. doi: 10.1007/s11103-005-4921-0. [DOI] [PubMed] [Google Scholar]
27.Zagari N., et al. SNOWY COTYLEDON 2 Promotes Chloroplast Development and Has a Role in Leaf Variegation in Both Lotus japonicus and Arabidopsis thaliana. Mol Plant. 2017;10(5):721–734. doi: 10.1016/j.molp.2017.02.009. /05/01/ 2017. [DOI] [PubMed] [Google Scholar]
28.Ganguly D., Crisp P., Harter K., Pogson B.J., Albrecht-Borth V. Genetic suppression of plant development and chloroplast biogenesis via the Snowy Cotyledon 3 and Phytochrome B pathways, (in eng) Funct Plant Biol. 2015;42(7):676–686. doi: 10.1071/FP15026. [DOI] [PubMed] [Google Scholar]
29.Tanz S.K., et al. The SCO2 protein disulphide isomerase is required for thylakoid biogenesis and interacts with LCHB1 chlorophyll a/b binding proteins which affects chlorophyll biosynthesis in Arabidopsis seedlings. Plant J. 2012;69(5):743–754. doi: 10.1111/j.1365-313X.2011.04833.x. [DOI] [PubMed] [Google Scholar]
30.Muranaka A., Watanabe S., Sakamoto A., Shimada H. Arabidopsis cotyledon chloroplast biogenesis factor CYO1 uses glutathione as an electron donor and interacts with PSI (A1 and A2) and PSII (CP43 and CP47) subunits, (in eng) J Plant Physiol. Aug 15 2012;169(12):1212–1215. doi: 10.1016/j.jplph.2012.04.001. [DOI] [PubMed] [Google Scholar]
31.Van Eck J., Keen P., Tjahjadi M. Springer New York; 2019. Agrobacterium tumefaciens-Mediated Transformation of Tomato; pp. 225–234. [DOI] [PubMed] [Google Scholar]
32.Halperin O., Gebremedhin A., Wallach R., Moshelion M. High-throughput physiological phenotyping and screening system for the characterization of plant-environment interactions, (in eng) Plant J: Cell Mol Biol. Feb 2017;89(4):839–850. doi: 10.1111/tpj.13425. [DOI] [PubMed] [Google Scholar]
33.Bugos R.C., Chiang V.L., Zhang X.H., Campbell E.R., Podila G.K., Campbell W.H. RNA isolation from plant tissues recalcitrant to extraction in guanidine, (in eng) BioTechniques. Nov 1995;19(5):734–737. [PubMed] [Google Scholar]
34.Ouyang S., et al. The TIGR rice genome annotation resource: improvements and new features. Nucleic Acids Res. Jan 2007;35:D883–D887. doi: 10.1093/nar/gkl976. (no. Database issue) [DOI] [PMC free article] [PubMed] [Google Scholar]
35.Jiao W.-B., et al. The evolutionary dynamics of genetic incompatibilities introduced by duplicated genes in arabidopsis thaliana. Mol Biol Evol. 2020;38(4):1225–1240. doi: 10.1093/molbev/msaa306. [DOI] [PMC free article] [PubMed] [Google Scholar]
36.Li H., Jiang F., Wu P., Wang K., Cao Y. A high-quality genome sequence of model legume lotus japonicus (MG-20) provides insights into the evolution of root nodule symbiosis, (in en) Genes (Basel) 2020;11(5):483. doi: 10.3390/genes11050483. [DOI] [PMC free article] [PubMed] [Google Scholar]
37.P.S. Hosmani et al., An improved de novo assembly and annotation of the tomato reference genome using single-molecule sequencing, Hi-C proximity ligation and optical maps, (in en), 2019–09-14 2019, doi: 10.1101/767764. [DOI]
38.Cheng C.Y., Krishnakumar V., Chan A.P., Thibaud-Nissen F., Schobel S., Town C.D. Araport11: a complete reannotation of the Arabidopsis thaliana reference genome, (in en) Plant J: Cell Mol Biol. Feb 2017;89(4):789–804. doi: 10.1111/tpj.13415. [DOI] [PubMed] [Google Scholar]
39.Pham G.M., et al. Construction of a chromosome-scale long-read reference genome assembly for potato. Gigascience. 2020;9(9):giaa100. doi: 10.1093/gigascience/giaa100. [DOI] [PMC free article] [PubMed] [Google Scholar]
40.Berardini T.Z., et al. The arabidopsis information resource: making and mining the gold standardannotated reference plant genome. genesis. 2015;53(8):474–485. doi: 10.1002/dvg.22877. [DOI] [PMC free article] [PubMed] [Google Scholar]
41.Hankamer B., Barber J., Boekema E.J. Structure and membrane organization of photosystem ii in green plants. Annu Rev Plant Physiol Plant Mol Biol. 1997;48(1):641–671. doi: 10.1146/annurev.arplant.48.1.641. 1997/06/01. [DOI] [PubMed] [Google Scholar]
42.Jensen P.E., et al. Structure, function and regulation of plant photosystem I. Biochim Et Biophys Acta (BBA) - Bioenerg. 2007;1767(5):335–352. doi: 10.1016/j.bbabio.2007.03.004. 2007/05/01/ [DOI] [PubMed] [Google Scholar]
43.Lu Y. Identification and Roles of Photosystem II Assembly, Stability, and Repair Factors in Arabidopsis. Front Plant Sci, Rev. 2016;7 doi: 10.3389/fpls.2016.00168. 〈https://www.frontiersin.org/articles/10.3389/fpls.2016.00168〉 ([Online]. Available) [DOI] [PMC free article] [PubMed] [Google Scholar]
44.Shi L.-X., Hall M., Funk C., Schröder W.P. Photosystem II, a growing complex: Updates on newly discovered components and low molecular mass proteins. Biochim Et Biophys Acta (BBA) - Bioenerg. 2012;1817(1):13–25. doi: 10.1016/j.bbabio.2011.08.008. 2012/01/01/ [DOI] [PubMed] [Google Scholar]
45.Yang H., Liu J., Wen X., Lu C. Molecular mechanism of photosystem I assembly in oxygenic organisms, (in en) Biochim Et Biophys Acta (BBA) - Bioenerg. 2015;1847(9):838–848. doi: 10.1016/j.bbabio.2014.12.011. September 1, 2015. [DOI] [PubMed] [Google Scholar]
46.Yu G. Using ggtree to visualize data on tree‐like structures. Curr Protoc Bioinforma. 2020;69(1) doi: 10.1002/cpbi.96. [DOI] [PubMed] [Google Scholar]
47.Jumper J., et al. Highly accurate protein structure prediction with AlphaFold, (in en) Nature. 2021;596(7873):583–589. doi: 10.1038/s41586-021-03819-2. 2021-08. [DOI] [PMC free article] [PubMed] [Google Scholar]
48.Varadi M., et al. AlphaFold PRotein Structure Database: Massively Expanding the Structural Coverage of Protein-sequence Space with High-accuracy Models. Nucleic Acids Res. 2022;50(D1):D439–D444. doi: 10.1093/nar/gkab1061. 2022-01-07. [DOI] [PMC free article] [PubMed] [Google Scholar]
49.Sehnal D., et al. Mol* Viewer: modern web app for 3D visualization and analysis of large biomolecular structures. Nucleic Acids Res. 2021;49(W1):W431–W437. doi: 10.1093/nar/gkab314. 2021-07-02. [DOI] [PMC free article] [PubMed] [Google Scholar]
50.Proost S., Krawczyk A., Mutwil M. LSTrAP: efficiently combining RNA sequencing data into co-expression networks. BMC Bioinforma. 2017;18(1) doi: 10.1186/s12859-017-1861-z. [DOI] [PMC free article] [PubMed] [Google Scholar]
51.Conesa A., et al. A survey of best practices for RNA-seq data analysis. Genome Biol. 2016;17(1) doi: 10.1186/s13059-016-0881-8. [DOI] [PMC free article] [PubMed] [Google Scholar]
52.Lamarre S., et al. Vol. 9. Original Research; 2018. Optimization of an RNA-Seq Differential Gene Expression Analysis Depending on Biological Replicate Number and Library Size; p. 108. (Frontiers in plant science). [DOI] [PMC free article] [PubMed] [Google Scholar]
53.Walter W., Sánchez-Cabo F., Ricote M. GOplot: an R package for visually combining expression data with functional analysis. Bioinformatics. 2015;31(17):2912–2914. doi: 10.1093/bioinformatics/btv300. [DOI] [PubMed] [Google Scholar]
54.Salem M.A., et al. An improved extraction method enables the comprehensive analysis of lipids, proteins, metabolites and phytohormones from a single sample of leaf tissue under water‐deficit stress. Plant J. 2020;103(4):1614–1632. doi: 10.1111/tpj.14800. 2020-08-01. [DOI] [PubMed] [Google Scholar]
55.Lichtenthaler H.K., Buschmann C. Chlorophylls and carotenoids: measurement and characterization by UV–VIS spectroscopy. Curr Protoc Food Anal Chem. 2001;1(1) doi: 10.1002/0471142913.faf0403s01. F4.3.1-F4.3.8, 2001-08-01. [DOI] [Google Scholar]
56.Warren C.R. Rapid measurement of chlorophylls with a microplate reader. J Plant Nutr. 2008;31(7):1321–1332. doi: 10.1080/01904160802135092. 2008-06-18. [DOI] [Google Scholar]
57.Sokolowska E.M., Schlossarek D., Luzarowski M., Skirycz A. PROMIS: Global Analysis of PROtein‐Metabolite Interactions. Curr Protoc Plant Biol. 2019;4(4) doi: 10.1002/cppb.20101. 2019-12-01. [DOI] [PubMed] [Google Scholar]
58.Alseekh S., et al. Autophagy modulates the metabolism and growth of tomato fruit during development. Hortic Res. 2022;9:uhac129. doi: 10.1093/hr/uhac129. [DOI] [PMC free article] [PubMed] [Google Scholar]
59.Tyanova S., Temu T., Cox J. The MaxQuant computational platform for mass spectrometry-based shotgun proteomics. Nat Protoc. 2016;11(12):2301–2319. doi: 10.1038/nprot.2016.136. [DOI] [PubMed] [Google Scholar]
60.Jones J., Mackrell E.J., Wang T.-Y., Lomenick B., Roukes M.L., Chou T.-F. Tidyproteomics: an open-source R package and data object for quantitative proteomics post analysis and visualization. BMC Bioinforma. 2023;24(1) doi: 10.1186/s12859-023-05360-7. [DOI] [PMC free article] [PubMed] [Google Scholar]
61.Ritchie M.E., et al. limma powers differential expression analyses for RNA-sequencing and microarray studies, (in eng) Nucleic Acids Res. 2015;43(7) doi: 10.1093/nar/gkv007. 2015-04-20. [DOI] [PMC free article] [PubMed] [Google Scholar]
62.Lisec J., Schauer N., Kopka J., Willmitzer L., Fernie A.R. Gas chromatography mass spectrometry–based metabolite profiling in plants. Nat Protoc. 2006;1(1):387–396. doi: 10.1038/nprot.2006.59. 2006-06-01. [DOI] [PubMed] [Google Scholar]
63.Giavalisco P., Kohl K., Hummel J., Seiwert B., Willmitzer L. 13C isotope-labeled metabolomes allowing for improved compound annotation and relative quantification in liquid chromatography-mass spectrometry-based metabolomic research, (in eng) Anal Chem. Aug 1 2009;81(15):6546–6551. doi: 10.1021/ac900979e. [DOI] [PubMed] [Google Scholar]
64.Larbat R., Paris C., Le Bot J., Adamowicz S. Phenolic characterization and variability in leaves, stems and roots of Micro-Tom and patio tomatoes, in response to nitrogen limitation, (in eng) Plant Sci: Int J Exp Plant Biol. 2014;224:62–73. doi: 10.1016/j.plantsci.2014.04.010. [DOI] [PubMed] [Google Scholar]
65.Omidbakhshfard M.A., et al. Multi-omics analysis of early leaf development in Arabidopsis thaliana. Patterns. 2021;2(4) doi: 10.1016/j.patter.2021.100235. 2021-04-01. [DOI] [PMC free article] [PubMed] [Google Scholar]
66.Szymański J., et al. Analysis of wild tomato introgression lines elucidates the genetic basis of transcriptome and metabolome variation underlying fruit traits and pathogen response. Nat Genet. 2020;52(10):1111–1121. doi: 10.1038/s41588-020-0690-6. 2020/10/01. [DOI] [PubMed] [Google Scholar]
67.Gu, Z., Eils, R., & Schlesner, M. (2016). Complex heatmaps reveal patterns and correlations in multidimensional genomic data. Bioinformatics, 32(18), 2847-2849. 10.1093/bioinformatics/btw313 pheatmap: Pretty Heatmaps. (2019). [Online]. Available: 〈https://CRAN.R-project.org/package=pheatmap〉. [DOI] [PubMed]
68.Xia J., Wishart D.S. Web-based inference of biological patterns, functions and pathways from metabolomic data using MetaboAnalyst. Nature Protocols. 2011;6(6):743–760. doi: 10.1038/nprot.2011.319. [DOI] [PubMed] [Google Scholar]
69.Fernie A.R., et al. Recommendations for reporting metabolite data, (in eng) Plant Cell. 2011;23(7):2477–2482. doi: 10.1105/tpc.111.086272. July 2011. [DOI] [PMC free article] [PubMed] [Google Scholar]
70.Alseekh S., Kostova D., Bulut M., Fernie A.R. Genome-wide association studies: assessing trait characteristics in model and crop plants, (in en) Cell Mol Life Sci. 2021;78(15):5743–5754. doi: 10.1007/s00018-021-03868-w. 2021-08-01. [DOI] [PMC free article] [PubMed] [Google Scholar]
71.Bulut M., Nunes-Nesi A., Fernie A.R., Alseekh S. Characterization of PetM cytochrome b6f subunit 7 domain-containing protein in tomato. Hortic Res. 2023;10(12) doi: 10.1093/hr/uhad224. [DOI] [PMC free article] [PubMed] [Google Scholar]
72.Kuhlgert S., et al. MultispeQ Beta: a tool for large-scale plant phenotyping connected to the open PhotosynQ network. R Soc Open Sci. 2016;3(10) doi: 10.1098/rsos.160592. [DOI] [PMC free article] [PubMed] [Google Scholar]
73.Luo W., Brouwer C. Pathview: an R/Bioconductor package for pathway-based data integration and visualization. Bioinformatics. 2013;29(14):1830–1831. doi: 10.1093/bioinformatics/btt285. [DOI] [PMC free article] [PubMed] [Google Scholar]
74.Dong X., Vegesna K., Brouwer C., Luo W. SBGNview: towards data analysis, integration and visualization on all pathways. Bioinformatics. 2022;38(5):1473–1476. doi: 10.1093/bioinformatics/btab793. [DOI] [PMC free article] [PubMed] [Google Scholar]
75.Junker B.H., Klukas C., Schreiber F. VANTED: a system for advanced data analysis and visualization in the context of biological networks. BMC Bioinforma. 2006;7(1):109. doi: 10.1186/1471-2105-7-109. [DOI] [PMC free article] [PubMed] [Google Scholar]
76.Czauderna T., Klukas C., Schreiber F. Editing, validating and translating of SBGN maps. Bioinformatics. 2010;26(18):2340–2341. doi: 10.1093/bioinformatics/btq407. [DOI] [PMC free article] [PubMed] [Google Scholar]
77.Balci H., et al. Newt: a comprehensive web-based tool for viewing, constructing and analyzing biological maps. Bioinformatics. 2021;37(10):1475–1477. doi: 10.1093/bioinformatics/btaa850. [DOI] [PubMed] [Google Scholar]
78.Sari M., et al. SBGNViz: a tool for visualization and complexity management of SBGN process description maps. PLOS ONE. 2015;10(6) doi: 10.1371/journal.pone.0128985. [DOI] [PMC free article] [PubMed] [Google Scholar]
79.Csardi G., Nepusz T. The Igraph software package for complex network research. Inter, Vol Complex Syst. 2005:1695. 2005-11-30. 2005-11-30. [Google Scholar]
80.ggraph: An Implementation of Grammar of Graphics for Graphs and Networks. (2022). [Online]. Available: 〈https://CRAN.R-project.org/package=ggraph〉.
81.Schoch D. Graphlayouts: Layout algorithms for network visualizations in R. J Open Source Softw. 2023;8(84):5238. doi: 10.21105/joss.05238. [DOI] [Google Scholar]
82.topGO: Enrichment Analysis for Gene Ontology. (2021).
83.ggbeeswarm: Categorical Scatter (Violin Point) Plots. (2022). [Online]. Available: 〈https://CRAN.R-project.org/package=ggbeeswarm〉.
84.J. Fox and S. Weisberg, An R Companion to Applied Regression, Third ed. Thousand Oaks CA: Sage, 2019.
85.viridis - Colorblind-Friendly Color Maps for R. (2022). [Online]. Available: 〈https://sjmgarnier.github.io/viridis/〉.
86.ggpubr: 'ggplot2' Based Publication Ready Plots. (2023). [Online]. Available: 〈https://CRAN.R-project.org/package=ggpubr〉.
87.eulerr: Area-Proportional Euler and Venn Diagrams with Ellipses. (2022). [Online]. Available: 〈https://CRAN.R-project.org/package=eulerr〉.
88.broom: Convert Statistical Objects into Tidy Tibbles. (2023). [Online]. Available: 〈https://CRAN.R-project.org/package=broom〉.
89.openxlsx: Read, Write and Edit xlsx Files. (2023). [Online]. Available: 〈https://CRAN.R-project.org/package=openxlsx〉.
90.ggrepel: Automatically Position Non-Overlapping Text Labels with 'ggplot2'. (2023). [Online]. Available: 〈https://CRAN.R-project.org/package=ggrepel〉.
91.cowplot: Streamlined Plot Theme and Plot Annotations for 'ggplot2'. (2020). [Online]. Available: 〈https://CRAN.R-project.org/package=cowplot〉.
92.ggtext: Improved Text Rendering Support for 'ggplot2'. (2022). [Online]. Available: 〈https://CRAN.R-project.org/package=ggtext〉.
93.gggenes: Draw Gene Arrow Maps in 'ggplot2'. (2020). [Online]. Available: 〈https://CRAN.R-project.org/package=gggenes〉.
94.Zhu A., Ibrahim J.G., Love M.I. Heavy-tailed prior distributions for sequence count data: removing the noise and preserving large differences. Bioinformatics. 2019;35(12):2084–2092. doi: 10.1093/bioinformatics/bty895. [DOI] [PMC free article] [PubMed] [Google Scholar]
95.Korotkevich G., Sukhov V., Budin N., Shpak B., Artyomov M.N., Sergushichev A. Fast gene set enrichment analysis. bioRxiv. 2021 doi: 10.1101/060012. [DOI] [Google Scholar]
96.Love M.I., Huber W., Anders S. Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2. Genome Biol. 2014;15(12) doi: 10.1186/s13059-014-0550-8. [DOI] [PMC free article] [PubMed] [Google Scholar]
97.Wu T., et al. clusterProfiler 4.0: a universal enrichment tool for interpreting omics data. Innovation. 2021;2(3) doi: 10.1016/j.xinn.2021.100141. [DOI] [PMC free article] [PubMed] [Google Scholar]
98.broom.mixed: Tidying Methods for Mixed Models. (2022). [Online]. Available: 〈https://CRAN.R-project.org/package=broom.mixed〉.
99.here: A Simpler Way to Find Your Files. (2020). [Online]. Available: 〈https://CRAN.R-project.org/package=here〉.
100.Wong B. Points of view: Color blindness. Nat Methods. 2011;8(6) doi: 10.1038/nmeth.1618. 441-441, 2011/06/01. [DOI] [PubMed] [Google Scholar]
101.bibtex: Bibtex Parser. (2023). [Online]. Available: 〈https://CRAN.R-project.org/package=bibtex〉.
102.P.S. Hosmani et al., An improved de novo assembly and annotation of the tomato reference genome using single-molecule sequencing, Hi-C proximity ligation and optical maps, (in en), 2019–09-14 2019, doi: 10.1101/767764. [DOI]
103.Hayama R., et al. Ubiquitin carboxyl-terminal hydrolases are required for period maintenance of the circadian clock at high temperature in Arabidopsis. Sci Rep. Nov 19 2019;9(1):17030. doi: 10.1038/s41598-019-53229-8. [DOI] [PMC free article] [PubMed] [Google Scholar]
104.Jung J.Y., Ahn J.H., Schachtman D.P. CC-type glutaredoxins mediate plant response and signaling under nitrate starvation in Arabidopsis. BMC Plant Biol. Nov 13 2018;18(1):281. doi: 10.1186/s12870-018-1512-1. [DOI] [PMC free article] [PubMed] [Google Scholar]
105.Berardini T.Z., et al. The Arabidopsis information resource: making and mining the gold standardannotated reference plant genome. Genesis. Aug 2015;53(8):474–485. doi: 10.1002/dvg.22877. [DOI] [PMC free article] [PubMed] [Google Scholar]
106.Allen J.F., de Paula W.B., Puthiyaveetil S., Nield J. A structural phylogenetic map for chloroplast photosynthesis, (in eng) Trends Plant Sci. Dec 2011;16(12):645–655. doi: 10.1016/j.tplants.2011.10.004. [DOI] [PubMed] [Google Scholar]
107.Hummel J., Segu S., Li Y., Irgang S., Jueppner J., Giavalisco P. Vol. 2. Original Research; 2011. Ultra performance liquid chromatography and high resolution mass spectrometry for the analysis of plant lipids; p. 54. (Frontiers in plant science). [DOI] [PMC free article] [PubMed] [Google Scholar]
108.Zhou X., et al. Arabidopsis OR proteins are the major posttranscriptional regulators of phytoene synthase in controlling carotenoid biosynthesis. Proc Natl Acad Sci. 2015;112(11):3558–3563. doi: 10.1073/pnas.1420831112. [DOI] [PMC free article] [PubMed] [Google Scholar]
109.Li S.-T., et al. Mass spectrometry-based proteomic landscape of rice reveals a post-transcriptional regulatory role of N6-methyladenosine. Nat Plants. 2024;10(8):1201–1214. doi: 10.1038/s41477-024-01745-5. [DOI] [PubMed] [Google Scholar]
110.Mergner J., et al. Mass-spectrometry-based draft of the Arabidopsis proteome. Nature. 2020;579(7799):409–414. doi: 10.1038/s41586-020-2094-2. [DOI] [PubMed] [Google Scholar]
111.Lu Y. Identification and roles of photosystem ii assembly, stability, and repair factors in arabidopsis, (in English) Front Plant Sci, Rev. 2016;7(168) doi: 10.3389/fpls.2016.00168. 168, 2016-February-16. [DOI] [PMC free article] [PubMed] [Google Scholar]
112.Kilambi H.V., Manda K., Sanivarapu H., Maurya V.K., Sharma R., Sreelakshmi Y. Shotgun proteomics of tomato fruits: evaluation, optimization and validation of sample preparation methods and mass spectrometric parameters. Front Plant Sci. 2016;7 doi: 10.3389/fpls.2016.00969. [DOI] [PMC free article] [PubMed] [Google Scholar]
113.Szymanski J., et al. Label‐free deep shotgun proteomics reveals protein dynamics during tomato fruit tissues development. Plant J. 2017;90(2):396–417. doi: 10.1111/tpj.13490. [DOI] [PubMed] [Google Scholar]
114.Yu C., Chen W., Wang Z., Lou H. Comparative proteomic analysis of tomato (Solanum lycopersicum L.) shoots reveals crosstalk between strigolactone and auxin. Genomics. 2021;113(5):3163–3173. doi: 10.1016/j.ygeno.2021.07.009. 2021/09/01/ [DOI] [PubMed] [Google Scholar]
115.Casazza A.P., Rossini S., Rosso M.G., Soave C. Mutational and expression analysis of ELIP1 and ELIP2 in Arabidopsis thaliana, (in eng) Plant Mol Biol. May 2005;58(1):41–51. doi: 10.1007/s11103-005-4090-1. [DOI] [PubMed] [Google Scholar]
116.Hutin C., Nussaume L., Moise N., Moya I., Kloppstech K., Havaux M. Early light-induced proteins protect Arabidopsis from photooxidative stress. Proc Natl Acad Sci. 2003;100(8):4921–4926. doi: 10.1073/pnas.0736939100. 2003-04-15. 10.1073/pnas.0736939100. [DOI] [PMC free article] [PubMed] [Google Scholar]
117.Aluru M.R., Yu F., Fu A., Rodermel S. Arabidopsis variegation mutants: new insights into chloroplast biogenesis, (in eng) J Exp Bot. 2006;57(9):1871–1881. doi: 10.1093/jxb/erj008. [DOI] [PubMed] [Google Scholar]
118.Wu D., Wright D.A., Wetzel C., Voytas D.F., Rodermel S. The IMMUTANS variegation locus of Arabidopsis defines a mitochondrial alternative oxidase homolog that functions during early chloroplast biogenesis, (in eng) Plant Cell. Jan 1999;11(1):43–55. doi: 10.1105/tpc.11.1.43. [DOI] [PMC free article] [PubMed] [Google Scholar]
119.Shevela D., et al. Birth defects' of photosystem II make it highly susceptible to photodamage during chloroplast biogenesis, (in eng) Physiol Plant. May 2019;166(1):165–180. doi: 10.1111/ppl.12932. [DOI] [PubMed] [Google Scholar]
120.Dechkrong P., et al. Mutation mapping of a variegated EMS tomato reveals an FtsH-like protein precursor potentially causing patches of four phenotype classes in the leaves with distinctive internal morphology. BMC Plant Biol. Apr 10 2024;24(1):265. doi: 10.1186/s12870-024-04973-1. [DOI] [PMC free article] [PubMed] [Google Scholar]
121.Laitinen R.A.E., Nikoloski Z. Genetic basis of plasticity in plants. J Exp Bot. 2019;70(3):739–745. doi: 10.1093/jxb/ery404. [DOI] [PubMed] [Google Scholar]
122.Lachowiec J., Queitsch C., Kliebenstein D.J. Molecular mechanisms governing differential robustness of development and environmental responses in plants. Ann Bot. 2016;117(5):795–809. doi: 10.1093/aob/mcv151. [DOI] [PMC free article] [PubMed] [Google Scholar]
123.Jimenez-Gomez J.M., Corwin J.A., Joseph B., Maloof J.N., Kliebenstein D.J. Genomic analysis of QTLs and genes altering natural variation in stochastic noise. PLoS Genet. 2011;7(9) doi: 10.1371/journal.pgen.1002295. [DOI] [PMC free article] [PubMed] [Google Scholar]
124.Hicks K.A., Albertson T.M., Wagner D.R. Early flowering3 ENcodes A Novel Protein That Regulates Circadian Clock Function and Flowering in Arabidopsis. Plant Cell. 2001;13(6):1281–1292. doi: 10.1105/TPC.010070. [DOI] [PMC free article] [PubMed] [Google Scholar]
125.van Zanten M., Snoek L.B., Proveniers M.C., Peeters A.J. The many functions of ERECTA. Trends Plant Sci. Apr 2009;14(4):214–218. doi: 10.1016/j.tplants.2009.01.010. [DOI] [PubMed] [Google Scholar]
126.D’Andrea L., et al. Interference with Clp protease impairs carotenoid accumulation during tomato fruit ripening. J Exp Bot. 2018;69(7):1557–1568. doi: 10.1093/jxb/erx491. [DOI] [PMC free article] [PubMed] [Google Scholar]
127.Lu Y. Identification and roles of photosystem ii assembly, stability, and repair factors in arabidopsis, (in English) Front Plant Sci, Rev. 2016;7(168) doi: 10.3389/fpls.2016.00168. 2016-February-16. [DOI] [PMC free article] [PubMed] [Google Scholar]
128.Krech K., et al. The plastid genome-encoded ycf4 protein functions as a nonessential assembly factor for photosystem i in higher plants. Plant Physiol. 2012;159(2):579–591. doi: 10.1104/pp.112.196642. [DOI] [PMC free article] [PubMed] [Google Scholar]
129.Armbruster U., et al. The arabidopsis thylakoid protein pam68 is required for efficient d1 biogenesis and photosystem ii assembly. Plant Cell. 2010;22(10):3439–3460. doi: 10.1105/tpc.110.077453. [DOI] [PMC free article] [PubMed] [Google Scholar]
130.Pogson B.J., Albrecht V. Genetic dissection of chloroplast biogenesis and development: an overview, (in en) Plant Physiol. 2011;155(4):1545–1551. doi: 10.1104/pp.110.170365. 2011/04/01. [DOI] [PMC free article] [PubMed] [Google Scholar]
131.Dubreuil C., et al. Establishment of photosynthesis through chloroplast development is controlled by two distinct regulatory phases. Plant Physiol. 2018;176(2):1199–1214. doi: 10.1104/pp.17.00435. [DOI] [PMC free article] [PubMed] [Google Scholar]
132.Zoschke R., Bock R. Chloroplast translation: structural and functional organization, operational control, and regulation, (in eng) Plant Cell. Apr 2018;30(4):745–770. doi: 10.1105/tpc.18.00016. [DOI] [PMC free article] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

Supplementary material

mmc1.docx^{(3MB, docx)}

mmc2.xlsx^{(27.2MB, xlsx)}

Data Availability Statement

[bib1] 1.Weil H.L., et al. scp>PLANTdataHUB</scp>: a collaborative platform for continuous <scp>FAIR</scp> data sharing in plant research. Plant J. 2023;116(4):974–988. doi: 10.1111/tpj.16474. [DOI] [PubMed] [Google Scholar]

[bib2] 2.Finlay K.W., Wilkinson G.N. The analysis of adaptation in a plant-breeding programme Aust J Agric Res. 1963;14(6):742. doi: 10.1071/ar9630742. -01-01 1963. [DOI] [Google Scholar]

[bib3] 3.H.C. Becker and J. Leon, Analysis in Plant-Breeding, (in English), Plant Breeding, https://doi.org/10.1111/j.1439–0523.1988.tb00261.x vol. 101, no. 1, pp. 1–23, Aug 1988, doi: DOI 10.1111/j.1439–0523.1988.tb00261.x.

[bib4] 4.Fisher J., Bensal E., Zamir D. Bimodality of stable and plastic traits in plants, (in eng) Tag Theor Appl Genet Theor und Angew Genet. 2017;130(9):1915–1926. doi: 10.1007/s00122-017-2933-1. [DOI] [PubMed] [Google Scholar]

[bib5] 5.Kimura S., Sinha N. Tomato (Solanum lycopersicum): a model fruit-bearing crop, (in eng) CSH Protoc. 2008;2008 doi: 10.1101/pdb.emo105. pdb.emo105. [DOI] [PubMed] [Google Scholar]

[bib6] 6.Klee H.J., Giovannoni J.J. Genetics and control of tomato fruit ripening and quality attributes, (in eng) Annu Rev Genet. 2011;45:41–59. doi: 10.1146/annurev-genet-110410-132507. [DOI] [PubMed] [Google Scholar]

[bib7] 7.Zhu G., et al. Rewiring of the fruit metabolome in tomato breeding, (in eng) Cell. 2018;172(1-2):249–261. doi: 10.1016/j.cell.2017.12.019. e12. [DOI] [PubMed] [Google Scholar]

[bib8] 8.Genome C.Tomato. The tomato genome sequence provides insights into fleshy fruit evolution. Nature. 2012;485(7400):635–641. doi: 10.1038/nature11119. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib9] 9.Gao L., et al. The tomato pan-genome uncovers new genes and a rare allele regulating fruit flavor. Nat Genet. 2019;51(6):1044–1051. doi: 10.1038/s41588-019-0410-2. [DOI] [PubMed] [Google Scholar]

[bib10] 10.Eshed Y., Zamir D. An introgression line population of Lycopersicon pennellii in the cultivated tomato enables the identification and fine mapping of yield-associated QTL, (in eng) Genetics. 1995;141(3):1147–1162. doi: 10.1093/genetics/141.3.1147. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib11] 11.Gur A., Zamir D. Mendelizing all components of a pyramid of three yield QTL in tomato, (in eng) Front Plant Sci. 2015;6:1096. doi: 10.3389/fpls.2015.01096. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib12] 12.Ofner I., Lashbrooke J., Pleban T., Aharoni A., Zamir D. Solanum pennellii backcross inbred lines (BILs) link small genomic bins with tomato traits, (in eng) Plant J: Cell Mol Biol. 2016;87(2):151–160. doi: 10.1111/tpj.13194. [DOI] [PubMed] [Google Scholar]

[bib13] 13.Tieman D., et al. A chemical genetic roadmap to improved tomato flavor, (in eng) Science. 2017;355(6323):391–394. doi: 10.1126/science.aal1556. [DOI] [PubMed] [Google Scholar]

[bib14] 14.Fridman E., Carrari F., Liu Y.S., Fernie A.R., Zamir D. Zooming in on a quantitative trait for tomato yield using interspecific introgressions, (in eng) Science. 2004;305(5691):1786–1789. doi: 10.1126/science.1101666. [DOI] [PubMed] [Google Scholar]

[bib15] 15.Zemach I., et al. Multi-year field trials provide a massive repository of trait data on a highly diverse population of tomato and uncover novel determinants of tomato productivity, (in English) Plant J. 2023;116(4):1136–1151. doi: 10.1111/tpj.16268. [DOI] [PubMed] [Google Scholar]

[bib16] 16.Waddington C.H. Canalization of development and the inheritance of acquired characters. Nature. 1942;150(3811):563–565. doi: 10.1038/150563a0. /11/01 1942. [DOI] [Google Scholar]

[bib17] 17.Alseekh S., et al. Canalization of Tomato Fruit Metabolism, (in eng) Plant Cell. 2017;29(11):2753–2765. doi: 10.1105/tpc.17.00367. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib18] 18.Hall M.C., Dworkin I., Ungerer M.C., Purugganan M. Genetics of microenvironmental canalization in Arabidopsis thaliana, (in eng) Proc Natl Acad Sci USA. 2007;104(34):13717–13722. doi: 10.1073/pnas.0701936104. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib19] 19.Lee C.R., Anderson J.T., Mitchell-Olds T. Unifying genetic canalization, genetic constraint, and genotype-by-environment interaction: QTL by genomic background by environment interaction of flowering time in Boechera stricta, (in eng) PLoS Genet. 2014;10(10) doi: 10.1371/journal.pgen.1004727. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib20] 20.Queitsch C., Sangster T.A., Lindquist S. Hsp90 as a capacitor of phenotypic variation, (in eng) Nature. 2002;417(6889):618–624. doi: 10.1038/nature749. [DOI] [PubMed] [Google Scholar]

[bib21] 21.Wijesingha Ahchige M., Fernie A.R., Alseekh S. Pantothenate kinase4, loss of gdu2, and transposon protein1 affect the canalization of tomato fruit metabolism, (in eng) Plant Physiol. 2023;192(1):442–468. doi: 10.1093/plphys/kiad093. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib22] 22.Lachowiec J., Mason G.A., Schultz K., Queitsch C. Redundancy, feedback, and robustness in the arabidopsis thaliana bzr/beh gene family. Front Genet. 2018;9 doi: 10.3389/fgene.2018.00523. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib23] 23.Fisher J., Zamir D. Genes for Yield Stability in Tomatoes, (in eng) Adv Genet (Hoboken, N J ) 2021;2(4):2100049. doi: 10.1002/ggn2.202100049. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib24] 24.Albrecht V., Ingenfeld A., Apel K. Snowy cotyledon 2: the identification of a zinc finger domain protein essential for chloroplast development in cotyledons but not in true leaves, (in eng) Plant Mol Biol. 2008;66(6):599–608. doi: 10.1007/s11103-008-9291-y. [DOI] [PubMed] [Google Scholar]

[bib25] 25.Shimada H., et al. Arabidopsis cotyledon-specific chloroplast biogenesis factor CYO1 is a protein disulfide isomerase, (in eng) Plant Cell. 2007;19(10):3157–3169. doi: 10.1105/tpc.107.051714. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib26] 26.Albrecht V., Ingenfeld A., Apel K. Characterization of the snowy cotyledon 1 mutant of Arabidopsis thaliana: the impact of chloroplast elongation factor G on chloroplast development and plant vitality, (in eng) Plant Mol Biol. 2006;60(4):507–518. doi: 10.1007/s11103-005-4921-0. [DOI] [PubMed] [Google Scholar]

[bib27] 27.Zagari N., et al. SNOWY COTYLEDON 2 Promotes Chloroplast Development and Has a Role in Leaf Variegation in Both Lotus japonicus and Arabidopsis thaliana. Mol Plant. 2017;10(5):721–734. doi: 10.1016/j.molp.2017.02.009. /05/01/ 2017. [DOI] [PubMed] [Google Scholar]

[bib28] 28.Ganguly D., Crisp P., Harter K., Pogson B.J., Albrecht-Borth V. Genetic suppression of plant development and chloroplast biogenesis via the Snowy Cotyledon 3 and Phytochrome B pathways, (in eng) Funct Plant Biol. 2015;42(7):676–686. doi: 10.1071/FP15026. [DOI] [PubMed] [Google Scholar]

[bib29] 29.Tanz S.K., et al. The SCO2 protein disulphide isomerase is required for thylakoid biogenesis and interacts with LCHB1 chlorophyll a/b binding proteins which affects chlorophyll biosynthesis in Arabidopsis seedlings. Plant J. 2012;69(5):743–754. doi: 10.1111/j.1365-313X.2011.04833.x. [DOI] [PubMed] [Google Scholar]

[bib30] 30.Muranaka A., Watanabe S., Sakamoto A., Shimada H. Arabidopsis cotyledon chloroplast biogenesis factor CYO1 uses glutathione as an electron donor and interacts with PSI (A1 and A2) and PSII (CP43 and CP47) subunits, (in eng) J Plant Physiol. Aug 15 2012;169(12):1212–1215. doi: 10.1016/j.jplph.2012.04.001. [DOI] [PubMed] [Google Scholar]

[bib31] 31.Van Eck J., Keen P., Tjahjadi M. Springer New York; 2019. Agrobacterium tumefaciens-Mediated Transformation of Tomato; pp. 225–234. [DOI] [PubMed] [Google Scholar]

[bib32] 32.Halperin O., Gebremedhin A., Wallach R., Moshelion M. High-throughput physiological phenotyping and screening system for the characterization of plant-environment interactions, (in eng) Plant J: Cell Mol Biol. Feb 2017;89(4):839–850. doi: 10.1111/tpj.13425. [DOI] [PubMed] [Google Scholar]

[bib33] 33.Bugos R.C., Chiang V.L., Zhang X.H., Campbell E.R., Podila G.K., Campbell W.H. RNA isolation from plant tissues recalcitrant to extraction in guanidine, (in eng) BioTechniques. Nov 1995;19(5):734–737. [PubMed] [Google Scholar]

[bib34] 34.Ouyang S., et al. The TIGR rice genome annotation resource: improvements and new features. Nucleic Acids Res. Jan 2007;35:D883–D887. doi: 10.1093/nar/gkl976. (no. Database issue) [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib35] 35.Jiao W.-B., et al. The evolutionary dynamics of genetic incompatibilities introduced by duplicated genes in arabidopsis thaliana. Mol Biol Evol. 2020;38(4):1225–1240. doi: 10.1093/molbev/msaa306. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib36] 36.Li H., Jiang F., Wu P., Wang K., Cao Y. A high-quality genome sequence of model legume lotus japonicus (MG-20) provides insights into the evolution of root nodule symbiosis, (in en) Genes (Basel) 2020;11(5):483. doi: 10.3390/genes11050483. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib37] 37.P.S. Hosmani et al., An improved de novo assembly and annotation of the tomato reference genome using single-molecule sequencing, Hi-C proximity ligation and optical maps, (in en), 2019–09-14 2019, doi: 10.1101/767764. [DOI]

[bib38] 38.Cheng C.Y., Krishnakumar V., Chan A.P., Thibaud-Nissen F., Schobel S., Town C.D. Araport11: a complete reannotation of the Arabidopsis thaliana reference genome, (in en) Plant J: Cell Mol Biol. Feb 2017;89(4):789–804. doi: 10.1111/tpj.13415. [DOI] [PubMed] [Google Scholar]

[bib39] 39.Pham G.M., et al. Construction of a chromosome-scale long-read reference genome assembly for potato. Gigascience. 2020;9(9):giaa100. doi: 10.1093/gigascience/giaa100. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib40] 40.Berardini T.Z., et al. The arabidopsis information resource: making and mining the gold standardannotated reference plant genome. genesis. 2015;53(8):474–485. doi: 10.1002/dvg.22877. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib41] 41.Hankamer B., Barber J., Boekema E.J. Structure and membrane organization of photosystem ii in green plants. Annu Rev Plant Physiol Plant Mol Biol. 1997;48(1):641–671. doi: 10.1146/annurev.arplant.48.1.641. 1997/06/01. [DOI] [PubMed] [Google Scholar]

[bib42] 42.Jensen P.E., et al. Structure, function and regulation of plant photosystem I. Biochim Et Biophys Acta (BBA) - Bioenerg. 2007;1767(5):335–352. doi: 10.1016/j.bbabio.2007.03.004. 2007/05/01/ [DOI] [PubMed] [Google Scholar]

[bib43] 43.Lu Y. Identification and Roles of Photosystem II Assembly, Stability, and Repair Factors in Arabidopsis. Front Plant Sci, Rev. 2016;7 doi: 10.3389/fpls.2016.00168. 〈https://www.frontiersin.org/articles/10.3389/fpls.2016.00168〉 ([Online]. Available) [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib44] 44.Shi L.-X., Hall M., Funk C., Schröder W.P. Photosystem II, a growing complex: Updates on newly discovered components and low molecular mass proteins. Biochim Et Biophys Acta (BBA) - Bioenerg. 2012;1817(1):13–25. doi: 10.1016/j.bbabio.2011.08.008. 2012/01/01/ [DOI] [PubMed] [Google Scholar]

[bib45] 45.Yang H., Liu J., Wen X., Lu C. Molecular mechanism of photosystem I assembly in oxygenic organisms, (in en) Biochim Et Biophys Acta (BBA) - Bioenerg. 2015;1847(9):838–848. doi: 10.1016/j.bbabio.2014.12.011. September 1, 2015. [DOI] [PubMed] [Google Scholar]

[bib46] 46.Yu G. Using ggtree to visualize data on tree‐like structures. Curr Protoc Bioinforma. 2020;69(1) doi: 10.1002/cpbi.96. [DOI] [PubMed] [Google Scholar]

[bib47] 47.Jumper J., et al. Highly accurate protein structure prediction with AlphaFold, (in en) Nature. 2021;596(7873):583–589. doi: 10.1038/s41586-021-03819-2. 2021-08. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib48] 48.Varadi M., et al. AlphaFold PRotein Structure Database: Massively Expanding the Structural Coverage of Protein-sequence Space with High-accuracy Models. Nucleic Acids Res. 2022;50(D1):D439–D444. doi: 10.1093/nar/gkab1061. 2022-01-07. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib49] 49.Sehnal D., et al. Mol* Viewer: modern web app for 3D visualization and analysis of large biomolecular structures. Nucleic Acids Res. 2021;49(W1):W431–W437. doi: 10.1093/nar/gkab314. 2021-07-02. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib50] 50.Proost S., Krawczyk A., Mutwil M. LSTrAP: efficiently combining RNA sequencing data into co-expression networks. BMC Bioinforma. 2017;18(1) doi: 10.1186/s12859-017-1861-z. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib51] 51.Conesa A., et al. A survey of best practices for RNA-seq data analysis. Genome Biol. 2016;17(1) doi: 10.1186/s13059-016-0881-8. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib52] 52.Lamarre S., et al. Vol. 9. Original Research; 2018. Optimization of an RNA-Seq Differential Gene Expression Analysis Depending on Biological Replicate Number and Library Size; p. 108. (Frontiers in plant science). [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib53] 53.Walter W., Sánchez-Cabo F., Ricote M. GOplot: an R package for visually combining expression data with functional analysis. Bioinformatics. 2015;31(17):2912–2914. doi: 10.1093/bioinformatics/btv300. [DOI] [PubMed] [Google Scholar]

[bib54] 54.Salem M.A., et al. An improved extraction method enables the comprehensive analysis of lipids, proteins, metabolites and phytohormones from a single sample of leaf tissue under water‐deficit stress. Plant J. 2020;103(4):1614–1632. doi: 10.1111/tpj.14800. 2020-08-01. [DOI] [PubMed] [Google Scholar]

[bib55] 55.Lichtenthaler H.K., Buschmann C. Chlorophylls and carotenoids: measurement and characterization by UV–VIS spectroscopy. Curr Protoc Food Anal Chem. 2001;1(1) doi: 10.1002/0471142913.faf0403s01. F4.3.1-F4.3.8, 2001-08-01. [DOI] [Google Scholar]

[bib56] 56.Warren C.R. Rapid measurement of chlorophylls with a microplate reader. J Plant Nutr. 2008;31(7):1321–1332. doi: 10.1080/01904160802135092. 2008-06-18. [DOI] [Google Scholar]

[bib57] 57.Sokolowska E.M., Schlossarek D., Luzarowski M., Skirycz A. PROMIS: Global Analysis of PROtein‐Metabolite Interactions. Curr Protoc Plant Biol. 2019;4(4) doi: 10.1002/cppb.20101. 2019-12-01. [DOI] [PubMed] [Google Scholar]

[bib58] 58.Alseekh S., et al. Autophagy modulates the metabolism and growth of tomato fruit during development. Hortic Res. 2022;9:uhac129. doi: 10.1093/hr/uhac129. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib59] 59.Tyanova S., Temu T., Cox J. The MaxQuant computational platform for mass spectrometry-based shotgun proteomics. Nat Protoc. 2016;11(12):2301–2319. doi: 10.1038/nprot.2016.136. [DOI] [PubMed] [Google Scholar]

[bib60] 60.Jones J., Mackrell E.J., Wang T.-Y., Lomenick B., Roukes M.L., Chou T.-F. Tidyproteomics: an open-source R package and data object for quantitative proteomics post analysis and visualization. BMC Bioinforma. 2023;24(1) doi: 10.1186/s12859-023-05360-7. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib61] 61.Ritchie M.E., et al. limma powers differential expression analyses for RNA-sequencing and microarray studies, (in eng) Nucleic Acids Res. 2015;43(7) doi: 10.1093/nar/gkv007. 2015-04-20. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib62] 62.Lisec J., Schauer N., Kopka J., Willmitzer L., Fernie A.R. Gas chromatography mass spectrometry–based metabolite profiling in plants. Nat Protoc. 2006;1(1):387–396. doi: 10.1038/nprot.2006.59. 2006-06-01. [DOI] [PubMed] [Google Scholar]

[bib63] 63.Giavalisco P., Kohl K., Hummel J., Seiwert B., Willmitzer L. 13C isotope-labeled metabolomes allowing for improved compound annotation and relative quantification in liquid chromatography-mass spectrometry-based metabolomic research, (in eng) Anal Chem. Aug 1 2009;81(15):6546–6551. doi: 10.1021/ac900979e. [DOI] [PubMed] [Google Scholar]

[bib64] 64.Larbat R., Paris C., Le Bot J., Adamowicz S. Phenolic characterization and variability in leaves, stems and roots of Micro-Tom and patio tomatoes, in response to nitrogen limitation, (in eng) Plant Sci: Int J Exp Plant Biol. 2014;224:62–73. doi: 10.1016/j.plantsci.2014.04.010. [DOI] [PubMed] [Google Scholar]

[bib65] 65.Omidbakhshfard M.A., et al. Multi-omics analysis of early leaf development in Arabidopsis thaliana. Patterns. 2021;2(4) doi: 10.1016/j.patter.2021.100235. 2021-04-01. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib66] 66.Szymański J., et al. Analysis of wild tomato introgression lines elucidates the genetic basis of transcriptome and metabolome variation underlying fruit traits and pathogen response. Nat Genet. 2020;52(10):1111–1121. doi: 10.1038/s41588-020-0690-6. 2020/10/01. [DOI] [PubMed] [Google Scholar]

[bib67] 67.Gu, Z., Eils, R., & Schlesner, M. (2016). Complex heatmaps reveal patterns and correlations in multidimensional genomic data. Bioinformatics, 32(18), 2847-2849. 10.1093/bioinformatics/btw313 pheatmap: Pretty Heatmaps. (2019). [Online]. Available: 〈https://CRAN.R-project.org/package=pheatmap〉. [DOI] [PubMed]

[bib68] 68.Xia J., Wishart D.S. Web-based inference of biological patterns, functions and pathways from metabolomic data using MetaboAnalyst. Nature Protocols. 2011;6(6):743–760. doi: 10.1038/nprot.2011.319. [DOI] [PubMed] [Google Scholar]

[bib69] 69.Fernie A.R., et al. Recommendations for reporting metabolite data, (in eng) Plant Cell. 2011;23(7):2477–2482. doi: 10.1105/tpc.111.086272. July 2011. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib70] 70.Alseekh S., Kostova D., Bulut M., Fernie A.R. Genome-wide association studies: assessing trait characteristics in model and crop plants, (in en) Cell Mol Life Sci. 2021;78(15):5743–5754. doi: 10.1007/s00018-021-03868-w. 2021-08-01. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib71] 71.Bulut M., Nunes-Nesi A., Fernie A.R., Alseekh S. Characterization of PetM cytochrome b6f subunit 7 domain-containing protein in tomato. Hortic Res. 2023;10(12) doi: 10.1093/hr/uhad224. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib72] 72.Kuhlgert S., et al. MultispeQ Beta: a tool for large-scale plant phenotyping connected to the open PhotosynQ network. R Soc Open Sci. 2016;3(10) doi: 10.1098/rsos.160592. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib73] 73.Luo W., Brouwer C. Pathview: an R/Bioconductor package for pathway-based data integration and visualization. Bioinformatics. 2013;29(14):1830–1831. doi: 10.1093/bioinformatics/btt285. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib74] 74.Dong X., Vegesna K., Brouwer C., Luo W. SBGNview: towards data analysis, integration and visualization on all pathways. Bioinformatics. 2022;38(5):1473–1476. doi: 10.1093/bioinformatics/btab793. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib75] 75.Junker B.H., Klukas C., Schreiber F. VANTED: a system for advanced data analysis and visualization in the context of biological networks. BMC Bioinforma. 2006;7(1):109. doi: 10.1186/1471-2105-7-109. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib76] 76.Czauderna T., Klukas C., Schreiber F. Editing, validating and translating of SBGN maps. Bioinformatics. 2010;26(18):2340–2341. doi: 10.1093/bioinformatics/btq407. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib77] 77.Balci H., et al. Newt: a comprehensive web-based tool for viewing, constructing and analyzing biological maps. Bioinformatics. 2021;37(10):1475–1477. doi: 10.1093/bioinformatics/btaa850. [DOI] [PubMed] [Google Scholar]

[bib78] 78.Sari M., et al. SBGNViz: a tool for visualization and complexity management of SBGN process description maps. PLOS ONE. 2015;10(6) doi: 10.1371/journal.pone.0128985. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib79] 79.Csardi G., Nepusz T. The Igraph software package for complex network research. Inter, Vol Complex Syst. 2005:1695. 2005-11-30. 2005-11-30. [Google Scholar]

[bib80] 80.ggraph: An Implementation of Grammar of Graphics for Graphs and Networks. (2022). [Online]. Available: 〈https://CRAN.R-project.org/package=ggraph〉.

[bib81] 81.Schoch D. Graphlayouts: Layout algorithms for network visualizations in R. J Open Source Softw. 2023;8(84):5238. doi: 10.21105/joss.05238. [DOI] [Google Scholar]

[bib82] 82.topGO: Enrichment Analysis for Gene Ontology. (2021).

[bib83] 83.ggbeeswarm: Categorical Scatter (Violin Point) Plots. (2022). [Online]. Available: 〈https://CRAN.R-project.org/package=ggbeeswarm〉.

[bib84] 84.J. Fox and S. Weisberg, An R Companion to Applied Regression, Third ed. Thousand Oaks CA: Sage, 2019.

[bib85] 85.viridis - Colorblind-Friendly Color Maps for R. (2022). [Online]. Available: 〈https://sjmgarnier.github.io/viridis/〉.

[bib86] 86.ggpubr: 'ggplot2' Based Publication Ready Plots. (2023). [Online]. Available: 〈https://CRAN.R-project.org/package=ggpubr〉.

[bib87] 87.eulerr: Area-Proportional Euler and Venn Diagrams with Ellipses. (2022). [Online]. Available: 〈https://CRAN.R-project.org/package=eulerr〉.

[bib88] 88.broom: Convert Statistical Objects into Tidy Tibbles. (2023). [Online]. Available: 〈https://CRAN.R-project.org/package=broom〉.

[bib89] 89.openxlsx: Read, Write and Edit xlsx Files. (2023). [Online]. Available: 〈https://CRAN.R-project.org/package=openxlsx〉.

[bib90] 90.ggrepel: Automatically Position Non-Overlapping Text Labels with 'ggplot2'. (2023). [Online]. Available: 〈https://CRAN.R-project.org/package=ggrepel〉.

[bib91] 91.cowplot: Streamlined Plot Theme and Plot Annotations for 'ggplot2'. (2020). [Online]. Available: 〈https://CRAN.R-project.org/package=cowplot〉.

[bib92] 92.ggtext: Improved Text Rendering Support for 'ggplot2'. (2022). [Online]. Available: 〈https://CRAN.R-project.org/package=ggtext〉.

[bib93] 93.gggenes: Draw Gene Arrow Maps in 'ggplot2'. (2020). [Online]. Available: 〈https://CRAN.R-project.org/package=gggenes〉.

[bib94] 94.Zhu A., Ibrahim J.G., Love M.I. Heavy-tailed prior distributions for sequence count data: removing the noise and preserving large differences. Bioinformatics. 2019;35(12):2084–2092. doi: 10.1093/bioinformatics/bty895. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib95] 95.Korotkevich G., Sukhov V., Budin N., Shpak B., Artyomov M.N., Sergushichev A. Fast gene set enrichment analysis. bioRxiv. 2021 doi: 10.1101/060012. [DOI] [Google Scholar]

[bib96] 96.Love M.I., Huber W., Anders S. Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2. Genome Biol. 2014;15(12) doi: 10.1186/s13059-014-0550-8. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib97] 97.Wu T., et al. clusterProfiler 4.0: a universal enrichment tool for interpreting omics data. Innovation. 2021;2(3) doi: 10.1016/j.xinn.2021.100141. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib98] 98.broom.mixed: Tidying Methods for Mixed Models. (2022). [Online]. Available: 〈https://CRAN.R-project.org/package=broom.mixed〉.

[bib99] 99.here: A Simpler Way to Find Your Files. (2020). [Online]. Available: 〈https://CRAN.R-project.org/package=here〉.

[bib100] 100.Wong B. Points of view: Color blindness. Nat Methods. 2011;8(6) doi: 10.1038/nmeth.1618. 441-441, 2011/06/01. [DOI] [PubMed] [Google Scholar]

[bib101] 101.bibtex: Bibtex Parser. (2023). [Online]. Available: 〈https://CRAN.R-project.org/package=bibtex〉.

[bib102] 102.P.S. Hosmani et al., An improved de novo assembly and annotation of the tomato reference genome using single-molecule sequencing, Hi-C proximity ligation and optical maps, (in en), 2019–09-14 2019, doi: 10.1101/767764. [DOI]

[bib103] 103.Hayama R., et al. Ubiquitin carboxyl-terminal hydrolases are required for period maintenance of the circadian clock at high temperature in Arabidopsis. Sci Rep. Nov 19 2019;9(1):17030. doi: 10.1038/s41598-019-53229-8. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib104] 104.Jung J.Y., Ahn J.H., Schachtman D.P. CC-type glutaredoxins mediate plant response and signaling under nitrate starvation in Arabidopsis. BMC Plant Biol. Nov 13 2018;18(1):281. doi: 10.1186/s12870-018-1512-1. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib105] 105.Berardini T.Z., et al. The Arabidopsis information resource: making and mining the gold standardannotated reference plant genome. Genesis. Aug 2015;53(8):474–485. doi: 10.1002/dvg.22877. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib106] 106.Allen J.F., de Paula W.B., Puthiyaveetil S., Nield J. A structural phylogenetic map for chloroplast photosynthesis, (in eng) Trends Plant Sci. Dec 2011;16(12):645–655. doi: 10.1016/j.tplants.2011.10.004. [DOI] [PubMed] [Google Scholar]

[bib107] 107.Hummel J., Segu S., Li Y., Irgang S., Jueppner J., Giavalisco P. Vol. 2. Original Research; 2011. Ultra performance liquid chromatography and high resolution mass spectrometry for the analysis of plant lipids; p. 54. (Frontiers in plant science). [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib108] 108.Zhou X., et al. Arabidopsis OR proteins are the major posttranscriptional regulators of phytoene synthase in controlling carotenoid biosynthesis. Proc Natl Acad Sci. 2015;112(11):3558–3563. doi: 10.1073/pnas.1420831112. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib109] 109.Li S.-T., et al. Mass spectrometry-based proteomic landscape of rice reveals a post-transcriptional regulatory role of N6-methyladenosine. Nat Plants. 2024;10(8):1201–1214. doi: 10.1038/s41477-024-01745-5. [DOI] [PubMed] [Google Scholar]

[bib110] 110.Mergner J., et al. Mass-spectrometry-based draft of the Arabidopsis proteome. Nature. 2020;579(7799):409–414. doi: 10.1038/s41586-020-2094-2. [DOI] [PubMed] [Google Scholar]

[bib111] 111.Lu Y. Identification and roles of photosystem ii assembly, stability, and repair factors in arabidopsis, (in English) Front Plant Sci, Rev. 2016;7(168) doi: 10.3389/fpls.2016.00168. 168, 2016-February-16. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib112] 112.Kilambi H.V., Manda K., Sanivarapu H., Maurya V.K., Sharma R., Sreelakshmi Y. Shotgun proteomics of tomato fruits: evaluation, optimization and validation of sample preparation methods and mass spectrometric parameters. Front Plant Sci. 2016;7 doi: 10.3389/fpls.2016.00969. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib113] 113.Szymanski J., et al. Label‐free deep shotgun proteomics reveals protein dynamics during tomato fruit tissues development. Plant J. 2017;90(2):396–417. doi: 10.1111/tpj.13490. [DOI] [PubMed] [Google Scholar]

[bib114] 114.Yu C., Chen W., Wang Z., Lou H. Comparative proteomic analysis of tomato (Solanum lycopersicum L.) shoots reveals crosstalk between strigolactone and auxin. Genomics. 2021;113(5):3163–3173. doi: 10.1016/j.ygeno.2021.07.009. 2021/09/01/ [DOI] [PubMed] [Google Scholar]

[bib115] 115.Casazza A.P., Rossini S., Rosso M.G., Soave C. Mutational and expression analysis of ELIP1 and ELIP2 in Arabidopsis thaliana, (in eng) Plant Mol Biol. May 2005;58(1):41–51. doi: 10.1007/s11103-005-4090-1. [DOI] [PubMed] [Google Scholar]

[bib116] 116.Hutin C., Nussaume L., Moise N., Moya I., Kloppstech K., Havaux M. Early light-induced proteins protect Arabidopsis from photooxidative stress. Proc Natl Acad Sci. 2003;100(8):4921–4926. doi: 10.1073/pnas.0736939100. 2003-04-15. 10.1073/pnas.0736939100. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib117] 117.Aluru M.R., Yu F., Fu A., Rodermel S. Arabidopsis variegation mutants: new insights into chloroplast biogenesis, (in eng) J Exp Bot. 2006;57(9):1871–1881. doi: 10.1093/jxb/erj008. [DOI] [PubMed] [Google Scholar]

[bib118] 118.Wu D., Wright D.A., Wetzel C., Voytas D.F., Rodermel S. The IMMUTANS variegation locus of Arabidopsis defines a mitochondrial alternative oxidase homolog that functions during early chloroplast biogenesis, (in eng) Plant Cell. Jan 1999;11(1):43–55. doi: 10.1105/tpc.11.1.43. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib119] 119.Shevela D., et al. Birth defects' of photosystem II make it highly susceptible to photodamage during chloroplast biogenesis, (in eng) Physiol Plant. May 2019;166(1):165–180. doi: 10.1111/ppl.12932. [DOI] [PubMed] [Google Scholar]

[bib120] 120.Dechkrong P., et al. Mutation mapping of a variegated EMS tomato reveals an FtsH-like protein precursor potentially causing patches of four phenotype classes in the leaves with distinctive internal morphology. BMC Plant Biol. Apr 10 2024;24(1):265. doi: 10.1186/s12870-024-04973-1. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib121] 121.Laitinen R.A.E., Nikoloski Z. Genetic basis of plasticity in plants. J Exp Bot. 2019;70(3):739–745. doi: 10.1093/jxb/ery404. [DOI] [PubMed] [Google Scholar]

[bib122] 122.Lachowiec J., Queitsch C., Kliebenstein D.J. Molecular mechanisms governing differential robustness of development and environmental responses in plants. Ann Bot. 2016;117(5):795–809. doi: 10.1093/aob/mcv151. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib123] 123.Jimenez-Gomez J.M., Corwin J.A., Joseph B., Maloof J.N., Kliebenstein D.J. Genomic analysis of QTLs and genes altering natural variation in stochastic noise. PLoS Genet. 2011;7(9) doi: 10.1371/journal.pgen.1002295. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib124] 124.Hicks K.A., Albertson T.M., Wagner D.R. Early flowering3 ENcodes A Novel Protein That Regulates Circadian Clock Function and Flowering in Arabidopsis. Plant Cell. 2001;13(6):1281–1292. doi: 10.1105/TPC.010070. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib125] 125.van Zanten M., Snoek L.B., Proveniers M.C., Peeters A.J. The many functions of ERECTA. Trends Plant Sci. Apr 2009;14(4):214–218. doi: 10.1016/j.tplants.2009.01.010. [DOI] [PubMed] [Google Scholar]

[bib126] 126.D’Andrea L., et al. Interference with Clp protease impairs carotenoid accumulation during tomato fruit ripening. J Exp Bot. 2018;69(7):1557–1568. doi: 10.1093/jxb/erx491. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib127] 127.Lu Y. Identification and roles of photosystem ii assembly, stability, and repair factors in arabidopsis, (in English) Front Plant Sci, Rev. 2016;7(168) doi: 10.3389/fpls.2016.00168. 2016-February-16. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib128] 128.Krech K., et al. The plastid genome-encoded ycf4 protein functions as a nonessential assembly factor for photosystem i in higher plants. Plant Physiol. 2012;159(2):579–591. doi: 10.1104/pp.112.196642. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib129] 129.Armbruster U., et al. The arabidopsis thylakoid protein pam68 is required for efficient d1 biogenesis and photosystem ii assembly. Plant Cell. 2010;22(10):3439–3460. doi: 10.1105/tpc.110.077453. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib130] 130.Pogson B.J., Albrecht V. Genetic dissection of chloroplast biogenesis and development: an overview, (in en) Plant Physiol. 2011;155(4):1545–1551. doi: 10.1104/pp.110.170365. 2011/04/01. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib131] 131.Dubreuil C., et al. Establishment of photosynthesis through chloroplast development is controlled by two distinct regulatory phases. Plant Physiol. 2018;176(2):1199–1214. doi: 10.1104/pp.17.00435. [DOI] [PMC free article] [PubMed] [Google Scholar]

[bib132] 132.Zoschke R., Bock R. Chloroplast translation: structural and functional organization, operational control, and regulation, (in eng) Plant Cell. Apr 2018;30(4):745–770. doi: 10.1105/tpc.18.00016. [DOI] [PMC free article] [PubMed] [Google Scholar]

PERMALINK

The variegated canalized-1 tomato mutant is linked to photosystem assembly

Micha Wijesingha Ahchige

Josef Fisher

Ewelina Sokolowska

Rafe Lyall

Nicola Illing

Aleksandra Skirycz

Dani Zamir

Saleh Alseekh

Alisdair R Fernie

Abstract

Graphical Abstract

Highlights

1. Introduction

2. Materials and methods

2.1. Cloning and transformation

2.2. Plant material and growth conditions

2.3. Phenotyping

2.4. Sampling

Table 1.

2.5. RNA extraction

2.6. Orthology

2.7. Protein visualization

2.8. RNAseq analysis

2.9. Metabolite extraction

2.10. Pigment determination

2.11. Proteomics

2.12. Metabolomics

2.13. Photosynthesis measurements

2.14. Omics integration

2.15. Correlation network

2.16. Computational analysis, used packages, webtools and software

2.17. Statistical analysis

2.18. Accession Numbers

3. Results

3.1. Genetic, phenotypic and physiological characterization of the canal-1 mutant

Fig. 1.

3.2. Transcriptomics reveal upregulation of photosystem assembly factors in green canal-1 leaves

Fig. 2.

Fig. 3.

3.3. Proteomics reveals a wild type like proteome of green canal-1 leaves

Fig. 4.

Fig. 5.

Fig. 6.

3.4. Integrating transcriptomic and proteomic data highlights stronger downregulation of photosystem components in white canal-1 leaves

3.5. Metabolomics reveal amino acid accumulation in white canal-1 leaves

Fig. 7.

3.6. Multi-omics integration reveal shift of white mutant leaves from source to sink tissues

Fig. 8.

3.7. Correlation network construction supports a hub function of SCO2

Fig. 9.

Table 2.

3.8. Photosynthesis in green leaves of canal-1 is increased to compensate impaired photosynthesis in white leaves

Fig. 10.

4. Discussion

5. Conclusion

CRediT authorship contribution statement

Declaration of generative AI and AI-assisted technologies in the writing process

Declaration of Competing Interest

Acknowledgments

Contributions

Footnotes

Contributor Information

Appendix A. Supplementary material

Data availability statement

References

Associated Data

Supplementary Materials

Data Availability Statement

ACTIONS

PERMALINK

RESOURCES

Similar articles

Cited by other articles

Links to NCBI Databases
