The degradation mechanism of multi-resonance thermally activated delayed fluorescence materials

Abstract

1,4-Azaborine-based arenes are promising electroluminescent emitters with thermally activated delayed fluorescence (TADF), offering narrow emission spectra and high quantum yields due to a multi-resonance (MR) effect. However, their practical application is constrained by their limited operational stability. This study investigates the degradation mechanism of MR-TADF molecules. Electroluminescent devices incorporating these compounds display varied operational lifetimes, uncorrelated with excitonic stability or external quantum efficiency roll-off. Bulk electrolysis reveals significant instability in the radical cationic forms of MR-TADF compounds, with device lifetime linked to the Faradaic yield of oxidation. Comprehensive chemical analyses corroborate that the degradation byproducts originated from intramolecular cyclization of radical cation, followed by hydrogen atom transfer. The mechanism is further supported by enhanced stability observed in a deuterated MR-TADF emitter, attributed to a secondary kinetic isotope effect. These findings provide insights into the stabilizing effects of deuteration and mechanism-driven strategies for designing MR-TADF compounds with improved operational longevity.

The limited operational stability of multi-resonance thermally activated delayed fluorescence emitters often constrains their practical application. Here, the authors report a direct correlation between device lifetime and Faradaic yield for oxidative degradation of emitter molecules.

Introduction

Organic light-emitting devices (OLEDs) have undergone significant advancements over the past two decades, with notable improvements in efficiency and color purity. These advances are largely due to the discovery of novel emitters, including luminescent molecules capable of exciton harvesting. Among these, cyclometalated complexes of Ir(III)^1–5 and Pt(II)^6,7, as well as organic^8,9 and organometallic compounds¹⁰ that exhibit thermally activated delayed fluorescence (TADF), stand out. The multi-resonance (MR)-TADF emitters, in particular, have attracted considerable attention. For instance, aromatic 1,4-azaborine scaffolds housing complementary boron and nitrogen atoms produce exceptionally narrow fluorescence spectra, accompanied by photoluminescence quantum yields approaching unity^11–13. The unique emission behavior positions MR-TADF compounds as promising candidates for meeting the demanding requirements of commercial OLED applications^14–19.

Despite their potential, the widespread adoption of MR-TADF molecules is hampered by their instability under the operational conditions in the device. This issue is not unique to MR-TADF molecules. It mirrors challenges faced by earlier generations of phosphorescent^20–28 and dipolar TADF emitters^29–32, which also degrade through mechanisms that produce exciton quenchers, charge carrier traps, and non-emissive charge carrier recombination centers, adversely affecting OLED performance^33,34.

Consequently, a deeper understanding of the degradation mechanisms of MR-TADF materials is crucial for enhancing their operational longevity. Notably, Lee et al. discovered that TADF-inactive MR fluorescent emitters could achieve longer operational lifetimes than their TADF-active counterparts³⁵, a finding echoed by Meng et al.³⁶, who attributed this to the intrinsic instability of long-lived triplet excitons in MR-TADF emitters. In-situ Raman spectroscopy studies suggested that MR-TADF excitons contribute to the morphological instability of emitting layers³⁷. Furthermore, Wang et al. have shown that incorporating an additional boracycle into MR-TADF emitters can extend operational lifetimes, a benefit theorized to stem from increased anionic stability, as supported by quantum chemical calculations³⁸. While these studies have proposed various factors contributing to reduced operational lifetimes, direct chemical evidence identifying the specific intermediates and pathways of degradation remains scarce. Given that an OLED’s operational lifetime is primarily determined by the intrinsic stability of its components²⁴, elucidating the degradation process of MR-TADF molecules is of paramount importance.

In this study, we delve into the intricate chemical mechanisms underlying the intrinsic degradation of a series of blue-emissive MR-TADF molecules, as illustrated in Fig. 1. Through comprehensive chemical analyses, we obtained direct experimental evidence indicating that the primary degradation pathway of MR-TADF materials is initiated by hole trapping. Both experimental observations and quantum chemical simulations suggest that the degradation process involves a dehydrogenative cyclization reaction of the radical cationic species. This mechanism elucidates the observed enhanced operational stability of a deuterated MR-TADF emitter compared to its undeuterated counterpart, attributing it to the secondary kinetic isotope effect on the rate-determining cyclization step in the deuterated molecule (vide infra).

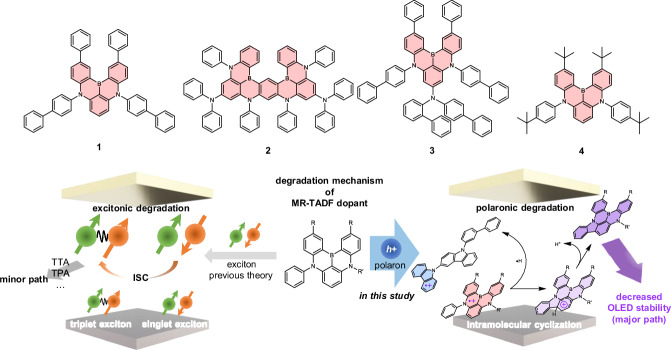

Fig. 1. Oxidative degradation of MR-TADF dopants.

Chemical structures of the MR-TADF dopants and a schematic of the degradation mechanism of an MR-TADF dopant, as established in the present study.

Results

Operational stabilities of MR-TADF OLEDs

For this investigation, we selected 5,9-bis(4-biphenyl)-2,12-diphenyl-5,9-diaza-13b-boranaphtho[3,2,1-de]anthracene (1), N⁷,N⁷,N¹³,N¹³,5,9,11,15-octaphenyl-5,9,11,15-tetrahydro-5,9,11,15-tetraaza-19b,20b-diboradinaphtho[3,2,1-de:1’,2’,3’-jk]pentacene-7,13-diamine (ν-DABNA¹² and denoted as 2 in this study), 5,9-bis(4-biphenyl)-7-N-(2-biphenyl)-N-(4-biphenyl)amino-2,12-diphenyl-5,9-diaza-13b-boranaphtho[3,2,1-de]anthracene (3), and 5,9-bis(4-tert-butylphenyl)-2,12-di(tert-butyl)-5,9-diaza-13b-boranaphtho[3,2,1-de]anthracene (t-DABNA³⁹ and denoted as 4 in this study) shown in Fig. 1. The photophysical characteristics of these compounds were assessed using thin films of poly(methyl methacrylate) (PMMA) doped with 2 wt% of the MR-TADF compounds, and the results are summarized in Table 1. Compounds 1–4 displayed pronounced blue fluorescence, with emission peak wavelengths ranging from 459 to 471 nm, full widths at half-maximum (FWHM) values between 775 and 1130 cm⁻¹, and photoluminescence quantum yields (Φ_PL) from 0.96 to 1.00. The delayed fluorescence lifetimes (τ_DFs) of these compounds span from 3.8 to 111 μs, indicative of moderate energy differences between the singlet and triplet excited states (ΔE_ST, 0.11−0.27 eV). These photophysical parameters collectively underscore the MR-TADF properties of compounds 1−4.

Table 1.

Photophysical and electrochemical data, and yields for intrinsic degradation of the MR-TADF dopants

	λem (nm)a,b	ΦPL (%)a,c	τPF (ns) a,d	τDF (μs) a,e	krTADF (104 s−1)f	krISC (105 s−1)g	ET1 (eV)a,h	ΔEST (eV)a,i	Eox (V vs SCE)j	Φdeg (%)k	Faradaic yield (%)l
1	471	96	11	78	5.1	1.8	2.49	0.27	0.98	0.29	37
2	467	98	6	3.8	6.3	6.2	2.64	0.11	0.92	0.92	46
3	461	98	7	28	5.6	4.1	2.57	0.21	0.97	0.68	59
4	459	100	5	111	5.4	1.1	2.54	0.25	0.90	0.22	79
1D	473	94	10	62	5.5	1.5	2.49	0.24	0.95	0.18	30

^a2 wt% in PMMA films, 300 K. See Supplementary Fig. 1 for the UV−Vis absorption and photoluminescence spectra recorded in tetrahydrofuran (THF).

^bEmission peak wavelength. See Supplementary Fig. 2 for the photoluminescence spectra of the PMMA films.

^cPhotoluminescence quantum yield determined absolutely using an integrating sphere.

^dLifetime of prompt fluorescence.

^eLifetime of delayed fluorescence.

^fRadiative rate constant, k_r^TADF = Φ_PL/τ_obs, where τ_obs is the average fluorescence lifetime.

^gRate constant for reverse intersystem crossing, k_rISC = (Φ_total × k_PF × k_DF)/k_r^S1.

^hEnergy of the triplet state.

ⁱThe energy difference between the singlet and the triplet excited states. Refer to Supplementary Fig. 3 for details.

^jOxidation potential determined by cyclic voltammetry (CV) and differential pulse voltammetry (DPV) for Ar-saturated THF containing 1.0 mM dopant and 0.10 M tetrabutylammonium hexafluorophosphate; A glassy carbon disk and a Pt wire for the working and counter electrodes, respectively; an Ag/AgNO₃ pseudo-reference electrode; scan rates = 0.1 V s ⁻¹ (CV) and 4 mV s ⁻¹ (DPV). See Supplementary Fig. 4 for the voltammograms.

^kQuantum yield for photolysis.

^lFaradaic yield for oxidative bulk electrolysis.

The electroluminescence performances of compounds 1−4, utilized as dopants, were assessed using a specific device configuration, comprising an indium tin oxide (ITO) anode, a hole-injection layer of p-doped (3 wt% NDP series, Novaled AG) N-([1,12-biphenyl]-4-yl)-9,9-dimethyl-N-(4-(9-phenyl-9H-carbazol-3-yl)phenyl)-9H-fluoren-2-amine (BCFA) (10 nm), a hole-transporting layer of BCFA (135 nm), an electron-blocking layer of 2,2′-di(9H-carbazole-9-yl)-1,1′-biphenyl (oCBP) (5 nm), an exciton-blocking layer of 3′,5′-di-9H-carbazol-9-yl-[1,1′-biphenyl]-2-carbonitrile (mCPD) (5 nm), an emission layer (40 nm), a hole-blocking layer of 9-(3-(9H-carbazol-9-yl)phenyl)-9H-carbazole-3,6-dicarbonitrile (mCP-2CN) (10 nm), an electron-transporting layer co-deposited with dibenzo[b,d]furan-2,8-diylbis(diphenylphosphine oxide) (DBFPO) and lithium 8-hydroxyquinolinate (LiQ) (30 nm), an electron-injecting layer of LiQ (9 nm), and an aluminum (Al) cathode (100 nm). The emission layer, comprising a 1.5 wt% dopant, utilized a ternary composition, including a 9-(3-biphenyl)-3,9′-bicarbazole hole-transporting (HT) host, a 3′-(9-(3-cyanocarbazolyl))-5′-cyano-3-(9-carbazolyl)biphenyl electron-transporting (ET) host, in a volumetric ratio of 6:4. The chemical structures and energy levels of the constituent materials are displayed in Fig. 2a. Electroluminescence spectra, recorded at an intensity of 1000 cd m⁻², revealed peak wavelengths of 474 nm for compounds 1 and 2, 465 nm for compound 3, and 462 nm for compound 4, as shown in Fig. 2b. The FWHM values as small as 890−1300 cm⁻¹ and the Commission internationale de l'éclairage coordinate y values (CIE_y) approaching 0.10 demonstrate the validity of the MR-TADF molecules as blue emitters.

Fig. 2. Electroluminescence performance.

a Schematic of the configuration of the electroluminescence devices tested, including the energy levels and chemical structures of their component materials. b Electroluminescence spectra. c Current density–voltage curves. d External quantum efficiencies as a function of current density. e Percent luminance decays as a function of operation time driven at a constant current density at an initial luminance of 1000 cd m⁻².

The devices incorporating 1−4 demonstrate negligible differences in their current density profiles, as depicted in Fig. 2c. This uniformity can be attributed to the similar energy offsets between the highest occupied molecular orbitals (HOMOs) of 1−4 and the HT host ranging from 0.4 to 0.5 eV. The maximum external quantum efficiency (EQE_max) across these devices is identified to lie between 22.5% and 26.7% (Table 2). Figure 2d reveals that devices based on compounds 1, 3, and 4 experience moderate EQE roll-off, whereas the device utilizing compound 2 shows a relatively suppressed roll-off due to the significantly shorter delayed fluorescence lifetime (τ_DF) of 3.8 μs, compared to 28−111 μs for the other MR-TADF compounds. These varying roll-off profiles hint at the presence of triplet−triplet annihilation or triplet−polaron annihilation processes, which are recognized as major degradation pathways for high-energy blue emitters, generating unstable species that significantly shorten device operational lifetimes^20,24,40. Nonetheless, there appears to be no direct correlation between the operational stability and EQE roll-off behaviors (Fig. 2e). For instance, devices 1 and 3, despite showing substantial EQE roll-off, exhibit LT₉₅ (the time at which luminance decreases to 95% of its initial value at 1000 cd m⁻²) values of 4.3 and 2.9 h, respectively, comparable to the 3.2 h of device 2 that has the least EQE roll-off. Moreover, device 4, despite having an EQE roll-off profile similar to that of devices 1 and 3, presents the shortest LT₉₅ value of only 0.6 h. This observation suggests that the lifetime of these devices may not be predominantly determined by the bimolecular annihilation processes involving excitons.

Table 2.

Device performance

	V (V)a	J (mA cm−2)a	CIE (x, y)a	EQE (%)	Power efficiency (lm W−1)	LT95 (h)
1	5.14	7.00	(0.11, 0.17)	25.1b/12.3a	30.9b/8.79a	4.3c/5.4d
2	5.38	5.75	(0.11, 0.15)	23.7b/17.4a	21.3b/10.2a	3.2c/3.3d
3	5.25	6.53	(0.13, 0.11)	26.7b/16.8a	24.5b/9.19a	2.9c/3.3d
4	6.11	20.0	(0.13, 0.10)	22.5b/5.8a	20.0b/2.57a	0.60c/2.6d

^aValues at a luminance of 1000 cd m⁻².

^bMaximum values.

^cOperation time when the luminance decreases to 95% of its initial value at an initial luminance of 1000 cd m⁻².

^dOperation time when the luminance decreases to 95% of its initial value of device-driven under a constant current density of 5 mA cm⁻². See Supplementary Fig. 5 for plots of the luminance and power efficiency as functions of current density.

Degradation intermediates

To elucidate the degradation mechanisms, we conducted both photolysis and bulk electrolysis experiments for deaerated solutions of the MR-TADF dopants. These experiments aimed to simulate the excitonic and polaronic degradation pathways, respectively, facilitating the identification of crucial degradation intermediates. Note that although solution experiments do not perfectly replicate the degradation processes in emitting layers within the device, we chose this approach because it offers several advantages, including controlled charge-carrier injection and high yields for the degradation byproduct formation. Photolysis was performed in argon-saturated tetrahydrofuran (THF) solutions containing 100 μM of compounds 1−4, under continuous illumination with monochromatic light of 450 nm wavelength (photon flux = 4.0 × 10⁸ Einstein s⁻¹). The progression of photolytic degradation was monitored using high-performance liquid chromatography (HPLC) due to the inadequacy of UV−Vis absorption spectroscopy for quantitative analysis. The quantum yield for degradation (Φ_deg) was determined to be under 1% (Table 1 and Fig. 3c), and importantly, Φ_deg exhibited no significant correlation with LT₉₅, suggesting that excitonic degradation does not primarily influence the operational stability (for additional details and discussion, see Supplementary Figs. 6 and 7). It is important to note that k_rISC shows no correlation with either the quantum yield of photolysis or LT₉₅ (Table 1). This further suggests that excitonic degradation has a negligible impact on operational stability.

Fig. 3. Oxidative degradation.

a Liquid chromatograms of 100 μM 4 (Ar-saturated THF containing a 0.10 M tetrabutylammonium hexafluorophosphate supporting electrolyte) obtained during oxidative bulk electrolysis performed at an anodic potential of 1.04 V vs SCE. A Pt mesh and a Pt coil were used for the working and the counter electrodes, respectively. An Ag/AgNO₃ pseudo-reference electrode was used. The peak marked with an asterisk (*) corresponds to a benzophenone internal standard. Chromatograms for 1−3 are shown in the Supplementary Fig. 8. b Decay in the concentration of the residual MR-TADF dopants during continuous oxidative bulk electrolysis performed at potentials of 1.04 V vs SCE (1 and 4), 1.01 V vs SCE (2), and 0.98 V vs SCE (3). Error bars represent the standard deviation of three independent experiments. The solid lines are linear fits of the initial five data points. c Quantum yields for photolysis (blue bars) and Faradaic yields for oxidative electrolysis (yellow bars) of 1−4. Values are compiled in Table 1. d Correlation between LT₉₅ and the Faradaic yield for the oxidative degradation of the dopants. The gray line is a linear fit.

In marked contrast, radical cation forms of the MR-TADF molecules demonstrated pronounced instability during oxidative bulk electrolysis at anodic potentials, as quantified by HPLC (detailed in Fig. 3a, b, and their captions). Reductive bulk electrolysis was not considered, given the electron-scattering nature of the MR-TADF molecules, as inferred from the positions of their lowest unoccupied molecular orbitals (LUMOs) illustrated in Fig. 2a. By contrast, the MR-TADF compounds can trap hole carriers from the HT host with driving forces of 0.4−0.5 eV. The Faradaic yields for oxidative bulk electrolysis, representing the ratio of decomposed compound quantity to the electrons transferred, were significantly higher by two orders of magnitude compared to Φ_deg (as shown in Table 1 and Fig. 3c). Although these solution-based experiments do not perfectly mimic the polaronic degradation in the emissive layers, they underscore the notably lesser stability of the MR-TADF compounds’ radical cations compared to their excitons. Moreover, an inverse correlation was observed between LT₉₅ and the Faradaic yield (see Fig. 3d). While not definitive, this negative linear relationship implies a close association between the positive polarons of MR-TADF molecules and the operational stability of OLEDs.

The observed relationship between the operational stability of OLEDs and the stability of MR-TADF molecules is further supported by examining the behavior of trapped hole carriers within these dopants. The ideality factor [(k_BT/q)·(∂ln J/∂V)]⁻¹ for devices using compounds 1−4 consistently exceeds two, as shown in Supplementary Fig. 9, where k_B is the Boltzmann constant, T is the absolute temperature, q is the elementary charge, J is the current density, and V is the voltage. This finding suggests significant charge carrier trapping within the MR-TADF molecules⁴¹. In single carrier devices designed for exclusive hole transport, the hole current density profiles vary according to the specific MR-TADF dopant used, as depicted in Supplementary Fig. 10. In contrast, no significant variation in current density is observed with exclusive electron transport (Supplementary Fig. 11). The sequence of hole trapping within the dopants is observed to follow the order 2 > 4 ~ 3 > 1. This order, in conjunction with the Faradaic yield data, offers a coherent kinetic rationale for the observed LT₉₅ values of the OLED devices. This rationale is predicated on the assumption that the degradation rate adheres to pseudo-first-order kinetics, with the rate equation modeled as rate = k·[D^•+] = exp(−E_a/k_BT)·[D^•+], where k is the rate constant for degradation, [D^•+] is the molar concentration of the radical cation of an MR-TADF dopant, and E_a is the activation energy for the rate-determining step. Under this framework, the device utilizing compound 1 exhibits the longest LT₉₅, attributable to molecule 1 having the smallest Faradaic yield, indicative of the highest intrinsic stability, and the lowest density of positive polarons, leading to the lowest concentration of the degradation intermediates. Conversely, the notably shorterLT₉₅ for the device incorporating compound 4 can be explained by its high Faradaic yield and dense population of positive polarons, highlighting a direct correlation between these factors and device longevity.

Degradation mechanism

To shed light on the degradation mechanism of MR-TADF materials, we analyzed a byproduct formed from radical cations. Electrospray ionization (ESI) mass spectrometry in positive mode revealed a significant peak at an m/z value of 810.51 amu in an electrolyzed solution of compound 4, as shown in Fig. 4a. This peak corresponds to a species involving [4−2H], precisely matching with the theoretical isotope distribution. Notably, the pristine sample of 4 lacks this peak, underscoring that the cyclization product specifically arises from the radical cation state. This structural assignment gains additional support from the appearance of new peaks in the ¹H NMR (300 MHz, CD₂Cl₂) spectrum, indicative of a non-symmetric aromatic framework formation, as depicted in Fig. 4b. An independently synthesized non-symmetric cyclization compound (labeled as compound 4′, see Fig. 4b) shows ¹H NMR peaks corresponding to those observed in the oxidation byproduct. We also found the formation of mono-, bi-, tri-, and tetracyclization byproducts of 2 with multiple reaction sites (Supplementary Fig. 12), which corroborates the occurrence of oxidative cyclization reactions. Note that this observation aligns with the known intramolecular electrochemical reactivities of aryl amines: aryl amines cyclize upon oxidation which typically involves radicals formed at the ortho-position to the amino group^42,43. Aryl amines are also known to undergo oxidation and subsequent electrochemical polymerization under electrical stress, adversely affecting the device's lifetime. Protective groups like tert-butyl substituents or oxidation-stable replacements are commonly used to enhance their electrochemical stability and improve device performance^44–47.

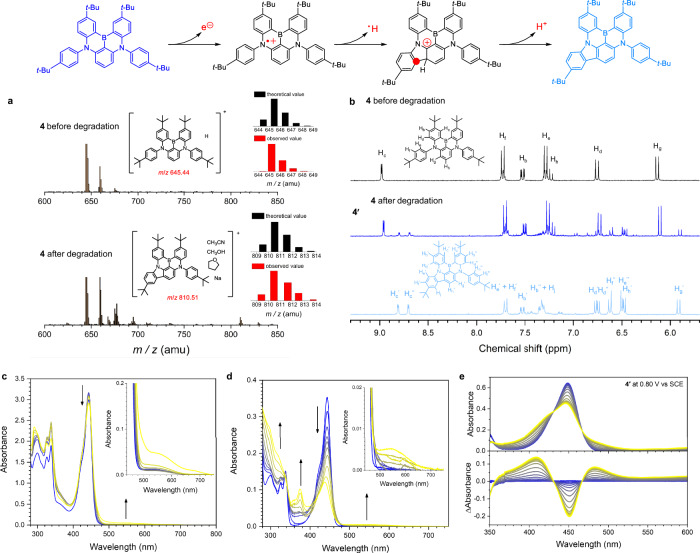

Fig. 4. Degradation byproduct.

a Mass spectra (ESI, positive) of 100 μM 4 (Ar-saturated THF containing a 0.10 M tetrabutylammonium hexafluorophosphate supporting electrolyte) obtained before (top panel) and after (bottom panel) oxidative bulk electrolysis at an anodic potential of 1.04 V vs SCE. A Pt mesh and a Pt coil were used for the working and the counter electrodes, respectively. An Ag/AgNO₃ pseudo reference electrode was used. The inset structures are the proposed chemical structures corresponding to the indicated m/z values. The inset black and red bars show the theoretical and observed m/z values, respectively. b ¹H NMR (300 MHz, CD₂Cl₂) spectra of 4 before (top) and after (middle) the oxidative degradation, and the independently synthesized cyclization byproduct 4′ (bottom). c UV−Vis absorption spectra of 10 μM 4 (Ar-saturated THF containing 0.10 M tetrabutylammonium hexafluorophosphate) obtained during oxidative electrolysis (0−3 h) at an anodic potential of 1.04 V vs SCE. Arrows indicate spectral changes. The inset figure depicts the magnified view in the region 440−750 nm. d UV−Vis absorption spectra of 100 μM 4 reacted with 1 equiv [FeCl₃] (Ar-saturated CH₂Cl₂). Arrows indicate spectral changes. The inset figure depicts the magnified view in the region 440−750 nm. e UV−Vis absorption (top) and absorption difference (bottom) spectra of an Ar-saturated THF 1.1 mM 4′ and a 0.10 M tetrabutylammonium hexafluorophosphate supporting electrolyte recorded upon application of an anodic potential of 0.80 V vs SCE (a Pt mesh working electrode, a Pt wire counter electrode, and an Ag/AgNO₃ pseudo-reference electrode).

Further evidence for the intermediacy of the radical cation in the cyclization reaction comes from spectroelectrochemical measurements. Upon applying an anodic potential of 1.04 V versus a saturated calomel electrode (SCE) to an argon-saturated THF solution containing 10 μM of compound 4 and 0.10 M tetrabutylammonium hexafluorophosphate as supporting electrolyte, a broad absorption band appears in the 500−700 nm region (Fig. 4c). This absorption signature is replicated upon the electrochemical oxidation of 4 with [FeCl₃] as a strong oxidant (Fig. 4d), signifying that the visible absorption band originates from the radical cation of a cyclized compound. This is corroborated by the identical absorption band observed upon the electrochemical oxidation of compound 4′ at a potential of 0.80 V vs SCE (Fig. 4e). Collectively, our experimental findings converge on the oxidative cyclization as a pivotal degradation pathway of the MR-TADF molecule.

We performed a mechanistic investigation using DFT calculations to propose the major degradative mechanism and the key kinetic factor governing the stability of MR-TADF dopants against oxidative degradation. Our initial analysis of bond dissociation energies showed that the C–C single bonds in the dopant molecule become stronger upon oxidation (see Supplementary Table 1). This unexpected increase in bond strength is attributed to an increase in bond order after removing one electron from the HOMO, which has an antibonding character between the aromatic rings. As a result, unimolecular degradation is unlikely to be the primary degradation route.

Further investigation into bimolecular reactions evaluated various mechanistic scenarios, as outlined in Fig. 5. To assess the general reactivity of a series of dopants, we used a simplified model structure without peripheral substituents (denoted as M) and a truncated host molecule (denoted as Host) as the reaction partner. Two potential reaction modes for the oxidized dopant (denoted as M^•+) were considered: acting as a radical or as a cation. M^•+ could undergo deprotonation by Host due to increased acidity upon oxidation (path a) or engage in hydrogen atom transfer to dissipate spin density (path b). In both scenarios, the C–H bond cleavage was accompanied by the formation of a new C–C bond, resulting in cyclization. When cyclization did not accompany C–H bond activation, highly unstable open-shell species were generated, making the process energetically unfavorable (see Supplementary Fig. 13).

Fig. 5. Mechanistic scenarios for oxidative degradation.

Oxidative degradation pathways considered for the model MR-TADF dopant (M) and the truncated host molecule (Host).

We then modeled the oxidized host (Host^•+) as the reaction partner, reflecting the presence of hole-transporting hosts in the device environment. For hydrogen atom abstraction by Host^•+ (path c), our kinetic analysis showed a substantial reduction in the reaction barrier compared to the other pathways, making path c the most favorable route (detailed discussion follows in the next paragraph). The resulting intermediate, [M–H]⁺, can subsequently undergo deprotonation to form the net dehydrogenated product [M–2H], with a total free energy change of –9.6 kcal mol⁻¹. In comparison, an alternative pathway involving hydrogen atom addition by Host^•+ (path d) is kinetically disfavored, with a higher reaction barrier of 53.1 kcal mol⁻¹. Moreover, the intermediate formed (MH⁺) does not account for the experimentally observed byproduct, which shows a red-shifted absorption profile.

We evaluated the energy profiles of paths a–c, as illustrated in Fig. 6, to identify the primary route responsible for degradation and gain insight into the kinetic aspects. The process begins with the intramolecular cyclization of M^•+ via the transition state A-TS, which has an energy of 37.4 kcal mol⁻¹, leading to the formation of intermediate B at 31.8 kcal mol⁻¹. This cyclization step, essential for activating the C–H bonds for subsequent reactions, involves a radical addition of the oxidized azaborine unit (“core ring”) to the adjacent neutral phenyl group (“pendant ring”). As a result, the positive charge is retained on the core, while the spin density shifts to the pendant ring. In intermediate B, the bridgehead C–H bond on the positively charged core becomes more acidic and is activated for deprotonation (path a), while the bridgehead C–H bond on the pendant ring, bearing radical character, is activated toward hydrogen atom abstraction (path b). In path a, the deprotonation by Host proceeds via C′-TS1 at 46.4 kcal mol⁻¹, leading to the radical intermediate [M–H]^• at 40.4 kcal mol⁻¹. In path b, hydrogen atom transfer (HAT) occurs through C′-TS2 at 54.4 kcal mol⁻¹, producing the cationic intermediate [M–H]⁺ at 33.0 kcal mol⁻¹.

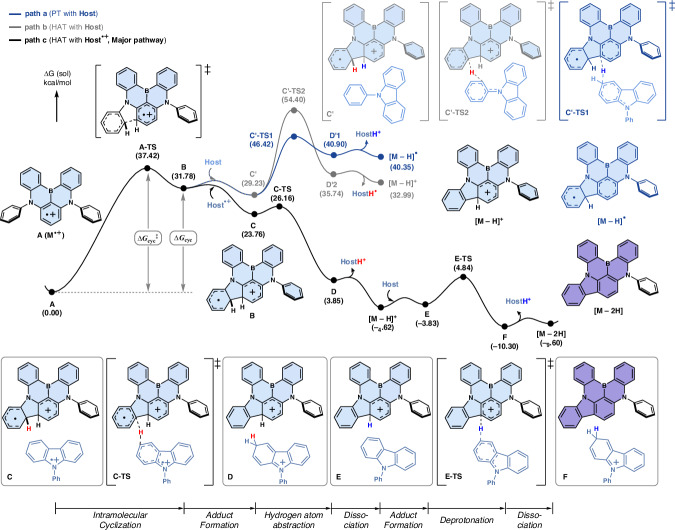

Fig. 6. Degradation mechanism.

Energy profiles were calculated for the degradation reactions (paths a–c) of the model structure of oxidized MR-TADF dopants (M^•+) with the truncated host molecule (Host). Path c is identified as the major degradation route.

The most favorable pathway, however, arises when B reacts with Host^•+, forming adduct C. In this case, hydrogen atom abstraction proceeds through C-TS at a much lower energy of 26.2 kcal mol⁻¹, resulting in closed-shell intermediates [M–H]⁺ and [HostH]⁺ at –4.6 kcal mol⁻¹. The highly exergonic nature of this step, combined with a negligible barrier of 2.4 kcal mol⁻¹, suggests that the coupling of two radicals via HAT is highly favorable and effectively irreversible. Subsequent deprotonation by Host from adduct E occurs through E-TS at 4.8 kcal mol⁻¹ (with a step barrier of 8.7 kcal mol⁻¹) forming intermediate F. The overall reaction yields the final dehydrogenated product [M–2H] with a reaction energy of –9.6 kcal mol⁻¹. Therefore, we propose path c as the major degradation pathway, with the rate-determining step being the initial intramolecular cyclization.

While host molecules were used as reaction partners to simulate device-like environments, the energy profile for the proposed mechanism involving an oxidized dopant (M^•+) as a reaction partner, instead of Host^•+, shows a similar energetic landscape (see Supplementary Fig. 14). This confirms that the proposed mechanism remains valid under bulk electrolysis conditions as well.

Based on our mechanistic understanding, the cyclization barrier (ΔG^‡_cyc, the energy at A-TS) is identified as the key factor influencing the intrinsic stability of dopants against oxidative degradation. As shown in Table 3, the ΔG^‡_cyc values calculated for dopants 1–4 follow the trend: 1 (38.6 kcal mol⁻¹) > 2 (37.2 kcal mol⁻¹) > 3 (36.6 kcal mol⁻¹) > 4 (35.0 kcal mol⁻¹), which explains the trend in observed Faradaic yield and device stability. The energy of the cyclized intermediate B (ΔG_cyc) follows a similar trend, except for dopant 2 having a higher ΔG_cyc (34.3 kcal mol⁻¹) than 1 (31.5 kcal mol⁻¹). The cyclization step, essentially a radical addition of the oxidized core, is enhanced with a more localized radical character on the reacting carbon. This is reflected in the Mulliken spin densities, which show increasing localization as 2 < 1 ~ 3 < 4 (see Supplementary Fig. 15). The distribution of the SOMO supports this, with dopant 2 displaying the most extensive π-conjugation across two fused cores and dopant 4 exhibiting the least. Additionally, the diarylamino group in dopant 3 appears to stabilize the positive charge on the core during cyclization, reducing the barrier by 2.7 kcal mol⁻¹ compared to dopant 1.

Table 3.

Energy components of the cyclization step of MR-TADF dopants 1–4^a

Energy (kcal mol−1)	1	2	3	4
ΔG‡cyc	38.56	37.19	36.61	35.00
ΔGcyc	31.50	34.29	30.09	27.57

^aEnergies calculated at B3LYP-D3/Def2-TZVP//B3LYP-D3/Def2-SVP level of theory.

The alignment of the trends in cyclization barriers ΔG^‡_cyc and stability is further supported by numerical analysis, which shows a stronger dependence of the amount of the cyclized intermediate ([M–H]⁺) on ΔG^‡_cyc, rather than on the amount of M^•+ (see Supplementary Method 3 and Supplementary Fig. 16). This result implies that during device operation, the generation of byproducts is dominated by the intrinsic reactivity of dopants (represented by ΔG^‡_cyc). This finding highlights the importance of controlling ΔG^‡_cyc during the molecular design stage to develop new dopants that can better resist degradation.

Finally, we investigated the deleterious effect of the degradation byproduct on the operational stability of devices. The photoluminescence spectrum of compound 4′ shows a minor bathochromic shift of 30 nm compared to that of 4, as depicted in Supplementary Fig. 17. Contrary to initial assumptions, the robust emission from compound 4′ disputes the notion that it would impair device performance by quenching excitons or acting as a nonradiative charge carrier recombination center. This is further supported by the unaltered electroluminescence spectra between pristine devices and those operated up to the LT₈₀ and LT₅₀ benchmarks for compounds 1−4, represented in Supplementary Fig. 18. Such consistency in emission profiles suggests that the luminescent pathways of compound 4′ do not contribute to device deterioration. However, a notable gradual decrease in current density was observed over operational time, indicating poor current performance in devices incorporating compounds 1−4 when assessed at their respective LT₈₀ and LT₅₀ durations (Supplementary Fig. 19). This decline in current levels correspondingly led to diminished luminance, power efficiency, and EQE, as detailed in Supplementary Table 2 and Figs.  20–22. These findings collectively hint at the formation of charge carrier traps within the cyclized byproducts of MR-TADF dopants, a theory further supported by the steady increase in operational voltage over time (Supplementary Fig. 23). In fact, 4′ has the HOMO shallower than that of 4, supporting this notion (Supplementary Fig. 4). Although we are cautious to draw direct proportionalities, we find rough correlations between the voltage rise and the LT₉₅ values and the Faradaic yield values (Supplementary Fig. 24).

Deuteration effect

Deuteration has recently been demonstrated to be a viable strategy for improving the operational stability of hosts^48–51, and phosphorescent^52–55 and dipolar TADF emitters^56,57. However, the specific mechanism by which deuterium confers protective benefits to OLED materials has not been fully elucidated. We investigated the effect of deuteration on enhancing the stability of our MR-TADF dopants. According to our proposed mechanism, wherein the rate-determining step is intramolecular cyclization, only a secondary effect is expected, as this process does not directly involve the breaking or formation of C−H bonds.

To test this hypothesis and validate our proposed mechanism, we compared the intrinsic stability of a deuterated version of compound 1, denoted as 1D, with its protiated form, utilizing oxidative bulk electrolysis techniques. Compound 1, chosen for its superior polaronic stability as indicated by its Faradaic yield, served as a model for this investigation. Synthetic procedures, as well as photophysical and electrochemical data, are summarized in the “Methods” section and Supplementary Fig. 25, respectively. Our results unambiguously demonstrate the enhanced longevity of 1D, with its oxidative degradation Faradaic yield being 30%, ~7% lower than that of compound 1 (Fig. 7a and b). This finding aligns with our quantum chemical calculations, reinforcing the premise that intermolecular hydrogen atom abstraction constitutes the secondary degradation pathway.

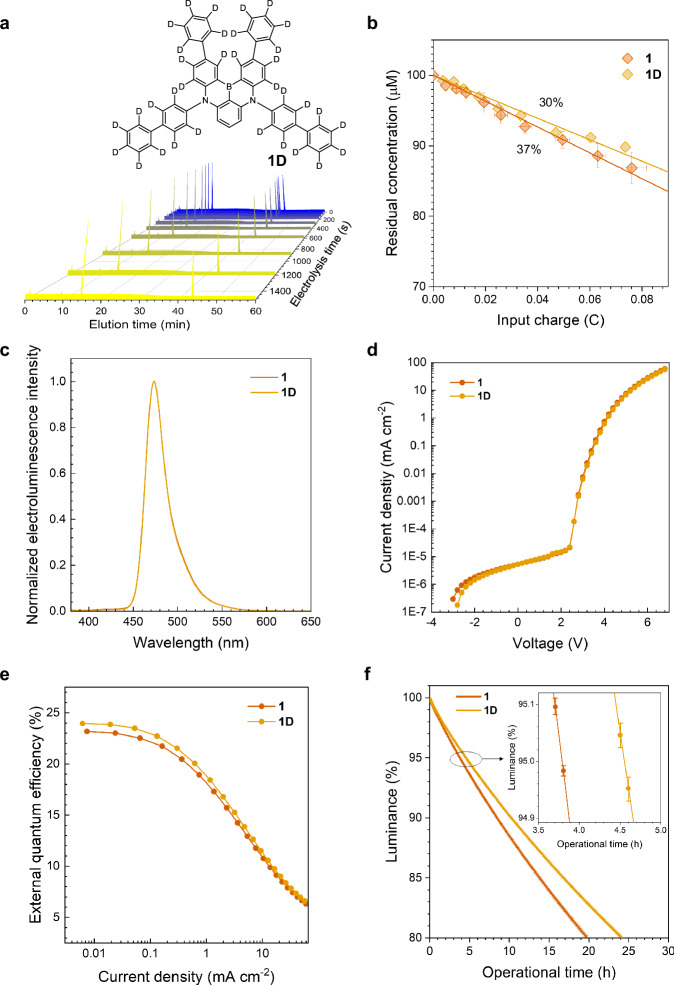

Fig. 7. Deuteration effect.

a Liquid chromatograms of 100 μM 1D (Ar-saturated THF containing 0.10 M tetrabutylammonium hexafluorophosphate) obtained during oxidative bulk electrolysis at an anodic potential of 1.04 V vs SCE. A Pt mesh and a Pt coil were used for the working and the counter electrodes, respectively. An Ag/AgNO₃ pseudo reference electrode was used. The peak marked with an asterisk (*) corresponds to a benzophenone internal standard. b Decay in concentrations of 1 and 1D during the continuous oxidative bulk electrolysis. The solid lines are linear fits of the data. The values are Faradaic yields for oxidative degradation of 1 and 1D. c−f Electroluminescence spectra (c), current density–voltage curves (d), external quantum efficiencies as a function of current density (e), and percent luminance decays as a function of operation time of devices of 1 and 1D driven at a constant current density at an initial luminance of 1000 cd m ⁻² (f). The inset figure in f shows a magnified view in the percent luminance range 94.9−95.1%. The luminance and power efficiency as functions of current density are shown in Supplementary Fig. 26. Error bars represent the standard deviation of three independent experiments.

Further comparative studies were conducted on multilayer OLEDs fabricated with the identical configuration as used previously, substituting 1 with 1D. The key electroluminescence data are compiled in Supplementary Table 3. Unsurprisingly, the electroluminescence spectrum and the current density versus voltage profiles of the device incorporating 1D closely mirrored those of the device based on compound 1. Notably, a modest increase in the EQE was observed for the 1D-based device (24.0%) compared to the 1-based device (23.1%) at a current density of 0.01 mA cm⁻², while their roll-off profiles remained virtually identical (Fig. 7e). Moreover, the operational lifetime experienced a modest improvement with the inclusion of 1D, with the LT₉₅ reaching approximately 4.3 h, an increase of about 20% over the LT₉₅ of the device based on compound 1 (Fig. 7f). This improvement is greater than the error range of the LT data (±0.1%), validating the fidelity of it. This moderate increase in LT₉₅ is consistent with our proposed mechanism, where the cyclization barrier is the rate-determining factor. Our calculations show a minimal vibrational correction in ΔG^‡_cyc of 0.06 kcal mol⁻¹, from 1 to 1D, resulting in a kinetic isotope effect (KIE) of 1.1. This minor KIE value further supports that the rate-determining cyclization step is responsible for the moderate increase in LT₉₅.

Discussion

Organic molecules that exhibit MR-TADF have become vital to the development of highly efficient OLEDs with saturated color purity. Despite their significance, research that closely examines the relationship between the operational lifetimes of OLEDs and the intrinsic stability of MR-TADF compounds is notably rare, even though the device's longevity is crucial for commercial viability. In our study, we discovered that the operational lifetime of OLEDs is not directly linked to the excitonic stability of MR-TADF molecules 1−4. Instead, our investigations, particularly through bulk electrolysis experiments, highlighted the pronounced instability of the one-electron oxidized forms of these molecules. We established a clear correlation between the Faradaic yield for oxidative degradation and the operational lifetime of the devices, identifying radical cations—or positive polarons—as the critical intermediates that dictate device longevity.

Quantum chemical calculations propose dehydrogenative cyclization as the primary degradation pathway for the oxidized dopants, with the rate-determining step being the initial intramolecular cyclization. The cyclization occurs through the addition of the oxidized azaborine core unit to the pendant aryl group, followed by irreversible hydrogen atom abstraction and deprotonation. Analysis among dopants 1−4 revealed that spin localization through π-conjugation reduces reactivity toward cyclization, enhancing resistance to oxidative degradation. Chemical analyses, encompassing mass spectrometry, ¹H NMR spectroscopy, and UV−Vis spectroelectrochemical measurements, confirmed the formation of a cyclized byproduct following hole trapping in the MR-TADF compounds. This conclusion was further supported by our independent synthesis of the cyclization byproduct (compound 4′).

Investigation of the deuterated MR-TADF compound 1D demonstrated a moderate effect in reducing the Faradaic yield and extending the operational lifetime compared to its undeuterated counterpart. This modest effect is consistent with a secondary kinetic isotope effect, aligning with the proposed mechanism in which the rate-limiting step involves a transformation of C–C bond rather than C–H bond. Our findings suggest an alternative strategy for enhancing the stability of MR-TADF molecules for OLED applications, such as introducing sterically demanding substituents to inhibit the cyclization step.

This research underscores the importance of managing electrochemical reactivity to ensure the high stability of MR-TADF molecules. Given the extensive body of existing research on the electrochemical behaviors of arylamine-based organic molecules⁵⁸, we anticipate that the insights gained from our study, combined with existing knowledge, will pave the way for the design and development of highly stable MR-TADF molecules for electroluminescence applications.

Methods

General procedures

Chemicals were purchased from commercial suppliers, and used without further purification. ¹H and ¹³C{¹H} NMR spectra were recorded on a Bruker AVANCE III HD 500 spectrometer and a Bruker AVANCE III 600 spectrometer, with CD₂Cl₂ as the solvent. Chemical shifts were referenced to the peaks corresponding to residual solvents. We examined the purity and mass spectra of materials by performing liquid chromatography-mass spectrometer-ion trap-time of flight (LCMS-IT-TOF) analyses. The LCMS-IT-TOF instrumentation consisted of a Shimadzu LC-30A Nexera SR System instrument connected to a hybrid IT-TOF mass spectrometer equipped with an ESI source. Compound 2 was prepared following the method of Kondo et al.¹². Compound 4 was prepared following the method of Han et al.³⁹. Organic materials for device fabrication were purchased from commercial suppliers and were purified by sublimation at 10⁻⁵ torr prior to deposition. PMMA (Mw ~120,000, Sigma−Aldrich) films doped with the MR-TADF dopants (2 wt%) were dissolved in 1,2-dichoroethane (5 wt% total solute relative to solution). The solution was sonicated for 30 min and passed through a membrane filter (pore size = 8.0 μm). An aliquot of the polymer solution was placed on a pre-cleaned glass substrate and was spin-cast using an EPLEX, SPIN‐1200D spin coater. Spectrophotometric-grade THF stored under an inert atmosphere was used for spectroscopic and electrochemical measurements.

Synthesis of 1

A tert-butyllithium solution (1.7 M in pentane, 8.50 mL, 14.5 mmol) was added dropwise to a stirred solution of N¹,N¹,N³,N³-tetra([1,1’-biphenyl]-4-yl)-2-chlorobenzene-1,3-diamine (5.19 g, 6.90 mmol) in tert-butylbenzene (70 mL) at 0 °C under a N₂ atmosphere. The resulting mixture was heated to 60 °C and stirred for an hour. The solution was cooled to −78 °C, and boron tribromide (1.40 mL, 14.5 mmol) was slowly added. The resultant mixture was stirred for 2 h at 0  °C. After additional stirring, diisopropylethylamine (2.40 mL, 13.8 mmol) was added to the reaction mixture at 0 °C, and then the reaction mixture was heated to 110 °C and stirred for 3 h. The resultant mixture was cooled to 0 °C and then carefully quenched with saturated aq. NaHCO₃ solution. Extraction was performed with dichloromethane; the collected organic layer was dried over MgSO₄, filtered, and concentrated in vacuo. The crude mixture was purified by column chromatography on silica gel. The obtained product was recrystallized from dichloromethane/hexane/methanol to give 1 as a yellow solid (2.24 g, 45%). ¹H NMR (500 MHz, CD₂Cl₂): δ 9.39 (d, J = 2.0 Hz, 2H), 7.97 (d, J = 8.5 Hz, 4H), 7.84 (d, J = 8.0 Hz, 4H), 7.77 (d, J = 8.0 Hz, 6H), 7.48−7.55 (m, 12H), 7.44 (t, J = 8.0 Hz, 2H), 7.36 (t, J = 7.5 Hz, 2H), 7.34 (t, J = 8.5 Hz, 1H), 7.00 (d, J = 9.0 Hz, 2H), 6.32 (d, J = 8.0 Hz, 2H). ¹³C{¹H} NMR (125 MHz, CD₂Cl₂): δ 147.16, 146.83, 141.62, 141.29, 141.16, 140.13, 133.32, 132.37, 132.22, 130.73, 129.80, 128.91, 127.83, 127.20, 126.77, 126.73, 117.75, 105.60. MS (ESI): m/z calculated for C₅₄H₃₈BN₂ [M + H]⁺: 725.312, Found: 725.302.

Synthesis of 3

The full synthetic details are described in Supplementary Method 1. A tert-butyllithium solution (1.7 M in pentane, 8.50 mL, 14.5 mmol) was added dropsie to a stirred solution of N⁵-([1,1’-biphenyl]-2-yl)-N¹,N¹,N³,N³,N⁵-penta([1,1’-biphenyl]-4-yl)-2-chlorobenzene-1,3,5-triamine (6.19 g, 5.78 mmol) in tert-butylbenzene (100 mL) at 0 °C under an N₂ atmosphere. The resultant mixture was heated to 60 °C and stirred for 2 h. The solution was then cooled to −78 °C, and boron tribromide (1.40 mL, 14.5 mmol) was slowly added. The resultant mixture was stirred for an hour at 0 °C. After additional stirring, diisopropylethylamine (2.50 mL, 14.3 mmol) was added to the reaction mixture at 0 °C, then the reaction mixture was heated to 110 °C and stirred for 3 h before being cooled to 0 °C and carefully quenched with saturated aq. NaHCO₃ solution. The crude product was then extracted with dichloromethane, and the collected organic layer was dried over MgSO₄, filtered, and concentrated in vacuo. The crude mixture was purified by column chromatography on silica gel. Then the obtained product was suspended in ethyl acetate. The suspension was heated to 80 °C and stirred for an hour. The insoluble solid was collected by filtration to give 3 as a yellow solid (1.8 g, 30%). ¹H NMR (600 MHz, CD₂Cl₂): δ 9.33 (d, J = 2.4 Hz, 2H), 7.82 (d, J = 8.4 Hz, 4H), 7.75 (d, J = 8.4 Hz, 4H), 7.71 (dd, J = 9.0 Hz, 2.4 Hz, 2H), 7.56 (d, J = 6.6 Hz, 4H), 7.50 (t, J = 8.0 Hz, 4H), 7.33–7.42 (m, 11H), 7.27–7.31 (m, 5H), 7.21–7.24 (m, 1H), 7.14–7.16 (m, 4H), 7.11–7.14 (m, 1H), 7.04–7.08 (m, 4H), 6.99 (dd, J = 7.8 Hz, 2H), 6.97 (d, J = 8.4 Hz, 2H), 6.79 (d, J = 8.4 Hz, 2H), 5.63 (s, 2H). MS (ESI): m/z calculated for C₇₈H₅₅BN₃ [M + H]⁺: 1044.448, Found: 1044.452.

Synthesis of 1D

The full synthetic details are described in Supplementary Method 2. A tert-butyllithium solution (1.7 M in pentane, 5.50 mL, 9.35 mmol) was added dropwise to a stirred solution of N¹,N¹,N³,N³-tetrakis([1,1’-biphenyl]-4-yl-d₉)-2-chlorobenzene-1,3-diamine (3.50 g, 4.45 mmol) in tert-butylbenzene (90 mL) at 0 °C under an N₂ atmosphere. The resultant mixture was heated to 60 °C and stirred for an hour. The solution was cooled to −78 °C and boron tribromide (0.90 mL, 9.34 mmol) was slowly added. The resultant mixture was stirred for 2 h at 0 °C. After additional stirring, diisopropylethylamine (1.60 mL, 9.15 mmol) was added to the reaction mixture at 0 °C; the mixture was then heated to 110 °C and stirred for 3 h. The resultant mixture was cooled to 0 °C and carefully quenched with saturated aq. NaHCO₃ solution. The crude product was then extracted with dichloromethane, and the collected organic layer was dried over MgSO₄, filtered, and concentrated in vacuo. The crude mixture was purified by column chromatography on silica gel. Then the obtained product was recrystallized from dichloromethane/hexane/methanol to give 1D as a yellow solid (0.800 g, 24%). ¹H NMR (500 MHz, CD₂Cl₂): δ 7.98 (s, 0.17H), 7.84 (s, 2.1H), 7.78 (s, 2.3H), 7.51–7.55 (m, 1H), 7.44 (s, 0.3H), 7.37 (s, 0.28H), 7.35 (t, J = 8.5 Hz, 1H), 6.99 (s, 0.4H), 6.32 (d, J = 8.5 Hz, 2H); deuterium is incorporated at ~80%. ¹³C{¹H} NMR (125 MHz, CD₂Cl₂): δ 147.11, 146.84, 141.17, 132.21, 127.07, 126.62, 105.56. MS (ESI): m/z calculated for C₅₄H₁₀D₂₇BN₂ [M-7D + 7H]⁺: 751.474, Found: 751.387.

Device fabrication and characterization

The organic layers were deposited consecutively onto pre-cleaned ITO glass substrates using a thermal evaporation system at a pressure less than 1.0 × 10 ⁻⁶ torr. A 1 nm-thick LiQ layer and a 100 nm-thick Al layer were deposited as a cathode via thermal evaporation. The deposition rates of the organic and metal layers were 0.1 and 0.5 nm s ⁻¹, respectively. LiQ was deposited at a rate of 0.01 nm s ⁻¹. The active device area of 4 mm² was defined by the area of overlap between the ITO and Al electrodes. The current, voltage, and luminance of the OLED devices were measured with a system comprising a Keithley 2400 Source-Meter and a Topcon SR-3AR spectroradiometer. Operational lifetime measurements of the devices were conducted in a constant-current mode. Current−voltage characteristics of single-carrier devices with the device structure introduced in Supplementary Fig. 10 were measured with a system consisting of a Keithley 2400 source-meter. On the basis of the lack of emission under the given voltage, we inferred that only hole transport occurred within the single-carrier devices.

Steady-state UV−Vis absorption measurements

UV−Vis absorption spectra were collected at 298 K using an Agilent Cary 300 spectrophotometer. Stock solutions with a concentration of 10 mM were prepared in THF. Sample solutions with a concentration of 10 μM in THF, which had been previously saturated with Ar, were prepared prior to the measurements by diluting the stock solution unless otherwise stated. A total of 3.0 mL of each solution was added to a quartz cell (Hellma, beam path length =  1.0 cm).

Steady-state photoluminescence measurements

Photoluminescence spectra were obtained at 298 K by using a Photon Technology International Quanta Master 400 scanning spectrofluorometer. Samples for the measurements were prepared as 10 μM solutions in THF, unless otherwise stated. The solutions were deaerated by bubbling Ar gas for at least 10 min before the measurement. All operations were controlled with the FelixGX software provided by the manufacturer.

Photoluminescence lifetime measurements

PMMA films doped with (quartz substrate) 2 wt% 1−4 were used for the determination of the photoluminescence lifetimes. Photoluminescence decay traces were acquired using time-correlated single-photon-counting techniques with a PicoQuant, FluoTime 200 instrument after picosecond pulsed laser excitation (pulse duration = 2.5 ns). A diode laser that produced 377 nm pulses (PicoQuant, LDH375) was driven by a PDL800-D driver (PicoQuant). Transient photon signals were collected at λ_obs = 471 nm (1), 467 nm (2), 461 nm (3), and 459 nm (4). The burst mode was used to monitor delayed fluorescence. The fluorescence signals at the emission peak wavelengths of the compounds were obtained with an automated motorized monochromator. Photoluminescence decay profiles were analyzed (OriginPro 8.0, OriginLab) using a biexponential decay model. Temperature-dependent measurements were conducted in the temperature range 79−315 K using an Oxford Instruments Omicron Nanoscience, Optistat DN2 variable-temperature liquid N₂ cryostat equipped with a MercuryiTC temperature controller.

Electrochemical characterization

Cyclic and differential pulse voltammetry experiments were conducted using a CH Instruments CHI630 B potentiostat in conjunction with a three-electrode cell assembly. A Pt wire and a glassy carbon disc were used as the counter and working electrodes, respectively. An Ag/AgNO₃ couple was used as the pseudo-reference electrode. Measurements were carried out in Ar-saturated THF (2.0 mL) with 0.10 M tetrabutylammonium hexafluorophosphate as the supporting electrolyte at scan rates of 100 mV s⁻¹ (cyclic voltammetry) and 4.0 mV s⁻¹ (differential pulse voltammetry). The ferrocenium/ferrocene couple was used as an external reference.

Spectroelectrochemical measurements

UV−Vis absorption spectra of the radical species were acquired via the amperometric I−t curve method using an Agilent Cary 300 spectrophotometer with anodic potentials applied. A blank spectrum was acquired for a 0.10 M tetrabutylammonium hexafluorophosphate solution (THF) in a spectroelectrochemical cell (path length = 0.5 mm) equipped with a Pt mesh working electrode, a Pt wire counter electrode, and an Ag/AgNO₃ pseudo-reference electrode. A 1.0 mM sample solution (500 μL) was delivered into the spectroelectrochemical cell for the measurement.

Photolysis

An Ar-saturated 25 mL THF solution containing 100 µM sample was placed in a 40 mL scintillation vial equipped with a Teflon-coated magnetic stir bar. The solution was photoirradiated using a monochromatic light source (450 nm) positioned 1 cm from the vial. Aliquots of the 100 µL reaction mixture were collected during the photolysis reaction and diluted with 50 µL of 1.0 mM of benzophenone in THF and 850 µL CH₃CN for quantification of the residual concentration of the components. High-performance liquid chromatography (HPLC) experiments were performed on an Agilent 6120 DW LC/MSD instrument equipped with a Poroshell, EC-C18 column. The photolyzed solutions, diluted in HPLC grade CH₃CN (1:4, v/v), were passed through a poly(vinylidene fluoride) (PVDF) membrane filter (pore size = 8.0 μm) prior to injection. A 5 μL sample volume was injected and allowed to pass through the column at room temperature; a gradient eluent with increasing fractions of CH₃CN in H₂O was used. The quantum yields for photolysis (Φ_deg) were determined according to Eq. (1):

$${\Phi }_{\mathrm{deg}}=\frac{k_{\mathrm{obs}}\times V}{\left(1-{10}^{-\mathrm{Abs}}\right)\times q}$$ 1

where k_obs represent the degradation rate corresponding to the slope of the linear fit of the initial five data points shown in Supplementary Fig. 6b, V is the volume of the solution (25 mL), 1−10^−Abs is the photokinetic factor based on the absorbance at a wavelength of 450 nm, and q is the photon flux (4.0 × 10⁻⁸ einstein s⁻¹) determined using standard ferrioxalate actinometry and additionally confirmed using an optical powermeter.

Oxidative bulk electrolysis

Oxidative bulk electrolysis experiments were conducted using 25 mL of Ar-saturated THF solutions containing 200 µM sample, along with 0.10 M tetrabutylammonium hexafluorophosphate, in a 40 mL scintillation vial equipped with a Teflon-coated magnetic stir bar. Oxidative bulk electrolysis was performed at potentials of 1.04 V vs SCE for 1 and 3, 1.01 V vs SCE for 2, and 0.98 V vs. SCE for 4. A Pt mesh and a Pt coil served as the working and counter electrodes, respectively. An Ag/AgNO₃ pseudo-reference electrode was used. Changes in the Faradaic charge transferred from the working electrode during oxidative bulk electrolysis were monitored. Aliquots of the 100 µL reaction mixture were collected during the electrolysis reaction and diluted with 50 µL of 1.0 mM benzophenone in THF and 850 µL CH₃CN for quantification of the residual concentration of the components. HPLC experiments were performed on an Agilent 6120 DW LC/MSD instrument equipped with a Poroshell, EC-C18 column. The electrolyzed solutions, diluted in HPLC grade CH₃CN (1:4, v/v), were passed through a PVDF membrane filter (pore size = 8.0 μm) prior to injection. A 5 μL sample volume was injected and allowed to pass through the column at room temperature; a gradient eluent with increasing fractions of CH₃CN in H₂O was used. The Faradaic yield for oxidative bulk electrolysis was determined following Eq. (2):

$$\mathrm{Faradaic\; yield}=\frac{k_{\mathrm{obs}}\times V\times t}{C\times F}$$ 2

where k_obs is the degradation rate corresponding to the slope of the linear fit of the initial five data points shown in Fig. 3b, V is the volume of the solution (25 mL), t is the reaction time, C is the total charge transferred at time t, and F is the Faraday constant.

Degradation product analyses

ESI mass analyses were performed under positive-ion detection mode (voltage = 70 V) in the range 200−1500 amu.

Determination of rate constants for ISC and rISC

The (r)ISC rate constants were analyzed based on Eqs. (3)−(6) developed by Ying et al.⁵⁹:

$$k_{\mathrm{r}}^{\mathrm{S}1}={\Phi }_{\mathrm{PF}}{k}_{\mathrm{PF}}+{\Phi }_{\mathrm{DF}}{k}_{\mathrm{DF}}$$ 3

$$k_{\mathrm{nr}}^{\mathrm{S}1}=\frac{1-{\Phi }_{\mathrm{total}}}{{\Phi }_{\mathrm{total}}}{k}_{\mathrm{r}}^{\mathrm{S}1}$$ 4

$$k_{\mathrm{rISC}}\approx \frac{\left({\Phi }_{\mathrm{PF}}+{\Phi }_{\mathrm{DF}}\right)k_{\mathrm{PF}}{k}_{\mathrm{DF}}}{{\Phi }_{\mathrm{PF}}{k}_{\mathrm{PF}}+{\Phi }_{\mathrm{DF}}{k}_{\mathrm{DF}}}=\frac{{\Phi }_{\mathrm{total}}{k}_{\mathrm{PF}}{k}_{\mathrm{DF}}}{k_{\mathrm{r}}^{\mathrm{S1}}}$$ 5

$$k_{\mathrm{ISC}}=\frac{{\Phi }_{\mathrm{PF}}{\Phi }_{\mathrm{DF}}{k}_{\mathrm{PF}}{k}_{\mathrm{DF}}{\left(k_{\mathrm{PF}}-k_{\mathrm{DF}}\right)}^2}{{\left({\Phi }_{\mathrm{PF}}{k}_{\mathrm{PF}}+{\Phi }_{\mathrm{DF}}{k}_{\mathrm{DF}}\right)}^2{k}_{\mathrm{rISC}}}\approx \frac{{\Phi }_{\mathrm{PF}}{\Phi }_{\mathrm{DF}}{\left(k_{\mathrm{PF}}-k_{\mathrm{DF}}\right)}^2}{k_{\mathrm{r}}^{\mathrm{S}1}{\Phi }_{\mathrm{total}}}$$ 6

In these equations, k_nr^S1 is the nonradiative decay rate of the S₁ state, k_PF is the rate for prompt fluorescence, k_DF is the rate for delayed fluorescence, k_ISC is the rate for intersystem crossing from the S₁ state to the T₁ state, k_rISC is the rate for reverse intersystem crossing, Φ_PF is the quantum yield for prompt fluorescence, Φ_DF is the quantum yield for delayed fluorescence, and Φ_total = Φ_PF + Φ_DF.

Quantum chemical calculation methods

All density functional theory (DFT)⁵⁸ calculations were performed with the Orca 4.2.0 suite of quantum chemistry programs⁵⁹. Geometries of intermediates and transition states were optimized with B3LYP^60,61 hybrid functional along with Grimme’s D3 dispersion⁶² correction (B3LYP-D3) using the Ahlrichs balanced basis sets of split valence quality, Def2-SVP⁶³. The RIJCOSX approximation^64,65 was employed to accelerate Coulomb integrals using the Def2/J auxiliary basis set⁶⁶. Single point calculations were carried out with the valence polarized triple-zeta (ζ) quality Ahlrichs basis set, Def2-TZVP⁶³, to obtain more reliable electronic energies of the optimized structures. To evaluate the zero-point energy (ZPE) and entropy correction, the frequency calculations were performed at the same level of theory used in the geometry optimization. In order to simulate the dielectric shielding effect within the emission layer in our OLED device, the dielectric constant of the HT host molecule, which is the major component of the emissive layer, was evaluated using Clausius–Mossotti relation⁶⁷, as follows:

$$\frac{\epsilon -1}{\epsilon +2}=\frac{4\pi \alpha }{3V}$$ 7

where α is the isotropic component of the molecular polarizability and V is the volume occupied by a single molecule. The polarizability was calculated as 70.3 ų, and the volume was obtained as 510 ų using Multiwfn software⁶⁸. Thus, the dielectric constant ε = 5.101 was obtained for the thin-film environment composed of HT host. Using the epsilon value, the solvation energies were calculated based on the conductor-like polarizable continuum model⁶⁹ on the gas-phase optimized structures, to consider the shielding effect. The solution-phase Gibbs free energies were computed as follows:

$$G\left(\mathrm{sol}\right)=G\left(\mathrm{gas}\right)+G\mathrm{solv}$$ 8

$$G\left(\mathrm{gas}\right)=H\left(\mathrm{gas}\right)-TS\left(\mathrm{gas}\right)$$ 9

$$H\left(\mathrm{gas}\right)=E\left(\mathrm{SCF}\right)+\mathrm{ZPE}$$ 10

$$\mathrm{\Delta }G\left(\mathrm{sol}\right)=\Sigma G\left(\mathrm{sol}\right)\mathrm{for}\mathrm{products}-\Sigma G\left(\mathrm{sol}\right)\mathrm{for}\mathrm{reactants}$$ 11

G(sol) is the solvation-corrected Gibbs free energy from gas phase free energy G(gas); H(gas) is the enthalpy in the gas phase; T is the temperature (298.15 K); S(gas) is the entropy in the gas phase; E(SCF) is the self-consistent field converged electronic energy; and ZPE is the vibrational zero-point energy. Note that entropy here refers specifically to the vibrational/rotational/translational entropy of the solute(s). The solvent entropies are implicitly included in the continuum model^60–62.
