Wind energy assessment and hybrid micro-grid optimization for selected regions of Saudi Arabia

Abdullahi Abubakar Mas’ud 1,, Ibrahim Seidu 2, Sani Salisu 2, Umar Musa 2, Hassan Z AlGarni 1, Mohit Bajaj 3,4,5,, Ievgen Zaitsev 6,7,
PMCID: PMC11711285  PMID: 39779835

Abstract

This study investigates the optimization of wind energy integration in hybrid micro grids (MGs) to address the rising demand for renewable energy, particularly in regions with limited wind potential. A comprehensive assessment of wind energy potential was conducted, and optimal sizing of standalone MGs incorporating photovoltaic (PV) systems, wind turbines (WT), and battery storage (BS) systems was performed for six regions in the Kingdom Saudi Arabia. Wind resource analysis utilizing the Weibull distribution function shows that all regions exhibited Class 1 wind energy characteristics, with average annual wind power densities ranging from 36.74 W/m² to 149.56 W/m², thereby rendering them suitable for small-scale hybrid applications. A multi-strategy serial cuckoo search algorithm was employed to evaluate three distinct configurations, and the results indicated that the integration of PV, WT, and BS yielded the most cost-effective solution for the majority of regions, achieving a levelized cost of energy of 0.148$/kWh and a loss of power supply probability below 0.05%. Notably, alternative configurations demonstrated superior reliability in locations such as Al-Baha, Taif, and Tabuk. The rseults of this study provide valuable insights into the design of scalable, sustainable, and cost-efficient hybrid MGs tailored to regions with low wind potential, thereby contributing to enhanced energy access and economic development in remote locations.

Keywords: Battery storage, Hybrid microgrid, Optimization, Photovoltaic systems, Renewable energy, Saudi Arabia, Wind energy, Weibull distribution

Subject terms: Applied mathematics, Mathematics and computing, Energy science and technology, Energy infrastructure, Renewable energy, Engineering, Electrical and electronic engineering

Introduction

Hybrid systems integrating solar and wind energy have become essential for off-grid electrification, driven by advancements in renewable energy (RE) technologies. The reliance on fossil fuels has severe environmental impacts due to greenhouse gas (GHG) emissions1. Rapid industrialization and population growth have heightened energy demand, depleting finite fossil fuel resources and making renewable energy sources (RESs) increasingly attractive as sustainable alternatives2. A country’s industrial growth depends on balancing energy production and consumption, with RESs playing a vital role due to the decline in non-renewable resources3.

In 2011, Saudi Arabia established the King Abdullah City for Atomic and RE (K. A. CARE) to develop a strategic energy supply plan, targeting 16 GWp of photovoltaic (PV) panel capacity by 20324. Saudi Arabia, spanning about 2.2 million km², includes many remote villages not connected to the power grid and reliant on diesel generators (DG). DGs, however, incur high maintenance and operational costs. Solar and wind generators, combined with DGs or energy storage systems (ESS), offer cost-effective and sustainable alternatives5. AlQadah et al.6. used the Weibull Distribution Function (WDF) to assess wind energy potential in Medina, demonstrating its feasibility with the Aventa AV-7 Wind Turbine (WT). Similarly, Alanazi et al.7evaluated Weibull parameter estimation methods to assess wind energy in Saudi Arabia’s Qassim region, finding the Moment Method most accurate for small off-grid projects. Eltamaly and Farh8developed software to select optimal WTs by maximizing capacity factor and minimizing energy costs, applying it to five Saudi locations. The program estimated Weibull parameters and identified the best cost estimation methods for the region’s economic conditions. Globally, renewable resources, being naturally replenished and environmentally friendly, are replacing conventional energy sources9. A separate study focused on stand-alone hybrid renewable energy (HRE) systems aimed at improving reliability and reducing total annual costs (TAC). Wind farm planning relies on accurate wind potential estimates, with the Weibull function commonly used to model wind data and evaluate energy capacity10. By estimating wind potential effectively, reliable wind farm planning can be achieved, contributing to sustainable energy solutions in six Saudi Arabian regions. Estimating wind capacity requires understanding wind characteristics comprehensively1113.

Researchers worldwide have modeled wind speeds using mathematical formulas and statistical distributions like the Weibull function, a two-parameter model widely adopted for fitting wind data14. From 2006 to 2008, Islam et al.15. estimated wind energy potential in Malaysia’s Kudat and Labuan regions using the Weibull model. In 2008, Kudat recorded wind energy of 590.40 kWh/m²/year, with peak wind speeds of 6.02 m/s, while Labuan’s peak was 2.44 m/s in 2007. Analyzing ten years of wind data from ten Malaysian stations, Sopian et al.16 found Mersing had the highest wind energy density of 85.61 W/m² at 10 m. In Saudi Arabia, Baseer et al.17. analysed five years of wind data from seven locations, finding the Maximum Likelihood Method most effective for Weibull parameter estimation. Deb et al.69 conducted a comprehensive review on local energy systems, focusing on modeling, tools, and pilot projects. Udo et al.70 explored the optimization of wind energy systems using machine learning to enhance predictive maintenance and efficiency.

Integrating RE resources into microgrids (MGs) requires optimal design to balance regulation and energy efficiency. Techniques and algorithms have been employed to optimize micro-source (MS) sizes for cost and reliability goals, such as reducing Loss of Power Supply Probability (LPSP)18. To address energy and emission constraints19, implemented Evolution Strategy, while Wang et al.20. proposed a Cooperative Operation and Optimal Design method for Islanded MGs, achieving low Net Present Costs (NPC). Nelson et al.21. developed an economic assessment method for sizing hybrid wind, PV, and fuel cell MGs, and Kimball et al.22. proposed a technique to configure PV and battery sizes to meet availability targets23. proposed modified simulated annealing and harmony search algorithms to optimally size off-grid hybrid systems integrating wind, solar, hydrogen, and battery storage for a remote area in Iran. The study found wind/solar systems with battery storage (BS) to be more cost-effective and reliable than those using hydrogen storage (HS).

24developed six grid-independent HRES combining solar, wind, reverse osmosis desalination (ROD), and battery or HS, optimized using an improved bees algorithm. The study concluded that systems with BS are more cost-effective than those using HS, with solar/battery/ROD configurations being the most economical25. presented a novel harmony search-based algorithm for optimizing solar/wind hybrid systems with HS, aiming to minimize total cost while ensuring system reliability. The improved harmony search with a weighting factor (IHS-W) outperformed other algorithms, achieving cost savings of up to 30%at varying reliability indices (1%, 2%, and 3%), demonstrating its effectiveness in cost reduction, convergence speed, and robustness26. designed and optimized four stand-alone hybrid desalination plants powered by PV, WT, DGs, and energy storage, focusing on cost, environmental impact, and reliability. Using a hybrid meta-heuristic optimization method, the study demonstrated that a solar/battery/DG system achieves the most cost-effective and environmentally friendly solution for potable water and electricity supply in remote areas27. optimized a stand-alone PV/BS using an improved harmony search algorithm to minimize the total life cycle cost (TLCC) while ensuring system reliability based on the loss of load probability (LOLP). The study revealed that increasing the reliability index reduces the number of panels and batteries significantly, while decreasing the reliability index leads to higher TLCC and system component costs28. optimized a HRESs with PV, wind, batteries, and desalination using six algorithms, identifying particle swarm optimization (PSO) and Multi objective PSO (MOPSO) as the best for single and multi-objective optimization, respectively. Sensitivity analysis showed solar panel prices significantly affect the system’s TAC29. designed an optimized off-grid hybrid system combining WTs, PV panels, a biogas generator, and ESS to minimize costs, CO₂ emissions, and improve reliability for a rural area in Iran. Results showed the hybrid system achieved a cost of $0.201/kWh and reduced annual CO₂ emissions by 97% compared to a diesel-based system.

However, most studies relied on region-specific weather data, limiting broader applicability.

Existing research on RESs and hybrid MGs often neglects areas with low wind energy potential (Class 1 regions, power densities below 200 W/m²). Most studies focus either on cost or reliability, seldom addressing both through multi-objective optimization in low-potential regions. While the Weibull distribution remains a standard for wind energy evaluation, advanced optimization techniques tailored to low-potential areas are lacking. Additionally, the role of ESS in improving system reliability under such conditions is underexplored, leaving gaps in achieving cost-effective and dependable RE solutions for tropical, remote, or off-grid locations.

This study makes several key contributions to RE optimization, focusing on regions with low wind energy potential. It employs a multi-strategy serial cuckoo search (MSSCS) algorithm to optimize hybrid MG designs with WTs, PV, and BS. The study targets six Class 1 wind regions in Saudi Arabia—Abha, Al-Baha, Arar, Qassim, Tabuk, and Taif—traditionally considered unsuitable for large-scale wind energy. By using the Weibull distribution function for wind energy evaluation, the research highlights opportunities for integrating small-scale wind energy into hybrid systems.

A major contribution of this research is its dual focus on cost-effectiveness and reliability in hybrid MG designs, often overlooked in prior studies. By analyzing three MG configurations (integrating PV, WTs, and BS), the study identifies optimal solutions for each region, minimizing LPSP and Levelized Cost of Energy (LCOE). The results demonstrate that small-scale wind energy, combined with solar power and batteries, can offer viable solutions in low-potential areas.

This study provides a robust optimization framework adaptable to regions with similar climatic challenges, advancing global RE development. By addressing the challenges of RES planning in underutilized regions, it offers sustainable, dependable, and cost-effective energy solutions for off-grid and remote locations.

The remainder of this paper is structured as follows: Sect. 2 details wind energy evaluation techniques, emphasizing the Weibull distribution function for estimating wind energy potential in Saudi Arabia. Section 3 describes the methodology for hybrid MG optimization, including the MSSCS algorithm and system configuration. Section 4 presents simulation results, comparing three MG configurations in terms of cost, and reliability. Section 5 discusses incorporating small-scale wind energy into hybrid systems based on regional wind energy potential. Section 6 concludes with key findings, limitations, and future research directions.

Wind energy assessment

This section evaluates wind energy to determine the potential capacity of the location. The wind energy evaluation was performed using the WDF for its straightforwardness and precision30,31.

Weibull distribution

The Weibull function is an empirical model used to characterize wind velocity at a specific location. It is widely utilized, along with the Rayleigh distribution, to model wind speed distributions over a defined area and time period. Among these, the Weibull distribution provides the best fit for wind data, making it the focus of this study32,33. The cumulative distribution function (CDF) and probability density function (PDF) of the Weibull distribution, expressed in terms of wind velocity v, are as follows4:

graphic file with name M1.gif 1
graphic file with name M2.gif 2
graphic file with name M3.gif 3
graphic file with name M4.gif 4

where Inline graphicrepresents the pdf for observing wind velocity (Inline graphic), Inline graphic is the scale parameter of the Weibull distribution (m/s), Inline graphic denotes the dimensionless shape parameter of the Weibull distribution and Inline graphic stands for the CDF of observing Inline graphic. Several methods exist for determining k and c.

Weibull k and c parameters

In this study, the maximum likelihood technique is employed to determine the k and c parameters of the Weibull distribution. The mathematical expressions for this method are well-documented in the literature34. Although both graphical and approximated methods are commonly discussed, this work adopts the approximated method exclusively due to its higher accuracy in predicting wind power and wind speed35.

graphic file with name M11.gif 5
graphic file with name M12.gif 6

Graphical method

As stated in3, by applying the natural logarithm twice to both sides of Eq. (2), the equation can be linearized, yielding:

graphic file with name M13.gif 7

A plot of Inline graphic against ln(v) produces a straight line, with a slope of k and a y-intercept of Inline graphic. The values of c and k can be determined using the least squares method, as illustrated in Eq. (8)1.

graphic file with name M16.gif 8

Where,

graphic file with name M17.gif 9

Inline graphic. The values of Inline graphic and Inline graphic can be determined using Eqs. (10) and (11):

graphic file with name M21.gif 10

Approximated technique

The parameters k and cof the Weibull distribution are given in36 as:

graphic file with name M22.gif 11
graphic file with name M23.gif 12

Here, Inline graphic represents the standard deviation, Inline graphic denotes the mean wind speed (m/s), and Inline graphic is the gamma function of Inline graphic. These parameters are described in3:

graphic file with name M28.gif 13
graphic file with name M29.gif 14
graphic file with name M30.gif 15

From Eq. (11), c and k are related according to3.

Inline graphic (16)

Error analysis

To evaluate the suitability of the Weibull function as a model for the observed wind data, goodness-of-fit tests were performed. These tests include the Root Mean Square Error (RMSE) and the Coefficient of Determination (R²), which are briefly summarized below. The RMSE measures the difference between the values predicted by the fitted model and the actual observed values, as expressed in3:

graphic file with name M32.gif 15

The R² test assesses the percentage of variance in the dependent variable that can be explained by the independent variable. The calculation for the R² error metric is presented below as follows3.

graphic file with name M33.gif 16

Where n denote the data points number, Inline graphic represents the predicted data value of Inline graphic and Inline graphic is average wind speed. The R² value varies from 0 to 1; a low R² signifies a weak prediction, whereas a high R² indicates a stronger prediction, which is the reverse for RMSE. A value close to 0 indicates a better fitness value while a high value indicates poor fitness.

Wind power generation system

To accurately estimate wind energy potential, the site data is modeled using a continuous distribution function. The Weibull distribution is utilized for this purpose and is subsequently integrated with the WT power curve37. The actual wind energy is calculated by integrating the data across the turbine’s power curve. The primary power output of the WT is determined by its characteristic curve, expressed as37:

graphic file with name M37.gif 17

Here, P represents the mathematical function that defines the Wt’s performance curve. In this case, a cubic polynomial is utilized to model the characteristic curve of the selected WT. The resulting performance curve for the turbine is described by Eq. (18) as follows3739:

graphic file with name M38.gif 18

and Inline graphicis the rated power given as in33,34:

graphic file with name M40.gif 19

Here, A represents the intercepted area of the turbine rotor, Inline graphic is the rated wind speed, and Inline graphic and Inline graphic are the cut-in and cut-out wind speeds of the selected turbine. The wind energy is calculated by multiplying Inline graphic​ with the modified wind speed probability distribution function Inline graphic using the equations provided below:

graphic file with name M46.gif 20

And

graphic file with name M47.gif 21

Where, Inline graphic is the wind energy obtained using the WDF.

Wind data employed for the analysis

Wind data spanning 11 years (2012–2022) were collected for the regions of Abha, Al-Baha, Arar, Qassim, Tabuk, and Taif in Saudi Arabia from meteorological stations operated by the Saudi Arabia Meteorological Agency. The measurements were taken at a height of 10 m, with the geographical coordinates provided in Table 1. The data, recorded hourly, facilitated the calculation of monthly wind speeds and related parameters, as shown in Fig. 1.

Table 1.

Geographical coordinates of the chosen Saudi locations.

Locations Latitude (Inline graphic) Longitude (Inline graphic) Station height in metres

Abha

Al_baha

Arar

Qassim

Tabuk

Taif

Inline graphic

Inline graphic

Inline graphic

Inline graphic

Inline graphic

Inline graphic

Inline graphic

Inline graphic

Inline graphic

Inline graphic

Inline graphic

Inline graphic

10

10

10

10

10

10

Fig. 1.

Fig. 1

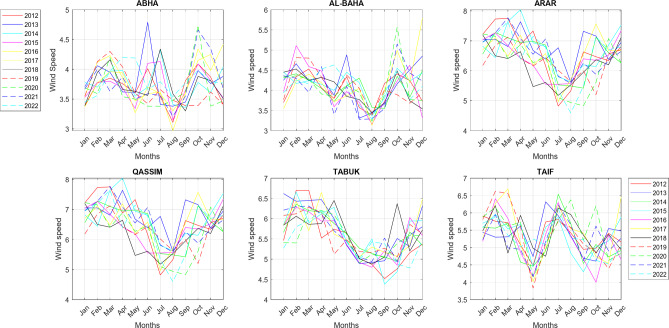

Wind speed details of the 6 selected region.

Table 1 provides the geographical coordinates (latitude and longitude) and station height (10 m) for six selected cities in Saudi Arabia. The cities include Abha, Al-Baha, Arar, Qassim, Tabuk, and Taif. The latitudes range from 18.13°N (Abha) to 30.58°N (Arar), while the longitudes range from 36.34°E (Tabuk) to 43.48°E (Qassim). All stations are situated at a height of 10 m above sea level. This data is essential for analyzing regional characteristics related to climate, weather patterns, and RE potential across the locations.

Figure 1 illustrates the wind speed distribution across six regions in Saudi Arabia: Abha, Al-Baha, Arar, Qassim, Tabuk, and Taif. It highlights regional variations in wind speed, which are crucial for evaluating wind energy potential and determining the feasibility of integrating WTs into HRES. This spatial context underscores the need for location-specific designs to optimize energy generation.

The table provides an overview of the wind characteristics at six locations in Saudi Arabia, including the average wind speed, average power density, and the classification of the energy potential. The average wind speed varies across the locations, with Qassim experiencing the highest at 5.9991 m/s, followed by Tabuk at 5.6082 m/s and Arar at 5.4564 m/s. The lowest wind speed is observed in Abha at 3.7573 m/s. Power density, which reflects the amount of energy available per square meter, follows a similar pattern, with Qassim again showing the highest value at 149.5598 W/m², followed by Tabuk (122.1869 W/m²) and Arar (112.53 W/m²). All sites fall within Class 1 wind energy, indicating relatively low wind potential. While this class is not ideal for large-scale WT installations, these locations could support smaller, stand-alone systems, such as for local energy needs, battery charging, or hybrid energy setups that integrate wind, solar, and other energy sources.

Optimal sizing of hybrid micro-grid (MG) system

Optimal sizing of the HRES was carried out in this section to determine the best configuration for the site, considering both cost and reliability. The proposed system model integrates two RESs, namely PV and WTs. The system architecture is depicted in Fig. 2.

Fig. 2.

Fig. 2

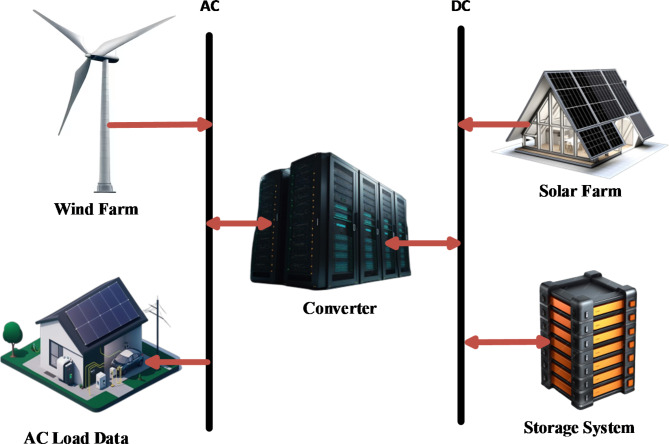

Proposed Micro-Grid.

Due to the intermittent and variable nature of RESs, their power output often exhibits irregular and unpredictable patterns. To mitigate these fluctuations, the system incorporates an ESS comprising batteries organized in a bank. The energy produced by the RESs can result in three possible scenarios, as outlined below.

  • The RESs generate enough energy to satisfy the energy demand, fulfilling the required energy needs. In this scenario, there is no surplus energy available for storage.

  • The RESs generate more energy than what consumers require. The surplus energy produced by the RESs is stored in the battery bank.

  • The production from the RESs was inadequate to satisfy consumer demand. As a result, the energy needs of consumers cannot be fully met by the RESs alone due to this shortfall. The ESS is utilized to supplement the output of the RESs to fulfil the energy requirements.

Modelling and system formulation

This section outlines the modeling of the key components of the MG, including PV, WTs, total power generation, consumer energy requirements, energy storage, and system reliability. The proposed system configuration is shown in Fig. 2.

PV system modelling

The production of PV power is influenced by solar irradiation (I) and temperature (T), as represented in Eq. (1)41 as:

graphic file with name M117.gif 22

In this context, Inline graphicrepresents the total power output from PV systems operating at their rated power, Inline graphic The solar irradiation I is normalized toInline graphic​, which corresponds to the standard irradiation level of 1 kW/m². The temperature coefficient for PV systems, Inline graphic, is set to 3.7 × 10⁻³ °/C, for both monocrystalline and polycrystalline silicon. Inline graphic denotes the reference temperature for PV cells under standard conditions, typically set at 25 °C. Inline graphic is determined as follows:

graphic file with name M124.gif 23

Where Inline graphic and Inline graphic denotes the ambient temperature and the operating cell temperature, respectively. Inline graphic is specified by PV manufacturer standards. For multiple PVs, denoted by Inline graphic, the total generated power Inline graphicis represented in EQ (22) as in34.

graphic file with name M130.gif 24

Figure 2 depicts the proposed MG, integrating PV, WTs, and BS. This hybrid system is designed to ensure reliable and cost-effective energy supply for remote regions by optimizing resource utilization and storage.

Wind turbine system modelling

The power generated by WTs is primarily influenced by wind speed. To enhance efficiency, WTs are typically installed at significant heights on towers. The power output of a single WT can be calculated using Eq. (17), while the total power generated by multiple WTs is determined by Eq. (25).

graphic file with name M131.gif 25

Battery bank modelling

The storage system acts as an ESS to stabilize fluctuations in RES production, storing surplus power when the RES output exceeds user demand. The calculation for storing charge in the battery bank follows the approach outlined in40 and is presented below:

graphic file with name M132.gif

Inline graphic (26)

The energy stored in the ESS is represented as Inline graphic and Inline graphic at time 𝑡 and 𝑡−1, respectively. Similarly, Inline graphic denotes the self-discharge condition, and Inline graphic represents the efficiency of the storage bank.

When the power output Inline graphic falls below Inline graphic, the ESS is activated to compensate for the energy deficit and meet the consumers’ load demands. At this point, the battery bank enters discharge mode. Assuming 100% discharging efficiency and neglecting temperature effects, the current status of the ESS is modeled as follows57.

graphic file with name M140.gif

Inline graphic (27)

Battery bank formulation

The number of batteries, denoted as Inline graphic, is a crucial decision variable in hybrid RESs comprising PV, WT, and batteries, as it determines the total count required in the battery bank. The value of Inline graphic can be determined by considering both the energy demand and the energy output from the RESs. If the energy produced by the RESs exceeds the consumers’ energy requirements at time (t), the excess power is stored in the battery bank, as indicated by Eq. (41). If the energy generation from RESs falls below the energy demand, then Eq. (47) is used for energy storage.

Total power production from PVs and WTs

The total power produced by WTs and PVs is modelled below:

graphic file with name M144.gif 28

where Inline graphic represents the inverter’s efficiency.

Resource allocation

This section covers the input resources that formed the MG analysis:

Estimated load data

Given the abundance of RES in Saudi Arabia, the government should explore these options as alternative energy solutions for the region. The projected energy demand is for approximately 127 households, serving a total population of 536 in the designated areas. The average household size is four individuals, many of whom have limited or no access to electricity. The primary occupations of the residents include agriculture, small businesses, and poultry and cattle farming. In these households, electricity is mainly used for energy-efficient lighting, fans, and charging mobile phones. Figure 3illustrates the hourly load demand, as referenced in61. The total power consumption is estimated to be 7,620 kWh per day, with an annual peak load projected at 754 kW. Accurately estimating the total electrical demand is essential for effective system design.

Fig. 3.

Fig. 3

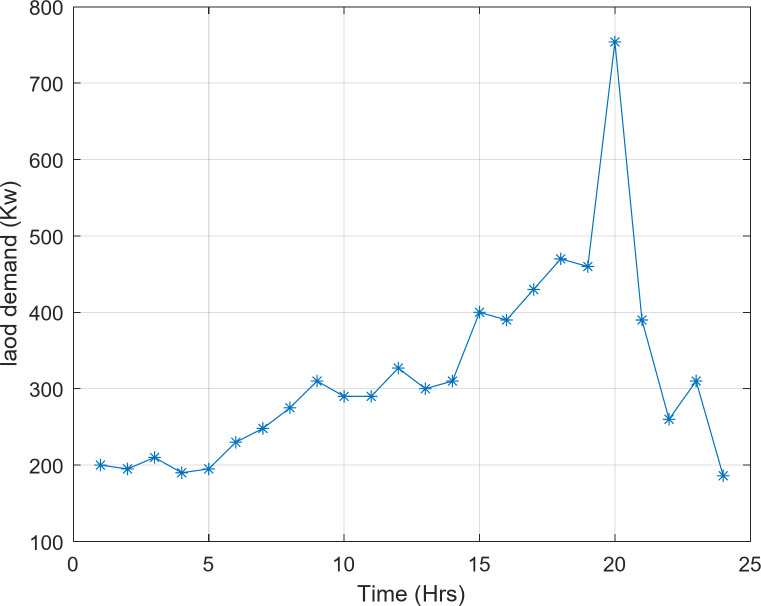

24 h Load demand profile.

Figure 3 shows the 24-hour load demand profile, illustrating daily variations in electricity consumption, which helps in optimizing the MG’s capacity and configuration.

Solar and wind energy resources

Data on solar radiation intensity over a horizontal surface, average temperature, and wind speeds for the year 2022, which were used for optimal sizing, were obtained from NASA. Figures 3, 4 and 5 present the detailed potential of temperature, wind speed, and solar irradiance for the six selected sites. Figure 6 illustrates solar irradiance levels across the six selected locations, with maximum values recorded in 2022, providing critical input for optimal sizing of renewable energy systems.

Fig. 4.

Fig. 4

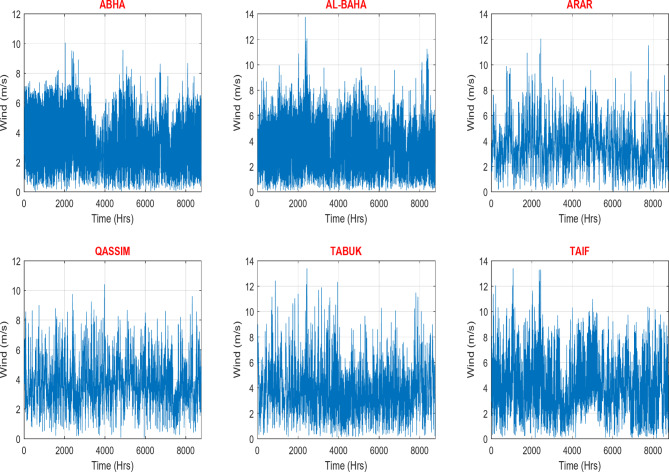

Wind speed data.

Fig. 5.

Fig. 5

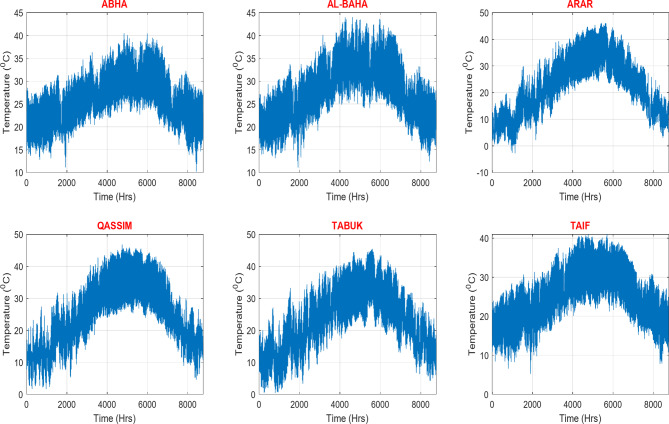

Temperature variation across all cities.

Fig. 6.

Fig. 6

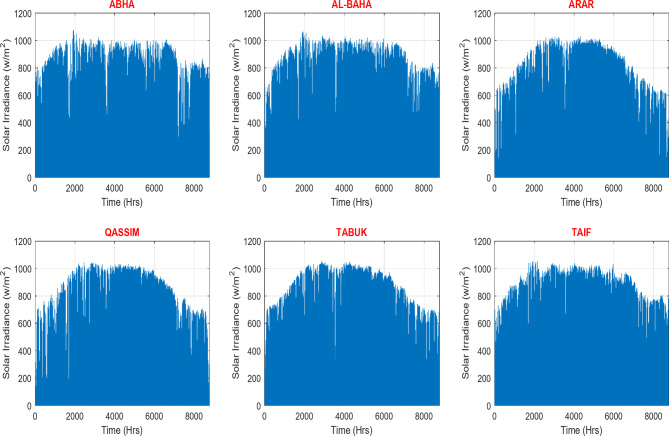

Solar Irradiance across the 6 locations.

Figure 4 shows the wind speed data, indicating peak values of 10.8 m/s, 13.8 m/s, 12.1 m/s, 10.2 m/s, 13.7 m/s, and 13.7 m/s for Abha, Al-Baha, Arar, Qassim, Tabuk, and Taif, respectively, suggesting reasonable wind speeds for the year 2022.

The temperature values obtained for these sites indicated maximum values of 41.2, 44, 45, 45, 45, and 41 °C for the year 2022 in Abha, Al-Baha, Arar, Qassim, Tabuk, and Taif, respectively.

The solar irradiance values obtained for these sites indicated maximum values of 1080, 1060, 1010, 1015, 1020, and 1080 W/m² for the year 2022 for Abha, Al-Baha, Arar, Qassim, Tabuk, and Taif, respectively.

System’s reliability

In an off-grid system, maintaining reliability is a crucial factor that must be addressed. To ensure a dependable HRES, this paper incorporates the concept of LPSP. The LPSP value ranges from 0 to 1, where 0 signifies the system’s consistent ability to meet consumers’ load demands. Conversely, an LPSP value of 1 indicates that the system is unreliable and cannot fulfil the energy requirements. Equation (29) outlines the LPSP over the course of a year, as explained in50.

graphic file with name M146.gif 29
graphic file with name M147.gif 30

In this context, LOPS(t) refers to the loss of power supply, which happens when the energy generated by the HRES falls short of the demand at time t. The definition of LOPS is provided by Eq. (14), as explained in62.

System cost analysis

The economic analysis plays a critical role in optimizing integrated HRES. When designing RES, it is essential to prioritize efficiency and cost-effectiveness. Various techniques have been employed to calculate system costs. In this study, the LCOE is applied. It is determined by dividing the total cost of the system by the total energy generated by the system63.

graphic file with name M148.gif 31

System constraints

The charging level of the ESS at any given time, denoted as Inline graphic, is governed by the system’s maximum and minimum storage capacity limits. These constraints are outlined in detail below3.

graphic file with name M150.gif 31

Here, Inline graphic and Inline graphic represent the battery bank’s maximum and minimum energy storage levels, respectively. The peak storage level, Inline graphic, is equivalent to the nominal capacity of the battery bank, Inline graphic. Conversely, the minimum storage level, Inline graphic, can be determined using the formula given below, as shown in3.

graphic file with name M156.gif 32

where Inline graphic represents depth of discharge. Constraints on the minimum and maximum numbers of PVs, WTs, and batteries are taken into account as shown as follows:

graphic file with name M158.gif
graphic file with name M159.gif
graphic file with name M160.gif

Proposed methodology

This section presents the MSSCS algorithm, which aims to address the issue of optimal unit sizing in this research. The Cuckoo Search (CS) algorithm, developed by Yang and Deb, is modeled after the brood parasitism behaviors observed in specific cuckoo species62. It integrates inclined random walk, greedy selection, and Lévy flight to explore the global optimum. The long leaps enabled by Lévy flight allow for a broader search solution area. The CS has proven effective, outperforming PSO and Genetic Algorithms (GA) due to its straightforward approach and few control parameters62.

However, CS’s reliance on one search strategy may lead to a lack of diversity in the search space when addressing complex optimization problems, potentially causing the algorithm to easily converge to local minima. The MSSCS has proven effective in global optimization problems due to its hybridization of exploration and exploitation mechanisms. The development of cuckoo offspring is significantly influenced by both the process and the environment in which they live64. To improve the performance of the proposed algorithm, three new learning strategies inspired by specific cuckoo behaviors have been integrated: single-dimension, saltation, and Gaussian walk learning (GWL)64.

To address the growing complexity of choosing suitable strategies for the multi-strategy algorithm, a multi-strategy serial framework has been introduced, drawing on the three sequential behaviors observed in a cuckoo’s development. This framework includes a serial strategy pool (SSP) comprising the three learning strategies59. If the prerequisites for utilizing the SSP are met, it will be selected for solution updates; otherwise, a Lévy flight with strong global search performance will be employed. During the initial stages of the algorithm’s search phase, the Single-Dimension Learning (SDL) strategy will be selected from the SSP. This selection aims to prevent premature convergence and identify a promising solution, establishing a strong basis for optimization in the later stages of the algorithm65.

MSSCS details

The sequential behaviours proposed aim to enhance the efficiency of individual learning strategies and streamline the multi-strategy algorithm61.

  1. Saltation Learning (SL).

The choice of a host nest is critical for the survival of the cuckoo, with female cuckoos using high branches to monitor host birds and lay eggs undetected. In the algorithm, the initial search utilizes the SL strategy, which prioritizes global search over local search to hasten convergence and prevent premature convergence66. This strategy involves updating only one dimension around a random dimension of the optimal individual in each generation, ensuring good convergence performance and reducing premature convergence. The SL approach is detailed in55.

graphic file with name M161.gif 33

The worst and best solutions from the tth generation are represented by Inline graphic and Inline graphic respectively. Here, n, j, and m are randomly chosen integers from the range [1, D], where D represents the problem’s dimension. The population scale is denoted by [1, N], and is an integer randomly chosen from N.

  • (b)

    Gaussian walk learning (GWL).

After the cuckoo successfully lays its eggs, the hatchling quickly ejects the host’s eggs from the nest. This behavior enhances the nestling cuckoo’s access to the host bird’s food, increasing its chances of survival61. To balance exploitation and exploration during the algorithm’s intermediate search phase, the GWL strategy is introduced, inspired by the eviction behavior of nestling cuckoos. Unlike the SDL strategy, which modifies only one dimension of the solution in each generation, GWL updates the entire solution and can be explained as follows66.

graphic file with name M164.gif 34
graphic file with name M165.gif 35

The current iteration count is represented as t, and the peak iteration count is represented as Inline graphic. Two random numbers, Inline graphic and Inline graphic (Inline graphic), are selected from a uniform distribution with ɛ ranging between 0 and 1. It follows a Gaussian distribution with SD representing the standard deviation and Inline graphic as the expectation, as detailed in Eq. (35) above. The value of c always falls within the range of 0 to 1. The term Inline graphic is intended to regulate the step size of GWL, while the term (Inline graphic) is employed to adjust the search direction of GWL.

  • (c)

    Single Dimension Learning (SDL).

Once the nestling eviction phase is complete, a young cuckoo loudly calls for attention from its host parents. As the host bird approaches, the young cuckoo intensifies both the volume and duration of its calls, thereby increasing its chances of being fed and, consequently, its survival64. The SDL strategy was integrated into the algorithm’s later search phase to accelerate convergence and guide the solution closer to the optimal outcome. This approach was inspired by the begging behavior of young cuckoos67. In SDL, a single dimension is randomly altered for each individual in every generation, with the update information originating from that same dimension. This behavior, which focuses on a single dimension, reduces inter-dimensional correlation and enhances the algorithm’s ability to conduct local searches, thus improving the convergence rate towards the end of the search. SDL is described in59.

graphic file with name M173.gif 36

Here, a is an integer randomly selected from the range [1, N], where N indicates the population size, and jis randomly picked from the set58. The random number a is uniformly distributed within the range of [−1, 1], allowing the algorithm to perform bidirectional searches and improve its local search abilities.

  • (d)

    Multi-strategy serial structure.

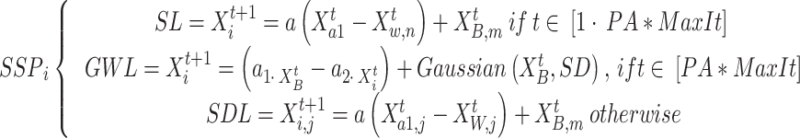

A multi-strategy serial framework is proposed, inspired by the three sequential behaviors observed during the cuckoo’s growth process. This framework aims to streamline the algorithm and enhance the effectiveness of each learning method. Within this structure, a switching parameter (SP) is introduced, allowing users to decide whether to utilize an approach from the SSP. Each strategy is defined in59.

graphic file with name M174.gif 37

The strategy in the SSP is denoted by I∈13 where t and MaxIt represent the current and maximum number of iterations, respectively, and PA denotes the probability. The SP is used to count the number of unimproved solutions. If SP exceeds the threshold T, the algorithm adjusts the solution using a strategy from the SSP. Otherwise, the algorithm applies Lévy flight, known for its robust global search capabilities, to continuously update the solution for L iterations.

  • (e)

    Parameter Dynamic turning (PDT).

The count of unimproved solutions must be equal to or greater than T, which represents the minimum threshold for employing the SSP. The PDT governs the use of SSP and Lévy flights, influencing the algorithm’s balance between exploration and exploitation. Additionally, T is related to the population size N, as detailed in68.

graphic file with name M175.gif 38

The parameter PA, which compute the proportion of each learning approach in the SSP, is modified according to68.

graphic file with name M176.gif 39

Where Inline graphic and Inline graphicrepresent the maximum and minimum values of PA, respectively, and D signifies the dimension of the problem.

Results

This section introduces and examines the wind energy assessment results, as well as the optimal sizing for the six selected locations.

Wind energy assessment

This section presents the annual and monthly wind speed features for the six regions considered.

Annual mean wind speed

Tables 2, 3, 4, 5, 6, 7 and 8 present the monthly wind characteristics for Abha, Al-Baha, Arar, Qassim, Tabuk, and Taif at a height of 10 m. The data shows that Abha has the lowest average annual wind speed in August at 2.97 m/s, while Qassim records the highest wind speed in February at 7.23 m/s. In March, Qassim experiences the lowest monthly wind speed that yields maximum energy at 6.5664 m/s, with the most frequent wind speed at 6.8 m/s. Abha’s maximum and minimum wind speeds occur in October at 4.74 m/s and August at 2.97 m/s, respectively, corresponding to the highest and lowest energy. Tabuk’s wind speeds range from 4.38 m/s in September to 6.7 m/s in February and March, with corresponding maximum and minimum energy. In Taif, the wind speed reaches a minimum of 4.00 m/s in October and peaks at 6.69 m/s in March. Overall, Qassim exhibits the most favorable wind speeds based on the data.

Table 2.

Monthly fluctuations in wind characteristics for Abha.

Month Inline graphic
(m/s)
Inline graphic
(m/s)
Inline graphic
(m/s)
Inline graphic
Inline graphic
k Inline graphic
Inline graphic
RMSE Inline graphic
Jan. 3.37 3.78 3.5518 3.6186 28.2133 31.0392 0.0112560 0.96482
Feb. 3.56 4.13 3.8573 3.9501 22.5246 39.7557 0.0048369 1.00280
Mar. 3.63 4.30 4.0018 4.0932 23.5754 44.3946 0.0041724 1.02910
Apr. 3.54 4.20 3.8327 3.9253 20.8407 39.0016 0.0034058 1.02610
May 3.27 4.19 3.5691 3.6848 13.0616 31.4943 0.0163640 0.89078
Jun. 3.38 4.79 3.7727 3.9593 8.5459 37.1984 0.0121170 0.95237
Jul. 3.38 4.34 3.7582 3.9177 11.2976 36.7698 0.0041098 0.99021
Aug. 2.97 3.59 3.3291 3.4152 21.7266 25.5585 0.0103180 0.97765
Sept. 3.30 3.81 3.5545 3.6293 25.2032 31.1108 0.0045240 1.02730
Oct. 3.39 4.74 4.0982 4.2671 11.9212 47.6795 0.0043259 0.99674

Nov.

Dec.

3.38

3.41

4.35

4.42

3.8391

3.7082

3.9668

3.8541

14.5472

11.3735

39.1962

35.3217

0.0069390

0.0028345

0.98670

0.99285

Table 3.

Monthly fluctuations in wind characteristics for Al Baha.

Month Inline graphic
(m/s)
Inline graphic
(m/s)
Inline graphic
(m/s)
Inline graphic
Inline graphic
k Inline graphic
Inline graphic
RMSE Inline graphic
Jan. 3.54 4.45 4.0973 4.236 16.9277 47.6478 0.0053605 0.99815
Feb. 4.17 5.11 4.4709 4.6088 14.8173 61.9079 0.0021201 1.00120
Mar. 3.95 4.80 4.3355 4.4446 19.1193 56.4498 0.002771 1.01720
Apr. 3.91 4.59 4.2664 4.3642 23.2556 53.7938 0.011525 0.96256
May 3.4 4.63 3.8736 4.026 11.3047 40.2638 0.0039531 0.98381
Jun. 3.85 4.88 4.2082 4.3487 13.6365 51.6228 0.012596 0.94731
Jul. 3.28 4.30 3.80 3.9475 13.6286 38.0110 0.0018488 1.00880
Aug. 3.13 3.58 3.3391 3.4008 27.8252 25.7895 0.014281 0.9499
Sept. 3.55 4.17 3.8182 3.911 21.1438 38.5592 0.011301 0.96755
Oct. 3.89 5.57 4.5673 4.7864 9.5857 65.9978 0.007384 0.98310

Nov.

Dec.

3.68

3.31

4.62

5.79

4.0918

4.1964

4.2459

4.4901

13.7835

6.0958

47.4578

51.1891

0.0028494

0.008025

1.0062

0.98392

Table 4.

Monthly fluctuations in wind characteristics for Arar.

Month Inline graphic
(m/s)
Inline graphic
(m/s)
Inline graphic
(m/s)
Inline graphic
Inline graphic
k Inline graphic
Inline graphic
RMSE Inline graphic
Jan. 4.88 6.5 5.6036 5.8332 12.3191 121.8901 0.0012152 1.0039
Feb. 4.6 6.04 5.52 5.6983 17.1635 116.5134 0.0043648 0.99236
Mar. 5.59 6.65 6.0873 6.2582 18.3874 156.2524 0.0046284 0.99227
Apr. 5.29 6.35 5.8055 5.9676 18.5091 135.5399 0.0049001 0.99215
May 5.45 6.19 5.8036 5.917 26.7855 135.4126 0.012322 0.95058
Jun. 5.18 6.28 5.7673 5.9273 19.9289 132.8832 0.0085468 0.9892
Jul. 4.91 6.77 5.7064 5.956 10.8007 128.7173 0.0064246 0.98753
Aug. 4.63 6.64 5.3682 5.655 8.8071 107.1618 0.0030248 0.99576
Sept. 4.43 5.27 4.8118 4.9368 19.6799 77.1767 0.0095409 0.98173
Oct. 4.09 5.8 5.0473 5.2546 12.66 89.0695 0.0012068 1.0036

Nov.

Dec.

4.46

4.09

5.36

5.41

4.9509

5.0036

5.0675

5.1657

22.679

17.8547

84.0646

86.7792

0.0083875

0.0025265

0.98721

1.0086

Table 5.

Monthly fluctuations in wind characteristics for Qassim.

Year Inline graphic
(m/s)
Inline graphic
(m/s)
Inline graphic
(m/s)
Inline graphic
Inline graphic
k Inline graphic
Inline graphic
RMSE Inline graphic
Jan. 5.91 6.79 6.2855 6.4144 24.2069 172.0159 0.013063 0.95826
Feb. 5.66 7.23 6.5145 6.7205 17.0796 191.5185 0.0030016 1.0002
Mar. 6.24 6.8 6.5664 6.6441 48.6019 196.1251 0.0054619 1.0526
Apr. 5.1 7.16 6.2118 6.4844 11.9541 166.0407 0.0044332 0.99585
May 5.23 6.7 5.9564 6.1539 15.2746 146.3869 0.0017412 1.0066
Jun. 5.27 6.13 5.7764 5.8999 26.9297 133.5125 0.003825 1.0085
Jul. 4.91 6.42 5.6782 5.8747 14.7657 126.8196 0.0020444 0.99868
Aug. 4.84 6.19 5.6873 5.8607 18.6797 127.4297 0.0084802 0.98489
Sept. 4.84 5.91 5.3927 5.546 18.9942 108.6385 0.0025227 1.0073
Oct. 5.18 6.3 5.6745 5.8316 18.311 126.5761 0.0014506 1.0063

Nov.

Dec.

5.62

5.67

6.67

6.68

6.1509

6.1418

6.287

6.2809

23.6358

21.5811

161.2042

160.4905

0.010149

0.010504

0.97285

0.96761

Table 6.

Monthly fluctuations in wind characteristics for Tabuk.

Month Inline graphic
(m/s)
Inline graphic
(m/s)
Inline graphic
(m/s)
Inline graphic
Inline graphic
k Inline graphic
Inline graphic
RMSE Inline graphic
Jan. 5.27 6.62 5.8255 6.0045 15.4537 136.9455 0.0026026 0.99675
Feb. 5.4 6.7 6.2309 6.3874 22.7026 167.5763 0.0022051 1.0052
Mar. 5.7 6.7 6.1609 6.2939 23.231 161.9917 0.0019002 1.0068
Apr. 5.52 6.65 6.1264 6.2584 23.4578 159.282 0.0073734 0.98219
May 5.12 6.45 5.8918 6.0444 20.4296 141.6793 0.0062662 0.98894
Jun. 5.34 5.65 5.4991 5.554 54.5124 115.1943 0.0083352 1.0054
Jul. 4.89 5.27 5.0245 5.0833 40.8131 87.8717 0.01295 0.89374
Aug. 4.8 5.5 5.0964 5.2084 23.1016 91.6937 0.0032292 1.0185
Sept. 4.38 5.52 5.05 5.1916 20.021 89.2139 0.0030006 1.0037
Oct. 4.69 6.37 5.1318 5.3597 9.5069 93.6208 0.0080584 0.97341

Nov.

Dec.

4.78

5.34

6.03

6.48

5.4982

5.7482

5.6639

5.9236

17.9149

15.4685

115.1372

131.5679

0.0035023

0.0096906

1.0036

0.9725

Table 7.

Monthly fluctuations in wind characteristics for Taif.

Month Inline graphic
(m/s)
Inline graphic
(m/s)
Inline graphic
(m/s)
Inline graphic
Inline graphic
k Inline graphic
Inline graphic
RMSE Inline graphic
Jan. 5.18 5.91 5.5518 5.6691 25.6735 118.5398 0.0030552 1.0162
Feb. 5.3 6.62 6.0073 6.1752 18.8511 150.1725 0.0026333 0.99927
Mar. 4.84 6.69 5.6518 5.9084 10.4111 125.0613 0.0078809 0.98762
Apr. 4.58 5.93 5.2873 5.4802 14.5595 102.3891 0.002956 1.0018
May 3.83 5.25 4.4255 4.6186 10.8789 60.0388 0.0053503 0.99019
Jun. 4.75 6.32 5.2682 5.4837 10.9407 101.284 0.0022055 0.99713
Jul. 5.75 6.54 6.0618 6.1806 25.5636 154.3004 0.0062799 0.98153
Aug. 4.84 6.38 5.5445 5.7271 14.1983 118.0746 0.010808 0.9685
Sept. 4.30 5.42 4.9182 5.0821 16.2611 82.4085 0.0026527 1.0047
Oct. 4.00 6.2 4.9636 5.2154 8.8323 84.7146 0.00071129 1.0011

Nov.

Dec.

4.39

4.65

5.55

6.46

4.9645

5.2473

5.1521

5.4897

14.1239

9.5263

84.7612

100.0828

0.0041925

0.0060774

0.99915

0.98493

Table 8.

Average annual wind speed characteristics for the six chosen locations.

Site Inline graphic(m/s) Inline graphic
Inline graphic
Class of Energy
Abha 3.7573 36.7432 1
Al-baha 4.0887 47.3498 1
Arar 5.4564 112.53 1
Qassim 5.9991 149.5598 1
Tabuk 5.6082 122.1869 1
Taif 5.3236 104.5162 1

The annual Weibull parameters, k and c, derived from the data using Eqs. (5) and (6), are shown in Tables 2, 3, 4, 5, 6 and 7. The scale parameter c ranges from 3.4008 m/s in August in Al-Baha to 6.7205 m/s in February in Qassim, while the shape parameter k spans from 8.8071 in August in Arar to 40.8131 in July in Tabuk, indicating significant variation in wind speeds across the region. Table 8 summarizes the average annual wind speed characteristics, showing that the mean yearly wind speed ranges from 3.7573 m/s in Abha to 5.9991 m/s in Qassim. The annual average power density ranges from 36.7432 to 149.5598 W/m², all below 200 W/m², classifying these areas within Class 1 wind energy resources (see Table 9). While this level of wind resource is not ideal for large-scale WT applications, it may be suitable for smaller, stand-alone energy systems, such as battery charging, mechanical applications like water pumping, and hybrid systems incorporating wind, solar, batteries, and DGs. Furthermore, Tables 2, 3, 4, 5, 6, 7 and 8 present statistical error metrics used to evaluate the data fit. RMSE values, ranging from 0.00071129 to 0.01295, are nearly zero, indicating a strong fit. Additionally, Inline graphic values range from 0.9499 to 1.02610, with values close to 1 confirming the accuracy of the fit. Table 10 provides an overview of previous studies on hybrid renewable power systems, highlighting their objectives, energy sources, constraints, software tools used, and the strengths and weaknesses of each approach. This comparison underscores the gaps our study aims to address by proposing a more robust optimization methodology.

Table 9.

Wind power classification38,40,41.

Class Nature Wind power densityInline graphic Average wind speed (m/s) for 10 m height Description
1 Poor Inline graphic Inline graphic Overall, it is not ideal for large-scale wind power production.
2 Marginal 201–300 4.4–5.1 Limited potential for wind energy generation. Some small wind projects might be viable.
3 Fair 301–400 5.1–5.6 Moderate potential for wind energy development. Small to medium wind projects could be feasible.
4 Good 401–500 5.6–6.0 Good potential for wind energy projects. Suitable for medium to large-scale developments
5 Excellent 501–600 6.0–6.4 Excellent potential for large-scale wind energy projects.
6 Outstanding 601–700 6.4–7.0 Very high potential for large-scale wind projects, often with optimal economic returns.
7 Superb 700 7.0 Superb wind conditions, ideal for extensive and highly efficient wind energy developments.
Table 10.

Previous studies on Hybrid renewable power systems with their strength and weaknesses.

Ref(s) Objectives Energy source(s) Constraint(s) software/Tool merits/weaknesses
4243444536,,,,

i. Reduction and savings on bills

ii. Emission of Carbon

PV, FC and Battery Cost Formal mathematics techniques Formal mathematical techniques are used to size HRESs and are effective in exploring the solution space to identify the optimal solution. However, these techniques have limitations when handling stochastic environments and managing a large number of design points. They are not ideally suited for such scenarios and may encounter challenges related to the curse of dimensionality. Additionally, these approaches can result in prolonged computation times and may struggle to model and optimize practical constraints effectively. Since the objective function and constraints are simple and linear, these methods may have limited applicability to complex or nonlinear systems.
48495051525354,,,,,,

i. Minimize NPC

ii. decrease system energy cost

PVs, WTs, Battery and DG DPSP Heuristic optimization technique Heuristic optimization methods are effective for determining the unit sizing of implementation. However, these meta-heuristic techniques require specific algorithmic parameters. Poor adjustment of these parameters can result in the algorithm getting stuck in local optima or lead to lengthy computation times. Effective tuning of these parameters typically requires expertise. While heuristic algorithms may not guarantee an optimal solution, they provide an approximated solution.

465556,,

Proposed technique, MSSCS

i. cost and energy savings.

ii. Reliability

iii. Carbon emissions

i. Minimization of NPC

ii. Increased in reliability.

PVs, WTs, Battery and DG

PVs, WTs and Battery.

LPSP

LCOE and LPSP

HOMER

Multi strategy serial cuckoo search algorithm

The software used in these studies is a useful tool for sizing HRES. However, it has some limitations of not supporting formulation of multi-objective problems, fails to account for within-hour variability or battery depth of discharge, and requires significant computation time for larger design scenarios.

The tool used in these studies is highly effective for sizing HRES systems. However, it does not optimize or formulate multi-objective problems, nor does it account for short-term variability within an hour or battery depth of discharge. Additionally, it requires significant processing time for larger design scenarios.

Weibull frequency distributions

Figures 7, 8, 9, 10, 11 and 12 present the yearly Weibull probability density and cumulative distribution functions based on the time series data for the entire study period, representing the Weibull distribution for each of the six locations. The probability density and cumulative plots show relatively consistent curve patterns across the study duration for each site. In general, wind speeds in Abha and Al-Baha rarely exceed 5.8 m/s in most months, while those in Arar, Tabuk, and Taif stay below 6.8 m/s. Only Qassim occasionally experiences wind speeds above 7 m/s, with a maximum of 7.2 m/s. As a result, all locations are classified as Class 1 wind resources. The Weibull probability density function for Al-Baha is shown in Fig. 8, highlighting the distribution pattern and the predominance of wind speeds below 6 m/s across most months. As depicted in Fig. 9, the Weibull distribution for Arar demonstrates peak wind speeds generally below 6.8 m/s, confirming its classification as a low-wind energy resource region​. Figure 10 presents the Weibull distribution for Qassim, with occasional peak wind speeds reaching 7.2 m/s, indicating its higher wind energy potential compared to other locations in this study​. The Weibull distribution for Tabuk is shown in Fig. 11, illustrating a consistent pattern of wind speeds generally below 6.8 m/s, characteristic of its moderate wind energy profile​. Figure 12 shows the Weibull probability density function for Taif, where wind speeds exhibit slight variations, mostly remaining under 6.5 m/s, aligning with the region’s classification as a low-wind energy resource.

Fig. 7.

Fig. 7

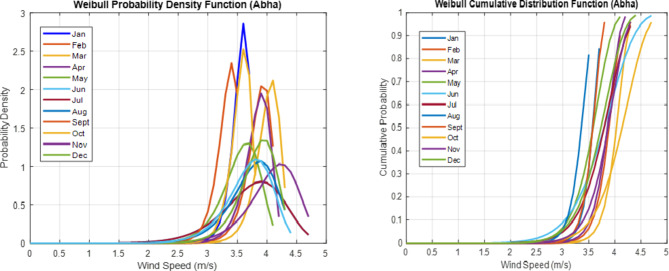

Weibull probability density function for Abha.

Fig. 8.

Fig. 8

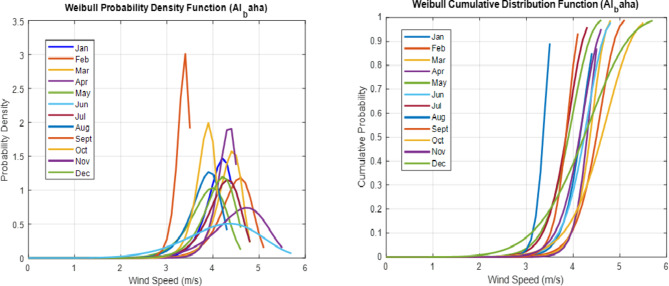

Weibull probability density function for Al-Baha.

Fig. 9.

Fig. 9

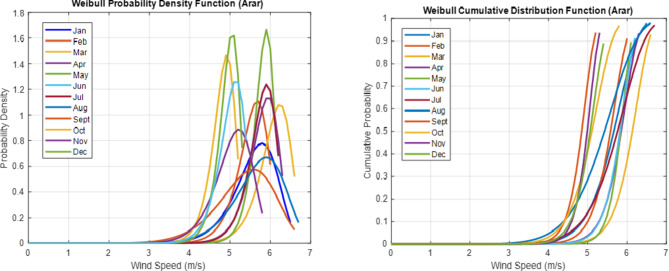

Weibull probability density function for Arar.

Fig. 10.

Fig. 10

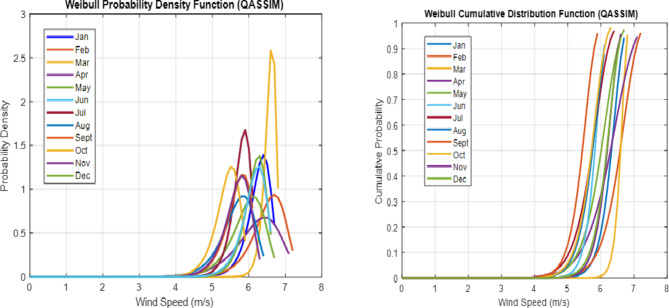

Weilbull probability density function for Qassim.

Fig. 11.

Fig. 11

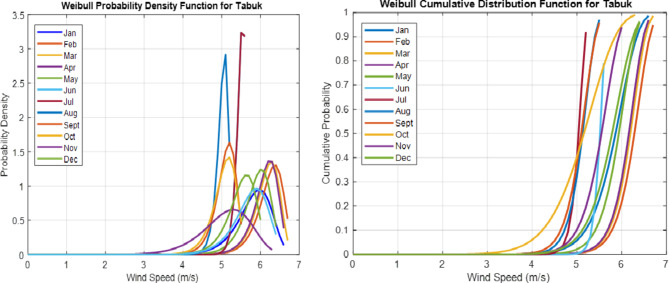

Weibull probability density function for Tabuk.

Fig. 12.

Fig. 12

Weibull probability density function for Taif.

Figure 7 shows a peak at 3 m/s, with a significant portion of the curve between 2 m/s and 4 m/s, it suggests that wind power generation in Abha is limited because the wind is mostly low. In such a case, WTs would only produce small amounts of energy, so a hybrid system with solar power would be more effective to meet energy demands.

Figure 8 shows a peak at 4 m/s, with a significant distribution around this value, it indicates that Al-Baha has moderate wind energy potential. The WTs will generate power most efficiently at this wind speed, but the overall wind energy output will be lower than in regions with higher peak wind speeds. A HRES integrating wind with solar and storage technologies could optimize energy production in this region.

Figure 9 shows a peak at around 5 m/s, with a reasonably wide distribution, it suggests that Arar has moderate to good wind energy potential. The WTs will likely operate efficiently around 5 m/s, but the variation in wind speeds might require additional systems to ensure consistent energy supply, especially if there are periods with low wind speeds.

Figure 10 shows a peak at 4 m/s with a relatively narrow curve, it suggests that Qassim has moderate and fairly consistent wind energy potential. The WTs would operate efficiently around the peak wind speed, providing steady energy generation. However, if the distribution is wider or the peak is lower, it might indicate the need for additional RE (like solar) or energy storage to ensure a reliable power supply.

Figure 11 shows a peak at 5 m/s with a relatively narrow distribution, it indicates that Tabuk has a moderate, consistent wind energy potential. The WTs would generate the most energy at around 5 m/s. However, if the distribution is wide, fluctuations in wind speed might require the addition of solar energy or storage systems to ensure stable power generation.

Figure 12 shows a peak at around 4 m/s with a relatively narrow distribution, it suggests that Taif has moderate wind energy potential, with consistent winds near the peak wind speed. The WTs would operate effectively in this range, but the energy generation potential might be limited compared to regions with higher wind speeds.

Optimal sizing of the proposed micro-grid

This section presents the results for the proposed MG models across the six selected locations. The study aimed to minimize both the LCOE and LPSP to identify the optimal configuration. For each site, the configurations considered include a PV & Battery system, a Wind & Battery system, and a combined PV, Wind & Battery system. These setups were selected to ensure a consistent RESs, capable of meeting the load demand while maintaining the charge of the battery bank.

Simulation results for Abha

The cost summary of the three configurations for Abha is presented in Table 11, while Fig. 13 shows the objective plots against iterations.

Table 11.

Cost Summary for Abha.

Components Configuration
1
Configuration
2
Configuration 3

Inline graphic

Inline graphic

Inline graphic

NPC ($M)

LCOE ($/Kw)

LPSP (%)

586

8

2667

5.11

0.152

0.0462

641

3165

5.46 M

0.163

0.0557

172

7722

5.46

0.381

0.0786

Fig. 13.

Fig. 13

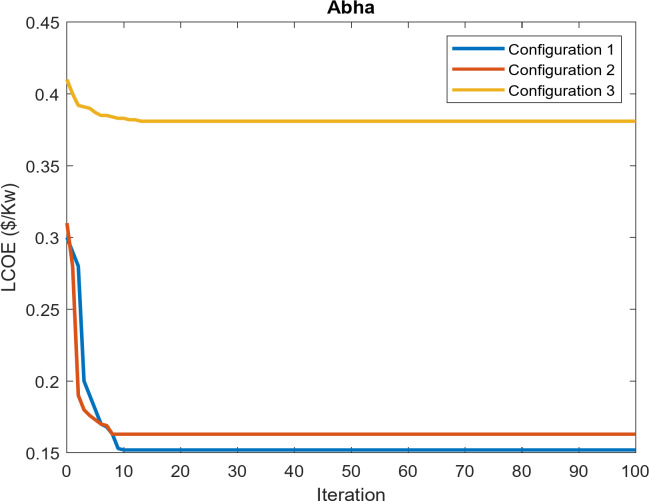

LCOE iteration curve for Abha.

The table above displays the quantities of individual components for each configuration after 100 iterations. It can be observed that the optimal sizing for the Abha region is Configuration 1, which integrates PV, a WT, and ESS. This configuration achieves the lowest values for the NPC, LCOE, and LPSP. Specifically, Configuration 1 has the most cost-effective and reliable setup, making it the best choice for the Abha region compared to the other configurations.

Figure 13 shows that Configuration 1 converges to the lowest LCOE after several iterations, it suggests that the hybrid microgrid design for Abha, integrating wind, solar, and storage, is the most cost-efficient. This configuration not only balances cost and performance but also represents the best economic option for providing reliable energy in the region.

Figure 14 shows that Configuration 1 has the lowest LPSP, it implies that, for Abha, this configuration ensures the most reliable energy supply. This is crucial for off-grid or remote locations where consistent power is essential, and it strengthens the conclusion that Configuration 1 is the optimal choice due to its superior performance in NPC, LCOE, and LPSP.

Fig. 14.

Fig. 14

LPSP for Abha.

Simulation results for Al Baha

The cost summary of the three configurations for Al-Baha is presented in Table 12, while Fig. 14 shows the objective plots against iterations.

Table 12.

Cost summary for Al_Baha.

Components Configuration
1
Configuration
2
Configuration
3

Inline graphic

Inline graphic

Inline graphic

NPC ($M)

LCOE ($/kW)

LPSP (%)

560

13

2715

5.19

0.154

0.0645

716

-

3093

5.59

0.166

0.0261

-

198

5505

11.1

0.33

0.0854

Table 12 presents the quantities of individual components for the three configurations after 100 iterations. From the table, it is evident that Configuration 1 is the optimal choice for the Al Baha site in terms of cost, as it integrates PV, WT, and BS systems and achieves the lowest NPC and LCOE values. Although Configuration 2 provides the best LPSP, with the lowest LPSP value among the three configurations, the higher costs associated with this configuration make Configuration 1 the more cost-effective and balanced option.

Figure 15 shows Configuration 1 consistently achieving the lowest LCOE over iterations, it indicates that, for Al-Baha, this configuration offers the best economic solution for energy generation. This makes Configuration 1 the optimal choice in terms of cost-effectiveness, providing a reliable and affordable power supply for the region.

Fig. 15.

Fig. 15

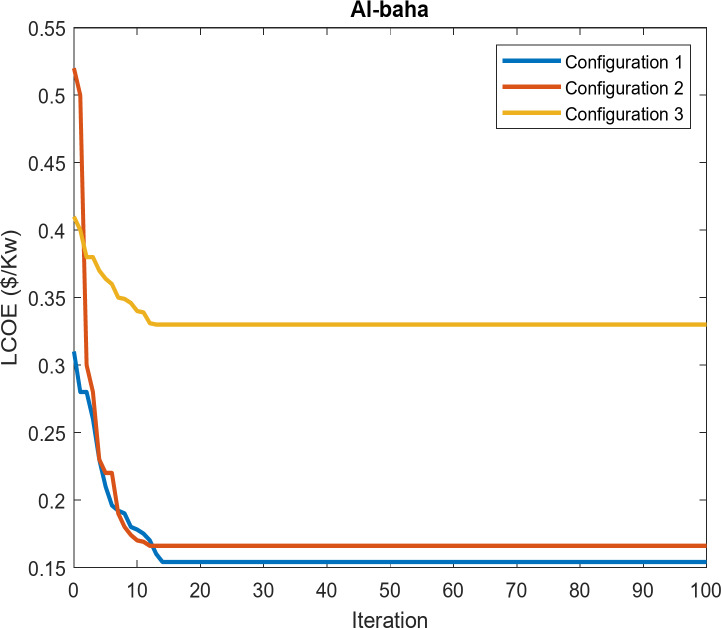

LCOE iteration curve for Al-Baha.

Figure 16 shows Configuration 2 with the lowest LPSP but Configuration 1 very close behind, it suggests that Configuration 1 provides a nearly equally reliable system while offering better cost-effectiveness. Therefore, Configuration 1 remains the optimal choice, as its slight disadvantage in LPSP is outweighed by its superior financial performance, making it the best overall option for Al-Baha.

Fig. 16.

Fig. 16

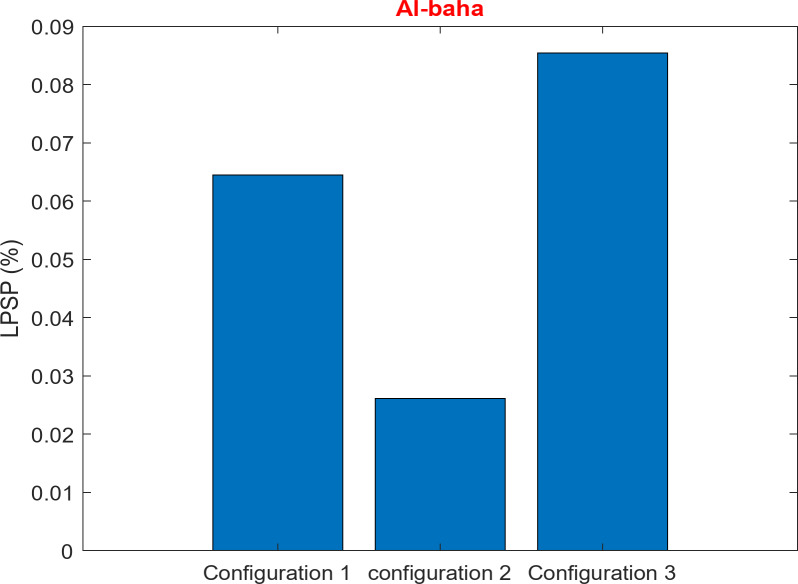

LPSP for Al-baha.

Simulation results for Arar

The cost summary for the three configurations in Arar is shown in Table 13, while Fig. 15 displays the objective plots across iterations.

Table 13.

Cost summary for Arar.

Components Configuration
1
Configuration
2
Configuration
3

Inline graphic

Inline graphic

Inline graphic

NPC ($M)

LCOE ($/Kw)

LPSP (%)

465

38

2331

5.28

0.157

0.0491

85743357.100.2120.0541 11958569.380.2790.0729

Table 13 presents the quantities of individual components for three configurations after 100 iterations. From the table, it is observed that Configuration 1 is the most cost-effective option for the given site. This configuration, which integrates PV, WT, and BS systems, results in the lowest NPC and LCOE values, with an LPSP of 0.0491%. Although Configuration 2 and Configuration 3 result in higher NPC and LCOE values, Configuration 3 offers the lowest LPSP at 0.0729%, indicating a better performance in terms of reliability. However, considering the cost effectiveness, Configuration 1 remains the preferred choice.

Figure 17 shows Configuration 1 with the lowest LCOE across iterations, it indicates that Configuration 1 is the most cost-efficient solution for Arar, providing the best value for energy production. This configuration is optimal because it balances low costs with reliable performance, making it the preferred choice.

Fig. 17.

Fig. 17

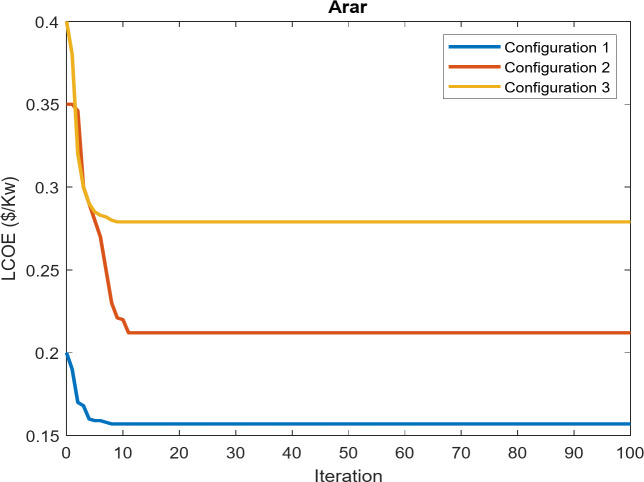

LCOE iteration curve for Arar.

Figure 18 shows Configuration 1 with the lowest LPSP, it indicates that Configuration 1 ensures the most reliable energy supply for Arar. This makes it the optimal configuration, as it combines low costs (NPC and LCOE) with the highest reliability, providing a robust and cost-efficient energy solution for the region.

Fig. 18.

Fig. 18

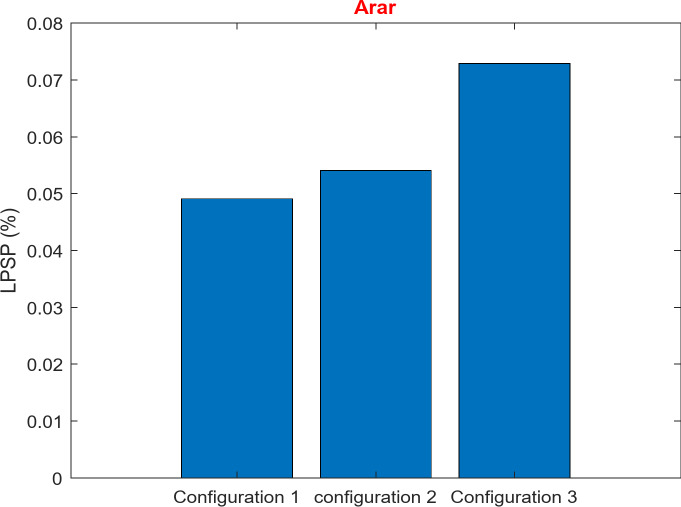

LPSP for Arar.

Simulation results for Qassim

The cost summary for the three configurations in Qassim region is shown in Table 14, while Fig. 15 displays the objective plots across iterations.

Table 14.

Cost summary for Qassim.

Components Configuration
1
Configuration
2
Configuration
3

Inline graphic

Inline graphic

Inline graphic

NPC ($M)

LCOE ($/Kw)

LPSP (%)

422

34

2103

4.96

0.148

0.0477

826

3903

6.61

0.197

0.0523

228

4911

12.2

0.364

0.0769

The table above presents the quantities of the individual components for each configuration after 100 iterations. From the table, it can be observed that the optimal sizing for the Qassim region is Configuration 1, which incorporates PV, WT, and BS systems. This configuration has the lowest values for NPC, LCOE, and LPSP, making it the most cost-efficient and reliable solution among the three configurations.

Figure 19 shows that Configuration 1 consistently achieves the lowest LCOE across iterations, it suggests that this configuration is the most cost-effective solution for Qassim. By minimizing costs while maintaining adequate system performance, Configuration 1 is the optimal choice for providing affordable energy to the region.

Fig. 19.

Fig. 19

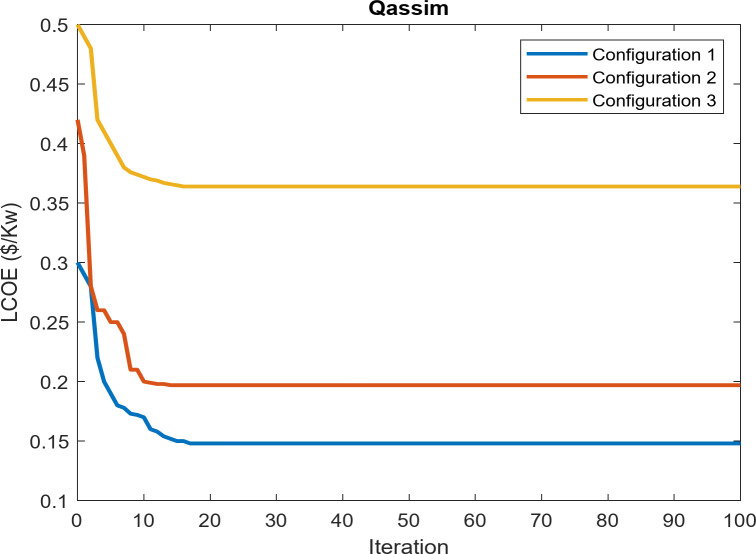

LCOE iteration curve for Qassim.

Figure 20 shows that Configuration 1 has the lowest LPSP, it suggests that Configuration 1 provides the most reliable energy supply for Qassim. With the lowest costs in NPC and LCOE, and the highest reliability in terms of LPSP, Configuration 1 is the optimal solution for the region, ensuring both affordable and dependable energy production.

Fig. 20.

Fig. 20

LPSP for Qassim.

Simulation results for Tabuk

The cost summary for the three configurations in Tabuk region is shown in Table 15, while Fig. 15 displays the objective plots against iterations.

Table 15.

Cost summary for Tabuk.

Components Configuration
1
Configuration
2
Configuration
3

Inline graphic

Inline graphic

Inline graphic

NPC ($M)

LCOE ($/Kw)

LPSP (%)

483

32

2097

5.12

0.153

0.046

654

-

3252

5.72

0.170

0.0426

-

135

6090

10.7

0.319

0.0750

The table above shows the quantities of the individual components for the different configurations after 100 iterations for the Tabuk region. It can be observed that Configuration 1, which combines PV, WT, and BS systems, provides the optimal sizing in terms of cost, with the lowest NPC and LCOE values. While Configuration 2 offers the best LPSP value, the lowest among all three configurations, Configuration 1 still stands out as the most cost-effective solution, making it the optimal choice for the region.

Figure 21 shows that Configuration 1 consistently achieves the lowest LCOE across iterations, it suggests that this configuration provides the best economic value for Tabuk, offering the lowest energy costs while maintaining reliable performance. This makes Configuration 1 the optimal choice for energy generation in the region.

Fig. 21.

Fig. 21

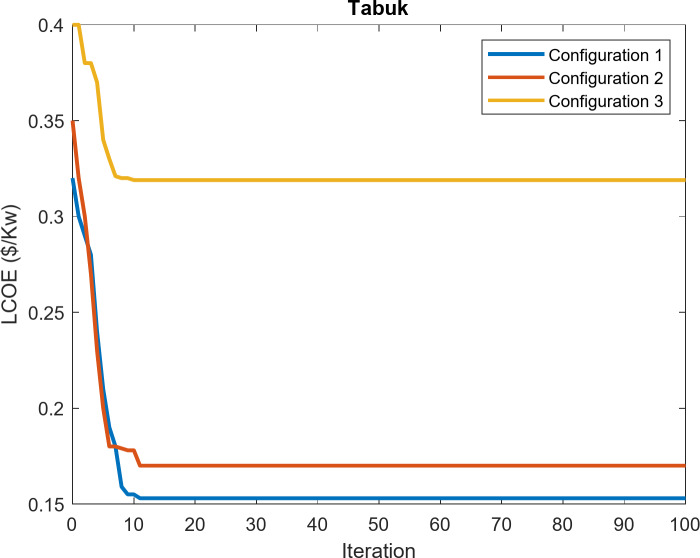

LCOE iteration curve Tabuk.

Figure 22 shows that Configuration 1 has an LPSP close to Configuration 2 but has better cost metrics (NPC and LCOE), it suggests that Configuration 1 is the optimal choice for Tabuk. Even though Configuration 2 is slightly more reliable in terms of LPSP, Configuration 1 provides a more favorable balance of cost and reliability, making it the preferred option.

Fig. 22.

Fig. 22

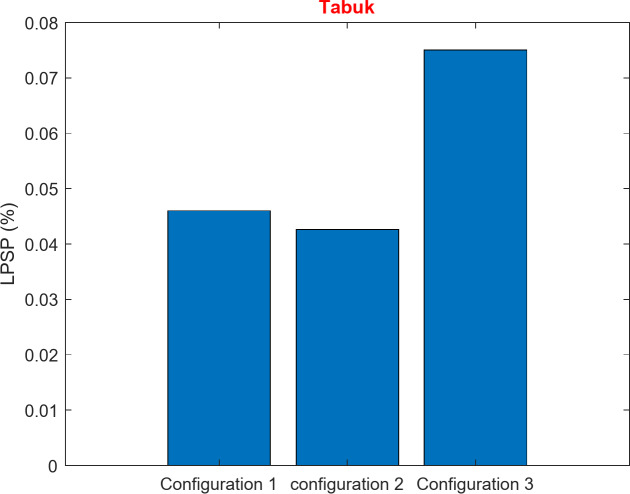

LPSP for Tabuk.

Simulation results for Taif

The cost summary for the three configurations in Taif region is shown in Table 16, while Fig. 15 displays the objective plots against iterations.

Table 16.

Cost summary for Taif.

Components Configuration
1
Configuration
2
Configuration
3

Inline graphic

Inline graphic

Inline graphic

NPC ($M)

LCOE ($/K)

LPSP (%)

462

31

2127

5.06

0.151

0.0609

638

3168

5.41

0.161

0.0305

147

9501

13.7

0.407

0.0786

The above table shows the quantities of the individual components for the different configurations after 100 iterations for the Taif site. It can be observed that Configuration 1 has the lowest NPC and LCOE values, making it the most cost-effective solution. However, Configuration 2 performs better in terms of LPSP, offering the lowest value among the three configurations. While Configuration 1 is optimal from a cost perspective, Configuration 2 is better suited for meeting the load demands. Therefore, Configuration 1 is recommended based on cost considerations, while Configuration 2 would be preferred for ensuring reliability in meeting the energy needs.

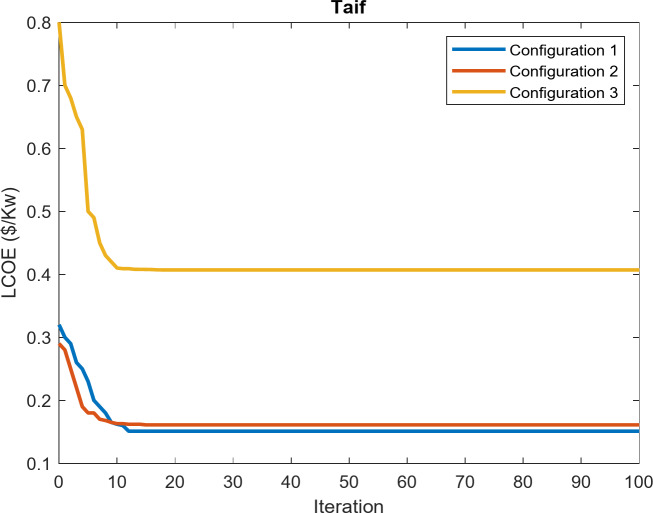

Figure 23 shows Configuration 1 with the lowest LCOE after several iterations, it indicates that Configuration 1 is the optimal solution for Taif, offering the best value in terms of cost while maintaining reliable energy production.

Fig. 23.

Fig. 23

LCOE iteration curve Taif.

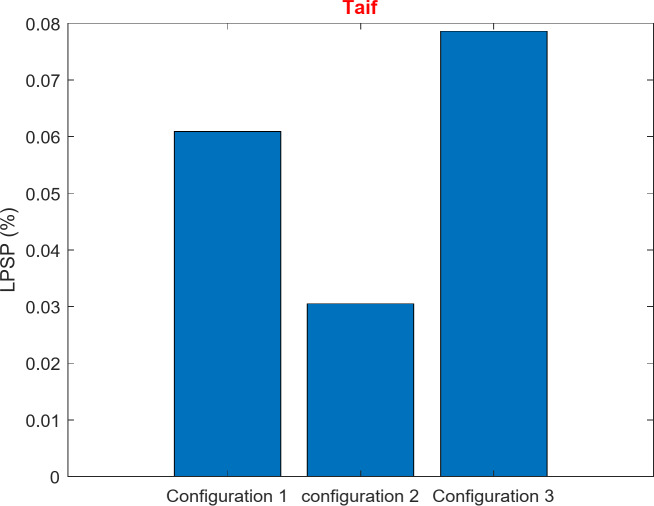

Figure 24 shows that Configuration 1 has an LPSP value that is very close to Configuration 2, but Configuration 1 offers the best cost values in NPC and LCOE, it suggests that Configuration 1 remains the optimal choice. It provides a very reliable system at a lower cost, making it the preferred option for Taif.

Fig. 24.

Fig. 24

LPSP for Tabuk.

Conclusions and recommendations for future research

This study evaluates the wind energy potential and hybrid MG design in six Class 1 wind regions of Saudi Arabia—Abha, Al-Baha, Arar, Qassim, Tabuk, and Taif—using the Weibull distribution function and a MSSCS algorithm. Although these regions have low wind power densities below 200 W/m², the study demonstrates that hybrid systems combining small-scale WT, PV systems, and BS can offer effective solutions, especially for off-grid locations.

The optimization results show that Configuration 1, consisting of PV, WTs, and BS, achieved the lowest LCOE, with the lowest value of $0.148/kWh in Qassim. Additionally, Configuration 1 exhibited high reliability, with LPSP values below 0.05% in many regions. However, in areas like Al-Baha, Taif, and Tabuk, Configuration 2 demonstrated better reliability, achieving the lowest LPSP despite a slightly higher cost.

This study contributes to the field by focusing on Class 1 wind regions, which are underexplored in the literature. It combines small-scale WTs, solar PV, and BS in an optimized hybrid system, tailored for off-grid applications. This approach is novel compared to earlier studies, which have focused primarily on solar or wind alone. Moreover, the application of the MSSCS algorithm for optimizing hybrid systems is a key innovation, providing a more robust solution than traditional optimization methods.

The study also introduces a comprehensive framework for evaluating the LCOE, NPC, and LPSP, offering a holistic view of system feasibility. The findings highlight the importance of balancing cost, energy production, and reliability when designing hybrid systems in low-wind areas.

The insights from this research provide valuable guidance for implementing RES in low wind potential regions. Future work could explore the integration of advanced energy storage technologies, such as hydrogen fuel cells, and the use of artificial intelligence (AI) and machine learning for dynamic grid management. Expanding the research to regions with varying climates and RE profiles would enhance the optimization framework. Additionally, long-term feasibility studies, including economic incentives and policy frameworks, would further support the practical deployment of hybrid MGs.

Finally, investigating demand-side management strategies and decentralized energy markets could offer innovative approaches to optimize energy distribution and reduce system costs.

Author contributions

Abdullahi Abubakar Mas’ud, Ibrahim Seidu, Sani Salisu: Conceptualization, Methodology, Software, Visualization, Investigation, Writing- Original draft preparation. Umar Musa, Hassan Z. AlGarni: Data curation, Validation, Supervision, Resources, Writing - Review & Editing. Mohit Bajaj, Ievgen Zaitsev: Project administration, Supervision, Resources, Writing - Review & Editing.

Data availability

The datasets used and/or analyzed during the current study available from the corresponding author on reasonable request.

Declarations

Competing interests

The authors declare no competing interests.

Footnotes

Publisher’s note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Contributor Information

Abdullahi Abubakar Mas’ud, Email: masud_a@rcjy.edu.sa.

Mohit Bajaj, Email: mohitbajaj.ee@geu.ac.in.

Ievgen Zaitsev, Email: zaitsev@i.ua.

References

  • 1.Adaramola, M. S., Oyewola, O. M., Ohunakin, O. S. & Akinnawonu, O. O. Performance evaluation of wind turbines for energy generation in Niger Delta, Nigeria. Sustain. Energy Technol. Assessments. 6, 75–85. 10.1016/J.SETA.2014.01.001 (Jun. 2014). [Google Scholar]
  • 2.Alalwan, S. H. & Kimball, J. W. Optimal sizing of a wind/solar/battery hybrid microgrid system using the forever power method, IEEE Green Technol. Conf., vol. 2015-July, pp. 29–35, Jul. (2015). 10.1109/GREENTECH.2015.21
  • 3.Shoaib, M., Siddiqui, I., Rehman, S., Khan, S. & Alhems, L. M. Assessment of wind energy potential using wind energy conversion system. J. Clean. Prod.216, 346–360. 10.1016/J.JCLEPRO.2019.01.128 (Apr. 2019). [Google Scholar]
  • 4.Alharthi, Y. Z., Siddiki, M. K. & Chaudhry, G. M. Resource assessment and techno-economic analysis of a grid-connected solar PV-wind hybrid system for different locations in Saudi Arabia. Sustain10 (10). 10.3390/su10103690 (2018).
  • 5.Alqahtani, F. Analysis of the potential of renewable energy development in Saudi Arabia. Grad Theses Diss Probl. Rep.10.33915/etd.5084 (Jan. 2016). [Google Scholar]
  • 6.AlQdah, K. S. et al. Jun., Potential of wind energy in Medina, Saudi Arabia based on Weibull distribution parameters. 0309524X211027356, vol. 45, no. 6, pp. 1652–1661, (2021). 10.1177/0309524X211027356
  • 7.Alanazi, M. A., Aloraini, M., Islam, M., Alyahya, S. & Khan, S. Wind Energy Assessment Using Weibull Distribution with Different Numerical Estimation Methods: A Case Study, Emerg. Sci. J., vol. 7, no. 6, pp. 2260–2278, Dec. (2023). 10.28991/ESJ-2023-07-06-024
  • 8.Eltamaly, A. M. & Farh, H. M. Wind energy assessment for five locations in Saudi Arabia. J. Renew. Sustain. Energy. 4 (2). 10.1063/1.4705116 (Mar. 2012).
  • 9.Thyavihalli Girijappa, Y. G., Mavinkere Rangappa, S., Parameswaranpillai, J. & Siengchin, S. Natural fibers as sustainable and renewable resource for development of Eco-friendly composites: a Comprehensive Review. Front. Mater.6, 481024. 10.3389/FMATS.2019.00226/BIBTEX (Sep. 2019). [Google Scholar]
  • 10.Alzahrani, A. et al. Optimum sizing of stand-alone microgrids: wind turbine, solar photovoltaic, and energy storage system. J. Energy Storage. 73, 108611. 10.1016/J.EST.2023.108611 (Dec. 2023). [Google Scholar]
  • 11.Brower, M. C. Wind Resource Assessment. Practical Guidance for Developing a successful Wind Project, Renew. Energy, no. December, pp. 34–35, Accessed: Sep. 23, 2024. [Online]. (2012). Available: http://accessengineeringlibrary.com/browse/wind-energy-engineering/p2001bd2d9970111001
  • 12.Shu, Z. R., Li, Q. S. & Chan, P. W. Statistical analysis of wind characteristics and wind energy potential in Hong Kong. Energy Convers. Manag. 101, 644–657. 10.1016/J.ENCONMAN.2015.05.070 (Sep. 2015). [Google Scholar]
  • 13.Radünz, W. C., Mattuella, J. M. L. & Petry, A. P. Wind resource mapping and energy estimation in complex terrain: A framework based on field observations and computational fluid dynamics, Renew. Energy, vol. 152, pp. 494–515, Jun. (2020). 10.1016/j.renene.2020.01.014
  • 14.Weibull, W. A statistical distribution function of wide applicability. J. Appl. Mech., (1951).
  • 15.Islam, M. R., Saidur, R. & Rahim, N. A. Assessment of wind energy potentiality at Kudat and Labuan, Malaysia using Weibull distribution function. Energy36 (2), 985–992. 10.1016/J.ENERGY.2010.12.011 (Feb. 2011). [Google Scholar]
  • 16.Sopian, K., Othman, M. Y. H. & Wirsat, A. The wind energy potential of Malaysia, Renew. Energy, vol. 6, no. 8, pp. 1005–1016, Nov. (1995). 10.1016/0960-1481(95)00004-8
  • 17.Baseer, M. A., Meyer, J. P., Rehman, S. & Alam, M. M. Wind power characteristics of seven data collection sites in Jubail, Saudi Arabia using Weibull parameters. Renew. Energy. 102, 35–49. 10.1016/J.RENENE.2016.10.040 (Mar. 2017). [Google Scholar]
  • 18.Jeyadevi, D. S. & E. J and An Evolutionary Approach for Optimal citing and sizing of Micro-grid in Radial distribution systems. Int. J. Eng. Trends Technol.11 (9), 429–433. 10.14445/22315381/IJETT-V11P286 (Jun. 2014). [Google Scholar]
  • 19.Logenthiran, T., Srinivasan, D., Khambadkone, A. M. & Sundar Raj, T. Optimal sizing of distributed energy resources for integrated microgrids using evolutionary strategy. 2012 IEEE Congr Evol. Comput. CEC 2012. 10.1109/CEC.2012.6256143 (2012). [Google Scholar]
  • 20.Wang, C., Liu, M. & Guo, L. Cooperative operation and optimal design for islanded microgrid. 2012 IEEE PES Innov. Smart Grid Technol. ISGT 2012. 10.1109/ISGT.2012.6175534 (2012). [Google Scholar]
  • 21.Nelson, D. B., Nehrir, M. H. & Wang, C. Unit sizing and cost analysis of stand-alone hybrid wind/PV/fuel cell power generation systems, Renew. Energy, vol. 31, no. 10, pp. 1641–1656, Aug. (2006). 10.1016/J.RENENE.2005.08.031
  • 22.Kimball, J. W., Kuhn, B. T. & Balog, R. S. A system design approach for unattended solar energy harvesting supply. IEEE Trans. Power Electron.24 (4), 952–962. 10.1109/TPEL.2008.2009056 (2009). [Google Scholar]
  • 23.Zhang, W., Maleki, A., Rosen, M. A. & Liu, J. Optimization with a simulated annealing algorithm of a hybrid system for renewable energy including battery and hydrogen storage. Energy163, 191–207 (2018). [Google Scholar]
  • 24.Maleki, A. Design and optimization of autonomous solar-wind-reverse osmosis desalination systems coupling battery and hydrogen energy storage by an improved bee algorithm. Desalination435, 221–234 (2018). [Google Scholar]
  • 25.Zhang, W., Maleki, A. & Nazari, M. A. Optimal operation of a hydrogen station using multi-source renewable energy (solar/wind) by a new approach. J. Energy Storage. 53, 104983 (2022). [Google Scholar]
  • 26.Zhang, W. & Maleki, A. Modeling and optimization of a stand-alone desalination plant powered by solar/wind energies based on back-up systems using a hybrid algorithm. Energy254, 124341 (2022). [Google Scholar]
  • 27.Memon, S. A. & Patel, R. N. An overview of optimization techniques used for sizing of hybrid renewable energy systems. Renew. Energy Focus. 39, 1–26 (2021). [Google Scholar]
  • 28.Ghanbari, K., Maleki, A. & Ochbelagh, D. R. Optimal design of solar/wind/energy storage system-powered RO desalination unit: single and multi-objective optimization. Energy. Conv. Manag.315, 118768 (2024). [Google Scholar]
  • 29.Sadeghi, A., Maleki, A. & Haghighat, S. Techno-economic analysis and optimization of a hybrid solar-wind-biomass-battery framework for the electrification of a remote area: a case study. Energy Convers. Management: X. 24, 100732 (2024). [Google Scholar]
  • 30.Teimourian, H., Abubakar, M., Yildiz, M. & Teimourian, A. A Comparative Study on Wind Energy Assessment Distribution Models: A Case Study on Weibull Distribution, Energies, vol. 15, no. 15, Aug. (2022). 10.3390/EN15155684
  • 31.Rahman, S. M. & Chattopadhyay, H. A new approach to estimate the Weibull parameters for wind energy assessment: Case studies with four cities from the Northeast and East India, Int. Trans. Electr. Energy Syst., vol. 30, no. 11, Nov. (2020). 10.1002/2050-7038.12574
  • 32.Akpinar, E. K. & Akpinar, S. An assessment on seasonal analysis of wind energy characteristics and wind turbine characteristics, Energy Convers. Manag., vol. 46, no. 11–12, pp. 1848–1867, Jul. (2005). 10.1016/J.ENCONMAN.2004.08.012
  • 33.Alfawzan, F., Alleman, J. E. & Rehmann, C. R. Wind energy assessment for NEOM city, Saudi Arabia, Energy Sci. Eng., vol. 8, no. 3, pp. 755–767, Mar. (2020). 10.1002/ESE3.548
  • 34.Arslan, T., Bulut, Y. M. & Altin Yavuz, A. Comparative study of numerical methods for determining Weibull parameters for wind energy potential. Renew. Sustain. Energy Rev.40, 820–825. 10.1016/j.rser.2014.08.009 (2014). [Google Scholar]
  • 35.Jowder, F. A. L. Wind power analysis and site matching of wind turbine generators in Kingdom of Bahrain. Appl. Energy. 86 (4), 538–545. 10.1016/J.APENERGY.2008.08.006 (Apr. 2009). [Google Scholar]
  • 36.Thiaw, L. et al. A neural network based approach for wind resource and wind generators production assessment. Appl. Energy. 87 (5), 1744–1748. 10.1016/J.APENERGY.2009.10.001 (May 2010). [Google Scholar]
  • 37.Sukkiramathi, K. & Seshaiah, C. V. Analysis of wind power potential by the three-parameter Weibull distribution to install a wind turbine. Energy Explor. Exploit.38 (1), 158–174. 10.1177/0144598719871628/ASSET/IMAGES/LARGE/10.1177_0144598719871628-FIG5.JPEG (Jan. 2020). [Google Scholar]
  • 38.wei Zheng, C., Li, C. & Xu, J. Micro-scale classification of offshore wind energy resource ——A case study of the New Zealand, J. Clean. Prod., vol. 226, pp. 133–141, Jul. (2019). 10.1016/J.JCLEPRO.2019.04.082
  • 39.Goh, H. H., Lee, S. W., Chua, Q. S., Goh, K. C. & Teo, K. T. K. Wind energy assessment considering wind speed correlation in Malaysia. Renew. Sustain. Energy Rev.54, 1389–1400. 10.1016/J.RSER.2015.10.076 (Feb. 2016).
  • 40.Li, M. & Li, X. Investigation of wind characteristics and assessment of wind energy potential for Waterloo region, Canada, Energy Convers. Manag., vol. 46, no. 18–19, pp. 3014–3033, Nov. (2005). 10.1016/J.ENCONMAN.2005.02.011
  • 41.Khan, A. & Javaid, N. Jaya Learning-based optimization for optimal sizing of stand-alone photovoltaic, wind turbine, and Battery systems. Engineering6 (7), 812–826. 10.1016/J.ENG.2020.06.004 (Jul. 2020). [Google Scholar]
  • 42.Ren, H., Wu, Q., Gao, W. & Zhou, W. Optimal operation of a grid-connected hybrid PV/fuel cell/battery energy system for residential applications. Energy113, 702–712. 10.1016/J.ENERGY.2016.07.091 (Oct. 2016).
  • 43.Okoye, C. O. & Solyalı, O. Optimal sizing of stand-alone photovoltaic systems in residential buildings. Energy126, 573–584. 10.1016/J.ENERGY.2017.03.032 (2017).
  • 44.Habib, A. H., Disfani, V. R., Kleissl, J. & de Callafon, R. A. Optimal switchable load sizing and scheduling for standalone renewable energy systems. Sol Energy. 144, 707–720. 10.1016/J.SOLENER.2017.01.065 (Mar. 2017).
  • 45.Yu, X. E., Malysz, P., Sirouspour, S. & Emadi, A. Optimal microgrid component sizing using mixed integer linear programming, 2014 IEEE Transp. Electrif. Conf. Expo Components, Syst. Power Electron. - From Technol. to Bus. Public Policy, ITEC 2014, Jul. (2014). 10.1109/ITEC.2014.6861770
  • 46.Shahinzadeh, H., Moazzami, M., Fathi, S. H. & Gharehpetian, G. B. Optimal sizing and energy management of a grid-connected microgrid using HOMER software, Smart Grids Conf. SGC 2016, pp. 13–18, Mar. 2017, (2016). 10.1109/SGC.2016.7882945
  • 47.Khan, A. et al. Enhanced Evolutionary Sizing Algorithms for Optimal Sizing of a Stand-Alone PV-WT-Battery Hybrid System, Appl. Sci. Vol. 9, Page 5197, vol. 9, no. 23, p. 5197, Nov. 2019, (2019). 10.3390/APP9235197
  • 48.Ullah, K. et al. Sep., Demand Side Management Strategy for Multi-Objective Day-Ahead Scheduling Considering Wind Energy in Smart Grid, Energies 2022, Vol. 15, Page 6900, vol. 15, no. 19, p. 6900, (2022). 10.3390/EN15196900
  • 49.Amara, S., Toumi, S., Ben Salah, C. & Saidi, A. S. Improvement of techno-economic optimal sizing of a hybrid off-grid micro-grid system. Energy233, 121166. 10.1016/J.ENERGY.2021.121166 (Oct. 2021).
  • 50.Das, M., Singh, M. A. K. & Biswas, A. Techno-economic optimization of an off-grid hybrid renewable energy system using metaheuristic optimization approaches – Case of a radio transmitter station in India, Energy Convers. Manag., vol. 185, pp. 339–352, Apr. (2019). 10.1016/J.ENCONMAN.2019.01.107
  • 51.Askarzadeh, A. & Rezazadeh, A. Artificial bee swarm optimization algorithm for parameters identification of solar cell models. Appl. Energy. 102, 943–949. 10.1016/J.APENERGY.2012.09.052 (2013).
  • 52.Şenyiğit, E., Düğenci, M., Aydin, M. E. & Zeydan, M. Heuristic-based neural networks for stochastic dynamic lot sizing problem. Appl. Soft Comput.13 (3), 1332–1339 (2013).
  • 53.Alshammari, N. & Asumadu, J. Optimum unit sizing of hybrid renewable energy system utilizing harmony search, Jaya and particle swarm optimization algorithms. Sustain. Cities Soc.6010.1016/J.SCS.2020.102255 (Sep. 2020).
  • 54.DASSA, K. & A. RECIOUI and Design of standalone Micro-grid systems using teaching learning based optimization. Alger. J. Signals Syst.2 (2), 75–85. 10.51485/AJSS.V2I2.34 (Jun. 2017).
  • 55.Çetinbaş, İ., Tamyürek, B. & Demirtaş, M. Design, analysis and optimization of a hybrid microgrid system using HOMER software: Eskişehir osmangazi university example. Int. J. Renew. Energy Dev.8 (1), 65–79. 10.14710/IJRED.8.1.65-79 (Feb. 2019). [Google Scholar]
  • 56.Jamalaiah, A., Raju, C. P. & Srinivasarao, R. Optimization and operation of a renewable energy based pv-fc-micro grid using homer, Proc. Int. Conf. Inven. Commun. Comput. Technol. ICICCT 2017, pp. 450–455, Jul. (2017). 10.1109/ICICCT.2017.7975238
  • 57.Al-Quraan, A., Al-Masri, H., Al-Mahmodi, M. & Radaideh, A. Power curve modelling of wind turbines- A comparison study, IET Renew. Power Gener., vol. 16, no. 2, pp. 362–374, Feb. (2022). 10.1049/RPG2.12329
  • 58.Hosseinalizadeh, R., Shakouri, H., Amalnick, G. M. S. & Taghipour, P. Economic sizing of a hybrid (PV-WT-FC) renewable energy system (HRES) for stand-alone usages by an optimization-simulation model: case study of Iran. Renew. Sustain. Energy Rev.10.1016/j.rser.2015.09.046 (2016). [Google Scholar]
  • 59.Peng, H., Zeng, Z., Deng, C. & Wu, Z. Multi-strategy serial cuckoo search algorithm for global optimization. Knowledge-Based Syst.214, 106729. 10.1016/J.KNOSYS.2020.106729 (Feb. 2021). [Google Scholar]
  • 60.Ouyang, X. & Lin, B. Levelized cost of electricity (LCOE) of renewable energies and required subsidies in China, Energy Policy, vol. 70, pp. 64–73, Jul. (2014). 10.1016/J.ENPOL.2014.03.030
  • 61.Yang, C., Wang, L., Liang, W. & Møller, A. P. How cuckoos find and choose host nests for parasitism. Behav. Ecol.28 (3), 859–865. 10.1093/BEHECO/ARX049 (May 2017).
  • 62.Belhaouas, N. et al. A new approach of PV system structure to enhance performance of PV generator under partial shading effect. J. Clean. Prod.31710.1016/J.JCLEPRO.2021.128349 (Oct. 2021).
  • 63.Ma, W., Xue, X. & Liu, G. Techno-economic evaluation for hybrid renewable energy system: application and merits. Energy159, 385–409 (2018). [Google Scholar]
  • 64.Mesa, A., Castromayor, K., Garillos-Manliguez, C. & Calag, V. Cuckoo search via levy flights applied to uncapacitated facility location problem. J. Ind. Eng. Int.14 (3), 585–592. 10.1007/S40092-017-0248-0/FIGURES/5 (Sep. 2018). [Google Scholar]
  • 65.Zhang, W., Maleki, A. & Rosen, M. A. A heuristic-based approach for optimizing a small independent solar and wind hybrid power scheme incorporating load forecasting. J. Clean. Prod.241, 117920. 10.1016/J.JCLEPRO.2019.117920 (Dec. 2019). [Google Scholar]
  • 66.Wang, L., Yang, C., He, G., Liang, W. & Møller, A. P. Cuckoos use host egg number to choose host nests for parasitism, Proc. R. Soc. B, vol. 287, no. Jun. 2020, (1928). 10.10 98/RSPB.2020.0343 [DOI] [PMC free article] [PubMed]
  • 67.Al Garni, H. Z., Abubakar, A., Mas’ud, M. A., Baseer & Ramli, M. A. M. Techno-economic optimization and sensitivity analysis of a PV/Wind/diesel/battery system in Saudi Arabia using a combined dispatch strategy. Sustain. Energy Technol. Assessments. 53, 102730. 10.1016/J.SETA.2022.102730 (Oct. 2022). [Google Scholar]
  • 68.Liu, H., Wu, B., Maleki, A., Pourfayaz, F. & Ghasempour, R. Effects of reliability index on optimal configuration of hybrid solar/battery energy system by optimization approach: a case study. Int. J. Photoenergy. 2021 (1), 9779996 (2021). [Google Scholar]
  • 69.Deb, S. et al. Local energy system: A comprehensive review of modelling, tools and Pilot projects. In International Conference on Power Electronics and Energy (ICPEE) 2023 Jan 3 (pp. 1–6). IEEE. (2023).
  • 70.Udo, W. S., Kwakye, J. M., Ekechukwu, D. E. & Ogundipe, O. B. Optimizing wind energy systems using machine learning for predictive maintenance and efficiency enhancement. J. Renew. Energy Technol.28 (3), 312–330 (2024). [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Data Availability Statement

The datasets used and/or analyzed during the current study available from the corresponding author on reasonable request.


Articles from Scientific Reports are provided here courtesy of Nature Publishing Group

RESOURCES
