The ratio of Wnt signaling activity to Sox2 transcription factor levels predicts neuromesodermal fate potential

Abstract

Neuromesodermal progenitors (NMPs) are a vertebrate cell type that contribute descendants to both the spinal cord and the mesoderm. The undifferentiated bipotential NMP state is maintained when both Wnt signaling is active and Sox2 is present. We used transgenic reporter lines to live-image both Wnt activity and Sox2 levels in NMPs and observed a unique cellular ratio in NMPs compared to NMP-derived mesoderm or neural tissue. We used this unique signature to identify the previously unknown anatomical position of a progenitor population that gives rise to the midline tissues of the floor plate of the spinal cord and the mesodermal notochord. Thus, quantification of the active Wnt signaling to Sox2 ratio can be used to predict and identify cells with neuromesodermal potential. We also developed the auxin inducible degron 2 system for use in zebrafish to test the temporal role that Sox2 plays during midline formation. We found ectopic Sox2 in the presence of Wnt activity holds cells in the undifferentiated floor plate/notochord progenitor state, and that degradation of the ectopic Sox2 is required for cells to adopt a notochord fate.

Introduction

During vertebrate embryonic development, the anterior forms first and differentiated tissue is progressively added to the posterior end (Kimelman and Martin, 2012; Martin, 2020). A key population of progenitors that provides new cells to the expanding tissues is the neuromesodermal progenitors (NMPs), which reside in the tailbud structure at the posterior-most end of the developing embryo. NMPs in the posterior wall of the tailbud are highly plastic and continue to make germ-layer fate decisions after gastrulation, giving rise to spinal cord, somites, and endothelium as the embryonic axis extends (Kimelman, 2016; Wymeersch et al., 2021).

NMPs co-express the transcription factors tbxt (also called brachyury) and sox2 (Martin and Kimelman, 2012; Wymeersch et al., 2021). Tbxt (in zebrafish there are two paralogs tbxta and tbxtb, for simplicity we will refer to them as Tbxt) activates expression of canonical Wnt signaling ligands, and Wnt signaling in turn activates tbxt expression to form an autoregulatory loop (Martin and Kimelman, 2008, 2009, 2010; Yamaguchi et al., 1999). The NMP fate decision to become neural ectoderm or mesoderm is governed in part by the canonical Wnt signaling pathway and the Sox2 transcription factor. High levels of Wnt signaling repress sox2 expression and induce mesoderm (Kinney et al., 2020; Martin and Kimelman, 2012). On the other hand, in the absence of Wnt signaling and presence of Sox2, NMPs are induced to form neural ectoderm (Kinney et al., 2020). When both Wnt signaling and Sox2 are present, NMPs maintain an undifferentiated state with potential to form neural or mesodermal tissue (Kinney et al., 2020; Martin and Steventon, 2022). This implies that NMPs employ a unique ratio of canonical Wnt signaling activity to Sox2 expression levels that shifts up or down during mesodermal or neural differentiation, respectively.

The tailbud also contains neuromesodermal progenitors that continuously generate the mesodermal notochord and neural floor plate tissues (Catala et al., 1995; Le Douarin and Halpern, 2000; Martin, 2021; Row et al., 2016; Teillet et al., 1998). These cells, which are also called dorsal midline progenitors, co-express tbxt and sox2 and depend on Wnt activity and Sox2 levels for cell fate specification (Row et al., 2016). Notochord fate depends on active Wnt signaling and the absence of sox2 expression. When Wnt signaling is inhibited or sox2 expression maintained, dorsal midline neuromesodermal progenitors form only floor plate (Row et al., 2016). Despite the developmental importance of dorsal midline NMPs, it is unclear precisely where these cells are located within the embryo and how they behave during axis elongation and cell fate specification.

The Sox2 transcription factor plays an important role in maintaining pluripotency in mouse epiblast cells (Avilion et al., 2003) and is sufficient along with a small number of other transcription factors to induce pluripotency in differentiated cells when ectopically expressed (Takahashi et al., 2007; Takahashi and Yamanaka, 2006). At later development stages, Sox2 is required for neuroectoderm specification (Bergsland et al., 2011; Bunina et al., 2020; Thomson et al., 2011; Zhang et al., 2019; Zhang and Cui, 2014). In both the direct differentiation of neuroectoderm from embryonic stem cells and the differentiation of spinal cord from NMPs, Sox2 represses mesodermal inducing genes (Koch et al., 2017; Wang et al., 2012; Zhang and Cui, 2014). Our previous work showed that ectopic activation of sox2 in midline progenitors prevents notochord induction and induces floor plate formation (Row et al., 2016). However, in this context it is unclear whether Sox2 is acting to maintain the NMP state, similar to its role in embryonic stem cells, or if Sox2 is directly inducing the floor plate fate from NMPs akin to its role during neural specification.

We took a multifaceted approach to identifying and characterizing the dorsal NMP population using high resolution imaging and single cell RNA sequencing (scRNA-seq). We also developed the auxin inducible degron 2 system for use in zebrafish to establish the role of Sox2 in dorsal midline NMPs. We found that the Wnt signaling activity to sox2 expression level ratio can be used to predict and identify cells with neuromesodermal potential, and that dorsal midline NMPs sit at the posterior-most floor plate position. These cells proliferate and migrate posteriorly, entering the G1 phase of the cell cycle before migrating ventrally to join the notochord. scRNA-seq confirmed the existence of a proliferative bipotential NMP population that gives rise to floor plate and notochord, with dorsal midline NMP cells rapidly downregulating sox2 as they join the notochord. Transient induction of Sox2 in dorsal midline NMPs using the auxin inducible degron 2 system showed that Sox2 maintains cells in the progenitor state, and cells can join the notochord only after Sox2 is degraded.

Results

Live imaging of the Wnt:Sox2 ratio in neuromesodermal progenitors and their descendants

Canonical Wnt signaling and the Sox2 transcription factor play critical roles in both the maintenance of the undifferentiated NMP state and NMP-derived lineage specification. When Sox2 is expressed and Wnt signaling is active, cells maintain the undifferentiated state (Kinney et al., 2020). When Sox2 is expressed in the absence of Wnt signaling, NMPs adopt a neural fate (Kinney et al., 2020; Martin and Kimelman, 2012). On the other hand, when Wnt signaling is active in the absence of Sox2, NMPs become mesoderm (Kinney et al., 2020; Martin and Kimelman, 2012). To directly visualize the relative levels of canonical Wnt signaling and sox2 in NMPs and their descendants, we used transgenic lines that report on sox2 expression levels and Wnt signaling activity. To visualize sox2 expression, we used the sox2-p2a-sfGFP line, which contains a p2a-sfGFP insertion at the 3’ end of the coding region of the endogenous sox2 gene (Shin et al., 2014). For canonical Wnt activity visualization, we used the 7xTCF.Siam:NLS-mCherry line, which expresses a nuclear localized mCherry under the control of 7 multimerized TCF binding sites (Moro et al., 2012). We imaged the tailbud of 16-somite stage embryos containing both the sox2-p2a-sfGFP and the 7xTCF.Siam:NLS-mCherry transgenes and quantified the mean pixel intensity of both reporters in individual cells using spinning disc confocal microscopy. We compared expression levels in the NMPs (cells in the posterior wall of the tailbud) with cells in the posterior spinal cord or posterior presomitic mesoderm (PSM) (Fig. 1A–D”’). We calculated a ratio of Wnt signaling activity divided by sox2 reporter activity. We found the highest ratio in the PSM, the lowest in the spinal cord, and an intermediate level in the NMPs, consistent with expectations based on prior Wnt and Sox2 functional modulation (Fig.1 E). To ensure that reporter transgenes are providing dynamic readouts of Wnt and sox2 levels, we performed time-lapse imaging of transgenic cells transplanted into the tailbud of wild-type host embryos (Fig. 1F–G’, Supplemental Movie 1). Quantification of reporter fluorescence as cells transitioned from NMP to PSM showed that the Wnt:sox2 reporter ratio increased during mesoderm induction (Fig. 1H). Conversely, cells that transitioned from NMP to neural tissue showed a decrease in the Wnt:sox2 reporter ratio (Fig. 1H).

Figure 1 – Neuromesodermal progenitors and their descendants have a unique Wnt signaling to Sox2 expression ratio.

(A) Embryos containing a single copy of both the 7xTCF-Xla.Siam:nlsmCherry (Wnt reporter) and sox2–2a-sfGFP (sox2 reporter) were imaged and mean pixel intensities were measured in the NMP, paraxial mesoderm, and neural tube regions of the tailbud (40 NMP, 41 paraxial mesoderm, 30 neural cells measured). (B-D”’) Representative images of the NMP (B-B”’), paraxial mesoderm (C-C”’), and neural tube (D-D”’) regions are shown. (E) Quantification of the mean pixel intensities were calculated as a ratio of Wnt reporter fluorescence divided by sox2 reporter fluorescence. The ratio in each region was significantly different than other regions (P<0.0001, unpaired t-test). (F) A cell transplantation method was used to target donor cells with both reporter transgenes into the NMP population of unlabeled wild-type host embryos. (G, G’) Time-lapse imaging was performed, with time-point 0 shown. (H) The mean pixel intensity ratio of Wnt reporter divided by the sox2 reporter was calculated over time in NMP cells that join the paraxial mesoderm or in NMP cells that join the neural tube, showing dynamic changes in the ratio over time (20 cells measured, 10 that become mesoderm, 10 that become neural). Scale bars = 20μm.

Identification of a neuromesodermal progenitor-like Wnt:sox2 ratio in midline progenitors

To determine if the Wnt:sox2 ratio predicts NMP potential, we quantified the ratio in midline cells in different anterior-posterior or dorsoventral locations with the tailbud. We previously described two midline progenitor populations, one dorsal that gives rise to mesodermal notochord and neural floor plate fates, and a second ventral population that forms either notochord or endodermal hypochord fates (Row et al., 2016). However, it is unclear where exactly these midline progenitors reside relative to one another. By live-imaging of the Wnt:sox2 ratio in midline cells (Fig. 2A), we found the highest ratio in the notochord and lowest in the hypochord (Fig. 2B–C). On the other hand, cells in the region of the posterior floor plate have a similar Wnt:sox2 ratio as that of the posterior wall NMPs, suggesting that these cells have potential to become either neural or mesodermal tissue (Fig. 2C, D).

Figure 2 – The Wnt:sox2 ratio identifies dorsal midline progenitors with neuromesodermal potential.

(A) Embryos containing a single copy of both the 7xTCF-Xla.Siam:nlsmCherry (Wnt reporter) and sox2–2a-sfGFP (sox2 reporter) were imaged and mean pixel intensities were measured in the posterior hypochord, notochord, and floor plate regions of the tailbud (42 notochord, 32 floor plate, 28 hypochord cells measured). (B-B”’) Representative images of the midline tissues are shown. (C) Quantification of the mean pixel intensities were calculated as a ratio of Wnt reporter fluorescence divided by sox2 reporter fluorescence. The ratio in each region was significantly different than other regions (P<0.0001, unpaired t-test). (D) The ratio between the floor plate and the NMPs was not statistically different. (E) A cell transplantation method was used to target labeled donor cells to the midline progenitors of unlabeled wild-type host embryos. (F-I’) Wild-type cells labeled with rhodamine dextran were transplanted into the midline progenitor population of unlabeled wild-type host embryos and time-lapse imaging was performed beginning at the 16-somite stage. (F) The border between the notochord and floor plate is indicated by a pink dashed line. Cells continuous with the posterior floor plate (white arrow, F’) move posteriorly relative to the notochord. Cells within this population contribute to both floor plate (I’, blue arrow) and notochord (I’, red arrow), with cells moving ventrally when forming the notochord (N=6 movies). (J-M’) Transgenic HS:CAAX-mCherry-2a-NLS-KikGR cells were transplanted into the midline progenitor domain of unlabeled wild-type host embryos and transgene expression was induced at bud stage. Time-lapse movies were made beginning at the 16-somite stage (J-M’, membranes are labeled in green and nuclei in magenta). Cells continuous with the posterior floor plate (white arrow, J’) move posteriorly relative to the notochord. Cells within this population contribute to floor plate and notochord (K-M’, red arrows show a notochord forming cell and blue arrows point to floor plate forming cells, N=4 movies). (N-P) Hybridization chain reaction was performed on embryos at the 16-somite stage using probes for the floor plate marker shhb and the notochord marker col2a1. At the posterior end of the floor plate the expression domain of shhb turns sharply into where the notochord progenitors reside (N, white arrow). Scale bars = 20μm.

The posterior-most region of the floor plate is a neuromesodermal progenitor population that gives rise to the definitive floor plate and notochord

To test if cells in the posterior-most floor plate have the potential to give rise to both neural and mesodermal cells, we performed midline-directed transplants, which target cells specifically to tailbud midline-progenitor cells (Fig. 2E) (Halpern et al., 1995; Row et al., 2016). We first transplanted cells from rhodamine dextran-injected donor embryos into unlabeled wild-type host embryos (Fig. 2F–I’, Supplemental Movie 2). When transplanted cells were located in the position of presumptive floor plate progenitors (i.e. more dorsal in the tailbud), they migrated posteriorly with respect to grafted cells in the notochord. Cells in this posterior-most putative floor plate (Fig. 2F’, white arrow) were then either left behind the rapidly migrating posterior population and adopted a bonafide floor plate fate or migrated posteriorly and ventrally to join the notochord (Fig. 2I’, blue arrow indicates floor plate cell, red arrow indicates notochord cells). We also performed transplants using the HS:CAAX-mCherry-2a-NLS-KikGR transgenic line, which labels the plasma membrane with mCherry and the nucleus with KikGR (Goto et al., 2017), as donor embryos (Fig. 2J–M’, Supplemental Movie 3). We saw the same results, with cells in the posterior-most region of the ventral midline ectoderm (Fig. 2J’, white arrow) becoming either floor plate or notochord (Fig. 2J–M’, blue arrow indicates floor plate, red arrow indicates notochord). To provide further evidence that the posterior floor plate-like progenitors can generate notochord cells, we performed hybridization chain reaction (HCR) to detect the spatial localization of the mRNA for the classic floor plate marker shhb and the notochord specific marker col2a1 (Ekker et al., 1995; Yan et al., 1995). We observed that the entirety of the floor plate expresses shhb with the posterior-most expression domain extending ventrally into cells that appear to cap the posterior notochord domain (Fig. 2N–P, white arrow). This, along with the time-lapse confocal imaging of transplanted cells, suggests that cells expressing shhb become incorporated into the notochord, after which they turn off shhb and activate notochord specific gene expression.

Single-cell RNA-seq reveals the cellular landscape of the tailbud and identifies midline progenitor cells

To comprehensively profile the many cell types and progenitor cell states in the developing tailbud, we generated a single-cell transcriptomic atlas of the zebrafish tailbud. 30 Tailbuds were isolated from 16 hpf embryos by manual dissection and then dissociated into single cells by trypsin and collagenase P digestion. Cell suspensions were pooled prior to generation of libraries. Single-cell libraries were constructed on the 10X Chromium platform and sequenced on an Illumina HiSeq2500 (Fig. 3A). Following filtering for low quality cells, 11,138 total single-cell transcriptomes were obtained with an average of about 3500 genes detected per cell.

Figure 3 -. scRNA-seq of the developing vertebrate tailbud identifies neuromesodermal progenitors and their derivatives.

(A) Schematic showing procedure for tailbud single cell isolation and sequencing. (B) UMAP embedding of 11,138 single cells sequenced from the tailbud. Cell types are labeled, and two markers for each cell type are included below labels. (C) Dotplot showing top 4 marker genes in each cell type by differential expression analysis. Colored boxes correspond to cell type. Greyscale indicates average expression and dot size indicates percent of expressing cells within each cell type. Marker genes were determined by Wilcoxon rank sum test. (D) UMAP embedding of all cells assigned a midline tissue identity in the full tailbud analysis. Unbiased clustering resulted in 5 distinct clusters. (E) Dotplot showing top 4 marker genes in each cell cluster shown in C by differential expression analysis. Colored boxes correspond to cell type. Greyscale indicates average expression and dot size indicates percent of expressing cells within each cell type. (F) UMAP overlay of gene scoring for cell-type specific markers.

Following regression to remove cell cycle effects, dimensionality reduction and clustering revealed 13 major cell types based on their expression of canonical marker genes (Fig. 3B–C). Epidermal cells marked by expression of epcam and krt8, showed distinct signatures from peridermal cells that express krt17 and anxa1c. Neural tube (NT) cells expressed sox19a and multiple her genes, with more mature neuroblasts expressing elavl3. Notochord cells were easily identified by expression of noto and shha. Two distinct populations of paraxial mesoderm (PM), which we dubbed “anterior” (more mature) and “posterior” (less mature) shared high expression of msgn1 and tbx16, but the posterior PM had much higher expression of ripply1, and the posterior PM expressed high levels of vox and ved. A distinct cluster of NMPs sits sandwiched between the NT and PM populations in UMAP space, an observation similar to other zebrafish scRNA-seq studies (Genuth et al., 2023; Lange et al., 2024).

To try and identify midline progenitor cells that give rise to notochord, hypochord, and floor plate, we further subclustered the notochord cluster. Following dimensionality reduction, we found 6 clusters of cells with distinct expression profiles (Fig. 3D–E). By computing gene scores (Tirosh et al., 2016) across the data set for canonical notochord, floor plate, and hypochord marker genes (Fig. 3F). Clusters 0 and 4 showed enrichment for markers of notochord, while parts of clusters 1 and 4 were enriched for floor plate markers. A small population assigned to cluster 4 was enriched for a hypochord signature. Cluster 3 showed enrichment for PM, suggesting these cells may be escaping Noto mediated repression of PM specific gene expression (Amacher and Kimmel, 1998). These results confirm that the tailbud contains all three midline progenitor-derived tissues.

To better understand the connections between these midline progenitor-derived cell types, we next performed trajectory and pseudotime analyses. Dimensionality reduction and trajectory inference in Monocle3 predicted the expected connections between clusters (Fig. 4A–B). The trajectory also implied a branching point between floor plate and notochord fates originating from cluster 3, so pseudotime was calculated with this cluster as the starting node (Fig. 4C). Floor plate marker sox2 increased along the trajectory branch leading to cluster 4, while in the trajectory leading to cluster 5, expression of this gene drops off rapidly (Fig 4D). On the other hand, the notochord marker tbxta was maintained along the trajectory branch leading to cluster 5 and decreased along the trajectory to cluster 4 (Fig. 4D). Cells in cluster 1 showed co-expression of sox2 and tbxta, consistent with this being the midline NMP population (Fig. 4E). We identified fgf8a as one of the most enriched genes expressed in NMPs in the whole tailbud (Fig. 3). fgf8a showed specific expression in the putative midline NMP cells of cluster 1, and overlapped with sox2 in this region (Fig. 4F). The transcription factor noto was expressed in midline and notochord progenitors - loss of Noto function results in reduced notochord and floor plate (Talbot et al., 1995). We found strong overlap of fgf8a and noto in cluster 1, identifying a potential novel signature of the midline NMPs (Fig. 4G). To provide further evidence that cluster 1 represents midline progenitors, we performed RNA velocity analysis which uses high-dimensional vectors based on inferred transitional cell states to predict future cell fates (La Manno et al., 2018). This suggests cluster 1 as an origin for both notochord and floor plate (Fig. 4H).

Figure 4 – Pseudotime and RNA velocity analysis details emergence of notochord and floor plate and identifies a molecular signature of midline progenitor cells.

(A) The UMAP embedding of all cells assigned a midline tissue identity is shown again as a reference. (B) UMAP embedding and trajectory computed in Monocle3. (C) Pseudotime values computed from differentiation trajectory with putative MPC population (cluster 1) as the starting node overlayed with Seurat UMAP. (D) Local regression for NMP markers sox2 and tbxta across the floor plate trajectory branch (cluster 1 to cluster 4) and notochord trajectory branch (cluster 1 to cluster 5). (E) UMAP overlayed with expression for both of the NMP markers sox2 and tbxta or (F) the NMP marker fgf8a and sox2. Overlapping expression is observed in cluster 1. (G) UMAP overlayed with expression of fgf8a and the notochord and midline progenitor marker noto. (H) RNA velocity analysis identifies cluster 1 as the putative MPC population. (I) UMAP colored by cell cycle states determined by cell cycle scoring. G1, S, and G2/M stages are not evenly distributed among clusters. (J) Dotplot showing top 15 marker genes in each cell-cycle state by differential expression analysis. Colored boxes correspond to cell type. Greyscale indicates average expression and dot size indicates percent of expressing cells within each cell type.

We analyzed the cell cycle phases of individual cells and colored the UMAP according to each phase (Fig. 4I). G1, S, G2, and M phases of the cell cycle were not evenly distributed amongst cells, but enriched in distinct clusters. For example, the forming and recently formed notochord progenitors in clusters 2 and 0 were almost exclusively in the G1 phase, and more mature notochord cells were predominantly in S phase. This is consistent with previous work using the FUCCI live cell cycle transgenes to show synchronization of the posterior notochord in G1 phase followed by entry of cells into S phase as they mature (Sugiyama et al., 2014; Sugiyama et al., 2009). The cells in clusters 1 and 4 representing midline progenitors and floor plate, respectively, were mostly in the S and G2/M phases of the cell cycle, indicating that these cells actively cycle. Collectively the midline cells in G1 phase expressed genes associated with an immature notochord or notochord progenitor state included twist2 and lhx1a (Fig. 4J). These expression profiles suggest the cell cycle phases may be indicative of differential acquisition of a notochord or floor plate identity (Fig. S1).

Midline neuromesodermal progenitors are proliferative and enter G1 as they form notochord

The scRNA-seq analyses indicated that different midline cell populations have distinct cell cycle phase characteristics (Figs. 4, S1). Previous analyses of the cell cycle states of NMPs in zebrafish embryos suggested that notochord progenitors arrest in the G1 phase of the cell cycle (Adikes et al., 2020; Sugiyama et al., 2014; Sugiyama et al., 2009). To determine cell cycle states of midline NMPs in live zebrafish embryos, we used a ratiometric Cyclin dependent kinase (Cdk) sensor transgenic line that we previously generated (Adikes et al., 2020; Morabito et al., 2021). This sensor consists of a fragment of human DNA helicase B (DHB) fused to mNeonGreen (mNG). In the absence of Cdk activity, DHB localizes to the nucleus. Phosphorylation of DHB by Cdk induces nuclear export, such that the sensor shifts from nuclear localization to cytoplasmic localization as the cell cycle progresses and Cdk activity increases (Spencer et al., 2013). The transgene also contains a histone H2B fused to mScarlet, which is separated from the DHB by the viral 2A peptide. The transgene is under the control of the hsp70l heat-shock inducible promoter for strong ubiquitous expression (Fig. 5A).

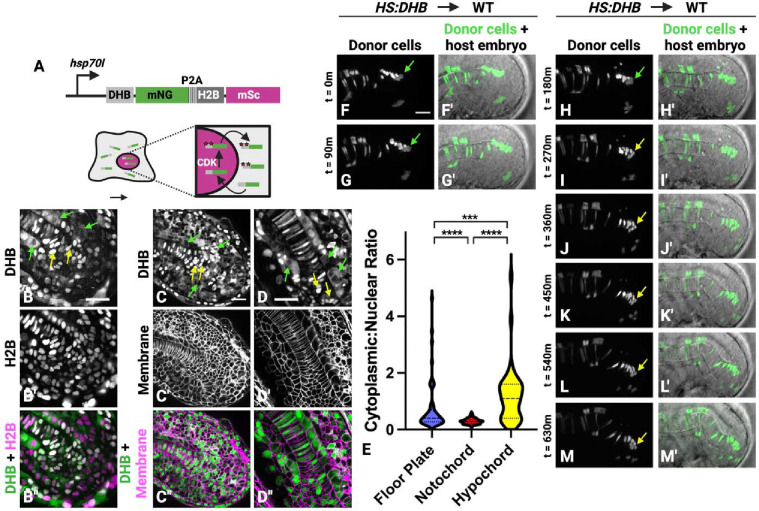

Figure 5 – The dorsal midline NMPs are a proliferative cell population.

(A) A schematic shows the Cdk sensor transgenic construct used to assess cell cycle state in live cells. (B-B”’) The HS:DHB-mNG-p2a-H2B-mSc transgenic line at the 26-somite stage shows localization of the DHB Cdk sensor (B), nuclei (B’), and are overlayed in B”. Yellow arrows point to examples of G1 phase cells with nuclear DHB localization, and green arrows point to G2 phase cells with cytoplasmic DHB localization. (C-D”) The HS:DHB-mSc-p2a-H2B-miRFP670 was crossed to the plasma membrane reporter line ubb:lck-mNG and imaged at the 22-somite stage (C-C”) and at 24 hpf (D-D”). Again, yellow arrows point to examples of G1 phase cells with nuclear DHB localization, and green arrows point to G2 phase cells with cytoplasmic DHB localization. (E) Quantification of the cytoplasm:nuclear ratio of DHB at the 26-somite stage shows that notochord cells are in G1 while posterior floor plate and hypochord cells are cycling (118 notochord, 52 floor plate, 43 hypochord cells measured). (F-M’) Midline progenitor targeted transplantation and time-lapse imaging using HS:DHB-mSc-p2a-H2B-miRFP670 donor cells show that the dorsal midline NMPs are in various phases of the cell cycle but arrest in G1 before entering the notochord domain (F-M’). Green arrows show location of proliferative cells at the dorsal midline NMP migration front (F-H’), which divide and enter G1 (yellow arrows) followed by ventral migration into the notochord domain (J-M’). Scale bars = 20μm.

The cytoplasmic to nuclear ratio of DHB was determined for cells occupying the putative posterior floor plate, notochord, and hypochord in the tailbud (Fig. 5B–E). As previously reported, posterior notochord progenitor cells were held in the G1 phase of the cell cycle (Fig. 5B, C, D, yellow arrows, E). In contrast, floor plate and hypochord progenitors had significantly higher cytoplasmic to nuclear DHB ratio, indicating that these populations proliferate (Fig. 5B, C, D, green arrows, E). To observe cell cycle dynamics during the transition from midline NMP to notochord, we performed transplants targeting DHB transgenic cells to the midline of wild-type host embryos and made time-lapse movies (Fig. 5F–M’, Supplemental Movie 4). The midline NMPs (in the posterior-most region of the floorplate) actively cycle (Fig. 5F–H, green arrows). Cells that join the notochord do so after cell division when they are in the G1 phase, indicating that they are in G1 before undergoing convergence and extension movements (Fig. 5I–M, yellow arrows).

Lowering Wnt signaling or sustaining sox2 expression maintains cells in the midline neuromesodermal progenitor population

We previously showed that within the dorsal midline progenitor population, the induction of notochord fate requires active Wnt signaling as well as repression of sox2 expression (Row et al., 2016). Inhibiting Wnt signaling or activating sox2 expression using heat-shock inducible transgenes at 10 hpf (bud stage) causes dorsal midline progenitors to shift to give rise predominantly to floor plate (Row et al., 2016). In order to confirm that this occurs at later stages of axis extension, we repeated these experiments by transplanting cells from heat-shock inducible sox2 transgenic embryos (HS:sox2) into the midline progenitors of wild-type host embryos, heat-shock induced sox2 expression at the bud stage, and imaged embryos at 24 hpf.

In controls, in which we transplanted wild-type cells to wild-type host embryos, donor cells contributed to both the floor plate and notochord (Fig. 6A–A”’). However, in contrast, HS:sox2 donor cells only contributed to floor plate and not notochord (Fig. 6B–B”’). In order to examine the behavior of dorsal midline progenitors over time under these conditions, we transplanted cells from heat-shock inducible tcfΔC (HS:tcfΔC) transgenics, which express a dominant negative inhibitor of the canonical Wnt signaling pathway (Martin and Kimelman, 2012), or HS:sox2 transgenic cells into wild-type host embryos, targeting them to the midline progenitor population. Host embryos were heat-shocked at bud stage and time-lapse movies were made beginning at the 12-somite stage. Again, control experiments where wild-type cells were transplanted to wild-type host embryos showed cells in the dorsal midline NMPs contributing to both notochord and floor plate (Fig. 6C–F’, Supplemental Movie 5). In contrast, transplanted cells in which sox2 expression was activated (Fig. 6G–J’, Supplemental Movie 6) or Wnt signaling was inhibited (Fig. 6K–N’, Supplemental Movie 7) remained at the migratory front of the dorsal midline NMPs but failed to move ventrally and join the notochord (white arrows). Over time these cells contributed only to the floor plate.

Figure 6 – Changing the Wnt:sox2 ratio prevents the dorsal midline NMP to notochord transition.

(A-A”’) Transplanting wild-type rhodamine dextran labeled cells into the midline progenitor region of host embryos shows transplanted cells contributing to both the floor plate and notochord (red boxes in A and A” show regions in A’ and A”’, respectively N=7). (B-B”’) When the sox2 level is elevated in transplanted cells, using the HS:sox2 transgenic line, cells stay in the dorsal midline progenitor zone but fail to generate notochord (red boxes in B and B” show regions in B’ and B”’, respectively, N=11). Embryos were imaged at 24 hpf and sox2 was induced at bud stage. (C-F’) Time-lapse imaging of wild-type cells transplanted into the midline progenitor region of wild-type host embryos shows cells in the dorsal midline NMP region contributing to floor plate and notochord. (G-N’) However, when transgenic cells are transplanted into wild-type host embryos and sox2 is activated (using the HS:sox2 line) (G-J’) or Wnt signaling is inhibited (using the HS:tcfΔC line) (K-N’) at bud stage, cells remain at the migratory front of the dorsal midline NMP region but do not join the notochord (white arrows). Time-lapse imaging was started at the 12-somite stage and continued for 360 minutes. Scale bars = 20μm.

Developing the auxin inducible degron 2 system in zebrafish

The scRNA-seq analyses show that sox2 expression is rapidly downregulated as midline progenitors are specified as notochord in the tailbud midline. To confirm this we performed HCR using probes for sox2 and the notochord marker col2a1 and observed sox2 expression in cells surrounding the notochord but not in notochord cells (Fig. 7A–C). Inducing sox2 expression using the HS:sox2 transgene caused dorsal midline progenitors to give rise to floor plate (or hypochord) but not notochord (Fig. 6). Sox2 could directly induce floor plate fate, or alternatively Sox2 activity might maintain the undifferentiated NMP state and causing cells to adopt a floor plate fate by default when they cannot join the notochord. We observed in a minority of HS:sox2 midline directed transplants that cells would resume forming notochord at the very posterior tip, presumably when the induced Sox2 turned over, suggesting that Sox2 is maintining the undifferentiated NMP state (Fig. S2). To further distinguish between these two models, we induced sox2 expression with a heat-shock inducible transgene, the protein produced by which can then be rapidly degraded. If Sox2 directly induces floor plate fate, cells in which Sox2 has been induced and then degraded should still fail to join the notochord. However, if Sox2 maintains the undifferentiated NMP state, then degradation of the induced Sox2 should allow cells to resume notochord contribution.

Figure 7 – Sox2 maintains dorsal midline NMPs in a bipotential progenitor state.

(A-C) Hybridization chain reaction was performed on embryos at the 16-somite stage using probes for sox2 and the notochord marker col2a1. (D) The plasmid construct used to temporally induce expression of mNG-sox2-AID and mScarlet-H2B. (E-J) Plasmid injected embryos were heat-shocked at shield stage and timelapse imaged for 2 hours. In the absence of 5-Ph-IAA, mNG-Sox2-AID levels are maintained (E-G), as are mSc-H2B levels (H-J). (Q) Mean pixel intensity of mNG-Sox2-AID in the absence of 5-Ph-IAA are plotted at 10-minute intervals (N=30 cells). (K-P) In the presence of 5-Ph-IAA, mNG-Sox2-AID levels are rapidly depleted immediately after 5-Ph-IAA addition (K-M), whereas mScarlet-H2B levels are maintained (N-P). (R) Mean pixel intensities of mNG-Sox2-AID in the presence of 5-Ph-IAA are plotted at 10-minute intervals (N=31 cells). (S-V) Plasmid injected embryos were heat-shocked at shield stage and treated with or without 5-Ph-IAA beginning at bud stage. Embryos were imaged at the 16-somite stage. (S-T, AA, EE) In the absence of 5-Ph-IAA, mNG-Sox2-AID levels are maintained (EE, N=30 cells) and cells join the floor plate and hypochord but not the notochord (S-T, AA, N=35 cells). (U-V, BB, EE) In the presence of 5-Ph-IAA, mNG-Sox2-AID is depleted (EE, N=34 cells) and notochord contribution resumes (U-V, BB, N=36 cells, P<0.0001 chi square test). (W-Z) Plasmid injected embryos were used as donor embryos in midline directed transplants, and host embryos were heat-shocked at the shield stage and treated with or without 5-Ph-IAA beginning at bud stage. Embryos were imaged at the 16-somite stage. (W-X, CC, FF) In the absence of 5-Ph-IAA, mNG-Sox2-AID levels are maintained (FF, N=44 cells) and cells join the floor plate and hypochord but not the notochord (W-X, CC, N=36 cells). (Y-Z, DD, FF) In the presence of 5-Ph-IAA, mNG-sox2-AID is depleted (FF, N=45 cells) and notochord contribution resumes (Y-Z, DD, N=41 cells, P<0.0001 chi square test). Scale bars = 20μm.

To perform this experiment, we adopted the auxin-inducible degradation 2 system (AID2) for use in zebrafish (Yesbolatova et al., 2020). The original AID system utilizes the plant specific f-box protein Tir1, which interacts with the auxin inducible degron (AID) only in the presence of the plant hormone auxin (Nishimura et al., 2009). AID-tagged proteins in the presence of Tir1 can be degraded rapidly upon addition of auxin. However, drawbacks of the AID system include: 1) leaky degradation of AID tagged proteins, and 2) requirements for high auxin concentrations. The AID2 system uses a mutant Tir1 protein and the auxin derivative 5-Ph-IAA, which together prevent leaky degradation and work efficiently at much (670x) lower ligand concentrations (Yesbolatova et al., 2020). When BFP tagged Tir1 mRNA was co-injected with an AID tagged mNG fluorescent protein mRNA, fluorescence in the embryo was rapidly lost upon 5-Ph-IAA addition (Fig. S3). This degradation was more efficient when the AID was replaced with the mIAA7 degron (Fig. S3), which has been shown in mammalian cells and C. elegans to increase degradation efficiency (Li et al., 2019; Sepers et al., 2022).

We next generated a heat-shock inducible Tir1-BFP transgenic line and observed similar degradation kinetics when AID or mIAA7 tagged mNG mRNAs were injected and embryos were treated with or without 5-Ph-IAA (Fig. S4). To modulate Sox2 activity, we designed a heat-shock inducible plasmid to drive a mNG-sox2 fusion tagged with the mIAA7 degron. This construct also has a 2A peptide that separates a mScarlet-H2B fusion, which allows for tracking of cells that expressed mNG-Sox2 but may no longer exhibit mNG fluorescence (Fig. 7D). This sox2 plasmid was co-injected with a heat-shock inducible Tir1-mScarlet fusion plasmid. Plasmids are inherited mosaically when injected into 1-cell stage zebrafish embryos. Injected embryos were heat-shocked at the shield stage and then treated with 5-Ph-IAA at the 8–12 somite stage and cells tracked with time-lapse imaging (Fig. 7E–P). Like degron tagged mNG alone, the degron tagged mNG-Sox2 was degraded rapidly in the presence of 5-Ph-IAA, whereas mScarlet fluorescence was maintained (Fig. 7E–R).

Sox2 maintains the undifferentiated midline NMP state

To determine if exogenous Sox2 directly induces floor plate fate in dorsal midline progenitors or alternatively maintains an undifferentiated progenitor fate, we injected the heat-shock inducible mNG-sox2-AID construct along with HS:tir1-mScarlet and heat-shocked injected embryos at shield stage. Embryos were then treated with 5-Ph-IAA (or DMSO vehicle in controls) at bud stage and imaged at the 18-somite stage (Fig. 7S–V). In vehicle treated embryos there was very little contribution of plasmid containing cells to the notochord, and instead they remained in either the floor plate or hypochord (Fig. 7S–T, AA). On the other hand, depletion of the induced Sox2 allowed plasmid containing cells to contribute to the notochord (Fig. 7U–V, BB). This was accompanied by a significant loss of mNG-Sox2 fluorescence relative to the mScarlet-H2B fluorescence in individual plasmid containing cells (Fig. 7EE). As a complementary approach, we also performed a similar set of experiments, but in this case used plasmid-injected embryos as donors for midline directed transplants into wild-type host embryos. We observed similar results, with low notochord contribution of plasmid containing transplanted cells in the absence of 5-Ph-IAA, and increased contribution when 5-Ph-IAA is added (Fig. 7W–Z, CC, DD). This was again accompanied by a significant loss of mNG-Sox2 fluorescence relative to the H2B-mScarlet fluorescence in individual plasmid containing cells (Fig. 7FF). These results indicate that Sox2 does not directly induce floor plate fate in dorsal midline progenitors, but rather maintains the undifferentiated progenitor state. The results also add further evidence that sox2 must be repressed before midline progenitor cells can become notochord.

Discussion

An updated model for midline tissue formation from midline progenitor cells

Our previous work identified two populations of midline progenitors among the NMPs in zebrafish; a dorsal population that produces notochord and floor plate, and a ventral population that generates notochord and hypochord (Row et al., 2016). However, it remained unclear: 1) exactly where these progenitors reside in the tailbud, 2) how the progenitor cells move to generate these distinct midline cell types, and 3) how dorsal and ventral progenitors are maintained as distinct populations without mixing. For example, ventral midline progenitors never give rise to floor plate and dorsal midline progenitors never give rise to hypochord. Here, we pinpoint the locations of dorsal midline progenitors by first identifying cells with a high ratio of canonical Wnt signaling activity to sox2 expression, similar to that of the posterior wall NMPs that generate spinal cord and paraxial/endothelial mesoderm. These dorsal midline NMP cells reside in the posterior-most region of what would have previously been described as the floor plate (Fig. 8A). Using midline targeted transplants and time-lapse imaging, we show that these cells migrate posteriorly with respect to notochord progenitors. Some of them slow their posterior migration and become floor plate, while others change shape and move ventrally to join the notochord (Fig. 8B). Using a Cdk activity sensor transgenic line, we also show that the dorsal and ventral midline progenitor populations proliferate and enter the G1 phase of the cell cycle before becoming notochord (Fig. 8C). scRNA-seq data provide additional support for this conclusion.

Figure 8 – Model of zebrafish midline development.

(A) The midline cells of a zebrafish embryo are schematized showing the location of cells (purple) with an NMP specific Wnt/Sox2 ratio. (B) These cells represent the dorsal midline NMPs (purple) that generate floor plate (blue) and notochord (red). Ventral mesendodermal progenitors (MEPs, orange) give rise to hypochord (yellow) and notochord (red). Red arrows show the movement of cells during tissue formation. NMPs and MEPs migrate posteriorly with some cells at the posterior-most domains converging and extending to form notochord, while cells in the trailing region slow their migration and form floor plate or hypochord, respectively. (C) Midline cells that are actively proliferating based on a Cdk activity reporter are highlighted in green.

In our experiments activating sox2 expression mosaically, we observed cells accumulating at the position of the dorsal midline progenitors, as well as at the posterior-most hypochord, both regions of endogenous sox2 expression. Time-lapse movies of transplanted cells show that the posterior hypochord region migrates posteriorly with respect to the notochord, and that cells from this region can slow their migration to generate hypochord or change shape and move dorsally to become notochord. Thus, our data suggest that the region previously thought to be the posterior-most hypochord contains the ventral midline progenitors. The physical separation and posterior-ward migration of the dorsal and ventral midline progenitors likely ensures that cells from the dorsal midline progenitor population cannot join the hypochord, and cells from the ventral midline progenitors cannot join the floor plate (Fig. 8B).

Defining the neuromesodermal progenitor state based on the ratio of canonical Wnt signaling activity and sox2 expression levels

One of the defining features of NMPs is their co-expression of the sox2 and tbxt transcription factors. We previously showed that a primary function of tbxt is to activate the canonical Wnt signaling pathway through direct activation of Wnt ligand expression, including wnt3a and wnt8a (Martin and Kimelman, 2008). Wnt signaling in turn activates tbxt expression, creating an autoregulatory loop (Martin and Kimelman, 2008; Yamaguchi et al., 1999). In mosaic analyses in both mouse and zebrafish, posterior wall NMPs lacking Tbxt function are sustained over the course of axial development and can become mesoderm when surrounded by wild-type cells (Guibentif et al., 2021; Martin and Kimelman, 2008, 2010). However, when cells lack Wnt signaling they cannot form mesoderm, even when surrounded by wild-type cells (Martin and Kimelman, 2012). This suggests that Wnt signaling is a critical defining feature maintaining the NMP potential.

NMPs maintain sox2 expression as they form neural tissue and rapidly downregulate it as they become mesoderm. Loss of sox2 function in zebrafish or Sox2 and Sox3 in mouse NMPs disrupts somite development, indicating that SoxB1 genes play an important role in the maintenance of NMPs (Kinney et al., 2020; Yoshida et al., 2014). The transcription factors Tbx16 in zebrafish and TBX6 in mouse normally repress sox2 transcription during the transition from NMP to mesoderm (Bouldin et al., 2015; Takemoto et al., 2011). Loss of function of these transcription factors prevents the majority of NMPs from transitioning to mesoderm and cells maintain their neuromesodermal potential (Chapman and Papaioannou, 1998; Griffin et al., 1998; Kimmel et al., 1989; Kinney et al., 2020; Takemoto et al., 2011). In zebrafish, when Wnt signaling is also inhibited in this context, NMPs exit into the anatomical position where mesoderm normally forms but instead these cells form ectopic neural tubes (Kinney et al., 2020), similar to the fate of Tbx6 mutant cells in the mouse that manage to escape the tailbud into the region where mesoderm normally forms (Chapman and Papaioannou, 1998). These prior studies suggest that a unique interaction between Sox2 and canonical Wnt signaling restricts cells to the tailbud and maintains their neural and mesodermal fate potential. Here we show, using reporter transgenes, that NMPs in the posterior wall of the tailbud have a unique ratio of Wnt signaling activity to sox2 expression level compared to newly induced neural or mesodermal tissue, and that this ratio can be used to predict and identify other cells with neuromesodermal potential. Thus, the co-activation of Wnt signaling and sox2 expression can be considered a defining feature of NMPs. Since Tbxt is a direct Wnt target gene (Yamaguchi et al., 1999), it follows that NMPs also co-express tbxt and sox2.

Several studies have suggested models for how Wnt signaling and Sox2 may interact to generate a unique output in NMPs distinct from either Wnt or Sox2 alone. The Wnt effector protein β-catenin directly interacts with numerous Sox transcription factors, including Sox2, and this can influence gene expression patterns (Kormish et al., 2010; Ye et al., 2014). In pluripotent, stem cell-derived NMPs in vitro, the vast majority of genomic regions occupied by β-catenin are co-occupied by Sox2 (Mukherjee et al., 2022). When Sox2 levels are reduced, β-catenin binding is lost at many of these sites. Additionally, Sox2 levels can affect the occupancy of Sox2 at different genomic locations (Blassberg et al., 2022). This in turn changes the genomic occupancy of β-catenin, with β-catenin tending to co-occupy sites bound by Sox2. Thus, Sox2 can elicit unique responses to Wnt signaling when it is present, which can vary depending on the precise level of Sox2 and this likely establishes an NMP-specific transcriptional output.

Auxin inducible protein degradation in zebrafish

Rapid conditional depletion of proteins is a powerful method for studying protein function. Transcription factors can be depleted in zebrafish using Transcription Factor Targeting Chimeras, but currently this system is not conditional (Samarasinghe et al., 2021). Methods to deplete GFP-tagged proteins in zebrafish include a GFP nanobody fused to the F-box protein Fbxw11b, which facilitates ubiquitination and subsequent degradation of GFP fusion proteins (Yamaguchi et al., 2019). An alternative nanobody approach utilized a GFP nanobody fused to an auxin inducible degron (AID) (Daniel et al., 2018). In the presence of the plant F-box protein Tir1, the AID-tagged nanobody and its bound GFP fusion protein are ubiquitinated and targeted for degradation following addition of the plant hormone auxin. A direct approach to tagging proteins of interest with AID, as opposed to a nanobody, has also been tested in zebrafish (Yamaguchi et al., 2019). However, degradation was leaky in the presence of Tir1 and absence of auxin. A direct AID tagging approach has been a powerful method of protein depletion in many systems including protozoans, mammalian cell culture, yeast, C. elegans, D. melanogaster, mouse, and others (Brown et al., 2017; Kanke et al., 2011; Kreidenweiss et al., 2013; Nishimura et al., 2009; Phanindhar and Mishra, 2023; Trost et al., 2016; Yesbolatova et al., 2020; Zhang et al., 2015). It provides rapid and reversible protein degradation based on the presence or absence of auxin. However, in some cases degradation with this system is also leaky and requires high concentrations of auxin. An updated system called AID 2 was developed using a bump and hole approach (Yesbolatova et al., 2020). A F74G mutation was introduced to the Tir1 protein, which binds strongly to the auxin derivative 5-Ph-IAA. The result is reduced leaky degradation and a requirement for 670-fold less ligand concentration.

We have established a modified direct AID tagging as a protein depletion method in zebrafish using many of the recent improvements made to the system, including the AID 2 approach (Yesbolatova et al., 2020). Instead of using Tir1 from Oryza sativa, which is commonly used in mammalian systems, we used the Tir1 from Arabidopsis thaliana, which is used in C. elegans (Zhang et al., 2015). Arabidopsis thaliana has a preferred temperature range of 23–25°C which is close to the preferred 28°C of zebrafish. We used a F79G mutant form of A. thaliana Tir1 (equivalent to the F74G mutation in O. sativa Tir1), paired with 5-Ph-IAA. We also introduced the D170E and M473L mutations, which were shown to improve binding of Tir1 to AID domains (Yu et al., 2013). Together this combination efficiently degrades tagged mNG fluorescent proteins. We also tested the mIAA7 degron, which was shown to provide a more rapid and complete degradation in mammalian cells and C. elegans (Li et al., 2019; Sepers et al., 2022), and this improved degradation kinetics. We expect the AID 2 system be broadly useful for the zebrafish community.

Materials and Methods

Zebrafish care and lines

All zebrafish methods were approved by the Stony Brook University Institutional Animal Care and Use Committee. Transgenic lines used include Tg(hsp70l:sox2–2A-NLS-KikGR)^sbu100 (referred to here as HS:sox2) (Row et al., 2016), Tg(hsp70l:Xla.Tcf.-EGFP)^w74 (referred to here as HS:tcfΔc) (Martin and Kimelman, 2012), Tg(sox2–2A-sfGFP)^stl84 (Shin et al., 2014), Tg(7xTCF-Xla.Siam:nlsmCherry) (Moro et al., 2012), Tg(hsp70l:CAAX-mCherry-2A-NLS-KikGR)^sbu104 (referred to here as HS:CAAX-mCherry-2A-NLS-KikGR) (Goto et al., 2017), tg(ubb:mmu.lck-mneongreen)^sbu107 (Adikes et al., 2020), Tg(hsp70l:hsa.helb-mneongreen-2a-hsa.hist1h2bj-mscarlet)^sbu108 (referred to here as HS:DHB-mNG-P2A-H2B-mSc) (Adikes et al., 2020), and Tg(hsp70l:hsa.helb-mscarlet-2a-hsa.hist1h2bj-mirfp670)^sbu109 (referred to here as HS:DHB-mSc-2A-H2B-miRFP670) (Adikes et al., 2020). All heat-shock inductions were performed by moving embryos from 28°C to prewarmed 40°C embryo media and held at 40°C for 30 minutes.

Plasmid construction

The lab’s heat shock plasmid comprises the Hsp70 heat shock promoter positioned upstream of two specific restriction enzyme cut sites (BamHI and ClaI). These sites served the purpose of linearizing the heat shock vector for subsequent plasmid construction.

HS:Tir1-E2A-BFP (pRM30) construction: Hsp70 was digested with BamHI and ClaI to linearize the plasmid for assembly. Using NEB HiFi, the Tir1:E2A:BFP PCR product was inserted into the linearized Hsp70 plasmid to create the final HS:Tir1:E2A:BFP and TTCGTGGCTCCAGAGAATCGATattaagcttgtgccccagtttgcta. The forward primer contains homology to the Hsp70 BamHI cut site, and the reverse primer has homology to the ClaI cut site. Using NEB HiFi, the Tir1:E2A:BFP PCR product was inserted into the linearized Hsp70 plasmid to create the final HS:Tir1:E2A:BFP plasmid.

HS:Tir1-E2A-mScarlet (pRM31) construction:HS:Tir1-E2A-BFP was digested with MluI and ClaI to remove BFP and linearize the plasmid for assembly. The E2A:mScarlet sequence was amplified from pRM25 plasmid using primers (RM485/486): TCATCACCACCAACGGACTCACGCGTGGCAGCGGCCAGTG and CTTATCATGTCTGGATCATCATCGATTTACTTGTACAGCTCGTCCA. The forward primer contains homology to the Hsp70 MluI cut site, and the reverse primer has homology to the ClaI cut site. Using NEB HiFi, the E2A:mScarlet PCR product was inserted into the linearized Hsp70-aid plasmid to create the final HS:Tir1:E2A:mScarlet plasmid.

HS:mNG-linker-aid (pRM33) construction: The Hsp70 plasmid was digested with BamHI and ClaI enzymes to linearize it for subsequent assembly. The mNG:linker:aid sequence was then amplified from a previously constructed plasmid using the primers CAAGCTACTTGTTCTTTTTGCAGGATCCGCCGCCACCATGGTGAGCAAGGGCGA and TCGTGGCTCCAGAGAATCGATttaTTTGACAAACGCGGCTGC (RM516/RM517). The forward primer was designed with homology to the BamHI cut site within Hsp70, while the reverse primer was designed with homology to the ClaI cut site. Utilizing NEB Hifi, the resulting mNG-linker-aid PCR product was inserted into the linearized Hsp70 plasmid, yielding the final construct termed HSLmNG-linker-aid.

HS:mNG-linker-Sox2-linker-aid (pRM34) construction:Hsp70 plasmid was digested with BamHI and ClaI enzymes to linearize it for subsequent assembly. The mNG sequence was then amplified using the primers CAAGCTACTTGTTCTTTTTGCAGGATCCGCCGCCACCATGGTGAGCAAGGGCG and TtgcaccGCTAGCaccACCGGTCTTGTACAGCTCGTCCATG (RM437/441), the forward primer added homology to the vector and the reverse primer added homology to the linker upstream of Sox2. Sox2 was amplified using the primers ggtGCTAGCggtgcaAGCggcgccAGCATGGATTATAAGGATCACGATGGAG and TGTGGCTGAGTGGTATGGTT (RM470/471), with the forward primer adding a 5’ linker to the Sox2 PCR product and the reverse primer having no homology. PCR was performed on the Sox2 PCR product to add homology for subsequent assembly. The mIAA7aid sequence was amplified using the forward primer GACGAGCTGTACAAGtaaACCGGTggtGCTAGCggtgcaAGC and the reverse primer TCGTGGCTCCAGAGA ATCGAT TTTTGACAAACGCGGCTGCC (RM493/RM440). Utilizing NEB Hifi polymerase, all three PCR products were inserted into the linearized Hsp70 plasmid to create the final construct, termed HS:mNG-linker-Sox2-linker-aid vector. The assembly of all three PCR products into the Hsp70 BamHI/Clal cut site was achieved using NEB Hifi assembly method.

HS:mNG-linker-Sox2-linker-mIAA7aid-H2B-mScarlet (pRM35) construction: HS:mNG-linker-Sox2-linker-aid was digested with ClaI to linearize the plasmid for subsequent assembly. The P2A:H2B:mScarlet sequence was then amplified using the primers GACCCAACAAAAGACCTCCTCCATCGATGGCAGCGGCGCCACC and GAGAAGTTCGTGGCTCCAGAGAATCGATttaCTTGTACAGCTCGTCCATGCCG (RM510/511). The forward primer was designed with homology to the sequence upstream of the ClaI cut site in HS:mNG-linker-Sox2-linker-aid, while the reverse primer contained homology downstream of the ClaI cut site in HS:mNG-linker-Sox2-linker-aid.Utilizing NEB Hifi, the resulting P2A-H2B-mScarlet PCR product was inserted into the linearized plasmid, resulting in the creation of the final construct, HS:mNG-linker-Sox2-linker-mIAA7aid.

Generation of the HS:tir1-E2A-BFP transgenic line

The stable zebrafish line HS:tir1-E2A-BFP was generated utilizing the Tol2 recombinase system (Kawakami, 2004). The lines were established by injecting single-cell wild-type zebrafish embryos with 25 pg of HS:tir1-E2A-BFP plasmid along with 25 pg of tol2 mRNA, employing previously described methods. F0 injected embryos were subsequently crossed with wild-type zebrafish, screening for germline transmission of the transgene.

5-Ph-IAA (Auxin) treatment

In all auxin experiments, 5-Ph-IAA auxin was resuspended in 100% DMSO at a concentration of 100 mM and stored at −20°C. Zebrafish embryos were treated by directly adding auxin to embryo media at a concentration of 1 mM. Additionally, when necessary, 5-Ph-IAA at a concentration of 2 mM was added to 1% low melting point agar, prior to imaging. During 5-Ph-IAA treatments, 100% DMSO was added to increase tissue permeabilization at a final concentration of 2%. Furthermore, immobilization of embryos for imaging was achieved using a concentration of 1x tricaine (25x stock; 0.4 g/l; Pentair, TRS1). For time-lapse imaging, embryos were treated during mounting, immediately preceding imaging while end-point experiments embryos were treated at the bud stage.

Image quantification

Image quantification was manually carried out using Fiji (Schindelin et al., 2012). To address the significant amplifier noise in EM-CCD images and eliminate residual out-of-focus fluorescence in these confocal micrographs, background subtraction was performed. The Z plane containing the cell’s center of interest was identified. The freehand tool was used to draw an area for measurement. The mean gray value within the region was measured. This procedure was repeated for each cell of interest in the image. For time-lapse recordings, the procedure was repeated at each time point following individual cells.

Embryo mounting and microscopy

Prior to imaging, live zebrafish embryos were immobilized using a solution of 1% low melting point agarose dissolved in embryo media supplemented with 1x tricaine (25x stock 0.4 g/l; Pentair, TRS1) and 2% DMSO. Static tailbud fluorescent images were captured between 13 and 17 somites using a 40x magnification dip lens with a Hamamatsu Orca EM-CCD camera and a Borealis-modified Yokagawa CSU-10 spinning disk confocal microscope (Nobska Imaging, Inc.). Time-lapse movies of individual cells were recorded starting at either 6 or 12 somites using the same imaging setup. Subsequent image processing was performed using Fiji.

Hybridization chain reaction

Version 3 HCR was performed using the protocol called “HCR^™ RNA-FISH protocol for whole-mount zebrafish embryos and larvae (Danio rerio)” provided by Molecular Instruments and available for download on their website (Choi et al., 2018). The only modification we made was we used 5ul of stock hairpin during the amplification stage whereas the protocol calls for 10ul.

Single-cell RNA sequencing

Wild type AB zebrafish embryos were obtained by natural breeding. Tailbuds were obtained by manual dissection at 16 hpf. Tailbuds were then dissociated into single cell suspension using mechanical disruption and trypsin/collagenase P incubation as described in Barske et al. (Barske et al., 2016). Single cell suspensions were processed on a 10x Chromium platform for single-cell library construction. Libraries were then sequenced on a HiSeq2500 (Illumina). FASTQ files were mapped to the zebrafish transcriptome GRCz11 using CellRanger. Mapped reads for the 12–32 hpf timeline were aggregated using CellRanger before further computational analysis. Counts matrix normalization and scaling were performed using Seurat v3.

Computational analysis and pseudotime computation of single-cell RNA-seq data

Variable features identification, principal component analysis (PCA), UMAP reduction, and unbiased clustering were performed in Seurat v3 (Butler et al., 2018). Differential expression analysis in Seurat v3 was used to identify cluster markers by wilcoxon rank sum test. Cluster markers were then used to assign cell types. Visualizations were generated using Seurat v3 and ggplot2 with color palettes from the RColorBrewer and Viridis packages. A subset counts matrix containing TFs was analyzed with Monocle3 for trajectory and pseudotime analysis (Trapnell et al., 2014). Identification of temporally distinct TF modules was performed using the graph_test and find_gene_modules functions in Monocle3.

Supplementary Material

Supplement 1

Figure S1 – Cell cycle phase specific gene expression. Genes known to be expressed in notochord cells, such as tbxta and twist2, are enriched specifically in G1 phase cells. Genes that are not expressed in notochord but are in the floor plate and hypochord are enriched in S and G2/M phase cells. Genes such as id3 and col2a1a, which are expressed in more anterior regions of the notochord, are specifically enriched in S phase cells.

Supplement 2

Figure S2 – Late contribution of HS:sox2 transplanted cells to notochord. HS:sox2 transgenic cells were transplanted to the midline progenitor population of wild-type host embryos and sox2 expression was activated at bud stage, with embryos imaged at 24 hpf. While in most cases transplanted cells ceased contributing to notochord after sox2 activation and only gave rise to floor plate, in some cases, as in the embryo shown here, transplanted cells resumed contribution to the notochord at the posterior-most tip of the tissue. The red boxes in A and A” indicate region shown in A’ and A”’, respectively. A and A’ show only the transplanted cells, with A” and A”’ showing the brightfield merge. The white arrows in A’ points to cells joining the notochord.

Supplement 3

Figure S3 – Depletion of degron tagged mNeonGreen (mNG) protein using tir1 mRNA injection. (A-D) 800 pg of tir1-E2A-BFP and 200 pg of mNG-AID (A, C) or mNG-mIAA7 (B, D) were co-injected into 1-cell stage wild-type embryos. Between bud and 8-somite stages injected embryos were treated with 5-Ph-IAA or vehicle control and imaged immediately after treatment at 10-minute intervals for two hours. (C, D) Individual cells were tracked over time and mean pixel intensity values in those cells determined for each time point. Values were normalized to time-point 0.

Supplement 4

Figure S4 – Depletion of degron tagged mNeonGreen (mNG) protein using HS:tir1 transgenic line. (A-D) 200 pg of mNG-AID (A, C) or mNG-mIAA7 (B, D) mRNA were injected into 1-cell stage HS:tir1-BFP embryos. Embryos were heat-shocked at shield stage and treated with 5-Ph-IAA or vehicle control between bud and 8 somite-stage and imaged immediately after treatment at 10-minute intervals for two hours. (C, D) Individual cells were tracked over time and mean pixel intensity values in those cells determined for each time point (N=20 cells for. Values were normalized to time-point 0.

Supplement 5

Supplemental Movie 1: Time-lapse movie of host embryos with transplanted cells containing the Wnt signaling and sox2 reporters. Embryos containing a single copy of both the 7xTCF-Xla.Siam:nlsmCherry (magenta, Wnt reporter) and sox2–2a-sfGFP (green, sox2 reporter) were used as donors for transplanting cells into unlabeled wild-type embryos. Donor cells were targeted the ventral margin of host embryos, which gives rise to the posterior wall NMPs. Images were captured every 10 minutes for a total of 360 minutes starting at the 16-somite stage. Scale bar = 20μm.

Supplement 6

Supplemental Movie 2: Time-lapse movie of transplanted rhodamine dextran labeled cells targeted to the midline progenitor population of host embryos. Donor embryos injected with rhodamine dextran were transplanted into the midline progenitor population of unlabeled wild-type embryos. Images were captured every 10 minutes for a total of 540 minutes starting at the 16-somite stage. The left and right movies are from the same timelapse showing either only rhodamine dextran labeled donor cells (left movie), or rhodamine dextran labeled cells (green) in the context of the host embryo (right movie). Scale bar = 20μm.

Supplement 7

Supplemental Movie 3: Time-lapse movie of transplanted midline progenitor targeted HS:CAAX-mCherry-2a-NLS-KikGR transgenic cells. Transgenic HS:CAAX-mCherry-2a-NLS-KikGR cells were transplanted into the midline progenitor domain of unlabeled wild-type host embryos and transgene expression was induced at bud stage. Time-lapse movies were made capturing images every 10 minutes for 540 minutes beginning at the 16-somite stage. The left and right movies are from the same timelapse showing either NLS-KikGR expression in donor cells in the context of the host embryo (left movie, only DHB-mSc is shown), or NLS-KikGR and CAAX-mCherry expression in the donor cells (right movie). Scale bar = 20μm.

Supplement 8

Supplemental Movie 4: Time-lapse movie of transplanted midline progenitor targeted HS:DHB-mSc-p2a-H2B-miRFP670 transgenic cells. Midline progenitor targeted transplantation and time-lapse imaging using HS:DHB-mSc-p2a-H2B-miRFP670 donor cells show that the dorsal midline NMPs are in various phases of the cell cycle but arrest in G1 before entering the notochord domain. The left and right movies are from the same timelapse showing either only HS:DHB-mSc-p2a-H2B-miRFP670 donor cells (left movie, only DHB-mSc is shown), or HS:DHB-mSc-p2a-H2B-miRFP670 cells (green) in the context of the host embryo (right movie). Scale bar = 20μm.

Supplement 9

Supplemental Movie 5: Time-lapse movie of transplanted midline progenitor targeted rhodamine dextran labelled cells. Wild-type rhodamine dextran labeled cells were transplanted into the midline progenitor region of an unlabeled wild-type host embryo. Time-lapse imaging shows cells in the dorsal midline NMP region contributing to floor plate and notochord. Time-lapse imaging was started at the 12-somite stage and continued for 360 minutes. The left and right movies are from the same timelapse showing either only rhodamine dextran labeled donor cells (left movie), or rhodamine dextran labeled cells (green) in the context of the host embryo (right movie). Scale bar = 20μm.

Supplement 10

Supplemental Movie 6: Time-lapse movie of transplanted midline progenitor targeted HS:sox2 transgenic cells. HS:sox2 transgenic cells were transplanted into wild-type host embryos and sox2 was activated at bud stage. Transplanted cells remain at the migratory front of the dorsal midline NMP region and join the floor plate but do not join the notochord. Time-lapse imaging was started at the 12-somite stage and continued for 360 minutes. The left and right movies are from the same timelapse showing either only HS:sox2 donor cells (left movie), or HS:sox2 cells (green) in the context of the host embryo (right movie). Scale bar = 20μm.

Supplement 11

Supplemental Movie 7: Time-lapse movie of transplanted midline progenitor targeted HS:tcfdeltaC transgenic cells. HS:tcfΔC transgenic cells were transplanted into wild-type host embryos and tcfΔC was activated at bud stage. Transplanted cells remain at the migratory front of the dorsal midline NMP region and join the floor plate but do not join the notochord. Time-lapse imaging was started at the 12-somite stage and continued for 360 minutes. The left and right movies are from the same timelapse showing either only HS:tcfΔC donor cells (left movie), or HS:tcfΔC cells (green) in the context of the host embryo (right movie). Scale bar = 20μm.
