Characterization of the tail current of Channelrhodopsin-2 variants

Abstract

Our study focused on specific ChR2 variants, particularly those with the Step function Opsins (SFO) mutation at the D156-C128 gate. These are widely used in optogenetics due to their heightened sensitivity to light and bi-stable prolonged activation. However, in some ChR2 variants, specifically D156 mutants, a tail current occurs when continuous light exposure is stopped. We specifically examined the D156H-T159S ChR2 variant, which demonstrated a tail current that was somewhat responsive to light and voltage, with a single-channel current of around 9fA, similar to wt-ChR2 as determined by stationary noise analysis. To further investigate, we used nonstationary noise analysis in cell-attached patching mode, which revealed that the tail current's single-channel current falls within the same range as the peak current, albeit with mild contamination from adaptation and desensitization. This finding strongly supports the notion that a portion of the ChR2 molecules open or re-open at the end of illumination, leading to further membrane depolarization.

Graphical abstract

Highlights

• •The tail current of some DC gate variants is robust upon long-term illumination.
• •The tail current of ChR2 variants reflects channel opening or re-opening, which depends on light intensity and voltage.
• •The transition of the accumulated non- or low-conductive state to the conductive state is attributed to the tail current.
• •The tail current may elicit membrane depolarization, affecting the target cells' action potential and repetitive firing.

1. Introduction

Shortly after Channelrhodopsins-1 （ChR-1） [1], Channelrhodopsins-2 (ChR2） [2]) was cloned and confirmed to be a light-gated cation-ion channel, which was identified in 2001 and 2003 in oocytes and mammalian HEK cells, respectively. Since then, ChR2 has been used as an excitation tool for optogenetics [[3], [4], [5], [6]] and vision restoration in blindness [7] due to photoreceptor cell loss in retinal pigmentosa (RP). Over two decades, researchers have developed dozens of ChR2 variants with improved light sensitivity, temporal and spatial resolution, and multiple spectra [[8], [9], [10], [11]]. The DC (D156, C128) gate was proposed [12] and eventually confirmed to involve a water-mediated binding between C128 and D156 and to interact directly with the retinal Schiff base [13]. Some mutations to D156 or C128 dramatically slowed the closure kinetics [[14], [15], [16]]. Some DC mutations (mainly C128 mutations, including C128A and C128S) are called and referred to as step-function opsin (SFO) due to their bi-stable long activation under short illumination. It was generated by introducing a point mutation of ChR2 at position C128, including C128A ChR2, C128S ChR2, or C128T ChR2. Another variant, D156A ChR2, has a deactivation time scale of the order of minutes [16]. The combination of these two mutations resulted in a stabilized SFO-ChR2(C128S-D156A, SSFO), which has a stable step depolarization membrane potential of more than 30 min in vitro and in vivo [17,18]. The decay of the conducting state P520 is dramatically slowed down in C128T ChR2 [17,18] and D156E ChR2 [19]. Thus, The DC pair mutation slows the photocycle (transition from P520 to P480 state) with accumulating P520 [20].

After Frankenhaeuser first described the K⁺ tail current from an isolated single fiber of the sciatic nerve of the frog X. laevis [21], tail currents were reported from most voltage-gated potassium channels (KV), sodium channels (NaV) [22], and calcium channels (CaV) [23]. NaV and CaV channels' inward tails are fast and masked by transients with larger capacitance. Therefore, the tail current of KV, especially the HERG (KCNH2) K⁺ channel, has been thoroughly investigated [24]. In general, the tail current of the voltage-gated channel reflects the timing of channel closure initiated after stimuli termination. In addition, the inward tail current of ligand-gated N-methyl-d-aspartate receptor (NMDA receptor or NMDAR) has recently been reported [[25], [26], [27], [28]]. The inward tail current of NMDAR suggests that the NMDA receptor channels accumulate in the open-blocked state. Thus, in addition to the tail current, which can affect the action potential and repetitive ring in target cells [24,[29], [30], [31], [32], [33], [34]], the study of tail current will also facilitate the understanding of the mechanism of structural transformation.

Tail current is not often detectable in Xenopus oocytes or HEK 293 cells for wild-type channelrhodopsin-2 (wt-ChR2). Still, we found it is robust in some variants, e.g., point mutation D156 (D156H or D156C) alone or combined with other point mutations (Fig. 1, Fig. 2, Supplementary Fig. 2). The first documented tail-like event is of C128S [14]. However, the tail current of ChR2 has yet to be well studied. We characterized the photocurrent of mutations of the DC pair of ChR2 under patch clamp and reported the tail current, a novel characteristic feature of ChR2.

Fig. 1.

Macroscopic photocurrent of channelrhodopsin-2 variants under whole-cell patch recording. Representative photocurrents of channelrhodopsin-2 variants, wt-ChR2 (A), T159C (B), T159C (C), D156H (D), D156H-T159C (E), and D156H-T159S (F) were induced by an LED (470 nm). Please note that the tail current was elicited after the termination of illumination in the variants with the D156H mutation but was not observed in wt-ChR2 and the T159 point mutations (T159C and T159S, respectively). The grey and the red photocurrent traces were induced at a light intensity of 1.21 and 14.2 mW/mm², respectively. (For interpretation of the references to colour in this figure legend, the reader is referred to the Web version of this article.)

Fig. 2.

Kinetic properties of ChR2 variants at different light densities. Representative photocurrents of channelrhodopsin-2 variants induced by different light intensities (1.21, 2.38, 3.34, 7.97, 12.77, and 14.2 mW/mm², respectively), wt-ChR2 (A), T159S ChR2 (B) and D156H-T159S ChR2 (C). The tail current of the D156H-T159S ChR2 variant can be observed in each trace induced at different light intensities. The amplitude of the peak and plateau currents were plotted in the histogram, wt-ChR2, n=5 (D), T159S ChR2 n=5 (E), and D156H-T159S ChR2, n=4 (F). The relationship between the amplitude of the plateau (I_ss) or tail current and the peak currents was plotted in wt-ChR2 (G), T159S ChR2 (H), and D156H-T159S ChR2 (I).

2. Results

2.1. The tail current is induced upon the termination of continuous illumination in variants with D156H mutation

The light-induced photocurrents of ChR2 and the variants containing the D156H mutation were measured at 1000 ms light exposure. The photocurrent curve of wt-ChR2, T159C ChR2, and the T159S ChR2 variant show a characteristic peak current (I_p) that inactivates to a steady-state current level (I_ss) that exhibits rapid desensitization as a function of intensity (Fig. 1A–C), the parameters of photocurrent were extracted as Supplementary Fig. 1 A. In contrast, inward tail current responses were observed with D156H alone (Fig. 1 D) or with another site mutation (either T159C or T159S) (Fig. 1 E and F, respectively) upon cessation of continuous illumination, while the parameters of the tail current were extracted as illustration in Supplementary Fig. 1B. These data suggest that the tail current is attributed to the D156H mutant.

After reviewing literatures, the tail currents were visible in ChR2-XXL (D156C) [16,35,36], ChR2-XXM (D156H) [37,38], C128S [14], C128A, and D156A [16] expressed in Xenopus oocytes [14], C128T, D156A in HEK 239 T cell [39], C128T, and SFO including C128A and D156A in ND7/23 cells [40]. The tail current of ChR2 has yet to be well studied. Therefore, we focused on the D156 site mutants because the photocurrent is much lower in mutations of the C128X with a relatively faster photocycle (Supplementary Fig. 2 and [16]). In addition, the tail current is also detectable in variants with D156C, but it is not feasible to characterize because it recovers very slowly compared with D156H (Supplementary Fig. 2). Therefore, the tail current of ChR2 was mainly characterized using the double mutants D156H and T159S ChR2 (D156H-T159S ChR2).

2.2. The tail current of the variants D156H-T159S ChR2 depends on the light intensity

The photocurrents of three ChR2 variants, including wt-ChR2, T159S ChR2, and D156H-T159S ChR2, were induced at six light intensities, as indicated in Fig. 2 A-C. The photocurrent curve of T159S is similar to the typical wt-ChR2 curve. The ratio of steady to peak current in ChR2 varies considerably between the variants [41]. Compared to wt-ChR2 (50-40 %) [41] and T159S ChR2 (50–60 %), D156H ChR2 exhibits much lower desensitization (about 5–10 %) (Fig. 2 D-I). The parameters of the above three variants are shown in Table 1 and Supplementary Tables 1–3. Neither wt-ChR2 nor T159S ChR2 contains a tail current. We then confirmed that the tail current is not an artificial effect, e.g., the external or internal electrical trigger by delivery light illumination by manually switching on or off the LED or light shutter of microscopy (data not shown). However, the tail current can be detected in most traces of the D156H-T159S double mutant, as indicated in Fig. 2. B–C and Supplementary Fig. 2. The amplitude of the tail currents shows an increasing proportion to the amplitude of the peak current (Fig. 2. F). This result indicates that the tail current depends on the light intensity. In addition, τ_ON and the delay to peak (D_PEAK, the delay from the onset of light exposure to the peak time) of D156H-T159S ChR2 negatively depend on light intensity. In contrast, the D_TAIL and τ_ONT remain constant without relation to light intensity. This result suggests that more channels are responsible for increasing the tail current amplitude dependent on light intensity. However, the activation timing of these molecules is relatively constant, about in the 2–3 ms range.

Table 1.

The kinetic characteristics of ChR2 variants at 7.94 mW/mm² light intensity.

	τON (ms)	τINACT (ms)	τONT (ms)	τOFF/τTAIL (ms)
wt-ChR2	2.8 ± 2.63	19.94 ± 5.56	Not appliable	30.54 ± 11.13
T159S	3.82 ± 1.49	196.61 ± 29.44	Not appliable	272.33 ± 20.93
D156H and T159S	2.82 ± 1.06	38.26 ± 12.57	3.16 ± 1.36	8132.26 ± 4594.35

2.3. The tail current of the variant D156H-T159S ChR2 is voltage-dependent

Using multiple voltage step protocol (Fig. 3 A), the raw and tail currents, subtracted from Iss traces, were plotted in Fig. 3 B–C. We investigated whether this tail current was related to a voltage (Fig. 3 B–C). Experimental measurements of the reversal potential of ChR2 are difficult due to the low current and poor signal-to-noise ratio around this point. In contrast, the ChR2 and most variants show strong inward rectification for peak and steady-state current at voltages above 0 mV [42,43]. The reversal potential of the peak and tail current of the D156H-T159S ChR2 variant shows a rightward shift at about +40.4 mV and +44.1 mV, respectively, in 137.93 mM mM [Na⁺]_o solution (Fig. 3 E, H) compared to wt-ChR2 is about +8 mV in 145 mM [Na⁺]_o (Fig. 3 D) [43]. The peak, steady-state, and tail currents respond to voltage nonlinearly (Fig. 3H), while the I_Tail/I_p ratio is linear (Fig. 3 G). Thus, the amplitude of the tail current of D156H-T159S ChR2 is both light- and voltage-dependent.

Fig. 3.

Kinetic properties of the D156H-T159S ChR2 variant for the voltage protocol. (A) The voltage protocol was performed with a varying holding potential from −120mV to +60 mV in 20 ms steps. (B) The macroscopic photocurrent of the D156H-T159S ChR2 variant was induced by a 1000 ms 7.97 mW/mm² light from 470 nm LED under a voltage-dependent protocol with at least 40 s recovery. Note that the first trace with the largest amplitude is held at −120mV. The tail current traces after subtraction of I_ss were shown in (C). The negative tail current traces were normalized and recorded as Inset, showing that these traces' on and off kinetics are in the same range. The I–V curves were plotted in (D-F) (I_p, I_ss, I_TAIL respectively), and I/Imax against voltage and Boltzmann function fitting were plotted in (H, n=4). The relationship between I_TAIL and I_p was plotted in (G).

2.4. The single-channel current of the D156H-T159S ChR2 was measured using a nonstationary noise analysis

The single-channel current of ChR2 is not feasible to measure using classical single-channel recording because of the small single-channel current (about the fA range). To estimate the unitary channel currents of the D156H-T159S ChR2 variant, we first measured the single channel current of ChR2 using stationary noise analysis [44,45]. Steady-state noise analysis revealed that the single channel current of D156H and T159S is approximately 9.2fA (Supplementary Fig. 3), which is in the same range as wt-ChR2 [44]. In this approach, only functional channels in the plasma membrane during the 120sec state-steady period are recorded post-illumination (Supplementary Fig. 3), mainly attributed to the conducting P^N520 and P*^N520 states [20]. Thus, the single channel current of the tail current is not feasible to measure using stationary noise analysis. Therefore, non-stationary noise analysis was performed using the previous method [43] with slight modifications. Since the rundown or adaptation of macroscopic photocurrent of ChR2s was served under whole-cell mode (data not shown). The noise analysis experiment was conducted in the cell-attached mode of the patch clamp with a 20 ms illumination duration and an interval of 20 s between two trials for wt-ChR2 and G224S ChR2, while an illumination duration of 500 ms and an interval of 22 s was applied for D156H-T159S ChR2. In this approach, only functional channels in the plasma membrane were considered during stimulation (Supplementary Fig. 4). The mean maximum response amplitudes of D156H-T159S ChR2 (−9 pA, n=14) were not significantly different in the transfected HEK cells (Fig. 4).

Fig. 4.

The single channel current of the ChR2 variants estimated by non-stationary fluctuation analysis. Non-stationary fluctuation analysis of ChR2, G224S ChR2, and D156H-T159S variant was performed using a patch-clamp setup in cell-attached mode. (A) An example of non-stationary fluctuation analysis of wt-ChR2. The mean (red curve) and variance (grey curve) of wt-ChR2 were determined from 75 pulses of 470 nm light with a duration of 20 ms and 20 s of recovery. (B) The mean-variance plot and the least-squares fitted curve of wt-ChR2 were obtained from the slope of the response. (C) The estimated single-channel currents of wt-ChR2 (−0.0865±0.033 pA; n=7), the G224S variant (−0.1200±0.254 pA; n=18) and the D156H-T159S ChR2 variant (−0.1914±0.104 pA; n=14). Seventy-five repeating recordings with 500 ms light illumination and 22-s intervals were applied to D156H-T159S ChR2. The representative traces of a set recording were illustrated in a two-dimensional matrix in (D). The variance σ2 was calculated by trial-to-trial difference (E) and calculated the variance presented in (G, grey curve). (F) I_p, I_ss, and I_TAIL were plotted against repeat numbers. (G) An example of a non-stationary fluctuation analysis of the D156H-T159S ChR2 variant. This variant's mean (red curve) and variance (grey curve) were obtained from 75 pulses of 470 nm light with a duration of 500 ms and 20 s of recovery. The mean-variance plot and the least-squares fitted curve of the D156H-T159S ChR2 variant obtained from the onset and termination of light exposure coordinate to peak current and tail current in (H) and (I), respectively. (J) The estimated single channel currents of D156H-T159S ChR2 variant: Full trace, −0.1701±0.0731 pA, n=13; Peak current, −0.1793±0.0831 pA, n=13; and tail, −0.1793±0.0831 pA, n=13. The single cell current from each measurement (cell) was plotted in (K), while the relationship between the single channel current of the tail current and peak current was plotted in (L). (For interpretation of the references to colour in this figure legend, the reader is referred to the Web version of this article.)

Variance (σ²) due to the random channel noise was calculated from the trial-to-trial variance, which is accessible from the artifact introduced by rundown or adaptation (Fig. 4 D-F, Supplementary Fig. 4 A1-2) [46]. The variance against the mean of the peak current was plotted and fitted using the parabola equation σ² = I_i − (I²/N) (wt-ChR2 in Fig. 4 B). The ranges of estimated single-channel currents of wt-ChR2 (−0.0865±0.033 pA; n=7) (Fig. 4 A-C), which are similar to previously measured parameters [43]. The representative traces of a set recording were illustrated in a two-dimensional plot in (Fig. 4 D) The variance σ² was calculated by subtracting sequentially (Supplementary Fig. 4 B) or trial to trial difference (Fig. 4 E, Supplementary Fig. 4C) for further determination of variance σ² in (Fig. 4 G). While G224S ChR2 (−0.1200±0.254 pA; n=18) and D156H-T159S ChR2 (−0.1701±0.0731 pA; n=13) (Fig. 4C). To estimate the single-channel current of the tail current of D156H-T159S ChR2, the mean and variance of the beginning and end of the light (±10 ms from the center of the time of light on or off) of traces were calculated, respectively. The mean-variance plot and least-squares plot of D156H-T159S ChR2 obtained from the beginning and end of the light coordinate the peak current and tail current in Fig. 4 G-I. The estimated single channel currents of D156H-T159S ChR2: peak current (−0.1793±0.0831 pA, n=13) and tail current, (−0.1750±0.0773 pA, n=13) (Fig. 4 J). Moreover, the relationship between the single channel current of the tail current and the peak current (Fig. 4 K and L) showed that the single channel current of the tail current is somehow related to the peak. Our data support the notion that the opening or re-open of a proportion of the channel causes the tail current at the termination of illumination since the single channel current of the tail current is not alerted compared with the peak current, suggesting that a transition from a non-conducting state to conducting state or from a low efficient conducting state to high efficient conducting state is attributed to the tail current. Berndt et al. proposed that the transient accumulation of the conducting P520 state due to relatively slow decay leads to the accumulated P390 state due to equilibrium to the p520 state, which could give rise to the small peak observed at light-off in C128S [14]. The possible mechanism will be discussed in detail lately.

2.5. The tail current of D156H-T159S ChR2 variants further depolarizes the membrane potential

The membrane potential caused by the tail current of the ChR2 variants was monitored in whole-cell current-clamp mode (Fig. 5. A and B). There is an additional depolarization (about 1–2 mV change from relative constant membrane potential coordinated to the steady current of ChR2) induced by the tail current at the termination of light exposure (Fig. 5. A and B). The change can be appreciated in differentiated membrane potential, current, and against plot (Fig. 5. D, E, and C., respectively). This suggests that additional membrane depolarization caused by tail current may induce additional action potentials in the target cell depending on the intrinsic electrophysiological properties of the cell and circumstance.

Fig. 5.

The tail current induces a transient increase in membrane potential. Photocurrent and membrane potential induced by different light intensities were recorded with the current clamp for the whole cell and the voltage clamp at 3-min intervals (A and B). It demonstrated that the tail current triggered a further depolarization of the membrane potential at the end of light exposure. The differentiated membrane potential and inward current were plotted in D and E, respectively. The detailed change is shown in the relationship between the differentiation of the membrane potential and the current in (C). Please note that the membrane potential and current change transiently and rapidly at the beginning and end of light exposure, as demonstrated in the raster plot (F).

3. Discussion

Tail current was visible, but without proper documentary, in ChR2-XXL (D156C) [16,35,36], ChR2-XXM (D156H) [37,38], C128S [14], C128A, and D156A [16] expressed in Xenopus oocytes, C128T [39], D156A [16] in HEK 239 T cell, but sometimes not in oocytes. We demonstrated that the DC pair mutations, including D156H, D156C, and C128T, are attributed to the tail current. The tail current of D156H-T159S ChR2 is related to the holding voltage and light intensity. However, the presence of the tail current in ChR2 variants expressed in oocytes, or HEK 239 T cells, varies across studies. The investigation of two types of cells on the tail current of ChR2 is still needed.

Using the stationary and nonstationary noise analysis, we estimated the single-channel current of D156H-T159S ChR2. The single-channel current of the stationary phase of D156H-T159S ChR2 determined by the stationary method is about −9.2 fA. Thus, this variant has a similar range of single-channel current compared to wt-ChR2 (−7.5±0.6 fA) [44]. However, it only reflects the single channel current of the extended stationary phase of ChR2s. Therefore, a non-stationary noise analysis was performed to overcome this difficulty. Considering that the ChR2 variants containing the D156H mutation recover more slowly, the cell-attached mode patch clamp was conducted to calculate the trial-to-trial variance to minimize adaptation and desensitization. The estimated single-channel currents of D156H-T159S ChR2 are peak current, −0.1793±0.0831 pA, and tail current, −0.1750±0.0773 pA, respectively. The single current yielded from the nonstationary noise analysis was about 20 folds the parameter obtained from the stationary noise analysis because of contamination of adaptation and channel desensitization (Fig. 4 D and F). However, it demonstrates that the single-channel current of the tail current is in the same range as the peak current. In addition, in the analysis of non-stationary noise, the light dependence of σ² was fitted according to the parabola function σ² = Ii − (I²/N), which allows estimating the number N of active ChR2 molecules within the cell membrane (≈43–77 ChR2/μm²). This number is slightly smaller than that obtained by directly counting particles in the plasma membrane using electron microscopy and the parameter measured under steady-state noise analysis [44,47] since patched cells with lower expression of ChR2 variants were selected for nonstationary noise analysis experiments.

Our study delves into the unique behavior of ChR2 variants ‘tail current.’ The tail current of a voltage-dependent channel is a deactivated current that emerges after prior and sufficient activation. In contrast to the classical tail current of voltage-dependent channels, the tail current in ChR2 variants is particularly intriguing as it reflects the timing of channel opening or re-opening, similar to the inward tail current of NMDAR accumulating in the open-blocked state. This timing is initiated after the stimuli are terminated and is primarily influenced by light intensity and voltage. Our research challenges the conventional understanding of the ChR2 photocycle. The single unbranched photocycle, we found, is insufficient to explain photocurrent changes during extended light application. Therefore, we provide a possible mechanism on the tail current of ChR2s using a parallel two-cycle model comprising two closed (C1 and C2) and two open (O1 and O2) states [20]. These states are populated differently in the dark and during repetitive or continuous illumination, leading to a more comprehensive understanding of the ChR2 photocycle [20]. After light activation, the photocurrent of ChR2s exhibits an initial peak that rapidly decreases to a lower but stable level. This inactivation effect is attributed to the branched photocycle of ChR2, as illustrated in the graphic abstract. Moreover, the P*^N520 accumulates due to its slow decay and contributes to the stationary photocurrent under continuous illumination [20].

In variants with no prominent tail currents, under continuous illumination, accumulation of the P390a and P390b are minor due to the fast decay of P^N520. Meanwhile, the P*^N520 contributes to the steady-state progress directly to D470 or P480 non-conducting states [20,48]. Inactivation of wt-ChR2 is about 40–50 % of the peak amplitude depending on light intensity and previous illumination experience upon relatively continuous illumination (Fig. 1, Fig. 2), indicating that probably 40–50 % of molecules participate in syn-photocycle actively [20]. In variants with prominent tail currents, the accumulating conducting state P520 of DC pair variants due to a rather slow decay and long lifespan leads to the accumulation of P390 proposed [14], which was confirmed lately in the nine-state single photocycle model of ChR2-C128T [18]. Moreover the decay conducting P520 state of wt, C128T, C128A, D156A ChR2 is 8.5 ms, 29s, 30s, 300s respectively [16]. The branched unifying photocycle model for light adaptation and temporal evolution was proposed latterly [20]. In this model, the late P390b and P^N520 contribute to the ion conductance of the open channel [16,18,49]. Accumulation of the conducting P^N520 state of D156H-T159S ChR2 due to relatively slow decay leads to accumulation of the small conducting P390b state and, therefore, may lead to accumulation of non-conducting state P390a due to P390b or P390a equilibrium with the accumulation of the conducting P520^N. Therefore, the transition of the accumulated P390b to P^N520, or P390a to P390b, then to P^N520, is attributed to the tail current on the termination of continuous illumination. Furthermore, the onset time of the tail current is about 2.5 ms, which is in the same range as the parameter of the peak current (2.5 ms). In comparison, the transition from P390 to P520 (0.33 ms, 3.7 ms for C128T, C128A respectively) is identical to the kinetics in wild-type ChR2 (1.8 ms) [16].

Moreover, D156H ChR2 and D156H-T159S ChR2 inactivation are about 5–10 % of peak amplitude, much less than 40 % of wt-ChR2 (Fig. 1, Fig. 2), upon relatively continuous illumination. The tail current is noticeable when the duration of the light stimulus is more than 20 ms (data is not shown and [16]). In contrast to the inactivation of variants without tail current, the inactivation is attributed from P*^N520; the actual inactivation of variants with tail current accounting from P*^N520 should be only small fraction since I_TAIL is about 90 % the decrease current from I_p to I_ss (I_p-I_ss) under continuous illumination (Supplementary Fig. 4 F), suggesting decrease current under continuous illumination is primarily contributed from accumulated nonconducting P390a state. However, the subtle accumulation of P390b and/or P390a state measurement and computation simulation upon long-term illumination are needed to address this question.

Finally, the tail current at the termination of light exposure causes an additional depolarization (about 1–2 mV change), which may induce extra action potential if a variant is expressed in the excitatory cell, for instance, neuron or muscle cell. The continuous illumination depolarized the membrane potential with an additional spike at the termination of illumination in C128S ChR2 expressing cells of the Drosophila horizontal plate lobula system, suggesting that C128S ChR2 may contain a tail current [50]. D156H ChR2 (XXM) showed enhanced Na⁺ and Ca²⁺ conductance [36]. Compared to wt-ChR2, the duration of the tail current is usually 2–3 ms; the integrated Ca²⁺ influx during the tail current may evoke intracellular calcium signaling besides inducing additional action potentials. Moreover, the Ca²⁺ current of the tail current in cardiac myocytes can also trigger sarcoplasmic reticulum (SR) Ca²⁺ release [51]. Transient increase of Ca²⁺ may increase synaptic transmission if the D156H ChR2 mutant is expressed in the presynaptic compartment. Thus, depending on the intrinsic electrical properties and physiological conditions of the target neuron, the tail current of the ChR2 variants may elicit more action potentials. This also suggests that the tail current may affect the target cells' action potential and repetitive firing [24].

4. Materials and methods

4.1. DNA constructs

The ChR2 mutations at the D156, T159, and E123 sites were created by PCR and recombination strategy (KOD one master Mix, TOYOBO, Japan for PCR; Seamless Assembly Cloning kit, Clone Smarter, USA) and then verified by DNA sequencing, which is provided by Genmedicn Biopharma Inc. (Nanjing, China).

4.2. HEK cell culture, DNA transfection

HEK-293 T cells were maintained in Advanced Dulbecco's Minimum Essential Medium (Bio-Channel, China) supplemented with 5 % fetal bovine serum (Bio-Channel, China), 100 units/ml penicillin G, and 100 μg/mL streptomycin at 37 °C in a humidified 5 % CO2 atmosphere. In preparation for DNA transfection, the cells were seeded in 16-mm glass coverslip (Menzel Glaser, Braunschweig, Germany) and then transfected with wt-ChR2 or ChR2s mutant using Lipofectamine 2000 (Life Technologies). All-trans-retinal (1 μM) was added to the culture media during DNA transfection [52]. Patch-clamp recordings were performed two days after DNA transfection.

4.3. Patch clamp recording

Macroscopic photocurrent recordings of ChR2s with patch electrodes in the whole-cell configuration were acquired using standard procedures at room temperature (22 °C) with either epatch (elements, Italy) or EPC-10 amplifier and PULSE software (Heka Electronik, Lambrecht/Pfalz, Germany). The resistance of the electrode was 5–8 MΩ. The series resistance ranged from 8 to 20 MΩ. Cell capacitance was canceled using the acquiring software. Recordings were performed in Hank's balanced salt solution containing (in mM): 138 NaCl, 1 NaHCO3, 0.3 Na2HPO4, 5 KCl, 0.3 KH2PO4, 1.25 CaCl2, 0.5 MgSO4, 0.5 MgCl2, 5 HEPES, 22.2 glucose (Beyotime Biotechnology, China), and the pH was adjusted to 7.2 using 0.3 M NaOH. All-trans-retinal (1 μM) was added to the recording solution [52]. The electrode solution contained (in mM): 110 Cs-Methanesulfonate, 30 TE A-Cl, 2 MgCl2, 0.1 CaCl2, 10 EGTA, and 10 HEPES (Sigma, Germany). The pH was adjusted to 7.25 using CsOH. Voltage errors were minimized using 70–80 % series resistance compensation. Membrane potentials were corrected for liquid junction potential (∼9.94 mV at 22 °C).

Most stationary or nonstationary noise analysis was recorded in cell-attached or whole-cell mode. Hank's balanced salt solution was used as the patching pipette for cell-attached mode. If whole-cell mode were to be performed, the 110 mM Cs-Methanesulfonate internal solution would be used, as mentioned above. For stationary fluctuation analysis [43,53], transfected HEK cells were recorded without or with stimulation with 120 s of light with 120-s intervals at a given light intensity or holding voltage. For nonstationary fluctuation analysis [40], transfected HEK cells were stimulated with 75 successive pulses (20 ms duration) of light at 22-s intervals.

4.4. Light stimulation

Light stimulation was provided by a custom-made light-emitting diode (LED) system (Thorlab, USA) triggered by a patch clamp amplifier. The light beam was passed through a GFP filter set (BP 470/40, dichroic mirror FT 495). Various light intensities were achieved by adjusting the power supplier's input current; the beam's light intensities through optical len were measured using a light power meter (Thorlab, USA). The shutting down of light stimulation for noise analysis was achieved by manually switching off the power supplier. Light stimuli were coupled to the microscope and through an air lens with a numerical aperture of 0.6 (Nikon).

4.5. Data analysis

4.5.1. For light stimulation and voltage protocol recording

Eight parameters were defined to characterize the ChR2 photocurrent (Supplementary Fig. 1A). Five parameters for the photocurrent without tail current: amplitude parameters, namely peak current, I_p, and steady-state current, I_ss; three kinetic measures, the time constant of activation, τ_ON, of deactivation, τ_OFF, and inactivation, τ_INACT. For the D156H-T159S ChR2 mutations, another three tail current parameters were defined: the peak of the tail current, I_TAIL; the time constant of tail current activation, τ_ONT; the time constant of deactivation, τ_TAIL, replacing τ_OFF, as shown in Supplementary Fig. 1. B.

4.5.2. For stationary fluctuation analysis

Recordings of the stationary current during prolonged illumination at varied light intensities (120 s) at −70 mV holding potential and 20–25 °C were used to estimate the unitary channel current of the underlying channel (2 kHz low-pass Bessel filter; sampling rate 20 kHz) [44]. Recordings were collected without (control) and with illumination. Data were transformed into files in either Igor Pro or Clampfit format. Noise analysis power spectral densities were calculated by a fast Fourier Transform (FFT) routine implemented in the Clampfit 10.0 software (spectral resolution: 0.076 Hz). Spectra were obtained by averaging individual spectra with illumination (channel noise; 2 measurements on the same cell; Supplementary Fig. 3 B red) and without illumination (background noise; 2 measurements on the same cell; Supplementary Fig 3. A and B black). For difference spectra, the background noise was subtracted from the channel noise spectrum (Supplementary Fig 3. C). The difference spectrum was fitted between 1 Hz and 1 kHz with a single Lorentzian function (${\mathrm{S}\left(\mathrm{f}\right)=\mathrm{S}}_0/(1+{\left(\mathrm{f}/{\mathrm{f}}_c\right)}^2$, Eq. 1) and the variance was determined (${\sigma }^2=\frac{\pi \bullet f_c\bullet S\left(0\right)}{2}$, Eq. 2) the single channel parameters were determined ($i=\frac{{\sigma }^2}{\mathrm{I}\bullet (1-P_{0)}}\text{,}$ Eq. 3 and $\left(1-P_0\right)=\frac{1}{2\pi \bullet f_c\bullet {\tau }_{off}}$), Eq. 4). Data analysis was performed with Clampfit 10.0 (Axon Laboratories) or Igor Pro (WaveMetrics, USA).

4.5.3. For nonstationary fluctuation analysis

Transfected HEK cells were performed either with a cell-attached or whole-cell mode patch clamp and stimulated with 50–75 pulses (20 ms duration) of light at 22-s intervals [43,53]. The mean response and trial-to-trial variance for each cell were calculated and fit with the parabola function (${\sigma }^2=I_i-\frac{I^2}{N}$, Eq.5) using Igor Pro (WaveMetrics, USA) as indicated.

CRediT authorship contribution statement

TiShang Zheng: Writing – original draft, Validation, Methodology, Formal analysis, Data curation. HengQi Wei: Methodology, Investigation, Data curation. CongJian Zhao: Writing – review & editing, Writing – original draft, Visualization, Validation, Supervision, Software, Resources, Project administration, Methodology, Investigation, Funding acquisition, Formal analysis, Data curation, Conceptualization.

Declaration of competing interest

The authors declare the following financial interests/personal relationships which may be considered as potential competing interests:CongJian Zhao reports financial support was provided by Natural Science Foundation Project of Chongqing. CongJian Zhao reports financial support and equipment, drugs, or supplies were provided by Fundamental Research Funds for the Chongqing University of Posts and Telecommunications. If there are other authors, they declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Appendix A. Supplementary data

The following are the Supplementary data to this article.

Fig. S1Measurement of the photocurrent of channelrhodopsin-2 variants. Five parameters capture the amplitude and kinetics of the wt-ChR2 current: peak current, I_P; steady-state current, I_ss; peak current activation time constant, τ_ON; inactivation time constant, τ_INACT; and deactivation time constant, τ_OFF. Two other parameters for tail current are peak current, I_TAIL; activation time constant of tail current, τ_ONT; and deactivation time constant, τ_TAIL, which replaces τ_OFF. They were quantified for each cell under all experimental conditions described.

Fig. S2Photocurrent of ChR2 variants with tail current. Representative photocurrents of channelrhodopsin-2 variants induced by 1 s 470 nm LED light. (A) The photocurrent of wt-ChR2 recovers quickly without tail current. In contrast, the other variants recover much slower, with a tail current at the end of light exposure (B–J). (B) D156H ChR2; (C) D156H-E123T ChR2; (D) D156H–159S ChR2; (E) D156H-T159S-E123T ChR2; (F) D156H-T159C ChR2; (G) D156H-T159C-E123T ChR2; (H) H134C-D156C-E123T ChR2; (I) H134C-D156C-E123T ChR2; (J) C128T ChR2.

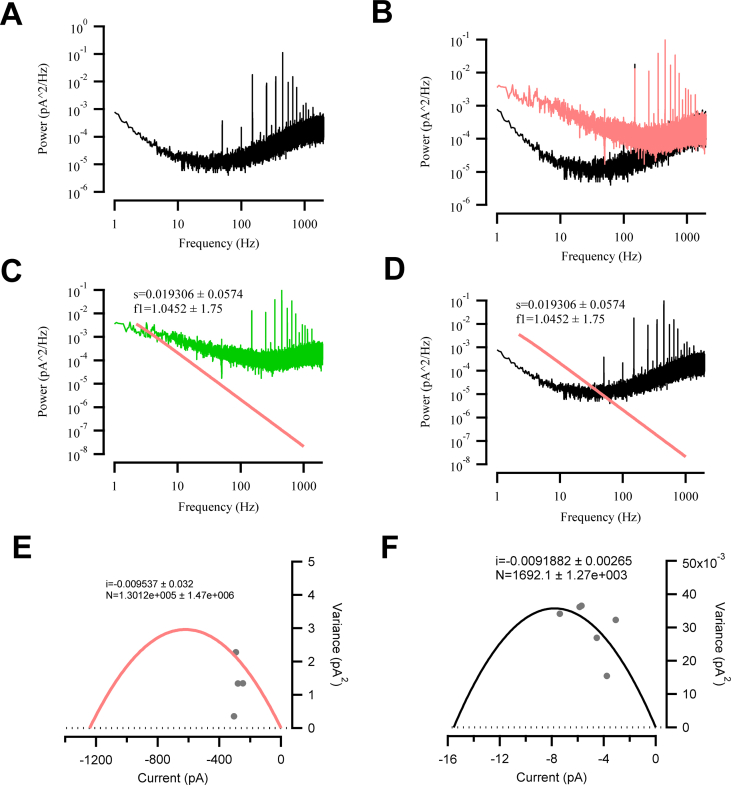

Fig. S3Single channel current estimated by stationary fluctuation analysis. Stationary noise analysis was applied to estimate the single channel current of the D156H-T159S ChR2 variant. In the absence and presence of light exposure, the current traces showed low noise and no unspecific fluctuations, which would cause increased background noise. Power spectra of HEK293 cells without induction of ChR2 expression (A) and with (B, red line). The red line shows the power spectra during illumination and the black one in the dark (B). The difference spectrum of the spectra shown in (C) is fitted with a single Lorentzian (red line) between 2.5 Hz and 1 kHz. (D) The reduced difference spectrum of the control cell spectra is shown in (B). The red line indicates the Lorentzian fit of (C). (E and F) The mean macroscopic current at different light intensities (470 nm; 1.21–14.2 mW/mm²; −70 mV applied) was plotted against the variance σ². Each variance was calculated from the parameters of the Lorentzian fit to the respective difference power spectra using σ² = [πf_cS₀]/2. At increasing light intensity and a holding potential of −70 mV, the inward current is directly correlated with the photon flux of the exciting light. The variance of the current was obtained from the Lorentzian function. The data were approximated using σ² = I_i − (I²/N), yielding a single channel current of i = −9.5 fA and N = 130,000 ChR2 channels under whole-cell patch clamp (E), whereas i = −9.2 fA and N = 1692 ChR2 channels under cell-attached mode (F) from same cell recording.
