Mechanisms of uropathogenic E. coli mucosal association in the gastrointestinal tract

Abstract

Urinary tract infections (UTIs) are highly recurrent and frequently caused by Uropathogenic Escherichia coli (UPEC) strains that can be found in patient intestines. Seeding of the urinary tract from this intestinal reservoir likely contributes to UTI recurrence (rUTI) rates. Thus, understanding the factors that promote UPEC intestinal colonization is of critical importance to designing therapeutics to reduce rUTI incidence. Although E. coli is found in high abundance in large intestine mucus, little is known about how it is able to maintain residence in this continuously secreted hydrogel. We discovered that the FimH adhesin of type 1 pili (T1P) bound throughout the secreted mucus layers of the colon and to epithelial cells in mouse and human samples. Disruption of T1P led to reduced association with colon mucus. Notably, this mutant up-regulated flagellar production and infiltrated the protective inner mucus layer of the colon. This could explain how UPEC resists being washed off by the continuously secreted mucus layers of the colon.

Inverse regulation of flagella and type 1 pili facilitates access to colon mucus by uropathogenic E. coli.

INTRODUCTION

Urinary tract infections (UTIs) are common, highly recurrent, and a leading cause of antibiotic therapy among otherwise healthy adult women, accounting for 15% of all outpatient antibiotic prescriptions (1–4). Uropathogenic Escherichia coli (UPEC) causes more than 80% of community-acquired UTIs (2). When untreated, UPEC can ascend the ureters to the kidney and access the bloodstream causing sepsis, with up to 20% of sepsis cases resulting from infection by a urinary isolate (5). Even when infection is cleared from the urine by clinical antibiotic regimens, 27% of women will experience recurrent UTI (rUTI) within months of an initial UTI (2). Greater than 60% of rUTIs are caused by the same strain of E. coli that caused the initial infection (2, 6), suggesting that one or more host-associated reservoirs of UPEC can reinoculate the urinary tract in susceptible women. The intestine is one such reservoir, with its resident microbiota acting as a major reservoir from which UPEC can be shed to seed colonization of the lower urogenital tracts and urinary tract (6). However, the mechanisms underpinning UPEC colonization and persistence within the gut are not fully understood. A better understanding of these mechanisms, including how UPEC strains colonize specific habitats of the gastrointestinal tract could inform the design of therapeutics to reduce the rate of rUTI incidence.

Colon epithelium is protected from direct contact with bacteria by the secreted mucus hydrogel organized around the Muc2 mucin (7). The thickness and barrier function provided by this hydrogel increases along the length of the intestinal tract, as does the number of luminal bacteria. In the colon, the inner mucus layer (IML) is anchored to crypt goblet cells, which continuously secrete mucus. The IML is transformed by endogenous proteolytic activity into the outer loose mucus layer (OML), expanding about three times in volume during this process. The OML is the habitat of a vast population of microbial flora, while the IML is generally devoid of bacteria during homeostasis (7–9).

Previous studies suggest that some E. coli strains preferentially reside in the large intestine, where they are often found in the mucus layers rather than in direct contact with the host (10, 11). In some cases, E. coli has also been found to reside within the colonic crypts (12). UPEC isolates carry an arsenal of proteinaceous, adhesive fibers, called chaperone usher pathway (CUP) pili, each of which is tipped with an adhesin thought to confer binding specificity to host glycans (13). The pangenome of E. coli encodes 38 distinct CUP pilus types and single E. coli genomes encode as many as 16 distinct, intact CUP operons, each likely mediating colonization of a particular host or environmental habitat (13). Each operon encodes structural pilin subunits, a periplasmic chaperone, and an outer membrane usher assembly protein (14). These operons also encode a two-domain tip adhesin, consisting of an N-terminal receptor binding domain, which binds with stereochemical specificity to a host or environmental receptor, and a C-terminal pilin domain, which links the adhesin to the rest of the pilus (14). On the basis of usher phylogeny, CUP pili are categorized into six clades (α, β, γ, κ, π, and σ) and five sub-clades (γ1, γ2, γ3, γ4, and γ*) (13).

In this study, we assess binding of three pili: type 1, Ucl, and Yeh. Type 1 pili are tipped with the mannose binding FimH adhesin, are in the γ1 sub-clade, present in 89% of sequenced isolates, and facilitate UPEC pathogenesis in the bladder and persistence in the gut. Ucl pili are in the γ4 sub-clade and promote UPEC colonization of the mouse intestine. Yeh pili are also from the γ4 sub-clade and are found in 100% of sequenced isolates but have no known ligand or function ascribed to them (14–16). We previously found that the clinical cystitis isolate UTI89 can be depleted from the mouse intestine following oral administration of high-affinity mannose analogs that neutralize FimH function (17). Mannosides are in phase 1b human clinical trials for the treatment and prevention of UTI (15). However, the contribution of CUP pili to UPEC intestinal biogeography remains largely uncharacterized. In the present study, we discovered that adhesins from Yeh and Ucl pili bound exclusively to fecal contents in the colon lumen, while type 1 pili were unique in enabling access to the secreted mucus layers and underlying tissue. In situ and ex vivo experiments that carefully preserved the IML of the colon revealed a promiscuous binding pattern for the FimH adhesin within the mucosa, including binding to both inner and outer mucus layers, to the glycocalyx at the epithelial surface, as well as to cells within the lamina propria. Notably, a UTI89 mutant lacking functional type 1 pili up-regulated flagellar-mediated motility, which, in turn, facilitates the infiltration of UPEC into the typically impenetrable IML in an ex vivo model of bacterial-mucus interaction. Our study illustrates the role of CUP pili in establishing radial spatial organization within the gut microbiota and highlights the importance of studying compensatory regulatory mechanisms that exist between distinct colonization factors.

RESULTS

Luminal and mucosal binding of lectin domains from UTI89’s repertoire of CUP adhesins

We purified and fluorescently labeled the lectin domains of Yeh, F17-like, and type 1 pili (YehD, UclD, and FimH, respectively) and tested binding of these lectin domains on cross sections of the mouse distal colon, which were cut in the area where the fecal pellet was the thickest, so that the luminal contents and mucosa could be imaged simultaneously through tiled imaging of the whole-colon section. Methanol-Carnoy fixation was used to preserve the secreted mucus layers because it limits dehydration and collapse of the mucus layers (16). YehD appeared to bind to dietary fibers present in the intestinal lumen but did not bind the mucosa (Fig. 1, A and B). UclD also bound within the lumen, to a ligand visually distinct from the binding site of YehD, and did not bind within the mucosa (Fig. 1, C and D). Conversely, FimH bound promiscuously throughout the colon, with the strongest observed signal coming from the outer edge of colon sections, which includes the secreted mucus layers and mucosa (Figs. 1, E and F, and 2A). UclD has previously been observed to bind to epithelial tissue (17). Here, we found no binding of the lectin domain to colon sections. Binding differences may stem from variations in mouse strains, tissue preparation methods, or alterations in the mouse gut microbiota, which can influence host glycosylation profiles (16, 18–21). Because glycosylation patterns can differ between mice and humans, we confirmed the negative binding of YehD and UclD colon epithelium by staining donated healthy human biopsy samples (fig. S1) (22, 23).

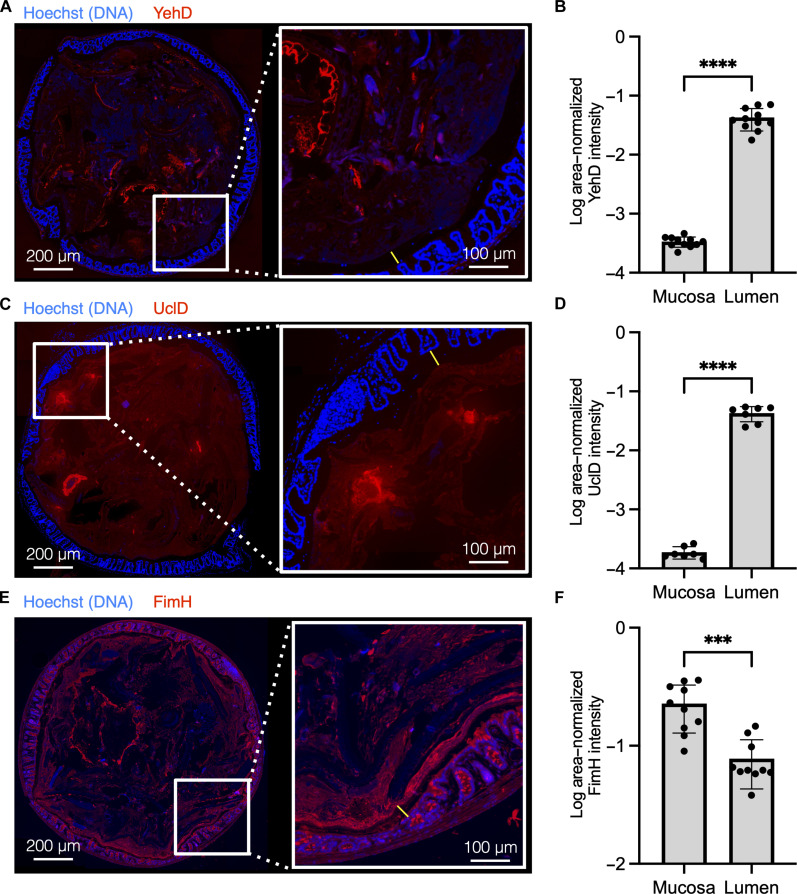

Fig. 1. Differential binding of UTI89 CUP adhesins to colon mucosa and lumen.

(A, C, and E) Purified lectin domains of Yeh, (YehD), F17-like (UclD), and type 1 (FimH) pili were bound to methacarn-fixed C57BL/6NJ (The Jackson Laboratory) female mouse colon sections. Lectin domain is labeled in red, and DNA is labeled in blue (Hoechst stain). On the left of (A), (C), and (E) is a representative tile scan of the entire colon section, and on the right is a magnified view of the colon mucosa. The IML is denoted by a yellow line. Left scale bars, 200 μm; right scale bars, 100 um. (B, D, and F) Segmentation analysis was performed on whole-colon sections to quantify the intensity of FimH binding signal in the colon mucosa and the lumen (fig. S2). [(A) and (B)] YehD binds in the colon lumen but does not bind within mucosa, n = 4 mice, two sections per mouse. [(C) and (D)] UclD binds within the colon lumen but does not bind within mucosa, n = 4 mice, two sections per mouse. (C) FimH binds both the mucosa and lumen of the colon, n = 5 mice, two sections per mouse.

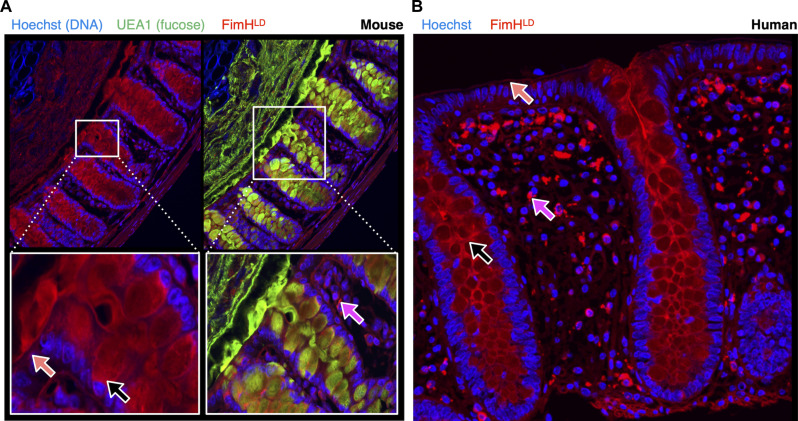

Fig. 2. FimH binds broadly within the mouse and human colon mucosa.

Fixed colon tissue was stained with FimH for high-resolution imaging of the mucosa. (A) C57BL/6NJ (Taconic Biosciences) female mouse distal colon was stained with FimH (red), UEA1 (green), and Hoechst (blue). IML denotes the inner mucus layer, and OML denotes the outer mucus layer, n = 3 mice, two sections each. (B) Fixed colon tissue sections from healthy human donors were stained with FimH (red) and Hoechst (blue), n = 3 individuals, two sections each. [(A) and (B)] Black arrows mark FimH signal on goblet cells. Orange arrows mark FimH signal on the epithelial surface. Magenta arrows mark FimH signal within the lamina propria.

FimH binds to mouse and human colon mucosa in situ

Because the mucosa is a key component of host-microbe interactions, we prioritized understanding the contribution of FimH to colonization of the mouse colon. We performed high-magnification imaging of the distal colon and found that FimH binds to several areas within the mucosa. FimH stained the surface of epithelial crypts, both the inner and outer mucus layer, as well as mucus-secreting goblet cells (Fig. 2A and fig. S2B). We used the fucose-binding UEA1 lectin as a counterstain, because it is a specific marker for goblet cells and secreted mucus in mice (24). In addition to staining luminal components of the mucosa, FimH also stained some cells within the lamina propria. We then translated these findings to the human colon (Fig. 2B). Because these human biopsy samples were fixed in paraformaldehyde, the secreted mucus layers were not preserved before sectioning; however, we were able to recapitulate binding to the epithelial crypts, mucus-secreting goblet cells, as well as binding to the lamina propria in donated human colon sections. To confirm that the observed binding did not result from nonspecific interactions, we repeated the staining using a FimH mutant incapable of binding mannose due to a known point mutation generated in the mannose binding pocket (FimH::Q133K), which resulted in no binding (fig. S3) (25). Further, we demonstrated that mannoside FIM1033 prevented all binding by neutralizing FimH (fig. S4). This demonstrates that the signal from bound FimH is unlikely to result from nonspecific interactions.

FimH binds to the secreted IML of freshly explanted mouse colon

Although FimH bound to multiple regions of the colon mucosa, cross sections of fixed gut tissue necessarily expose ligands that may not be available to bacteria originating from the lumen. Mannose is prevalent in many tissues, because it serves as a building block to many N-linked glycan structures and is known to decorate many glycoproteins (26, 27). To better understand the ability of FimH to bind to luminally to the colon mucosa, we used an ex vivo model in which fluorescently labeled lectins can be added apically to visualize the IML and underlying epithelium (28). In this model, the distal mouse colon is flushed to remove the fecal contents and outer mucus layer and subsequently mounted in a sealed imaging chamber, with the mucus facing upward (Fig. 3A). We co-stained the explanted tissue with fluorescently labeled FimH and UEA1, because UEA1 stains mucus well and specifically stains a substructure of the IML called intercrypt mucus, which is secreted by a specialized population of goblet cells at the top of colonic crypts (Fig. 3, B and D) (24). Unlike UEA1, FimH bound to both intercrypt mucus and to the typical plumes of secreted mucus (Fig. 3D, middle). In addition, strong binding from FimH was observed below the IML, in the glycocalyx at the surface of colonic crypts (fig. S5, A and B). The FimH::Q133K mutant, which no longer binds mannose, did not bind to secreted mucus ex vivo (fig. S5C). We also repeated the experiment using UclD as a control, and, in agreement with our binding data in Fig. 1, we did not observe binding of UclD within the IML, further confirming that mucus binding was a unique property of the FimH adhesin. To quantify the interaction of FimH with secreted mucus, we performed protein binding assays using purified FimH against commercially available bovine submaxillary mucin (BSM) (fig. S6, A and B). Here, FimH demonstrated a strong dose-dependent binding to immobilized BSM, and this binding was reversible by incubation with mannoside (fig. S6C).

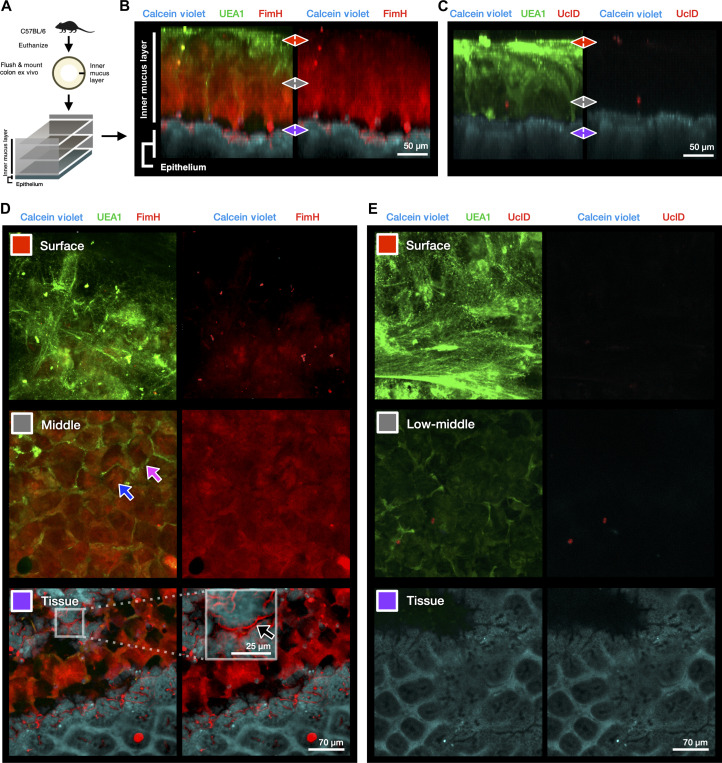

Fig. 3. FimH binds the IML and the colon epithelial surface ex vivo.

(A) Experimental design of 3D ex vivo mucus imaging procedure with female C57BL6/NJ (The Jackson Laboratory). (B) Representative side view (x/z projection) of FimH-stained reconstruction of the IML, n = 2 mice, and two pieces of colon per mouse. (C) Representative side view (x/z projection) of UclD-stained reconstruction of the IML, n = 4 mice, and two pieces of colon per mouse. (D) Selected slices (x/y projections) of three areas of interest (IML surface (red), IML middle (gray), and tissue (purple) representative of FimH-stained colon explants. Magenta arrow highlights UEA1-stained intercrypt mucus. Blue arrow highlights FimH-bound main mucus plume. Black arrow and white box inset denote FimH binding within the glycocalyx at the epithelial surface beneath the IML (fig. S5, A and B). (E) Selected slices (x/y projections) of IML surface (red), IML lower middle area (gray), and tissue (purple) representative of UclD-stained colon explants.

Carriage of type 1 pili promotes UTI89 association with colon mucus in vivo

The observation that purified FimH lectin domain can bind both secreted mucus layers as well as the surface of colonic crypts may explain why mannoside compounds are able to deplete UPEC from the mouse intestine (17). However, the degree to which the promiscuous in situ and ex vivo binding phenotypes of FimH contribute to mucus association of UPEC during active colonization is unknown. Because mouse intestines are intrinsically resistant to colonization by E. coli, we used a streptomycin pretreatment model that enables UPEC colonization in the gut to study the localization of UTI89 mutants in the colon (17). Mice were colonized with wild-type (WT) UTI89 or a mutant with the type 1 operon replaced by an antibiotic resistance marker (UTI89∆fim::kanR, subsequently referred to as UTI89∆fim) by oral gavage, and distal colons were harvested and fixed with methyl-Carnoy 4 days postinfection (dpi). We then localized UTI89 in situ using an antibody to the O18 lipopolysaccharide (LPS) antigen, which specifically identified UTI89 in colon sections (fig. S6, A and B). WT UTI89 was found throughout the colon lumen and between the outer mucus layer and the IML at 4 dpi, but very few cells were found within the IML (Fig. 4A and fig. S7C). When comparing the distribution of WT UTI89 and UTI89∆fim along the radial axis, we found UTI89∆fim to be significantly depleted from the mucus layers of the colon (Fig. 4, B and C). Mice were also colonized with UTI89∆uclD as a parallel control, and there was no difference in radial localization of the UTI89∆uclD mutant compared to that of the WT strain.

Fig. 4. UTI89∆fim::kanR is defective for mucus association during colonization.

Female C3H/HeN mice (Envigo) were colonized with WT, ∆fim, or ∆uclD mutant UTI89 and euthanized 4 days postinfection (dpi). Fixed colons were stained for UTI89 by using an antibody specific for the O18 lipopolysaccharide (LPS) antigen (green) and co-stained with fucose-binding UEA1 (red) and GlcNAc-binding WGA (pink) lectins to visualize mucus layers (fig. S7, A and B). DNA from epithelial cells was visualized by Hoechst stain (blue). (A) WT UTI89 (green) is mainly found in the lumen and outer mucus layer of the colon at 4 dpi (fig. S7C). (B) Representative images from tiled mouse colon sections were stained for UTI89 (green) and WGA (pink). (C) Quantification of radial distribution of UTI89∆fim and UTI89∆uclD (red line) compared to WT UTI89 (blue line). n = 5 mice per group, two sections per mouse. ****P < 0.0001.

UTI89∆fim uses flagellar-mediated motility to penetrate the mouse and human IML ex vivo

Although UTI89 was primarily found in the outer of the two secreted mucus layers in vivo, a small number of cells were present in or very near to the top of the IML of the colon. Having determined that FimH binds throughout the IML of fresh colon explants, we examined the behavior of UTI89 in the colon explant model using WT UTI89 and UTI89∆fim carrying a plasmid with constitutive expression of a green fluorescent protein (GFP) (29). These strains were grown in type 1 pili-inducing conditions (30) and added to the surface of colon explants along with 1-μm fluorescent beads, which are used to demarcate the top of the IML because the healthy IML is physically impenetrable to bacteria-sized beads or bacteria (7). By reconstructing the IML using confocal z-stacks, we showed that, while WT UTI89 did not penetrate the IML, roughly half of the UTI89∆fim cells infiltrated beneath the beads 15 min after being added to the explanted tissue (Fig. 5, A to C). Type 1 pili and flagella expression are inversely regulated in UTI89 (31). Thus, UTI89∆fim overexpression of flagella may explain the observed penetration phenotype. We used two-photon (2P) microscopy to acquire real-time videos of the mutants within the IML and deep within the colonic crypts. UTI89∆fim used active motility to dive into the colonic crypts (fig. S8, A and B, and movie S1). The necessity of flagella for mucus penetration was confirmed by testing UTI89 lacking type 1 pili as well as the major flagellar subunit FliC (UTI89∆fim∆fliC). This strain was incapable of penetrating the IML (Fig. 5, B and C). Notably, an average of 25% of the mucus-penetrating FimH mutants lodged themselves in the colon epithelium, where many remained immotile (Fig. 5H and movie S2). The penetration phenotype was also reproducible in explanted human colon tissue, where we found that UTI89∆fim swam through the IML and reached the epithelium in equivalent as in mice numbers (Fig. 5, F to H). We confirmed that the growth of type 1 mutants led to an up-regulation of flagellar expression (fig. S8, D and G). UPEC is an extremely genetically diverse group of E. coli isolates, sharing only 60% of core genetic content, exhibiting distinct phenotypes and unique transcriptional programs of shared genes even when grown in identical conditions (32). To determine whether the observed phenotype was specific to UTI89 or could be a shared property of UPEC, we tested whether disruption of type 1 pilus function in the clinical UPEC isolate CFT073 would enable mucus penetration through motility. CFT073∆fimH penetrated the IML similarly to UTI89∆fim (Fig. 5, I and J). Unexpectedly, WT CFT073 also penetrated the IML to a small degree, whereas WT UTI89 was never found below the beads (Fig. 5K). Similarly to UTI89, CFT073∆fimH penetrated the IML to a greater degree than WT CFT073 (Fig. 5J). While UPEC strains lacking type 1 pili are rare, several environmental factors have been identified that may affect regulation of type 1 pili (33–35). We simulated environmental inhibition of type 1 pili by culturing UTI89 in the presence of mannoside, which led to an up-regulation of flagellar expression and concomitant increase in the ability of wild-type UTI89 to penetrate the IML (Fig. 5, D and E, and fig. S8, C and E to G).

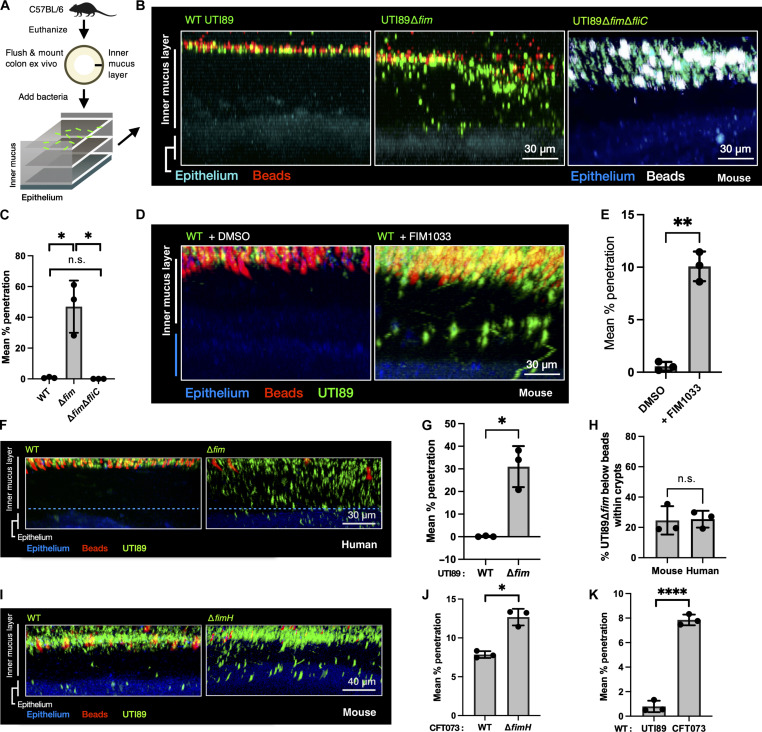

Fig. 5. Flagella-mediated motility permits UPEC penetration of the IML ex vivo.

(A) Experimental design of ex vivo mucus imaging procedure, with GFP-expressing UTI89 mutants added on top of freshly prepared mouse distal colon explants (female C57BL/6NJ mice, The Jackson Laboratory). Fluorescent beads (white; 1-μm size) were also added on top of each sample to determine the top of the IML. (B) WT UTI89 is unable to penetrate the IML, whereas UTI89∆fim (green) is detected below the fluorescent beads (white). Deletion of FliC allele from UTI89∆fim restores non-penetration phenotype. (C) Quantification of the proportion of each mutant penetrating below the bead-containing portion of the IML, n = 3 mice per group, two pieces of colon per mouse. (D) WT UTI89 cultures in the presence of compound FIM1033 recapitulate penetration phenotype of UTI89∆fim, whereas vehicle control [dimethyl sulfoxide (DMSO)] does not. (E) Quantification of the proportion of each group from (D), which penetrate below the bead-containing portion of the IML, n = 3 mice per group, two samples per colon. (F) UTI89∆fim penetrates the IML of healthy human colon explants. (G) Quantification of the proportion of WT UTI89 and UTI89∆fim, which penetrated past the bead-containing portion of the human IML, represented in (I); WT and ∆fim: n = 3 piece of colon from two individual donors. (H) The proportion of UTI89∆fim found below the bead-containing portion of the IML that is found in association with epithelial tissue is equivalent between mouse and human colons, n = 3 mice, two pieces per colon. (I) CFT073∆fimH penetrates the IML to a greater degree than WT CFT073. (J) Quantification of the proportion of WT CFT073 and CFT073∆fimH below the beads; WT: n = 3 mice, two pieces per colon; ∆fimH: n = 3 mice, two pieces per colon. (K) Quantitative comparison of penetration of WT UTI89 and CFT073. [(D), (G), and (I) to (K)] *P < 0.05, **P < 0.005, and ****P < 0.00005. n.s., not significant.

DISCUSSION

The intestinal microbiota is increasingly recognized to be spatially organized, with mouse studies demonstrating how a single gene can have a major effect on the localization of colon colonizing bacteria (36, 37). To date, CUP pili have been thought to promote infectious colonization by enabling attachment to host surfaces (13). We made the unexpected discovery that UTI89 encodes at least two CUP adhesins (YehD and UclD), which bind within the luminal or fecal contents of the mouse colon. A glycan array of UclD binding revealed affinity for more than one glycan, which may explain UclD binding in other studies (38).

E. coli grows well on mucus-derived sugars and has been isolated from secreted mucus layers of the large intestine (10, 39–44). However, few colonization factors have been identified which permit E. coli to reside within mucus. The secreted mucus layers of the intestine are structured around the highly glycosylated Muc2 protein backbone (8). The abundant and extremely varied glycosylation patterns of the Muc2 backbone are thought to play a dual role of providing a physical barrier from bacteria while also selecting for beneficial microbes (21). In a healthy host, the IML of the colon restricts bacteria from accessing the underlying epithelium. However, some bacteria are able to penetrate the IML generally by expressing mucolytic enzymes (37, 45), while others take advantage of disruptions of the IML during inflammatory conditions to penetrate the IML (46). Attachment to the top of the IML may also be a bacterial strategy to avoid peristalsis-mediated removal from the intestine (21).

Mannose is key building block for N-linked glycosylation across mammals and is found nearly ubiquitously throughout mammalian body sites (27). Terminal mannose residues, also known as high mannose, have been found in several glycoproteins present on intestinal epithelium (47, 48). Colonic mucus also reportedly consists of a mannose-containing fraction (49). The major secreted intestinal mucin Muc2 contains 30 N-linked glycan sites, and the von Wildebrand factor domain of Muc2 is mannosylated (50, 51). While the specific distribution of terminal mannose present on secreted Muc2 and glycocalyx is unclear, expression of glycosyltransferases by the microbiota can expose underlying mannose residues (22). Commensal Bacteroides species residing in the large intestine are able to access host-derived mannose through their vast repertoire of mannosidases (52, 53). The degree to which these sources of mannose are exploited by UPEC in the intestine is unknown. UPEC is poised to take advantage of exposed mannose for adhesion, because successful colonization and invasion of bladder epithelium depend on type pilus-mediated binding to mannosylated glycoproteins (54).

Purified FimH adhesin bound throughout the entirety of colon sections, including the lumen and throughout the secreted mucus layers and underlying epithelium. On colon explants, FimH had a diffuse staining pattern in secreted mucus and bound strongly at the epithelial surface. Transmembrane mucins are embedded within the epithelial cell membrane and have a critical role in tissue repair as well as providing an additional layer of protection against bacterial invasion (55). Our data suggest that UPEC may interact with transmembrane mucins within the glycocalyx of the colon. In colonization studies, genetic disruption of type 1 pili led to a substantial decrease in UTI89 found within the mucus layers, supporting the notion that type 1–mediated adhesion promotes retention in the intestine through attachment to the top of the IML or within the OML. We previously demonstrated that administration of mannose-analog compounds, called mannosides, can reduce UPEC colonization in the mouse intestine (17). In the present study, we demonstrate that mannoside pretreatment removes the promiscuous in situ binding of FimH from the entirety of the mouse mucosa and lumen.

UTI89∆fim did not colonize mucus as efficiently as WT UTI89 in vivo. Intestinal mucus is turned over at a continuous and rapid pace, with mouse colon IML capable of renewing itself within 1 hour (56). Therefore, tight attachment to the secreted mucus layers by bacteria may not be conducive to long-term colonization of the mucosa. Nevertheless, our work demonstrates that UTI89 associates with mucus in a type 1 pilus–dependent manner.

While intestinal mucus is often degraded during intestinal inflammation, penetration of the IML by bacteria or bacteria-sized beads in healthy hosts is rare (7, 46, 57, 58). However, we found that disruption of type 1 pili led to substantial flagellar-dependent infiltration of the normally impenetrable IML of the colon ex vivo. Flagella-mediated motility by UTI89∆fim and WT UTI89 grown in the presence of mannoside was sufficient for ex vivo penetration of the IML in our mouse and human colon explant experiments. These results confirm previous observation in Salmonella Typhimurium, demonstrating that flagella permit penetration of colon mucus (59). Whereas WT UTI89 did not demonstrate motility without mannoside, a small percentage of WT CFT073 E. coli penetrated the IML, with several of the penetrating cells being motile. UPEC has extensive genetic and functional diversity, with related UPEC isolates often displaying strong heterogeneity in transcriptional output of shared genes, even under identical culture conditions (32). Notably, in a study of clinical isolates, chemotaxis and motility genes are among the genes whose expression varies in similar culture conditions (32). Type 1 pili are under control of an invertible promoter controlling ON and OFF states of expression whose orientation is flipped by the expression of three recombinases in response to environmental signals (60). Down-regulation of type 1 pili expression is correlated with up-regulation of flagella (31). Therefore, the difference between the penetration of WT UTI89 and CFT073 may reflect a difference in regulation of the fimS promoter of type 1 pili between the two strains (61). Although WT UTI89 and CFT073 expressed similar number of flagella in type 1–inducing conditions, only CFT073 penetrated the IML. CFT073 encodes a homolog to the pic mucinase, which is commonly found in enteroaggregative E. coli (EAEC) (62). Pic is a serine protease that permits EAEC access to intestinal epithelium by degrading the Muc2 mucin, although this has only been described in the small intestine (63, 64). UTI89 lacks mucinases, which could further explain the difference in mucus penetration between UTI89 and CFT073. Note that a third of WT UTI89 cells were flagellated, even when the bacteria displayed 0% penetration of the IML. This difference highlights the need to better understand the regulatory processes that license flagellar activity in UTI89.

Whether UPEC uses flagella to swim through the colon IML in vivo is not known. The host dedicates considerable resources to inhibit flagellar activity in the intestine, including sensing the presence of flagellar subunits and secreting antimicrobial peptides to counteract bacterial motility (65, 66). Some older reports suggest that highly motile E. coli variants may be selected out of the mouse intestine, although these were performed using lab-adapted strains rather than clinical isolates (67, 68). Recent work in the streptomycin colonization model suggests that flagella-mediated motility is required for the commensal Nissle E. coli strain (EcN) to make use of nitrate secreted in response to streptomycin treatment, finding that an EcN flagellar mutant has a defect in colonizing the mucosa (36). Traversing mucus likely represents a high-risk, high-reward program that enables access to host derived glycans and electron acceptors such as oxygen and nitrate, at the cost of alarming the immune system (69). Intestinal mucins and glycans can affect microbial virulence factor expression and, in some cases, have been found to induce flagellar-mediated dispersal of bacterial biofilms (70–72).

As expected, on the basis of prior observation, the IML of colonized mouse colons remained mostly devoid of colonizing UTI89 (7). However, our ex vivo work demonstrates the capacity of UPEC to easily penetrate the IML under conditions that down-regulate type 1 pili and up-regulate motility. That IML penetration is not seen in healthy hosts in vivo could be because it triggers host responses. In healthy hosts, the observation that flagella enable efficient penetration of the IML may explain how UPEC reside in the continuously secreted mucus layers of the colon without being washed away. Although identifying the specific signals that affect promoter inversion requires further study, our work suggests that transient flagellar expression could enable E. coli to forage mucin in the IML, unveiling strategies available for UPEC to maintain residence in the secreted mucus layers of the colon.

These findings highlight a potentially important balance in binding versus motility in allowing UPEC and other related strains to colonize intestinal mucus. Perhaps in inflammatory conditions, breaching the IML and directly attaching to the epithelium may be more favorable because mucus is often already degraded, feces are more fluid, and the immune system is dysregulated. Inflammation can alter host glycosylation patterns and affect virulence signaling in bacteria (72, 73). Given that the rUTI intestinal microbiota shares microbial signatures with that of inflammatory bowel disease patients, future studies on the effect of intestinal inflammation on UPEC colonization factor expression may be particularly informative (74).

MATERIALS AND METHODS

Bacterial strains, plasmids, and growth conditions

Strains used in this study are presented in table S1. CUP adhesin and flagellar deletions in UTI89 were created by replacing the gene of interest with antibiotic-resistance markers using the λ Red Recombinase system, as previously described (62, 75, 76). Type 1 pilus–inducing growth conditions for UTI89 and CFT073 consist of two rounds of bacterial growth in static flasks, serially at 37°C for 24 hours, as previously described (17, 30). The pcom-GFP plasmid was transformed into UTI89 and CFT073 mutants for live imaging with ex vivo colon explants, and fluorescent cultures were cultured using ampicillin (100 μg/ml) to select for the plasmid (77).

Protein expression, purification, and labeling

FimH and UclD lectin domains were purified, as previously described (17, 78). The lectin domain of yehD was cloned from UTI89, tagged with a 6-his tag, and placed into a pTRC99a expression plasmid under the control of isopropyl-β-d-thiogalactopyranoside. Protein was expressed from C600 cells, and periplasm was harvested through outer membrane digestion with lysozyme followed by cell pelleting. The supernatant containing tagged protein was purified via affinity chromatography with a cobalt resin. Lectin domains were moved to 0.1 M NaHCO₃ (pH 8.3) buffer before fluorescent labeling and then labeled using the Thermo Fisher Scientific Alexa Fluor 647 NHS Ester (Succinimidyl Ester) kit (catalog number A20006) per the manufacturer’s recommendations.

Lectin fluorescence studies of fixed colons

For mouse studies, 7- to 8-week-old female specific pathogen–free C57BL6/NJ mice were euthanized, and distal colon segments were fixed in methanol-Carnoy to preserve the intestinal mucus (16). Fixed colon samples were embedded in paraffin, and sections were cut to 5-μm thickness. Sections were then de-waxed with xylene and rehydrated using sequential incubation into 100, 95, 70, 50, and 30% EtOH. Sections were washed in phosphate-buffered saline (PBS) and then blocked in 5% fetal calf serum for 30 min at room temperature. A staining solution containing Hoechst (5 μg/ml; DNA stain) and the relevant labeled adhesin lectin domain (10 μg/ml), or Hoechst alone, was used to stain the sections for 10 min, followed by washing the slides twice in PBS. For FimH, FimH::Q133K, and YehD, the slides are dipped in 150 ml of PBS for the washing step, whereas only 250 μl of PBS was used to wash the UclD adhesin off, due to a lower binding affinity. For blocking experiment with mannoside, compound FIM1033 was incubated at 10× molar excess with FimH in PBS 0.05% Tween 20 for 30 min at room temperature minutes before continuing with the staining protocol as above. FIM1033 is referred to as 29R in a previous publication (79). For human colon sections, sigmoid colon biopsies representative of three healthy individuals (two males and one female), aged 56 to 70 years old, undergoing routine endoscopy screening were collected at Sahlgrenska University Hospital (Gothenburg, Sweden) and processed, as previously described (57). For high-resolution imaging of FimH stains on mouse and human colon sections (Fig. 2), female C57BL6/NJ mice from Taconic Biosciences were used, and experiments were performed in the Department of Medical Biochemistry and Cell Biology at the Institute of Biomedicine, University of Gothenburg in Gothenburg, Sweden, and imaged using a Zeiss LSM700 confocal microscope with a 20× air objective lens. Whole-colon tiled scans of FimH, UclD, and YehD binding, FimH::Q133K binding, and mannoside blocking experiments were performed on C57BL/6NJ mice from The Jackson Laboratory in the Department of Molecular Microbiology, Washington University School of Medicine, in Saint Louis, Missouri, using the confocal function of a Zeiss Cell Observer Spinning Disk Confocal Microscope with a 10× objective lens. Segmentation analysis was used to compare the relative intensity of luminal versus mucosal lectin binding signal. The surfaces tool of Imaris 9 software was used to isolate the mucosa (lamina propria, epithelium, and IML) from the colon muscle layer and the lumen contents (fecal matter and/or outer mucus layer) (see fig. S2C). Measurements of surface area and total intensity of the mucosa and lumen were measured in Imaris 9 and used to calculate the area-normalized intensity for each section.

In vitro protein binding studies

Purified FimH, FimH::Q133K, YehD, and UclD proteins were placed in 1× PBS for biotinylation. Individual proteins were biotinylated with a ratio of 20:1 biotin to protein. Biotinylation occurred at 4°C with agitation for 2 hours, and proteins were subsequently dialyzed into either 1× PBS or 20 mM MES and 5.79 and 50 mM NaCl. BSM (Alfa Aesar) was diluted to 10 mg/ml, and 100 μl was used to coat to each well of Immulon 4HBX plates (Thermo Fisher Scientific, 3855). The wells were then blocked for ≥4 hours to overnight at 4°C with a blocking buffer of 1× PBS and 1%. Protein was added to the top row at 20 μg/ml, and seven serial twofold dilutions were performed on the rest of the plate. The plate was then allowed to incubate with adhered ligand overnight at 4°C diluted in a blocking buffer. Wells were then washed three times with wash buffer of 1× PBS and 0.05% Tween 20. Streptavidin–horseradish peroxidase was added at 1:1000 dilution in a blocking buffer and incubated for ~1 hour at 4°C. Wells were washed two times with wash buffer and then one time with 1× PBS. Wells were developed with 1:1 tetramethylbenzidine development reagent and quenched with ~1 M H₂SO₄. Wells were read at 450 nm. For mannoside inhibition assays, proteins were added at 5 μg/ml in all wells of the plate, and mannoside FIM-1033 was added to top row at 1 μg/ml, and serial twofold dilutions were performed to complete the dilution series.

Lectin fluorescence studies of ex vivo colon

Colon explants of specific pathogen–free 7- to 8-week-old female C57BL6/NJ mice from Taconic Biosciences or female C57BL6/NJ mice from The Jackson Laboratory were prepared, as previously described, for the preservation of the IML (24, 28). Briefly, distal colons were flushed with Krebs buffer to remove luminal content and unattached mucus. The muscle layer was removed by microdissection, and the distal colon was mounted in a horizontal chamber system and maintained with basolateral Krebs-glucose buffer and apical Krebs-mannitol buffer. Calcein violet was used with Krebs-glucose buffer to label epithelial tissue. Fluorescent beads (1 μm) were used to verify the penetrability properties of the IML, ensuring intact mucus layers. Rhodamine-labeled UEA1 lectin and Alexa Fluor 647–labeled FimH were added on top of mucus preparations at 50 μg/ml to label the IML. Z-stacks were acquired using LSM700 with a Plan-Apochromat 20×/1.0 differential interference contrast water objective (Zeiss) and the ZEN 2010 software. Imaging of the FimH:Q133K mutant was performed on C57BL/6NJ mice from The Jackson Laboratory in the Department of Molecular Microbiology, Washington University School of Medicine, in Saint Louis, Missouri.

Immunohistochemistry of UTI89 in colon sections

Specific pathogen–free 7- to 8-week-old female C3H/HeN mice from Envigo Laboratories were colonized in the streptomycin model as described above and euthanized at 4 dpi along with noninfected controls. Colons were freshly harvested, fixed in methanol-Carnoy, and processed as for lectin fluorescence studies, as previously described (16). Antigen retrieval was performed at near-boiling temperature using citrate buffer. A primary antibody specific to E. coli O18 LPS was used at a dilution of 1:500 in 5% fetal bovine serum to probe for UTI89, and a secondary antibody conjugated to Alexa Fluor 488 was used to detect the primary. Tile scans acquired using LSM700 20× air objective lens (8 × 8 tiles, 1024 × 1024 pixel resolution, averaging two layers).

Quantification of UTI89 biogeography

The epithelial surface of stained mouse colon sections was manually mapped using Bitplane Imaris Software, and O18-positive cells were mapped using the Imaris “surfaces” function. X/Y coordinate data were extracted from each colon section, with the sample center defined as the intersection of the minimum/maximum X/Y axis lines. O18-positive cell counts were calculated along the center-mucus radial line (scaled from 0 to 100% and binned into 5% groups). Absolute cell counts were divided by relative bin area to account for the fact that the sampling area for each bin decreases along the mucus-center radial axis. Quantification of bacteria in the IML was done by manually identifying bacteria present within IML structures stained by wheat germ agglutinin (WGA) and unstained by Hoechst.

Ex vivo bacterial penetration assay and imaging

Colon explants of naive 7- to 8-week-old female C57BL6/NJ mice were prepared preserve to structure of the IML, as previously described. For human colon studies, freshly isolated sections of human colon were obtained at ileocolonic resection surgery from the Digestive Diseases Research Core Center at Washington University. UTI89 mutants expressing the pCom-GFP plasmid were grown in type 1–inducing conditions. UTI89 mutants were resuspended to an optical density at 600 nm (OD₆₀₀) of 0.6 in PBS, mixed with 1-μm-sized FluoSpheres before being added on top of colon preparations for 15 min, and imaged. UTI89 bacterial mutants were first imaged using an LSM700 confocal microscope and subsequently at a higher rate of capture by 2P microscopy. 2P imaging was performed with a custom-built dual-laser 2P microscope equipped with a 1.0 numerical aperture 20× water dipping objective (Olympus). Samples were excited with a Chameleon Vision II Ti:Sapphire laser (Coherent) tuned from 750 to 980 nm depending on the experiment and fluorescence emission detected by photomultiplier tubes simultaneously using appropriate emission filters to separate second-harmonic generation and the various fluorescence signals. Three-dimensional (3D) images were collected (61 z steps, 400 μm by 400 μm by 60μm) from the luminal side to assess bacterial penetration of the mucus and attachment to the epithelium, as previously described (80, 81). For human tissue imaging, deidentified colon biopsy specimens were obtained through the Wash U Digestive Diseases Research Core Center. Tissue was placed in oxygenated Gibco CO₂-independent medium at 37°C, otherwise treated similarly to mouse colon tissue, with imaging performed within 2 hours of tissue acquisition. For assessment of bacterial motility, 2P imaging was used to capture time-lapse video images of GFP-expressing mutants and FluoSpheres within mucus samples. Bacterial cells and beads were tracked in Imaris 9 software, and motility was assessed using celltrackR/MotilityLab (2Ptrack.net).

Quantification of E. coli mucus penetration

UTI89 and CFT073 penetration of the IML was measured on 3D z-stacks captured using 2P microscopy of treated colon explants (as described above). 3D images were manually segmented on the basis of regions of interest. Fluorescent beads (1 μm) were used to define the “top” of the IML. The spot function of Imaris 9 software was used to identify individual bacteria, and the elongation of the point-spread function was modeled using default settings (5-μm estimated XY diameter, and 11.7-μm estimated Z diameter). The number of spots was gated using spot quality, using size and brightness estimates of each spot. Each image was manually reviewed, and glaring errors in identified spots, such as missing spots or extraneous spots, were manually corrected. To calculate the degree of penetration, the number of GFP-positive cells below the bead-containing top of the mucus layer was divided by the total number of bacteria. To calculate the number of mucus-penetrative E. coli that entered the epithelial tissue, the number of bacteria in the region containing epithelial tissue was divided by the number of bacteria below the top of the mucus layer (below the beads). Spot counts from three individual biological replicates of each mutant were comparable across experiments, so the percentage of penetration for each mutant was averaged across all experiments from the same mutant.

Transmission electron microscopy

For analyses by electron microscopy, bacterial cultures at OD₆₀₀ of 0.6 were allowed to absorb onto freshly glow discharged formvar/carbon-coated copper grids (200 mesh, Ted Pella Inc., Redding, CA) for 10 min. Grids were then washed two times in dH₂O and stained with 1% aqueous uranyl acetate (Ted Pella Inc.) for 1 min. Excess liquid was gently wicked off, and grids were allowed to air dry. Samples were viewed on a JEOL 1200EX transmission electron microscope (JEOL USA, Peabody, MA) equipped with an AMT 8 megapixel digital camera (Advanced Microscopy Techniques, Woburn, MA).

Statistical analysis

Statistical comparison of mucosal versus luminal signal intensities from stained colon sections was performed using a paired t test for each lectin domain. ***P < 0.0005 and ****P < 0.00005. To determine significance of radial distribution of bacterial mutants of immunohistochemistry colon stains, the absolute cell counts from each binned decile of the colon surface area was analyzed by two-way analysis of variance (ANOVA), and Fisher’s least significant difference test was used to generate a P value for each bin. ****P < 0.0001. To determine statistical significance of bacterial penetration in the ex vivo mucus model, significance was determined by performing Mann-Whitney U test on percentages of bacteria that penetrated below the level of 1-μm beads. When a piece of colon was split to test two bacterial mutants separately, a paired t test was performed.
