Using deep learning to predict microvascular invasion in hepatocellular carcinoma based on dynamic contrast-enhanced MRI combined with clinical parameters

Abstract

Purpose

Microvascular invasion (MVI) is a critical determinant of the early recurrence and poor prognosis of patients with hepatocellular carcinoma (HCC). Prediction of MVI status is clinically significant for the decision of treatment strategies and the assessment of patient’s prognosis. A deep learning (DL) model was developed to predict the MVI status and grade in HCC patients based on preoperative dynamic contrast-enhanced magnetic resonance imaging (DCE-MRI) and clinical parameters.

Methods

HCC patients with pathologically confirmed MVI status from January to December 2016 were enrolled and preoperative DCE-MRI of these patients were collected in this study. Then they were randomly divided into the training and testing cohorts. A DL model with eight conventional neural network (CNN) branches for eight MRI sequences was built to predict the presence of MVI, and further combined with clinical parameters for better prediction.

Results

Among 601 HCC patients, 376 patients were pathologically MVI absent, and 225 patients were MVI present. To predict the presence of MVI, the DL model based only on images achieved an area under curve (AUC) of 0.915 in the testing cohort as compared to the radiomics model with an AUC of 0.731. The DL combined with clinical parameters (DLC) model yielded the best predictive performance with an AUC of 0.931. For the MVI-grade stratification, the DLC models achieved an overall accuracy of 0.793. Survival analysis demonstrated that the patients with DLC-predicted MVI status were associated with the poor overall survival (OS) and recurrence-free survival (RFS). Further investigation showed that hepatectomy with the wide resection margin contributes to better OS and RFS in the DLC-predicted MVI present patients.

Conclusion

The proposed DLC model can provide a non-invasive approach to evaluate MVI before surgery, which can help surgeons make decisions of surgical strategies and assess patient’s prognosis.

Introduction

Hepatocellular carcinoma (HCC) is ranked as the sixth in terms of incidence cases and the fourth with respect to the cause of cancer-related death worldwide (Villanueva 2019). Surgical treatment is regarded as the major curative treatment for patients with HCC (Ishizawa et al. 2008; Zhou et al. 2018). However, postoperative recurrence and metastasis remain major obstacles for the prognosis of HCC patients (Han et al. 2015; Hasegawa et al. 2013).

Microvascular invasion (MVI) is one of the most important biological characteristics of HCC and its prevalence in patients with HCC ranges from 15 to 57.1% (Rodríguez-Perálvarez et al. 2013). The presence of MVI is considered as an independent prognostic factor associated with the early recurrence and poor survival after both resection and transplantation (Lim et al. 2011; Mazzaferro et al. 2009; Vitale et al. 2014). For the MVI-positive patients, hepatectomy with expanding resection margins can significantly improve patient survival through eradicating micro-metastases (Han et al. 2019; Shindoh et al. 2013; Tsilimigras et al. 2020). Surgical resection rather than radiofrequency ablation (RFA) may be suitable for the patient with small-size HCC displayed MVI (Imai et al. 2018; Lee et al. 2021) because it has been reported that among the patients with high risk of MVI, the cumulative 2-year recurrence rate was 90.0% in the surgical resection group, while 30.6% in the RFA group (Lee et al. 2021). Furthermore, additional adjuvant or targeted therapies were reported to improve survival for HCC patients with MVI compared to surgical resection alone (Sun et al. 2016; Wang et al. 2020b; Zhang et al. 2019). So preoperative prediction of MVI status is clinically significant for surgical decision making and other treatment strategies to improve patient prognosis.

However, assessment of MVI preoperatively is still challenging because it can only be confirmed by pathological diagnosis. Currently, a number of studies have attempted to predict MVI in HCC utilizing some clinical parameters, such as tumor number and size, alpha fetoprotein (AFP), protein induced by vitamin K absence or antagonist (PIVKA-II) and some serum component index (Nitta et al. 2019; Poté et al. 2015; Wang et al. 2020a; Zeng et al. 2019; Zhang et al. 2020a; Zheng et al. 2017; Zhu et al. 2018). The AUC of these predictors vary 0.529 from 0.803 and still required to be improved (Poté et al. 2015; Zhu et al. 2018). It is worth noting that medical imaging plays an irreplaceable role in preoperative diagnosis, assessment and clinical decision making of HCC because it can provide much valuable information (Lee et al. 2017). Recent studies using radiomics combined with clinical parameters demonstrate impressive results in predicting MVI status, ranging from 0.796 to 0.899 of AUC (Ma et al. 2019; Xu et al. 2019; Zhang et al. 2020b). Nonetheless, extraction of “hand-engineered” features is still complicated, time-consuming, and lack of stable reproducibility (Liu et al. 2019).

Deep learning (DL) uses convolutional neural networks with a number of hidden layers to learn features associated with predefined task. It demonstrates superior performance than radiomics and was proved to be powerful in various challenging clinical tasks (Ardila et al. 2019; Coudray et al. 2018; Ting et al. 2017; Wang et al. 2018, 2019). A recent study using DL method based on computerized tomography (CT) images to predict MVI, achieved a good performance with an area under curve (AUC) of 0.906 (Jiang et al. 2021). Compared with traditional radiomics method, DL method needs less manpower and time for MVI prediction and it can learn features from the raw images without precise annotations (Wang et al. 2019). Magnetic resonance imaging (MRI) captures both the anatomical and functional information of the tumor from a series of imaging sequences, so it offers more valuable information than CT (Roberts et al. 2018). Therefore, we decided to utilize DL method based on MRI to predict MVI status. To the best of our acknowledge, few studies use the DL approach to predict MVI status based on dynamic contrast-enhanced MRI (DCE-MRI).

The aim of the current study is to improve the prediction performance of MVI. The proposed model using DL method integrating clinical parameters with DCE-MRI can predict MVI and assess patient oncological outcomes preoperatively. In addition, the potential significance of prediction MVI status in guiding the surgical resection range was also investigated based on our model.

Materials and methods

Study population

This retrospective study was approved by the institutional review board of Zhongshan Hospital, Fudan University (Shanghai, China). The written informed consent was waived by the institutional review board. Considering follow-up time, 1829 consecutive patients, who underwent surgical resection for HCC from January to December 2016 at Zhongshan Hospital, Fudan University, were included. The pathological diagnosis of HCC was confirmed by two independent pathologists. Patients who met the following inclusion criteria were enrolled in this study: (1) Pathologically confirmed HCC patients after surgical resection; (2) Available for the pathological assessment of MVI; (3) Available for effective DCE-MRI and clinical data within 1 month preoperatively. Patients who met the following exclusion criteria were excluded (1) With prior antitumoral therapies and hepatectomy; (2) With multiple liver tumors; (3) With macrovascular invasion and extrahepatic metastasis. The flow-chart of this study is shown in Supplementary Fig. 1.

The final population consisted of 601 patients in this study. All patients were randomly divided into the training cohort (n = 461, 76.7%) and the testing cohort (n = 140, 23.3%).

Pathological evaluation and clinical parameters

The definition of MVI is the presence of tumor in the portal, hepatic venous system, or the branches surrounding the hepatic tissue lined by endothelium, which is visible only by microscopy (Cong et al. 2016; Roayaie et al. 2009). The MVI status is defined as MVI absent and MVI present. MVI grade is classified as MVI-grade 1: the number of MVI < 5 and the distance of MVI ≤ 1 cm away from the tumor tissues, and MVI-grade 2: the number of MVI > 5 or the distance of MVI > 1 cm away from the tumor tissues, according to the practice guidelines for the Pathological Diagnosis of Primary Liver Cancer of China (Cong et al. 2016). Both MVI status and grade were examined by two independent pathologists in the Zhongshan hospital. Clinical parameters were collected, including sex, age, routine blood test, blood biochemical test, blood coagulation function test, markers of hepatic fibrosis, hepatitis virus B carriers, AFP, and tumor size. Serum component index, such as platelet-lymphocyte ratio (PLR), neutrophil-lymphocyte ratio (NLR), lymphocyte-to-monocyte ratio (LMR), prognostic nutritional index (PNI), aspartate aminotransferase-to-platelet ratio index (APRI), aspartate aminotransferase-to-neutrophil ratio index (ANRI) and aspartate aminotransferase-lymphocyte ratio (ALR), were calculated as previous reported (Zheng et al. 2017). Details of clinical parameters can be found in the Supplementary Table 1.

Image annotation

All HCC patients underwent preoperative MRI with gadopentetate dimeglumine (Magnevist; Bayer Schering Pharma AG, Berlin, Germany) on a 1.5-T (Avanto, Siemens, Erlangen, Germany and Aera, Siemens, Erlangen, Germany) or 3.0 T scanners (Magnetom Verio, Siemens Medical Solution, Erlangen, Germany and Signa HDx, GE Healthcare, Milwaukee, WI, USA). Eight routine abdominal DCE-MRI sequences included turbo spin-echo T2-weighted (T2WI) with fat suppression, diffusion-weighted images (DWI) of b = 0 and 500 s/mm², automatically generated apparent diffusion coefficient (ADC) maps under free-breathing, three-dimensional (3D) T1-weighted volumetric interpolated breath-hold examination of pre-contrast phase, arterial phase (20–30 s), portal venous phase (about 80 s), and delayed phase (3 min). Details of MRI parameters were listed in the Supplementary Table 2. Tumor regions were drawn manually slice-by-slice by an abdominal radiologist and a hepatic surgeon. The annotation only requires the manual selection of the tumor region in each slice without precise tumor boundary. Before feeding to the models, these regions were confirmed and corrected by a senior radiologist and a senior hepatic surgeon with more than 10 years of experience in reading abdominal MRI.

Developing a DL model

A DL model was constructed to predict the MVI status and grade of MVI. The architecture of the DL model is shown in Fig. 1. The DL model has eight inputs, which are 3D volumes of interest (VOIs) of the eight MRI sequences. This model has eight separate conventional neural network (CNN) branches, which are used for feature extraction from each of the eight VOIs. Then, the features extracted from the eight branches were fused, and the fused features were fed into fully connected (FC) layers and a SoftMax layer to obtain the predicted results. Notably, instead of using Resnet or other deep neural networks as the branches, we designed specific architecture as CNN branches for feature extraction in this task, as described in Supplementary Materials.

Fig. 1.

An illustration of the DL and DLC model architecture

The input VOI of the DL model was cropped from raw MRI sequences according to the tumor annotation mask and resized to 64 × 64 × 16 pixels by third-order spline interpolation [0, 1]. The label of input VOIs was MVI grade encoded to one-hot. The DL model has three outputs, corresponding to the predicted probabilities of MVI absent, MVI-grade 1, and MVI-grade 2, respectively. In the MVI grade prediction task, the category corresponded to the maximum value among the three outputs was recorded as the predicted MVI grade. Based on this result, MVI-grade 1 and 2 categories were both recorded as MVI present in the MVI status prediction task.

In the training stage, the DL model was trained using a SoftMax cross-entropy loss to learn the MVI grade of the inputs. In order to account for class imbalance while calculating cross-entropy loss, each class was weighed according to its frequency, such that cases of rare conditions would contribute highly to the loss of function (Liu et al. 2020). Data augmentation was applied to improve generalization, which included horizontal flipping, vertical flipping, cropping, and zoom transformation for the training cohort. Next, we set learning rate at 10^–4 and applied the Adam optimizer to update the model parameters on a batch size of 2. Early stopping was used with the patience parameter set at 50. Finally, the DL model was subjected to a maximum of 1000 epochs of training.

Developing a DL combined with clinical parameter (DLC) model

To improve the predictive performance, we integrated clinical information with DL model. The backward stepwise method was applied to select the significant clinical parameters. The minimum Akaike information criterion (AIC) index was used as the stop criterion to determine the optimal characteristics. Then, the selected parameters were incorporated into the DL model to form the DLC model (Fig. 1). Notably, for the selected parameters, categorical variables were encoded by one digit (i.e., − 1 or 1 for each state), and continuous variables were normalized to [− 0.5, 0.5].

During the DLC model training, eight VOIs were entered into the model as input, and the selected clinical parameters were input into the FC layer instead of extracting deep features and combining them offline. The training procedure and hyperparameter setting of the DLC model were similar to those of the DL model.

Developing a radiomics model

To compare the predictive performance of the DL and DLC models, we also constructed a radiomics model (Aerts 2016), which is described in the Supplementary Materials.

Correlation analysis between resection margins and oncological outcomes in the DLC-predicted MVI absent/present population

Further investigation between resection margins and oncological outcomes was performed in the DLC-predicted MVI-absent/-present population. The definition of resection margin is the minimum distance between the tumor and the cutting edge in the formalin fixed tissues. All resection margins were evaluated by two independent pathologists in our center. A maximal Youden index in receiver operating characteristic (ROC) curve analysis was calculated to determine the cutoff point of the resection margins. In this study, the margins at or less than cutoff points were defined as narrow resection margins, while the others were defined as wide resection margins.

Statistical analysis

Continuous data were expressed as using the mean ± standard deviation (SD) or median (interquartile range (IQR)) as appropriate. Continuous variables were analyzed using Student’s t test or Mann–Whitney U test appropriately. Categorical variables were analyzed using the χ² test. The recurrence-free survival (RFS) was recorded from the date of surgery to the date of radiographic detection of recurrence. Overall survival (OS) was defined as the interval between surgery and death or censor at the date of the last follow-up. A ROC curve was used to assess diagnostic performance. Statistical analysis was performed using SPSS v.25 (IBM Inc., Armonk, NY, USA) and R software (R software version 3.5.2, R Project for Statistical Computing, http://www.r-project.org). The proposed DL and DLC models were implemented using Python (version 3.5, https://www.python.org) based on the Pytorch package (https://pytorch.org/). A two-sided P value < 0.05 was considered statistically significant.

Results

Demographic comparison of baseline clinical features

A total of 601 patients who met the inclusion criteria were enrolled in this study. The flowchart of the study selection process is shown in Supplementary Fig. 1. Among the 601 patients, 225/601 (37.4%) were pathologically identified as MVI present, and 371/601 (62.6%) were determined as MVI absent. Among the MVI-present patients, 140/225 (62.2%) was MVI-grade 1 and 85/225 (37.8%) was MVI-grade 2. After random distribution, patients were divided into the training cohort (n = 461) and the testing cohort (n = 140). The number of patients in three categories was 287/461 (62.3%) (MVI absent), 106/461 (23.0%) (MVI-grade 1) and 68/461 (14.7%) (MVI-grade 2) in the training cohort, and 89/140 (63.6%) (MVI absent), 34/140 (24.3%) (MVI-grade 1) and 17/140 (12.1%) (MVI-grade 2) in the testing cohort. No significant differences in baseline characteristics were observed between the training and the testing cohorts (Table 1).

Table 1.

Patients and baseline characteristics

Characteristic	All patients	Training cohort	Testing cohort	P values
Patient number	601	461	140	NA
Age, mean (± SD), year	56.45 (± 11.48)	56.39 (± 11.35)	56.66 (± 11.92)	0.803
Sex (Male/Female)	492/109	385/76	107/33	0.075
HBV carriers (%)	472 (78.5%)	358 (77.7%)	114 (81.4%)	0.404
Liver function
TB, mean (± SD), μmol/L	12.64 (± 6.63)	12.77 (± 7.04)	12.23 (± 5.05)	0.405
ALB, mean (± SD), g/L	41.42 (± 3.49)	41.46 (± 3.52)	41.30 (± 3.42)	0.646
ALT, mean (± SD), U/L	34.74 (± 29.95)	34.97 (± 31.21)	33.98 (± 25.43)	0.733
GGT, mean (± SD), U/L	80.50 (± 124.68)	89.54 (± 136.62)	72.19 (± 71.47)	0.149
PT, mean (± SD), s	11.62 (± 0.80)	11.63 (± 0.84)	11.61 (± 0.67)	0.804
AFP, median (IQR), ng/mL	25.20 [4.40, 381.30]	27.40 [4.50, 504.20]	15.05 [4.10, 184.95]	0.233
Log10AFP, mean (± SD)	1.70 (± 1.23)	1.75 (± 1.27)	1.57 (± 1.12)	0.145
Tumor size, median (IQR), cm	4.99 (± 3.59)	5.04 (± 3.77)	4.80 (± 2.92)	0.475
MVI status				0.856
MVI absent (%)	376 (62.6%)	287 (62.3%)	89 (63.6%)
MVI present	225 (37.4%)	174 (37.7%)	51 (36.4%)
MVI-grade 1/2	140/85	106/68	34/17

HBV hepatitis B virus, TB total bilirubin, ALB albumin, ALT alanine aminotransferase, GGT glutamyl transpeptidase, PT prothrombin time, AFP alpha fetoprotein, MVI microvascular invasion

MVI status prediction

In the DL model, the AUC for prediction MVI achieved 0.909 (95% confidence interval (CI) 0.881–0.936) in the training cohort and 0.915 (95% CI 0.868–0.963) in the testing cohort (Fig. 2a, b and Table 2). To improve the predictive performance, five significant clinical parameters (the percentage of neutrophil, lymphocyte counts, international normalized ratio (INR), the logarithmic conversion ratio of the AFP (log₁₀AFP) and tumor size) were selected by backward stepwise analysis to establish the DLC model (Supplementary Table 3). The DLC models achieved the highest AUC of 0.934 (95% CI 0.912–0.956) in the training cohort and 0.931 (95% CI 0.884–0.979) in the testing cohort (Fig. 2a, b and Table 2). In comparison, the traditional radiomics model achieved the AUC of 0.764 (95% CI 0.719–0.809) in the training cohort and 0.731 (0.645–0.817) in the testing cohort (Fig. 2a, b and Table 2). The ROC curves and scatter plots of the prediction score are displayed in Fig. 2c and d and Supplementary Fig. 3. Furthermore, the prediction performance of our DLC model is better as compared to those of the previous published models in distinguishing MVI status (Supplementary Table 4).

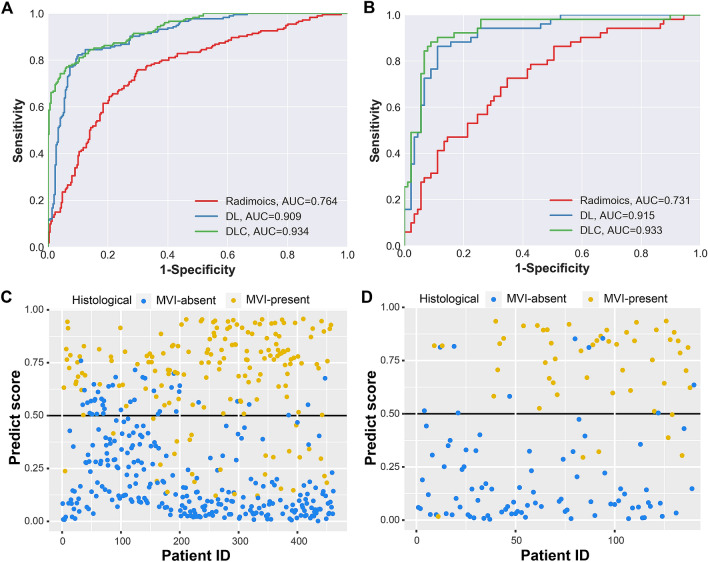

Fig. 2.

The ROC curves of the three models in the training cohort (a) and testing cohort (b). The scatter plots for the predictive score of DLC model in the training cohort (c) and the testing cohort (d)

Table 2.

Performance comparison of different models in the training and the testing cohort

Modality		AUC (95% CI)	Accuracy (95% CI)	Sensitivity (95% CI)	Specificity (95% CI)
Radiomics model	TR	0.764 (0.719–0.809)	0.727 (0.686–0.767)	0.667 (0.591–0.735)	0.763 (0.709–0.810)
	TE	0.731 (0.645–0.817)	0.671 (0.594–0.749)	0.647 (0.500–0.772)	0.685 (0.577–0.777)
DL model	TR	0.909 (0.881–0.936)	0.842 (0.808–0.875)	0.845 (0.780–0.894)	0.840 (0.791–0.879)
	TE	0.915 (0.868–0.963)	0.871 (0.816–0.927)	0.843 (0.709–0.925)	0.888 (0.799–0.942)
DLC model	TR	0.934 (0.912–0.956)	0.871 (0.805–0.937)	0.839 (0.774–0.889)	0.861 (0.814–0.897)
	TE	0.931 (0.884–0.979)	0.886 (0.824–0.948)	0.882 (0.754–0.951)	0.888 (0.799–0.942)

AUC area under curve, CI confidence interval, DL deep learning, DLC deep learning combined with clinical parameters, TR training cohort, TE testing cohort

MVI-grade prediction

In the training cohort, the DLC model exhibited a similar overall accuracy than the DL model (0.779 vs. 0.768) in MVI-grade prediction. In the testing cohort, DLC model also had a comparable overall accuracy as compared to the DL model (0.793 vs. 0.800). Figure 3 shows the confusion matrix of DL and DLC models between the training and testing cohorts. These results showed that DL and DLC models could distinguish the MVI-grade 1 group from MVI-grade 2 group.

Fig. 3.

The confusion matrix of predicting MVI grade among MVI absent, MVI-grade 1 and MVI-grade 2. a Confusion matrix of DL model in the training cohort. b Confusion matrix of DL model in the testing cohort. c Confusion matrix of DLC model in the training cohort. d Confusion matrix of DLC model in the testing cohort

Prognosis assessment based on DLC-predicted MVI status

The DLC model achieved the best result in MVI prediction, so the patient prognosis was analyzed based on the DLC-predicted MVI status and grade. The median follow-up time for all patients was 38.3 months: 36.9 months for those with MVI and 39.0 months for those without MVI. The 1-, 2-, and 3-year OS rates were 97.5, 94.4, 91.6% in those with DLC-predicted MVI absent, 91.7, 82.5, 74.9% in those with DLC-predicted MVI present, 93.9, 86.5, 77.6% in those with DLC-predicted MVI-grade 1, and 88.1, 76.1, 70.5% in those with DLC-predicted MVI-grade 2 (Fig. 4a and c). The 1-, 2-, and 3-year RFS rates were 88.3, 79.0, 73.5% in those with DLC-predicted MVI absent, 68.0, 56.8, 52.1% in those with DLC-predicted MVI present, 73.6, 63.4, 57.1% in those with DLC-predicted MVI-grade 1, and 59.1, 46.2, 44.1% in those with DLC-predicted MVI-grade 2 (Fig. 4b and d). The OS and RFS stratified by DLC-predicted MVI status and grade were similar to the trend of survival analysis in the patients with pathological MVI status and grade stratification (Fig. 4e–h). The results suggested the potential value of our model in assessment poor OS and early recurrence of patients based on the DLC-predicted MVI status and grade.

Fig. 4.

Overall survival (OS) and recurrence-free survival (RFS) curves scaled by DLC-predicted MVI status (a and b) and DLC-predicted MVI grade (c and d) with Kaplan–Meier analysis. OS and RFS curves scaled by pathological MVI status (e and f) and pathological MVI grade (g and h) with Kaplan–Meier analysis

Correlation analysis between prognosis and wide/narrow resection margins in DLC-predicted MVI absent/present population

A 5 mm cutoff value of resection margin was selected through calculating the maximal Youden index. Therefore, margins of ≤ 5 mm were defined as narrow resection margins and > 5 mm were defined as wide resection margins.

Among the population with DLC-predicted MVI present, the 1-, 2-, and 3-year OS rates were higher in the wide resection margin group than that in the narrow resection margin group (93.8, 85.7, and 80.2% vs. 89.8, 79.7, and 70.2%, respectively) (Fig. 5a) (P = 0.050). Additionally, the 1-, 2-, and 3-year RFS rates were also higher in the wide resection margin group than those in the narrow resection margin group (72.6, 67.2, and 63.6% vs. 64.1, 47.7, and 42.1%, respectively) (Fig. 5b) (P = 0.003). Among the patients with DLC-predicted MVI absent, no statistical differences were observed in the OS and RFS rates between the wide resection margin and narrow resection margin groups (P = 0.094 and P = 0.350 respectively) (Fig. 5c and d). This is consistent with the trend of survival analysis in patients with pathological MVI absent/present after hepatectomy with different surgical margins (Fig. 5e–h). These findings demonstrated that hepatectomy with wide resection margin was associated with better OS and RFS in the DLC-predicted MVI present patients.

Fig. 5.

Overall survival (OS) and recurrence-free survival (RFS) curves scaled by resection margins (RM) in the patients with DLC-predicted MVI present (a and b) and those with DLC-predicted MVI absent (c and d). OS and RFS curves scaled by RM in the patients with pathological MVI present (e and f) and those with pathological MVI absent (g and h)

Discussion

MVI prediction is significant for clinicians to assess patient prognosis and adopt appropriate therapeutic strategies, contributing to improve patient survival (Han et al. 2019; Lee et al. 2021; Mazzaferro et al. 2009a; Rodríguez-Perálvarez et al. 2013; Sun et al. 2016; Wang et al. 2020b; Zhang et al. 2019). Currently, a number of studies have tried to predict MVI using the clinical parameters, which achieve the AUC from 0.529 to 0.803. Integrating clinical parameters with radiomics methods based on CT or MRI achieve the AUC from 0.796 to 0.906 (Poté et al. 2015; Xu et al. 2019; Zhang et al. 2020b; Zhu et al. 2018). However, predictive performance of clinical parameters still required to be improved. The shortcoming of radiomics method is based on manually-defined precise contours of the tumor and the analysis is conducted based on hand-crafted feature extractor, which do not represent the most optimal option. In contrast, the DL method can analyze the patterns and regions with less manpower and time (Park 2019; Wang et al. 2019). It can leverage a box containing the tumor and peripheral tissues as VOI without precise boundary, which is consistent with prior studies in exploring radiomics of the tumor and peripheral regions (Xu et al. 2019). A recent study using DL showed a considerable efficacy in identifying MVI based on preoperative CT (AUC 0.906, 95% CI 0.821–0.960) (Jiang et al. 2021). Therefore, the DL method was utilized to assess MVI preoperatively in this study.

Different from the previous DL study (Jiang et al. 2021), we chose DCE-MRI instead of CT images to predict MVI in this study. According to the clinical practice guidelines of National Comprehensive Cancer Network (NCCN, version 2019) (NCCN) and the American Association for the Study of Liver Diseases (AASLD, version 2018) (Marrero et al. 2018), DCE-MRI shows higher sensitivity than dynamic CT for the diagnosis of HCC. MRI also could capture both the anatomical and functional information of a tumor and provides more information than CT theoretically. Therefore, the DL method based on DCE-MRI may learn some different and meaningful features contributing to the improvement of predictive performance. Algorithmically, the DL model applied in this study is a multi-input network. As we used eight image sequences for MVI prediction, the DL both have eight CNN branches for each image input. In each CNN branch, to reduces the number of parameters, we proposed to use depthwise separable convolution instead of the ordinary convolution operation. Besides, to extract image features in different scales, we used the two kinds of convolution kernel size of 3 × 3 × 3 and 5 × 5 × 5. In this way, the model can extract richer features from the input image with fewer parameters.

To improve predictive performance, significant clinical characteristics (neutrophil percentage, lymphocyte counts, INR, log₁₀AFP and tumor size) were also selected by backward stepwise with the lowest AIC value and then integrated with the DL model to develop the DLC model. As a result, the DLC model showed a robust performance in predicting the MVI status compared with the DL model (AUC: 0.931 vs. 0.915) in the testing cohort, which suggests the potential value of clinical parameters for MVI prediction. Attributed to these improvements mentioned above, the DLC model achieved a stronger predictive performance compared with previous predictive models based on CT or MRI (AUC: 0.931 vs. 0.796–0.906) (Supplementary Table 4). These findings validated the robustness of our DLC model and emphasized its suitability for clinical application. To the best of our knowledge, this is the first study using DL method combined with clinical parameters to predict MVI based on multi-parametric DCE-MRI in HCC patients.

In the current study, patients with solitary tumors were included. The main reason is that patients with multiple tumors are frequently associated with higher incidence of MVI (Reginelli et al. 2018; Xu et al. 2019), while those with solitary tumor displayed MVI are not easy to be identified. For patients with multiple tumors, previous studies only assessed the largest tumor to predict MVI status (Xu et al. 2019; Zhang et al. 2020b) but it is not accurate to identify which lesion exists MVI. The other point is that multi-carcinogenesis may not be controlled by extended liver resection due to the limited liver volume. Therefore, prediction of MVI status among these patients is more valuable to improve their survival.

In addition, our model identified different patient prognosis through stratification of DLC-predicted MVI status and grade, suggesting the strong performance of DLC model in preoperatively identifying HCC patients with high risk of early recurrence and poor prognosis.

The prediction of MVI also could provide potential values in guiding the resection range. The retrospective study showed hepatectomy with wide resection margin provides better prognosis compared to narrow resection margin (median OS: 93.5 vs. 69.2 months; median RFS: 53.1 vs. 37.5 months, respectively) (Han et al. 2019). Further investigation of our study showed that wide resection margins were closely related to improved oncological outcomes among the patients with DLC-predicted MVI present. These findings suggested that wide resection margins should be the target of resection at the time of initial surgical strategy decisions for the patients with DLC-predicted MVI present. So far, this study is first to demonstrate patient prognosis after hepatectomy with wide/narrow resection margins based on DLC-predicted MVI status.

Nevertheless, the present study also has some limitations. First, there is the possibility of potential bias because of the nature of the retrospective study. The DCE-MRI sequences were acquired from different scanners with different magnetic field strength. Standardized processing such as gray-level normalization and voxel-size resampling was performed, which reduced the dependency of differences in scanners and image parameters (Kim et al. 2019). However, some potential differences, such as scanning technique, still existed. Second, testing cohort in this study was from the same center, and hence, an additional cohort from other centers using different scanners is conductive to confirm the reliability and generalizability of our DLC model. Considering the low percentage of patients underwent anatomical hepatectomy in this study, we did not compare the difference of the survival in patients with anatomical hepatectomy and non-anatomical hepatectomy. The prognostic values of anatomical hepatectomy in the DLC-predicted MVI present patients should be investigated in the future. Finally, the DL method is regarded as “black box” (Price 2018), and it is still challenging as well as necessary to explain the correlation between relevant features and results (Price 2018).

In conclusion, the DLC model displays robust ability in the prediction of MVI status and grade, and also can assess the oncological outcomes in HCC patients. Due to a high risk of tumor recurrence in patient with MVI, our findings suggest that hepatectomy with wide resection margin should be a target for the patients with DLC-predicted MVI present. Therefore, our model not only makes it possible to assess MVI status before surgery, but also can help surgeons to make decisions regarding surgical strategies.
