Safety and efficacy of CT-guided radioactive iodine-125 seed implantation assisted by a 3D printing template for the treatment of thoracic malignancies

Abstract

Objective

To ascertain the safety and efficacy of radioactive iodine-125 seed implantation (RISI) for the treatment of thoracic tumors.

Methods

Clinical patients with primary or metastatic tumors in the chest treated with RISI were analyzed. The RISI process included the following stages: preoperative planning, template design and 3D printing, CT-guided RISI assisted by a template, and postoperative dosimetric verification. The prescribed dose was ≥ 80 Gy. The main analytic measures were the local control (LC) rate and toxicity.

Results

From April 2015 to July 2018, a total of 92 patients, including 41 with lung cancer and 51 with lung metastases, were analyzed. The median lesion diameter was 5 cm. The median postoperative D90 was 142.6 Gy. The median follow-up was 10.7 months. The overall survival rates at 1 year and 3 years were 59.7% and 22.2%, respectively. The LC rates at 1 year and 3 years were 64.9% and 32.8%, respectively. The LC rates at 3 years for patients with D90 < 140 Gy and D90 > 140 Gy were 23.1% and 54.3%, respectively (P = 0.014). The LC rate of metastatic lung cancer was more favorable than that of primary lung cancer. The multivariate analyses showed that the dose and lesion type were independent factors for LC (P < 0.05). No factors were related to OS. The incidence of pneumothorax and hemoptysis was 35.8% and 3.2%, respectively. Few cases of radiotherapy-related toxicity effects were observed.

Conclusions

RISI may be safe and efficacious and is associated with few complications during the treatment of thoracic tumors. If patients need local treatment and surgery or radiotherapy is not available, RISI could be considered.

Introduction

The mainstream local treatments for malignant tumors (including primary or metastatic thoracic tumors) are surgery and external beam radiotherapy (EBRT) (NCCN 2019). However, in clinical practice, the real situation is more complicated, because the tumors may be unresectable, the patients may not be able to tolerate surgery or EBRT, recurrence may develop after EBRT, and palliative treatment can be applied for advanced tumors. Under these circumstances, radioactive iodine-125 seed implantation (RISI) provides another treatment option (Stewart et al. 2016). However, few studies have been conducted on solid tumors, and most of these studies have been conducted with large differences between doses and outcomes (Martinez-Monge et al. 2008; Huang et al. 2013; Jiang et al. 2015). In recent years, the introduction of three-dimensional (3D) printing technology into template design and computed tomography (CT)-guided RISI has improved puncture accuracy. The postoperative target dose could almost completely meet the requirements of the preoperative plan, which makes it possible to explore the dose–outcome relationship (Ji et al. 2017). The purpose of this study was to further clarify the efficacy and safety of RISI in thoracic tumors. We wished to explore the relationships among dose, efficacy, and toxicity, and to help determine the prescription dose.

Materials and methods

Patient selection

We collected the clinical data of patients with thoracic tumors who received 3D template-assisted CT-guided RISI. In our center, the indications for RISI were as follows: primary or metastatic tumors diagnosed by pathology; unresectable tumors or tumors unsuitable for surgery or EBRT; a tumor diameter ≤ 7 cm and with an appropriate puncture path; no bleeding tendency; and good general physical status [Karnofsky Performance Status (KPS) score > 70]. Informed consent was obtained from all individual participants included in the study. The study was approved by the Peking University Third Hospital Medical Science Research Ethics Committee.

Treatment process

Preoperative planning design

All patients underwent CT 2 days before surgery. According to the lesion location, we selected a suitable fixation position for each patient. All patients were fixed with a vacuum pad and marked by a surface positioning line. Next, the CT data were transmitted to a brachytherapy treatment planning system (BTPS) to design the preoperative plan, which included the following steps: delineating the gross tumor volume (GTV) and adjacent organs at risk (OARs); setting the prescription dose and seed radioactivity; determining the puncture pathway (direction, distribution, depth); calculating the quantity of seeds; simulating the spatial distribution of the seeds; and performing the dose calculations for the GTV and OARs (spinal cord, large blood vessels, cavity viscera). We optimized 90% of the dose to the GTV (GTV D90) to match the prescribed dose. According to American Brachytherapy Society guidelines, the recommended prescription dose is ≥ 80 Gy (Stewart et al. 2016).

Individualized design and production of a 3D printing template (3D-PT)

The BTPS data were imported into 3D imaging and reverse-engineering software for individualized digital modeling of a template. 3D-PTs were obtained by a 3D curing rapid-prototyping machine and the material processing of medical curing resins. The 3D-PT contained information such as body-surface characteristics, localization markers, and a simulated needle pathway of the treatment area (Ji et al. 2017).

Puncture and RISI

Local infiltration anesthesia alone or in combination with intercostal nerve-block anesthesia was administered to all patients. The 3D-PT was aligned precisely with the positioning laser line, body-surface positioning line of the patient, template alignment reference line, and characteristics of the patient’s external contours. Then, the accuracy of the template location was verified by real-time CT. The seed needle punctured the skin to a predetermined depth through the template guiding hole. During the puncture, CT was performed to verify the accurate positioning of the implant needle. Finally, the seeds were implanted based on the preoperative plan and actual depth of each needle in the target area. After implantation, the CT was repeated to observe the actual distribution of the seeds, i.e., whether the seeds were distributed evenly, if the seeds had been shed or displaced, and if pneumothorax or bleeding had occurred.

Postoperative verification of dosimetry

The postoperative images were transmitted to the BTPS for the postoperative evaluation of dosimetry. We used D90 to evaluate the tumor target dose. The evaluation of the OARs (rectum, urethra, and bladder) was performed according to the criteria for brachytherapy for prostate cancer, including D0.1 cc and D2 cc (the dose delivered to volumes of 0.1 cm³ and 2 cm³ in the OARs, respectively) and D_mean (the mean dose delivered to the OARs) (Zaorsky et al. 2017). For thoracic tumors, the OARs were the lungs, blood vessels, spinal cord, esophagus, trachea, heart, and skin.

Follow-up

Patients were followed up at 3, 6, 9, and 12 months after the operation and every 6 months thereafter. At each visit, CT was performed to observe the target area and evaluate the overall tumor status. The treatment flowchart is shown in Fig. 1.

Fig. 1.

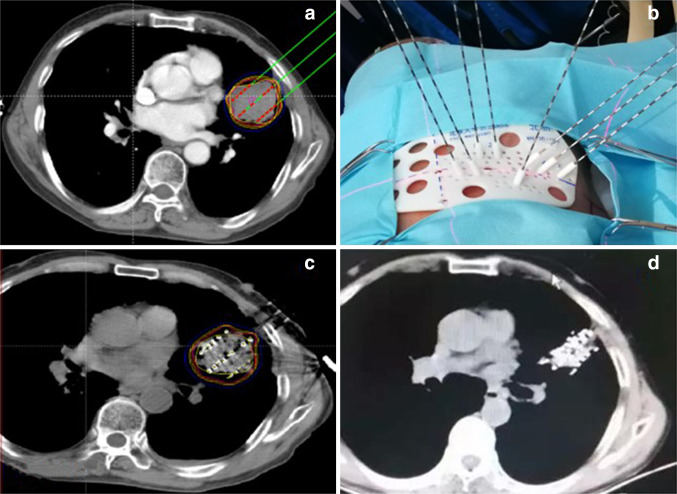

Treatment flowchart. a Design of the preoperative plan. b Template printing and puncture guidance. c RIS implantation. d Follow-up 3 months after RIS implantation

Parameters

The primary indices that we concerned were local control (LC) and toxicity effects. The secondary index that we measured was overall survival (OS). The evaluation of efficacy was based on the Response Evaluation Criteria in Solid Tumors (RECIST) v1.1 (Watanabe et al. 2009), as complete response (CR; disappearance of the target lesion), partial response (PR; reduction of target lesion volume by at least 30% from baseline), progressive disease (PD; increase in target lesion volume by at least 20%), and stable disease (SD; between PR and PD). Adverse reactions were evaluated by the Common Terminology Criteria for Adverse Events (CTCAE) v4.0 (CTCAE 2010).

Statistical analyses

SPSS v20 was used for statistical analyses. We used the Chi-square test to compare ratios. The Kaplan–Meier method was employed to evaluate LC and OS. The log-rank test was used for the univariate analysis and a Cox regression model was used for the multivariate analysis.

Results

From April 2015 to July 2018, 92 patients were enrolled in the present study. All patients had primary or metastatic solid thoracic malignant tumors with a median diameter of 5 (range 1.4–7.0) cm. The general information of the patients is shown in Table 1. The median OS duration was 15 months. The OS rates at 1 year and 3 years were 59.7% and 22.2%, respectively. The median duration of LC for the lesions was 16.4 months. The LC rates at 1 year and 3 years were 64.9% and 32.8%, respectively.

Table 1.

General information of the entire study cohort

Characteristic	Cases	Percentage
Sex
Male	60	65.2
Female	32	34.8
Age (years)	Median 62 (17–88)
KPS score	Median 80 (70–100)
Lesion type
Primary	41	44.6
Metastatic	51	55.4
Previous RT		0.0
No	36	39.1
Yes	56	60.9
Previous RT dose	Median 60 (40–120)
Implantation site
Lung	64	69.6
Chest wall	21	22.8
Mediastinum	4	4.3
RIS radioactivity	Median 0.63 (0.48–0.8)
RIS number	Median 48.5 (7–189)
Lesion diameter (cm)	Median 5 (1.4–7.0)
Lesion volume (cm3)	Median 33.1 (1.5–287.0)
D90	Median 142.6 (81–241.8)
Short-term efficacy
PR	29	31.5
SD	32	34.8
PD	31	33.7

KPS Karnofsky Performance Scale, RIS radioactive ¹²⁵I seeds, D90 90% of the dose received by the GTV, PR partial response, SD stable disease, PD progressive disease

In terms of toxicity effects, there were three cases (3.3%) of grade ≥ 2 radiation pneumonia, including two cases (2.2%) of grade 2 and one case (1.1%) of grade 3 radiation pneumonia. Two patients (2.2%) had grade ≥ 2 radiation esophagitis, including one case (1.1%) of grade 2 and one case of grade 3 radiation esophagitis. One patient (1.1%) had an esophageal fistula. Two patients (2.2%) had tracheal fistulae. Five patients (5.4%) had grade 2 radiation skin reactions. One patient (1.1%) had chest wall pain. Three patients (3.3%) had hemoptysis. Defined radiation myelitis or cardiotoxicity was not observed during the follow-up (Table 2). Thirty-four patients (35.8%) had pneumothorax, including six patients (6.5%) with severe pneumothorax that necessitated closed drainage.

Table 2.

Adverse reactions

Adverse reactions	Cases	Percentage
Radiation pneumonia (grade ≥ 2)	3	3.3
Radiation esophagitis (grade ≥ 2)	2	2.2
Esophageal fistula	1	1.1
Tracheal fistula	2	2.2
Radiation myelitis	0	0.0
Radiation skin reaction (grade ≥ 2)	5	5.4
Chest wall pain	1	1.1
Hemoptysis	3	3.2
Pneumothorax	34	35.8

The prognostic factors evaluated were target area, lesion volume, target dose, lesion type, and previous EBRT. The univariate analysis revealed that the LC of patients with D90 ≥ 140 Gy seemed to be better than that of patients with < 140 Gy. The LC of metastatic cancer was better than that of primary cancer, and the difference was significant (P < 0.05). The LC rates at 1 year and 3 years for patients with D90 ≥ 140 Gy were 80.5% and 54.3%, respectively. The LC rate at 1 year for patients with D90 > 170 Gy was ≤ 100% (Table 3, Fig. 2). Regarding the target area of treatment, LC rate in the chest wall was slightly better than that in the mediastinum and lung, but the difference was not significant (P = 0.126). In addition, lesion volume and previous EBRT did not show a significant correlation with LC (P > 0.05) (Table 3).

Table 3.

Univariate and multivariate analyses of local control

Factor	Median (month)	1 year (%)	3 years (%)	UA	MA
				P	HR	95% CI	P
Treatment site				0.126
Lung	16	63.5	24 (2 years)
Mediastinum	7.7	25	25 (1 years)
Chest wall	None	82.4	61.8
Lesion volume (cm3)				0.372
< 33	17.6	66.1	43.2 (2 years)
> 33	16.4	63.8	26.1
D90 (Gy)				0.014	0.393	0.175–0.884	0.024
≥ 140	12.5	52	23.1
< 140	None	80.5	54.3
Lesion type				0.020	0.456	0.223–0.934	0.032
Primary lung cancer	12.5	51.9	19.5 (2 years)
Metastatic lung cancer	24	74.6	43.9
Previous RT				0.650
No	24	66.2	29.4
Yes	16.4	64	33

UA univariate analysis, MA multivariate analysis

Fig. 2.

Relationship between the duration of local control and D90: a the local control rate of patients with D90 > 140 Gy was significantly better than that of patients with D90 < 140 Gy (P < 0.05). b The local control rate of patients with D90 > 170 Gy was 100%

The multivariate analysis revealed that the target dose and lesion type were independent factors for LC (P < 0.05) (Table 3). A subgroup of 41 patients with primary lung cancer was enrolled [26 patients with squamous cell carcinoma (SCC) and 15 patients with adenocarcinoma]. The median durations of LC in the SCC group and adenocarcinoma group were 12.6 months and 10 months, respectively, but the difference between groups was not significant (P = 0.186). The median durations of LC in the group with D90 < 140 Gy and those of the group with D90 ≥ 140 Gy were 11 months and 16.4 months, respectively, and the difference was not significant (P = 0.343) (Fig. 3).

Fig. 3.

Primary lung cancer. a Duration of local control of squamous cell carcinoma was slightly better than that of adenocarcinoma, but the difference was not significant (P > 0.05). b There was no significant difference in the duration of local control between the group with D90 ≥ 140 Gy and the group with D90 < 140 Gy (P > 0.05)

Factors that influenced survival time were not found in the whole study cohort or in the subgroup with primary lung cancer (P > 0.05). There was a low prevalence of toxicity in the entire study cohort, so dosimetry parameters that could influence the factors related to toxicity could not be evaluated.

Discussion

The clinical application of RISI in thoracic tumors has been performed for more than 70 years (Hilaris and Martini 1979). The aims are to improve LC by administering a high local dose and avoid severe damage to healthy tissues. In addition to being used for patients with positive gross/pathologic margins (Mutyala et al. 2010), RISI is also used for palliative treatment in patients who have an unresectable tumor to alleviate symptoms and improve quality of life (Heelan et al. 1987).

However, few studies have reported the application of RISI in solid thoracic tumors or the efficacy and safety of RISI. The incorporation of 3D printing technology into RISI has markedly improved the accuracy of the treatment for solid tumors. Previously, a study showed that CT-guided RISI assisted by 3D-PTs could enable the postoperative actual target dose to meet the design requirements of the preoperative plan (Ji et al. 2017). Based on such quality assurance, we can give a specific dose to tumors to analyze the safety and efficacy of RISI in the treatment of thoracic tumors.

We found that the LC rates at 1 year and 3 years were 64.9% and 32.8%, respectively, which are less favorable than those of stereotactic body radiotherapy (SBRT) (80–90%) (Bradley et al. 2010; Ricardi et al. 2012). However, 60.8% of patients in our study had previously undergone EBRT, and the remainder of the patients were unsuitable for EBRT due to their physical status. That is, the patients enrolled in our study had limited treatment options and a relatively poor prognosis. The finding that 32.8% of patients had LC at 3 years shows that RISI provides a novel opportunity for patients with disease refractory to treatment. Moreover, we found that patients with D90 ≥ 140 Gy had good LC rates (80.5% at 1 year and 54.3% at 3 years). Among these patients, the LC rate of patients with D90 > 170 Gy reached 100%, which suggests the critical role of the dose on the effect of RISI. The other advantage of RISI is that this procedure is performed just once. Upon implantation into the tumor, the radioactive seeds could work for a long time. Patients had a satisfactory treatment experience without the need for multiple rounds of subsequent treatment or travel back and forth to the hospital.

The main problem of using RISI is the lack of a standard prescription dose due to the absence of prospective randomized studies. The reference values from studies have been limited due to the heterogeneity of disease and tumor location and large dose range. Fernando and colleagues performed a phase III randomized clinical study to compare the resection of lung lobes with the resection of lung lobes + radioactive seed implantation for resectable lung cancer. The authors found that the LC rate at 5 years was slightly better for the group that underwent lung-lobe resection + RISI than for the group that under resection only. Because the prevalence of local recurrence was low, the difference between the two groups was not significant. In addition, Fernando and colleagues did not provide detailed information about the dose (Fernando et al. 2014). Parashar et al. compared the efficacy of wedge resection, wedge resection + implantation of radioactive seeds, and SBRT for early lung cancer, and found that the LC rates were similar among groups. Because the patients who underwent surgery + radioactive seed implantation were at high risk of recurrence according to the preoperative and intraoperative evaluation, we hypothesize that the implantation of radioactive seeds might reduce the prevalence of recurrence. The prescribed dose in that study was 80–120 Gy (Parashar et al. 2015). In some studies, the prescription dose was 100–140 Gy, but the dose was based on clinical experience (Martinez-Monge et al. 2008; Huang et al. 2013; Jiang et al. 2015; Ji et al. 2017; Li et al. 2015; Yu et al. 2015; Zhang et al. 2015; Jiang et al. 2018); these studies showed that the LC rate was 25–80%. The present study showed that the dose was positively correlated with LC. The higher the dose, the better the LC was. Based on our study, we recommend that the prescribed dose for solid tumors should be ≥ 140 Gy. Our follow-up studies also considered further increasing the dose from 140 Gy. However, we found no specific dose inflection point in the subgroup with primary lung cancer. The reason may be because the primary lung cancer is more likely to grow in an invasive way than metastatic cancer, and patients with primary cancer more likely to have marginal recurrence than those with metastatic cancer. Hence, further studies are needed to focus not only on the dose but also on the target area, such as the clinical target volume (CTV).

Except for one patient who had grade 3 radiation pneumonia (1.1%) and three patients with esophageal/tracheal fistulae (3.3%), there were no other defined grade 3 toxicity effects. Recently, some studies have reported the toxicity effects of RISI for head and neck tumors. Although the OARs of head and neck cancer are different from those of thoracic tumors, there were no obvious toxicity effects of grade 3 or higher (Jiang et al. 2018), thereby suggesting that the safety of RISI. Radiation pneumonia is a relatively specific toxicity effect of chest EBRT. Studies have shown that the prevalence of grade 3 radiation pneumonia is ~ 20% in thoracic reirradiation, even with SBRT (Kelly et al. 2010; Trovo et al. 2014). However, most of the patients in our study had previously received EBRT, and the prevalence of radiation pneumonia was not high. Only one patient who had grade 3 radiation pneumonia had not previously undergone EBRT. In fact, a study showed that radiation pneumonia might be associated with autoimmune function or infectious pneumonia (Li et al. 2016).

The D0.1 cc and D2 cc variables might be more meaningful for the esophagus and trachea, because these organs are tandem organs. For example, the data for RISI in tumors of the prostate gland showed a limited dose to a tandem organ (rectum) with D0.1 cc ≤ 200 Gy and D2 cc ≤ 145 Gy (Salembier et al. 2007; Georg et al. 2014). In the present study, the D0.1 cc and D2 cc for one patient with an esophageal fistula who had previously undergone EBRT (total dose = 56 Gy) were 38.92 Gy and 31.22 Gy, respectively. Two patients had tracheal fistulae. The D0.1 cc and D2 cc for one patient who had previously undergone EBRT (total dose = 56 Gy) were 105.32 Gy and 68.88 Gy, respectively. The D0.1 cc and D2 cc for another patient who had previously undergone EBRT (total dose = 74 Gy) were 23.56 Gy and 16.02 Gy, respectively. However, from the data of the whole study cohort, some patients had no serious esophageal or tracheal toxicity effects despite receiving high doses. Thus, we could not ascertain the dose-tolerance relationship of the esophagus and trachea.

Conclusions

RISI, as a favorable salvage treatment, may be safe and efficacious and is associated with few complications during the treatment of thoracic tumors. The LC rate at 1 year was 64.9% and that at 3 years was 32.8%. The prevalence of radiation-related adverse reactions was low, whereas the prevalence of the common adverse reactions associated with EBRT, such as radiation pneumonia, esophagitis, and skin reactions, was not high after RISI. The higher the target dose (D90), the better the LC was. We found a significant correlation between the target dose and LC, and a prescribed dose of more than 140 Gy may lead to better outcomes.
