Structural basis of inhibition of human Na_V1.8 by the tarantula venom peptide Protoxin-I

Abstract

Voltage-gated sodium channels (Na_Vs) selectively permit diffusion of sodium ions across the cell membrane and, in excitable cells, are responsible for propagating action potentials. One of the nine human Na_V isoforms, Na_V1.8, is a promising target for analgesics, and selective inhibitors are of interest as therapeutics. One such inhibitor, the gating-modifier peptide Protoxin-I derived from tarantula venom, blocks channel opening by shifting the activation voltage threshold to more depolarized potentials, but the structural basis for this inhibition has not previously been determined. Using monolayer graphene grids, we report the cryogenic electron microscopy structures of full-length human apo-Na_V1.8 and the Protoxin-I-bound complex at 3.1 Å and 2.8 Å resolution, respectively. The apo structure shows an unexpected movement of the Domain I S4-S5 helix, and VSD_I was unresolvable. We find that Protoxin-I binds to and displaces the VSD_II S3-S4 linker, hindering translocation of the S4_II helix during activation.

Animal toxins can modulate action potentials and are important leads for therapeutics. Here, the authors use cryo-EM to show the interaction of the tarantula venom peptide Protoxin-I with a human voltage-gated sodium channel implicated in pain

Introduction

Voltage-gated sodium channels (Na_Vs) are integral membrane proteins responsible for the selective permeation of sodium ions into cells in response to membrane depolarization. The small differences in sequence that characterize the nine human Na_V subtypes (hNa_V1.1-1.9, Supplementary Fig. 1) nonetheless give rise to distinct electrophysiological properties that, together with varying expression levels in different tissues, give each hNa_V isoform particular physiological roles.

Na_V1.8, one of the three tetrodotoxin-resistant Na_Vs, is distinguished from other isoforms by the relatively depolarized voltage-dependency of activation and inactivation, slower inactivation kinetics, and an increased persistent current^1–3; These attributes make Na_V1.8 principally responsible for inward currents during the rising phase of the action potential^4,5, and contribute to hyperexcitability and repetitive firing in the dorsal root ganglion (DRG) neurons where it is primarily localized^6,7. Uniquely, it maintains its gating properties at cold temperatures⁸.

Multiple studies have linked Na_V1.8 to nociception and chronic pain. Gain-of-function mutations in Na_V1.8 causing increased excitability of DRG neurons have been identified in patients with peripheral neuropathy^9,10, while a loss-of-function Na_V1.8 mutation has been linked to reduced pain sensation^11,12. Na_V1.8 has also been linked to inflammatory pain¹³. Studies of Grasshopper mice (Onychomys torridus) showed that their insensitivity to pain induced by the venom of the Arizona bark scorpion (Centruroides exilicauda) derives from mutations in their Na_V1.8 channels¹⁴; injection of the venom reduced the O. torridus pain response to the formalin test, demonstrating that inhibition of Na_V1.8 is a viable analgesic strategy¹⁵.

Inhibitors of Na_V1.8 are therefore of interest as pain treatments, and peptides derived from animal venom are renowned modulators of Na_V activity. Unlike small-molecule inhibitors, which typically bind in the highly conserved pore domain (PD), peptide inhibitors frequently bind to the less-conserved extracellular regions above the voltage-sensing domains (VSDs) which provide greater scope for isoform selectivity in drug development. Na_V1.8-selective peptides include scorpion venom peptide BmK I¹⁶, the μ-conotoxins MrVIA/MrVIB^17,18 and TsIIIA¹⁹, and the tarantula venom peptide Protoxin-I (ProTx-I)²⁰.

ProTx-I was isolated from the venom of the Peruvian green velvet tarantula (Thrixopelma pruriens) and is a gating-modifier peptide that shifts the voltage-dependence of activation to more depolarized potentials²⁰. It shows slight selectivity for rat Na_V1.8 (IC₅₀ = 27 nM)²¹ over other human Na_V isoforms (typically IC₅₀ = 60–130 nM)²², as well as activity against T-type calcium channels²³ and the TRPA1 channel²⁴. ProTx-I is disulfide-rich and shares the inhibitor cystine knot (ICK) framework that is common among gating-modifier tarantula venom peptides²⁵. Mutagenesis studies using hNa_V1.7/K_V2.1 chimeras localized the binding site of ProTx-I to Na_V1.7 on the extracellular loops of VSD_II and VSD_IV²⁶ but the exact binding mechanism remained undetermined.

Structural characterization of venom peptides in complex with Na_Vs is essential for understanding their pharmacological profiles and for realizing their potential as tool compounds and drugs. However, poor Na_V expression yields and low local resolution for bound peptides have made these structures difficult to obtain. Full-length Na_V-peptide complexes determined to date are limited to Na_V1.2 in complex with the pore-blocking µ-conotoxin KIIIA²⁷, Na_V1.5 bound to the scorpion venom peptide LqhIII²⁸, and the American cockroach channel Na_VPaS bound to the spider venom peptide Dc1a²⁹. Attempts to characterize complexes of human Na_V1.7 with the spider venom peptides Protoxin-II and Huwentoxin-IV produced high-resolution reconstructions of the channel but could not sufficiently resolve the peptide for modeling³⁰. Chimeric channels consisting of bacterial or invertebrate Na_V scaffolds onto which human Na_V domains have been grafted have also been developed to address this problem. A Na_VAb/Na_V1.7-VSD_II chimera was used to determine the binding mechanism of Protoxin-II and Huwentoxin-IV³¹, which has additionally been characterized in complex with a NaChBac/Na_V1.7-VSD_II chimera³², while a Na_V1.7-VSD_IV chimera based on the Na_VPaS scaffold aided in characterization of the scorpion venom peptide AaH2 as well as small molecule inhibitors³³.

Mutagenesis screening and chimeric constructs can be effective in identifying channel variants with higher expression yield, but mutations can affect channel gating properties and chimeric constructs lack functional domains³⁴. Experimental structures with full-length human channels are therefore preferred for rational structure-based drug design in order to minimize off-target interactions; maximizing yield and particle grid density through mammalian cell expression, biochemical and cryogenic electron microscopy (cryoEM) developments is therefore an attractive strategy.

Here, we used mammalian HEK293 cells to express full-length human Na_V1.8 and determined the structure, with and without ProTx-I bound, by single-particle cryoEM. Optimization of the expression and purification, and the use of monolayer graphene grids, allowed the maximum number of useable particles for data collection from as low as 1.5 L of cell culture. The final reconstructions were determined at an overall resolution of 3.1 Å for apo-hNa_V1.8 and 2.8 Å for the hNa_V1.8-ProTx-I complex. Separate classifications revealed large movements of the S4-S5 linker leading to VSD_I, and consequently this VSD was unresolvable. The resolution of the map in the ProTx-I region was sufficient for tracing of the peptide backbone and determination of its mechanism of binding. We anticipate that the developed protocols will be beneficial in the solution of future peptide-Na_V complexes by cryoEM, and that these results will assist in the design of drugs targeting hNa_V1.8.

Results

Apo-hNa_V1.8

Human Na_V1.8 α-subunit was co-expressed in HEK293 cells together with the β4-subunit and purified as described in Methods. Na_V α-subunits are frequently co-expressed with β-subunits to stabilize the protein, increase expression levels, and maintain a more native environment. Evidence suggests that hNa_V1.8 is capable of interacting with all four β-subunits, including β4, which affects hNa_V1.8 activation and inactivation thresholds³⁵. However, despite co-expression, only the α-subunit was observed after purification (Supplementary Fig. 2) and in the final map; loss of co-expressed β-subunits has been observed for other Na_Vs^36–38and may reflect weak binding affinity between the proteins (see Discussion). To maximize the final hNa_V1.8 yield, several parameters were screened (see Methods) and the overall time between solubilization and purification was minimized. Prior to cryoEM, particle purity and homogeneity were confirmed by negative stain (Supplementary Fig. 2d).

Screening freezing conditions using conventional holey carbon grids showed a preference for particles to accumulate over the carbon film, and low particle density in the holes (Supplementary Fig. 3a). Due to low yields, we attempted to increase the scale of the cell culture, but this introduced problems with solubilization and did not sufficiently increase the final usable protein concentration. The initial grid screening included a range of grid types, including one with a support film of monolayer graphene which showed improved particle distribution across the grid holes (Supplementary Fig. 3a). We therefore pursued the use of support film grids, including monolayer graphene, as an alternative to mutagenesis or large increases in the scale of cell culture. Using ultrathin (2–3 nm) carbon grids under similar conditions failed to produce a cryoEM dataset that could reach high resolution which we hypothesize was due to contrast loss resulting from particle packing. Graphene oxide grids indicated acceptable Na_V particle density and contrast but were more susceptible to breakage from glow discharging (Supplementary Fig. 3b). All maps in this manuscript resulted from the use of monolayer graphene grids (0.4 nm thickness) which showed good particle distribution and contrast (Supplementary Fig. 3c); this allowed us to reconstruct the structures using just ~0.15 mg/mL of purified protein from as low as ~20 g wet cell pellet or 1.5 L of cell culture, significantly lower than typical Na_V preparations^37,39–41.

This approach allowed us to reconstruct apo-hNa_V1.8 at an overall resolution of 3.1 Å (Fig. 1; Supplementary Figs. 4 and 5; Supplementary Table 1). Typical of other apo-Na_V structures, the apo model shows features characteristic of an inactivated channel, with gating charge residues on all visible VSDs showing ‘up’ conformations (Supplementary Fig. 5) and the IFM fast inactivation motif on the VSD_III-VSD_IV linker buried in its binding site between S6_IV, S5_IV and the VSD_III S4-S5 linker (Fig. 1a, c). Similar to a previous study³⁶, the quality of the map allowed modeling of N-linked glycosylation at several positions (Asn residues 312, 819, 1312, 1328, and 1336) on the extracellular loops, as well as possible cholesterol, lipids, and detergent molecules bound to the transmembrane region; similar to other cryoEM structures of Na_V channels we observe density for a bound molecule in the intracellular pore region, which we putatively assign as cholesterol (Fig. 1c, e)^{27,34,36,39,40}.

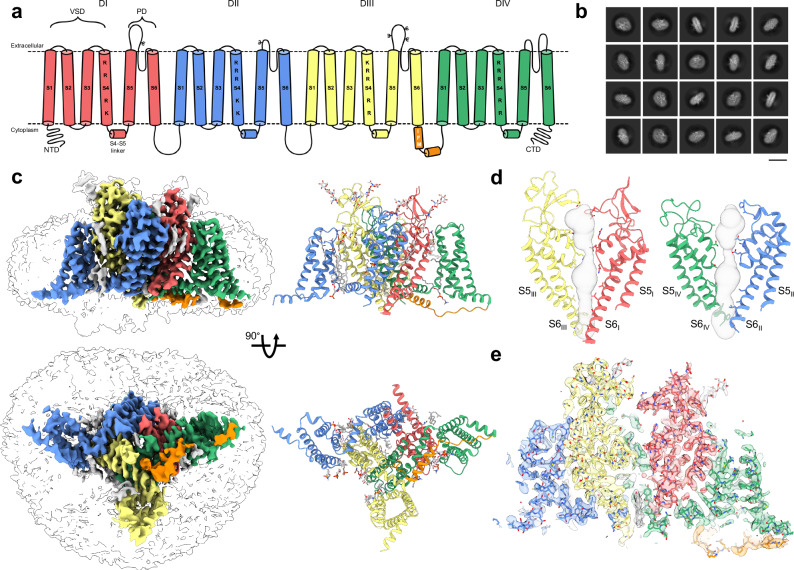

Fig. 1. Overall architecture and reconstruction of apo-hNa_V1.8.

a Topology of hNa_V1.8 colored by domain: DI (red), DII (blue), DIII (yellow), IFM (orange) and DIV (green); VSD = voltage-sensing domain, PD = pore domain. The basic residues responsible for voltage-sensing in S4 of hNa_V1.8 are labeled. hNaV1.8 glycosylation sites are labeled with the letter psi. b Example 2D class averages for apo-hNa_V1.8; scale bar = 15 nm. c (left) Side and intracellular views of the final apo-hNa_V1.8 map (colored according to the scheme in a) with transparent lower map threshold to indicate micelle and emerging NTD, and (right) the resulting final refined model. Glycosylation and small molecule ligands, including cholesterol in the pore are shown in gray. d Two views of the apo-hNa_V1.8 pore domain showing the ion permeation path in gray. e Model-to-map fit for a central cross-section of apo-hNa_V1.8.

Density corresponding to VSD_I is almost entirely absent in the 2D and 3D classifications, and in the final reconstruction (Fig. 1b, c), even as portions of the N-terminal domain (NTD) can be observed at lower map thresholds; this result is consistent with a prior report³⁶. Attempts to improve the resolution in this region through 3D classifications steps, masking, and local refinements did not improve interpretability of VSD_I but did reveal separate classes (denoted Class I and Class II, Supplementary Fig. 4) showing a distinct repositioning of the VSD_I S4-S5 linker and a smaller movement of the lower portion of the VSD_I S6 helix (Fig. 2, Supplementary Movie 1); The final apo map and structure was calculated from all particles making up Class I and Class II. In Class I the VSD_I S4-S5 linker is positioned closer to the pore domain even as S6_I moves outwards (Fig. 2c, cyan arrows), while in Class II the VSD_I S4-S5 linker swings outwards (Fig. 2c, purple arrows); the S6_I helix moves contrarily and tucks closer into the pore. In all our reconstructions, the VSD_I S4-S5 linker is positioned significantly outward (by up to 17 Å) compared to the prior apo-Na_V1.8 structure (PDB 7WFW)³⁶. These movements necessarily affect the positioning, and likely contribute to the unresolvability, of VSD_I; this is supported by 3D variability analysis, where, at low thresholds, density for the NTD is observed in slightly different positions (Supplementary Movie 2). Distinct positions for NTD and VSD_I have also been observed in Na_V1.7-M11, an engineered variant of hNa_V1.7 containing 11 mutations that collectively induce a large depolarizing shift in the activation voltage⁴², underlining the connection between VSD_I lability and activation thresholds.

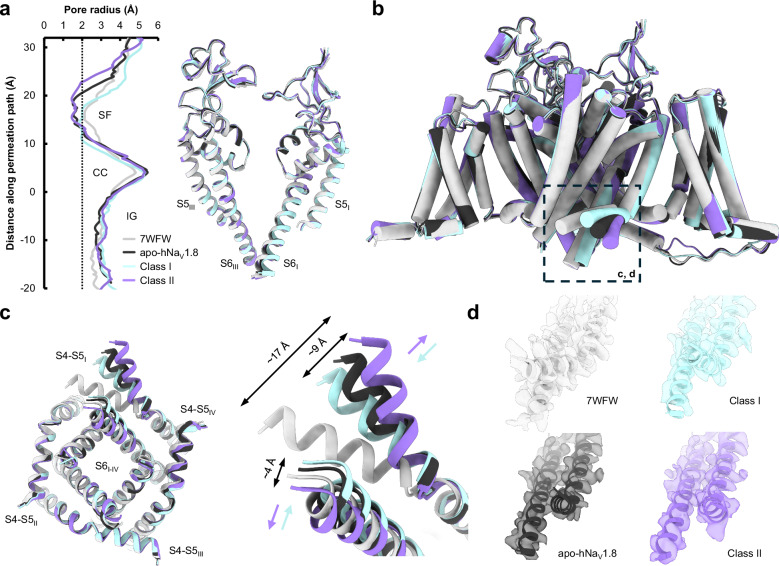

Fig. 2. Structural comparisons of apo-hNa_V1.8, highlighting dynamics of VSD_I S4-S5 linker and S6 helices.

a (left) Pore radius for the overall apo-hNa_V1.8 model (black) together with Class I (cyan), Class II (purple), and 7WFW (light gray)³⁶, and (right) aligned pore domains showing minimal backbone movements. The selectivity filter (SF), central cavity (CC) and intracellular gate (IG) are indicated. b Comparison of the four apo-hNa_V1.8 models contrasting the close overall structural agreement with the extensive outward movement of the VSD_I S4-S5 linker (dashed black box). c (left) Intracellular view of the pore domain showing movements of the VSD_I S4-S5 linker and lower S6_I helix, with (right) close-up views highlighting the angular displacements (indicated by color-coded arrows) of the VSD_I S4-S5 linker and S6 helix. Displacements between Class I and Class II measure ~9 Å for the VSD_I S4-S5 linker and ~4 Å for the S6 helix d Model-to-map fits of the VSD_I S4-S5 linker for all apo-hNa_V1.8 structures.

Analysis of the ion permeation path shows the point of greatest restriction around the selectivity filter in the upper pore and is similar in all structures (Fig. 2a). The pore diameter through the intracellular gate is ~3 Å, consistent with the conformation of the S6 helices observed in hNa_V1.7³⁴ and which allows space for the bound cholesterol molecule in our maps.

ProTx-I-bound complex

The hNa_V1.8-ProTx-I complex was prepared by incubating ProTx-I solution with purified apo-hNa_V1.8 prior to freezing with support film grids. We observed low particle contrast during initial screening, likely due to excess unbound ProTx-I (Supplementary Fig. 3b). We therefore introduced ProTx-I to hNa_V1.8 prior to the final concentration step using a high molecular weight cutoff filter to remove excess unbound peptide (as described in Methods). Processing of the data produced a map with an overall resolution of 2.8 Å from 267,708 particles (Fig. 3; Supplementary Figs. 6 and 7). Outside the ProTx-I binding region, the refined hNa_V1.8 structure in the complex is very similar to apo-hNa_V1.8, with some slight rigid-body shifts in the VSDs and small movements in the extracellular loops. As with our apo-hNa_V1.8 map, we observe density for multiple glycans in the map for the hNa_V1.8-ProTx-I complex. The higher resolution of this map, likely enabled by the stabilizing effect of ProTx-I, allowed an additional extracellular loop (ECL_I, D280-P295) to be traced in the hNa_V1.8-ProTx-I map that was not possible for apo-hNa_V1.8 (Supplementary Fig. 7). This loop has two further N-linked glycosylation sites (residues N284 and N288), but the glycans could not be resolved. The VSD_I S4-S5 linker is again swung outward and consequently VSD_I is not resolvable, despite additional processing, a larger dataset, and the higher overall resolution of the reconstruction.

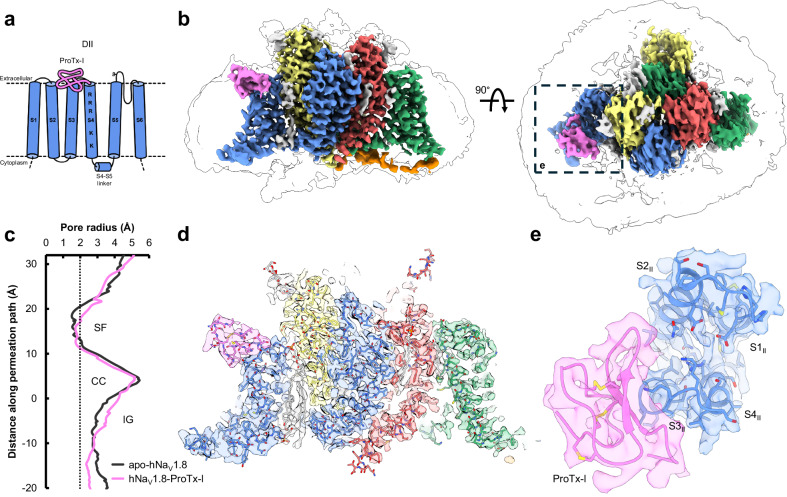

Fig. 3. Overall architecture and reconstruction of hNa_V1.8-ProTx-I complex.

a Schematic showing the positioning of ProTx-I (pink) on hNa_V1.8 VSD_II. b Side and extracellular views of the final hNa_V1.8-ProTx-I complex map, colored as in Fig. 1c with ProTx-I in pink; the dashed box highlights the region binding ProTx-I. c Pore radius for the hNa_V1.8-ProTx-I complex (pink) together with apo-hNa_V1.8 (black). d Model-to-map fit for a central cross-section of hNa_V1.8-ProTx-I, and e extracellular view of the fitted map in the ProTx-I-binding region.

Density for ProTx-I is clearly visible in the refined map; consistent with its electrophysiological effects as a gating modifier and previous structure-activity relationship studies²⁶, ProTx-I binds to the S3-S4 linker on VSD_II (Fig. 3b, d, e). The local resolution allowed the principal backbone of the peptide to be traced, which, with the assistance of the discernible β-loop near the peptide C-terminus, was sufficient to model ProTx-I into the map using an available NMR model (see Methods). The resolution of the ProTx-I portion of the map is highest immediately abutting the channel (likely due to stabilizing interactions) and is attenuated in the more distant regions (Supplementary Fig. 6c); this reduction in density in the more peripheral regions is a common feature of cryoEM studies of peptide-Na_V complexes^30,33. Evidence from mutagenesis experiments demonstrates that ProTx-I can also bind to hNa_V1.7 VSD_IV²⁶, although electrophysiological recordings have not demonstrated that ProTx-I has any effect on channel inactivation thresholds that are typically governed by VSD_IV. Despite high local resolution, we do not observe any density for ProTx-I above VSD_IV in the hNa_V1.8-ProTx-I structure, noting that the S1-S2 and S3-S4 linker regions on VSD_IV are poorly conserved between hNa_V1.7 and hNa_V1.8 (Supplementary Fig. 1).

ProTx-I is partly buried in the detergent micelle (that mimics the membrane lipid bilayer). This interaction is mediated by a set of aromatic and aliphatic residues (W5, L6, W27, W30) that together form a ‘hydrophobic patch’, which is commonly observed in ICK peptides⁴³ (Fig. 4a; Supplementary Movie 3) and explains prior observations that ProTx-I shows some affinity for model membranes, especially anionic membranes²². Tryptophan, in particular, is known to preferentially bind to the acyl carbonyl groups at the lipid-water interface⁴⁴; these residues are proposed to anchor the peptide to the membrane and orientate it for interaction with the Na_V VSDs⁴⁵. ProTx-I shows only small conformational changes with respect to its unbound structure, as would be expected for an ICK peptide where the disulfide bonding network maintains rigidity in the peptide core (Supplementary Fig. 8a). The C-terminus is repositioned so as not to clash with the S3-S4 loop and permits the F34 sidechain access to the membrane.

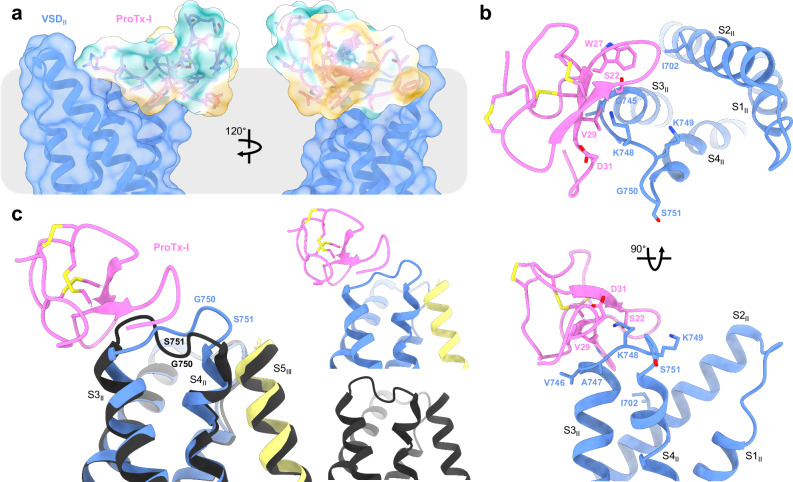

Fig. 4. Interactions of ProTx-I with hNa_V1.8 and the membrane.

a ProTx-I surface colored by hydrophobicity showing insertion of the hydrophobic patch into the membrane region (gray). Polar residues are indicated in teal, hydrophobic residues are indicated in gold. b Two views of the VSD_II-ProTx-I binding interface showing W27 sidechain partially inserting into the S2/S3 cleft, V29 sitting atop S3_II at V746 and A747, and the K748 sidechain on the VSD_II S3-S4 linker in range to interact with the ProTx-I D31 and S22 sidechains. c (left) Overlay of the VSD_II S3-S4 linker position in the hNa_V1.8-ProTx-I complex (color scheme as in Fig. 3a) and apo-hNa_V1.8 (black) showing inward movement towards the S4 helix, and (right) separated comparison of S3 and S4 helix positions.

The hNa_V1.8-ProTx-I structure shows several points of interaction between the peptide and hNa_V1.8 VSD_II (Fig. 4). The membrane-embedded W27 sidechain partially inserts in the cleft formed by the S1/S2 and S3/S4 segments adjacent to I702 on S2 and G745 on S3, while the V29 sidechain is positioned directly on top of the S3 helix at V746/A747, likely hindering movement of this segment during activation (Fig. 4b). The structure places the S3_II V746 sidechain directly below ProTx-I, and its replacement by the bulkier leucine in hNa_V1.1-1.7 may hinder peptide binding and contribute to the slight increase in potency against Na_V1.8.

The VSD_II S3-S4 loop in the apo-hNa_V1.8 map is of relatively lower resolution, which made tracing the loop backbone challenging; by contrast, the local resolution in this region of the hNa_V1.8-ProTx-I complex map was improved (likely due to stabilization from the interaction with ProTx-I) and allowed straightforward tracing of the S3-S4 loop backbone at a higher threshold level (Supplementary Fig. 8b). Comparing the two structures shows that the binding of the toxin induces an inward movement of the top of the S3 helix together with a corresponding movement of the S3-S4 linker towards the pore domain (Fig. 4c and Supplementary Movie 4). This redirection of the S3-S4 linker due to ProTx-I binding propagates along its length such that G750 and S751 now sit directly atop S4 and adjacent to the pore domain, potentially hindering translocation of S4. This movement positions two adjacent lysine sidechains on the S3-S4 linker (K748 and K749, which are unique to hNa_V1.8; see Discussion) upwards; the first of these lysine sidechains is positioned close to polar residues on ProTx-I (D31 and S22) where it may form hydrogen-bonding interactions. These observations are consistent with structure-activity studies of ProTx-I. A tethered-toxin alanine scan of ProTx-I against Na_V1.7 identified multiple residues that significantly modified peptide activity (including L6, W27, V29, W30, and D31)²⁶. The structure shows that many of these residues either form direct contacts with the channel or form part of the hydrophobic face that anchors the peptide to the membrane (Fig. 4a). Intriguingly, performing the same experiment with Na_V1.2 shows an expanded pharmacophore compared with Na_V1.7, with R3, W5, S22, R23, G32 also contributing to channel inhibition and suggesting that ProTx-I can adopt different binding modes depending on the Na_V isoform that it is targeting²⁴.

Mutagenesis experiments focusing on the channel have also explored the Na_V-ProTx-I interaction. An alanine scan of S3-S4 in a Na_V1.2-VSD_II/K_V1.2 chimera revealed several residues that modulated ProTx-I inhibition⁴⁶. Mapping these residues to the hNa_V1.8-ProTx-I structure provides a partial justification of these results. Significant reductions in potency were observed on mutation of the hydrophobic residues at the top of S3_II; these correspond to V746 and A747 in Na_V1.8, and which are directly involved in ProTx-I binding (Fig. 4b). Large changes were also observed for residues at the top of S4_II, equivalent to S751 and S753 in hNa_V1.8, which do not directly interact with ProTx-I in our structure but may instead relate to the inward push on the S3-S4 linker after binding.

Taken together, these structures justify prior structure-activity data as well as the observed pharmacological properties of ProTx-I on voltage-gated sodium channels. ProTx-I is observed to wrap around the top of the S3_II helix, and inhibition is also likely mediated by the inward shift of the VSD_II S3-S4 linker, which potentially restricts movement of the S4_II helix. The positioning of residues which, in the hNa_V1.8-ProTx-I structure, do not form direct interactions, also provides hints as to the relative promiscuity of ProTx-I towards hNa_V isoforms (discussed below).

Discussion

This study reports the cryoEM structures of apo-hNa_V1.8 and a hNa_V1.8-ProTx-I complex and provides insights into the mechanism of channel inhibition by ProTx-I, as well as a useful point of comparison with other structures. ProTx-I was observed to bind to VSD_II, with no density observed around VSD_IV, despite evidence from mutagenesis experiments²⁶. The addition of ProTx-I seemed to stabilize hNa_V1.8 resulting in a better quality and higher resolution map, including in the peptide-binding region of the channel.

The decision to co-express with β-subunits was motivated by low expression yields of hNa_V1.8 and poor particle distribution on the grid; we were also keen to minimize the volume of cell culture required to obtain sufficient particles for cryoEM reconstruction, which can reach 40 L in some cases⁴⁷. The β4-subunit was selected based on evidence that it interacts with hNa_V1.8 and affects activation and inactivation potentials³⁵. However, no significant increase in the expression yield was seen and in subsequent purification and data collection steps only the hNa_V1.8 α-subunit was identified. A cryoEM structure of hNa_V1.1 together with β4 was able to resolve the β4 extracellular domain even as the co-expressed β3-subunit was not visible and demonstrated direct linking of β4 to the Na_V1.1 α-subunit via a disulfide bond to the VSD_II S5-S6 extracellular loop³⁹. hNa_V1.8 lacks the counterpart cysteine at this position required for disulfide bonding, which is likely to significantly weaken the interaction with β4; further investigation will be required to reveal the mechanism of gating modification of hNa_V1.8 by β4.

Initial preparations produced homogeneous and good-quality particles, but in insufficient amounts to proceed with cryoEM. Since biochemical approaches did not significantly improve the yield of hNa_V1.8, and we wished to avoid more drastic interventions (such as chimeras), we investigated different types of grids to optimize particle density and quality. The use of support films can drastically increase particle retention after blotting compared with conventional holey carbon grids⁴⁸ and we found that grids with monolayer graphene support showed the most initial promise. Further optimization of the freezing conditions led to grids with a homogenous distribution of particles (Supplementary Fig. 3c) obtained from as low as 1.5 L cell culture and ultimately resulted in all the high-resolution reconstructions presented in this paper.

The structures of apo-hNa_V1.8 revealed a large hinging movement of the VSD_I S4-S5 linker that was resolvable in two separate classes (Fig. 2). This VSD_I S4-S5 linker movement is not observed between the previously determined apo-hNa_V1.8 and hNa_V1.8-A-803467 complex structures³⁶, despite the flexibility shown in VSD_I S1-S4. By contrast the VSD_I S4-S5 linker is consistently found tucked in closely to VSD_II S5 and S6, as it is in other Na_V structures, while the S6_I helix is also positioned more closely into the pore. Notably, however, similar position shifts are observed between wild-type hNa_V1.7 and hNa_V1.7-M11⁴². Previous work ascribed the comparative flexibility of VSD_I to unique mutations in hNa_V1.8 VSD_II S5 and identified two mutants (K806M and L809F) near the VSD_II S5-VSD_I interface that individually and collectively shift the voltage of activation to more polarized potentials³⁶. Since we were unable to resolve VSD_I in our structures we are unable to confirm the influence of these residues on VSD_I flexibility, but we do observe an inward and upward shift of the VSD_II S5 and S6 helices that justifies the connection between VSD_I positioning and channel gating properties.

The unusual movements of the VSD_I S4-S5 linker and S6 helix seen in our structures prompted closer examination of this region. Both regions are highly conserved across human Na_V1.1-1.8, although hNa_V1.9 shows lower sequence identity (Supplementary Fig. 1). Aside from hNa_V1.9, only hNa_V1.8 has non-conserved residues in the VSD_I S4-S5 linker, with Val instead of Thr at position 234, and His replacing Glu at position 241. V234 points away from the rest of the channel and does not form any interactions except to solvent or detergent, but H241 is orientated towards the conserved E402 and Q403 residues on VSD_I S6 (Supplementary Fig. 9). When the VSD_I S4-S5 linker is in the conventional tucked position, the His/Glu sidechain is close enough to interact with these polar residues³⁶. Both Glu and His are capable of simultaneously donating and accepting hydrogen bonds, but the imidazole ring on the His sidechain imposes additional geometric restraints; the Glu-His mutation observed at this position in hNa_V1.8 may therefore affect the ability to form stabilizing interactions with VSD_I S6 and may contribute to the lability of this region that was observed in our data.

The hNa_V1.8-ProTx-I structure is obtained at higher resolution than apo-hNa_V1.8, which allows an additional extracellular loop to be modeled into this map. The complex structure demonstrates binding of the peptide to the channel by wrapping around the top of the S3_II helix. This interaction is mediated by anchoring of the peptide to the membrane via an external hydrophobic patch, together with acidic and polar residues that can potentially form hydrogen bonds with a lysine residue (unique to Na_V1.8) on the VSD_II S3-S4 linker. The binding of ProTx-I induces an inward shift of the VSD_II S3-S4 linker such that it partially repositions on top of the S4_II helix, which we hypothesize hinders the movement of S4_II during activation and justifies the gating-modifier properties of ProTx-I.

Comparing the hNa_V1.8-ProTx-I structure to other structures of gating-modifier peptides bound to Na_Vs shows some similarities and differences in their modes of action. A cryoEM study of the gating-modifier peptide Huwentoxin-IV in complex with a nanodisc-bound NaChBac-Na_V1.7-VSD_II chimera shows that the peptide is similarly orientated by its membrane-inserted hydrophobic patch to present polar residues towards the channel, particularly the K32 sidechain ‘stinger’ which is proposed to enter the VSD_II cleft and come into proximity with negatively charged residues E822, D827, and E829⁴⁹. This stinger interaction mechanism is maintained when Huwentoxin-IV binds to the channel in the resting conformation³². Notably, in hNa_V1.8, D827 is modified to lysine while E829 is replaced by glycine; hNa_V1.8 additionally has a second lysine at K748, replacing valine in hNa_V1.7. The replacement of so many negatively charged residues in hNa_V1.7 by positive or neutral residues in Na_V1.8 would be sufficient to abolish these interactions and explain why hNa_V1.8 is resistant to Huwentoxin-IV⁵⁰. It also justifies the lack of a similar ‘stinger’ strategy by ProTx-I in its inhibition of hNa_V1.8.

A similar chimeric strategy was used to obtain structures of Thrixopelma pruriens ICK peptide Protoxin-II in complex with Na_V1.7-VSD_II, which additionally revealed both activated and deactivated conformations³¹. While ProTx-I shows only mild selectivity towards Na_V1.8 compared with other isoforms, Protoxin-II is notable for its potency (IC₅₀ = 0.3 nM) and selectivity (>100-fold) in favor of hNa_V1.7. As with the hNa_V1.8-ProTx-I structure, a prominent tryptophan sidechain partitions into the VSD_II S2-S3 cleft where it interacts with nearby hydrophobic residues (Fig. 4b). Similar to Huwentoxin-IV, Protoxin-II inserts a lysine residue sidechain to interact with E811, but additionally projects its R22 sidechain towards the acidic residues on the S3-S4 linker. The involvement of the arginine sidechain is of interest because ProTx-I also has an arginine at an equivalent position (R23), and which was identified as an important residue in targeting Na_V1.2²⁴. The map density for this loop is not sufficient for confident placement of the arginine sidechain (suggestive of regional flexibility), but the hydrogen-bonding partner residues E694 and Q698 on S2_II are within range for these interactions to occur and present an additional possible binding mode for Na_V subtypes with acidic and polar residues in these positions. Notably, in hNa_V1.7 the equivalent positions (E694 and Q698) are replaced by Lys and Ala, respectively, which would abolish any potential interactions with ProTx-I R23.

Here, the cryoEM reconstructions of apo- and ProTx-I-bound hNa_V1.8 provide important insights into the versatile mechanisms that ProTx-I and other gating-modifier peptides have at their disposal to affect Na_V gating. This was enabled by the use of monolayer graphene support that allowed 3D reconstructions from relatively low concentrations of protein stemming from small volumes of cell culture, which may be beneficial for studies of other hNa_Vs and similarly challenging proteins. These results will assist in the development of analgesic drugs targeting hNa_V1.8, as well as aiding the structural characterization of peptide-Na_V complexes yet to be determined.

Methods

Isoform and cloning of hNa_V1.8 and β4

The hNa_V1.8 sequence (Supplementary Fig. 1) used in this study was obtained from GenBank (NM_006514.3; the current canonical sequence NM_006514.4 has M1713 in place of Val, which does not significantly affect the electrophysiological properties of the channel)³⁶. The hNa_V1.8 sequence was N-terminally tagged with FLAG-tag, Twin-Strep-tag and a TEV protease site. The β4 sequence used in this study was obtained from GenBank (NM_174934.3) and C-terminally tagged with a TEV protease site and 6xHis-tag. The codon-optimized DNA was cloned into pcDNA3.1(+) and purchased from GenScript (genscript.com).

Transient expression of hNa_V1.8 and β4

HEK293 cells (FreeStyle 293-F, Gibco) were seeded at ~0.3 × 10⁶ cells/mL into 3 L of FreeStyle 293 Expression Medium (Gibco) in a baffled polycarbonate 5 L Erlenmeyer flask and incubated at 37 °C with 8% CO₂ at 110 rpm. After 3 days, fresh media prewarmed to 37 °C was added to dilute the cells to 2 × 10⁶ cells/mL. A total of 1.1 mg/L of DNA was used at a 2:1 ratio of hNa_V1.8 to β4 and was mixed into 90 mL of Opti-MEM Reduced Serum Medium (Gibco). A total of 10 mL (1 mg/mL in PBS) of PEI Max 40 kDa (Polysciences Inc.) was added to the DNA and incubated for 20 min at room temperature. The cells were transiently co-transfected and harvested after 42 h at 800 × g for 30 min at 4 °C. The ~35–40 g wet cell pellet was flash frozen in liquid nitrogen and stored at −80 °C.

Protein purification of apo-hNa_V1.8

A 35 g HEK293 cell pellet, equivalent to 3 L of cells, was homogenized in 60 mL of buffer A (165 mM NaCl, 27.5 mM HEPES pH 7.5, 2 mM MgCl₂, 11% glycerol, 10 mM EDTA, and 3 x Pierce Protease Inhibitor Tablets (Thermo Scientific) supplemented with 5 units/mL of Benzonase (Millipore)) by plunging on ice in a glass Dounce tissue grinder with a large clearance pestle. The homogenate was diluted to 120 mL with buffer A and plunged on ice again with a small clearance pestle. The homogenate was diluted further with buffer A to a protein concentration of ~11 mg/mL (as determined by spectrophotometry using a Thermo Scientific NanoDrop). The membrane was solubilized for 2 h at 4 °C on a roller shaker at 30 rpm in 1% n-dodecyl-B-D-maltoside (DDM) (GoldBio), 0.2% CHS (Anatrace) by adding 10X solubilization buffer (10% DDM, 2% CHS) for a final protein concentration of ~10 mg/mL. The bulk of the cellular debris was pelleted at 4347 × g using an Eppendorf 5910 R centrifuge for 10 min at 4 °C. The supernatant was clarified further by ultracentrifugation with a Beckman Optima L ultracentrifuge equipped with a SW 32 Ti rotor at 25,000 rpm (r_av 76,800 × g) for 30 min at 4 °C.

A 2 mL column volume (CV) of ANTI-FLAG M2 Affinity Gel (Millipore) was equilibrated in a gravity flow column with 2 CVs of buffer B (150 mM NaCl, 25 mM HEPES pH 7.5, 0.06% (w/v) glyco-diosgenin (GDN) (Anatrace)). The supernatant was mixed with the M2 affinity gel for 1 h at 4 °C on a roller shaker at 5 rpm. After collecting the flow through by gravity, the affinity gel was washed gradually into buffer B in the following 5 CVs buffer A and buffer B ratios: 50:50, 25:75, 12.5:87.5, 5:95 and 0:100. Protein was eluted by mixing the M2 affinity gel with 5 CVs of buffer B supplemented with 200 μg/mL of FLAG peptide for 30 min at 4 °C.

For size exclusion chromatography, two eluate fractions were loaded onto a Superose 6 Increase 10/300 GL column (Cytiva) connected to an ÄKTA pure system (Cytiva) in buffer C (150 mM NaCl, 25 mM HEPES pH 7.5, 0.006% (w/v) GDN) (Supplementary Fig. 2a). Eluate 1 consisted of the first 2 mL eluted from the FLAG column; Eluate 2 consisted of the remaining FLAG eluate, concentrated to 0.5 mL in a 4 mL 100 kDa MWCO Amicon Ultra centrifugal filter (3000 × g at 4 °C). The flow rate was 0.7 mL/min at 4 °C. Fractions 12-17 (11.8–14.8 mL) from both eluates were pooled and concentrated as before. The pooled fractions were again purified by size exclusion chromatography using the above method. Finally, fractions 13–15 (12.4–13.9 mL) were pooled and concentrated in a 0.5 mL 100 kDa MWCO Amicron Ultra centrifugal filter (3000 × g at 4 °C) to 60 µL at ~0.4 mg/mL.

Addition of ProTx-I to apo-hNa_V1.8

Performed similarly to the forementioned protocol with the following changes. A 20 g HEK293 cell pellet, equivalent to 1.5 L of cell culture, was homogenized. Fractions 13–15 (12.4–13.9 mL) were pooled and concentrated to 250 µL at ~0.07 mg/mL. The concentrated apo-hNa_V1.8 was mixed with 25 µL of 0.5 mM (2 mg/mL) ProTx-I (Smartox Biotechnology) in 1 M HEPES pH 7.4 for a final concentration of 45 µM and incubated on ice for 30 min. The mixture was concentrated in a 0.5 mL 100 kDa MWCO Amicon Ultra centrifugal filter (3000 × g at 4 °C) to 100 µL at ~0.15 mg/mL.

Negative staining

All samples were negatively stained following an established protocol⁵¹. Briefly; 3 µL of sample, ranging between 0.01 and 0.05 mg/mL, was pipetted onto glow-discharged carbon-coated 200-mesh Gilder Cu grids (Ted Pella). Excess sample was removed with filter paper, washed 5 times with 50 µL Milli-Q water drops, and finally stained with two 50 µL drops of 0.75% uranyl formate (Electron Microscopy Sciences) and excess stain was vacuum aspirated. Grids were carbon-coated using a Leica ACE200, negatively glow charged using a PELCO easiGlow (Ted Pella) prior to addition of sample and stain was freshly prepared. All grids were imaged with a JEOL JEM-2100F TEM equipped with a Gatan OneView 4k × 4k camera. Negative stain 2D class averages (Supplementary Fig. 2d) were calculated using RELION 3.1⁵².

CryoEM grid freezing

Quantifoil R2/4 300 mesh Au grids with monolayer graphene support film (Graphenea) were negatively glow discharged using a PELCO easiGlow (Ted Pella) with the monolayer graphene (front) facing up. A Leica EM GP2 set to 10 °C and 96% humidity was used to freeze the grids. For apo-hNa_V1.8, 0.4 mg/mL sample was diluted with buffer C to 0.25 mg/mL and 3 µL was applied to the front of the grid and incubated for 60 s before front blotting for 3 s. For the hNa_V1.8-ProTx-I complex, 3 µL of 0.15 mg/mL sample was applied to the front of the grid and blotted as before. Grids were plunge frozen in liquid ethane and stored in liquid nitrogen.

CryoEM data collection

All movies were collected with a 300 kV FEI Titan Krios microscope equipped with a Gatan K3 direct electron detector. For apo-hNa_V1.8, super-resolution movies were collected using SerialEM⁵³ at a pixel size of 0.839 Å/pixel with a total dose of 60 e^-/Ų spread over 60 total frames, with a defocus range of −1 to −2.5 µm and a 100 µm objective aperture. Energy filter slit width was set to 20 eV. The hNa_V1.8-ProTx-I acquisition was performed similarly with the following changes: data was collected at a pixel size of 0.827 Å/pixel with a defocus range of −1 to −2 µm. Full data collection parameters are highlighted in Supplementary Table 1.

CryoEM data processing of apo-hNa_V1.8

The processing pipeline is described in Supplementary Fig. 4. Briefly; 13,124 movies were imported into CryoSPARC 4.2⁵⁴ for patch motion correction⁵⁵ and patch contrast transfer function (CTF) estimation. 13,006 micrographs were selected for blob picking using circular and elliptical templates resulting in 4,878,994 particle coordinates. Selected 2D classes were utilized for template picking resulting in 11,792,840 particle coordinates. After multiple rounds of 2D classifications, a subset of particles showing different views of apo-hNa_V1.8 were selected for ab initio initial 3D model building. Two 3D classes were selected and used as references to parse particles via heterogeneous refinement. Eventually 67,333 particles were used for non-uniform refinement⁵⁶ to create a 3.5 Å map. This map was used for template picking resulting in 12,107,700 particle coordinates. Subsequent 2D classifications, 3D refinements, and 3D classifications resulted in a non-uniform refined and sharpened reconstruction at an overall resolution of 3.3 Å from 119,211 particles. This map was used for the final template picking resulting in 12,424,068 particle coordinates.

The 12,424,068 particles resulting from the final template pick were used in subsequent 2D classifications, 3D refinements, and 3D classifications which resulted in a non-uniform refined and sharpened reconstruction at an overall resolution of 3.2 Å from 120,821 particles. 3D variability analysis⁵⁷ resulted in maps with varied conformations from distinct particles which were used for ab initio initial 3D model building. Two classes were subjected to non-uniform refinement and resulted in two distinct conformations of the VSD_I S4-S5 linker as Class I with 84,466 particles and Class II with 82,542 particles at overall resolutions of 3.24 Å and 3.22 Å, respectively. The initial 3D model of Class II was used to refine a final sharpened map of apo-hNa_V1.8 with all 120,821 particles at an overall resolution of 3.12 Å.

CryoEM data processing of hNa_V1.8-ProTx-I

The processing pipeline is described in Supplementary Fig. 6. Processing of the hNa_V1.8-ProTx-I dataset was performed similarly to the apo-hNa_V1.8 dataset with the following changes. 15,400 movies were processed using CryoSPARC 4.4. Template picking using the final apo-hNa_V1.8 map resulted in 10,509,847 particle coordinates for subsequent processing. After multiple rounds of 2D classifications, a subset of particles showing different views of hNa_V1.8-ProTx-I were selected for ab initio initial 3D model building. A subset of 197,157 particles were used for non-uniform refinement into a 3D reconstruction at an overall resolution of 2.9 Å. Subsequent 2D classifications, 3D refinements, and 3D classifications resulted in a non-uniform refined and sharpened hNa_V1.8-ProTx-I reconstruction at an overall resolution of 2.76 Å from 267,708 particles. Focus refinement of VSD_I-II, as well as 3D classification did not aid in resolving VSD_I or increasing the resolution of the ProTx-I binding region.

Model building, refinement and validation

hNa_V1.8 from PDB 7WFW³⁶ was rigid body fitted into the final apo-hNa_V1.8 map using ChimeraX. No density for β4 was observed and therefore was not modeled. The apo-hNa_V1.8 model was modified with M1713V, glycosylation sites were adjusted as necessary and the VSD_I S4-S5 linker was positioned to best fit the map using Coot⁵⁸. Additionally, 7WFW was found to contain a mutation (S894F) that differs from the canonical hNa_V1.8 sequence (NM_006514.3 and NM_006514.4), which was updated in our model. Cholesterol and bound lipids from PDB 7WE4 were used for model building. The model was refined in Coot and subsequently refined against the corresponding map using Phenix real-space refinement⁵⁹. Models for Class I and II were initially built using an earlier apo-hNa_V1.8 model and similarly refined as described.

Modeling for hNa_V1.8-ProTx-I used an earlier apo-hNa_V1.8 model along with a single ProTx-I model from the NMR ensemble PDB 2M9L²⁴ and both were rigid body fit into the hNa_V1.8-ProTx-I map using ChimeraX^60–62. Multiple orientations of ProTx-I were sampled to optimize the model-to-map fit. Steps for adjustments and refinements were performed similarly to apo-hNa_V1.8.

Model validations were performed using Phenix and MolProbity^63,64. Statistics are available in Supplementary Table 1. Pore path and radius were determined using MOLEonline⁶⁵. All figures were prepared with UCSF ChimeraX, Fiji⁶⁶, Adobe Photoshop and Microsoft PowerPoint. Supplementary movies were prepared with UCSF ChimeraX.

Antibody

The FLAG Tag antibody, HRP-conjugated, mouse Ab; GenScript cat #A01428-100; lot #21O5K001

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Author contributions

B.N. performed the experimentation and cryoEM processing. B.N. and S.G. experimental design. B.N. with the guidance of S.M. and S.G. performed model building. All authors analyzed and interpreted the data. Project conception and work supervision by S.G. S.M. drafted an early version of the manuscript. All authors contributed to and approved the final manuscript.
