Cs-Bentonite Clay for Biogas Upgrading: A Numerical Assessment

Abstract

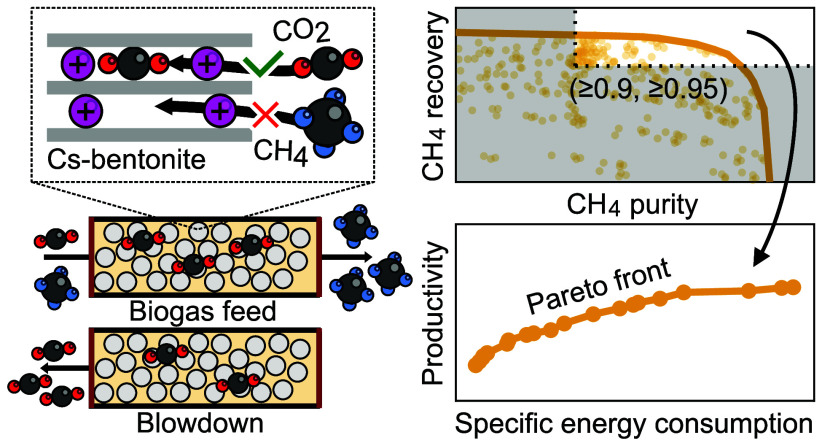

Biogas upgrading by vacuum-pressure swing adsorption involves the selective adsorption of CO₂ over CH₄ on a sorbent material to separate both components. This work assesses numerically the performance of the previously characterized Cs-exchanged bentonite clay for this separation. This benchmarking study includes the effect of the process cycle configuration (seven different configurations using one stage and up to three columns), the ambient temperature (15 or 25 °C), the feed biogas composition (CO₂ mole fraction of 0.35 or 0.45, balance CH₄), and the process operating parameters. Specific constraints on CH₄ purity and CH₄ recovery provide Pareto fronts for maximum productivity and minimum specific energy consumption. A two-column unit operated at ambient feed pressure can upgrade 0.097 Nm³ feed biogas (CO₂ mole fraction of 0.45, balance CH₄) per kg sorbent per h to a bio-CH₄ product with a purity of 0.906 and with a CH₄ recovery of 0.967 at a comparatively low specific energy consumption of only 0.072 kWh per produced Nm³ of CH₄. Using more columns and pressure equalization steps further enhances the CH₄ recovery. The low bentonite cost, the comparatively low specific energy consumption due to the favorable linear CO₂ adsorption isotherms, and the high recovery due to the high CO₂/CH₄ selectivity make Cs-bentonite an excellent alternative for conventional sorbent materials.

1. Introduction

Biogas is a gas mixture produced by the anaerobic digestion of organic matter (organic waste, wastewater sludge, manure, landfill waste, etc.). It comprises mainly CH₄ (mole fraction of 0.50–0.70) and CO₂ (mole fraction of 0.30–0.50), as well as other minor contaminants like H₂S and H₂O.¹⁻³ Separation of the CH₄ and CO₂ into a bio-CH₄ stream that can be used as a natural gas substitute (e.g., for gas grid injection) and a high-purity CO₂ stream (e.g., used for plant or algae cultivation, chemical production, or sequestration) increases the value of and number of use cases for biogas.¹⁻⁵ This separation is known as biogas upgrading.

Established methods for biogas upgrading include absorption (water, chemical, or physical scrubbing), membrane separation, and ((vacuum) pressure and/or temperature swing) adsorption.¹⁻⁷ All of these methods have their (dis)advantages.²⁻⁶ However, the adsorption method has been considered of interest because of the compactness of the equipment, low energy consumption and capital costs, safety, and ability to achieve high purification levels.^2−4,8,9 The adsorption method is a cyclic process. In short, for biogas upgrading, it requires first the selective adsorption of CO₂ on an adsorbent material, thereby producing high-purity CH₄. Subsequently, it requires the regeneration of the adsorbent material at reduced (CO₂ partial) pressure and/or elevated temperature, thereby producing high-purity CO₂. Therefore, the performance of this method depends strongly on the adsorbent material that is used.^{3,5,7,10−14} Conventional adsorbents used or studied for biogas upgrading include activated carbons (AC),^12,15−21 various zeolites,^{9,10,13,16,22−36} carbon molecular sieves (CMS),^{10−12,14,25,30,32,37−43} and various other materials.^{8,10,16,28,44−50}Table S1 presents performance indicators (if available) from previous works on these different sorbent materials.

Recently, we proposed (particles of) montmorillonite (MMT) or MMT-rich bentonite clay as a low-cost and readily available adsorbent for biogas upgrading.⁵¹ MMT is a natural layered material of which the sorption capacity for nonpolar molecules like CO₂ and CH₄ can be tuned by varying the height of its interlayer galleries. This is achieved by exchanging its natural interlayer cations for others of different sizes. Cs⁺ is particularly suitable to achieve high sorption capacities for CO₂ while excluding the larger CH₄ molecules from the interlayer galleries.⁵¹⁻⁵³ Consequently, Cs-bentonite demonstrates an equilibrium CO₂/CH₄ selectivity under near-ambient conditions of up to ∼35 (here defined as the ratio of [single-component] equilibrium CO₂ sorption to equilibrium CH₄ sorption at equal pressure and temperature).⁵¹ Importantly, it shows favorable regeneration within several minutes only under ambient-temperature N₂ purge or vacuum conditions⁵¹ due to the only relatively weak adsorption of CO₂ (|ΔH|≈30 kJ mol^–1). Together, the rather high CO₂/CH₄ selectivity, the fast CO₂ adsorption and desorption kinetics,⁵¹ and the low cost and high availability of the bentonite material suggest that Cs-bentonite could be an appealing alternative adsorbent for biogas upgrading.

However, the actual performance of an adsorbent in a vacuum pressure swing adsorption (VPSA) unit also depends crucially on the VPSA cycle configuration and the operating conditions (e.g., ambient temperature, feed biogas composition) and operating parameters (e.g., pressure, flow rate, step duration). Ultimately, the key process performance indicators are minimal specific energy consumption (here: energy use per amount of CH₄ recovered in the output bio-CH₄ product) and maximal productivity (here: the amount of feed biogas treated per kg sorbent per hour) while the specific requirements on product purity and component recovery are satisfied. (The product purity is the mole fraction of the desired component in that output product. The component recovery is the mole fraction of the component feed recovered in the appropriate output product.) Given the large number of possible VPSA cycle configurations, a range of possible operating conditions and parameters, and requirements on product purity and component recovery that differ per purpose (e.g., grid injection, liquefaction, chemical production) and between countries,^2,3,5 this is most easily assessed numerically.

This work aims to (i) perform the numerical assessment of Cs-bentonite for biogas upgrading in a VPSA process, (ii) identify the optimal VPSA cycle configuration and operating parameters under the specific requirements on product purity and component recovery, and (iii) compare the performance of Cs-bentonite against conventional sorbents. We specifically focus on the production of bio-CH₄ with a purity ≥0.90 that is compatible with grid injection in, e.g., The Netherlands.^2,3 Simultaneously, in the light of (possibly forthcoming) strict regulations on CH₄ emissions and the possibility to utilize a high-purity CO₂ product, we also focus on high CH₄ recovery ≥0.95 (i.e., high compared to earlier works, Section 3.5 and Table S1). We limit this benchmarking study to a small and simple unit with a target productivity of several Nm³ h^–1 (normal cubic meters per hour) input biogas. This unit features a single upgrading stage and up to three columns. Hereon, we test seven different basic cycle configurations. While more complex cycle configurations,^7,38,54 multiple units or upgrading stages (possibly hybrid, featuring different adsorbents or even different methods),^{2,3,9,44,45,55} auxiliary equalization tanks,^23,37 and/or layered beds³⁰ may achieve higher purity, recovery, and/or productivity, this is beyond the scope of the current work. We also consider the effects of the operating conditions, ambient temperature and feed biogas composition (i.e., CO₂ fraction), on the process performance. The assessment makes use of a newly developed model that is validated against the experimental breakthrough and regeneration curves published in ref (51). Our numerical results confirm the excellent performance of Cs-bentonite for biogas upgrading and show particularly low specific energy consumption compared to conventional adsorbents.

2. Theoretical Basis

2.1. Model Assumptions

Various mathematical models to analyze biogas upgrading using a range of adsorbents were used in previous works. All these models had different levels of complexity and underlying assumptions, see, e.g., refs (56 and 57). In this article, we assess the VPSA process by using a newly developed nonisothermal and nonisobaric model. Herein, the following is assumed.

• The gas flow is represented by an axially dispersed plug flow model.

• The gas phases are described by the ideal gas law, P = ∑_iC_g,iRT.

• The mass transfer between the gas phases in the column void and the particle pore space and between the gas phase in the particle pore space and the adsorbed phase is described by linear driving force (LDF) models.

• The pressure gradient along the column is described by the Ergun equation.⁵⁸

• Thermal equilibrium between the solid, gas, and adsorbed phases is established instantaneously. The local temperature of the solid, gas, and adsorbed phases is equal and described by a single energy balance.

• Heat exchange with the column wall occurs. The temperature of the column wall is constant and equal to the ambient temperature T₀.

• There are no concentration, pressure, and temperature gradients in the radial direction of the column; i.e., the model is 1-dimensional (axial; z) in space along the length of the column.

• The properties of the column are uniform. The adsorbent particles are homogeneous, spherically symmetric, and equally sized.

• The input biogas is completely dry and devoid of minor impurities like H₂S.

2.2. Model

The assumptions above result in mass balances for each of the different components in the gas phases and in the adsorbed phase, a momentum balance in the gas phase in the column void, and a combined energy balance for the solid, gas, and adsorbed phases. Figure 1 provides a schematic overview of the transport phenomena and coefficients and column and particle properties that are described and used in the model. The physical properties of the gas components (Table S2) and relations for the physical properties of the gas mixture (eqs S1–S6) and the transport coefficients (eqs S7–S14) are taken from the literature and discussed in the Supporting Information.

Figure 1.

Schematic illustration of transport phenomena, coefficients, and properties on/in the (left) column scale, (center) column cross section, and (right) particle scale. (Details in the main text.)

2.2.1. Mass Balance (Column Void)

The mass balances for each component (with i ∈ {CO₂, CH₄, N₂}) in the gas phase in the column void include convection, axial dispersion, and mass transfer between the gas phases in the column void and in the particle pore space, eq 1.

1

Here, C_g,i is the concentration in the column void, C_p,i is the average concentration in the particle pore space, and y_i is the mole fraction in the gas phase in the column void, all of component i. ϵ_b is the column void fraction, P is the local pressure in the column void, T is the local temperature, v_s is the superficial gas velocity, and D^M_ax is the axial mass dispersion coefficient. (The superficial gas velocity is the volumetric flow rate divided by the cross-sectional area of the column, without particles.) k_f is the film LDF coefficient, r_p is the particle radius, and Bi_i is the mass Biot number of component i (see below). The product 3k_f/[r_p(Bi_i/5 + 1)] describes film resistance and pore diffusivity in series (see below). Substitution of the ideal gas law, P = ∑_iC_g,iRT, into eq 1 yields eq 2.

2

2.2.2. Mass Balance (Particle)

The mass balances for each component in the particle pore space include adsorption and mass transfer to and from the gas phase in the column void, eq 3.

3

Here, ϵ_p and ρ_p are the particle porosity and density, respectively, q_i is the particle-averaged adsorption, and k_p,i is the pore LDF coefficient from Glueckauf’s approximation,⁵⁹eq 4, both of component i.

4

Here, D^eff_m,i is the effective pore diffusion coefficient of component i (which includes molecular and Knudsen diffusion; see Supporting Information, eq S10). Equation 4 is valid for D^eff_m,it/r_p² > 0.1.⁵⁶ Note that for Bi_i = k_fr_p/D^eff_m,i, eq 5 can be written:

5

Thus, the model describes film resistance and pore diffusion in series and mass is conserved between eqs 2 and 3. The rate of adsorption (i.e., mass transfer between the particle pore space and the adsorbed phase) is also described by an LDF model, eq 6.

6

Here, q^*_i is the equilibrium adsorption of component i at temperature T and average concentration of component i in the particle pore space C_p,i, as provided by the adsorption isotherms described in Section 2.3. k_c,i is the adsorption LDF coefficient of component i.

2.2.3. Momentum Balance

The addition of the component mass balances in eq 2 under the condition ∑_iy_i = 1 and the substitution of eq 3 therein yield the total mass balance, eq 7.

7

The axial pressure gradient is related to the local superficial velocity by the semiempirical Ergun equation, eq 8.⁵⁸

8

Here, μ_g and ρ_g are the local viscosity and density of the gas, respectively, and d_p is the particle diameter. Equation 8 can be solved to find the local superficial velocity for a given pressure gradient. Alternatively, eq 8 provides a pressure gradient for a given (input) superficial velocity.

2.2.4. Energy Balance

The energy balance accounts for heat effects due to adsorption and desorption, dispersive and convective energy transport via the gas phase in the column void, heat exchange between the gas phase in the column void and the column wall, and mass transfer between the gas phases and the adsorbed phase, eq 9.

9

Here, c_P,p and c_P,i are the heat capacities of the solid phase and of component i (assumed to be equal for the gas phases [in the column void and particle pore space] and the adsorbed phase), ΔH_i is the enthalpy of adsorption of component i (assumed to be independent of loading), D^T_ax is the axial heat dispersion coefficient, h_w is the wall heat transfer coefficient, d_r is the column diameter, and T_w = T₀ is the wall temperature set equal to the ambient temperature.

2.2.5. Initial and Boundary Conditions

The system of partial differential equations (PDEs) discussed above requires suitable initial and boundary conditions. These depend on the specific steps in a VPSA cycle (configuration) that is defined by the order and direction in which these steps are executed. Figure 2 provides an overview of the specific steps that are used in this work and includes the abbreviations used to refer to these steps. The initial condition of the first step in the first simulated cycle is described by the absence of CO₂ and CH₄ in the column; instead, the column is saturated with N₂ (assumed to be nonadsorbing) at the target regeneration pressure and at the ambient temperature. For each subsequent step, the final condition of the preceding step is used as an initial condition.

Figure 2.

Steps used in the VPSA cycles. All schematics show the steps executed in the “forward” direction. The colors inside the column illustrate the typical component concentration in the column voids at the end of the respective step. Red: CH₄; blue: CO₂; yellow: N₂; deeper colors indicate higher pressures. The N₂ regeneration feed is only used for model validation, Section 2.4.

Table 1 displays the boundary conditions for the specific steps when executed in the “forward” direction. Analogous boundary conditions with both ends interchanged apply to steps that are executed in the “backward” direction. In summary, when an inlet (z = 0) or outlet (z = L_r) is open, Danckwerts boundary conditions^56,60 apply to the component mole fraction and the temperature. Specification of either the pressure or the gas velocity (effectively, the pressure gradient via eq 8) is required on both ends of the column. For a closed in- or outlet, v_s = 0 via the vanishing pressure gradient. The PR, FE, BD, and PPE steps include check valves that permit only a positive or zero inflow or outflow gas velocity (i.e., a negative or zero pressure gradient) using the min and max functions. y_in,i and T_in are the mole fraction of component i and the temperature, respectively, of the inlet gas stream. P_s,0 and t_s,0 are the local pressure and the time at the beginning of the step, respectively. P_PR, P_BD, τ_PR, and τ_BD are the characteristic pressures and time scales within the respective steps.

Table 1. Boundary Conditions for Each Step Executed in the “Forward” Direction.

stepa	boundary conditions, z = 0	boundary conditions, z = Lr
pressurization (PR) →0⊂⊃L×
feed (FE) →0⊂⊃L→
	Equation 8
blowdown (BD) ×0⊂⊃L→
provide pressure equalization (PPE) ×0⊂⊃L→
receive pressure equalization (RPE) →0⊂⊃L×
	Equation 8b
idle (ID) ×0⊂⊃L↔

^aEach step is illustrated schematically in Figure 2.

^bWhile this boundary condition does not permit the specification of a molar flow rate, the combination of v_s and P(v_s) that is consistent with the molar outflow rate of the PPE step is solved iteratively.

Some of the steps are coupled. First, the PPE and RPE require the conservation of mass and energy. The molar outflow rate during the PPE step is set proportional to the time-dependent pressure difference ΔP(t) between the outlet of that column and the inlet of the column in the RPE step. To calculate this pressure difference, the time evolution of the inlet pressure of the column in the RPE step in the preceding cycle is used. The molar outflow rate then is v_sA_rP/(RT) = max{0, aΔP(t)}. Here, the coefficient a is analogous to a flow coefficient of a restricting device (we set a = 10^–5 mol Pa^–1 s^–1). The output (i.e., the time-dependent molar flow rate, composition, and temperature) of the PPE step is then used as an input for the RPE step thereafter. This allows for multiple columns to be simulated iteratively by using a single column, instead of simultaneously. This (“store-and-retrieve”) method is known to introduce oscillations around the equalization pressure.⁶¹ However, in our simulations, these oscillations decay well before the final cycle is simulated. Second, (part of) the output product of a preceding step (i.e., feed or blowdown) can serve as an input for another step (i.e., pressurization or purge/rinse feed; the latter is not used in this work). In this case, the average composition of the output product is taken and recycled at the ambient temperature and pressure.

When a step needs to be simulated before the step from which it requires input has been simulated for the first time, an initial estimate is used. For the simulation of the PPE step(s), a constant pressure between the target feed and blowdown pressures is taken as the inlet pressure of the RPE step(s). In the case of recycled products, the composition of the biogas is taken instead. For some representative cases, we verified that the cyclic steady state is independent of these initial estimates.

2.2.6. Model Implementation

To solve the system of PDEs, the column was divided into N = 30 cells, each with a length Δz. The PDEs were spatially discretized using the weighted essentially non oscillatory (WENO)-finite volume method,⁶² as is detailed in the Supporting Information (eqs S15–S19). The discretized system of coupled ordinary differential equations was solved by using the ode15s solver in MATLAB (R2023b) with an absolute tolerance of 10^–3. The solution was refined 10 times for higher accuracy of the Riemann-type integration for the in- and output flows. To ensure that the cyclic steady state was reached, 100 cycles were simulated in each simulation. The typical computation time of one simulation was around 1 h on a dedicated desktop PC with one Intel i7–7700 CPU (3.60 GHz) and 8.00 GB of RAM.

2.3. Separation System

The experimental adsorption isotherms of CO₂ and CH₄ on Cs-bentonite are presented and discussed in ref (51). Therein, each isotherm was fitted individually with a (single- or dual-site) Langmuir model (SSL and DSL). As the simulations require the isotherms at intermediate temperatures, the data is refitted with a temperature-dependent model, eq 10.

10

Here, the fit parameters are n_i,k the number of adsorption sites per unit sorbent mass of type k for gas component i and b_0,i,k and ΔH_i,k the ratio between the adsorption and desorption attempt frequency and the enthalpy of adsorption for sites of type k for gas component i, respectively, and y_i = 1. We fit both sets of adsorption isotherms with the SSL model (i.e., k = 1) and also fit a DSL model (i.e., k ∈ {1,2}) to the CO₂ adsorption isotherms only, in line with ref (51). The fitted adsorption isotherms along with the experimental data in the temperature range of 10–70 °C and the corresponding fit parameters are presented in Figure 3 and Tables S3 and S4, respectively.

Figure 3.

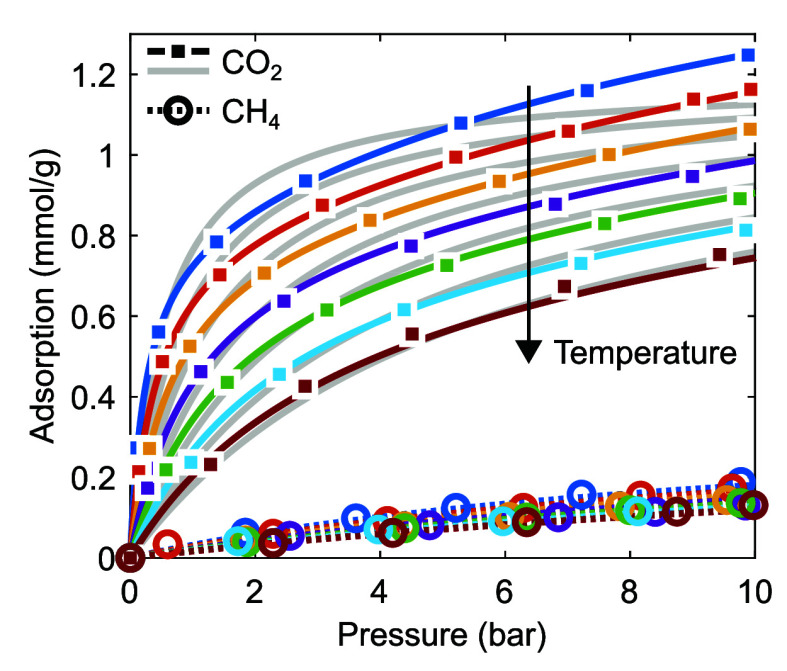

Adsorption isotherms of CO₂ and CH₄ on binderless Cs-bentonite. For CO₂, the arrow indicates increasing temperature from 10 to 70 °C at 10 °C increments. For CO₂ and CH₄, identical colors indicate equal temperatures. The experimental data is presented with solid squares (CO₂) and open circles (CH₄). The temperature-dependent fits are presented with colored solid lines (CO₂; DSL), gray solid lines (CO₂; SSL), and colored dashed lines (CH₄; SSL).

The CO₂ adsorption is described much better by the DSL model than by the SSL model—in particular at lower temperatures—due to the larger number of fitting parameters. We use the fitted DSL model to describe the equilibrium CO₂ adsorption q^*_i in eq 6. In contrast, we use the ΔH_i,1 fitted using the SSL model as an effective enthalpy of adsorption for the energy balance, eq 9. For CH₄, the fitted SSL model is used for both the equilibrium adsorption and the energy balance. We further multiply the equilibrium adsorption by 0.91 to account for the (assumed passive) binder material in a mass fraction of 0.09 required to produce particles from the binderless Cs-bentonite in Figure 3.⁵¹

The synergistic and competitive adsorption of multiple components on MMTs is a complex process that cannot easily be described by competitive adsorption models. This is due to the violation of various assumptions made in such models. Most notably, the adsorption sites are not homogeneous and the number of available adsorption sites differs per component due to steric limitations—and may in fact increase (due to swelling) or decrease by the coadsorption of another component.⁵¹ In this previous work, we noted that these effects are minor for the coadsorption of CO₂ and CH₄ on Cs-bentonite. Hence, we choose not to include these minor effects in the model (i.e., the adsorption of the different gas components occurs independently).

2.4. Model Validation

To validate the model and to estimate k_c and d_m (i.e., the typical pore diameter; an input parameter for D^eff_m,i), we compare the output flow compositions of experimental consecutive (cyclic) breakthrough and regeneration (in N₂) measurements⁵¹ with simulated output flow compositions under the same conditions, Figure 4. Table 2 lists the estimated material properties.

Figure 4.

Comparison between experimental⁵¹ and simulated cyclic breakthrough and regeneration measurements on 50 g of Cs-bentonite particles, T₀ ≈ 23 °C. Column dimensions: d_r = 1.3 cm and L_r = 60 cm. Each cycle consisted of (i) a 8 min forward feed step with an inlet gas mixture containing only CO₂ (mole fraction of 0.50 ± 0.02) and CH₄ (mole fraction of 0.50 ± 0.02) at a total flow rate of 0.40 L min^–1, (ii) a 1 min forward idle step (gray background), (iii) a 10 min forward feed step with N₂ (for regeneration) at a flow rate of 0.60 L min^–1, and (iv) a 1 min forward idle step (gray background). The volumetric flow rates are actual values. The experimental cycles are shifted on top of each other. The estimated material properties are tabulated in Table 2.

Table 2. Material Properties of Cs-Bentonite Particles^a.

dm (nm)	15
kc (s–1)b	0.10
dp (mm)	3.0
ρp (kg m–3)	1400
ρc (kg m–3)c	270063,64
ϵp (−)	0.48
τ(−)d	2.0
cP,p(kJ kg–1 K–1)	0.8065

^ad_m and k_c are estimated from the experimental breakthrough curves, while all other properties are estimated from the literature or macroscopic properties of the materials.

^bSet equal for CO₂ and CH₄ and independent of temperature.

^cCrystal density.

^dParticle tortuosity.

The simulated outputs can describe the experimental outputs well, both during the feed step with the mixture of CO₂ and CH₄ and during the regeneration step using N₂ feed. To cross-validate the estimated values for d_m (that ultimately affects the diffusional transport in particles) and k_c (that sets the “intrinsic” adsorption kinetics, i.e., into the interlayer galleries), we compare the corresponding LDF coefficients with independent kinetic experiments of CO₂ adsorption on powders and small and large particles of Cs-bentonite, Figure 4 in ref (51). As for the diffusional transport limitations, for CO₂ and at 20 °C, typically Bi_CO2≫1 and the molecular and Knudsen diffusivities of CO₂ are on the order of 1.6 × 10^–5 m² s^–1 and 1.9 × 10^–6 m² s^–1, respectively (see Supporting Information, eqs S7 and S11). This indicates that mass transfer between the gas phase in the column void and the particle pore space is mostly limited by Knudsen diffusion in the particle pore space. For ϵ_p = 0.48 and τ = 2.0, the product , i.e., approximately the inverse of the pore LDF coefficient, yields typical time scales of 0.7 and 18 s for small particles with r_p = 2 mm and large particles with r_p = 1 cm, respectively. These are in line with the previous observations that for small particles, the CO₂ adsorption nearly follows the adsorption on a powder, and for large particles, the CO₂ adsorption follows the adsorption on a powder within ∼10–20 s. Moreover, the estimated effective pore diameter d_m = 15 nm is close to the typical mesopore throat size and between the typical micro- and mesopore body sizes of MMT⁶⁶ (see also Figure 4.10 in ref (67)). As for the “intrinsic” adsorption, k_c^–1 = 10 s agrees well with the fast CO₂ adsorption and desorption on powders (and small particles) that follows the CO₂ concentration of the environment within ∼10 s. Ultimately, these independent kinetic experiments thus confirm the (order of magnitude) of our estimated values for d_m and k_c.

2.5. Process Definition

2.5.1. VPSA Cycle Configurations

We consider seven different cycle configurations that are also illustrated schematically in Figure S1.

• 1.(i) Forward pressurization with biogas (PR); (ii) forward feed with biogas (FE; CH₄ product collection); and (iii) backward blowdown (BD; CO₂ product collection).
• 2.As configuration 1 but (i) backward pressurization with the CH₄ product (PR).
• 3.(i) Forward pressurization with biogas (PR); (ii) forward feed with biogas (FE; CH₄ product collection); (iii) forward provide pressure equalization (PPE); (iv) backward blowdown (BD; CO₂ product collection); and (v) forward receive pressure equalization (RPE).
• 4.As configuration 3 but (v) backward receive pressure equalization (RPE).
• 5.As configuration 3 but (i) backward pressurization with the CH₄ product (PR).
• 6.As configuration 3 but (i) backward pressurization with the CH₄ product (PR) and (v) backward receive pressure equalization (RPE).
• 7.(i) Forward pressurization with biogas (PR); (ii) forward feed with biogas (FE; CH₄ product collection); (iii) forward provide pressure equalization (PPE); (iv) backward provide pressure equalization (PPE); (v) backward blowdown (BD; CO₂ product collection); (vi) forward receive pressure equalization (RPE); (vii) idle (ID; required for column synchronization); and (viii) backward receive pressure equalization (RPE).

Configuration 1 is the minimal configuration for a VPSA process. For configurations 2 and 5–6, the pressurization with the CH₄ product (instead of biogas) possibly increases the CH₄ purity.^41,43 This is, to a certain extent, similar to the often applied CH₄ purge step that improves the removal of CO₂ from the column in particular at the end where the CH₄ product is collected.^{8,10,22,23,25,26,36,37,39−41,45,46} We do not consider product purge/rinse steps in the current work. For configurations 3–7, the pressure equalization steps possibly increase the CH₄ recovery and decrease the specific energy consumption.^{6,7,10,22,24,25,34,37−40,44−46,61,68,69} These pressure equalization steps require two columns to be connected at specific times and, thereby, the synchronization of multiple columns. The synchronization scheme for two (one PE step; configurations 3–6) or three (two PE steps; configuration 7) columns is given in Table 3.

Table 3. Column Synchronization Scheme.

column	configurations 1–2
1	PR	FE	BD

column	configurations 3–6
1	PR	FE	PPE	BD	BD	RPE
2	BD	BD	RPE	PR	FE	PPE

column	configuration 7
1	PR	FE	PPE	PPE	BD	BD	RPE	ID	RPE
2	RPE	ID	RPE	PR	FE	PPE	PPE	BD	BD
3	PPE	BD	BD	RPE	ID	RPE	PR	FE	PPE

2.5.2. Operating Parameters

The process operating parameters include the pressure (evolution) during, duration of, and inflow rate during each step. Four of these operating parameters, namely, the (target) pressurization pressure P_PR = 1–4 bar, the (target) blowdown pressure P_BD = 0.05–0.15 bar, Q_in = 0.3–1.0 (see below), and the feed duration t_FE = 1–10 min, are varied in our simulations within the indicated ranges. Q_in is a fraction that relates the CO₂ inflow during the feed step to the estimated equilibrium CO₂ working capacity of the sorbent, . Then, the inlet superficial velocity . Here, m_s is the sorbent mass in the column, is the CO₂ mole fraction in the biogas, and A_r is the cross-sectional area of the column. By increasing Q_in, the column utilization thus increases and the (expected) position of the CO₂ breakthrough front at the end of the FE step shifts to (or beyond) the outlet end of the column. Moreover, this position is (nearly) independent of P_PR, P_BD, and t_FE for a fixed Q_in. However, Q_in does not take into account the CO₂ that is provided during any other step between BD and FE.

The other operating parameters are either set constant or depend only on the previously discussed operating parameters. These are (i) the duration of the PR, PPE, and RPE steps that are fixed at 1 min, (ii) the duration of the BD step that is set equal to the combined duration of the PR and FE steps for column synchronization (Table 3), and (iii) the FE pressure that is set equal to the (target) PR pressure. Furthermore, the characteristic pressurization and blowdown times for the exponential pressure in- or decrease, τ_PR and τ_BD, are set to 1/5th of the duration of the respective steps. At the end of these steps, the target pressure is then achieved within around 99.5%.

2.5.3. Performance Indicators

The purity and recovery of product and component i are calculated from the cumulative molar output n_i,out and input n_i,in of component i over all steps in one cycle in the cyclic steady state. Superscripts product_i and BG indicate whether the out/input is directed to/from product i or from biogas (see Section 2.5.1). The recovery of component i is expressed as the ratio between the recovered component in output product i (after accounting for any recycled stream) and the input of that component, eq 11.

11

Here, k sums over all steps in one cycle in the cyclic steady state. The purity of product i is expressed as the ratio between the desirably collected component i and the total collected product, eq 12.

12

Here, k sums over all steps in one cycle in the cyclic steady state and j sums over all gas components. The compression and evacuation processes are approximated to be adiabatic processes, eq 13. The required power p is calculated under the assumption that the feed gas pressure and the vacuum pump discharge pressure are equal to the ambient pressure P₀.

13

Here, γ is the adiabatic constant (we assume γ = 1.3) and η the mechanical efficiency (we assume η = 0.8). P_in and v_s,in and P_out and v_s,out are the inlet and outlet pressure and superficial velocity, respectively. Compression of the product(s) beyond ambient pressure is not considered. The PPE and RPE step pair, any idle step, pressurization and feed to/at (sub)atmospheric pressure, and blowdown to(ward) atmospheric pressure do not require power. The specific energy consumption (SEC) is defined as the energy consumption per Nm³ (normal cubic meter; i.e., at 15 °C and 1 atm) collected CH₄ in the CH₄ product, eq 14.

14

Here, t_s is the duration of the step. The productivity is defined as the amount of input biogas (in Nm³) per kg adsorbent per hour, eq 15.

15

2.5.4. Column Sizing

To match (within the order of magnitude) the capacity of a small “farm-scale” unit, we simulate a column with L_r = 2.0 m and d_r = 20 cm, loaded with 55 kg of Cs-bentonite particles (ϵ_b = 0.375). For reference, the CO₂ adsorption capacity of the column at the typical temperature of 15 °C and a CO₂ partial pressure of 0.45 bar is around 27.5 mol or 0.65 Nm³ CO₂.

3. Results and Discussion

3.1. VPSA Cycle

To illustrate the principle of the VPSA process, Figure 5 shows the results of one representative simulation using configuration 3 at an ambient temperature of 15 °C and with biogas feed mole fractions of 0.45 CO₂ and 0.55 CH₄. Specifically, Figure 5a–d show the input gas flow, pressure, output gas flow, and power consumption, respectively, during the final five simulated cycles (i.e., cycles 96–100). Figure 5e–h show the adsorbed CO₂, adsorbed CH₄, CO₂ mole fraction in the column void, and temperature, respectively, along the axial dimension and at the end of each step (corresponding to the downward triangles in Figure 5a–d) during the final five simulated cycles. As all these results overlap between each of the final five simulated cycles, we conclude that the cyclic steady state was achieved.

Figure 5.

Simulation results (CSS) of configuration 3, , T₀ = 15 °C, and operating parameters P_PR = 2 bar, P_BD = 0.05 bar, t_FE = 2 min, and Q_in = 0.5. (a) Input gas flows, (b) pressure, (c) output gas flows, and (d) power consumption over time. (Steps are indicated by the alternating background colors.) (e–h) Profiles along the column axial dimension at the end of each step, of (e) CO₂ adsorbed, (f) CH₄ adsorbed, (g) CO₂ mole fraction in the column void, and (h) temperature. Line colors in (e–h) correspond to the color of the downward triangles in (a–d).

First, during the PR step, biogas is provided at z = 0 while the other end of the column is closed. This increases the column pressure until the desired P_PR is (nearly) reached. The CO₂ in the biogas is mostly adsorbed near the column inlet. As a consequence, also the temperature and CO₂ gas fraction increase only near the column inlet. In turn, the adsorbed CH₄ and CH₄ gas fraction increase in the center and toward the opposite end of the column.

Second, during the FE step, biogas is provided at z = 0 and the CH₄ product is collected at z = L_r. The column pressure remains nearly constant, besides the (slightly varying) pressure drop over the column that is of the order ∼10 mbar. The CO₂ adsorption front and the temperature front progress synchronously along the axial dimension. The FE step is stopped before the CO₂ adsorption front reaches the column outlet. Meanwhile, the FE step also reduces the amount of adsorbed and gaseous CH₄ in the column. However, the amount of CO₂ that is collected in the CH₄ product, while much smaller than in the biogas, is still significant due to the incomplete regeneration of the sorbent during the BD step (see below).

Third, during the PPE step, the column is connected at z = L_r to another column that was previously evacuated in a BD step and is now in the RPE step (Table 3). The pressure difference between both columns facilitates the mass transfer from this column to the column in the RPE step until a pressure equilibrium is reached. The gas flow is relatively rich in CH₄. As this CH₄ is now not collected in the CO₂ product (in the BD step hereafter), this significantly increases the CH₄ recovery. In contrast, most of the (adsorbed) CO₂ is retained in the column.

Fourth, during the BD step, the CO₂ product is collected by backward evacuation at z = 0 while the other end of the column is closed. This decreases the column pressure until the desired P_BD is (nearly) reached. The lower pressure reduces the adsorbed CO₂ to ∼0.2 mol kg^–1 and thereby results in a decrease of the temperature. Essentially no CH₄ is retained in the column at the end of the BD step, i.e., the CO₂ gas fraction is near unity. Nevertheless, the amount of CH₄ that is collected in the CO₂ product is small as most CH₄ was removed from the column in the preceding PPE step.

Fifth, during the RPE step, the input gas is provided at z = 0 by another column that is in the PPE step until a pressure equilibrium is reached between both columns. The input gas that is relatively rich in CH₄ (see above) increases the amount of adsorbed CH₄ and decreases the CO₂ gas fraction. The amount of adsorbed CO₂ and the temperature remain nearly constant due to the only small amount of CO₂ in the input gas. At this point, one cycle is completed and another is started with the PR step.

As for energy consumption, the PR and FE steps require input gas at above-ambient pressure and thus compression power. Similarly, the BD step is performed at subambient pressure and requires evacuation power. In contrast, the PPE and RPE steps require no power, as they are driven by an initial pressure difference between both columns.

The performance indicators are obtained by the integration of the input and output gas flows and the power consumption. For this specific configuration and this specific combination of operating parameters, the CH₄ purity is 0.9568, the CH₄ recovery is 0.9387, the SEC is , and the productivity is 0.1133 Nm³_BG kg^–1 h^–1. The performance indicators can possibly, however, be enhanced when a different combination of operating parameters is used. The effect of changing only one of the operating parameters while all others are fixed is discussed in the Supporting Information, Figure S2 and Table S5. These results suggest (i) a trade-off between performance indicators (e.g., CH₄ purity versus CH₄ recovery and SEC versus productivity) and (ii) interdependence of the (optimal) operating parameters. Thus, one-dimensional sensitivity analyses do likely not provide the optimal combination of operating parameters.

3.2. Effect of Cycle Configuration

The process performance depends crucially on the VPSA cycle configuration and the operating parameters and conditions. Maximizing the performance, therefore, requires (i) selecting for each configuration the combination of operating parameters that result in the maximum productivity and minimum SEC under the specific constraints that are set on output gas purity and recovery and based thereon (ii) identifying the optimal configuration, all under the given operating conditions. To this end, each configuration was first simulated with all element combinations of the operating parameter sets P_PR = {1,1.5,2,4} bar, P_BD = {0.05,0.10,0.15} bar, t_FE = {1,2,5,10} min, and Q_in = {0.4,0.5,0.6,0.65,0.7,0.8} and optionally Q_in = {0.3,0.9,1.0} (i.e., ≥288 combinations per configuration), again at an ambient temperature of 15 °C and with biogas feed mole fractions of 0.45 CO₂ and 0.55 CH₄. We refer to these combinations of operating parameters as the “seed”. Additional, more favorable combinations of operating parameters were selected from an interpolation of the output performance indicators of the initial seed simulations (and any other preceding generation of simulations) on a refined grid of operating parameters using the griddatan function in MATLAB. The selected combinations of operation parameters were then used as inputs for additional simulations. The interpolation method allows for a relatively rapid screening of combinations of operating parameters. This method is reasonably accurate, as demonstrated in the parity plots between the interpolated (based on the initial seed only) and additionally simulated (all simulations other than the initial seed) outputs in Figure S3.

Figure 6a,b display, for all simulated combinations of operating parameters and for all configurations, the CH₄ recovery as a function of the CH₄ purity and the CO₂ recovery as a function of the CO₂ purity, respectively (opaque dots). Most of the simulated combinations result in CH₄ recoveries and/or CH₄ purities that do not satisfy our constraints (indicated by the top-right box in Figure 6a). The maximum component recovery as a function of the component purity is for each configuration indicated by the solid lines. For both CH₄ and CO₂, the maximum recovery decreases with increasing purity. This is in accordance with previous studies on various sorbent materials^{8,10,14,20,22,24,26,32,37,39,40,42,45} and with the trade-off between both performance indicators suggested by Figure S2 and Table S5. By comparing the different configurations, we conclude the following. First, the pressure equalization steps in configurations 3–7 significantly increase the maximum CH₄ recovery and CO₂ purity, as was also found in previous studies.^22,37,38 This increase is due to the removal of CH₄ from the column during the PPE step before the CO₂ product is collected during the BD step. Second, the pressurization with the CH₄ product in configurations 2 and 5–6 can improve the maximum CH₄ purity and CO₂ recovery. A (relatively pure) CH₄ product then displaces the CO₂ adsorption front from the column end where the CH₄ product is collected. Third, the RPE step in the forward direction (configurations 3 and 5) can improve the combination CH₄ recovery and CH₄ purity and the combination CO₂ recovery and CO₂ purity as compared to the RPE step in backward direction (configurations 4 and 6) when the CH₄ recovery is relatively high. In contrast, a RPE step in the backward direction can improve the maximum CH₄ purity and CO₂ recovery when the CH₄ recovery is relatively low, similar to the pressurization with the CH₄ product. The effect of the RPE direction is discussed further in the Supporting Information, Figure S4. For a minimal CH₄ purity of 0.90, the maximum CH₄ recovery is ∼0.913 for configurations 1–2, ∼0.975 for configurations 3–6, and ∼0.992 for configuration 7. In other words, CH₄ recovery above ∼0.91 requires at least two connected columns (i.e., configurations 3–7). Similarly, CH₄ recovery above ∼0.97 requires at least three connected columns (configuration 7).

Figure 6.

Simulated (opaque dots) and maximum (solid lines) component recovery as a function of component purity for (a) CH₄ and (b) CO₂. T₀ = 15 °C; . The different colors indicate the different configurations (Section 2.5.1).

For each configuration, Figure 7a displays the Pareto front for the maximum productivity and minimum SEC (or maximum SEC^–1), all under the constraints CH₄ recovery ≥0.95 and CH₄ purity ≥0.90 (top-right box in Figure 6a). As configurations 1–2 never satisfy these constraints, these do not show in this figure. The maximum productivity decreases with decreasing SEC. This is similar to the trade-off between product purity and recovery and was also suggested by Figure S2 and Table S5. Remarkably, configurations 3–6 show a nearly identical decrease of the maximum productivity with decreasing SEC. To understand this similarity, we compared the CO₂ adsorption profiles (as in Figure 5e) specifically for simulations around the center of the Pareto front (). This revealed quite similar profiles between the different configurations at the end of the FE, PPE, and BD steps. Apparently, for the current, relatively mild constraint on CH₄ purity ≥0.90, the pressurization gas and the direction of the RPE step do not significantly affect the process performance (see Supporting Information; Figure S4). Configuration 7 shows a lower productivity for a given SEC than configurations 3–6, despite its ability to achieve higher CH₄ recovery. This reduced productivity can be attributed to the longer cycle duration due to the required “idle” step for column synchronization and to the presence of two PPE and RPE steps in this configuration, see also refs (37 and 69). Ultimately, these results imply that the VPSA cycle configuration should be tailored toward the specific requirements on product purity and component recovery and that the configuration that yields the highest product purity and/or component recovery does not necessarily provide the optimal process performance.

Figure 7.

(a) Pareto fronts for the maximum productivity and minimal SEC under the constraints CH₄ purity ≥0.90 and CH₄ recovery ≥0.95. (b) Operating parameters along the Pareto fronts. T₀ = 15 °C; . The different line colors indicate the different configurations (Section 2.5.1).

Figure 7b shows the operating parameters along the Pareto fronts. P_PR, P_BD, and t_FE do not depend strongly on the specific configuration but vary along the Pareto front. When high productivity is desired over low SEC (left side in Figure 7a–b), P_PR is high and P_BD and t_FE are at or close to their lower bounds of 0.05 bar and 1 min, respectively. With decreasing SEC and productivity, first P_PR decreases toward its lower bound of 1 bar, while t_FE increases only slightly and P_BD remains at its lower bound (up to the black dotted vertical line at ). Upon further decreasing the SEC at the expense of productivity (right side in Figure 7a–b), both P_BD and t_FE increase while P_PR remains at its lower bound of 1 bar. This indeed confirms that the operating parameters are interdependent and that each individual operating parameter should not be “optimized” using a one-dimensional sensitivity analysis only. In contrast to the other operating parameters, Q_in is relatively constant along the Pareto front but differs between configurations. Specifically, Q_in ≈ 0.56 for configurations 3–4, Q_in ≈ 0.65 for configurations 5–6, and Q_in ≈ 0.46 for configuration 7. Recall that Q_in reflects the fraction of the expected CO₂ working capacity that is provided during the FE step only. The differences between the configurations can then be attributed to the amount of CO₂ that is already provided during the PR and RPE steps. Compared to configurations 3–4 in which the PR step uses biogas, less CO₂ is provided during the PR step in configurations 5–6 that use the CH₄ product instead. This permits a larger Q_in in configurations 5–6 before CO₂ contaminates the CH₄ product. Compared to configurations 3–4 that use one RPE step, more CO₂ is provided during the two RPE steps in configuration 7. This permits a smaller Q_in in configuration 7 before CO₂ contaminates the CH₄ product.

The effects of the individual operating parameters on the performance indicators are for all configurations illustrated in Figures S5–S9. We can now generalize these along all dimensions and for all configurations. In summary, (i) increasing P_PR increases the productivity and SEC and generally decreases the CH₄ recovery while the effect on CH₄ purity is nontrivial and depends on the other operating parameters; (ii) increasing P_BD decreases the CH₄ recovery and productivity and almost always decreases the CH₄ purity and the SEC (configurations 2 and [less so] 5–6 that use CH₄ product pressurization deviate at high P_PR only); (iii) increasing t_FE increases the CH₄ purity and decreases the productivity; and (iv) increasing Q_in increases the CH₄ recovery at the expense of CH₄ purity, increases the productivity, and decreases the SEC. These trends are also in accordance with those presented in Figure 7b for fixed constraints on CH₄ recovery and purity and largely in line with the observations for configuration 3 along one dimension only (i.e., Figure S2 and Table S5).

3.3. Effects of Ambient Temperature and Biogas Composition

To illustrate the effects of the operating conditions ambient temperature and biogas composition on the process, we performed additional simulations with (i) T₀ = 25 °C and and (ii) and T₀ = 15 °C, in addition to (iii) the previously discussed conditions (T₀ = 15 °C, ; all balance CH₄). We restrict to configuration 3 for three main reasons. First, two connected columns (configurations 3–6) result in the highest productivity for a given SEC under the constraints CH₄ purity ≥0.90 and CH₄ recovery ≥0.95. Second, the RPE step in the forward direction (configurations 3 and 5) can improve the combination CH₄ recovery and CH₄ purity in the relevant domain as compared to the RPE step in the backward direction (configurations 4 and 6). Third, configuration 3 (and 4) excludes CH₄ product refluxes and hence simplifies the unit (as compared to configurations 5–6).

Figure 8a,b display for each simulated combination of operating parameters and for the three conditions the component recovery as a function of the component purity (similar to Figure 6). The different temperature and biogas composition only have limited effects on the maximum CH₄ recovery and CH₄ purity (Figure 8a). Consequently, under all three conditions, the constraints CH₄ purity ≥0.90 and CH₄ recovery ≥0.95 can be satisfied. In contrast, but as expected, a smaller CO₂ fraction in the biogas reduces the maximum CO₂ recovery and CO₂ product purity (Figure 8b).

Figure 8.

Simulated (opaque dots) and maximum (solid lines) component recovery as a function of component purity for (a) CH₄ and (b) CO₂. (c) Pareto fronts for the maximum productivity and minimal SEC under the constraints CH₄ purity ≥0.90 and CH₄ recovery ≥0.95. (d) Operating parameters along the Pareto fronts. Configuration 3; ambient and feed biogas conditions as detailed in legend.

Figure 8c displays the Pareto front for the maximum productivity and minimal SEC under the constraints CH₄ recovery ≥0.95 and CH₄ purity ≥0.90 (similar to Figure 7a). First, a higher ambient temperature slightly decreases the productivity and/or increases the SEC. This reduced performance can be attributed to the reduced CO₂ adsorption at higher temperatures, Figure 3.⁵¹ This contrasts some other sorbents for which higher temperatures that facilitate their regeneration and/or enhance the diffusivity of CO₂ therein are preferred.^22,24,36,42 Second, a smaller CO₂ fraction in the biogas strongly increases the productivity and/or decreases the SEC, in accordance with earlier studies.^6,8 This improved performance can be attributed to the larger amount of CH₄ that can be processed per unit adsorbed CO₂. Figure 8d shows the operating parameters along the Pareto front. The trends herein largely resemble those for the different configurations (Figure 7b) but are shifted toward lower SEC for a smaller biogas CO₂ fraction.

3.4. Alternative Requirements on Product Purity and Component Recovery

The requirements on product purity and component recovery are generally set by the specific product purpose and country-specific regulations. Alternative requirements will affect the optimal configuration and combination of operating parameters and ultimately the process performance. To illustrate these effects, Figures 9 and S10 and S11 show the Pareto fronts for the maximum productivity and minimum SEC under alternative constraints on CH₄ purity and CH₄ recovery for configuration 3 and for the other configurations, respectively (now again, T₀ = 15 °C and ). These Pareto fronts are based on interpolated results (to limit the required number of simulations); therefore, we only discuss these qualitatively.

Figure 9.

Interpolated Pareto fronts for the maximum productivity and minimal SEC under the constraints (a) CH₄ recovery ≥0.90 and variable minimal CH₄ purity and (d) CH₄ purity ≥0.90 and variable minimal CH₄ recovery. (b,c) Operating parameters along the Pareto fronts in (a). (e,f) Operating parameters along the Pareto fronts in (d). Configuration 3; T₀ = 15 °C; . The arrows are detailed in the main text.

First, we consider increasingly strict constraints on CH₄ purity (here, CH₄ recovery ≥0.90), Figure 9a–c. On the one end, these reduce the maximum productivity (arrow I; left side of Figure 9a–b). This reduction is initially due to the smaller Q_in to move the CO₂ adsorption front away from the column outlet and ultimately due to the longer t_FE to sharpen the CO₂ adsorption front. Both reduce the amount of CO₂ collected in the CH₄ product but adversely affect the amount of CH₄ product that is collected per cycle or per unit time (see also Figure S2). For maximum productivity, P_PR and P_BD are always near their upper and lower bounds, respectively. On the other end, stricter constraints on CH₄ purity increase the minimum SEC (arrow II; bottom side of Figure 9a,c). This increase is due to (i) similarly the smaller Q_in and (ii) first the lower P_BD and then the higher P_PR that both increase the energy consumption. For minimum SEC, t_FE is mostly constant and approaches its upper bound. For intermediate productivity and SEC, all operating parameters vary interdependently.

In contrast, increasingly strict constraints on CH₄ recovery (here, CH₄ purity ≥0.90) have less of an effect on the trade-off between SEC and productivity, Figure 9d–f. As long as P_PR is not too high, high CH₄ recovery is effectively provided “for free” by the pressure equalization steps. The maximum productivity is only reduced by the inability of higher P_PR to satisfy these increasingly strict constraints (arrow III). This inability is due to the lower selectivity of the sorbent at higher pressure.⁵¹ The reduction of the maximum productivity, however, merely shrinks the compatible domain but does not decrease the maximum productivity for a given SEC as such. Only the strictest constraint on CH₄ recovery (here, 0.97) requires an increase of Q_in and t_FE and decrease of P_BD to provide a sharp CO₂ adsorption front that displaces more CH₄ from the column during the FE step.

3.5. Comparison with Alternative Adsorbents

The preceding analysis puts us in the position to compare the performance indicators for Cs-bentonite to those of alternative adsorbents. Before we do so, recall that all of the performance indicators are interdependent, i.e., within specific bounds, some performance indicators can be improved at the expense of others. This, together with varying biogas compositions, temperatures, and target product specifications between different studies, complicates a quantitative comparison to other published works.

Table 4 tabulates the performance indicators for Cs-bentonite for several different conditions and product purity and component recovery levels along the Pareto fronts in Figures 7a and 8c at the point where P_PR tends to 1 bar (except for the high productivity case). This point is often around the midpoint of the Pareto front. It is of further interest because a process at ambient pressure may as well reduce capital and maintenance costs due to a possible simplification of the unit, e.g., enabling the use of a blower or simply the overpressure from the digester instead of a compressor.

Table 4. Simulated Performance Indicators for Cs-Bentonite and for Several Conditions and Product Purity and Component Recovery Levels.

CH4/CO2	T0 (°C)	Ca	CH4 pur	CH4 rec	CO2 pur	CO2 rec	SECb	prodc	notes
55/45	15	3	0.906	0.967	0.957	0.878	0.072	0.097
55/45	25	3	0.904	0.964	0.952	0.874	0.071	0.082	higher temperature
65/35	15	3	0.904	0.964	0.926	0.809	0.046	0.115	larger CH4 feed fraction
55/45	15	7	0.908	0.981	0.975	0.878	0.079	0.055	high CH4 recovery
55/45	15	6	0.962	0.906	0.892	0.955	0.083	0.056	high CH4 purity
55/45	15	3	0.908	0.952	0.937	0.881	0.121	0.161	high productivity

^aConfiguration.

^bUnits: .

^cUnits: Nm³_BG kg^–1 h^–1.

In addition to Cs-bentonite, ref (51) also considered tetramethylammonium (TMA)-bentonite for biogas upgrading. However, in contrast to Cs-bentonite, the interlayer galleries of TMA-bentonite are accessible to CH₄ and, therefore, this material shows a lower CO₂/CH₄ selectivity of ∼7 (Figure S12). In the Supporting Information, we provide a similar assessment for this material as for Cs-bentonite. We indeed find that its high CH₄ adsorption capacity makes TMA-bentonite inappropriate for biogas upgrading (Figure S14).

By comparing our results in Table 4 with the results of the previous works in Table S1, we conclude the following. First, most of the previous works focused on high CH₄ purity ≥0.97. While not the main focus of this work, by using CH₄ product pressurization (i.e., configurations 5–6), also a CH₄ purity of 0.962 was achieved (for a CH₄ recovery of 0.906; higher CH₄ purity is possible at the expense of CH₄ recovery). On the other hand, the CH₄ recovery obtained in this work is high compared to most of the previous works, with the notable exceptions of the dual-PSA units (refs (9 and 45)). We attribute this on the one hand to the relatively high CO₂/CH₄ selectivity up to ∼35 of Cs-bentonite and on the other hand to the use of the pressure equalization steps that were not used in some of the previous works. While not used in this work, product purge/rinse steps and/or dual-VPSA units to possibly further increase the CH₄ purity and/or recovery should be the subject of a future study.

Second, the productivity of Cs-bentonite is mostly lower than or at most comparable to the conventional sorbents. This can mainly be attributed to its comparatively low CO₂ adsorption capacity. However, two additional aspects should be noted here. (i) The duration of the PR, PPE, and RPE steps is in our simulations set to 1 min. The productivity can likely be increased by a reduction thereof, e.g., to ∼15–30 s for the PPE and RPE steps as in some previous works.^{9,10,14,22,23,26,32,37,39,40,44,45} (ii) To compare the required equipment size, the productivity can instead be expressed per unit sorbent volume. Sorbents with a high volumetric adsorption capacity (i.e., high adsorption capacity and particle density) are then favored. On the one hand, the particle density of Cs-bentonite (∼1400 kg m^–3) is comparable to some zeolites,^10,22,31,34 silica gel,⁴⁷ and MOF-508b.¹⁰ On the other hand, it is (significantly) higher than, e.g., that of some other zeolites,^{9,13,24,25,28,33} MOFs,^46,49 porous polymeric beads,⁴⁴ silicalites,⁸ and CMS.^{10−12,14,25,36−43}

Third, the SEC is always significantly lower for Cs-bentonite than for the conventional sorbents. We attribute this to the CO₂ adsorption isotherms that are relatively linear in the relevant pressure domain. They thereby facilitate the sorbent regeneration already under weak vacuum conditions. Indeed, the benefits of sorbents with relatively linear CO₂ adsorption isotherms for their easy regeneration (or the reverse) were suggested in various previous studies.^{7,10,16,22,25,36,44,45,47,49,50}

Thus, Cs-bentonite generally shows excellent performance as compared to the conventional sorbents. These alternative materials often suffer from a trade-off between high CO₂/CH₄ selectivity and easy regeneration.^12,16,49,70 (For example, AC shows easy regeneration but low CO₂/CH₄ selectivity ≲5,^12,16−19 whereas zeolite 13X shows higher CO₂/CH₄ selectivity, but its regeneration is impeded by its rather steep CO₂ adsorption isotherms.^{10,16,25,26,28,29,36}) Therefore, we attribute the excellent performance of Cs-bentonite to the rather unique combination of high CO₂/CH₄ selectivity and easy regeneration.

4. Conclusions

The simulations presented in this work demonstrate the ability of Cs-bentonite to separate the CH₄ and CO₂ in biogas (i.e., biogas upgrading). A sufficiently high CH₄ purity for grid injection in, e.g., The Netherlands, and a high CH₄ recovery can be reached at significantly lower specific energy consumption than for conventional adsorbent materials. This is even possible at ambient feed pressure, without product purge and rinse steps, and by using a single upgrading stage. The high CH₄ recovery and low specific energy consumption are due to (i) the high CO₂/CH₄ selectivity and (ii) the linear CO₂ adsorption isotherms that facilitate the regeneration under weak vacuum conditions at ambient temperature. In the case of high CH₄ recovery, a CO₂ product with a typical purity of ∼0.93–0.97 is coproduced. Such a CO₂ product can, for example, be used for CO₂ sequestration to actually produce carbon-negative bio-CH₄.⁴⁴

The process performance depends crucially on the VPSA cycle configuration and the operating parameters that should, therefore, be tailored toward the specific requirements on product purity and component recovery. Pressure equalization steps between multiple columns are essential for high CH₄ recovery but should be avoided when high CH₄ recovery is not required. For CH₄ recovery ≥0.95, a two-column system with one PE step is desired. Bio-CH₄ product refluxes do not significantly improve the productivity and specific energy consumption for the production of bio-CH₄ with a purity ≳0.90. However, bio-CH₄ product refluxes can improve these performance indicators when higher CH₄ purity is required and/or increase the maximum attainable CH₄ purity. Also, the operating conditions affect the process performance; smaller CO₂ fractions in the feed biogas (i.e., within the typical range of biogas composition) and lower temperatures (i.e., within the typical range of ambient temperatures) increase the productivity and/or decrease the specific energy consumption.

Interestingly, for most operating conditions and constraints on product purity and component recovery, there exists a domain along the (productivity-specific energy consumption) Pareto front in which the process does not require feed pressures above atmospheric. This enables the use of a rather simple unit to reduce capital and maintenance cost (e.g., not requiring a compressor). However, the current work did not take into account the pressurization of the CH₄ product that is required for certain downstream applications. Should this be accounted for, then elevated feed pressures may be desirable to increase productivity as the CH₄ product is then available at that pressure.

The current work provides a strong case for using Cs-bentonite in biogas upgrading and discusses several aspects that should be taken into account when designing a VPSA unit to do so. The design and commissioning of a pilot plant that is based on the current simulation in- and outputs should test this material on a larger scale with actual biogas and provide input parameters for further process development. We hope that, ultimately, the use of low-cost and low specific energy consumption sorbent materials like bentonite results in the wider use of biogas upgrading for the energy and chemical transitions and beyond.
