Repeatome diversity in sea anemone genomics (Cnidaria: Actiniaria) based on the Actiniaria-REPlib library

Abstract

Background

Genomic repetitive DNA sequences (Repeatomes, REPs) are widespread in eukaryotes, influencing biological form and function. In Cnidaria, an early-diverging animal lineage, these sequences remain largely uncharacterized. This study investigates sea anemone REPs (Cnidaria: Actiniaria) in a phylogenetic context. We sequenced and assembled de novo the genome of Actinostella flosculifera and analyzed a total of 38 nuclear genomes to create the first ActiniariaREP library (Actiniaria-REPlib). We compared Actiniaria-REPlib with Repbase and RepeatModeler2 libraries, and used dnaPipeTE to annotate REPs from genomic short-read datasets of 36 species for divergence landscapes.

Results

Our study assembled and annotated the mitochondrial genomes, including 27 newly assembled ones. We re-annotated ~92% of the unknown sequences from the initial nuclear genome library, finding that 6.4–30.6% were DNA transposons, 2.1–11.6% retrotransposons, 1–28.4% tandem repeat sequences, and 1.2–7% unclassifiable sequences. Actiniaria-REPlib recovered 9.4x more REP sequences from actiniarian genomes than Dfam and 10.4x more than Repbase. It yielded 79,903 annotated TE consensus sequences (74,643 known, 5,260 unknown), compared to Dfam with 7,697 (3,742 known, 3,944 unknown) and Repbae (763 known).

Conclusions

Our study significantly enhances the characterization of sea anemone repetitive DNA, assembling mitochondrial genomes, re-annotating nuclear sequences, and identifying diverse repeat elements. Actiniaria-REPlib vastly outperforms existing databases, recovering significantly more REP sequences and providing a comprehensive resource for future genomic and evolutionary studies in Actiniaria.

Supplementary Information

The online version contains supplementary material available at 10.1186/s12864-025-11591-0.

Introduction

Genomic content and repeatome diversity

Eukaryotic genomes present standard-universal traits related to form and function that have been inferred from cytogenetics and chromosome information, genomic kinetics (temperature-based genome DNA dissociation of base composition) [1, 2]) and genome size, based on the Feulgen Densitometry [3] and more recently based on Flow Cytometry [4]. Whole genome sequencing lets us access the nucleotide sequence level; combining nucleotide sequences with complementary information such as transcriptomics and gene expression, it is possible to describe and classify genomes with variable resolution (with some relevant caveats; e.g., see [5]). From broad-scale genome sequencing, it is possible to classify or compare genome structure criteria beyond classical euchromatin vs heterochromatin regions, such as coding vs non-coding regions, functional vs non-functional regions [6] and repetitive vs single-copy content, or even more specific ones, like repetitive expressed elements (mobilome), among others [7].

The combined insight of all of these perspectives provides a baseline for the expected, ancestrally shared structural aspects of the genome of animals [8, 9]. Most genomes present high numbers of repetitive DNA (repeatome, REP; [10]). Repetitive DNA may have different sequence structure and propagation strategies (Transposable elements (TEs) vs non-mobile sequence-only elements) and can be highly distributed as interspersed or tandem sequences (TEs vs satellite DNA) [11]. TEs constitute a substantial part of genomes in various organisms throughout the tree of life, accounting for over 45% of the human genome and up to 85% of the genome of maize [12]. The widespread presence of TEs is due to their ability to replicate through different mechanisms: retrotransposons (class I) copy and paste via an RNA intermediate, while most DNA transposons (class II) cut and paste within the host genome [13–15]. TEs are divided into autonomous elements, which encode proteins for transposition, and non-autonomous elements, which rely on the transposition machinery of autonomous counterparts for recognition [16]. Class I elements include short interspersed nuclear elements (SINEs), long interspersed nuclear elements (LINEs), and long terminal repeat (LTR) retrotransposons. Class II elements consist of DNA transposons such as terminal inverted repeat (TIR) elements, Crypton, Helitron, and Maverick [17]. The transposition mechanism enables TEs to infiltrate the genome parasitically, often providing no benefit to the host organism [13]; however, examples highlight the beneficial roles that TEs can play in various organisms, contributing to adaptability, stress response, and overall survival in changing environments [18–21]. In other cases, TEs can cause harmful effects by triggering ectopic recombination, inducing chromosomal rearrangements, and disrupting coding sequences [22–24].

Another widely distributed repetitive element in eukaryotic genomes is satellite DNA (satDNA), consisting of tandemly arranged non-coding repetitive DNA primarily found in the centromeric and pericentromeric heterochromatin [25–27]. The evolution of satDNA is shaped by non-reciprocal genetic exchange mechanisms, including unequal crossing over, intra-strand homologous recombination, gene conversion, rolling-circle replication, and transposition; these processes can gradually increase the copy number of new sequence variants within a satDNA family across the genomes of a sexual population [25, 28–32]. Sequences within a satDNA family experience concerted evolution as repeat exchanges occur among family members through non-reciprocal genetic transfers between homologous and occasionally non-homologous chromosomes. The primary sequences of satDNAs tend to mutate rapidly, leading to distinct compositions and genomic distributions of satDNAs among strains, populations, subspecies, or species [25, 28, 30, 33–36]. However, there have been instances of satDNA sequence conservation over long evolutionary periods, as observed in several animal clades [37–41]. The library hypothesis suggests that species do not completely lose or gain specific satDNA lineages; instead, related species share a common repertoire of satDNAs that may independently increase or decrease in copy numbers during or after speciation [42]. Consequently, sequence divergence resulting from reproductive isolation can create species-specific profiles of satDNA sequence variants.

Due to their ability to propagate across genomes, sequences in the REP typically evolve much faster than single-copy DNA sequences. This, combined with their diversity and high dynamics, significantly complicates REP database construction and introduces biases into these databases. Repbase [43] and Dfam [44] are widely used reference databases for TE annotation, and combined with RepeatMasker [45], they identify repetitive sequences by searching the genome for homologous sequences present in the databases. The annotation of REPs remains a challenging yet essential task in genomics. Accurate annotation provides insights into the structural and functional complexities of genomes, potentially revealing how repetitive sequences contribute to evolutionary history and phenotypic diversity. Furthermore, understanding repetitive DNA is vital for comparative genomics, allowing researchers to identify conserved sequences and species-specific adaptations. As the number of genomes continues to rapidly grow, it has become increasingly clear that comprehensive repetitive DNA annotations enhance our capacity to analyze and interpret genomic data effectively [46].

Cnidarian genomics with emphasis on Anthozoa

Because they are one of the early branching clades in the animal tree, cnidarians are a highly valuable group in studies of metazoan phylogenomics. Cnidaria represent ~ 12,500 valid species with three main groups: Anthozoa (anemones and corals, ~ 7,200 spp.), Medusozoa (jellyfishes including Hydra, ~ 4,120 spp.) and Endocnidozoa (myxozoans and kin, ~ 1,130 spp.) [47]. Taking into account the diversity of cnidarian genomes, Adachi et al. [48] analyzed genome sizes across Cnidaria, and Zhang and Jacobs [49] and Ying et al. [50] discussed methylation profiles related to genome evolution (see brief summary in Table 1). Within Cnidaria, studies typically focus on either clade Operculozoa (Medusozoa, Myxozoa, Polypodiozoa) or Anthozoa (Hexacorallia, Octocorallia). For Medusozoa, Santander et al. [51] reviewed current knowledge on genomics and recently Kon-Nanjo et al. [52] and Ahuja et al. [53] described hydrozoan genome sizes and REPs for Hydra and for species of order Siphonophorae, respectively. Comparative genomic analyses within the phylum Endocnidozoa have focused primarily on the genome evolution in relation to extreme reduction trends in species of Myxozoa and Polypodium hydriforme, including genomes sizes, protein-coding genes and number of orthologous gene groups [54–56].

Table 1.

Data summary for main cnidarian clades (Anthozoa, Medusozoa, and one main anthozoan clade (Actiniaria)). Data sources Santander et al. [51]; Animal Genome size Database [57], The Animal Chromosome Count database [58]. Genomes on a Tree database [59] and NCBI-datasets [60]. NA: Not available

Clade	Genome size (Megabases)			Chromosome Number		Repeatome (REP) (~ %)		Gene Number Count (~)
	min	max	median	min	max	min	max	min	max
Anthozoa	286	1,142	649	18	54	30	50	18,425	62,650
Actiniaria	227	868	455	15	30	31	55	19,231	23,845
Medusozoa	263	3,567	711	12	40	27	64	17,200	66,150
Endocnidozoa	15	254	77	NA	NA	14	68	5,500	16,600

Anthozoa has been the subject of a surge in genomic research, with over 150 genomes available in the NCBI-Assembly database [60–65]. Despite the availability of genomes for diverse octocorals, scleractinians, and actiniarian sea anemones, for most of these genomes, REP sections were not defined in detail and were not the main part of the results and discussion. One exception is the REP analysis led by Fourreau et al. [66], for Zoantharia. Perhaps unsurprisingly because REP are not fully annotated or deeply studied in cnidarian genomes, they are underrepresented in REP databases such as Dfam, which includes only eight species [44], and Repbase v29.03, which lists just one species [43]. Within the order Actiniaria, encompassing about ~ 1,200 valid species [47] and 53 genomic datasets available in the NCBI-Dataset ([60], accessed 11.15.2024), only Anthopleura sola Pearse & Francis, 2000 and Nematostella vectensis Stephenson, 1935 are represented in Dfam (Supplementary Table S1), and N. vectensis in Repbase.

From this context, we recognize (i) there are increasing numbers of genomes for anthozoans, including from high-quality sequencing techniques, (ii) there are highly diverse strategies for describing the content of these genomes, most of them with low emphasis on one of the most relevant parts of them (REPs), and (iii) low representation of these data and species in reference databases hampers more thorough study of cnidarian genome diversity and evolution. Consequently, here we endeavor to build a high quality REP database for selected Actiniaria species and use it to (i) to create Actiniaria-REPlib, a highly detailed REP library from 37 available Actiniaria genomic assemblies plus the de novo assembly of the genome of Actinostella flosculifera (Le Seuer, 1817); (ii) to compare alternative REP annotation pipelines and content of the 38 analyzed genomes of Actiniaria (Actiniaria-REPlib, RepBase, RepeatModeler2) based on their assemblies, (iii) compare the annotation and proportion of different classes of REPs in the 36 short reads datasets available for these species (several genomes assemblies did not have Illumina reads available; Table 2) available at NCBI using the Actiniaria-REPlib_v1 library, and (iii) to discuss strategies to enhance REP information quality in Anthozoa genomics. In the course of this work, we identify, assemble and annotate mitochondrial reads for those samples with no mitochondrial genome in the NCBI and use the mitogenomes to infer phylogenetic relationships that help interpret the structure and diversity of REPs in Actiniaria.

Table 2.

Genome specifications for species used for construction (Const) and annotation (Annot) of the Actiniaria-REPlib_v1 library. Abbreviations– CVD: computationally very demanding; FC: Flow Cytometry; NA: not availablem; NGS: Next Generation Sequencing; tDNA: Mitogenomes used for phylogenetic analysis; SeqTech: Sequencing technologies (Illumina (I), PacBio (PB), and Oxford Nanopore (ONT)). ‘*’: de novo assembly of mitogenomes deposited at NCBI. ‘**’: de novo assembly of genome deposited at NCBI

Nr	Taxon	Genome size (technique) (Mb)	Scaffold N50 (count)	SeqTech	NCBI BioSample/Reference	Assembly level	mtDNA	Const	Annot
Suborder Anenthemonae
Superfamily Actinernoidea
Family Actinernidae
1	Actinernus sp.	NA (FC); 1,400 (NGS)	71.9 Mb (1,812)	PB + I	SAMN31231981	Scaffold	BK069892*	X	X
Superfamily Edwardsioidea
Family Edwardsiidae
2	Edwardsia elegans	NA (FC); 397 (NGS)	NA	I	SAMN43163413	Contig	PRJNA1247437*	X	X
3	Nematostella vectensis	0.34 (FC); 270 (NGS)	~ 17 Mb (47)	PB + I	SAMEA8534429	Chromosome	NC_008164.1	X	X
4	Scolanthus callimorphus	NA (FC); 596.8 (NGS)	~ 31 Mb (303)	PB + I	SAMN16376567	Chromosome	BK068674*	X	X
Suborder Enthemonae
Superfamily Actinioidea
Family Actiniidae
5	Anemonia viridis	NA (FC); 401 (NGS)	2.1 kb (1,1 Mb)	I	SAMEA104356964	Scaffold	NC_037177	CVD	X
6	Actinia equina	NA (FC); 409 (NGS)	NA	PB	SAMN09602970	Contig	NA	X	NA
7	Actinia mediterranea	NA (FC); NA (NGS)	NA	I	SAMEA115283892	NA	BK069890*	NA	X
8	Actinia tenebrosa	NA (FC); 238.2 (NGS)	~ 188 kb (4,002)	I	SAMN10439458	Scaffold	NC_044902.1	X	X
9	Actinostella flosculifera	NA (FC); ~ 269 (NGS)	~ 3.1 kb (62,998)	I	SAMN45085772**	Scaffold	PV232310*	X	X
10	Anthopleura artemisia	NA (FC); ~ 342 (NGS)	15 Mb (1,169)	PB + Hi-C	SAMEA112465889	Chromosome	BK069895*	X	X
11	Anthopleura elegantissima	NA (FC); 322 (NGS)	~ 322 kb (4,216)	I + ONT	SAMN43844512	Scaffold	NA	X	NA
12	Anthopleura sola	NA (FC); 289 (NGS)	~ 10 Mb (269)	PB + I	SAMN24505220	Scaffold	BK068675*	X	X
13	Anthopleura xanthogrammica	NA (FC); 290 (NGS)	~ 14.8 Mb (133)	PB + Hi-C	SAMEA112465888	Chromosome	NA	X	NA
14	Bunodosoma granuliferum	NA (FC); 352 (NGS)	3.5 kb (278,782)	I	SAMN42720090	Scaffold	BK069896*	X	X
15	Condylactis gigantea	NA (FC); 239 (NGS)	~ 199.5 kb (4,656)	PB + I	SAMEA9267623	Chromosome	PRJNA1247437*	X	X
16	Entacmaea quadricolor	NA (FC); 428.3 (NGS)	~ 2.5 kb (249,586)	I	SAMN10992684	Scaffold	NC_049066.1	X	X
17	Urticina crassicornis	NA (FC); 302.1 (NGS)	~ 2.3 kb (188,453)	I	SAMN35990818	Scaffold	BK068676*	X	X
Family Actinodendridae
18	Actinodendron alcyonoideum	NA (FC); 370 (NGS)	~ 7.5 kb (265,852)	I	SAMN42720097	Scaffold	BK069891*	X	X
19	Actinodendron arboreum	NA (FC); 628 (NGS)	1.5 kb (791,670)	I	SAMN42720085	Scaffold	BK069893*	CVD	X
Family Andvakiidae
20	Telmatactis stephensoni	NA (FC); 485 (NGS)	NA	PB	SAMN27009947	Contig	NA	X	NA
Family Heteractidae
21	Heteractis aurora	NA (FC); 248 (NGS)	7 kb (122.508)	I	SAMN42720084	Scaffold	BK069899*	X	X
22	Heteranthus verruculatus	NA (FC); 411 (NGS)	1.5 kb (481,366)	I	SAMN42720087	Scaffold	BK069900*	CVD	X
23	Radianthus crispa	NA (FC); ~ 275 (NGS)	~ 2.4 kb (166,207)	I	SAMN10992670	Scaffold	BK068678*	X	X
24	Radianthus magnifica	NA (FC); ~ 279 (NGS)	~ 2.8 kb (147,986)	I	SAMN10992683	Scaffold	BK068677*	X	X
Family Phymanthidae
25	Phymanthus crucifer	NA (FC); ~ 297 (NGS)	~ 2.2 kb (315,387)	I	SAMN10246555	Scaffold	NC_027614.1	X	X
26	Phymanthus loligo	NA (FC); 320 (NGS)	2 kb (321,988)	I	SAMN42720083	Scaffold	BK069901*	X	X
Family Stichodactylidae
27	Stichodactyla helianthus	NA (FC); ~ 297 (NGS)	~ 5.6 kb (209,545)	I	SAMN10992685	Scaffold	BK068679*	X	X
28	Stichodactyla mertensii	NA (FC); ~ 295 (NGS)	~ 5.5 kb (209,211)	I	SAMN10992686	Scaffold	BK068681*	X	X
29	Stichodactyla tapetum	NA (FC); 333 (NGS)	1.7 kb (375,204)	I	SAMN42720089	Scaffold	BK069903*	X	X
30	Thalassianthus aster (= Stichodactyla sp.)	NA (FC); 262 (NGS)	8.7 kb (128,901)	I	SAMN42720088	Scaffold	BK069902*	X	X
Superfamily Actinostoloidea
Family Actinostolidae
31	Actinostola sp.	NA (FC); 424 (NGS)	~ 383.1 kb (1,596)	PB	SAMN36377857	Scaffold	NA	X	NA
32	Stomphia didemon	NA (FC); ~ 158 (NGS)	~ 3.6 kb (76,020)	I	SAMN34510624	Scaffold	BK068680*	X	X
Superfamily Metridioidea
Family Actinoscyphiidae
33	Actinoscyphia sp.	NA (FC); 522 (NGS)	58.4 Mb (131)	PB + I	SAMN26810372	Scaffold	PRJNA1247437*	X	X
Family Aiptasiidae
34	Aiptasiogeton hyalinus	NA (FC); 249 (NGS)	4 kb (211,325)	I	SAMN42720095	Scaffold	BK069894*	X	X
35	Exaiptasia diaphana	NA (FC); ~ 256 (NGS)	~ 442 kb (4,312)	I	SAMN03839803	Scaffold	NC_056771.1	X	X
Family Diadumenidae
36	Diadumene cincta	NA (FC); 366 (NGS)	1.9 kb (425,998)	I	SAMN42720099	Scaffold	BK069897*	X	X
37	Diadumene leucolena	NA (FC); 360 (NGS)	1.6 kb (409,582)	I	SAMN42720098	Scaffold	BK069898*	X	X
38	Diadumene lineata	NA (FC); ~ 313 (NGS)	~ 17 Mb (137)	PB + I	SAMEA7536572	Scaffold	NC_045515.1	X	X
Family Hormathiidae
39	Paraphelliactis xishaensis	NA (FC); 543 (NGS)	~ 761 kb (3,886)	PB + I	Feng et al., 2021	Scaffold	MT997141	X	X
Family Kadosactinidae
40	Alvinactis idsseensis	NA (FC); 479 (NGS)	27.6 Mb (38)	Hi-C + I + ONT	Zhou et al., 2023	Chromosome	NA	X	NA
Family Metridiidae
41	Metridium farcimen	NA (FC); ~ 339 (NGS)	~ 2.5 kb (209,616)	I	SAMN35990982	Scaffold	BK068682*	X	X
42	Metridium senile	NA (FC); ~ 390 (NGS)	~ 20 Mb (250)	PB + I	SAMEA110449715	Chromosome	HG423143.1	X	X

Results

Reads processing and assembly of genomes

We assembled the genome of Actinostella flosculifera from Illumina sequencing reads (Supplementary Table S2). We initially estimated genome size based on k-mer counting at 443 Mb; following trimming, we re-estimated total reads and bases to 265.47 million reads (90.2%) and 37.9 Gb (85.8%), respectively. We detected and removed 46.47 million of paired and unpaired reads (17.5%) and 6.7 Gb of bases (17.72%) containing exogenous DNA, resulting in “decontaminated” totals of 219 million reads (82.5%) and 31 Gb (82.3%), respectively (Supplementary Material S1 and Supplementary Table S2). We also removed the A. flosculifera mitogenome reads. The mitogenome is inferred to be circular and contain 19,504 bp (Supplementary Table S3). Following removal of the mitogenome reads, the genome size of A. flosculifera was estimated to be 261.1 Mb with a repeat content of approximately 84.26 Mb (32.3%), based on a k-mer (k = 21) analysis, (presumed diploid, heterozygosity of 1.5%: Supplementary Table S2). The best sub-optimal Platanus assembly was k-mer = 31, and this de novo genome assembly contained a N50 of 9,925 bp, BUSCO orthologs 66.77% and 25% (complete and partial), and genome size of ~ 268 Mb. Finally, after scaffolding with Ragtag (Supplementary Table S2), the assembly improved by 32% at N50 (13,099 bp) and 6.13% at BUSCO orthologs (70.55% complete and 21.1% partial), with a genome size of 269.4 Mb (Table 2, Supplementary Table S2).

The newly assembled and annotated mitogenomes comprise of Actinernus sp., Actinia mediterranea Schmidt, 1971, Actinodendron alcyonoideum (Quoy & Gaimard, 1833), Actinodendron arboreum (Quoy & Gaimard, 1833), Actinoscyphia sp., Aiptasiogeton hyalinus (Delle Chiaje, 1822), Anthopleura artemisia (Pickering in Dana, 1846), A. sola, Bunodosoma granuliferum (Le Sueur, 1817), Condylactis gigantea (Weinland, 1860), Diadumene cincta Stephenson, 1925, Diadumene leucolena (Verrill, 1866), Edwardsia elegans Verrill, 1869, Heteranthus verruculatus Klunzinger, 1877, Metridium farcimen (Brandt, 1835), Phymanthus loligo (Hemprich & Ehrenberg in Ehrenberg, 1834), Radianthus crispa (Hemprich & Ehrenberg in Ehrenberg, 1834), Radianthus magnifica (Quoy & Gaimard, 1833), Scolanthus callimorphus Gosse, 1853, Stichodactyla sp., Stichodactyla helianthus (Ellis, 1768), Stichodactyla mertensii Brandt, 1835, Stichodactyla tapetum (Hemprich & Ehrenberg in Ehrenberg, 1834), Stomphia didemon Siebert, 1973, and Urticina crassicornis (Müller, 1776).

Mitochondrial genomics and phylogenetic analysis

The length of the assembled mitogenomes varied from 15,969 to 20,910 bp (Supplementary Tables S4–5), with full conservation of gene order. The comparison of the aligned sequences and maximum likelihood (ML) phylogenomic reconstruction of the 36 actiniarian species used conserved positions of 13 protein-coding genes (PCGs) and 2 rRNAs concatenated of the mitogenomes (15,837 bp) (Supplementary Material S1) (Actinia equina (Linnaeus, 1758), Actinostola sp., Alvinactis idsseensis Zhou et al., 2023, Anthopleura elegantissima (Brandt, 1835), Anthopleura xanthogrammica (Brandt, 1835), and Telmatactis stephensoni Carlgren, 1950 were not included in these analyses because they do not have short reads available at NCBI; see Table 2). Maximum-likelihood phylogenetic analyses showed high support in most branches (Figs. 1 and 2). We recovered suborder Enthemonae as a monophyletic group with high support (SH-aLRT = 100%/parametric aLRT = 1/aBayes test = 1/ultrafast bootstrap = 100%). Within this suborder, we found that superfamily Actinioidea is more closely related to Metridioidea than to Actinostoloidea (S. didemon) with 81%/1/1/80% support. The suborder Anenthemoneae is represented by members of superfamilies Edwardsioidea (E. elegans, N. vectensis, and S. callimorphus) and Actinernoidea (Actinernus sp.) (100%/1/1/100%); this subfamily is monophyletic and sister to (Actinostoloidea (Actinioidea, Metridiodea)) (Figs. 1 and 2).

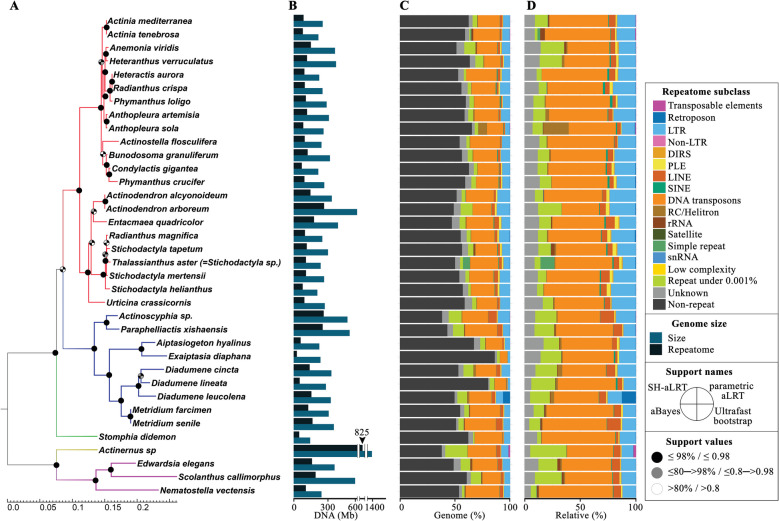

Fig. 1.

Annotation and comparison of 36 actiniarian genomes using the Actiniaria-REPlib_v1 libraries in dnaPipeTE pipeline. A Phylogenetic reconstruction based on maximum likelihood analysis using the concatenated mitogenome dataset (13 protein-coding genes and rRNA genes); B genome and REP size; C repeat class abundance; and D relative percentage of repeat class abundance of the REP. Superfamilies: Actinernoidea (light brown branch), Actinioidea (red branch), Actinostoloidea (green branch), Edwardsioidea (purple branch), and Metridioidea (blue branch)

Fig. 2.

Transposable element divergence landscapes for 36 species of actiniarians. Superfamilies: Actinernoidea (light brown branch), Actinioidea (red branch), Actinostoloidea (green branch), Edwardsioidea (purple branch), and Metridioidea (blue branch)

Construction of the Actiniaria-REPlib library

Initially, 42 Actiniaria genomes were included for construction of the Actiniaria-REPlib library, but four of them (A. mediterranea Schmidt, 1971, Anemonia viridis (Forsskål, 1775), A. arboreum (Quoy & Gaimard, 1833), and H. verruculatus Klunzinger, 1877 were excluded from the analyses because they do not have assembled genomes available at NCBI; see Table 2) proved to be computationally demanding when using RepeatModeler2, due to the Scaffold N50 and count being 1.5–2.1 kb and ~ 0.48–1.1 Mb, respectively. Furthermore, we performed comparative analyses between the newly assembled genome of A. flosculifera and the 37 other actiniarian genome assemblies obtainable from the NCBI database (Supplementary Table S6). These species represent five superfamilies, 15 families, and 26 genera, and have genomes that range in size from 0.16 to ~ 1.4 Gb. Three of these species have fragmented assemblies organized in contigs, 29 in scaffolds, and six have chromosome-level assemblies (A. xanthogrammica, A. idsseensis, C. gigantea, N. vectensis, Metridium senile, and S. callimorphus) (Supplementary Table S6).

The initial construction of the Actiniaria library (Actiniaria-REPlib_A) included main types of TEs (DNA, LINE, LTR, PLE, RC, and SINE) and tandem repeat (TR) sequences (rRNA, snRNA, satellite DNA, simple repeat, among others) (Fig. 3). Among the 38 REP libraries of Actiniaria, we found the greatest number of REP sequences in Entacmaea quadricolor (Leuckart in Rüppell & Leuckart, 1828), which contains 5,429 REP sequences, comprising 188 for DNA transposons (~ 3.5%), 632 for retrotransposons (~ 11.6%), 16 for TRS (~ 0.3%), and 4,593 unknown REP sequences (~ 84.3%). The merger of the 38 REP libraries contains 126,474 REP sequences, 4,637 of which are DNA transposons (~ 3.7%), 11,346 are retrotransposons (~ 9%), 541 are TRS (~ 0.43%), and 109,950 are unknown REP sequences (~ 86.9%) (Supplementary Table S6). Actiniaria-REPlib_B contains 79,903 REP sequences, which reflects a reduction of 36.85% in the number of redundant sequences compared to the initial combined database. It contains 13,604 annotated sequences: 3,833 DNA transposons (~ 4.8%), 9,520 retrotransposons (~ 11.9%), 251 TRS (~ 0.3%), and 66,299 unannotated REP sequences (~ 83%) (Supplementary Table S7). We used the nomenclature level 1/level 2-level 3 when naming REPs (see below for more details).

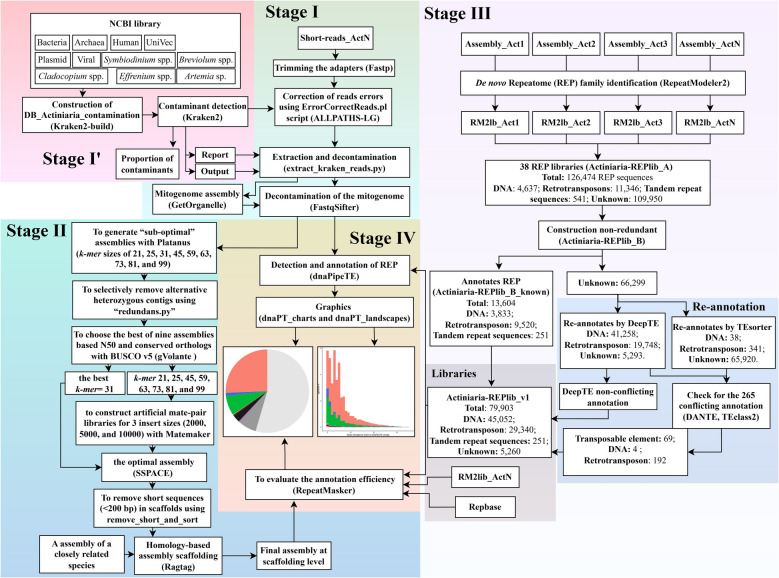

Fig. 3.

Actiniaria-REPlib pipeline– Stage I: sequencing data pre-processing; Stage I’: exogenous DNA removal; Stage II: protocol for genome assembly using Illumina sequences; Stage III: de novo construction of the Actiniaria-REPlib_v1; Stage IV: quantification of the repeatome (REP) content. Abbreviation– RM2 lib: RepeatModeler2 output/library; LTR: long terminal repeat; LINE: long interspersed nuclear element; PCG: protein-coding genes; PLE: Penelope-like element; SINE: short interspersed nuclear element

The unknown REP sequences in Actiniaria-REPlib_B were re-annotated through DeepTE, TEsorter, TEclass2, and DANTE. DeepTE identified 92% (61,006) of the unknown REP sequences, classifying 41,258 (62.2%) as DNA transposons, 19,748 (29.8%) as retrotransposons, and failing to classify 5,293 (8%) (Supplementary Table S8). TEsorter re-annotated less than 1% (379; 0.57%) of the same unknown REP dataset: 38 DNA transposons and 341 retrotransposons (Supplementary Table S9). We examined the overlap in annotations between DeepTE and TEsorter and found 346 that were annotated by both programs. Of these 346, 265 had conflict in classification (e.g., rnd- 1_Actinernus_sp- 1232 was re-annotated in DeepTE as DNA/TcMar and in TEsorter as LINE) (Supplementary Table S10). TEclass2 classified 246 of these 265 conflicting sequences as 59 DNA transposons and 187 retrotransposons (Supplementary Table S11). DANTE only classified 236 of the conflicting sequences, 28 DNA transposons and 208 retrotransposons (Supplementary Table S12). We next used TEclass2 and DANTE to resolve 196 of these 265 sequences with conflicting annotation (3 DNA transposons and 193 retrotransposons), and the remaining 69 sequences were annotated as TE-level (Transposable element) (Supplementary Table S11–13). Actiniaria-REPlib_v1 library contains 79,903 REP sequences, 45,052 of which are DNA transposons (~ 56.4%), 29,340 are retrotransposons (~ 36.8%), 251 are TRS (~ 0.3%), and 5,260 are unknown REP sequences (~ 6.6%) (Supplementary Table S14). Likewise, we have managed to re-annotate ~ 92% of the unknown sequences of the Actiniaria-REPlib_B library (from 66,299 to 5,260 unknown sequences).

Classification of the “Actiniaria-REPlib” library

We classified sequences within Actiniaria-REPlib library into four levels following Liu et al. [67], modifying this to differentiate LTR and Non-LTR Retrotransposons, and tandem repeat sequences (TRs) at the level of Type, and RNA and simple sequence repeats (SSRs) at the level of Class (Supplementary Table S14). RepeatMasker.lib (Repbase's default reference data) uses the nomenclature of Liu et al. [67] to generate the de novo annotation by RepeatModeler at the 3 different levels, these are coded as (i) level 1/level 2-level 3 (e.g., DNA/Crypton-A), (ii) level 1/level 2 (e.g., LTR/Copia), or (iii) level 1 (e.g., PLE) (Supplementary Table S6). Level 2 is encoded as the superfamily level and level 3 as the clade level. We formatted our sequence annotations from DeepTE, DANTE and TEclass2 to adopt this convention (e.g., from ClassI_LTR_BEL to LTR/Bel-Pao; Supplementary Table S7–13). We included "Retroposon" as a category rather than following Lui et al. [67] to distinguish between "LINE", "LTR", "DIRS", "PLE", and "SINE” because DeepTE and TEclass2 were not able to annotate any of the five classes of retrotransposon classes. Similarly, for those cases where no classification was defined by either tool, we included "TE" (Transposable element) as final annotation definition. Doing so, Actiniaria-REPlib contains 49 superfamilies of TE and three of TRs, and 58 clades of TE.

Quantification and annotation of the REPs using “Actiniaria-REPlib” library

We characterized the repetitive DNA content in the actinarian genome assemblies using homology-based and de novo approaches. To measure the effect of annotating REPs of actinarian genomes using Actiniaria-REPlib rather than more general REP libraries like Repbase and RM2 lib using RepeatMasker, we compared the number of identified repetitive elements across libraries (Fig. 4). As expected, Actiniaria-REPlib library identified many more repetitive elements in all assemblies as compared to the RM2 lib and Repbase libraries. The average percentage of REP sequences identified using Actiniaria-REPlib was 48.2% with a standard deviation of 9.4%, while RM2 lib and Repbase identified an average of 8.4% (± 3.6) and 7.8% (± 3.5%), respectively (Fig. 4, Table 3, and Supplementary Table S15).

Fig. 4.

Comparison of the 38 annotation genomes based on three libraries of REPs using RepeatMasker

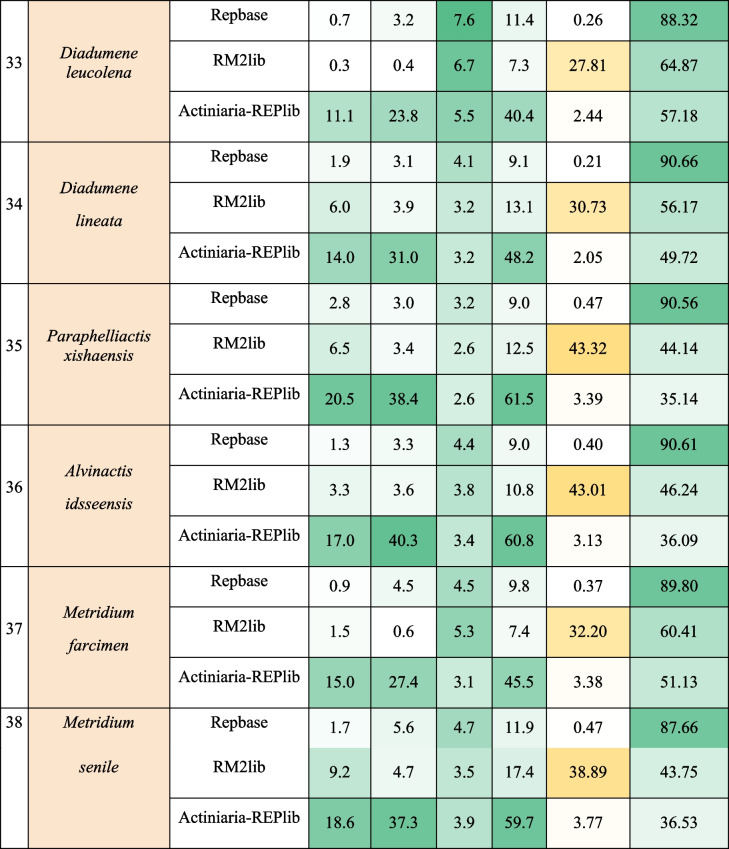

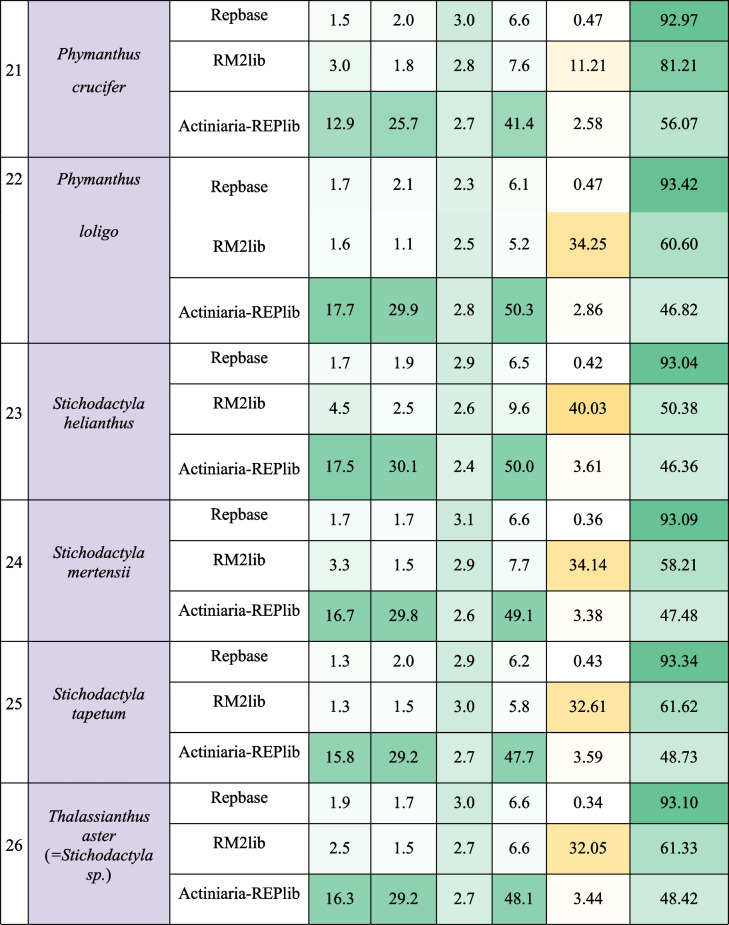

Table 3.

Efficiency in the annotation of three libraries of REPs (Repbase, the library built by RepeatModeler2 of each genome (RM2lib), and Actiniaria-REPlib for 38 actinarian genomes). Colors in the column for species represent their superfamilial taxonomic classification – light red: Edwardsioidea; light purple: Actinioidea; light green: Actinostoloidea; light orange: Metridioidea. Abbreviations– DNAt: DNA transposons; RT: Retrotransposons; REP: Total repeatome; TRs: Tandem repeat sequences

When using the Actiniaria-REPlib, DNA transposons are inferred to be the most common repeat masked in the genomes (28.8 ± 6.3%), followed by long-terminal repeats (LTRs, 10.1 ± 2.1%) (Table 3 and Supplementary Table S15). Analyses of repeat content in the actiniarian genomes (except A. equina, Actinostola sp., A. idsseensis, A. elegantissima, A. xanthogrammica, and T. stephensoni) based on low-coverage sequencing reads (0.25 × genome coverage). The Actiniaria-REPlib library as custom database for annotation in dnaPipeTE [68] the total of REP contents for these species were estimated to be 13.9–62% (43.7 ± 9.3%) (Fig. 1C and Table 3). As with the assemblies, DNA transposons were the most common repeats at 6.4–30.6% (21.3 ± 5.1%), followed by LTRs with 2.1–11.6% (7 ± 2.1%), TR sequences with 1.4–28.40.5%, and unclassifiable sequences with 1.2–7% (Fig. 1D and Table 3).

Discussion and conclusion

Mitochondrial genomes and Actiniaria phylogeny

This study includes 27 Actiniaria mitogenomes (Fig. 1 and 2, Supplementary Tables S3 and S5) that were not available in the NCBI database. The primary use of the mitogenomes in this study was as a source of phylogenetic information. The results are very similar to those reported by other studies, including those based on conventional datasets of nuclear and mitochondrial markers [69–75] as well as those based on genome-scale data like UCEs [76–78]. This broad congruence contravenes expectations of discordance between signal from mitochondrial and nuclear genes (reviewed in Quattrini et al. [78]). The one notable difference is that in our tree, the actinostoloidean Stomphia is a sister group of the superfamily Actinioidea and Metridioidea, which is in contrast to recent studies based on genome-scale data [76, 77]. Because our study includes only one member of Actinostoloidea, it cannot address the monophyly of that group, but we think it noteworthy that our topology recalls those from studies that have found a polyphyletic Actinostoloidea [69, 74].

On repeatome (REP) access, description and basic annotation

Genomic annotation uses similarity between sequences of known function and identity to predict function and identity of unknown sequences, and so depends in large part on the quality and depth of previous knowledge that can be used to build predictions related to a particular content (in this case, databases as guiding references are fundamental). It is common for REP characterization to be absent from, or incomplete in many genome publications. This can be attributed to the limited scope of individual studies, computational time required for analysis, and/or the limited utility of existing reference databases for a particular genome, among other factors. There are pros and cons to each strategy for annotating the REP, especially analyzing short read data. The repetitive nature of genomes makes the assembly step difficult, and subsequent correctness of REP annotation will vary (usually, it will present an incomplete set of repetitive elements; [5]); on the other hand, short reads present a higher amount of information but are difficult to process and to relate to general genome content. The REP analysis by Fourreau et al. [66] in Zoantharia highlights this problem: the analyses offer important new insights and identify a large number of repeats, but contain a large number of unknowns and no final classification. This may reflect the underlying short read data, the limits of the comparative database, or both of these issues, with varying impacts across species and genomes. Another relevant issue is REP deposit details in major public repositories, like the International Nucleotide Sequence Database Collaboration (INSDC; [79]). In one of its main sections, the NCBI [60] defines traditional gene content but does not define REP in similar detail: “Coding regions (CDS) and RNAs, such as tRNAs and rRNAs, must have a corresponding gene feature. However, other features such as repeat_regions and misc_features do not have a corresponding gene or locus_tag.” [80].

Given this context, we recommend that priorities be developed for genomics research. REP characterization would benefit from several community-driven actions: (i) improvement in deposit formatting, as stated previously by Santander et al. [51] and Brown et al. [81]; (ii) improvement in and explicit documentation of curation (see Goubert et al. [82] and Peona et al. [83]); (iii) experimental validation; and (iv) enhancement of strategies to standardize comparative approaches to REP classification, such as inclusion of TE-classification within the Genomes Standards Consortium Minimum Information about a Genome Sequence (MIGS) and Minimum Information about any (x) Sequence (MIxS) [84, 85].

Actiniaria-REPlib, Actiniaria and REPs´s DBs

Actiniaria-REPlib recovered 9.4 × more REP sequences from actiniarian genomes than Dfam and 10.4 × more than Repbase. It yielded 79,903 annotated TE consensus sequences (74,643 known, 5,260 unknown; 38 sea anemones species), compared to Dfam v3.8 (3,742 known, 3,944 unknown; 8 cnidarian species) and Repbase (763 known; N. vectensis) (Supplementary Table S1). Additionally, it led to a 5.2x (median) ± 1.7x (SD) increase in annotations compared to Repbase, and 4.7x ± 1.6 × compared to RM2 lib/Dfam for all analyzed species (Table 3 and Supplementary table S15). As such, our current workflow and Actiniaria-REPLib highlight the benefits of combining several tools for detection and annotation REPs. Re-annotation of unclassified TEs using TEsorter and DeepTE yielded a high level of success (Fig. 3) but with conflicting results for 265 TE entries. DANTE and TEclass2 provided consistent improvements in annotations, highlighting the effectiveness of combining protein domain-based, k-mers and convolutional neural networks (CNNs) in pipelines. Our strategy is effective for analyzing TEs in actinarian species, regardless whether the data are low-coverage sequencing or a high-quality genome assembly, and it enhances TE class or superfamily annotation without affecting the determination of repetitive sequences. This more precise accounting of REP sequence provides a higher resolution understanding of actiniarian genomes and will assist future studies of genomic adaptation and studies of novelties with neutral effects.

Taking into account the 38 assemblies used to construct the REPlib, we annotated 24 assemblies for the first time and re-annotated and deposited/released 14 assemblies: only two of these species are represented in Dfam and literature (A. sola, N. vectensis) [43, 44, 62, 86], one in both databases and literature (N. vectensis) and 12 represented in the literature (Actinernus sp., Actinoscyphia sp., A. idsseensis, A. sola, A. tenebrosa, E. diaphana, E. elegans, M. farcimen, M. senile, P. xishaensis, S. callimorphus, T. stephensoni) [87–97]. Of these three, we could only find data for E. diaphana, which released their REP as a JBrowse track [98]; the rest, as far as we could determine, presented numeric values in their results section, but did not provide access to the curated repeat data (Table 3 and Supplementary Table S15). In fact, most cnidarian REPs have not been deposited in specific repetitive content databases as Dfam and Repbase nor in specific project-based databases (e.g., Medusozoa: [51]). As such, we are unable to evaluate these annotations nor compare and reuse them if they outperformed Actiniaria-REPlib. If we compare our main results with those deposited and published, Actiniaria-REPlib identifies and classifies more repeats than Repbase, RM2 lib, or original results from literature (Table 3 and Supplementary Table S15).

Dfam and Repbase have important differences between themselves, in addition to their annotation differences with our custom Actiniaria-specific database. Repbase includes fewer species and lower numbers of repeats but is expected to be higher quality because of its manual curation. On the other hand, Dfam is an open-access collection that offers both curated and uncurated versions and where researchers can submit and contribute their own annotations (potentially improving those already deposited in Dfam). We think that pipelines as Actiniaria-REPlib offer the benefits of each of these strategies, with the additional advantages of presenting all the details of the material and methods, allowing alternative annotation styles and potential deposition in an fully open-access database (Dfam).

Evolutionary REP trends in actiniarian genomes

In combination with the classification of REP sequences provided by Actiniaria-REPLib, our phylogeny helps contextualize differences in genomes and points to future macroevolutionary questions. Our analyses identify some intriguing differences that warrant further study. For instance, A. sola has a remarkably high relative amount of RC/Helitron (7.85% vs ~ 0.8% rest of analyzed species). This species has diverged recently from Anthopleura elegantissima (see McFadden et al. [99]). Comparing the REP content of A. sola and A. elegantissima could reveal whether REP expansion is linked to their speciation or a shared genomic trait. It may also indicate whether this pattern remains consistent across A. elegantissima's range or evolves in isolation or response to environmental variation. We see relatively small genomes and smaller REP repertoires in E. diaphana and D. lineata, which belong to the same superfamily and which both have important ecological roles as invasive species (see Glon et al. [100]). In contrast, Actinernus sp., Actinoscyphia sp., and P. xishaensis have relatively larger genomes compared to other actiniarians (except S. callimorphus) and a higher REP proportion of ~ 62% (vs. 40–50% rest of species, except E. diaphana and D. lineata).

The genomes A. alcyonoideum, A. arboreum, Actinoscyphia sp., R. magnifica, S. helianthus, and S. mertensii have relatively higher amounts of LTR, compared to the other species (9.2–11.6% vs 2.1–8.9% rest of species). The genomes of A. tenebrosa, E. elegans, and S. tapetum contain relatively higher amounts of rRNA than the rest of species (> 1.3%). The inferred size of the genome is fairly consistent across the sampled species, with a few outliers: Actinernus sp., Actinoscyphia sp., A. arboreum, E. quadricolor, P. xishaensis, and S. callimorphus have relatively large genomes, and S. diademon has a relatively small genome (Fig. 1 and Table 4). Perhaps because they are inferred to be approximately twice the size of the genomes of other species, the genomes of Actinernus sp., A. arboreum, Actinoscyphia sp., A. viridis, D. cincta, D. leucolena, E. elegans, P. xishaensis, and S. callimorphus present a substantially higher amount of “repeats under 0.001%” (8.7–20.2% vs ~ 4% rest of species). Further study of the genome and REP in these organisms, in light of their phylogeny, may illuminate the historical dynamics and the role of repetitive sequences in shaping evolutionary trends.

Table 4.

Annotation and comparison of 36 actiniarian genomes using Actiniaria-REPlib_v1 library in dnaPipeTE (Figure 3). Value is related to the proportion of the genome of each species. Abbreviations– LC: Low complexity; RU: Repeats under 0.001%; REP: Repeatome; Sat: Satellite; SR: Simple repeat; UNK: Unknown. Superfamilies– Actinernoidea (green), Actinioidea (pink), Actinostoloidea (yellow), Edwardsioidea (purple), and Metridioidea (blue)

Repeat landscapes for the repetitive sequences in each species’ genome reveal the abundance of various genomic variants across levels of divergence (Fig. 2). Assuming that repeat sequence evolution is primarily driven by point mutations (which increase sequence divergence) and homogenizing amplification (which decreases intraspecific divergence), it is logical to infer that the repeat landscape for a given element reflects temporal changes in abundance. The repeat landscapes show instances of amplification of TE copies throughout the genomes, referred to as REP bursts. Across genomes, a recent REP burst within the 0–10% divergence range has been observed for DNA transposons followed by LTRs (Fig. 2). Notably, we observed a recent species-specific REP burst of RC/Helitron in the A. sola genome (Fig. 2), indicating a derived evolutionary condition within this genome.

Final conclusion

To our knowledge, this full-scale annotation strategy is the first effort for a cnidarian clade. This context reinforces that, even though knowledge of the REP is a growing research area with space for improvement, pipelines like Orthoptera-TElib [67] and our own present advances in several theoretical and practical fronts. Given how we have structured Actiniaria-REPlib and our strategy to reclassify assemblies, we can recognize more content and genomic positions for original datasets and an enriched comparisons with other cnidarians.

Key questions that the REP may help answer include how certain lineages have accumulated different pools of genetic elements, and how these may have been repurposed over evolutionary time for new functions or regulatory roles (including enhancing genomic plasticity). In the future, manual curation efforts in repeatome libraries and a wider phylogenetic sampling of actinarian genomes should lead to updated versions of Acinaria-REPlib. This effort should also provide motivation and a framework for developing repeat libraries for other major lineages within Cnidaria.

Material and methods

Genome of Actinostella flosculifera (Le Seuer, 1817)

Sample collection, DNA extraction, and sequencing

We collected one individual of Actinostella flosculifera from Praia do Lamberto, Saco da Ribeira, Ubatuba, São Paulo (USP, 23°30′04.6"S, 45°07′09.1"W), on July 8, 2022. This animal was kept in an aquarium at the Laboratory of Evolution and Aquatic Diversity (LEDALab), São Paulo State University (UNESP-Bauru), fed Artemia sp. and bivalves two to three times per week over several months. Feeding was stopped three days prior to DNA extraction to avoid exogenous DNA.

We isolated total genomic DNA of A. flosculifera from a 200 mg piece of fresh (live) tissue using the QIAamp® DNA Mini Kit (QIAGEN) (RRID:SCR_008539). Library preparation, sequencing, and raw data control were done by IntegraGen SA (Evry, France) according to supplier recommendations based on a PCR-free strategy. Briefly, they prepared libraries using NEBNext Ultra II DNA Library Prep Kits (NEB #E7103). They quantified double-strand gDNA and used a sonication method to fragment approximately 520 ng of high-molecular-weight gDNA into ~ 400 bp fragments. They ligated paired-end adaptor oligonucleotides (xGenTM TS-LT Adapter Duplexes (IDT #1,077,681)) and re-paired them. The tailed fragments were purified for direct sequencing without a PCR step. They sequenced the libraries on an Illumina NovaSeq platform, generating ~ 294 million 2 × 150 bp paired-end reads. Finally, image analysis and base calling were performed using Illumina Real Time Analysis (RTA) Pipeline version 3.4.4 with default parameters.

Sequencing data pre-processing (Fig. 3, Stage I–I’)

We applied the “LEDAlabShortReadDecontamination” [101] pipeline for processing Illumina sequencing reads as follows: we trimmed the FASTQ files with fastp (RRID:SCR_016962) v0.23.4 [102] and we concatenated the two unpaired FASTQ files using Contig Annotation Tool (CAT) v5.3 [103]; we assessed read quality before and after processing with FastQC (RRID:SCR_014583) v0.12.1 [104], MultiQC (RRID:SCR_014982) v1.20 [105], and SeqKit (RRID:SCR_018926) v2.8.0 [106]; we used ALLPATHS-LG (RRID:SCR_010742) v.52488 ErrorCorrectReads.pl script [107] to apply error correction to reads; we used Kraken2 (RRID:SCR_005484) v2.1.3 [108] to create and build a database (DB_library), and to remove exogenous DNA from the FASTQ files (see Supplementary material S2 and Supplementary Table S16); finally, we assembled the A. flosculifera mitogenome with GetOrganelle v1.7.7.0 [109] using the Actinia tenebrosa Farquhar, 1898 mitogenome as ‘seed’ (available in NCBI with accession number NC_044902.1), and then removed the A. flosculifera mitogenome reads of the original paired and unpaired reads using FastqSifter (RRID:SCR_017200) [110]. Same basic protocol was used to isolate original reads and assemble the mitochondrial genome for several species included in this study (Table 2) to prepare for subsequent mitochondrial DNA annotation (see below).

Mitogenome annotation

We annotated the 36 assembled mitogenomes using MITOS2 [111] with the mitochondrial genetic code of “Mold, Protozoa, and Coelenteral”, and the reference data"RefSeq89 Metazoa", with default parameters to predict protein-coding genes (PCGs), tRNAs, and rRNAs genes. We compared the control region of the mitochondrial genome, designated as blank region, with mitochondrial genomes of reference species within Actiniaria, including Actinia tenebrosa (GenBank NC_044902.1), Exaiptasia diaphana (Rapp, 1829) (GenBank NC_056771.1), and Nematostella vectensis (GenBank NC_008164.1). We determined the starting position and orientation of the mitochondrial assembly sequence using Geneious Prime (RRID:SCR_010519) v2024 [112]. Finally, we deposited the complete, annotated, mitochondrial DNA sequence of the 27 species that were not included at NCBI database under the accession number in Table 2.

Phylogenetic reconstruction

We used the 13 protein coding genes (ND1–6, COX1–3, CYTB, and ATP6 + 8) and 2 rRNA (12S and 16S) of each of the 36 assembled and annotated mitogenomes (Supplementary Material S1) for a phylogenetic reconstruction of Actiniaria. We aligned each gene with MAFFT (RRID:SCR_011811) v7.53 using the L-INS-I algorithm and the “--maxiterate 1000” option [113]. We concatenated the aligned genes in a matrix using SequenceMatrix v1.8 [114] (Supplementary Material S1). Selection of the best partition strategy and evolutionary model (see details in Supplementary Material S1) was based on the best Bayesian Information Criterion (BIC) score using ModelFinder and PartitionFinder [115] as implemented in IQ-Tree2 (RRID:SCR_017254) [116] (Supplementary Material S1); we used this same software for Maximum likelihood (ML) phylogenetic inference and branch support. For these analyses, we applied (i) nonparametric approaches SH-like approximate likelihood ratio test (SH-aLRT; 1000 replicates) and ultrafast bootstrap (UFBoot2, 1000 replicates) [117]; (ii) parametric approximate likelihood ratio test (aLRT) and approximate Bayes tests (aBAYES), 1000 replicates for both cases [118, 119] (Supplementary Material S1). We edited and visualized the resulting tree using TreeGraph v2.15 [120].

Genome assembly (Fig. 3, Stage II)

We used the “RyanLabShortReadAssembly” pipeline [121], as a guide for assembling the Illumina sequencing reads from the previous stage (nuclear, “decontaminated” reads-only): i) we calculated the k-mer counts (sizes 21, 25, 31, 45, 63, 81 and 99) occurrence of the DNA in FASTQ files using Jellyfish (RRID:SCR_005491) v2.3.1 [122]; ii) we parsed the resulting k-mer count histograms in GenomeScope (RRID:SCR_017014) [123] so that we could visualize their distribution; iii) we generated nine assemblies using Platanus (RRID:SCR_01553) v1.2.4 (plat.pl) [124] with k-mer sizes of 21, 25, 31, 45, 59, 63, 73, 81, and 99 and we used Redundans v2.01 [125] to selectively remove alternative heterozygous contigs by running “redundans.py” in each assembled genome with the different k-mers; iv) we choose the best k-mer of nine assemblies based on N50 and conserved orthologs using BUSCO (RRID:SCR_015008) v5 [126] through the online platform gVolante [127]; v) we used the remaining assemblies (e.g., the sub-optimal assemblies) to construct artificial mate-pair libraries of 3 insert sizes (2000, 5000, and 10,000) with Matemaker (RRID:SCR_017199) v1.2 [128]; vi) we used the artificial mate-pair libraries to scaffold the optimal assembly (generated using Platanus of the best k-mer) with SSPACE Standard (RRID:SCR_005056) v3.0 [129]; vii) we removed sequences shorter than 200 bp in the scaffold using remove_short_and_sort from the RyanLabShortReadAssembly pipeline; viii) finally, we use this assembly to produce reference-guided scaffolds using RagTag v2.1.0 [130] with the scaffold-level assembly from a confamilial species, Anthopleura sola (GCA_023349385.1), as a reference. Improvements on this last assembly step was assessed with N50 and BUSCO metrics as well.

De novo construction of the Actiniaria-REPlib library (Fig. 3, Stage III)

We built the Actiniaria-specific REP library (named Actiniaria-REPlib) de novo based on 38 assemblies (Table 2) following the general strategy developed for Orthoptera-TElib pipeline (see Liu et al. [67] for details). We analyzed 37 actiniarian genomic datasets available at NCBI-Dataset ([60]; accessed 11.15.2024) and the newly generated assembly of A. flosculifera (Table 5). To predict TEs, we used RepeatModeler2 (RRID:SCR_015027) [131] for each of the 38 genomes using Dfam v3.8 partition 0 (dfam38_full.0.h5) [44]. We merged the REP libraries generated for each of the species into one initial REP library (RM2 lib) using CAT v6.0.1 [103] (version Actiniaria-REPlib_A). From this, we removed redundant sequences using CD-hit (RRID:SCR_007105) v4.8.1 [132] applying the 80–80–80 rule [17], saving this as Actiniaria-REPlib_B). We separated unknown sequences from Actiniaria-REPlib_B library with Seqtk (RRID:SCR_018927) v1.4 [133] and re-annotated them with TEsorter v1.4.6 [134] and DeepTE [135]. Then, we used Domain Based Annotation of Transposable Elements (DANTE v0.9.1) [136] (-D Metazoa_v3.1) and TEclass2 [137] to re-annotate the conflicting sequences based on the mismatch annotations between TEsorter and DeepTE. We merged the Actiniaria-REPlib_B_known library, DeepTE non-conflicting annotation library, and re-annotated sequences by DANTE + TEclass2. This is the first version of the REP library for the Actiniaria clade called Actiniaria-REPlib (or Actiniaria-REPlib_v1).

Table 5.

Statistics for the genome assembly of Actinostella flosculifera

NCBI Taxa ID	3,034,631
No. of sequences	62,998
Estimated genome size (bp)	269,371,768
Longest sequence (bp)	12,947,013
N50 scaffold (bp)	13,099
BUSCO (% complete)	70.55
BUSCO (% complete + partial)	91.61
GC content (%)	38.8
Assembly accession	JBLZGT010000000
NCBI raw read accession	SRR31542901
Specimen Voucher ID	Aflosc_v1

Annotation and quantification of the REP content (Fig. 3, Stage IV)

We evaluated and compared the annotation efficiency of our aforementioned three REP libraries (RM2 lib, Actiniaria-REPlib_A, Actiniaria-REPlib_B) for the original, full dataset of 38 assembled actiniarian genomes. Also, we compared our new database (Actiniaria-REPlib) to Repbase (RRID:SCR_021169) v29.03 specific to Nematostella vectensis and RM2 lib using RepeatMasker (RRID:SCR_012954) v4.1.6 [138].

We further applied the dnaPiPeTE v1.3.1 pipeline [68] to classify and quantify repeats in 36 actiniarian genomes using Illumina sequencing reads for comparative analysis (several genomes assemblies did not have Illumina reads available; Table 2). We pre-processed the Illumina sequencing reads of the 36 actiniarian species (Table 2), following the pre-processing methods used for A. flosculifera in mitogenome assembly, trimming, error correction, and exogenous DNA removal (see above; Fig. 3, Stage I–I’). We used 0.25 × genome coverage Illumina sequencing reads, Actiniaria-REPlib and genome-size as input in dnaPiPeTE (Fig. 3, Stage IV). The genome size was determined using the value obtained from the NCBI assemblies. We used dnaPT_charts.sh [139, 140] to plot the relative proportions of each assembled repeat. To generate repeat landscapes, we plotted histograms with dnaPT_landscapes.sh [139, 140] that represent the BLASTN divergence measured between each TE copy in each genome and read and their consensus assembled repeats [68, 141].

Authors’ contributions

J.A.D.F and S.N.S. collected the samples; J.A.D.F and M.M.M conceived the idea; J.A.D.F conducted the bioinformatic work; J.A.D.F. and M.M.M. analyzed the data and led the writing with the support of O.M.P.G, E.R.C, M.M.M., J.F.R., MD, and S.N.S.; J.A.D.F. and M.M.M. accept full responsibility for the work and/or the conduct of the study, had access to the data, and controlled the decision to publish; all authors reviewed and approved the final version of the manuscript.

Funding

This study was supported by São Paulo Research Foundation (FAPESP) [Proc. n. 2019/03552-0, 2020/16589-7, 2022/09430-7, 2022/16193-1 and 2023/10683-0]. SNS was supported by the National Council of Scientific and Technological Development (CNPq -Research Productivity Scholarship) grant number 304267/2022-8. MMM was funded by FAPESP 2016/04560-9 and PROPe-UNESP grant number 4390. OMPG was supported by the Swedish Research Council Vetenskapsrådet (grant number 2020-03866).

Data availability

All data supporting the findings of this study is available on Figshare under the identifier https://doi.org/10.6084/m9.figshare.27011698 (ref. [140]). Final Actiniaria REP library with alternative nomenclatures (Dfam, Repbase and Actiniaria-REPlib_v1) is shared in Supplementary Table S14. We deposited the complete, annotated, mitochondrial DNA sequence of the 27 species to the NCBI database under the accession numbers that are included in Table 2. Actinostella flosculifera raw data: SRA Genbank SRR31542901. Bioinformatic codes are available at https://github.com/jefferalexdurfue/LEDAlabShortReadDecontamination (ref. [101]).

Declarations

Ethics approval and consent to participate

All applicable international, national, and/or institutional guidelines for the care and use of animals were followed by the authors. All necessary permits for sampling and observational field studies have been obtained by the authors from the competent authorities and are mentioned in the acknowledgements, if applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare no competing interests.
