Skeletonization of neuronal processes using Discrete Morse techniques from computational topology

Abstract

To understand biological intelligence we need to map neuronal networks in vertebrate brains. Mapping mesoscale neural circuitry is done using injections of tracers that label groups of neurons whose axons project to different brain regions. Since many neurons are labeled, it is difficult to follow individual axons. Previous approaches have instead quantified the regional projections using the total label intensity within a region. However, such a quantification is not biologically meaningful. We propose a new approach better connected to the underlying neurons by skeletonizing labeled axon fragments and then estimating a volumetric length density. Our approach uses a combination of deep nets and the Discrete Morse (DM) technique from computational topology. This technique takes into account nonlocal connectivity information and therefore provides noise-robustness. We demonstrate the utility and scalability of the approach on whole-brain tracer injected data. We also define and illustrate an information theoretic measure that quantifies the additional information obtained, compared to the skeletonized tracer injection fragments, when individual axon morphologies are available. Our approach is the first application of the DM technique to computational neuroanatomy. It can help bridge between single-axon skeletons and tracer injections, two important data types in mapping neural networks in vertebrates.

1. Summary

Neuroscientific data analysis has traditionally involved methods for statistical signal and image processing, drawing on linear algebra and stochastic process theory. However, digitized neuroanatomical datasets containing labeled neurons, either individually or in groups labeled by tracer injections, do not fit into this classical framework. The tree-like shapes of neurons cannot be adequately described as points in a vector space (e.g., the subtraction of two neuronal shapes is not a meaningful operation). There is therefore a need for new approaches, which has become more pressing given the growth in whole-brain datasets in which axons and dendrites are labeled via sparsely labeled neurons or tracer injections.

Methods from computational topology and geometry are naturally suited to the analysis of neuronal shapes. In this paper, we introduce methods from Discrete Morse Theory to skeletonize neuronal processes or process fragments from tracer-injected brain image data, leading to a summarization of the neuronal projections based on the volumetric line density of such skeletonized processes in space. This contrasts with previous approaches in which the neuronal projections are quantified by counting fluorescently labeled voxels. Such a procedure is difficult to connect to the underlying biology, except in a qualitative manner. In contrast, our skeletonization process allows us to carry our a biologically more meaningful quantification, in terms of the length-density of the neuronal process fragments in given regions of space. The total length of axons is biologically more meaningful than the label density as it can provide information about the number of presynaptic sites on the axons in different brain compartments[1]. The total length of all axons emanating from the injection site in a given brain compartment or across the whole brain can be obtained by interpolating and integrating the volumetric line density sampled in a series of optical planes, as is normally the case for whole-brain light microscopic imaging of tracer injections. This also provides a way to relate the tracer injection data quantitatively to single axon reconstructions, which are increasingly available in some vertebrate animals, particularly in the laboratory mouse.

The proposed algorithmic procedure for neuron skeletonization includes an initial process detection step [2], which applied to a projection region of a tracer-injected brain image volume produces a likelihood map of the neural processes or process fagments. This is effectively a normalization and preprocessing step. This first step is followed by extraction of the process skeletons from the density field using the Discrete Morse technique, in which the 1-unstable manifold of the likelihood function, which connects the local maxima through intervening saddle points, is extracted using persistent homology as a noise-control method. This structure, which is part of the Morse skeleton of the likelihood function, could be intuitively interpreted as tracing a path through a mountainous landscape by connecting the tops of adjacent hills connected by tall ridges.

After suitable corrections to the raw skeletons designed to take into account the underlying biological structure of the data, we find that this procedure leads to an effective skeletonization of neuronal process fragments, in tracer injected whole brain microscopic image data, as long as they are not too dense. This then permits the direct quantification of the lengths of the process fragments which is suitable for further summarization of the tracer injections. We apply the method to high-resolution brain image data of tracer-injection labeled neurons collected using two different microscopic techniques, demonstrating better performance than a baseline algorithm using non-topological methods (significant improvement in precision, and significant speedup in proofreading).

The extracted process skeletons are then passed to a summarization stage, where the length density of the fragments is quantified in the two-dimensional image plane. This provides a bridge between single neuron skeletons and tracer injection data. Single neuron skeletons are increasingly available, mapped to a common atlas coordinate space. Such single neuron skeletons could be virtually sliced into thin sections corresponding to the optical sections obtained in the microscopic imaging of tracer injection data, and the length density of the fragments thus obtained can be quantified in the two-dimensional plane of section. This gives rise to a length density as a function of space, which could directly be compared with the length density obtained from the tracer-injection labeled fragments. We illustrate this procedure through an example. Further, availability of the voxelixed line-density for the tracer injection data, allows us to compute an information theoretic measure of how much extra information is provided by single neuron reconstructions over tracer injections in a brain region, which should help clarify the relation between the tracer injection labeled groups of neurons and the constitutent individual neurons.

The DM method can trace a neuronal process fragment through regions of low intensity as it utilizes the global topological structure present in the data. Persistent homology based simplification of the Morse skeleton allows the method to deal with noise in the data in an adaptive manner, by considering local differences in intensities rather than absolute intensity values. Additionally, the DM approach is theoretically principled and conceptually clean, minimizing multiple ad-hoc hand-engineered steps. On the other hand, there is a significant computational overhead to the topological data analysis approach, however we are able to mitigate the speed issues by using parallelized implementations of the Discrete Morse algorithm.

2. Background

Topological Data Analysis and Discrete Morse Theory:

Topological data analysis (TDA) methods have been applied across domains to analyze complex high-dimensional datasets [3]. The benefit of TDA methods is to study the structure that depends on the connectivity properties of the data independent of specific metrical and geometrical properties. TDA use a variety of approaches to characterize the topological structure underlying the data in question[4–8]. Some of the relevant computational tools (in particular persistent homology [9]) have been applied to multiple subject domains [10–14], including neuroscience [15–17].

The subarea of TDA pertinent to the present work is a persistence-guided Discrete Morse theory-based computational framework for reconstructing hidden graphs from observed data. Discrete Morse theory has been utilized to capture hidden structure in 2D or 3D volumetric data [18–20]. The extraction of hidden graphs was formulated in [21], and the framework was simplified and theoretical guarantees provided in [22]. Morse theory based methods are sensitive to the global topology of the data in contrast with methods sensitive only to local structure. Thus, for example, the underlying graph skeleton of a noisy measurement of a scalar field can be traced through regions of weak signal. Morse theory in its original form applies to continuous functions on manifolds. Discrete Morse theory [23] is a discretized and combinatorial computational framework inspired by Morse theory, suitable for algorithmic implementation on digitized data. Persistent homology is used to separate signal from noise and remove potentially noise-related structure from the graph. The pertinent TDA tools have previously been applied to the reconstruction of hidden road networks from noisy GPS trajectories and satellite images [24, 25]. Here we adapt and extend this approach to develop a computational methodology suitable for computational neuroanatomy and to address neuroscientific problems.

In this manuscript we introduce a data analysis framework entitled DM-skeleton that uses TDA and the Discrete Morse approach to skeletonize groups of neurons labelled by tracer injections. For tracer injection skeletonization, DM-skeleton provides a conceptually new route to the analysis and quantification of mesoscale projection data, and shows robust performance.

Tracer Injection Skeletonization:

In tracer injected brain image volumes, thousands of neurons with somata or terminals co-localized in a brain compartment are collectively labeled using the tracer injection, and the individual neurons cannot generally be skeletonized. Conventionally, brain-wide connectivity information is summarized in the form of regional connectivity matrices [26]. Such a representation loses connection with the axonal morphology of individual neurons and is difficult to interpret in more microscopic terms. Here we introduce a new approach to the analysis of tracer injection data, by skeletonizing axon fragments labeled by the tracer injections using discrete morse method. This permits us to quantify the local length density of the labeled axons, which can then be further related to the length density of underlying single axons. To the best of our knowledge, this is a new approach to conceptualizing tracer-injection data, and could provide a biologically better-grounded approach to the study of mesoscale connectivity mapping using tracer injections. One important advantage of the tree-skeletonization approach is that one can then estimate the total length of all the neurons labeled by the tracer injection. While we do not expect that estimates based on sampled fragments to be as precise as one would get by actually tracing whole axons, single axon tracings are expensive and time intensive to obtain, and simulations have shown that there is reasonable correlation between projected length fragments with actual axon lengths[1]. Therefore we believe that a careful skeletonization of axon fragments from tracer injections and subsequent estimation of length densities is methodology worth developing.

The DM pipeline for summarizing multiple-neuron tracer injection datasets has multiple steps. First, the raw image stack is preprocessed to detect neuronal processes as a likelihood map, which we do using a previously introduced method combining deep networks and topological data analysis[2]. Then a variant of the Discrete Morse algorithm[22, 24] is used to produce a graph skeleton containing all potential axon fragments. As a noise reduction step, a persistent homology based simplification step is carried out next. The denoised graph is next further processed to extract a minimal spanning tree taking into account the biological prior knowledge that axons have tree-like topology. We provide the resulting pipeline as a computational package that takes images as inputs and produces a DM-skeleton data structure consisting of the detected axon fragments as output (see https://data.brainarchitectureproject.org/pages/skeletonization for code and data).

3. Results

Method overview.

The workflow of the proposed DM-skeleton (DM-Skeleton) method is shown in Fig. 1. The workflow has three main steps, namely preprocessing, skeletonization, and simplification (see the Methods section 1.3.)

Fig. 1 |.

Workflow and sample outputs for the DM-Skeleton pipeline. Workflow for 2D Skeletonization (from sparse neuronal label to individual skeleton extraction) and Summarization of the Detected Labels (from dense neuronal label to injection summarization) with sample outputs for each step.

DM-Skeleton takes 2D scalar images as input. In Step 1, the DM++ algorithm[2] is applied as a normalization step, generating a likelihood image. The likelihood image, which is interpreted as a normalized label density field $\rho$, is used as a Morse function which serves as an input to the next stage. The goal of the next step is to capture center-lines passing through (relatively) high likelihood regions using the 1-unstable manifold of the density function (see Fig. 2 for an explanatory graphic).

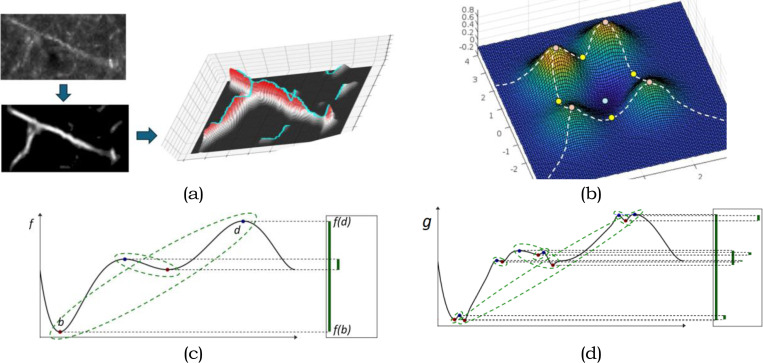

Fig. 2 |.

Illustration and basic concepts used for Discrete Morse theory based graph skeletonization algorithm. (a). An input raw image (top left) is first converted to a likelihood image (left bottom). Treating the likelihood map as a density function (the corresponding terrain is show on the right), extract the 1-unstable manifold of this function, which is a one dimensional branched structure that traces paths following the gradients in the density, connecting peaks through intervening saddle points. (b) An example of A 2D Morse function together with the Morse skeleton (white dashed curves): pink points are local maxima, yellow points are saddles, while blue points are local minima. The Morse skeleton is the collection of the so-called 1-unstable manifolds (integral paths of gradient descent dynamics connecting saddles to maxima / mountain peaks). (c) Persistence is used to remove small or noise peaks as a denoising step. An example of persistence pairs on a simple 1D function $f:\text{R}\to \text{R}$, represented by the so-called persistent barcodes given by the lifetimes of features as the function value is smoothly increased, shown as the vertical green segments on the right. In particular, given $f$, as we gradually increase $f$-function values, topological features (in this case connected components) first appear (are ‘born’) at local minima, and disappear (‘die’) at local maxima. Each persistence pair (i.e. $(b,d)$) indicates the birth and death of some feature (i.e. born at $f(b)$ and killed at $f(d)$). This gives rise to a interval ($f(b)$, $f(d)$) (shown as vertical bars) forming the so-called persistence barcode w.r.t.f (on the right). The ‘persistence’ of the feature $(b,d)$ is defined to be the difference in function values $|f(d)-f(b)|$ which can be considered as a measure of stability, i.e. how “long” the feature persists / lives. In the persistence barcode, the persistence of a feature $(b,d)$ is defined to be the length of the corresponding persistent bar. In the function plots, persistence pairings are marked by green dotted curves. The function $g$ in (d) can be viewed as a noisy perturbation of function $f$. The function $f$ has 2 prominent features (persistence pairs), while the perturbed version $g$ also has additional “smaller” features with lower persistence (corresponding to very short persistent bars in the right).

In Step 2, a persistence-guided discrete Morse-based framework [22, 24] is applied to $\rho$, producing as an output the Morse ‘graph skeleton’ $G$. The 1-unstable manifold connects peaks through saddles, thus bridging through low-density regions along the labeled axon fragments (e.g., gaps and weak signals along the Y-junction in Fig. 2a). Finally, in Step 3, the Morse graph skeleton $G$ is further processed to extract axon fragments. First, false positives are suppressed by intersecting with a binary mask created by appropriately thresholding the likelihood to remove very low probability regions. The maximal spanning trees of the resulting graph fragments are then extracted. As noted above, the tree fragments occasionally have easily identified spurious side-branches (”hair”). We remove such short side branches using a simple ”Haircut” algorithm; more details in Methods section 1.3.3).

To illustrate the proposed technique on real data and to compare with a baseline algorithm, we processed digitized microscopic images of two brain volumes, corresponding to two tracer-injected brains with tracer injections placed at nearby locations, imaged with two different microscopy methods, namely Whole Slide Microscopy using fluorescent imaging (WSI) [27], and Serial Two Photon microscopy (STP) [28–30]. As a baseline algorithm we used the function $bwskel()$ from MATLAB that uses the medial axis transform, which is a standard approach to skeletonization of similar shapes. This function attempts to provide a topology-preserving thinning of the object o be skeletonized, and therefore provides a reasonable baseline comparison of our topologically motivated Morse-theory based skeletonization method. Likelihood images corresponding to the detection of axon fragments in these brain images, obtained using the DM + + technique which we have previously described[2], were binarized using OTSU -based threshold. This binarized likelihood image was skeletonized using the $bwskel()$ function from the MATLAB Image Processing Toolbox. Comparisons of the DM-skel output and baseline bwskel output on the same input images can be seen in Fig.3 and Fig.4 respectively for the WSI and STP imaged brains.

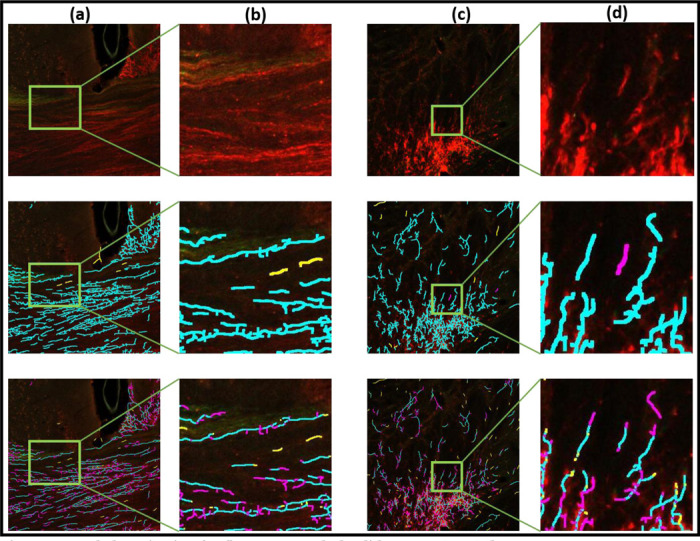

Fig. 3 |. Axon skeletonization for fluorescent Whole Slide Image (WSI) data.

Columns (a),(c) show image tiles and columns (b),(d) show zoom ins. Top row shows the original images, the middle row the results of DM-skeleton, and the bottom row the baseline skeletonization results using the MATLAB function bswkel. Axon fragments are seen in the original image as groups of lines of enhanced intensity. Results of visual-manual annotations for errors are also shown. True-positives are in cyan, false-positives are in yellow and false-negatives are in magenta. The results show better continuity and detection of the fragments by the DM-skeleton method over the baseline method.

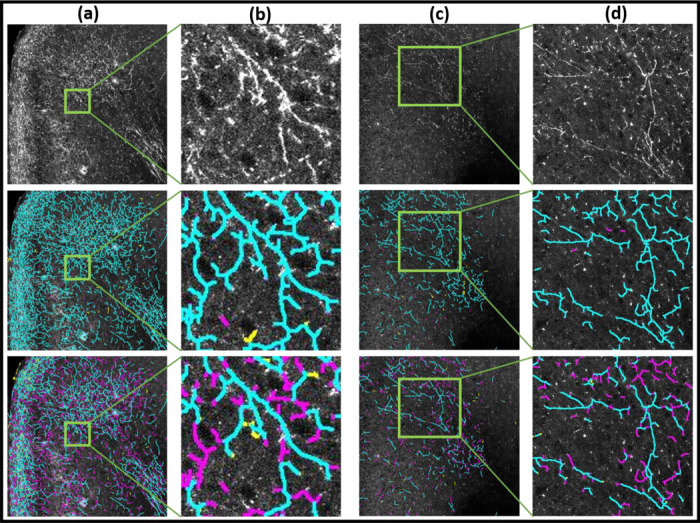

Fig. 4 |. Results of STP (serial two-photon images) neuron skeletonization.

Columns (a),(c) show image tiles and columns (b),(d) show zoom ins. Top row shows the original images, the middle row the results of DM-skeleton, and the bottom row the baseline results using bswkel. Axon fragments are seen in the original image as groups of lines of enhanced intensity. Results of visual-manual annotations for errors are also shown. True-positives are in cyan, false-positives are in yellow and false-negatives are in magenta. The results show better continuity and detection of the fragments by the DM-skeleton method over the baseline method.

Fig.3 shows images from the WSI data set whereas Fig.4 shows images from the STP data set. In both figures, columns (a) and (c) show tiles showing tracer-labeled axon fragments from the WSI data set, with selected zoomed-in regions shown in columns (b) and (d). The top row shows the original fluorescent imaging data, the second row the results of the proposed method (DM-skel), and the third row the results of the baseline method (bwskel).

From visual inspection, we can see that the baseline method bwskel (shown in the third rows of the respective figures) can produce spurious features, can fail to distinguish between two nearby axons, and can fail to maintain continuity of axons through low-intensity signal regions. In each case, we manually annotated the corresponding tiles to mark false positives and false negatives as judged by a human observer. In the second and third rows of each respective figure, the true-positives are shown marked in cyan, false-positives are marked in yellow and false-negatives are marked in magenta. These examples visually illustrate that our proposed algorithm outperforms the baseline method in preserving the connectivity of the neurites and respecting their underlying tree structures. The baseline algorithm starts from a binarized likelihood and is consequently unable to skeletonize faint signals (see further zoomed-in regions (columns (b),(d)) in Figs. 3 and 4). In contrast, DM-skeleton utilizes the analog likelihood image for Morse-based skeletonization and is able to better preserve the continuity of the axon fragments.

We would like to note that our approach to analyzing tracer injection data is not conceptually tied to using the Discrete Morse algorithm for skeletonization of the shape, and other approaches to skeletonization could also be then used as input to the subsequent summarization step. We have found in our work that the DM based skeletonization approach produced good quality results for our application and outperformed a standard baseline, however if better skeletonization methods for this type of data become available in the future, the overall proposed workflow and approach to the analysis of such data types would still apply, while swapping out the DM module for skeletonization.

These visual observations are quantified in Table 1 and show that the proposed technique outperforms the baseline method. For the WSI data set, the F1 score is 0.97 for DM-skeleton (0.6 for bwskel) and the IOU score 0.94 for DM-skeleton (0.55 for bwskel) showing sufficiently high quality suitable for the desired scientific application of the technique. The scores for the STP data set are only slightly lower (see 1.4 for further details). Note that in application of the methodology to whole brain data sets we encountered some spatially distinct compartments of overall poor performance due to tissue processing issues or imaging artifacts (folded sections and vasculature at the base of the brain for the WSI image data, and artifactually saturated islands of voxels at edges or the brain). These artifacts were visible in low resolution versions of the images, and the corresponding tissue regions were masked out. Also, the injection regions showed label saturation with individual axons not visible separately, as can be expected due to the dense labeling of processes and cells within the injection region. The injection regions were separately detected using a signal threshold and were excluded from the analysis.

Table 1:

The two tables shown below give the metrics for comparison of the proposed technique, DM2D with the baseline method, MATLAB bwskel(). The metrics are calculated based on the true-positive, false-positive, and false-negative pixels in the detected image, corresponding to the manually annotated Ground-Truth image.

	Precision	Recall	$F_1$-score	IOU
Proposed DM2D	0.94	0.99	0.97	0.94
MATLAB bwskel()	0.87	0.60	0.71	0.55

(a) Table for comparison of techniques in the WSI dataset.

	Precision	Recall	$F_1$-score	IOU
Proposed DM2D	0.92	0.96	0.94	0.89
MATLAB bwskel()	0.90	0.59	0.72	0.56

(b) Table for comparison of techniques in the STP dataset.

To visualize the results in the context of the whole mouse brain, we mapped the skeletonized axon fragments to the Brain Architecture Project mouse brain Reference Atlas Framework[31] for regional projection strength analysis.

Summarization of detected axon fragments.

The output of the skeletonization step consists of tree-like graph fragments, corresponding to fragments of the underlying neurons projected onto the sectioning planes. This directly leads to the estimation of an areal density of the line fragments, with units of length per area (we use μ²/mm). To convert into a volumetric density of length per unit volume one needs to divide by an estimated thickness of the physical or optical section from which these fragments are obtained. In case of the WSI image data, the brain was sectioned in the coronal plane with 20μ section thickness, with alternating Nissl and Fluorescent Sections. We estimated the optical section thickness to be the full width at half maximumum of the Point Spread Function of the microscope (see Supplementary Sec. S.2) as 1.5μm. Assuming an average axonal diameter of 0.5μm, we assume that any fragment detected in the image plane represents an axon fragment of the same length within a slab of thickness of 2.5μm. More sophisticated stereological corrections are possible for estimating the actual length of the axon fragment by assuming a distribution of orientations, but for the present purposes we keep to this crude estimate as a first approximation. Since no attempt has been made in the past to make the sort of length fragment estimation that we are performing, so that our work can be regarded as a first step. If another optical plane thickness estimate is used, it will multiply our volumetric line density estimates by a constant factor. Similarly, while we make no attempt to account for the variation in orientation of the fibers with respect to the sectioning plane, assuming an angular distribution of the fragments could give rise to an additional multiplicative factor. An overall multiplicative factor from either source will not affect the estimates of the relative distribution of lengths across compartments. We note that good correlation with the actual axon length has been obtained in simulations using simple projections of the axonal fragments onto sectioning planes[1].

An in plane estimate of the volumetric line density is then obtained by dividing the planar line density estimate (with units of length per unit area) by 2.5μm. The WSI images are spaced 40μ apart, so we further interpolate our line density estimate across the intervening 40/2.5 − 1 = 15 optical sections to obtain a densely and uniformly sampled volumetric line density estimate across the brain, in the form of a volumetric line density associated with each spatial voxel. The interpolation effectively amounts to multiplication by a factor given by the ratio of the section spacing to the effective thickness of the optical plane.

The section images were mapped into a standardized reference atlas space (BAP-RAF) [31], and missing images interpolated, in order to obtain uniformly sampled volumetric densities in the BAP-RAF space (See Fig. 5(b) for 3D visualization of the volumetric line density data). Mappings were computed using our previously develoned Generative Diffeomorphic Mapping (GDM) framework for multimodal brain atlas mapping[32, 33]. Briefly, in this approach a target dataset (a series of 2D slices or a 3D volume) of a given contrast is generated using a sequence of transformations of the underlying reference brain, and parameters characterizing these transformations are optimized [34, 35] to minimize a discrepancy between the transformed reference brain and the target brain. These transformations are then applied to the coordinates of the points in each skeletonized fragment in order to map that fragment into the reference space for purposes of visualization as well as quantification. The transformations are also applied to the 2D volumetric line density images to map them into the 3D RAF space.

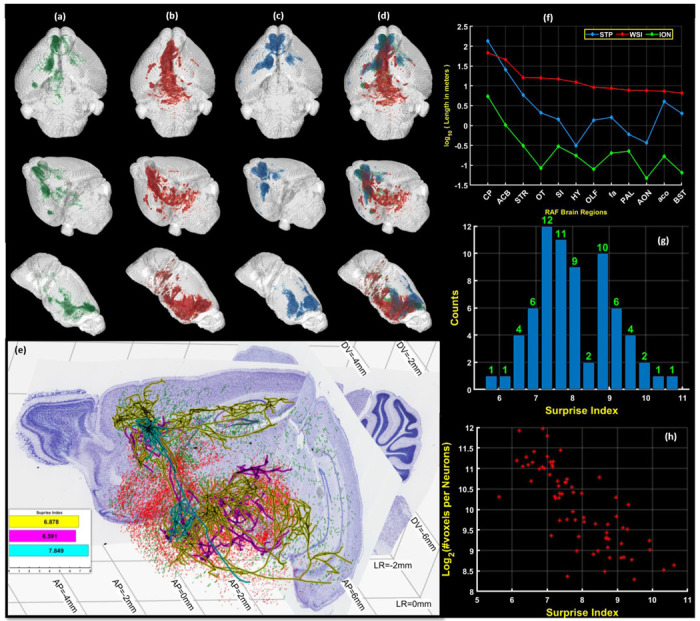

Fig. 5 |. 3D summarization of Skeletonized Data.

Columns (a),(b),(c),(d) show the line densities of the skeletons in the RAF space. (a) shows the density curated single neurons of the Mouselight-ION dataset. (b) shows the density of the line-fragments detected by DM2D for the WSI dataset. (c) shows the density of the line-fragments detected by DM2D for the STP dataset. (d) shows a comparison of the densities as depicted in (a)-(c). (e) Whole neurons and fragments are shown from three different datasets, reconstructed in the space of a BAP-RAF atlas framework, all with injections in the Prelimbic area of the brain, to illustrate the relationship between single neuron reconstructions and tracer-labeled sets of axon fragments. The two Nissl-stained sections, one coronal and one sagittal are shown from the BAP-RAF mouse atlas together with atlas coordinate markings. Red fragments were reconstructed from a fluorescent WSI dataset and green fragments were reconstructed from an STP dataset, automatically annotated using the proposed algorithm. Only subset are shown to preserve visualization ability. Black lines with cyan, magenta, and yellow outlines show three example reconstructed neurons. A histogram of ”surprise indices” of the set of 70 neurons is shown in the inset.(f) shows a graph showing the total lengths of the axon fragments from the tracer injected data sets as well as the lengths of the 70 single axons contained in 12 brain compartments, where the compartments were chosen by rank ordering the total length from the WSI injection in all brain compartments. The regions shown are (CP:Caudoputamen; ACB:Nucleus accumbens; STR:Striatum; OT:Olfactory tubercle; SI:Substantia innominata; HY:Hypothalamus; OLF:Olfactory Areas; fa:corpus callosum, anterior forceps; PAL:Pallidum; AON:Anterior olfactory nucleus; aco:anterior commissure, olfactory limb; BST:Bed nuclei of the stria terminalis) (g) shows a histogram of the surprise indices of the 70 individually reconstructed neurons when compared to the WSI dataset. (h) shows that the surprise index is negatively correlated with the log of the total length of the axons but this correlation is not very tight.

A similar approach was utilized for the STP data[36], where the sections are sampled optically at 50μm spacing without any missing images. The same method was applied to interpolate the line density data from the optical sectioning plane to intermediate non-sampled planes, and to subsequently to obtain volumetric line densities (See Fig. 5(c) for 3D visualization of Data). The FWHM was estimated for STP as as 2μm and the axon diameter as 0.5μm, giving a total optical thickness of 3μm.

In addition to the tracer injection data, we used a curated set of 70 single-neurons with somata in the Prelimbic area of cortex (PL) composed of 69 neurons drawn from from https://neuroxiv.org/, data originally collected in [37], and one neuron from the Mouselight data set[38]. These single neurons were then mapped to the BAP-RAF atlas and voxelized line densities for the collection of the 70 axons were computed (Fig. 5(c)) for comparison with the line densities derived from the tracer injection data.

A 3D visualization of the summarized density of the three datasets, is shown in Fig. 5(d), where green, red and blue represents the single axon, WSI and STP datasets respectively. The Fig. 5(e) shows 2D cutaway slices in reference planes showing the projections of the sampled neurons and line fragments mapped to the BAP-RAF atlas. The results shows a significant overlap of our detected fragments with the ION dataset. In the 20μm BAP-RAF atlas, we estimated the total line-lengths in different brain compartments by integrating the voxelized densities. We assumed (50/3 − 1 ∼ 15) missing sections per imaged section for STP brain, since the inter optical-section spacing is 50μm, and (40/2.5 − 1 = 15) missing sections per imaged section for WSI brain, where the inter-optical section spacing is 40μm. We plot the logarithm of line-lengths in meters for 12 compartments in the left hemisphere of the brain in Fig. 5(f). The compartments were chosen so that the total line length

A measure of ”surprise” of single neurons over tracer injections.

Since tracer injections label a group of neurons with varying morphologies, individual axon reconstructions provide additional information not directly available from the tracer injection. Our density estimates allow a quantification of this additional information. We introduce an information theoretic ”surprise” measure that quantifies the additional information provided by an axon reconstruction over a tracer injection using the relative entropy between the voxelized line density of a single axon and the voxelized line density of the tracer injection fragments.

The ”surprise” measure is defined as follows: let the line densities of the axon fragments for a tracer injection, normalized by the total length, be given by $p_i$ in $i=1..n$ voxels. Due to normalization, $p_i$’s are non-negative numbers which sum to 1, i.e. ${\sum }_i{p}_i=1$, and can be interpreted as a probability density function. Note that a similar definition may be made at a compartment level, and also for retrogradely labeled somata from a retrograde tracer injection, which we will not explicitly write out here but which are simple generalizations. The numbers $p_i$ may be interpreted as probabilities of receiving a projection in the respective voxels or compartments for neurons with somata in the injection compartment.

The projections are composed of individual neurons, each of which project to the same set of voxels, but any individual neuron or neuronal type will not in general have non-zero density in each tracer-injection voxel. Consider a set of $m$ single neurons composing the tracer injection. For each of these neurons we empirically define a neuron-specific projection density $q_{ij}$ where $j=1..m$ by dividing the length of the neuron contained in the $i^{th}$ voxel, by the total length of the neuron, with ${\sum }_i{q}_{ij}=1$. Without loss of generality we assume that the voxels are equal in size. When considering unequally sized regions or voxels, one would compute a density in the region then normalize that density. i.e. $q$ is a left stochastic matrix.

The ”surprise” $S_j$ for neuron $j$, as compared to the tracer injection $p_i$, is then defined to be the relative entropy of the two distributions (the Kullback-Leibler divergence):

$$S_j={\text{Σ}}_i{q}_{ij}{\log }_2\left(q_{ij}/p_i\right)$$ (1)

Fig. 5(g) shows a histogram of $S_j$ for the set of 70 curated neurons with somata in PL as compared to the cell-type nonspecific tracer injection in PL. For this analysis we used a voxel size of 100μm. It is to be noted, that the analysis was possible due to the mapping of all data sets to a common coordinate system provided by the reference atlas. To gain an intuitive understanding of the surprise measure it is useful to consider some limiting cases. It is easy to prove that the most ”surprising” morphological cell type given an average projection pattern $p_i$ would satisfy $q_{ij}={\delta }_{ik}$ where $k={\mathrm{arg\; min}}_i{p}_i$. This corresponds to a single-neuron that projects only to the voxel $k$ with the weakest projection $p_k$, and has the corresponding surprise $S_{max}=-\ln \left(\min p_i\right)$. If all the $p_i$ were equal for $i=1..n$ then $S_{max}={\log }_2(n)$, however in general the projection densities will vary across voxels. Generally, we expect that the surprise would be larger for localized axons. This trend is indeed borne out in the scatter plot shown in Fig. 5(h), where a negative correlation is seen between the length of the axons and the surprise index, however this correlation is not very tight, since the tracer does not have uniform projection density in all voxels.

On the other hand, the least surprising cell type is one that has the same projection pattern as $p_i$, i.e. $q_{ij}=p_i$, and for this type the surprise is zero. Such a neuron could be considered ”typical” in a probabilistic sense, given the tracer injection based projection density.

Fig. 5(e) shows three single neurons and the corresponding surprise indices. The estimation of the surprise measure has one technical subtlety - the measure assumes that the single neurons are constituents of the tracer injected neuron set, and thus only have nonzero density where the tracer injection density is nonzero. In practice however the single neurons cannot be traced in the same brain as the tracer injection, so due to statistical estimation issues, it may be the case that a voxel with nonzero density for a single axon has zero density from the tracer. To address this issue, we interpolated the estimated tracer injection density to the small number of voxels where the tracer injection did not produce any fragments, but the single axon did. To perform this interpolation we used the weighted Nearest Neighbour interpolation technique [39], which has been proven to be statistically consistent and therefore can be expected to have reasonable estimation performance.

It is to be noted that since we start with 2D image data, the axon fragments are projected onto a 2D plane. Since the axons are not always parallel to the imaging plane, this leads to an underestimate of the axon lengths. Therefore, the estimates obtained in our study should be regarded as a lower bound to the true biological axon lengths. This can be rectified by utilizing 3D volumetric imaging data at high resolution, with a 3D skeletonization step replacing the 2D skeletonization step. However, our current approach bring us closer to the biological reality of the underlying axons in comparison with the previous approach using only the fluorescent intensities of voxels. Moreover, in current studies involving tracer injections, the plane of section is consistent across experimental brain data sets, so that the axon fragment densities can be meaningfully interpreted as the projected axon length densities onto the corresponding sectioning planes (usually the coronal plane).

4. Discussion

In this manuscript we have introduced the usage of Discrete Morse techniques for the analysis of neuroanatomical data pertaining to brain circuit mapping, utilizing injections of tracer substances to label groups of axons projecting out of the injection site. This Topological Data Analysis approach has the advantage of being able to utilize nonlocal connectivity properties of the data, which led to robust performance in our application, by tracing labeled axon fragments through regions of low label intensity in noisy images.

We developed an approach (DM-skeleton) to the skeletonization of labeled axons in 2D microscopic image data using the Discrete Morse method combined with previously developed deep net methods utilizing TDA to provide likelihood maps from original image data. The relevant algorithms were codified into a computational pipeline which we provide in this manuscript together with data examples (see https://data.brainarchitectureproject.org/pages/skeletonizationcode packages). DM-skeleton showed good performance (F1 scores of 0.94 and 0.97 respectively on STP and WSI data) compared to a baseline skeletonization technique (bwskel() from MATLAB). We expect that the 2D skeletonization pipeline we provide will be applicable to other image data sets as well that contain line-like or tree-like objects.

We further introduced a new method for summarizing tracer injection data. The 2D fragments obtained from the DM-skeleton pipeline applied to tracer-injected brain image data were used to compute areal line densities (with units of length per unit area), which were then converted into a 3D volumetric density of length per unit volume by dividing by an appropriate optical section thickness as well as interpolation to account for missing optical sections. This provides a biologically meaningful quantification of the tracer injection data, in contrast with previous quantification using total fluorescent intensity or by counting fluorescently labeled voxels. Since the skeletonization step vectorizes high resolution microscopic image data, it also leads to very significant data compression while retaining biologically meaningful information and without loss of spatial resolution.

Topological Data Analysis methods are known to be computationally expensive compared with other methods. In our application the computational bottleneck comes from the persistence-guided discrete Morse-based framework. The computation of persistence pairings can have a worst-case time complexity of $O\left(n^3\right)$ (although it is usually significantly faster in practice), where $n$ is the number of cells that make up the input cell complex, which in our case corresponds to the number of pixels in the image tile input to the pipeline. To address this bottleneck, we utilized the DIPHA package [40] to compute persistence pairings. This is a distributed algorithm providing a significant speedup compared to centralized persistence algorithms. Further code optimizations over our current implementation are possible and run-time could be further reduced in future work. The current pipeline of DM2D which takes the likelihood produced by DM++ overlayed with the binary mask takes ∼ 150 seconds for a STP brain section (∼ 11K × 8K pixels), while it takes ∼ 200 seconds for a WSI section (∼ 22K × 18K pixels). The post-processing step (in MTALAB) to convert the detected skeletons to vectorized GeoJSONs for web display takes ∼ 3 − 5 minutes per section. These estimates were made on an Intel Xeon Dual-CPU Quad-GPU (NVIDIA RTX 2080TI) machine with 512 GB of RAM.

Despite the higher computational complexity, the conceptual elegance and theoretical transparency, performance improvement in detection of fragments, significant reduction in human proof-reading times and incorporation of prior biological structure are arguments in favor of the approach proposed here.

Methods

1.1. Data Collection.

Tract tracing is the gold standard for studying mesoscale axonal projections in vertebrate brains. Each anterograde tracer injection can label hundreds to thousands of neurons. The fluorescent label from the tracer fills the axons, showing the neuronal projection pattern across the whole brain.

The Serial Two-Photon (STP) dataset presented in this paper was collected as a part of Brain Initiative Cell Census Network [29]. Cre-dependent transgenic mouse lines were crossed with IslFlp reporter lines. Flp-dependent AAV tracers were utilized to reveal cell type-specific axon connection [30]. Each brain was prepared and imaged using STP tomography [41] with 1μm × 1μm in-plane resolution, and sectioned coronally every 50 μm. Two channels of 16-bit data were collected, where Channel 1 collected the autofluorescence and Channel 2 collected the fluorescent tracer information. Only Channel 2 data were used in the subsequent analysis. One STP dataset was involved in the development and demonstration of methods in this paper (available from: ftp://download.brainimagelibrary.org:8811/biccn/huang/connectivity/anterograde/190322JHHK0126PlexinD1LSLflpPLmaleprocessed/). The Data presented in this paper includes a dataset with injection in prelimbic region of the brain. The visualization of the STP dataset used in the paper can be viewed from https://data.brainarchitectureproject.org/pages/skeletonization. The fluorescent Whole-slide Imaging (WSI) dataset presented in this paper was collected as a part of Mouse Brain Architecture (MBA) project, where fluorescent tracers were injected into the same brain. C57BL/6J mice were acquired from Jackson Laboratories (stock 000664) under IRB protocol #498813–28 according to protocols approved by the Animal Care and Use Committee at Cold Spring Harbor Laboratory. Two tracer injections were placed in the right hemisphere of each mouse, both anterograde (AAV2/1.CAG.tdTomato.WPRE/SV40, AAV2.1CB7.CI.EGFP.WPRE.RBG). Approximately 2.3nl of virus was injected using a Nanoject II injection system before a 4 week incubation period. All samples were histologically processed using methods previously described [27, 42, 43]. The brain was fixed, embedded in freezing agent, and serially cut at 20μm using the tape-transfer method to minimize tissue distortion [42, 43]. All slides were scanned by a Nanozoomer 2.0HT with a 20x objective (0.46μ m in-plane resolution) and saved in an uncompressed RAW format. Image cropping, conversion and compression to per section JPEG-2000 files were performed. Alternating sections were imaged with either widefield imaging after Nissl staining or fluorescent imaging at 0.46μm × 0.46μm in-plane resolution. All images were recorded with 3 (RGB) channels with 12-bit data in each channel. For the purposes of this manuscript, we only use the AAV2/1.CAG.tdTomato.WPRE/SV40 injection in the prelimbic area of the brain. The microscopic images of the WSI dataset used in the paper can be viewed from https://data.brainarchitectureproject.org/pages/skeletonization.

1.2. Data pre-processing.

The WSI dataset was registered in 3D using Nissl sections. Fluorescent sections were subsequently cross-registered to the adjacent Nissl sections and formed a 3D volume [33]. Both the STP and WSI datasets were first processed with fluorescent labeled axon signal detection [2]. The original images comprosed 1μm × 1μm pixels for STP Coronal sections spacing was 50μm for STP and 40μm for WSI.

The STP dataset was first processed with a combined TDA and deep net based method [2] for the detection of the tracers. The network, termed as DM++, takes in whole STP sections and divides them into 512 × 512 pixel tiles. These tiles are passed through a TDA stage based on Discrete Morse [44] and a CNN stage for determining the topological and axonal priors, respectively. The topological priors capture the faint connectivity which is used to boost the performance of the CNN in a supervised Siamese network using the dual priors that comprise the DM++ framework. The final output likelihood map is converted into a binary mask for the neuronal processes using an optimal empirically determined threshold. This captures most of the processes in the tiles, which are then stitched back together to form a mask for an entire reference section of the brain.

The preliminary outputs of process detection were manually verified for the entire brain by a histotechnologist using MATLAB. Briefly, the preliminary outputs consisting of detected signal were masked with the original brain section image and error corrected using a MATLAB-based pixel annotation tool (refer Section 1.5 for further details). The filled processes were identified as those having a brighter intensity compared to the background. The proofread brain from the previous step was annotated in the format of binary images. The images were further downsampled to the desired resolution by summing pixels appropriately.

1.3. DM-Skeleton

This section provides details for the DM-Skeleton pipeline corresponding to the workflow in Fig. 1.

1.3.1. Step 1: Pre-processing

Each image volume is loaded as an image stack, and converted into a density field $\rho :\text{K}\to \text{R}$ defined on the 2D-cubical complex grid $\text{K}$, where each vertex corresponds to a pixel in the input image and has a density value. For whole-brain tracer injection STP and PMD data, a significant portion of the raw images is background (see the example in Fig. 1). Hence we first applied the learning-based process-detection module [2] to remove the background and segment the foreground consisting of labeled processes. See the previous section for more details. The resulting foreground is segmented and binary-masked. We further apply a Gaussian filter to smooth the values across the domain.

1.3.2. Step 2: Skeletonization.

The Discrete Morse graph reconstruction algorithm [22, 24] takes a density field as input and outputs a graph skeleton capturing center-lines passing through relatively high density regions. In our case, the input density field $\rho :\text{K}\to \text{R}$ is defined at vertices of a 2D-cubical complex $\text{K}$ of the domain, which is a collection of squares (2-cells), their edges (1-cells), and vertices (0-cells), forming a planar structure. In all subsequent operations, only the 2-skeleton of this 2D-cubical complex $\text{K}$ is needed, that is, we assume $\text{K}$ consists of vertices, edges, and squares.

To explain the main idea, consider first the smooth case where we have a smooth function $\rho :\text{Ω}\to \text{R}$ over the domain $\text{Ω}$. Consider the terrain of the density function values plotted over the domain (Fig. 2) where the terrain of a function defined on R² is given. The underlying graph skeleton of $\rho$ can be captured by the paths connecting the peaks on the mountain ridges through the intervening saddle points (Fig. 2a). These paths form the so-called 1-unstable manifold in Morse theory, and are defined by the integral lines “connecting” saddle points to local maxima (Fig. 2b). An integral line is a curve in the domain where at any point on it, its tangent vector coincides with the gradient of the density field. Integral lines are thus intuitively flow lines, following the steepest descending direction of the density fields. Inside the algorithm, roughly speaking, ridges (as defined by pairs of (saddle, maximum)) are associated with certain persistence values, as quantified by the so-called persistent homology [9]. The persistence values can be interpreted as importance scores. This makes it possible to filter out ridges of ”low importance”, which are assumed to be associated with noise, from the final output by providing the algorithm with a persistence threshold. An example of simplification for a very simple 1D function is shown in Fig. 2c and 2d.

For the input to our algorithm, we have a density field $\rho :\text{K}\to \text{R}$ defined at vertices of a 2D-cubical complex $\text{K}$ of the domain $\text{Ω}$ (a 2D region). Following [22], discrete Morse theory [23] is used to capture the mountain ridges mentioned above, combined with the persistence algorithm to measure importance. See Supplementary Materials for a short tutorial on the DM-algorithm. To improve the efficiency of the algorithm, we modified the algorithm of [22] so that it works directly with 2D-cubical complexes and also uses DIPHA [40] to compute persistence pairs in a distributed manner.

These mountain ridges cover the axonal branches as locally, points in the image along these branches tend to have relatively higher density (signal strength) than off the branches. The global nature of the 1-stable manifolds makes the output skeleton robust to small gaps in signal, and effective at capturing junctions; see e.g., Fig. 2a, where the global nature of 1-manifolds connects through low-density region around the Y-junction.

In ideal circumstances, we would find a persistence threshold that would remove all of the noise and only keep the ridges that make up the true neuron tree. However, because of the noisy nature of biological data and also the Discrete Morse graph reconstruction algorithm will not necessarily output a tree, we cannot take the algorithm’s output as a final output. Instead, we first run the algorithm with a low persistence threshold such that we do not remove any ridges that would be part of an ideal output. Then we simplify the Morse graph skeleton in the next step.

1.3.3. Step 3: Simplification using a ”Haircut” step.

The output of the above persistence-guided Morse-based framework is a geometric graph $G$, also referred to as the Morse graph skeleton. The morse graph $G$ has a set of trees in them for each connected component in the likelihood image. These trees provide a good initial estimate of the skeletons. However, the likelihood images produced from the convolution-based framework of Process Detection [2], have a few false detects. We use the binary threshold on likelihood image, from the DM++ algorithm to mask out most of the false detects to obtain a modified graph $G^{\prime }$. The modified morse graph $G^{\prime }$ also can have several small side branches, originating in paths connecting the real signal to nearby noise maxima. These small branches (∼ 10 pixels) are characterized by path from the branch points on the graph (degree-2 nodes) to the endpoints on the graph (degree-1 nodes) that change direction at most once. $G^{\prime }$ is pruned of these paths using this Haircut mechanism to produce a simplified Morse Graph $G_s$.

1.3.4. Summarization of the length of the Tracer Fragments

Spatial mappings (i.e. a 3D displacement vector at each voxel) were computed between our atlas and each target dataset using our generative diffeomorphic mapping framework previously developed and validated in human [32] and in mouse [33]. In this framework a target dataset is generated from a sequence of transformations of the atlas dataset. This sequence includes a diffeomorphism computed within the Large Deformation Diffeomorphic Metric Mapping framework [34] encoding changes in shape; a 12 parameter affine transformation encoding changes in scale, orientation, and position; a sequence of 3 parameter 2D rigid transforms (one per slice, only when a 2D serial section dataset is used); and a polynomial change of contrast to account for multimodality data. To account for missing tissue or artifacts, our procedure includes an Expectation Maximization algorithm [45] to compute the posterior probability that a given voxel in our target is good quality. Parameters characterizing these transforms are jointly optimized in a maximum a posteriori framework. Those characterizing the diffeomorphism are updated using Hilbert gradient descent [34], those characterizing the affine and rigid transforms are updated using Riemannian gradient descent [35], and those characterizing the contrast differences are updated by solving a weighted least squares problem. Once computed, each fragment was transformed into the coordinates of our atlas by applying the inverse transformation to each vertex, and leaving the edges (connectivity information) unchanged. A density with units of fragment length per unit volume was computed by assigning each line segment in 2D to the pixel where its center lay, and incrementing the density value at this pixel by the length of the line segment divided by the area of the 2D voxel (starting from 0), giving units of length per unit area. This was further divided by the optical thickness of the section to give units of length per unit volume as described in the main text.

1.3.5. Additional features.

The simplified Morse Graph $G_s$ was divided into skeletal-fragments for vectorization. For each connected component $(>)$ in the detected image, a graph was constructed. The graph consisted of branchpoints, $B_p$ (nodes with degree > 2) and endpoints, $E_p$ (nodes with degree 1), collectively called as Critical Points $C_p$. Each skeletal fragment consists of path between any pair of connected $C_p$’s. Using a modified Depth-First Search, we walk through all the edges of the graph, to produce these Skeletal fragments. These fragments are vectorized as line-strings, with their length also recorded. The vectorized line strings are converted to geojsons, for display on the web (visit https://data.brainarchitectureproject.org/pages/skeletonization for more details).

1.4. Evaluation metrics: Precision, Recall and F1-score for evaluating results.

For skeletonized data, a set of manually annotated sample tiles were provided as ground truth. The precision and recall metrics calculated for evaluating skeletonization results depend on True Positives (TP), False Positives (FP) and False Negatives (FN). TP is calculated as the each pixel belonging to the detected image which is within a ceratin radius $D_r$ of the ground truth (GT) pixel ($D_r=5$ for WSI data; $D_r=3$ for STP data, empirically determined), where a GT pixel can contribute only once to the calculation to the metric. This prevents two neighboring lines from contributing to a single GT pixel. Pixels along a line do not necessarily exclusively contribute to the TP. All the pixels in the evaluated image which are not in the TP set and not in the GT set, are considered as FP, while all pixels in the GT set which are not in the TP set and not in the detected pixel set, are considered as FN. The second and third rows of the Figs. 3 and 4 shows the TP in cyan, FP in yellow and FN in magenta. For the second row, the evaluated image is the skeletonized image by our proposed method, DM2D, and the third row shows the detected image by the baseline technique, $bwskel()$ from MATLAB.

Precision and recall are then routinely computed as:

$$Precision=\frac{TP}{TP+FP}$$ (2)

$$Recall=\frac{TP}{TP+FN}$$ (3)

The F1-score is the harmonic mean of precision and recall, i.e.,

$$F_1=\frac{2\cdot Precision\cdot Recall}{Precision+Recall}$$ (4)

The parameter $IOU$-score was calculated as binary classification metric,

$$IOU=\frac{TP}{FP+FP+FN}$$ (5)

1.5. Manual Annotation Tool.

The DM2D algorithm generally produced good detects, in almost all the regions except the injection regions in the brain, where performance is disrupted by image saturation effects. There are also a few easily identifiable regions of false detects around the edges of the brain tissue, and the blood vessels, where it the autofluorescence signal not originating from neuronal processes leads to false detects. These regions were manually corrected. The injection region was manually demarcated and eliminated form the skeletons. We used an in-house Matlab-based Annotation tool. To generate the GT image, we manually added the line-strings corresponding to the missed detects on the image. For removal of the systemic errors and the Injection region, we use a polygon-based deletion tool, as shown in the Extended Fig. 1, where every pixel within the polygon is deleted.

Extended Data

Extended Fig. 1 |. Manual Annotation Tool.

The MATLAB-tool used for generation of ground-truth, injection region removal, and correction of systematic errors at blood vessels and the brain outline. Column (a) shows a zoomed in portion of the contrast enhanced original image with the detected annotations overlayed in cyan, column (b) shows the annotator marking the missed neuron fragment in green, column (c) shows the annotator marking the false-positives using an arbitrary polygon, and the column (d) shows the result of the annotation after the correction corresponding to the images in column (a). Each column shows an example of WSI image annotation in the top row, while the STP annotation is shown in the bottom image.

Data and code availability

The WSI data is from the Brain Architecture Project, whereas the STP data was collected as a part of the Brain Initiative Cell Census Network. The images can be viewed online from: https://data.brainarchitectureproject.org/pages/skeletonization. The single neuron data sets are available from https://neuroxiv.org/ and from the Mouselight neuron browser at https://ml-neuronbrowser.janelia.org/. Processed projection summary of STP & WSI data, the code and documentation are available at https://data.brainarchitectureproject.org/pages/skeletonization.
