Electrochemical Three‐component Synthesis of Alkenesulfonates from Cinnamic Acids, SO₂, and Alcohols

Abstract

A novel, electrochemical three‐component reaction for the synthesis of alkyl alkenesulfonates from cinnamic acids, SO₂, and alkyl alcohols is reported. This metal‐free process employs inexpensive and readily available graphite electrodes in combination with easy‐to‐use stock solutions of SO₂ and enables a straightforward construction of the styrene sulfonate scaffold via a decarboxylative transformation. Mechanistic studies indicate a pseudo‐Kolbe type reaction. This novel reaction pathway enables a regioselective synthesis of alkenesulfonates from substituted cinnamic acids without double‐bond translocation. Gram‐scale and anolyte reusability experiments demonstrate the applicability of this process for the construction of alkenesulfonates from cinnamic acids as potential biogenic feedstock.

An electrochemical three‐component synthesis of alkyl alkenesulfonates from cinnamic acids, SO₂, and alkyl alcohols is reported. This metal‐free process employs inexpensive and readily available graphite electrodes in combination with easy‐to‐use stock solutions of SO₂ and enables a straightforward decarboxylative preparation of styrene sulfonates via a pseudo‐Kolbe type pathway.

1. Introduction

The toxic and corrosive gas sulfur dioxide (SO₂) is both, an important feedstock for the chemical industry, produced annually on a million‐ton scale,^{[ 1 ]} and a major air pollutant with severe impacts on environment and health.^{[ 2 ]} The direct incorporation of SO₂ into organic molecules enables an efficient and modular synthesis of various interesting scaffolds bearing different sulfonyl (—SO₂—)‐based functional groups, such as sulfones or sulfonamides.^{[ 3} , ⁴ , ^{5 ]} The introduction of easy‐to‐handle SO₂ surrogates, in particular the solid DABCO‐bis(sulfur dioxide) adduct, DABSO (1,4‐diazabicyclo[2.2.2]octane bis(sulfur dioxide) adduct),^{[ 6} , ^{7 ]} has paved the way for the development of novel approaches for the synthesis of sulfur‐containing molecules for potential applications in agrochemistry, drug development, or materials sciences.^{[ 8} , ⁹ , ¹⁰ , ^{11 ]} Among the various methods established in recent years, approaches based on radical transformations are particularly well‐suited for the incorporation of SO₂ in organic molecules.^{[ 12} , ^{13 ]} In this regard, both photo‐ and electrochemistry are enabling tools for the development of novel, sustainable processes for the direct fixation of SO₂ into value‐added products.^{[ 14} , ^{15 ]} In particular, electrochemical reactions have greatly expanded the toolbox of synthetic chemists. In many cases, the otherwise necessary prefunctionalization of the substrates and redox reagents can be omitted, which leads to a minimized amount of reagent waste, thus, simplifies the work‐up and costs.^{[ 16} , ¹⁷ , ¹⁸ , ¹⁹ , ^{20 ]} Recently, the groups of Waldvogel, Han, and Ye have described the electrochemical dehydrogenative synthesis of sulfonates,^{[ 21} , ²² , ^{23 ]} sulfonamides,^{[ 24} , ²⁵ , ^{26 ]} and sulfamides.^{[ 27 ]}

Among the different sulfonyl‐based molecular entities, alkenesulfonates play an important role. The alkenesulfonate motif can be found in molecules with interesting biological features. Three representative examples, the styrene sulfonate 1,^{[ 28} , ^{29 ]} an inhibitor of the human tyrosine phosphatase 1B (target for diabetes treatment), the cysteine protease inhibitor 2 (potential therapeutic for Chagas disease),^{[ 30 ]} and the nuclear factor E2‐related factor‐2 (Nrf2) activator 3 (anti‐inflammatory and antioxidant properties)^{[ 31 ]} are depicted in Figure  1 . Furthermore, alkenesulfonates, such as 4 or 5, are common monomers employed in the synthesis of polymers containing sulfonate groups attached directly to the polymer backbone.^{[ 32 ]} These polymers display interesting properties and have found application in blood‐compatible materials^{[ 33 ]} or proton exchange membranes.^{[ 34 ]}

Figure 1.

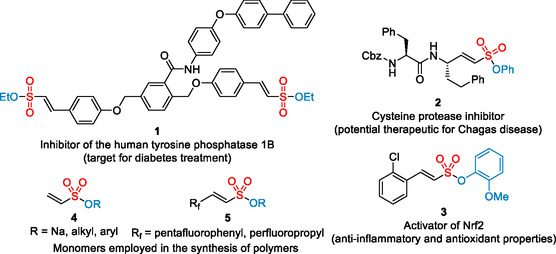

Representative examples of relevant alkenesulfonates.

Traditional methods for the synthesis of alkenesulfonates utilize the corresponding vinyl sulfonyl chlorides (Scheme  1a).^{[ 35} , ^{36 ]} These key intermediates can be prepared by addition of sulfur trioxide^{[ 37 ]} or sulfuryl chloride to an olefin.^{[ 38 ]} More contemporary processes are based on palladium‐catalyzed coupling reactions of vinyl sulfonates with aryl bromides,^{[ 39 ]} aryldiazonium salts,^{[ 40 ]} or sulfur‐fluoride‐exchange (SuFEx) chemistry employing the corresponding vinyl sulfonyl fluorides (Scheme 1b).^{[ 41 ]} Although the latter two methods do not require harsh conditions or reagents associated with the traditional approaches, they rely exclusively on vinyl building blocks already containing a sulfonyl functionality, which necessitates additional synthetic efforts. In 2024, the Waldvogel group reported an electrochemical multicomponent synthesis of alkenesulfonates from styrenes, alcohols, and SO₂, which enables a direct construction of the sulfonate functionality from two simple organic starting materials (Scheme 1c).^{[ 42} , ⁴³ , ^{44 ]} However, this dehydrogenative anodic transformation exhibits a limited scope. In the last years, decarboxylative coupling reactions of carboxylic acids have emerged as a powerful tool for the construction of C—C and C–heteroatom bonds.^{[ 45} , ⁴⁶ , ⁴⁷ , ⁴⁸ , ^{49 ]} Decarboxylative transformations of cinnamic acids enable the efficient synthesis of various functionalized styrene derivatives.^{[ 50} , ^{51 ]} Numerous groups have disclosed methods for the decarboxylative coupling of cinnamic acids with sodium sulfinates or sulfonyl hydrazides for the synthesis of vinyl sulfones,^{[ 52} , ⁵³ , ^{54 ]} including an electrochemical process from the Huang and Wang groups (Scheme 1d).^{[ 55} , ^{56 ]} To the best of our knowledge, decarboxylative sulfonylations of cinnamic acids with direct SO₂ incorporation have not yet been reported. However, such processes would offer an attractive approach for the direct transformations of cinnamic acids as biobased, renewable feedstock^{[ 57} , ^{58 ]} into value‐added sulfonyl‐compounds.

Scheme 1.

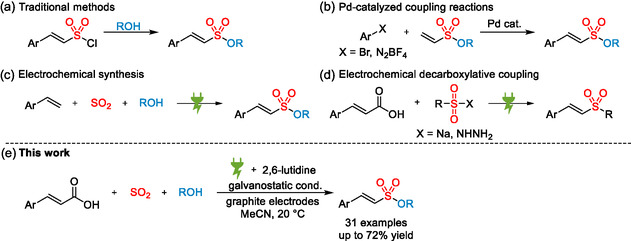

Selected approaches toward β ‐styryl sulfones and β ‐styryl sulfonates.

Herein, we describe a so far unprecedented electrochemical three‐component reaction for the synthesis of alkenesulfonates based on the decarboxylation of cinnamic acids with simultaneous incorporation of SO₂ (Scheme 1e). This novel approach features the use of easy‐to‐handle SO₂ stock solutions and inexpensive graphite electrodes and affords β‐styryl sulfonates with CO₂ and H₂ as the only formed byproducts.

2. Results and Discussion

2.1. Optimization of the Reaction Conditions

We started our investigations with the electrolysis of cinnamic acid (6a), a SO₂ stock solution (5.0 M in MeCN, see SI, Supplementary Information, for further details), and neopentyl alcohol (7a) together with an auxiliary base and tetrabutylammonium salts as supporting electrolyte using different anode materials in a divided setup (Table  1 ). For the cathodic reaction, a catholyte consisting of the tetrabutylammonium salt as supporting electrolyte together with 5 equiv. of AcOH as proton source for hydrogen evolution^{[ 59} , ⁶⁰ , ^{61 ]} in combination with the same electrode materials as for the anodic reaction was used. Best yields were obtained with inexpensive graphite electrodes, nBu₄NPF₆ (0.1 M) as supporting electrolyte, a current density of 10 mA cm⁻², and an amount of applied charge of 3.5 F, leading to the alkenesulfonate 8a in 70% isolated yield (entry 1). Whereas the use of pyridine, 2,4,6‐collidine, or 1,8‐diazabicyclo[5.4.0]undec‐7‐ene (DBU), as auxiliary base afforded the sulfonate product in slightly decreased yields of 54%–62% (entries 2–4). Simple amine bases, such as N,N‐diisopropylethylamine (DIPEA), led to the desired product only in trace amounts, presumably due to competing anodic oxidation of the amine itself (entry 5). The nBu₄NPF₆ with a concentration of 0.1 M proved to be the optimal supporting electrolyte. Increased or decreased concentrations of nBu₄NPF₆ as well as other supporting electrolytes, such as nBu₄NBF₄, resulted in lower yields (entries 6–8). The use of other electrode materials commonly used in electrochemical SO₂ fixation,^{[ 24} , ²⁵ , ²⁶ , ²⁷ , ^{42 ]} for example, glassy carbon, platinum, or boron‐doped diamond (BDD), furnished the styrene sulfonate 8a in lower yields of 25%–46% (entries 9–11). Modulation of the current density (5 or 15 mA cm⁻²) or the applied amount of charge (3.0 or 3.8 F) led to decreased yields of 54%–65% (entries 12–15). Best yields were obtained with 3.0 equiv. of neopentyl alcohol (7a), 6.0 equiv. of the 2,6‐lutidine, and 10.0 equiv. of SO₂ (entry 1). Lowering or increasing the amount of alcohol, base, or SO₂ furnished product 8a in diminished yields (entries 16–21). As already reported before, DABSO is unfortunately unsuitable for electrosynthesis due to the quite low oxidation potential of DABCO (1,4‐diazabicyclo[2.2.2]octan), leading to competitive anodic oxidation processes.^{[ 15 ]} Finally, no product formation was observed in the absence of a base or without the application of electric current (entries 22 and 23). Noteworthy, selective formation of the E‐alkenesulfonate was observed in all cases.^{[ 62 ]}

Table 1.

Influence of different parameters on the reaction outcome.

Entry	Deviation from the standard conditions	Yield [%]a)	Entry	Deviation from the standard conditions	Yield [%]a)
1	None	71 (70)b)	12	5 mA cm−2	55
2	Pyridine	54	13	15 mA cm−2	65
3	2,4,6‐Collidine	55	14	3.0 F	63
4	DBU	62	15	3.8 F	54
5	DIPEA	Traces	16	Neopentyl alcohol (2.0 equiv.)	50
6	nBu4NPF6 (0.2 M)	43	17	Neopentyl alcohol (4.0 equiv.)	47
7	nBu4NPF6 (0.05 M)	58	18	2,6‐Lutidine (4.0 equiv.)	43
8	nBu4NBF4	50	19	2,6‐Lutidine (8.0 equiv.)	49
9	Glassy carbon electrodes	46	20	SO2 (7.5 equiv.)	63
10	Pt foil electrodes	40	21	SO2 (12.5 equiv.)	68
11	BDD electrodes	25	22	No base	0
			23	No electric current	0

^{a) 1}H NMR yield with the use of CHPh₃ as the internal standard.

^b)Isolated yield.

2.2. Scope of the Reaction

With the optimized conditions, the scope of the reaction was explored with different cinnamic acids (Scheme  2 ). In general, both electron‐donating and electron‐withdrawing substituents on the aromatic core were well tolerated, affording the alkenesulfonates 8a–8i in 47%–70% yield. Reactions with halogenated cinnamic acids 6e–6i furnished the desired products 8e–8i in 47%–60% yield, without a significant influence of the substitution pattern. Both electron‐rich (6b or 6c) and electron‐poor substrates (6d) underwent a smooth decarboxylative sulfonylation to the desired alkenesulfonates in comparable yields of 52%–60%. Even a sensitive nitro functionality (6d) was well tolerated. Unfortunately, reactions with hydroxy cinnamic acids, such as 6t and 6u, did not yield the desired product, presumably due to oxidative degradation of the phenolic core.^{[ 59} , ⁶⁰ , ^{61 ]} On the contrary, transformations of different hydroxycinnamic acid derivatives without free OH‐functionalities, such as 6j (from p‐hydroxycinnamic acid), 6k (from ferulic acid), or 6l, (from sinapinic acid), afforded the corresponding alkenesulfonates 8j–8l in 20%–55% yield. Since hydroxycinnamic acids can be easily obtained from lignocellulosic biomass,^{[ 57} , ^{58 ]} our novel process provides an attractive opportunity to access interesting alkenesulfonates from renewable feedstocks.

Scheme 2.

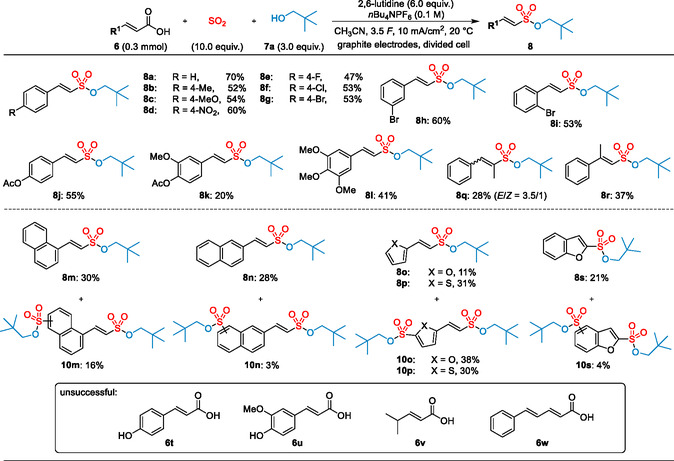

Scope of cinnamic acids and related substrates for the synthesis of alkenesulfonates 8 and 10. Isolated yields are shown.

Reactions of the two naphthyl derivatives 6m and 6n furnished the corresponding sulfonates 8m and 8n in 30% and 28% yield. In both cases, side products 10m and 10n arising from an additional sulfonylation of the aromatic core were obtained in 16% and 3% yield. Furthermore, the two heterocyclic acid derivatives 6o and 6p underwent decarboxylative SO₂ insertion delivering the sulfonate products 8o and 8p in lowered yields of 11% and 31%, together with substantial amounts of the disulfonylated products 10o and 10p. In all cases, a selective formation of the E‐configured product was observed. Reactions of the α‐ or β‐methylcinnamic acids 6q and 6r afforded the trisubstituted alkenesulfonates 8q and 8r in 28% and 37% yield, respectively. Whereas the sulfonate 8r was again obtained exclusively as E‐isomer, the sulfonylated product 8q was formed as diastereomeric mixture (E/Z = 3.5:1). Contrary to the previous work from Waldvogel^{[ 42 ]} no translocation of the double bond was observed, indicating an alternative reaction pathway. Interestingly, 2‐benzofuranoic acid 6s could also be converted into the sulfonate 8s, albeit in only 21% yield together with 4% of the disulfonylated product 10s. Unfortunately, all attempts to convert simple acrylic acid derivatives, such as 6v, or conjugated dienoic acids, such as 6w, failed under our standard reaction conditions.

Next, reactions of cinnamic acid 6a with different alcohols 7 were investigated using the optimized conditions (Scheme  3 ). Yields of 51%–60% were obtained with different simple primary or secondary alcohols, such as MeOH, EtOH, or iPrOH. Even benzylic alcohol 7e, usually more sensitive to anodic oxidation, was well tolerated, affording the expected alkenesulfonate 9e in 51% yield. In the case of cyclohexanol 7f and the tetrahydropyran‐derived alcohol 7g, the desired products, 9f and 9g, were isolated in slightly reduced yields of 39% and 40%. Reactions with structurally more complex alcohols, such as the α‐D‐glucofuranose derivative 7h and methyl 3‐hydroxybutyrate 7i, did proceed less efficiently and yielded the sulfonates 9h and 9i in only 17% and 15% yield. Still, these examples show that the incorporation of structurally more complex alcohols is feasible. On the contrary, the reaction of menthol 7j afforded the desired product 9j in 44% yield. Reactions with tertiary alcohols, such as tBuOH, or with phenols did not afford the desired products. On the contrary, fluorinated alcohols, such as 2,2,2‐trifluoroethanol (TFE) or 1,1,1,3,3,3‐hexafluoroisopropan‐2‐ol (HFIP), delivered the fluoroalkyl sulfonates 9k and 9L in 56% and 25% yield.

Scheme 3.

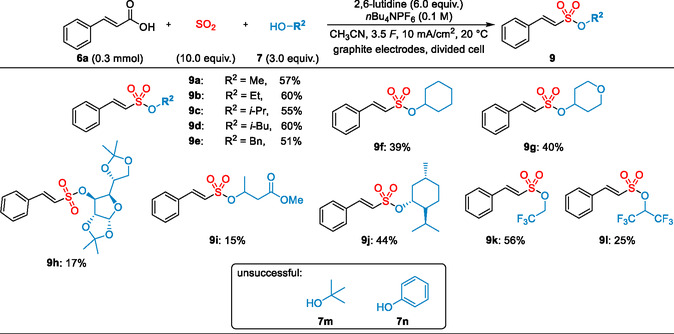

Scope of alcohols for the synthesis of alkenesulfonates 9. Isolated yields are shown.

2.3. Scale‐up and Reusability Tests

In order to demonstrate the applicability of this new protocol, a 33‐fold scale‐up experiment was performed (Scheme  4 ). To our delight, this electro‐transformation turns out to be scalable in a robust manner. Alkenesulfonate 8a could be isolated in 72% yield (equals to 41% current efficiency (CE); max. CE (for 3.5 F) = 57%) in the gram‐scale reaction compared to 70% in the micromolar setup.

Scheme 4.

Scale‐up experiment.

Furthermore, we evaluated the electrolysis setup for repeated use. Therefore, the reaction was carried out at identical conditions four consecutive times. Only the anolyte was exchanged after each run, while the catholyte and electrodes were reused directly (see Supporting Information). These experiments showed a gradual drop in yield from 70% to 57% together with an incomplete conversion of the cinnamic acid after the third and fourth run (Figure  2 ). This can be rationalized by minor electro‐fouling, due to the formation of a polymer layer on the anode (see Supporting Information for further details) as observed in similar transformations.^{[ 42} , ⁶³ , ^{64 ]} As shown by the Waldvogel group, recycling of electrolyte mixtures containing an alcohol, an amine, and SO₂ is straightforward.^{[ 25 ]} Therefore, evaporation of the anolyte components can facilitate downstream processing for larger electrolysis applications, a key step toward the translation in technical processes.^{[ 65 ]} In combination, these studies showcase the utility of the developed method for larger technical applications.

Figure 2.

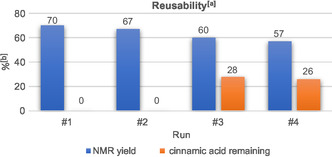

Reusability tests. ^[a]Anolyte: 6a (0.3 mmol, 0.1 M), SO₂ (10.0 equiv.), 7a (3.0 equiv.), 2,6‐lutidine (6.0 equiv.), nBu₄NPF₆ (0.1 M), MeCN, divided cell (glass frit), graphite electrodes, 10 mA cm⁻², 3.5 F, 20 °C. Catholyte: nBu₄NPF₆ (0.1 M), AcOH (5.0 equiv.), MeCN. ^[b]1H NMR yield with the use of CHPh₃ as the internal standard.

2.4. Mechanistic Studies

Finally, further studies and control experiments were performed, in order to elucidate the reaction mechanism. As shown in Table 1, no product formation was observed in the absence of a base or when the electric current was omitted (entries 22 and 23). After addition of radical scavengers, such as 2,6‐di‐tert‐butyl‐4‐methylphenol (BHT) or 2,2,6,6‐tetramethylpiperidinyl‐oxyl (TEMPO), no product was detected in the crude reaction mixture (Scheme  5 ). In both cases, only partial decomposition of cinnamic acid 6a was observed. In the presence of BHT, an adduct, potentially arising either from trapping of an alkoxy sulfonyl radical species or Michael‐type addition of a monalkylsulfite to an in situ formed quinoid methide, could be detected by GC‐MS (see supporting information for further details).

Scheme 5.

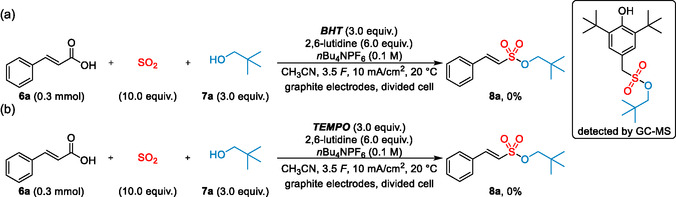

Control experiments.

Finally, cyclic voltammetry revealed that under the standard reaction conditions (excess of base), an early oxidation of the cinnamate salt should take place before oxidation of the monoalkyl sulfite or overoxidation of the alkenesulfonate (see supporting information for further details) (Figure  3 ).

Figure 3.

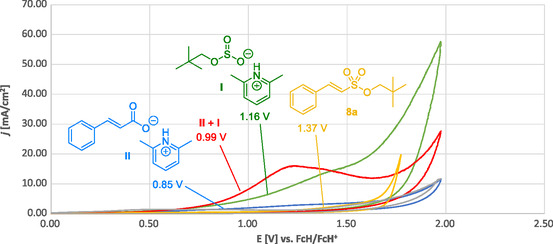

Cyclic voltammograms: Cinnamate II (blue), monoalkylsulfite intermediate I (green), alkenesulfonate 8a (yellow), mixture of cinnamate II and monoalkylsulfite intermediate I (red), and blank measurement (0.1 M nBu₄NPF₆ in MeCN; gray). The numbers given refer to the half‐wave oxidation potential of the respective compounds or mixtures.

These results, together with the absence of any disulfonated products in the reaction of β‐methylcinnamic acid, indicate an alternative reaction pathway compared to the previously described sulfonation of styrenes.^{[ 42 ]} Based on the results from our mechanistic investigations and precedents from the literature,^{[ 52} , ⁵³ , ⁵⁴ , ⁵⁵ , ^{56 ]} we propose pseudo‐Kolbe type reaction pathway, viz oxidation of the carbon scaffold instead of the carboxylic acid functionality (Scheme  6 ).^{[ 66} , ^{67 ]} At first, O‐monoalkylsulfite III is generated in situ from the alcohol 7 and SO₂. The base, 2,6‐lutidine, assists in shifting the equilibrium toward the deprotonated species.^{[ 21} , ²² , ²³ , ²⁴ , ²⁵ , ²⁶ , ⁶⁸ , ⁶⁹ , ⁷⁰ , ^{71 ]} Furthermore, cinnamic acid will be deprotonated to the corresponding carboxylate IV. One‐electron oxidation of cinnamate IV affords radical cation V. Regioselective addition of O‐monoalkylsulfite I to V can furnish the stabilized zwitterion VIb containing an S‐centered radical. Alternatively, addition of O‐monoalkylsulfite III to V can also lead to the stabilized benzylic radical VIa. A second anodic oxidation of VIa or VIb yields the benzylic cationic VII, which undergoes a decarboxylation to generate the final products 8 and 9. The stereoselective formation of the E‐isomer presumably occurs through the most stable staggered conformation in kinetically controlled fashion. On the cathodic side, hydrogen is generated from acetic acid in a hydrogen evolution process as simple and efficient counter reaction.

Scheme 6.

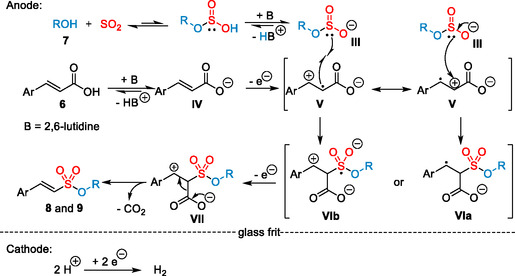

Proposed reaction pathway.

Noteworthy, pseudo‐Kolbe systems are usually limited to benzylic‐type substrates. To the best of our knowledge, herein, we describe a so far unprecedented pseudo‐Kolbe type decarboxylation of cinnamic acids. We envision that the extension of the pseudo‐Kolbe reaction to a new scaffold can be utilized for other decarboxylative functionalizations as well.^{[ 72} , ^{73 ]}

3. Conclusion

In summary, a novel electrochemical three‐component reaction for the synthesis of alkyl β‐styrenesulfonates is described. This metal‐free process utilizes widely available cinnamic acids, alcohols, and SO₂ stock solution in combination with inexpensive graphite electrodes. The utility of this transformation was demonstrated in a substrate scope of 31 examples with up to 72% yield as well as in scale‐up into multigram range and anolyte reusability studies. Mechanistic investigations indicate a so far unprecedented pseudo‐Kolbe type decarboxylation of cinnamic acids. Contrary to previous methods, this new approach enables the regioselective synthesis of substituted styrene sulfonates without double bond translocation or double addition products. The direct decarboxylative conversion of biobased cinnamic acid derivatives opens an attractive access to the intriguing styrenesulfonate scaffold from renewable building blocks. Studies to electrochemically exploit the synthetic utility of the pseudo‐Kolbe decarboxylation of conjugated alkenoic acid as well as investigations to extend the electrochemical, decarboxylative SO₂ insertion to other scaffolds are currently ongoing in our laboratories.^{[ 74 , 75 ]}
