. 2025 Jul 2;15:23563. doi: 10.1038/s41598-025-02277-4

Quantification of trace 227Ac and other radionuclidic impurities in mass-separated 225Ac samples produced at CERN-MEDICIS

Jake D Johnson 1,, Cyril Bernerd 1,3, Frank Bruchertseifer 2, Thomas E Cocolios 1,, Marie Deseyn 1, Charlotte Duchemin 1,3, Michael Heines 1, Max Keppens 1, Laura Lambert 3, Nathan Meurrens 1, Ralf E Rossel 3, Thierry Stora 3, Viktor Van den Bergh 1
PMCID: PMC12222749  PMID: 40603904

Abstract

225Ac is a promising candidate medical radionuclide for targeted alpha therapy of advanced stage cancers. One of the main production pathways is the high-energy proton spallation of thorium-based targets, that requires an efficient, nuclide-selective separation method to recover 225Ac from hundreds of co-produced spallation and fission products. The main radioactive contaminant of concern is 227Ac  (T1/2 = 21.8 years), that could preclude extensive medical use if not significantly suppressed. In this work, 225Ac samples were produced by mass separation of radioactive ion beams extracted from proton-irradiated thorium-based targets. The activity of 225Ac and other possible contaminants of the samples were measured using complementary gamma- and alpha-decay spectrometry methods, while 227Ac activity was calculated by performing alpha-decay spectrometry of recoiled progeny from the sample. Using this novel method, accurate measurement of trace 227Ac activity in 225Ac samples was performed much faster than with conventional spectrometry techniques, thanks to its 10,000-fold increase in relative sensitivity. The end of collection activity ratio of 227Ac to 225Ac in two samples from irradiated targets were determined to be Inline graphic and Inline graphic respectively, three orders of magnitude below the 227Ac activity in 225Ac products obtained through radiochemical separation. The high separation factor of 225Ac over 227Ac suggests the suitability of mass-separated accelerator-based 225Ac for medical use.

Subject terms: Experimental nuclear physics, Mass spectrometry

Introduction

Targeted alpha therapy (TAT) is a treatment modality of advanced stage cancers with distributed lesions that exploits the high yet selective cyto-toxicity of alpha radiation. In most cases, an alpha-emitting nuclide is chelated to a targeting molecule that is chosen for its preferential binding to tumor-specific receptors. The alpha radiation that is emitted by the nuclide in the vicinity of the targeted cancer cells causes damage through a number of mechanisms that have been described in detail19, but still require further investigation. One of the main issues limiting pre-clinical research progress is the procurement of appropriate alpha-emitting nuclides10. Though many alpha emitters exist, only a few are suitable for TAT due to the necessity of matching their nuclear decay half-life with the circulation times of conjugate targeting vectors. Of the suitable candidate alpha-emitting nuclides, 225Ac is one of the most promising due to its 9.92 day half-life11 and 4 rapid subsequent Inline graphic-decays, whose energy totals 28 MeV. The growing demand for medical grade 225Ac exceeds the yearly 70 GBq production capacity of existing 229Th generators, prompting the development of nuclear-reaction-based production approaches10,12.

High-energy proton spallation of naturally-occurring 232Th-based targets is a promising alternative production route, which, unlike generator production, has the potential to be scaled up. For example, at the Los Alamos National Laboratory (LANL) material test station, the 225Ac in-target production rate is estimated at Inline graphic using a measured reaction cross section of 14.8(11) mb13. The end of irradiation 225Ac yield scales up with proton charge on target and target thickness. The monthly production yield across selected North American accelerator complexes LANL, Brookhaven National Laboratory (BNL) and TRIUMF for nominal operating conditions has been estimated to be greater than 3000 GBq/month12. Despite the promising production rates, a major hurdle in producing medical grade 225Ac through this reaction is the co-production of 227Ac that cannot be separated from 225Ac in standard radiochemical treatments of irradiated targets1417. Cumulative reaction cross sections for protons on 232Th have been measured for both 225Ac and 227Ac at several energies of up 200 MeV18,19 and at higher energies of 438 MeV14, 800 MeV13 and 8 GeV20. The cross section of both nuclides is greater than 10 mb for proton energies above 128 MeV, with that of 227Ac slightly larger than that of 225Ac. The relative in-target activity of 227Ac compared to 225Ac produced with Inline graphic MeV proton beams is thus predicted to be approximately the ratio of their decay constants: the order of 0.1%. The 227Ac to 225Ac activity ratio has been measured to be 0.15(4)% and 0.142(5)% at end of irradiation in samples of thorium metal irradiated with 438 MeV and 100 MeV protons at TRIUMF (Canada)14 and at Brookhaven National Laboratory (USA)21, respectively. This 227Ac activity fraction raises concerns from a pharmaceutical waste management perspective22 and a regulatory perspective, that may impact wide-scale clinical adoption. For example, in the USA, financial assurance is required for licenses to handle Inline graphic kBq 227Ac, that can be burdensome for dedicated 225Ac production laboratories. Additionally, low limits for contamination reporting (74 Bq 227Ac) and accidental ingestion (15 Bq 227Ac) mean that some laboratories may be reluctant to handle 225Ac products with excessive 227Ac content23. In Switzerland, the authorization limit (LA) for 227Ac is 8 Bq24. Class C laboratories can therefore handle up to 800 Bq 227Ac. A limit on acceptable 227Ac activity in medical-grade 225Ac products is suggested in refs.14 and25 to be 0.01 % of 225Ac activity, corresponding to 1 kBq 227Ac per 10 MBq patient dose, in line with the exemption limit for 227Ac given by the International Atomic Energy Agency (IAEA)26. While a consensus acceptable limit of 227Ac activity in medical 225Ac products is yet to be established, the stringent limits imposed on 227Ac handling by regulatory authorities motivate the need to suppress it as much as possible, that in turn motivates the need of an isotopically-selective separation method of 225Ac from thorium-based targets irradiated with high-energy protons.

Isotope separation of reaction products from irradiated targets can be achieved through the isotope separation on line (ISOL) technique, employed for the separation and study of exotic nuclides, for example at the CERN-ISOLDE facility27,28. An offline adaptation of this method can be applied for batch extraction of medical radionuclides from pre-irradiated targets, as developed at the CERN-MEDICIS facility since 201829. Here, element selectivity is achieved through in-source step-wise resonance laser ionization, that increases the ionization efficiency of a chosen element above the surface ionization efficiency from a hot cavity. Mass selectivity is then achieved based on the specific magnetic rigidity of the produced ion beam in the double-focusing separator magnet that is transmitted through slits. This combination provides a high degree of selectivity for the chosen nuclide over all other reactions products with the exception of volatile, efficiently surface-ionized isobaric contaminants. Previous work has shown that 225Ac can be ionized with a 15% efficiency using a combination of two resonance laser ionization schemes in addition to surface ionization30, however extraction efficiency and selectivity for 225Ac from irradiated thick targets is yet to be determined. In this work, the isotope selectivity of mass separation is studied by accurately quantifying the 227Ac content with nuclear decay spectrometry in three samples of 225Ac separated by mass as radioactive ion beams under different conditions. The separation enhancement factor, Inline graphic is defined in eq. (1) as the relative collected activity at end of collection, Inline graphic to in-target activity, Inline graphic for the nuclide of interest X, with respect to contaminant nuclide, Y. It has been calculated for 225Ac with respect to several contaminants identified with decay spectroscopy, including 227Ac.

graphic file with name d33e552.gif 1

In section 2, details of the Ac-source/target preparation are provided, including irradiation conditions and inventories of relevant radionuclides of the sources at the start of collection. Section 3 then describes how species from the target are ionized, separated and collected at CERN-MEDICIS, producing the 3 samples analyzed in the rest of the work. The novel method of alpha-decay recoil spectrometry for trace analysis is described in section 4, where it is applied to determine the 227Ac content of the samples. The activity measurements of 225Ac, 225Ra and other radioactive impurities in each of the samples using complementary decay spectrometry techniques performed at KU Leuven are presented in section 5. Finally, the resulting separation enhancement factors of 225Ac relative to 227Ac, along with the radioisotopic and radionuclidic purity of a collected sample, are discussed.

Production of 225Ac-containing sources for separation

The mass-separated 225Ac samples measured in this work were extracted from three different sources at CERN-MEDICIS. In preparation for loading of the nuclear material, target units, developed from those used at CERN-ISOLDE, consisting of a Ta target container coupled via a Ta transfer line to a tubular Re ion source were conditioned. For this, each target unit was gradually heated under vacuum at the ISOLDE offline 1 mass separator to release typical impurities such as Na, K, Al, La and LaO, identified as ion beams produced in the Re surface ion source.

Source A: 227Ac and 225Ac loaded on thick ThO2target prior to mass separation

A first source, source A, was produced in order to test the performance of the separator for a known initial quantity of 227Ac and 225Ac. This source was not an irradiated target. It was produced at JRC Karlsruhe by depositing and evaporating a mixture of 12.7  MBq 225Ac(NO3)3 and 100  kBq 227Ac(NO3)3 solutions respectively onto a fibrous ThO2  target of 15.08 g. The source thus constitutes the dried Ac precipitates adsorbed onto the ThO2  target surface. The release of Ac from this target upon heating is governed only by surface desorption and macroscopic effusion to the ion source, while Ac released from an irradiated target undergoes the additional processes of diffusion and microscopic effusion through the target bulk.

The initial activities of the nuclides were measured with alpha- and gamma-decay spectrometry for 225Ac, and gamma-decay spectrometry for 227Ac, before deposition of the solutions. The spiked ThO2  target was transported to the CERN-MEDICIS facility, where it was placed into one of the conditioned ISOLDE target containers. The target unit was then coupled to the front end of the mass separator. The activities of 225Ac and 227Ac at the start of collection were 10.8 MBq and 100 kBq respectively.

Sources B and C: Irradiated Th-based targets

For source B, a sintered ThO2  target with a mass of 14.65 g was used. It was inserted into an ISOLDE target unit, then irradiated under Ar atmosphere at the MEDICIS irradiation station for a total time of 30 hours, with a total of Inline graphic protons of 1.4 GeV from the proton synchrotron booster (PSB) impinging the target in the direct irradiation configuration31.

For source C, a thicker 98.9 g ThCxtarget was used. It was produced by reacting pressed ThO2  powder with excess graphite pellets in a carbothermal reduction reaction to form mostly ThC2 + C2. In preparation for the collection, the ThCx  target material was inserted into the target container, then characterized and conditioned by heating it on the front-end of the MEDICIS separator, as done at the ISOLDE offline 1 separator for empty target units. During the characterization process, contaminants present in the ThCx  target material that may contribute to background ion current at mass-to-charge ratio (A/q) = 225 were identified. Beams at Inline graphic 224, 226, and 228 attributed to 224, 226, 228Ra+ that are produced radiogenically in the decay chains of the target material were successfully outgassed. This was done to ensure that the ion beams produced around the Inline graphic region during nuclide collection from the irradiated target would only be those produced through reactions induced by the proton irradiation. At the end of the conditioning period with the target temperature at 2138 Inline graphicC, a background beam current of 0.25 pA at Inline graphic was present, attributed to mass-tailing from intense lanthanide beams. Further details of the conditioning are provided in the supplementary material. After the target was outgassed and characterized, it was irradiated under Ar atmosphere for 21.85 hours with 1.4 GeV protons at an average beam current of Inline graphic, corresponding to a total number of Inline graphic protons. The protons were incident on the target vessel in the direct irradiation configuration.

The radionuclide inventories at the start of collection from both sources B and C were calculated for the exact irradiation conditions by Monte Carlo simulation with FLUKA (fluka.cern v4-2.2 and v4-3.0, respectively)3234. Reactions induced by secondary particles generated through the interaction of the proton beam with the aluminium vessel and Ta target container were accounted for. The fragmentation process was modelled accounting for coalescence of nucleons and fragment evaporation. For source B, the proton beam was modelled as a 1.26 cm full-width-half-maximum (FWHM) and 1.1 cm FWHM Gaussian beam proton in the two orthogonal transverse axes. The target was modelled as a cylinder of length 1.27 cm and radius 0.615 cm with standard ThO2  density of Inline graphic corresponding to a thickness of Inline graphic as an approximation to the true target geometry. The target then underwent a 65.5 h cooling time. The irradiation of the ThCx  target for source C was simulated with a 1.4 GeV Gaussian proton beam size of 0.82 cm FWHM along each transverse axis on the target of density Inline graphic and thickness Inline graphic, with a 3.5 hour cooling time after end of beam. The simulated activity ratio of 227Ac to 225Ac at the start of collection was 0.198(9)% and 0.159(6)% for source B and C respectively. An overview of other relevant nuclides with half-lives > 1 d produced in the target that could exist as singly ionized atomic or molecular species with A/q in the range 222-228 is shown in table 1.

Table 1.

In-target radionuclide inventories of species with beams in the Inline graphic region at beginning of collection for each of the three sources in this work.

A/q Nuclide Beam Half-life In-target activity
A B C
222 206Po 206Po16O+ 8.8(1) d 0 5.82(9) MBq 2.70(5) GBq
223 223Ra 223Ra+ 11.43(5) d 0 960 (40) kBq 310(20) MBq
224 208Po 208Po16O+ 2.898(2) Y 0 55(2) kBq 20.4(3) MBq
224Ra 224Ra+ 3.6316(23) d 0 4.6(2) MBq 2.79(8) GBq
225 209Po 209Po16O+ 124(3) Y 0 1.74(5) kBq 568(9) kBq
225Ra 225Ra+ 14.9(2) d 0 380(30) kBq 149(4) MBq
225Ac 225Ac+ 9.920(3) d 10.8(6) MBq 2.37(7) MBq 1.03(3) GBq
226 210Po 210Po16O+ 138.376(2) d 0 365(8) kBq 95(2) MBq
226Ra 226Ra+ 1600(7) Y 0 15.8(7) Bq 4.4(2) kBq
226Ac 226Ac+ 29.37(12) h 0 3.12(11) MBq 5.5(2) GBq
227 227Ac 227Ac+ 21.772(3) Y 100(5) kBq 4.7(2) kBq 1.64(2) MBq
228 228Ra 228Ra+ 5.75(3) Y 0 1.49(14) kBq 549(39) kBq
228Ac 228Ac+ 6.15(2) h 0 16.7(5) kBq 9.4(2) GBq

Several isotopes of Ra are well produced over the full mass range. Amongst the Ac isotopes, in addition to 225Ac and the aforementioned 227Ac, 226Ac (T1/2 = 29.4 h) is produced with similar cross section. This is typically not considered to be problematic as it decays quickly compared to 225Ac. Finally, several long-lived Po isotopes are included. They may exist as ions in the Inline graphic region as singly-ionized oxide sidebands. Section 3 further discusses how these beams could be produced.

Collection of 225Ac using resonance laser ionization and mass separation

Offline isotope separation with resonance laser ionization of 225Ac was performed on each of the three sources at CERN-MEDICIS. The details of the laser laboratory (MELISSA), beamline and mass separator are published elsewhere35,36. The method of mass separation and resonance laser ionization implemented at CERN-MEDICIS has been described in previous work30, as well as a review article of CERN-MEDICIS operations29, and will be presented here briefly. After irradiation, the target and ion source unit is mounted on the front end of the separator beamline. There, it is pumped until the pressure reaches Inline graphic. A nominal high voltage of 60 kV is then applied between the ion source and the extraction electrode. The target container and ion source are subsequently independently resistively heated to temperatures necessary for release of the most volatile elements and efficient hot cavity ionization (approximately 1600 Inline graphicC and 2200 Inline graphicC respectively). This allows the target and ion source to be effectively ‘outgassed’, allowing for the removal of both volatile reaction products and volatile impurities from the target and ion source material that can impact the ion source performance. After the outgassing period, the target container is gradually heated further to promote release of the radionuclides to the tubular ion source. At the same time, temporally- and spatially-overlapped pulsed lasers with energies of the order of 0.1 mJ/pulse are shone into the tubular ion source for efficient step-wise resonance ionization of the isotope of interest - in this case 225Ac. Atoms of elements that are not selectively ionized by the resonant photon field may still be surface ionized within the hot cavity. The ionized species are extracted as an ion beam and then separated by a sector dipole magnet. The beam of the mass of interest is finally implanted into a collection foil. In this work, each sample was produced by ion beam implantation for a fraction of the duration of the collection, as up to 2 other samples were collected for distribution to other laboratories. Consequently, the activities of nuclides on the samples are less than those from the entire collection, and discussion of collection efficiencies is beyond the scope of this work.

Ionization

Species released from the target container into the ion source enter the hot cavity environment. Even though Ac-selective ionizing lasers are shone into the cavity, all elements are ionized with an efficiency, Inline graphic given by the Saha-Langmuir equation. The equation is modified to account for ion confinement in the hot cavity therein with a temperature-dependent amplification factor, Inline graphic, that depends on the partial pressures of elements in the cavity, in addition to the cavity geometry, cavity surface material and its rate of thermionic emission3739.

graphic file with name d33e1152.gif 2

Here, Inline graphic is the work function of the ion source material, Inline graphic is Boltzmann’s constant, T is the ion source temperature and Inline graphic is the effective first ionization potential of the element considered that is related to its ionization potential, Inline graphic, and ion and ground state multiplicities, Inline graphic and Inline graphic respectively, by Inline graphic.

Of the species shown in table 1, the ionization potentials of Ra and Ac are known while that of PoO is not. The amplification factor, Inline graphic, is challenging to quantify due to, amongst other factors, lack of information on the partial pressure of released reaction products and volatile impurities evaporated from the target container and tubular ion source. Nonetheless, over a broad illustrative range of Inline graphic, the surface ionization efficiency of Ra and Ac in a rhenium cavity at 2100 Inline graphicC varies from 29 % to 95 % and 3 % to 60 % respectively. Ra is thus more efficiently surface ionized than Ac by a factor ranging from 10 to 1.5. Little information is available on PoO, however it could be formed either by ionization of PoO, or through dissociation of a PoOX or PoOX molecule. The relatively low surface ionization efficiency of 225Ac for typical ion source amplification factors, is why resonance laser ionization is used.

The resonance laser ionization on 225Ac was performed using two 2-step laser schemes used in parallel, shown in Fig. 2 in ref.30. These schemes, developed by Raeder et al40, and Ferrer et al41, share a common first step excitation and thus require three lasers. A grating Ti:Sa laser was used for generating the first step wavelength of 438.575 nm, while two birefringent filter/Fabry-Perot etalon Ti:Sa lasers were each tuned to produce 1 of the 2 second-step wavelengths of 456.148 nm and 424.702 nm. For the collection of the samples A, B and C, powers of 65, 330 and 350 mW were used respectively for the first step, while powers of between 750-960 mW were attained for the two second steps. During collections at MEDICIS, the saturation of the transitions of each step in the composite scheme was measured. It was found that the first step was saturated above powers of the order 150 mW. Step 2a was saturated above powers on the order 600 mW, while step 2b was not observed to be saturated at the laser powers achieved for all collections. The increase in beam current when the laser light was shone into the source (laser ON/OFF enhancement) was in each case used as a tool to identify 225Ac+.

Mass separation

The mass separation step separates the beams according to the square root of their mass to charge ratio. The ability to separate beams of neighboring masses in space is quantified as the mass resolving power, mrp, given by

graphic file with name d33e1262.gif 3

where d is the distance at the separator focal plane between the chosen beam of mass, M, and the beam of mass Inline graphic, and Inline graphic is the spatial full-width at half-maximum (FWHM) of the beam of mass M in the focal plane. The MEDICIS separator operating in nominal conditions reaches Inline graphic36. Since 225Ac is a relatively high-mass isotope, the relative distance to neighboring peaks in units of the beam FWHM is only 1.8, so cross-contamination from neighboring mass beams may be possible. A simulation was performed using python to calculate the beam centroid positions at the focal plane of the mass separator for the MEDICIS separator characteristics given in ref.36, assuming a uniform magnetic field in the separator region. Separation enhancement factors, Inline graphic, for Inline graphic with respect to neighboring and next-to-neighboring masses with Gaussian beam shapes of FWHM given by eq. (3) for a range of mrp values were then calculated. This was done by Monte-Carlo counting of ions transmitted through slits of 3 mm opening distance and a circular colimator of radius, Inline graphic mm, corresponding to the experimental configuration for collection from source C. The simulated separation enhancement factor over neighboring masses increased exponentially with mrp, and values of Inline graphic and Inline graphic were calculated for Inline graphic and Inline graphic respectively. Therefore it is expected that ions of Inline graphic and Inline graphic should be suppressed by approximately 2 orders of magnitude, with a precise value that depends heavily on the mrp and other optical aberrations. Separation enhancement factors over next-to-neighboring masses of Inline graphic and Inline graphic were obtained for Inline graphic and Inline graphic respectively. The values are much larger than for the neighboring-mass case due to rapid decay of Gaussian tails. The simulated separation enhancement factors are likely overestimated as scattering of ions from residual gas atoms in the separator or drift chamber, as well as other optical corrections, lead to non-Gaussian tailing4244. Consequently, it is expected that both 226Ac and 227Ac are co-implanted with 225Ac, albeit with high suppression factors. A negligible fraction of ions that are more than two mass-to-charge units away from Inline graphic is expected to be implanted.

Sample collection conditions

The collection of sample A was performed at an extraction voltage of 50 kV, to avoid too frequent high-voltage discharges. Samples B and C were collected with an extraction voltage of 60 kV. In each case, 225Ac was identified through laser ON/OFF enhancement and confirmation of resonances at the frequencies of the known ionization schemes40,41. The target container temperatures at which 225Ac was first observed were 2160 °C, 2260 °C and 2260 °C for collections of samples A, B and C respectively. Sample A was collected at high target container temperatures from 2160 °C to 2430 °C. During the collection of this sample, slit position optimization and separator magnetic field optimization were performed that could have impacted the transmitted beam purity. The collection of sample B proceeded before 225Ac was identified with laser ON/OFF enhancement. The sample was first implanted with 225Ra+ that is released at lower target temperature, before 225Ac+ was implanted at higher temperatures. In preparation for collection on sample C, Ra+ was first identified in the beam due to its characteristic isotopic composition evaluated through a mass scan (shown in supplementary material). The 225Ra was collected on a different sample foil until the Inline graphic beam current had diminished by a factor 140 from 700 pA to 5 pA that did not increase with further heating. 225Ac+ was subsequently identified through the laser ON/OFF enhancement once the target was heated further. Two implantations, each of 30 m duration at 31 and 47 hours since start of collection were performed on sample C. Additional details of all collections are included in the supplementary material. Typical ion beam currents measured on the foils during the 225Ac sample collections were of the order of 1 pA to 10 pA.

Following the respective collections, samples A, B and C were sent to KU Leuven where an extensive decay spectrometry campaign was run to fully analyse the activities of nuclides on the sample foils at end of collection (e.o.c.).

227Ac activity determined with alpha-decay spectrometry of recoil progeny

Direct nuclear-decay spectrometry of the sample to evaluate decay rates of nuclides in the 227Ac chain was challenging, as any signal was estimated to be below the minimum detectable activity (MDA) due to high background radiation from nuclides in the 225Ac decay chain. To tackle this limitation, the novel method of using alpha-decay spectrometry of recoil progeny (Inline graphic-srp) for trace analysis was developed. The technique was applied to determine the 227Ac activity before waiting for 225Ac to decay over several half lives to reduce background and increase the MDA for 227Ac detection through its decay progeny. The method is based on alpha-decay spectrometry of progeny that are ejected from the sample foil onto a Si detector by virtue of their alpha-decay recoil energy that is larger than the ion beam implantation energy. This well-known phenomenon is often considered a nuisance for alpha-decay spectrometry, prompting many studies to consider how to suppress recoiling progeny from contaminating detectors4547. The alpha-decay recoil has been frequently exploited at the JRC for producing sources of alpha recoil progeny for precise half-life and other nuclear data measurements4851. Herein is the first time the phenomenon is exploited as a trace analysis technique to the authors’ knowledge.

Methods

Figure 1 shows a schematic overview of the Inline graphic-srp technique. In the accumulation phase, 225Ac daughters reach secular equilibrium on the order of a few hours. Even if the sample contains 225Ra, the activity of 225Ac progeny differ from their secular equilibrium values by less than 1% after 1 day. Meanwhile, 227Ac progeny grow-in towards secular equilibrium that is reached on the order of 100 days for 223Ra and its short-lived decay progeny. After this accumulation time, Inline graphic, the sample is placed in front of a Inline graphic passivated implanted planar silicon (PIPS) detector in a vacuum chamber where alpha-decay recoil progeny are implanted into the detector during a time, Inline graphic. After implantation, the sample mount is moved laterally by 19.5 cm such that the geometric efficiency for alpha emissions from nuclei in the sample is 0 thanks to the 1 mm recess of the detector active area behind its casing. The residual activity on the detector is then measured for a time, Inline graphic.

Fig. 1.

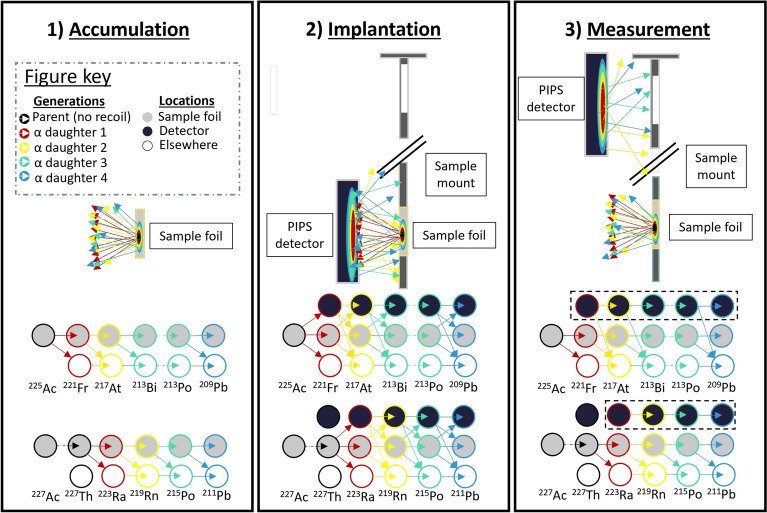

Fig. 1

Schematic overview of the stages of alpha recoil decay spectrometry. In each stage, the dynamics of recoiling daughters are illustrated using the colors described in the key. The decay schematic for both 227Ac and 225Ac is shown at the bottom of each panel, indicating the possible transitions between states composed of the product of isotope generation and location. The dashed box in the ‘measurement’ panel shows the nuclide chains that are measured through this method.

The dotted box in the measurement panel in Fig. 1 shows how this technique allows the measurement of only the decay chains of the first alpha-decay daughter of 227Ac and 225Ac as they are no longer populated by decays from the sample foil. All implanted 225Ac alpha-decay recoil progeny decay within the first day of measurement due to the relatively short half-lives of 221Fr  (T1/2 = 4.8 m) and 213Bi  (T1/2 = 45.6 m). On the other hand, the relatively long half-life of 223Ra  (T1/2 = 11.43 d) means most alpha decay counts of 227Ac progeny are measured after this time.

The e.o.c activities, Inline graphic, of the implanted 227Ac or 225Ac in each sample are related to the count rates, Inline graphic, at the time the foil is removed from in front of the detector at time, Inline graphic, by geometric and time-dependent nuclear decay feeding factors shown in eq. (4).

graphic file with name d33e1602.gif 4

Inline graphic is the probability for the ith alpha-decay daughter, Inline graphic to recoil onto the detector following decay of its parent, Inline graphic (227Th or 225Ac), and any subsequent daughters (i.e. the probability of isotope i to occupy the ‘detector’ state in Fig. 1). Inline graphic % is the probability that the alpha particle from nuclide Inline graphic on the detector is detected in the detector. The Bateman decay and branching factor, Inline graphic, is the activity of isotope Inline graphic that has grown in during the implantation time, Inline graphic to Inline graphic, due to decay of its parent(s) in the sample foil as a fraction of Inline graphic. Inline graphic is the parent of Inline graphic with the limiting half-life (e.g. Inline graphic = 221Fr for Inline graphic = 217At and Inline graphic = 223Ra for Inline graphic = 219Rn or 215Po). The geometric factors were calculated with SRIM52 simulations, as explained in section 2 in the supplementary material. The 227Ac activity was then calculated using two methods.

The first method uses the ratio of the alpha particle count rate on the detector of a given 227Ac progeny, Inline graphic, at the time the sample was removed, to that of the equivalent alpha-decay generation daughter of 225Ac, Inline graphic. Furthermore, it exploits the very similar geometric factors for second and third generation decay daughters between the 227Ac and 225Ac decay chains. For example, for a sample-detector distance of 9 mm, the product of the geometric factors were 3.50% and 3.57% respectively for 219Rn and 217At and 2.74% and 2.76% respectively for 215Po and 213Po. This is due to the similar recoil energies in the two decay chains. Consequently, the geometric factors can be considered to be almost equal for the two decay chains. By ignoring this negligible difference in geometric factors, the 227Ac e.o.c activity can be calculated from eq. (5) for each sample, in terms of the 225Ac e.o.c. activities shown in table 3, the ratio of the aforementioned e.o.i. count rates, and the Bateman decay and branching ratio fractions.

graphic file with name d33e1780.gif 5

The advantage of this method is that it is practically geometric efficiency independent due to the similarity of the recoil dynamics in the 225Ac and 227Ac decay chains. This greatly reduces systematic effects from the complex geometric efficiencies of alpha-decay chains. Furthermore, the ratio of 227Ac activity to 225Ac activity is directly determined without need for a-priori knowledge of the 225Ac activity.

Table 3.

E.o.c activity of identified nuclides in the three collected samples. *Values are mean activities from all spectroscopy methods for 225Ac  225Ra and 226Ra, and activity from eq. (5) for 227Ac. Inline graphicValue consistent with 0 within error. Inline graphicValues correspond to the Minimal Detectable Activity (MDA) calculated with the Currie method.

Sample Nuclide E.o.c activity (kBq)
Inline graphic / Inline graphic Inline graphic / Inline graphic Inline graphic-srp eq. (5) Inline graphic-srp eq. (4) Final* Inline graphic
 A 225Ac 57.8(23) 51.3(14) 52.9(12)
227Ac 3.90(13)Inline graphic 3.19(9)Inline graphic 3.90(13)Inline graphic Inline graphic
226Ra 6.2(4)Inline graphic 6.2(4)Inline graphic
B 225Ac 79.0(10) 103(47) 79.0(10)
225Ra 11.3(12) 30(20) 11.3(12)
227Ac 1.58(7)Inline graphic 1.14(6)Inline graphic 1.58(7)Inline graphic Inline graphic
 C  225Ac 97.1(38) 88.6(25) 91.2(21)
225Ra 0Inline graphic -
226Ac 2.2(3) 2.2(3) Inline graphic
226Ra 0Inline graphic 0Inline graphic -
227Ac 2.4(4)Inline graphic 1.96(13)Inline graphic 2.4(4)Inline graphic Inline graphic
228Ac Inline graphic 3.2(2) Inline graphic Inline graphic
206Po 0.98(4) 0.98(4) Inline graphic
208Po 1.25(5) Inline graphic 1.25(5) Inline graphic Inline graphic
209PoInline graphic 2.32(7) Inline graphic 2.32(7) Inline graphic Inline graphic
210Po Inline graphic 0Inline graphic -

The second method to calculate the 227Ac activity made direct use of eq. (4), with explicit calculation of the geometric efficiencies and the Bateman decay and branching ratio fractions.

Results

Alpha-decay spectrometry on the alpha-decay recoil progeny of 227Ac and 225Ac was performed for each of the sample foils following the three stages of accumulation, implantation and measurement shown in Fig. 1. The accumulation time for sample A, B and C was 53.1 d, 32 d and 67.6 d respectively. The samples were mounted inside the chamber and recoil implantations were then performed at respective source detector distances of 7 mm, 13.5 mm and 9 mm for durations of 20.9 d, 38 d and 25 d respectively. Finally, the decays of alpha-decay recoil progeny were measured for durations of 10 d, 19 d and 14 d respectively. The relative implantation to measurement time durations were chosen to maximize overall counting statistics of alpha particles from alpha decay recoil progeny of 227Ac, while the absolute times dedicated to each experiment were determined by facility constraints. The source-detector distances were chosen on a case-by-case basis to achieve sufficient alpha decay energy resolution while maximizing counting statistics for 225Ac yet ensuring that the alpha particle count rate did not exceed approximately 1 % of the reciprocal detector dead-time.

Decay data was collected for the full duration of the implantation and measurement stages of the experiment for each sample foil. The PIPS detector signal was pre-amplified and connected to a CAEN 6724c digitizer which output time-stamped signal strengths to a computer. Typical alpha-decay spectra of the full recoil measurements are shown in Fig. 2 for each sample. The grow-in of 227Ac daughters in the spectrum became visible after the first day of measurement, while the peak counts of the 225Ac daughters did not significantly increase. The figure shows how the recorded 225Ac daughter alpha-decay counts are greatly reduced by removing the data from the first day of the measurement, corresponding to 300 and 32 half-lives of 221Fr and 213Bi respectively, such that all 225Ac daughters implanted on the PIPS detector were expected to have decayed. Alpha decay counts due to decay of 225Ac progeny were nonetheless recorded. This remaining background is due to a combination of recoil self-sputtering and the ‘ping pong’ effect. In recoil self-sputtering, momentum transfer from alpha decay recoil daughters in the sample foil trigger collision cascades that can eject atoms from the sample, including some atoms of 225Ac. During the implantation phase, a small fraction of 225Ac atoms are recoil sputtered onto the detector surface where they contribute to alpha decay background during the measurement phase. In the ‘ping-pong’ effect, alpha particles from 217At and 213Po are measured from the distant sample due to consecutive recoil of a daughter nuclide from the sample, then back-ejection of its daughter from this surface.

Fig. 2.

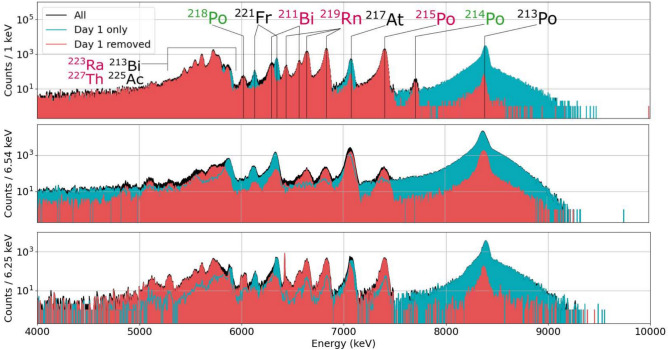

Fig. 2

Measured alpha-decay recoil spectra over the experimental campaigns for samples A (above), B (middle) and C (below). After one day of measurement, the spectra are dominated by the 221Fr and daughter alpha decays (blue). In the remainder of the measurement time, few further counts of 221Fr and daughter peaks were recorded, while 223Ra and daughter alpha-decay peaks appeared (black). 223Ra and daughter alpha-decay peaks are identified in the spectra once the data of the first day are removed (red).

The relative contributions of these two mechanisms to the background was evaluated by removing the sample entirely from the chamber after the measurement phase of several days, thus removing the background contribution due to the ping-pong effect. The order of one alpha count of 221Fr, 217At and 213Po progeny per million 225Ac decays due to recoil-sputtered 225Ac was measured, while the number of 217At and 213Po alpha counts due to the ping-pong effect was approximately 10 per million 225Ac decays. Therefore, the latter most strongly limited the sensitivity of the measurement of 227Ac progeny. Nonetheless, a factor 10,000 improvement is calculated in relative sensitivity of 227Ac counts to 225Ac counts using this method. A full sensitivity analysis is provided in the supplementary material.

Despite this background, 227Ac progeny alpha decay peaks were resolved in the recoil decay spectra of each sample. In sample A and C, the 7386.1 keV (100%) 215Po and 6819.1 keV (79.4%) 219Rn peaks were prominent, while in sample B the latter was less prominent due to worse detector resolution. In the recoil spectra of sample A, peaks at 6003 keV and 7687 keV were also identified, attributed to decay of 214Po and 218Po respectively, originating from 226Ra decay.

Time spectra with energy gates on these prominent identified alpha-decay peaks, were produced and fitted with an exponential decay to determine the end of implantation time (e.o.i.) count rates, Inline graphic, shown in Fig. 8 in the supplementary material. The resulting decay constants of the fitted curves corresponded closely in all cases to their longest-lived parent nuclides indicated in the ‘detector’ location of Fig. 1 confirming their origin from feeding of recoiled progeny on the detector and not the 225Ac or 227Ac in the sample foil. The fitted decay constants and e.o.i. count rates of each analyzed nuclide in each sample are summarized in table 2.

Table 2.

Fitted apparent half-lives and count rates at implantation end time in the alpha-decay spectrometry of recoil daughter measurements.

Sample A Sample B Sample C
Nuclide Apparent T1/2 Count rate (s-1) Apparent T1/2 Count rate (s-1) Apparent T1/2 Count rate (s-1)
217At 4.79(7) m 17.4(4) 5.06(7) m 21.0(4) 4.95(14) m 6.0(2)
213Po 45.90(14) m 36.8(2) 45.70(10) m 79.1(3) 45.95(9) m 13.23(5)
219Rn 11.5(3) d 0.0885(10) 11.2(8) d 0.00234(11) 11.1(9) d 0.0046(2)
215Po 11.6(3) d 0.0966(10) 9.91(7) d 0.00264(13) 11.1(9) d 0.0054(2)
218Po 7.0(8) d 0.0029(2)
214Po 3.3(3) d 0.0021(2)

The apparent half-lives of 217At and 213Po correspond the half-lives of 221Fr  (T1/2 = 4.806(6) m) and 213Bi  (T1/2 = 45.62(6) m)51 respectively, generally with good agreement. The apparent half-lives of 219Rn and 215Po each correspond to the half-life of 223Ra(T1/2 = 11.43(3) d)53 The apparent half-life of 214Po in sample A corresponds to the half-life of 222Rn (T1/2 = 3.8232(8) d), while the apparent half-life of 218Po was poorly determined due to overlap of its analyzed 6003 keV peak with others in the alpha-decay energy spectrum.

The 227Ac activity was determined using eq. (5) with Inline graphic = 219Rn and Inline graphic = 217At. The resulting 227Ac e.o.c. activities obtained are 3.90(13) Bq, 0.158(7) Bq and 0.24(4) Bq for samples A, B and C respectively. This method could not be used for subsequent generation Po nuclides as the only contribution to measured 215Po alpha counts is from implanted 223Ra whereas measured 213Po counts are due to feeding from implanted 213Bi, 217At and 221Fr on the detector. Therefore a simple exponential fit could not be performed to obtain an e.o.i. count rate of 213Po.

The 227Ac activity was additionally calculated using eq. (4). Geometric efficiency factors and the Bateman decay and branching factor for the 6819.1 keV 223Ra and 7386.1 keV 215Po peaks were calculated for each of the samples. The resulting 227Ac activities were 3.7(2) Bq, 0.15(1) Bq and 0.22(5) Bq for samples A, B and C, using the 219Rn peak and 4.1(2) Bq, 0.17(2) Bq and 0.27(5) Bq using the 215Po peak.

The Inline graphic approach was validated by performing direct alpha-decay spectrometry on samples A and C at times of 297 and 276 days after e.o.c. respectively, by which time 227Ac progeny peaks were prominent in the energy spectra. Sample B was not analyzed as it was used for another experiment. The 227Ac e.o.c. activity was obtained from analysis of alpha-decay energy peaks of 215Po, and 219Rn described in the supplementary material. The weighted mean 227Ac activity from the analysis for samples A and C were 3.70 (25) Bq and 0.248 (17) Bq respectively. These 227Ac e.o.c. activities are in very good agreement with those calculated with eq. (5), demonstrating the reliability of this method. The 227Ac activities calculated with eq. (4) are consistently slightly underestimated. This is likely due to a systematic overestimation of the absolute geometric efficiency terms. For this reason, only the 227Ac e.o.c. activities calculated using eq. (5) are used in further calculations.

Activity measurements of 225Ac, 225Ra and contaminant nuclides

This section discusses the measurements of activities of 225Ac, 225Ra  (where applicable) and other contaminants identified in each sample. Samples A and C were measured with gamma-ray spectrometry and alpha decay spectrometry. Sample B was measured with alpha-decay spectrometry and gamma-gamma-coincidence spectrometry. Representative nuclear-decay energy spectra are given in Fig. 3. A detailed report on the methodologies for activity calculations presented in this section is provided in the supplementary material.

Fig. 3.

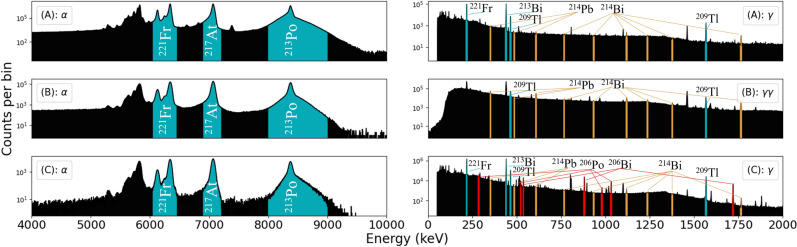

Fig. 3

Nuclear-decay energy spectra for each of the samples. analyzed peaks in the 225Ac decay chain are highlighted in blue. Inline graphic-decay spectrometry: 6341 keV, 6126.3 keV and 6241.8 keV for 221Fr, 7066.9 keV for 217At and 8376 keV for 213Po. Inline graphic-decay spectrometry: 218 keV for 221Fr, 440.45 keV for 213Bi and 1567.08 keV and 465.14 keV for 209Tl. Inline graphic-coincidence spectrometry: 1567.08 keV and 465.14 keV for 209Tl. Several peaks of 214Pb and 214Bi daughters of 226Ra are due to background radiation (yellow). 206Po and 206Bi peaks for sample C were partially used to confirm presence of PoO (red). See supplementary material for details.

Methods

Alpha-decay spectrometry was initially performed for each sample in the Alpha SETup (ASET) spectrometry chamber at the same time as performing the implantation for the Inline graphic-srp method. For each of the samples, the count rates of prominent 221Fr, 217At and 213Po peaks, shown in Fig. 3, were continuously measured and split into files of equal data size. The corresponding 225Ac activities for each file were calculated from the analyzed progeny peaks accounting for isotope-dependent geometric efficiency changes due to redistribution through alpha-decay recoil, as described in the supplementary material.

Samples A and C were again measured with alpha spectrometry in the ASET after long waiting times, as previously described in section 4.2, to detect long-lived radionuclidic impurities. The samples were measured for 4 days and 6 days respectively at a source-detector distance of 9 mm.

Gamma-decay spectrometry for samples A and C was performed in a lead castle with a coaxial Canberra high purity germanium (HPGe) detector. In each case the samples were placed at 100 mm from the detector casing in glass vials such that the center of the sample was a further 8 mm from the detector casing. Each campaign lasted at least one week, with measurement times of at least several hours per run.

The count rates of the 218 keV, 440 keV, 465 keV, and 1567 keV gamma rays following the decays of 221Fr, 213Bi, 209Tl, and 209Tl respectively were measured. In sample C, 206Po (T1/2 = 8.8 d) and its decay daughter, 206Bi (T1/2 = 6.2 d) were also identified through several peaks indicated in Fig. 3.

Gamma-gamma-coincidence spectrometry was performed for source B, to measure the 225Ac source activity independently of total detector efficiency. Two Canberra coaxial HPGe detectors were positioned at 16.5 and 18 cm respectively from the sample at an angle of 90Inline graphic  from one another. Both 213Bi and 209Tl decays are followed by gamma-decay cascades with coincident photons of sufficient intensity for these measurements. However, only the transitions following the decay of 209Tl have known multipolarities, so the coincidence data from 213Bi was not analyzed further. The measurement data was again split into files of equal size. The activity of 209Tl was calculated for each file at the mean time, t, using eq. (6).

graphic file with name d33e2357.gif 6

Here Inline graphic and Inline graphic are the count rates of photons labeled ‘1’ and ‘2’ in the gamma-decay cascade in detectors i and ii respectively. Inline graphic is the count rate of photons 1 and 2 measured in detectors i and ii respectively within a coincidence time window of 200 ns. I refers to the gamma-decay intensity per parent decay. Inline graphic is the multipolarity correction at Inline graphic radians.

The obtained activity data of 225Ac decay progeny were in each case converted to in-sample 225Ac activity, accounting for decay intensities, branching ratios and secular equilibrium factors. The 225Ac e.o.c. activity in sample A was then calculated through fitting the activity data with an exponential decay. 225Ac activity data in samples B and C were in all cases fitted to account for possible 225Ra decay feeding using eq. (7).

graphic file with name d33e2427.gif 7

Here Inline graphic and Inline graphic are the 225Ra and 225Ac decay constants and Inline graphic and Inline graphic are the e.o.c activities of 225Ra and 225Ac respectively.

The 206Bi and 206Po activity data in sample C were fitted with the Bateman equation and an exponential decay, respectively, to yield the 206Po e.o.c. activity.

The obtained relative statistical error on the fitted e.o.c activity parameters were added in quadrature with the relative systematic errors on decay intensities and cumulative branching ratios and detector efficiency where applicable. A weighted mean of the e.o.c activities obtained from all analyzed decay lines for each spectrometry method was calculated. The dominating source of uncertainty in gamma-decay and alpha-decay spectrometry were detector efficiencies, while the 225Ac e.o.c. activity determined through gamma-gamma coincidence spectrometry was limited by statistics.

Results

The fitted e.o.c. activity of 225Ac for all samples, and 225Ra in samples B and C are shown in table 3 for each spectrometry method. The weighted mean value from different methods is shown in bold. The fitted e.o.c. activity of 225Ra was determined to be negligible in sample C. The results are presented alongside the 227Ac e.o.c. activities calculated using eq. (5) for all samples, and the 226Ra e.o.c. activity in sample A calculated using eq. (4).

The 206Po e.o.c. activity of 980(40) Bq deduced from the weighted mean of analyzed 206Bi and 206Po gamma lines is shown for sample C.

In addition, e.o.c. activities of 226,228Ac and 208Po in sample C were deduced from the analyzed alpha decay data after long waiting time. The identified 208Po alpha decay peak has no candidate parent that could be implanted as a monoatomic ion beam in the mass range Inline graphic. Its presence was thus attributed to implantation of 208PoO+.

210Po and 214Po peaks were identified, with calculated activities consistent with each other assuming decay of implanted 226Ac+. Details of this calculation are included in the supplementary material. Production through decay feeding of implanted 226Ra was ruled out, as negligible 225Ra was detected in the sample, and all radiogenic Ra isotopes in the target material were outgassed prior to collection. Finally, the 212Po alpha decay peak was attributed to the decay of implanted 228Ac+. 228Ra implantation was ruled out based on the same arguments as before. As it has been deduced that 208Po is implanted as an oxide sideband at Inline graphic, it was also expected that ions of the longest-lived Po isotope, 209Po, were implanted at mass 225 with a lower suppression factor. However, its alpha-decay peak was not observed. An upper limit was estimated using the Currie method to be 2.32(7) mBq, as shown in table 3.

Discussion: Purity and separation enhancement factors

The radionuclidic purity, Inline graphic and radioisotopic purity, Inline graphic of 225Ac at e.o.c. were calculated for sample C based on the activities of implanted contaminants shown in table 3. The latter is dominated by the 226Ac content that decays with a half-life of 29.37(12) h. After 2 days, Inline graphic, and after 1 week, Inline graphic. The radioisotopic purity of 225Ac and the radionuclidic purity of 225Ac and its decay progeny as a function of time are shown in Fig. 4a.

Fig. 4.

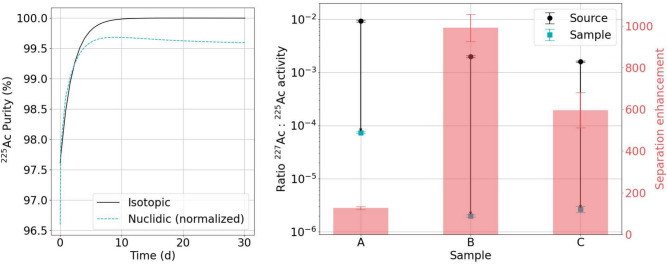

Fig. 4

Purity of 225Ac samples.

The separation enhancement factors of 225Ac with respect to the identified nuclides in the decay spectrometry campaigns of this work are shown in the final column of table 3. The separation enhancement factor with respect to 226Ac is in line with expectations, outlined in section 3.2, while the separation factor with respect to 227Ac is lower than expected. Similarly, the separation enhancement factor of Inline graphic with respect to 228Ac is lower than would be expected according to the arguments in section 3.2, though not problematic for medical applications.

The low separation enhancement factor of 225Ac with respect to 206Po was not initially expected, though can be explained through parasitic implantation due to the sample foil positioning. This is the mechanism by which beams of A/q different to those selected by the mass separator, yet still transmitted through the separator slit, are implanted into the sample foils adjacent to the targeted sample foil.

Here, sample foil C was situated in the middle position of the sample holder (pos 2) (shown for example in Fig. 3 in ref.36). For 96 % of the collection time, the beam of Inline graphic was implanted onto a targeted foil that was positioned to the higher mass side (pos 3) of sample C. During this implantation, the foil of sample C may have been exposed to transmitted ions of Inline graphic. The transmission factor for such parasitically implanted ions would be maximum for a few mass-to-charge units lower than Inline graphic, explaining the enhanced amount of 206Po in sample C. The 208Po oxide sideband, on the other hand, is more likely implanted during the time when foil C is targeted by the Inline graphic beam. This work shows that Po isotopes are not implanted with high enough rate to be problematic for medical applications of the 225Ac sample. In any case, a radiochemical separation step is required to recover the 225Ac from the Al foil material. The mechanism of formation of PoO+ beams warrants further study.

Using the e.o.c activity values calculated for 225Ac and 227Ac, the separation enhancement factors of 225Ac over 227Ac were determined for samples A, B and C to be 126(8), 990(70) and 600(85), while the e.o.c activity ratios of 227Ac to 225Ac were calculated as 7.4(3) Inline graphic, 2.00(10) Inline graphic and 2.7(4) Inline graphic respectively. The results are presented in Fig. 4b.

The separation enhancement factor of 225Ac over 227Ac varies by an order of magnitude between the samples. A plausible explanation to account for some of this difference is again due to parasitic implantation as a consequence of sample foil position in the collection chamber. When the mass separator is set to collect a beam of Inline graphic, the calculated beam centroid position of 227Ac at the focal plane is 10.4 mm to the high mass side of the targeted foil center. The center of the adjacent foil is a further 14.6 mm from the centroid of the 227Ac beam. Therefore, depending on the transmitted 227Ac beam shape, some fraction of ions are transmitted to the adjacent sample foil on the high-mass side in addition to the targeted sample foil. In the cases where the majority of the beam is implanted on an adjacent foil, this parasitic implantation can bias the subsequently measured separation enhancement factors.

The foil of sample B was placed in pos. 1 at the lowest mass side of the sample holder, so no parasitic implantation of higher mass beams was possible. Sample foil C, on the other hand, was placed in pos. 2. During this collection, implantations of Inline graphic were performed on the sample foil in pos. 1, to the ‘low mass’ side of the sample C foil, at 31.5 and 47.5 hours into the collection, each for a duration of 30 minutes. This leads to a potential extra contribution of 227Ac implanted into the foil of sample C through parasitic implantation, consistent with a lower value of Inline graphic. For sample A, no implantation was performed on the adjacent foil on pos. 2 meaning parasitic implantation due to the above described mechanism was unlikely. However, for several hours during this collection, the beam of Inline graphic was implanted on the foil placed in pos. 1. Although this beam was never directly implanted on the foil of sample A, it cannot be excluded that some ions of transmitted 227Ac were scattered onto it.

In light of these considerations, it is argued that sample B gives the most representative value of Inline graphic of 227Ac over 225Ac due to the absence of parasitic implantation. This value is therefore recommended to apply to MEDICIS collections in the future, when the beam is not implanted for a large fraction of the collection time on neighboring foils.

Aside from the above discussed differences between the collections, there are several additional systematic effects that can lead to potentially large variability in the separation enhancement factors, Inline graphic. For example, small deviations on the order of 3 % from the optimum value of Einzel lens voltage in the MEDICIS separator beamline can lead to a decrease of the mrp by up to a factor of two36, that can significantly impact the value of Inline graphic. Moreover, the mrp can also be influenced through different beam emittences. This may apply to the collection of sample A, that was performed at 50 kV extraction voltage instead of 60 kV, where the lower energy of the extracted ions can worsen the beam emittance. In addition, the precise positioning of the acceptance slits is also a variable that influences Inline graphic, that is optimized during each collection, but may not always be reproduced between collections. Another mechanism could be co-implantation of a parent nuclide, such as feeding from implanted 225Ra that increases measured 225Ac e.o.c. activity. Here it can be excluded that the higher Inline graphic for sample B is due to feeding from 225Ra present in the sample. Even if all of the measured 11.3(12) kBq was implanted at the start of the collection, only 3 kBq 225Ac would be generated in the collection time, accounting for 4 % of the separation enhancement factor.

Although the separation of 225Ac is mostly achieved by the separator magnet, some degree of isotope selectivity is also possible thanks to the resonance laser ionization scheme that has an isotope shift of 8 GHz between the 6d7s2 2D3/2 Inline graphic 6d7s7p 4P3/2o first step transitions of 227Ac and 225Ac41,54. The lasers used in this work were set up such that the first step transition was at 22801.2906 cm-1, whereas the 225Ac centroid calculated from refs41 and54 was at 22801.5714 cm-1. The laser scheme used thus corresponds more closely to the resonant peak of 227Ac over 225Ac meaning that in principle, the enhancement could be marginally improved further with more precise frequency selection. In practice, there are often drifts in frequency on the order of tenths of inverse centimeters during operation. These drifts can further impact the separation enhancement factor of 225Ac over 227Ac on the order of several percent, that may further contribute to the discrepancies of Inline graphic between samples. It is possible to control the frequency more precisely by incorporation of a feedback loop from the frequency readout to the frequency selective grating of the Ti:Sa laser cavity, which could help with ensuring reliable enhancement factors in the future.

The ratio of e.o.c. activity of 227Ac to 225Ac for the samples collected from irradiated targets (B and C) are in each case around three orders of magnitude below the typical 227Ac in 225Ac samples produced by radiochemical separation. Using the separation enhancement factor of sample B, it can be estimated that a typical patient dose of 10 MBq would contain approximately 20 Bq of 227Ac if the implanted beam was purely 225Ac. In practice, both 225Ra and 225Ac are implanted during a full collection, which means that the ratio of 227Ac to 225Ac in a sample collected by this method for production purposes would be even lower than calculated here, due to decay feeding from 225Ra, that increases the fraction of 225Ac to 227Ac in the foil. Similarly, the radioisotopic purity of 225Ac in such samples would be higher than that calculated for a pure 225Ac sample in this work.

Conclusion

An extensive nuclear decay spectrometry campaign has been performed on samples of resonance-laser-ionized and mass-separated 225Ac produced from high-energy proton spallation of thorium-based targets at CERN-MEDICIS to quantify the radionuclidic and radioisotopic purity. Long-lived decay progeny of implanted contaminants have been identified in one of the samples. The activities of 206, 208, 210, 212, 214Po were measured and attributed to implanted 206,208PoO+, and 226,228Ac+.

A decay spectrometry method to measure alpha-decay recoil progeny of 225Ac and 227Ac was developed to evaluate the trace 227Ac activity with a 10,000-fold sensitivity improvement over standard decay spectrometry. The 227Ac activity in the two mass-separated samples collected from irradiated targets were determined to be 0.000200(10) % and 0.00027(4) % that of the 225Ac at end of collection respectively. The 227Ac to 225Ac activity ratio in MEDICIS collections of 225Ac exploiting co-implantation of 225Ra+ and 225Ac+ is expected to be significantly lower, depending on the ratio of implanted 225Ra+ to 225Ac+ ions. The calculated separation enhancement factor of 225Ac over 227Ac that corresponds to representative 225Ac+ collections performed at MEDICIS was 990(70). Samples produced with this method thus have a thousandfold reduction of 227Ac content compared to samples produced by direct chemical separation that offer no enhancement of directly-produced 225Ac over 227Ac following in-target production. The resulting radioisotopic purity of 225Ac at end of collection was Inline graphic %, that was dominated by 226Ac, identified through alpha decays of 210,214Po progeny. With a cooling time of 2 days after end of collection, Inline graphic % is achieved. For clinical batch activities of 10 MBq 225Ac produced at CERN-MEDICIS through co-implantation of 225Ra+ and 225Ac+ the 227Ac activity fraction of 0.000200(10) % is an upper limit, and the radioisotopic purity of Inline graphic % after 2 days is a lower limit. While this study has demonstrated the high purity of mass-separated 225Ac samples, radio-labeling studies are required to evaluate the suitability of 225Ac-based pharmaceuticals based on mass-separated samples produced at CERN-MEDICIS for medical application.
