. 2025 Aug 12;15:29601. doi: 10.1038/s41598-025-14686-6

Technoeconomic analysis of hydrogen versus natural gas considering safety hazards and energy efficiency indicators

Osama Massarweh 1, Yusuf Bicer 1, Ahmad Abushaikha 1,
PMCID: PMC12344080  PMID: 40796633

Abstract

Hydrogen (Inline graphic) is emerging as a key alternative to fossil fuels in the global energy transition. This study presents a comparative techno-economic analysis of Inline graphic and natural gas (NG), focusing on safety hazards, energy output, Inline graphic emissions, and cost-effectiveness aspects. Our analysis showed that, compared to NG and other highly flammable gases like acetylene (Inline graphic) and propane (Inline graphic), Inline graphic has a higher hazard potential due to factors such as its wide flammability range, low ignition energy, and high flame speed. In terms of energy output, 1 kg of NG produces 48.60 MJ, while conversion to liquefied natural gas (LNG), grey Inline graphic, and blue Inline graphic reduces energy output to 45.96 MJ, 35.45 MJ, and 31.21 MJ, respectively. Similarly, while unconverted NG emits 2.72 kg of Inline graphic per kg, emissions increase to 3.12 kg for LNG and 3.32 kg for grey Inline graphic. However, blue Inline graphic significantly reduces Inline graphic emissions to 1.05 kg per kg due to carbon capture and storage. From an economic perspective, producing 1 kg of NG yields a profit of $0.011. Converting NG to grey Inline graphic is most profitable, yielding a net profit of $0.609 per kg of NG, while blue Inline graphic, despite higher production costs, remains viable with a profit of $0.390 per kg of NG. LNG conversion also shows profitability with $0.061 per kg of NG. This analysis highlights the trade-offs between energy efficiency, environmental impact, and economic viability, providing valuable insights for stakeholders formulating hydrogen and LNG implementation strategies.

Keywords: Blue hydrogen, Natural gas, Safety hazards, Inline graphic emissions, Carbon capture and storage

Subject terms: Carbon capture and storage, Natural gas

Introduction

Currently, the global energy supply is primarily sourced from fossil fuels. In 2022, for instance, around 85% of this energy supply was derived from fossil fuels, as indicated in Fig. 1. However, despite their abundance, there is a growing need to reduce reliance on fossil fuels1. The extraction and processing of fossil fuels have significant adverse environmental effects, including water pollution from coal mine drainage and coal sludge2, wastewater from drilling and fracking operations3, oil and chemical spills4, and refinery effluents5. Additionally, during enhanced oil recovery (EOR) operations, chemicals such as surfactants and polymers are injected into subsurface formations. These chemicals can migrate from hydrocarbon reservoirs into adjacent groundwater and surface-water bodies, increasing the risk of aquatic contamination6. Furthermore, the continued use of fossil fuels has led to increased greenhouse gas (GHG) emissions, such as Inline graphic, which accelerate climate change7.

Fig. 1.

Fig. 1

Estimated global energy consumption by source in 2022. Data source:8,9.

As the world searches for cleaner energy, renewable sources are continuously being pursued and developed. However, a complete and abrupt transition from fossil fuels to renewable energy is unfeasible. This is due to challenges associated with renewable energy, such as high initial costs, immature technology, intermittent supply, and energy conversion inefficiencies, to varying extents10,11. As a result, hydrogen and natural gas (methane) have emerged as critical components in this search due to their potential to offer significant reductions in carbon emissions, supporting the transition to a low-carbon energy future12,13.

Hydrogen can be used both as an energy carrier and fuel14. Hydrogen also has the potential to achieve zero or minimal Inline graphic emissions when produced using renewable energy sources, such as in the case of green hydrogen15. Alternatively, hydrogen can be derived from fossil fuels coupled with carbon capture and storage (CCS) technologies, resulting also in low Inline graphic emissions. An example of this is blue hydrogen, which is produced from natural gas, using autothermal reforming (ATR) or steam methane reforming (SMR) with CCS implementation16. It is worth noting that hydrogen produced from natural gas without CCS implementation is referred to as grey hydrogen. The production of grey hydrogen is associated with relatively high Inline graphic emissions compared to blue and green hydrogen17.

Despite its advantages, hydrogen transport and storage pose significant safety risks stemming from its physicochemical properties, making it highly susceptible to leaks and accidental ignitions18. On the other hand, natural gas is a well-established energy source with extensive infrastructure already in place for its transport and storage19. Natural gas is considered cleaner than other fossil fuels, including coal and oil20. However, it still contributes to carbon emissions21, and it poses flammability risks during transport and storage22.

This study addresses a research gap involving the lack of a unified framework that systematically compares natural gas and its hydrogen derivatives across the critical domains of safety, energy efficiency, environmental impact, and economic profitability. The novelty of this study involves, first, a detailed fire and explosion hazard comparison using a binary pairwise scoring method across 14 distinct physicochemical factors. Second, it provides a techno-economic and environmental analysis where energy output, Inline graphic emissions, costs, and profits are all normalized per kilogram of natural gas feedstock, enabling a direct evaluation of various conversion pathways including LNG, grey hydrogen, and blue hydrogen. These assessments assist policymakers and industry professionals in evaluating the viability of hydrogen conversion technologies as sustainable and profitable investments. This allows stakeholders to precisely weigh the environmental gains against the economic and energetic costs.

Methodology overview

The methodology employed in this study is presented in Fig. 2, outlining two primary assessments conducted. In Assessment 1, a comparative analysis of fire and explosion hazards was performed. Selected gases were evaluated using a binary pairwise scoring method based on 14 physicochemical factors that determine hazard probability and consequence. The final hazard score for each gas was calculated by summing these individual scores. Assessment 2, on the other hand, involves techno-economic and environmental analyses of natural gas utilization pathways, with all metrics normalized. This assessment determines natural gas-to-fuel conversion ratios, calculates energy output, Inline graphic emissions, production costs, and net profit based on market prices, followed by a sensitivity analysis with ±20% cost/price variations to assess economic stability. Details of these assessments are presented in the following sections.

Fig. 2.

Fig. 2

Overview of the methodology employed in this study.

Comparative analysis of the hazards of hydrogen and natural gas

The use of hydrogen and natural gas (mainly methane) as fuels and industrial feedstocks necessitates their storage in large quantities, often in specialized tanks or containers to maintain safety and prevent leakage. However, large-scale storage introduces significant hazards due to the flammable and explosive nature of both gases23,24. Hydrogen, due to its small molecular size and high diffusivity, is prone to leakage, forming highly combustible mixtures with air in confined spaces. The wide flammability range and low ignition energy of hydrogen make it highly susceptible to accidental ignition25,26. On the other hand, methane is less prone to leakage than hydrogen; however, it remains highly flammable and can potentially form explosive mixtures in air27,28.

This section presents an analysis focused on identifying the fire and explosion hazards associated with hydrogen and methane. To achieve this, a comparative study was conducted where hydrogen (Inline graphic) was analyzed alongside methane (Inline graphic), propane (Inline graphic), and acetylene (Inline graphic). In this analysis, propane was selected because it represents a commonly used fuel gas that is widely utilized in domestic29 and industrial applications30. On the other hand, acetylene was selected because it has one of the widest flammability ranges among hydrocarbon gases, making it highly prone to forming flammable mixtures with air31. Additionally, acetylene has very low ignition energy32 and a high flame speed33, presenting significant safety challenges. By comparing these gases, we aim to establish benchmarks that will enhance our understanding of the potential risks associated with hydrogen and methane. In this analysis, we followed the methodology developed by Crowl and Jo34, incorporating additional important factors that were not considered in their study.

Physicochemical properties related to the hazards and risks of fuels

The flammability of different fuels under similar pressure and temperature conditions depends primarily on their physicochemical properties. Table 1 presents the main factors influencing fire and explosion hazards associated with flammable fluids in storage facilities. It also details how changes in these factors can affect the probability or consequence of fire incidents by indicating the direction of increased hazard.

Table 1.

Factors affecting the probability and/or consequence of fires and explosions of flammable fluids at storage facilities.

Factor Direction of increased hazard Consequence and/or probability Explanation
Lower flammability limit (LFL) Lower Probability Smaller amounts of vapor are needed to form a flammable mixture when the LFL is lower.
Upper flammability limit (UFL) Higher Probability Increasing UFL broadens the flammable range, making ignition possible at wider vapor concentrations.
Minimum oxygen concentration (MOC) Lower Probability Lower MOC allows combustion with less oxygen, elevating the probability of fire and explosions.
Autoignition temperature Lower Probability The probability of spontaneous ignition increases with lower autoignition temperatures.
Minimum spark ignition energy Lower Probability A lower spark ignition energy facilitates easier ignition from minor sources.
Density Higher Probability Higher gas density results in greater gas accumulation, increasing the probability of reaching flammable levels.
Molecular size Smaller Probability Smaller molecules are more likely to leak through cracked or damaged containers, raising the probability of ignition.
Quenching distance Smaller Probability Gas with a smaller quenching distance poses a higher fire risk because it can ignite, sustain, and propagate flames in tighter spaces or through nearly closed valves.
Boiling point Lower Probability A fluid with a lower boiling point is more likely to be in a gaseous state, increasing fire probability.
Flame speed Higher Consequence A higher flame speed leads to faster spread of fires, increasing the rate at which damage occurs and reducing the time available for response.
Lower heating value (LHV) Higher Consequence A higher LHV indicates that more energy is released during combustion, increasing the impact of fires or explosions.
Adiabatic flame temperature in air Higher Consequence A higher flame temperature indicates more intense combustion, resulting in more severe damage.
Deflagration index Higher Consequence The severity of an explosion increases as the deflagration index increases.
Thermal conductivity Higher Consequence High thermal conductivity facilitates rapid heat spread, intensifying the potential damage from fires.

As seen in Table 1, a lower LFL means that less vapor is needed to form a flammable mixture, while a higher UFL indicates a wider flammable range. A lower MOC, lower autoignition temperature, and lower minimum spark ignition energy all increase fire probability. Higher density increases gas accumulation, thereby increasing the probability of reaching flammable levels. Smaller molecular sizes increase the likelihood of gas leakage through cracked or damaged containers, thus elevating the probability of ignition. Additionally, a smaller quenching distance and lower boiling point increase the probability of fire.

In terms of fire consequence, a higher flame speed leads to faster spread of fires, increasing the rate of damage. A higher LHV, higher adiabatic flame temperature, and higher thermal conductivity all increase the consequence of fire incidents. A higher deflagration index indicates a more robust explosion, resulting in greater physical consequences. The deflagration index (Inline graphic) is often utilized to eliminate the effect of the volume of the combustion vessel35. It is calculated using the following equation (Eq. (1)):

graphic file with name d33e684.gif 1

where V is the volume of the vessel, P is the pressure, t is the time, and Inline graphic is the maximum rate of pressure rise measured. The deflagration index depends mainly on the properties of the fuel mixture, such as composition, initial pressure, and temperature, and it can be effectively used to indicate the explosion severity in practical applications35.

The physical properties of hydrogen, methane, propane, and acetylene at atmospheric conditions (Inline graphic1 atm and Inline graphic298 K) are shown in Table 2. Hydrogen has a low LFL (4.2%) and a high UFL (74%), indicating a broad flammable range. It also has a low MOC (4%) and very low spark ignition energy (0.02 mJ), making it highly reactive and easily ignitable. The high flame speed (207 cm/s) and high deflagration index (638 barInline graphicm/s) of hydrogen indicate rapid fire spread and significant explosion potential. Methane, with an LFL of 5% and UFL of 14.9% has a narrower flammable range compared to hydrogen. Compared to other gases, propane has a relatively higher density (1.832 kg/Inline graphic), increasing accumulation risk. Acetylene has a very low LFL (2.6%), a very high UFL (80%) and the lowest autoignition temperature (578.15 K), therefore it is extremely combustible. Overall, hydrogen, methane, propane, and acetylene show varying hazard levels based on these parameters, which will be evaluated in the next subsection.

Table 2.

Factors affecting fire and explosion hazards posed by hydrogen, methane, propane, and acetylene at atmospheric conditions (Inline graphic1 atm and Inline graphic298 K).

Factor Hydrogen value Ref. Methane value Ref. Propane value Ref. Acetylene value Ref.
LFL (V% fuel in air) 4.2 31 5 31 2.1 31 2.6 31
UFL (V% fuel in air) 74 31 14.9 31 9.5 31 80 31
MOC (V% oxygen) 4 31 12 31 11.6 31 6.2 31
Autoignition temperature (K) 858 36 813 37 757 38 578.15 39
Minimum spark ignition energy (mJ) 0.02 40 0.29 40 0.48 41 0.019 32
Density (kg/Inline graphic) 0.083 42 0.657 43 1.832 44 1.092 39
Molecular size (nm) 0.29 45 0.38 45 0.45 46 0.33 47
Quenching distance (mm) 0.64 48 2.03 48 2.0 49 0.53 50
Boiling point (K) 20.4 31 111.7 31 231.1 31 189.2 31
Flame speed at equivalence ratio of 1 (cm/s) 207 48 36 48 Inline graphic40.1 51 Inline graphic127.9 33
LHV (MJ/kg) 119.9 52 48.6 53 46.4 54 48.2 55
Adiabatic flame temperature in air (K) 2376 56 2223 56 2253 57 2500 58
Deflagration index (barInline graphicm/s) 638 59 46 59 76 59 42 60
Thermal conductivity (W/(mInline graphicK)) 182.0 Inline graphic Inline graphic 40 34.0 Inline graphic Inline graphic 40 18.5 Inline graphic Inline graphic 61 21.4 Inline graphic Inline graphic 61

Analysis of fuel hazards

To assess the fire and explosion hazards, hydrogen, methane, propane, and acetylene were compared to each other, as shown in Table 3. Each gas was assessed for various physicochemical properties to determine which gas poses the greatest hazard, following the methodology developed by Crowl and Jo34. A value of “1” was assigned to the gas with the highest hazard for each property. The totals were then summed at the bottom of Table 3 to provide a comparative hazard score, indicating the totals for probability factors and consequence factors.

Table 3.

Comparison of factors affecting fire and explosion hazards of hydrogen vs. methane, propane, and acetylene at atmospheric conditions (Inline graphic1 atm and Inline graphic298 K).

Factor Hydrogen vs. methane Hydrogen vs. propane Hydrogen vs. acetylene Acetylene vs. methane Acetylene vs. propane Propane vs. methane
Hydrogen Methane Hydrogen Propane Hydrogen Acetylene Acetylene Methane Acetylene Propane Methane Propane
LFL 1 0 0 1 0 1 1 0 0 1 1 0
UFL 1 0 1 0 0 1 1 0 1 0 0 1
MOC 1 0 1 0 1 0 1 0 1 0 1 0
Autoignition temperature 0 1 0 1 0 1 1 0 1 0 1 0
Minimum spark ignition energy 1 0 1 0 0 1 1 0 1 0 0 1
Gas density 0 1 0 1 0 1 1 0 0 1 1 0
Molecular size 1 0 1 0 1 0 1 0 1 0 0 1
Quenching distance 1 0 1 0 0 1 1 0 1 0 1 0
Boiling point 1 0 1 0 1 0 0 1 1 0 0 1
Flame speed 1 0 1 0 1 0 1 0 1 0 0 1
LHV 1 0 1 0 1 0 0 1 1 0 0 1
Adiabatic flame temperature 1 0 1 0 0 1 1 0 1 0 1 0
Deflagration index 1 0 1 0 1 0 0 1 0 1 1 0
Thermal conductivity 1 0 1 0 1 0 0 1 1 0 0 1
Probability factors (total) 7 2 6 3 3 6 8 1 7 2 5 4
Consequence factors (total) 5 0 5 0 4 1 2 3 4 1 2 3
Sum of factors 12 2 11 3 7 7 10 4 11 3 7 7

As shown in Table 3, hydrogen scores 12 out of 14 compared to methane, which scores 2. This indicates that hydrogen exhibits a significantly higher hazard potential than methane. When comparing hydrogen and propane, hydrogen ranks higher in 11 out of 14 factors. This also suggests a greater fire risk associated with hydrogen. In the assessment of hydrogen against acetylene, both gases exhibit a comparable hazard profile, each scoring 7 out of 14. However, hydrogen scores 3 in probability factors while acetylene scores 6. This means that acetylene has a higher probability of ignition and fire under typical atmospheric conditions. This is due to factors such as the wider flammability range, lower autoignition temperature, lower minimum spark ignition energy, higher gas density, and smaller quenching distance of acetylene compared to hydrogen. On the other hand, hydrogen scores 4 in consequence factors compared to acetylene, which scores 1, suggesting that the consequences of hydrogen fires are expected to be more severe. According to Table 3, acetylene is significantly more hazardous than methane and propane, scoring 10 out of 14 compared to methane and 11 out of 14 compared to propane. Meanwhile, propane and methane exhibit similar hazard levels, with both scoring 7 out of 14. Figure 3 summarizes the total hazards associated with hydrogen, methane, propane, and acetylene from all comparison cases. Hydrogen has the highest total hazard score of 30. Acetylene follows with a total of 28. Both methane and propane have equal total hazard scores of 13. This means that hydrogen and acetylene pose the greatest overall fire risk.

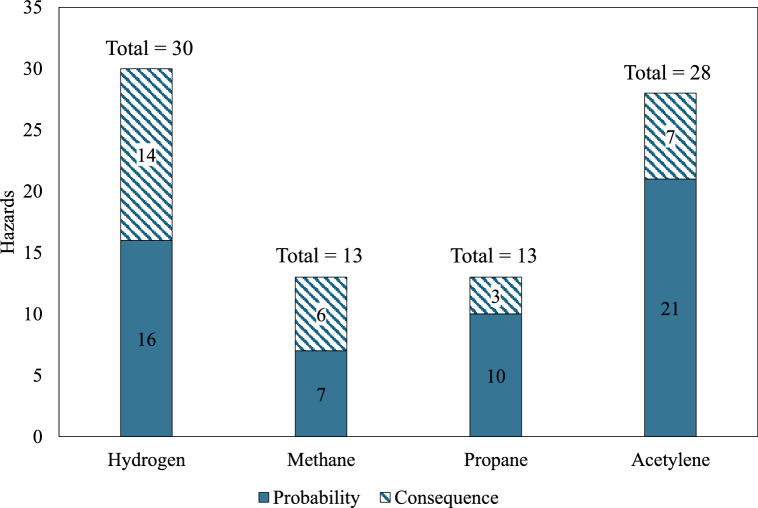

Fig. 3.

Fig. 3

Summary of the hazard analysis comparing hydrogen, methane, propane, and acetylene.

Evaluation of energy output, Inline graphic emissions, and cost-effectiveness of converting natural gas into hydrogen

In the previous section, we examined the safety hazards associated with hydrogen and natural gas. In this section, we will analyze the main environmental, energy, and economic implications of converting one kilogram of natural gas (NG) into various fuel forms, including liquefied natural gas (LNG), grey hydrogen gas (grey Inline graphic), grey liquid hydrogen (grey Inline graphic), blue hydrogen gas (blue Inline graphic), and blue liquid hydrogen (blue Inline graphic). Our analysis will focus on comparing the energy output, Inline graphic emissions, and cost-profit factors associated with each conversion process. This analysis builds on findings from our previous publication (Massarweh et al.62), with detailed calculations provided in spreadsheet format in Appendix A (supplementary data).

As a sample calculation, we consider the case of grey Inline graphic. The energy embodied in producing 1 kg of grey Inline graphic, taken from Massarweh et al.62, is 164.42 MJ. This amount includes both the energy stored within the material and the energy consumed during its different production stages. To calculate the NG-to-fuel conversion ratio, we divide the embodied energy in the fuel by the LHV of NG, as shown in Eq. (2). For grey Inline graphic, this ratio is 164.42 MJ/kg / 48.6 MJ/kg = 3.38. This indicates that 3.38 kg of NG are required to produce 1 kg of grey Inline graphic. For other fuels, the mass of NG needed to produce 1 kg of fuel, calculated similarly, is as follows: LNG requires 1.06 kg of NG, grey Inline graphic requires 4.12 kg, blue Inline graphic requires 3.84 kg, and blue Inline graphic requires 4.58 kg.

graphic file with name d33e1992.gif 2

To calculate the final energy output per 1 kg of NG converted to fuel, we divide the LHV of the fuel by the NG-to-fuel conversion ratio, as demonstrated in Eq. (3). The LHV of Inline graphic is 119.94 MJ/kg. Thus, for grey Inline graphic, the energy output is 119.94 MJ/kg / 3.38, which equals 35.45 MJ (0.03545 GJ). This means, as expected, that the energy output from the converted fuel is less than the energy content of the original NG (approximately 48.6 MJ/kg) due to conversion inefficiencies.

graphic file with name d33e2015.gif 3

To calculate the profit per 1 kg of NG converted to fuel, we need the market price of 1 kg of fuel, the total production cost of 1 kg of fuel, and the NG-to-fuel conversion ratio (3.38 as shown above). In our calculations, we used a market price for Inline graphic of $3/kg. The total production cost of grey Inline graphic, taken from Massarweh et al.62, is $0.94/kg fuel. Based on this, the cost of converting 1 kg of NG to grey Inline graphic is $0.94 / 3.38, which equals $0.278 per 1 kg NG. The profit per 1 kg of grey Inline graphic is then calculated as $3.00/kg - $0.940/kg = $2.060/kg. Finally, the net profit from converting 1 kg of NG to grey Inline graphic is $2.06 / 3.38, which equals $0.609 per 1 kg of NG. The cost per 1 kg NG, the profit per 1 kg fuel, and the net profit per 1 kg NG are calculated as shown in Eqs. (4), (5), and (6), respectively:

graphic file with name d33e2067.gif 4
graphic file with name d33e2073.gif 5
graphic file with name d33e2079.gif 6

To determine the Inline graphic emissions resulting from 1 kg of NG converted to fuel, we first need the Inline graphic emissions resulting from fuel production and utilization. As given by Massarweh et al.62, the emission value for grey Inline graphic is 93.67 kg Inline graphic/GJ of fuel. Based on this, the amount of Inline graphic emissions resulting from 1 kg of NG converted to grey Inline graphic is calculated as 93.67 kg Inline graphic/GJ Inline graphic 0.03545 GJ = 3.32 kg Inline graphic per 1 kg of NG. As indicated above, Appendix A (supplementary data) provides a detailed breakdown of all calculations. The Inline graphic emissions per 1 kg NG are calculated using the following equation (Eq. (7)):

graphic file with name d33e2158.gif 7

Cost-profit evaluation

The cost and profit per 1 kg of NG converted to various fuel forms are presented in Fig. 4, considering the production costs and market prices given in Table 4. The cost of producing 1 kg of NG without any conversion is $0.120, yielding a net profit of $0.011. When NG is converted to LNG, the cost increases to $0.435 per kg of NG but results in a profit of $0.061 per kg of NG.

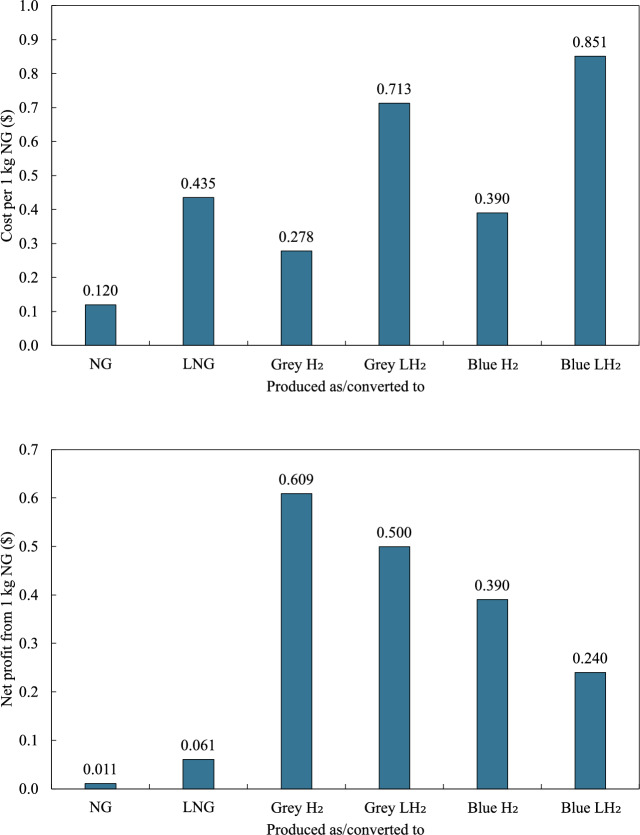

Fig. 4.

Fig. 4

Economic analysis of NG conversion showing cost per 1 kg of NG converted to various fuel forms (top) and net profit from 1 kg of NG converted to various fuel forms (bottom).

Table 4.

Market prices and production costs used in profit calculations.

Fuel Market price Production cost of 1 kg fuel ($) (Source: Massarweh et al.62)
NG $3/MMBTU (Inline graphic$0.131/kg NG) $0.12
LNG $12/MMBTU (Inline graphic$0.524/kg LNG) $0.46
Grey Inline graphic $3.000/kg Inline graphic $0.94
Grey Inline graphic $5.000/kg liquid Inline graphic $2.94
Blue Inline graphic $3.000/kg Inline graphic $1.50
Blue Inline graphic $5.000/kg liquid Inline graphic $3.90

Converting NG to grey Inline graphic is highly profitable, with a production cost of $0.278 per kg of NG and a net profit of $0.609 per kg of NG. When NG is converted to grey Inline graphic, the cost increases to $0.713 per kg of NG. However, grey Inline graphic remains highly profitable, leading to a net profit of $0.500 per kg of NG. In the case of blue Inline graphic, the conversion results in a net profit of $0.390 per kg of NG. Lastly, converting NG to blue Inline graphic involves the highest production cost, which is $0.851 per kg of NG, but still yields a net profit of $0.240 per kg of NG. Overall, given the market prices of hydrogen, converting NG to grey Inline graphic delivers the highest net profit. Furthermore, although blue Inline graphic production entails the highest costs, it remains a profitable investment.

A sensitivity analysis was conducted to evaluate how uncertainties in production costs and market prices affect the profitability of converting NG into various fuel forms, as shown in Fig. 5 (a through f). The baseline prices and costs used in this analysis are given in Table 4, with a sensitivity range of -20% to 20% applied to both parameters. Detailed calculations for the sensitivity analysis are included in Appendix A (supplementary data), based on Eq. (8). NG exhibits high sensitivity to increases in production costs and reductions in market prices, which may render it unprofitable if production costs increase by 10% or 20%, or if market prices drop by similar margins. NG remains profitable when both production costs and market prices experience concurrent increases. LNG shows even greater sensitivity to production cost variations, particularly with a 20% increase in costs. LNG profitability is also compromised if market prices decrease by 20%. However, when both production costs and market prices rise, the positive effects of the price increase can offset the negative impact of higher production costs, resulting in a net positive profit for LNG. Grey Inline graphic consistently maintains high net profits across all scenarios, demonstrating resilience to both cost and price fluctuations, while grey Inline graphic exhibits a similar trend but with slightly lower profit margins. Blue Inline graphic and blue Inline graphic show decreasing profitability as production costs rise, yet they remain profitable under various market conditions. Overall, the conversion of NG into various hydrogen forms remains economically viable, whether production costs or market prices increase or decrease by 20%.

graphic file with name d33e2392.gif 8

where P is the market price per 1 kg fuel, C is the production cost per 1 kg fuel, R is the NG-to-fuel conversion ratio, Inline graphic is the fractional change in price, and Inline graphic is the fractional change in cost (each can be 0, Inline graphic, Inline graphic, etc., depending on the scenario).

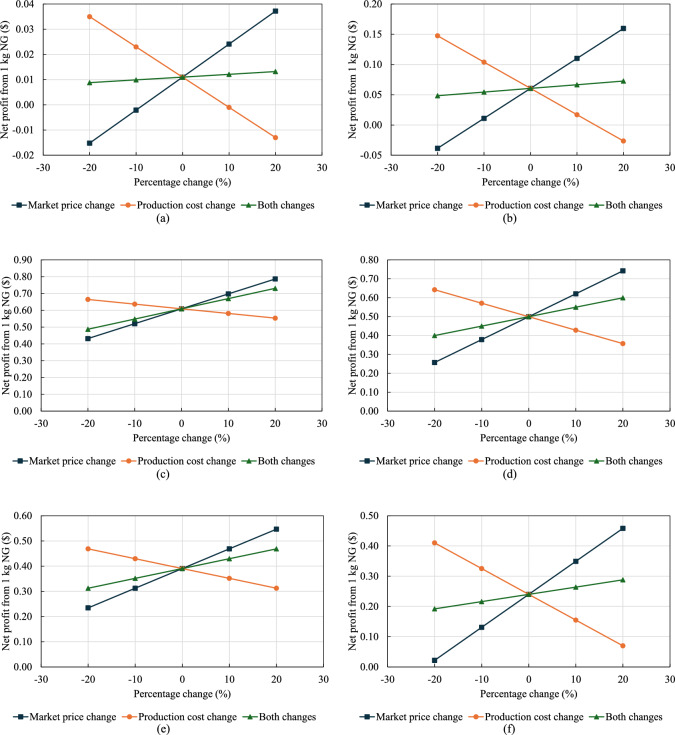

Fig. 5.

Fig. 5

Sensitivity analysis of net profit from 1 kg of NG converted to different fuels under ±20% changes in production cost and market price: (a) NG, (b) LNG, (c) Grey Inline graphic, (d) Grey Inline graphic, (e) Blue Inline graphic, and (f) Blue Inline graphic.

Final energy output

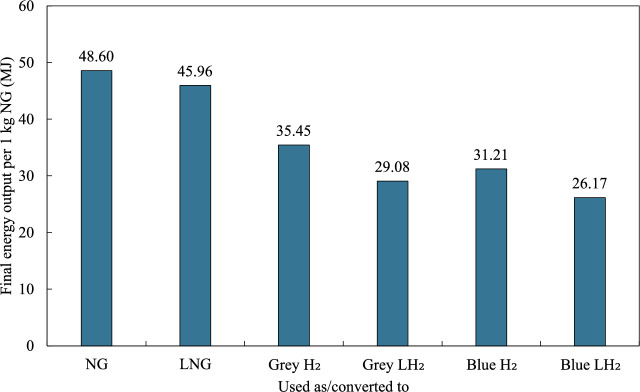

Figure 6 presents the final energy output per 1 kg of NG converted to various fuel forms. Initially, 1 kg of NG exhibits the highest energy output, which is 48.60 MJ. Upon conversion to LNG, the energy output decreases to 45.96 MJ per kg of NG. The liquefaction of NG, which requires 2.9 MJ/kg63, contributes to this reduction in energy output for all fuels.

Fig. 6.

Fig. 6

Final energy output per 1 kg of natural gas converted to various fuel forms.

When NG is converted to grey Inline graphic, the energy output decreases significantly to 35.45 MJ per kg of NG, indicating a substantial energy loss during the conversion process. This reduction becomes more pronounced when NG is converted to grey Inline graphic, resulting in an energy output of 29.08 MJ per kg of NG. This reduction is attributed to the energy-intensive liquefaction process. On average, liquefying 1 kg of Inline graphic requires 36 MJ64.

Blue hydrogen forms also show lower energy outputs compared to NG and LNG. Upon conversion to blue Inline graphic and blue Inline graphic, the energy outputs are 31.21 MJ and 26.17 MJ per kg of NG, respectively. The additional energy requirements for CCS technologies and the liquefaction process contribute to the lower energy outputs observed in blue hydrogen forms.

Resulting Inline graphic emissions

Figure 7 presents the Inline graphic emissions per 1 kg of NG converted to various fuel forms. Initially, the production and utilization of 1 kg of NG result in Inline graphic emissions of 2.72 kg. When NG is converted to LNG, the emissions slightly increase to 3.12 kg Inline graphic per kg of NG. This increase reflects the emissions associated with the liquefaction process.

Fig. 7.

Fig. 7

Inline graphic emissions per 1 kg of natural gas converted to various fuel forms.

Figure 7 also shows that when NG is converted to grey Inline graphic, the Inline graphic emissions increase to 3.32 kg Inline graphic per kg of NG. This increase is expected due to the lack of CCS during grey Inline graphic production. The emissions further increase to 3.50 kg Inline graphic per kg of NG when converting NG to grey Inline graphic, mainly because of the liquefaction process involved. It is important to highlight that if the energy used for the liquefaction process is sourced from renewables rather than fossil fuels, the Inline graphic emissions could be reduced, making hydrogen production a less carbon-intensive process. Compared to other fuels, blue hydrogen forms exhibit significantly lower Inline graphic emissions. Blue Inline graphic has emissions of 1.05 kg Inline graphic per kg of NG, while blue Inline graphic has emissions of 1.84 kg Inline graphic per kg of NG. The reduced emissions for blue hydrogen forms are primarily attributed to the implementation of CCS technologies, which capture a substantial portion of the Inline graphic produced during hydrogen production.

Discussion on Hydrogen and natural gas liquefaction processes

The high costs associated with liquefying natural gas (NG) and hydrogen (Inline graphic) primarily stem from the energy-intensive nature of the liquefaction processes. Although both gases undergo cooling and compression, specific technological demands differ significantly. NG liquefaction involves cooling to approximately Inline graphic, with prior removal of impurities such as carbon dioxide, hydrocarbons, sulfur compounds, and water vapor, thus increasing operational complexity and expenses65,66. One widely utilized NG liquefaction method is the cascade process, employing three refrigeration cycles with propane, ethylene, and methane refrigerants, each operating at distinct temperature ranges. Propane initiates cooling down to about Inline graphic, ethylene further reduces temperatures to around Inline graphic, and methane achieves the final liquefaction to Inline graphic. Despite that cascade liquefaction offers high thermal efficiency, the extensive equipment requirements associated with this process result in significantly elevated capital investment costs65.

Hydrogen liquefaction requires significantly lower temperatures, often below Inline graphic, necessitating specialized, costly cryogenic refrigerants such as neon and helium. Safety considerations due to hydrogen’s broader flammability range and lower ignition energy compared to NG further augment costs67,68. Common Inline graphic liquefaction cycles include the simple Claude cycle, the Kapitza cycle, and the liquid nitrogen (Inline graphic) pre-cooled Linde-Hampson cycle. The simple Claude cycle recovers expansion work by replacing the throttle valve with an expander, benefiting from pre-cooling with Inline graphic for enhanced efficiency. Conversely, the Kapitza cycle simplifies equipment by reducing heat exchangers and operating at lower pressures, while the Linde-Hampson cycle mandates Inline graphic pre-cooling due to Inline graphic’s lower maximum conversion temperature69. In hydrogen liquefaction, helium and neon serve as alternative refrigerants alongside nitrogen, with helium is mainly used because of its excellent refrigerant properties, allowing for highly efficient cooling cycles70,71.

Conclusions

This study demonstrated that hydrogen poses significantly higher safety risks than NG. This necessitates the implementation of rigorous safety protocols and advanced storage technologies to mitigate potential hazards associated with hydrogen leakage and accidental ignition. Based on the hazard analysis, hydrogen scored 12 out of 14 in hazard factors compared to methane’s score of 2. From an energy perspective, converting NG to blue and grey hydrogen results in substantial energy losses. While 1 kg of NG yields 48.6 MJ, conversion to grey hydrogen and blue hydrogen results in energy outputs of 35.45 MJ and 31.21 MJ, respectively. This indicates a need for more efficient production processes.

Environmentally, blue hydrogen offers a substantial reduction in emissions compared to NG, LNG, and grey hydrogen. Converting 1 kg of NG to blue hydrogen results in only 1.05 kg of Inline graphic emissions, compared to 2.72 kg for NG, 3.12 kg for LNG, and 3.32 kg for grey hydrogen. This highlights the potential role of blue hydrogen in achieving low-carbon energy goals through CCS implementation. From an economic perspective, our study found that converting NG to hydrogen, particularly grey hydrogen, is highly profitable under current market conditions. Grey hydrogen conversion yields a net profit of $0.609 per kg of NG. Blue hydrogen, while less profitable due to CCS costs, remains viable with a profit of $0.390 per kg of NG.

In conclusion, adopting hydrogen as an alternative energy carrier or fuel requires careful consideration of trade-offs between safety, energy efficiency, environmental sustainability, and economic viability. While this study provides a systematic and standardized comparison, it remains limited by three main factors. First, the economic analysis is constrained by specific geographic and temporal conditions. Second, the safety assessment methodology relies primarily on comparisons of physicochemical properties under standard conditions. Third, the study does not consider other colors of hydrogen, such as green, turquoise, or brown. Therefore, future research should conduct economic analyses that account more comprehensively for price volatility, for example, by using probabilistic or stochastic approaches. Moreover, researchers should explore safety analyses across a broader range of storage and transportation conditions and operational scenarios. Finally, future studies should investigate methods for improving hydrogen production and liquefaction technologies, enhancing CCS efficiency, and developing comprehensive safety measures to unlock the full potential of hydrogen in the clean energy transition.
