Widespread epistasis shapes RNA polymerase II active site function and evolution

Abstract

Multi-subunit RNA Polymerases are responsible for transcription in all kingdoms of life. These enzymes rely on dynamic, highly conserved active site domains such as the so-called “trigger loop” to accomplish steps in the transcription cycle. Mutations in the RNA polymerase II trigger loop confer a spectrum of biochemical and genetic phenotypes that suggest two main classes, which decrease or increase catalysis or other nucleotide addition cycle events. The RNA polymerase II active site relies on networks of residue interactions to function, and mutations likely perturb these networks in ways that may alter mechanisms. Here, we take a structural genetics approach to reveal residue interactions within and surrounding the RNA polymerase II trigger loop – determining its “interaction landscape” – by deep mutational scanning in Saccharomyces cerevisiae RNA polymerase II. This analysis reveals connections between trigger loop residues and surrounding domains, demonstrating that trigger loop function is tightly coupled to its specific enzyme context.

The active site of RNA Polymerase II is highly conserved. Here the authors show that mutations can propagate effects across the enzyme and alter genetic behavior of distal residues, demonstrating plasticity for residue function beyond conservation.

Introduction

Transcription from cellular genomes is performed by conserved multi-subunit RNA polymerases (msRNAPs)^1–3. While bacteria and archaea use a single msRNAP to transcribe all RNAs^4–6, eukaryotes have at least three msRNAPs (Pol I, II, and III) for different RNA types^7–10. RNA synthesis by msRNAPs occurs by iterative nucleotide addition cycles (NAC) of nucleotide selection, catalysis, and polymerase translocation^11–15. The msRNAPs active sites accomplish these NAC steps using two conformationally flexible domains, the bridge helix (BH) and trigger loop (TL)^5,12,16–19. The multi-functional natures of the BH and TL likely underlie their striking conservation, serving as interesting models for studying the function and evolution of extremely constrained protein domains.

Most catalytic cycle events involve concerted conformational changes in the TL, and potentially the BH^{12–14,19–23}. The extent to which these conformations are supported by, or communicate with, the surrounding enzymatic context can be examined by structural or computational approaches, but functional importance needs to be determined experimentally. The BH is straight in most msRNAP structures^7,8,12,13,24, but appears kinked in Thermus thermophilus (bacteria) RNAP^5,25. Simulations suggest these dynamics may promote msRNAP translocation^16,25–28. The TL adopts various conformations to support its multiple functions. During each NAC, the TL nucleotide interaction region (NIR) discriminates correct NTPs from mismatched ones, initiating a shift from a catalytic-disfavoring “open” state to a catalytic-favoring “closed” state^11,20,29,30. This closure promotes catalysis^20,31, and subsequent TL reopening is proposed to support polymerase translocation to the next template DNA position, allowing for the next NAC^32–34 (Fig. 1a). Disrupting the TL with mutations affects transcription at all stages^{13,17,21,23,35–38}. For instance, NIR mutations impair TL-substrate interactions, resulting in reduced catalysis and elongation rate in vitro (Loss of function, LOF)^{17,23,36,37,39,40}. Mutations in the TL hinge and C-terminal regions appear to shift the TL toward the active state, enhancing catalysis and elongation rate but impairing transcription fidelity (Gain of function, GOF)^17,41,42. Mutations may also affect other transcription processes such as proofreading, pausing, and termination^12,42–45, as TL confirmations are associated with these activities in addition to catalysis and translocation.

Fig. 1. Schematics of the Pol II active site interaction landscape.

a The Pol II active site is embedded in the center of a 12-subunit complex (left panel). Pol II functions are supported by distinct TL conformational states. An open TL (PDB: 5C4X) and closed TL (PDB: 2E2H) conformations are shown in the middle panel. GOF mutations have been identified in the TL and its proximal domains (right panel), suggesting TL mobility and function may be impacted by adjacent residues. b Examples of inter-residue genetic interactions. WT residues are shown in circles with a number indicating residue position in Rpb1. Mutant substitutions are shown in colored circles, with color representing mutant class. Colored lines between mutant substitutions represent types of genetic interactions. c Overview of experimental approach. We synthesized 10 libraries of TL variants represented by colored stars. Libraries were transformed into WT or mutated yeast strains. A selection assay was subsequently performed by scraping and replating the transformants onto different media for phenotyping. DNA was extracted from yeast from all conditions, and then went through TL region amplification and Illumina sequencing. Read counts for variants on general conditions were used to determine growth fitness, while read counts on other conditions were used to determine the phenotypic fitness landscape. d Overview of analytical approach for determining interaction landscape. Mutant conditional growth fitnesses were calculated using allele frequencies under selective growth conditions and subjected to two logistic regression models for classification/prediction of catalytic defects. Double mutant interactions were computed using growth fitness. Classification allowed epistatic interactions to be deduced from double mutant growth fitness (see “Methods”).

All TL conformational dynamics and functions are likely balanced by residue interactions within and around the TL^{40,44,46–48}. Embedded in the conserved active site, the TL interacts with surrounding domains such as the BH and α46-47 helices, forming a five-helix bundle enclosing a hydrophobic pocket that supports these dynamics (Fig. 1a)^12,41. Mutations in TL adjacent domains (e.g., BH GOF T834P and LOF T834A, funnel helix α−21 GOF S713P, and Rpb2 GOF Y769F)^{17,23,25,26,35–37} (Fig. 1a), and in a Pol II subunit which does not directly contact the Pol II active site, such as Rpb9⁴⁹, also alter catalytic activity and fidelity, showing phenotypes similar to TL mutants, indicating that TL dynamics and function are finely balanced and could be sensitive to allosteric effects^49–52. Determining the extent and nature of the pathways connecting the TL to the rest of the polymerase will reveal the functional networks that shape its dynamics and the potential pathways through which Pol II has evolved or may be controlled by elongation factors.

Physical and functional intramolecular interactions between amino acids define protein function and evolvability^53–56. Genetic interactions where one mutation modulates or alters the phenotype of another are commonly referred to as epistasis. Interactions can be of different types, such as suppressive, masking, or synthetic interactions. In this study, we use “epistasis” specifically to describe cases where mutant phenotypes allele-specifically depend on the identities of other amino acids. Epistasis contributes to protein evolvability by providing a physical context and an evolutionary window in which some intolerable mutations may be tolerated^57–59. Recent studies have shown how mutations can alter protein function, allostery, and evolvability, suggesting that even conserved residues are subject to unique, context-dependent epistatic constraints^60–67. Consistent with this, distinct phenotypes for the same conserved residues have been observed in various proteins, including yeast Pol I and Pol II^65,66,68. For example, the TL domain of yeast Pol I is incompatible with Pol II, despite sharing 70% sequence identity, while the similarly distinct Pol III TL maintains some function⁶⁹. It is not known generally if highly conserved TL sequences are compatible in a heterologous msRNAP context. Answering this question would reveal how tightly integrated the TL is by coevolution with its embedded context, or the extent to which its functions are self-contained due to its very high conservation.

Functional interactions between residues can be revealed by genetic interactions of double mutants^{17,37,70–72}. A systematic analysis is needed to fully describe and understand the requirements for each mutant’s phenotype, and the nature of the interactions that control Pol II activity. Previous studies from our lab on a small subset of site-directed substitutions identified distinct types of Pol II double mutant interactions, including suppression, synthetic sickness and lethality (activity-additive), less-than-additive interactions (sometimes referred to as epistasis), and sign epistasis^17,37,71. Suppression interactions are common between LOF and GOF mutants, as expected if each mutant is individually acting in the double mutant, balancing opposing effects on activity. Similarly, synthetic lethality or sickness were common between mutants of the same class (GOF or LOF), consistent with greater defects arising from combining partial losses of TL function. However as just noted, we also observed mutant combinations where the double mutant was not sicker than the single mutants for mutants of the same class, suggesting these mutants might act at the same step. Additionally, we had observed a specific type of epistasis called sign epistasis, where a mutant’s phenotypic class (GOF or LOF) appeared dependent on the identity of another residue. For example, the GOF TL substitution Rpb1 F1084I was unexpectedly lethal with the LOF TL substitution Rpb1 H1085Y, contrary to the predicted mutual suppression for a GOF/LOF combination^37,71. This suggested that F1084I required H1085 for its GOF characteristics and became a LOF mutant in the presence of H1085Y (Fig. 1b).

Deducing large-scale residue interaction networks is challenging. To accomplish this for Pol II, we developed experimental and analytical schemes to extend the previously established “Pol II phenotypic landscape”^17,37,71,73 to 15,174 double and multiple mutants within the S. cerevisiae Pol II TL and between the TL and adjacent domains (a “Pol II Interaction landscape”). Our analyses indicate that TL function and evolution are dominated by widespread epistasis. The TL faces extensive constraints despite its high conservation, arising from residues within the TL and its interacting domains, resulting in highly similar TLs being incompatible inside yeast Pol II to a large degree. Additionally, individual mutants with similar biochemical and genetic phenotypes have quite distinct genetic interaction networks, revealing differential functional requirements for their abilities to confer altered Pol II activities. Some mutants minimally change the genetic behavior of most TL substitutions when combined, suggesting that TL conformations or interactions remain largely unchanged, with altered TL dynamics hypothesized to be the sole difference. In contrast, other alleles greatly perturb the genetic behavior of many TL substitutions, indicating these substitutions change the active site landscape in ways that would otherwise be undetectable. Together, these results suggest small changes in the Pol II active site can dramatically change its constraints and therefore, its potential evolutionary paths. Furthermore, our findings highlight potential communication networks through evolutionary coupling of Pol II residues within the active site, which may underlie allosteric communication paths to the active site for elongation factors.

Results

A system for the dissection of the Pol II active site genetic interaction landscape

We developed an experimental and analytical framework, termed the Pol II TL interaction landscape, to dissect residue interactions that shape Pol II TL function and evolution in S. cerevisiae. We designed and synthesized 15,174 variants representing evolutionary haplotypes, all possible Pol II TL single mutants and a subset of targeted double mutants in ten libraries (Supplementary Table 1). This approach follows our prior analysis of the TL phenotypic landscape¹⁷ with modifications (“Methods” and Supplementary Fig. 1a). Libraries were transformed, screened under selected conditions (Methods), and sequenced (Fig. 1c, Supplementary Fig. 1a). Mutant growth phenotypes are calculated based on relative allele frequency shifts compared to a control condition and normalized to the WT under identical conditions. Biological replicates indicate high reproducibility (Supplementary Fig. 1b, c). Libraries were Min-Max normalized⁷⁴ to account for scaling differences between libraries (Supplementary Fig. 2a), and the same mutants present among different libraries indicate high correlation of fitness determinations in each library (Supplementary Fig. 2b, c).

We defined a conceptual framework for evaluating genetic interactions among TL mutations. First, we assume that independent mutant effects combine in a log-additive manner. This means that predicted double mutant fitness defects should be the combination of both single mutant defects, as is standardly assumed^59,70,72,75. Deviations from log-additive expectations represent genetic interactions. To quantify any potential deviation, we compared the observed fitness of a double mutant measured in our high-throughput experiment to its expected fitness, calculated as the addition of constituent single substitutions’ fitnesses, which are expressed as a log value. We term these differences as a “deviation score” (Deviation score = observed fitness−expected fitness; Supplementary Fig. 3). We consider a deviation score between −1 and 1 to be consistent with additive behavior, meaning independent contributions of single mutants to the double mutant fitness. A deviation score > 1 is taken as a positive genetic interaction (e.g., suppression), while a score < −1 indicates a negative genetic interaction (e.g., synthetic sickness or lethality).

Importantly, our phenotyping analyses determine both general mutant fitness and predict their class of in vitro biochemical defect. Our previous studies showed that phenotypic profiles from conditional growth assays, reflecting Pol II-activity-dependent phenotypes in vivo, correlate with the measured biochemical activity in vitro^17,37,76. For example, catalytically hyperactive GOF mutants have a phenotypic profile based on sensitivity to mycophenolic acid (MPA) and weak suppression of two genetic reporters (gal10∆56 and lys2-128∂), while catalytically defective LOF mutants are MPA resistant, show strong suppression of gal10∆56, and fail to suppress lys2-128∂ (more fully described in “Methods”). Using the established correlation between growth profiles (MPA and media used to detect phenotypes of mutants on gal10∆56 and lys2-128∂ backgrounds) and known/predicted in vitro catalytic effects (GOF or LOF) of 65 TL alleles^17,37,52, we trained two multiple logistic regression models to distinguish Pol II mutant classes, and applied them to all viable mutants (growth fitness score > −6.5) of designed variants, classifying them into three groups, GOF (22.96%), LOF (28.11%) and unclassified (mutants not belonging to either class, 48.93%) (Fig. 2a, “Methods”). To visually inspect the classifications, we applied t-SNE projection and k-means clustering for all measured mutants across all growth conditions. We observed separated GOF and LOF clusters consistent with logistic regression classifications (Fig. 2b, c). Notably, mutants with similar defects may be further distinguished in different clusters, suggesting their similar phenotypic defects may be related to different transcription defects (Fig. 2c). By classifying Pol II active site mutants as “GOF” or “LOF” based on predicted in vitro biochemical phenotypes, we establish baseline expectations for their genetic interactions. We previously observed activity-additive interactions, meaning suppression between mutants of different classes (GOF + LOF) or synthetic sickness/lethality within the same class (GOF + GOF or LOF + LOF). Together with the calculated deviation scores, we can distinguish specific epistatic interactions from activity-dependent effects. We classified an interaction as epistasis when we observed positive fitness deviation in mutants of the same activity class (GOF + GOF, LOF + LOF), where we would otherwise expect synthetic sickness or lethality if mutants were functioning independently. Conversely, we defined sign epistasis for situations where negative deviations in combinations between the classes (GOF + LOF), where suppression would be expected for independent mutants (Fig. 1d, Supplementary Fig. 3).

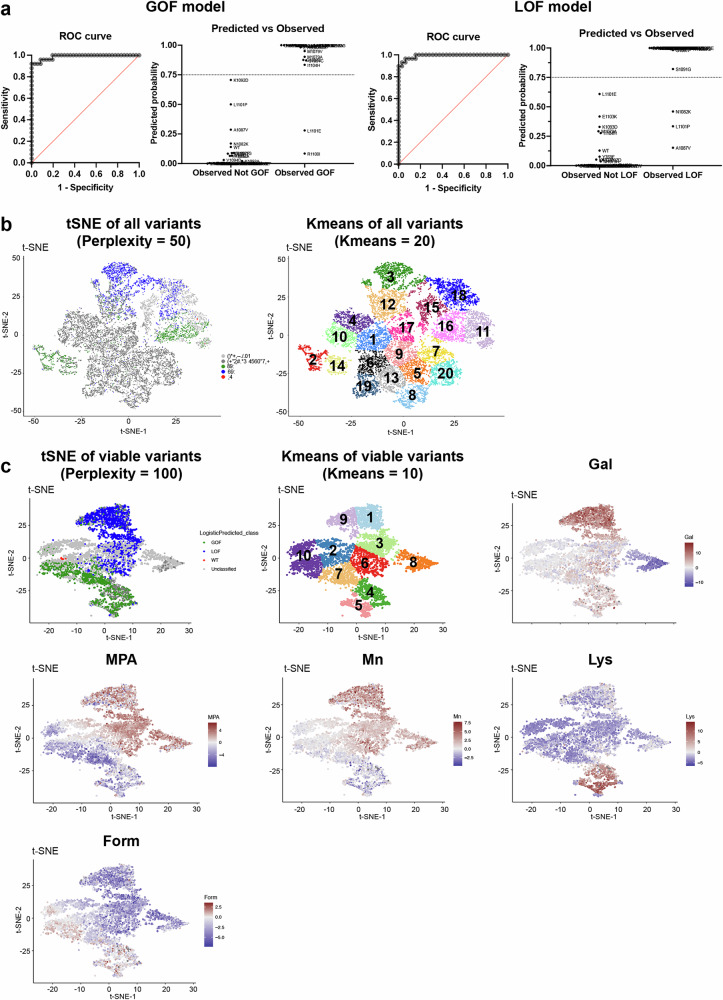

Fig. 2. Classification of mutant catalytic defects with machine learning algorithms.

a ROC curves of two multiple logistic regression models. Using 65 mutants with validated in vitro catalytic defects and conditional growth fitness, we trained two models to classify variants as GOF or LOF. The GOF AUROC is 0.9889 (P ≤ 0.0001), whereas the LOF ROC is 0.9914 (P ≤ 0.0001). The predicted vs. observed graphs show GOF/LOF probabilities for 65 known mutants. The threshold to determine GOF or LOF mutations is shown by lines at 0.75. Details are in Supplementary Table 6. Among the 6054 viable mutants, 1390 were classified as GOF (22.96%), 1702 as LOF (28.11%), and 2962 remained unclassified (48.93%). b Left: t-SNE projection of all mutants (n = 15174) with perplexity = 50. Right: k-means clustering of all mutants. The t-SNE and k-means projections suggest GOF are in 3 clusters (cluster 2, 14, and 16), LOF are in 2 clusters (cluster 3 and 18), and unclassified mutants are in 2 clusters (11 and 15). Most ultra-sick/lethal mutants (fitness ≤ −6.5) are projected together into 13 clusters, likely due to significant noise from low read counts across conditions. c Feature plot of viable mutations in t-SNE and k-means projections (n = 6054). Ultra-sick/lethal mutations were removed, and the viable mutants were projected with t-SNE (perplexity = 100) and k-means (10 clusters). GOF were grouped into 4 clusters (4, 5, 7, and 10) and LOF were in 4 clusters (1, 3, 6, and 9). Each spot in the projection represents a mutant, and it is colored based on the fitness of the mutant in selective conditions. GOF and LOF mutants in different clusters are related to various phenotype patterns. GOF clusters 7 and 10 are defined by strong MPA^S, while clusters 4 and 5 show slight MPA^S, Gal^R, Mn^S, but strong Lys⁺. Slight Form^S is a common feature across four GOF clusters. LOF clusters 3 and 6 show slight Mn^R, while clusters 1 and 9 are strongly Mn^R and Gal^R. Cluster 8, which mostly contains unclassified mutants, appears defined by Gal super sensitivity, indicating a potential specific defect defining this cluster.

We compared interactions observed in sequencing to growth assays for 59 previously examined double mutants^17,37, with 48 matching our observations. The other 11 were categorized as ultra-sick/lethal and therefore inaccessible to sequencing analysis (Supplementary Table 2). We constructed 50 additional mutants to assess interactions by patch assay and spot assay, and these aligned with our high-throughput results (Supplementary Fig. 4).

Widespread incompatibility of conserved TL sequences with yeast Pol II suggests the TL is highly constrained by its coevolved environment

We previously found that identical mutations in a residue conserved between the Pol I and Pol II TLs yielded different biochemical phenotypes^69,77. Additionally, the yeast Pol I TL was incompatible within the yeast Pol II enzyme, implying that TL function in that case depended on its enzymatic context^69,77. To determine the scope of TL-Pol II incompatibility, we designed a library containing evolutionary TL variants from bacterial, archaeal, and eukaryotic msRNAPs and determined their compatibility in the yeast Pol II context (Fig. 3a). Eukaryotic TL alleles were more compatible than those from archaea or bacteria, with Pol II alleles being the most compatible (Fig. 3b, Supplementary Fig. 5a, b), consistent with evolutionary distance. Growth fitness in the Pol II background showed a slight negative correlation with the number of TL substitutions for most TLs but not those from bacteria (Supplementary Fig. 5c), likely because of the bacterial TLs being largely incompatible with Pol II. Despite this, some archaeal TLs provide yeast Pol II viability, yet several Pol II TLs were defective or lethal. These results suggest widespread coevolution between TL sequences and that the enzymatic background, beyond ultra-conserved positions, shapes TL function in individual enzymes. We have explored the nature of this incompatibility and complex intra-TL genetic interactions further in a separate study⁷⁸.

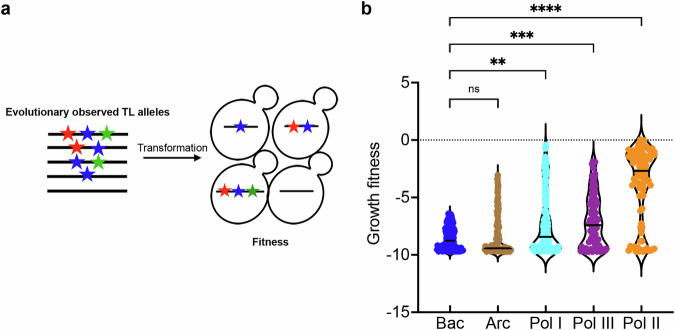

Fig. 3. Contextual epistasis shapes TL evolution.

a Schematic for the TL evolutionary haplotypes library. We selected 662 TL haplotypes representing TL alleles from bacterial, archaeal, and the three conserved eukaryotic msRNAPs. These TL alleles were transformed into yeast and were phenotyped under selective conditions. b Fitness of evolutionarily observed TL haplotypes in the yeast Pol II background. The Pol II WT TL fitness (0) is labeled as a dotted line. Kruskal–Wallis test was performed for comparison, and significant levels (Bacteria vs. Archaea, P > 0.9999. Bacteria vs. Pol I, P = 0.0027. Bacteria vs. Pol III, P = 0.0003. Bacteria vs. Pol II, P < 0.0001) were labeled.

Allele-specific interactions suggest unique properties of individual mutants with similar phenotypes

To determine the potential residue interactions surrounding the TL in the yeast Pol II environment, we analyzed 12 previously studied GOF and LOF mutants (eight within the TL and four outside), each combined with >600 perturbations in the form of all single-substitution TL mutants (Fig. 4a). These 12 mutants serve as probes for the genetic interaction space of the TL, revealing how it might be altered in allele-specific fashion by each “probe” mutation. Importantly, TL conformational dynamics and function are balanced by internal residue interactions within the TL and by TL-external interactions between the TL and TL-proximal domains. While GOF and LOF mutants in TL-adjacent domains appear similar to GOF and LOF TL mutants, their underlying mechanisms or specific residue dependencies are not known. We therefore compared interaction networks among probe mutants with similar biochemical and phenotypic defects to distinguish if changes to TL function might reflect simple alterations to TL dynamics, or additional alterations to folding trajectories or conformations.

Fig. 4. Pol II TL interaction landscape distinguishes mutants with similar phenotypes.

a Design of the targeted double mutant libraries. All possible substitutions at each TL residue (represented with a simplified format in the left panel) and twelve “probe” mutations (eight within the TL and four in TL-proximal domains) (middle panel) were combined with to generate 7280 double mutants (right panel). 7276 mutants passed the reproducibility filter and were used for interaction analyses. b The percentage of functional interactions observed for each probe mutant with viable GOF or LOF TL substitutions. Epistasis and sign epistasis are labeled with colored lines. c Pol II-TL functional interaction landscape with interactions represented by deviation scores. The upper panel shows interactions of GOF probe mutants in combination with viable GOF or LOF TL substitutions. The lower panel shows interactions of combinations with LOF probe mutants. d Principal component analysis (PCA) of deviation scores across double mutant interactions for 12 probe mutants (see “Methods”).

We observed distinct interaction networks among probe mutants, even for those with similar apparent biochemical and growth defects (Fig. 4b–d), indicating that mutants differentially impact the Pol II active site, potentially reflective of different constraints and distinct properties of individual mutants, as discussed below. A simple expectation is that mutants with altered TL dynamics yet maintenance of conformational states should show additive interactions, because the effects of substitutions on function would be maintained. In contrast, substitutions altering TL conformations/folding or propagating changes across the active site may be subject to allele-specific interactions, i.e., prominent epistasis. We observed that most probe mutants were placed on a continuum of effects based on the balance between additive (independent) interactions and epistatic (dependent or allele-specific) interactions in double mutants, which we interpret as the degree to which they propagate their effects across the active site (Fig. 4b, c, Supplementary Fig. 6, 7). Probe mutants appeared separable based on the extents of their additive or epistatic interactions, where greater numbers of independent interactions (additive) would indicate fewer effects on other residues’ functions. In contrast, an increase in dependent interactions (sign epistasis) would indicate greater changes in other mutants’ characters and presumably residue function. For example, Y769F, a GOF TL-proximal mutant in the Rpb2 link domain (Fig. 1a), uniquely suppresses some TL lethal substitutions among all GOF probe mutants (Supplementary Fig. 8), indicating specific functional interactions between Y769F and these substitutions. Moreover, two TL-adjacent GOF mutants, Rpb1 S713P (funnel α-helix 21) and T834P (BH) displayed largely distinct interaction networks despite similarly increased biochemical activity and genetic phenotypes as single mutants¹⁷ (Figs. 4c and 5a). S713P broadly suppressed LOF TL substitutions (96 instances), consistent with generic enhancement and preservation of TL dynamics or residue function. In contrast, T834P exhibited sparser suppression (33 instances) but much greater sign epistasis than S713P (102 versus 38 instances), especially with P1099, where all substitutions showed sign epistasis with T834P but not S713P (Fig. 5a). These results suggest that T834P’s GOF function requires most TL residues to be WT, is especially reliant on proline at 1099, and that T834P alteration to the BH extensively changes the TL’s functional space, likely through folding or altered conformations.

Fig. 5. Interaction networks of selected probe mutants.

The TL is shown in a circle with WT residues and positions labeled. All 20 substitutions of each TL residue are represented by a magenta arc under each WT residue, with tick marks representing individual substitutions at that position, and are colored by mutant class. Comparison of interaction networks between S713P and T834P (a), E1103G and F1084I (b), and H1085Y and H1085L (c) showed the differences are significant (P < 0.0001). The comparisons were performed with the Kruskal–Wallis test with P value correction with Dunn’s multiple comparisons test (Supplementary Table 7).

A similar distinction was observed between two internal TL GOF mutants, Rpb1 E1103G and F1084I (Figs. 4c and 5b). E1103G showed widespread suppression of LOF TL substitutions (184 instances), consistent with its proposed role in altering TL dynamics to promote TL closure^23,37, and which allows TL mutants to maintain their effects. In contrast, F1084I showed more limited suppression (43 instances) while showing widespread synthetic lethality due to predicted sign epistasis, indicating that F1084I requires many WT residues for GOF characteristics and itself may switch to a LOF upon many additional TL perturbations.

The most striking example came from two LOF substitutions at the ultra-conserved Rpb1 H1085 (Fig. 5c). This histidine, which contacts incoming NTP substrates^5,12, is the target for the Pol II inhibitor α-amanitin^36,79, and promotes catalysis^12,13. Initial structural data and molecular dynamics simulations suggested that H1085 functions as a general acid for Pol II catalysis^80–83. Our discovery that H1085L was well-tolerated¹⁷, and subsequent experiments from the Landick lab^84,85, have led to their proposal that the TL histidine functions as a positional catalyst where a similarly sized leucine substitution supports catalysis with mild effects on biochemistry and growth. If H1085Y and L substitutions represent a continuum of positional catalyst activity, then their interaction networks would be expected to be similar, and differing only in magnitude, not identity or type of interactions. Contrary to this, distinct interaction patterns were observed (Figs. 4c, and 5c). Most GOF mutants suppressed H1085Y but not H1085L. Instead, H1085L showed synthetic lethality with most GOF mutants (putative sign epistasis). For example, almost all substitutions at E1103 showed sign epistasis with H1085L but not H1085Y (Supplementary Fig. 7b, Fig. 5c). The distinction between H1085L and H1085Y is further highlighted in PCA analysis (Fig. 4d).

Functional and epistatic interactions within the TL hydrophobic pocket tune Pol II activity

Several allele-specific epistatic interactions were observed, with some of the most extensive occurring between A1076 substitutions and L1101S (Fig. 6a), suggesting tight coupling between A1076 and L1101 for Pol II function. These two hydrophobic residues, together with other hydrophobic residues in TL helices, likely stabilize the open TL conformation through hydrophobic packing of the TL helices (Fig. 6c). Consistent with this, another pair of adjacent residues, M1079 and G1097, also showed allele-specific interactions (Fig. 6b, c). Additionally, three GOF/GOF combinations between L1101S and A1076 substitutions showed WT-like behavior for the double mutants based on our regression model for mutants, indicating mutual suppression due to one of the singles switching to a different class (sign epistasis), further supporting a tight functional interaction between 1101 and 1076 (Supplementary Fig. 9a).

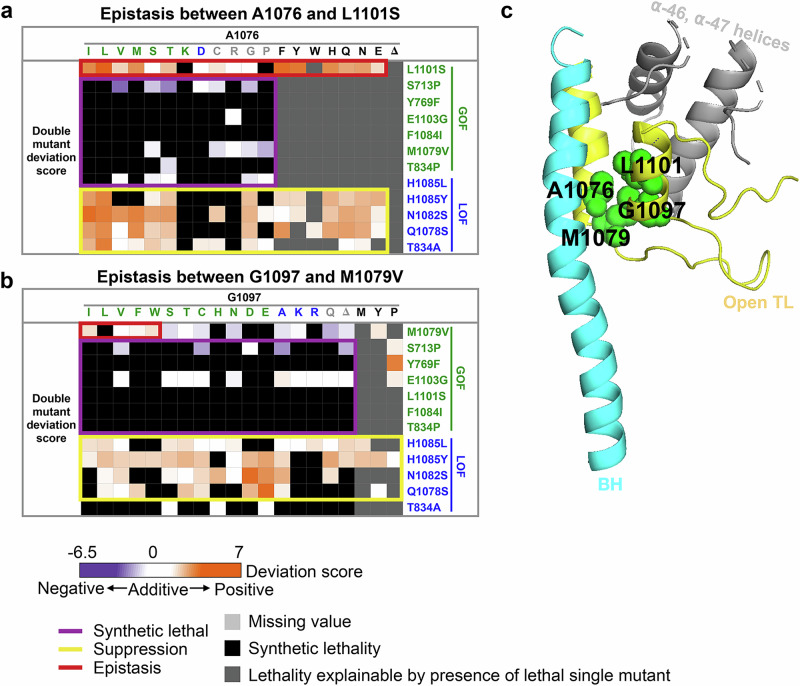

Fig. 6. Pol II TL interaction landscape reveals functional dependency of proximal residues.

Specific epistatic interactions observed between hydrophobic residues A1076 and L1101 (a), and M1079 and G1097 are shown as heatmaps (b). The x-axis of both heatmaps are 20 substitutions ordered by predicted phenotypic classes and color coded accordingly. The probe mutants are along the y-axis. c The epistatic interactions we identified between A1076 and L1101, as well as M1079 and G1097, are shown on the five-helix bundle of Pol II active site (PDB: 5C4X).

We also observed allele-specific interactions for predicted lethal mutants. Our lethality threshold is more conservative than the actual lethal threshold, and therefore, some classified lethal but actually slow-growing mutants have enough growth in phenotypic assays for GOF or LOF class determination. Among 21 ultra-sick/lethal TL substitutions predicted as GOF, suppression by LOF mutants was expected and observed (Supplementary Fig. 9b). For example, lethal A1076 substitutions were suppressed by LOF probe mutants, suggesting their severe defects result from strong GOF status. However, some A1076 substitutions were also suppressed by the GOF probe mutant L1101S, indicating allele-specific mutual suppression or sign epistasis, consistent with A1076-L1101 interactions described above (Supplementary Fig. 9c). Similarly, ultra-sick/lethal LOF substitutions were commonly suppressed by GOF mutants, but some were suppressed by specific LOF mutants (Supplementary Fig. 9b). For example, S1091G was suppressed by most GOF mutants and specifically by the LOF V1094D (Supplementary Fig. 9c), suggesting allele-specific compensation. Furthermore, some lethal mutants exhibited interactions with specific GOF or LOF probe mutants. For example, F1084R was specifically suppressed by LOF probe Q1078S and GOF probe Y769F (Supplementary Fig. 9c). Notably, F1084, Q1078S, and Y769 are in close proximity in the substrate-bound, catalytic-favoring TL conformation. These types of allele-specific interactions potentially allow the TL and adjacent residues to evolve and differentiate while maintaining essential functions.

We note that strong epistasis is much more prevalent in the Pol II system than in other quantified proteins^56,86–89 (Supplementary Fig. 9d), likely due to the high rate of suppressive interactions stemming from Pol II mutants’ opposing effects on catalysis.

Mapping TL-internal residue interaction networks suggests widespread epistasis within the TL

To determine TL-internal interaction networks, we selected 2–4 substitutions for each TL residue, representing diverse phenotypes (GOF, LOF, lethal, or unclassified), and combined them with the selected substitutions across all other TL positions. This curated set of 3790 double mutants captures potential interactions between any two TL residue positions (Fig. 7a). Observed fitness of these double mutants was compared to predictions from the additive model, revealing widespread deviation from the model (i.e., large interactions)(r² = 0.21), much smaller than the r² (about 0.65–0.75) reported in other studies^{56,72,86,87,89} (Fig. 7b), likely reflecting our selection criteria for mutations with diverse phenotypes. In general, mutations of the same class were additive or exacerbating, with some exceptions that reveal functional dependencies between residues (Fig. 7c, e, Supplementary Fig. 10). Additionally, the strongest deviations from expectations were between mutations of opposing phenotypic classes (GOF + LOF combinations). Here, we commonly observed suppression as predicted for mutations acting independently in 43% of GOF + LOF combinations, but we also observed unexpected lethality or exacerbation (sign epistasis) for 41% of GOF + LOF combinations. Distinct patterns of sign epistasis for GOF/LOF combinations provide the ability to distinguish functional requirements for GOF alleles to be able to confer GOF phenotypes (discussed below). Interactions were distributed throughout the TL, covering every residue, supporting connectivity across the TL (Fig. 7d). Notably, epistasis clustered within the C-terminal TL helix and adjacent regions (The far-right panel of Fig. 7d), supporting functional dependencies of TL-C terminal residues on one another, consistent with their proposed function in collaboratively stabilizing the open TL.

Fig. 7. Widespread epistasis in the Pol II TL interaction landscape.

a Design of the pairwise double mutant library. We curated 2–4 substitutions for each TL residue (in total 90 substitutions, n(GOF) = 18, n(LOF) = 30, n(Unclassified) = 19, n(Lethal) = 23) and combined them with each other to generate 3910 double mutants. 3790 of them passed the reproducibility filter. WT TL residue positions are indicated with an arch. Phenotype classes of single substitutions are shown with corresponding colors. b An xy-plot of observed double mutant growth fitness measured in our experiment (y-axis) and expected fitness from the addition of two constituent single mutants’ fitnesses (x-axis). N (positive) = 612. N (Negative) = 1402. N (Additive) = 1776. N (Sum) = 3790. Lethal threshold (−6.5) is labeled with dotted lines on the x- and y-axis. The additive line where x  ± 1 = y is indicated by dashed line centered in the gray section. Simple linear regression was performed, and the best fit equation is y = 0.52Xx−2.55, r² = 0.21, P < 0.0001. c Percent of interactions observed. N (LOF/LOF) = 412. N (GOF/GOF) = 156. N (GOF/LOF) = 534. d Various groups of interactions are displayed in a network format for clarity. In these networks, the TL structure is simplified to a circle, with the TL-N terminal and C-terminal of the TL connected. WT TL residues are represented by arches, and selected substitutions are labeled beside these arches, with phenotypes indicated by colors. Lines connect two substitutions if there is interaction between them. For example, in the “Epistasis and sign epistasis” network, we selected three substitutions at K1102: K1102P, K1102L, and K1102A. They show epistasis with V1094D and R, T1095P, S1096P, V1098R, and P1099F and V. These interactions are labeled. The observed epistasis, accumulated at the TL-C terminal, indicates a functional dependency. e–g. The intra-TL functional interaction heatmaps of various combinations. Double mutant deviation scores are shown in the heatmap. GOF/GOF, LOF/LOF, and GOF/LOF combinations are shown in (e). Combinations with lethal single substitutions are in F. Combinations with unclassified mutants are in (g).

Genetic interactions reveal insights into lethal or unclassified individual mutants

Most lethal mutants could be suppressed by at least one predicted GOF mutant (Fig. 7f, Supplementary Fig. 10), suggesting their lethality likely comes from reduced activity (LOF) below a viable threshold. However, this suppressibility also suggests that individual lethal substitution activity defects are mostly close to the viable threshold. This suggests that the contributions of most individual residues represent only a portion of total TL activity, which is expected to provide a ~1000-fold increase in catalytic activity^90–92. Suppressibility of lethal residues by GOF alleles is also consistent with the greater probability of lethal substitutions being LOF rather than GOF. However, two lethal mutations at A1076 were suppressed by most LOF mutations or specific lethal mutants, but not GOF mutants, implying that their lethality resulted from being GOF. Additionally, unclassified single mutants generally showed limited interactions with GOF, LOF, or lethal classes, consistent with small or mostly independent effects. However, a few unclassified mutants showed suppression in combination with GOF mutants, suggesting they are either potentially atypical LOF not detected by phenotypic analysis or allele-specific interactions (Fig. 7g, Supplementary Fig. 10).

We reasoned that evolutionarily observed lethal substitutions would be closer to viability than those not observed and would therefore be more likely to be suppressible by Pol II GOF mutants. To determine this, we compared the suppressibility of substitutions observed in existing msRNAPs that are lethal in S. cerevisiae Pol II versus substitutions that are lethal but not present in extant msRNAPs by analyzing the maximum positive deviation scores from all double mutants containing individually lethal substitutions. Singly lethal substitutions (single substitutions that are lethal on their own in yeast Pol II) identified in our msRNAP TL MSA showed higher maximum deviation scores than substitutions lethal on their own in yeast and not present in the MSA (Fig. 8a, Supplementary Fig. 5b). Consistently, most L1081 substitutions cannot be suppressed, whereas a L1081M, (commonly a WT residue in bacteria and archaeal RNAPs) showed the highest suppressibility (Fig. 8b). These results indicate that singly lethal mutants in S. cerevisiae Pol II observed elsewhere msRNAP evolution, on average, maintain greater functionality and/or are more easily suppressed by single additional mutants in yeast Pol II. Interestingly, most lethal substitutions in A1087 and all lethal substitutions in G1088 cannot be suppressed (Fig. 8b), suggesting the strict restriction at these positions, consistent with the structural observation that A1087 and G1088 are in a small pocket between the bridge and funnel helices^12,17. The TL has been estimated to enhance catalytic activity by 500–1000 fold^90,91,93, while yeast viability tolerates only ~10-fold effects³⁶. We conclude that lethal mutants observed as functional residues in other species are likely closer to the viability threshold, as might be predicted to result from a series of small adaptive steps that allow their function.

Fig. 8. Contextual epistasis shapes TL evolution.

a A comparison of the maximum deviation score of each TL lethal single substitution that is present in any evolutionary TL haplotypes from bacterial, archaeal, or eukaryotic Pols versus those that have not been observed in any species. The evolutionary TL haplotypes were from multiple sequence alignments (MSAs). Nine substitutions were found in an MSA of 542 archaeal TL sequences that are lethal when present in yeast as a single substitution. Seventeen were found in an MSA of 1403 bacterial TLs, five were found in 749 Pol I TLs, seven were found in 499 Pol II TLs, and five were found in 539 Pol III TLs. Evolutionarily observed lethal substitutions were compared to those unobserved in our TL MSA. The percentage of total suppressible lethal single mutants for each group is labeled at the bottom of the plot. Boxes are: center line, median; box limits, second and third quartiles; whiskers, maximum and minimum points. Statistical comparison was done with the two-sided Mann–Whitney test, and the significant levels (Bacteria vs. Absent, P = 0.0011. Archaea vs. Absent, P = 0.0122. Pol I vs. Absent, P < 0.0001. Pol III vs. Absent, P = 0.1277. Pol II vs. Absent, P = 0.0018) are shown in the figure. b A heatmap displays the highest deviation scores of lethal single substitutions. The x-axis represents the wild-type residues and positions of the yeast Pol II TL, while the y-axis shows 20 substitutions. Viable substitutions are marked with gray boxes, and wild-type amino acids are indicated with gray boxes with a black edge. The highest deviation scores of lethal substitutions are shown in colored boxes, ranging from white to orange, reflecting the strength of suppression.

Coevolution of Pol II active site residues forms distinct sectors within specific domains and extends to the surfaces of Rpb1 and Rpb2

Our analyses suggest that even a highly conserved domain like the Pol II TL can be tightly integrated through coevolution of less conserved residues and that substitution tolerance is shaped by widespread epistasis. Changes in residue identities alter interaction networks, shaping the Pol II active site across evolution. To identify the coevolving residue networks in the Pol II active site, we employed statistical coupling analysis (SCA) for residues within Rpb1 and Rpb2, the two largest subunits of Pol II, which include the entire active site. SCA is well-suited for identifying coupled residue sectors, representing putative residue communication networks^94–96. From 283 linked Rpb1/Rpb2 sequences, we identified 53 coevolving sectors (Supplementary Fig. 11). Residues within the active site form four major sectors (Fig. 9a–e). First, sector 37 includes many Rpb2 link domain residues and most TL residues, including those at the NIR and some at the TL C-terminal (Fig. 9b). This sector tightly surrounds the substrate binding pocket (Fig. 10a), befitting critical roles in catalysis. Second, sector 15 consists of four BH residues, most residues in switch 1 (part of the clamp domain), and many cleft residues, including the α46-47 loop, which accommodates incoming DNA^8,13 (Fig. 9c). Residues in this sector directly interact with Pol II subunits Rpb5 and Rpb6 (Fig. 10b), consistent with Rpb5’s role in interacting with the incoming DNA⁹⁷. While the α46-47 loop forms a five-helix bundle with two TL helices and the BH helix⁴¹ (Fig. 6c), coupling analysis indicates it is primarily evolutionarily coupled with cleft residues instead of the TL. This suggests that the α46-47 loop may influence TL function by constraining the space for TL movement, rather than directly interacting through specific residue identities. Third, sector 1 involves active site residues surrounding the Mg²⁺ at the catalytic site and most F-loop residues (Fig. 9d). This sector forms a potential communication path that wraps around the TL and BH, connects to the BH through two BH residues, and extends to Rpb9, itself a subunit that forms important inputs to the TL and is required for transcription fidelity^49,98,99. This pathway likely mediates communication between Rpb9 and the Pol II active site (Fig. 10c). Fourth, sector 2 contains most BH residues are coupled with the Rpb2 Fork and hybrid binding domain, forming a network linking the BH to Rpb2 residues (Fig. 9e). This network connects to Rpb5, which interacts with the downstream DNA, Rpb6, a shared subunit in three eukaryotic msRNAPs, Rpb9, and Rpb3 and Rpb10, which function in Pol II assembly¹⁰⁰ (Fig. 10d), representing a residue communication path potentially tied to various transcription activities.

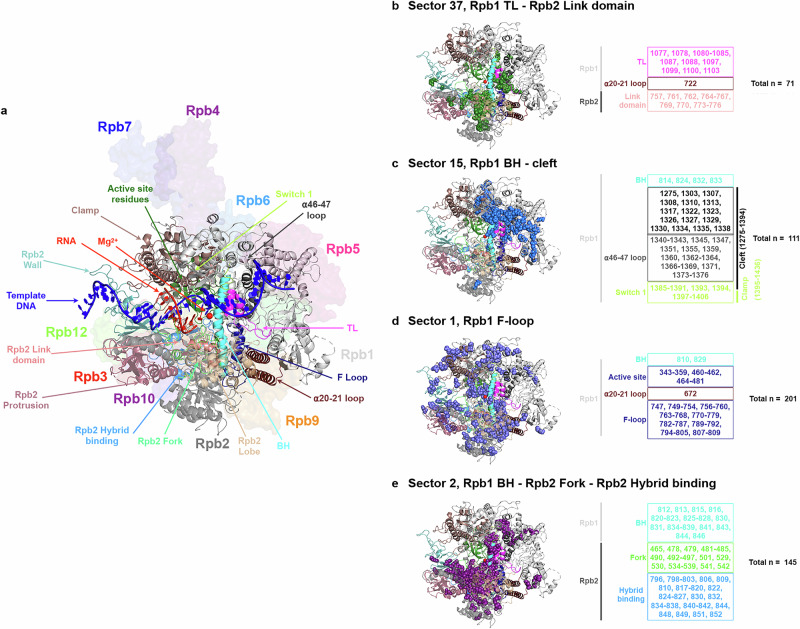

Fig. 9. Ultra-conserved TL co-evolves with Pol II residues through diverse pathways.

a Structure representations of Pol II active site. Pol II subunits are shown with the surface in different colors. The active site domains are in cartoon format. Rpb1 active site residues 346–375 and 436–508. Rpb1 TL, 1076–1106. Rpb1 BH, 810–846. Rpb1 α20-21 loop, 672–737. Rpb1 F loop, 747–810. Rpb1 α46-47 loop, 1339–1378. Rpb1 switch 1, 1385–1407. Rpb1 clamp, 1–95, 235–346, and 1395–1436. Rpb2 link domain, 757–776. Rpb2 Fork, 465–547. Rpb2 hybrid binding, 750–852. Rpb2 wall, 852–973. Rpb2 protrusion, 44–218. Rpb2 lobe, 218–405. b–e Four major coevolution sectors of the Pol II active site residues were identified through statistical coupling analysis. The residues within each active site domain and the total number of residues in each sector are labeled. These sectors are mapped on the yeast Pol II Rpb1/Rpb2 structure (PDB: 5C4X).

Fig. 10. Coevolutionary sectors of Pol II active site residues extend to the surface of Pol II, forming connections with other Pol II subunits.

a The coevolutionary sector of Rpb1 TL and Rpb2 link domain residues surrounds the substrate ATP, indicating its potential role in catalysis. The sector is mapped on the yeast Pol II structure with TL in open state (PDB: 5C4X) and closed state (PDB: 8U9R). b Residues in sector 15 connect with Rpb5 and Rpb6. c Residues on sector 1 connect with Mg²⁺ and Rpb9. d Residues in sector 2 connect with Rpb5, Rpb6, Rpb3, Rpb9, and Rpb10. These sectors are mapped on the yeast Pol II structure (PDB: 5C4X).

Notably, coupling is not restricted to residues that are within or near the active site. Some sectors extend from the active site to the surface of Rpb1/Rpb2 (Supplementary Fig. 12a–f), suggesting that active site function, potentially through the TL, could be modulated by allosteric interactions through the binding of transcription factors. Residues at interfaces with elongation factors can be coupled with those factors, yet some residues at interfaces can be coupled with residues distal to the interface, suggesting potential pathways for allosteric interactions. Examples of these are shown for TFIIS (Supplementary Fig. 13), LEO1 (Leo1), ELOF1 (Elf1), and SUPT5H (Spt5) (Supplementary Fig. 14). Together, our findings highlight potential communication networks through evolutionary coupling that may underlie regulatory paths from Pol II surface to active site.

Discussion

How individual mutants alter a protein’s function is not necessarily straightforward at the mechanistic level. Amino acid substitutions both remove functionality of the WT residue but replace that functionality with something different. By altering the local environment within a protein or potentially propagating effects to distant locations, each substitution potentially can be quite different. These differences may not be apparent as phenotypic outputs, and phenotypic assays may not have granularity to distinguish different biophysical behaviors if they result in similar outputs. For Pol II mutants, even high-resolution phenotypic analyses, such as gene expression profiling or genetic interaction profiling between Pol II mutants and deletions in other yeast genes⁵², suggest that LOF and GOF mutants represent a continuum of defects that match enzymatic activity in vitro. Therefore, these profiles also appear dependent on the output of Pol II activity defects and cannot distinguish potential differences in the underlying mechanism.

Through systematic detection of genetic interactions within the Pol II active site, we have identified functional relationships between amino acids across the TL and between TL substitutions and others. In the absence of double mutant epistasis analyses, it would not be possible to differentiate similar alleles from one another. L1101S and E1103G, for example, are two GOF alleles very close to each other in Pol II structure and confer similar phenotypic landscapes across various growth conditions. Here, we find that their distinct interactions support that substitutions at 1101 and 1103 target distinct residue networks (Figs. 4c and 6a, Supplementary Figs. 6 and 7). L1101 functions in the TL hydrophobic pocket while E1103 interacts and co-evolves with a number of TL-external residues that together support interactions that maintain the open TL conformation. We also observed connections between TL C-terminal residues that suggest a limit to how disruptions to structure there can alter Pol II activity (Fig. 7d). Helix-disrupting LOF proline substitutions in at least two TL positions showed epistasis with multiple substitutions in the back of the TL (1094–1098), suggesting that their functions require TL C-terminal helix structure and in the absence of that structure (proline disruption) effects are no longer additive.

The strongest epistatic interactions were observed between two pairs of hydrophobic residues, A1076 and L1101, and M1079 and G1097 (Fig. 6), suggesting their interdependence in maintaining TL open conformation stability⁴¹. Considering the TL’s multiple active site roles, the observed interaction networks may also contribute to other NAC steps or off-pathway steps (e.g., pausing or backtracking). Structural studies have proposed that these hydrophobic residues form a pocket stabilizing the TL by bundling two TL helices with the BH and α46-47 loop in a five-helix bundle^28,41. However, our coupling analysis suggests that the α46-47 loop is evolutionarily coupled with cleft residues rather than the TL, indicating the α46-47 loop may indirectly impact TL function by limiting the space available for TL movement, rather than through direct interactions with TL residues (Fig. 9c).

Elongation factors bind Pol II and alter its activity, but the mechanisms by which they do so are not known^50,101. We observed a high level of genetic interactions between residues outside the TL and residues within it, including allele-specific reshaping of TL mutant space upon single substitution outside the TL (Fig. 4). The fact that minor mutational changes outside the TL can apparently functionally perturb the TL would be consistent with the idea that minor alterations to Pol II structure upon elongation factor binding could easily propagate into the active site via the TL or the BH. As an example, human Rtf1 has been observed to project a domain into the Pol II structure adjacent to the BH (in yeast, this region is occupied instead by Rpb2¹⁰²). These contacts have been proposed to alter Pol II activity. We would propose that the paths for such alteration to activity may follow the coupling sectors we have observed by SCA (Fig. 9).

How different individual substitutions are under the surface is critical for understanding plasticity in protein mechanisms and how they might be altered by evolutionary change. A key open question in nucleic acid polymerase mechanisms is the paths for protons in the reaction (for example, deprotonation of the synthesized strand 3′-OH and protonation of pyrophosphate leaving group, for example^{80,81,83,85,103–105}). For msRNAPs, the association with the incoming NTP by a universally conserved histidine led to the proposal that this residue might donate a proton during the reaction^12,82,103. Some substitutions at this position can provide minimal essential function (e.g., tyrosine, arginine), while others are only moderately defective (glutamine). Unexpectedly, we found that H1085L was very well tolerated for growth¹⁷ and the Landick lab has proposed that this substitution supports catalysis through positional but not chemical effects^84,85. Our studies here were quite surprising in that they indicated that L1085 Pol II has unique behavior when perturbed by all possible TL substitutions and is entirely distinct from H1085Y (where we have direct observations of all possible intra-TL doubles) or H1085A or H1085Q (curated doubles) (Fig. 5c, Supplementary Fig. 15). These residue specific behaviors suggest that each substitution may have different properties, and compatibility with function may not necessarily represent similar function under the surface.

Evolutionary change over time can alter protein function, but it can also alter protein functional plasticity. Recent work from the Thornton lab elegantly demonstrates that phenotypes of substitutions to residues conserved over hundreds of millions of years can change over evolutionary time and can do so unpredictably and transiently during evolution⁶¹. msRNAPs have structures and functions conserved over billions of years, and deep within their active sites is a mobile domain, the TL, that has large functional constraints on its sequence. The TL sequence must be able to fold into multiple states and maintain recognition of the same substrates across evolutionary space, and it shows high identity even between distantly related species. Here, we show that the TL, and likely the entire Pol II active site, exhibits a great amount of plasticity through non-conserved positions that are essential for compatibility of the TL and surrounding domains. A limitation of our study is its reliance primarily on genetic data and SCA. Future biochemical and biophysical studies will give mechanistic insight into the activity defects underlying the functional connections we observe, for example, connecting kinetic properties or structural states to specific mutants. Nonetheless, our results illustrating widespread epistasis and allele-specific effects of single and double mutants predict that comparative analyses among Pol I, II, and III will reveal shared but also enzyme-specific mechanisms due to higher-order epistasis shaping the functions of conserved residues.

Methods

Strains and plasmids presented in this article will be provided upon request.

Design and Synthesis of TL mutant libraries

We updated and extended the fitness dataset of Qiu et al.¹⁷ using a similar methodology, but with adjusted conditions and a second-generation mutant library strategy to generate a complete Pol II TL mutation-phenotype map and examine genetic interactions. Mutants were constructed by oligo synthesis (Agilent) and screened for phenotypes previously established as informative for Pol II mutant biochemical defects. Programmed oligonucleotide library pools included all 620 single TL residue substitutions and deletions for Rpb1 amino acids 1076–1106 (Library 1), 3914 pairwise double substitutions (Library 2), 4800 targeted double substitutions (Library 6), and 3373 multiple substitutions (Library 3–5), along with the WT S. cerevisiae Pol II TL allele at a level of ~15% of the total variants, enabling precise quantification (see Supplementary Tables 1 and 3). Each synthesized region contained a mutated or WT Pol II TL sequence and two flanking regions at the 5′ and 3′ ends of the TL-encoding sequence. These flanking regions also contained designed “PCR handle” (20 bp) sequences, allowing distinct subsets of oligos to be amplified from synthesized pools using selected primers for PCR, and additional flanking WT Pol II sequences allow for further extension of homology arms by PCR “sewing” (details are in Supplementary Method 3).

Introduction of libraries into yeast

Synthesized mutant pools were transformed into yeast (CKY283) along with an RPB1-encoding plasmid where the TL-encoding sequence was replaced with an MluI restriction site for linearization as described in Qiu et al.¹⁷. This strategy allows construction of rpb1 mutant libraries by gap repair between library fragments and the linearized vector. Briefly, the synthesized oligo pools were amplified by limited cycles of emulsion PCR to limit template switching. Extension of flanking homology arms of ~200 bp was added by PCR sewing. Amplified TL sequences with extended flanking regions were co-transformed with linearized pRS315-derived CEN LEU2 plasmid (pCK892) into CKY283, allowing gap repair via homologous flanking regions. In our experience, phenotypes of integrated alleles and single copy plasmids are qualitatively very similar, but this has not been systematically compared quantitatively. To detect potential residue-residue interactions between the TL and TL-proximal domains including the Rpb1 BH, Funnel Helix alpha-21 and Rpb2, the Pol II TL single mutant pool (Library 1, 620 mutant alleles and 111 WT alleles) was co-transformed individually with gapped plasmids encoding an additional rpb1 allele T834P (Library 7), T834A (Library 8), or Funnel Helix alpha-21 S713P (Library 10) into CKY283 respectively, or with the gapped WT RPB1 plasmid into a strain with the genomic mutation, rpb2 Y769F (Library 9). These co-transformations created double mutants between the TL and TL-proximal mutants. The WT allele in the single mutant pool represented the single probe mutant due to substitutions outside the TL on the plasmid or in the strain background. To distinguish between a fully WT TL and a WT TL representing the TL of a mutant allele elsewhere, a WT Pol II TL allele with a silent mutant at T1083 (WT codon ACC was replaced with ACT) was co-transformed with a plasmid containing gapped WT RPB1 in a WT strain in parallel. 15% of the transformants with silent mutation were mixed with transformants of double mutants. The silent mutation allowed us to distinguish the WT and the single mutants.

Phenotyping libraries with different conditions

Each transformation was done in three biological replicates. After transformation, Leu⁺ colonies were collected from SC-Leu plates and replated on SC-Leu+5FOA to select for cells having lost the RPB1 URA3 plasmid and to measure growth defects. 5FOA-resistant colonies were then scraped and replated on different conditions to assess functional differences between WT, GOF, and LOF mutants^17,37. SC-Leu+20 μg/L MPA (Fisher Scientific 150676121) evaluates transcription start site (TSS) shifting. MPA depletes GTP levels in yeast. To generate GTP, IMD2 expression is required, but its promoter has multiple transcription start sites (TSS)^106,107. Transcripts from the downstream TSS express functional IMD2 upon MPA treatment. WT and LOF mutants are resistant to MPA due to their ability to use downstream TSSs for IMD2 expression, while GOF mutants are sensitive as they can only use upstream TSSs and fail to express functional IMD2 ^52,76. SC-Leu+15 mM Mn (Sigma): Mn²⁺ compromises transcription fidelity¹⁰⁸ and likely also increases Pol II catalysis; while WT and LOF mutants are resistant, GOF mutants are sensitive either due to decreased fidelity or exacerbated catalytic increase. YPRaf and YPRafGal: the gal10Δ56 allele compromised GAL10 3′-end formation and polyadenylation, leading to transcription read-through that inhibits the downstream GAL7 gene^109,110. The transcription read-through in WT gal10∆56 cells leads to the accumulation of a toxic galactose metabolite because of defects in GAL7 expression. Some GOF and most LOF mutants show varying galactose resistance, likely through increasing termination in the GAL10-GAL7 intergenic region or otherwise reducing read-through interference with GAL7. YPRaf serves as a control for YPRafGal to demonstrate that the defect in YPRafGal is galactose toxicity. SC-Lys tests lysine auxotrophy. The lys2-128∂ allele in the strain background has a Ty1 transposable element insertion, which prevents normal expression of LYS2¹¹¹. WT and LOF mutants are Lys^-, while GOF mutants utilize a normally silent promoter within the Ty1 ∂ element insertion, becoming Lys⁺. SC-Leu+3% formamide (Fisher Scientific AM9342), formamide destabilizes protein hydrogen bonds¹¹², with most mutants showing resistance except for slight sensitivity in LOF mutants. Details of cell numbers plated on each plate and screening time of each plate are in Supplementary Table 5. Details of the high-efficiency transformation protocol are in Supplementary Method 1.

Generation of libraries for quantification by amplicon sequencing

Genomic DNA of each screened library was extracted using the Yeastar genomic DNA kit according to the manufacturer’s instructions (Zymo Research D2002). To ensure adequate DNA for sequencing, the TL regions of all libraries were amplified with PCR cycles that were verified to be in the linear range by qPCR to minimize disturbance of allele distributions, and under emulsion PCR conditions (EURx Micellula DNA Emulsion & Purification (ePCR) PCR kit 3600-02) to limit template switching. Details are in Supplementary Methods 2 and 3. To multiplex samples, we employed a dual indexing strategy wherein 10 initial barcodes for differentiating 10 mutant libraries were added during the initial amplification using 10 pairs of custom primers. In a second amplification, 28 primers containing 28 NEB indices were used to add a second index for distinguishing conditions and replicates (NEBNext Multiplex Oligos for Illumina, NEB E6609S) (see Supplementary Table 4). As a result, a sample-specific barcode was present for each set of variants. The indexed, pooled samples were sequenced by single-end sequencing on an Illumina Next-Seq (150nt reads). On average, over 11 million reads were obtained for individual samples with high reproducibility from two rounds of sequencing.

Data cleaning and fitness calculation, and normalization

Reads of mutants were sorted into appropriate libraries and conditions by detecting particular indices after sequencing. Read counts were estimated by a codon-based alignment algorithm to distinguish reads that exactly matched the designated codons of mutants¹¹³. To clean the data, mutant reads with coefficients of variation greater than 0.5 in the control condition (SC-Leu) were excluded from the analysis. The mutant read count was increased by 1 to calculate the allele frequency under different conditions. To measure and compare the phenotypes of all mutants, the mutant phenotypic score (fitness) was calculated by allele frequency change of a mutant under selective conditions relative to the unselective condition compared to the frequency change of WT. The formula for calculating fitness is shown below.

$$\mathrm{Fitness}\left(\mathrm{mut}\right)=\log \left[f^{\mathrm{mut},\mathrm{sele}}/f^{\mathrm{mut},\mathrm{unsele}}\right]-\log \left[f^{\mathrm{WT},\mathrm{sele}}/f^{\mathrm{WT},\mathrm{unsele}}\right]$$ 1

We applied min-max normalization to bring the median growth fitness of mutants measured for the ten variant libraries to the same level for direct comparison (formula is shown below). In each library, we divided mutants into several groups based on allele counts in the control condition. Mutants with read count differences of less than 10 are present in one group. The WT growth fitness was set as the maximum value, and the minimum fitness in each group was the minimum. Min-max normalization was used to equalize the growth fitness into the same range between various groups inside each library. Additionally, we utilized min-max normalization to level the mutant fitness across all ten libraries, with WT fitness as Max and minimal fitness in each library as the minimum. As a result, mutant growth fitness was scaled to one range and could be used to determine genetic interactions.

$${\mathrm{X}}^{\prime }=\frac{X-X\min }{X\max -X\min }$$ 2

Determination of functional interactions

The genetic interactions between single substitutions were determined by comparing the multiple-substitution mutant normalized median fitness to the log additive of the single-substitution normalized median fitness. The simplified formula is as follows:

$$\mathrm{Deviation\; score}\left({\mathrm{M}}_1{\mathrm{M}}_2{\mathrm{M}}_3\right)=\mathrm{Fitness}\left({\mathrm{M}}_1{\mathrm{M}}_2{\mathrm{M}}_3\right)-\left[\mathrm{Fitness}\left({\mathrm{M}}_1\right)+\mathrm{Fitness}\left({\mathrm{M}}_1\right)+\mathrm{Fitness}\left({\mathrm{M}}_3\right)\right]$$ 3

1. −1 < Deviation score < 1, the interaction among the constituent single mutants is additive, and mutants are acting independently.

2. Deviation score ≥ 1, the interaction is non-additive and is positive, including suppression and epistatic interactions.

3. Deviation score ≤ −1, the interaction is non-additive and is negative, including synthetic sick, synthetic lethal, and sign epistasis interactions.

Any mutation with fitness smaller than the lethal threshold (−6.50) was classified as an ultra-sick/lethal mutant, and its fitness was normalized to −6.50 for calculation of deviation scores. Synthetic sickness and synthetic lethality were distinguished by if a double mutant was viable or lethal (fitness is greater than or equal to the lethal threshold −6.5) when two constituent mutations are viable. Synthetic lethality can be further classified into two types. First, additive synthetic lethality was determined when the expected double mutant fitness calculated by the additive model was lethal (expected fitness = −6.5) and the observed double mutant fitness was also lethal (fitness = −6.5) (in this case, the deviation score = 0). Second, the beyond-additive synthetic lethality was determined when the expected double mutant was viable (expected fitness > −6.5) while the observed double mutant fitness was lethal (fitness = −6.5) (in this case, the deviation score < 0). To separate these two situations in our figures, we labeled additive synthetic lethality as black and beyond-additive synthetic lethality as purple. Details of formulas are in Supplementary Method 4.

Mutant classification using two multiple logistic regression models

We trained two multiple logistic regression models to distinguish GOF and LOF mutants using phenotypic fitness from SC-Leu+MPA, SC-Lys, and YPRafGal conditions of 65 single mutants. This dataset included 20 mutants with transcription rates measured by biochemical experiments (13 GOF and seven LOF)^17,37,52, and 45 additional mutants that were hierarchically clustered with verified mutants (12 GOF, 26 LOF, 1 WT, and 6 that were not GOF or LOF mutants)¹⁷. Both models incorporated intercept, main effects, and two-way interactions were involved in defining both models, with a cutoff threshold of 0.75 applied to classify mutants in both of the GOF and LOF models.

Model for predicting the probability of a mutant being a GOF:

$$\mathrm{y}=\frac{1}{1+e^{\mathrm{\wedge }}\left(1.816+2.542*fMPA-1.942*fLys+0.06566*fGal-0.5297*fMPA*fLys-0.08373*fMPA*fGal+0.02556*fLys*fGal\right)}$$ 4

Model for predicting the probability of a mutant being LOF:

$$\mathrm{y}=\frac{1}{1+e^{\mathrm{\wedge }}\left(1.916-1.392*fMPA-1.328*fLys-0.8353*fGal-0.01112*fMPA*fLys-0.2992*fMPA*fGal+0.8823*fLys*fGal\right)}$$ 5

Both models showed accuracy, with the area under ROC close to one (Supplementary Fig. 3a). The details are provided in Supplementary Table 6.

Principal component analysis (PCA)

Deviation scores of curated and probe double mutants were analyzed in PCA. The scripts used R language v4.0.3 (https://www.R-project.org/) with R packages tidyverse v1.3.1 (https://www.tidyverse.org), prompt (stats v3.6.2 (https://www.rdocumentation.org/packages/stats/versions/3.6.2/topics/prcomp)), ggplot2 v3.3.3 (https://ggplot2.tidyverse.org), dplyr v1.0.6 (https://dplyr.tidyverse.org), and missMDA v1.18 (https://dplyr.tidyverse.org).

t-SNE projection

Allele frequencies for all mutants in nine conditions with three replicates were analyzed by t-SNE (Perplexity = 50) or k-means (clusters = 20). Thirteen clusters with ultra-sick to lethal mutants as the majority were eliminated. The remaining mutants were analyzed again with t-SNE (Perplexity = 100) and k-means (cluster = 10). The scripts utilized R language v4.0.3 (https://www.R-project.org/), along with R packages Rtsne v0.15 (https://github.com/jkrijthe/Rtsne), ggplot2 v3.3.3 (https://ggplot2.tidyverse.org), and k-means (stats v3.6.2 (https://www.rdocumentation.org/packages/stats/versions/3.6.2/topics/kmeans)).

Statistical coupling analysis

5787 eukaryotic homologous sequences of yeast Rpb1 from a published multiple sequence alignment (MSA) and 4000 Rpb2 sequences from the NCBI nr database were cleaned and used in the SCA. Sequence identity was reduced to 90% with the T-coffee package v12.00.7fb08c2¹¹⁴. Pol I, II, and III sequences were separated based on a phylogenetic tree constructed with FastTree 2¹¹⁵. Finally, 283 matched Pol II Rpb1 and Rpb2 sequences, with each matched pair sharing the same species name, were connected with 10 Ns and aligned with T-coffee. This newly generated MSA was used for SCA with the Python-based package pySCA v6.1⁹⁵. The scripts were adapted from https://github.com/ranganathanlab/pySCA.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Author contributions

B.D. performed sequencing library construction, data analysis, and made figures, drafted and revised the manuscript. C.Q. designed the mutant libraries, performed screening experiments, and contributed to revising the manuscript. S.H.Z. provided allele counts from raw sequencing data. C.D.K. conceived the project, guided analyses and interpretation of data, provided funding, and revised the manuscript.

Peer review

Peer review information

Nature Communications thanks Alaksh Choudhury and the other, anonymous, reviewer(s) for their contribution to the peer review of this work. A peer review file is available.

Data availability

Raw sequencing data have been deposited on the NCBI SRA (Sequence Read Archive) database under BioProject PRJNA948661. Processed mutant count, fitness, and processing codes are available on GitHub [https://github.com/Kaplan-Lab-Pitt/TLs_Screening.git] and Zenodo [10.5281/zenodo.16370006]. PDB structures 5C4X, 2E2H, and 8U9R were used to generate figures. Source data are provided with this paper.

Code availability

The codes for calculating deviation scores, PCA, t-SNE projection, statistical coupling analysis, and generating figures are available in GitHub [https://github.com/Kaplan-Lab-Pitt/TLs_Screening.git] and in Zenodo [10.5281/zenodo.16370006]¹¹⁶.

Competing interests

The authors declare no competing interests.

Supplementary information

The online version contains supplementary material available at 10.1038/s41467-025-63304-6.
