The endoribonuclease Rae1 from Bacillus subtilis cleaves mRNA upstream of stalled ribosomes

Abstract

The ribosome-associated endoribonuclease 1 (Rae1) cleaves messenger RNAs (mRNAs) in a translation-dependent manner. Here, we identify a new Rae1 target, the fliY mRNA, which is cleaved by Rae1 in the absence of the elongation factor P. The Rae1 site was mapped 12 nucleotides upstream of the second proline codon of an SPP stalling motif in fliY. Remarkably, Rae1 cleavages also occur 12 nucleotides upstream of the stop codon within two validated Rae1 mRNA targets, bmrX and spyA (S1025). Shifting the stop codon relative to the Rae1 cutting site abolished Rae1 sensitivity of bmrX and spyA mRNAs. We show that ribosome pausing occurs at the spyA stop codon, confirming its crucial role, and positioning the Rae1 cleavage at the tail end of the stalled ribosome, rather than in the A-site as previously proposed. These findings reveal a compelling novel mechanism by which Rae1 mediates mRNA cleavage in coordination with immobile ribosomes.

Graphical Abstract

Graphical Abstract.

Introduction

Translation and messenger RNA (mRNA) decay are closely interdependent, ensuring that mRNAs are degraded when they are no longer needed for protein synthesis [1–4]. Translation efficiency, governed by initiation rates and codon bias, is known to directly affect mRNA stability, where inefficiently translated mRNAs are more likely to be targeted for decay [5, 6]. In bacteria, ribosomes can impact mRNA degradation either by blocking 5′-exoribonucleases [7–9] or by hindering access to endoribonucleolytic cleavage sites [10–13]. Transcription and translation are tightly coupled in Escherichia coli [14], efficiently limiting access to nascent transcripts by RNases, while these two processes were recently shown to be mostly disconnected in Bacillus subtilis [15]. This, added to the fact that the RNA degradation machineries of these two organisms are very different [16], underscores the potential divergence in the interplay between translation and RNA decay between Gram-negative and Gram-positive bacteria.

The translation machinery is also a key player in surveillance systems for mRNA quality control [17–21]. In yeast, the Cue2 RNase was identified as an effector of the No-Go decay pathway that initiates the degradation of defective mRNAs on which ribosomes collide and contributes to the rescue of stalled ribosomes [22]. Only a few bacterial RNases have been described to interact with the ribosome and cleave mRNAs in a translation-dependent manner [23–26]. Among them, SmrB, a homolog of yeast Cue2, was recently shown to cut mRNAs between stalled and collided ribosomes, triggering ribosome rescue via the trans-translation pathway in E. coli [19, 27]. Strikingly, its B. subtilis homolog, MutS2, was proposed to rescue collided ribosomes by splitting them into individual subunits via the ribosome quality control pathway without promoting RNA cleavage [28, 29]. We have shown that the ribosome-associated endoribonuclease 1 (Rae1) from B. subtilis cleaves mRNA in a translation-dependent manner and promotes ribosome rescue via the trans-translation pathway involving the transfer-messenger RNA (tmRNA) [26, 30]. It has no homolog in E. coli but it is widely conserved among Firmicutes, Cyanobacteria, and the chloroplasts of higher plants [31]. Rae1 shares no structural homology with MutS2, and we have shown that Rae1 and MutS2 act in distinct pathways [30].

The two Rae1 cleavage sites characterized thus far were mapped within short open reading frames (ORFs), spyA and bmrX, encoding 17-aa and 26-aa peptides, respectively [26, 30]. SpyA (S1025), which belongs to the spyTA polycistronic mRNA, was recently shown to act as an antidote to the SpyT (YrzI) toxin [32]. BmrX, encoded by the bmrBXCD operon, is a newly discovered cryptic ORF located between the antibiotic-sensitive attenuator bmrB and bmrCD, encoding a heterodimeric ABC multidrug exporter [30, 33, 34]. Cleavage by Rae1 shuts off leaky readthrough expression of bmrCD in the absence of antibiotics. Both Rae1 cleavage sites are located within RNA sequences that encode well-conserved amino acids in the Bacillales, EKIEGG for BrmX and MEKDQV for SpyA. In both cases, Rae1 requires translation of the correct reading frame to function [26, 30]. However, the nucleotide and the amino acid sequences of these two Rae1 targets do not share any common features, raising the question of what constitutes an mRNA target for Rae1.

Here, we identify a new Rae1 site within the fliY mRNA, whose cleavage by Rae1 depends on an SPP motif at which the ribosome stalls in the absence of elongation factor P (EF-P). We show that ribosomes also pause on the spyA mRNA with the stop codon in its A-site. We also show that the distance between the Rae1 cleavage site and the stop codon of bmrX and spyA is crucial for Rae1 cleavage, and we identify new sequence elements within Rae1 mRNA targets required to trigger Rae1 cleavage. This study points to a novel mechanism of mRNA quality control involving ribosome pausing and mRNA cleavage by the endoribonuclease Rae1.

Materials and methods

Strains and constructs

Oligonucleotides and strains used in this study are shown in Supplementary Tables S1 and S2, respectively. The B. subtilis strains used in this study were derivatives of W168 (lab strain SSB1002).

The pHM2-bmrX-gfp (pl904) plasmid containing the spyA Shine–Dalgarno sequence followed by the bmrX ORF translationally fused upstream of GFP was obtained by PCR (polymerase chain reaction) amplification using oligo pair CC2888/CC572 using pPspac-bmrBX-gfp f0 (pl845) plasmid as a template [30]. The pHM2-spyA(+18 nts) (pl973) and pHM2-spyA UAG(+18 nts) (pl974) plasmids were constructed by PCR amplification using oligo pair CC2962/CC572, with pHM2-hbsΔ-spyA(+18 nts) (pl895) or pHM2-hbsΔ-spyA UAG(+18 nts) (pl927) plasmids as a template. The pHM2-fliY plasmid (pl856) was constructed by PCR amplification using oligo pair CC2696/CC2697, with chromosomal DNA from SSB1002 as a template. The pHM2-fliYΔ (pl922) plasmid containing a truncated version of the fliY mRNA was constructed by PCR amplification using oligo pair CC2696/CC2950 with pHM2-fliY (pl856) as a template. The construction of the additional plasmids is fully described in Supplementary Table S3. All of the inserts listed in Supplementary Table S3 were obtained by overlapping PCR. They were subcloned between the HindIII and BamHI site of the integrative pHM2 plasmid and placed under the control of a constitutive promoter [Pspac(con)]. All plasmid constructs were verified by sequencing.

All derivatives of the pHM2 integrative plasmid were linearized with XbaI, before transformation, for integration of the constructs into the amyE locus of strains SSB1002 [wild type (WT)], CCB375 (Δrae1), CCB1481 (Δefp), or CCB1482 (Δrae1Δefp) (Supplementary Table S2). The CCB375 strain (Δrae1) is resistant to erythromycin. The CCB1481 and CCB1482 strains (Δefp and Δrae1Δefp) are resistant to kanamycin and to erythromycin and kanamycin, respectively. The pHM2 vectors confer chloramphenicol resistance.

Strains CCB1479, CCB1480, CCB1481, and CCB1482 were constructed by transferring the efp::kan construct from strain BKK24450 in the single-gene deletion library [35] into CCB1456 (pHM2-fliYΔ), CCB1461 (Δrae1 pHM2-fliYΔ), SSB1002 (WT), and CCB375 (Δrae1), respectively. Strains CCB1588 and CCB1596 were constructed by transferring the rnjA::spec construct from strain CCB434 into CCB1479 (Δefp pHM2-fliYΔ) and CCB1480 (Δrae1Δefp pHM2-fliYΔ).

The pNAR913 (Bs_prfA-his6) and pNAR915 (Bs_prfB-his6) plasmids, overexpressing hexahistidine-tagged release factor 1 (RF1) and RF2 from the pET28b-based plasmid were a gift from Shinobu Chiba [36]. These plasmids were transformed into BL21 CodonPlus RIL cells to yield strain CCE300 and CCE299, respectively.

RNA isolation and northern blots

Northern blots were performed on total RNA isolated from B. subtilis cells growing in 2xYT medium either by the glass beads/phenol method described in [37] or by the RNA-Snap method described in [38]. Northern blots were performed as described previously [39]. Northern blots were exposed to PhosphorImager screens (GE Healthcare), and the signal was obtained by scanning with a Typhoon BioMolecular Imager (Cytiva) and analyzed by Fiji (ImageJ) software.

Primer extension assays

Primer extension assays were performed on total RNA extracted from B. subtilis cells growing in 2xYT medium by the phenol method as described previously [40]. Twenty micrograms (qsp 8.5 μl in H₂0) of RNA was denatured for 3 min at 95°C, immediately followed by a 3-min incubation at 4°C on ice. Then, 1 μl (0.6 pmol) of 5′-labeled (³²P) probe was added, and reactions were incubated at 65°C for 5 min, followed by a 10-min incubation at 35°C. Oligo CC2947 was used as the probe to map the Rae1 cleavage site within the fliYΔ ORF. A 5.5 μl mix containing 10 mM each dNTP and 200 units M-MLV reverse transcriptase (Invitrogen) in RT M-MLV buffer was added to the reactions for a final volume of 15 μl, before incubation at 35°C for 2 min, followed by a 45-min incubation at 42°C and a 5-min incubation at 55°C. Reactions were stopped with 5 μl RNA loading dye (Biolabs) and 10 μl were loaded on 5% sequencing gels. The DNA template was sequenced using the CC2947 primer and the Thermo Sequenase Cycle Sequencing Kit (Applied Biosystems).

Protein production and purification

The Rae1, RF1, and RF2 hexahistidine-tagged proteins from B. subtilis were produced in E. coli using the plasmids: pET28-Rae1Chis [26], pET28-RF1His6 (pNAR913), and pET28-RF2His6 (pNAR915) [36]. Rae1, RF1, and RF2 expressions were induced with 1 mM Isopropyl-beta-D-thiogalactopyranoside (IPTG) for 4 h and purified on Ni-NTA resin according to previously published protocols [26]. Peak fractions were dialyzed against 20 mM Tris (pH 8.0), 150 mM NaCl, and 10% glycerol, concentrated using Amicon filters with 3-kDa cut-off and applied to a Superdex 26/60 sizing column equilibrated in the same buffer. Peak fractions were reconcentrated for in vitro trials.

In vitro translation of SpyA peptides

In vitro translation reactions were typically performed using the PURExpress Δribosomes kit (New England Biolabs) in 5 μl reactions with 2.5 pmol of B. subtilis ribosomes and with [35-S]-l-methionine using 100 ng of PCR template to transcribe spyA mRNA by T7 RNA polymerase. Reactions were incubated at 37°C for 30 min and precipitated with 500 μl of 5% TCA. The pellets were washed with acetone and resuspended in 12 μl buffer (10 mM Tris, pH 7.5, 100 mM NaCl). The reactions were run on 20% sodium dodecyl sulfate–polyacrylamide gel electrophoresis. The gel was dried for 90 min and revealed using the Typhoon BioMolecular Imager (Cytiva).

In vitro translation Rae1 cleavage assay

70S ribosomes were purified from 1 g of frozen B. subtilis W168 cells as previously described [26]. spyA mRNA mutants were transcribed by T7 RNA polymerase in vitro using a MegaShortScript kit (Ambion) and PCR fragments as templates. Templates were amplified from the indicated plasmid using oligo pairs CC1660/CC429 [spyA pl707, spyA(+18nts) pl895, and spyA UAG(+18nts) pl927, and spyA(14-ΔLRM) pl937] or CC1660/CC1661 [spyA pl925, spyA-AAmod pl1008, and spyA(UGA) pl941]. The in vitro transcripts were then purified as previously described [26]. In vitro translation assays (PURExpress ribosomes; New England Biolabs) were typically performed in 5 μl reactions with 1 pmol 5′-labeled (³²P) mRNA and 6.5 pmol B. subtilis 70S ribosomes. Rae1 was added at 38 pmol per reaction and RF1 and RF2 at 2 or 20 pmol per reaction. Reactions were incubated at 37°C for 30 min followed by phenol extraction. The aqueous phase was precipitated overnight at −20°C, or for 2 h at −80°C, in 3 volumes of ethanol and 1/10 vol of LiCl, supplemented with 1 μl glycogen (20 mg/ml). Pellets were resuspended in 6 μl H₂O, with 6 μl RNA loading dye (Biolabs). Six microliter of the samples were run on 5% sequencing gels. The gel was dried for 90 min and revealed using the Typhoon BioMolecular Imager (Cytiva) and analyzed by ImageQuant TL (Cytiva) software.

Toeprint assay

The position of stalled ribosomes on mRNA was determined by toeprinting assay. RNAs were prepared as for the in vitro assays of Rae1 activity. WT and F+1 spyA templates were amplified from plasmids pl925 and pl735, respectively, using oligo pairs CC1660/CC1661. A total of 1 pmol of RNA template was used for in vitro translation with 3.3 μM (2 pmol) of 70S ribosomes from SSB1002 strain and using the PURExpress Δribosome kit (New England Biolabs) following the manufacturer’s recommendations. When necessary, reactions were incubated with either tetracycline or puromycin (100 μg/ml) to enhance ribosome stalling. The in vitro translation reactions were incubated at 37°C for 30 min and then were directly incubated for 5 min at 37°C with 1 pmol of radiolabeled probe CC1661, followed by incubation for 5 min on ice and 2 min at room temperature. The DNA probe was 5′ radiolabeled using ³²P-γ-ATP and PNK enzyme (New England Biolabs) for 45 min at 37°C, followed by a G50 column purification (Cytiva). RNAs were reverse transcribed using 0.5 μl of AMV Reverse Transcriptase (Promega), 0.1 mM dNTP, and 1× Pure System Buffer (5 mM K-phosphate, pH 7.3, 9 mM MgOAc, 95 mM K-glutamate, 5 mM NH₄Cl, 0.5 mM CaCl₂, 1 mM spermidine, 8 mM putrescine, 1 mM Dithiothreitol (DTT)). Reactions were incubated for 20 min at 37°C and directly purified by a phenol purification. Pellets were dried for 30 s using a vacuum dryer and resuspended in 5 μl of water and 5 μl of 95% formamide loading dye. Reactions were run on 5% sequencing gels. The DNA template was sequenced using the CC1661 primer and the Thermo Sequenase Cycle Sequencing Kit (Applied Biosystems). The gel was dried for 90 min and revealed using the Typhoon BioMolecular Imager (Amersham).

Results

Rae1 cleavage within the fliY mRNA is promoted by ribosome pausing at the SPP motif

A previous report showed that a swarming defect in strains lacking the efp gene, encoding the translation EF-P, can be genetically suppressed by nonsense mutations in the rae1 gene [41]. EF-P binds to the E-site of the ribosome and accelerates peptide bond formation between consecutive prolines, thereby preventing ribosome stalling at these difficult-to-translate sequences. It was shown that in the Δefp strain, ribosomes pause at an SPP motif, corresponding to codons 164–166 of the flagellar FliY ORF and that the swarming defect results from a strong decrease in expression of the fliY mRNA. We hypothesized that suppression of the swarming defect in the Δrae1 Δefp strain might be due to the stabilization of the fliY mRNA, allowing sufficient synthesis of FliY to make functional flagella.

The fliY gene belongs to a 32-gene polycistronic operon whose transcript is difficult to analyze by northern blot. To determine whether Rae1 impacts the stability of the fliY mRNA, we constructed a truncated version of the fliY gene (fliYΔ) encoding the first 180 amino acids (including the ¹⁶⁴SPP¹⁶⁶ motif) with its native 5′ and 3′ UTRs, inserted at the amyE locus. The stability of the fliYΔ mRNA was analyzed by northern blot in WT, Δrae1, Δefp, and Δefp Δrae1 strains. The rae1 deletion had no impact on fliYΔ mRNA stability in the presence of EF-P (Fig 1A). In contrast, the fliYΔ transcript was stabilized 2.8-fold in the Δefp Δrae1 double mutant strain compared to the Δefp mutant strain (6.8 and 2.5 min half lives (HLs), respectively), indicating that Rae1 promotes the degradation of the fliYΔ transcript in the absence of EF-P (Fig. 1A). We mutated the two CCU proline codons 165–166 to alanine codons (GCU) to test whether the SPP motif was required for Rae1 cleavage. The fliYΔ(P165A P166A) transcript was less sensitive to Rae1 (1.3-fold stabilization in the Δefp rae1 strain), suggesting that the pausing of the ribosome at the proline dimer promotes Rae1 cleavage (Fig. 1A).

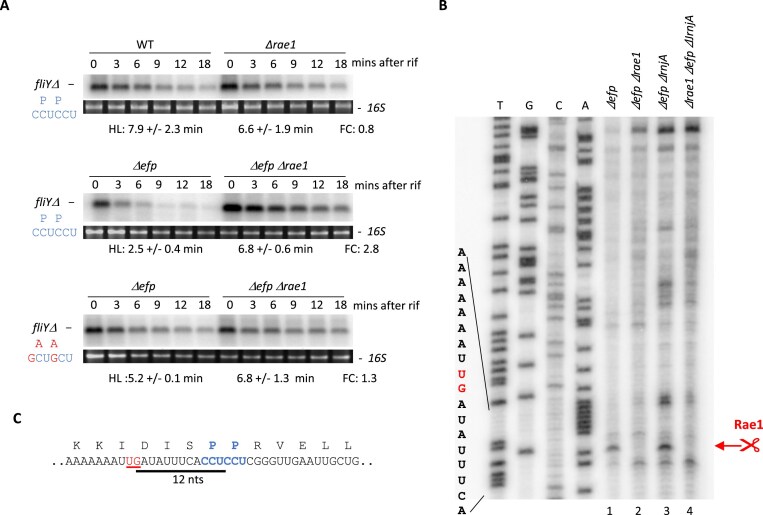

Figure 1.

Rae1 cleaves the fliY mRNA upstream of the SPP stalling motif. (A) Stability of fliY mRNA revealed by northern blot. The stability of the truncated version of fliY(fliYΔ) and its derivative with the SPP motif mutated to SAA [fliYΔ (P165A P166A)], inserted into the chromosome at the amyE locus, was analyzed in WT, Δrae1, Δefp, and ΔefpΔrae1 strains. RNAs were extracted 0, 3, 6, 9, 12, and 18 min after addition of rifampicin at 150 μg/ml. The blots were probed with oligonucleotide CC2840. HLs were calculated from biological replicates. The fold change (FC) in HLs is given next to each autoradiogram. (B) Cleavage site of fliYΔ mRNA by Rae1 determined by primer extension assay. Total RNA from Δefp, ΔefpΔrae1, ΔefpΔrnjA, and ΔefpΔrae1ΔrnjA strains containing the fliYΔ gene inserted at amyE were subject to reverse transcription. Primer extension was performed with oligonucleotide CC2947. The Rae1 cleavage site is highlighted in red. (C) Localization of Rae1 cleavage site on the fliY mRNA. The Rae1 cleavage site (underlined in red) is located 12 nt upstream of the second proline codon of the SPP stalling motif (in bold). The 12-nt distance between the proline codon and the Rae1 cleavage site is represented by a black line.

We then mapped the Rae1 cleavage site by performing primer extension assays on total RNA isolated from Δefp or Δefp Δrae1 strains containing the fliYΔ gene in the amyE locus. This experiment was also done in a ΔrnjA background to protect the downstream cleavage product from 5′–3′ degradation, if necessary. In the two strains lacking EF-P (Δefp and Δefp ΔrnjA), we detected a reverse transcription stop that mapped 12 nt upstream of the proline codon at position 166, which was not seen in the absence of Rae1, suggesting that this is the site of Rae1 cleavage (Fig. 1B and C). Since a ribosome footprint ranges from 11 to 15 nt on either side of the A-site, depending on whether the ribosome is collided, elongating, or initiating, this would suggest that Rae1 cleaves the fliYΔ mRNA at the tail end of the stalled ribosome, with the second proline codon in its A-site.

Our results show that the fliY mRNA is a new target of Rae1 and that ribosome pausing at the ¹⁶⁴SPP¹⁶⁶ motif promotes Rae1 cleavage. Ribosome pausing at the SPP motif in the absence of EF-P would lead to irreversible cleavage of the fliY mRNA by Rae1. However, in the absence of this RNase, ribosomes would have enough time to resolve the translation impediment of the fliY mRNA, leading to the suppression of the swarming defect.

Ribosome pausing occurs at the spyA stop codon

Based on the evidence that ribosome pausing plays a role in Rae1 cleavage of the fliY mRNA, we investigated whether ribosome pausing also occurred on the spyA mRNA by performing in vitro translation reactions and detecting stalled ribosome complexes by toe-printing assays [42, 43]. We used the WT spyA transcript as a template and an oligonucleotide hybridizing to the 3′-UTR for primer extension. As negative controls, we performed reactions without ribosomes, or in the presence of the translation inhibitors tetracycline or puromycin. Tetracycline inhibits protein synthesis by binding to the A-site of the ribosome, which prevents aminoacyl-tRNA entry. Puromycin is a structural analog of aminoacyl tRNAs that enters the ribosomal A-site and is incorporated into the newly synthesized protein, leading to spontaneous dissociation of the nascent peptide from the ribosome. Stalled ribosomes do not actively incorporate puromycin and are therefore resistant to its effects [44]. As expected, a toeprint signal was observed at position +17 relative to the A of the start codon, corresponding to the ribosomal initiation complex, in all reactions containing ribosomes (Fig. 2, lanes 2–4). A second toeprint signal was observed at position +17 relative to the U of the UGA stop codon, consistent with a stalled ribosome with the stop codon in its A-site (Fig. 2, lane 2). In agreement, this toeprint signal codon was still detected in the presence of puromycin (Fig. 2, lane 4), while it is was not observed in the negative control sample without ribosomes or in the presence of tetracycline (Fig. 2, lanes 1 and 3). To determine whether the ribosome pause at the spyA stop codon was specific to this coding sequence, we tested whether ribosomes could stall on the spyA F+1 transcript, which has previously been shown to be insensitive to Rae1 [26]. The spyA F+1 transcript contains a +1 frameshift due to the insertion of a C-residue after the start codon, and results in the synthesis of a 20-amino-acid peptide with a sequence that is completely different to that of the WT SpyA peptide. No toeprint signal was observed at position +17 relative to the U of the stop codon of the F+1 transcript (Fig. 2 lanes 5–8), indicating that translation in the correct reading frame is required for ribosome stalling at the spyA stop codon and that stalling does not occur in every UGA stop codon context.

Figure 2.

Ribosomes stall at the spyA stop codon. The in vitro-transcribed WT or F+1 spyA mRNAs were translated in vitro and toe-print assays performed by primer extension using primer CC1661. RNAs were incubated without (−) (lanes 1 and 5) or with 2.7 pmol of B. subtilis ribosomes (+) (lanes 2–4 and 6–8), in the presence of 100 μg/ml of tetracycline (lanes 3 and 7) or 100 μg/ml of puromycin (lanes 4 and 8). Blue arrow: toe-print at +17 from start site. Orange arrow: toe-print at +17 from termination site. The sequences of WT and F+1 spyA are shown in the lower panel. The modified nucleotides in the F+1 spyA sequence, insertion of a C and substitution of U6C, are indicated in purple. Green: start codon. Red: stop codon. Blue and orange: toeprint signals. Red underlined: Rae1 cleavage site.

These data confirm that ribosomes stall specifically on the spyA mRNA with the stop codon in its A-site.

The distance between the Rae1 site and the stop codon is important for Rae1 cleavage

Although they have no common sequence features, we noticed that the Rae1 cleavage sites of all three known substrates, fliY, spyA, and bmrX, are located 12 nt upstream of a known or potential ribosome pause site, a proline codon in the case of fliY and a stop codon for both spyA and bmrX (Fig 3A) [26, 30]. To determine whether this distance was important for Rae1 cleavage, we moved the spyA stop codon 30 nt downstream of the Rae1 site by introducing a random 18-nt sequence after the last sense codon, giving rise to the spyA(+18 nts) construct (Fig. 3A). The WT spyA and spyA(+18 nts) transcripts were expressed from the amyE locus, and contained 33 nt upstream of the start codon and 69 nt downstream of the stop codon [30]. Their stability was measured in WT and Δrae1 strains by northern blot. In contrast to the WT spyA transcript, which was stabilized 5.9-fold in the Δrae1 strain, the HLs of the spyA(+18 nts) mRNA were similar in the WT and Δrae1 strain (7.9 and 7.4 min, respectively) (Fig. 3B). Recreation of a stop codon 12 nt from the Rae1 site in this new context by adding UA upstream of the 18-nt insertion [spyAUAG(+18 nts); Fig. 3A], was sufficient to restore Rae1 sensitivity (8.5-fold) (Fig. 3B). Thus, the distance between the Rae1 cleavage site and the stop codon appears important for Rae1 function.

Figure 3.

The distance between the Rae1 cleavage site and the stop codon is important for Rae1 cleavage (A) Rae1 cleavage sites in the bmrX and spyA mRNAs. The Rae1 cleavage site is underlined in red. The nucleotide distance between the stop codon and the Rae1 site is represented by a black line. Start codons are highlighted in green, stop codons in red and the 18-nt random sequence added downstream of spyA mRNA in blue [spyA(+18 nts)]. In the spyA UAG(+18 nts) construct, a stop codon was reintroduced at its original location. (B) Stability of various spyA transcripts in WT and Δrae1 strains revealed by northern blot. Total RNA extracted 0, 2, 4, 8, 12, and 18 min after addition of rifampicin at 150 μg/ml. The blots were probed with oligonucleotide CC2799 that hybridized to spyA. The HLs of spyA, spyA(+18 nts), and spyA UAG(+18 nts) were calculated from two biological replicates and are given under each autoradiogram. The FC in HLs is given next to each blot. (C) In vitro cleavage assay of spyA by Rae1 during translation. One pmol of 5′- labeled spyA, spyA(+18 nts), and spyA UAG(+18 nts) transcripts were incubated in presence of 2.7 pmol of ribosomes and 38 pmol of Rae1. A control for RNA integrity was added without ribosomes or Rae1. The 72-nt band corresponding to the cleaved transcript is highlighted in red.

Rae1 cleavage of these three spyA mRNA variants was recapitulated in a purified in vitro translation system primed with 70S ribosomes isolated from B. subtilis. 5′-labeled spyA(WT), spyA(+18 nts), and spyA UAG(+18 nts) were in vitro transcribed and added to in vitro translation assays in the presence or absence of Rae1 (Fig. 3C). A Rae1 cleavage product of the expected size (72 nt) was observed with both the WT spyA and the spyA UAG(+18 nts) transcripts, showing that Rae1 cleaves the spyA UAG(+18 nts) transcript at the same position as WT spyA, 12 nt upstream of the stop codon (Fig. 3C). In agreement with the in vivo data, the spyA(+18 nts) mRNA was not cleaved in vitro. These data were further corroborated using a construct in which the spyA ORF was inserted in the 3′-UTR of a truncated version of the hbs gene (hbsΔ-spyA), previously shown to be strongly sensitive to Rae1-mediated destabilization [26]. Consistent with the experiment described above, insertion of spyA(+18 nts) in the hbsΔ 3′-UTR was no longer able to destabilize hbsΔ, whereas insertion of spyA UAG(+18 nts) promoted strong Rae1-dependent destabilization, similar to WT spyA (Supplementary Fig. S1).

To test whether the distance between the Rae1 cleavage site and the stop codon was also important for Rae1 cleavage within bmrX, we took advantage of the spyA construct described above, replacing the spyA ORF with either the WT bmrX ORF or bmrX with a different 18-nt random sequence after the last sense codon, bmrX(+18 nts) (Supplementary Fig. S2A). A stop codon 12 nt from the Rae1 site was recreated in this new context, by adding UG upstream of the 18-nt insertion, giving rise to bmrX UGA(+18 nts) (Supplementary Fig. S2A). Similar to spyA, the WT and bmrX UGA(+18 nts) mRNAs were both stabilized in the Δrae1 strain, 3.6-fold and 4.4-fold, respectively, while the bmrX(+18 nts) mRNA was insensitive to Rae1 (Supplementary Fig. S2B).

Based on these data, we hypothesized that a spyA-gfp mRNA, in which the spyA ORF was fused in frame upstream of gfp would be insensitive to Rae1 (due to the lack of a stop codon 12 nt downstream of the Rae1 cleavage site), whereas a gfp-spyA construct, in which the spyA ORF was fused in frame downstream of gfp would be Rae1 sensitive (Fig. 4A). Supporting our hypothesis, the HLs of the spyA-gfp transcript were independent of Rae1, with HLs values of 12.7 min and 11.7 min in the WT and Δrae1 strains, respectively, unless a UAG stop codon was created 12 nt downstream of the Rae1 site by adding a U residue upstream of the first gfp codon [spyA(UAG)-gfp] (Fig. 4B). Similarly, the mRNA of a bmrX-gfp upstream fusion was insensitive to Rae1, while introduction of a stop codon 12 nt from the Rae1 site [bmrX(UGA)-gfp] led to a 2.9-fold Rae1-dependent destabilization, similar to that of a gfp-bmrX downstream fusion (3.9-fold; Supplementary Fig. S3).

Figure 4.

The stop codon plays a crucial role in Rae1 cleavage of spyA (A) Sequence of spyA-gfp translational fusion. The gfp coding sequence was fused upstream (gfp-spyA) or downstream (spyA-gfp) of the spyA ORF. A stop codon was placed in the spyA(UAG)-gfp fusion 12 nt from the Rae1 site (underlined in red). Black: spyA sequence. Green: gfp sequence. Bold green: start codon. Bold red: stop codon. (B) Stability of mRNA spyA-gfp translational fusion revealed by northern blot in WT and Δrae1 strains. RNAs were extracted 0, 2, 4, 8, 12, and 18 min after addition of rifampicin at 150 μg/ml. HLs were calculated from two biological replicates. The blots were probed with oligonucleotide CC2422 that hybridized to gfp. The FC in HLs is given next to each autoradiogram.

Since we observed the same effect of moving the stop codon further downstream with multiple different insertion sequences in spyA and bmrX (18 ntsor gfp), these data suggest that an appropriate distance between the Rae1 cut site and the stop codon is a key requirement for Rae1 cleavage for these two mRNAs.

Differential effect of RF1 and RF2 on Rae1 cleavage efficiency

The data presented above suggested that the stop codon plays a key role in promoting efficient Rae1 cleavage of the spyA mRNA. We asked whether the nature of the stop codon itself might influence Rae1 efficiency by mutating the UAG stop codon to either UAA or UGA in the context of the spyA construct integrated at the amyE locus. The UAG codon is recognized by RF1 and UGA by RF2, while the UAA codon is recognized by both release factors. The stabilities of the spyA stop codon mutants were measured in WT and Δrae1 strains by northern blot (Fig. 5A). Although the spyA(UAA) and spyA(UGA) transcripts were still stabilized in the rae1 strain (2.8-fold and 2.1-fold, respectively), their stabilization was weaker than in the WT (UAG) context (5.9-fold). Thus, the spyA mRNA with an RF1-specific stop codon appeared to be more sensitive to Rae1, suggesting that translation termination at this particular stop codon is least efficient in the context of the spyA mRNA and that the release factor actively participates in the stalling process.

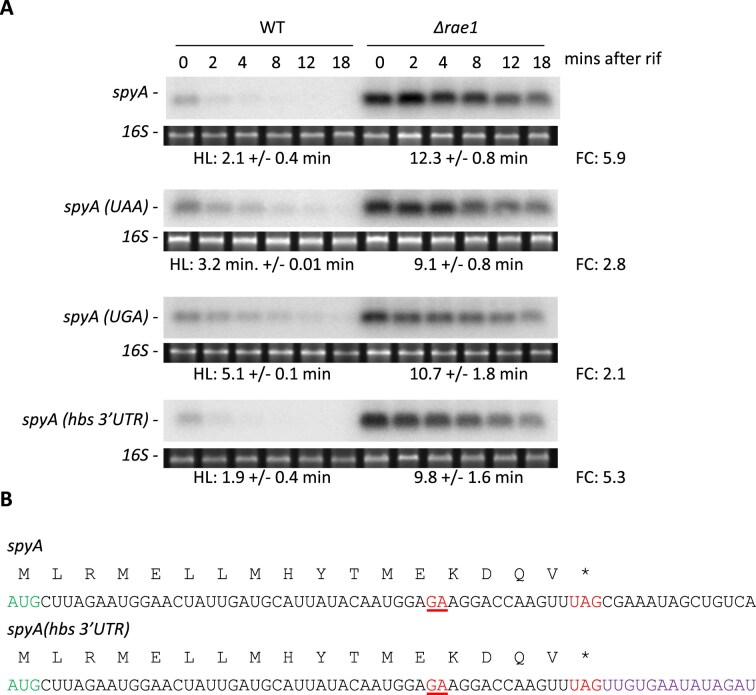

Figure 5.

The nature of the stop codon impacts Rae1 cleavage efficiency (A) Stability of the spyA mRNA with different stop codons or a different 3′-UTR revealed by northern blots in WT and Δrae1 strains. Strains expressing the spyA mRNA sequence carrying either UAG, UAA, or UGA stop codons, or the hbs 3′-UTR, were generated. RNAs were extracted 0, 2, 4, 8, 12, and 18 min after addition of rifampicin at 150 μg/ml. The blots were probed with CC2799. HLs were calculated from two biological replicates. The FC in HLs is given next to each autoradiogram. (B) In the spyA(hbs3’UTR) construct, the 3′UTR of spyA was replaced by the hbs 3′-UTR (in violet).

The nucleotide context of the stop codon, especially that immediately after the stop codon, has been shown to impact translation termination efficiency in E. coli [45, 46]. To investigate whether the sequence context immediately downstream of the spyA stop codon might impact Rae1 cleavage, we made an additional construct, spyA (hbs 3′UTR), in which the spyA 3′ UTR was replaced by that of the hbs gene (Fig. 5B). We observed that the stability of the spyA(hbs 3′UTR) transcript was similar to that of the WT spyA mRNA (1.9 min versus 2.1 min HLs in the WT strain, respectively), and both were similarly sensitive to Rae1 deletion (5.9-fold versus 5.3-fold, respectively), indicating that the spyA sequence downstream of the stop codon is not required for Rae1 to promote spyA mRNA degradation (Fig. 5A). Consistent with these data, the spyA, spyA UAG(+18 nts), and spyA(UAG)-gfp mRNAs, which all have different sequences immediately downstream of the stop codon, are all sensitive to Rae1.

Our data above suggested that RF1 is less efficient at peptide chain release than RF2 on the spyA with their cognate stop codons, which might allow more time or an appropriate ribosome conformation for Rae1 recognition. To directly test the relative impacts of RF1 and RF2 on Rae1 cleavage, we translated WT spyA and spyA(UGA) transcripts invitro in the presence or absence of Rae1, and B. subtilis RF1 or RF2 at 2 or 20 pmoles per reaction versus 2.7 pmol ribosomes (Fig. 6). WT spyA and spyA(UGA) were both cleaved when Rae1 was added to the reaction, giving rise to the 72-nt cleavage product (Fig. 6, lanes 3 and 9). Quantification from three independent experiments showed that the 72-nt cleavage product was generated at a similar level from the WT transcript in presence of excess RF1 compared to in its absence (1.1-fold ± 0.34-fold) (Fig. 6, compare lane 3 to 5). However, the 72-nt cleavage product was generated at significantly lower levels from the UAG transcript in the presence of excess RF2 than in its absence (0.2-fold ± 0.06-fold) (Fig. 6, compare lane 9 to lane 11). In control reactions, addition of excess RF2 did not interfere with Rae1 cleavage of the WT spyA transcript (0.7 ± 0.2) (Fig. 6, compare lane 3 to 6) and addition of excess RF1 did not interfere with Rae1 cleavage of the spyA(UGA) transcript (0.8 ± 0.08) (Fig. 6, compare lane 9 to 12), as anticipated. Thus, the two RFs appear to behave differently on their cognate transcripts. If we assume that addition of excess RFs should tend to increase termination efficiency and that this is inversely related to cleavage efficiency by Rae1, these results are consistent with the idea that RF1 is relatively inefficient at promoting termination at the UAG codon of the spyA transcript.

Figure 6.

Effects of RF1 and RF2 on sensitivity to Rae1 cleavage. In vitro cleavage assay of spyA by Rae1 in the presence of RF1 or RF2. One pmol of the spyA in vitro transcript, recognized by RF1, or spyA(UGA), recognized by RF2, was incubated in presence of 2.7 pmol of ribosomes alone (lanes 1 and 7), 38 pmol of Rae1 (lanes 3 and 9), or with 2 pmol (lanes 4 and 10) or 20 pmol (lanes 5–6 and 11–12) of B. subtilis RF1 or RF2. The band corresponding to the transcript cleaved by Rae1 is highlighted in red. The percentage of the 72-nt cleavage product was determined from three independent experiments. The FC in the presence of the RF factor compared to its absence, is shown below the lanes [a P-value of <.05 is indicated by an asterisk (*)].

Altogether, these data support a model in which low efficiency peptide chain release by RF1 at the UAG stop codon contributes to ribosome pausing on the spyA mRNA, allowing the time or a ribosome conformation that permits Rae1 to access its target for cleavage.

The SpyA peptide sequence is a key determinant of Rae1 sensitivity

We had previously shown that Rae1 cleavage is dependent on the spyA peptide sequence using a +1 frameshifted (F+1) mutant retaining the nucleotide sequence encompassing the Rae1 cleavage site [26]. However, in this construct, the Rae1 site was no longer located 12 nt upstream of a stop codon. Given what we know now about the importance of the position of the stop codon relative to the cleavage site, we could not exclude the possibility that the insensitivity of the spyA(F+1) transcript to Rae1 was due to the displacement of the stop codon rather than the modification of the peptide reading frame. We therefore made a new variant of the F+1 construct (spyA-AAmod) that encoded a heavily modified peptide (14/17 aa), but maintained a stop codon 12 nt downstream of the Rae1 cleavage site (Fig. 7A). Analysis of spyA-AAmod stability in WT and Δrae1 strains by northern blot showed that this transcript was insensitive to Rae1 (6.2 min and 6 min HLs in the WT and Δrae1 strains, respectively), while the WT spyA mRNA was stabilized 5.9-fold in the Δrae1 strain (Fig. 7B). We recapitulated these data by adding 5′-labeled WT spyA and spyA-AAmod mRNAs to in vitro translation/cleavage reactions primed with B. subtilis 70S ribosomes, in the presence or absence of Rae1. A Rae1 cleavage product of the expected size (72 nt) was only observed with the WT spyA construct, confirming that spyA-AAmod mRNA is not cleaved by Rae1 (Fig. 7C).

Figure 7.

Modification of the SpyA or BmrX peptide sequence inhibits Rae1 cleavage. (A) The sequences of spyA and bmrX were mutated to modify the peptide sequence without altering the 12-nt distance between the Rae1 cleavage site and the stop codon. The mutated nucleotides are shown in purple as well as the modified amino acids. Green: start codon. Red: stop codon. Red underlined: Rae1 cleavage site. (B) Stability of the spyA-AAmod and bmrX-AAmod mRNAs, respectively, revealed by northern blot in the WT and Δrae1 strains. RNAs were extracted 0, 2, 4, 8, 12, and 18 min after addition of rifampicin at 150 μg/ml. The blots were probed with CC2799 or CC3271. HLs were calculated from two biological replicates. The FC in HLs is given next to each autoradiogram. (C) In vitro cleavage assay of spyA and spyA-AAmod mRNAs by Rae1 during translation. One pmol of 5′-labeled mRNAs was incubated in the presence of 2.7 pmol of ribosomes and 38 pmol of Rae1. A control for RNA integrity was added without ribosomes or Rae1. The band corresponding to the transcript cleaved by Rae1 is highlighted in red.

The stability of the bmrX-AAmod mRNA, in which the peptide sequence was modified by a frameshift mutation, but still contained the Rae1 site 12 nt from the stop codon, was also less sensitive to Rae1 in vivo: 1.6-fold stabilization for bmrX-AAmod compared to 3.6-fold stabilization for the WT bmrX mRNA in the Δrae1 strain (Fig. 7B). These experiments highlight the influence of the both SpyA and BmrX peptide sequences in the Rae1 cleavage mechanism, by promoting ribosome pausing.

Neither the spyA nor bmrX mRNAs possess any obvious sequence features known to promote ribosome pausing, such as rare codons or polyproline motifs (Fig. 7A). However, some nascent peptide sequences can act as arrest peptides and promote ribosome stalling through interactions between specific amino acids and the peptide exit tunnel[47–49], which can accommodate 30–40 amino acids [47, 50, 51]. To identify the element(s) of the SpyA peptide sequence required to promote ribosome pausing and thereby Rae1 cleavage, we made a series of deletions from the beginning of the ORF, well upstream of the Rae1 cleavage site (Fig. 8A). All mutations were made in the spyA construct integrated at the amyE locus and their sensitivity to Rae1 was analyzed by measuring their stability in the WT and Δrae1 strains. The spyA(16-ΔL) transcript lacking the leucine codon at position 2 was still sensitive to Rae1 (4.9-fold stabilization), while the spyA-(15-ΔLR) and spyA(14-ΔLRM) transcripts lacking codons 2–3 and 2–4, respectively, were no longer Rae1 sensitive (1.3-fold and 1.1-fold stabilization, respectively) (Fig. 8B and C). In agreement, the spyA(14-ΔLRM) transcript was no longer cleaved in vitro (Fig. 8D).

Figure 8.

Shortening the spyA ORF makes the transcript insensitive to Rae1. (A) Peptide and nucleotide sequence of spyA. The Rae1 cleavage site is underlined in red, the start codon in green, and the stop codon in red. (B) Stability of spyA mRNAs of various lengths in WT and Δrae1 strains revealed by northern blot. RNAs were extracted 0, 2, 4, 8, 12, and 18 min after addition of rifampicin at 150 μg/ml. HLs were calculated using two biological replicates. The blots were probed with oligonucleotide CC2799. The spyA sequence (17 codons) was reduced by serial deletion from the N-terminus of 1 codon (16-ΔL), 2 codons (15-ΔLR), or 3 codons (14-ΔLRM), or by deletion of codons 5–7 (14-ΔELL). The LRM amino acids from position 2 to 4 were also substituted by FKV (17-FKV) or RML (17-RML). (C) FC of mRNA HLs between Δrae1 and WT strains for the different spyA constructs. (D) In vitro translation cleavage assay of spyA and spyA(14-ΔLRM) in the presence of 2.7 pmol ribosomes and 38 pmol Rae1. A control for RNA integrity was added without ribosomes and Rae1. The band corresponding to the transcript cleaved by Rae1 is highlighted in red.

To determine whether specific amino acids within the ²LRM⁴ motif modulated the ability of Rae1 to cleave, we replaced this sequence with either FKD, spyA(17-FKD), or RML, spyA(17-RML). The spyA(17-FKD) and spyA(17-RML) mRNAs were both stabilized in the Δrae1 strain (3.3-fold and 3-fold, respectively), indicating that the LRM motif per se was not required for Rae1 cleavage, but may contribute to efficiency (Fig. 8B and C). To confirm these data, we deleted the codons at position 5–7, giving rise to the spyA(14-ΔELL) transcript that still contained the LRM sequence. Like the spyA(14-ΔLRM) mRNA, the stability of the spyA(14-ΔELL) mRNA was similar in the rae1 and the WT strains (Fig. 8B and C), providing further evidence that the LRM motif is not sufficient to promote Rae1 cleavage, and suggesting the length of the ORF might be a key determinant for Rae1 cleavage. To rule out the possibility that the lack of sensitivity to Rae1 was due to an effect on translation of spyA, we measured the level of translation for each of these constructs by following methionine-S [35] incorporation into peptides in vitro, normalized for the number of methionines in the sequence (Supplementary Fig. S4). Although migration position of mutant peptides varied, presumably because of their different amino acid compositions, all were translated at least as efficiently as WT spyA.

Altogether, these data indicate that modification of the SpyA or BmrX peptide sequence inhibits Rae1 cleavage and suggest that shortening the spyA ORF to less than a critical length of 16 codons makes the transcript insensitive to Rae1.

The ⁵ELLMHYTMEKDQV¹⁷sequence is essential for Rae1-induced destabilization of spyA

To further investigate to what extent the length of the spyA ORF can affect Rae1 cleavage, we used the gfp-spyA translational fusion in which we replaced the WT spyA sequence by spyA(14-ΔLRM), giving rise to gfp-spyA(14-ΔLRM) (Fig. 9A) and measured its stability in WT and Δrae1 strains, compared to gfp-spyA. Both transcripts were similarly stabilized, 2.2 and 2.6-fold, respectively, in the Δrae1 strain (Fig. 9B and D), consistent with the increase in ORF length. This supports our hypothesis that Rae1 cleavage requires a minimal ORF length and does not depend on the ²LRM⁴ sequence per se. Similar results were obtained with the bmrX mRNA. The bmrX(16-ΔKTNTEARAVR) mRNA, with only 16 codons remaining, was less sensitive to Rae1 than the WT transcript (Supplementary Fig. S5B and D), while a gfp-bmrX(11-ΔKTNTEARAVRAKLDE) translational fusion containing just the last 10 amino acids of bmrX fused downstream of gfp was still stabilized in the Δrae1 strain (Supplementary Fig. S5C and D).

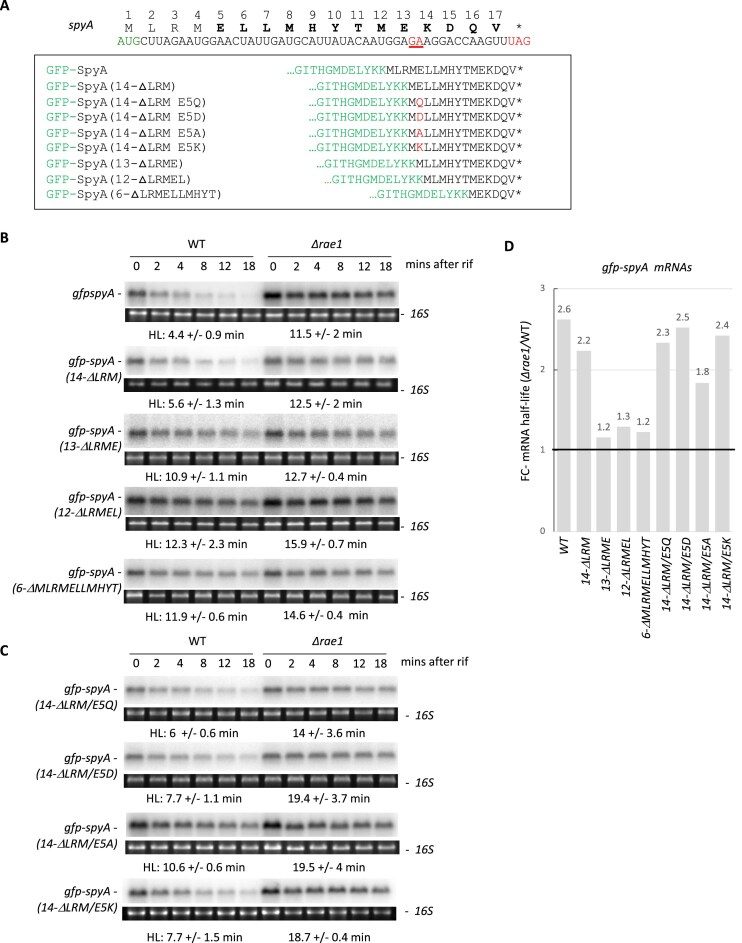

Figure 9.

The ⁵ELLMHYTMEKDQV¹⁷ sequence is essential for Rae1-induced destabilization of spyA. (A) Design of gfp-spyA translational fusions. Peptide and nucleotide sequence of spyA with the Rae1 cleavage site underlined in red, start codon in green, and stop codon in red. The WT 17-codon sequence or shorter versions were cloned in frame downstream of the gfp ORF (green) and containing, respectively, the last 14 codons (14-ΔLRM), 13 codons (13-ΔLRME), 12 codons (12-ΔLRMEL), or 6 codons (6-ΔMLRMELLMHYT) of spyA. The role of glutamate at position 5 was investigated by replacing the E5 residue with an aspartate [gfp-spyA(14-ΔLRM/E5D)], glutamine [gfp-spyA(14-ΔLRM/E5Q)], alanine [gfp-spyA(14-ΔLRM/E5A)], or lysine [gfp-spyA(14-ΔLRM/E5K)]. (B and C) Stability of the gfp-spyA translational fusions with shortened spyA moieties in WT and Δrae1 strains revealed by northern blot. RNAs were extracted 0, 2, 4, 8, 12, and 18 min after addition of rifampicin at 150 μg/ml. HLs were calculated from biological replicates. The blots were probed with oligonucleotide CC2422. (D) FC of mRNA HLs between Δrae1 and WT strains for the different spyA constructs.

We took advantage of the gfp-spyA translational fusion to further investigate the role of the SpyA peptide sequence in Rae1 cleavage independently of ORF length, by deleting 4, 5, or 11 codons from the beginning of the SpyA ORF giving rise to gfp-spyA(13-ΔLRME), gfp-spyA(12-ΔLRMEL), and gfp-spyA(6-ΔMLRMELLMHYTM), respectively (Fig. 9A). The three transcripts with an ORF containing the last 13, 12, and 6 codons of SpyA, respectively, all lost their sensitivity to Rae1 (Fig. 9B and D) suggesting that the 13-aa peptide sequence ⁵ELLMHYTMEKDQV¹⁷ is the minimal sequence required to promote ribosome pausing and Rae1 cleavage.

The fact that the gfp-spyA(14-ΔLRM) mRNA was sensitive to Rae1 but not the gfp-spyA(13-ΔLRME) transcript suggested that the glutamate at position 5 might be important for Rae1 cleavage. We therefore mutated the glutamate residue to aspartate [gfp-spyA(14-ΔLRM/E5D)], glutamine [gfp-spyA(14-ΔLRM/E5Q)], alanine [gfp-spyA(14-ΔLRM/E5A)], or lysine [gfp-spyA(14-ΔLRM/E5K)]. Only the E5A substitution impacted the stabilization of the mRNA in the Δrae1 strain suggesting that it is not the charge but rather the bulkiness of the amino acid in position 5 that contributes to ribosome stalling (Fig. 9C and D). Altogether, these data indicate that the 13-aa peptide sequence ⁵ELLMHYTMEKDQV¹⁷of SpyA and the 10-aa peptide sequence ¹⁷KSCKEKIEGG²⁶ of BmrX are sufficient to promote mRNA cleavage by Rae1.

Discussion

The ribosome associated endoribonuclease Rae1 cleaves mRNA in a translation- and reading frame-dependent manner in B. subtilis [26, 30]. In this study, we show that Rae1 mediates mRNA cleavage in coordination with stalled ribosomes and identify multiple ORF features, in terms of both its sequence and its length, which are required for Rae1 cleavage.

The two Rae1 cleavage sites identified previously occur within the 17-aa spyA ORF, encoded by the polycistronic spyTA operon, and the cryptic 26-aa bmrX ORF of the polycistronic bmrBXCD operon [26, 30]. The cutting sites were mapped between a glutamate (GAG) and a lysine codon (AAG) at positions 13 and 14 for spyA, and between a lysine (AAA) and an isoleucine codon (AUA) at positions 20 and 21 for bmrX, both located 12 nt upstream of their respective stop codons. Here, we identified a new Rae1 site within the fliY mRNA, located 12 nucleotides upstream of the second proline codon of a known SPP ribosome stalling motif in the fliY ORF. These observations converged on the notion that, at least in these three cases, Rae1 cleaves 12 nt upstream of ribosome pause sites, and were confirmed by toeprint experiments showing that ribosomes stall on the spyA ORF with its stop codon in the A-site and by the observation that cleavage is abolished when the stop codon is moved further downstream. We had previously hypothesized that Rae1 cleaves within the A-site, based primarily on our ability to dock the crystal structure of Rae1 there [26] and on previous examples in the literature of the RelE RNase from E. coli and the Cue2 RNase from Saccharomyces cerevisiae that have been proposed to cleave mRNA from within the ribosomal A-site of the ribosome [22, 52]. However, our data support a new model in which Rae1 binds and cleaves at the tail end of stalled ribosomes whose A-sites are occupied by prolines or stop codons. Although not yet identified, we predict that other stalling motifs will also lead to mRNA cleavage given an appropriate sequence context for Rae1 recognition around position −12 from the A-site.

Our data suggest that a low efficiency of translation termination at the stop codon contributes to ribosome stalling on the spyA ORF, with the natural UAG stop codon promoting greater Rae1 sensitivity than a UAA or UGA stop codon. The ability of an excess of release factor RF2, but not RF1, to promote Rae1 cleavage of spyA constructs with their cognate stop codons in vitro suggests that RF1 is inefficient at promoting termination at the spyA UAG termination codon. Rae1 sensitivity is clearly not restricted to the RF1/UAG combination, however, as the Rae1-dependent bmrX ORF has an RF2-dependent UGA stop codon. Previous examples of ribosome stalling at stop codons have been characterized from a structural point of view and may be relevant to the spyA/bmrX cases described here [42, 53–55]. For instance, tryptophan-dependent ribosome stalling at the stop codon of the 24-amino acid TnaC leader peptide in E. coli is promoted by free L-Trp binding and stabilization of a TnaC conformation that prevents RF2 from adopting an active conformation at the peptidyl transferase center (PTC) [43, 56]. As observed for SpyA, the TnaC leader peptide functions better with one release factor than the other to promote ribosome stalling (RF2 > RF1 in the case of TnaC). Similarly, regulation of the expression of the StreptococcalmsrD gene in response to macrolide exposure involves the MsrDL leader peptide causing ribosome stalling at a UAA stop codon and preventing the proper accommodation of either RF1 or RF2 [57].

Our results show that the amino acid sequence encoded by the spyA and bmrX ORFs is a key determinant of Rae1 cleavage. The frameshift mutant transcript (spyA AAmod) that encodes a heavily modified peptide (14/17 aa), but that still contains the 9 nt surrounding the Rae1 site and the 12 nt distance between the cleavage site and the stop codon, lost its sensitivity to Rae1 both in vivo and in vitro, despite the fact that spyA-AAmod was translated at similar levels to WT spyA (Supplementary Fig. S4). Equivalent results were obtained with the mutant bmrX-AAmod mRNA. We thus believe that insensitivity of the spyA-AAmod and bmrX-AAmod mRNAs to Rae1 is due to the inability of the SpyA-AAmod and BrmX-AAmod peptides to trigger ribosome pausing. Known arrest peptides, such as MifM, SecM, TnaC, or MsrD, are relatively short and an ∼15-residue stretch appears to be sufficient to induce ribosome stalling by interacting with the exit tunnel and the PTC [43, 44, 57–59]. Since the exit tunnel can accommodate 30–40 amino acids of the nascent polypeptide chain, the entire 17-aa SpyA peptide and 26-aa BmrX peptide would both be predicted to still be inside when the ribosome reaches the stop codon in the native context [48, 50, 51, 60]. Studies on stalling sequences generally have highlighted the very wide variety of natural stalling motifs, making them very difficult to predict [48, 54, 61], as manifested by the absence of common motif between the SpyA and BmrX peptides. Our serial deletion approach showed that the last 13 amino acids of SpyA (⁵ELLMHYTMEKDQV¹⁷), and the last 10 amino acids of BmrX (¹⁷KSCKEKIEGG²⁶), are sufficient to promote Rae1 cleavage in a context where they were fused to the C-terminus of GFP. Our data also point to a potential role for a bulky amino acid at position 5 of the SpyA peptide.

Not all stalling motifs in B. subtilis promote Rae1 cleavage. The mifM sequence, known to promote ribosome pausing to allow association of membrane transport machinery for transport of the YidC2 protein encoded downstream in B. subtilis, is not targeted by Rae1 (data not shown) [44, 58, 62]. This suggests that at least two components are required for successful Rae1 cleavage, a peptide that provokes efficient ribosome arrest and an RNA sequence that is sensitive to Rae1 at the appropriate distance upstream of the A-site. We screened a number of other mRNAs (besides fliY) containing polyproline motifs for their sensitivity to Rae1 in vivo in the absence of EF-P (Supplementary Fig. S6) and did not find other obvious candidates. This could be because B. subtilis has at least one anti-stalling protein, YfmR, with overlapping function to EF-P [63], or simply because a Rae1 cleavage site is not present upstream of the stall site for these mRNAs. Disentangling the exact sequence elements required for pausing versus RNA cleavage are a challenge for any given RNA and will be the target of future experiments.

Despite the overall high level of conservation of the bacterial translational machinery, there are differences between how arrest peptides interact with the exit tunnel in E. coli versus B. subtilis ribosomes. The nascent chain of MifM leader peptide prevents accommodation of the incoming A-tRNA by interacting with residues of 23S rRNA and of ribosomal proteins L22 and L4 in B. subtilis [44, 64]. The MifM nascent chain does not promote an efficient stalling of the E. coli ribosome, partly due to differences between the L22 protein of these two bacteria. Interestingly, Rae1 does not cleave the spyA mRNA when the in vitro translation cleavage assay is performed with E. coli ribosomes (data not shown). This could be due to the inability of the SpyA peptide chain to cause E. coli ribosomes to stall, or the inability of Rae1 to interact with heterologous ribosomes (or both). Interactions between the nascent SpyA peptide and the component of the upper/central tunnel as well as between Rae1 and the subunits of the ribosome are under investigation by structural approaches.

An additional determinant for Rae1 cleavage is the length of the ORF. Strikingly, the last 14 codons of spyA were sufficient to promote Rae1-mediated destabilization in a context where the gfp ORF was fused upstream [gfp-spyA(14-ΔLRM)]; but the last 15 codons of spyA were incapable of promoting Rae1 cleavage on their own [spyA-(15-ΔLR)]. One explanation might be that at least 16 amino acids are required in the exit tunnel to trigger ribosome stalling. Another possibility is that Rae1 requires mRNAs to be covered by multiple collided ribosomes for efficient recruitment and cleavage. Based on structural studies performed with B. subtilis ribosomes [28, 29], a 16-codon ORF with a ribosome stalled at the stop codon may be close to the lower limit able to accommodate two additional ribosomes in collided mode. Data from yeast studies have suggested that the architecture of three collided ribosomes provides a structural basis for preferential Hel2-mediated ubiquitinylation of trisomes compared to disomes [65], a property that also might be sensed by Rae1. If Rae1 does indeed detect collided ribosomes, it would appear to be independent of the known sensor of ribosome collisions, MutS2, in B. subtilis [28, 29], as a mutS2 deletion has no impact on the HLs of either the spyAT or bmrXCD mRNAs in vivo [30].

Taken together, our data reveal a novel mechanism of posttranscriptional modulation of gene expression in B. subtilis by Rae1, which exploits ribosome stalling to cleave mRNAs. In the case of the spy and bmr operons, this mechanism has clearly been capitalized upon to shut down expression of the SpyT toxin [32] and readthrough of the bmrB attenuator, which would lead to futile expression of the BmrCD efflux pump in the absence of antibiotics [30]. However, our observation that the fliY mRNA is also a substrate leads us to suspect that Rae1 may play a broader role in quality control elimination of other mRNAs that are encountering translation problems. Such mRNAs will be cleaved if a Rae1-sensitive site is located at the tail end of a stalled ribosome, and one of our future goals is to determine the breadth of the sequence requirements for Rae1 recognition. The wide conservation of Rae1 among Firmicutes, Cyanobacteria, and the higher plant chloroplasts [31], far beyond the conservation of the spy and bmrX operons, further supports the idea that this enzyme may play a general role in translational quality control, probably in response to different stress conditions that remain to be defined.

Supplementary data

Supplementary data is available at NAR online.

Conflict of interest

None declared.

Funding

This work was supported by funds from the CNRS and Université Paris Cité (UMR8261) and the Agence Nationale de la Recherche (BASRae1). This work has been published under the framework of Equipex (Cacsice) and a LABEX programs (Dynamo) that benefit from a state funding managed by the French National Research Agency as part of the Investments for the Future program. Funding to pay the Open Access publication charges for this article was provided by the CNRS.

Data availability

The data underlying this article are available in the article and in its online supplementary material.
