Structural basis for loading of Transcription Repair-Coupling factor Mfd onto stalled elongation complexes

Abstract

Transcription-coupled repair (TCR) is a nucleotide excision repair sub-pathway that preferentially removes lesions from the DNA template-strand stalling RNA polymerase (RNAP) elongation complexes (ECs). In bacteria, the superfamily 2 Mfd translocase mediates TCR by displacing stalled ECs and recruiting Uvr(A)B. Using cryo-electron microscopy, we previously visualized seven Mfd-EC complexes spanning the $\text{ATP}$-dependent Mfd loading and EC displacement pathway $[\mathrm{L}1\text{-}>\mathrm{L}2(\text{ADP})\text{-}>\mathrm{C}1(\text{ATP})\text{-}>\mathrm{C}2(\text{ATP})\text{-}>\mathrm{C}3(\text{ADP})\text{-}>\mathrm{C}4(\text{ADP})\text{-}>\mathrm{C}5(\text{ATP})]$. The first intermediate ($\mathrm{L}1$) was poorly resolved (4.1 Å nominal resolution) due to low particle occupancy. The pathway is characterized by very large Mfd structural transitions, notably the $\mathrm{L}1\text{-}>\mathrm{L}2$ transition. Here, we pre-loaded Mfd with $\text{ATP}$ in the presence of the γ-phosphate mimic, ${{\text{BeF}}_3}^{\text{-}}$, limiting rounds of $\text{ATP}$ hydrolysis. The resulting accumulation of early intermediates allowed us to resolve the $\mathrm{L}1$ intermediate to 3.5 Å nominal resolution, revealing bound $\text{ADP-}{{\text{BeF}}_3}^{\text{-}}$. We also identified a new intermediate between $\mathrm{L}1$ and $\mathrm{L}2$, $\mathrm{L}1.5$, providing further insight into Mfd conformational changes during loading.

Graphical Abstract

Introduction

DNA template strand (t-strand) lesions that block elongation by RNA polymerase (RNAP) are targeted for preferential repair in a process called transcription-coupled repair (TCR) [1-3]. UV-induced cyclobutane dimers are the most common lesions that induce TCR [4,5]. In TCR, the stalled RNAP elongation complex (EC) serves as an efficient detector of t-strand lesions that then becomes a privileged entry point into the nucleotide excision repair (NER) pathway, mediated by a transcription repair coupling factor (TRCF). The superfamily 2 (SF2) Mfd translocase [6] has been shown in vitro and in vivo to be a bacterial TRCF [7-11].

In its apo form, Mfd is autoinhibited, inactive in binding to or translocating along DNA, binding to NER factor UvrA, or hydrolyzing $\text{ATP}$ [6,12,13]. This is attributed to the compact inactive conformation of apo-Mfd, where the UvrA-interacting module is occluded by Mfd domain 7 [D7; [14]]. Stable association of Mfd with the EC requires many rounds of $\text{ATP}$ hydrolysis [15].

After engaging with the EC, Mfd translocase activity can overwind the upstream region of the EC transcription bubble, facilitating displacement of the RNA transcript and transcription bubble reannealing [6,12,15-21]. After disruption of the EC, the Mfd-RNAP complex remains on the DNA and continues to slowly translocate in the downstream direction processively over thousands of base pairs [18,22,23]. The Mfd-RNAP complex rapidly dissociates from the DNA once it is intercepted by UvrA₂B [24,25].

Previously, we used cryo-electron microscopy (cryo-EM) to visualize the $\text{ATP}$-dependent pathway for Mfd engaging with and attempting to displace the EC [15]. We visualized seven distinct Mfd-EC complexes in both $\text{ATP}$ and $\text{ADP}$-bound states spanning the Mfd loading and EC displacement pathway:

$$\mathrm{L}1\text{-}>\mathrm{L}2(\text{ADP})\text{-}>\mathrm{C}1(\text{ATP})\text{-}>\mathrm{C}2(\text{ATP})\text{-}>\mathrm{C}3(\text{ADP})\text{-}>\mathrm{C}4(\text{ADP})\text{-}>\mathrm{C}5(\text{ATP})$$

In this earlier study, the first Mfd-EC loading intermediate ($\mathrm{L}1$) was poorly populated, yielding a relatively low-resolution structure (4.1 Å nominal resolution) in which the nucleotide occupancy of the Mfd active site was unclear. The pathway is characterized by very large Mfd structural transitions, most notably the $\mathrm{L}1\text{-}>\mathrm{L}2$ transition, where the RecG-like SF2 translocase domains (TDs) translocate at least 7 base pairs along the upstream duplex DNA of the EC, rotating ~258° about the DNA and undergoing an overall translation of ~63 Å while hydrolyzing at least 7 molecules of $\text{ATP}$. Other domains of Mfd undergo similarly large motions. The rotation of the Mfd TDs around the DNA, combined with rearrangements of other Mfd domains, result in a conformation in which Mfd is topologically wrapped around the upstream duplex DNA. This persistently ‘wrapped’ arrangement of the Mfd-RNAP complex was proposed to be the source of its high processivity on DNA [15,18,22,23]. While the endpoints of the initial structural transition ($\mathrm{L}1$ and $\mathrm{L}2$) were resolved, the detailed pathway of Mfd domain motions during the transition was unclear.

Here, we pre-loaded Mfd with $\text{ATP}$ in the presence of ${{\text{BeF}}_3}^{\text{-}}$, allowing Mfd to undergo a limited number of $\text{ATP}$ hydrolysis cycles before being trapped by ${{\text{BeF}}_3}^{\text{-}}$ binding prior to $\text{ADP}$ release. The resulting accumulation of particles in the early steps of the pathway allowed us to resolve the $\mathrm{L}1$ intermediate to 3.5 Å nominal resolution, revealing nucleotide occupancy. We also identified an additional loading intermediate between $\mathrm{L}1$ and $\mathrm{L}2$ ($\mathrm{L}1.5$) that clarifies the rearrangements undertaken by Mfd during loading.

Materials and Methods

Key Resource Table

[ ].

Lead Contact and Materials Availability

All unique/stable reagents generated in this study are available without restriction from the Lead Contact, Seth A. Darst (darst@rockefeller.edu).

Experimental Model and Subject Details

RNAP core (α₂ββ’ω) and Mfd are proteins found in Eco. For protein expression, Eco BL21(DE3) [Eco str. B F⁻ ompT gal dcm lon hsdS_B(r_B⁻m_B⁻) λ(DE3 [lacI lacUV5-T7p07 ind1 sam7 nin5]) [malB⁺]_K-12(λ^S)] was used.

Method Details

Structural biology software was accessed through the SBGrid consortium [26]. No statistical methods were used to predetermine sample size. The experiments were not randomized. The investigators were not blinded to allocation during experiments and outcome assessment.

Protein expression and purification.

Eco core RNAP and σ⁷⁰ were separately overexpressed and purified as previously described [15,27]. Eco Mfd was overexpressed and purified as previously described [15].

Mfd-EC Displacement Assay

50 picomoles of forward primer (5’ cggaacattacgaacgatgg 3’ IDT), used later for PCR amplification of pAR1707 [28], was combined with 50 picomoles of $\gamma \text{-}{}^{32}\mathrm{P}\text{-ATP}$, 2 μL of T4 polynucleotide kinase (10,000 U/mL), and T4 buffer (New England Biolabs). Radiolabeling reactions ran for 45 min at 37°C. After a 20-minute heat treatment at 65°C, radiolabeled primers were purified using a NucAway spin column (Invitrogen AM10070). PCR reactions were performed with radiolabeled forward primers and unlabeled reverse primers from pAR1707 template (Thermo Scientific Phusion High-Fidelity DNA polymerase F-530XL). Amplicons were run on an SDS polyacrylamide gel and the purified band was cut out and dissolved in Crush/Soak elution buffer (1 M Na-acetate, pH 5.5, 1 mM EDTA) before being spin filtered in an Ultra-free MC tube (Millipore UFC30VV00) and precipitated in 100% ethanol, washed with 70% ethanol, and finally resuspended in RNase free 10 mM Tris-HCl, pH 8.0 (Invitrogen AM9855G).

Eco RNAP holoenzyme (Eσ⁷⁰) was reconstituted by incubating core RNAP (E) (10 nM final) with σ⁷⁰ (50 nM final) at 37°C for 15 min. Eσ⁷⁰ was incubated with radiolabeled DNA fragments (0.4 nM) for 10 minutes at 37°C to form transcription initiation complexes. Transcription was then initiated by adding ApU (200 uM), $\text{ATP}$ (2 mM), CTP (50 uM), GTP (50 uM), 3’-deoxy-UTP chain terminator (100 μM) (all NTPs: TriLink Biotechnologies) and heparin (10 μg/ml; Sigma-Aldrich H3149) at 37°C for 10 min in transcription buffer (100 mM Tris-HCl, pH 8.0, 500 mM KCl, 100 mM MgCl₂, 1 mM EDTA, 10 mM dithiothreitol, 50 μg/mL BSA). In conditions where a non-hydrolyzable NTP analog was used to halt Mfd activity, either 20 mM Na-orthovanadate (VO₄³⁻; Sigma-Aldrich 450243), 13.95 mM Aluminum trifluoride (AlF₃; Sigma-Aldrich 449268), or 25 mM Beryllium trifluoride (${{\text{BeF}}_3}^{1\text{-}}$; Sigma-Aldrich AA1610414) were added to the transcription reaction simultaneously with other NTPs and heparin. Finally, Mfd (250 nM) was added to the reaction and time points were taken by adding samples directly to the running gel. Native gels were cast using 4.5% polyacrylamide [(37.5:1) acrylamide/bis-acrylamide (2.7% crosslinker), 0.15% TEMED (Thermo Scientific 17919), and 1% APS (Sigma-Aldrich A3678). Gels were run at 4°C at 24 mA for approximately 19 hours. Gels were mounted onto Whatman filter paper and placed into a gel dryer for 30 min at 40°C. Gels were exposed to a phosphor screen for 6 hrs at 4°C and imaged using a Typhoon (Cytiva). Band intensities were quantified using ImageJ. Stall intensity % was calculated as follows: (Stall band intensity)/(Stall band intensity + DNA band intensity) using background-subtracted values.

Preparation of Mfd-EC complexes for cryo-EM

Eco core RNAP (0.5 mL of 5 mg/mL protein) was injected into a 10/300 Superose 6 Increase column (Cytiva) equilibrated with 10 mM Tris-HCl, pH 8.0, 100 mM KCl, 5 mM MgCl₂, and 2.5 mM dithiothreitol (DTT). The peak fractions of the eluted protein were concentrated by centrifugal filtration (EMD-Millipore-30K MWCO) to 25 μM protein concentration. The above steps were also performed for purified Mfd. ECs were reconstituted by hybridizing RNA with t-strand DNA (stepwise decreasing temperature from 95°C) before adding E. coli RNAP (RNAP:DNA ratio of 1:1.1) at room temperature for 15 minutes. Nt-strand DNA was finally added for 10 minutes at room temperature. $\text{ATP}$ (2 mM), ${{\text{BeF}}_3}^{\text{-}}$ (25 mM), 24.872 uM Mfd, and 12.422 uM EC (final concentrations) were all combined in Cryo-EM buffer (150 mM KCl, 20 mM Tris pH 8.0, 10 mM MgCl₂, 10 mM DTT). The sample was incubated for 15 min at 37°C, then 3-([3-cholamidopropyl]dimethylammonio)-2-hydroxy-1-propanesulfonate (CHAPSO) was added to a final concentration of 8 mM [29], and the sample was kept at room temperature prior to grid preparation.

Cryo-EM grid preparation

C-flat holey carbon grids (CF-1.2/1.3-4Au; Protochips) were glow-discharged for 20 s before the application of 3.5 μL of the sample described above. After blotting for 3–4.5 s, the grids were plunge-frozen in liquid ethane using an FEI Vitrobot Mark IV (FEI) with 100% chamber humidity at 37°C.

Cryo-EM data acquisition and processing.

Grids were imaged using a 300-keV Titan Krios (FEI) equipped with a K3 Summit direct electron detector (Gatan). Images were recorded with Leginon [30] in counting mode with a pixel size of 1.0825 Å (our 2^nd dataset was collected with a pixel size of 1.03Å and subsequently binned to 1.0825Å) and a defocus range of −1 to −2.5 μm. Data were collected with a dose rate of 28 e⁻ per Ų per s. Images were recorded over a 2 s exposure with 0.05 s frames (40 total frames) to give a total dose of 51.2 e⁻/Ų (2^nd dataset had a total dose of 68.2 e⁻/Ų). Dose-fractionated videos were gain-normalized, drift-corrected, summed, and dose-weighted using MotionCor2 [31]. The contrast transfer function (CTF) was estimated for each summed image using the Patch CTF module in cryoSPARC2 (CS2) [32]. Particles were picked and extracted from the dose-weighted images with a box size of 256 px using CS2 Blob Picker and Particle Extraction. Coordinates pointing to particles of ice were extracted as faux particles and used to generate an initial decoy 3D model in CS2 (ab initio reconstruction) in order to remove junk particles from initial particle stacks during the ‘decoy’ procedure. Multiple rounds of CS2 Hetero Refinement of all blob-picked particles used multiple 3D decoys along with an Eco core RNAP 3D template (PDB 6ALH) with all nucleic acids removed (low pass filtered to 60 Å resolution), to perform initial de-junking. The original purpose for the 2^nd data collection was to identify more particles of $\mathrm{L}1.5$ to improve map resolution; however, no additional $\mathrm{L}1.5$ particles could be successfully identified, whereas additional $\mathrm{L}1$ particles were identified. Both $\mathrm{L}1$ and $\mathrm{L}1.5$ were classified from their respective parent particle stacks via focused 3D classification in Relion3 [33]. Both classes were subjected to two rounds of successive Bayesian Polishing in Relion3. Finally, CS2 non-uniform (NU) refinements were performed for each resulting class, yielding two different structures: $\mathrm{L}1$ (96,588 p, 3.5 Å nominal resolution) and $\mathrm{L}1.5$ (13,101 p, 4.3 Å nominal resolution).

The heatmap distribution of particle orientations and half-map FSCs were calculated using CS2. 3D Fourier shell correlation (3dFSC) calculations were performed using 3DFSC [34]. Local-resolution calculations were performed using blocres and maps were locally filtered using blocfilt (Bsoft package) [35].

Model building and refinement

$L1$. The initial model for $\mathrm{L}1$ was derived from PDB 6X26 [15]. The model was manually fit into the cryo-EM density maps using ChimeraX [36] and rigid-body and real-space refined using PHENIX real-space-refine [37,38]. For real-space refinement, rigid-body refinement was followed by all-atom and B factor refinement with Ramachandran and secondary structure restraints. Models were inspected and modified using COOT [39].

$L1.5$. The initial model for $\mathrm{L}1.5$ was derived from PDB 6X50 [40].

Data and code availability

The cryo-EM density maps have been deposited in the EMDataBank under accession codes EMD-48776 [$\mathrm{L}1(\text{ADP-}{\text{BeF}}_3)$] and EMD-48802 [$\mathrm{L}1.5$]. The atomic coordinates have been deposited in the Protein Data Bank under accession codes 9N07 [$\mathrm{L}1(\text{ADP-}{\text{BeF}}_3)$] and 9N11 ($\mathrm{L}1.5$).

Results

Mfd activity is sensitive to γ-phosphate mimics

$\text{ATP}$ hydrolysis is required for Mfd loading to achieve a stable Mfd-EC complex (Kang et al. 2021). For example, incubating a stalled EC with transition state analog $\text{ADP}+\text{vanadate}({{\text{VO}}_4}^{3\text{-}})$ [41] does not support Mfd-EC complex formation, but $\text{ATP}+{{\text{VO}}_4}^{3\text{-}}\text{does}$ does [15]. Although $\text{ATP}+{{\text{VO}}_4}^{3\text{-}}$ supports Mfd-EC complex formation, it does not support EC displacement, indicating that multiple rounds of $\text{ATP}$ hydrolysis are required for EC displacement [15]. Similarly, $\text{ATP}$ with ground state analogs AlF₃⁻ or ${{\text{BeF}}_3}^{\text{-}}$ also do not support EC displacement (Figures 1b and 1c, Figure 1-figure supplement 1). Thus, pre-loading Mfd with $\text{ATP}$ in the presence of γ-phosphate mimics VO₄³⁻, AlF₃⁻, or ${{\text{BeF}}_3}^{\text{-}}$ allows Mfd to undergo a limited number of $\text{ATP}$ hydrolysis cycles, which are obligate for Mfd-EC complex formation, but not enough cycles to complete EC displacement.

Figure 1. Non-hydrolyzable $\mathbf{ATP}$ analogs inhibit Mfd-mediated displacement of stalled ECs.

(a) Schematic depicting native gel-shift experiments used to monitor Mfd-mediated displacement of stalled ECs. Eco holoenzyme was added to a radiolabeled linear dsDNA fragment containing the strong T7A1 promoter (Figure 1-figure supplement 1a). Stalled ECs were formed via the introduction of dinucleotide primter (ApU, 200 uM final concentration), a subset of NTP substrates ($\text{ATP}$, 2 mM: CTP, 50 uM; GTP, 50 uM) and a chain terminator (3’-deoxy-UTP, 100 μM). The γ-phosphate mimics Sample-dependent non-hydrolyzable $\text{ATP}$-analog was introduced prior to Mfd [NaVO₄³⁻ (20 mM final concentration), or AlF₃ (14 mM), or ${{\text{BeF}}_3}^{\text{-}}$ (25 mM)]. Mfd hydrolyzes $\text{ATP}$ to displace, translocate, and ultimately dissociate the stalled EC from the DNA fragment.

(b) The left panel shows the effect of Mfd-mediated removal of the stalled EC via native electrophoretic mobility shift analysis; after 1 to 2 minutes of incubation with Mfd and $\text{ATP}$, the low mobility EC ('stalled complex') is disrupted. The right panel shows the inhibitory effect of ${{\text{BeF}}_3}^{\text{-}}$.

(c) Quantification of Mfd-mediated removal of stalled ECs from the linear DNA fragment and the potent inhibitory effects of all three tested γ-phosphate mimics. Error bars denote standard deviation of n=3 measurements. Representative gels for AlF₃ and VO₄³⁻ analyses are shown in Figure 1-figure supplement 1b and 1c).

Two structures early in the Mfd loading pathway

We reasoned that limiting the number of $\text{ATP}$ hydrolysis cycles that Mfd could complete by using $\text{ATP}$ and a γ-phosphate mimic would enrich Mfd-EC complexes early in the loading pathway. We incubated stalled ECs with Mfd pre-loaded with $\text{ATP}[\text{Mfd}(\text{ATP})]$ in the presence of 25 mM ${{\text{BeF}}_3}^{\text{-}}$ (Figures 1b,1c, and 2a), then analyzed the resulting complexes by single particle cryo-EM (Figure 2, Figure 2-figure supplement 1). Steps of maximum-likelihood classification [42] revealed two predominant Mfd-EC structures. As expected, the sample was highly enriched in $\mathrm{L}1$ (88% of the particles; Figure 2b, Figure 2-figure supplement 1). Unexpectedly, the remainder of the particles (12%) defined a new structural class between $\mathrm{L}1$ and $\mathrm{L}2$ that we term $\mathrm{L}1.5$ (Figure 2c, Figure 2-figure supplement 1).

Figure 2. Two structure early in the Mfd loading pathway.

(a) Schematic for reconstituting the stalled EC employed in cryo-EM experiments. To assemble complexes enriched for early intermediates in the Mfd loading pathway, we annealed partially complementary RNA to t-strand DNA, added core RNAP, then finally nt-strand DNA [with partial complementarity to the t-strand, resulting in a bubble resistant to annealing [15]]. The subsequent addition of Mfd, $\text{ATP}$ (2 mM final concentration), and ${{\text{BeF}}_3}^{\text{-}}$ (25 mM) allowed formation of early intermediates via limited rounds of $\text{ATP}$ hydrolysis before ${{\text{BeF}}_3}^{\text{-}}$ can associate with Mfd to inhibit further activity.

(b) Local-resolution filtered [35] cryo-EM density for $\mathrm{L}1$ intermediate with associated resolution and % particle contribution to overall population observed. Color legend for domains of RNAP and Mfd shown.

(c) Local-resolution filtered [35] cryo-EM density for $\mathrm{L}1.5$ intermediate with associated resolution and % particle contribution to overall population observed. Color legend for domains of RNAP and Mfd shown. The upstream duplex DNA (t-strand and nt-strand) is labeled. The RNA transcript present in the compexes is not visible in these views.

High-resolution $\mathbf{L}1$ structure confirms $\mathbf{ATP}$ in the Mfd active site

$\mathrm{L}1$ was proposed to be the first stable intermediate on the Mfd-EC loading pathway [15]. The nucleotide state of the Mfd active site was previously unresolved due to the poor resolution of the structure [4.1 Å nominal resolution; [15]]. By limiting the number of Mfd $\text{ATP}$ hydrolysis cycles in our current study, the population of particles in the $\mathrm{L}1$ state was enriched, giving rise to a much better resolved structure (3.5 Å nominal resolution; Figures 2b and 3, Figure 2-figure supplement 1). The previous $\mathrm{L}1$ model (4.1 Å nominal resolution) and the current $\mathrm{L}1$ model (3.5 Å resolution) are very similar in overall architecture (1.18 Å root-mean-square deviation over 3,731 α-carbons), but the new model clearly resolves $\text{ADP}•{{\text{BeF}}_3}^{\text{-}}$ in the Mfd active site (Figure 3). ${{\text{BeF}}_3}^{\text{-}}$ is a ground-state analog, suggesting that the $\mathrm{L}1$ state contains $\text{Mfd}(\text{ATP})$ during the normal $\text{ATP}$ hydrolysis condition.

Figure 3. High resolution structure of $\mathbf{L}1$ confirms presence of bound $\mathbf{ADP}\text{-}{{\mathbf{BeF}}_3}^{\text{-}}$ in Mfd active site.

The $\mathrm{L}1$ intermediate is shown on the left [local-resolution filtered cryo-EM map [35] for RNAP and nucleic acids, with transparent molecular surface of Mfd colored according to key (top). DNA stands and RNAP subunits are individually labelled and distinguished by color. Cryo-EM difference density (zoomed in rightmost panel) shows clear density corresponding to the presence of $\text{ADP-}{{\text{BeF}}_3}^{\text{-}}$ (shown in red with model fit into difference density).

$\mathbf{ATP}$ loading of Mfd in conjunction with ${{\mathbf{BeF}}_3}^{\text{-}}$ traps the Mfd-EC complex in a new intermediate

The $\text{ATP}$-dependent transition from $\mathrm{L}1$ to $\mathrm{L}2$ involves dramatic conformational changes in the positioning of Mfd domains. In $\mathrm{L}1$, the Mfd TDs engage with the upstream duplex DNA of the EC far upstream, centered at about −30 with respect to the 3'-end of the RNA in the EC. In $\mathrm{L}2$, the Mfd TDs are centered at about −21 on the upstream duplex DNA and rotated around the DNA about 258° [15]. Thus, in the $\mathrm{L}1\text{-}>\mathrm{L}2$ transition, the Mfd TDs translocate on the upstream duplex DNA in the downstream direction (i.e. towards the RNAP) while the RNAP and the RNAP-bound Mfd-D4(RID) remain stationary. During this process, a long helix (the Relay Helix) connecting Mfd D4(RID) to D5(TD1) unfolds and wraps around the DNA, imparting the translocating Mfd-EC complex its striking processivity [15,24]. It was proposed in Kang et al. (2021) that the Mfd D1-D3 structural module disengages from the Mfd-EC complex, opening a path for the TDs to corkscrew around the DNA to reach their position in $\mathrm{L}2$. D1-D3 was proposed to subsequently rebind in a different position, forming $\mathrm{L}2$ [15,24].

In our new cryo-EM dataset, most particles (88%) have undergone one (or at most, a few) rounds of $\text{ATP}$ hydrolysis, generating $\mathrm{L}1$ (Figures 2b and 3). However, a smaller population of particles (12%) has successively hydrolyzed a limited number of $\text{ATP}$ molecules prior to associating with ${{\text{BeF}}_3}^{\text{-}}$, moving beyond $\mathrm{L}1$ but not yet achieving $\mathrm{L}2$, revealing a new intermediate, $\mathrm{L}1.5$ (Figures 2c and 4, Figure 2-figure supplement 1). In $\mathrm{L}1.5$, the Mfd TDs are centered at about −25 and rotated around the DNA about 181° (with respect to $\mathrm{L}1$), approximately half-way between $\mathrm{L}1$ and $\mathrm{L}2$ (Figure 4).

Figure 4. $\mathbf{L}1.5$ structure illustrates pathway for transition from $\mathbf{L}1$ to $\mathbf{L}2$.

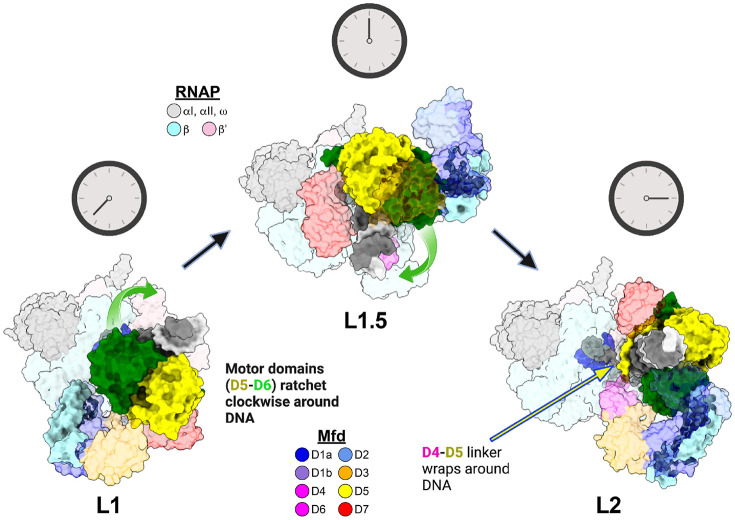

Mfd-EC complexes $\mathrm{L}1$ (left, this work), $\mathrm{L}1.5$ (middle, this work), and $\mathrm{L}2$ [right, 6X2F; [15]] illustrate rearrangements of Mfd structural elements to accomplish loading. The complexes are shown as molecular surfaces (RNAP subunits and Mfd domains color-coded as shown), aligned via the RNAP, and viewed from the upstream duplex DNA direction. The Mfd RecG-like motor domains (D5, yellow; D6, green] corkscrew around the upstream dsDNA in the clockwise direction while hydrolyzing $\text{ATP}$. The relay helix (D4-D5 Mfd linker, labeled in $\mathrm{L}2$) gradually wraps around the upstream duplex DNA as motor domains circle around the DNA and the RNAP-Interacting-Domain [D4(RID)] remains attached to the RNAP (highlighted in rightmost complex shown). D1-D3 appear to temporarily dissociate from the other Mfd domains as motor domains circle the upstream duplex DNA and rebind in a different overall conformation ($\mathrm{L}1.5$) that persists (with minor repositioning relative to the motor domains) until the final formation of $\mathrm{L}2$ where Mfd has achieved loading.

Discussion

In Kang et al. (2021), Mfd was visualized undergoing its complete $\text{ATP}$ hydrolysis cycle, engaging with and attempting to disrupt an EC. The ECs were stalled by nucleotide deprivation on a nucleic acid scaffold containing a non-complementary transcription bubble that could not rewind (Figure 2 - figure supplement 1a). Thus, despite undergoing cycles of $\text{ATP}$ hydrolysis, Mfd was unable to efficiently disrupt the ECs, facilitating the visualization of intermediates. Seven distinct Mfd-EC complexes were visualized and placed in a pathway, providing a structural basis for understanding the extensive remodeling of Mfd upon its engagement and disruption of the EC. The presence of $\text{ATP}$ throughout the sample preparation allowed multiple rounds of $\text{ATP}$ hydrolysis, driving the complexes through the pathway, explaining why the early intermediates ($\mathrm{L}1$ and $\mathrm{L}2$) were poorly populated; $\mathrm{L}1$ and $\mathrm{L}2$ contained 4% and 5% of the particles, respectively. The small number of particles gave rise to relatively low-resolution cryo-EM maps ($\mathrm{L}1$, 4.1 Å nominal resolution; $\mathrm{L}2$, 4.0 Å nominal resolution). As a result, the nucleotide occupancy of the Mfd active site in $\mathrm{L}1$ was not able to be determined.

In this current study we populated complexes early in the pathway by incubating the stalled EC with Mfd, $\text{ATP}$, plus a γ-phosphate mimic, ${{\text{BeF}}_3}^{\text{-}}$. Following $\text{ATP}$ hydrolysis by Mfd, ${{\text{BeF}}_3}^{\text{-}}$ can substitute for the leaving inorganic phosphate before $\text{ADP}$ has been released [43,44], trapping the complex after one or only a few rounds of $\text{ATP}$ hydrolysis. In this way, the sample was heavily shifted towards populating early complexes. $\mathrm{L}1$ contained 88% of the particles, giving rise to a 3.5 Å reconstruction (Figures 2b and 3, Figure 2 - figure supplement 1). The better resolution of the $\mathrm{L}1$ cryo-EM map revealed that $\text{ADP-}{{\text{BeF}}_3}^{\text{-}}$ occupied the Mfd active site (Figure 3), consistent with biochemical findings that $\text{ATP}$ hydrolysis was required to reach $\mathrm{L}1$ [15].

In addition to increasing the population of $\mathrm{L}1$, a new complex between $\mathrm{L}1$ and $\mathrm{L}2$, $\mathrm{L}1.5$, was populated (12% of the particles). In the presence of ${{\text{BeF}}_3}^{\text{-}}$, $\mathrm{L}2$ and subsequent states were not populated at all (Figure 2 - figure supplement 1). In $\mathrm{L}1.5$, the Mfd-TDs translocating (corkscrewing) on the upstream duplex DNA towards the RNAP were trapped approximately half-way between $\mathrm{L}1$ and $\mathrm{L}2$ (Figure 4), confirming and elaborating the proposed $\mathrm{L}1\text{-}>\mathrm{L}2$ transition pathway [15].

The ability of cryo-EM to visualize mixtures of biological macromolecules in relatively native environments allows the analysis of complex assembly or activity pathways in vitro, revealing unprecedented insights [15,45-47]. By their nature, active biological pathways lead to extreme heterogeneity. In the case of NTPase-driven processes, the use of γ-phosphate mimics to allow limited rounds of $\text{ATP}$ hydrolysis can reduce the heterogeneity and stabilize transient states that otherwise would not be populated, providing insight into NTP-hydrolysis driven pathways difficult to obtain in other ways.
