A novel peptidoglycan deacetylase modulates daughter cell separation in E. coli

Abstract

Peptidoglycan hydrolases facilitate bacterial cell wall growth by creating space for insertion of new material and allowing physical separation of daughter cells. In Escherichia coli, three peptidoglycan amidases, AmiA, AmiB and AmiC, cleave septal peptidoglycan during cell division. The LytM-domain proteins EnvC, NlpD and ActS activate these amidases either from inside the cell or the outer membrane: EnvC binds to the cytoplasmic membrane-anchored divisome components FtsEX, while NlpD and ActS are outer membrane-anchored lipoproteins. Here we report the identification of a novel periplasmic deacetylase called SddA that removes acetyl groups from denuded peptidoglycan glycan strands, the products of amidases. The sddA gene is co-expressed with the gene encoding EnvC, linking SddA function to amidase activation. Consistent with this link, the deletion of sddA alleviates phenotypes associated with lack of amidase activation, while overexpression of sddA alleviates phenotypes related to a defective Tol-Pal system and causes cell chaining due to reduced septum peptidoglycan cleavage. We present a model according to which SddA modulates the activation of the septum-splitting amidases during cell division.

Author summary

Bacteria surround their cell membrane by the essential peptidoglycan (cell wall) layer to prevent bursting open due to their turgor. During cell division, bacteria produce a septum at midcell, which must be cleaved for daughter cells to separate. Here, we report the identification of a new enzyme, SddA, that modifies a particular type of peptidoglycan material, denuded glycan chains released during the splitting of septal peptidoglycan for daughter cell separation, in the Gram-negative Escherichia coli. We propose a model in which SddA modulates a switch in the septal peptidoglycan splitting, ensuring splitting is activated from the cell membrane in the early stages of cell division and from the outer membrane in the late stages.

Introduction

The bacterial peptidoglycan (PG) sacculus provides support against the turgor and maintains the shape of the cell [1]. PG is made of chains of alternating N-acetylglucosamine (GlcNAc) and N-acetylmuramic acid (MurNAc) residues with short peptides linked to MurNAc. Peptides from adjacent strands can be connected by crosslinks to form the PG network surrounding the cytoplasmic membrane [1]. Rod-shaped bacteria such as E. coli use membrane-spanning multiprotein complexes for sacculus growth: the divisome facilitates cell division at midcell and the elongasome side wall expansion [2,3]. Both complexes coordinate the activities of various PG-synthesising and hydrolysing enzymes and PG biogenesis is coordinated with outer membrane (OM) synthesis and maintenance [2,4,5].

Cell division is a key process in the cell cycle in which PG synthesis and hydrolysis are coupled. The cytoplasmic tubulin homologue FtsZ forms treadmilling FtsZ polymers rotating around the division site [6–8], attached to the cytoplasmic membrane (CM) by FtsA and ZipA [9]. Early in cell division, PG synthesis is initiated by class A Penicillin-binding proteins (PBPs) [10,11], and it is regulated by SPOR-domain PG-binding proteins such as FtsN [11,12]. Assembly of the complete divisome activates the major cell division-specific synthases FtsW-PBP3 [3]. PG synthases polymerize glycan strands from the PG precursor lipid II and cross-link the peptides [13]. PG hydrolases are needed for splitting the septal PG for the separation of the daughter cells. PG N-acetylmuramoyl-L-alanine amidases (amidases) remove the stem peptides from the glycan strands producing ‘denuded’ strands. In E. coli, AmiA, AmiB and AmiC are the major septum-splitting enzymes responsible for daughter cell separation [14,15]. They are periplasmic enzymes with structurally-related catalytic domains and regulated by LytM-domain-containing activators [16]. EnvC activates AmiA and AmiB and is itself activated by the cytoplasmic membrane-anchored FtsEX proteins, which are members of the divisome [17–20]. By contrast, the lipoproteins NlpD and ActS activate AmiC from the OM [21–23]. The regulation of the NlpD/AmiC complex is poorly understood and might involve the Tol-Pal system, but not the OM-anchored lipoprotein DolP, which is crucial for OM integrity and pathogenicity in many γ- and β-proteobacteria [24]. The transmembrane Tol-Pal system facilitates OM constriction during cell division and regulates, via the accessory protein CpoB, the activation of the transpeptidase (TPase) of the PG synthase PBP1B [4]. Knockout of either the amidases or their regulators, or members of the Tol-Pal system, produces chaining and OM-defects in E. coli [14,16,25].

Many bacteria modify the chemical structure of peptidoglycan to adapt to different growth conditions or to resist attacks by hydrolases released by the host or bacteriophages [1,26]. One important modification is the deacetylation of the sugars in the glycan chain, which helps bacteria to resist the digestion of PG by lysozyme. The first PG N-acetylglucosamine deacetylase, PgdA, was identified in Streptococcus pneumoniae [27], where it contributes to virulence [28], and homologues are present in other Gram-positive bacteria, for example Listeria monocytogenes [29] or Streptococcus suis [30]. The PgdA catalytic domain contains a NodB-homology domain (PFAM PF01522) with a conserved triad of two histidine and one aspartic residue coordinating Zn²⁺ as metal cofactor [31]. PG deacetylases have been thought to be absent in Gram-negative bacteria. The ‘atypical’ PG deacetylase suggested to be present in a Gram-negative bacterium, PgdA from Helicobacter pylori [32,33], seems to lack a signal peptide for export into the periplasm, and deacetylated PG fragments were not observed in H. pylori [34–37]. Interestingly, a recent high-resolution mass spectrometry-based approach identified a small amount (0.25 ± 0.03%) of deacetylated PG glycan fragments (GlcN-MurNAc, S1B Fig) in E. coli [38], although E. coli does not appear to have a homologue of PgdA and deacetylated disaccharide peptides (muropeptides) were not released from E. coli PG by a muramidase [39,40].

In this work, we report the discovery of a new enzyme in E. coli that can deacetylate denuded PG glycan strands produced by amidases. The deacetylase, which we named SddA (Septal denuded strand deacetylase A), is genetically linked to the amidase activator EnvC and localizes to the cell division septum. SddA is distantly related to PgdA structurally as both contain catalytic domains belonging to the glycoside hydrolase/deacetylase, beta/alpha-barrel superfamily (Interpro IPR011330). Our results suggest that SddA is involved in regulating amidase activity during cell division by affecting the activation of amidases from the OM or CM.

Results

SddA is a denuded glycan strand deacetylase

We searched the E. coli genome for genes encoding for periplasmic proteins with homology to PG deacetylases. A fold-based search using S. pneumoniae PgdA as query and the E. coli proteome as target yielded 8 hits, of which three are proteins targeted for periplasmic export (PgaB, YadE and YibQ). These proteins contain a polysaccharide domain similar to that of PgdA. PgaB is an OM protein that deacetylates the extracellular poly-β-(1,6)-GlcNAc (PGA) matrix for biofilm formation [41,42]. YadE is a protein of unknown function with genetic links to genes involved in lipid A modification and synthesis [43]. We also identified YibQ, a protein containing a divergent polysaccharide deacetylase domain (protein family PF04748) that is related to but distinct to the deacetylase domain of PgdA (PF01522). Interestingly, the yibQ gene locates within the same operon as the PG hydrolase activator gene, envC (Fig 1A), and YibQ has a predicted signal peptide for export into the periplasm, making it a candidate for a PG deacetylase. To identify how conserved this genetic linkage is, we determined the distribution of genes encoding for YibQ homologues within the Annotree database which contains a representative set of consistently annotated bacterial genomes [44]. Genes encoding for YibQ homologues are present mainly within genomes of Gram-negative bacteria (Fig 1B), and most of these, including E. coli yibQ, are located on the same strand of the DNA (Fig 1C) and within two kilobases to genes encoding for EnvC homologues (Fig 1D). An AlphaFold model of YibQ predicts an N-terminal globular domain with conserved metal binding residues followed by a long C-terminal disordered region (Figs 1E and S2B).

Fig 1. SddA is a denuded PG glycan strand deacetylase genetically linked to amidase activator EnvC.

(A) The E. coli gene yibQ (sddA) is located downstream in the same operon as amidase activator envC. (B) Distribution of gpmM, envC and sddA homologues in the bacterial genome database Annotree. (C) When sddA and envC are present in the same genome in Annotree, they are most often present on the same strand. (D) When sddA and envC are present in the same genome in Annotree they are found most often at a distance of less than 2 kilobases. (E) Alphafold model of the SddA globular domain (left), compared with the crystal structure of BH1492 from Bacillus halodurans (PDB 2NLY), which also contains a divergent deacetylase domain. The residues involved in Zn²⁺ coordination in the BH1492 structure and their homologues in SddA are indicated. (F) Analysis by LC/MS of the presence of GlcN-MurNAcAnh and GlcNAc-MurNAcAnh in PG from E. coli BW25113 (WT) or E. coli BW25113∆sddA (∆sddA), released by MltA. Top, scheme of the procedure, bottom, chromatograms showing intensity of peaks eluting with m/z 437 and 479 corresponding to GlcN-MurNAcAnh and GlcNAc-MurNAcAnh, respectively, for WT and ∆sddA. The identity of GlcN-MurNAcAnh and GlcNAc-MurNAcAnh MS peaks was verified by MS/MS fragmentation (S1 Fig). In the scheme, LT stands for lytic transglycosylase. (G) Chromatograms of the analysis of denuded glycan strands treated first with buffer, SddA, SddA^24-238 or SddA^24-238 D31A/D32A, and then with the lytic transglycosylase MltA to produce anhydro-muropeptides. Labelled peaks were identified by mass spectrometry (see text) and correspond to GlcN-MurNAcAnh (GlcN) and GlcNAc-MurNAcAnh (GlcNAc).

To test if YibQ is the enzyme responsible for the presence of GlcN-MurNAc in E. coli PG, we purified PG from E. coli BW25113 and an isogenic yibQ deletion strain, digested it with the lytic transglycosylase MltA, which is known to be able to digest denuded glycan strands [45] to generate the 1,6-anhydro-disaccharide subunits and analysed these by liquid-chromatography-mass spectrometry (LC-MS/MS) for the presence of GlcN-MurNAcAnh and GlcNAc-MurNAcAnh (Figs 1F and S1AB). GlcN-MurNAcAnh was present in BW25113 and absent in BW25113 ΔyibQ (Fig 1F), suggesting that YibQ is responsible for deacetylating GlcNAc residues in denuded strands. Based on these results and results shown below, we renamed YibQ to SddA (Septal Denuded strand Deacetylase A).

SddA is a GlcNAc deacetylase specific for denuded strands

Next, we wanted to determine whether the N-terminally oligohistidine-tagged version of SddA lacking the signal peptide has PG deacetylase activity. However, upon His-SddA overexpression, most of the produced protein was insoluble and the soluble cell fraction contained only a truncated version (S2 Fig). We purified the soluble, truncated His-SddA and used mass spectroscopy to identify the truncation sites by determining the molecular weights of the protein variants present in these preparations. This analysis showed that the truncation happened within the C-terminal flexible region and the protein still contained the whole globular catalytic domain (S2A Fig). To work with a more homogeneous preparation of SddA, we also expressed and purified a truncated version lacking the predicted C-terminal flexible domain entirely, named His-SddA^24-238, which was completely soluble when overexpressed.

We next tested the activity of His-SddA against whole PG sacculi or muropeptides, which were obtained by digesting PG with a muramidase. No visible changes in the muropeptide profiles were observed in the presence of the His-SddA (S3 Fig), indicating that SddA is not active against PG or muropeptides. Considering the location of sddA next to envC, we next tested if His-SddA is active against denuded glycan strands. For this, we developed an assay in which radiolabelled, un-crosslinked PG strands were generated with a TPase-defective PBP1B variant and [¹⁴C]GlcNAc-labelled lipid II. These strands were then treated with the amidase AmiC in the presence of its activator NlpD to produce radiolabelled denuded glycan strands (S4A Fig). Incubation of these strands with His-SddA prevented their digestion with the muramidase cellosyl (S4B Fig). If the radiolabelled denuded glycan strands were (partially) pre-digested with cellosyl into short glycan strands, His-SddA produced new peaks with different elution times, indicating that SddA modified denuded glycan strands (S4C Fig). To determine the exact reaction performed by SddA, we prepared denuded glycan strands by complete digestion of purified PG with the amidase AmiD and incubated them with His-SddA. The product was digested with lytic transglycosylase MltA, which is able to completely digest denuded glycan strands [46], and analysed the products by HPLC and mass spectrometry (Fig 1G and S1CD Fig). Treatment of denuded strands with His-SddA produced a decrease in GlcNAc-MurNAcAnh (neutral mass 478.10 amu) and yielded a new peak, identified as GlcN-MurNAcAnh (neutral mass 436.05 amu) with MS/MS analysis confirming that deacetylation affects GlcNAc and not MurNAc (Figs 1G, S1CD). His-SddA^24-238 generated the same product, confirming that the flexible C-terminal region in SddA is not required for activity. Finally, His-SddA was also able to deacetylate short GlcNAc-MurNAc oligomers produced by partial digestion of denuded strands by cellosyl (S5 Fig). Overall, these results demonstrate that His-SddA deacetylates GlcNAc residues in denuded strands.

Conserved Asp residues in SddA are required for activity

The Protein Data Bank (PDB) includes two structures of a PF04748 domain, i.e., the same family as the catalytic domain in SddA. In one of these, corresponding to BH1492 from Bacillus halodurans, a Zn²⁺ ion is coordinated by two Asp and two His residues (Fig 1E). These four residues are conserved in SddA: D31, D32, H78, H123 (S6A Fig). To test if these residues are important for SddA activity, we purified SddA versions in which these residues were replaced by Ala and assayed their activity against denuded glycan strands (Figs 1B and S6B). SddA versions D31A/D32A, H78A or H123A showed no activity in this assay (Fig 1G), suggesting that the four conserved hypothetical metal (Zn²⁺)-binding residues are important for SddA activity.

The localization of FtsN SPOR domain is not affected by sddA deletion

SPOR domains recognize PG denuded glycan strands allowing proteins bearing these domains to locate to division sites where these strands are produced by amidases [47,48]. These domains are present in the E. coli proteins FtsN, DedD, DamX and RlpA. All of these except RlpA have been shown to interact with or activate PG synthases during cell division, and they contain a single transmembrane helix anchoring them to the cytoplasmic membrane (Fig 2A) [12,47,49,50]. We wondered whether the deacetylation of denuded glycan strands could affect the binding of SPOR domain proteins, thus preventing their midcell localization or function. We first asked if the deletion of sddA has an effect in a ΔdedD background. Cells lacking dedD are more elongated and more sensitive to outer membrane (OM) stressors such as detergents [51]. A ΔdedD ΔsddA strain showed a reduced sensitivity to deoxycholate compared to ΔdedD but was still more sensitive than the WT (Fig 2B). In addition, ΔdedD ΔsddA cells had similar length as ΔdedD (Fig 2C), indicating that the deficient cell division phenotype was not restored by sddA deletion.

Fig 2. Effect of sddA deletion on SPOR domain proteins.

(A) Scheme showing the three SPOR domain proteins anchored to the cytoplasmic membrane (CM) of E. coli, which bind denuded glycan strands at midcell and participate in cell division regulation. (B) Ten-fold serial dilutions spotted plate of BW25113 (WT), MP005 (ΔsddA), MP001 (ΔdedD) and MP006 (ΔdedD ΔsddA) strain cultures incubated at 30°C in LB-Lennox with or without 0.2% (w/v) sodium deoxycholate (DOC). (C) Violin plot showing cell length of the strains in (B), grown at 30°C in LB-Lennox in exponential phase. The mean ± standard deviation (SD) is indicated (n > 300). (D) Representative images of BW25113 (WT) or BW25113 ΔsddA (ΔsddA) bearing pCH-ss^dsbA-sfGFP-iSPOR showing the localization of sfGFP-iSPOR (green) in cells (black cells with magenta background). Scale bar is 5 μm. (E) Quantification of average midcell intensity of sfGFP-iSPOR. Each data point is representative of the mean average value of 29-52 cells “relative midcell intensities” (normalized by the WT median per replicate, see methods). Written is the mean ± SD from three independent biological replicates. NS means not significant (nonparametric Mann-Whitney test).

To directly probe SPOR protein recruitment in the absence of SddA, we used fluorescence microscopy to localize the isolated SPOR domain of FtsN tagged with a fluorescent protein (sfGFP-iSPOR) in BW25113 or the isogenic strain lacking sddA (Fig 2D). The deacetylation of denuded glycan strands might alter the affinity of SPOR domains and, hence, their recruitment to midcell could be different in the absence of SddA. However, we did not observe a significant difference in midcell localization intensity of sfGFP-iSPOR between the WT and ΔsddA strains (Fig 2E), suggesting that either SPOR domains are not affected by deacetylation by SddA or that the activity of SddA at midcell is too low to affect SPOR localization. This result suggests SddA is not involved in the regulation of FtsN localization at midcell. Further studies are needed to explore whether SddA affects the localization and function of DedD, DamX, or RlpA.

SddA function is linked to peptidoglycan amidases

In order to understand the role of SddA in the cell, we investigated phenotypes caused by deleting the sddA gene in E. coli BW25113. BW25113 ΔsddA grew with normal rate and morphology under standard laboratory conditions (S7 Fig), and the lack of sddA did not affect OM permeability of mutants lacking one or more amidase activators (S8 Fig). Mutants lacking amidases or amidase activators form chains and become sensitive to detergents such as deoxycholate [52]. We confirmed this phenotype in mutants that depend on either EnvC (ΔnlpD ΔactS) or NlpD (ΔenvC ΔactS) (Fig 3) for amidase activation. Interestingly, deleting sddA in these backgrounds rendered cells less sensitive to deoxycholate, suggesting that removal of SddA enhances amidase activity (Fig 3B). In contrast to the strains depending solely on NlpD or EnvC for amidase activation, the deletion of sddA from the strain depending solely on ActS (ΔenvC ΔnlpD) produced a considerable increase in lag phase, although growth rates during exponential phase were similar (S9 Fig). Both, ΔenvC ΔnlpD and ΔenvC ΔnlpD ΔsddA produced very long and sometimes twisted cell chains (S9 Fig). Overall, these results suggest that SddA may inhibit PG amidases in some genetic backgrounds. This modulation might be through direct interaction with the amidases and/or their activators, or indirectly through the deacetylated PG product of SddA.

Fig 3. SddA deletion alters deoxycholate sensitivity of strains defective in multiple amidase activators.

(A) Scheme depicting amidase activation in E. coli. AmiA and AmiB are activated by the FtsEX-EnvC complex, which is part of the divisome, from inside the cell. AmiC is activated by lipoproteins NlpD and ActS. ActS can also activate AmiA and AmiB in vitro (dashed arrows). (B) Ten-fold serial dilutions spotted plates of BW25113 ∆nlpD ∆actS and BW25113 ∆nlpD ∆actS ∆sddA (top), and BW25113 ∆envC ∆actS, and BW25113 ∆envC ∆actS ∆ssdA (bottom). Plates were incubated at 37°C. Top plates contain LB with or without 0.5% deoxycholate (DOC). Bottom plates contain LB-Lennox with or without 0.5% deoxycholate (DOC).

SddA expression from a plasmid causes cell chaining and OM defects

As the deletion of sddA in a WT background caused no obvious growth phenotype, we tested the effects of SddA overexpression by inserting the full length sddA sequence, including its signal peptide, into an expression plasmid under control of IPTG-inducible Ptac promoter yielding pGS100-sddA. Addition of IPTG to BW25113 bearing pGS100-sddA but not the empty plasmid (pGS100) increased the sensitivity to vancomycin and SDS/EDTA (Fig 4A) and induced the formation of long cell chains (Fig 4B), phenocopying the deletion of amidases or their activators [52] and suggesting that PG amidases are impaired upon SddA overexpression. As sddA and envC are co-expressed in the same operon on the genome, we tested whether co-expression of both from a single, plasmid-borne operon has the same effects as the expression of the individual proteins. Co-expression of both envC and sddA from the same operon in a single pGS100-derived plasmid (Fig 4B) produced no cell chaining in BW25113. When sddA and envC were expressed from separate plasmids (pGS100 and pBAD24, respectively), cell chaining still occurred (S10 Fig). Similarly, co-expression of nlpD (from pGS100) and sddA (pBAD24) did not suppress either the sensitivity to vancomycin or SDS/EDTA, or cell chaining (S11 Fig). Asking why the presence of envC in the same operon with sddA abolished sddA overexpression phenotypes, we determined the level of FLAG-tagged SddA in BW25113 harbouring a pGS100-derived plasmid encoding FLAG-SddA or EnvC/FLAG-SddA. First, we verified that the expression of FLAG-SddA reproduced the phenotypes of the expression of non-tagged SddA (S12A Fig). Next, we quantified the production of FLAG-SddA upon induction with IPTG by Western blot (S12B Fig). Interestingly, in addition to full-length FLAG-SddA, a lower molecular band was also detected, indicating that the C-terminus of SddA can be digested in the cell (S12B Fig). Levels of FLAG-SddA were ~3 times lower when FLAG-SddA was expressed in an operon with envC (S12B Fig), suggesting that the lack of chaining upon FLAG-SddA expression from this plasmid could be due to a lower expression level. Overall, these results suggest that the chaining caused by SddA depend on its expression levels, which is controlled by co-expression with envC.

Fig 4. High SddA levels cause OM defects and cell chaining unless envC is overexpressed.

(A) Overnight cultures of BW25113 harbouring pGS100 or pGS100 expressing sddA, sddA^D179A, envC or both envC and sddA were serially diluted and spotted onto LB-Lennox supplemented with 25 µg ml^-1 chloramphenicol and antibiotics or chemicals at the indicated concentrations, with or without 0.5 mM IPTG. Plates were incubated at 37°C for 24 h. (B) BW25113 cells harbouring pGS100 or pGS100 expressing sddA, sddA^D179A, envC or both envC and sddA were grown in LB-Lennox supplemented with 25 µg ml^-1 chloramphenicol and 0.5 mM IPTG. Samples were collected at exponential phase (arrows), stained with FM5-95 (red, cell membrane) and DAPI (blue, nucleoid), immobilized and imaged by confocal fluorescence microscopy. Representative images are shown. Scale bar is 5 µm.

Consistent with the above results, deletion of envC or ftsX did not rescue the cell chaining caused by SddA overexpression (S13 Fig). Moreover, overexpression of SddA in cells lacking envC and its cognate amidases (amiA and amiB), or nlpD and its cognate amidase (amiC), aggravated the cell chaining phenotype (S14 Fig). These results indicate that neither amidase system (EnvC-AmiA/B or NlpD-AmiC) is functional upon overexpression of SddA. In addition, the overproduction of SddA in ΔenvC ΔamiA ΔamiB cells produced a sicker phenotype than overproduction of SddA in ΔnlpD ΔamiC as judged by an extensive cell chaining and highly defective growth phenotype (S14 Fig). Noteworthy, ΔenvC ΔamiA ΔamiB cells are already sicker than ΔnlpD ΔamiC cells in the controls with the empty plasmid (S14 Fig).

Finally, we tested whether the activity of SddA is required to inhibit PG amidases by studying the effects of overproduction of FLAG-tagged SddA H123A, which is inactive (S6B Fig). FLAG-SddA H123A levels in BW25113 expressed from pGS100 were similar to those of FLAG-SddA (S12B Fig). However, expression of this inactive version did not cause cell chaining (S12A Fig), suggesting that SddA activity is required to regulate cell separation.

In summary, these results suggest that high levels of enzymatically active SddA inhibit cell separation, and this effect does not depend on the presence of one specific amidase or amidase regulator.

SddA localizes at cell division sites

The cell chaining phenotype caused by expressing SddA from a plasmid suggests that SddA can reduce the activation or activity of amidases at midcell, preventing daughter cell separation. If this inhibition relies on a direct interaction with septal amidases or their activators, SddA should localize at midcell. To determine the cellular localization, we expressed an SddA-sfGFP fusion containing the native SddA signal peptide from pGS100. Western blot analysis of cell extracts showed no cleavage of the fluorescent tag, indicating that the SddA-sfGFP fusion is stable (S15A Fig). Expression of SddA-sfGFP resulted in cell chaining, similar to the expression of the unlabelled protein, and these effects depended on the amount of IPTG added to cells (S15B Fig). Interestingly, the fluorescence signal localised to the uncleaved septa in cells expressing SddA-sfGFP (Fig 5A). When induction level was lower (25 µM IPTG), SddA-sfGFP did not cause cell chaining and still localized at midcell in dividing cells (Fig 5AB). Next, we examined the effect of aztreonam on SddA localization. Aztreonam is a β-lactam which inhibits the septal transpeptidase PBP3 [53,54] but still allows for pre-septal PG synthesis at future cell division sites by class A PBPs, which are recruited by the FtsZ membrane anchors FtsA and ZipA [11]. As expected, aztreonam induced cell filamentation in all strains tested, indicating an inhibition of cell division (Fig 5C). When expressed after aztreonam addition, SddA-sfGFP did not localize at future division sites, indicating that ongoing septum PG synthesis by PBP3 is required for SddA recruitment to midcell (Fig 5C). These results suggest that SddA interacts with one or more divisome proteins, or with septal PG, in a manner dependent on septal PG synthesis.

Fig 5. SddA localization at the cell division site depends on septal peptidoglycan synthesis.

(A) Phase contrast (PC) and fluorescence microscopy (GFP) images of BW25113 harbouring pMP108 (pGS100 sddA::sfgfp; SddA-GFP) and pMP116 (pGS100 sddA D179A::sfgfp; SddA D179A-GFP). Cultures were grown in LB with 20 µg ml^-1 chloramphenicol at 37°C and expression of the fluorescent constructs was induced with 25 µM (indicated as [low IPTG]) or 0.5 mM IPTG for 140 min. Scale bar is 5 µm. (B) Demographs of SddA D179A-GFP (D179A) or SddA-GFP (WT (low IPTG)) localization in cells sorted according to their cell length (from 1.43 μm to 6.4 μm, n = 1555, 0.5 mM IPTG induction for SddA D179A; from 1.51 µm to 5.82 µm, n = 1300, 25 µM IPTG induction for SddA WT). The fluorescence signal of D179A does not show an increase of the intensity at midcell, while the fluorescence signal of WT at low IPTG does. (C) BW25113 cells harbouring pGS100 (ev), pGS100 encoding sddA, sddA D179A, sddA::sfgfp, or sddA D179A::sfgfp were grown in LB with 20 µg ml^-1 of chloramphenicol at 37°C. When OD578 reached 0.1, 1 µg ml^-1 of aztreonam was added. Expression of the plasmid-encoded constructs was induced 30 min later by addition of 0.5 mM IPTG for 80 min. Samples were imaged by phase contrast and fluorescence microscopy (FM5-95 or GFP). Representative images are shown. Scale bar is 5 µm.

SddA overexpression phenocopies the removal of septal amidase activators

The above results suggest that SddA localizes at midcell, where it can modulate the activity of EnvC-AmiA/B and/or NlpD-AmiC pairs. If this hypothesis is correct, SddA overexpression should mimic the effects of envC or nlpD deletion. We tested this hypothesis using E. coli mutants defective in the Tol-Pal system, which lyse upon the addition of sub-MIC concentrations of the PBP3-inhibitor aztreonam [55]. We confirmed this phenotype in both, a ΔtolR mutant and in cells harbouring TolR D23R, which is unable to harness the proton motive force for the correct functioning of Tol-Pal [56] (Fig 6). The Tol-Pal system coordinates PG synthesis and cell envelope constriction during cell division, suggesting that this phenotype could result from dysregulation of synthetic and hydrolytic PG activities. Additional inactivation of the amidase activators envC (or nlpD) prevented (or reduced) cell lysis (Fig 6), supporting the idea that amidase activity is misregulated in Tol-Pal-defective cells when PBP3 is inhibited by aztreonam. Similarly, the overproduction of SddA (either native or fused to sfGFP) prevented lysis of ΔtolR cells in the presence of the PBP3 inhibitor (Fig 6). This further supports the hypothesis that SddA inhibits amidases or their regulators at midcell.

Fig 6. SddA phenocopies the absence of envC during the lysis of tol defective cells upon septal PG synthesis inhibition.

(A) BW25113 (WT), BW25113 ΔtolR, and BW25113 tolR D23R were grown in LB; BW25113 ΔnlpD, BW25113 ΔenvC, and respective double knockouts with ΔtolR, in LB with 50 μg mL^-1 kanamycin; BW25113 and BW25113 ΔtolR harbouring pGS100 and pGS100 sddA (and variants), in LB with 20 μg mL^-1 chloramphenicol. All strains were grown at 37°C. When indicated by a red arrow, cultures were split in two halves and 1 μg ml^-1 aztreonam was added to one of them (dashed line). In the middle and right panels, overexpression of the plasmid-encoded genes was induced by adding 0.5 mM IPTG when OD578 reached 0.1. (B) Representative phase contrast (PC) and fluorescence microscopy (FM5-95, or GFP in case of SddA-GFP) micrographs of samples taken 110 min after splitting cultures (red arrow) of BW25113 ΔtolR::FRT containing the empty vector (ev), pGS::sddA (SddA) or pMP108 (SddA-GFP), MPW55 (ΔenvC) and MPW54 (ΔnlpD) cells in absence (-Azt) or presence of aztreonam (+Azt). Scale bar is 5 µm.

Mid-cell localisation of plasmid-encoded active SddA causes cell chaining

Since sddA is genetically linked to envC, and excess production of SddA over EnvC causes cell chaining, we explored potential SddA-EnvC or SddA-FtsX interactions using AlphaFold (S16 Fig). AlphaFold predicted an SddA-FtsX complex (score: 0.338), where SddA binds to the periplasmic porter domain of FtsX, and an SddA-EnvC complex (score: 0.530), where SddA interacts with the coiled-coil region of EnvC. Although the FtsX-SddA model had a relatively low confidence score, both FtsX-SddA and EnvC-SddA models predicted that the SddA residues involved in the interactions are located on the same side as the predicted SddA catalytic active site. Moreover, both models predict D179 of SddA to be involved in contacts with FtsX or EnvC. To test this, we overproduced an alanine-179 variant of SddA and analysed its effects on the phenotypes. Overexpression of SddA D179A failed to rescue the lysis of ΔtolR in the presence of aztreonam (Fig 6), suggesting that the mutated protein cannot inhibit amidases. In addition, overexpression of SddA D179A or a SddA(D179A)-sfGFP fusion did not induce cell chaining (Fig 5A). Strikingly, SddA(D179A)-sfGFP failed to localize at midcell (Fig 5AB). Finally, we introduced the D179A mutation into His-SddA^24-238 and tested the activity of the purified protein in vitro. This variant of SddA remained active against denuded strands (S17 Fig), indicating that the D179A mutation does not affect enzymatic activity, and that the lack of effects upon overproduction is not due to a loss of deacetylase activity.

To understand how the D179A change might disrupt the interaction of SddA with EnvC, we performed molecular dynamics simulations of both WT and D179A, which highlighted the differences in residue fluctuations between them (S18 Fig). SddA residues predicted by AlphaFold to form EnvC contacts include 32, 35–36, 55, 59–60, 85–88, 90, 123–124, 154, 177, 179–180, 182, 209 and 211. The D179A change affected the flexibility of some of those residues, with strong rigidification of residues 35, 36, 58, 59 and 177, potentially hindering adaptive binding, and flexibilization of residues 87 and 124, which may further disrupt the interaction by destabilizing the binding interface. Beyond local effects, D179A induced fluctuation changes in residues 174 and 202, suggesting an allosteric disruption of the interaction; while altered dynamics in regions outside the EnvC interface indicate broader effects on protein flexibility. Catalytic regions were unaffected, with minimal fluctuation differences in residues critical for enzymatic activity, in agreement with the fact that SddA D179A is catalytically active (S17 Fig). Overall, the D179A change may disrupt the SddA-EnvC interaction by altering the dynamics of critical contact residues and their surroundings. The combined changes in rigidity and flexibility appear to compromise conformational adaptability and emphasise the role of residue-specific dynamics in mediating these particular protein-protein interactions.

In summary, these results suggest that SddA localization to midcell is important for its effect inhibiting amidases and that this localization requires the interaction with septum components.

SddA also inhibits the activation of AmiC by NlpD

As our results suggest that SddA can inhibit amidase activation at the septum, we tested the effect of SddA on the activity of amidases and their activators in vitro. To do this, we performed activity assays with amidase/activator pairs, EnvC-AmiA, ActS-AmiC and NlpD-AmiC, in the presence or absence of His-SddA^24-238 (Figs 7 and S19). In the case of EnvC, two versions of this activator were tested: EnvC(LytM), which only contains the AmiA-activating LytM domain, and EnvC(fl), which contains the full mature sequence. Previous work showed that only EnvC(LytM) but not EnvC(fl) activates AmiA and AmiB in vitro [21,57]. In control assays, His-SddA^24-238 showed no effect on AmiA or AmiC amidases in the absence of their activators (S19C Fig). Surprisingly, His-SddA^24-238 showed no effect on ActS-AmiC activity or EnvC(fl)-AmiA activity, but there was a small activation of EnvC(LytM)-AmiA (S19AB Fig). This could indicate that FtsEX is required for the inhibition of EnvC by SddA. In contrast, His-SddA^24-238 significantly inhibited NlpD-AmiC activity against PG (Fig 7). Interestingly, neither catalytically inactive His-SddA^24-238 H123A nor catalytically active His-SddA^24-238 D179A variants inhibited NlpD-AmiC in this assay (Fig 7), consistent with the lack of cell chaining when these variants are overproduced in cells.

Fig 7. NlpD-AmiC is inhibited by SddA.

(A) HPLC-based end point activity assay for NlpD-AmiC in the presence or absence of SddA. Sacculi were incubated with 1 µM AmiC, 1 µM NlpD and in the presence or absence of 2 µM His-SddA^24-238 (SddA), His-SddA^24-238 H123A or His-SddA^24-238 D179A for 30 min at 37°C. Representative chromatograms are shown. Identity of the labelled peaks is shown above and structures are depicted on S19E Fig. (B) Quantification of peak areas for undigested muropeptides (peaks shaded in blue) in (A). Areas are normalized to the ones in the control with no enzyme (100%). Values are average ± SD of three repeats, * p-value < 0.05 and n.s. not significant.

Discussion

PgdA-type PG deacetylases have been found in many Gram-positive bacteria where they have roles in protecting the cell from exogenous PG hydrolases such as lysozyme [27,29,58], autolysin regulation [59], osmotic stability [60], sporulation [61] and virulence [28–30,62]. Gram-negative bacteria have an OM that protects the PG from exogenous hydrolases, and there was no clear evidence for the presence of PgdA-like PG deacetylases. We now identified the first PG deacetylase in a Gram-negative bacterium, E. coli that, unlike PgdA, acts specifically on denuded glycan strands and has a role in modulating septum cleaving amidases.

SddA is the first characterized protein from the divergent polysaccharide deacetylase family (PFAM PF04748), although two X-ray crystal structures are available on the PDB database: entries 2NLY corresponding to BH1492 from Bacillus halodurans and 2QV5 corresponding to ATU2773 from Agrobacterium tumefaciens. Both structures show remarkable similarity to the polysaccharide domain of PgdA. However, only the BH1492 structure contains a Zn²⁺ ion coordinated by four residues (two histidine and two aspartic acid residues) instead of the three in PgdA (two histidine and one aspartic acid residues). These four residues are also present in E. coli SddA and here we show that replacing either of the histidine residues or the two aspartic acid residues with alanine(s) abolishes the catalytic activity. Intriguingly, Zn²⁺-coordinating residues are not present in ATU2773, but this gene still resides in the same operon as an envC homologue in A. tumefaciens. This might indicate that a catalytically inactive ATU2773 has retained a regulatory function linked to EnvC in this organism (see below).

Link to amidase-mediated septal PG cleavage

The cleavage of the new division septa by peptidoglycan amidases enables Gram-negative bacteria to separate the two daughter cells. The activation of these enzymes occurs from inside the cell via FtsEX-EnvC or the OM via NlpD (or ActS). Here we describe a new potential player in amidase regulation, the enzyme SddA, which we demonstrate to be a denuded glycan strand deacetylase that removes the N-acetyl group from GlcNAc residues. In the cell, SddA localizes at the septum where denuded strands are produced during cell division by the amidases. Importantly, our data suggest that SddA induces cell chaining if its expression level exceeds a threshold, a phenotype characteristic of deficient peptidoglycan amidase activity. The presence of envC in the same operon as sddA in the expression plasmid, reduced the amount of SddA produced upon induction. This suggests that the envC-sddA operon structure enables Gram-negative bacteria to adjust the level of SddA to avoid inhibition of amidase activity. Regulation of SddA expression could involve translational coupling by “termination-reinitiation”, where the same ribosome translating the upstream gene initiates the translation of a downstream gene with an overlapping or nearby start codon (envC stop codon and sddA start codon are separated by 3 bp in E. coli) [63].

Importantly, SddA overexpression mimicked the phenotype observed upon removal of amidase activators in Tol-Pal deficient cells, further supporting the notion that SddA inhibits amidases in vivo. This hypothesis is also supported by the inhibition of purified NlpD-AmiC by SddA. By contrast, we did not observe an inhibition of EnvC(LytM)-AmiA or EnvC(fl)-AmiA by SddA. The inhibitory effect of SddA on EnvC observed in cells, might require FtsEX, which induces the conformation in EnvC capable of activating the amidases in cells. We report that SddA activity is needed for inhibition of amidases, for example the inactive version SddA H123A was unable to produce cell chaining (S12 Fig) or inhibit NlpD/AmiC in vitro (Fig 7). We also identified an SddA variant, D179A, that is catalytically active and yet its overexpression does not induce chaining or mimic the effects of removing the amidase activator envC in Tol-Pal-deficient cells. SddA(D179A) failed to localize at the septum and did not inhibit NlpD/AmiC in vitro. This suggests that inhibition of amidases by SddA does not only depend on enzymatic activity but also on the correct mid-cell localisation, where it may interact with amidases or their regulators. The D179A mutation was designed based on structural models of potential SddA/EnvC and SddA/FtsX complexes, suggesting that D179A may disrupt the hypothetical interactions with these or other septal binding partners, such as NlpD or the amidases. However, additional experiments are required to test this hypothesis, including the identification of specific SddA interaction partners at the septum, elucidation of the mechanism by which it interferes with amidase activity or activation, and clarification of the precise role of its enzymatic activity in this process.

Why does the cell deacetylate denuded glycan chains?

Our data are consistent with a model in which SddA modulates a transition of amidase activation from inside the cell in early septation to amidase activation from the OM in late septation (Fig 8). We hypothesize that SddA inhibits NlpD-AmiC during early septation to ensure that PG hydrolysis is controlled mainly by the divisome via FtsEX-EnvC and ultimately FtsZ. In late septation, FtsZ becomes less important and even dispensable, as it departs from the division site before septation is completed, leaving PG synthesis to drive the final stages of septation [64,65]. Consequently, FtsEX-EnvC might become less efficient at amidase activation during this phase. At this point, SddA might leave the septal region, allowing NlpD-AmiC to be activated and shifting control of amidase activation to the OM. Alternatively, more EnvC could be available to interact with SddA, which relieves the SddA-mediated inhibition of NlpD-AmiC thus shifting septum cleavage control to the OM (Fig 8). Because the ΔsddA strain does not exhibit a major phenotype, this regulatory mechanism may not be required for E. coli growing under laboratory conditions. However, we cannot exclude that SddA plays a more critical role in other species or under growth conditions not examined in this study. Given the widely conserved genetic link between envC and sddA (Fig 1), SddA-mediated modulation of septum cleavage could provide an advantage for Gram-negative bacteria. SddA might enhance the energy efficiency of cell division by more precisely restricting PG hydrolysis both spatially and temporally. In support of this, the third gene in the envC-sddA operon, gpmM, encodes for an alternative glycolytic enzyme, establishing a link between PG hydrolysis regulation and central energy metabolism. Further experiments are needed to test these proposed regulatory connections.

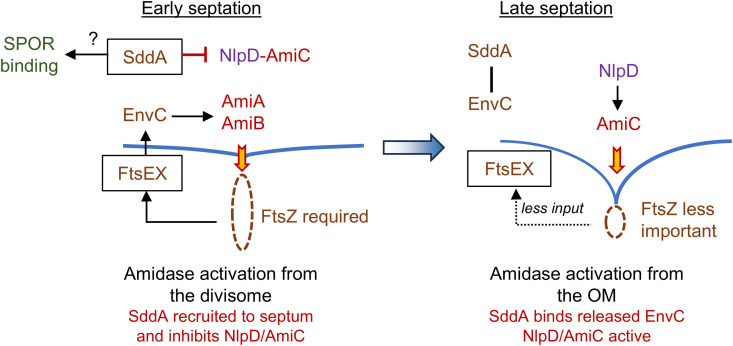

Fig 8. Hypothetical model for the role of SddA in modulating amidase activation in septation.

SddA is recruited to the divisome where it inhibits NlpD-AmiC during early septation ensuring that PG hydrolysis is controlled by the divisome from the cytoplasmic membrane. In late septation, FtsEX receives less input from FtsZ, releasing EnvC that competes with NlpD-AmiC for SddA binding. NlpD-AmiC become more active as EnvC-AmiA/AmiB are less active, shifting the control of amidase activation from the CM to the OM. Excessive SddA (but not EnvC-SddA) inhibits amidase activation from the CM and OM, explaining the observed chaining phenotype. The deacetylation of denuded glycan strands likely modulates the binding of SPOR domain proteins and the activities of glycan strand degrading enzymes.

SddA function beyond amidases?

SPOR domains bind GlcNAc residues in denuded glycan strands and it remains to be tested whether (partial) deacetylation of the denuded strands affects the binding and/or function of individual SPOR domain proteins. Cells lacking SddA do not exhibit major growth or cell division phenotypes that would be consistent with a loss of function of the essential cell division protein FtsN. Therefore, we hypothesize that FtsN functions largely normally in the absence of SddA-mediated glycan chain deacetylation. Supporting this idea, we observed no difference in the recruitment of the FtsN’s SPOR domain (iSPOR) to midcell in the absence of SddA (Fig 2E). However, whether FtsN or other SPOR proteins are affected by the lack of glycan chain deacetylation under specific conditions, and whether deacetylation alters their affinity for glycan chains or impacts their cellular dynamics, remains to be determined.

Although the underlying mechanism is not fully understood, mutants lacking PG hydrolases form chaining cells and show increased OM permeability. Interestingly, deletion of sddA in strains containing only the NlpD or EnvC amidase activators reduced the sensitivity to deoxycholate, indicating a restoration of the OM permeability barrier function. This result is consistent with a role for SddA as an inhibitor of amidase activity and/or activation. In genetic backgrounds with defective amidase activation, removing an inhibitor could enhance amidase function, and hence alleviate OM integrity defects. More puzzling, however, is the deleterious effect of the sddA deletion in the ΔenvC ΔnlpD background. This suggests that SddA affects additional factors beyond the known amidases, potentially including other enzymes involved in daughter cell separation, such as the lytic transglycosylase MltB or the muramidase DigH, which have been implicated in septal splitting in the absence of amidases [55].

In conclusion, here we have identified a novel PG-modifying enzyme with an activity, to our knowledge, not previously reported, the deacetylation of denuded PG glycan strands. SddA modulates PG amidases and is widely conserved in Gram-negative bacteria. Future work will investigate the potential links of SddA with SPOR domain proteins and other periplasmic factors involved in cell division and envelope integrity.

Materials and methods

Bacterial strains and growth conditions

Strains used in this study are listed in S1 Table. Bacteria were grown on LB plates or in liquid LB medium (10 g L^-1 tryptone, 5 g L^-1 yeast extract, 10 g L^-1 NaCl for liquid media or 15 g L^-1 for agar plates), or in LB-Lennox medium, liquid o agar plates (10 g L^-1 tryptone, 5 g L^-1 yeast extract, 5 g L^-1 NaCl) at 37°C or 30°C when indicated. Growth of bacteria for protein expression was in LB, containing antibiotic for selection. Antibiotics were used at the following concentrations: Chloramphenicol (Cam, 20 or 25 μg mL^-1); Kanamycin (Kan, 30 or 50 μg mL^-1), and Ampicillin (Amp, 100 μg mL^-1). Optical density at 578 nm (OD578) was measured with the spectrophotometer UV5 Bio (Mettler Toledo). Optical density at 600 nm (OD600) was measured with the Libra S22 spectrophotometer (Biochrom Ltd).

For cell length measuring of BW25113, ∆sddA, ∆dedD and ∆sddA ∆dedD strains (Fig 2C), strains were grown overnight in LB-Lennox at 30°C, diluted 1:100 in fresh medium and grown to an OD578 of 0.4. Cultures were diluted in fresh medium to OD578 of 0.1, and microscopy samples were taken when cultures reached OD578 of 0.3.

For SddA overexpression, BW25113 or deletion mutant derivative cells, containing either pGS100 and its derivatives, were grown overnight at 37°C, diluted 1:100 in fresh medium containing 0.5 mM IPTG and grown to stationary phase. Microscopy samples were taken at mid exponential phase (OD600 of around 0.8).

For the overexpression of SddA with EnvC or NlpD, BW23113 cells harboring either pGS100 or its derivative expressing SddA, along with pBAD24 or its derivative expressing EnvC or NlpD, were grown overnight at 37°C. These cultures were then diluted 1:100 in fresh medium containing 0.5 mM IPTG and 0.2% arabinose and grown to stationary phase. Samples for microscopy were collected during mid-exponential phase when the OD600 reached approximately 0.8.

BW25113 cells containing pGS100 and derivatives were grown overnight at 37°C, diluted 1:100 in fresh medium and grown to OD578 of 0.1. Cell cultures were divided in two halves, adding to one of them aztreonam (1 µg mL^-1). After 30 min of incubation at 37°C, overexpression of plasmid-encoded genes was induced adding 0.5 mM IPTG unless indicated otherwise. Microscopy samples were taken 80 min after IPTG induction. For Western blot, samples were taken 140 min after IPTG induction.

For SddA overproduction in ΔenvC or ΔftsX cells, MPW56 derivatives were grown at 37°C in LB and MP055 ones were grown at 30°C in LB supplemented with 0.2 M sucrose. Overnight cultures were diluted (1:100, MPW56; 1:50, MP055) in fresh medium and grown to OD578 of 0.1. Overexpression of plasmid-encoded genes was induced adding 0.5 mM IPTG. Microscopy samples were taken after 140 min (MPW56) or 230 min (MP055) of incubation with IPTG.

For tol defective strains, overnight cell cultures grown at 37°C were diluted 1:100 (1:50, MPW55) in fresh medium and grown to OD578 of 0.1. Overexpression of plasmid encoded sddA (and variants) was induced by addition of 0.5 mM IPTG. After 30 min, cell cultures were divided in two halves, adding aztreonam (1 µg mL^-1) to one of them. Microscopy samples were taken 140 min after IPTG induction

Construction of strains and plasmids

Strains.

MP001 (BW25113 ∆dedD::FRT) was obtained by removing the Kan cassette from the corresponding Keio collection single knockout mutant strain by pCP20-encoded Flp recombinase [66,67]. MP005 (BW25113 ΔsddA) was obtained by conjugation [68] of recipient BW25113 carrying pACBSR with the donor MFDpir carrying pMP019. Absence of sddA was confirmed by PCR using the primers FwupYibQseq and Rv downYibQseq. MP006 (BW25113 ΔdedD ΔsddA) was obtained by conjugation of recipient MP001 carrying pACBSR with the donor MFDpir carrying pMP019. Absence of sddA was confirmed by PCR using the primers FwupYibQseq and Rv downYibQseq. MP055 (BW25113 ∆ftsX) was obtained by conjugation of recipient BW25113 carrying pACBSR with the donor MFDpir carrying pMP112, growing them at 30°C on LB 0.2 M sucrose. Absence of ftsX was confirmed by PCR using two sets of primers: FwupftsX and RvdownftsX; and FwintftsX and RvintftsX. Growth defects characteristic of ftsX inactivation [69] were confirmed in medium with no NaCl (LB 0% NaCl) and were rescued when supplemented with sucrose (LB 0% NaCl 0.2M sucrose) or with NaCl (LB 1% NaCl). MPW54 (BW25113 ∆tolR::FRT ∆nlpD::aph) was generated by transduction of BW25113 ∆tolR::FRT with P1 lysate from the strain BW25113 ∆nlpD::aph, and absence of nlpD was confirmed by PCR using primers FwupnlpD and RvintnlpD. MPW55 (BW25113 ∆tolR::FRT ∆envC::aph) and MPW56 (BW25113 ∆envC::aph) were constructed by transduction with P1 lysate from BW25113 ∆envC::aph of BW25113 ∆tolR::FRT and BW25113 strains, respectively, and the absence of envC was confirmed by colony PCR using two sets of primers: FwupenvC and RvintenvC, and FwintenvC and RvdownenvC.

Other deletion strains were obtained by moving kan-marked alleles from the Keio E. coli single gene knockout library [66] by P1 phage transduction [70] or by recombineering using the pKD46 and Kan cassette amplified from pKD4 as indicated [66,67]. Afterwards, the Kan cassette was removed by pCP20-encoded Flp recombinase to generate unmarked deletions with an FRT-site scar sequence [67]. The removal of the kan gene was verified by colony PCR. Strains with multiple deletions were generated by sequential P1 transduction or recombineering and kan cassette removal.

Plasmids.

All template plasmids are listed on S2 Table and oligonucleotide sequences are listed on S3 Table. All mutagenesis (base changes or insertions) steps were performed using the Q5 Site-Directed Mutagenesis Kit (New England Biolabs) according to manufacturer’s instructions.

pET28a-HSddA plasmid, encoding for full length mature SddA (residues 24–319) with an N-terminal His-tag, was amplified by PCR from genomic DNA of E. coli BW25113 using oligonucleotides YibQ_FW_NdeI and YibQ_REV_NdeI, and cloned into pET28a(+) with the appropriate restriction enzymes. pET28a-HYibQ^24-238 was obtained by mutagenesis using primers YibQ_N239stop_FW and YibQ_N239stop_REV, incorporating a stop codon at position 239 in pET28a-HYibQ. pET28a-HSddA^24-238 D31A/D32A, pET28a-HSddA^24-238 H78A, pET28a-HSddA^24-238 H123A and pET28a-HSddA^24-238 D179A were obtained by site directed mutagenesis with primers listed in S2 Table.

pGS100-sddA was constructed by cloning into the EcoRI-HindIII-digested pGS100 vector a PCR fragment encoding for full length SddA (residues 1–319) amplified from genomic BW25113 DNA using oligonucleotides AP907/yibQ_EcoRI_fw and AP908/yibQ_HindIII_rv.

pGS100-envC and pGS100-envC-sddA were constructed by cloning into the EcoRI HindIII-digested pGS100 vector a PCR fragment encoding for full length EnvC (residues 1–419) or EnvC-SddA (residues 1–419 and 1–319, respectively) amplified from genomic BW25113 DNA using oligonucleotides AP937/envC_EcoRI_fw and AP938/envC_HindIII_rv or AP937/envC_EcoRI_fw and AP908/yibQ_HindIII_rv.

pGS100-FLAG-sddA, and pGS100-envC-FLAG-sddA were obtained by mutagenesis of pGS100-sddA and pGS100-sddA-envC to insert a FLAG tag at the N-terminus of SddA (after the signal peptide), using primers yibQ_NtFLAG_FW and yibQ_NtFLAG_REV. pGS100-FLAG-sddA H123A was obtained by mutagenesis of pGS100-FLAG-sddA with primers sddA_H123A_F and sddA_H123A_R.

pBAD24-nlpD was constructed by cloning into the EcoRI-HindIII-digested pBAD24 vector the PCR fragment encoding for full length NlpD (residues 1–379) amplified from genomic BW25113 DNA using oligonucleotides AP970/NlpD_EcoRI_fw and AP998/NlpD_HindIII_rev. The inserts were verified by sequencing.

pBAD24-envC was constructed by cloning into the EcoRI HindIII-digested pGS100 vector a PCR fragment encoding for full length EnvC (residues 1–419) amplified from genomic BW25113 DNA using oligonucleotides AP937/envC_EcoRI_fw and AP938/envC_HindIII_rv.

pET28a-His-AmiD was generated by two PCR fragments: an amplified product obtained from pET28a and the primers FwLICHisAmiD(V) and FwLICHisAmiD(V), and an amplified product obtained from BW25113 genomic DNA and the primers FwLICHisAmiD(I) and FwLICHisAmiD(I). Same volumes of each PCR fragments were mixed, heated to 98°C and cooled down to room temperature. The DNA mixed was digested with DpnI and transformed into DH5α competent cells. pMP018 was generated by a similar procedure, using pGEC and the primers FwpGECLIC and RvpGECLIC, and an amplified product obtained from BW25113 genomic DNA and the primers FwupYibQLIC and RvdownYibQLIC. pMP107 was generated by a similar procedure, using pGEC and the primers FwpGECLIC and RvpGECLIC, and an amplified product obtained from BW25113 genomic DNA and the primers FwupFtsXLIC and RvdownFtsXLIC. pMP108 was obtained by the same procedure, using pGS100-sddA and the primers FwpGS100LIC and RvyibQLIC, and pAND101 and the primers FwyibQsfGFPLIC and RvsfGFPLIC. pMP019 was obtained by site-directed mutagenesis (SDM) over pMP018, using the primers FwYibQSDM and RvYibQSDM, and an annealing temperature of 60°C. pMP110 was obtained by site-directed mutagenesis (SDM) over pGS100-sddA, using the primers FwSDMyibQD179A and RvSDMyibQD179A, and an annealing temperature of 61°C. pMP112 was obtained by the same SDM procedure, using pMP107 as template and the primers FwdelftsXSDM and RvdelftsXSDM, and an annealing temperature of 62°C. pMP116 was obtained by the same SDM procedure, using pMP108 as template and the same primers used for pMP110.

Purification of proteins

His-SddA variants.

Versions of SddA (His-SddA, His-SddA^24-238 or the D31A/D32A, H78A, H123A and D179A mutants) were expressed in E. coli BL21(DE3) from freshly transformed cells using the corresponding plasmids (S2 Table). 1 L of LB containing kanamycin and auto-induction mix (0.5% glycerol, 0.05% glucose, 0.2% lactose) was inoculated with 10 mL of an overnight starting culture in LB. Cultures were incubated for 24 h at 20°C. Cells were harvested a centrifugation at 7000 × g for 10 min at 4°C. Cell pellets are homogenised in lysis buffer (50 mM Tris-HCL, 1 M NaCl, 10% glycerol, pH 8.0) supplemented with EDTA-free protease inhibitor cocktail tablets (Roche), 2 mM PMSF and DNAse I. Cells were lysed by sonication on ice for 4 min at 70% power, with 15 sec pulses and 40 sec rests between pulses. The lysates were pelleted by centrifugation at 130,000 × g for 1 h at 4°C. The supernatant was applied to 2 mL of Ni²⁺-NTA beads (Novagen) equilibrated in buffer A (25 mM Tris pH 7.5, 500 mM NaCl) supplemented with 10 mM imidazole and incubated for 1h at 4°C. Beads were washed 5 times with cold buffer A supplemented with 50 mM imidazole and the protein was eluted with 3 mL buffer A supplemented with 500 mM imidazole. The eluted protein was analysed by SDS-PAGE and the purest fractions were pooled and extensively dialysed against buffer B (25 mM Tris pH 7.5, 500 mM NaCl, 1 mM EDTA, 10% glycerol). The protein was finally concentrated using filter concentrators with a 10,000 MWCO cut-off, the concentration was measured with a BCA protein concentration kit (Thermo), aliquoted and stored at -80°C. For detection of truncated His-tagged SddA, soluble and insoluble fractions obtained after sonication and centrifugation of cells, where analysed by SDS-PAGE followed by Western blot and immunodetection using anti-His HRP-conjugated antibody (A7058, Sigma).

AmiD.

A His-tagged version of AmiD without its signal peptide (residues 18–276) was purified using plasmid pET28a-AmiD (S2 Table). The purification protocol was adapted from reference [71]. Briefly, freshly transformed BL21(DE3) cells were used to prepare an overnight starting culture in LB with Kanamycin at 37°C. 2 L of LB with Kanamycin were inoculated with 1:100 starting culture and incubated at 37°C until OD578 reached 0.4. Protein expression was induced by addition of 1 mM IPTG for 3 h at 37°C. Cells were harvested by centrifugation at 7,000 × g for 10 min at 4°C and resuspended in 40 mL buffer A (25 mM Tris-HCl, 150 mM NaCl, pH 8.5) supplemented with EDTA-free protease inhibitor cocktail tablets (Roche), 2 mM PMSF and DNAse I. Cells were disrupted by sonication on ice for 4 min at 70% power, with 15 s pulses and 40 s rests between pulses, and cell debris was removed by centrifugation at 130,000 × g for 1 h at 4°C. The supernatant was applied to 2 mL of Ni²⁺-NTA beads (Novagen) equilibrated in buffer A supplemented with 10 mM imidazole and incubated for 1 h at 4°C. Beads were washed with 10 mL each of buffer A supplemented with 10, 20, 50, and 75 mM imidazole and the protein was eluted with 3 mL each of buffer A supplemented with 100, 150, 200, and 500 mM imidazole. The elution was analysed by SDS-PAGE and the best fractions were pooled and dialysed against buffer A for 2h. Then 1 unit mL^-1 of thrombin (Novagen) was added, and dialysis against buffer A was continued overnight. Dialysis buffer was switched to buffer C (25 mM Tris-HCl pH 8.5) for 30 min and 30 additional min after a fresh buffer change. The protein was the further purified by anion exchange using a 5 mL HiTrap Q (Cytiva) column equilibrated in buffer C. The protein was eluted with a 50 mL gradient from 0 to 100% buffer D (25 mM Tris-HCl, 1 M NaCl, pH 8.5). The elution was analysed by SDS-PAGE and the best fractions were pooled. After addition of 10% glycerol, samples were aliquoted and stored at -80°C. Protein concentration was measured by UV absorbance using an extinction coefficient at 280 nm of 50,880 M^{-1 cm-1}.

MltA.

MltA was purified from E. coli 122-1 bearing plasmid pMSS [72], which encodes for a soluble version of MltA without the signal peptide (residues 1–20) and the N-terminal Cys switched for Ala. The purification protocol was adapted from [72]. Briefly, 2 L of LB with Kanamycin were inoculated with 1/100 of a starting culture and incubated at 37°C until OD578 reached 0.3. Protein expression was induced by addition of 1 mM IPTG and cells were incubated for 90 min at 37°C. Cells were harvested by centrifugation at 7,000 × g for 10 min at 4°C and resuspended in 40 mL buffer A (25 mM Na-acetate pH 5.2, 10 mM MgCl₂) supplemented with EDTA-free protease inhibitor cocktail tablets (Roche), 2 mM PMSF and DNAse I. Cells were disrupted by sonication on ice for 4 min at 70% power, with 15 s pulses and 40 s rests between pulses, and cell debris was removed by centrifugation at 130,000 × g for 1 h at 4°C. The supernatant was applied to a 5 mL of HiTrap SP FF column equilibrated buffer A. The protein was eluted with a 45 mL gradient for 0–100% of buffer B (buffer A with 1 M NaCl). Fractions were analysed by SDS-PAGE and the best ones were pooled, concentrated, and further purified by size exclusion chromatography using a Superdex 200 16/600 pg column using buffer C (buffer A with 0.5 M NaCl). Elution was analysed by SDS-PAGE and the best fractions were pooled, concentrated, aliquoted and stored at -80°C. Protein concentration was determined by UV absorbance using an extinction coefficient at 280 nm of 1.348 (g/L)^-1.

Other proteins.

The following E. coli proteins were purified following published protocols: AmiA, AmiC, NlpD, and EnvC(LytM) [57]; EnvC(fl) and ActS [21]; PBP1B S510A [73], LpoB(sol) [74].

PG isolation and analysis

PG was isolated from E. coli cells and analysed by reversed-phase HPLC as described [39]. For mass-spec analysis of GlcNAc-MurNAc and GlcN-MurNAc in E. coli BW25113 WT and ΔsddA PG, PG was digested in MS-compatible buffer (10 mM NH₄HCO₂ at pH 4.8) using MltA previously dialysed in the same digestion buffer. Reactions contained 15 µg of MltA per 10 µL (150 µg) of PG and were incubated for 36 h at 37°C. Samples were then boiled for 10 min, centrifuged for 15 min at 17,000 × g and the supernatant concentrated and analysed by LC/MS.

SddA activity assay against radiolabelled denuded glycan strands

Unlabelled lipid II and [¹⁴C]GlcNAc-labelled lipid II were prepared as published [75,76]. First, radiolabelled glycan strands were prepared by polymerization of ¹⁴C-labelled lipid II with a TPase defective mutant of PBP1B (PBP1B S510A). Reactions contained 45 µM lipid II and 0.5 µM PBP1B S510A in 50 mM Hepes pH 7.5, 150 mM NaCl, 0.05% Triton X-100, 10 mM MgCl₂. After incubation for 90 min at 37°C, samples were boiled for 5 min and digested with NlpD + AmiC to produce denuded glycan strands. These reactions contained 2 µM AmiC, 2 µM ActS, in the same buffer as the PBP1B reactions with the addition of 1 mM ZnCl₂, and were incubated for 2 h at 37°C and boiled for 5 min. Radiolabelled denuded strands were either incubated with His-SddA and next digested with cellosyl to break chains into smaller oligosaccharides for HPLC analysis or first digested with cellosyl producing oligosaccharides and then incubated with SddA. In the first case, strands produced from 2.25 nmol of ¹⁴C-labelled lipid II (15,000 dpm) were incubated with or without 10 µM His-SddA for 3 h 30 min at 37°C in the same buffer as NlpD + AmiC reactions, boiled for 5 min and then digested with 35 µg ml^-1 cellosyl in 20 mM sodium phosphate at pH 4.8 overnight at 37°C. In the second case, the same amount of radiolabelled strands were digested with 43 µg ml^-1 cellosyl in 20 mM sodium phosphate at pH 4.8 and then incubated with or without 10 µM His-SddA overnight at 37C in the same buffer as above. In both cases final samples were boiled for 10 min, centrifuged for 15 min at 17,000 × g and the supernatant was reduced with sodium borohydride and analysed by HPLC as previously described [77].

SddA activity assays against PG

For assays of SddA with PG, 10 μL (∼150 µg) of isolated PG from E. coli MC1061 was incubated with or without 10 µM His-SddA in the presence of 50 mM Hepes pH 7.5, 100 mM NaCl, 0.05% Triton X-100 for 16 h at 37°C and boiled for 10 min. Next, samples we digested with 88 µg ml^-1 cellosyl in 20 mM sodium phosphate at pH 4.8 overnight at 37°C. For assays of SddA with muropeptides, 20 μl (∼150 µg) of isolated PG from E. coli MC1061 were first digested with 0.14 mg mL^-1 cellosyl in 20 mM sodium phosphate at pH 4.8 overnight at 37°C. These samples were then split in two and incubated with or without 10 µM His-SddA in the same conditions as above. In both cases samples were boiled for 10 min, centrifuged for 15 min at 17,000 × g and the supernatants were reduced with sodium borohydride and analysed by HPLC as previously described [77].

SddA activity assays against denuded strands

Assays with muramidase-digested denuded strands.

First, denuded strands were prepared by digesting PG with AmiC and ActS (4 µM each) in 50 mM Hepes, ~ 150 mM NaCl, 0.05% Triton, 1 mM ZnCl₂, for 16 h at 37°C. After boiling reactions for 10 min, denuded strands were digested with cellosyl (30 µg ml^-1) in 20 mM sodium phosphate at pH 4.8 for 16 h at 37°C. After boiling reactions for 10 min, the cellosyl-digested denuded strands were incubated with or without 10 µM His-SddA in the same buffer as the amidases for 24 h at 37°C. Final reactions were boiled again for 10 min, centrifuged for 15 min at 17,000 g and the supernatant was analysed by HPLC without reduction (see below).

Assays with denuded strands followed by lytic transglycosylase digestion.

Denuded strands were prepared by digesting E. coli MC1061 or BW25113Δ6LDT PG with AmiD. Digestions were performed with 4 µM AmiD in 20 mM Hepes pH 7.5, 0.5 mM ZnCl₂, incubating for 16 h at 37°C. 0.2 nmol of enzyme were added per 10 µL (~150 µg) of purified PG. Samples were boiled for at least 5 min before the next step. SddA reactions included 5 µM of purified SddA and 10 µL of digested PG (50 µL for AmiD reactions) in a total volume of 100 µL. Buffer was 20 mM Hepes pH 7.5, ~ 150 mM NaCl and 0.25 mM ZnCl₂. Reactions were incubated at 37°C for 24 h and stopped by boiling for 5 min. For analysis, samples were digested with MltA to produce anhydro-disaccharide units. 4 µM MltA and 20 mM sodium phosphate buffer at pH 4.8 were added to SddA reactions, bringing total volume to 150 µL, and incubated for 16 h at 37°C, boiled for 5 min, centrifuged for 15 min at 17,000 × g and the supernatant was analysed by HPLC (see below).

HPLC analysis of SddA reaction products.

HPLC analysis was done using a Prontosil 120–3-C18 AQ reversed-phase column (250 × 4.6 mm, 3 μm particle size) and a HPLC apparatus with binary pump system, UV detector and automatic fraction collector. The column temperature was set at 55°C. A 3 h gradient from 0 to 15% acetonitrile in 0.1% formic acid was used for elution. When indicated peaks were isolated by automatic fraction collection and analysed by mass spectroscopy.

Amidase activity assays

Assays contained 10 μL (∼150 µg) of isolated PG from E. coli MC1061 or E. coli BW25113Δ6LDT as indicated. Reactions NlpD-AmiC assays contained 1 µM of each protein, while for EnvC-AmiA and ActS-AmiC reactions contained 2 µM of each protein. SddA was added as twice the concentration of the amidase and activator. Reaction buffer was 20 mM Hepes pH 7.5, 100 mM NaCl, 0.1 mM ZnCl₂, 0.05% Triton X-100. Reactions were performed in a 100 µL volume and were incubated at 37°C for 30 min (NlpD-AmiC), 2 h (EnvC-AmiA) or 1 h (NlpD-AmiC). Reactions were stopped by boiling for 5 min. For analysis, samples were digested with MltA to produce anhydro-disaccharide units and analysed by HPLC as described above for SddA assays. At least two repeats were performed per condition. The areas of muropeptide peaks still present in reactions were quantified and analysed relative to the same peaks in control reactions with no amidases.

Western blot and immunodetection of FLAG-tagged SddA

To detect FLAG-SddA from pGS100-derived plasmids, BW25113 cells harbouring the indicated plasmids were grown in LB with 25 µg mL^-1 chloramphenicol at 37°C to an OD600 of 0.1 and 0.5 mM IPTG was added. 1 mL cell samples were taken after 140 min and 1 ml cell samples were taken, washed twice with PBS and resuspended in 2 × SDS-PAGE loading buffer at an OD600 of 25. Cells were then boiled for 10 min and diluted 1:1 with PBS. 10 µl were loaded on 12% polyacrylamide gels and analysed by SDS-PAGE followed by Western blot and immunodetection. Anti-FLAG antibody (1:1,000) (F3165, Sigma) and HRP-conjugated Goat anti-mouse IgG (1:5,000) (Dako, Germany) were used as primary and secondary antibody, respectively. Western Blots were developed using ECL Prime Western Blotting System (GE Healthcare) and imaged with ImageQuant LAS4000 (GE Healthcare Bioscences).

Western blot and immunodetection of GFP fusion proteins

Indicated cell cultures (10 mL) were centrifuged at 4°C (3,200 × g, 10 min) and the pellet was resuspended in 300 μL PBS sterile. Cells were disrupted by sonication (30 s, cycle 0.6, 60% amplitude) using a Sartorius LABSONIC M. Protein extract concentration was determined using Pierce BCA Protein Assay Kit (ThermoScientific). After addition of SDS loading buffer, the protein extracts were boiled at 95°C for 10 min. Fifteen µg of each sample were loaded on 12% polyacrylamide gels and analysed by SDS-PAGE followed by Western blot and immunodetection. Anti-GFP antibody (1:10,000) (A-6455, Invitrogen) and anti-rabbit HRP-IgG (1:5,000) (A8275, Sigma–Aldrich) were used as primary and secondary antibody, respectively. Western Blots were developed using ECL Prime Western Blotting System (GE Healthcare) and processed with Amersham Imager 680.

Microscopy.

S7, S9 and S12 Figs.

Cells were grown to the indicated optical densities and in the indicated media and conditions. When indicated, 500 µL samples were taken and fixed by addition of 8% paraformaldehyde and 0.01% glutaraldehyde and incubation for 15 min at room temperature and 30 min on ice. Cells were then washed twice with 1 mL phosphate buffer saline (PBS) at 4°C and stored in PBS at 4°C until use.

Fixed cells were spotted on 1% agarose pads containing 3 µg ml^-1 FM5–95 membrane dye (ThermoFisher) and deposited on microscope slides and sealed with a glass coverslip (VWR or Fisher Scientific). Slides were visualized using a Nikon Eclipse Ti equipped with a Nikon Plan Apochromat 100x oil objective, a Cool LED pE-4000 light source, a Photometrics BSI camera and NIS-Elements software. For FM5-95 fluorescence, a Chroma 49008 filter-set was used (EX560/40, DM585lprx, EM630/75).

Figs 2C, 5, 6 and S15.

1.5 mL of indicated samples were centrifuged (16,000xg, 2 min) and the pellet was resuspended in 1 mL sterile PBS. After another centrifugation, cell pellets were resuspended in 12.5 μL of PBS and 12.5 μL of 3% paraformaldehyde (diluted in PBS) for cell fixation and kept at 4°C until microscopy analysis. When indicated 3 µg mL^-1 FM5–95 dye was added to the agarose pads. Cells samples were analysed in the Advanced Light Microscopy Facility at the Centro de Biología Molecular Severo Ochoa (Madrid, Spain). Images were acquired on a Zeiss Axiovert 200M widefield inverted system. A Zeiss EC Plan-Neofluar 100x 1.3 NA Ph3 oil immersion objective was used with Zeiss Inmersol 518F (n = 1.518) oil. Metamorph 7.10.5.476 was used for image acquisition, saving data as .tif formatted files. Fluorescence was sequentially excited with a Spectra-X Lumencor, with filters 470/24 and 575/25 for excitation of sfGFP fusions and FM5–95, respectively. Emission was collected on a sCMOS PCO edge 4.2 bi camera with 16-bit depth, 0.003969 µm² pixel size and at 1024x1024 pixel resolution (applying a 2x2 binning). sfGFP and FM5–95 emission signals were collected through a 514/32 and 595–34 emission filters, respectively. For Fig 2C, a Zeiss Plan-Apochromat 63x 1.4 Oil DIC M27 immersion objective was used with Zeiss Inmersol 518F (n = 1.518) oil. Metamorph 7.10.5.476 was used for image acquisition, saving data as .tif formatted files. Fluorescence was sequentially excited with a Spectra-X Lumencor, with filter 575/25 for excitation of FM5–95. Emission was collected on a sCMOS PCO edge 4.2 bi camera with 16-bit depth, 0.003969 µm² pixel size and at 2048x2048 pixel resolution (applying a 1x1 binning). FM5-95 emission signals were collected through a 595–34 emission filter.

Images were analysed by segmentation with Omnipose [78] and measurement of cell parameters (length along the cell axis and averaged width along the cell axis) using custom-made scripts. Demographs for SddA(D179A)-sfGFP localization were built by plotting the normalized fluorescence intensity along the cell axis using customs scripts. Each intensity profile along the cells axis was calculated by addition of the fluorescence intensity of 5 pixels perpendicular to each position along the cell axis ($I_i$). The normalized intensity ($I_i^{norm}$), and intensity profiles were normalized by:

$$I_i^{norm}=I_i\times \frac{n}{{\sum }_{\text{0}}^n{I}_i}$$

where n indicates the length of the profile. For Fig 2C, the violin plots, the average lengths and standard deviations were obtained by analysis of the data with CellDataAnalyser.

Figs 4, S10, S11, S14.

Cells were grown in LB-Lennox containing the opportune antibiotics and 0.5 M IPTG. When indicated, a total amount of cells equal to 3 OD were sampled and fixed in 2.8% formaldehyde and 0.04% glutaraldehyde. Cells were incubated for 30 min at 37°C, with shaking, washed with PBS, resuspended in 0.5 mL of PBS and stored at 4°C until use [79]. Fixed cells were stained with 5 µg ml^-1 FM5–95 membrane dye (ThermoFisher) and 1 µg mL^-1 DAPI DNA dye (Sigma), deposited on microscope slides and sealed with a glass coverslip (VWR or Fisher Scientific). Slides were visualized using a Zeiss LSM 900 equipped with C Plan-Apochromat63x/1.4 Oil DIC (WD = 0.14 mm), PALM MicroLaser Systems, AxioCAM ICc1 camera and PALM ROBO-software.

Fig 2D.E.

BW25113 and BW25113 ΔsddA::FRT were transformed with pCH-ss^dsbA-sfGFP-iSPOR (pAP674) to create strains AP698 and AP699, respectively. This plasmid is a derivative from pJL427 encodes the isolated SPOR domain of FtsN, tagged with sfGFP in its N-terminus, and with the signal peptide sequence from dsbA for periplasmic export, under control of an IPTG-inducible promoter [80]. Cells were grown in EZ rich defined medium (EZRDM) [81] containing 150 µg mL^-1 chloramphenicol (EZRDM+Chlor) at 37°C overnight to saturation. In the morning 1 μL of culture was diluted into 3 mL of EZRDM+Chlor and 100 μM IPTG to induce expression of sfGFP-iSPOR. Cells were grown to an OD600 ~ 0.25-0.40 during which time 500 μL cells were obtained and fixed using paraformaldehyde (2.8%) and glutaraldehyde (0.04%) in EZRDM for 15 min followed by washing three times in PBS by repetitive centrifugation (11,000 × g for 5 min). Cells were then imaged on a 3% PBS agarose pad using a 100 × 1.49 NA oil-immersion objective (Olympus). The light was focused onto the chip of an EMCCD camera (iXon Ultra 897, Andor Technology) with a final pixel size of 100 × 100 nm. To obtain the midcell intensity we used a 3 pixel line width to measure the intensity at the midcell (septa) and subtracted the intensity at the quarter position (background). The median midcell intensity of the WT sample (AP698) for each biological replicate was then used to normalize the midcell intensities values of AP698 and AP699 resulting in “relative midcell intensity”.

Analysis of SddA conservation.

We used the AnnoTree database [44] to study the conservation of SddA homologues within bacteria and the genetic link between EnvC and DpaA. This database contains a set of archaeal and bacterial genomes which are completely sequenced and consistently annotated with PFAM, KEGG and TIGRFAM annotations [44]. To find SddA homologues, we searched for genes annotated with either PFAM number PF04748 (divergent polysaccharide deacetylase) or KEGG number K09798 (YibQ-like, uncharacterized protein), obtaining 7174 sequences in total. EnvC analogues were identified as genes annotated with KEGG number K22719 (EnvC; murein hydrolase activator) that were not also annotated as any of the KEGG numbers for other LytM activators in E. coli (K19304, K06194 or K12943 for MepM, NlpD or YgeR), obtaining 17185 sequences. GpmM homologues were identified as genes annotated with TIGRFAM number TIGR01307 (phosphoglycerate mutase (2,3-diphosphoglycerate-independent)), obtaining 17651 sequences. Finally, AmiC homologues were identified as genes annotated with either KEGG number K01448 (AmiABC; N-acetylmuramoyl-L-alanine amidase) or PFAM number PF01520 (N-acetylmuramoyl-L-alanine amidase) that also had a PF11741 (AMIN domain) annotation, obtaining 10499 sequences. The number of proteins of each type per genome was counted using custom Python scripts, and the generated data sets were represented along a phylogenetic tree of all genomes in AnnoTree using iTOL [82]. The localization within the genome of each of the identified sequence was obtained from the downloaded Annotree SQL database and analysed with custom scripts. For each pair of homologues analysed (EnvC + SddA, EnvC + AmiC or SddA + AmiC), genomes containing both homologues were identified and the pair of genes closest together within the same chromosome was selected, counting the number of times the closest pair was on the same strand and the distance in base-pairs between them. The scripts to perform this analysis are available upon request.

Protein structure and protein-protein interaction modeling.

Protein structure models and protein-protein interaction models were generated using a local installation of AlphaFold (AlphaFold v2.3.1) [83,84]. Amino acid sequences of the proteins of interest were submitted in FASTA format, following the server’s input guidelines. AlphaFold utilizes a deep neural network architecture trained on structural data from the Protein Data Bank (PDB) [85] and multiple sequence alignments to predict protein structures, including protein-protein interactions. For each protein pair, five models were generated, and the highest-confidence model, based on AlphaFold’s predicted ranking_score which is calculated from the predicted template modeling (pTM) score and the interface predicted template modeling (ipTM) score among other metrics.

The Predicted Aligned Error (PAE) matrix provides a visual representation of the predicted positional accuracy between residues in the modeled protein complex. Each cell in the matrix represents the estimated alignment error (in Å) between pairs of residues across the protein structure, as predicted by AlphaFold. The matrix is color-coded, where darker shades indicate lower predicted alignment errors and higher model confidence, and lighter shades denote areas of greater uncertainty in alignment.

In our analysis, the PAE matrix was used to assess the reliability of inter-protein and intra-protein contacts within the predicted complex. Low error regions, typically appearing along the diagonal of the matrix, correspond to structurally stable segments of each protein. In contrast, off-diagonal regions with low PAE values are indicative of high-confidence inter-protein interactions, suggesting specific interaction sites or binding interfaces. Regions with high PAE values highlight areas of structural flexibility or uncertainty, which may correspond to disordered regions or low-confidence interactions.

Molecular dynamics simulations.

Molecular dynamics (MD) simulations were performed for the wild-type SddA protein (WT) and its D179A mutant using five independent replicates for each system. Modeled structures were obtained using AlphaFold. The protonation states of ionizable residues were determined prior to molecular dynamics simulations using the H++ server [86] at pH 7.4. This tool computes residue protonation based on pKa predictions, considering the influence of the surrounding environment on each residue’s ionizable groups. The calculated protonation states were subsequently used to ensure an accurate representation of the protein’s charge distribution under the simulation conditions. The system was prepared using the tleap module of AmberTools [87]. The protein structure was parameterized using the ff19SB force field [88], and the system was solvated in a triclinic box of OPC water [89] molecules, ensuring a minimum distance of 10 Å between any protein atom and the edge of the box. Sodium and chloride ions were added at random positions to achieve a neutral system and an ionic concentration of 0.15 M. To enable the use of a 4 fs integration timestep during the production phase, the hydrogen mass repartitioning (HMR) [90] technique was applied using the parmed module of AmberTools [91]. This method redistributes part of the hydrogen atom masses to their bonded heavy atoms, effectively increasing the hydrogen mass and allowing for a longer integration timestep without compromising simulation stability. The modified topology files were used in all subsequent simulations.

The MD protocol consisted of four phases: energy minimization, heating, equilibration, and production. (i) Energy Minimization: This was done in three stages. First, only water molecules were minimized; second, water and ions (excluding hydrogens) were minimized; and third, the full system was minimized. Steepest descent was used for the initial 500–1,000 steps, followed by conjugate gradient minimization. Periodic boundary conditions with an isotropic barostat were applied throughout. (ii) Heating: The system’s temperature was gradually increased from 100 K to 300 K over 200 ps, using a timestep of 1 fs. A Langevin thermostat [17,92] with a collision frequency of 10 ps⁻¹ controlled the temperature. The simulation was at constant volume, with harmonic restraints applied to the backbone and beta-carbon atoms to stabilize the solute. (iii) Equilibration: This phase involved 10 steps of 100 ps each using a time step of 1 fs, under constant pressure and temperature. The temperature was kept at 300 K using a Langevin thermostat, and pressure was controlled by a Monte Carlo barostat [93]. A harmonic restraint was applied to alpha-carbon atoms with decreasing force constants. Nonbonded interactions were treated with a 9 Å cutoff, and electrostatics were handled using the particle mesh Ewald (PME) method [94]. (iv) Production: The simulation ran for 60 ns with a 4 fs timestep. The temperature was maintained at 300 K using a Langevin thermostat, and pressure was controlled by a Monte Carlo barostat. Electrostatics were treated with PME, and nonbonded interactions had an 11 Å cutoff. Hydrogen mass repartitioning (HMR) enabled the 4 fs timestep. Center-of-mass translation and rotation were removed every 25 ps, and energy, trajectory, and restart files were recorded at 25 ps intervals to ensure accurate sampling during the production phase.

Trajectory analysis was performed using cpptraj [95], from AmberTools suite of programs, focusing on root mean square deviation (RMSD) across the simulation and per-residue root mean square fluctuation (RMSF). Data were visualized using R to evaluate the structural stability and flexibility of both systems.

Supporting information

S1 Fig. Verification by MS/MS of the identity of peaks for GlcNAc-MurNAcAnh and GlcNAc-MurNAcAnh in the MltA-digested PG samples and SddA reactions.

(A, B) Chemical structures of GlcNAc-MurNAcAnh and GlcN-MurNAcAnh, respectively. (C) and (D), verification of the identity of HPLC peaks labelled in Fig. 1G as GlcN-MurNAcAnh and GlcNAc-MurNAcAnh, respectively, by MS and MS/MS. MS/MS analysis of peaks from LC-MS analysis from PG digested with MltA resulted in the same fragmentation shown here. (C) Verification using MS/MS (bottom) that the peak with m/z 437 (top) corresponds to GlcN-MurNAcAnh. Fragmentation of GlcN-MurNAcAnh yields GlcN(-H₂O)+H⁺ (m/z 162), and not GlcNAc(-H₂O)+H⁺ (m/z 204), and MurNAcAnh + H⁺ (m/z 276). (D) Verification using MS/MS (bottom) that peak with m/z 479 (top) corresponds to GlcNAc-MurNAcAnh. Fragmentation of GlcNAc-MurNAcAnh yields the GlcNAc(-H₂O)+H⁺ ion (m/z 204) and MurNAcAnh + H⁺ (m/z 276).

(TIF)

S2 Fig. Overexpression of full length SddA in the cytoplasm produces a truncated protein.

(A) SDS-PAGE and Western-Blot analysis of soluble (sol) and pellet fractions from sonicated cell extracts of BL21(DE3) pET28a-HisSddA induced with IPTG. The His-tag in the N-terminus His-SddA was detected using anti-His-tag antibody. (B) AlphaFold model of E. coli SddA showing the predicted globular (red) and unfolded C-terminal (grey) regions, plus the location of cleavage sites in His-SddA purified from soluble extracts as the one analysed in A. The identified cleavage sites are P258, V262, K263 and L264.

(TIF)

S3 Fig. SddA is unable to digest peptidoglycan or muropeptides.

PG was incubated first with SddA or buffer and then with the muramidase cellosyl (chromatograms labelled “PG”) or first with cellosyl and then with SddA or buffer (chromatograms labelled “muropeptides”), to test the activity of SddA on PG or muropeptides, respectively. SddA was added at 10 µM in both cases. SddA treatment did not introduce any changes in the resulting chromatograms.

(TIF)

S4 Fig. SddA can modify denuded glycan strands.

(A) Radiolabelled denuded glycan strands were prepared from radiolabelled lipid II ([¹⁴C]-lipid II) using transpeptidase-defective PBP1B (S510A), and the amidase AmiC plus its activator NlpD. (B) Scheme depicting the preparation of samples (left side) and their analysis (chromatograms on the right side). Muramidase was unable to digest the denuded glycan strands treated with SddA. (C) Scheme depicting the preparation of samples (left side) and their analysis (chromatograms on the right side). SddA modified the short oligosaccharides obtained by digesting radiolabelled denuded glycan strands with a muramidase.

(TIF)

S5 Fig. SddA deacetylates GlcNAc residues in denuded glycan strands.

(A) Chromatograms of muramidase-digested denuded glycan strands, treated with SddA (red) or buffer (black) after digestion with the muramidase cellosyl. (B) Results of MS and MS/MS analysis of the labelled peaks in A. All muropeptide peaks correspond to the non-reduced species.

(TIF)

S6 Fig. E. coli SddA contains conserved residues for Zn²⁺ binding.

(A) Sequence alignment of E. coli SddA with the sequences of the two proteins with a divergent polysaccharide deacetylase domain (PF04748) whose crystal structure is available. These two proteins are BH1492 from Bacillus halodurans (PDB 2NLY), which contains a Zn²⁺ in the crystal structure, and ATU2773 from Agrobacterium tumefaciens (PDB 2QV5), which does not contain a Zn²⁺ ion in the crystal structure. The sequences are coloured by secondary structure (red indicating alpha helix and blue beta strand). The residues coordinating Zn²⁺ in BH1492 are highlighted in yellow. (B) Chromatograms of the analysis of denuded glycan strands treated first with buffer, SddA, SddA^24-238, SddA^24-238 H78A, or SddA^24-238 H123A, and then with the lytic transglycosylase MltA to produce anhydro-muropeptides. Chromatograms for assays with H78A and H123A SddA variants show no GlcN-MurAcAnh peak, indicating they are inactive.

(TIF)

S7 Fig. Deletion of sddA does not cause morphological changes when growing in LB.

(A) BW25113 or BW25513 ΔssdA::kan were grown in LB at 37°C. Samples were collected (arrows), fixed, stained with FM5–95 (cell membrane), immobilized and imaged by phase contrast and epifluorescence microscopy. Representative images are shown. Scale bar is 10 µm. (B) morphological measurements and growth doubling time of the cells and growth curves shown in A.

(TIF)

S8 Fig. Deletion of actS, nlpD or envC does not affect OM permeability of cells lacking SddA.

(A) Overnight cultures of BW25113 and isogenic ΔsddA, ΔenvC, ΔactS, ΔenvC ΔsddA, ΔactS ΔsddA mutants and (B) of BW25113 ΔnlpD and isogenic ΔnlpD ΔsddA were serially diluted and spotted on LB with 5% NaCl plates containing vancomycin (Van), rifampicin (Rif), novobiocin (Nov), mecillinam (Mec), cefsulodin (Cefs), bacitracin (Bac) or SDS/EDTA at the indicated concentrations. Plates were incubated at 37°C for 24 h.

(TIF)

S9 Fig. Deletion of sddA increases the sick phenotype of ∆envC ∆nlpD.

BW25113 ∆envC ∆nlpD and BW25113 ∆envC ∆nlpD ∆sddA were grown in LB at 37°C. At indicated times, samples were taken and imaged on agarose pads containing FM5–95 membrane stain. All scale bars represent 10 µM.

(TIF)

S10 Fig. Co-expression of SddA and EnvC from different plasmids does not rescue OM defects and cell chaining.

(A) Overnight cultures of BW25113 harbouring empty pGS100 or pBAD24 plasmids (-/-) or pGS100 with sddA (sddA/-) or pBAD24 with envC (-/envC) or both (ssdA/envC) were serially diluted and spotted onto LB-Lennox supplemented with 25 μg ml^-1 chloramphenicol and 100 μg ml^-1 ampicillin containing vancomycin (Van), bacitracin (Bac) or SDS/EDTA at the indicated concentrations. 0.2% arabinose and 0.5 mM IPTG were used to induce envC and sddA expression, respectively. (B) BW25113 cells harbouring pGS100 and pBAD24 or pBAD24 with envC (pGS100/envC), pGS100 with sddA (sddA/pBAD24) or both (ssdA/envC) were grown in LB with 5% NaCl supplemented with 25 μg ml^-1 chloramphenicol and 100 μg ml^-1 ampicillin. IPTG (0.5 mM) and arabinose (0.2%) were used to induce the expression of sddA and envC, respectively. Samples were collected at the exponential growth phase (arrows) stained with FM5–95 (red, cell membrane) and DAPI (blue, nucleoid), immobilized and imaged by confocal fluorescence microscopy. Representative images are shown. Scale bar is 5 µm.

(TIF)

S11 Fig. Co-expression of SddA and NlpD does not rescue OM defects and cell chaining.

(A) Overnight cultures of BW25113 harbouring empty pGS100 or pBAD24 plasmids (-/-) or pGS100 with sddA (sddA/-) or pBAD24 with nlpD (-/nlpD) or both (ssdA/nlpD) were serially diluted and spotted onto LB-Lennox supplemented with 25 μg ml^-1 chloramphenicol and 100 μg ml^-1 ampicillin containing vancomycin (Van), bacitracin (Bac) or SDS/EDTA at the indicated concentrations. 0.2% arabinose and 0.5 mM IPTG were used to induce nlpD and sddA expression, respectively. (B) BW25113 cells harbouring pGS100 and pBAD24 or pBAD24 with nlpD (pGS100/nlpD), pGS100 with sddA (sddA/pBAD24) or both (ssdA/nlpD) were grown in LB-Lennox supplemented with 25 μg ml^-1 chloramphenicol and 100 μg ml^-1 ampicillin. IPTG (0.5 mM) and arabinose (0.2%) were used to induce the expression of sddA and nlpD, respectively. Samples were collected at the exponential growth phase (arrows) stained with FM5–95 (red, cell membrane) and DAPI (blue, nucleoid), immobilized and imaged by confocal fluorescence microscopy. Representative images are shown. Scale bar is 5 µm.

(TIF)

S12 Fig. SddA is expressed at lower levels from the operon with envC.

(A) BW25113 cells harbouring pGS100 or pGS100 encoding FLAG-sddA (sddA), FLAG-sddA H123A (sddA*) or envC/FLAG-sddA (envC/sddA) were grown in LB supplemented with 25 μg ml^-1 chloramphenicol. 0.5 mM IPTG was added at an OD600 of 0.1, and sample for microscopy were taken when indicated in the growth curves. Cells were imaged using phase contrast. Scale bar is 10 µm. (B) BW25113 cells harbouring the same plasmids as described in (A) and grown in the same conditions, were harvested after 140 min incubation with 0.5 mM IPTG and FLAG-SddA levels were analysed by Western blot using α-FLAG antibody (right) and SDS-PAGE followed by Coomassie staining was used as loading control (left). Two specific bands were detected labelled as FL (full length) and D (digested). (C) Quantification of FLAG-SddA FL and D bands in Western blots as shown in (B), normalized using the Coomassie-stained SDS-PAGE. Values are average ± SD of two repeats, * p-value < 0.05 and n.s. not significant.

(TIF)

S13 Fig. Cell chaining phenotype caused by SddA overproduction is independent of EnvC or FtsX.

(A) BW25113 (WT) and BW25113 ΔenvC (ΔenvC) cells harbouring pGS100 (ev) or pGS100 expressing sddA (SddA) were grown at 37°C in LB with 20 µg ml^-1 chloramphenicol and expression was induced with 0.5 mM IPTG for 140 min. Samples were imaged by phase contrast and fluorescence microscopy (FM5–95). (B) BW25113 (WT) and BW25113 ΔftsX (ΔftsX) cells harbouring pGS100 (ev) or pGS100 expressing sddA (SddA) were grown at 30°C in LB with 20 µg ml^-1 chloramphenicol supplemented with 0.2 M sucrose and expression was induced with 0.5 mM IPTG for 230 min. Samples were imaged by phase contrast and fluorescence microscopy (FM5–95). Representative images are shown. Scale bar is 5 µm.

(TIF)

S14 Fig. High sddA expression in mutants defective in amidase activation aggravates their cell chaining phenotype.

(A) ∆amiC ∆nlpD and ∆amiB ΔamiA ∆envC cells harbouring pGS100 or pGS100 expressing sddA were grown in LB with 5% NaCl supplemented with chloramphenicol at 25 µg ml^-1. Samples were collected (arrows) stained with FM5–95 (red, cell membrane) and DAPI (blue, nucleoid), immobilized and imaged by confocal fluorescence microscopy. Representative images are shown. Scale bar is 5 µm. (B) Doubling time of cultures shown in panel A.

(TIF)

S15 Fig. SddA-sfGFP overproduction causes chaining in an IPTG-dependent manner.

(A) BW25113 cells harbouring pGS100 (ev) or pGS100 expressing sddA, sddA::sfgfp (WT) or sddA D179A::sfgfp (D179A) were grown in LB with 20 µg ml^-1 chloramphenicol at 37°C and expression of the fluorescent constructs was induced with 0.5 mM IPTG for 140 min. Samples were pelleted, protein extracts were obtained by sonication and quantified by BCA. 15 µg of each extract was loaded per lane, separated by SDS-PAGE and GFP was immunodetected by Western blot using α-GFP antibody. (*, unspecific bands) (B) BW25113 cells harbouring pGS100 (ev) or pGS100 encoding sddA::sfGFP (SddA) were grown in LB with 20 µg ml^-1 chloramphenicol at 37°C and expression of the fluorescent construct was induced with the indicated amount of IPTG for 140 min. For ev, samples cell membranes were stained with FM5–95 dye. Samples were imaged by phase contrast (PC) and fluorescence microscopy (GFP or FM5–95). Representative images are shown. Scale bar is 5 µm.

(TIF)

S16 Fig. Alphafold-predicted interaction between SddA and EnvC or SddA and FtsX.

Best models obtained by Alphafold of hypothetical SddA-EnvC, (A), and SddA-FtsX complexes, (B); and their corresponding Predicted Aligned Error (PAE) matrices (C) and (D), respectively. Each cell in the PAE matrices represents the estimate alignment error (in Å) between pairs of residues across the predicted protein structure, with darker shades indicating lower PAE and higher model confidence.

(TIF)

S17 Fig. SddA D179A is active against denuded strands.

Chromatograms of the analysis of denuded glycan strands treated first with buffer, His-SddA^24-238 or His-SddA^24-238 D179A, and then with the lytic transglycosylase MltA. MltA fully digested denuded strands producing anhydro sugars. Reactions contained 2 µM of enzyme and were incubated at 37°C for 24 h. Peak labelled GlcN corresponds to GlcN-MurNAcAnh and peak labelled GlcNAc corresponds to GlcNAc-MurNAcAnh.

(TIF)

S18 Fig. The mutation D179A induces localized and global changes in SddA dynamics, particularly in regions critical for binding to EnvC.

Residue-resolved root mean square fluctuations (RMSF) of wild-type (WT, green) and D179A mutant (red) SddA, calculated from molecular dynamics simulations. The blue curve represents the difference in fluctuations (ΔRMSF) between WT and mutant (WT - mutant). Negative ΔRMSF values indicate greater rigidity in the mutant, while positive values reflect increased flexibility. Residues involved in interaction with EnvC, as predicted by AlphaFold, are highlighted in the analysis.

(TIF)

S19 Fig. SddA does not significantly inhibit ActS-AmiC or EnvC-AmiA.

(A, B) HPLC-based end-point activity assays for EnvC-AmiA or ActS-AmiC amidase-activator pairs, in the presence or absence of SddA^24-238. Sacculi from E. coli BW25113Δ6LDT were incubated with 2 µM of the indicated amidase and activator, in the presence or absence of 4 µM His-SddA^24-238 (SddA^24-238). EnvC(fl) indicates the EnvC construct containing the LytM and coiled-coiled domain whereas EnvC(LytM) indicates the construct with only the LytM domain. Reactions were incubated for 2 h (A) or 1 h (B) at 37°C. Representative chromatograms are shown. (C) Chromatograms for the control reactions showing no activation of AmiA or AmiC by SddA^24-238. Reactions contained 2 µM of each protein and E. coli MC1061 PG and were incubated for 2 h at 37°C. (D) Quantification of muropeptides peak areas (peaks 4, 5 and 6) in reactions depicted in A and B, normalized against the areas of those peaks in the controls with no enzyme. Values are average + /- variation of 2 reactions. There was a slight activation of EnvC(LytM)-AmiA activity by SddA. (E) Identity and structures of the peaks labelled in A-C and Fig 6A. G stands for GlcNAc, M for MurNAcAnh and G’ for GlcN.

(TIF)

S1 Table. Strains used in this work.

(DOCX)

S2 Table. Plasmids used in this work.

(DOCX)

S3 Table. Oligonucleotides used in this work.

(DOCX)

S4 Table. Raw data for Figs 2C, 2E, 7B, S7B, S12C, and S19D.

(XLSX)

Data Availability

All raw data are presented in the manuscript.

Funding Statement

This work received funding from the UK Biotechnology and Biological Sciences Research Council (BB/W005557/1; BB/W013630/1; to W.V.), from the National Institutes of Health (NIH R35 GM136436 to J.X. and NIH F32 GM150262 to A.J.P.), from MICIU/AEI/https://doi.org/10.13039/501100011033 and ERDF/EU (PID2022-140818OA-I00; to M.P.), the Comunidad de Madrid Atracción de Talento M1 program (2020-T1/BMD-19970, to M.P.). A.B. acknowledges a PhD fellowship from Fundación Ramón Areces. D.B. acknowledges a PhD fellowship (PRE2022-101502) associated to the “Centre of Excellence Severo Ochoa” grant to the CBM (CEX2021-001154-S) funded by MICIU/AEI /https://doi.org/10.13039/501100011033. CBM receives institutional grants from Fundación Ramón Areces. B.I.I. is supported by a grant from the French National Research Agency (ANR) through the PPR Antibioresistance program (ANR-20-PAMR-0010). The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.
