Modified unlocked nucleic acid (MUNA) mitigates off-target effects of small interfering RNAs

Shohei Mori; Dhrubajyoti Datta; Lydia Perkins; Michelle Jung; Lauren Blair Woods; Alex Eaton; June Qin; Tim Racie; MaryBeth Kim; Dale C Guenther; Adam Castoreno; Mark K Schlegel; Klaus Charisse; Martin Egli; Shigeo Matsuda; Muthiah Manoharan

doi:10.1093/nar/gkaf937

. 2025 Sep 29;53(18):gkaf937. doi: 10.1093/nar/gkaf937

Modified unlocked nucleic acid (MUNA) mitigates off-target effects of small interfering RNAs

Shohei Mori ¹, Dhrubajyoti Datta ², Lydia Perkins ³, Michelle Jung ⁴, Lauren Blair Woods ⁵, Alex Eaton ⁶, June Qin ⁷, Tim Racie ⁸, MaryBeth Kim ⁹, Dale C Guenther ¹⁰, Adam Castoreno ¹¹, Mark K Schlegel ¹², Klaus Charisse ¹³, Martin Egli ¹⁴, Shigeo Matsuda ^15,^✉, Muthiah Manoharan ^16,^✉

PMCID: PMC12477598 PMID: 41020503

Abstract

Unlocked nucleic acid (UNA) is a nucleic acid analog that has an acyclic ribose ring lacking the bond between C2′ and C3′ atoms. The base-pairing properties of UNA have been studied, and it has been used as a scaffold for conjugation, but the chemical space around UNA and its potential applications in the context of short interfering RNAs (siRNAs), which mediate RNA interference, have not been thoroughly explored. In this study, we report syntheses of methylated and methoxylated UNAs and their incorporation into siRNAs. siRNAs with 5′-(R)-methyl-UNA and with 5′-(S)-methyl-UNA in the seed region had comparable potencies but reduced off-target effects compared to siRNA modified with UNA. In mice, siRNAs with modified UNAs were of comparable potency to an siRNA of the same sequence and chemistry lacking UNA. Modeling studies indicated that the flexibilities of UNA and the modified UNAs facilitate kinking of the antisense strand when incorporated at position 7. These findings highlight the potential of modified UNA for advancing therapeutics that act through the RNA interference pathway.

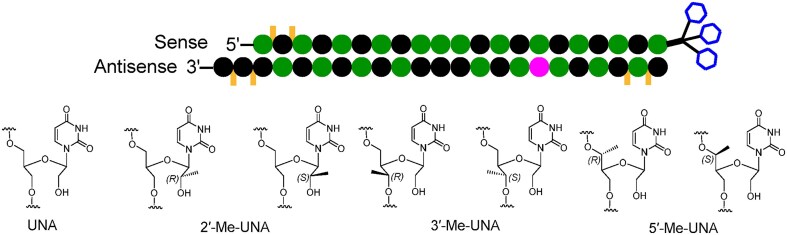

Graphical Abstract

Introduction

Oligonucleotide therapeutics, particularly agents that act through the RNA interference (RNAi) pathway, hold remarkable potential for addressing unmet medical needs. Seven RNAi-based therapeutics have been clinically approved: patisiran (ONPATTRO), givosiran (GIVLAARI), lumasiran (OXLUMO), inclisiran (LEQVIO), vutrisiran (AMVUTTRA), nedosiran (Rivfloza), and fitusiran (QFITLIA) [1–12]. These small interfering RNAs (siRNAs) mediate gene silencing by acting post-transcriptionally. When loaded onto AGO2, the catalytic component of the RNA-induced silencing complex (RISC), siRNAs target complementary mRNAs for degradation, thereby decreasing the expression of the encoded, undesired disease-causing proteins [13].

The successes of these therapeutics hinge on chemical modifications and efficient delivery methods [13–15]. Natural RNA duplexes are metabolically unstable, and their use therapeutically necessitates the inclusion of chemically modified building blocks to minimize enzymatic degradation, enhance lipophilicity, improve cell-membrane permeability, and mitigate immune responses and off-target effects (Fig. 1A) [16]. Patisiran has 2′-O-methyl (2′-OMe) ribonucleotides and is formulated in lipid nanoparticles [1]. Other therapeutics from Alnylam, givosiran, lumasiran, inclisiran, vutrisiran, and fitusiran are chemically modified with both 2′-OMe and 2′-deoxy-2′-fluoro (2′-F) ribonucleotides and are conjugated to a trivalent N-acetylgalactosamine (GalNAc) [17–19]. This GalNAc ligand specifically binds to the hepatic asialoglycoprotein receptor to mediate liver cell-specific uptake of the siRNAs. All clinically used siRNAs also have phosphorothioate (PS) linkages at the required 5′ and 3′ termini, which provide metabolic stability [20–23].

Figure 1. — Chemical modifications used in siRNAs. (A) Chemical modifications used in siRNAs approved for clinical use. (B) Chemical modifications used to mitigate off-target effects. (C) Chemical modifications used in this study. Both R- and S-isomers of 2′-, 3′-, and 5′-Me-UNA and 4′-(S)-OMe-UNA were studied.

The 2′-OMe and 2′-F modifications help to maintain the RNA-like C3′-endo conformation, resulting in improved binding to complementary mRNA, reduced immune activation, more favorable AGO2 interactions, and increased resistance to nuclease degradation. Thermally destabilizing modifications, like (S)-glycol nucleic acid ((S)-GNA), α-(L)-threofuranosyl nucleic acid (TNA), and 2′-deoxy-2′-α-F-2′-β-C-methyl nucleotide (2′-geminal-Me/F) can minimize off-target effects (Fig. 1B) [18, 24–27]. (S)-GNA is well accommodated within the RNA duplex, allowing its incorporation without altering the overall structure. When incorporated into the seed region of the antisense strand of an siRNA, (S)-GNA decreases binding affinity for mRNAs that do not have complete complementarity to the siRNA antisense strand, without altering desired on-target silencing efficacy [28, 29]. TNA placed at position 7 of the antisense strand of the siRNA also mitigates off-target effects, likely due to the decrease in the thermodynamic binding affinity relative to the 2′-O-Me residue [27]. The 2′-Gem modifications also cause significant thermal destabilization due to steric effects and mitigate off-target effects [23]. When bound to AGO2, the antisense strand is kinked between positions 6 and 7, and the short internucleotide linkages of GNA and TNA contribute to the proper placement of these modifications within the RISC [27–29].

Another thermally destabilizing modification, unlocked nucleic acid (UNA, Fig. 1B), invented by Wengel et al. [30] has flexibility due to the lack of the C2′-C3′ bond, the bond that closes the ribose ring in natural nucleotides. Incorporation of UNA residues decreases RNA duplex thermal stability by 5–10°C [25, 30, 31]. UNA modifications do not disrupt the helical RNA duplex structure and protect siRNAs from degradation [32]. Previous work has shown that UNAs at specific positions enhance siRNA potency by preventing loading of the sense strand into the RISC, thus minimizing off-target effects [25, 33–35]. Here, we explored modified UNAs methylated at various positions of the acyclic sugar moiety (Fig. 1C). These methylated and methoxylated UNAs improve the resistance of siRNA against degradation by nucleases, and siRNAs with these modifications in the seed region do not decrease potency but do mitigate off-target effects, making them promising for RNAi-based therapeutic applications.

Materials and methods

Synthetic procedures and compound characterization

Synthesis of compound 3S: To a solution of compound 1 synthesized, as described [36] (20.0 g, 42.3 mmol) in anhydrous dichloromethane (DCM, 500 mL) cooled to 0°C, was added Dess-Martin periodinane (21.5 g, 50.8 mmol, 1.2 equiv.). The reaction was stirred at 0°C for 1 h, warmed to room temperature, and stirred for additional 1.5 h. The reaction was then quenched by slowly adding the reaction mixture to vigorously stirred 10% aq. Na₂S₂O₃ (300 mL) and saturated aq. NaHCO₃ (300 mL) at 0°C and stirred for 1 h. After quenching, the organic layer was extracted with DCM (3 × 100 mL), dried over anhydrous Na₂SO₄, filtered, and concentrated under reduced pressure to yield crude compound 2 as flaky white solid. The dried compound 2 was resuspended in anhydrous THF (300 mL), and the solution was added via cannula to a stirring solution of Me₃Al (2 M in toluene, 63.5 mL, 126.9 mmol, 3 equiv.) in THF (300 mL) at 0°C. After stirring at 0°C for 1 h, the reaction was warmed to room temperature and allowed to stir overnight. The reaction was brought to 0°C and quenched by gradually adding a 1:1 solution of aq. H₃PO₄ (10%) and saturated aq. NH₄Cl (20 mL). After the solvent was removed under reduced pressure, the crude residue was extracted with DCM and sat. NaHCO₃. The organic layer was separated, washed with brine, dried over anhydrous Na₂SO₄, filtered, and concentrated under reduced pressure. The crude material was purified by flash silica gel column chromatography (0–30% EtOAc in hexanes) to obtain compound 3S as a white foam (5.85 g, 12.02 mmol, 25%; R_f = 0.48, developed with 50% EtOAc in hexane). ¹H NMR (400 MHz, DMSO-d₆) δ 11.35 (s, 1H), 8.07 (d, J = 8.1 Hz, 1H), 5.83 (d, J = 6.0 Hz, 1H), 5.71 (d, J = 8.1 Hz, 1H), 5.27 (d, J = 4.2 Hz, 1H), 4.26 (dd, J = 6.1, 4.4 Hz, 1H), 4.12 (dd, J = 4.5, 2.5 Hz, 1H), 3.88 – 3.78 (m, 1H), 3.72 (t, J = 2.2 Hz, 1H), 1.14 (d, J = 6.4 Hz, 3H), 0.89 (s, 9H), 0.83 (s, 9H), 0.08 (d, J = 3.6 Hz, 6H), and −0.04 (s, 3H) ppm. ¹³C NMR (101 MHz, DMSO-d₆) δ 162.94, 150.74, 140.17, 102.05, 88.54, 86.43, 74.75, 72.90, 65.04, 25.70, 25.59, 19.98, 17.74, 17.60, −4.63, −4.77, −4.84, and −5.07 ppm. HRMS: [M + H]⁺ calc. for C₂₂H₄₃N₂O₆Si₂, 487.2654; found: 487.2659.

Synthesis of compound 4S: To a solution of compound 3S (5.85 g, 12.02 mmol) in anhydrous THF (50 mL) and anhydrous pyridine (10 mL) were added DMTrCl (12.2 g, 36.1 mmol, 3 equiv.) and AgNO₃ (4.08 g, 24.0 mmol, 2 equiv.). The mixture was stirred at room temperature for 24 h then additional DMTrCl (6.11 g, 18.0 mmol, 1.5 equiv.) and AgNO₃ (2.04 g, 12.0 mmol, 1.0 equiv.) were added to the reaction mixture. The mixture was stirred at room temperature overnight. The mixture was filtered over Celite, and the filter cake was washed with DCM. The filtrate was concentrated under reduced pressure, and the residue was extracted with DCM and saturated aq. NaHCO₃. The organic layer was washed with brine, dried over anhydrous Na₂SO₄, filtered and concentrated. The crude residue was purified by flash column chromatography (0–25% EtOAc in hexanes) to obtain the DMTr-protected compound as a yellow foam (8.05 g, 10.2 mmol, 85%, R_f = 0.35, developed with 33% EtOAc in hexanes). HRMS: [M + Na]⁺ calc. for C₄₃H₆₀N₂O₈Si₂Na, 811.3786; found: 811.3798.

To a solution of the DMTr-protected compound (8.05 g, 10.2 mmol) in THF (51 mL) was added TBAF (1 M in THF, 25.5 mL, 25.5 mmol, 2.2 equiv.). After stirring at room temperature overnight, the solvent was removed under reduced pressure. The crude residue was purified by flash column chromatography (0–100% EtOAc in hexanes then 2.5% MeOH in EtOAc) to obtain compound 4S as a yellowish foam (5.84 g, quant.; R_f = 0.50, developed with 5% MeOH in EtOAc). ¹H NMR (500 MHz, DMSO-d₆) δ 11.41–11.34 (m, 1H), 7.57 (d, J = 8.1 Hz, 1H), 7.46–7.40 (m, 2H), 7.30 (t, J = 7.9 Hz, 6H), 7.21 (t, J = 7.3 Hz, 1H), 6.88 (dd, J = 8.8, 6.7 Hz, 4H), 5.68 (d, J = 5.1 Hz, 1H), 5.58 (dd, J = 8.0, 1.6 Hz, 1H), 5.39 (d, J = 5.2 Hz, 1H), 5.03 (d, J = 5.1 Hz, 1H), 4.01 (h, J = 5.8 Hz, 2H), 3.74 (s, 3H), 3.72 (s, 4H), 3.61–3.51 (m, 1H), 0.67 (d, J = 6.2 Hz, 3H) ppm. ¹³C NMR (126 MHz, DMSO-d₆) δ 162.93, 158.06, 150.67, 146.11, 140.47, 136.40, 136.30, 130.16, 130.08, 127.95, 127.61, 126.61, 112.99, 101.93, 87.25, 86.43, 85.81, 72.56, 69.24, 68.89, 55.00, 54.99, and 17.09 ppm. HRMS: [M + Na]⁺ calc. for C₃₁H₃₂N₂O₈Na, 583.2051; found: 583.2068.

Synthesis of compound 5S: To a solution of compound 4S (5.84 g, 10.42 mmol) in dioxane (135 mL) and H₂O (25 mL) was added NaIO₄ (2.45 g, 11.46 mmol, 1.1 equiv.) dissolved in H₂O (25 mL). The bi-layer reaction mixture was vigorously stirred at room temperature for 4 h. The reaction mixture was filtered through a sintered funnel, and the filter cake was washed with additional dioxane. To the filtrate was added NaBH₄ (0.434 g, 11.46 mmol, 1.1 equiv.). After stirring at room temperature for 2 h, the mixture was cooled to 0°C then quenched with 1:1 v/v acetic acid:pyridine. After the solvent was removed under reduced pressure, the crude residue was extracted with EtOAc and saturated aq. NaHCO₃. The organic layer was separated, dried over anhydrous Na₂SO₄, filtered, and concentrated under reduced pressure. The crude material was purified by flash column chromatography (0–5% MeOH in DCM) to obtain compound 5S as a white foam (5.01 g, 8.90 mmol, 85%; R_f = 0.13 developed with 5% MeOH in DCM). ¹H NMR (400 MHz, DMSO-d₆) δ 11.14 (d, J = 2.2 Hz, 1H), 7.35 (dd, J = 8.0, 1.8 Hz, 3H), 7.30–7.15 (m, 7H), 6.90–6.78 (m, 4H), 5.64 (dd, J = 6.4, 4.7 Hz, 1H), 5.47 (dd, J = 8.0, 2.2 Hz, 1H), 5.01 (t, J = 6.0 Hz, 1H), 4.68 (t, J = 5.4 Hz, 1H), 3.82 (dd, J = 11.7, 5.7, 2.2 Hz, 1H), 3.60–3.51 (m, 2H), 3.50–3.39 (m, 2H), 3.24–3.17 (m, 1H), 3.12–3.01 (m, 1H), 2.07 (s, 2H), 1.19 (t, J = 7.3 Hz, 2H), 0.56 (d, J = 6.3 Hz, 3H) ppm. ¹³C NMR (126 MHz, DMSO-d₆) δ 163.08, 158.09, 158.03, 150.80, 145.64, 140.57, 136.49, 136.11, 129.75, 129.60, 127.65, 127.62, 126.68, 113.02, 101.18, 85.80, 84.73, 81.69, 68.82, 61.24, 60.36, 54.98, 45.48, 39.24, 15.38, 8.49, and 1.12 ppm. HRMS: [M + Na]⁺ calc. for C₃₁H₃₄N₂O₈Na, 585.2207; found: 585.2224.

Synthesis of compound 6S: To a solution of compound 5S (5.01 g, 8.90 mmol) in anhydrous DCM (245 mL) and pyridine (7 mL) cooled to −78°C was slowly added benzoyl chloride (1.14 mL, 9.79 mmol, 1.1 equiv.). After stirring at −78°C for 1 h, the reaction mixture was brought to 0°C, and quenched with ethanol (5 mL). The mixture was extracted with DCM and saturated aq. NaHCO₃. The organic layer was washed with brine, separated, dried over anhydrous Na₂SO₄, filtered, and concentrated. The crude residue was purified by flash column chromatography (0–75% EtOAc in hexanes) to yield compound 6S as a white foam (1.31 g, 1.96 mmol, 22%; R_f = 0.32, developed with 50% EtOAc in hexanes). ¹H NMR (400 MHz, DMSO-d₆) δ 11.29–11.25 (m, 1H), 7.87 (dd, J = 8.4, 1.4 Hz, 2H), 7.69–7.61 (m, 1H), 7.55–7.46 (m, 3H), 7.39–7.32 (m, 2H), 7.27 (d, J = 1.0 Hz, 1H), 7.25 (d, J = 1.7 Hz, 2H), 7.23 (d, J = 2.7 Hz, 3H), 7.22 (d, J = 2.1 Hz, 1H), 7.20 (t, J = 1.4 Hz, 1H), 6.03 (dd, J = 6.8, 5.0 Hz, 1H), 5.57–5.52 (m, 1H), 4.78 (t, J = 5.3 Hz, 1H), 4.50 (dd, J = 11.5, 5.0 Hz, 1H), 4.33 (dd, J = 11.5, 6.8 Hz, 1H), 3.84 (ddd, J = 11.6, 5.1, 2.2 Hz, 1H), 3.72 (s, 7H), 3.59 (ddd, J = 11.6, 8.4, 5.5 Hz, 1H), 3.54–3.47 (m, 1H), 3.12 (ddd, J = 8.5, 4.6, 2.2 Hz, 1H), 0.69 (d, J = 6.3 Hz, 3H) ppm. ¹³C NMR (101 MHz, DMSO-d₆) δ 164.93, 162.94, 158.12, 158.06, 150.58, 145.59, 139.93, 136.40, 136.10, 133.55, 129.74, 129.62, 129.12, 129.01, 128.77, 127.68, 127.64, 126.71, 113.03, 101.88, 85.88, 81.76, 81.60, 68.74, 63.36, 60.42, 54.98, 39.40, 39.18, 38.97, and 15.50 ppm. HRMS: [M + Na]⁺ calc. for C₃₈H₃₈N₂O₉Na, 689.2470; found: 689.2465.

Synthesis of compound 7S: To a solution of compound 6S (1.21 g, 1.81 mmol) in DCM (10 mL) and DIPEA (0.66 mL, 5.4 mmol) was added 2-cyanoethyl-N,N-diisopropylchlorophosphoramidite (0.695 mL, 2.2 mmol) at 0°C. The mixture was stirred at 0°C for 2 h. The reaction mixture was diluted with DCM (100 mL) then washed with saturated aq. NaHCO₃ (100 mL). The organic layer was separated, dried over anhydrous Na₂SO₄, filtered, and concentrated. The amidite 7S was precipitated from hexanes (1.33 g, 1.5 mmol, 85%). ¹H NMR (600 MHz, CD₃CN) δ 9.03 (s, 1H), 7.96–7.91 (m, 2H), 7.61 (tq, J = 7.4, 1.3 Hz, 1H), 7.50–7.40 (m, 4H), 7.37–7.14 (m, 9H), 6.81 (qdd, J = 8.0, 6.6, 3.6 Hz, 4H), 6.02 (q, J = 5.3 Hz, 1H), 5.55 (dd, J = 8.1, 4.5 Hz, 1H), 4.42–4.33 (m, 1H), 4.27 (dt, J = 11.5, 5.6 Hz, 1H), 4.11–4.00 (m, 2H), 3.87–3.69 (m, 9H), 3.66–3.53 (m, 2H), 3.01–2.85 (m, 1H), 2.66–2.58 (m, 2H), 1.18–1.13 (m, 12H), 0.95 (dd, J = 15.0, 6.4 Hz, 3H) ppm. ¹³C NMR (151 MHz, CD₃CN) δ 166.41, 166.39, 163.83, 159.74, 159.70, 151.37, 151.33, 147.06, 147.01, 140.73, 140.70, 137.75, 137.66, 137.31, 137.30, 134.39, 134.38, 131.18, 131.16, 131.01, 130.99, 130.47, 130.45, 130.43, 129.61, 128.88, 128.75, 128.74, 127.85, 119.53, 114.02, 114.01, 113.99, 102.91, 87.46, 83.00, 82.92, 81.14, 81.08, 80.99, 80.94, 70.06, 64.65, 64.60, 64.53, 64.42, 64.08, 63.98, 60.95, 59.65, 59.53, 59.40, 55.89, 55.88, 43.89, 43.81, 25.09, 25.04, 25.02, 24.97, 24.94, 24.92, 24.89, 24.87, 21.09, 21.06, 21.04, 21.02, 16.11, 16.08 ppm. ³¹P NMR (243 MHz, CD₃CN) δ 147.37, 147.13 ppm. HRMS: [M + H]⁺ calc. for C₄₇H₅₆N₄O₁₀P, 867.3729; found: 867.3725.

Synthesis of compound 3R: To a solution of compound 3S (2.36 g, 4.85 mmol) in anhydrous THF (48.5 mL) at 0°C were added p-nitrobenzoic acid (4.05 g, 24.25 mmol, 5.0 equiv.), triphenylphosphine (6.36 g, 24.25 mmol, 5.0 equiv.), and DIAD (4.69 mL, 24.25 mmol, 5.0 equiv.). The reaction was allowed to stir at room temperature overnight, and the solvent was removed under reduced pressure. The crude material was purified by flash column chromatography (0–25% EtOAc in hexanes) to obtain p-nitrobenzyl ester as a yellowish foam (2.86 g, 4.50 mmol, R_f = 0.37 developed in 33% EtOAc in hexanes). This material was resuspended in 7 N ammonia in methanol (100 mL) and stirred at room temperature overnight. The solvent was removed, and the crude material was purified by flash column chromatography (0–30% EtOAc in hexanes) to yield compound 3R as a white foam (1.47 g, 3.01 mmol, 62% over 2 steps; R_f= 0.27, developed with 33% EtOAc in hexanes). ¹H NMR (400 MHz, DMSO-d₆) δ 11.37 (s, 1H), 7.85 (d, J = 8.1 Hz, 1H), 5.89 (d, J = 7.8 Hz, 1H), 5.71 (d, J = 8.0 Hz, 1H), 5.19 (d, J = 4.9 Hz, 1H), 4.30 (dd, J = 7.8, 4.5 Hz, 1H), 4.21 (d, J = 4.4 Hz, 1H), 3.82–3.73 (m, 1H), 3.62 (d, J = 4.7 Hz, 1H), 1.11 (d, J = 6.5 Hz, 3H), 0.89 (s, 9H), 0.81 (s, 9H), 0.10 (d, J = 2.9 Hz, 6H), 0.00 (s, 3H), −0.09 (s, 3H) ppm. ¹³C NMR (101 MHz, DMSO-d₆) δ 162.78, 150.87, 140.66, 102.41, 90.00, 85.75, 73.90, 71.64, 66.39, 39.18, 25.69, 25.56, 20.08, 17.71, 17.57, −4.57, −4.63, −4.70, and −5.22 ppm. HRMS: [M + H]⁺ calc. for C₂₂H₄₃N₂O₆Si₂, 487.2654; found: 487.2650.

Synthesis of compound 4R: To a solution of compound 3R (1.40 g, 2.88 mmol) in anhydrous THF (11.5 mL) and anhydrous pyridine (2.2 mL) were added DMTrCl (2.92 g, 8.63 mmol, 3 equiv.) and AgNO₃ (0.97 g, 5.75 mmol, 2 equiv.). The mixture was stirred overnight at room temperature. The mixture was filtered over Celite, and the filter cake was washed with DCM. The filtrate was concentrated under reduced pressure, and the residue was extracted with DCM and saturated aq. NaHCO₃. The organic layer was washed with brine, dried over anhydrous Na₂SO₄, filtered, and concentrated. The crude residue was purified by flash column chromatography (0–25% EtOAc in hexanes) to obtain DMTr-protected compound as a bright yellow foam (2.03 g, 2.57 mmol, 89%, R_f = 0.27; developed with 33% EtOAc in hexanes). ¹H NMR (400 MHz, DMSO-d₆) δ 11.38 (s, 1H), 7.46–7.38 (m, 2H), 7.30 (td, J = 8.1, 7.7, 5.7 Hz, 7H), 7.26–7.17 (m, 1H), 6.94–6.84 (m, 4H), 5.66 (d, J = 5.8 Hz, 1H), 5.31 (d, J = 8.0 Hz, 1H), 4.11 (dd, J = 4.6, 3.2 Hz, 1H), 4.06–4.02 (m, 1H), 3.86 (dd, J = 4.6, 3.2 Hz, 1H), 3.74 (s, 6H), 3.49–3.41 (m, 1H), 0.85 (s, 9H), 0.82 (s, 8H), 0.79 (d, J = 6.2 Hz, 3H), 0.06 (d, J = 3.2 Hz, 5H), 0.01 (s, 3H), −0.08 (s, 3H) ppm. ¹³C NMR (101 MHz, DMSO-d₆) δ 158.13, 158.09, 150.42, 141.13, 135.84, 130.07, 130.03, 127.75, 127.65, 126.66, 113.09, 113.04, 101.86, 88.28, 87.24, 86.16, 73.32, 71.44, 69.53, 55.00, 25.64, 25.54, 17.62, 17.54, 17.09, −4.45, −4.64, −4.86, and −5.07 ppm. HRMS: [M + Na]⁺ calc. for C₄₃H₆₀N₂O₈Si₂Na, 811.3786; found: 811.3787.

To a solution of fully protected compound (2.03 g, 2.57 mmol) in THF (12.9 mL) was added TBAF (5.14 g, 5.14 mmol, 2 equiv.). After stirring at room temperature overnight, the solvent was removed under reduced pressure. The crude reside was purified by flash column chromatography (0–100% EtOAc in hexanes then 2.5% MeOH in EtOAc) to obtain compound 4R as a white foam (1.00 g, 1.78 mmol, 69%; R_f = 0.45, developed with 5% MeOH in EtOAc). ¹H NMR (400 MHz, DMSO-d₆) δ 11.35 (d, J = 2.1 Hz, 1H), 7.47–7.40 (m, 2H), 7.31 (ddd, J = 10.1, 7.7, 3.8 Hz, 7H), 7.25–7.18 (m, 1H), 6.95 – 6.84 (m, 4H), 5.68 (d, J = 5.9 Hz, 1H), 5.37 (d, J = 5.8 Hz, 1H), 5.18 (dd, J = 8.1, 2.0 Hz, 1H), 5.09 (d, J = 5.5 Hz, 1H), 4.18 (q, J = 5.3 Hz, 1H), 3.97 (q, J = 5.9 Hz, 1H), 3.74 (s, 6H), 3.68 (dd, J = 4.3, 3.1 Hz, 1H), 3.48–3.39 (m, 1H), 0.76 (d, J = 6.4 Hz, 3H) ppm. ¹³C NMR (101 MHz, DMSO-d₆) δ 162.83, 158.10, 158.08, 150.61, 146.33, 140.77, 136.26, 136.16, 130.13, 130.09, 127.84, 127.69, 126.58, 113.10, 113.06, 101.65, 87.36, 86.92, 85.98, 72.53, 69.67, 68.96, 55.05, 55.03, and 17.08 ppm. HRMS: [M + Na]⁺ calc. for C₃₁H₃₂N₂O₈Na, 583.2051; found: 583.2060.

Synthesis of compound 5R: To a solution of compound 4R (1.00 g, 1.78 mmol) in dioxane (24 mL) and H₂O (3 mL) was added NaIO₄ (0.42 g, 1.96 mmol, 1.1 equiv. dissolved in 3 mL H₂O). The bi-layer reaction mixture was vigorously stirred at room temperature for 4 h. The reaction mixture was filtered, and the filter cake was washed with additional dioxane. To the filtrate was added NaBH₄ (0.074 g, 1.96 mmol, 1.1 equiv.). After stirring at room temperature for 2 h, the mixture was cooled to 0°C then quenched with 1:1 v/v acetic acid:pyridine. After the solvent was removed under reduced pressure, the crude residue was extracted with EtOAc and saturated aq. NaHCO₃. The organic layer was separated, dried over anhydrous Na₂SO₄, filtered, and concentrated under reduced pressure. The crude material was purified by flash column chromatography (0–5% MeOH in DCM) to obtain compound 5R as a white foam (250 mg, 0.44 mmol, 25%; R_f = 0.28 developed with 5% MeOH in DCM). ¹H NMR (400 MHz, DMSO-d₆) δ 11.22 (d, J = 2.3 Hz, 1H), 7.65 (d, J = 8.1 Hz, 1H), 7.37–7.30 (m, 2H), 7.29–7.14 (m, 8H), 6.90–6.77 (m, 4H), 5.65 (t, J = 5.8 Hz, 1H), 5.53 (dd, J = 8.0, 2.2 Hz, 1H), 5.10 (t, J = 5.9 Hz, 1H), 4.64 (t, J = 5.3 Hz, 1H), 3.73 (s, 7H), 3.63 – 3.43 (m, 3H), 3.30–3.14 (m, 2H), 3.04–2.95 (m, 1H), 1.23 (t, J = 7.3 Hz, 1H), 0.77 (d, J = 6.3 Hz, 3H) ppm. ¹³C NMR (101 MHz, DMSO-d₆) δ 163.30, 157.97, 151.06, 145.81, 141.30, 136.45, 136.36, 129.91, 129.86, 127.90, 127.55, 126.48, 112.98, 112.96, 101.48, 85.79, 84.25, 83.07, 69.00, 61.65, 61.03, 54.98, 15.80, and 1.12 ppm. HRMS: [M + Na]⁺ calc. for C₃₁H₃₄N₂O₈Na, 585.2207; found: 585.2217.

Synthesis of compound 6R: To a solution of compound 5R (4.63 g, 7.75 mmol) in anhydrous DCM (215 mL) and pyridine (1.5 mL) cooled to -78°C, benzoyl chloride (1.0 mL, 8.53 mmol) was added dropwise. After stirring at −78°C for 1 h, the reaction mixture was brought to 0°C and quenched with ethanol (5 mL). The mixture was extracted with DCM and saturated aq. NaHCO₃. The organic layer was washed with brine, separated, dried over anhydrous Na₂SO₄, filtered, and concentrated. The crude residue was purified by flash column chromatography (0–75% EtOAc in hexanes) to yield compound 6R as a white foam (2.30 g, 3.45 mmol, 45%; R_f = 0.54, developed in 50% EtOAc in hexane). ¹H NMR (400 MHz, DMSO-d₆) δ 11.32 (d, J = 2.2 Hz, 1H), 7.88 (dd, J = 8.4, 1.4 Hz, 2H), 7.79 (d, J = 8.0 Hz, 1H), 7.70–7.63 (m, 1H), 7.53 (t, J = 7.8 Hz, 2H), 7.37–7.31 (m, 2H), 7.29–7.15 (m, 7H), 6.87–6.78 (m, 4H), 6.03 (dd, J = 6.7, 5.0 Hz, 1H), 5.53 (dd, J = 8.0, 2.1 Hz, 1H), 4.73 (t, J = 5.1 Hz, 1H), 4.55 (dd, J = 11.4, 5.0 Hz, 1H), 4.40 (dd, J = 11.4, 6.8 Hz, 1H), 3.73 (s, 6H), 3.57 (qd, J = 6.4, 1.8 Hz, 1H), 3.35–3.25 (m, 2H), 3.20 (dt, J = 11.4, 5.0 Hz, 1H), 2.97–2.91 (m, 1H), 0.85 (d, J = 6.3 Hz, 3H) ppm. ¹³C NMR (101 MHz, DMSO-d₆) δ 164.96, 163.08, 158.02, 150.86, 145.75, 140.73, 136.37, 136.24, 133.60, 129.92, 129.85, 129.10, 129.05, 128.83, 127.88, 127.59, 126.54, 113.04, 113.00, 102.08, 85.92, 83.05, 81.25, 68.92, 63.63, 61.13, 55.00, 39.99, and 15.74 ppm. HRMS: [M + Na]⁺ calc. for C₃₈H₃₈N₂O₉Na, 689.2470; found: 689.2477.

Synthesis of compound 7R: To a solution of compound 6R (2.30 g, 3.45 mmol) in DCM (30 mL) and DIPEA (2.30 mL, 18.9 mmol) was added 2-cyanoethyl-N,N-diisopropylchlorophosphoramidite (2.41 mL, 7.57 mmol) at 0°C. The mixture was stirred at 0°C for 2 h. The reaction mixture was diluted with DCM (100 mL) then washed with saturated aq. NaHCO₃ (100 mL). The organic layer was separated, dried over anhydrous Na₂SO₄, filtered, and concentrated. The crude material was purified by flash column chromatography (0–33% EtOAc in hexanes) to give compound 7R as a white foam (2.31 g, 2.66 mmol, 77%, R_f = 0.41; developed with 50% EtOAc in hexanes). ¹H NMR (600 MHz, CD₃CN) δ 9.04 (s, 1H), 7.94 (ddd, J = 8.4, 4.9, 1.4 Hz, 2H), 7.67–7.59 (m, 2H), 7.52–7.40 (m, 4H), 7.36–7.08 (m, 7H), 6.87–6.79 (m, 4H), 5.99 (q, J = 5.0 Hz, 1H), 5.46 (d, J = 8.1 Hz, 1H), 4.49–4.30 (m, 2H), 3.80–3.63 (m, 9H), 3.56–3.46 (m, 2H), 3.42–3.31 (m, 1H), 2.83–2.63 (m, 1H), 2.59 (td, J = 5.9, 4.1 Hz, 2H), 1.15–1.09 (m, 7H), 1.09–1.04 (m, 8H) ppm. ¹³C NMR (151 MHz, CD₃CN) δ 166.43, 166.40, 163.87, 159.73, 159.67, 151.56, 147.06, 147.00, 141.80, 137.76, 137.74, 137.27, 137.19, 134.40, 131.31, 131.28, 131.07, 131.05, 130.51, 130.50, 130.43, 130.41, 129.64, 129.06, 128.98, 128.73, 128.72, 127.75, 127.72, 119.54, 119.51, 114.13, 114.08, 114.04, 114.01, 102.99, 87.72, 87.70, 82.97, 82.95, 82.78, 82.72, 70.34, 70.30, 65.10, 65.00, 64.93, 64.89, 64.85, 64.84, 60.95, 59.51, 59.38, 59.34, 59.21, 55.91, 55.90, 43.86, 43.81, 43.78, 43.73, 24.93, 24.90, 24.87, 24.85, 24.82, 21.14, 21.02, 21.01, 20.98, 20.96, 16.53, and 16.38 ppm. ³¹P NMR (243 MHz, CD₃CN) δ 147.33, 147.30 ppm. HRMS: [M + H]⁺ calc. for C₄₇H₅₆N₄O₁₀P, 867.3729; found: 867.3726.

Synthesis of compounds 9 and 10: mCPBA (19.9 g, 116 mmol) was added to a cooled solution of compound 8 synthesized as previously described [37] (25.0 g, 55.9 mmol) in methanol (275 mL), and the mixture was stirred overnight at room temperature. To the solution were added 10% aq. Na₂S₂O₃ (100 mL) and saturated aq. NaHCO₃ (100 mL), and the reaction mixture was stirred for 15 min. The reaction mixture was then extracted with DCM (150 mL x 3 times). The organic layers were combined, dried over anhydrous Na₂SO₄, filtered, and concentrated. The crude material was purified by flash column chromatography (0–2% MeOH in DCM) to give compounds 9 (1.0 g, 1.9 mmol, 3.6%, R_f= 0.48; developed with 5% MeOH in DCM) and 10 (8.8 g, 17.5 mmol, 31%, R_f= 0.42; developed with 5% MeOH in DCM). Compound9: ¹H NMR (400 MHz, DMSO-d₆) δ 11.44 (d, J = 2.1 Hz, 1H), 7.42 (d, J = 8.2 Hz, 1H), 6.01 (d, J = 7.4 Hz, 1H), 5.81 (dd, J = 8.1, 2.0 Hz, 1H), 4.74 (t, J = 4.9 Hz, 1H), 4.56 (dd, J = 7.4, 3.7 Hz, 1H), 4.00 (d, J = 3.6 Hz, 1H), 3.55 (t, J = 4.3 Hz, 2H), 3.31 (s, 1H), 3.29 (s, 3H), 0.86 (d, J = 40.3 Hz, 18H), 0.12 (d, J = 8.3 Hz, 6H), −0.01 (s, 3H), −0.09 (s, 3H) ppm. ¹³C NMR (126 MHz, DMSO-d₆) δ 162.60, 150.98, 140.16, 109.53, 103.49, 86.14, 75.18, 74.91, 55.45, 48.85, 25.82, 25.77, 17.99, 17.77, −4.33, −4.39, −4.97, and −5.10 ppm. HRMS: [M + Na]⁺ calc. for C₂₂H₄₂N₂O₇Si₂Na, 525.2423; found: 525.2438. Compound10: ¹H NMR (400 MHz, DMSO-d₆) δ 11.41 (d, J = 2.2 Hz, 1H), 7.76 (d, J = 8.1 Hz, 1H), 5.99 (d, J = 7.2 Hz, 1H), 5.73 (dd, J = 8.4, 2.4 Hz, 1H), 5.34 (t, J = 5.6 Hz, 1H), 4.32 (dd, J = 7.2, 5.2 Hz, 1H), 4.22 (d, J = 5.2 Hz, 1H), 3.54–3.41 (m, 2H), 3.30 (s, 3H), 0.90 (s, 9H), 0.80 (s, 9H), 0.07 (d, J = 6.2 Hz, 6H), −0.01 (s, 3H), −0.10 (s, 3H) ppm. ¹³C NMR (126 MHz, DMSO-d₆) δ 162.60, 150.98, 140.16, 109.53, 103.49, 86.14, 75.18, 74.91, 55.45, 48.85, 25.82, 25.77, 17.99, 17.77, −4.33, −4.39, −4.97, and −5.10 ppm. HRMS: [M + Na]⁺ calc. for C₂₂H₄₂N₂O₇Si₂Na, 525.2423; found: 525.2426.

Synthesis of compound 11: To a solution of compound 10 (8.8 g, 17.5 mmol) in anhydrous pyridine (60 mL) was added DMTrCl (8.89 g, 26.3 mmol), and the mixture was stirred at room temperature overnight. After removing the solvent, the residue was extracted with DCM and saturated aq. NaHCO₃. The organic layer was dried over anhydrous Na₂SO₄, filtered, and concentrated. The crude material was purified by flash column chromatography to give the DMTr-protected compound (14.1 g, 17.9 mmol, 99%, R_f= 0.77; developed in 50% EtOAC in hexanes). ¹H NMR (400 MHz, DMSO-d₆) δ 11.46 (s, 1H), 7.61 (d, J = 8.1 Hz, 1H), 7.46–7.37 (m, 2H), 7.33–7.23 (m, 6H), 7.22–7.15 (m, 1H), 6.86 (dd, J = 9.0, 3.1 Hz, 4H), 6.01 (d, J = 4.9 Hz, 1H), 5.80 (d, J = 8.1 Hz, 1H), 4.43 (t, J = 4.7 Hz, 1H), 4.03 (d, J = 4.4 Hz, 1H), 3.71 (s, 6H), 3.65 (d, J = 10.7 Hz, 1H), 3.45 (s, 3H), 2.88 (d, J = 10.7 Hz, 1H), 0.71 (s, 8H), 0.63 (s, 8H), −0.03 (s, 3H), −0.04 (d, J = 3.6 Hz, 6H), −0.19 (s, 3H) ppm. ¹³C NMR (126 MHz, DMSO-d₆) δ 158.07, 150.80, 144.86, 140.29, 135.71, 129.59, 129.57, 127.77, 127.55, 126.57, 113.20, 113.12, 108.03, 102.81, 88.51, 75.64, 74.36, 64.56, 54.97, 52.32, 25.63, 25.50, 17.51, 17.44, −4.33, −4.81, −4.86, and −5.18 ppm. HRMS: [M + Na]⁺ calc. for C₄₃H₆₀N₂O₉Si₂Na, 827.3730; found: 827.3710.

To a solution of the fully protected compound (12.1 g, 15.0 mmol) in THF (100 mL) was added 1 M TBAF in THF (30 mL, 30 mmol). The reaction was stirred overnight under argon atmosphere, and the next day the solvent was evaporated under vacuum. The crude material was purified with column chromatography (0–2% MeOH in EtOAc) to yield compound 11 (8.31 g, 14.4 mmol, 96%, R_f= 0.48; developed with 10% MeOH in DCM). ¹H NMR (400 MHz, DMSO-d₆) δ 11.35 (s, 1H), 7.48–7.42 (m, 2H), 7.39 (d, J = 8.2 Hz, 1H), 7.34–7.17 (m, 8H), 6.87 (d, J = 8.9 Hz, 3H), 5.98 (d, J = 7.4 Hz, 1H), 5.71 (d, J = 5.1 Hz, 2H), 5.52 (d, J = 6.7 Hz, 1H), 4.44 (td, J = 7.2, 4.2 Hz, 1H), 4.05 (t, J = 4.4 Hz, 1H), 3.72 (d, J = 1.3 Hz, 7H), 3.44 (d, J = 9.8 Hz, 1H), 3.31 (s, 3H), 2.83 (s, 4H), 2.80 (d, J = 3.5 Hz, 1H), 1.98 (s, 1H) ppm. ¹³C NMR (126 MHz, DMSO-d₆) δ 162.86, 158.13, 151.19, 144.65, 140.25, 135.48, 134.95, 129.99, 129.86, 127.83, 127.77, 126.73, 113.09, 113.07, 109.33, 103.11, 86.93, 85.32, 73.77, 73.22, 59.81, 57.26, 55.04, 48.13, and 25.85 ppm. HRMS: [M + Na]⁺ calc. for C₃₁H₃₂N₂O₉Na, 599.2000; found: 599.2009.

Synthesis of compound 12: Compound 11 (7.28 g, 12.6 mmol) was dissolved in dioxane (85 mL) and water (15 mL). NaIO₄ (3.24 g, 15.2 mmol) was added slowly to this solution while stirring at room temperature. The reaction mixture was stirred at room temperature overnight then filtered, and the precipitate was washed with additional dioxane (100 mL). To the filtrate, NaBH₄ (0.500 g, 19.0 mmol) was added, and the reaction mixture was stirred at room temperature for 3 h. The reaction was quenched with 20 mL of 1:1 mixture of pyridine and acetic acid. After removing the solvents, the residue was extracted with DCM and saturated aq. NaHCO₃. The organic layer was dried over anhydrous Na₂SO₄, filtered, and concentrated. The crude material was purified by flash column chromatography (0–3% MeOH in DCM) to give compound 12 (5.40 g, 9.33 mol, 74%, R_f = 0.26; developed with 5% MeOH in DCM). ¹H NMR (400 MHz, DMSO-d₆) δ 11.12 (s, 1H), 7.47 (d, J = 8.0 Hz, 1H), 7.42 – 7.12 (m, 9H), 6.95 – 6.82 (m, 4H), 5.84 (t, J = 5.8 Hz, 1H), 5.50 (d, J = 8.0 Hz, 1H), 5.08 (s, 1H), 4.85 (t, J = 3.9 Hz, 1H), 3.73 (s, 6H), 3.44 (dd, J = 7.1, 3.9 Hz, 3H), 3.26 (d, J = 9.7 Hz, 1H), 2.90 (s, 3H), 2.87 (d, J = 9.6 Hz, 1H) ppm. ¹³C NMR (126 MHz, DMSO-d₆) δ 163.40, 158.04, 150.41, 144.66, 141.80, 135.46, 135.09, 129.75, 129.70, 127.78, 127.66, 126.64, 113.15, 113.11, 102.82, 100.91, 75.32, 61.95, 59.63, 58.85, 54.99, 48.13, 45.55, and 10.23 ppm. HRMS: [M + Na]⁺ calc. for C₃₁H₃₄N₂O₉Na, 601.2157; found: 601.2161.

Synthesis of compound 13: To a solution of compound 12 (4.70 g, 8.12 mmol) in DCM (175 mL) and pyridine (7 mL) at −78°C was added a solution of benzoyl chloride (1.04 mL, 8.9 mmol) in DCM (50 mL) over a period of 30 min. The reaction mixture was then stirred for 1 h at −78°C and then allowed warm to room temperature, at which point 5 mL of ethanol was added to quench the reaction. The mixture was washed with saturated aq. NaHCO₃ (250 mL) and extracted with DCM (100 mL x 3 times). The organic layers were combined, dried over anhydrous Na₂SO₄, and concentrated. The crude material was purified by flash column chromatography (0–3% MeOH in DCM) to yield compound 13 (2.73 g, 4.0 mmol, 49%, R_f= 0.30; developed with 5% MeOH in DCM). ¹H NMR (400 MHz, DMSO-d₆) δ 11.24 (s, 1H), 7.85–7.77 (m, 2H), 7.68 (d, J = 8.1 Hz, 1H), 7.66–7.62 (m, 1H), 7.49 (t, J = 7.8 Hz, 2H), 7.43–7.37 (m, 2H), 7.33–7.14 (m, 7H), 6.86 (d, J = 8.9 Hz, 3H), 6.22 (t, J = 6.2 Hz, 1H), 5.59 (d, J = 8.1 Hz, 1H), 4.99 (t, J = 4.2 Hz, 1H), 4.38 (d, J = 6.1 Hz, 2H), 3.73 (dd, J = 11.5, 4.1 Hz, 1H), 3.70 (s, 6H), 3.47 (dd, J = 11.5, 4.1 Hz, 1H), 3.26 (d, J = 9.9 Hz, 1H), 2.98 (d, J = 10.2 Hz, 1H), and 2.96 (s, 3H) ppm. ¹³C NMR (126 MHz, DMSO-d₆) δ 164.86, 163.13, 158.07, 150.30, 144.52, 141.08, 135.23, 135.01, 133.62, 129.72, 129.70, 129.07, 128.89, 128.79, 127.81, 127.63, 126.68, 113.16, 113.13, 103.38, 101.72, 85.40, 72.77, 63.73, 59.64, 59.36, 54.96, and 48.56 ppm. HRMS: [M + Na]⁺ calc. for C₃₈H₃₈N₂O₁₀Na, 705.2419; found: 705.2411.

Synthesis of compound 14: To a solution of compound 13 (2.58 g, 3.77 mmol) in DCM (20 mL) were added DIPEA (1.38 mL, 11.31 mmol) and 2-cyanoethyl-N,N-diisopropylchlorophosphoramidite (1.32 mL, 4.15 mmol) at 0°C. The reaction mixture was allowed to warm room temperature and was stirred for 3 h. The reaction mixture was diluted with DCM (100 mL) then washed with saturated aq. NaHCO₃ (100 mL). The organic layer was separated, dried over anhydrous Na₂SO₄, filtered, and concentrated. The residue was dissolved in minimal DCM in 1 L of hexanes. Solids were collected by dissolving in DCM and then concentrated to yield compound 14 (3.89 g, 4.4 mmol, quant.) as a white foam. ¹H NMR (600 MHz, CD₃CN) δ 9.17 (s, 1H), 7.90 (d, J = 8.3 Hz, 1H), 7.65–7.59 (m, 1H), 7.55 (dd, J = 11.3, 8.1 Hz, 1H), 7.51–7.44 (m, 4H), 7.39–7.26 (m, 6H), 7.25–7.19 (m, 1H), 6.88–6.81 (m, 4H), 6.28 (ddd, J = 11.4, 6.9, 4.6 Hz, 1H), 5.69 (dd, J = 11.6, 8.1 Hz, 1H), 4.45–4.31 (m, 2H), 4.16–4.00 (m, 1H), 3.90–3.57 (m, 10H), 3.55–3.43 (m, 3H), 3.41–3.11 (m, 2H), 3.05 (d, J = 14.7 Hz, 3H), 2.75 (t, J = 5.9 Hz, 1H), 2.66–2.51 (m, 2H), 1.30–1.09 (m, 24H) ppm. ¹³C NMR (151 MHz, CD₃CN) δ 166.39, 163.89, 163.85, 159.75, 159.74, 151.33, 151.17, 145.82, 145.78, 141.82, 141.40, 136.60, 136.35, 136.33, 136.30, 134.48, 131.21, 131.20, 131.13, 131.10, 131.04, 130.39, 130.37, 130.35, 129.67, 129.06, 128.94, 128.90, 128.86, 128.84, 127.92, 127.90, 119.50, 119.44, 118.97, 114.05, 104.35, 104.28, 104.21, 103.57, 103.01, 87.22, 87.13, 74.65, 74.28, 65.00, 62.25, 62.14, 61.66, 61.56, 61.31, 60.88, 59.87, 59.75, 59.72, 59.59, 59.16, 59.13, 55.90, 55.89, 50.44, 50.25, 47.40, 45.99, 45.95, 43.84, 43.78, 43.76, 43.70, 24.99, 24.94, 24.91, 24.88, 24.84, 23.17, 23.16, 23.10, 23.09, 21.01, 20.99, 20.97, 20.95, 20.61, and 20.56 ppm. ³¹P NMR (243 MHz, CD₃CN) δ 147.26, 147.25 ppm. HRMS: [M + H]⁺ calc. for C₄₇H₅₆N₄O₁₁SP, 883.3678; found: 883.3674.

Synthesis of compound 16: To a solution of compound 15 synthesized as previously described [38, 39] (500 mg, 0.893 mmol) in DCM (10 mL) was added NaIO₄ (287 mg, 1.34 mmol) in H₂O (10 mL). The resulting mixture was vigorously stirred for 4 h, the reaction completion was confirmed by TLC. The organic layer was separated and evaporated in vacuo. The resulting keto-aldehyde, which was obtained as a colorless foam, was used for next step without further purification. A round-bottom flask was charged with η6-(p-cymene-S,S)-N-toluenesulfonyl-1,2-diphenylethylenediamine ruthenium(II) chloride (15 mg, 0.024 mmol, 2.5 mol%) and the keto-aldehyde (500 mg, 0.893 mmol), and the system was flushed three times with argon. A solution of sodium formate (2.27 g, 33.3 mmol) in water (13 mL) was added, followed by EtOAc (3 mL). The resulting two-phase mixture was vigorously stirred for 24 h at room temperature. The organic phase was separated, and the aqueous phase was extracted with another 10 mL of EtOAc. The solvent was removed from the combined organic layers at reduced pressure on a rotary evaporator. The crude residue was purified by flash column chromatography on silica gel (100% EtOAc) to afford compound 16 as a white foam (401 mg, 80% over 2 steps). ¹H NMR (400 MHz, DMSO-d₆): δ 11.34 (s, 1H), 7.60 (d, J = 8.0 Hz, 1H), 7.37–7.08 (m, 9H), 6.85 (d, J = 8.4 Hz, 4H), 5.48 (dd, J = 15.5, 6.5 Hz, 2H), 5.08 (d, J = 5.3 Hz, 1H), 4.72 (s, 1H), 3.72 (s, 7H), 3.55 (s, 3H), 3.10 (s, 2H), 1.03 (d, J = 6.4 Hz, 3H) ppm. ¹³C NMR (126 MHz, DMSO-d₆) δ 163.21, 157.99, 151.08, 144.81, 141.57, 135.61, 135.51, 129.61, 129.57, 127.75, 127.63, 126.59, 113.12, 113.09, 101.20, 86.46, 85.50, 79.54, 67.11, 63.64, 60.44, 59.75, 54.99, 39.23, 18.38, and 14.09 ppm. HRMS: [M + Na]⁺ calc. for C₃₁H₃₄N₂O₈Na, 585.2213; found: 585.2224.

Synthesis of compound 17S: To a solution of compound 16 (520 mg, 0.925 mmol) in dry pyridine (10 mL) was added TBSCl (154 mg, 1.02 mmol) and DMAP (11 mg, 0.09 mmol). The reaction mixture was stirred for 3 h at room temperature, and then the resulting mixture was diluted with DCM. The reaction was quenched with saturated aq. NaHCO₃. The organic layer was washed with brine and concentrated under vacuum. The crude residue was purified by flash column chromatography on silica gel (50% EtOAc in hexanes) to afford compound 17S as a white foam (400 mg, 64%). ¹H NMR (400 MHz, DMSO-d₆) δ 11.34 (d, J = 2.0 Hz, 1H), 7.62 (d, J = 8.0 Hz, 1H), 7.45–7.06 (m, 9H), 7.00–6.69 (m, 4H), 5.62 – 5.31 (m, 2H), 4.98 (d, J = 5.9 Hz, 1H), 3.73 (ddd, J = 41.8, 11.1, 5.2 Hz, 8H), 3.60–3.38 (m, 2H), 3.05 (d, J = 5.1 Hz, 2H), 1.05 (d, J = 6.3 Hz, 3H), 0.74 (s, 9H), −0.07 (d, J = 6.9 Hz, 6H) ppm. ¹³C NMR (126 MHz, DMSO-d6) δ 163.21, 158.01, 151.07, 144.76, 141.61, 135.59, 135.41, 129.56, 129.54, 127.71, 127.57, 126.57, 113.09, 113.06, 101.02, 85.92, 85.61, 78.31, 66.87, 63.36, 61.41, 54.96, 25.58, 18.56, 17.70, −5.65, and −5.69 ppm. HRMS: [M + Na]⁺ calc. for C₃₇H₄₈N₂O₈SiNa, 699.3078; found: 699.3067.

Synthesis of compound 18S: To a solution of compound 17S (6.6 g, 9.76 mmol) in dry DCM (100 mL) were added Et₃N (13.5 mL, 97.6 mmol) and BzCl (5.6 mL, 48.8 mmol). The reaction mixture was stirred for 4 h at room temperature, and then the resulting mixture was diluted with DCM. The reaction was quenched with saturated aq. NaHCO₃. The organic layer was washed with brine and concentrated under vacuum. The crude residue was purified by flash column chromatography on silica gel (25% EtOAc in hexanes) to afford compound 18S as a colorless foam (7.8 g, 90%). ¹H NMR (400 MHz, DMSO-d₆) δ 8.07–7.11 (m, 20H), 6.98–6.69 (m, 4H), 6.02 (d, J = 4.6 Hz, 1H), 5.69–5.27 (m, 2H), 3.81–3.42 (m, 9H), 3.17 (qd, J = 10.7, 4.4 Hz, 2H), 1.37 (d, J = 6.5 Hz, 3H), 0.71 (s, 9H), -0.10 (d, J = 12.1 Hz, 6H) ppm. ¹³C NMR (126 MHz, DMSO-d₆) δ 169.19, 165.01, 161.61, 158.08, 149.35, 144.66, 141.00, 135.57, 135.52, 135.30, 133.60, 130.92, 130.23, 129.62, 129.47, 129.23, 129.18, 128.73, 127.78, 127.63, 126.71, 113.14, 113.11, 101.19, 85.91, 84.66, 78.65, 69.99, 63.23, 61.81, 54.96, 25.54, 17.67, 14.99, and −5.76 ppm. HRMS: [M + Na]⁺ calc. for C₅₁H₅₆N₂O₁₀SiNa, 907.3602; found: 907.3611.

Synthesis of compound 19S: To a solution of compound 18S (7.3 g, 8.25 mmol) in dry THF (83 mL) was added Et₃N·3HF (13.4 mL, 82.5 mmol) dropwise. The reaction mixture was stirred for 8 h at room temperature then diluted with EtOAc and quenched with saturated aq. NaHCO₃. The organic layer was washed with brine and concentrated under vacuum. The crude residue was purified by flash column chromatography on silica gel (50% EtOAc in hexanes) to afford compound 19S as a colorless foam (6.1 g, 96%). ¹H NMR (400 MHz, DMSO-d₆) δ 8.05–7.11 (m, 20H), 7.04–6.67 (m, 4H), 6.04 (d, J = 3.9 Hz, 1H), 5.67–5.25 (m, 2H), 4.85 (t, J = 5.1 Hz, 1H), 3.72–3.70(m, 7H), 3.60–3.38 (m, 2H), 3.18 (qd, J = 10.7, 5.1 Hz, 2H), 1.39 (d, J = 6.5 Hz, 3H) ppm. ¹³C NMR (126 MHz, DMSO-d₆) δ 169.19, 165.10, 161.60, 158.05, 149.26, 144.64, 141.00, 135.56, 135.50, 135.37, 133.56, 130.95, 130.19, 129.65, 129.47, 129.21, 129.17, 128.73, 127.78, 127.70, 126.72, 113.14, 113.12, 100.84, 85.83, 84.54, 79.12, 70.06, 63.63, 60.48, 54.97, and 14.94 ppm. HRMS: [M + Na]⁺ calc. for C₄₅H₄₂N₂O₁₀Na, 793.2737; found: 793.2724.

Synthesis of compound 20S: To a solution of compound 19S (568 mg, 0.737 mmol) in dry DCM (8 mL) were added DIPEA (385 μL, 2.21 mmol) and 2-cyanoethyl-N,N-diisopropylchlorophosphoramidite (181 μL, 0.811 mmol) dropwise. The reaction mixture was stirred for 1 h at room temperature, then diluted with DCM. The reaction was quenched with saturated aq. NaHCO₃. The organic layer was washed with brine and concentrated under vacuum. The crude residue was purified by flash column chromatography on silica gel (30% EtOAc in hexanes) to afford compound 20S as a white foam (623 mg, 87%). ¹H NMR (500 MHz, CD₃CN) δ 8.09–7.89 (m, 4H), 7.86–7.13 (m, 16H), 6.95–6.74 (m, 4H), 6.01 (dd, J = 8.7, 3.7 Hz, 1H), 5.45 (dtt, J = 21.1, 8.2, 4.1 Hz, 2H), 3.90–3.60 (m, 11H), 3.51 (ddq, J = 13.5, 10.3, 6.7 Hz, 2H), 3.44–3.10 (m, 2H), 2.54 (dt, J = 8.8, 5.9 Hz, 2H), 1.44 (t, J = 6.2 Hz, 3H), 1.32–0.93 (m, 12H) ppm. ¹³C NMR (101 MHz, CD₃CN) δ 169.12, 165.27, 161.69, 158.37, 149.44, 144.58, 140.43, 135.10, 133.09, 131.14, 129.94, 129.69, 129.67, 129.39, 129.11, 128.33, 127.69, 127.54, 126.57, 118.12, 116.96, 112.76, 112.75, 100.82, 84.61, 69.86, 54.58, 42.58, 42.46, 23.67, 23.62, 23.55, 23.48, 19.68, and 19.62 ppm. ³¹P NMR (202 MHz, CD₃CN) δ 149.67; 149.29 ppm. HRMS: [M + H]⁺ calc. for C₅₄H₆₀N₄O₁₁P, 971.3996; found: 971.3989.

Synthesis of compound 17R: To a solution of compound 17S (2.2 g, 3.25 mmol) in dry THF (100 mL) were added PPh₃ (4.26 g, 16.3 mmol), BzOH (1.98 g, 16.3 mmol), and DIAD (3.15 mL, 16.3 mmol) dropwise. The reaction mixture was stirred for 3 h at room temperature, and reaction completion was confirmed by TLC. The solvent was removed under vacuum. The crude residue was purified by flash column chromatography on silica gel to afford a mixture of 2,2′-anhydro-nucleoside and DIAD byproducts. This mixture was dissolved in THF (50 mL). To the mixture was added 1 N aq. NaOH (10 mL) dropwise. The resulting mixture was stirred for 3 h. The solvent was removed under vacuum. The crude residue was purified by flash column chromatography on silica gel (50% EtOAc in hexanes) to afford compound 17R as a white foam (1.8 g, 80%). ¹H NMR (400 MHz, DMSO-d₆) δ 11.30 (d, J = 2.1 Hz, 1H), 7.62 (d, J = 8.1 Hz, 1H), 7.43–7.04 (m, 9H), 6.96–6.65 (m, 4H), 5.60–5.40 (m, 2H), 5.07 (d, J = 5.4 Hz, 1H), 3.96–3.44 (m, 10H), 3.11–2.77 (m, 2H), 1.14 (d, J = 6.2 Hz, 3H), 0.75 (s, 9H), and −0.05 (s, 6H) ppm. ¹³C NMR (126 MHz, DMSO-d₆) δ 163.22, 158.00, 157.99, 151.78, 144.75, 141.42, 135.58, 135.38, 129.51, 129.46, 127.70, 127.53, 126.56, 113.10, 113.06, 101.70, 86.25, 85.44, 77.71, 66.11, 63.07, 61.51, 54.96, 25.59, 19.72, 17.73, −5.66, and −5.68 ppm. HRMS: [M + Na]⁺ calc. for C₃₇H₄₈N₂O₈SiNa, 699.3078; found: 699.3099.

Synthesis of compound 18R: To a solution of compound 17R (3.3 g, 4.88 mmol) in dry DCM (50 mL) were added Et₃N (6.8 mL, 48.8 mmol) and BzCl (2.8 mL, 24.4 mmol). The reaction mixture was stirred for 4 h at room temperature, and then the resulting mixture was diluted with DCM. The reaction was quenched with saturated aq. NaHCO₃. The organic layer was washed with brine and concentrated under vacuum. The crude residue was purified by flash column chromatography on silica gel (25% EtOAc in hexanes) to afford compound 18R as a colorless foam (4.0 g, 92%). ¹H NMR (400 MHz, DMSO-d₆) δ 8.11–7.76 (m, 3H), 7.76–7.56 (m, 4H), 7.48 (t, J = 7.7 Hz, 2H), 7.39–7.02 (m, 11H), 7.08–6.69 (m, 4H), 6.03 (d, J = 7.1 Hz, 1H), 5.83 (d, J = 8.2 Hz, 1H), 5.40 (p, J = 6.4 Hz, 1H), 3.70 (s, 9H), 3.19–2.93 (m, 2H), 1.41 (d, J = 6. Hz, 3H), 0.75 (s, 9H), −0.06 (d, J = 1.4 Hz, 6H) ppm. ¹³C NMR (101 MHz, DMSO-d₆) δ 164.48, 161.58, 158.07, 158.05, 149.77, 141.63, 135.50, 135.42, 135.31, 133.72, 130.77, 129.81, 129.61, 129.55, 129.34, 129.21, 128.99, 128.87, 127.77, 127.58, 126.66, 113.16, 113.12, 102.04, 85.74, 78.75, 70.38, 62.97, 61.91, 54.96, 39.97, 25.59, 17.71, 16.19, −5.67, and −5.71 ppm. HRMS: [M + Na]⁺ calc. for C₅₁H₅₆N₂O₁₀SiNa, 907.3602; found: 907.3616.

Synthesis of compound 19R: To a solution of compound 18R (3.8 g, 4.30 mmol) in dry THF (43 mL) was slowly added Et₃N·3HF (6.98 mL, 43.0 mmol). The reaction mixture was stirred for 8 h at room temperature, and then the resulting mixture was diluted with DCM. The reaction was quenched with saturated aq. NaHCO₃. The organic layer was washed with brine and concentrated under vacuum. The crude residue was purified by flash column chromatography on silica gel (50% EtOAc in hexanes) to afford compound 19R as a colorless foam (3.2 g, 97%). ¹H NMR (400 MHz, DMSO-d₆) δ 7.96 (dd, J = 8.2, 1.4 Hz, 1H), 7.90 (dt, J = 8.3, 1.4 Hz, 2H), 7.74–7.61 (m, 4H), 7.48 (t, J = 7.7 Hz, 2H), 7.40–7.16 (m, 11H), 6.86 (d, J = 8.4 Hz, 4H), 6.03 (dd, J = 7.1, 2.0 Hz, 1H), 5.84 (d, J = 8.1 Hz, 1H), 5.46–5.34 (m, 1H), 4.86 (td, J = 5.1, 1.7 Hz, 1H), 3.66–3.62 (m, 7H), 3.52 (s, 2H), 3.21–3.01 (m, 2H), and 1.48–1.37 (m, 3H) ppm. ¹³C NMR (101 MHz, DMSO-d₆) δ 169.14, 164.53, 161.60, 158.03, 158.01, 149.76, 144.74, 141.66, 135.50, 135.43, 133.70, 130.82, 129.80, 129.65, 129.57, 129.35, 129.22, 129.02, 128.87, 127.78, 127.64, 126.65, 113.15, 113.13, 101.94, 85.62, 84.94, 79.38, 70.53, 63.44, 60.51, 54.96, 16.33, and 14.07 ppm. HRMS: [M + Na]⁺ calc. for C₄₅H₄₂N₂O₁₀Na, 793.2737; found: 793.2742.

Synthesis of compound 20R: To a solution of compound 19R (543 mg, 0.705 mmol) in dry DCM (7 mL) were added DIPEA (368 μL, 2.12 mmol) and 2-cyanoethyl-N,N-diisopropylchlorophosphoramidite (173 μL, 0.776 mmol) dropwise. The reaction mixture was stirred for 1 h at room temperature, and then the resulting mixture was diluted with DCM. The reaction was quenched with saturated aq. NaHCO₃. The organic layer was washed with brine and concentrated under vacuum. The crude residue was purified by flash column chromatography on silica gel (30% EtOAc in hexanes) to afford compound 20R as a colorless foam (549 mg, 80%). ¹H NMR (500 MHz, CD₃CN) δ 7.95 (ddd, J = 8.4, 2.7, 1.4 Hz, 2H), 7.81–7.56 (m, 5H), 7.52–7.35 (m, 4H), 7.35–7.16 (m, 9H), 6.90–6.77 (m, 4H), 6.04 (dd, J = 8.7, 6.8 Hz, 1H), 5.39 (dt, J = 11.2, 6.5 Hz, 1H), 3.86–3.61 (m, 11H), 3.62–3.40 (m, 2H), 3.33–3.11 (m, 2H), 2.56 (q, J = 5.9 Hz, 2H), 1.45 (dd, J = 6.4, 3.9 Hz, 3H), 1.30–0.97 (m, 12H) ppm. ¹³C NMR (101 MHz, CD₃CN) δ 166.05, 163.01, 159.76, 151.29, 146.07, 142.03, 142.00, 136.94, 136.84, 136.31, 134.59, 132.37, 131.05, 131.01, 130.97, 130.67, 130.56, 130.44, 129.82, 129.04, 128.91, 127.92, 119.52, 118.35, 114.16, 114.14, 103.32, 87.38, 86.03, 71.83, 71.78, 64.57, 55.98, 44.01, 43.90, 43.88, 25.11, 25.09, 25.02, 24.99, 24.96, 24.89, 21.10, 21.03, 17.08, 17.04, 2.01, 1.80, and 1.67 ppm. ³¹P NMR (202 MHz, CD₃CN) δ 149.61, 149.29 ppm. HRMS: [M + H]⁺ calc. for C₅₄H₆₀N₄O₁₁P, 971.3996; found: 971.3967.

Synthesis of compound 22: To a solution of 1-O-acetyl-2,3,5-tri-O-benzoly-L-rhamnofuranose (compound 21; 3.70 g, 7.14 mmol) synthesized as described previously [40] and uracil (1.61 g, 14.3 mmol) in acetonitrile (MeCN, 80 mL) was added N,O-bis(trimethylsilyl)acetamide (10.6 mL, 42.9 mmol). The mixture was refluxed for 1 h, and Me₃SiOTf (1.55 mL, 8.57 mmol) was added dropwise at room temperature. After refluxing again for 1 h, the mixture was quenched with saturated NaHCO₃ solution (100 mL), evaporated, and extracted with DCM. The organic layer was dried over MgSO₄, concentrated, and purified by column chromatography on silica gel (25% EtOAc in hexanes) to afford compound 22 as a white foam (3.22 g, 79%, R_f = 0.15; developed with 25% EtOAc in hexanes). ¹H NMR (500 MHz, DMSO-d₆) δ 11.46 (d, J = 2.0 Hz, 1H), 7.95–7.30 (m, 16H), 6.26–6.19 (m, 2H), 6.10–6.07 (m, 1H), 5.73 (dd, J = 8.5, 2.0 Hz, 1H), 5.41–5.34 (m, 1H), 5.05 (dd, J = 8.5, 3.0 Hz, 1H), 1.43 (d, J = 6.0 Hz, 3H) ppm. ¹³C NMR (126 MHz, DMSO-d₆) δ 164.59, 164.53, 164.41, 163.12, 150.61, 142.42, 133.90, 133.83, 133.42, 129.29, 129.22, 129.16, 129.10, 128.82, 128.65, 128.61, 128.59, 128.24, 102.34, 89.13, 81.75, 74.11, 71.96, 67.81, and 17.22 ppm. HRMS: [M + H]⁺ calc. for C₃₁H₂₇N₂O₉Na, 593.1536; found: 593.1545

Synthesis of compound 23: Compound 22 (9.60 g, 16.8 mmol) was dissolved in 1 N NH₃ in MeOH (168 mL). The resulting mixture was stirred for 3 days at room temperature, and solvent was removed by evaporation. The crude residue was purified by column chromatography on silica gel (10% MeOH in EtOAc) to afford compound 23 as a white powder (3.41 g, 80%, R_f = 0.23; developed with 10% MeOH in EtOAc). ¹H NMR (400 MHz, DMSO-d₆) δ 11.29 (brs, 1H), 7.75 (d, J = 11.5 Hz, 1H), 5.77 (d, J = 8.5 Hz, 1H), 5.64 (d, J = 10.0 Hz, 1H), 5.33 (d, J = 8.0 Hz, 1H), 5.03 (d, J = 1.5 Hz, 1H), 4.56 (d, J = 6.5 Hz, 1H), 4.39–4.31 (m, 1H), 4.06 (brs, 1H), 3.91 (dd, J = 3.0, 10.5 Hz, 1H), 3.86–3.76 (m, 1H), 1.05 (d, J = 7.5 Hz, 3H) ppm.¹³C NMR (126 MHz, DMSO-d₆) δ 163.11, 150.95, 141.90, 102.07, 88.24, 85.40, 74.32, 70.52, 63.45, and 20.53 ppm. HRMS: [M + Na]⁺ calc. for C₁₀H₁₄N₂O₆Na, 281.0744; found: 281.0619.

Synthesis of compound 24: To a solution of compound 23 (640 mg, 2.48 mmol) in a mixture of 1,4-dioxane (25 mL) and water (5 mL), was added NaIO₄ (591 mg, 2.72 mmol). The reaction mixture was stirred for 1.5 h at room temperature and then diluted with 1,4-dioxane and filtered through a Celite pad. The solid residue was washed with 1,4-dioxane. Sodium borohydrate (94.0 mg, 2.48 mmol) was added to the filtrate. The resulting mixture was stirred for 15 min, and the solvent was removed under vacuum. The crude residue was purified by column chromatography on silica gel (10–20% MeOH in EtOAc) to afford compound 24 as a colorless sticky glass (548 g, 85%, R_f = 0.34; developed with 15% MeOH in EtOAc). ¹H NMR (400 MHz, DMSO-d₆) δ 11.16 (brs, 1H), 7.60 (d, J = 8.0 Hz, 1H), 5.83 (m, 1H), 5.55 (d, J = 8.0 Hz, 1H), 5.06 (m, 1H), 4.68 (d, J = 5.2 Hz, 1H), 4.49–4.41 (m, 1H), 3.76–3.67 (m, 1H), 3.65–3.46 (m, 1H), 3.38–3.21 (m, 3H), 1.05 (d, J = 6.4 Hz, 1H) ppm. ¹³C NMR (101 MHz, DMSO-d₆) δ 163.49, 151.39, 141.61, 101.00, 84.33, 83.90, 65.85, 61.46, 60.73, and 18.25 ppm. HRMS: [M + H]⁺ calc. for C₁₀H₁₆N₂O₆Na, 283.0906; found: 283.0916.

Synthesis of compound 25S: To a solution of compound 24 (2.04 g, 7.84 mmol) in dry pyridine (80 mL) were added DMTrCl (2.89 g, 8.63 mmol) and 4-dimethylaminopyridine (95.8 mg, 0.784 mmol). The reaction mixture was stirred for 12 h at room temperature and then diluted with DCM. The reaction was quenched with saturated aq. NaHCO₃. The organic layer was washed with brine, and the solvent was removed under vacuum. The crude residue was purified by column chromatography on silica gel (EtOAc) to afford compound 25S a white foam (1.32 g, 30%, R_f = 0.52; developed with EtOAc). ¹H NMR (400 MHz, DMSO-d₆) δ 11.31 (d, J = 1.2 Hz, 1H), 7.58 (d, J = 8.0 Hz, 1H), 7.35–7.10 (m, 9H), 6.88–6.81 (m, 4H), 5.89–5.80 (m, 1H), 5.46 (dd, J = 1.2, 8.0 Hz, 1H), 5.13–5.06 (m, 1H), 4.72 (d, J = 4.8 Hz, 1H), 3.78–3.52 (m, 10H), 3.04–2.78 (m, 2H), and 0.87 (d, J = 6.4 Hz, 3H) ppm. ¹³C NMR (101 MHz, DMSO-d₆) δ 163.28, 157.98, 157.96, 151.51, 144.82, 141.23, 135.66, 135.54, 129.58, 129.49, 127.77, 127.61, 126.58, 113.14, 113.11, 101.67, 85.45, 84.42, 82.56, 66.08, 63.02, 61.01, 55.03, 55.00, and 18.09 ppm. HRMS: [M + Na]⁺ calc. for C₃₁H₃₄N₂O₈Na, 585.2213; found: 585.2205.

Synthesis of compound 27S: To a solution of compound 25S (500 mg, 0.890 mmol) in dry pyridine (85 mL) were added benzoic anhydride (211 mg, 0.979 mmol) and 4-dimethylaminopyridine (10.9 mg, 0.0890 mmol) at 0°C. The reaction mixture was stirred for 5 h at room temperature and then diluted with DCM. The reaction was quenched with saturated aq. NaHCO₃. The organic layer was washed with brine, and the solvent was removed under vacuum. The crude residue was purified by column chromatography on silica gel (50% EtOAc in hexanes) to afford compound 27S as a white foam (474 g, 80%, R_f = 0.34; developed with 50% EtOAc in hexane). ¹H NMR (400 MHz, DMSO-d₆) δ 11.43 (d, J = 2.0 Hz, 1H), 7.96–7.82 (m, 2H), 7.82–7.43 (m, 4H), 7.41–7.04 (m, 9H), 7.02–6.73 (m, 4H), 6.32–6.12 (m, 1H), 5.51 (d, J = 8.1 Hz, 1H), 4.84 (d, J = 4.5 Hz, 1H), 4.65 (dd, J = 11.6, 5.2 Hz, 1H), 4.49 (dd, J = 11.5, 6.8 Hz, 1H), 3.79 – 3.61 (m, 8H), 3.17–2.74 (m, 2H), 0.90 (d, J = 6.4 Hz, 3H) ppm. ¹³C NMR (101 MHz, DMSO-d₆) δ 165.02, 163.10, 157.99, 157.97, 151.10, 144.75, 140.70, 135.56, 135.46, 133.65, 129.58, 129.49, 129.16, 129.01, 128.84, 127.77, 127.60, 126.61, 113.13, 102.13, 85.58, 82.81, 81.64, 66.08, 63.34, 62.94, 55.01, 54.98, and 17.91 ppm. HRMS: [M + Na]⁺ calc. for C₃₈H₃₈N₂O₉Na, 689.2475; found: 689.2505.

Synthesis of compound 28S: To a solution of compound 27S (2.50 g, 3.75 mmol) in dry DCM (38 mL) were added DIPEA (1.97 mL, 11.3 mmol) and 2-cyanoethyl-N,N-diisopropylchlorophosphoramidite (921 μL, 14.1 mmol) dropwise. The reaction mixture was stirred for 1 h at room temperature and then diluted with DCM. The reaction was quenched with saturated aq. NaHCO₃. The organic layer was washed with brine, and the solvent was removed under vacuum. The crude residue was purified by column chromatography on silica gel (40% EtOAc in hexanes) to afford compound 28S as a white foam (2.79 g, 86%, R_f = 0.23; developed with 40% EtOAc in hexane). ¹H NMR (500 MHz, CD₃CN) δ 9.20 (brs, 1H); 7.99–7.93 (m, 2H), 7.64–7.18 (m, 13H), 6.85–6.80 (m, 4H), 6.34–6.28 (m, 1H), 5.49 (d, J = 8.0 Hz, 1H), 4.59–4.40 (m, 2H), 4.19–4.05 (m, 1H), 3.79–3.48 (m, 12H), 3.19–3.09 (m, 2H), 2.62–2.57 (m, 2H), 1.16–1.01 (m, 15H) ppm. ¹³C NMR (126 MHz, CD₃CN) δ 166.44, 163.94, 159.62, 159.59, 151.90, 151.82, 145.97, 145.95, 141.46, 141.41, 136.80, 136.77, 136.73, 134.38, 130.91, 130.89, 130.84, 130.80, 130.46, 130.44, 130.43, 129.60, 128.88, 128.82, 128.79, 127.77, 119.52, 114.03, 114.01, 103.05, 103.00, 87.48, 87.45, 83.30, 83.26, 83.08, 82.99, 82.89, 82.86, 71.64, 71.51, 71.35, 71.21, 64.76, 64.72, 64.09, 64.06, 59.52, 59.37, 59.14, 58.99, 55.87, 55.86, 43.88, 43.87, 43.79, 43.77, 25.05, 24.99, 24.93, 24.87, 24.81, 24.79, 24.73, 21.02, 20.98, 20.96, 20.92, 17.40, 17.39, 17.22, and 17.19 ppm. ³¹P NMR (202 MHz, CD₃CN) δ 148.94; 148.75 ppm. HRMS: [M + H]⁺ calc. for C₄₇H₅₆N₄O₁₀P, 867.3734; found: 867.3742.

Synthesis of compound 25R: To the solution of compound 25S (500 g, 0.890 mmol) in dry THF (9 mL) were added PPh₃ (622 mg, 2.67 mmol), benzoic acid (543 mg, 4.45 mmol), and DIAD (526 μL, 2.67 mmol) dropwise. The reaction mixture was stirred for 5 h at room temperature, and reaction completion was confirmed by TLC. The solvent was removed under vacuum. The crude residue was purified by column chromatography on silica gel (5–10% MeOH in EtOAc) to afford the 2,2′-anhydro nucleoside 26 (R_f = 0.11; developed with EtOAc). ¹H NMR (400 MHz, DMSO-d₆) δ 7.93 (d, J = 7.6 Hz, 1H), 7.88–7.84 (m, 2H), 7.70–7.64 (m, 1H), 7.53–7.48 (m, 2H) 7.36–7.16 (m, 9H), 6.85–6.76 (m, 4H), 6.13 (dd, J = 5.6, 1.6 Hz, 1H), 5.76 (dt, J = 7.6, 12.4 Hz, 1H), 4.67 (dd, J = 10.0, 5.6 Hz, 1H), 4.51–4.41 (m, 2H), 3.70 (s, 3H), 3.69 (s, 3H), 3.26 (dd, J = 10.0, 3.6 Hz, 1H), 2.96 (dd, J = 10.4, 5.2 Hz, 1H), 1.15 (d, J = 7.2 Hz, 3H) ppm. ¹³C NMR (101 MHz, DMSO-d₆) δ 171.00, 164.91, 160.23, 158.12, 158.05, 144.55, 136.77, 135.10, 135.05, 133.52, 129.62, 129.48, 129.16, 128.78, 127.86, 127.51, 126.75, 113.18, 108.72, 87.62, 85.63, 80.12, 73.40, 70.49, 62.56, 55.02, 54.98, 54.96, and 15.37 ppm. HRMS: [M + H]⁺ calc. for C₃₈H₃₇N₂O₈, 649.2550; found: 649.2546.

Compound 26 was dissolved in THF (10 mL). To the solution was added 1 N aq. NaOH (3 mL) dropwise. The resulting mixture was stirred for 12 h. The solvent was removed under vacuum. The crude residue was purified by column chromatography on silica gel (0–5% MeOH in EtOAc) to afford compound 25R as a white foam (452 g, 90% over 2 steps, R_f = 0.32; developed with EtOAc). ¹H NMR (500 MHz, DMSO-d₆) δ 11.39 (brs, 1H), 7.63 (d, J = 8.0 Hz, 1H), 7.39–7.04 (m, 9H), 6.97–6.67 (m, 4H), 5.82 (t, J = 5.9 Hz, 1H), 5.49 (d, J = 8.0 Hz, 1H), 5.23–5.16 (m, 1H), 4.77 (d, J = 4.8 Hz, 1H), 3.84–3.46 (m, 10H), 3.06–2.84 (m, 2H), 0.86 (d, J = 6.4 Hz, 3H) ppm.¹³C NMR (101 MHz, DMSO-d₆) δ 163.27, 157.97, 157.95, 151.44, 144.81, 141.22, 135.58, 135.56, 129.61, 129.52, 127.75, 127.63, 126.57, 113.10, 101.73, 85.31, 84.80, 83.02, 65.90, 62.88, 61.16, 55.00, 54.98, and 18.55 ppm. HRMS: [M + Na]⁺ calc. for C₃₁H₃₄N₂O₈Na, 585.2213; found: 585.2205.

Synthesis of compound 27R: To a solution of compound 26 (2.00 g, 3.56 mmol) in dry pyridine (36 mL) were added DMAP (43.5 mg, 0.356 mmol) and Bz₂O (845 mg, 3.74 mmol). The reaction mixture was stirred for 5 h at room temperature, and then the resulting mixture was diluted with DCM. The reaction was quenched with saturated aq. NaHCO₃. The organic layer was washed with brine, and the solvent was removed under vacuum. The crude residue was purified by column chromatography on silica gel (50% EtOAc in hexanes) to afford compound 27R as a colorless foam (1.99 g, 84%, R_f = 0.34; developed with 50% EtOAc in hexanes). ¹H NMR (400 MHz, DMSO-d₆) δ 11.45 (d, J = 2.0 Hz, 1H), 7.99–7.41 (m, 6H), 7.41–7.03 (m, 9H), 6.95–6.58 (m, 4H), 6.20 (t, J = 6.0 Hz, 1H), 5.54 (dd, J = 7.6, 1.6 Hz, 1H), 4.86 (d, J = 5.2 Hz, 1H), 4.70 (dd, J = 12.0, 5.6 Hz, 1H), 4.51 (dd, J = 12.0, 5.6 Hz, 1H), 3.86–3.52 (m, 8H), 3.10–2.91 (m, 2H), 0.84 (d, J = 6.4 Hz, 3H) ppm. ¹³C NMR (101 MHz, DMSO-d₆) δ 165.03, 163.10, 157.98, 157.96, 151.11, 144.75, 140.76, 135.52, 135.49, 133.69, 129.61, 129.52, 129.12, 129.00, 128.87, 127.75, 127.62, 126.59, 113.10, 102.20, 85.40, 83.17, 81.90, 65.75, 63.40, 62.73, 55.00, 54.97, and 18.49 ppm. HRMS: [M + Na]⁺ calc. for C₃₈H₃₈N₂O₉Na, 689.2475; found: 689.2490.

Synthesis of compound 28R: To a solution of compound 27R (2.00 g, 3.00 mmol) in dry DCM (30 mL) were added DIPEA (1.57 mL, 9.00 mmol) and 2-cyanoethyl-N,N-diisopropylchlorophosphoramidite (737 μL, 3.30 mmol) dropwise. The mixture was stirred for 2 h at room temperature and then diluted with DCM. The reaction was quenched with saturated aq. NaHCO₃. The organic layer was washed with brine, and the solvent was removed under vacuum. The crude residue was purified by column chromatography on silica gel (50% EtOAc in hexanes) to afford compound 28R a white foam (2.11 g, 81%, R_f = 0.65; developed with 50% EtOAc in hexane). ¹H NMR (500 MHz, CD₃CN) δ 8.00–7.94 (m, 2H), 7.64–7.16 (m, 13H), 6.86–6.81 (m, 4H), 6.28–6.22 (m, 1H), 5.56–5.48 (m, 1H), 4.69–4.44 (m, 3H), 4.23–4.03 (m, 1H), 3.86–3.42 (m, 12H), 3.31–3.04 (m, 2H), 2.61–2.51 (m, 2H), and 1.28–0.98 (m, 15H) ppm. ¹³C NMR (126 MHz, CD₃CN) δ 166.51, 164.07, 164.04, 159.66, 159.64, 151.98, 145.99, 141.49, 141.43, 136.89, 136.84, 136.83, 136.81, 134.54, 134.52, 131.03, 130.97, 130.47, 129.73, 129.02, 129.00, 128.85, 127.84, 127.82, 119.56, 114.11, 114.07, 103.34, 103.30, 87.26, 87.24, 83.19, 83.02, 82.99, 82.96, 82.87, 82.83, 70.43, 70.31, 64.84, 64.82, 64.01, 63.91, 59.32, 59.29, 59.17, 59.14, 58.19, 55.95, 44.06, 44.00, 43.96, 43.90, 25.09, 25.03, 24.99, 24.95, 24.94, 24.89, 24.82, 24.76, 22.03, 21.07, 21.02, 21.00, 20.95, 17.87, and 17.84 ppm. ³¹P NMR (202 MHz, CD₃CN) δ 149.10; 148.41 ppm. HRMS: [M + H]⁺ calc. for C₄₇H₅₆N₄O₁₀P, 867.3734; found: 867.3760.

Synthesis of compound 29S: To a solution of compound 17S (100 mg, 0.148 mmol), DMAP (1.8 mg, 0.02 mmol), and Et₃N (103 μL, 0.740 mmol) in dry MeCN (2 mL) was added (R–)-MTPACl (33.2 μL, 0.178 mmol) dropwise. The reaction mixture was stirred for 5 h at room temperature, and then the resulting mixture was diluted with EtOAc. The reaction was quenched with saturated aq. NaHCO₃. The organic layer was washed with brine and concentrated under vacuum. The crude residue was purified by flash column chromatography on silica gel (50% EtOAc in hexanes) to afford compound 29S as a colorless foam (70 mg, 54%). ¹H NMR (400 MHz, DMSO-d₆) δ 11.48 (s, 1H); 7.65 (d, J = 8.1 Hz, 2H), 7.53–7.02 (m, 13H), 6.94–6.65 (m, 4H), 5.88 (d, J = 6.0 Hz, 1H), 5.56–5.27 (m, 2H), 3.87–3.44 (m, 9H), 3.31 (s, 3H), 3.04 (t, J = 4.0 Hz, 2H), 1.20 (d, J = 6.4 Hz, 3H), 0.68 (s, 9H), −0.15 (d, J = 7.4 Hz, 6H) ppm. ¹³C NMR (126 MHz, DMSO-d₆) δ 158.04, 150.98, 144.67, 135.45, 135.25, 129.94, 129.58, 128.53, 127.71, 127.54, 127.16, 126.61, 113.09, 113.06, 102.30, 77.77, 72.94, 63.27, 61.25, 55.19, 54.97, 39.06, 25.50, 17.62, 14.76, −5.83, and −5.86 ppm. HRMS: [M + Na]⁺ calc. for C₄₇H₅₅F₃N₂O₁₀SiNa, 915.3476; found: 915.3484.

Synthesis of compound 30S: To a solution of compound 17S (100 mg, 0.148 mmol), DMAP (1.8 mg, 0.02 mmol), and Et₃N (103 μL, 0.740 mmol) in dry MeCN (2 mL) was slowly added (S-+)-MTPACl (33.2 μL, 0.178 mmol). The reaction mixture was stirred for 5 h at room temperature, and then the resulting mixture was diluted with EtOAc. The reaction was quenched with saturated aq. NaHCO₃. The organic layer was washed with brine and concentrated under vacuum. The crude residue was purified by flash column chromatography on silica gel (50% EtOAc in hexanes) to afford compound 30S as a colorless foam (68 mg, 52%). ¹H NMR (400 MHz, DMSO-d₆) δ 11.44 (s, 1H), 7.60–7.08 (m, 15H), 6.84 (dd, J = 8.9, 3.5 Hz, 4H), 5.86 (d, J = 5.9 Hz, 1H), 5.48–5.19 (m, 2H), 3.72 (s, 6H), 3.51–3.34 (m, 5H), 2.93 (t, J = 4.4 Hz, 3H), 1.31 (d, J = 6.4 Hz, 3H), 0.69 (s, 9H), −0.15 (d, J = 9.4 Hz, 6H) ppm. ¹³C NMR (126 MHz, DMSO-d₆) δ 165.03, 162.83, 158.02, 150.90, 144.65, 139.94, 135.42, 135.24, 131.20, 129.81, 129.56, 128.41, 127.68, 127.52, 126.85, 126.59, 113.06, 113.03, 102.06, 85.63, 82.96, 77.67, 72.79, 63.22, 61.07, 55.35, 54.95, 39.23, 25.48, 17.59, 15.09, −5.78,and −5.84 ppm. HRMS: [M + Na]⁺ calc. for C₄₇H₅₅F₃N₂O₁₀SiNa, 915.3476; found: 915.3485.

Synthesis of compound 31R: To a solution of compound 17R (100 mg, 0.148 mmol), DMAP (1.8 mg, 0.02 mmol), and Et₃N (103 μL, 0.740 mmol) in dry MeCN (2 mL) was slowly added (R)-(–)-MTPACl (33.2 μL, 0.178 mmol). The reaction mixture was stirred for 5 h at room temperature, and then the resulting mixture was diluted with EtOAc. The reaction was quenched with saturated aq. NaHCO₃. The organic layer was washed with brine and concentrated under vacuum. The crude residue was purified by flash column chromatography on silica gel (50% EtOAc in hexanes) to afford compound 31R as a colorless foam (102 mg, 78%). ¹H NMR (400 MHz, DMSO-d₆) δ 11.28 (d, J = 2.0 Hz, 1H), 7.56–7.02 (m, 15H), 6.98–6.71 (m, 4H), 5.89 (d, J = 7.3 Hz, 1H), 5.54–5.29 (m, 2H), 3.72 (d, J = 1.3 Hz, 6H), 3.67–3.44 (m, 3H), 3.40 (s, 3H); 3.11–2.85 (m, 2H), 1.39 (d, J = 6.2 Hz, 3H), 0.75 (s, 9H), and −0.06 (d, J = 1.9 Hz, 6H) ppm. ¹³C NMR (126 MHz, DMSO-d₆) δ 164.54, 162.83, 158.02, 158.00, 151.10, 144.68, 135.50, 135.31, 131.00, 129.90, 129.49, 129.43, 128.57, 127.71, 127.49, 126.71, 126.58, 113.12, 113.07, 102.39, 85.54, 78.70, 71.71, 62.82, 61.77, 55.17, 54.97, 39.25, 25.57, 17.70, 16.08, −5.70, and −5.72 ppm. HRMS: [M + Na]⁺ calc. for C₄₇H₅₅F₃N₂O₁₀SiNa, 915.3476; found: 915.3466.

Synthesis of compound 32R: To a solution of compound 17R (100 mg, 0.148 mmol), DMAP (1.8 mg, 0.02 mmol), and Et₃N (103 μL, 0.740 mmol) in dry MeCN (2 mL) was added (S)-(+)-MTPACl (33.2 μL, 0.178 mmol) dropwise. The reaction mixture was stirred for 5 h at room temperature, and then the resulting mixture was diluted with EtOAc. The reaction was quenched with saturated aq. NaHCO₃. The organic layer was washed with brine and concentrated under vacuum. The crude residue was purified by flash column chromatography on silica gel (50% EtOAc in hexanes) to afford compound 32R as a colorless foam (101 mg, 77%). ¹H NMR (400 MHz, DMSO-d₆) δ 11.47 (d, J = 2.0 Hz, 1H), 7.67 (d, J = 8.1 Hz, 1H), 7.56–7.04 (m, 14H), 6.94–6.71 (m, 4H), 5.98 (d, J = 7.1 Hz, 1H), 5.62–5.23 (m, 2H), 3.71 (s, 6H); 3.68–3.44 (m, 2H), 3.36 (s, 3H), 3.01 (t, J = 5.4 Hz, 2H), 1.30 (d, J = 6.2 Hz, 3H), 0.74 (s, 9H), −0.06 (d, J = 2.7 Hz, 6H) ppm. ¹³C NMR (126 MHz, DMSO-d₆) δ 164.68, 162.88, 158.01, 151.25, 144.68, 140.54, 135.48, 135.29, 131.12, 129.96, 129.51, 129.45, 128.61, 127.72, 127.49, 126.86, 126.60, 113.11, 113.07, 102.47, 78.80, 72.30, 62.90, 61.80, 55.01, 54.96, 25.56, 17.68, 15.69, and −5.71 ppm. HRMS: [M + Na]⁺ calc. for C₄₇H₅₅F₃N₂O₁₀SiNa, 915.3476; found: 915.3460.

Oligonucleotide synthesis

Oligonucleotides used for the exonuclease assay were synthesized on an ABI-394 synthesizer and those used for in vitro efficacy assays were synthesized on a MerMade 192 synthesizer on 1-μmol scale using universal or custom supports. A solution of 0.25 M 5-(S-ethylthio)-1H-tetrazole in MeCN was used as the activator. The solutions of commercially available phosphoramidites and synthesized modified UNA phosphoramidites were used at 0.15 M in anhydrous MeCN. The oxidizing reagent was 0.02 M I₂ in THF/pyridine/H₂O. The detritylation reagent was 3% dichloroacetic acid in DCM. After completion of the automated synthesis on the ABI-394, the oligonucleotide was cleaved from support and deprotected using aq. MeNH₂ (40 wt.%) at room temperature for 90 min. After filtration through a 0.45-μm nylon filter, oligonucleotides were either purified or, for oligonucleotides containing ribose sugars, the 2′ hydroxyl was deprotected by treatment with Et₃N·3HF at 60°C for 30 min. Oligonucleotides were purified using ion exchange HPLC (IEX-HPLC) using an appropriate gradient of mobile phase (buffer A: 0.15 M NaCl, 10% MeCN; buffer B 1.0 M NaBr, 10% MeCN) and desalted using size-exclusion chromatography with water as an eluent. Oligonucleotides were then quantified by measuring the absorbance at 260 nm. Oligonucleotide extinction coefficients were calculated using the following extinction coefficients for each residue: A, 13.86; T/U, 7.92; C, 6.57; and G, 10.53 M⁻¹cm⁻¹. The purity and identity of modified oligonucleotides were verified by analytical anion exchange chromatography and electrospray ionization mass spectroscopy (ESI-MS), respectively.

After the trityl-off synthesis using the MerMade 192, columns were incubated with 150 mL of 40 wt.% aq. methylamine for 30 min at room temperature, and solutions were drained via vacuum into a 96-well plate. After repeating the incubation and draining with a fresh portion of aq. methylamine, the plate containing the crude oligonucleotides was sealed and shaken at room temperature for 60 min to completely remove all protecting groups. In the case of RNA, the 2′ hydroxyl was deprotected by treating with Et₃N·3HF at 60°C for 60 min. Precipitation of the crude oligonucleotides was accomplished via the addition of 1.2 mL of MeCN/ethanol (9:1, v/v) to each well, followed by centrifugation at 3000 rpm for 45 min at 4°C. The supernatant was removed from each well, and the pellets were resuspended in 950 mL of 20 mM aq. NaOAc. Oligonucleotides were desalted over a GE Hi-Trap desalting column (Sephadex G25 Superfine) using water as an eluant. The identities and purities of all oligonucleotides were confirmed using ESI-MS and IEX-HPLC, respectively.

Determination of thermal denaturation temperatures

Thermal denaturation temperatures were measured with equimolar concentrations of both strands (2.5 μM) in phosphate-buffered saline (PBS) by monitoring absorbance at 260 nm with increasing temperature (1°C/min). Values were reported as the maximum of the first derivative and are the average of at least two experiments.

Nuclease resistance assays

Oligonucleotides were prepared at final concentrations of 0.1 mg/ml in 50 mM Tris (pH 7.2), 10 mM MgCl₂ for assays in the presence of 3′-specific snake venom phosphodiesterase (SVPD) or in 50 mM sodium acetate (pH 6.5), 10 mM MgCl₂ for assays in the presence of 5′-specific exonuclease phosphodiesterase II (PDE-II). The exonuclease (150 mU/mL SVPD or 500 mU/mL PDE-II) was added to oligonucleotide solution immediately prior to the first injection onto the HPLC column, and enzymatic degradation kinetics were monitored for 24 h at 25°C. Samples were analyzed on a Dionex DNAPac PA200 analytical column at 30°C. The gradient was from 37% to 52% 1 M NaBr, 10% MeCN, 20 mM sodium phosphate buffer at pH 11 over 10 min with a flow rate of 1 mL/min. The full-length oligonucleotide amount was determined as the area under the curve of the peak detected at 260 nm. Percent full-length oligonucleotide was calculated by dividing the area under the curve at a given time point by that at the first time point and multiplying by 100. Activity of enzyme was verified by including a 20-mer oligodeoxythymidylate with a terminal PS linkage in each experiment. An aliquot of enzyme was thawed just prior to the experiment. The half-life was determined by fitting to first-order kinetics. Each degradation experiment was performed in duplicate.

RT-qPCR quantification of mRNA

Primary mouse hepatocytes were transfected with siRNAs using the RNAiMAX reagent (Thermo Fisher) according to the manufacturer's recommendations. Briefly, cells were thawed just prior to transfection and plated onto a 384-well plate with a seeding density of approximately 5000 cells per well in Williams Medium E supplemented with 10% fetal bovine serum. A pre-incubated lipid/siRNA complex (0.1 μL RNAiMAX and siRNA in 5 μL Opti-MEM (Thermo Fisher), incubated for 15 min) was added to each well of a 384-well collagen-coated plate (BioCoat; Corning). Cells were incubated for 20 h at 37°C in an atmosphere of 5% CO₂. After incubation, the media was removed, and the cells were washed and lysed. RNA was extracted using the Dynabeads mRNA isolation kit (Invitrogen) according to the manufacturer′s protocol, and then reverse-transcribed using the ABI High-Capacity cDNA Reverse Transcription Kit. Quantification was performed by real-time quantitative PCR (qPCR), where the cDNA (2 μL) was added to a master mix containing 0.5 μL mouse GAPDH TaqMan Probe, 5 μL of the target TaqMan probe, and 0.5 μL LightCycler 480 Probe Master Mix. RT-qPCR was performed on an ABI 7900HT Real-Time PCR System using the ΔΔCt method for quantification. Results are reported from at least four biological replicates. Each well was normalized to the GAPDH control, and the remaining mRNA levels were calculated relative to a non-targeting siRNA that targets Luciferase. IC₅₀ values were calculated from fitted curves using GraphPad Prism.

Analysis of off-target effects

The on-target and off-target reporters were previously described [24]. The reporter plasmids were generated by Blue Heron Biotech by cloning into the psiCHECK2 vector between XhoI and NotI restriction sites in the 3′ untranslated region (3′-UTR) of Renilla luciferase. The on-target reporter plasmid contained a single site perfectly complementary to the antisense strand in the 3′-UTR of Renilla luciferase (5′-TGTTCTTGCTCTATAAACCGTGT-3′). The off-target reporter plasmid contained four tandem seed-complementary sites (5′-AAACCGTGA-3′) separated by a 19-nucleotide spacer (5′-TAATATTACATAAATAAAA-3′) in the 3′-UTR of Renilla luciferase. Both the on-target and off-target regions were flanked at the 5′ ends by 5′- ATAAACAAGGTTTGACATCAATCTAGCTATATCTTTAAGAATGATAAACT-3′ and at the 3′ ends by 5′-GACATTGGTGAGGAAAAATCCTTTGGCCGTTTCCAAGATCTGACAGTGCA-3′. Both plasmids co-expressed firefly luciferase as a transfection control.

Cos7 cells (ATCC) were grown to near confluence at 37°C in an atmosphere of 5% CO₂ in DMEM (ATCC) supplemented with 10% fetal bovine serum. Cells were released from the plate by trypsinization before transfection and resuspended in 35 μL of fresh complete media. A solution of 5 μL of siRNA (or PBS as a control), 5 μL of 1 mg/mL appropriate psiCHECK2 plasmid, 5 μL of Opti-MEM (Thermo Fisher), and 0.1 μL of Lipofectamine RNAiMAX (Thermo Fisher) was incubated at room temperature for 15 min and was then added to the cells. The transfected cells were then incubated at 37°C in an atmosphere of 5% CO₂. At 48 h post-transfection, firefly (transfection control) and Renilla (fused to target sequence) luciferase activities were measured. First, the media was removed from the cells, and firefly luciferase activity was measured by adding 20 μL of Dual-Glo Luciferase Reagent (Promega) to each well. The mixture was incubated at room temperature for 30 min, and luminescence at 500 nm was measured using a Spectramax plate reader (Molecular Devices) to detect the firefly luciferase signal. Renilla luciferase activity was measured by adding 20 μL of Dual-Glo Stop & Glo Reagent (Promega) to each well. The plates were incubated for 10–15 min before luminescence was measured again to determine the Renilla luciferase signal. siRNA activity was determined by normalizing the Renilla signal to the firefly (control) signal within each well. The magnitude of siRNA activity was then assessed relative to cells transfected with the same vector but not treated with siRNA or treated with a non-targeting siRNA (antisense strand sequence: (5′-AAACCGTGA-3′)). All transfections were performed in triplicate.

Treatment of mice with siRNA and quantification of TTR in serum

All studies were conducted by certified laboratory personnel using protocols consistent with local, state, and federal regulations, as applicable, and experimental protocols were approved by the Institutional Animal Care and Use Committee at Alnylam Pharmaceuticals. All animals were acclimated in-house for 48 h prior to study start. Female C57BL/6 mice, approximately 6–8 weeks of age, were obtained from Charles River Laboratories and randomly assigned to each group. All dosing solutions were stored at 4°C until 1 h before the time of injection, when they were removed from storage and allowed to reach room temperature. Animals received a single subscapular subcutaneous injection of siRNA, prepared as an injection volume of 10 μL/g in PBS, or PBS as a control. At the indicated time pre- or post-dosing, blood was collected via retro-orbital bleed. Serum samples were kept at room temperature for 1 h, then spun in a microcentrifuge at 21 000 × g at room temperature for 10 min, and subsequently stored at −80°C until analysis. Serum was diluted 1:4000, and TTR was quantified by ELISA using a mouse prealbumin kit (ALPCO, 41-PALMS-E01).

Results

Synthesis of RNA oligonucleotides containing modified UNAs

The 5′-methyl-UNA uridine (5′-Me-UNA) phosphoramidites (7S and 7R) were synthesized from commercially available 2′,3′-bis protected nucleosides [1] using Dess-Martin oxidation followed by reductive methylation. The resulting S isomer 3S was inverted to the R isomer 3R via a Mitsunobu reaction. 3S and 3R were converted to the UNA structure by an oxidative cleavage reaction, and the phosphoramidites 7S and 7R were obtained with a benzoyl group at the 2′ position (Scheme 1). The 4′-C-(β)-methoxy-UNA uridine phosphoramidite was synthesized via Prilezhaev epoxidation followed by ring opening. The resulting two isomers were separated and the β isomer 10 was converted to the 2′-Bz-protected UNA phosphoramidite 14 (Scheme 2). The 2′-methyl-UNA uridine (2′-Me-UNA) phosphoramidites (20S and 20R) were obtained from the structurally defined 2′-methyl uridine analogue 15. NalO₄-mediated oxidative cleavage of the diol and Noyori asymmetric hydrogenation provided the stereo-pure S isomer 17S. The remaining secondary alcohol was inverted to the R isomer by a Mitsunobu reaction to yield 17R. 17R and 17S were converted to the phosphoramidites (Scheme 3). The configurations of 2′-Me-UNA enantiomers were determined by Mosher ester analysis (see below). The 3′-methyl-UNA uridine (3′-Me-UNA) phosphoramidites (28S and 28R) were obtained from stereo-defined functionalized L-rhamnofuranose (compound 21). The S isomer of 3′-Me-UNA (compound 24) was obtained via glycosidation and diol oxidative cleavage. The R isomer was obtained via secondary hydroxyl inversion, and both isomers were converted to phosphoramidites (Scheme 4). All the phosphoramidite building blocks were site-specifically incorporated into oligonucleotides using an automated synthesizer. Cleavage from the solid support and subsequent deprotection of the synthesized oligonucleotides were performed under standard conditions using aqueous methylamine. The crude oligonucleotides were purified by analytical anion exchange chromatography and characterized by mass spectroscopy (see Supporting Information for details).

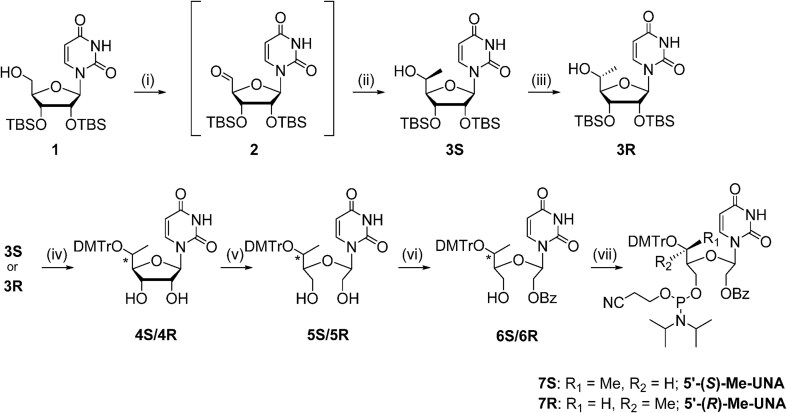

Scheme 1. — Synthesis of 5′-methyl-UNA uridine building blocks. Reagents and conditions: (i) DMP/DCM, 0°C to room temperature, 2.5 h; (ii) AlMe₃/toluene/THF, room temperature, overnight, 25% over two steps; (iii) (a) p-NO₂BzOH/PPh₃/DIAD/THF, room temperature, overnight; (b) 7 M NH₃/MeOH, overnight, 62% over two steps; (iv) (a) DMTrCl/Ag₂O/pyridine/THF, room temperature, 24 h; (b) TBAF/THF, room temperature, overnight, 85% (4S), 61% (4R), over 2 steps (v) (a) NaIO₄/1,4-dioxane/H₂O, room temperature, 4 h; (b) NaBH₄, room temperature, 2 h, 85% (5S), 25% (5R) over two steps; (vi) BzCl/pyridine/DCM, −78°C, 1 h, 22% (6S), 25% (6R); (vii) 2-cyanoethyl-N,N-diisopropylchlorophosphoramidite/DIPEA/DCM, room temperature, 2 h, 85% (7S), 73% (7R).

Scheme 2. — Synthesis of 4′-C-(β)-methoxy-UNA uridine building block 14. Reagents and conditions: (i) mCPBA/MeOH, room temperature, overnight, 4% (9), 31% (10); (ii) (a) DMTrCl/pyridine, room temperature, overnight, quant.; (b) TBAF/THF, room temperature, overnight, 96%; (iii) (a) NaIO₄/1,4-dioxne/H₂O, room temperature, 14 h; (b) NaBH₄, room temperature, 3 h, 74% over two steps; (iv) BzCl/pyridine/DCM, −78°C, 1 h, 49%; (v) 2-cyanoethyl-N,N-diisopropyl chlorophosphoramidite/DIPEA/DCM, room temperature, 3 h, 93%.

Scheme 3. — Synthesis of 2′-methyl-UNA uridine building blocks. Reagents and conditions: (i) NaIO₄/H₂O/DCM, room temperature, 4 h; (ii) RuCl(p-cymene)[(S,S)-Ts-DPEN]/HCOONa/H₂O/EtOAc, room temperature, 12 h, 80% over two steps; (iii) TBSCl/pyridine, room temperature, 3 h, 64%; (iv) BzOH/DIAD/PPh₃/THF, room temperature, 3 h; NaOH aq., room temperature, 3 h, 80%; (v) BzCl/Et₃N/DCM, room temperature, 4 h, 90% (**18S**), 92% (**18R**); (vi) NEt₃·HF/THF, room temperature, 8 h, 96% (**19S**), 97% (**19R**); (vii) 2-cyanoethyl-N,N-diisopropylchlorophosphoramidite/DIPEA/DCM, 1 h, 87% (**20S**), 80% (**20R**).

Scheme 4. — Synthesis of 3′-methyl-UNA uridine phosphoramidites. Reagents and conditions: (i) BSA/TMSOTf/uracil/MeCN, reflux, 1 h, 79%; (ii) NH₃/MeOH, room temperature, 3 days, 80%; (iii) NaIO₄/1,4-dioxane/H₂O, room temperature, 1.5 h; (iv) NaBH₄, 85% over two steps; (v) DMTrCl/DMAP/pyridine, room temperature, 12 h, 30%; (vi) BzOH/DIAD/PPh₃/THF, room temperature, 5 h; (vii) NaOH aq., room temperature, 12 h, 77% over two steps (viii) Bz₂O/DMAP/pyridine, room temperature, 5 h, 80% (**27S**), 84% (**27R**); (ix) 2-cyanoethyl-N,N-diisopropylchlorophosphoramidite/DIPEA/DCM, room temperature, 1–2 h, 86% (**28S**), 81% (**28R**).

Mosher ester analysis assignment of R and S configurations of 2′-methyl-UNAs

To determine the absolute configurations of the 2′ positions of the modified UNAs, we used an NMR-based Mosher ester analysis similar to that described previously [41]. We coupled the 2′-hydroxyl groups of 17S and of 17R separately with (R)-(−)-MTPACl and (S)-(+)-MTPACl. This resulted in the formation of Mosher esters 29S and 30S for compound 17S and Mosher esters 31R and 32R for compound 17R. The phenyl substituent of the MTPA ester imposes an anisotropic, magnetic shielding effect on protons residing above and below the plane of the phenyl ring. This shielding results in an upfield chemical shift for the affected protons in the NMR spectrum. The ¹H NMR chemical shift differences (δ^SR) for the 1′ proton and the 2′-methyl protons in the Mosher ester pairs were obtained (Table 1). For the Mosher ester pair derived from compound 17S (compounds 29S and 30S), the δ^SR values for nucleobase proton and 1′ proton were positive, and the δ^SR value for the 2′-methyl protons was negative. This result indicates that in compound 29S, the 2′-methyl group is on the same side as the phenyl group, whereas the nucleobase proton and the 1′ proton are on the opposite side. In compound 30S, the converse was observed: Results indicated that the nucleobase proton and 1′ proton were on the same side as the phenyl group, whereas the 2′-methyl group was on the opposite side. For the Mosher ester pair derived from compound 17R (compounds 31R and 32R), the δ^SR value for the 2′-methyl proton was positive, and the δ^SR value for the nucleobase proton and 1′ proton were negative. Thus, 17S has the 2′-(S)-methyl configuration and 17R has the 2′-(R)-methyl configuration (Fig. 2 and Scheme 5).

Table 1.

Δδ^SR data for the (S)- and (R)-MTPA esters of 2′-methyl-UNA

Proton	d (S)-Mosher ester	d (R)-Mosher ester	ppm	Hz (400 MHz)
				Δδ^SR= (δ_S− δ_R)
compound 17S
3NH	11.48	11.44	0.04	16
1′H	5.88	5.82	0.02	8
2′Me	1.20	1.31	−0.11	−44
compound 17R
3NH	11.28	11.47	−0.19	−76
1′H	5.89	5.98	−0.09	−36
2′Me	1.39	1.30	0.09	36

Open in a new tab

Figure 2. — Conformations of the (S)- and (R)-MTPA ester pairs **29S** and **30S** and pairs **31R** and **32R**. Atomic structures and Newman projections are shown.

Scheme 5. — Synthesis of 2′-methyl-UNA uridine Mosher esters. Reagents and conditions: (i) (S)-MTPACl/DMAP/Et₃N/MeCN, room temperature, 5 h, 52–77%; (ii) (R)-MTPACl/DMAP/Et₃N/MeCN, room temperature, 5 h, 54–78%.

Modified UNA destabilizes an RNA:RNA duplex

Melting temperatures (T_m) of hybridization of 12-mer RNA duplexes containing a single, centrally located modification were evaluated. Duplexes containing modified UNAs had similar or slightly decreased T_m values compared to the RNA duplex containing a single UNA (Table 2).

Table 2.

Melting temperatures and extent of RNA:RNA duplex destabilization by modified UNA^a

ID	Sequence 5′-UACAGXCUAUGU-3′	T _m [°C]	(ΔT_m) [°C]
ON 1	X = U	61.1
ON 4	X = UNA	43.6	−17.5
ON 5	X = 5′-(S)-Me-UNA	43.3	−17.8
ON 6	X = 5′-(R)-Me-UNA	42.5	−18.6
ON 7	X = 2′-(S)-Me-UNA	42.4	−18.7
ON 8	X = 2′-(R)-Me-UNA	42.6	−18.5
ON 9	X = 3′-(S)-Me-UNA	42.1	−19.0
ON 10	X = 3′-(R)-Me-UNA	43.3	−17.8
ON 11	X = 4′-(β)-methoxy-UNA	45.4	−15.7

Open in a new tab

^aThe absorbances of hybridized duplexes formed by indicated sequence with 3′-AUGUCAGAUACA)-5′ (2.5 μM each strand) at 260 nm were determined as a function of temperature in PBS. The T_m was determined as the maximum of the first derivative of the melting curve. Values are reported as the average of two independent experiments. ΔT_m was calculated with respect to the unmodified RNA duplex. Reported values are an average of six determinations using the Varian Cary Bio-300 built-in software, with standard deviation reported.

Modified UNAs impart stability against exonuclease degradation

To assess the impact of modified UNA on metabolic stability, terminally modified poly-dT oligonucleotides were incubated in the presence of either a 3′- or 5′-exonuclease. In the presence of 3′-exonuclease SVPD, the stabilities of the oligonucleotides containing modified UNAs were comparable to those containing unmodified UNA regardless of stereochemistry or position for a single or double terminal incorporation in a phosphodiester backbone (Fig. 3A). Introduction of a PS linkage at the 3′ end of the modified oligonucleotides (dT₁₈ XsdT) led to improved stability compared to phosphodiester counterparts (Fig. 3A). The stability of 5′-modified oligonucleotides against degradation mediated by the 5′ PDE-II was also evaluated. Oligonucleotides with phosphodiester backbones containing single UNA residue at the terminus were quite stable in the presence of PDE-II (Fig. 3B). Compared to standard assay conditions, which result in considerable degradation of an oligonucleotide with a 5′ terminal DNA phosphorothioate, as the acyclic UNA backbone is quite stable toward PDE-II, a 10-fold increase in the concentration of PDE-II was required to evaluate the stabilities. The oligonucleotides containing 2′-(S)-Me-UNA and 3′-(S)-Me-UNA were considerably more resistant than the other oligonucleotides tested to PDE-II-catalyzed degradation than the oligonucleotide with a UNA, possibly due to the steric hinderance. The PS backbone modification provided an additional stabilizing effect.

Figure 3. — Half-lives of modified oligonucleotides in the presence of either 5′- or 3′-exonuclease. Oligonucleotides (0.1 mg/mL) were incubated with (A) 150 mU/mL SVPD in 50 mM Tris, pH 7.2, 10 mM MgCl₂ or (B) 500 mU/mL PDE II in 50 mM sodium acetate buffer (pH 6.5) with 10 mM MgCl₂. Full-length product was quantified IEX-HPLC. ON12, 5′-dT₁₉X-3′; ON13, 5′-dT₁₈XdT-3′; ON14, 5′-dT₁₈X₂-3′; ON15, 5′-dT₁₉sX-3′; ON16, 5′-dT₁₈XsdT-3′; ON17, 5′-dT₁₈XsX-3′; ON18, 5′-XdT₁₉-3′; and ON19, 5′-XsdT₁₉-3′. The “s” indicates a PS linkage. All other linkages were phosphodiester.

Modified UNAs mitigate off-target activity without reducing on-target activity in cell culture

Placement of a single UNA residue in the seed region of the antisense strand inhibits miRNA-like, off-target activity without loss of on-target activity [25]. The efficiency of UNA-mediated inhibition of off-target activity was greater when the UNA was located in positions 5, 6, or 7 than in positions 1, 2, or 3 [42]. We incorporated modified UNAs at position 7 of the antisense strand of an siRNA targeting Ttr (Fig. 4A) and measured the IC₅₀ values for on- and off-target activities using a luciferase reporter assay that has been previously described [18, 19, 28] (Fig. 4B). For evaluation of on-target silencing, the 23-mer siRNA target site was cloned into the 3′-UTR of Renilla luciferase. For measurement of off-target gene silencing, four tandem repeats of a sequence complementary to antisense positions 2–9 were cloned into the 3′-UTR of Renilla luciferase. The siRNAs containing UNA or modified UNAs reduced on-target potencies slightly compared to that of the parent siRNA (Fig. 4C, Table 3). The off-target activity was considerably mitigated by incorporating a single R or S isomer of 5′-Me-UNA at position 7 (Fig. 4D, Table 3). The off-target to on-target ratios were calculated by dividing the off-target IC₅₀ values by the on-target IC₅₀ values (Table 3); the larger this ratio, the better the off-target mitigation. The 5′-(S)-Me-UNA had a very high off-target to on-target ratio and reduced potency relative to the parent only slightly. This modification may conformationally pre-organize the siRNA antisense strand and facilitate the local kink in the seed region when the RNA is bound by AGO2.

Figure 4. — Seed-mediated off-target activity is mitigated by incorporation of UNA or modified UNA at position 7 of the antisense strand. (A) Bead diagram of the siRNA used in the experiment. 2′-F and 2′-OMe nucleotides are indicated in green and black, respectively. PS linkages are indicated by orange lines. (B) Schematic of reporters used to evaluate on- and off-target effects. Reporters were expressed in Cos7 cells, and *Renilla* luciferase signal was measured at 48 h after transfection with siRNA (50 nM - 0.64 pM). *Renilla* luciferase signal was normalized to signal from cells treated with non-targeting siRNA. (C) On-target IC₅₀ values (n = 3). (D) Off-target IC₅₀ values (n = 3).

Table 3.

On- and off-target effects of siRNAs containing UNA or modified UNA^a

siRNA	Sequence (5′→3′)	on-target IC₅₀ (pM)	off-target IC₅₀ (nM)	off-target/ on-target ratio
si1	u•u•cuugCuCUAuaaaccgugu*	136	1.21	9
	a•C•acgguuuauagAgCaagaa•c•a
si2	u•u•cuugCuCUAuaaaccgugu*	46.3	1.80	39
	a•C•acggUuuauagAgCaagaa•c•a
si3	u•u•cuugCuCUAuaaaccgugu*	42.1	8.73	207
	a•C•acggU₅_′_SuuauagAgCaagaa•c•a
si4	u•u•cuugCuCUAuaaaccgugu*	89.8	8.13	90
	a•C•acggU₅_′_RuuauagAgCaagaa•c•a
si5	u•u•cuugCuCUAuaaaccgugu*	48.6	1.35	28
	a•C•acggU₂_′_SuuauagAgCaagaa•c•a
si6	u•u•cuugCuCUAuaaaccgugu*	27.7	1.61	58
	a•C•acggU₂_′_RuuauagAgCaagaa•c•a
si7	u•u•cuugCuCUAuaaaccgugu*	23.9	3.65	152
	a•C•acggU₃_′_SuuauagAgCaagaa•c•a
si8	u•u•cuugCuCUAuaaaccgugu*	35.8	2.86	80
	a•C•acggU₃_′_RuuauagAgCaagaa•c•a

Open in a new tab

^aOn- and off-target IC₅₀ values were measured using luciferase reporter assays in COS-7 cells. For experimental conditions, see Fig. 4. Here, uppercase letters, 2′-F nucleotides; lowercase letters, 2′-OMe nucleotides; U, UNA; U₅_′_S, 5′-(S)-Me-UNA; U₅_′_R, 5′-(R)-Me-UNA; U₂_′_S, 2′-(S)-Me-UNA; U₂_′_R, 2′-(R)-Me-UNA; U₃_′_S, 3′-(S)-Me-UNA; U₃_′_R, 3′-(R)-Me-UNA; U₄_′_β, 4′-(β)-methoxy-UNA;• phosphorothioate linkages and *, trivalent GalNAc ligand

siRNAs containing modified UNA induce silencing in mice

Next, the activities of siRNAs containing with UNA or modified UNA at position 7 of the antisense strand were evaluated in mice. These siRNAs are 21:23-mer asymmetric duplexes modified with 2′-OMe and 2′-F nucleotides, terminal phosphorothioates, and, for delivery via subcutaneous administration, the sense strands of the siRNAs were conjugated to GalNAc-conjugated siRNA. The siRNAs target Ttr. Melting temperatures were evaluated. Incorporation of modified UNAs were destabilizing (Table 4); extents of destabilization due to different UNA modifications for these 21/23mer duplexes were smaller to those observed in the context of 12-mer duplexes as expected (Table 2).

Table 4.

Sequences of siRNAs used for in vivo study and T_m values

siRNA	Modification at position 7 of antisense strand	Sequences (5′ -3′)^a	T _m [°C]^b	ΔT_m [°C]^c
si9	-	a•g•uguuCuUGCucuauaaaca*	87.27	-
		u•G•uuuauagagcaAgAacacu•g•u
si10	UNA	a•g•uguuCuUGCucuauaaaca*	81.97	-5.30
		u•G•uuuaUagagcaAgAacacu•g•u
si11	5′-(S)-Me-UNA	a•g•uguuCuUGCucuauaaaca*	81.97	-5.30
		u•G•uuuaU₅_′_SagagcaAgAacacu•g•u
si12	5′-(R)-Me-UNA	a•g•uguuCuUGCucuauaaaca*	82.02	-5.25
		u•G•uuuaU₅_′_RagagcaAgAacacu•g•u
si13	2′-(S)-Me-UNA	a•g•uguuCuUGCucuauaaaca*	83.02	-4.25
		u•G•uuuaU₂_′_SagagcaAgAacacu•g•u
si14	2′-(R)-Me-UNA	a•g•uguuCuUGCucuauaaaca*	82.12	-5.15
		u•G•uuuaU₂_′_R agagcaAgAacacu•g•u
si15	3′-(S)-Me-UNA	a•g•uguuCuUGCucuauaaaca*	81.97	-5.30
		u•G•uuuaU₃_′_S agagcaAgAacacu•g•u
si16	3′-(R)-Me-UNA	a•g•uguuCuUGCucuauaaaca*	81.97	-5.30
		u•G•uuuaU₃_′_R agagcaAgAacacu•g•u
si17	4′-(β)-OMe-UNA	a•g•uguuCuUGCucuauaaaca*	82.97	-4.30
		u•G•uuuaU₄_′_bagagcaAgAacacu•g•u

Open in a new tab

^aUppercase letters, 2′-F nucleotides; lowercase letters, 2′-OMe nucleotides; U, UNA; U₅_′_S, 5′-(S)-Me-UNA; U₅_′_R, 5′-(R)-Me-UNA; U₂_′_S, 2′-(S)-Me-UNA; U₂_′_R, 2′-(R)-Me-UNA; U₃_′_S, 3′-(S)-Me-UNA; U₃_′_R, 3′-(R)-Me-UNA; U₄_′_β, 4′-(β)-methoxy-UNA;• phosphorothioate linkages; *, trivalent GalNAc ligand.

^bThe absorbances of hybridized duplexes (2.5 μM) at 260 nm were determined as a function of temperature in PBS. The T_m was determined as the maximum of the first derivative of the melting curve. Values are reported as the average of two independent experiments.

^cΔT_m was calculated with respect to si9.

In mice, at a dose of 1.0 mg/kg, the parent siRNA with a 2′-OMe at antisense strand position 7 (si9) decreased levels of circulating TTR protein by about 80% compared to pre-dose levels at 7 days post-administration. Incorporation of a UNA at position 7 of the antisense strand (si10) resulted in activity similar to the parent at day 7 post treatment; however, the duration of action was slightly reduced (Fig. 5A). The siRNA modified with the 5′-(S)-Me-UNA (si11) was more potent than the parent si9 on day 7 and had comparable duration to the parental siRNA (Fig. 5A). The 5′-(R)-Me-UNA isomer-modified siRNA si12 had similar potency on day 7 but shorter duration of action. The S isomer of the 3′-Me-UNA imparted higher potency than the R isomer (Fig. 5B). Interestingly, examination of the relative TTR levels on day 7, the nadir for the control duplex si9, revealed that 2′-(R)-Me-UNA-containing si14 appeared to have higher potency than the other siRNAs tested, including the 2′-(S)-Me-UNA-modified siRNA si13 (Fig. 5C). It is possible that si9 may be less metabolically stable than the UNA-containing siRNAs, although we do not have data to confirm this speculation. It should be noted that we did not perform sufficient replicates to evaluate statistical significance. These siRNAs will need to be evaluated at lower doses to confirm these trends. The in vitro and in vivo results were in agreement as observed previously [25].

Figure 5. — The siRNA modified with 5′-(S)-Me-UNA has higher potency than other siRNAs tested. (**A-D**) TTR protein levels relative to pre-dose levels in mice treated with a single dose of 1.0 mg/kg siRNA modified with A) 5′-Me-UNA, B) 3′-Me-UNA, C) 2′-Me-UNA, and D) 4′-β-methoxy-UNA. TTR was quantified in serum samples using a sandwich ELISA assay. All samples were tested in duplicate in the same experiment. In these plots, samples are grouped to facilitate comparison of isomers; data for controls PBS, **si9** (parent), and **si10** (UNA modified) are shown in each panel. Each data point is the average of the mice in each cohort (n = 3). (E) The relative protein TTR protein level on day 7 indicates the nadir for all the modified siRNA including the control duplex **si9**. Interestingly, here 2′-(R)-Me-UNA containing **si14** showed slightly better potency than 5′-(S) and (R)- Me-UNA modified duplexes **si11** and **si12**, respectively. However, the difference becomes clear on days 14 and 21, respectively, where 5′-(S)-Me-UNA showed better efficacy over the 2′ analogue.

Using si17, we have evaluated the (S)-4′-OMe isomer of UNA. In the past, we have evaluated both 4′-Cα-OMe, (the R isomer) and 4′-Cβ-OMe (the S isomer) epimers (with 2′-F RNA) for RNAi mediated silencing activities and found them to be different: The 4′-Cβ-OMe epimer reduced the potency of the siRNA when incorporated into the siRNAs significantly more compared to 4′-Cα-OMe epimer [43]. In the present synthesis (Scheme 2, with 2'-OH) the 4′-Cβ-OMe, the (S) isomer is the major product and the other one was minor and difficult to purify. Based on these observations, in the present work, we have evaluated the off-target mitigation potential and in vivo silencing of (S)-4′-OMe UNA isomer only.

Structural and functional consequences of S and R isomers of methylated UNAs

To gain insights into the origins of differences in potencies and durations of action of siRNAs containing modified UNA, we used computational modeling to visualize the interactions between UNA and modified UNA and AGO2 residues. We used coordinates of the complex between AGO2 and miR-20a (PDB ID 4f3t) [44] and replaced the residue at position 7 of the antisense strand with UNA using the UCSF Chimera suite [45]. Subsequently, the model was energy-minimized with Amber [46] as implemented in UCSF Chimera using steepest descent and conjugate gradient algorithms until convergence. The destabilization caused by UNA in the context of an isolated duplex suggested that there might be a drastic change in conformation relative to RNA. However, the UNA in the grip of AGO2 residues had only minor changes in conformation relative to this position in miR-20a (Supplementary Fig. S1). The inter-phosphate distance is 5.7 Å for the UNA compared to 5.5 Å in the parent miR-20a strand. The kink in the antisense strand at that site is stabilized by three arginines, Arg-375, Arg-714, and Arg-761. It is likely that the more flexible UNA backbone facilitates formation of the kink. The 2′ hydroxyl groups of both UNA and RNA engage in hydrogen bonds to the main chain oxygen of Ala-221 and the side chain Oγ of Thr-368 (Supplementary Fig. S1).

Next, we modeled interaction of AGO2 with siRNAs containing 5′-(R)-Me-UNA and 5′-(S)-Me-UNA at position 7 of the antisense strand. For the S isomer, the methyl group points toward the Cα carbon of Thr-368 (C-C distance of 3.7 Å) (Fig. 6A). For the R isomer, the methyl group points toward the guanidino moiety of Arg-375 (C-N distance of 3.1 Å) such that it is partly wedged between phosphates that are tightly spaced due to the kink (Fig. 6B). The 5′-(S)-methyl group points away from the hinge and thus does not interfere with formation of the kink in the antisense strand between positions 6 and 7. The starkly different environments of the 5′-(S)- and 5′-(R)-methyl groups in the AGO2 binding site can be illustrated by coloring the protein surface according to Coulombic potential (Fig. 6C) and hydrophobic potential (Fig. 6D). Consistent with the higher potency of the siRNA modified with the 5′-(S)-Me-UNA isomer (si11) compared to that of the siRNA modified with the 5′-(R)-Me-UNA (si12) in mice (Fig. 5A), the fit for methyl moiety of the R isomer is clearly worse than that of the S isomer.

Figure 6. — Computationally modeled structures of siRNAs modified with 5′-(S)-Me-UNA and 5′-(R)-Me-UNA in the AGO2 binding site. (AandB) Conformation and Ago2 interactions of A) 5′-(S)-Me-UNA-U and B) 5′-(R)-Me-UNA-U. Carbon atoms of modified UNA residues are colored in cyan, methyl groups are highlighted in ball-and-stick mode, and selected distances are indicated by thin solid lines. (C) AGO2 surface around 5′-(S)-Me-UNA colored according to Coulombic potential: blue positive and white neutral. (D) AGO2 surface around 5′-(S)-Me-UNA-U colored according to hydrophobic potential: purple low, white neutral, and orange high.

The 3′-(R)-methyl group is wedged between the phosphate groups at positions 7 and 8 (P…P distance 5.7 Å, Fig. 6A), resulting in short contacts and the intrusion of a hydrophobic moiety into an environment dominated by electrostatics with phosphate groups surrounded by three arginine side chains (Fig. 7A). By comparison, the 3′-(S)-methyl group has fewer steric and electrostatic problems consistent with its higher potency (Fig. 5B).

Figure 7. — Conformations and AGO2 interactions of (A) 3′-(R)-Me-UNA-U, (B) 3′-(S)-Me-UNA-U, (C) 2′-(R)-Me-UNA-U, and (D) 2′-(S)-Me-UNA-U. Carbon atoms of modified UNA residues are colored in cyan, methyl groups are highlighted in ball-and-stick mode, contacts < 3.5 Å for methyl groups along with the 2′-OH…O (Ala-221) hydrogen bonds are indicated by thin solid lines, and selected residues are labeled.

The 2′-(R)-Me-UNA-modified si14 was more potent than the 2′-(S)-Me-UNA-modified si13 (Fig. 5C). Modeling indicated no steric issues between the 2′-(R)-methyl group and atoms of the backbone and the protein (Fig. 7C), whereas the 2′-(S)-methyl group is trapped between the nucleobase of the residue at position 7 and the ribose of position 8 (Fig. 7D). Rotation around the C1′-C2′ bond might relieve the steric conflict with the sugar but will also sacrifice the hydrogen bond between the 2′-hydroxyl group and the keto group of Ala-221. Thus, the models provide insights into the differences in potencies of siRNAs containing R and S isomers of modified UNAs observed in mice.

There were striking differences in the half-lives of strands carrying at their 5′ ends either R or S isomers of 2′-Me-UNA and 3′-Me-UNA (Fig. 2B). The t_1/2 values of S isomers for both 2′- and 3′-mUNA-protected 20-mers were greater than 25 h, whereas the corresponding oligonucleotides with the R isomers have t_1/2 values of less than 5 h. To gain a better understanding of the origins of these differences, we built models of complexes of UNA-modified trimers with Drosophila melanogaster 5′-3′ exoribonuclease Xrn1 based on the crystal structure of Xrn1 bound to a 5′-phosphorylated trinucleotide P-d(TTT) (PDB ID 2y35) [47].

The energy minimized models of Xrn1 complexes with these trimers show distinct orientations of the S- and R-methyl groups (Fig. 8). In all cases, methyl groups are distal to Mg²⁺ ions; metal ions in the Xrn1 active site do not form inner sphere contacts with phosphate groups of the terminal nucleotide. Therefore, the observed differences in resistance between isomers are unlikely to be the result of a steric interference between methyl and metal ion. However, it appears that S-methyl groups cause more steric strain than R-methyl groups. In the case of 2′-Me-UNA, the S-methyl group is partly wedged between the nucleobases of the terminal and penultimate residues. Thus, it appears to push apart the base moieties and the shortest distances between methyl carbon and base atoms are around 3 Å (Fig. 8A). Additional close contracts exist to O5′ and a key residue at the active site, Arg-100; by comparison, the R-methyl group shows none of these close interactions (Fig. 8A).

Figure 8. — Computational models of the Xrn1 active site bound to mUNA-dTdT trimers reveal differences between R and S isomers of (A) 2′-(S)- and 2′-(R)-Me-UNA-U and (B) 3′-(S)- and 3′-(R)-Me-UNA-U. Methyl groups are highlighted in ball-and-stick mode, with the carbon of the (S) and (R) isomers colored in golden and yellow, respectively. Selected residues are labeled, close contacts are shown with thin solid lines and distances in Å, and a Mg²⁺ is visible as a green sphere behind the 5′-phosphate in panel B.

The distinct steric consequences of different orientations of S- and R-methyl groups are also obvious in the case of the 3′-Me-UNA. The S-methyl adopts an axial orientation that results in two tight 1,3-diaxial contacts, one to the OP2 non-bridging oxygen of the 3′-phosphate and one to O5′ of the 5′ phosphate (Fig. 8B). Both may affect the orientations of phosphates, which could influence binding and cleavage by the exonuclease. Additional tight contacts exist between S-methyl and C2′ as well as Arg-100. The R-methyl group does not exhibit close 1,3-diaxial contacts and is farther removed from both Arg-100 and Lys-93 than the S-methyl group (Fig. 8B).

Conclusions

We explored the effects of flexible modified UNAs, modifications not previously investigated, on the thermal stability, nuclease resistance, and in vitro and in vivo activities of siRNAs. Modified UNA uridine phosphoramidites were synthesized and incorporated into oligonucleotides. Our studies showed that one or two terminal modified UNAs, regardless of stereochemistry or position, imparted similar stabilities in the presence of 3′-exonuclease as unmodified UNA. Thus, despite the presence of the free hydroxyl group, these thermally destabilizing modifications do not decrease stability in the presence of the 3′-exonuclease. In contrast, there were striking differences in the half-lives of strands with R or S isomers of 2′-Me-UNA and 3′-Me-UNA in the presence of a 5′-exonuclease. Energy minimized models of Xrn1 complexes with trimers containing modified UNAs revealed distinct orientations of the S- and R-methyl groups. The S-methyl groups appear to cause more steric strain than R-methyl groups resulting in longer half-lives for oligonucleotides that terminate in S isomers of 2′-Me-UNA and 3′-Me-UNA compared to those with R isomers.

Incorporating a single modified UNA into the seed region of siRNA duplexes resulted in similar reductions in levels of Ttr mRNA in vitro as incorporating a single UNA; however, siRNAs with modified UNA, especially 5′-(S)-Me-UNA, in the seed region reduced off-target effects more than incorporation of UNA. The siRNAs with 5′-(R)-Me-UNA and with 5′-(S)-Me-UNA in the seed region of the antisense strand performed better than siRNA containing UNA or other modified UNA analogs in gene silencing assays in mice. Modeling studies indicated that the flexibility of the UNA and modified UNA facilitate kinking of the antisense strand when incorporated at position 7. That the siRNAs with modified UNA have silencing activities on par with an siRNA with a 2′-OMe analogs at position 7 in mice but have the ability to mitigate off-target activity warrants their further investigation. We plan to synthesize all nucleobase analogs of select modified UNA building blocks to enable further evaluation of their utility in nucleic acid-based therapeutics.

Supplementary Material

gkaf937_Supplemental_File

gkaf937_supplemental_file.docx^{(4.3MB, docx)}

Acknowledgements

This work is dedicated to the loving memory of Professor Kelvin K. Ogilvie (1942–2025) for his life-long contributions to Nucleoside and RNA Chemistry resulting in multiple Therapeutics. We are grateful to all members of our Research and Early Development teams at Alnylam Pharmaceuticals for the support of this project.

Author contributions: S.Mori (Conceptualization [lead], Data curation [supporting], Formal analysis [equal], Investigation [equal], Methodology [supporting], Visualization [equal], Writing—original draft [equal], and Writing—review & editing [equal]), D.D. (Conceptualization [lead], Data curation [lead], Formal analysis [equal], Investigation [equal], Methodology [lead], Visualization [equal], Writing—original draft [equal], and Writing—review & editing [equal]), L.P. (Data curation [equal], Formal analysis [equal], Investigation [equal], Methodology [equal], and Visualization [equal],), M.J., L.B.W., A.E., J.Q., T.R., M.K., and D.G. (Data curation [equal], Formal analysis [equal], Software [supporting], and Visualization [equal]), A.C., M.K.S., and K.C. (Data curation [equal], Formal analysis [equal], Project administration [supporting], and Writing—original draft [supporting]), M.E. (Conceptualization [lead], Data curation [equal], Formal analysis [lead], Validation [supporting], Writing—original draft [supporting], and Writing—review & editing [lead]), S.Matsuda and M.M. (Conceptualization [lead], Data curation [lead], Formal analysis [lead], Investigation [lead], Methodology [equal], Project administration [lead], Writing—original draft [lead], and Writing—review & editing [lead]).

Contributor Information

Shohei Mori, Alnylam Pharmaceuticals, 675 West Kendall, Cambridge, MA 02142, United States.

Dhrubajyoti Datta, Alnylam Pharmaceuticals, 675 West Kendall, Cambridge, MA 02142, United States.

Lydia Perkins, Alnylam Pharmaceuticals, 675 West Kendall, Cambridge, MA 02142, United States.

Michelle Jung, Alnylam Pharmaceuticals, 675 West Kendall, Cambridge, MA 02142, United States.

Lauren Blair Woods, Alnylam Pharmaceuticals, 675 West Kendall, Cambridge, MA 02142, United States.

Alex Eaton, Alnylam Pharmaceuticals, 675 West Kendall, Cambridge, MA 02142, United States.

June Qin, Alnylam Pharmaceuticals, 675 West Kendall, Cambridge, MA 02142, United States.

Tim Racie, Alnylam Pharmaceuticals, 675 West Kendall, Cambridge, MA 02142, United States.

MaryBeth Kim, Alnylam Pharmaceuticals, 675 West Kendall, Cambridge, MA 02142, United States.

Dale C Guenther, Alnylam Pharmaceuticals, 675 West Kendall, Cambridge, MA 02142, United States.

Adam Castoreno, Alnylam Pharmaceuticals, 675 West Kendall, Cambridge, MA 02142, United States.

Mark K Schlegel, Alnylam Pharmaceuticals, 675 West Kendall, Cambridge, MA 02142, United States.

Klaus Charisse, Alnylam Pharmaceuticals, 675 West Kendall, Cambridge, MA 02142, United States.

Martin Egli, Department of Biochemistry and Center for Structural Biology, Vanderbilt University, School of Medicine, Nashville, TN 37232-0146, United States.

Shigeo Matsuda, Alnylam Pharmaceuticals, 675 West Kendall, Cambridge, MA 02142, United States.

Muthiah Manoharan, Alnylam Pharmaceuticals, 675 West Kendall, Cambridge, MA 02142, United States.

Supplementary data

Supplementary data is available at NAR online.

Conflict of interest

The authors declare no competing financial interest.

Funding

Provided by Alnylam Pharmaceuticals. Funding to pay the Open Access publication charges for this article was provided by Alnylam Pharmaceuticals.

Data availability

Analytical data of all oligonucleotides are available as Supplementary Table S1. All other data needed to evaluate the conclusions of the paper are present in the paper and Supplementary Data.

References

1. Akinc A, Maier MA, Manoharan M et al. The Onpattro story and the clinical translation of nanomedicines containing nucleic acid-based drugs. Nat Nanotechnol. 2019; 14:1084–7. 10.1038/s41565-019-0591-y. [DOI] [PubMed] [Google Scholar]
2. Chan A, Liebow A, Yasuda M et al. Preclinical development of a subcutaneous ALAS1 RNAi therapeutic for treatment of hepatic porphyrias using circulating RNA quantification. Mol Ther Nucleic Acids. 2015; 4:e263. 10.1038/mtna.2015.36. [DOI] [PMC free article] [PubMed] [Google Scholar]
3. Balwani M, Sardh E, Ventura P et al. Phase 3 trial of RNAi therapeutic givosiran for acute intermittent porphyria. N Engl J Med. 2020; 382:2289–301. 10.1056/NEJMoa1913147. [DOI] [PubMed] [Google Scholar]
4. Liebow A, Li X, Racie T et al. An investigational RNAi therapeutic targeting glycolate oxidase reduces oxalate production in models of primary hyperoxaluria. JASN. 2017; 28:494–503. 10.1681/ASN.2016030338. [DOI] [PMC free article] [PubMed] [Google Scholar]
5. Fitzgerald K, White S, Borodovsky A et al. A highly durable RNAi therapeutic inhibitor of PCSK9. N Engl J Med. 2017; 376:41–51. 10.1056/NEJMoa1609243. [DOI] [PMC free article] [PubMed] [Google Scholar]
6. Ray KK, Wright RS, Kallend D et al. Two Phase 3 trials of inclisiran in patients with elevated LDL cholesterol. N Engl J Med. 2020; 382:1507–19. 10.1056/NEJMoa1912387. [DOI] [PubMed] [Google Scholar]
7. Raal FJ, Kallend D, Ray KK et al. Inclisiran for the treatment of heterozygous familial hypercholesterolemia. N Engl J Med. 2020; 382:1520–30. 10.1056/NEJMoa1913805. [DOI] [PubMed] [Google Scholar]
8. Adams D, Tournev IL, Taylor MS et al. Efficacy and safety of vutrisiran for patients with hereditary transthyretin-mediated amyloidosis with polyneuropathy: a randomized clinical trial. Amyloid. 2023; 30:18–26. 10.1080/13506129.2022.2091985. [DOI] [PubMed] [Google Scholar]
9. Liu A, Zhao J, Shah M et al. Nedosiran, a candidate siRNA drug for the treatment of primary hyperoxaluria: design, development, and clinical studies. ACS Pharmacol Transl Sci. 2022; 5:1007–16. 10.1021/acsptsci.2c00110. [DOI] [PMC free article] [PubMed] [Google Scholar]
10. Fontana M, Berk JL, Gillmore JD et al. Vutrisiran in patients with transthyretin amyloidosis with cardiomyopathy. N Engl J Med. 2025; 392:33–44. 10.1056/NEJMoa2409134. [DOI] [PubMed] [Google Scholar]
11. Young G, Srivastava A, Kavakli K et al. Efficacy and safety of fitusiran prophylaxis, an siRNA therapeutic, in a multicenter Phase 3 study (ATLAS-INH) in people with hemophilia A or B, with inhibitors (PwHI). Blood. 2021; 138:4. 10.1182/blood-2021-150273.34236429 [DOI] [Google Scholar]
12. Young G, Srivastava A, Kavakli K et al. Efficacy and safety of fitusiran prophylaxis in people with haemophilia A or haemophilia B with inhibitors (ATLAS-INH): a multicentre, open-label, randomised phase 3 trial. The Lancet. 2023; 401:1427–37. 10.1016/S0140-6736(23)00284-2. [DOI] [PubMed] [Google Scholar]
13. Egli M, Manoharan M Re-engineering RNA molecules into therapeutic agents. Acc Chem Res. 2019; 52:1036–47. 10.1021/acs.accounts.8b00650. [DOI] [PubMed] [Google Scholar]
14. Corey DR, Damha MJ, Manoharan M Challenges and opportunities for nucleic acid therapeutics. Nucleic Acid Ther. 2022; 32:8–13. 10.1089/nat.2021.0085. [DOI] [PMC free article] [PubMed] [Google Scholar]
15. Egli M, Manoharan M Chemistry, structure and function of approved oligonucleotide therapeutics. Nucleic Acids Res. 2023; 51:2529–73. 10.1093/nar/gkad067. [DOI] [PMC free article] [PubMed] [Google Scholar]
16. Bumcrot D, Manoharan M, Koteliansky V et al. RNAi therapeutics: a potential new class of pharmaceutical drugs. Nat Chem Biol. 2006; 2:711–9. 10.1038/nchembio839. [DOI] [PMC free article] [PubMed] [Google Scholar]
17. Nair JK, Willoughby JL, Chan A et al. Multivalent N-acetylgalactosamine-conjugated siRNA localizes in hepatocytes and elicits robust RNAi-mediated gene silencing. J Am Chem Soc. 2014; 136:16958–61. 10.1021/ja505986a. [DOI] [PubMed] [Google Scholar]
18. Schlegel MK, Foster DJ, Kel’in AV et al. Chirality dependent potency enhancement and structural impact of Glycol nucleic acid Modification on siRNA. J Am Chem Soc. 2017; 139:8537–46. 10.1021/jacs.7b02694. [DOI] [PubMed] [Google Scholar]
19. Guenther DC, Mori S, Matsuda S et al. Role of a “Magic” Methyl: 2'-Deoxy-2'-α-F-2'-β-C-methyl pyrimidine nucleotides modulate RNA interference activity through synergy with 5'-phosphate mimics and mitigation of off-target effects. J Am Chem Soc. 2022; 144:14517–34. 10.1021/jacs.2c01679. [DOI] [PMC free article] [PubMed] [Google Scholar]
20. Allerson CR, Sioufi N, Jarres R et al. Fully 2'-modified oligonucleotide duplexes with improved in vitro potency and stability compared to unmodified small interfering RNA. J Med Chem. 2005; 48:901–4. 10.1021/jm049167j. [DOI] [PubMed] [Google Scholar]
21. Manoharan M, Akinc A, Pandey RK et al. Unique gene-silencing and structural properties of 2'-fluoro-modified siRNAs. Angew Chem Int Ed. 2011; 50:2284–8. 10.1002/anie.201006519. [DOI] [PMC free article] [PubMed] [Google Scholar]
22. Pallan PS, Greene EM, Jicman PA et al. Unexpected origins of the enhanced pairing affinity of 2'-fluoro-modified RNA. Nucleic Acids Res. 2011; 39:3482–95. 10.1093/nar/gkq1270. [DOI] [PMC free article] [PubMed] [Google Scholar]
23. Patra A, Paolillo M, Charisse K et al. 2'-Fluoro RNA shows increased Watson-Crick H-bonding strength and stacking relative to RNA: evidence from NMR and thermodynamic data. Angew Chem Int Ed. 2012; 51:11863–6. 10.1002/anie.201204946. [DOI] [PMC free article] [PubMed] [Google Scholar]
24. Kenski DM, Cooper AJ, Li JJ et al. Analysis of acyclic nucleoside modifications in siRNAs finds sensitivity at position 1 that is restored by 5'-terminal phosphorylation both in vitro and in vivo. Nucleic Acids Res. 2010; 38:660–71. [DOI] [PMC free article] [PubMed] [Google Scholar]
25. Laursen MB, Pakula MM, Gao S et al. Utilization of unlocked nucleic acid (UNA) to enhance siRNA performance in vitro and in vivo. Mol Biosyst. 2010; 6:862–70. [DOI] [PubMed] [Google Scholar]
26. Kamiya Y, Takai J, Ito H et al. Enhancement of stability and activity of siRNA by terminal substitution with serinol nucleic acid (SNA). ChemBioChem. 2014; 15:2549–55. 10.1002/cbic.201402369. [DOI] [PubMed] [Google Scholar]
27. Matsuda S, Bala S, Liao JY et al. Shorter is better: the α-(l)-Threofuranosyl nucleic acid modification improves stability, potency, safety, and Ago2 binding and mitigates off-target effects of small interfering RNAs. J Am Chem Soc. 2023; 145:19691–706. 10.1021/jacs.3c04744. [DOI] [PubMed] [Google Scholar]
28. Schlegel MK, Janas MM, Jiang Y et al. From bench to bedside: improving the clinical safety of GalNAc-siRNA conjugates using seed-pairing destabilization. Nucleic Acids Res. 2022; 50:6656–70. 10.1093/nar/gkac539. [DOI] [PMC free article] [PubMed] [Google Scholar]
29. Egli M, Schlegel MK, Manoharan M Acyclic (S)-glycol nucleic acid (S-GNA) modification of siRNAs improves the safety of RNAi therapeutics while maintaining potency. RNA. 2023; 29:402–14. 10.1261/rna.079526.122. [DOI] [PMC free article] [PubMed] [Google Scholar]
30. Nielsen P, Dreiøe LH, Wengel J Synthesis and evaluation of oligodeoxynucleotides containing acyclic nucleosides: introduction of three novel analogues and a summary. Bioorg Med Chem. 1995; 3:19–28. 10.1016/0968-0896(94)00143-Q. [DOI] [PubMed] [Google Scholar]
31. Langkjaer N, Pasternak A, Wengel J UNA (unlocked nucleic acid): a flexible RNA mimic that allows engineering of nucleic acid duplex stability. Bioorg Med Chem. 2009; 17:5420–5. 10.1016/j.bmc.2009.06.045. [DOI] [PubMed] [Google Scholar]
32. Bramsen JB, Laursen MB, Nielsen AF et al. A large-scale chemical modification screen identifies design rules to generate siRNAs with high activity, high stability and low toxicity. Nucleic Acids Res. 2009; 37:2867–81. 10.1093/nar/gkp106. [DOI] [PMC free article] [PubMed] [Google Scholar]
33. Bramsen JB, Pakula MM, Hansen TB et al. A screen of chemical modifications identifies position-specific modification by UNA to most potently reduce siRNA off-target effects. Nucleic Acids Res. 2010; 38:5761–73. 10.1093/nar/gkq341. [DOI] [PMC free article] [PubMed] [Google Scholar]
34. Campbell MA, Wengel J Locked vs. unlocked nucleic acids (LNA vs. UNA): contrasting structures work towards common therapeutic goals. Chem Soc Rev. 2011; 40:5680–9. 10.1039/c1cs15048k. [DOI] [PubMed] [Google Scholar]
35. Snead NM, Escamilla-Powers JR, Rossi JJ et al. 5' unlocked nucleic acid modification improves siRNA targeting. Mol Ther Nucleic Acids. 2013; 2:e103. 10.1038/mtna.2013.36. [DOI] [PMC free article] [PubMed] [Google Scholar]
36. Flockerzi D, Silber G, Charubala R et al. Nucleoside, XXXVII. Synthese und Eigenschaften von 2′-O- und 3′-O-(tert-Butyldi-methylsilyl)-5′-O-(4-methoxytrityl)- sowie 2′,3′-Bis-O-(tert-butyl-dimethylsilyl)ribonucleosiden — Ausgangssubstanzen für Oligoribonucleotid-Synthesen. Liebigs Ann Chem. 1981; 1981:1568–85. 10.1002/jlac.198119810907. [DOI] [Google Scholar]
37. Haraguchi K, Takeda S, Tanaka H Ring opening of 4',5'-epoxynucleosides: a novel stereoselective entry to 4'-C-branched nucleosides. Org Lett. 2003; 5:1399–402. 10.1021/ol020259h. [DOI] [PubMed] [Google Scholar]
38. Sofia MJ, Du J Preparation of 2',4'-substituted nucleoside analogs for use treating viral infections. 2009; US20090318380A1.
39. Barbeyron R, Wengel J, Vasseur JJ et al. Boronic acid-based autoligation of nucleic acids: influence of the nature of the 3′-end ribonucleotidic strand. Monatsh. Chem. 2013; 144:495–500. 10.1007/s00706-012-0881-7. [DOI] [Google Scholar]
40. Lerner LM Adenine nucleosides derived from 6-deoxyhexofuranoses. J Org Chem. 1976; 41:306–10. 10.1021/jo00864a026. [DOI] [PubMed] [Google Scholar]
41. Hoye TR, Jeffrey CS, Shao F Mosher ester analysis for the determination of absolute configuration of stereogenic (chiral) carbinol carbons. Nat Protoc. 2007; 2:2451–8. 10.1038/nprot.2007.354. [DOI] [PubMed] [Google Scholar]
42. Vaish N, Chen F, Seth S et al. Improved specificity of gene silencing by siRNAs containing unlocked nucleobase analogs. Nucleic Acids Res. 2011; 39:1823–32. 10.1093/nar/gkq961. [DOI] [PMC free article] [PubMed] [Google Scholar]
43. Malek-Adamian E, Guenther DC, Matsuda S et al. 4′-C-Methoxy-2′-deoxy-2′-fluoro modified ribonucleotides improve metabolic stability and elicit efficient RNAi-mediated gene silencing. J Am Chem Soc. 2017; 139:14542–55. 10.1021/jacs.7b07582. [DOI] [PubMed] [Google Scholar]
44. Elkayam E, Kuhn CD, Tocilj A et al. The structure of human argonaute-2 in complex with miR-20a. Cell. 2012; 150:100–10. 10.1016/j.cell.2012.05.017. [DOI] [PMC free article] [PubMed] [Google Scholar]
45. Pettersen EF, Goddard TD, Huang CC et al. UCSF Chimera–a visualization system for exploratory research and analysis. J Comput Chem. 2004; 25:1605–12. 10.1002/jcc.20084. [DOI] [PubMed] [Google Scholar]
46. Case DA, Cheatham TE 3rd, Darden T et al. The Amber biomolecular simulation programs. J Comput Chem. 2005; 26:1668–88. 10.1002/jcc.20290. [DOI] [PMC free article] [PubMed] [Google Scholar]
47. Jinek M, Coyle SM, Doudna JA Coupled 5' nucleotide recognition and processivity in Xrn1-mediated mRNA decay. Mol Cell. 2011; 41:600–8. 10.1016/j.molcel.2011.02.004. [DOI] [PMC free article] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

gkaf937_Supplemental_File

gkaf937_supplemental_file.docx^{(4.3MB, docx)}

Data Availability Statement

Analytical data of all oligonucleotides are available as Supplementary Table S1. All other data needed to evaluate the conclusions of the paper are present in the paper and Supplementary Data.

[B1] 1. Akinc A, Maier MA, Manoharan M et al. The Onpattro story and the clinical translation of nanomedicines containing nucleic acid-based drugs. Nat Nanotechnol. 2019; 14:1084–7. 10.1038/s41565-019-0591-y. [DOI] [PubMed] [Google Scholar]

[B2] 2. Chan A, Liebow A, Yasuda M et al. Preclinical development of a subcutaneous ALAS1 RNAi therapeutic for treatment of hepatic porphyrias using circulating RNA quantification. Mol Ther Nucleic Acids. 2015; 4:e263. 10.1038/mtna.2015.36. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B3] 3. Balwani M, Sardh E, Ventura P et al. Phase 3 trial of RNAi therapeutic givosiran for acute intermittent porphyria. N Engl J Med. 2020; 382:2289–301. 10.1056/NEJMoa1913147. [DOI] [PubMed] [Google Scholar]

[B4] 4. Liebow A, Li X, Racie T et al. An investigational RNAi therapeutic targeting glycolate oxidase reduces oxalate production in models of primary hyperoxaluria. JASN. 2017; 28:494–503. 10.1681/ASN.2016030338. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B5] 5. Fitzgerald K, White S, Borodovsky A et al. A highly durable RNAi therapeutic inhibitor of PCSK9. N Engl J Med. 2017; 376:41–51. 10.1056/NEJMoa1609243. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B6] 6. Ray KK, Wright RS, Kallend D et al. Two Phase 3 trials of inclisiran in patients with elevated LDL cholesterol. N Engl J Med. 2020; 382:1507–19. 10.1056/NEJMoa1912387. [DOI] [PubMed] [Google Scholar]

[B7] 7. Raal FJ, Kallend D, Ray KK et al. Inclisiran for the treatment of heterozygous familial hypercholesterolemia. N Engl J Med. 2020; 382:1520–30. 10.1056/NEJMoa1913805. [DOI] [PubMed] [Google Scholar]

[B8] 8. Adams D, Tournev IL, Taylor MS et al. Efficacy and safety of vutrisiran for patients with hereditary transthyretin-mediated amyloidosis with polyneuropathy: a randomized clinical trial. Amyloid. 2023; 30:18–26. 10.1080/13506129.2022.2091985. [DOI] [PubMed] [Google Scholar]

[B9] 9. Liu A, Zhao J, Shah M et al. Nedosiran, a candidate siRNA drug for the treatment of primary hyperoxaluria: design, development, and clinical studies. ACS Pharmacol Transl Sci. 2022; 5:1007–16. 10.1021/acsptsci.2c00110. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B10] 10. Fontana M, Berk JL, Gillmore JD et al. Vutrisiran in patients with transthyretin amyloidosis with cardiomyopathy. N Engl J Med. 2025; 392:33–44. 10.1056/NEJMoa2409134. [DOI] [PubMed] [Google Scholar]

[B11] 11. Young G, Srivastava A, Kavakli K et al. Efficacy and safety of fitusiran prophylaxis, an siRNA therapeutic, in a multicenter Phase 3 study (ATLAS-INH) in people with hemophilia A or B, with inhibitors (PwHI). Blood. 2021; 138:4. 10.1182/blood-2021-150273.34236429 [DOI] [Google Scholar]

[B12] 12. Young G, Srivastava A, Kavakli K et al. Efficacy and safety of fitusiran prophylaxis in people with haemophilia A or haemophilia B with inhibitors (ATLAS-INH): a multicentre, open-label, randomised phase 3 trial. The Lancet. 2023; 401:1427–37. 10.1016/S0140-6736(23)00284-2. [DOI] [PubMed] [Google Scholar]

[B13] 13. Egli M, Manoharan M Re-engineering RNA molecules into therapeutic agents. Acc Chem Res. 2019; 52:1036–47. 10.1021/acs.accounts.8b00650. [DOI] [PubMed] [Google Scholar]

[B14] 14. Corey DR, Damha MJ, Manoharan M Challenges and opportunities for nucleic acid therapeutics. Nucleic Acid Ther. 2022; 32:8–13. 10.1089/nat.2021.0085. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B15] 15. Egli M, Manoharan M Chemistry, structure and function of approved oligonucleotide therapeutics. Nucleic Acids Res. 2023; 51:2529–73. 10.1093/nar/gkad067. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B16] 16. Bumcrot D, Manoharan M, Koteliansky V et al. RNAi therapeutics: a potential new class of pharmaceutical drugs. Nat Chem Biol. 2006; 2:711–9. 10.1038/nchembio839. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B17] 17. Nair JK, Willoughby JL, Chan A et al. Multivalent N-acetylgalactosamine-conjugated siRNA localizes in hepatocytes and elicits robust RNAi-mediated gene silencing. J Am Chem Soc. 2014; 136:16958–61. 10.1021/ja505986a. [DOI] [PubMed] [Google Scholar]

[B18] 18. Schlegel MK, Foster DJ, Kel’in AV et al. Chirality dependent potency enhancement and structural impact of Glycol nucleic acid Modification on siRNA. J Am Chem Soc. 2017; 139:8537–46. 10.1021/jacs.7b02694. [DOI] [PubMed] [Google Scholar]

[B19] 19. Guenther DC, Mori S, Matsuda S et al. Role of a “Magic” Methyl: 2'-Deoxy-2'-α-F-2'-β-C-methyl pyrimidine nucleotides modulate RNA interference activity through synergy with 5'-phosphate mimics and mitigation of off-target effects. J Am Chem Soc. 2022; 144:14517–34. 10.1021/jacs.2c01679. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B20] 20. Allerson CR, Sioufi N, Jarres R et al. Fully 2'-modified oligonucleotide duplexes with improved in vitro potency and stability compared to unmodified small interfering RNA. J Med Chem. 2005; 48:901–4. 10.1021/jm049167j. [DOI] [PubMed] [Google Scholar]

[B21] 21. Manoharan M, Akinc A, Pandey RK et al. Unique gene-silencing and structural properties of 2'-fluoro-modified siRNAs. Angew Chem Int Ed. 2011; 50:2284–8. 10.1002/anie.201006519. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B22] 22. Pallan PS, Greene EM, Jicman PA et al. Unexpected origins of the enhanced pairing affinity of 2'-fluoro-modified RNA. Nucleic Acids Res. 2011; 39:3482–95. 10.1093/nar/gkq1270. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B23] 23. Patra A, Paolillo M, Charisse K et al. 2'-Fluoro RNA shows increased Watson-Crick H-bonding strength and stacking relative to RNA: evidence from NMR and thermodynamic data. Angew Chem Int Ed. 2012; 51:11863–6. 10.1002/anie.201204946. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B24] 24. Kenski DM, Cooper AJ, Li JJ et al. Analysis of acyclic nucleoside modifications in siRNAs finds sensitivity at position 1 that is restored by 5'-terminal phosphorylation both in vitro and in vivo. Nucleic Acids Res. 2010; 38:660–71. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B25] 25. Laursen MB, Pakula MM, Gao S et al. Utilization of unlocked nucleic acid (UNA) to enhance siRNA performance in vitro and in vivo. Mol Biosyst. 2010; 6:862–70. [DOI] [PubMed] [Google Scholar]

[B26] 26. Kamiya Y, Takai J, Ito H et al. Enhancement of stability and activity of siRNA by terminal substitution with serinol nucleic acid (SNA). ChemBioChem. 2014; 15:2549–55. 10.1002/cbic.201402369. [DOI] [PubMed] [Google Scholar]

[B27] 27. Matsuda S, Bala S, Liao JY et al. Shorter is better: the α-(l)-Threofuranosyl nucleic acid modification improves stability, potency, safety, and Ago2 binding and mitigates off-target effects of small interfering RNAs. J Am Chem Soc. 2023; 145:19691–706. 10.1021/jacs.3c04744. [DOI] [PubMed] [Google Scholar]

[B28] 28. Schlegel MK, Janas MM, Jiang Y et al. From bench to bedside: improving the clinical safety of GalNAc-siRNA conjugates using seed-pairing destabilization. Nucleic Acids Res. 2022; 50:6656–70. 10.1093/nar/gkac539. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B29] 29. Egli M, Schlegel MK, Manoharan M Acyclic (S)-glycol nucleic acid (S-GNA) modification of siRNAs improves the safety of RNAi therapeutics while maintaining potency. RNA. 2023; 29:402–14. 10.1261/rna.079526.122. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B30] 30. Nielsen P, Dreiøe LH, Wengel J Synthesis and evaluation of oligodeoxynucleotides containing acyclic nucleosides: introduction of three novel analogues and a summary. Bioorg Med Chem. 1995; 3:19–28. 10.1016/0968-0896(94)00143-Q. [DOI] [PubMed] [Google Scholar]

[B31] 31. Langkjaer N, Pasternak A, Wengel J UNA (unlocked nucleic acid): a flexible RNA mimic that allows engineering of nucleic acid duplex stability. Bioorg Med Chem. 2009; 17:5420–5. 10.1016/j.bmc.2009.06.045. [DOI] [PubMed] [Google Scholar]

[B32] 32. Bramsen JB, Laursen MB, Nielsen AF et al. A large-scale chemical modification screen identifies design rules to generate siRNAs with high activity, high stability and low toxicity. Nucleic Acids Res. 2009; 37:2867–81. 10.1093/nar/gkp106. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B33] 33. Bramsen JB, Pakula MM, Hansen TB et al. A screen of chemical modifications identifies position-specific modification by UNA to most potently reduce siRNA off-target effects. Nucleic Acids Res. 2010; 38:5761–73. 10.1093/nar/gkq341. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B34] 34. Campbell MA, Wengel J Locked vs. unlocked nucleic acids (LNA vs. UNA): contrasting structures work towards common therapeutic goals. Chem Soc Rev. 2011; 40:5680–9. 10.1039/c1cs15048k. [DOI] [PubMed] [Google Scholar]

[B35] 35. Snead NM, Escamilla-Powers JR, Rossi JJ et al. 5' unlocked nucleic acid modification improves siRNA targeting. Mol Ther Nucleic Acids. 2013; 2:e103. 10.1038/mtna.2013.36. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B36] 36. Flockerzi D, Silber G, Charubala R et al. Nucleoside, XXXVII. Synthese und Eigenschaften von 2′-O- und 3′-O-(tert-Butyldi-methylsilyl)-5′-O-(4-methoxytrityl)- sowie 2′,3′-Bis-O-(tert-butyl-dimethylsilyl)ribonucleosiden — Ausgangssubstanzen für Oligoribonucleotid-Synthesen. Liebigs Ann Chem. 1981; 1981:1568–85. 10.1002/jlac.198119810907. [DOI] [Google Scholar]

[B37] 37. Haraguchi K, Takeda S, Tanaka H Ring opening of 4',5'-epoxynucleosides: a novel stereoselective entry to 4'-C-branched nucleosides. Org Lett. 2003; 5:1399–402. 10.1021/ol020259h. [DOI] [PubMed] [Google Scholar]

[B38] 38. Sofia MJ, Du J Preparation of 2',4'-substituted nucleoside analogs for use treating viral infections. 2009; US20090318380A1.

[B39] 39. Barbeyron R, Wengel J, Vasseur JJ et al. Boronic acid-based autoligation of nucleic acids: influence of the nature of the 3′-end ribonucleotidic strand. Monatsh. Chem. 2013; 144:495–500. 10.1007/s00706-012-0881-7. [DOI] [Google Scholar]

[B40] 40. Lerner LM Adenine nucleosides derived from 6-deoxyhexofuranoses. J Org Chem. 1976; 41:306–10. 10.1021/jo00864a026. [DOI] [PubMed] [Google Scholar]

[B41] 41. Hoye TR, Jeffrey CS, Shao F Mosher ester analysis for the determination of absolute configuration of stereogenic (chiral) carbinol carbons. Nat Protoc. 2007; 2:2451–8. 10.1038/nprot.2007.354. [DOI] [PubMed] [Google Scholar]

[B42] 42. Vaish N, Chen F, Seth S et al. Improved specificity of gene silencing by siRNAs containing unlocked nucleobase analogs. Nucleic Acids Res. 2011; 39:1823–32. 10.1093/nar/gkq961. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B43] 43. Malek-Adamian E, Guenther DC, Matsuda S et al. 4′-C-Methoxy-2′-deoxy-2′-fluoro modified ribonucleotides improve metabolic stability and elicit efficient RNAi-mediated gene silencing. J Am Chem Soc. 2017; 139:14542–55. 10.1021/jacs.7b07582. [DOI] [PubMed] [Google Scholar]

[B44] 44. Elkayam E, Kuhn CD, Tocilj A et al. The structure of human argonaute-2 in complex with miR-20a. Cell. 2012; 150:100–10. 10.1016/j.cell.2012.05.017. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B45] 45. Pettersen EF, Goddard TD, Huang CC et al. UCSF Chimera–a visualization system for exploratory research and analysis. J Comput Chem. 2004; 25:1605–12. 10.1002/jcc.20084. [DOI] [PubMed] [Google Scholar]

[B46] 46. Case DA, Cheatham TE 3rd, Darden T et al. The Amber biomolecular simulation programs. J Comput Chem. 2005; 26:1668–88. 10.1002/jcc.20290. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B47] 47. Jinek M, Coyle SM, Doudna JA Coupled 5' nucleotide recognition and processivity in Xrn1-mediated mRNA decay. Mol Cell. 2011; 41:600–8. 10.1016/j.molcel.2011.02.004. [DOI] [PMC free article] [PubMed] [Google Scholar]

PERMALINK

Modified unlocked nucleic acid (MUNA) mitigates off-target effects of small interfering RNAs

Shohei Mori

Dhrubajyoti Datta

Lydia Perkins

Michelle Jung

Lauren Blair Woods

Alex Eaton

June Qin

Tim Racie

MaryBeth Kim

Dale C Guenther

Adam Castoreno

Mark K Schlegel

Klaus Charisse

Martin Egli

Shigeo Matsuda

Muthiah Manoharan

Abstract

Graphical Abstract

Graphical Abstract.

Introduction

Figure 1.

Materials and methods

Synthetic procedures and compound characterization

Oligonucleotide synthesis

Determination of thermal denaturation temperatures

Nuclease resistance assays

RT-qPCR quantification of mRNA

Analysis of off-target effects

Treatment of mice with siRNA and quantification of TTR in serum

Results

Synthesis of RNA oligonucleotides containing modified UNAs

Scheme 1.

Scheme 2.

Scheme 3.

Scheme 4.

Mosher ester analysis assignment of R and S configurations of 2′-methyl-UNAs

Table 1.

Figure 2.

Scheme 5.

Modified UNA destabilizes an RNA:RNA duplex

Table 2.

Modified UNAs impart stability against exonuclease degradation

Figure 3.

Modified UNAs mitigate off-target activity without reducing on-target activity in cell culture

Figure 4.

Table 3.

siRNAs containing modified UNA induce silencing in mice

Table 4.

Figure 5.

Structural and functional consequences of S and R isomers of methylated UNAs

Figure 6.

Figure 7.

Figure 8.

Conclusions

Supplementary Material

Acknowledgements

Contributor Information

Supplementary data

Conflict of interest

Funding

Data availability

References

Associated Data

Supplementary Materials

Data Availability Statement

ACTIONS

PERMALINK

RESOURCES

Similar articles

Cited by other articles

Links to NCBI Databases
