A cryogenic Paul trap for probing the nuclear isomeric excited state $_{}^{229\text{m}}$Th$_{}^{3+}$

Abstract

Abstract

While laser excitation of the nuclear isomeric transition in $_{}^{229}$Th has been recently achieved for thorium atoms embedded in large-bandgap crystals, laser excitation and characterization of the nuclear transition in trapped $_{}^{229}$Th$_{}^{3+}$ ions has not yet been accomplished. To address these experiments, a cryogenic Paul trap setup has been designed, built, and commissioned at LMU Munich. Here, we present the specifications of the new experimental platform and demonstrate its successful operation, showing the extraction, subsequent ion guiding, mass purification, and trapping of $_{}^{229}$Th$_{}^{3+}$ and $_{}^{229\text{m}}$Th$_{}^{3+}$ ions from a newly designed buffer-gas stopping cell as well as of $_{}^{88}$Sr$_{}^{+}$ ions from laser ablation of a solid target. Further, we show sympathetic laser cooling of $_{}^{229\text{(m)}}$Th$_{}^{3+}$ by Doppler-cooled $_{}^{88}$Sr$_{}^{+}$ ions and the formation of mixed-species Coulomb crystals.

Graphic abstract

Introduction

Among the presently known about 3400 nuclides with a total of more than 186000 nuclear levels [1], the first isomeric excited state of ²²⁹Th, denoted as ^229mTh, has the lowest known excitation energy. At about 8.4 eV, it is in the range of outer-shell electronic transitions, providing accessibility to the isomeric state with current laser technology, thus resulting in a unique standing of ^229mTh among all presently known nuclei. The existence of the isomeric first excited state ^229mTh as an almost degenerate ground-state doublet has already been conjectured from $\gamma$ spectroscopic data by Kroger and Reich in 1976 [2]. However, it took until 2016 for the first direct detection of the ground-state decay of ^229mTh via the internal conversion decay channel [3] and until 2023 for the first observation of the isomer’s radiative decay via vacuum-ultraviolet (VUV) spectroscopy of ^229mTh embedded in large-bandgap crystals (CaF₂ and MgF₂) at the ISOLDE facility [4].

Recently, the first successful laser excitation of the isomer embedded in CaF₂ has been reported by PTB in cooperation with TU Vienna [5] followed by the laser excitation of ^229mTh embedded in LiSrAlF₆ reported from UCLA [6]. Shortly thereafter, spectroscopy with a VUV frequency comb based on high harmonic generation (HHG) allowed the determination of the ^229mTh transition with so far unprecedented precision, resolving the electric quadrupole splitting of the transition and resulting in a value of ${\nu }_{\text{Th}}=2020407384335(2)\text{k}$ for the unsplit transition [7]. This was achieved by establishing a direct frequency link between the JILA ⁸⁷Sr lattice clock and the VUV frequency comb brought into resonance with the isomeric transition in ²²⁹Th embedded in CaF₂. Very recently, also laser excitation in ThF₄ was observed [8].

With the radiative half-life of ^229mTh being on the order of ${10}^3\text{s}$, as theoretically predicted [9] and recently confirmed by measurements [5–8, 10], the resulting natural linewidth of the transition is on the order of $\mathrm{\Delta }E/E\approx {10}^{-20}$. In addition, the nuclear transition provides low susceptibility to external electromagnetic perturbations because of the small nuclear moments. Due to these properties, ^229mTh provides the unique opportunity to be used as a nuclear frequency standard, a ’nuclear clock’. While first hints at a possible application of ^229mTh as frequency standard were already mentioned by Tkalya et al. [11], the first viable concept for the implementation of a nuclear frequency standard based on ^229mTh was proposed in 2003 by Peik and Tamm [12]. Following the approach of an optical clock based on ²²⁹Th³⁺ ions stored and laser cooled in a linear Paul trap, a total systematic uncertainty of 1.5$\times {10}^{-19}$ might be achieved [13], thus competing with and even surpassing the currently best existing optical atomic clocks [14, 15]. Such a thorium-based nuclear clock would offer a broad range of applications with perspectives in applied as well as fundamental physics, as outlined in more detail in [16, 17]. These applications range from improved precision of satellite-based navigation systems to relativistic geodesy to the use of a nuclear clock as a unique type of quantum sensor in fundamental physics such as the search for ultra-light dark matter candidates and the investigation of theoretically predicted variations of fundamental constants, particularly the fine structure constant $\alpha$ [18–20].

Complementing the considerable progress achieved in recent years on the identification and characterization of the thorium isomer [5–8, 10, 21], a consolidation of our knowledge on fundamental properties of ^229mTh now has to focus on the spectroscopy of the nuclear transition in a vacuum environment as spectroscopy has so far only been achieved for ²²⁹Th embedded in large-bandgap crystals [5–8]. In particular, the determination of the radiative lifetime $\tau$ of ^229mTh under optimized vacuum conditions has not yet been achieved, as the best currently available result for the half-life of trapped ^229mTh³⁺ ions of ${1400}_{-300}^{+600}\text{s}$ (corresponding to a lifetime of $\tau ={2020}_{-433}^{+866}\text{s}$) [10] was measured at a helium buffer-gas pressure of 0.02 mbar. Other recently reported results for the radiative lifetime were measured in large-bandgap crystals and accordingly scaled with $n^3$, where n denotes the refractive index of the medium. For CaF₂ as host material, this resulted in $\tau =2513(60)\text{s}$ [5], $\tau =2557(16)\text{s}$ [7], or $\tau =2589{(92)}_{\mathit{stat}}{(115)}_{\mathit{sys}}\text{s}$ [22]. In MgF₂ the scaled vacuum lifetime is $\tau =3189(491)\text{s}$ [4], while for LiSrAlF₆ as host material $\tau =1860{(43)}_{\mathit{stat}}{(66)}_{\mathit{sys}}\text{s}$ [6] has been reported. In ThF₄ thin films, a significantly reduced lifetime is observed which cannot fully be explained by the refractive index of ThF₄ bulk material [8].

In this paper, we describe a cryogenic linear Paul trap setup which has recently been designed, built, and commissioned at LMU Munich. This provides the experimental prerequisites for the determination of the radiative lifetime under ultra-high vacuum conditions, as well as to serve as a platform for the spectroscopy of the nuclear transition for trapped ions and therefore as backbone for the nuclear clock prototype to be set up at LMU in the framework of the ’ThoriumNuclearClock’ project [23]. In order to achieve the required long storage times, the linear Paul trap is operated at cryogenic temperatures and the ^229(m)Th³⁺ ions will be sympathetically cooled by laser-cooled, co-trapped ⁸⁸Sr⁺ ions. Therefore, the experimental platform has to enable optical access to the central region of the cryogenic linear Paul trap for the cooling and spectroscopy lasers, for fluorescence detection, as well as for ion-optical beam line components to provide ^229(m)Th³⁺ and ⁸⁸Sr⁺ ions from their respective sources to the trap.

In Sect. 2 we provide a detailed description of the experimental apparatus and its components including the ion sources, the ion injection line on one end of the central cryogenic Paul trap, the ion diagnostics line on the other end of the trap, as well as the vacuum system. In addition, we provide a detailed characterization of all components. In Sect. 3 we describe experiments on thorium extraction from the buffer-gas cell. In Sect. 4 we show thorium transport to and trapping in the cryogenic Paul trap, as well as sympathetic cooling of ^229(m)Th³⁺ by laser-cooled ⁸⁸Sr⁺ ions and the formation of mixed-species Coulomb crystals, and in Sect. 5 we give an estimate of the pressure in the cryogenic ion trap based on the lifetime of laser-cooled ⁸⁸Sr⁺ ions. Finally, we present our conclusions in Sect. 6.

Experimental apparatus

A cryogenic trap setup has been chosen due to the requirement of long storage times. The design and dimensions of the 4-rod quadrupole ion trap are based on the CryPTEx trap operated in Heidelberg [24, 25]. The required cooling of the cryogenic ion trap is provided by a pulse-tube cryocooler (RP-082B2-F70H, Sumitomo Heavy Industries). Crucially, vibration isolation is achieved by a commercial vibration-isolation system [26] isolating the cryocooler from the trap chamber by a helium atmosphere with high thermal conductivity. Previously, this system was used, for example, in quantum computing experiments [27, 28] where suppression of vibrations to below 10 nm was achieved. This allows maintenance-free operation of the experiment for several months at a time.

The experimental setup features a horizontal ion beam line which is depicted in Fig. 1. Its components are described in detail in the following subsections and consist of:

1. A helium buffer-gas stopping cell housing a thin ²³³U source emitting ^229(m)Th ions, a radio-frequency (RF) funnel for collimation, and a supersonic de Laval nozzle for extraction;

2. A segmented RF quadrupole for phase-space cooling and bunching of the ions extracted from the buffer-gas stopping cell (Extraction RFQ);

3. An Ion Guide chamber containing an RF quadrupole for guiding the ^229(m)Th ions extracted from the buffer-gas cell as well as the ⁸⁸Sr ions laser ablated from a strontium titanate (SrTiO₃) target mounted in this chamber;

4. A quadrupole mass separator (QMS) used to select the ion species and charge state to be loaded into the trap;

5. A cryogenic linear Paul trap surrounded by oxygen-free-copper heat shields and cooled down to about 8 K by a vibration-isolated cold head forming the centrepiece of the setup;

6. A multi-channel plate (MCP) detector, or optionally a channel electron multiplier (CEM) detector, mounted after a second QMS on the other end of the trap which allows for mass selective ion detection for diagnostic purposes;

7. A vacuum system consisting of several independently pumped vacuum chambers. In combination with small apertures, this allows for differential pumping of the setup, thus enabling buffer-gas pressures up to 40 mbar in the buffer-gas cell while maintaining ultra-high vacuum (UHV) in the trap chamber.

Furthermore, our experimental setup features an imaging system based on aspheric lenses with a collection efficiency of $\approx 1.5\%$ and an electron-multiplying charge-coupled-device (EM-CCD) camera for detection of the fluorescence photons from laser-cooled ⁸⁸Sr⁺ ions near 422 nm and the fluorescence photons from ^229(m)Th³⁺ ions near 690 nm, see Fig. 1. Additionally, there is a laser system based on commercial external cavity diode lasers (ECDL) (DL pro, Toptica) for laser cooling of ⁸⁸Sr⁺ and laser spectroscopy of electronic transitions in ^229(m)Th³⁺. The imaging system and laser setup were already subject of a previous publication [29], to which the reader is referred for a detailed description of those components.

Fig. 1.

Overview of the cryogenic linear Paul trap setup at LMU: Shown is a horizontal cross section of the experimental apparatus along the ion axis together with a schematic of the laser setup. The needle, located at the top right, indicates the orientation of Earth’s magnetic field. RFQ: radio-frequency quadrupole, QMS: quadrupole mass separator, MCP: micro-channel plate, CEM: channel electron multiplier, EM-CCD: electron-multiplying charge-coupled device, AOM: acousto-optic modulator, EOM: electro-optic modulator

The buffer-gas stopping cell

The design and characterization of the pre-existing buffer-gas stopping cells operated at LMU are comprehensively treated in the pioneering works of Jürgen Neumayr et al. [30, 31]. For the purpose of loading our ion trap with ^229(m)Th³⁺ ions, a considerably more compact buffer-gas stopping cell has been set up, see Fig. 2.

Fig. 2.

Section view of the buffer-gas stopping cell and the subsequent Extraction RFQ. The vacuum chamber of the RFQ is a modified CF100 cube (side length 152 mm). Feedthroughs as well as pressure gauges attached to the chamber are omitted

The ²²⁹Th ions are generated via the $\alpha$ decay of ²³³U with a branching ratio of $\approx 2\%$ for the isomeric state [3, 32, 33] using a 10 kBq ²³³U source. This source was fabricated at the TRIGA site of the department of chemistry at the University of Mainz [34] and is composed of a 0.5 mm thick circular silicon wafer with a diameter of 25 mm, coated with a 100 nm layer of titanium acting as carrier substrate for the electro-deposited ²³³U. It has a central hole with a diameter of 5 mm allowing for laser access along the ion axis. The source in its mount is shown in Fig. 3. The mount is insulated from the carrier flange through the use of ceramic spacers and screws, thus allowing the source to be biased with an offset potential.

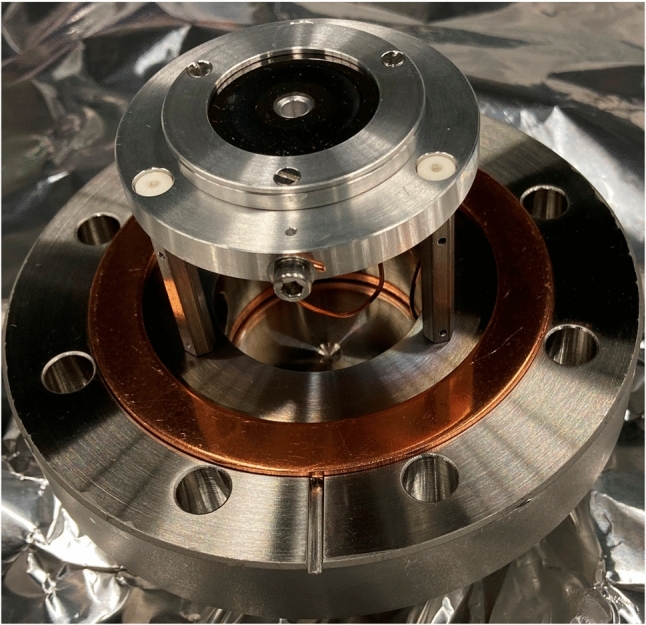

Fig. 3.

Photograph of the ²³³U source mounted on its CF63 carrier flange

Since the produced ^229(m)Th recoil nuclei leave the source with kinetic energies up to 84 keV [35], they have to be thermalized before extraction. This is achieved by collisional cooling in the ultra-pure helium gas inside the buffer-gas stopping cell. As impurities within the buffer gas cause charge exchange through collisions, thus lowering the ion extraction efficiency from the cell, the helium gas from a gas bottle (grade 6.0) is further purified. The gas purification system is shown in Fig. 4. Using electropolished stainless-steel tubing with a diameter of 1/4 inch, the gas is first fed through a heated catalytic gas purifier (MonoTorr PS3-MT3, SAES Group) and then through a liquid nitrogen cold trap for the freeze out of any remaining contaminants. This cold trap consists of 19 windings of electropolished 1/4 inch tubing that are submerged in liquid nitrogen contained in a Dewar with a capacity of 1.5 l. Additionally, in order to keep the buffer gas clean, the vacuum chamber is baked out at a temperature of 130 $_{}^{\circ }\text{C}$ for one day before operation. This assures background pressures below 5e-9 mbar. Further details are discussed in the context of the vacuum system in Sect. 2.7. The mass flow of the helium gas into the buffer-gas cell is regulated by a mass flow controller (Aera FC780CHT, Advanced Energy) installed after the purifier. This allows to define the buffer-gas pressure inside the cell, which is typically set to a value of 32 mbar. Under these conditions, the thorium ions will be stopped in the helium gas within a length of 1–2 cm [36], which allows for compact dimensions of the buffer-gas stopping cell.

Fig. 4.

Photograph of the gas purification system

In order to extract the ions from the buffer gas, a conical RF-DC-funnel is used to guide the ions towards a nozzle separating the helium-filled chamber from the subsequent Extraction RFQ chamber. This ion funnel consists of 29 circular electrodes starting from an inner diameter of 58.6 mm decreasing to an inner diameter of 5.0 mm under an opening angle of 71.6 $_{}^{\circ }$, as illustrated in Fig. 5. The first 9 electrodes facing the source have a thickness of 1 mm and are separated by a distance of 1 mm. Their inner diameter decreases to 34.4 mm in equidistant steps. In a distance of 0.5 mm from the last of these electrodes, the 20 subsequent electrodes, each having a thickness of 0.5 mm, are mounted with a reduced spacing of 0.5 mm. Their inner diameter decreases from 31.6 mm for the first of these electrodes to 5.0 mm for the last electrode facing the de Laval nozzle. The overall length of the electrode structure thus is 37.0 mm. The electrodes of the funnel are made of stainless steel sheet metal and are stacked onto six ceramic rods, which provide alignment. The insulators creating the spacing between them are made of glass ceramics (Vitronit, VITRON Spezialwerkstoffe). All electrodes have been electropolished to achieve a smooth surface in order to reduce the possibility of high-voltage sparking between neighbouring electrodes. The polarity of the RF voltage alternates between subsequent electrodes, which creates a repelling force for ions near the surface of the funnel. Typically, the RF-DC-funnel is operated at a resonance frequency of 800 kHz and amplitude of 90 Vpp with a superimposed DC voltage difference of 15 V from the first funnel electrode to the last electrode that is closest to the nozzle, resulting in a gradient of $\approx 4{\text{Vc}}^{-1}\text{m}$ in axial direction.

Fig. 5.

Left: schematic section view of the funnel electrodes. For the dimensions of the individual electrodes, see text. Right: photograph of the RF-DC-funnel. Electrodes and ceramic spacers are stacked onto six mounting rods. The ring electrodes are electrically contacted via Kapton-insulated wires ending in UHV-compatible ceramic plug connectors

The nozzle features a convergent–divergent de Laval geometry and is fabricated from stainless steel. The opening facing the funnel has a diameter of 2.0 mm and tapers with an opening angle of 90 $_{}^{\circ }$ down to 0.4 mm diameter at the throat of the nozzle. The length of the throat is 0.3 mm. The diameter of the nozzle facing the subsequent chamber widens to 6 mm at an opening angle of 38 $_{}^{\circ }$. The nozzle is isolated from its carrier flange via a metal–ceramic soldering connection. This allows for the use of the nozzle as an electrode. It is typically set to a voltage about $0.7\text{V}$ above the voltage at the last funnel electrode. The geometry of the nozzle in combination with the difference in pressure between the buffer-gas cell at 32 mbar and the subsequent chamber, which is typically pumped to about ${10}^{-3}\text{mbar}$, creates a supersonic gas jet, dragging the ions off their guiding electric field lines and into the subsequent Extraction RFQ chamber.

The extraction efficiency of the buffer-gas stopping cell has been determined by a measurement for which the ion detection segment has been directly mounted after the Ion Guide segment, see Fig. 1. For typical operational parameters mentioned above, a count rate of approximately 200 ^229(m)Th ions per second has been observed. Assuming a 100 % transmission efficiency through the Extraction RFQ and Ion Guide, as well as 100 % detection efficiency of the CEM, allows us to derive a lower limit to the extraction efficiency of the buffer-gas cell. We further assume that 50 % of the recoil ions from the source are emitted into the helium buffer gas. With these values, we arrive at an extraction efficiency of the buffer-gas cell of $>4$ %.

A rough mass spectrum where the mass selectivity was provided by the Ion Guide is shown in Fig. 6. The resolution is limited by the voltage source of the Ion Guide to about 2 u/e and a possible contamination with ²³³U and its other daughter products cannot be resolved. However, it shows that other contaminations are limited to one component at mass 40 and a small component at mass 60. Furthermore, it shows that only ^229(m)Th in charge states of $3+$ or lower are extracted from the buffer-gas cell.

Fig. 6.

Mass spectrum of the ions extracted from the buffer-gas cell. Acquired utilizing the mass selectivity of the Ion Guide with the CEM detector mounted directly after the Ion Guide. The original spectrum recorded (blue) has been shifted (red) by the calibration factor of the RF amplitude

The Extraction RFQ

In the chamber subsequent to the buffer-gas cell, a segmented radio-frequency quadrupole (RFQ) is mounted on-axis with the de Laval nozzle at a distance of 1 mm from the nozzle exit, see Fig. 2. This Extraction RFQ with an overall length of 174 mm consists of four rods segmented into eight electrodes, with the first electrode after the de Laval nozzle having a length of 28 mm, followed by four electrodes with lengths of 23 mm each, two shorter segments, each with a length of 11.5 mm, and the final electrode with a length of 24 mm. The cylindrical electrodes with an outer diameter of 11 mm are made from stainless steel and are arranged with an ion-axis-to-electrode distance of 4.8 mm. They are mounted on insulating Al₂O₃ rods. A spacing of 1 mm between the electrodes is ensured by ceramic insulators. All four electrodes of one segment are biased with the same DC voltage such that the RFQ is not mass selective. The segmentation of the Extraction RFQ, however, allows for applying a DC gradient along the beam axis to drag the ions from the nozzle all the way to the exit aperture of the Extraction RFQ chamber. The aperture has an inner diameter of 2 mm and is the only opening in the gas-tight aluminium shield between the Extraction RFQ chamber and the adjoining Ion Guide, which allows for differential pumping. As a result of the segmentation, the RFQ can be used as a buncher. For this purpose the sixth, seventh and the last segments (counted from the nozzle towards the Ion Guide) are equipped with electronics to allow for fast (few $\mathrm{\mu }$s) switching of applied DC voltages, assuring the rapid exit of the ions from the trapping region. The eight segments are biased individually with DC voltages up to 100 V (NHS 60 01p, iseg), which are mixed with an RF voltage common to all segments. The circuit diagram of the RF-DC mixing for one segment is shown in Fig. 7a. The frequency of the RF voltage is set to 790 kHz, and RF amplitudes up to 360 Vpp are applied.

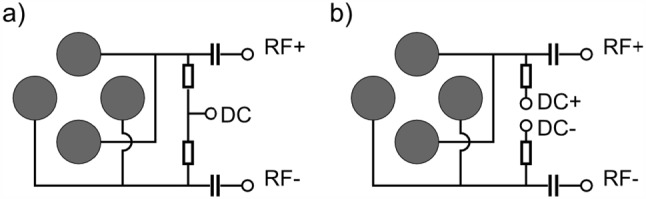

Fig. 7.

Schematic drawing indicating the way RF and DC voltages are applied to the Extraction RFQ and Paul trap (a) as well as the Ion Guide and QMS (b). Note that only the Ion Guide and the QMS are thus mass selective

Ion Guide and Sr ablation source

After the thorium Extraction RFQ, a separate vacuum chamber follows, which acts as an additional differential pumping stage before the QMS 2 and the ion trap. This additional differential pumping stage is necessary to reach the required vacuum for Coulomb crystallization in the ion trap. An aperture with a diameter of 3 mm centred at the ion axis is the only opening to the adjoining QMS 2. It is also responsible for shielding the different RF fields from each other. A quadrupole Ion Guide with a length of 269 mm and the same electrode dimensions as the previous Extraction RFQ is mounted in the chamber. It serves to guide the thorium ions from the Extraction RFQ to the subsequent QMS 2 chamber. The Ion Guide shares the RF voltage with the Extraction RFQ (frequency 790 kHz and RF amplitudes up to 360 Vpp, see above). To be able to use the Ion Guide as a coarse mass filter, the applied RF voltages are mixed with DC voltages ranging between $\pm 800\text{V}$ (MHV-4, Mesytec) according to Fig. 7b. The amplitudes of the positive and negative DC voltages are controlled by a LabVIEW program on the laboratory PC.

The RF voltages applied to the electrodes of the Extraction RFQ as well as the Ion Guide are provided by an RF generator developed at the Justus-Liebig-Universität Gießen [37], which allows for the amplitudes of the generated RF voltages $U_{\mathit{RF}}$ to be set by DC input voltages $U_{DC,in}$, while also providing DC output voltages $U_{\mathit{diag}}$ proportional to the RF amplitudes of its outputs. Therefore, $U_{\mathit{diag}}$ can be used as a process variable in a proportional–integral–derivative (PID) feedback loop that uses $U_{DC,in}$ as a control variable to actively stabilize the generated RF voltage amplitudes $U_{\mathit{RF}}$ and match the amplitudes of both phases with respect to each other. This is implemented by digitizing the probe signals $U_{\mathit{diag}}$ of the two RF phases with an analog-to-digital converter card (NI-9215, National Instruments) of a field-programmable gate array (FPGA) module (cRIO-9064, National Instruments). PID regulators programmed by LabVIEW on the laboratory PC and running in real time on the cRIO-9064 FPGA module calculate control voltages that are sent from an analog-output card (NI-9264, National Instruments) to the control input of two power supplies (Voltcraft PPS-16005, Conrad Electronics). The outputs of these power supplies are then directly connected to the amplitude controls $U_{DC,in}$ of the RF voltage generator. Simultaneously scanning the amplitudes of the DC and RF voltages allows using the Ion Guide as a rough mass spectrometer, with the resolution limited to about 2 u/e by the relatively large step size of the DC voltage source.

In addition, the Ion Guide is used as an ion catcher for laser-ablated ⁸⁸Sr⁺ ions, which are required for the sympathetic laser cooling of ^229(m)Th³⁺ in the Paul trap. The principle of the ⁸⁸Sr⁺ ablation has already been described in a previous publication [29]; however, there are some changes to the setup: The solid state ablation target made from SrTiO₃ (Strontium Titanate Single Crystal Substrate $<100>$, 634689-1EA, Sigma-Aldrich/Merck) is mounted at a distance of roughly 16 mm from the ion axis, such that the frequency-doubled Nd:YAG ablation laser (Q-switched Nd:YAG laser, SN: #03022502, Quantel USA) can be aligned through a viewport on the opposite side of the vacuum chamber, see also Fig. 1. Laser pulses with a wavelength of 532 nm, energies of typically 2.5 mJ, and durations of around 5 ns are focused to roughly 300 $\mathrm{\mu }$m onto the target surface. For each laser pulse, several 1000 ions are ablated and detected further downstream with the CEM detector.

The spatial separation of the ablation from the cryogenic trapping region in our setup is a result of the requirement to trap a hundred or more ⁸⁸Sr⁺ ions without additional photoionization lasers while also assuring that the risk of coating of the trap electrodes due to the hardly quantitatively controllable output of neutral and charged particles in the ablation process is minimized. Such a coating would generate patch potentials on the trap electrodes, which in turn would negatively influence the motional heating rate or position of the trapped in ions [38–41].

Thorium ions from the Extraction RFQ as well as the ablated strontium ions are not yet isotopically pure at this stage of the beam line. Therefore, the ions need to undergo a mass filtering process before reaching the trap. A full mass scan of the laser-ablated ions performed with the QMS 2 quadrupole mass separator (described in the following subsection) is shown in Fig. 8. The mass spectrum shows the typical composition of the SrTiO₃ target with the natural abundance of strontium isotopes being resolved.

Fig. 8.

Mass scan of ablated ions from the SrTiO₃ target in the Ion Guide performed with QMS 2. The filter width is $\mathrm{\Delta }(m/Q)=2\mathrm{u}/\mathrm{e}$ and the integration time is 1 s per scan step of 0.1 u/e. The ablation laser is operated with a repetition rate of 5 Hz

The quadrupole mass separators

The two quadrupole mass separators located on each side of the central cryogenic Paul trap are identical, and both are described in this subsection. They serve two purposes: Firstly, the QMS located between the buffer-gas stopping cell and the Paul trap (QMS 2) is used to select the species and charge state of the ions loaded into the trap. Therefore, it has to separate the ²²⁹Th³⁺ ions from other accompanying daughter products of the $\alpha$-decay chain of ²³³U also contained in the ion beam extracted from the buffer-gas stopping cell. Furthermore, the ablated ⁸⁸Sr⁺ ions need to be separated from titanium, oxygen, and other isotopes of strontium produced in fractions according to natural abundance. For this purpose, a relative resolution of about $(m/Q)/\mathrm{\Delta }(m/Q)=150$ is targeted. This resolution is sufficient to reliably separate ²²⁹Th from ²²⁵Ra, which is the closest in mass of the daughter products from the ²³³U decay chain, as well as from ²³³U, which is also released from the source. In the $3+$ charge state, these two unwanted ion species are separated from ²²⁹Th³⁺ by $\mathrm{\Delta }(m/Q)=1.33$, resulting in a minimum required resolution of $(m/Q)/\mathrm{\Delta }(m/Q)=57.25$. The most strict requirement is set by the separation of ⁸⁸Sr⁺ from ⁸⁷Sr⁺ resulting in a required minimum resolution of $(m/Q)/\mathrm{\Delta }(m/Q)=88$, while all other requirements set by charge state selection or separating ⁸⁸Sr⁺ from titanium are less strict. It should be noted that the discussed requirements omit the trace contamination of the ²³³U source with ²³²U, which originates from the production process of the source [42]. While a resolution of $(m/Q)/\mathrm{\Delta }(m/Q)=150$ will be sufficient to separate ²²⁹Th from ²³²U in the $3+$, $2+$ and $1+$ charge state, the separation of ²²⁹Th³⁺ from ²²⁸Th³⁺ would require a significantly higher resolution due their small separation by $\mathrm{\Delta }(m/Q)=0.33$. As the contribution of ²²⁸Th to the amount of extracted ions can be estimated as $N_{228\text{Th}}/N_{229\text{Th}}\approx 9\times {10}^{-4}$1 it is deemed negligible.

Secondly, the quadrupole mass separator between the Paul trap and the ion detector (QMS 1) serves as an ion guide towards the detector while enabling the investigation of possible charge state changes after prolonged trapping by providing charge state selectivity.

Electrode geometry

The design properties of both quadrupole mass separators match the ones proposed in [43, 44]. They consist of four rods with a radius of $r=9\text{mm}$ made from stainless steel that are segmented into three electrodes each, accounting for an overall length of 402 mm. While the region of mass selectivity is created by the central segment with a length of 300 mm, the two other segments with a length of 50 mm on each end of the rods serve as Brubaker lenses [45]. Only the RF voltages, but not the DC voltages of the mass selective segments are applied to the segments of the Brubaker lenses. This configuration reduces the defocusing by fringe fields and thus significantly improves the overall ion transmission efficiency at a given mass resolution. The spacing between the electrodes amounts to 1 mm and is provided by ceramic spacers. With an ion-axis-to-electrode distance of $r_0=7.98\text{mm}$, a ratio of $r/r_0=1.128$ is achieved, being close to the optimal design value of 1.13 found by Douglas and Konenkov [46]. The electrodes are surrounded by a grounded cylindrical stainless-steel shielding of 1 mm thickness with an inner radius of $r=32\text{mm}$ forming a perforated cylinder with an open area of 51 % in order to achieve good vacuum conditions inside the device. Both quadrupole mass separators are equipped with apertures facing the trap, which have a diameter of 5 mm, providing the shielding between the field regions of the QMS and the linear Paul trap, allowing for a smooth transition of the ions from one field region to the other.

Signal processing electronics

The operation of the quadrupole mass separators requires the application of RF as well as DC voltages to the quadrupole rods, see Fig. 7b. Similar to the RF of the Extraction RFQ and the Ion Guide, the RF voltage is provided by an RF generator developed at the Justus-Liebig-Universität Gießen [37]. Also these RF amplitudes are controlled in real time by the cRIO-9064 FPGA module steered by the laboratory PC. In order to efficiently separate the $\alpha$ decay daughter products of ²³³U from the ²²⁹Th ions, the quadrupole mass separators are operated at a mass resolution of $R=(m/Q)/\mathrm{\Delta }(m/Q)\approx 150$. The achievable resolution of the QMS is directly affected by the precision of the applied voltages, described by the relation:

$$\begin{array}{c}\hfill \frac{\mathrm{\Delta }{U}_{\mathit{RF}}}{U_{\mathit{RF}}}=\frac{\mathrm{\Delta }{U}_{\mathit{DC}}}{U_{\mathit{DC}}}\le \frac{1}{2R}.\end{array}$$ 1

Therefore, a relative precision better than 3.33e-3 is required in order to reach the targeted resolution. In the case of the DC voltage, this requirement is met by choosing a sufficiently precise power supply (Traco THV 12-300P/N, TRACO Power Group), which provides a nominal stability of $5\times {10}^{-4}$ [47]. To achieve the required precision for the RF amplitude, it is actively regulated with a PID control directly implemented on the cRIO-9064 FPGA module.

As the PID algorithm on the cRIO-9064 FPGA module processes digital signals, the diagnostic voltages $U_{\mathit{diag}}$ are digitized with the use of a second analog-to-digital converter (NI-9215, National Instruments) in order to calculate a control variable in the PID feedback loop. Similarly, the digital output of the PID control loop is converted to an analog signal through the NI-9264 analog-output module. As the output of this module is limited to a nominal voltage of $\pm 10\text{V}$ and a maximum current of $\pm 16\text{mA}$ [48], the voltage provided by this module is not sufficient to serve as input voltage $U_{DC,in}$ for the RF generator, which requires a current of 1 A. Therefore, $U_{DC,in}$ is provided through a remotely controllable power supply (Voltcraft VSP2405, Conrad Electronics) with the amplitude set by the control voltage provided by the NI-9264 module. By investigating the voltage variations in the RF amplitudes corresponding to ²²⁹Th²⁺ and ²²⁹Th³⁺ ions, respectively, it could be demonstrated that the required precision of better than $3.33\times {10}^{-3}$ can be reached. This becomes evident from the results obtained for both quadrupole mass separators listed in Tab. 1. The listed values are derived from the measured data shown in Fig. 9, by applying a Gaussian fit to the data. The bin width of 0.305 mV of the data corresponds to the nominal resolution of the analog-to-digital converter NI-9215 (16 bit, $\pm 10\text{V}$) used to read out the control voltage.

Table 1.

Relative control voltage ($U_{\mathit{diag}}$) uncertainties for both pairs of QMS rods (denoted as channel A and B) of both quadrupole mass separators (QMS 1, QMS 2) for the case where the mass filter is set to ²²⁹Th²⁺ and ²²⁹Th³⁺, respectively

	$\frac{\mathrm{\Delta }U}{U}$ (Channel A)	$\frac{\mathrm{\Delta }U}{U}$ (Channel B)
QMS1 (229Th2+)	$\approx 6.66·{10}^{-4}$	$\approx 9.03·{10}^{-4}$
QMS1 (229Th3+)	$\approx 6.31·{10}^{-4}$	$\approx 9.48·{10}^{-4}$
QMS2 (229Th2+)	$\approx 6.18·{10}^{-4}$	$\approx 9.70·{10}^{-4}$
QMS2 (229Th3+)	$\approx 6.51·{10}^{-4}$	$\approx 1.15·{10}^{-3}$

Fig. 9.

Fluctuations of the DC control voltages $U_{\mathit{diag}}$, proportional to the amplitudes of the generated RF voltages, around their setpoints corresponding to ²²⁹Th²⁺ (top panels) and ²²⁹Th³⁺ (bottom panels), for both quadrupole mass separators. Note the difference in the setpoints between the two QMS, originating from the slightly different resonance frequencies of both QMS modules

QMS performance

In a first step, the functionality of the quadrupole mass separators was investigated with the help of a calibration ion source. For this purpose, a heated alkali ion source (TB-118 Aluminosilicate Ion Sources, Heatwave Labs) containing potassium, rubidium and caesium in natural isotopic composition was used. In contrast to the ⁸⁸Sr⁺ ablation source, such a heated ion source delivers a continuous and stable ion beam, which is more favourable for calibration. Furthermore, for these characterization measurements the segments from the buffer-gas cell to the Ion Guide were removed and the alkali source was directly mounted in a chamber before the QMS 2 chamber, compare Fig. 1.

By scanning both the DC voltage in the range of 0–95 V and the RF voltage in the range of 0–1150 Vpp, a stability diagram of QMS 2 was obtained. The result is shown in Fig. 10, where the characteristic triangle-shaped region of stability for each of the ion species is labelled accordingly. The corresponding mass spectrum of the calibration ion source is plotted in Fig. 11. The spectrum was obtained with QMS 1 by scanning the RF and DC voltages simultaneously while keeping the ratio $U_{\mathit{RF}}/U_{\mathit{DC}}$ constant along the scan line. This leads to a varying peak width within a broad spectral range, as shown in Fig. 11. Since both QMS modules are operated as static mass filters, either filtering for ²²⁹Th²⁺, ²²⁹Th³⁺ or ⁸⁸Sr⁺, they have to be separately calibrated for the respective ion species in order to account for the varying peak width. From the results, it becomes evident that the mass separators can be successfully operated in the voltage regions required to be selective for either ⁸⁸Sr⁺, ²²⁹Th²⁺ or ²²⁹Th³⁺ ions.

Fig. 10.

Mapping of the stability diagram of the quadrupole mass separator QMS 2 for the three elemental species contained in the calibration ion source

Fig. 11.

Mass spectra obtained with the calibration ion source. The observable contamination with water adducts can be traced back to an insufficient bake out

Furthermore, the transmission of the quadrupole mass separators at the targeted resolution of $(m/Q)/\mathrm{\Delta }(m/Q)=150$ was investigated. Depending on the definition of the peak width $\mathrm{\Delta }(m/Q)$, two settings have been analysed. If $\mathrm{\Delta }(m/Q)$ is defined as the width of the mass peak at $10\%$ of its maximum height, a setting with a resolution of 150 leads to a transmission of $(30\pm 10)\%$. When $\mathrm{\Delta }(m/Q)$ is defined as the full width at half maximum (FWHM), a setting with a resolution of 150 has a transmission of $(67\pm 10)\%$.

The cryogenic linear Paul trap

The cryogenic Paul trap was designed to provide long enough storage durations for ^229mTh^q+ ions ($q=1,2,3$) to allow measuring the thorium isomer’s radiative lifetime in vacuum. The radiative lifetime in vacuum has been theoretically predicted [9] and recently indirectly experimentally measured [5, 6, 10] to be in the range of ${10}^3\text{s}$. In order to reach these long storage times, the linear Paul trap is operated at cryogenic temperatures of about 8 K and the trapped ^229(m)Th³⁺ ions are sympathetically laser cooled using ⁸⁸Sr⁺. The design of the cryogenic setup is based on the experience of the MPI Heidelberg group for highly charged ion dynamics gained with the CryPTEx cryogenic Paul trap [24, 25].

The cryogenic environment

The chosen experimental goals define the following requirements for the cryogenic environment:

• Reaching temperatures as low as possible in the trap region in order to achieve optimum vacuum conditions through condensation of the residual gas on the cold surfaces to reach long storage times;

• On-axis accessibility of the trap (for ion injection) and access perpendicular to the trap axis (for laser cooling and optical diagnostics), while minimizing the required open areas in the heat shielding to prevent thermal radiation from entering the trap;

• Suppressing vibrations generated by the cryocooler through vibrational decoupling from the trap mounting.

To reach the desired cryogenic temperatures at the trap, it is placed inside two nested cylindrical heat shields as seen in Fig. 12. The inner heat shield is kept at a temperature of about 8 K, while the outer heat shield is kept at a temperature of about 42 K, providing an intermediate temperature stage between the 8 K stage of the trap and the room temperature of the vacuum chamber. The temperatures are measured and monitored using silicon diode temperature sensors (DT-670B-CU, Lake Shore Cryotronics) read out by the corresponding Lake Shore temperature monitor (Model 218, Lake Shore Cryotronics). The heat shields are fabricated from oxygen-free high conductivity (OFHC) copper. In order to prevent the absorption of thermal radiation, the shields are coated with a 0.5 $\mathrm{\mu }$m gold layer applied on top of a 8–10 $\mathrm{\mu }$m silver layer acting as a diffusion barrier between the gold layer and the copper. Furthermore, the gold coating prevents oxidization of the copper when the system is vented, thus maintaining high reflectivity for thermal radiation.

Fig. 12.

Section view of the cryogenic Paul trap setup, showing the linear Paul trap inside the nested structure of its surrounding heat shields. For better visibility, especially in the case of the pocket-shaped apertures for the fluorescence collecting lens system, the apertures are coloured in blue, while the two heat shields are depicted in gold

The inner diameters of the inner and outer heat shields are 220 mm and 296 mm, respectively. Their wall thickness of 10 mm was chosen in order to also effectively shield external electric fields. Furthermore, both heat shields are equipped with bottom plates of 2 mm thickness. The cooling is provided by a two-stage pulse tube cryocooler (RP-082B2-F70H, Sumitomo Heavy Industries) with a nominal cooling capacity of 40 W at 45 K in the first stage and 1 W at 4.2 K in the second stage [49].

In order to suppress the vibrations generated by the cold head, the cold head can be mounted to the ceiling of the laboratory and connected to the chamber through an ultra-low-vibration (ULV) interface from ColdEdge Technologies [26]. The ULV interface consists of a tube filled with helium (grade 5.0) acting as an exchange gas to transfer the cooling power of the cold head to the Paul trap, see Fig. 13. The thermal connection is assured by the helium gas between the interleaved copper fingers. If mounted to the ceiling, the only mechanical connection between the cooling head and the trap chamber is a rubber bellow required for gas tightness. The lower part of the ULV interface is directly mounted to the vacuum chamber of the trap and provides two vibrationally decoupled stages that correspond to the two stages of the cryocooler. The heat shields are connected to these two stages. For more information on the working principle and design of the ULV interface, we refer to [27, 28].

Fig. 13.

Sketch of the low-vibration cryocooler interface [26]. The sections in orange and blue are only connected by a rubber bellow

The vibration isolation properties of the ULV interface were tested with a piezoelectric vibration sensor (PCB-352C33, PCB Piezotronics) read out with a signal conditioner (PCB-682A02, PCB Piezotronics) and an oscilloscope. For these measurements, the sensor was mounted directly on the cryocooler cold head (near the cryocooler mount) for the characterization of cold head vibrations and on the laser table for characterization of the vibrations transmitted to the laser table. The measured accelerations at both locations are converted to a power spectral density (PSD) of the displacements and are compared in Fig. 14. The vibrations at the laser table are attenuated by more than 2 orders of magnitude, compared to the vibrations at the cold head. The root-mean-square (RMS) displacement amplitude at the laser table is below 8 nm for frequencies above 55 Hz, when integrated over a 1 Hz wide window. For integration over all frequencies above 55 Hz, the RMS displacement amplitude is 11 nm. A more elaborate characterization of the system by measuring displacements with an interferometer was carried out in [27], and the resulting vibration amplitudes should also be applicable to our system.

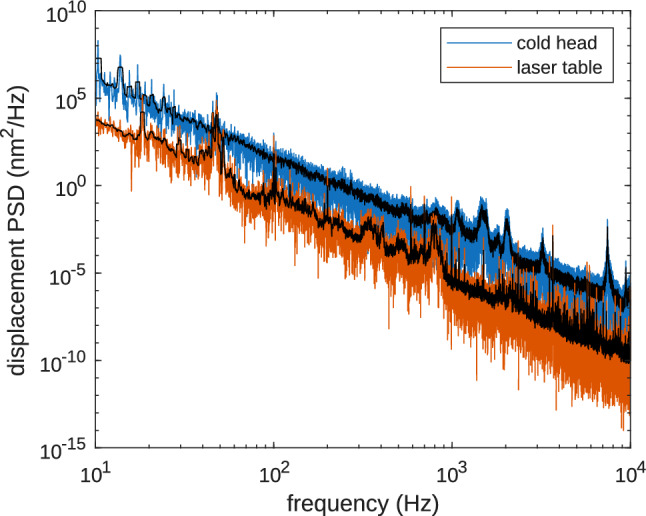

Fig. 14.

Power spectral density (PSD) of displacements for vibrations measured at the cold head (blue) and at the laser table (orange). The traces in black show a moving average over a 1 Hz wide window

Optical access

The trap region is accessible for lasers by incoupling along the ion axis through CF40 viewports, one in the buffer-gas stopping cell behind the uranium source and one in the ion detection chamber. To provide free passage for the light, the ion detector can be moved perpendicular to the ion axis (see also Sect. 2.6 and Fig. 1). For further laser manipulation and fluorescence diagnostics of the trapped ions, the heat shields contain eight additional openings with a 10 mm diameter in the inner shield and 16.5 mm in the outer shield, respectively, that allow for placing apertures right in front of the corresponding openings. These eight openings provide four lines of sight with angles of 30 $_{}^{\circ }$, 50 $_{}^{\circ }$, 130 $_{}^{\circ }$, and 150 $_{}^{\circ }$ with respect to the trap axis for laser access. In order to limit the amount of thermal radiation reaching the trap, all openings are equipped with apertures reducing the opening to a diameter of 5 mm. These 2 mm thick apertures are made from OFHC copper and are coated with gold in the same way as the heat shields.

Furthermore, the shields contain two openings with a line of sight perpendicular to the trap axis with diameters of 53 mm in the inner shield and 70 mm in the outer shield, respectively. One of these openings is equipped with a lens system (see [29]) collecting the fluorescence light of the trapped ions. In order to be positioned as close as possible to the trap, while simultaneously limiting the open area in the heat shields, this opening is equipped with pocket-shaped apertures reaching inside the heat shields as seen in Fig. 12. These 1 mm thick apertures are made from stainless steel and have an opening of 20 mm. The length of the aperture at the outer heat shield is 105 mm, and the length of the aperture at the inner heat shield is 78 mm. Currently, the opposite openings in the heat shields are covered with gold-coated copper plates. In the future, these openings will be modified to allow for focusing laser light from a vacuum-ultraviolet (VUV) frequency comb [50] onto a single ²²⁹Th³⁺ ion.

Trap assembly

The Paul trap was designed to have a large trapping volume for the confinement of a large number of ^229(m)Th³⁺ ions. It consists of four segmented rods with an overall length of 282 mm. Each of the segmented rods consists of a central trapping electrode with a length of 8 mm followed by an electrode of 30 mm length separating it from another trapping electrode of 8 mm length on each side of the centre and ending with 93 mm long electrodes at both sides. The electrodes have an outer diameter of 11 mm and are arranged with an ion-axis-to-electrode distance of 4.8 mm. The electrodes are fabricated from OFHC copper and separated by ceramic spacers made from Al₂O₃, resulting in a spacing of 2 mm between them. To improve the electrical conductance of the electrode surfaces, they were coated with a 0.5 $\mathrm{\mu }$m layer of gold applied on top of an 8–10 $\mathrm{\mu }$m silver layer acting as a diffusion barrier between the gold layer and the copper. The electrodes and ceramic spacers are threaded on an insulating Al₂O₃ rod and held in place by being pressed together by the terminating electrodes at both ends of the rod, which themselves are mounted in Al₂O₃ centring plates providing mechanical support. These centring plates (coloured in light blue in Fig. 12) are connected to OFHC copper brackets that are directly mounted to the roof of the inner heat shield as seen in Fig. 12. Furthermore, the Paul trap is surrounded by a stainless-steel cylinder attached to these brackets, providing additional stability for the mounting. In order to allow for optical access to the trapped ions as well as electrical access to the trap electrodes, the cylinder has openings of 100 mm length at both sides and on the top of the trap as well as a small opening with a length of 30 mm at its bottom. The electrical connection of the electrodes is provided through 2 mm diameter copper wires directly soldered to them. These wires are pressed to the top of the inner heat shield in groups of seven with the use of clamps made from Al₂O₃, providing thermal contact to the heat shield while simultaneously keeping the wires electrically insulated from it. To provide electrical access to the trap electrodes, Kapton-insulated wires are soldered to the ends of the copper wires at the clamping point and connected to vacuum-compatible D-Sub-9 feedthroughs integrated into the wall of the inner heat shield. The connection to the electrical feedthroughs of the outer heat shield and the vacuum chamber is provided through vacuum-compatible flat-ribbon cables. A photograph of the trap assembly is shown in Fig. 15.

Fig. 15.

Photograph of the linear Paul trap mounted inside the gold-coated 4 K heat shield with its access ports covered by the corresponding apertures. Note the openings in the stainless-steel cylinder as well as the pocket-shaped apertures at both ends of the trap

Similar to the other quadrupoles in the setup, the RF signal for the Paul trap is provided by a generator developed at Justus-Liebig-Universität Gießen. Due to significant capacitances in the cables and the RF-DC mixer, the LC circuit has its resonance frequency at around 2 MHz with an RF amplitude of up to 900 Vpp if the RF is applied only to two diagonally opposing rods, while the other pair of rods are grounded. In a balanced scheme with all four rods contributing to the overall capacitance, the resonance frequency is reduced to around 1.5 MHz.

For the creation of a confining potential along the ion axis, each of the seven trap electrode segments can be supplied with a DC voltage up to 400 V by a PC controlled precision power supply (HV400, Stahl-Electronics). The voltage stability provided by the HV400 is on the order of a few ${10}^{-6}$ relative to full scale. In case of the central trap segment, the voltage applied to each of the four electrodes of this segment can be controlled separately to allow for micromotion compensation of trapped ions. All voltages applied to the trap segments can be switched on and off via fast HV switches provided by Justus-Liebig-Universität Gießen. The switches are triggered by TTL signals from the output ports of a digital I/O card (NI-9401, National Instruments) in the cRIO-9064 FPGA module and are controlled by the LabVIEW software running on the laboratory PC.

At a later time, the inner walls of the 4 K shield together with some of the other mechanical parts located inside of the shielding were covered with black anodized aluminium foil, which is shown in Fig. 16. These measures were necessary to reduce the stray light from the laser beams that are guided through the electrode rods into the trap region (for example laser incoupling 1 in Fig. 1). For these beams, a reduction of stray light intensity by more than two orders of magnitude was observed.

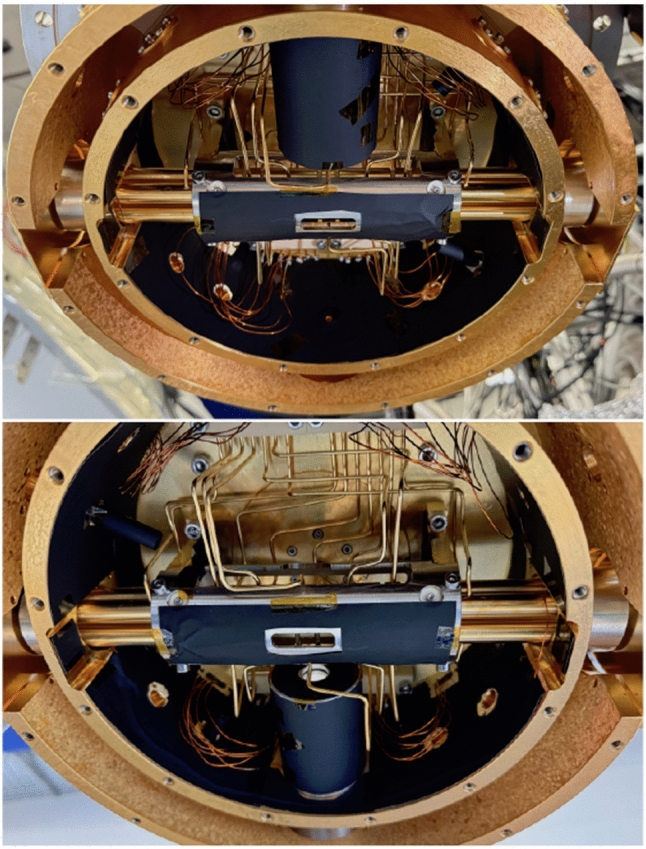

Fig. 16.

The inner surface of the trap chamber coated with black anodized aluminium foil for stray light absorption

Ion detection

For the detection of ions produced in the ion sources or ejected from the Paul trap and transmitted through the beam line, either an MCP or a CEM detector is mounted on-axis in the detector chamber after QMS 1. The MCP consists of two plates in chevron configuration (GIDS GmbH) mounted in a commercial assembly (F9890-13, Hamamatsu Photonics) with $-$1.8 kV applied to the front plate. Signals from ionic impacts are read out via an anode after the back plate and further amplified in a modified fast-timing preamplifier (VT 120, Ortec/Ametek).

Alternatively, a CEM (KBL15RS, Dr. Sjuts Optomechanik) is used for the monitoring of transmitted ions. It is operated with $-$2.4 kV bias voltage and read out either with the same Ortec preamplifier or with a low-noise amplifier (ZFL-1000LN+, MiniCircuits). Due to the compact dimensions of the CEM, it has been mounted on a linear mechanical feedthrough and can be moved several millimetres in the vertical direction to unblock the ion axis for laser access. The amplified signals of both detector options are converted to TTL signals by a constant fraction discriminator and fed to the digital input of the NI-9401 card in the cRIO-9064 FPGA module for data processing on the laboratory PC.

Vacuum system

The vacuum system of the experimental apparatus has to fulfil two main requirements:

• The extraction of ^229(m)Th³⁺ requires UHV conditions in the buffer-gas stopping cell and the adjacent Extraction RFQ to suppress contamination of the buffer gas during operation.

• While the buffer-gas stopping cell is operated at 32 mbar, the pressure in the Paul trap needs to be lower than ${10}^{-8}\text{mbar}$ to allow for formation of Coulomb crystals and even lower to achieve the long storage times needed for lifetime measurements. Therefore, differential pumping is crucial in order to prevent helium from reaching the trap.

An overview of the vacuum system is shown in Fig. 17. The first stage of differential pumping is provided by the chamber housing the Extraction RFQ, which is connected to the buffer-gas cell only through the de Laval nozzle with its throat diameter of 0.4 mm. The chamber is equipped with a turbo-molecular pump (HiPace 300 H, Pfeiffer Vacuum) with a pumping speed of 255 ls$_{}^{-1}$ [51] for helium, which is backed by a dry scroll pump (XDS35i, Edwards Japan) with a pumping speed of $35{\text{m}}^3{\text{h}}^{-1}$ [52]. During operation, the buffer-gas stopping cell is kept at 32 mbar, resulting in a typical pressure of ${10}^{-3}\text{mbar}$ in the chamber of the Extraction RFQ. In order to achieve the desired UHV conditions in the stopping cell and the chamber housing the Extraction RFQ, special care was taken to only use UHV-compatible materials for all components therein. Furthermore, the chambers are equipped to be baked out at a temperature of up to 130 $_{}^{\circ }\text{C}$ via a computer controlled heating system. This system consists of twelve heating cartridges (Typ. HS-N 454, HS Heizelemente) providing a heating power of 80 W per cartridge. The cartridges have a length of 40 mm and a diameter of 4.5 mm. Eight of the cartridges are fitted into copper cylinders with an outer diameter of 10 mm and lengths of 40 mm and inserted into corresponding drill-holes in the corners of the cubic vacuum housing of the Extraction RFQ chamber. The remaining four cartridges are inserted into copper blocks with dimensions of $l·w·h=70\text{mm}·50\text{mm}·8\text{mm}$ attached to the octagonal vacuum housing of the buffer-gas cell with thermally conducting glueing pads. Using the built-in thermocouples of the cartridges, their temperature is actively regulated through laboratory power supplies remotely controlled by an Arduino microcontroller. After the bake out process, base pressures below 5e-9 mbar are reached in the buffer-gas stopping cell and the Extraction RFQ chamber. In order to be able to effectively pump the buffer-gas stopping cell during the bake out process, it is connected to the Extraction RFQ chamber through a bypass equipped with a VAT angle valve as shown in Fig. 2. The bypass as well as the CF100 tube connecting the turbo-molecular pump to the Extraction RFQ chamber are heated with silicone heating tapes (Isopad IT-SiS10, TC-E B.V.), providing temperatures up to 200 $_{}^{\circ }\text{C}$. Their heating power is regulated through analog power regulators (Kemo FG002N, Kemo Electronic).

Fig. 17.

Pumping schematic. Valves in light blue are actuated when switching from operation to idle. Pressures (in mbar) during operation of the buffer-gas cell are shown in purple (inlet valve open and bypass valve closed). Background pressures (in mbar) are shown in turquoise (inlet valve closed and bypass valve open). Valves in red are closed for both operation modes. BGC: buffer-gas cell. RFQ: radio-frequency quadrupole. IG: Ion Guide. QMS: quadrupole mass separator. DET: detector

The next two stages of differential pumping are provided by the Ion Guide chamber, which is connected to the Extraction RFQ chamber through an aperture opening of 2 mm and to the subsequent QMS chamber by an aperture opening of 3 mm, respectively. The Ion Guide chamber is pumped using a turbo-molecular pump (HiPace 300 H, Pfeiffer Vacuum), which is backed by the same roughing pump as the turbo-molecular pump of the Extraction RFQ chamber. The resulting pressure in this chamber during buffer-gas operation is typically in the range of 2e-6 mbar.

The last differential stage before the trap chamber is the vacuum chamber of QMS 2 equipped with a turbo-molecular pump (iX457, Edwards Japan) with a pumping speed of 300 ls$_{}^{-1}$ [53] backed by a second roughing pump (XDS35i, Edwards Japan). The vacuum chamber of QMS 2 is connected to the central chamber of the Paul trap through a 5 mm aperture. During buffer-gas operation, the pressure in the QMS 2 chamber is 2e-7 mbar. The chamber housing QMS 1 is identical in construction to the one of QMS 2 also being connected to the trap chamber via an aperture with an opening of 5 mm. It is pumped by a second turbo-molecular pump (iX457, Edwards Japan) and backed by the same roughing pump. In order to compensate for the lower compression ratio for hydrogen compared to the HiPace 300 H, an additional turbo-molecular pump (Turbovac 50, Leybold) can be added in series to the roughing pump. This results in a pre-vacuum in the ${10}^{-4}\text{mbar}$ range and to partial pressures of hydrogen below a few ${10}^{-8}\text{mbar}$ in the QMS chambers.

The central chamber housing the cryogenic linear Paul trap is pumped by a turbo-molecular pump (STP 603, Edwards Japan), providing a pumping speed of 650 ls$_{}^{-1}$ [54]. The pump is operated in series with a second turbo-molecular pump (TwissTorr 84 FS, Agilent Technologies) with a pumping speed of 49 ls$_{}^{-1}$ [55] to achieve a lower partial pressure of hydrogen in the chamber. The Edwards turbo-molecular pump is directly attached to the bottom of the vacuum chamber. This is enabled by a circular hole of 430 mm diameter in the optical table onto which the trap chamber is mounted. Both turbo-molecular pumps are backed by the same roughing pump (XDS35i, Edwards Japan) that also serves the two turbo-molecular pumps that evacuate the quadrupole mass separators. Without operating the cold head, a pressure in the low ${10}^{-9}\text{mbar}$ region is achieved. When the cold head is operated, the pressure outside the 40 K shield decreases below the measurable range of 5e-10 mbar of the pressure gauge (PBR 260, Pfeiffer Vacuum) [56] attached to the chamber. However, during operation of the buffer-gas cell, the pressure rises to about 2e-9 mbar.

The detector vacuum chamber is connected to the previous QMS 1 chamber via an aperture with 8 mm diameter and is separately evacuated by a turbo-molecular pump (HiPace 80 Neo, Pfeiffer Vacuum) with a pumping speed of 58 ls$_{}^{-1}$ for helium [57] and as well backed by the same roughing pump of the quadrupole mass separator chambers and the trap chamber. For summary, the background pressures (turquoise) and the pressures during buffer-gas operation (purple) are also tabulated in Fig. 17.

Thorium extraction

For extraction of thorium ions from the buffer-gas stopping cell, we start with the adjustment of the pressure of the ultra-pure helium to 32 mbar. The ²³³U source is set to a DC offset of 42.0 V and the last segment of the funnel to 22.5 V. Stopped ions are guided via the RF-DC-funnel through the de Laval nozzle into the Extraction RFQ. Typically, the nozzle is set to a DC voltage of about 0.7 V above the last funnel electrode (which implies 23.2 V absolute voltage) to provide optimum ion transmission. We observe that the transmission is very sensitive to the nozzle voltage, and a nozzle voltage scan is performed after each time the other parameters in the buffer-gas cell or Extraction RFQ are changed, see Fig. 18 for a typical scan.

Fig. 18.

Number of extracted ions as a function of nozzle voltage. The nozzle voltage is measured relative to the voltage at the exit of the funnel (vertical line)

For continuous extraction from the Extraction RFQ, the DC voltage on the first segment is set to 20.2 V, the voltage on each subsequent segment is reduced by 0.2 V, and the endcap aperture is set to 0.0 V, see black dashed line in Fig. 19. These values are comparable to the ones used in previous experiments [42].

Fig. 19.

Potential along the ion axis between the supersonic nozzle and the switchable endcap electrode of the segmented Extraction RFQ for several experimental conditions. The potential during continuous extraction is shown as black dashed line. The state of ion collection with the ramped up endcap voltage is shown as a blue solid line, and the state of bunch release as a blue dashed line. The potential shapes were calculated with the SIMION software (version 8.1.1.32) [58]

A mass scan of the ions extracted from the buffer-gas stopping cell performed with QMS 1 is shown in Fig. 20. Here, the Extraction RFQ, the Ion Guide, the QMS 2, as well as the Paul trap, were set to transmit all masses above $m=30\mathrm{u}/\mathrm{e}$. Compared to a test measurement, in which the signal has been recorded as close as possible to the output of the buffer-gas cell, here, the detector is positioned roughly 1.4 m after the output of the buffer-gas cell. Consequently, the long drift length influences the mass resolution. For characterization of the content of the bunches extracted from the buffer-gas cell, the use of either QMS 1 or QMS 2 is possible. In our case, QMS 1 turned out to have a better mass resolution than QMS 2.

Fig. 20.

Mass scan of continuously extracted ions from the buffer-gas stopping cell performed with QMS 1. The filter width is $\mathrm{\Delta }(m/Q)=2\mathrm{u}/\mathrm{e}$ and the integration time is 5 s per scan step of 0.1 u/e

Apart from the main peaks originating from ^229(m)Th³⁺, ²³³U³⁺, ^229(m)Th²⁺ and ²³³U²⁺ with their respective mass to charge ratios of 76.3 u/e, 77.7 u/e, 114.5 u/e and 116.5 u/e, there is also a major contribution at 40 u/e. Most probably, it results from a contamination of the helium gas with argon, which is not frozen out completely in the cold trap. In comparison with the mass spectra measured with the previously used large LMU buffer-gas stopping cell [3, 42, 59] the count rates at the same integration time are reduced by a factor of 20 to 200. This can be mainly explained by the lower activity of the ²³³U source of only 10 kBq compared to the 290 kBq in the old setup in combination with a similar dark count rate of the detector. Unfortunately, the separability of neighbouring peaks (especially in the case of ^229(m)Th³⁺ and ²³³U³⁺) is somewhat worse than in previous experiments. A possible reason is that the long beam line leads to additional instability compared to previous experiments.

For bunched extraction from the Extraction RFQ, the DC voltages of segments 7 and 8 are changed to 10.0 V and 9.0 V, respectively. In combination with 100.0 V applied to the endcap aperture, a bucket is formed for accumulating the ions, see Fig. 19. The RFQ endcap aperture is switched from 100.0 V applied during accumulation to 0.0 V to release the bunches. During the accumulation in segment 8, thorium ions are phase-space cooled to room temperature in the ${10}^{-3}\text{mbar}$ helium buffer gas. Usually, thorium ions are accumulated for 10 s to create a bunch containing several hundred ions.

For the extraction of a pure bunch of ^229(m)Th³⁺ ions, the Ion Guide is used as a first coarse mass filter for ions of mass to charge ratio of 75 u/e, which corresponds to the rising edge of the ^229(m)Th³⁺ peak in the mass scan. Operational parameters for this filtering are an RF amplitude of 172 Vpp and a DC voltage of ± 11.7 V, resulting in the Mathieu parameters of $a=0.104$ and $q=0.766$. More precise filtering is then undertaken with the adjoining QMS 2 for the same mass to charge ratio and a smaller filter width of choice. In such a configuration, the RF amplitude is 605 Vpp and the applied filtering DC voltage ± 49.3 V resulting in Mathieu parameters of $a=0.112$ and $q=0.688$. The pure ^229(m)Th³⁺ ion bunch can then be used for Paul trap experiments.

Sympathetic laser cooling and fluorescence detection

The starting condition for experiments on spectroscopy of the ^229(m)Th³⁺ electronic hyperfine structure or the direct VUV excitation of the thorium nucleus is the stable trapping of a laser-cooled ⁸⁸Sr⁺ - ^229(m)Th³⁺ mixed-species Coulomb crystal.

For sympathetic cooling ⁸⁸Sr⁺ was chosen because it has similar charge-to-mass ratio as ^229(m)Th³⁺, it has no hyperfine structure, and it can be comfortably and effectively laser cooled using two diode lasers at wavelengths of 422 nm and 1092 nm [60, 61] that drive transitions of $\approx 20\text{M}$ linewidth [62]. The wavelength of these lasers provides sufficient separation from the 690 nm resonance transition 5f F$_{5/2}^{}$ $\to$ 6d D$_{5/2}^{}$ of ^229(m)Th³⁺ used for fluorescence detection of the isomer [63, 64].

To create a Coulomb crystal within the LMU setup, the following routine is executed: The Paul trap is operated in an unbalanced mode with the RF voltage applied only to one electrode pair and the other electrode pair grounded. In this configuration, the resonance frequency is pushed closer to 2 MHz and higher RF amplitudes of approximately 900 Vpp can be achieved. By applying DC voltages of 40 V to the central trap segment (segment 4) and 70 V to segment 3, respectively, a blocking axial potential is created, see black dashed line in Fig. 21. After a delay of 100 $\mathrm{\mu }$s with respect to a pulse of the ablation laser, 70 V are applied to segment 5 to form the ⁸⁸Sr⁺ confinement potential, see black line in Fig. 21. Only a small fraction of the velocity distribution of the ablated ions is trapped in this way. However, several hundred mass-filtered ⁸⁸Sr⁺ ions can be confined, which is sufficient for the desired number of co-trapped thorium ions.

Fig. 21.

Trapping potentials along the ion axis for the catching (dashed lines) and confinement (solid lines) of ablated Sr⁺ ions (black) and for the capture of ²²⁹Th³⁺ ions extracted from the buffer-gas stopping cell (blue). The potential shapes result from the voltages applied to the seven trap electrode segments as well as the endcap apertures (EC) and were calculated with the SIMION simulation software (version 8.1.1.32) [58]

Doppler cooling of the ⁸⁸Sr⁺ ions is done with in total of 4 laser beams collinearly aligned through one of the viewports at 30 $_{}^{\circ }$ with respect to the ion axis. The main cooling transition is driven at 422 nm with a power of 300 $\mathrm{\mu }$W and a detuning of $-$10 MHz. Two additional 422 nm laser beams which are detuned by $-$200 MHz and $-$400 MHz with respect to the cooling transition act as ‘catcher beams’ and improve the initial ⁸⁸Sr⁺ cooling process as well as the conservation of the crystal during the following ^229(m)Th³⁺ ion capture. The fourth beam for repumping at 1092 nm with a power of 700 $\mathrm{\mu }$W prevents the pumping into a dark state. For more details on the laser setup, see [29]. A ⁸⁸Sr⁺ Coulomb crystal typically forms after a few seconds and can be observed on the EM-CCD camera via the fluorescence readout at 422 nm.

After a successful ⁸⁸Sr⁺ cooling and crystallization, the axial potential is lowered and reshaped into a double-well for thorium ion loading (depicted in blue in Fig. 21). In parallel, the buffer-gas stopping cell is operated in a stand by mode with the endcap aperture of the Extraction RFQ ramped up to 100 V for constant collection of thorium ions. Following the preparation of the double-well axial potential, a single thorium ion bunch is then released from the Extraction RFQ, which contains roughly 100 pure ^229(m)Th³⁺ ions after mass purification in the QMS 2 (or Ion Guide). Before the release of the thorium ion bunch, the trap endcap voltage applied to EC 2 is switched off and is ramped up again 270 $\mathrm{\mu }$s after the bunch release. The ^229(m)Th³⁺ ions are initially confined in the bathtub-shaped outer potential well spanning the whole trap length. As they interact with the continuously cooled ⁸⁸Sr⁺ ions in the trap centre, they are significantly slowed down and are confined in the central potential well. There, a compound Coulomb crystal containing both ⁸⁸Sr⁺ and ^229(m)Th³⁺ ions is created and can be further reshaped by changing the axial potential.

In Fig. 22, an example of an initial 14-ion ⁸⁸Sr⁺ Coulomb crystal is given together with two recordings after the implantation of three ^229(m)Th³⁺ ions. The linear ion chains in the upper two pictures were recorded with a potential depth of 0.1 V. To realize the three-dimensional crystal, a potential depth of 3.0 V was applied. Only the 422 nm fluorescence of ⁸⁸Sr⁺ ions was detected. Consequently, the ^229(m)Th³⁺ ions are only visible as dark spots. To visualize the positions of the ^229(m)Th³⁺ ions and to get a better understanding of the size and shape of the Coulomb crystal, SIMION [58] simulations were performed using the same trapping voltage settings as in the experiment. The scale bars in Fig. 22 are based on the fits of the image magnification to the simulations. Suitable fits for the image magnification turned out to be 5.32(10) in case of the two linear chains and 5.60(3) for the 3D crystal. The used lens system for these experiments is slightly altered compared to the imaging setup described in [29]. It now only consists of a $f=50\text{mm}$ aspheric lens (25 mm Dia 0.25 NA UV–VIS Coated, UV Fused Silica Aspheric Lens, 33-958, Edmund Optics) for photon collection in vacuum and a $f=300\text{mm}$ plano-convex lens (LA1484, Thorlabs) in air for focusing of the collimated fluorescence onto the sensor of the EM-CCD camera. Estimating the magnification of the used lens system can also be done by measuring the distances between the two lenses, 228.5(5) mm, and the distance between the second lens and the focal plane, 242.0(5) mm. Reducing the system to a thin lens allows to calculate the image magnification to 5.6(1). This is in good agreement with the simulation of the 3D crystal but deviates by 5 % from the fit value for the linear chains. Given the uncertainty of the calibration of the voltage sources and the approximations used in the simulation, this is still a reasonable agreement. Consequently, we find that the choice of the SIMION simulation software is appropriate for the modelling of linear chains and three-dimensional Coulomb crystals, and can provide accurate positions of the ^229(m)Th³⁺ ions within the mixed-species Coulomb crystals.

Fig. 22.

EM-CCD images of the same 14-ion ⁸⁸Sr⁺ Coulomb crystal: before (upper image) and after (central image) the implantation of three ^229(m)Th³⁺ ions within an axial potential depth of 0.1 V. The lower image shows the 3D crystal formed at an axial potential depth of 3.0 V. For visualization of the thorium ion positions, SIMION (version 8.1 for the upper and centre images and 8.0 for lower image) Coulomb crystal simulations are added [58]. The integration time is 1.0 s

The entire trapping routine is automated to facilitate upcoming spectroscopy measurements and to ensure reproducibility of the ⁸⁸Sr⁺ - ^229(m)Th³⁺ mixed-species Coulomb crystal preparation process. As discussed in [29], the envisaged scheme for the thorium isomeric lifetime measurement using single ^229mTh³⁺ ions has to be repeated many times in order to achieve low statistical uncertainty.

Vacuum characterization in the trap region

To check the suitability of our cryogenic Paul trap for lifetime measurements of the ^229mTh³⁺ isomer, we characterized the ion storage time using ⁸⁸Sr⁺ ions. We observed the fluorescence of 9 trapped ⁸⁸Sr⁺ ions over 8 days. During this period, 3 fluorescence decays could be observed resulting from chemical reactions of the ⁸⁸Sr⁺ with residual particles in the trap. However, the ions were not lost, but instead formed ⁸⁸SrH⁺ molecular ions. Consequently, a lower limit for the storage time then lies around $\tau =192\text{h}$, which well meets the requirements.

Since hot cathode ionization pressure gauges are not capable of measuring pressures below ${10}^{-12}\text{mbar}$, the only option is to use the fluorescence lifetime of a trapped ion as a measure for the vacuum pressure inside the cryogenic trap volume. As already shown by other research groups working with cryogenic ion traps, an estimate for the vacuum pressure can be given using the Langevin collision model [65–67]. Under the assumption of H₂ as the only remaining gas-phase collision partner at temperatures of 8 K in the Paul trap and following the descriptions in [66, pp 168–180], the particle density of hydrogen is given in dependence of the Langevin rate coefficient $k_L$. This coefficient, in turn, is only defined by the charge state of the ion, the polarizability of the hydrogen molecules, and the reduced mass of the two collision partners, thus

$$\begin{array}{c}\hfill n_{{\text{H}}_2}=\frac{1}{\tau k_L}\approx 9.7e+81/{\mathrm{m}}^3.\end{array}$$ 2

Further assuming an ideal gas model, the partial pressure of the hydrogen molecules $p_{{\text{H}}_2}$ in the trap volume can be estimated to

$$\begin{array}{c}\hfill p_{{\text{H}}_2}(8\text{K})=n_{{\text{H}}_2}{k}_{B}T\approx 1.07\times {10}^{-15}\text{mbar}.\end{array}$$ 3

The derived value is consistent with vacuum estimates for other cryogenic ion traps [24, 25, 66–71].

Conclusion

We have presented a comprehensive and detailed account of the cryogenic Paul trap experiment at LMU Munich for trapping and sympathetic cooling of ^229(m)Th³⁺ ions by laser-cooled ⁸⁸Sr⁺ ions. Technical specifications and working parameters are provided as well as characterizations of the ion sources, the mass separators, and the Paul trap. With the successful and controlled loading of ^229(m)Th³⁺ ions embedded in a ⁸⁸Sr⁺ mixed-species Coulomb crystal, this setup will be a workhorse for upcoming experiments. Measurements of the ^229(m)Th³⁺ hyperfine structure as necessary steps towards the determination of the ^229mTh³⁺ isomeric lifetime in vacuum are to be undertaken in the near future. In the long run, this setup offers the prospect for direct VUV excitation of the nuclear excited state in ²²⁹Th³⁺ ions. It could therefore serve as platform for a prototype of a trap-based thorium nuclear clock.
