Abstract

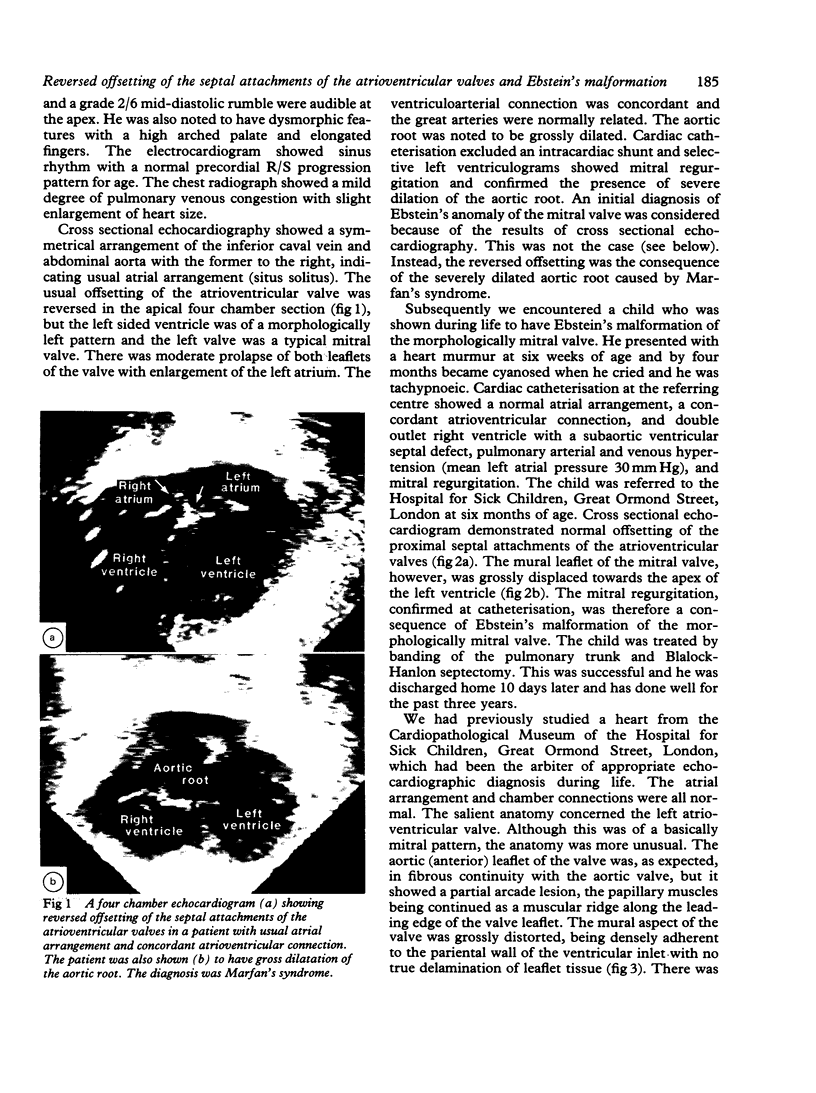

Ebstein's anomaly of the tricuspid valve is characterised by downstream displacement of the tricuspid leaflets. In the case of the septal leaflet, the result is exaggerated offsetting of the atrioventricular valves. Thus it might be supposed that in Ebstein's anomaly of the mitral valve, downstream displacement of the aortic (septal) leaflet of the mitral valve could move its attachment beyond that of the tricuspid valve, resulting in reversed offsetting. To examine this hypothesis three patients each with a concordant atrioventricular connection were studied. The first, with Marfan's syndrome and without an abnormal mitral valve, had reversed offsetting shown by echocardiography. The second, without Marfan's syndrome and with Ebstein's anomaly of the mitral valve, showed echocardiographically normal offsetting but a displaced mural leaflet. The third, in whom Ebstein's anomaly of the mitral valve was confirmed at necropsy, showed all the features of the second case, with normal offsetting of the atrioventricular valves. Thus reversed offsetting is not a feature of Ebstein's anomaly of the mitral valve and in the first case this feature was caused by upward displacement of the tricuspid valve secondary to dilation of the aortic root.
Full text
PDF
Images in this article
Selected References
These references are in PubMed. This may not be the complete list of references from this article.
- Foale R., Stefanini L., Rickards A., Somerville J. Left and right ventricular morphology in complex congenital heart disease defined by two dimensional echocardiography. Am J Cardiol. 1982 Jan;49(1):93–99. doi: 10.1016/0002-9149(82)90282-x. [DOI] [PubMed] [Google Scholar]
- Ruschhaupt D. G., Bharati S., Lev M. Mitral valve malformation of Ebstein type in absence of corrected transposition. Am J Cardiol. 1976 Jul;38(1):109–112. doi: 10.1016/0002-9149(76)90071-0. [DOI] [PubMed] [Google Scholar]
- Sisk H. E., Zahka K. G., Pyeritz R. E. The Marfan syndrome in early childhood: analysis of 15 patients diagnosed at less than 4 years of age. Am J Cardiol. 1983 Aug;52(3):353–358. doi: 10.1016/0002-9149(83)90138-8. [DOI] [PubMed] [Google Scholar]
- Sutherland G. R., Smallhorn J. F., Anderson R. H., Rigby M. L., Hunter S. Atrioventricular discordance. Cross-sectional echocardiographic--morphological correlative study. Br Heart J. 1983 Jul;50(1):8–20. doi: 10.1136/hrt.50.1.8. [DOI] [PMC free article] [PubMed] [Google Scholar]
- Tajik A. J., Seward J. B., Hagler D. J., Mair D. D., Lie J. T. Two-dimensional real-time ultrasonic imaging of the heart and great vessels. Technique, image orientation, structure identification, and validation. Mayo Clin Proc. 1978 May;53(5):271–303. [PubMed] [Google Scholar]
