. 1978 May;22(2):307–340. doi: 10.1016/S0006-3495(78)85491-5

Interactions in cation permeation through the gramicidin channel. Cs, Rb, K, Na, Li, Tl, H, and effects of anion binding.

G Eisenman, J Sandblom, E Neher
PMCID: PMC1473433  PMID: 77689

Abstract

As a prototype for binding and interaction in biological Na and K channels, the single channel conductances for Li, Na, K, Rb, Cs, H, and Tl and the membrane potentials for Tl-K mixtures are characterized for gramicidin A over wider concentration rangers than previously and analyzed using an "equilibrium domain" model that assumes a central rate-determining barrier. Peculiarities in the conductance-concentration relationship for TlF, TlNO3, and TlAc suggest that anions bind to Tl-loaded channels, and the theory is extended to allow for this. For concreteness, the selectivity of cation permeation is characterized in terms of individual binding and rate constants of this model, with the conclusions that the strongest site binds Cs greater than Rb greater than K greater than Na greater than Li, while the next strongest binds Na greater than K greater than Li greater than Rb greater than Cs. However, because Schagina, Grinfeldt, and Lev's recent finding of single filing (personal communication) indicates that the channel sites in gramicidin cannot be at equilibrium with the solution, and work in progress with Hägglund and Enos (Biophys. J. 21:26a. [Abstr.]) indicates that the simplest model adequate to account for the observed concentration-dependences of flux-ratio, conductance, I--V characteristic, and permeability has three barriers and four sites, some implications of additional rate-determining barriers at the mouth of the channel are discussed. The results are summarized using phenomenological "experimental" parameters that provide a model-independent way to represent that data concisely and which can be interpreted physically in terms of any desired model.

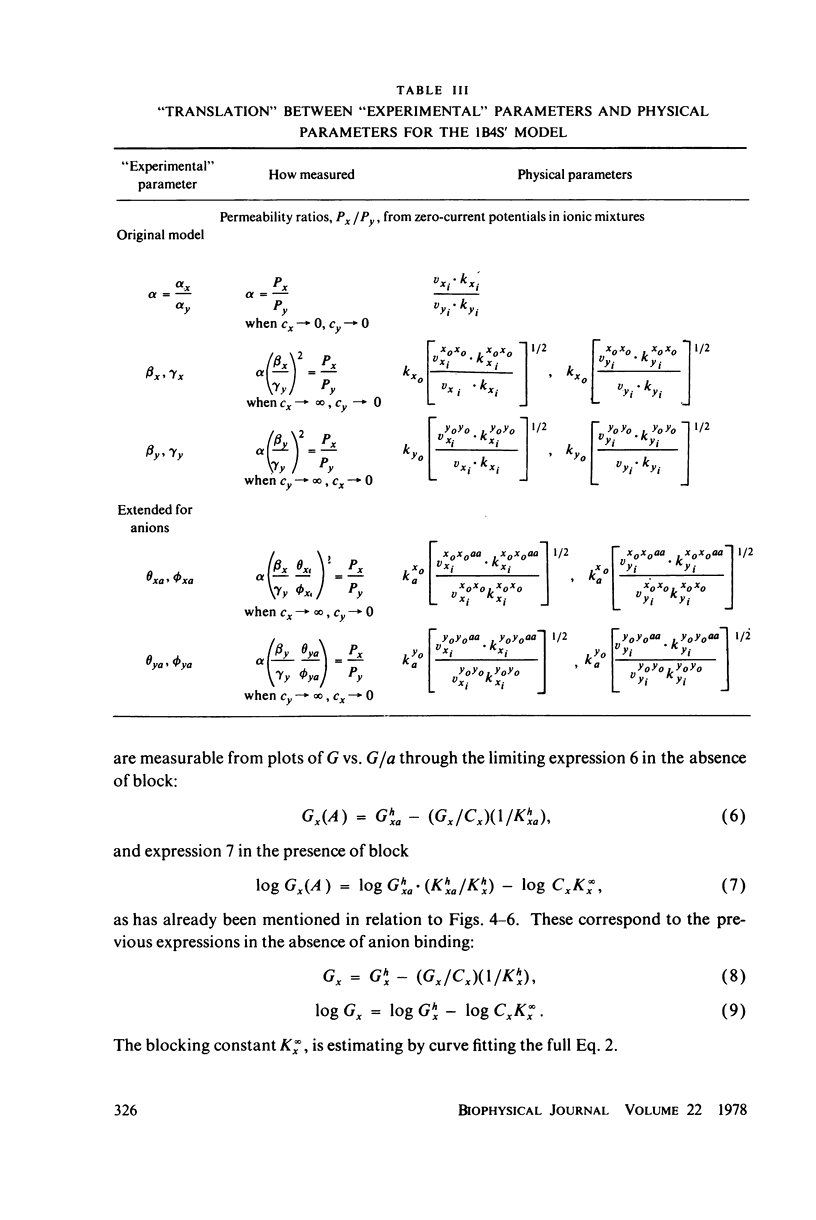

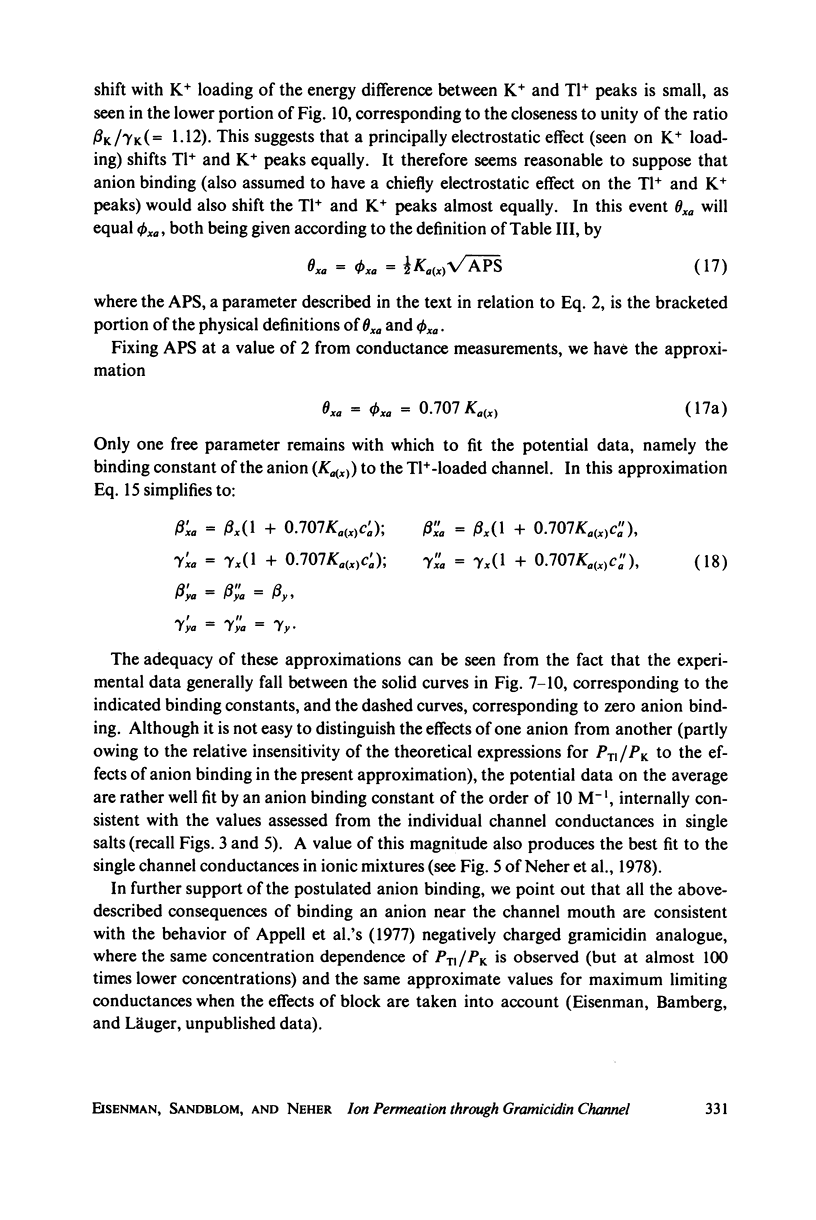

Full text

PDF
307

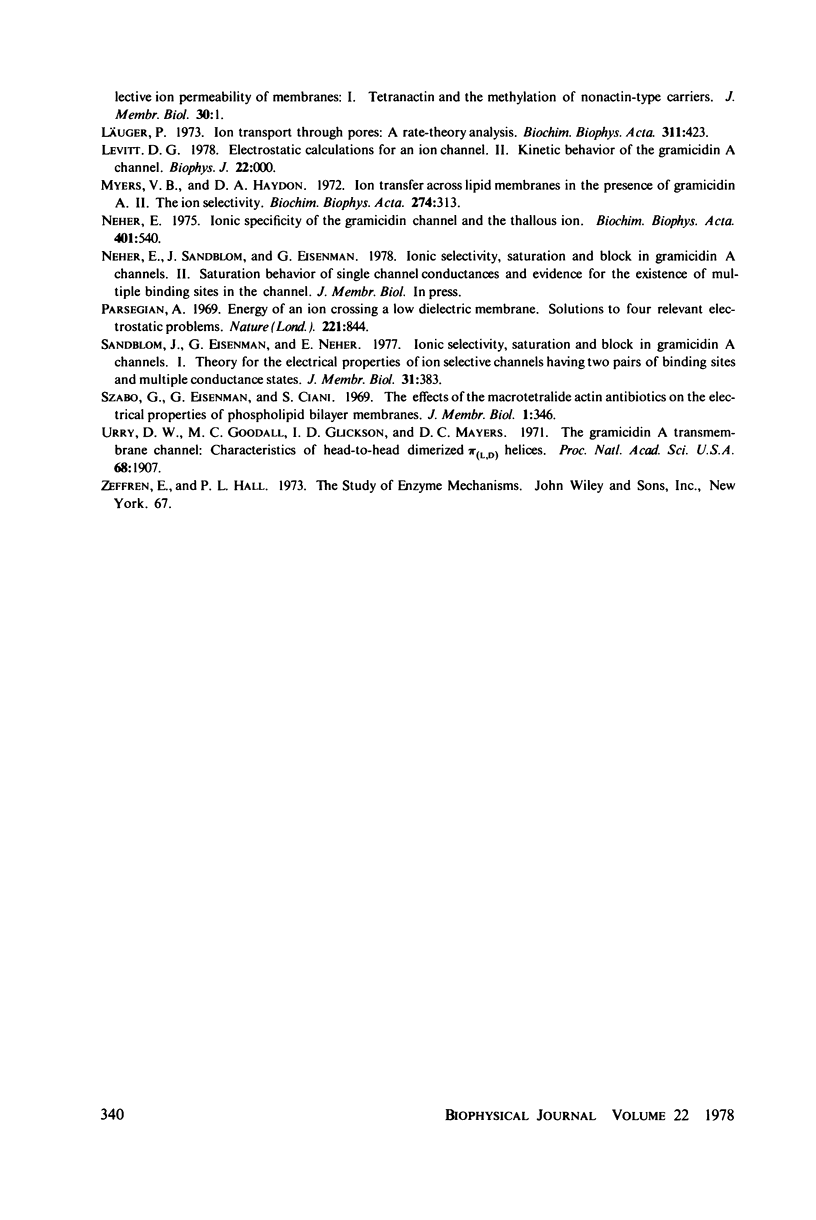

Selected References

These references are in PubMed. This may not be the complete list of references from this article.

  1. Bamberg E., Noda K., Gross E., Läuger P. Single-channel parameters of gramicidin A,B, and C. Biochim Biophys Acta. 1976 Jan 21;419(2):223–228. doi: 10.1016/0005-2736(76)90348-5. [DOI] [PubMed] [Google Scholar]
  2. Chizmadjev Y. A., Aityan S. K. Ion transport across sodium channels in biological membranes. J Theor Biol. 1977 Feb 7;64(3):429–453. doi: 10.1016/0022-5193(77)90281-8. [DOI] [PubMed] [Google Scholar]
  3. Finkelstein A. Membrane channels and conductance. Discussion paper. Ann N Y Acad Sci. 1975 Dec 30;264:244–246. doi: 10.1111/j.1749-6632.1975.tb31486.x. [DOI] [PubMed] [Google Scholar]
  4. Hagiwara S., Takahashi K. The anomalous rectification and cation selectivity of the membrane of a starfish egg cell. J Membr Biol. 1974;18(1):61–80. doi: 10.1007/BF01870103. [DOI] [PubMed] [Google Scholar]
  5. Heckmann K., Lindemann B., Schnakenberg J. Current-voltage curves of porous membranes in the presence of pore-blocking ions. I. Narrow pores containing no more than one moving ion. Biophys J. 1972 Jun;12(6):683–702. doi: 10.1016/S0006-3495(72)86112-5. [DOI] [PMC free article] [PubMed] [Google Scholar]
  6. Heckmann K. Single file diffusion. Biomembranes. 1972;3:127–153. doi: 10.1007/978-1-4684-0961-1_9. [DOI] [PubMed] [Google Scholar]
  7. Hille B. Ionic selectivity of Na and K channels of nerve membranes. Membranes. 1975;3:255–323. [PubMed] [Google Scholar]
  8. Hladky S. B., Haydon D. A. Discreteness of conductance change in bimolecular lipid membranes in the presence of certain antibiotics. Nature. 1970 Jan 31;225(5231):451–453. doi: 10.1038/225451a0. [DOI] [PubMed] [Google Scholar]
  9. Hladky S. B., Haydon D. A. Ion transfer across lipid membranes in the presence of gramicidin A. I. Studies of the unit conductance channel. Biochim Biophys Acta. 1972 Aug 9;274(2):294–312. doi: 10.1016/0005-2736(72)90178-2. [DOI] [PubMed] [Google Scholar]
  10. Krasne S., Eisenman G. Influence of molecular variations of ionophore and lipid on the selective ion permeability of membranes: I. Tetranactin and the methylation of nonactin-type carriers. J Membr Biol. 1976 Dec 25;30(1):1–44. doi: 10.1007/BF01869658. [DOI] [PubMed] [Google Scholar]
  11. Myers V. B., Haydon D. A. Ion transfer across lipid membranes in the presence of gramicidin A. II. The ion selectivity. Biochim Biophys Acta. 1972 Aug 9;274(2):313–322. doi: 10.1016/0005-2736(72)90179-4. [DOI] [PubMed] [Google Scholar]
  12. Parsegian A. Energy of an ion crossing a low dielectric membrane: solutions to four relevant electrostatic problems. Nature. 1969 Mar 1;221(5183):844–846. doi: 10.1038/221844a0. [DOI] [PubMed] [Google Scholar]
  13. Sandblom J., Eisenman G., Neher E. Ionic selectivity, saturation and block in gramicidin A channels: I. Theory for the electrical properties of ion selective channels having two pairs of binding sites and multiple conductance states. J Membr Biol. 1977 Mar 23;31(4):383–347. doi: 10.1007/BF01869414. [DOI] [PubMed] [Google Scholar]
  14. Urry D. W., Goodall M. C., Glickson J. D., Mayers D. F. The gramicidin A transmembrane channel: characteristics of head-to-head dimerized (L,D) helices. Proc Natl Acad Sci U S A. 1971 Aug;68(8):1907–1911. doi: 10.1073/pnas.68.8.1907. [DOI] [PMC free article] [PubMed] [Google Scholar]
