. 1988 Mar;207(3):315–317. doi: 10.1097/00000658-198803000-00015

The limitations of diagnosis of carotid occlusion by Doppler ultrasound.

N M Bornstein 1, Z G Beloev 1, J W Norris 1
PMCID: PMC1493412  PMID: 3278698

Abstract

Duplex scanning has been advocated as an acceptable alternative to angiography in the preoperative evaluation of carotid artery stenosis. To evaluate the accuracy of carotid Doppler in differentiating severe carotid stenosis from occlusion, we compared the results of angiography with duplex scanning in 124 carotid arteries (62 patients) and with continuous-wave Doppler in 662 carotid arteries (331 patients). The specificity was 95-99%, sensitivity was 86-96%, and accuracy was 95-98%. Duplex scanning wrongly identified occlusion in four arteries and failed to detect occlusion in one artery. In making decisions prior to carotid endarterectomy, even infrequent errors are unacceptable. We recommend angiography of all surgical candidates with apparent severe stenosis when the internal carotid artery cannot be clearly identified on duplex, or to distinguish apparent occlusion from undetectably low blood flow.

Full text

PDF

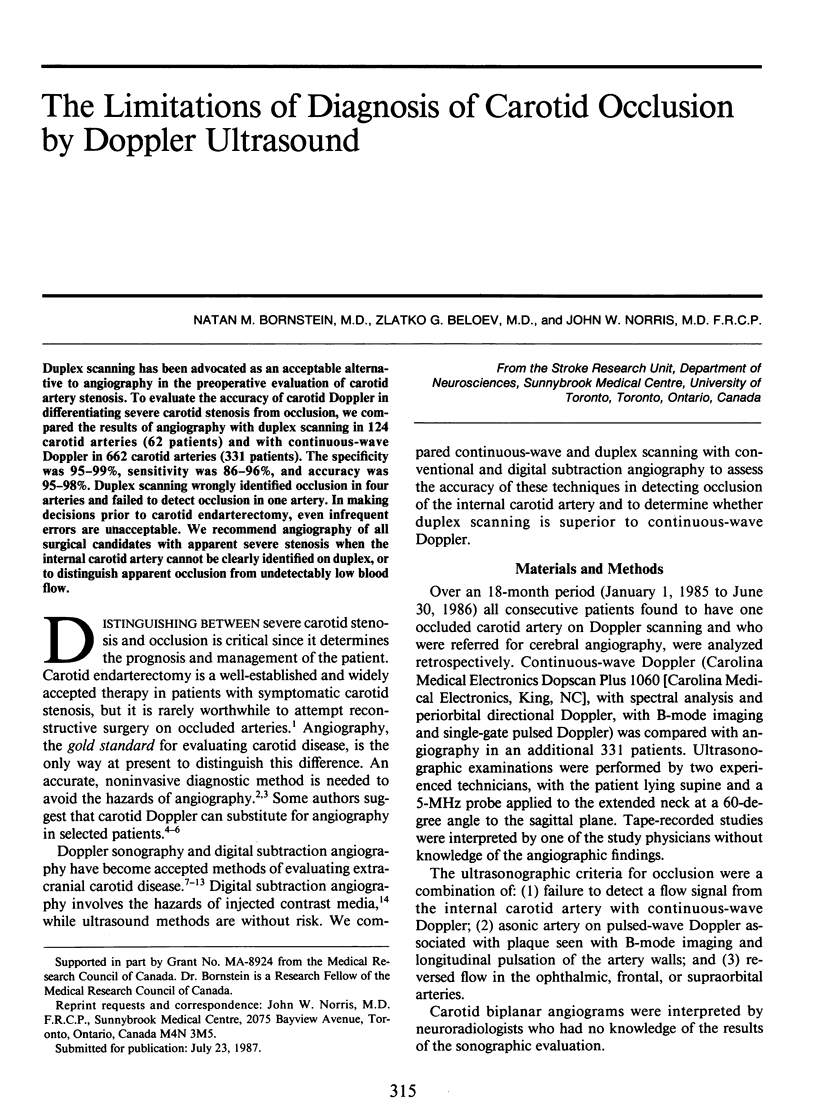

315

Selected References

These references are in PubMed. This may not be the complete list of references from this article.

  1. Ackerman R. H. A perspective on noninvasive diagnosis of carotid disease. Neurology. 1979 May;29(5):615–622. doi: 10.1212/wnl.29.5.615. [DOI] [PubMed] [Google Scholar]
  2. Ackerstaff R. G., Eikelboom B. C., Hoeneveld H., Moll F. L., de Vries A. R. The accuracy of ultrasonic duplex scanning in carotid artery disease. Clin Neurol Neurosurg. 1982;84(4):213–220. doi: 10.1016/0303-8467(82)90022-1. [DOI] [PubMed] [Google Scholar]
  3. Ball J. B., Jr, Lukin R. R., Tomsick T. A., Chambers A. A. Complications of intravenous digital subtraction angiography. Arch Neurol. 1985 Oct;42(10):969–972. doi: 10.1001/archneur.1985.04060090051013. [DOI] [PubMed] [Google Scholar]
  4. Blasberg D. J. Duplex sonography for carotid artery disease: an accurate technique. AJNR Am J Neuroradiol. 1982 Nov-Dec;3(6):609–614. [PMC free article] [PubMed] [Google Scholar]
  5. Crew J. R., Dean M., Johnson J. M., Knighton D., Bashour T. T., Ellertson D., Hanna E. S. Carotid surgery without angiography. Am J Surg. 1984 Aug;148(2):217–220. doi: 10.1016/0002-9610(84)90224-1. [DOI] [PubMed] [Google Scholar]
  6. D'Alton J. G., Norris J. W. Carotid Doppler evaluation in cerebrovascular disease. Can Med Assoc J. 1983 Dec 1;129(11):1184–1189. [PMC free article] [PubMed] [Google Scholar]
  7. Faught E., Trader S. D., Hanna G. R. Cerebral complications of angiography for transient ischemia and stroke: prediction of risk. Neurology. 1979 Jan;29(1):4–15. doi: 10.1212/wnl.29.1.4. [DOI] [PubMed] [Google Scholar]
  8. Fell G., Phillips D. J., Chikos P. M., Harley J. D., Thiele B. L., Strandness D. E., Jr Ultrasonic duplex scanning for disease of the carotid artery. Circulation. 1981 Dec;64(6):1191–1195. doi: 10.1161/01.cir.64.6.1191. [DOI] [PubMed] [Google Scholar]
  9. Ferguson G. G. Extracranial carotid artery surgery. Clin Neurosurg. 1982;29:543–574. doi: 10.1093/neurosurgery/29.cn_suppl_1.543. [DOI] [PubMed] [Google Scholar]
  10. Flanigan D. P., Schuler J. J., Vogel M., Borozan P. G., Gray B., Sobinsky K. R. The role of carotid duplex scanning in surgical decision making. J Vasc Surg. 1985 Jan;2(1):15–25. [PubMed] [Google Scholar]
  11. Glover J. L., Bendick P. J., Jackson V. P., Becker G. J., Dilley R. S., Holden R. W. Duplex ultrasonography, digital subtraction angiography, and conventional angiography in assessing carotid atherosclerosis. Arch Surg. 1984 Jun;119(6):664–669. doi: 10.1001/archsurg.1984.01390180032006. [DOI] [PubMed] [Google Scholar]
  12. Hames T. K., Humphries K. N., Ratliff D. A., Birch S. J., Gazzard V. M., Chant A. D. The validation of duplex scanning and continuous wave Doppler imaging: a comparison with conventional angiography. Ultrasound Med Biol. 1985 Nov-Dec;11(6):827–834. doi: 10.1016/0301-5629(85)90076-6. [DOI] [PubMed] [Google Scholar]
  13. Humphrey P. R., Bradbury P. G. Continuous wave Doppler ultrasonography in the detection of carotid stenosis and occlusion. J Neurol Neurosurg Psychiatry. 1984 Oct;47(10):1128–1130. doi: 10.1136/jnnp.47.10.1128. [DOI] [PMC free article] [PubMed] [Google Scholar]
  14. Levien L. J., Voll C. L., Lithgow-Jolly P., Fritz V. U. The value of noninvasive investigation in the diagnosis of total occlusion of the internal carotid artery. Stroke. 1985 Nov-Dec;16(6):945–949. doi: 10.1161/01.str.16.6.945. [DOI] [PubMed] [Google Scholar]
  15. Little J. R., Furlan A. J., Modic M. T., Weinstein M. A. Digital subtraction angiography in cerebrovascular disease. Stroke. 1982 Sep-Oct;13(5):557–566. doi: 10.1161/01.str.13.5.557. [DOI] [PubMed] [Google Scholar]
  16. Olivecrona H. Complications of cerebral angiography. Neuroradiology. 1977 Dec 31;14(4):175–181. doi: 10.1007/BF00496981. [DOI] [PubMed] [Google Scholar]
  17. Pelz D., Rankin R. N., Ferguson G. G. Intravenous digital subtraction angiography and duplex ultrasonography in postoperative assessment of carotid endarterectomy. J Neurosurg. 1987 Jan;66(1):88–92. doi: 10.3171/jns.1987.66.1.0088. [DOI] [PubMed] [Google Scholar]
  18. Ratliff D. A., Hames T. K., Humphries K. N., Birch S., Chant A. D. The reliability of Doppler ultrasound techniques in the assessment of carotid disease. Angiology. 1985 Jun;36(6):333–340. doi: 10.1177/000331978503600601. [DOI] [PubMed] [Google Scholar]
  19. Rush M., Thomas M., Zyroff J., McNally D., Rossman M., Duren S., Otis S. Duplex scanning with continuous wave Doppler for carotid disease. J Clin Ultrasound. 1985 Jun;13(5):325–328. doi: 10.1002/jcu.1870130505. [DOI] [PubMed] [Google Scholar]
  20. Thomas G. I., Jones T. W., Stavney L. S., Manhas D. R., Spencer M. P. Carotid endarterectomy after Doppler ultrasonographic examination without angiography. Am J Surg. 1986 May;151(5):616–619. doi: 10.1016/0002-9610(86)90570-2. [DOI] [PubMed] [Google Scholar]
  21. Wolverson M. K., Heiberg E., Sundaram M., Tantanasirviongse S., Shields J. B. Carotid atherosclerosis: high-resolution real-time sonography correlated with angiography. AJR Am J Roentgenol. 1983 Feb;140(2):355–361. doi: 10.2214/ajr.140.2.355. [DOI] [PubMed] [Google Scholar]
  22. Zbornikova V., Lassvik C., Johansson I. Prospective evaluation of the accuracy of duplex scanning with spectral analysis in carotid artery disease. Clin Physiol. 1985 Jun;5(3):257–269. [PubMed] [Google Scholar]
  23. Zwiebel W. J., Strother C. M., Austin C. W., Sackett J. F. Comparison of ultrasound and IV-DSA for carotid evaluation. Stroke. 1985 Jul-Aug;16(4):633–643. doi: 10.1161/01.str.16.4.633. [DOI] [PubMed] [Google Scholar]
