Dinitroso and polynitroso compounds

Abstract

The growing interest in the chemistry of C-nitroso compounds (RN=O; R = alkyl or aryl group) is due in part to the recognition of their participation in various metabolic processes of nitrogen-containing compounds. C-Nitroso compounds have a rich organic chemistry in their own right, displaying interesting intra- and intermolecular dimerization processes and addition reactions with unsaturated compounds. In addition, they have a fascinating coordination chemistry. While most of the attention has been directed towards C-nitroso compounds containing a single –NO moiety, there is an emerging area of research dealing with dinitroso and polynitroso compounds. In this critical review, we present and discuss the synthetic routes and properties of these relatively unexplored dinitroso and polynitroso compounds, and suggest areas of further development involving these compounds. (126 references.)

1 Introduction

The family of C-nitroso compounds (RN=O; R = alkyl or aryl group) is an important class of compounds that has relevance to organic chemistry and biochemistry. Preparative routes to C-nitroso compounds have been reviewed recently.¹ Nitroso groups may be constituents of various metabolites in vivo, and their coordination chemistry drives many of their interactions with iron-containing biomolecules such as cytochrome P450, nitric oxide synthase, and myoglobin.² The earlier reviews have focused on mononitroso compounds and their reactions,^3–10 and to the best of our knowledge, the corresponding area of dinitroso and polynitroso compounds has not been previously reviewed. In this article, we link together the various categories of dinitroso and polynitroso compounds and indicate the potential for further study in a variety of areas.

2 Dinitroso compounds

A distinct family of molecules is provided by the relatively small number of compounds in which two nitroso groups are to be found within the same molecule. It is possible to subdivide these molecules into three major classes, namely

1. dinitroso compounds in which the two nitroso groups do not interact with each other,

2. dinitroso compounds in which there is intramolecular interaction between the two nitroso groups leading to the formation of either a cis-azodioxy group or a furoxan group (Fig. 1),

3. dinitroso compounds in which two or more molecules interact intermolecularly to form trans- or cis-azodioxy groups, the resulting products being dimers, oligomers or polymers.

Fig. 1.

Structures of cis-azodioxy and furoxan groups.

There is a further series of dinitroso compounds where these carry a negative charge.

2.1 Non-interacting dinitroso compounds

These compounds exhibit the characteristic physical and chemical properties of the monomeric –N=O group; they are blue/green with a molar extinction coefficient for the n → π^* transition approximately twice that for the corresponding structurally related RNO monomer. An example is provided by trans-1,4-dichloro-1,4-dinitrosocyclohexane in 1,1,1-tri-fluoroethanol¹¹ for which λ_max is 640 nm and ɛ_max is 42 dm³mol⁻¹cm⁻¹. This can be compared with 1-chloro-1-nitrosocyclohexane in cyclohexane¹² for which λ_max is 655 nm and ɛ_max is 22 dm³mol⁻¹cm⁻¹. Such dinitroso compounds are unaltered structurally on change of state or on dissolution. A further example is provided by 4,4′-dinitroso-N,N-diphenylpiperazine (1) which displays similar structural features to those of the monomeric 4-nitroso-N,N-dimethylaniline (2). It is to be expected that the joining ‘end-to-end’ of other substituted nitrosoanilines will result in similar dinitroso compounds and eight further examples (3–10) have been synthesized.¹³

A 1,7-dinitroso-m-carborane (11) has been prepared¹⁴ in ~30% yield from reaction of nitrosyl chloride with 1,7-dilithio-m-carborane in ether–hexane. It is unfortunate that the only physical property reported is the melting point (145–146 °C), but it is most probable that this sole reported example of a dinitroso carborane contains two entirely separate nitroso groups. All known nitroso carboranes (with NO directly attached to the carboranyl cage) are monomeric. The distance between the two nitroso groups in (11) is such that intramolecular interaction between the two NO groups is very unlikely; intermolecular interactions in nitrosocarboranes are possible, although they have not yet been reported.

Compounds containing two gem-nitrosoacetates are proposed to form in low yield from the reaction of 1,3-cyclohexanedionedioxime and 1-methyl-2,6-cyclohexanedione-dioxime with lead tetraacetate; in some cases, rearrangements to the azodioxy forms occur.¹⁵

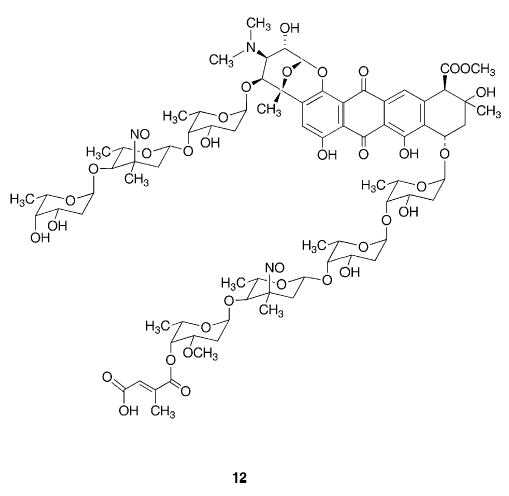

Another example of a dinitroso compound in which the two nitroso groups act independently of each other is provided by the anthracycline antibiotic viriplanin A^16–19 an antibiotic with activity against Herpes simplex viruses. In this large molecule (12) the two nitroso groups are each bonded to tertiary carbon atoms in β-pyranoside rings in different sections of the molecule. Viriplanin A from Ampullariella regularis (strain SE47) is light sensitive, and is best isolated in the dark.¹⁶ The ¹³C NMR signal for the C-NO group appears at 101.5 ppm¹⁸ which is 12.6 ppm higher than that for the corresponding C-NO₂ group and consistent with the trend observed for related aliphatic or acyclic C-NO/C-NO₂ pairs (the signal due to any C-N₂O₂-dimer present would be at significantly lower ppm values). The characteristic visible absorption spectrum of the compound in methanol shows λ_max at 710 nm with ɛ_max of 34 dm³mol⁻¹cm⁻¹, in keeping with the range of values expected for two nitroso groups.¹⁸ A further example of a large molecule containing two independent nitroso groups is provided by 5,10-bis(4-nitrosophenyl)-15,20-bis(4-pyridyl)por-phyrin,²⁰ prepared by electroreduction of the precursor nitro compound.

There are relatively few examples of vicinal dinitrosoalkanes or dinitrosocycloalkanes, although examples exist of metal-stabilized vicinal dinitroso compounds in which both nitroso groups are σ_N-coordinated to the same metal atom (e.g., 13 and 14).^21–24 In these cases, the formation of the vicinal dinitrosoalkanes were assisted by the metal. The formation of such “free” organic compounds (e.g., 15) has been invoked in the reaction of nitric oxide with methyl methacrylate during the formation of the nitro nitroso final product,²⁵ and a patent²⁶ claims the preparation of 1,2-dinitrosoperfluoroethane and 1,2-dinitrosotrifluoromonochloroethane from the reaction of the appropriate fluoroalkene with nitric oxide in the presence of infrared radiation. The preparation of difluorodinitrosomethane (ONCF₂NO)²⁷ from the photolysis of a mixture of CF₂I₂ and NO is the first report of a geminal dinitroso compound, but it lacks thermal stability and is light-sensitive. The same authors report the formation of hexafluoro-1,3-dinitrosopropane from this reaction. This suggests that other geminal and terminal dinitrosoperfluoroalkanes could be prepared via similar routes.

The preparation of a dinitroso derivative of a vinylogous tetrathiafulvalene has been reported.²⁸ The compound (16) has vicinal –N=O groups, and the proton NMR spectrum suggests a symmetrical structure which can be rationalized by a stabilization of the two NO groups by S⁺---O⁻ interactions as shown in (17). The compound is brown in colour unlike other dinitroso compounds, and does not exhibit the characteristic absorption band in the red.²⁹ The formation of a 4,9-dinitroso compound (18) is claimed when nitrous acid reacts with 3,5,8,10-tetraoxo-3,4,5,8,9,10-hexahydropyrene,³⁰ but as the colour of the solid is a light yellowish gray, the material is either polymeric or the isomeric dioxime.

The reaction intermediate 1,4-di(nitrosomethyl)benzene is proposed to account for the linear telomeric reaction products of nitric oxide with the reactive diradical para-xylylene.³¹ There are also some short lived dinitroso compounds which result in the formation of other, more stable, structures at room temperature. To these we now turn.

2.2 Dinitroso compounds with intramolecular interactions

The first of these types of interaction between two –N=O groups results in the formation of a cis-azodioxy group (due to an N…N interaction) and the formation of a heterocyclic ring. It is apparent that the formation of an intramolecular trans-azodioxy linkage is virtually impossible on steric grounds, and no claims for such compounds have appeared in the literature. A wide range of ‘cis-fixed’ azodioxy compounds is known,² and in a small number of cases these can undergo thermal dissociation to dinitroso compounds (eqn. (1) and Fig. 2).^32–36

Fig. 2.

cis-Fixed azodioxy compounds that undergo thermal conversion to dinitroso species.

The formation of an internal cis-dimer is usually a consequence of nitroso N…N interactions and is frequently associated with the initial formation of a blue colour due presumably to the dinitroso compound. Thermal dissociation of the internal cis-fixed compound is confined to the six-membered and larger heterocyclic rings although not all of these can dissociate to give the monomers. The smaller C₃N₂ and C₂N₂ cis-azodioxy systems are resistant to thermal dissociation.³⁴ The report in 1898³⁷ of a colourless dinitroso compound 2,6-dimethyl-2,6-dinitrosoheptan-4-one (19) (prepared from HgO oxidation of the bis-hydroxylamine precursor) which gave a blue melt and blue solutions in organic solvents, is an early example of a cis-fixed compound.

The second form of interaction results in the formation of a furoxan ring structure due to the dinitroso –(O)N…O(N)– interaction (eqn. (2)).

The first examples of this were obtained when attempts to synthesize o-dinitrosobenzenes were made. The resultant furoxan can dissociate to the short-lived o-dinitrosobenzene on heating (eqn. (3)), and this clearly permits the interconversion of substituted furoxans to occur on heating (eqn. (4)).³⁸

It is possible to synthesize benzodifuroxan³⁹ (20) and benzotrifuroxan⁴⁰ (21) (formerly known as hexanitrosobenzene); the latter forms charge-transfer complexes with aromatic π-donors. Similarly, the presumed dinitrosoalkenes form a furoxan ring (eqn. (5)), although this would not appear to occur were the dinitrosoalkene to be formed in the trans-configuration unless a mechanism such as that shown in eqn. (6) involving formation of a C–C single bond could participate as suggested by Grundmann et al.⁴¹ for dimesitylfuroxan.

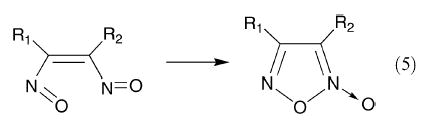

The reverse of eqn. (5) was invoked by Mallory and Cammarata⁴² to explain the thermal interconversions of the two methylphenylfuroxans and the two ethylmethyl furoxans via the corresponding dinitrosoalkenes. Furoxan ring formation can only occur when the carbon–carbon bond to which the two NO groups are attached has either aromatic or double bond character. It is of interest to note a suggestion by Hwang et al.,⁴³ based on mass spectrometric data, that the dinitroso compounds formed from furoxans may decompose to release two molecules of nitric oxide under appropriate conditions. In a related earlier study, Feelisch et al. reported that the vasodilator action of furoxans could be attributed to their reactions with thiols resulting in the release of NO.⁴⁴ The NO-releasing abilities of furoxans has been reviewed recently.⁴⁵

The chemistry of the furoxan ring system has been studied extensively, and there are a number of detailed review articles in which the historical development of the structural evidence is presented,^38,46–48 and spectroscopic and crystallographic data are discussed.⁴⁸ The ring opening eqn. (3) is of theoretical importance and was included in a computational study by Hoffmann et al.⁴⁹ of the dissociation mechanism of dimeric nitroso compounds. More recent studies of the molecular rearrangements of some substituted benzofuroxans have been made using different families of quantum chemical methods, in particular semi-empirical methods, density functional methods and ab initio methods.^50–52 These higher level calculations are applied to the ring opening reaction in benzofuroxans (see also Section 4). Interestingly, crystalline-state photolysis of 1-azido-2-nitrobenzene results in heterocycle formation to give the benzofuroxan which was identified by X-ray crystallography;⁵³ this result is in agreement with computational and pyrolysis studies.⁵⁴ Because nitroso compounds such as some nitroso-carbonyl compounds and nitrosoalkenes are highly reactive, their presence has often been demonstrated by Diels–Alder reactions.^55,56 Similarly, there is an example of the use of a trapping reaction to demonstrate the formation of the o-dinitrosobenzene intermediate⁵⁷ in eqn. (3); benzofuroxan is heated with p-anisyl azide in bromobenzene at 155 °C, and one of the three products obtained (in 40% yield) could be the result of addition of two molecules of the resulting nitrene to the o-dinitrosobenzene intermediate (eqn. (7)).

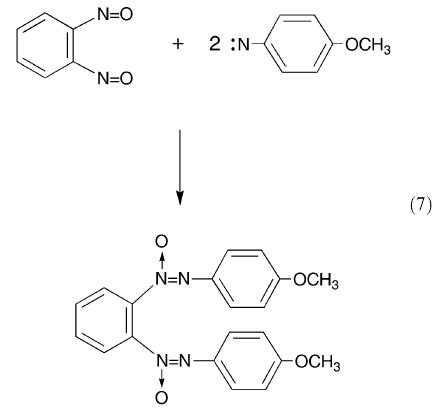

Other examples of the use of a trapping reaction are provided by the reaction of furazano[3,4-b]quinoxaline 1-oxide with cyclopentadiene in which each of the NO groups of the 2,3-dinitroso form undergoes a Diels–Alder reaction with the diene,⁵⁸ and by the trapping by means of cyclohexadiene of each of the two –N=O groups resulting from the thermal dissociation of 6-nitro[1,2,5]oxadiazolo[3,4-b]pyridine 1-oxide (eqn. (8)).

⁵⁹ Conclusive direct evidence of the production of the dinitroso intermediate is available from spectroscopic studies in which IR and UV spectroscopy are employed to detect the presence of o-dinitrosobenzene produced by the photolysis of either benzofuroxan or o-nitrophenyl azide in Ar matrices at 12–14 K.^{60–62 15}N labeling of benzofuroxan showed⁶⁰ that the singly labelled dinitroso species had two ν_N=O bands at 1516 and 1501 cm⁻¹ whereas the unlabelled species had only one at 1516 cm⁻¹ suggesting that coupling between the two N=O vibrations giving rise to an asymmetric and a symmetric stretch is very small.

2.3 Dinitroso compounds with intermolecular interactions

Intermolecular interaction of dinitroso compounds is exemplified by p-dinitrosobenzene. This compound exists at room temperature as an amorphous yellow/brown polymeric solid. This colour is in marked contrast to the blue/green colour of a monomeric nitroso compound or the colourless/creamy colour of a dimeric nitrosoarene. It is inherent in the chemistry of a dinitroso compound (22) that it has the potential to undergo polymerization by the formation of –N₂O₂– groups, either trans or cis or both, provided that there are no outweighing electronic, geometric or steric counter effects. The properties of the resultant polymers (23 and 24) will be dependent upon the structure of the R group. From 1887 onwards, when the first polymeric dinitrosobenzene was reported by Nietzki and Kehrmann,⁶³ there have been only a small number of reported syntheses. For p-dinitrosobenzene itself, there is a considerable patent literature mainly relating to its use as a cross-linking agent in the manufacture of synthetic rubbers. Brydson⁶⁴ has suggested a reaction sequence (eqn. (9)) to account for this behaviour.

The polymeric p-dinitrosobenzenes identified are based upon the monomer unit (25) where X = Y = Z = H,^{36,63,65–71} X = CH₃ and Y = Z = H,^66,72–74 X = OCH₃ and Y = Z = H,⁷⁵ X = Y = CH₃ and Z = H,^71,76 X = Z = CH₃ and Y = H,⁷¹ X = CH₃ and Y = Cl and Z = H,⁷⁷ X = CH₃ and Y = i-Pr and Z = H,^66,71,74,78 X = Y = t-Bu and Z = H,⁷¹ and X = Y = i-Pr and Z = H.⁷¹ In the case where X = Y = i-Pr, Z = H the spectroscopic properties show that this compound has a green/blue colour (λ_max 800 nm) in solution consistent with the presence of N=O end groups in the monomer, but exists as a mixture of monomer and dimer in the solid state.⁷¹ In contrast, when X = Y = t-Bu and Z = H, polymerization does not appear to occur even in the solid state. Other polymeric aromatic dinitroso compounds are m-dinitrosobenzene^6,70,79,80 and 1,4-dinitrosonaphthalene.⁷³

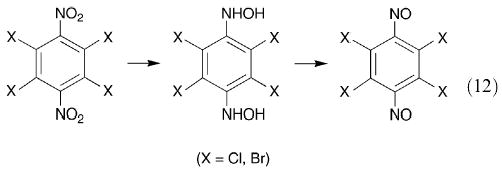

All of the papers published before 1957 are primarily synthetic and the preparative route for the p-dinitrosoarenes required the preparation of the appropriate p-benzoquinone dioxime followed by oxidation using potassium ferricyanide, the yields being ~80%. The later use of chlorine as the oxidant^67,69 increased the product yields to >90%. Catalytic autoxidation of the p-benzoquinone dioximes with nitrogen dioxide under an oxygen atmosphere in methylene chloride resulted in yields of 88–95% of the p-dinitrosoarenes.⁷¹ Electrochemical oxidation of p-benzoquinone dioxime is a simple two electron process producing p-dinitrosobenzene;⁸¹ this electrosynthetic route has been exploited for preparative purposes.⁷¹ Another possible route to a dinitroso compound could be from a trapping reaction of a diradical with two molecules of nitric oxide. A successful preparation of p-dinitrosobenzene has been reported⁸² from the pyrolysis of cis-3-hexen-1,5-diyne in the presence of nitric oxide at temperatures exceeding 150 °C (eqn. (10)).

The preparation of m-dinitrosobenzene is from reduction of m-dinitrobenzene to the dihydroxylamine followed by oxidation.⁷⁹ It may be noted that there have been no fully substantiated reports of the synthesis of any substituted m-dinitrosobenzene; the claimed synthesis⁸³ of 2,4-dimethyl-3,5-dinitrosophenylglyoxylic acid and 2,4-dimethyl-3,5-dinitrosobenzoic acid lacks detailed evidence. A related claim for the preparation of 4-nitro-2,6-dinitroso-3-acetoxy-benzylacetate needs further investigation.⁸⁴ The suggested⁶ formation of 1,3-dinitroso-4,6-di-monomethylaminobenzene⁸⁵ and of 1,3-dinitroso-4,6-dinitrobenzene⁸⁶ is not substantiated by the original papers. Kinetic measurements have been reported for reactions of some other substituted p-dinitrosobenzenes (X = C₅H₁₁, c-C₆H₁₁, C₇H₁₅, OC₂H₅, OCH(CH₃)₂, OC₅H₁₁, OC₈H₁₇, Y = Z = H)⁸⁷ all of which were liberated in situ as monomers and not isolated.

In the early papers, attention was frequently directed to the solubility of the polymeric materials in a range of solvents and to the colours of the resultant solutions and also of the solid products. The very low solubility in non-polar solvents such as benzene led to attempts to recrystallize from nitrobenzene; yellow powders resulted from the dark green solutions. It was noted that when solution of some of the pale yellow p-dinitrosobenzene took place that dark brown residues remained. Ruggli and coworkers^65,66 developed a purification strategy by sublimation to a water-cooled tube at a pressure of 12 mm Hg and bath temperatures of 120–160 °C. Up to 90% of the material would sublime under these conditions giving first a yellow coating and then small emerald-green crystals, the residue remaining being a dark brown amorphous powder. Bartusch⁸⁸ observed that at the highest bath temperatures graphite-black colours appeared within the sublimate, and that opening the sublimate to the atmosphere always produced a yellow powdery sublimate. In our experience,^70,74 sublimation at 10⁻³ mm Hg to a thimble at −78 °C from much lower bath temperatures (50–80 °C) gives a green sublimate which produces a yellow solid on warming; the polymerization of the green monomer to the yellow polymer probably occuring below room temperature.

It is important to know whether polymeric dinitrosobenzenes contain either or both of the azodioxy structures. The IR data of Boyer³⁶ et al. and of Lüttke⁸⁰ suggested that the trans-azodioxy group was present for the p- and m-dinitrosobenzenes, and this was confirmed later⁷⁰ using both IR and Raman spectroscopy. The most direct evidence for the polymers containing only the trans-azodioxy group comes from solid state CP MAS ¹³C NMR spectroscopy. It is known^11,89 that the chemical shifts of C-cis-N₂O₂ differ from those of C-trans-N₂O₂ by up to 1 ppm, and thus the participation of both isomeric forms in the polymer would be apparent from the solid state ¹³C NMR spectrum. For the polymers of p- and m-dinitrosobenzene, the solid state spectra show one quaternary carbon (both p- and m-) and one (p-) and three (m-) non-quaternary carbons, confirming that only the trans-azodioxy group is present in the solid polymer.¹¹ The absence of any signal in the 165 ppm region characteristic of the C-NO group implies that these dinitrosobenzenes exhibit a very high degree of polymerization. Although the early literature reports an ‘ageing’ effect on the appearance and solubility of p-dinitrosobenzene, the solid state ¹³C NMR spectrum is unchanged over long periods of time.

The high degree of polymerization for the p- and m-dinitrosobenzenes is in marked contrast to the values established by Donaruma and coworkers^90,91 for oligomeric 1,4-dinitrosocyclohexanes for which the synthetic route involves reduction of 1,4-dinitrocyclohexane to the corresponding dihydroxylamine, followed by mild oxidation to the dinitroso compound. It was shown that n = 2 or 3 in the oligomeric product (26).⁹⁰ The later paper reports the synthesis of two further oligomers (27); for the first of these, n = 87 and for the second n = 10–11. These are the only reported syntheses of polymers of dinitrosocyclohexanes, and it is important to extend knowledge of such compounds by using further structural techniques.

Polymeric dinitrosoalkanes are reported in a patent⁹² and attention is directed to (28) (where n is claimed to be ≥2) and poly-2,7-dinitroso-2,7-dimethyloctane (29). It appears possible on the basis of the properties reported that these compounds may involve the formation of intramolecular cis-azodioxy groups.

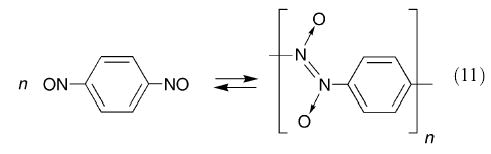

The process of polymerization of m- and p-dinitrosobenzene may be contrasted with other addition polymerizations, where the initiation process is due to radical or cation or anion addition to the monomer. The polymerization of dinitrosobenzenes appears to be governed by the kinetic and thermodynamic characteristics of the system (eqn. (11)) and an initiator is not required.

When the preparation is carried out at room temperature, the reaction goes rapidly to the right due to a low energy barrier coupled with a relatively high concentration of the monomer. All the evidence concerning polymeric p-dinitrosobenzene shows that it is stable only in the solid state. Donaruma⁹³ was unable to detect any species other than the monomer when he attempted molecular weight measurements for the polymer in a range of solvent systems. This is paralleled by the fact that the mass spectrum of the heated polymer shows no peaks above that of the monomer unit.^68,70 It thus appears that isolated polymer molecules of p-dinitrosobenzene in either the gaseous state or solution are thermodynamically unstable with respect to the monomer, and that the dissociation reaction is very rapid.

Although the degree of polymerization in polymeric dinitrosobenzenes is such that end group analysis cannot be done effectively by ¹³C NMR spectroscopy, we suggest⁹⁴ that the C–N=O end groups, present to an extremely low degree, must presumably be available for further polymerization given the addition of more monomer. Thus the system should have the potential for behaving as a ‘living’ polymer in the presence of both air and hydroxylic solvents thereby enabling block copolymerization to take place. A further possibility, yet to be explored, is the direct copolymerization of two different dinitroso compounds. Addition of a monomeric C-nitroso compound should result in loss of the living polymer property due to a termination reaction forming azodioxy groups between the NO groups of the living polymer and the added RNO compound.

The effect of substituent groups on the properties of the polymers has received some attention but further detailed exploration is required. The effect of introducing methyl and isopropyl groups into the 2- and 5- positions, respectively, of p-dinitrosobenzene is the best documented case. ¹³C NMR spectroscopy shows that the solid polymer is totally dissociated to monomer in solution.^70,71 The solubility of this polymer appears to be enhanced by the substituent groups to a greater extent than for the other mono- and di-methyl substituted p-dinitrosobenzenes that have been studied, and rapid depolymerization of the 2-methyl-5-isopropyl-1,4-dinitrosobenzene obviously ensues. In this manner, the polymeric solid behaves similarly to many substituted nitrosobenzenes which are trans-dimers in the solid state and which dissociate completely in solution at room temperature to give the monomer. Ruggli and Bartusch⁶⁶ reported that the amorphous polymer of 2-methyl-5-isopropyl-1,4-dinitrosobenzene could be dissolved in benzene and that subsequent recrystallization produced white needles that could be subjected to further recrystallization from acetone, acetic acid or benzene. In such a colourless solid there are clearly no monomeric nitroso groups, but the solid is clearly different from the amorphous polymeric solid from which it was prepared. It is suggested therefore that the crystalline solid contains azodioxy groups. Kehrmann and Messinger⁷⁸ had suggested, over a century ago, the formation of a dimer containing peroxidic links (30). It is more likely, however, that a dimer could be formed in which two cis-azodioxy groups bridge the two benzene rings in a structure analogous to that of a cyclophane (31). Such a compound implies the possibility of four isomeric structures.

From consideration of the properties of other substituted nitrosobenzenes, it is possible to predict the structural properties of other substituted p-dinitrosobenzenes. Thus, it is known that 2,6-di-tert-butylnitrosobenzene is unable to self-dimerize due to steric effects, but that cross-dimerization is possible with unhindered nitroso compounds.⁹⁵ This suggests, therefore, that 2,6-di-tert-butyl-1,4-dinitrosobenzene should be able to undergo head-to-tail self-polymerization (32) and tail-to-tail dimerization (33). In the second of these cases the molecule would possess two nitroso groups and one azodioxy group; further head-to-tail polymerization might also ensue with the hindered nitroso groups interacting with the unhindered tail nitroso groups of additional molecules of monomer. A further example of the steric effects of tert-butyl groups is provided by 2,5-di-tert-butyl-1,4-dinitrosobenzene (25 h). The compound 2-tert-butylnitrosobenzene is unable to self-dimerize⁹⁶ and by analogy therefore (25 h) should exist as a non-polymerizing, non-dimerizing dinitroso compound. The strength of such an analogical argument is shown in the discovery⁷¹ that (25 h) is a green monomeric solid whereas the corresponding 2,5-diisopropyl-1,4-dinitrosobenzene exists as a polymer in the solid state which dissociates completely to the monomer in methylene chloride.

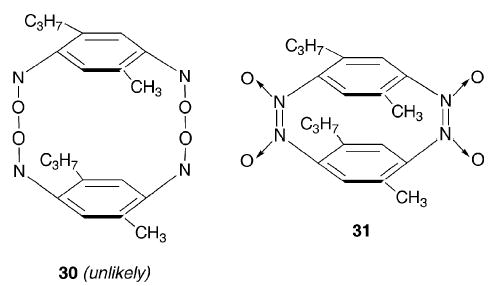

It is known⁹⁷ that in the crystals of trans-dimeric 2,6-di-isopropylnitrosobenzene, the aromatic rings are virtually at right angles to the plane of the central C₂N₂O₂ moiety, and that the ¹H NMR spectrum shows that the molecule has a rigid structure. These considerations suggest that 2,3,5,6-tetraisopropyl-1,4-dinitrosobenzene should be able to polymerize, the resultant chain having the C₆ rings alternately in plane and at right angles to the plane of the trans-azodioxy group. It has been claimed⁹⁸ that oxidation of 2,3,5,6-tetrachloro- and 2,3,5,6-tetrabromo-1,4-diaminobenzene by 3-chloro- or 4-nitroperbenzoic acid gives the corresponding crystalline, green tetrahalogeno-1,4-dinitrosobenzene. This is unexpected in view of the formation of relatively stable trans-dimeric 2,6-dihalogenonitrosobenzenes. Attempted repetition of this work led to the production of the crystalline green tetrahalogeno-4-nitrosoanilines.⁷⁴ This suggests that the best synthetic routes to the desired tetrasubstituted dinitrosobenzenes are either the oxidation of the p-benzoquinonedioxime (34) or the reduction of the 1,4-dinitro compound to the dihydroxylamine followed by mild oxidation to the dinitroso compound (eqn. (12)).

It has already been noted that reactivity studies of substituted m-dinitrosobenzenes have yet to begin. An interesting combination of steric effects can be predicted for the dinitroso compounds (35–37) resulting from the corresponding tert-butyl-substituted 1,3-dinitrobenzenes using the dihydroxylamine preparative route. It is thus anticipated that 2-tert-butyl substitution (35) would lead to both nitroso groups being unable to undergo self dimerization reactions with both nitroso groups being forced into the anti-position, whereas 4-tert-butyl substitution (36) would cause this anti-effect to be confined to the 3-nitroso group only leaving the 1-nitroso group free to engage in dimerization reactions. For 5-substitution (37), it is predicted that neither of the nitroso groups would be affected by the bulky tert-butyl group leading to self polymerization.

2.4 Charged dinitroso compounds (nitrosolate anions)

In our discussion of dinitroso compounds thus far, we have confined our attention to electrically neutral species. There are, however, a number of reported examples of anionic dinitroso compounds derived from the various nitrosolic acids RC(NOH)NO first prepared by Wieland.⁹⁹ The potassium salt^99,100 of the aminomethylnitrosolic acid K⁺[H₂NC(NO)₂]⁻ contains the anion (38; X = NH₂) which possesses a planar structure (excluding the hydrogen atoms), the NO and CN bond lengths both being intermediate between those for single and double bonds. Further examples are provided by R = H,¹⁰¹ R = C₆H₅,¹⁰² and R = CH₃.^103,104 Both the acids and the anions are blue, and it has been shown¹⁰⁵ that the aqueous solution of the anion where R = CH₃ has an absorption maximum at 652 nm (ɛ_max = 48 dm³mol⁻¹cm⁻¹).

Schulz and coworkers have recently reported the preparation of new highly explosive alkali metal M⁺[HC(NO)₂]⁻ compounds (M = Li, Na, K, K(18-crown-6), Cs).¹⁰⁶ The planarity of the anion (38) (where X = H) was determined by X-ray crystallographic characterization of the potassium and caesium salts, and suggests electronic delocalization over the whole anion. The calculated net atomic charges for O (−0.524), N (−0.043), C (0.008), and H (0.126) led the authors to suggest that the negative charge is located primarily on the O-atoms in the isolated anion.

3 Polynitroso compounds

Compounds such as 7-dimethylamino-4-nitrosobenzenefuroxan and the previously mentioned (20) and (21) may be considered relatives of polynitroso compounds.³⁸ However, in this section, we will restrict the discussion to non-furoxan species.

Boyer⁶ has drawn attention to a possible preparation of a substituted 1,3,5-trinitrosobenzene from reduction of picrylazobenzene with potassium iodide in acetic acid; however, the noted citation¹⁰⁷ only describes the reduction of one (and not three) of the nitro groups. Nevertheless, it is conceivable that studies of other 1,3,5-trinitrophenyl compounds could perhaps provide a starting point for the synthesis of trinitrosobenzene derivatives. In addition, the preparation¹⁰⁸ of 1,3,5-trilithiobenzene and other trimetallated benzenes suggests a further synthetic route by reaction with nitrosyl chloride.

There are reports^109,110 of the successful synthesis of p-nitrosated polystyrene (39). Dandge and Donaruma,¹¹¹ and Yoneda et al.,¹¹⁰ have noted the tendency of p-nitrosated polystyrene (prepared from high molecular weight polystyrene) to gel, whereas that obtained from low molecular weight polystyrene is soluble in tetrahydrofuran. Drefahl et al.¹⁰⁹ estimated that ~24% of the phenyl groups in the nitrosated polymer contained p-nitroso groups. The extent of interaction between the nitroso groups in different polymer chains to form azodioxy groups does not appear to have been studied. Other reactions of the nitroso groups are relatively unexplored. Condensation reactions with aniline using benzene as solvent, and with acetyl acetone and benzyl cyanide using THF solutions have been reported.¹⁰⁹ In addition, the reductive acylation with zinc and acetic acid and acetic anhydride in benzene solution was carried out.¹⁰⁹ Yoneda et al.¹¹⁰ have extended these observations to the condensation reactions with the monoamines aniline, p-chloro-, p-methyl- and o-methylaniline, and the diamines p-phenylenediamine, benzidine and o-toluidine. The diamines may therefore act as cross-linking between the polymer chains. Extension of these studies to encompass other reactions of the nitroso groups and to the synthesis of other polynitroso compounds is desirable. It may be possible to produce polynitroso compounds with 100% nitrosation of the pendant phenyl groups by polymerisation of p-nitrostyrene followed by reduction of the nitro group to either the amino or hydroxylamino group, followed further by mild oxidation to the nitroso group. A similar result could be achieved by the polymerisation of p-vinylaniline followed by mild oxidation of the amino groups to the nitroso group. At present, the extent of formation of azodioxy groups between the nitroso groups in different polymer chains is unknown. Such interaction could readily be revealed by the use of ¹³C CP MAS NMR spectroscopy, there being a difference of 25 ppm between the C-NO and C-N₂O₂-C signals. The available IR data¹¹⁰ imply that the monomeric nitroso group is present, but suggest the absence of the azodioxy group.

It has also been claimed¹¹² that polymeric materials can be synthesized consisting of recurring p-dinitrosobenzene units linked by methylene groups between the 2 and 6 C-atoms of the individual rings. Presumably, any intermolecular polymerization through formation of azodioxy groups would lead to a cross-linked polymeric structure, but details of this do not appear to be given.

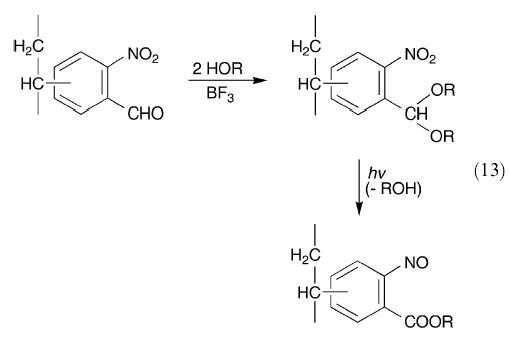

It has been established that polymers of three different nitrovinylbenzaldehydes can be converted to the respective acetals with alcohol and boron trifluoride-etherate and then subjected to UV irradiation in benzene solution to yield the corresponding o-nitrosobenzoate polymers (eqn. (13)).¹¹³ Information concerning the structural and spectroscopic properties of the nitroso and/or azodioxy groups in the low molecular weight polymeric materials obtained appears to be lacking.

4 Theoretical studies of dinitroso compounds

In recent years, a small number of studies have been made on the structures of dinitroso compounds. Politzer and Bar-Adon¹¹⁴ calculated the optimal geometry (at the 6–31G level), the bond orders (with the STO-3G basis set), and electrostatic potentials (with the STO-5G basis set) of dinitrosoacetylene (40). The molecule is surprisingly non-linear, and the dihedral angle between the CCO planes is 87 ° which suggests that the NO groups are in perpendicular planes presumably due to each NO group conjugating individually with one of the CC π bonds. To the best of our knowledge, there is no experimental evidence for the existence of dinitrosoacetylene, and only a very small amount of evidence for mononitrosoacetylenes.^115,116

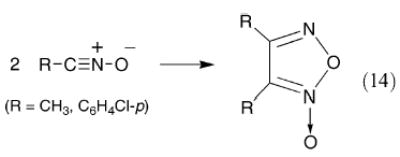

Houk and coworkers¹¹⁷ investigated the dimerization of acetonitrile oxide and p-chlorobenzonitrile oxide to furoxans (eqn. (14)) by performing density functional theoretical calculations at the B3LYP/6-31G* level.

They conclude that the dimerization is stepwise via a dinitrosoalkene intermediate. The potential energy surface for furoxan formation from acetonitrile oxide is shown in Fig. 3. The formation of the first intermediate 2(ctc) is exothermic by 11.9 kcal mol⁻¹ in the gas phase, and the intermediate is best represented as a dinitrosoalkene diradical (41) (actually a bis-iminoxy radical system).

Fig. 3.

Computed potential energy surface for the dimerization of acetonitrile oxide to furoxan in the gas phase. Reproduced with permission from Z.-H. Yu, P. Caramella, and K. N. Houk, J. Am. Chem. Soc. 2003, 125, 15420–15425.¹¹⁷ Copyright (2003) American Chemical Society.

This intermediate 2(ctc) forms via a singlet diradical TS1 in which the NO groups are trans presumably to avoid electrostatic repulsion between the two NO groups, and also between the N lone pair and the π electrons involved in forming the central carbon–carbon bond. Intramolecular rotation then forms the TS3 transition state and the non-planar 2(ccc) conformer (the non-planarity is ascribed to the O3–O6 repulsion). Intramolecular N…O bond formation then produces the stable furoxan. On the basis of these results, the authors propose that the experimentally observed tautomerizations of furoxans are likely to proceed via diradical transition states and dinitrosoalkene intermediates.

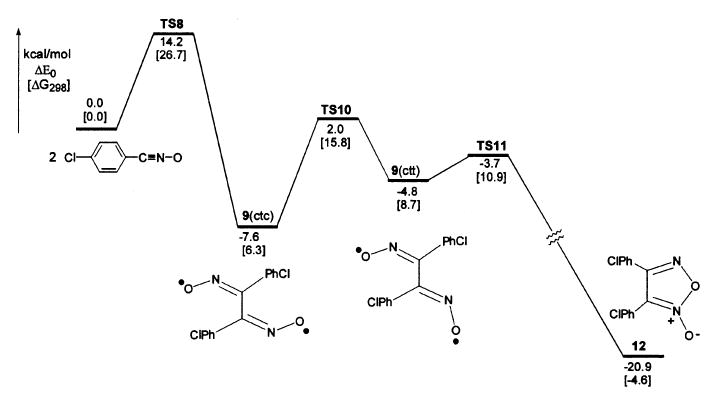

The related furoxan formation from p-chlorobenzonitrile oxide was computed similarly (Fig. 4),¹¹⁷ and also reveals a dinitrosoalkene diradical intermediate. The higher barrier for dimerization of this aromatic nitrile oxide was attributed to a smaller extent of conjugation between the C₆-ring and the CNO moiety in the first transition state TS8 (analogous to TS1 in Fig. 3).

Fig. 4.

Computed potential energy surface for the dimerization of p-chlorobenzonitrile oxide to furoxan in the gas phase. Reproduced with permission from Z.-H. Yu, P. Caramella, and K. N. Houk, J. Am. Chem. Soc. 2003, 125, 15420–15425.¹¹⁷ Copyright (2003) American Chemical Society.

Other papers on ab initio calculations for 1,2-dinitrosoethylene at different levels of computation have been published.^118–124 Interestingly, IR spectroscopic evidence for the formation of 2,3-dinitrosobut-2-ene as the photolabile intermediate during UV photolytic decomposition of dimethylfuroxan has been obtained,¹²⁴ and the product was identified as the tct-2,3-DNB conformer with the help of theoretical calculations.

The calculations for three dinitrosobenzenes at the ab initio STO-3G and 3-21G levels give the bond distances (3–21G//3–21G) for the most stable conformers (42–44) presented in Table 1.¹²² It is apparent that the CC bond lengths are scarcely altered by disubstitution by the nitroso groups, and that the lengthening of the CN bond in the o- and p-isomers is in accord with a slight reduction in resonance interaction between the nitroso groups and the benzene ring as a result of the conjugation of the two π-electron withdrawing nitroso groups.

Table 1.

Geometries calculated for the most stable conformers of dinitrosobenzenes (3–21G//3–21G by ab initio orbital methods; bond lengths in Å)¹²²

Bond	Nitroso	1,2-Dinitroso	1,3-Dinitroso	1,4-Dinitroso
NO	1.223	1.220	1.222	1.221
CN	1.442	1.453	1.442	1.448
C1C2	1.385	1.384	1.378	1.383
C2C3	1.380	1.381	1.378	1.379
C3C4	1.389	1.381	1.384	1.381
C4C5	1.384	1.387	1.383	1.383
C5C6	1.383	1.381	1.383	1.379
C6C1	1.381	1.381	1.384	1.381

It has been demonstrated¹¹⁷ that theoretical calculations for dinitrosoalkenes and hence, by implication, for molecules containing two nitroso groups attached to π-bonded carbon frameworks, need to be performed at higher levels in order to to clarify the effects of linking the strong π-electron accepting nitroso groups to a conjugated system. It was suggested earlier¹²⁵ that successful theoretical understanding of the benzofuroxan/o-dinitrosobenzene system is dependent upon the inclusion of electron correlation in the theoretical studies as illustrated by recent studies^50–52 of the reaction mechanisms of benzofuroxans in which o-dinitrosobenzenes feature as important intermediates. It seems likely that the differences between the results obtained from earlier computational studies of dinitrosoalkenes are a result of working at lower computational levels.

5 Conclusions

The chemistry of dinitroso and polynitroso compounds remains relatively unexplored. It is reasonable to assume that the diversity of reactions exhibited by the mononitroso species should result in some unique chemistry associated with molecules containing more than one C-nitroso group. In particular, the use of dinitroso compounds as spin trapping agents and their chemical behavior in the presence of metals^2,126 should prove to be topics of considerable interest. In addition, a need exists for synthetic routes to tri- and polynitroso compounds due the potential uses of these compounds in new materials.
