. 1984 Oct;117(1):131–139.

Ultrastructural damage associated with the Ca2+ paradox. The protective effect of Mn2+.

J S Elz, W G Nayler
PMCID: PMC1900554  PMID: 6486241

Abstract

Hearts repleted with Ca2+-containing buffers after only a few minutes of Ca2+-free perfusioN display extensive ultrastructural damage and accumulate Ca2+. Ultrastructural damage includes separation of the intercalated disks, development of contracture bands, and splitting of the internal and external layers of the glycocalyx. In this study, the authors have used isolated spontaneously beating Langendorff perfused hearts to investigate whether Mn2+ alters the ultrastructural damage associated with Ca2+ repletion after Ca2+-free perfusion, previous studies having shown that it attenuates or abolishes the gain in Ca2+ which normally occurs under these conditions. Mn2+ added only at the time of Ca2+ repletion did not attenuate the ultrastructural damage. When Mn2+ (2 mM) was added during the Ca2+-free period or the Ca2+-free and Ca2+ repletion periods, however, the hearts were not as extensively damaged. The myofibrils were relaxed, and the intercalated disks were intact. However, splitting of the glycocalyx still occurred and was a prominent feature. These results indicate that splitting of the glycocalyx per se does not necessarily result in a massive gain in Ca2+ when Ca2+ is returned to Ca2+-depleted hearts. Possible mechanisms of action of Mn2+ are discussed.

Full text

PDF
131

Images in this article

134Figure 2
on p.134
134Figure 3
on p.134
136Figure 4
on p.136

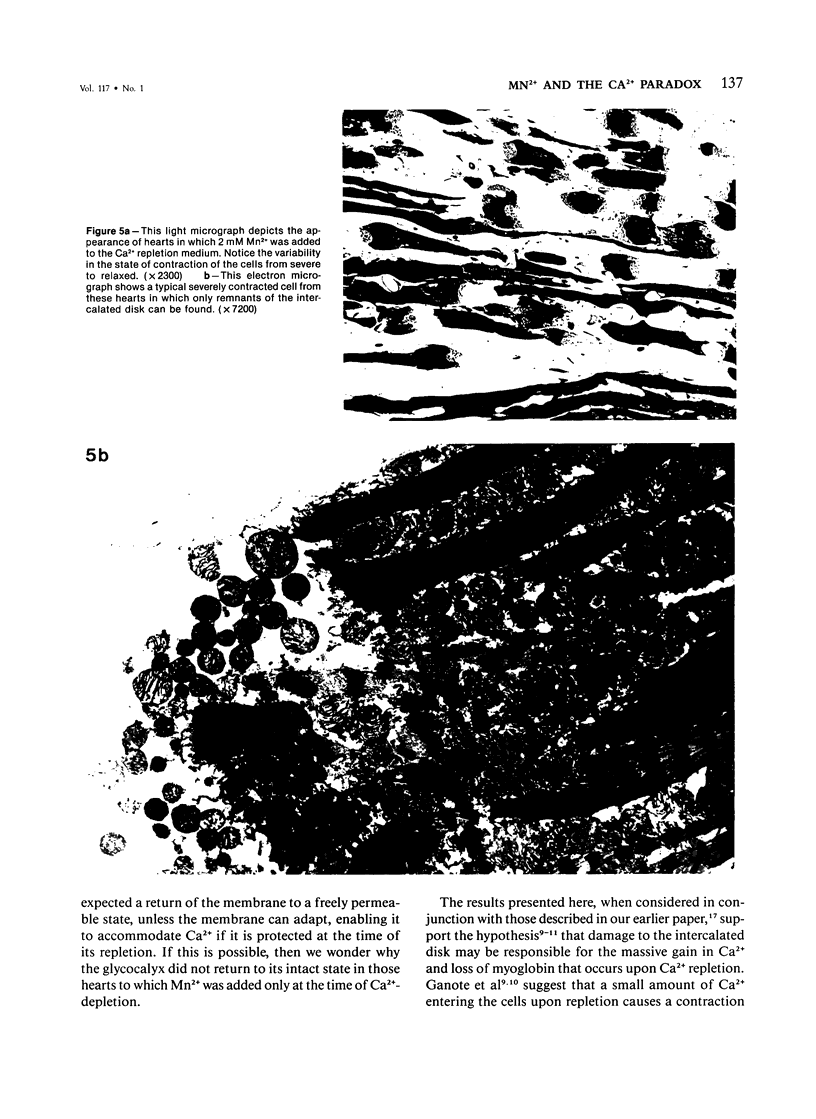

137Figure 5
on p.137
138Figure 6
on p.138

Selected References

These references are in PubMed. This may not be the complete list of references from this article.

  1. Alto L. E., Dhalla N. S. Myocardial cation contents during induction of calcium paradox. Am J Physiol. 1979 Dec;237(6):H713–H719. doi: 10.1152/ajpheart.1979.237.6.H713. [DOI] [PubMed] [Google Scholar]
  2. Ashraf M. Correlative studies on sarcolemmal ultrastructure, permeability, and loss of intracellular enzymes in the isolated heart perfused with calcium-free medium. Am J Pathol. 1979 Nov;97(2):411–432. [PMC free article] [PubMed] [Google Scholar]
  3. Ashraf M., Onda M., Benedict J., Hirohata Y. Surface ultrastructural features of isolated perfused rat hearts during calcium paradox. Scan Electron Microsc. 1981;(Pt 3):109–114. [PubMed] [Google Scholar]
  4. Crevey B. J., Langer G. A., Frank J. S. Role of Ca2+ in maintenance of rabbit myocardial cell membrane structural and functional integrity. J Mol Cell Cardiol. 1978 Dec;10(12):1081–1100. doi: 10.1016/0022-2828(78)90354-1. [DOI] [PubMed] [Google Scholar]
  5. Frank J. S., Langer G. A., Nudd L. M., Seraydarian K. The myocardial cell surface, its histochemistry, and the effect of sialic acid and calcium removal on its stucture and cellular ionic exchange. Circ Res. 1977 Nov;41(5):702–714. doi: 10.1161/01.res.41.5.702. [DOI] [PubMed] [Google Scholar]
  6. Frank J. S., Rich T. L., Beydler S., Kreman M. Calcium depletion in rabbit myocardium. Ultrastructure of the sarcolemma and correlation with the calcium paradox. Circ Res. 1982 Aug;51(2):117–130. doi: 10.1161/01.res.51.2.117. [DOI] [PubMed] [Google Scholar]
  7. Ganote C. E., Kaltenbach J. P. Oxygen-induced enzyme release: early events and a proposed mechanism. J Mol Cell Cardiol. 1979 Apr;11(4):389–406. doi: 10.1016/0022-2828(79)90425-5. [DOI] [PubMed] [Google Scholar]
  8. Ganote C. E., Liu S. Y., Safavi S., Kaltenbach J. P. Anoxia, calcium and contracture as mediators of myocardial enzyme release. J Mol Cell Cardiol. 1981 Jan;13(1):93–106. doi: 10.1016/0022-2828(81)90231-5. [DOI] [PubMed] [Google Scholar]
  9. Grinwald P. M., Nayler W. G. Calcium entry in the calcium paradox. J Mol Cell Cardiol. 1981 Oct;13(10):867–880. doi: 10.1016/0022-2828(81)90286-8. [DOI] [PubMed] [Google Scholar]
  10. Hearse D. J., Humphrey S. M., Bullock G. R. The oxygen paradox and the calcium paradox: two facets of the same problem? J Mol Cell Cardiol. 1978 Jul;10(7):641–668. doi: 10.1016/s0022-2828(78)80004-2. [DOI] [PubMed] [Google Scholar]
  11. Muir A. R. The effects of divalent cations on the ultrastructure of the perfused rat heart. J Anat. 1967 Apr;101(Pt 2):239–261. [PMC free article] [PubMed] [Google Scholar]
  12. Nayler W. G., Grinwald P. M. Dissociation of Ca2+ accumulation from protein release in calcium paradox: effect of barium. Am J Physiol. 1982 Feb;242(2):H203–H210. doi: 10.1152/ajpheart.1982.242.2.H203. [DOI] [PubMed] [Google Scholar]
  13. Nayler W. G., Grinwald P. M. The effect of verapamil on calcium accumulation during the calcium paradox. J Mol Cell Cardiol. 1981 Apr;13(4):435–441. doi: 10.1016/0022-2828(81)90285-6. [DOI] [PubMed] [Google Scholar]
  14. Nayler W. G., Perry S., Daly M. J. Cobalt, manganese and the calcium paradox. J Mol Cell Cardiol. 1983 Nov;15(11):735–747. doi: 10.1016/0022-2828(83)90333-4. [DOI] [PubMed] [Google Scholar]
  15. Rich T. L., Langer G. A. Calcium depletion in rabbit myocardium. Calcium paradox protection by hypothermia and cation substitution. Circ Res. 1982 Aug;51(2):131–141. doi: 10.1161/01.res.51.2.131. [DOI] [PubMed] [Google Scholar]
  16. Yates J. C., Dhalla N. S. Structural and functional changes associated with failure and recovery of hearts after perfusion with Ca2+-free medium. J Mol Cell Cardiol. 1975 Feb;7(2):91–103. doi: 10.1016/0022-2828(75)90011-5. [DOI] [PubMed] [Google Scholar]
  17. Zimmerman A. N., Hülsmann W. C. Paradoxical influence of calcium ions on the permeability of the cell membranes of the isolated rat heart. Nature. 1966 Aug 6;211(5049):646–647. doi: 10.1038/211646a0. [DOI] [PubMed] [Google Scholar]
