Human lymphatic pumping measured in healthy and lymphoedematous arms by lymphatic congestion lymphoscintigraphy

Abstract

Axillary surgery for breast cancer partially obstructs lymph outflow from the arm, chronically raising the lymphatic smooth muscle afterload. This may lead to pump failure, as in hypertensive cardiac failure, and could explain features of breast cancer treatment-related lymphoedema (BCRL) such as its delayed onset. A new method was developed to measure human lymphatic contractility non-invasively and test the hypothesis of contractile impairment. ^99mTc-human IgG (Tc-HIG), injected into the hand dermis, drained into the arm lymphatic system which was imaged using a gamma-camera. Lymph transit time from hand to axilla, t_transit, was 9.6 ± 7.2 min (mean ±s.d.) (velocity 8.9 cm min⁻¹) in seven normal subjects. To assess lymphatic contractility, a sphygmomanometer cuff around the upper arm was inflated to 60 mmHg (P_cuff) before ^99mTc-HIG injection and maintained for >> t_transit. When P_cuff exceeded the maximum pressure generated by the lymphatic pump (P_pump), radiolabelled lymph was held up at the distal cuff border. P_cuff was then lowered in 10 mmHg steps until ^99mTc-HIG began to flow under the cuff to the axilla, indicating P_pump≥P_cuff. In 16 normal subjects P_pump was 39 ± 14 mmHg. P_pump was 38% lower in 16 women with BCRL, namely 24 ± 19 mmHg (P = 0.014, Student's unpaired t test), and correlated negatively with the degree of swelling (12–56%). Blood radiolabel accumulation proved an unreliable measure of lymphatic pump function. Lymphatic congestion lymphoscintigraphy thus provided a quantitative measure of human lymphatic contractility without surgical cut-down, and the results supported the hypothesis of lymphatic pump failure in BCRL.

Breast cancer treatment-related lymphoedema (BCRL) or ‘surgical elephantiasis’ (Halsted, 1921) is a chronic, incurable and debilitating swelling of the arm resulting from the removal of axillary lymph nodes and often axillary radiotherapy during breast cancer treatment. The heavy, swollen arm causes functional and psychological morbidity and is prone to infection, e.g. cellulitis (Stewart & Treves, 1948; Velanovich & Szymanski, 1999; Hack et al. 1999). Around 42 000 women per year are diagnosed with breast cancer in the UK (http://www.cancerresearchuk.org), and BCRL develops in ∼25% of those undergoing axillary node clearance (Mortimer et al. 1996; Schunemann & Willich, 1997). Even when surgery is limited to the removal of a single, ‘sentinel’ lymph node (first node downstream of tumour), the incidence of BCRL is surprisingly high, at approximately 6% (Blanchard et al. 2003; Mansel et al. 2006).

Axillary lymph node removal and radiotherapy are clearly the initiating factors in BCRL but the complex temporal and spatial pathophysiology remains inadequately explained. The simplest view is that obstruction of the axillary drainage routes causes interstitial fluid to accumulate in the arm. This ‘stopcock’ hypothesis fails, however, to explain the unusual temporal and spatial features of BCRL. Specifically (i) some patients develop BCRL after a single sentinel node biopsy, yet many do not despite more extensive substantial axillary clearance. (ii) The onset of chronic swelling is usually months or years after the axillary insult, with no obvious precipitating event (Mortimer et al. 1996). (iii) The spatial distribution of swelling along the arm is often non-uniform (Modi et al. 2005); moreover the hand is sometimes spared and shows no depression of the lymph drainage rate constant, despite drainage to the same damaged axilla (Stanton et al. 2001, 2006). By contrast, the lymph drainage rate constant is depressed in swollen hands and in both the subcutis and muscle of swollen forearms (Stanton et al. 2001, 2003, 2006; Pain et al. 2004b). The axillary stopcock hypothesis does not adequately explain the above anomalies.

It is generally accepted that axillary node extirpation raises the resistance to lymph drainage from the arm, and hence raises pressure in the lymphatics. For example, lymphangiography in BCRL shows dilated tortuous vessels, axillary lakes, and leaked extra-lymphatic contrast medium in the upper arm and axilla (Feldman et al. 1966; Clodius, 1977). This led us to consider the possible effect of a chronically raised afterload on smooth muscle function in the lymphatic walls. The main lymphatic vessels (but not the initial lymphatic capillaries) show rhythmic contractions and actively pump lymph centrally, aided by valves. The lymphatic stroke volume and output decline, however, above a distending pressure of 10 cmH₂O in isolated bovine lymphatics, or 18–26 cmH₂O in conscious sheep, despite increased contraction frequency (McGeown et al. 1987; review, Levick & McHale, 2002). Such observations led us to propose the hypothesis of chronic pump failure in BCRL resulting from a chronically raised afterload, as in hypertensive cardiac failure (Stanton et al. 2003, 2006; Modi et al. 2005). If lymphatic contractility declines slowly and progressively, a tipping-point will eventually be reached where lymph drainage rate no longer matches capillary filtration rate, precipitating the onset of swelling in the drainage territory of the failing lymphatics. The (variable) period required for the critical degree of failure could explain the variable delay in onset of BCRL. If the constitutionally weakest lymphatic collector vessels fail first, swelling would be localized to their drainage territory, offering a rational explanation for the regionality paradox.

Unfortunately, there were no non-invasive methods for measuring lymphatic pump force in humans. Methods such as fluorescence microlymphography and radiolabelled protein clearance from an interstitial depot assess primarily the function of the non-contractile initial lymphatic capillaries (Modi et al. 2007). γ-Camera imaging of limb lymphatics after take-up of labelled interstitial macromolecules is qualitative (Mellor & Mortimer, 2004). Direct cannulation of leg lymphatics has shown that normal human leg collector vessels are capable of pumping to ∼45 mmHg (Olszewski & Engeset, 1980), but this approach requires surgical cut-down and is not ethical with BCRL patients. The closest previous approach to a non-invasive method was provided by a study of simulated snake envenomation by Howarth et al. (1994). They gave subcutaneous injections of a radiotracer at the wrist and found that a bandage pressure of 40–70 mmHg was required to prevent the lymphatic transport of the tracer to the axilla. The method developed here to measure human arm lymphatic contractile force is a development of their approach. ^99mTc-human immunoglobulin (^99mTc-HIG), a labelled native protein (cf. traditional non-native agents such as sulphur colloid), was injected intradermally. Since dermal lymphatic density is high (Stanton et al. 1999b), this route of injections rapidly fills the arm lymphatics, enabling them be imaged by a γ-camera (Pain et al. 2003; O'Mahony et al. 2004). A congestion cuff was then used to probe the occluding pressure that lymphatic contraction could overcome. In the current study we used this new method to test the hypothesis that lymphatic collector pump force is weakened in BCRL.

Methods

Seven healthy subjects (4 women, 3 men) aged 52 ± 10 (s.d.) years underwent the ‘uncuffed healthy subject protocol’ (see below) and 16 healthy subjects (11 women, 5 men) aged 54 ± 6 years underwent the ‘cuffed healthy subject protocol’. Subjects taking drugs likely to affect smooth muscle, such as Ca²⁺ channel antagonists and adrenoceptor agonists/antagonists, were excluded. Sixteen women with BCRL aged 60 ± 8 years underwent the ‘cuffed BCRL protocol’ (see below). Patients with recurrent breast cancer, heart disease, hypertension, or taking Ca²⁺ channel antagonists or adrenoceptor agonists/antagonists, were excluded. All had developed ipsilateral (i.e. on the same side as the surgery) BCRL at 2.3 ± 4.5 years (0–216 months) after axillary surgery for unilateral breast cancer (Table 1). Oedema had been present for 6.4 ± 6.2 years (7–234 months) in the dominant arm (n = 8) or non-dominant arm (n = 8) (Table 1). Fourteen patients routinely wore a compression sleeve but not on the study day. The study was approved by the Hammersmith Hospitals NHS Trust Research Ethics Committee and by the Administration of Radioactive Substances Advisory Committee of the UK (ARSAC). All subjects gave informed, written consent and the studies conformed to the standards set by the Declaration of Helsinki.

Table 1.

Details of patients, breast cancer treatment and breast cancer-related lymphoedema (BCRL)

									BCRL
Patient no.	Age (yrs)	Ipsilateral arm	Hand swelling	Operation*	Lymph node status†	Chemo-therapy	Radio-therapy	Hormonal treatment	Delay‡ (months)	Duration (months)	%#
1	53	R	Y	WLE	0/5	N	Y	Y	18	71	32.0 (41.7)
2	51	R	Y	WLE	0/14	Y	Y	Y	60	72	14.8 (28.8)
3	62	R	Y	Mast	18/42	Y	Y	N	12	44	27.4 (37.2)
4	63	L	Y	WLE	0/6	N	Y	Y	6	20	16.7 (11.3)
5	77	L	N	WLE	0/19	N	Y	Y	0	204	38.5 (13.6)
6	56	R	Y	Mast	2/5	Y	Y	N	0	152	38.3 (66.4)
7	66	R	N	Mast	0/24	N	N	Y	45	7	12.1 (15.9)
8	58	R	N	Mast	0/28	N	N	Y	24	54	14.6 (17.2)
9	61	L	N	Mast	0/15	N	N	Y	0	48	12.1 (11.0)
10	66	L	Y	WLE	13/15	Y	Y	Y	13	14	36.3 (43.9)
11	50	L	Y	Mast	0/10	N	Y	N	216	15	56.4 (68.0)
12	60	L	N	WLE	Unknown	N	Y	Y	0	168	22.3 (24.0)
13	66	L	Y	Mast	0/16	Y	Y	Y	36	234	36.8 (69.3)
14	57	L	Y	WLE	0/16	N	Y	Y	0	25	17.2 (21.1)
15	49	R	N	WLE	Unknown	N	Y	Y	0	212	11.8 (18.0)
16	67	L	Y	WLE	0/26	N	Y	N	12	83	35.3 (44.3)

R, right; L, left; Y, yes; N, no; *WLE, wide local excision; Mast, simple mastectomy. †Number of lymph nodes positive for tumour/number excised. ‡Interval between surgery and onset of BCRL. #Percentage increase in total arm volume relative to opposite side (% increase in forearm volume in parentheses). Post-operative complications: seroma (accumulation of lymph in the axilla) in patients 10 and 16; arm swelling (resolving in < 2 months) in patients 2, 5, 8 and 9; cording (axillary web syndrome, believed to be caused by lymphangitis; a tightness experienced in the axilla or down the arm upon abduction and external rotation; a fine cord can be seen or palpated or cause guttering on the overlying skin) in patients 2, 4, 6, 7, 8, 9, 12 and 14. Patient 10 was left-handed, all others were right-handed.

Measurement of arm and hand volumes

Arm volume was measured between identical points for each pair of arms. The volume between the ulnar styloid process (wrist) and anterior axillary fold (upper arm) was measured by an opto-electronic limb volumeter (Perometer 350S, Pero-System Messgeräte GmbH, Wuppertal, Germany) as validated previously (Stanton et al. 1997; Stanton et al. 2000). For the proximal 4–8 cm of the upper arm, beyond the technical limit of the Perometer, circumferences were measured with a flexible tape-measure at 4 cm intervals and volume calculated by the truncated cone formula: volume (ml) =Σ(X²+Y²+XY)/3π, where X is the first circumference measurement and Y is the circumference 4 cm proximally. Hand volume was measured by water displacement (mean of 3; Stanton et al. 2000).

Comparison of brachial artery blood pressure measurement using a Riva-Rocci cuff on swollen and non-swollen side

Brachial artery blood pressure (BP) was measured by auscultation in each arm using a mercury sphygmomanometer and Riva-Rocci congestion cuff. The comparison tested an inherent assumption of the lymphatic congestion method, namely that the transmission of the occluding pressure from the cuff to the deep tissues was not impaired in the BCRL arms. The cuff size was tailored to the size of the upper arm. The dimensions of each cuff and its air bladder are shown in relation to the mid upper arm circumference in Table 2. Mean blood pressure in each arm was calculated as diastolic pressure +⅓ pulse pressure. In all subjects the diastolic blood pressure was ≥ 60 mmHg, the maximum cuff pressure used in lymphatic arrest studies.

Table 2.

Tailoring of cuff dimensions to arm size

Cuff	Length (cm)	Width (cm)	Air bladder length (cm)	Air bladder width (cm)	Range of upper arm circumfs (cm)
Std	46.3	14.3	22.2	11.3	27.4–29.7
1	53.0	14.3	29.5	13.0	29.7–38.2
2	57.3	14.3	36.5	13.0	38.9–41.2
3	61.5	14.3	40.0	13.0	> 41.2

Size of standard adult size (Std) and custom-made pressure cuffs (1–3) and size of corresponding air bladders were adjusted according to the ipsilateral mid upper arm circumference, in accordance with clinical practice, to prevent the attenuation of pressure transmission in large limbs.

Gamma-Camera imaging of arm

The subject was supine for imaging of the arm. The two heads of a double-headed γ-camera (E.CAM 180 double-headed, rectangular field of view camera with low-energy, high-resolution collimator; Siemens, PA, USA) were positioned 31 ± 3 cm apart to provide anterior and posterior images of radiolabel-filled arm lymphatic (Fig. 1). The image included all the axillary and supraclavicular nodes, the upper arm lymphatics, and as much of the forearm as possible. The arm contour was traced onto the detector surface using a cobalt-57 pen and recorded, to ensure that the unfilled axilla and arm were in the field of view. Background radioactivity was recorded by a 3 min acquisition prior to tracer injection. Room temperature was 23.2 ± 0.7°C.

Figure 1.

Patient with BCRL under Gamma-camera during cuffed protocol The left lymphoedematous arm has a cuff around the upper arm which, at high inflation pressures, occludes the underlying lymphatic collectors. A cannula has been inserted into a vein in the right antecubital fossa for blood sampling (not visible).

Radiolabelled macromolecular marker for lymph and dose of radiation

A radiolabelled polyclonal human immunoglobulin, technetium-99m-labelled human IgG (^99mTc-HIG) (TechneScan HIG, Mallinckrodt Medical B.V., Petten, The Netherlands) was prepared by Mallinckrodt Pharmacy Services (University College Hospital, London). Radiochemical purity (percentage bound label) was assayed by the radiopharmacy laboratory using gel chromatography (Sephadex PD₁₀, exclusion molecular mass > 5000 Da) and the purity of the injected product was ≥ 95% bound ^99mTc. This radiopharmaceutical is readily taken up into the lymphatic system following dermal injection (O'Mahony et al. 2004). The administered activity (∼10 MBq ^99mTc, see Protocol) gave an effective dose of 0.15 mSv.

Uncuffed protocol, healthy subjects

Measurements of the lymphatic transit time from hand to axilla (t_transit) in the absence of external lymphatic compression were used to plan the duration of occlusion in cuffed studies. Either arm was studied. With the subject supine, the tracer was injected intradermally between the 2nd and 3rd metacarpophalangeal joints of the clenched fist, because this route produces the best images of the arm lymphatic (O'Mahony et al. 2004). Fifty microlitres of ^99mTc-HIG (25 μg HIG, activity 9 ± 3 MBq) was injected slowly (∼1 min) through a steel 36 gauge needle (external diameter 0.2 mm; Unimed S.A., Lausanne, Switzerland) inserted horizontally facing the wrist. The intradermal location was confirmed by resistance to injection (cf. subcutis), blanching and a visible raised bleb. A dynamic image sequence of 40 frames over the arm and axilla was then acquired over 2 h (3 min per frame), followed by a 3 min static acquisition over the hand to determine how much radioactivity remained in the injection depot. The dominant arm was studied in five subjects and the non-dominant arm in two subjects. Blood samples were taken from the opposite arm (see below). When imaging was complete, the subject stood up, walked to the waiting area and sat until blood sampling was complete.

Analysis of labelled lymph transit in uncuffed protocol

Three regions of interest (ROI) were examined on each arm image, namely the regions distal to (ROI 1), beneath (ROI 2), and proximal to (ROI 3) the cuff location used in cuffed protocols. ROI 3 corresponded to the axillary region. After correction for background activity and radioactive decay, the counts per min (CPM) of each ROI were plotted against time. The time at which the counts in the proximal, axillary ROI rose above background was defined as the lymphatic transit time, t_transit. Lymph velocity in uncuffed studies was measured between the depot and ROI 3 (axilla) and calculated as the distance divided by the time taken for counts to reach ROI 3. The amount of ^99mTc-HIG in the initial depot was calculated from the difference between injection syringe activity in CPM before and after the injection, corrected for decay. Using this value, the CPM in each ROI could be normalized as a fraction of the injected CPM.

Cuffed protocol, healthy subjects

The pressure generated by the contractile activity of occluded lymphatic collectors, P_pump, was measured in 14 dominant and 2 non-dominant normal arms. In three of the subjects the individual t_transit values were known from the previous uncuffed protocol and these earlier values were compared with t_transit obtained in the presence of the cuff to establish that the cuff pressure of 60 mmHg effectively occluded lymph flow. A standard, adult size sphygmomanometer cuff (Accoson, London, UK) was wrapped around the upper arm with the bladder anteromedially, and connected to a standard Accoson mercury sphygmomanometer. This was inflated by hand and maintained at 60 mmHg from 2 min before intradermal ^99mTc-HIG injection in the hand (see above). The initial occluding cuff pressure, P_cuff, was less than diastolic arterial pressure, did not cause any paraesthesia or numbness and was well tolerated. At 30 min after ^99mTc-HIG injection, i.e. at a time >> t_transit, the cuff pressure was reduced by 10 mmHg to 50 mmHg for 15 min. Thereafter P_cuff was reduced in 10 mmHg steps at 15 min intervals. The cuff was disconnected when 0 mmHg was reached (105 min) and removed altogether at ∼130 min. The arm lymphatic imaging protocol and blood sampling protocol (see below) were as for the uncuffed protocol. The value of P_cuff at which ^99mTc-HIG first passed under the cuff was taken as the measure of P_pump. When imaging was complete, the subject stood up and then sat in the waiting area.

Cuffed protocol, BCRL patients

The above protocol was carried out on the 16 patients with BCRL described in Table 1. The cuff size was tailored to the size of the upper arm (Table 2).

Analysis of cuffed protocol images; criteria for P_pump

The progressive accumulation of ^99mTc-HIG at the distal border of the cuff and absence of activity under the cuff at times greater than t_transit demonstrated that the cuff effectively prevented lymph flow from forearm to axilla. The highest cuff pressure at which ^99mTc-HIG passed under the cuff into the proximal, axillary region (ROI 3) was taken to equal the highest lymph pressure generated by obstructed, contracting arm lymphatics, P_pump. Sub-cuff transmission was assessed by inspection initially (Figs 2A and 3A) and confirmed by quantitative analysis of CPM in the three ROIs (Figs 2B and 3B).

Figure 2.

Gamma-Camera results from a normal left arm of a healthy volunteer during lymphatic congestion A, selected sequence from scan images (anterior view). Regions of interest (ROI) 1, 2 and 3 are shown on the left arm (right side of each image); ROI 2 corresponded to the position of the congestion cuff. At 60 mmHg cuff pressure (P_cuff), ^99mTc-HIG was retained distal to the cuff (30 min post-injection). When P_cuff was reduced to 50 mmHg, ^99mTc-HIG began to travel under the cuff (36 min), reaching the proximal border of the cuff at 39 min and an axillary lymph node by 45 min. P_pump was ∼50 mmHg. B, region of interest (ROI) analysis, same subject as in A. Counts per minute (CPM) were measured in the distal (continuous line), sub-cuff (long-dashed line), and proximal (axillary) (short-dashed line) ROIs in 40 sequential frames and plotted as percentage of administered counts. P_cuff is marked for each time interval between the vertical lines. A rise in CPM above background in the proximal, axillary ROI at 39 min (P_cuff= 50 mmHg) indicated P_pump≥ 50 mmHg and < 60 mmHg.

Figure 3.

Gamma-Camera results from a lymphoedematous right arm (patient 15,Table 1, and 18% forearm swelling) during lymphatic congestion A, selected sequence from scan images (anterior view). Regions of interest (ROI) 1, 2 and 3 are shown on the right arm (left side of each image); ROI 2 corresponded to the position of the congestion cuff. Dermal backflow was present at cuff pressures > 10 mmHg. When P_cuff was reduced from 20 mmHg to 10 mmHg (90 min post-injection), ^99mTc-HIG began to creep under the distal cuff margin (lower dotted line), reaching the proximal border at 99 min and an axillary lymph node at 105 min (P_cuff = 0 mmHg). B, region of interest (ROI) analysis, same BCRL patient as in A. Counts per minute (CPM) were measured in the distal (continuous line), sub-cuff (long-dashed line), and proximal (axillary) (short-dashed line) ROIs in 40 sequential frames and plotted as percentage of administered counts. P_cuff is marked for each time interval between the vertical lines. A rise in counts above background in the proximal, axillary ROI (ROI 3) at 99 min (P_cuff = 10 mmHg) indicated P_pump≥ 10 mmHg and < 20 mmHg. The early rise in counts in ROI 1 (distal to cuff) compared with the cuffed healthy subject in Fig. 2B is accounted for by dermal backflow in the lymphoedematous arm.

Lymph velocity in cuffed studies was measured between the depot and cuff distal border and calculated as the distance divided by the time taken for counts to reach the cuff.

Arrival of radiolabel in blood pool

Interstitial macromolecules such as ^99mTc-HIG are cleared principally by the lymphatic system. Therefore, after an initial time lag caused by the lymphatic transit time, the rate of accumulation in blood, J_tracer, should in principle be a quantitative measure of lymphatic volume pumping in the uncuffed arm (Pain et al. 2002, 2003, 2004a, b). To assess the time lag and J_tracer, antecubital venous blood was sampled from the opposite, non-injected arm during the uncuffed and cuffed protocols. Three baseline 1.5 ml samples were collected in EDTA tubes before the radiolabel injection, then sampling was continued at 2 min after injection and every 5 min for 1 h, followed by every 10 min to 2 h. Two final blood samples were taken at 2½ h and 3 h post-injection, after the subject had moved around and sat in the waiting room. One millilitre of whole blood was pipetted into glass counting tubes and counted for 5 min per sample in an automated γ-counter (PerkinElmer Wallac Wizard 1480; Ametek, Wokingham, UK). To determine the amount of radioactivity in the total blood pool, the activity per millilitre was multiplied by total blood volume, which was estimated by a nomogram based on age, sex and weight. Blood pool activity (Bq) was normalized as a percentage of initial depot activity (Bq). The latter was calculated from the difference between injection syringe activity (Bq) before and after the ^99mTc-HIG injection, corrected for decay. J_tracer was calculated by linear regression analysis of the mass versus time plot for each individual.

Assessment of free ^99mTc in blood

The unexpectedly early appearance of radiolabel in blood (see Results) raised concerns over the stability of ^99mTc binding to HIG in vivo. To assess free label in the blood samples, protein-bound radioactivity was precipitated out using trichloroacetic acid (TCA) (Andrews & Milne, 1977). Two millilitre blood samples taken 2 min, 90 min and 180 min after depot injection were centrifuged (5 min, 1000 g) and 1 ml plasma transferred to fresh glass tubes containing 1.5 ml 5% TCA. After re-centrifugation (5 min, 1000 g) the supernatant was transferred to a counting tube. A further 2.5 ml 5% TCA was added to the pellet and mixed well to resuspend it. This was re-centrifuged and the supernatant transferred to a second counting tube. The pellet was dissolved in 2.5 ml of 2 m sodium hydroxide and transferred to a third counting tube. The tubes were counted in a γ well counter set for ^99mTc. The counts in all three tubes were corrected for dead time, decay and background radioactivity. Counts from the three tubes were added and counts in the pellet tube (bound counts) expressed as a percentage of the total counts.

Statistical analysis

Results are presented as the mean ± standard deviation (s.d.) unless stated otherwise, followed by the range in brackets where appropriate. Student's paired, unpaired and one-sample t tests were used to compare differences between groups. Regression, correlation (r) and one-way analysis of variance were as implemented in GraphPad Prism (GraphPad Software, CA, USA). Differences were considered significant if P≤ 0.05.

Results

Magnitude of the lymphoedema

The swollen arm volume in BCRL patients averaged 3165 ± 991 ml, which was 26.4 ± 13.2% (11.8–56.4%) bigger than the contralateral arm (2464 ± 677 ml; P < 0.0001, n = 16, Student's paired t test), and likewise bigger than the arms of the healthy subjects (dominant arm 1927 ± 527 ml, non-dominant arm 1902 ± 564 ml; dominant versus non-dominant, P = 0.11, n = 23, Student's paired t test). In 9 of the 16 BCRL patients the hand was clinically swollen. Hand volume for all patients (n = 16) averaged 360 ± 61 ml ipsilaterally and 327 ± 52 ml contralaterally. For the nine patients with clinically swollen hands, the swollen hand volume, 348 ± 66 ml exceeded the non-swollen hand volume, 316 ± 54 ml, by 10.9 ± 10.9% (4.6–37.5%) (P = 0.01). For those without hand swelling, the ipsilateral and contralateral hand volumes were 330 ± 69 ml and 328 ± 66 ml, respectively (n = 7).

Transmission of occluding cuff pressure to deep tissues in swollen versus non-swollen arm

In BCRL patients the brachial artery blood pressure measured in the swollen arm, 136 ± 17/78 ± 8 mmHg (systolic/diastolic), was almost identical to that measured in the contralateral non-swollen arm, 135 ± 17/77 ± 9 mmHg (Fig. 4). The between-arm difference in mean blood pressure (contralateral minus ipsilateral) was 0.6 ± 3.3 mmHg (P = 0.40, n = 16, Student's paired t test). The presence of swelling thus had no significant effect on the transmission of an occluding pressure from the cuff to the deep tissues. Brachial arterial pressure in the healthy subjects was 126 ± 23/76 ± 11 mmHg. All subjects participating in cuffed studies had a diastolic pressure of ≥ 60 mmHg, the highest cuff pressure in the protocol.

Figure 4.

Paired measurements of diastolic and systolic brachial arterial blood pressure in ipsilateral (swollen) and contralateral arms of BCRL patients Swollen arm arterial pressures, 136 ± 17/78 ± 8 mmHg (systolic/diastolic), were almost identical to contralateral, non-swollen arm, 135 ± 17/77 ± 9 mmHg. Swelling did not significantly impair pressure transmission from the occluding cuff to the deep tissues.

Lymph transit from hand to axilla in uncuffed studies

The hand-to-axilla velocity of the lymph radiolabel averaged 8.9 ± 5.8 cm min⁻¹ (n = 7) in normal, uncuffed subjects. The time interval between depot injection and arrival of counts in the axillary ROI (ROI 3), t_transit, was 9.6 ± 7.2 min (3–21 min). On the basis of these results the duration of the initial occluding cuff pressure (P_cuff= 60 mmHg) in the cuffed protocol was set to 30 min, i.e. longer than maximum t_transit. Thus the absence of axillary radiolabel after 30 min in cuffed studies was not simply due to the transport distance, but indicated obstructed lymph flow.

Lymph transit in cuffed studies; total obstruction of lymph drainage by highest cuff pressure

The measurement of lymphatic pump force depended critically on the successful blockage of lymph flow at times longer than t_transit (see Methods). To check this, t_transit was measured in both free-draining, uncuffed studies and obstructive, cuffed studies in the same three normal subjects (2 male, 1 female, Table 3). Under free draining conditions these subjects had a t_transit of 5.0 ± 1.7 min. With the cuff at 60 mmHg, no radiolabel reached the axilla by 30 min. Instead, longitudinal tracks of ^99mTc-HIG-filled lymphatics distal to the cuff became broader with time, especially at the distal border of the cuff, indicating the accumulation of dammed lymph at this point (Figs 2 and 3). Transit under the cuff only occurred at 46 ± 15 min, after P_cuff had been reduced to 30–50 mmHg (Table 3).

Table 3.

Comparison of lymph transit times from hand to axilla (t_transit) in the same three healthy subjects in the absence and presence of pressure occlusion

Subject	ttransit without cuff (min)	ttransit with cuff (min)	Increase in ttransit with cuff (-fold)	Ppump (mmHg)
A	3	42	14.0	50
B	6	63	10.5	30
C	6	33	5.5	50
Mean	5	46	10.0	43

The pressure cuff around the upper arm was initially at 60 mmHg for 30 min, then reduced in steps (see Cuffed protocol, Methods). Corresponding estimate of lymphatic pumping pressure, P_pump, also shown.

Comparison of P_pump in normal versus lymphoedematous arms

The measurement of P_pump, the lymphatic pumping pressure that overcame the occlusion cuff pressure, is illustrated in Fig. 2 for a normal subject with a high P_pump, 50 mmHg, and in Fig. 3 for the swollen arm of a BCRL patient (no. 15, Table 1) with a low P_pump, 10 mmHg. As the cuff pressure was reduced, a pressure was reached at which all normal subjects showed a clear, count-filled lymphatic vessel passing under the cuff. This pressure, P_pump, averaged 39 ± 14 mmHg (10–60 mmHg, n = 16) in healthy arms, with no significant difference between men (42 ± 11 mmHg, n = 5) and women (37 ± 15 mmHg; P = 0.54, n = 11, Student's unpaired t test).

As cuff pressure was reduced in lymphoedematous arms, lymphatic vessels filled under the cuff in eight cases; most showed extension of the dermal backflow pattern (see below) under the cuff. P_pump was significantly impaired in the swollen arms and averaged 24 ± 19 mmHg (0–60 mmHg, n = 16) (P = 0.014, Student's unpaired t test) (Fig. 5A). Moreover, there was a significant negative correlation between P_pump and the severity of ipsilateral forearm swelling; the weaker the pump, the more swollen was the forearm (Fig. 5B). The relation was described by the equation 100 ×ΔV/V =[–0.68 ± 0.23]P_pump+[49.4 ± 6.9] (mean ± standard error of mean), where 100 ×ΔV/V is the percentage increase in forearm volume relative to the opposite forearm (100 × difference between forearm volumes/contralateral forearm volume) and P_pump is in mmHg (r =−0.62, P = 0.011, n = 16). There was no significant correlation between P_pump and duration of swelling, whole arm swelling, hand swelling, age or body mass index.

Figure 5.

P_pump in normal arms and lymphoedematous arms A, distribution, with mean and standard error bars. P_pump in lymphoedematous arms was significantly lower than in normal subjects. B, relation between percentage increase in swollen forearm volume and P_pump. Regression line with 95% confidence intervals shown.

Both groups showed a wide spread of pump values, with coefficients of variation of 35.1% and 78.2% for normal and lymphoedematous arms, respectively. In normal subjects, however, all but two (88%) had P_pump values of 30 mmHg or more and none was zero; whereas in lymphoedematous arms 50% had a P_pump of less than 30 mmHg and four had a P_pump of 0 mmHg (patients 1, 6, 13 and 16, Table 1). Of the latter, counts reached the axilla at 108 min in one case (6), reached the cuff but not axilla by 120 min in two cases (1, 16), and did not even reach the cuff in the fourth case (13). If the latter case is removed from the analysis, the depression of P_pump in BCRL remains significant (P = 0.026, n = 15 and 16, Student's unpaired t test). As might be expected from the above results, the residual depot counts after 120 min tended to be lower in the normal subjects (47 ± 17%, n = 16) than in BCRL patients (52 ± 15%, n = 16), though the difference was not statistically significant (P = 0.35, Student's unpaired t test).

P_pump in dominant (mainly right) BCRL arms (22.5 ± 18.3 mmHg) did not differ from P_pump in non-dominant (mainly left) BCRL arms (25.0 ± 20.0 mmHg; P = 0.80, n = 8 and 8, Student's unpaired t test).

Comparison of lymph velocities in uncuffed, cuffed normal and cuffed lymphoedematous arms

As noted earlier the average lymph tracer velocity in uncuffed normal arms was 8.9 ± 5.8 cm min⁻¹ (n = 7). In the cuffed normal arms during the period at 60 mmHg, the initial tracer velocity from hand to distal cuff border was not significantly different, 7.6 ± 10.5 cm min⁻¹ (P = 0.34, n = 16, unpaired t test). The corresponding initial velocity in the swollen arms was reduced to 3.2 ± 8.9 cm min⁻¹ or 42% of the normal cuffed arm value (P = 0.004, n = 16, Student's unpaired t test). Lymphoedema was thus associated with reduced lymph velocity as well as reduced pump force.

Dermal backflow in lymphoedematous arms

In a normal arm the radiolabelled macromolecules delineate a small number of discrete, linear lymphatic pathways, whereas in many forms of lymphoedema there is often a diffuse filling of a network of fine dermal lymphatics, indicating a diversion or re-routing of the lymph from obstructed/failing main lymphatics (Stanton et al. 2001). This phenomenon, called ‘dermal backflow’, was evident in 15 of the 16 BCRL patients, including the patient of Fig. 3. A collector lymphatic vessel passing under the pressure cuff was clearly imaged in eight patients in addition to the dermal backflow distal to the cuff. Clearly imaged sub-cuff vessels were not unique to those with the least swelling or highest P_pump.

Biphasic rate of radiolabel accumulation in blood of uncuffed and cuffed healthy subjects

Blood was sampled from 6 of 7 uncuffed subjects and 13 of 16 cuffed normal subjects, in the belief that the sudden arrival of counts in the blood pool would provide a second, independent marker of sub-cuff lymph transmission and lymph flow. The results proved more complex, however, as follows.

Irrespective of cuffing, the blood counts slightly exceeded the background level from the first blood sample onwards, i.e. from 2 min post-injection, and were statistically significantly increased by 9 min (uncuffed, P = 0.02, n = 6, one sample t test) to 13 min (cuffed, P = 0.04, n = 13) (Fig. 6). There was thus a very early, albeit very small (≤ 1%), entry of radiolabel into the blood of normal cuffed subjects long before any detectable tracer passed under the cuff (> 30 min). This raised the issue of direct diffusion of free label into dermal blood capillaries (see below).

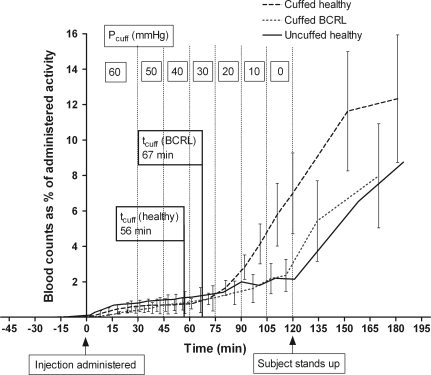

Figure 6.

Blood radiolabel content versus time in uncuffed (continuous line) and cuffed (long-dashed line) normal subjects and cuffed BCRL patients (short-dashed line) Values are means ± standard error of the mean (error bars for uncuffed subjects omitted for clarity). Subjects supine and stationary to 120 min post-injection, and then ambulant to 180 min. P_cuff is marked for each time interval between the vertical lines (not applicable to uncuffed subjects). t_cuff, the average time at which tracer passed under the cuff, is indicated for each of the cuffed groups.

The blood level increased biphasically, but with different timings in uncuffed and cuffed subjects. In the first, slow phase (2–120 min uncuffed, 2–60 min cuffed) the vascular accumulation rate J_tracer was low. Even in the uncuffed group it was only 0.016 ± 0.008 %AD min⁻¹, where %AD is the percentage of the administered depot dose (mean of regression slopes). J_tracer in the cuffed group at 2–60 min was not significantly different, 0.011 ± 0.001 %AD min⁻¹ (P = 0.29, n = 6 and 13, Student's unpaired t test).

The start of the second, more rapid phase coincided, in the case of uncuffed subjects, with the subject standing up and walking to the waiting area to sit at ∼130 min. At this point there was a sharp rise in J_tracer to 0.099 ± 0.042 %AD min⁻¹ at 120–180 min. At the start of this phase 2.15 ± 0.92 % of the depot dose was in the blood pool and by 180 min this had increased to 8.75 ± 3.50 %.

Surprisingly, the second, rapid phase began earlier in cuffed than uncuffed subjects, at ∼77 min, and occurred soon after the radiolabel had passed under the cuff, while the subject was still supine and stationary. The time at which tracer passed under the cuff (t_cuff, 55.7 ± 20.3 min for all 16 subjects; 52.8 ± 17.3 min for 13 subjects with blood samples) always preceded the time at which blood activity began to increase steeply (t_blood, 76.7 ± 14.9 min, n = 13) (Fig. 6). Moreover, the two values correlated significantly (r = 0.66, P = 0.014). The mean of the differences, 22.2 ± 12.9 min (n = 13), provided a measure of the transit time from the cuff to the lymphovenous junction in the neck plus circulation time, with an uncertainty of 5–10 min arising from the blood sampling frequency. J_tracer increased ∼9-fold after the transit interval, to 0.095 ± 0.022 %AD min⁻¹ at 70–120 min and 0.098 ± 0.027 %AD min⁻¹ at > 120 min, the free movement period (n = 13). Movement at > 120 min did not increase J_tracer further in these subjects, even though the cuff was removed. By 180 min 12.3 ± 3.6 %AD was in the blood pool, an amount not significantly different from that in uncuffed subjects (P = 0.48, Student's unpaired t test).

Biphasic accumulation of radiolabel in blood of lymphoedema patients

The blood accumulation curve was again biphasic in BCRL patients. During the early, slow phase (2–60 min), the radiolabel reached statistically significant levels very early (11 min), long before the lymph transit time (P < 0.001, n = 15, one sample t test), as in the normal subjects (Fig. 6). J_tracer at 2–60 min, 0.016 ± 0.0004 %AD min⁻¹, was not significantly different from that of normal, cuffed subjects (P = 0.54, Student's unpaired t test).

The onset of the second, more rapid phase was very variable in BCRL patients. At 60–120 min J_tracer (0.025 ± 0.002 %AD min⁻¹) was less steep than in normal cuffed subjects (0.095 ± 0.022 %AD min⁻¹), as might be expected from the impairment of lymph transmission under the congesting cuff in BCRL (P = 0.03, Student's unpaired t test). In the 12 patients where tracer eventually passed under the cuff and blood was sampled, t_cuff was 66.7 ± 25.6 min but this was followed by a sharp increase in J_tracer (second phase) in only 5/12 cases (t_cuff= 63.6 ± 34.1 min, t_blood= 73.0 ± 14.6 min, n = 5). The time lag in these patients was not significantly different from controls (P = 0.13, Student's unpaired t test), despite the axillary surgery. The sharp increase in J_tracer was not specific to those with dermal backflow as opposed to clearly delineated sub-cuff vessels.

As with uncuffed, normal subjects, the biggest increase in J_tracer (> 2-fold) occurred after 120 min, the cuff now removed and the patient having stood up to go and sit in the waiting area. In the 12 BCRL subjects where ^99mTc-HIG reached the axilla, J_tracer increased to 0.076 ± 0.024 %AD min⁻¹ at 120–180 min, compared with 0.033 ± 0.007 %AD min⁻¹ during the stationary 2–120 min period (P = 0.04, two-way ANOVA). The blood counts reached 8.0 ± 2.9 %AD at 180 min – numerically less than in cuffed healthy subjects but not significantly so (P = 0.22), and no less than in normal uncuffed subjects.

Low molecular weight radiolabel versus protein-bound radiolabel in blood

In three BCRL patients the ^99mTc-HIG failed to reach the axilla by 120 min (see earlier) yet 5.7 ± 4.6 % (1.1–6.9 %) of the depot radioactivity had accumulated in the blood pool. This reinforces the implication of the early, slow phase of J_tracer, namely that some radiolabel must enter the blood via a peripheral route, whether as intact ^99mTc-HIG or as proteolysis fragments or as dissociated free ^99mTc. The non-protein-bound fraction of radiolabel in the blood was therefore assessed by TCA precipitation (see Methods) in blood samples taken from six healthy subjects at 2, 91 and 184 min post-injection (BCRL blood not studied). All samples, and especially the first, showed a high percentage of ‘free’ (i.e. non-precipitated) ^99mTc, namely 46–26 %. At 2 min post-injection, the protein-bound radioactivity was 54 ± 16 % (41–85 %), at 91 min 59 ± 13 % (51–76 %) and at 184 min 74 ± 13 % (64–89 %). The percentage of low molecular weight radiolabel in the blood therefore decreased with time (P = 0.04, one-way analysis of variance), in keeping with the diffusion of small solutes across capillaries and renal clearance. The total amount of free label in blood (as a percentage of the amount of free label injected in the original depot) was only 1.2 % at 2 min, 18.7 % at 91 min, and 33.1 % at 184 min. The values take no account, however, of any free label that has diffused into the interstitial compartment.

Discussion

Using a new, essentially non-invasive technique to quantify lymphatic collector pump force in human arms, the principal findings were that the hand-to-axilla lymph transit time is normally ∼10 min; that a congesting cuff at 60 mmHg for 30 min arrests the lymph flow; that healthy arm lymphatics can pump hard enough to generate a pressure of ∼39 mmHg; that lymphatics in the lymphoedematous arm show a fall in pumping force that is proportional to the severity of the swelling; and that blood radiolabel counts are an unsatisfactory index of lymphatic function following intradermal ^99mTc-HIG injection in this particular experimental context. Overall the results supported the hypothesis of lymphatic pump failure in BCRL.

Assessment of new lymphatic congestion method; comparison with previous work

There are no previous, quantitative lymphoedema results for comparison, and just two results for normal human limbs. In obstructed human leg lymphatic collectors the lymph systolic pressure climbs to 37 mmHg, though with a wide range (2–55 mmHg) (Olszewski & Engeset, 1980). In the normal human arm a bandage pressure of 40–70 mmHg is required to prevent lymph flow from the wrist to the axilla (Howarth et al. 1994). The present results for normal arms (mean P_pump 39 mmHg, range 10–60 mmHg) are thus similar to the limited, existing data. The wide range of values is notable in both the present and previous work. In particular, 2/16 normal arms had a P_pump of only 10 mmHg and 20 mmHg, respectively.

It seems unlikely that the fall in P_pump in lymphoedematous arms is a methodological artefact, arising from the dissipation of sub-cuff pressure by an enlarged arm, for several reasons. First, the bilateral blood pressure measurements with appropriately tailored cuffs (Table 2) showed that the transmission of occlusive pressure to the deep tissue was equally effective in the swollen and contralateral arm. Second, impaired pressure transmission in swollen arms should artefactually raise, not lower, the estimate of P_pump, whereas the biggest arms actually had the lowest P_pump values. Third, the fall in the initial linear velocity of lymph between hand and cuff in BCRL was consistent with reduced lymphatic collector vessel contractility, although lymphatic distension may also contribute to this; and increases in cross-sectional area will reduce the velocity for a given volume flow. Fourth, not only P_pump but also the lymph drainage rate constant in BCRL muscle correlates negatively with the degree of arm swelling (Stanton et al. 2003).

The lymphatic congestion method inevitably caused venous congestion too, though blood flow was preserved by keeping the congestion pressure below diastolic arterial pressure. Venous congestion raises capillary filtration pressure and thus ensures ample filtration for the generation of lymph (Stanton et al. 1999a). High local venous pressures should also reduce the likelihood of the direct flow of lymph through any peripheral lymphovenous anastomoses (see below). Venous congestion did not affect the early vascular accumulation of tracer, since J_tracer in cuffed healthy subjects at 60 mmHg cuff pressure was not significantly different from that in uncuffed healthy subjects over the same period (0–30 min).

The arms of normal subjects were used as controls rather than the contralateral arms of the BCRL patients because, in addition to practical considerations such as patient compliance and radiation dose, the contralateral arm of BCRL patients may differ from those of the general population in certain parameters (Mellor et al. 2000) or be affected indirectly by the disease process or treatment. Lymph flow normally correlates well between the two arms (Pain et al. 2003).

Lymph velocity in normal arm

The high uncuffed lymph velocity (∼9 cm min⁻¹) and rapid hand–axilla transit (< 3 min in some cases, mean 9.6 min) reinforced the finding of Ohtake & Matsui (1985) that radiolabel traverses normal arms and legs in 2–6 min. The reduction in lymph velocity from hand to occluding cuff is attributed to back-pressure from the occlusion site. Previous reports of lymph flow velocity have been limited to the mouse tail and human skin microlymphatics, based on fluorescence microlymphography. Leu et al. (1994) reported very low capillary lymph velocities in mice, 0.05 ± 0.04 cm min⁻¹ (0.01–0.12 cm min⁻¹). In the dorsum of the supine human foot, Fischer et al. 1996) reported a median velocity of 3.1 cm min⁻¹ (1.6 cm min⁻¹ and 3.7 cm min⁻¹ for lower and upper quartiles, respectively) during initial network filling. Intradermal colloid depots are cleared almost three times faster than adjacent subcutaneous depots (O'Mahony et al. 2004), probably due to the high lymphatic density and depot pressure in the dermis (Hudack & McMaster, 1933; Mortimer et al. 1990; Stanton et al. 1999b; Mellor et al. 2000). The intradermal route was thus ideally suited for γ-camera imaging of the lymphatics.

Pump force in normal arm; practical importance

As discussed above, previous estimates of normal human leg and arm lymphatic pumping indicated P_pump values similar to the present finding of 39 mmHg (10–60 mmHg). The upper limit of the P_pump range is of practical value, because it defines the compression pressure that should be applied, ideally, to cases of snake or spider envenomation of the hand or arm. Also, the transit time results show that lymphatic compression needs to be applied quickly, in no more than 10 min and preferably < 3 min, if lymphatic drainage is to be prevented effectively.

Pump force in lymphoedema; lymphatic failure

This is the first report, to our knowledge, of lymphatic contractile force in lymphoedema, and the finding of a reduced P_pump supports the hypothesis that lymphatic contractile failure contributes to the pathogenesis of lymphoedema, cf. simple stopcock hypothesis. This conclusion is greatly strengthened by the significant negative relation between P_pump and degree of swelling; the lower the lymphatic pump force, the greater the percentage swelling of the arm. The reduction in P_pump by 38 % in BCRL patients with 32 % mean swelling is comparable in magnitude with the reduction in muscle lymph drainage rate by 31 % in patients with 34 % mean swelling (Stanton et al. 2003). We suggest that the lymphatic pump failure is analogous to cardiac failure following a chronically raised afterload, such as essential hypertension. Lymphatic afterload is probably increased by the raised outflow resistance created by damage to the axillary lymphatic system during surgery and radiotherapy.

Lymphatics isolated from chronic lymphoedematous tissue have never been studied directly, but isolated bovine lymphatics show a fall in lymphatic stroke volume and output at transmural pressures of > 8.4 mmHg, despite increased frequency of contractions (McHale & Roddie, 1983). Lymphatics in conscious sheep tolerate higher transmural pressures, 13–19 mmHg, before onset of lymphatic failure (McGeown et al. 1987). The contribution of duration of a moderately raised, chronic afterload on lymphatic failure has not been studied.

Impaired lymphatic contractility is probably not the sole factor responsible for swelling, however, since two BCRL patients, albeit with below-average percentage swelling, had good P_pump values (50–60 mmHg). Furthermore, since only a minority of women develop BCRL after breast cancer treatment and some women who have had just one axillary lymph node removed develop BCRL whereas others who have had axillary clearance surgery do not develop BCRL, it is tempting to speculate that the subclass of arms that normally have low P_pump values might form an oedema-prone subgroup. This hypothesis is supported by evidence for lymphatic abnormalities in the contralateral arm of women with BCRL. Dermal lymphatic vessels in the contralateral forearm of BCRL patients are abnormally wide compared with lymphatics in the arms of matched breast cancer patients without BCRL (Mellor et al. 2000), and the lymph drainage rate constant for ^99mTc-HIG in the subcutis of contralateral hand of BCRL patients with swollen hands is increased relative to the hands of BCRL patients with hand-sparing (Stanton et al. 2006). It is possible that some women are constitutionally (genetically) predisposed to BCRL after breast cancer treatment by having less robust lymph drainage or high filtration rates prior to surgery.

Interpretation of early arrival of blood radiotracer

It was hoped that the first appearance of blood counts would mark the arrival of radiolabelled lymph in the blood pool, but low levels of radiolabel (< 1 % administered dose) appeared in blood within a few minutes of injection, long before any lymph reached the axilla even in the absence of a cuff. Early radiolabel in the blood pool was seen in cuffed normal subjects, cuffed BCRL patients, and even three BCRL patients in whom ^99mTc-HIG failed to reach the axilla by 120 min. This indicated a small, local entry of ^99mTc or ^99mTc-HIG into the peripheral bloodstream of the arm. Part of the vascular uptake can be attributed to the small amount of free radiolabel in the preparation (≤ 5 %), but this may not be the full explanation since the TCA precipitation studies showed that nearly half the early blood counts were protein-bound. Further work is needed to establish whether the bound counts represented spontaneous binding of free ^99mTc to circulating plasma proteins or whether they bound to HIG that gained direct, local entry into the arm circulation, either by vesicular transport across microvascular endothelium or through minor lymphovenous anastomoses (Aboul-Enein et al. 1984; Schmid-Schönbein, 1990; Modi et al. 2007).

It is difficult to see how a small, limited mass of free label in the injectate could maintain the blood level, because free label quickly diffuses out of the circulation (unless it binds to circulating plasma proteins). Pilot dialysis study results indicated a low rate of spontaneous dissociation of ^99mTc-HIG in vitro but only sufficient to account for < 8 % of the observed J_tracer. It is conceivable that production of diffusible radiolabel might be accelerated in vivo, for example by proteolysis (Casley-Smith & Casley-Smith, 1985, Casley-Smith et al. 1993).

Interpretation of later increases in blood radiotracer accumulation rate

At > 30 min the pattern of blood radiolabel accumulation differed between cuffed and uncuffed normal arms; and between cuffed normal and cuffed BCRL arms. In cuffed normal arms, there was a sharp increase in J_tracer soon after lymph passed the congesting cuff, due to the drainage of labelled lymph into the neck veins. In BCRL arms the increase was much less marked or even absent, in keeping with impaired lymph flow. In uncuffed subjects, the most pronounced increase in J_tracer occurred when the patient stood up and moved around, indicating that movement or orthostasis increased arm lymph flow. This was also prominent in the BCRL patients, and could be due to the well-documented passive transport of lymph by tissue movement, including extrinsic pumping by skeletal muscle movement (Taylor et al. 1957; Garlick & Renkin, 1970; McGeown et al. 1987). It could also be due to an orthostatic effect on intrinsic lymphatic contraction frequency (Olszewski & Engeset, 1980), possibly as a sympathetically mediated reflex. Since J_tracer had already reached high values prior to movement/orthostasis in the cuffed normal arms, it appears that lymphatic congestion had already maximally stimulated the lymphatic pump.

Conclusions

The lymphatic congestion lymphoscintigraphy method enabled non-invasive, quantitative estimation of lymphatic contractility in normal humans and patients with lymphoedema. The results showed a fall in lymphatic collector pump force that was proportional to the degree of oedema in BCRL. The findings thus supported the hypothesis that chronic afterload elevation leads to lymphatic failure, analogous to hypertensive cardiac failure, and that this contributes to (but probably does not fully explain) the pathogenesis of lymphoedema. The lymphatic failure hypothesis has the potential to explain both the spatial and temporal heterogeneity of BCRL. It also raises the possibility of investigating pharmacological therapies for lymphatic failure.
