High-resolution structure of a self-assembly-competent form of a hydrophobic peptide captured in a soluble β-sheet scaffold

Abstract

β-Rich self-assembly is a major structural class of polypeptides, but still little is known about their atomic structures and biophysical properties. Major impediments for structural and biophysical studies of peptide self-assemblies include their insolubility and heterogeneous composition. We have developed a model system, termed “peptide self-assembly mimic (PSAM)”, based on the single-layer β-sheet of Borrelia outer surface protein A (OspA). PSAM allows for the capture of a defined number of self-assembly-like peptide repeats within a water-soluble protein, making structural and energetics studies possible. In this work, we extend our PSAM approach to a highly hydrophobic peptide sequence. We show that a penta Ile peptide (Ile₅), which is insoluble and forms β-rich self-assemblies in aqueous solution, can be captured within the PSAM scaffold in a form capable of self-assembly. The 1.1-Å crystal structure revealed that the Ile₅ stretch forms a highly regular β-strand within this flat β-sheet. Self-assembly models built with multiple copies of the crystal structure of the Ile₅ peptide segment showed no steric conflicts, indicating that this conformation represents an assembly-competent form. The PSAM retained high conformational stability, suggesting that the flat β-strand of the Ile₅ stretch primed for self-assembly is a low-energy conformation of the Ile₅ stretch and rationalizing its high propensity for self-assembly. The ability of the PSAM to “solubilize” an otherwise insoluble peptide stretch suggests the potential of the PSAM approach to the characterization of self-assembling peptides.

Introduction

It has become evident that many polypeptides can be transformed into β-rich self-assemblies.¹ β-Rich self-assembly is the core structure of the so-called cross-β amyloid fibrils that are associated with devastating human diseases. Discovery of diverse peptide sequences that can form self-assemblies has increased interest in peptide self-assembly as a means for creating nano-scale structures. Self-assembly of molecules is becoming a popular and powerful strategy to create nanomaterials, and because peptide building blocks with desired chemical composition can be readily synthesized, peptide self-assembly offers a technology platform for the production of diverse nanomaterials. Indeed, many types of self-assemblies have been produced using synthetic peptides.^{2; 3} Therefore an increased understanding of the factors governing peptide self-assembly will have broad impacts on material sciences, biology and medicine.

Despite their importance, still little is known about high-resolution structure and biophysical properties of peptide self-assemblies. Their insoluble nature and inherently heterogeneous stoichiometry make it extremely difficult to apply the standard biophysical techniques for water-soluble proteins. Solid-state NMR studies have elucidated the conformations of peptide units and modes of higher-order assemblies.^{4; 5; 6; 7} Although powerful, it is a laborious method, and it is difficult to obtain high-resolution structural information. Pioneering work by the Eisenberg group has determined the atomic structures of amyloidgenic peptides assembled into micro crystals, which has established the cross-β spine as a common structure of peptide fibrils.^{8; 9} Although the crystallization approach is also powerful, it is limited to structural determination and it seems that peptides are crystallized in a high-energy state.¹⁰ In addition, it may not be applicable to a broad range of amyloids beyond short peptides.

To overcome these fundamental difficulties associated with characterization of self-assembling peptides, several groups have employed transplantation of a peptide segment into a water-soluble, globular protein. In this approach, it is hoped that an engineered protein harboring the peptide segment remains soluble and insights into the structure and thermodynamics of self-assembly can be gained by characterizing the engineered protein with standard biophysical techniques such as x-ray crystallography. Perutz et al. introduced Gln repeats into a flexible loop of chymotrypsin inhibitor 2 (CI2).¹¹ Although the engineered CI2 oligomerized, its crystal structure revealed that the oligomerization was due to domain swapping and the Gln repeats were disordered and not forming β-rich self-assembly.¹² Similarly, Takano et al. replaced a C-terminal segment of ribonuclease HI with an Aβ fragment, which prevented aggregation of the Aβ fragment.¹³ The x-ray crystal structure of this fusion protein revealed that, although the Aβ segment had a β-sheet conformation, it did not form β-sheet-mediated interactions with other molecules, suggesting that the observed form lacked the capability of self-assembly. These examples illustrate the difficulty of capturing a peptide in a form primed for assembly into higher-order structures.

We have developed a protein engineering strategy to overcome the fundamental challenges in high-resolution characterization of peptide self-assemblies. Our approach, termed peptide self-assembly mimic (PSAM), captures a peptide segment of interest within the structural context of a flat β-sheet. A highly regular, flat β-sheet is a hallmark of β-rich self-assemblies. Thus, our approach is distinct from other transplantation attempts in that it grafts a peptide of interest in an environment close to that of self-assembly.

As the host for PSAM, we use the single-layer β-sheet (SLB) segment of outer surface protein A (OspA) from Borrelia Burgdorferi. The SLB exists as a segment linking two globular domains, which in turn serve as “end caps” for the SLB. Although it is exposed to the solvent and thus it does not contain a hydrophobic core, it is highly stable. Indeed, the presence of the globular domain would appear to inhibit the lamination of the β-sheet, regardless of its composition.^{14; 15} The single-layer architecture eliminates complications caused by long-range interactions through a hydrophobic core that are commonly present in a water-soluble β-sheet protein. We have demonstrated that a β-hairpin sequence from the SLB forms β-rich fibrils¹⁶ and the self-assembly of this β-hairpin segment can be captured within OspA in the form of extended SLB.¹⁷ The x-ray crystal structures of these PSAMs have enabled to establish structural linkage between the atomic structures of self-assembling peptides and the macroscopic morphology.¹⁴ The two globular domains sequester the “sticky” β-sheet edges, thus enabling the PSAM system to capture β-rich self-assembly within a water-soluble protein. Furthermore, unlike most β-sheets found in globular proteins,¹⁸ the SLB has a highly regular geometry and is flat, which may closely mimic the β-sheet conformation within actual peptide assemblies. Recent studies have shown that many peptide sequences self-assemble into an anti-parallel β-sheet and small sequence changes can alter the β-sheet topology between parallel and anti-parallel.^{9; 19} Therefore, although Our PSAM system using OspA can mimic only self-assemblies consisting of anti-parallel β-sheets, its detailed structural and energetic studies would provide significant knowledge relevant to the molecular mechanism of peptide-self assembly.

In our initial work to establish the PSAM strategy, we used a hydrophilic peptide sequence derived from the SLB itself. In this work, we wished to explore the potential of the PSAM to capture diverse self-assembling peptides. To this end, we introduced penta-Ile motif in the PSAM. We show that a penta-Ile peptide forms β-rich self-assemblies and it can be stably captured into the PASM. The high-resolution x-ray crystal structure of the peptide captured in the PSAM reveals molecular details of β-rich peptide self-assembly.

Results

An oligo-Ile peptide forms β-rich self-assemblies

It has been shown that certain poly-amino acids self-assemble into fibrils.²⁰ Subsequently, amyloid aggregation propensities of amino acids have been derived.^{21; 22} Ile has the highest aggregation propensity among aliphatic amino acids on the scale of Pawer et al. ²¹ and it is also among the most aggregation-prone amino acids on the scale of Rousseau et al.²² Ganesh et al. have reported that short peptides containing three consecutive Ile form β-rich self-assembly.²³ Therefore, we chose an oligo-Ile peptide for this study. An oligo-Ile peptide is very hydrophobic and distinct from the highly hydrophilic sequence of the OspA SLB, and thus it represents a challenging target for transplantation into the PSAM system.

A penta-Ile peptide (Ile₅) was synthesized with solid phase peptide synthesis. The purity and molecular weight of the peptide were confirmed with LC-MS. Because the lyophilized peptide only sparingly dissolved in an aqueous buffer, we prepared peptide solutions in two methods. First, the peptide was suspended at a 2mg/ml concentration in an aqueous buffer with vigorous voltexing, and the supernatant of this suspension after centrifugation was used. Second, the peptide was first completely dissolved in 100% DMSO at 20 mg/ml and this solution was diluted tenfold into an aqueous buffer, resulting in a solution containing 10% DMSO.

Atomic force microscopy (AFM) characterization revealed needle-like objects in the peptide solution (Figure 1b and 1c). Their widths ranged from ∼20 to ∼100 nm and their lengths were a few μm. The needle-like objects were also found in the sample in 10% DMSO (Figure 1d), and the shape of the objects in the 10% DMSO sample was similar to that in the water sample, indicating that these objects can form from monomeric peptides in solution and they are not an artifact from incomplete solubilization of peptide powder. The suspension supernatant exhibited a far-UV circular dichroism (CD) spectrum characteristic of β-sheet (Figure 1a), indicating the peptide self-assembles had high β-sheet content. The AFM objects showed no twist commonly observed for peptide self-assemblies. Both samples show X-ray diffraction maxima corresponding to 4.6 Å and 10 Å spacings (Figure 1e, f), a hallmark of β-rich peptide assemblies.²⁴. Commonly, the 4.6 Å spacing is interpreted as the spacing between β-strands within a β-sheet and the the 10 Å spacing as the spacing between laminated two β-sheets, which are the basis for the cross-β structure.²⁴ Interestingly, the Ile₅ self-assembly showed little Thioflavin-T (ThT) binding activity. It should be noted that not all peptide fibrils bind ThT binding.²⁵ Taken together, their morphology, high β-sheet content and the X-ray diffraction patterns suggest that the oligo-Ile peptide forms a cross-β self-assembly, as seen for fibrils of other peptides.

Figure 1.

(a) Far UV CD spectrum of a supernatant of homo Ile peptide suspension in water. (b, c, and d) AFM scan images. 1 μm scale bars are indicated in the images. The brightness of features increases as a function of height. The CD spectrum is plotted with the ellipticity, not with the molar ellipticity, because we could not determine the concentration of the peptide solution. (b, c) The images from water suspension sample which is taken from different area of the same sample surface. (d) The image from 10% DMSO sample. (e, f) X-ray fiber diffraction patterns of the water (e) and 10% DMSO (f) samples. The diffraction maxima corresponding to 4.6 Å and 10 Å spacings are marked with the arrows.

Stable grafting of an oligo-Ile stretch into the PSAM

Having confirmed the ability of oligo-Ile peptide to self-assemble into a β-rich structure, we proceeded to graft the Ile₅ sequence within the PSAM β-sheet. We hypothesized that, if the Ile₅ peptide has a high propensity to self-assemble into flat β-sheets, replacing a flat β-strand with an Ile₅ stretch should not reduce the stability of the PSAM. Thus, we grafted the Ile₅ sequence into the central β-strand (strand 9) of the OspA SLB (Figure 2a). The SLB consists of three solvent-exposed strands. We chose strand 9 as the host because it is centrally located in the SLB and highly exposed to the solvent. These characteristics minimize interactions of residues in strand 9 with those in the globular domains. The five consecutive Ile residues replaced residues 120-124 (SSTEE), and we term the resulting mutant PSAM-Ile₅.

Figure 2.

(a) The amino acid sequence of OspA SLB region. The line rectangles indicate residues in a β-strand of which side-chains face toward the reader and the shaded rectangles indicate those facing backward. The mutational residues are shown in rectangle. The backbone hydrogen bonds are shown as dashed lines (b) Elution profiles of the wild type (dashed line) and PSAM-Ile₅ (solid line) from a size-exclusion column detected using absorbance at 280 nm. (c) Urea-induced unfolding of PSAM-Ile₅. Normalized CD (circles) and fluorescence (cross) intensities for PSAM-Ile₅ are plotted as a function of urea concentration. The profiles for the wild-type protein are also shown (CD, solid line; fluorescence, dashed line).

In spite of the introduction of highly hydrophobic segment at highly solvent-exposed positions, PSAM-Ile₅ was expressed as a soluble protein in E. coli and it was predominantly monomeric in aqueous solution as judged with gel-filtration chromatography (Figure 2b). These results indicate that the PSAM scaffold effectively “solubilizes” the otherwise insoluble Ile₅ peptide by sequestering within the SLB.

PSAM-Ile₅ underwent a reversible unfolding reaction induced by urea (Figure 2c). The unfolding curve was interpreted in terms of a three-state model as for the wild type OspA.^{15; 26} In this three-state model, the first transition corresponds to unfolding of the C-terminal domain and a portion of the SLB, and the second to that of the rest of the SLB and the N-terminal domain. The overall stability of PSAM-Ile₅ was nearly identical to that of wild-type (ΔΔG_NU^3M = 0.07 kcal/mol), but the first transition was destabilized (ΔΔG_NI^3M = -0.75 kcal/mol) and the second transition was stabilized (ΔΔG_IU^3M = 0.82 kcal/mol) (ΔG_NU^3M, ΔG_NI^3M and ΔG_IU^3M are the free energy difference at 3M urea between the native and unfolded states, that between the native and intermediate states and that between the intermediate and unfolded state, respectively; ΔΔG_NU^3M, ΔΔG_NI^3M and ΔΔG_IU^3M are differences in ΔG_NU^3M, ΔG_NI^3M and ΔG_IU^3M between the wild-type and mutant, respectively). These compensatory changes suggest that the Ile₅ replacement has altered the nature of the intermediate state. Although the detailed effects of the strand replacement on the unfolding mechanism are not clear, these results demonstrate that PSAM accommodates the strand replacement without a significant stability loss.

High-resolution x-ray crystal structure of PSAM-Ile₅

Our crystallization efforts of PSAM-Ile₅ did not yield any single crystals. To facilitate crystallization, we introduced a set of surface mutations in the globular domains that have been highly effective in crystallizing OspA and its variants.^{14; 27} These mutations are distant from the grafted Ile₅ segment and have previously shown to cause little structural change.²⁷ The resulting surface engineered protein, termed PSAM-Ile₅-sm1, readily crystallized, and its crystal structure was determined at a resolution of 1.10-Å (Figure 3a). The data collection and refinement statistics are summarized in Table 1. Despite the fact that Ile₅ replacement in strand-9 completely disrupts the native inter-strand pairings (Figure 2a), the global fold of PSAM-Ile₅-sm1 was nearly identical to the wild-type OspA containing the same set of surface mutations (Figure. 3b), with a root-mean-squared (RMS) deviation of 0.3 Å for the Cα atoms common between the wild-type and mutant structures. This structural resemblance is remarkable, because the SLB does have a level of structural plasticity. For example, a series of PSAMs with different numbers of peptide inserts exhibited a range of backbone conformations,¹⁴ and a single mutation at Phe126 located at the C-terminus of strand 9 (Figure 2a) significantly perturbs the backbone structure, increasing the Cα RMS deviation to 1.15 Å.¹⁵ Thus the little structural deviation due to the Ile₅ replacement suggests that the PSAM SLB provides a structural environment that is compatible with a stable conformation of the Ile₅ segment.

Figure 3.

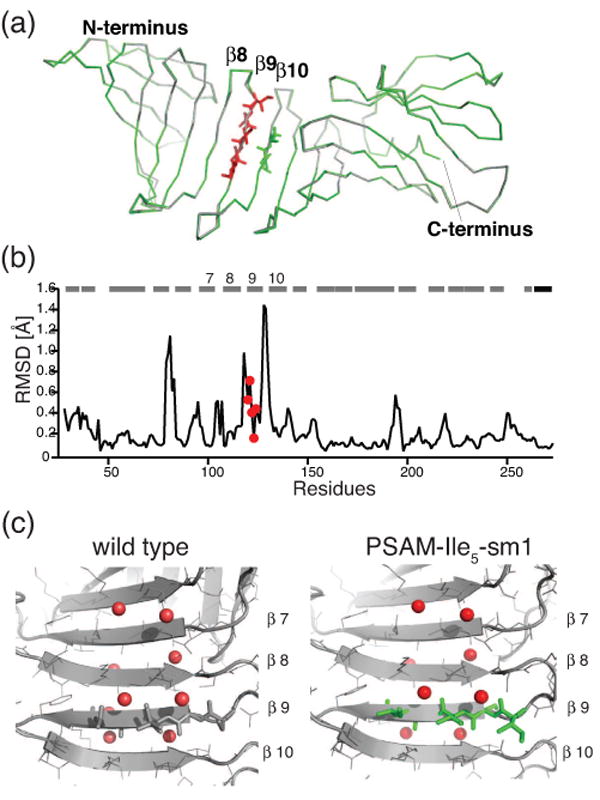

Crystal structure of PSAM-Ile₅-sm1. (a) Superposition of PSAM-Ile₅-sm1 (green) onto OspA-sm1 (gray). The mutated residues are shown in red sticks and Ile residues in strand-10 are also shown in green sticks. N- and C- terminus positions are indicated. (b) The root-mean-square deviations (RMSD) for the C^α atoms are plotted versus residue number. The positions of β-strands and the C-terminal helix are shown as bars. The mutation residues are indicated as a red circle. (c) Back-bone hydration of the SLB. The water molecules are shown as red spheres. The mutation residues are shown as green sticks.

Table 1.

Data collection and refinement statistics for PSAM-Ile₅-sm1

Data collection statistics
Space group	P21
Cell parameters	a=33.26
	b=54.71
	c=66.50
	β=99.91
Beamline	APS-23ID
Wavelength	0.9795 Å
Resolution (Å) (highest resolution shell) a)	50-1.1(1.14-1.10)
Completeness (%)	97.8(86.2)
I/σ(I)	19.25(2.88)
Rmerge b)	0.053(0.318)
Average redundancy	3.3(2.3)
Refinement statistics
Resolution range (Å)	20.0-1.1
Reflections used (free)	88420 (4669)
R factor c)	0.155
Rfree d)	0.171
RMS deviations
Bonds (Å)	0.008
Angles (°)	1.281
No. protein residues	246
No. waters	378
Average B factor (Å2)	9.82
Ramachandran plot statistics
Most favored (%)	91.9
Additionally allowed (%)	8.1
Generally allowed (%)	0.0

^a)Highest resolution shell is shown in parenthesis.

^b)R-merge = Σ_hklΣ_i| I(hkl)_i - <I(hkl)> |/Σ_hklΣ_i<I(hkl)_i> over i observations of a reflection hkl.

^c)R-factor = Σ | |F(obs)| - |F(calc)| |/Σ|F(obs)|.

^d)Rfree is R with 5% of reflections sequestered before refinement.

In the crystal structure, the Ile₅ segment takes on a regular β-sheet conformation with right-hand twist along the strand (Figure 4a). In addition to the Ile₅ stretch, PSAM-Ile₅ contains two cross-strand Ile-Ile pairs involving the Ile₅ stretch and residues in strand 10 (Figures 3a and 4b). These are a non-hydrogen bonded (NHB) pair (Ile₁₂₂-Ile₁₃₇) and a hydrogen bonded (HB) pair (Ile₁₂₃-Ile₁₃₆). These cross-strand pairs provide an opportunity to see the side-chain conformations and interactions of Ile residues in the context of self-assembly, since these combinations are present in an anti-parallel β-sheet structure made of homo-Ile peptides. We found distinct modes of interactions in the HB and NHB pairs (Figure 4b). As pointed out previously,²⁸ the Cγ atoms of the NHB Ile pair face each other with slight offset along with the strand direction. They are tightly packed and exclude solvent molecule between the side chains. In contrast, the Cγ atoms of the HB pair point to mutually opposite directions and creating voids aside the Cβ atoms (Figure 4c). These voids are filled with well-defined water molecules, thus rescuing the “weak points”.^{27; 29} This hydration pattern is conserved in the wild-type OspA-sm1 and PSAM-Ile₅-sm1, suggesting this it is a general feature found on the surface of a flat β-sheet (Figure 3c). Together, in the Ile peptide self-assembly, adjacent Ile peptides are held through the backbone hydrogen bonds, the side chains of the NHB pairs would form tight interactions and those of the HB pair would form suboptimal interactions that may be compensated by the main chain hydration at the weak points.

Figure 4.

Construction of the β-assembly models. (a) Ile₅ structure in PSAM-Ile₅-sm1. (b) H-bond pair and non H-bond pair of Ile residues in the crystal structure. The mutation residues are shown as red sticks and Ile residues in strand-10 are shown as green sticks. Back-bone H-bonds are shown as blue dashed line. (c) The inter-strand Ile pairing in the crystal structure. Ile residues are shown as CPK representation. Left: non-hydrogen bonding pair (shown in red). Right: hydrogen bonding pair (shown in red). Water molecules positioned “weak points” are shown in cyan. (d) Models of single-layer β-sheet assembly. Anti-parallel β-sheets model is created based on the amyloid-forming peptide crystal structure.

Atomic models of the Ile₅ self-assembly

To examine if the Ile₅ structure in PSAM-Ile₅-sm1 reflects the structure of an Ile₅ peptide within the β-rich self-assemblies, we constructed an atomic model of a self-assembly from the x-ray crystal structure of the Ile₅ segment. In this model, multiple copies of the peptide structure were placed side by side so that a continuous β-sheet is formed (Figure 4d). We used the backbone structures an insulin peptide that forms anti-parallel β-sheet assembly (PDBID: 2OMQ)⁹ as the template for placing the Ile₅ structures. It is important to emphasize that the template was used only to define the spacing and that we did not alter the conformation of the Ile₅ segment in this modeling.

The resulting β-sheet structure of the model has no steric clashes, indicating that the Ile₅ conformation in PSAM-Ile₅-sm1 can self-assemble without conformational adjustment. Thus, this model may represent the basic unit for the self-assembly of the Ile₅ peptide. Although further lamination of the β-sheet units are required to account for the dimensions of the self-assembly seen in the AFM images, this model helps to connect the atomic structure and the macroscopic morphology of peptide self-assembly.

Discussion

We have shown that an Ile₅ peptide forms a β-rich self-assembly and that it can be captured within a soluble PSAM in a form that is clearly compatible with self-assembly. To our knowledge, this is the first example of the high-resolution structure of a homo-oligomer of an amino acid in an assembly-competent form. PSAM-Ile₅ was highly stable and it retained the flat β-sheet seen in other PSAMs, strongly suggesting that the highly regular, flat β-strand is an energetically favorable conformation of the Ile₅ peptide.

Our results with PSAM-Ile₅ are in a stark contrast to previous results of grafting studies of self-assembling peptides. Often, soluble host proteins are recruited into amyloids and/or aggregates.^{30; 31} In other cases where the grafting location was carefully chosen so that the protein solubility was maintained, the grafted peptide was found to be in a conformation incapable of self-assembly.^{12; 13} The main difference between our host and the others is that ours captures a peptide of interest within a well-defined, flat β-sheet while others capture a peptide within a flexible segment. Lamination of β-sheet does not occur, presumably because this is prevented by the globular domains. The flat β-sheet is the native conformation of the host SLB. Thus, the formation of a flat β-strand conformation of the grafted peptide does not promote a nonnative conformation of the PSAM host that might cause denaturation and/or misfolding. Because the flat β-sheet is a favorable conformation of self-assembling peptides, grafting of a peptide segment with a high self-assembly propensity stabilizes the native structure of the PSAM scaffold.

β-Sheet assembly requires the formation of a backbone H-bond network across β-strands. In general, an exposed β-sheet edge is poised to interact with another β-sheet edge, and in natural proteins multitudes of negative elements are installed at an exposed β-sheet edge to prevent aberrant inter-molecular interactions.¹⁸ Thus, it is unlikely that a grafted peptide segment finds a highly regular β-sheet edge in the host protein to which it can dock. Accordingly, it is unlikely that simple grafting of a self-assembling peptide unit in a natural host protein would promote the formation of a self-assembly-mimicking conformation (e.g. β-sheet) of the peptide. Furthermore, simple grafting provides no clear mechanisms for preventing uncontrolled self-assembly of a grafted peptide.

Our PSAM approach converts peptide self-assembly into protein folding, allowing for high-resolution characterization of structural features in peptide self-assemblies using well-established tools. While the PSAM scaffold promotes the β-sheet formation of the grafted sequence, the scaffold has enough structural plasticity so that the grafted peptide can adapt its own, favorable conformation. The work presented here demonstrates that the PSAM is applicable to diverse peptide sequences including extremely hydrophobic ones such as Ile₅, suggesting sequences from natural fibril-forming proteins can also be captured in the PSAM. We speculate that, with the ability of the PSAM to accommodate larger segments of self-assembly mimics,¹⁴ this strategy will complement existing ones such as solid-state NMR spectroscopy and micro crystallography to shed new light to molecular structure and biophysical properties of peptide self-assemblies.

Materials and Methods

Peptide preparation

The Ile₅ peptide was synthesized by solid phase peptide synthesis using standard FMOC chemistry on a Rink MBHA resin. Its N-terminus was unblocked and its C-terminus was amidated. The product was cleaved from the resin using TFA:triisopropylsilane:H₂O = 95:2.5:2.5 (v:v:v) and dissolved in 50% acetic acid and purified using reversed-phase HPLC.

Protein preparation

Methods for site-directed mutagenesis, urea denaturation experiments and analysis of denaturation data have been described previously.²⁶ The gene for the PSAM-Ile₅ was subcloned in the equivalent region of the OspA surface mutant for crystallization (“OspAsm1”)²⁷ using SpeI and PstI restriction enzyme sites, resulting twelve surface mutations in total. The mutant was expressed and purified as described before.²⁷ Analytical size exclusion chromatography was performed using a Superdex 75 HR 10/30 column (GE healthcare) in 50mM Tris-HCl pH8 containing 200 mM NaCl at room temperature.

Circular dichroism spectroscopy

CD measurements were carried out using an Aviv 202 spectropolarimeter (Aviv Associates, Lakewood, NJ). The spectrum was taken at 25°C in a 1-mm path length cuvette with a 1-nm step size, a 3-nm bandwidth and a 1-second averaging time.

Atomic force microscopy

Samples were imaged after incubation for ∼1 month at room temperature. Samples were deposited onto a freshly cleaved mica surface and left on mica for 30 s and then rinsed with deionized water. The mica surface with the adsorbed peptide was then dried with nitrogen gas. The images shown were obtained by scanning the mica surface in air by AFM (Multimode, Digital Instruments, Santa Barbara, CA) with spring constant of 2 N/m and tip radius of curvature of <10 nm (AC240TS-C2; Olympus). AFM scans were taken at 512 × 512 pixels resolution and produced topographic images of the samples, in which the brightness of features were as follows: tapping frequency ∼70 kHz, RMS amplitude before engage 1 V, integral and proportional gains 0.2-0.6 and 0.3-1 respectively, set point 0.8V, and scanning speed 1 Hz.

X-ray fiber diffraction

The same batch of Ile₅ samples that were used in the AFM experiments were placed in 1-mm diameter quartz capillary and vacuum dried. Diffraction data were collected at synchrotron radiation beamline 23ID (the Advanced Photon Source (APS) at the Argonne National Laboratory) and examined using the Mosflm software.³²

Crystallization and structure determination

The crystals were grown in 30% PEG400, 0.1M Tris-HCl pH8.0 using the hanging drop vapor diffusion method. The x-ray diffraction data were collected at the APS 23-ID beamline. Crystal data, data collection statistics is summarized in Table 1. x-ray diffraction data were processed with HKL2000.³³ The structure was determined by molecular replacement with the program MOLREP in CCP4.³² The OspA-sm1 structure (PDBID: 2G8C) was used as the search models. CNS1.1 ³⁴ and Refmac5 ³⁵ were used for the structural refinement, and final positional and anisotropic temperature factor refinement was performed using Refmac5. Model building was carried out using the Coot program.³⁶ The coordinates have been deposited in the Protein Data Bank with an entry code 2I5V. The self-assembly model was built by superposing the five Cα positions of the Ile₅ structure of PSAM-Ile₅ onto the Ca positions of the crystal structure of the insulin peptide. Molecular graphics were generated using Pymol (http://www.pymol.org).
