Synthesis and antitubercular activity of 7-(R)- and 7-(S)-methyl-2-nitro-6-(S)-(4-(trifluoromethoxy)benzyloxy)-6,7-dihydro-5H-imidazo[2,1-b][1,3]oxazines, analogues of PA-824

Xiaojin Li a,†, Ujjini H Manjunatha a,‡, Michael B Goodwin a, John E Knox b,§, Christopher A Lipinski c, Thomas H Keller b, Clifton E Barry III a, Cynthia S Dowd a,*,
PMCID: PMC2408714  NIHMSID: NIHMS47090  PMID: 18358721

Abstract

Nitroimidazoles such as PA-824 and OPC-67683 are currently in clinical development as members of a promising new class of therapeutics for tuberculosis. While the antitubercular activity of these compounds is high, they both suffer from poor water solubility thus complicating development. We determined the single-crystal X-ray structure of PA-824 and found a close packing of the nitroimidazoles facilitated by a pseudoaxial conformation of the p-trifluoromethoxybenzyl ether. To attempt to disrupt this tight packing by destabilizing the axial preference of this side chain, we prepared the two diastereomers of the 7-methyl-nitroimidazo-oxazine. Determination of the crystal structure of the 7-(S)-methyl derivative (5, cis) revealed that the benzylic side chain remained pseudoaxial while the 7-(R)-methyl derivative (6, trans) adopted the desired pseudoequatorial conformation. Both derivatives displayed similar activities against Mycobacterium tuberculosis, but neither showed improved aqueous solubility, suggesting that inherent lattice stability is not likely to be a major factor in limiting solubility. Conformational analysis revealed that all three compounds have similar energetically accessible conformations in solution. Additionally, these results suggest that the nitroreductase that initially recognizes PA-824 is somewhat insensitive to substitutions at the 7-position.

Keywords: Mycobacterium tuberculosis, PA-824, solubility

Despite decades of research, tuberculosis continues to be a major public health threat. The WHO estimates that, in 2005, 1.6 million people died from tuberculosis (TB) which is caused by the microorganism Mycobacterium tuberculosis (Mtb).1 Current therapy for TB lasts for several months and is called directly-observed therapy short-course (DOTS). This regimen calls for an intensive phase of chemotherapy using four drugs for 2 months, followed by a continuation phase using two drugs for 4–6 months.2 Rifampin is inarguably the most important drug in the DOTS regimen as it allowed shortening the course of therapy to 6 months from the standard 12–18 months of previous regimens. The potency of rifampin is thought to be due in part to its action against both aerobically-growing and anaerobically-adapted, non-replicating mycobacteria.3

Nitroimidazoles are a class of compounds widely used clinically for the management of anaerobic bacterial infections.4 Metronidazole (1) has activity only against anaerobically adapted Mtb5 and is the subject of an on-going clinical trial.6 Bicyclic nitroimidazoles have also been developed that have both aerobic and anaerobic activity against Mtb (Figure 1). CGI-17341 (2) and OPC-67683 (3), both nitroimidazo-oxazoles, and PA-824 (4), a nitroimidazo-oxazine, have activity against aerobic and anaerobic populations of Mtb.7-9 PA-824 has an aerobic MIC (minimum inhibitory concentration) of 0.4μM and substantial anaerobic activity at 8–16μM. Several groups have also confirmed the efficacy of PA-824 in the mouse model of TB infection.10–13 PA-824, and more recently OPC-67683, have entered clinical trials for the treatment of tuberculosis.14,15 Prior work has shown that PA-824 acts as a prodrug requiring bioreductive activation before exerting its biological effect.16 One serious issue with the clinical use of both PA-824 and OPC-67683 lies in their low water solubility. PA-824 is only soluble at 10.2μg/mL17 (Table 1) and the in vivo activity of OPC-67683 requires formulation in 5% gum arabic.15 Similarly, the low water solubility of PA-824 necessitates the use of a complex formulation in animals (CM-2) that may not be suitable for human use and may require development of an expensive alternate.

Figure 1.

Figure 1

Open in a new tab

Nitroimidazoles with antitubercular activity.

Table 1.

Biological activity and solubility of PA-824 and 7-methyl analogues. The phenotype and genetic changes in mutants H37Rv-T3, H37Rv-5A1 and H37Rv-T2 have been reported.16

Compound H37Rv MIC (μM) H37Rv MAC (μM) H37Rv-T3MIC (μM) H37Rv-5A1MIC (μM) H37Rv-T2MIC (μM) Solubility (μg/mL)
PA-824 (4) 0.4 8–16 >100 >100 >100 10.2 ± 1.6
7(S)-Methyl-824 (5, cis) 0.2–0.4 16 >100 >100 >100 9.89 ± 1.9
7(R)-Methyl-824 (6, trans) 0.2 8–16 >100 >100 >100 10.3 ± 1.6
Open in a new tab

Low solubility can often be related to thermodynamic stability of a particular crystalline polymorph.18 Therefore, in an effort to understand the reasons behind the low water solubility of PA-824, we determined its crystal structure (Figure 2).19, 31 This structure showed PA-824 arranged in antiparallel layers with stacked nitroimidazoles alternating with stacked p-trifluoromethoxybenzyl ethers. The oxazine ring is bent so that C-6, bearing the trifluoromethoxybenzyl side chain, is out of the plane of the imidazole ring. This forces the side chain into a pseudoaxial orientation. We hypothesized that the low water solubility of PA-824 could be due to tight packing in the crystal lattice and that disruption of this arrangement might result in improved water solubility. We postulated that adding a substituent on the oxazine ring adjacent to the trifluoromethoxybenzyl ether would force this side chain into the pseudoequatorial position disrupting the antiparallel stacking observed in the crystal structure.

Figure 2.

Figure 2

Open in a new tab

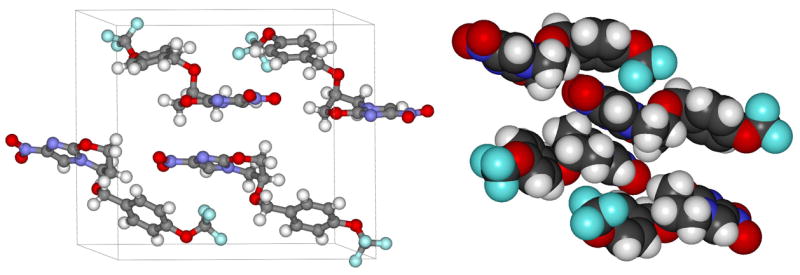

Crystal structure of PA-824. Asymmetric unit of PA-824 crystal shows staggered configuration of individual molecules and four molecules per unit cell (left). Space-filling diagram highlights tight packing arrangement (right).

To this end, we targeted the 7-methyl analogues of PA-824, 5 and 6 (Figure 1). The synthesis of these compounds is shown in Scheme 1. Briefly, crotonyl chloride (7) underwent asymmetric dihydroxylation using AD-mix αto give diol 8.20 Ring-closure under basic conditions yielded epoxy alcohol 10.21 To prepare the opposite diastereomer, racemic allylic alcohol 9 underwent Sharpless epoxidation to give epoxy alcohol 11.22 Compounds 10 and 11 were protected to give 12 and 13,23 respectively. Alkylation of 2,4-dinitroimidazole24 yielded the corresponding secondary alcohols 14 and 15,25 which were converted to the THP-protected derivatives 16 and 17.26 Desilylation and ring cyclization proceeded in one step to give the oxazines 18 and 19.27 Deprotection, giving free alcohols 20 and 21,28 followed by benzylation with p-trifluoromethoxyl bromide delivered desired compounds 7-(S)-methyl-PA-824 (5) and 7-(R)-methyl-PA-824 (6), respectively.29

Scheme 1.

Scheme 1

Open in a new tab

Synthesis of 7-Methyl Analogues of PA-824a

aReagents and conditions: (a) AD-mix, CH3SO2NH2, NaHCO3, tBuOH, H2O, 0°C; (b) KOH, Et2O, 0°C; (c) D-(−)-DIPT, TBHP, Ti(OiPr)4, CH2Cl2, −20°C; (d) TBSCl, imidazole, CH2Cl2, 0°C→rt; (e) 2,4-dinitroimidazole, EtOH, 70°C; (f) 3,4-dihydro-2H-pyran, PPTS, CH2Cl2, rt; (g) TBAF, THF, rt; (h) AcOH, THF, H2O, 45°C; (i) NaH, 4-rifluoromethoxybenzyl bromide, DMF, -45°C→rt.

Compounds 5 and 6 displayed comparable antitubercular activities to PA-824 under aerobic conditions (Table 1). The MIC for 7-(S)-methyl-PA-824 (5) is 0.2–0.4 μM and for 7-(R)-methyl-PA-824 (6) is 0.2 μM. Like PA-824, the two methyl-oxazines both require reduced coenzyme F420 as mutants that either fail to reduce this cofactor (H37Rv-T3) or mutants deficient in its biosynthesis (H37Rv-5A1) are cross-resistant to these nitroimidazoles. The reduction of these compounds is probably mediated by the nitroreductase Rv3547 as mutants lacking this enzyme (H37Rv-T2) are also cross-resistant.16 The MAC (minimum anaerobicidal concentration) values for compounds 4–6 were equivalent.30

Unfortunately, when we determined the thermodynamic solubility of compounds 5 and 6, they were not more soluble than PA-824, each having a solubility limit of approximately 10 μg/mL (Table 1).17 To understand the consequence of the methyl substituent on the conformation of these compounds in the crystalline form, we determined the crystal structures of compounds 5 and 6 (Figure 3).31 The crystal structure of compound 5 (cis) shows the oxazine ring in the same conformation as in that of PA-824. Thus, carbon-6 in 5 is out of the plane of the imidazole ring, just as in the crystal structure of PA-824. The side chain in 5 is similarly pseudoaxial. As hoped, in compound 6, the trans isomer, the opposite effect occurred. Carbon-6 in this compound is out of the plane of the imidazole ring, but on the side opposite to that found in PA-824 and compound 5. This conformation places the benzylic side chain in the desired pseudoequatorial conformation. The conformation of compound 6 depicted in the crystal structure places the substituents of both carbon-6 and carbon-7 in the more favorable pseudoequatorial positions. Interestingly, the packing diagrams for compounds 5 and 6 do not show the same arrangement of antiparallel molecules as in the case of PA-824 (Figure 3). Instead, the compounds are arranged linearly in a back-to-back conformation with imidazole rings in a nearly perpendicular arrangement between rows. The similarity between packing diagrams for compounds 5 and 6 indicates that the differences in single-molecule structure do not impact the overall packing between molecules.

Figure 3.

Figure 3

Open in a new tab

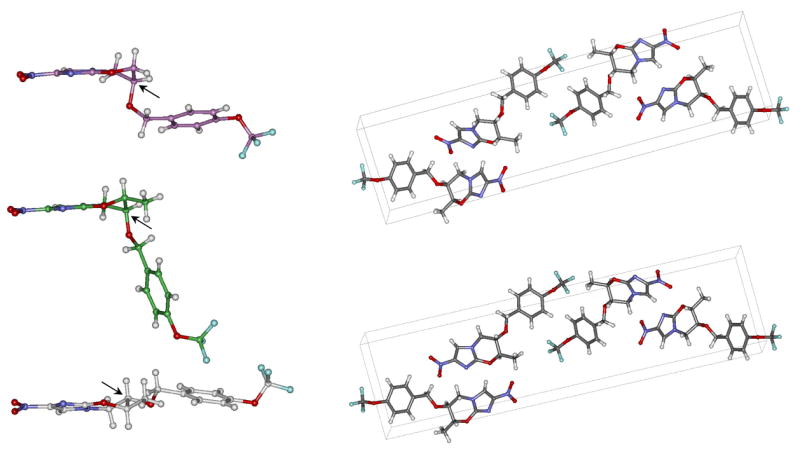

Crystal structures of PA-824 (purple), 7-(S)-methyl-PA-824 (5, cis, green), and 7-(R)-methyl-PA-824 (6, trans, white). View on the left is shown along the plane of the nitroimidazole to highlight the differing conformations of the oxazine rings in each structure. Arrows indicate the C-6 carbon atoms. Crystal packing diagrams of compounds 5 (right, top) and 6 (right, bottom) are distinct from that of PA-824.

Despite changing the angle of the oxazine-trifluoromethoxybenzyl side chain to either more pseudoaxial (in compound 5) or more pseudoequatorial (in compound 6) compared with PA-824, there was a negligible effect on solubility. This result suggests that stability of this crystalline form is not a major contributor to the overall insolubility of this molecule. Further, the melting points and crystal packing densities of these compounds are very similar. The melting points are 149–150°C (PA-824)32, 146–148 °C (compound 5), and 126.5–128.5 °C (compound 6). The crystal packing densities are 1.55–1.59 g/cm3 for all three compounds. The similarities in these numbers support the conclusion that the compounds’ poor solubility is not related to the crystal packing.

Nonetheless, the variation in angle between the imidazo-oxazine and the trifluoromethoxybenzyl side chain seemed incongruent with the minor variations in biological activity, particularly since the R isomer of PA-824 is nearly 50-fold less active than the S.10 To understand this discrepancy, we performed a conformational analysis on these compounds to identify the lowest energy conformations in solution.33 Compounds 4–6 were minimized to yield the 100 lowest energy structures. For PA-824 (4), all 100 structures agreed well with the crystal structure (within 9 kJ/mol), the primary differences arising from rotation of the benzyl side chain about the ether bond. For compound 5 (cis), 73 of the 100 lowest energy conformations agreed with the PA-824 set. The remaining conformations agreed well with the compound 5 crystal structure, although these had minimized energies of at least 12.2 kJ/mol above the global minimum. For compound 6 (trans), 91 of 100 conformations were nearly the same as PA-824 (within 6 kJ/mol). The remaining 9 solutions agreed with the crystal structure of 6, being at least 3.9 kJ/mol above the global minimum. These data indicate that the major conformation in solution of both 7-methyl isomers will most likely be very close to that of PA-824. The slightly higher activity seen with compound 6 is intriguing in that it suggests that the active conformer may, in fact, not be the minimum energy conformer in solution. This result suggests that the active conformer may be more abundant with the trans substituent forcing an even more pronounced pseudoequatorial orientation of the side chain.

Thus, these results suggest that the low solubility of PA-824 in aqueous media may not be the result of an intrinsically stable crystalline form. Future efforts will focus on the introduction of solubilizing groups while preserving activity. Such studies would be greatly facilitated by an in vitro nitroreductase assay from which detailed SAR could be obtained. The activity of compounds 5 and 6 against wild-type H37Rv and all three classes of mutants resistant to PA-824 suggests that these compounds are acting through the same mechanism as PA-824 and are substrates of Rv3547. The activity of 5 and 6 demonstrates that the nitroreductase accepts at least small substituents at the 7-position. These results suggest that further derivatives at the 7-position of the oxazine may be fruitfully explored to improve activity and solubility of these important compounds.
