On the Structure of Palau’amine: Evidence for the Revised Relative Configuration from Chemical Synthesis

Abstract

Hexacyclic congeners 2 and 3 of palau’amine, which incorporate both guanidine functional groups and have the cis configuration of the azabicyclo[3.3.0]octane core, are prepared in 14 steps from cycloadduct 6. Synthetic access to these analogs allows the first direct comparison of NMR data for hexacyclic diguanidine structures having the originally proposed cis-azabicyclo[3.3.0]octane fragment with data for natural alkaloids of the palau’amine family. This comparison provides convincing evidence in favor of the recently proposed structural revision of these marine alkaloids, fully supporting the trans configuration of the central azabicyclo[3.3.0]octane ring system of palau’amine and congeners.

Introduction

The stunning degree of structural diversity in the pyrrole-imidazole family of alkaloids provides an excellent example of biosynthetic efficiency.¹ This large family of marine natural products is believed to be based on one simple metabolite, oroidin, and includes complex molecular architectures such as the hexacyclic oroidin dimer palau’amine (1, Figure 1) and alkaloids such as stylissadines A and B containing four oroidin subunits. Since its structural elucidation by mass spectral and NMR investigations in 1993,² palau’amine has received much attention from the synthetic community because of its promising immunomodulatory activity, challenging molecular architecture, and density of functionality.³ However, in spite of considerable efforts, no report of a successful total synthesis has emerged to date.¹

Figure 1.

Originally proposed structure of palau’amine (1), revised structure of palau’amine (2), synthetic derivatives 3 and 4, and structure of tetrabromostyloguanidine (5). Stereogenic centers with revised relative configurations have been highlighted with gray circles.

Recently, the isolation and structural elucidation of additional palau’amine congeners has challenged the initial assignment of the relative configuration of palau’amine, leading to the proposal that stereogenic centers C12 and C17 should be inverted (2, Figure 1).⁴ Most notably, the revised structure 2 contains a highly strained trans-azabicyclo[3.3.0]octane fragment. Herein, we describe the synthesis of hexacyclic palau’amine derivatives 3 and 4 possessing the originally proposed cis-azabicyclo[ 3.3.0]octane central unit. Comparison of these compounds to palau’amine and tetrabromostyloguanidine (5)^4c,5 using NMR spectroscopic and computational methods provides additional evidence for the revised relative configuration 2 of palau’amine.

Results and Discussion

In our approach toward the putative original structure 1 of palau’amine, an intramolecular azomethine imine 1,3-dipolar cycloaddition forms the cis-azabicyclo[3.3.0]octane subunit having the correct relative configuration at the fully substituted carbons 10 and 16.⁶ Starting from this intermediate, elaboration to diguanidine hexacycles 3/4 requires installation of the two spiroguanidine units and formation of the ketopiperazine ring. Building on precedent from Büchi’s pioneering synthesis of dibromophakellin,⁷ ketopiperazine ring closure was projected to occur by attack of the nitrogen of a tethered bromopyrrole on a 2-methylsulfanyl-4H-imidazole generated in situ (Scheme 1). The second (right-hand) spirocycle was envisaged to arise in turn from an S-methyl thiohydantoin intermediate or by guanylation of the amino functional group of a suitable precursor, followed by spirocyclization.

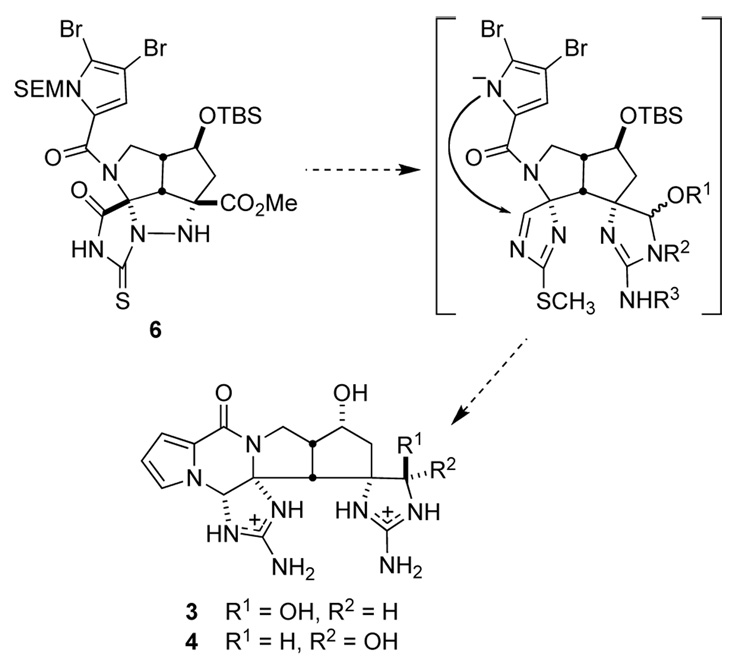

Scheme 1.

Plan for the conversion of intermediate 6 to palau’amine derivatives 3 and 4.

An optimized synthetic route for the conversion of triazatriquinane 6 into hexacyclic palau’amine deriviatives 3/4, which have the same relative configuration at their stereogenic centers as the originally proposed structure 1 of palau’amine, is outlined in Scheme 2. This sequence began with SmI₂-mediated reduction of the N-N bond of 6, followed by selective S-methylation of the resulting thiohydantoin 7 to furnish the corresponding S-methyl isothiourea 8 (76% overall). Subsequent selective Teoc protection of the isothiourea provided intermediate 9 in quantitative yield. Many attempts to elaborate aminoester 9 into a hexacyclic diguanidine via the intermediacy of bis(S-methylthiohydantoin) spirocycles established the viability of the synthetic strategy for ketopiperazine ring closure, however, the diguanidine functional group array could not be formed from these intermediates. Alternative strategies involving delayed installation of the second spirocycle suffered from unproductive intramolecular rearrangements, originating from nucleophilic attack of the primary amine onto the adjacent isothiourea. Alternatively, direct guanylation of the α-amino ester functionality of intermediates 8 and 9 to afford carbamate-protected glycocyamidine intermediates proved to be capricious and low-yielding. Therefore, a two-step procedure for glycocyamidine formation was developed, wherein aminoester 9 was first converted in high yield to Cbz-protected thiourea 10 by reaction with benzyloxycarbonyl isothiocyanate (11).⁸ Incubation of 10 with EDCI and o-nitrobenzylamine led to efficient installation of the protected guanidine functionality, presumably via the intermediacy of a carbamoylcarbodiimide, followed by in situ spirocyclization to afford glycocyamidine 12 in 93% overall yield.^9,10

Scheme 2. Conversion of intermediate 6 into diastereomeric palau’amine derivatives 3 and 4.a.

^a(a) SmI₂, THF/MeOH, 23 °C, 15 min, 79%; (b) MeI, i-PrEt₂N, DMAP, CH₂Cl₂, 23 °C, 2 h, 96%; (c) Teoc-Cl, i-PrEt₂N, CH₂Cl₂, 23 °C, 30 min, quant.; (d) benzyloxycarbonyl isothiocyanate (11), CH₂Cl₂, 40 °C, 1.5 h, 92%; (e) EDCI, 2-nitrobenzylamine hydrochloride, i-PrEt₂N, CH₂Cl₂, 40 °C, 2.5 h, 93%; (f) TFA, CH₂Cl₂, 23 °C, 1 h, then sat. aq. Na₂CO₃, 94%; (g) Teoc-Cl, i-PrEt₂N, CH₂Cl₂, 23 °C, 30 min, 90%; (h) NaBH₄, MeOH/THF (2:1), 0 °C, 40 min; (i) Ac₂O, pyridine, DMAP, CH₂Cl₂, 23 °C, 4 h, 51% (15), 29% (16) (2 steps); (j) TBAF, THF, 23 °C, 8 min, 95%; (k) IBX, DMSO, 23 °C, 4 h, 96%; (l) NaBH₄, MeOH, 0 °C, 30 min, 94%; (m) m-CPBA, CH₂Cl₂, 0→23 °C, 40 min; (n) NH₃, CH₂Cl₂,−78→23 °C, 14 h, 79% (2 steps); (o) hv, dioxane, 23 °C, 2.5 h; (p) H₂, Pd/C, dioxane/H₂O (0.1% TFA), 43% (3), 22% (4) (2 steps). DMAP = N,N-dimethylaminopyridine, Teoc-Cl = 2-trimethylsilylethyl chloroformate, EDCI = 1-(3-dimethylaminopropyl)-3-ethylcarbodiimide hydrochloride, TFA = trifluoroacetic acid, TBAF = tetra(n-butyl)ammonium fluoride, IBX = o-iodoxybenzoic acid, m-CPBA = m-chloroperoxybenzoic acid.

Glycocyamidine 12 was elaborated to palau’amine derivatives 3/4 in the following way. Chemoselective removal of the SEM protecting group in the presence of the secondary TBS ether was first accomplished by reaction of 12 with 10% TFA–CH₂Cl₂ at room temperature, followed by basic aqueous work-up to provide the free pyrrole 13. Reintroduction of the Teoc group furnished bromopyrrole bis(spirocycle) 14 in 85% overall yield. Reduction of the carbonyl groups of the spirocyclic fragments was achieved by exposure of bis(spirocycle) 14 to an excess of NaBH₄ in MeOH/THF, providing a mixture of two inseparable bis(hemiaminal) diastereoisomers. In this transformation, the Teoc and o-nitrobenzyl groups impart sufficient electronic activation to the spirocycles to allow for smooth reduction of the carbonyl groups under mild conditions. The hemiaminal hydroxyl groups were then acetylated under standard conditions to give diastereomeric diacetates 15 and 16 in 80% combined yield and a ratio of 1.8:1.¹¹ Although these diastereoisomers could be separated by standard chromatography, short exposure of either diastereoisomer, or the mixture, to TBAF/THF promoted cyclization to form the ketopiperazine ring to give an inseparable mixture of hemiaminal epimers 17 (ratio 1.5:1) in excellent yield (95%).^12,13 The configuration of the secondary alcohol was next inverted by a two-step sequence. Chemoselective oxidation of alcohol 17 with IBX provided ketone 18 in high yield (96%) as an inseparable mixture of hemiaminal epimers (1.8:1). As expected, exposure of this ketone to NaBH₄/MeOH resulted in hydride delivery from the convex face to give alcohol 19, again as an inseparable mixture of epimers (1:1, 94%). Treatment of this mixture with three equiv of purified m-chloroperoxybenzoic acid,¹⁴ followed by incubation of the sulfone products with ammonia provided diguanidine 20 in good overall yield (79% after HPLC purification) as a 5:1 mixture of inseparable hemiaminal epimers. To complete the synthesis of 3 and 4, the o-nitrobenzyl and Cbz protecting groups were cleaved by photolysis and hydrogenolysis, respectively. In the course of the latter reaction, the bromine substituents of the pyrrole were also removed to provide a 2:1 mixture of hemiaminal epimers 3 and 4 in 65% combined overall yield. Although this mixture of hemiaminal epimers could be separated by HPLC, interconversion of the two diastereoisomers in H₂O/MeCN/TFA (89:11:0.1) and D₂O thwarted their isolation as single stereoisomers.

Gratifyingly, most of the NMR resonances of diastereoisomers 3 and 4 in D₂O were well separated and allowed for full assignment of ¹H and ¹³C NMR spectra (Table 1). Comparison of ¹H and ¹³C chemical shifts of 3 and 4 with those published for palau’amine^2b reveals a surprisingly close overall match considering the dissimilarities in substituents at C17 and C18. An important difference, however, is the value of the ¹H,¹H coupling constant for the angular protons of the azabicyclo[3.3.0]octane moiety, which are 12.0 and 10.7 Hz for 3 and 4, respectively. This vicinal coupling constant is greater than 14 Hz for palau’amine and all palau’amine congeners, with the large value of this coupling constant for the natural alkaloids being an important piece of evidence in support of the revised trans fusion of the azabicyclo[3.3.0]octane unit.^4c In addition, qualitative interpretation of the NOESY spectra of 3 and 4 revealed a strong correlation between the two protons at the ring junction (H11/H12), and the absence or weak correlations for the 1,3-related pairs of protons H11/H18 and H11/H13β, respectively. This latter data again stands in sharp contrast to data published for palau’amine and its congeners, in which a NOE correlation between H11 and H12 was often not mentioned,[15] and correlations for H11/H13β and H11/H18 were reported. As an additional point of divergence, correlations between H13α and H18 were observed for 3 and 4, whereas H18 was correlated to H13β in the natural products. No correlation between H13β and H18 was observed for 3 or 4.

Table 1.

¹H and ¹³C NMR data for palau’amine,^2b 3, and 4 in D₂O.

	palau’amine		3		4
carbon	13C, ppm	1H, ppm (mult, J [Hz])	13C, ppm	1H, ppm (mult, J [Hz])	13C, ppm	1H, ppm (mult, J [Hz])
2	122.5		120.5		120.3
3	115.6	6.85, (dd, J = 3.9, 1.5)	115.0	6.80, (dd, J = 4.0, 1.3)	115.0	6.79, (dd, J = 4.0, 1.3)
4	113.8	6.35, (dd, J = 3.9, 2.8)	113.0	6.30, (dd, J = 4.0, 2.7)	113.2	6.29, (dd, J = 4.0, 2.7)
5	125.2	6.99, (dd, J = 2.8, 1.5)	124.7	6.96, (dd, J = 2.7, 1.3)	124.5	6.93, (dd, J = 2.7, 1.3)
6	69.0	6.33, (s)	68.1	6.19, (s)	68.7	6.07, (s)
8	157.8		156.9		156.7
10	80.8		82.0		81.8
11	56.3	3.08, (d, J = 14.1)	53.1	3.65, (d, J = 12.0)	59.9	3.18, (d, J = 10.7)
12	41.8	2.52, (dddd)	45.3	2.90, (dddd, J = 12.0, 10.1, 6.1, 4.1)	44.2	2.98, (dddd, J = 10.7, 9.9, 5.1, 4.6)
13	46.1	3.96, (dd, J = 10.4, 7.3)	42.2	3.99 (β) (dd, J = 12.3, 10.1)	42.7	3.90 (β) (dd, J = 12.3, 9.9)
		3.28, (dd, J = 10.3, 10.4)		3.48 (α) (dd, J = 12.3, 6.1)		3.55 (α) (dd, J = 12.3, 4.6)
15	159.5		157.4		157.4
16	72.1		71.9		70.7
17	74.0	4.35, (d, J = 7.9)	49.9	2.18 (β) (dd, J = 14.3, 3.7)	41.2	2.62 (β) (dd, J = 15.4, 5.1)
				1.99 (α) (d, J = 14.3)		1.91 (α) (dd, J = 15.4, 2.5)
18	48.6	2.47, (dddd)	70.1	4.17, (m)	69.2	4.17, (m)
19	41.9	3.32, (dd, J = 13.2, 7.0)	-	-	-	-
		3.24, (dd, J = 13.2, 7.0)
20	83.7	5.96, (s)	85.8	5.17, (s)	87.9	5.02, (s)
22	157.9		158.7		158.7

For further corroboration of the qualitative interpretation of NOE correlations, a quantitative NOESY analysis was carried out to experimentally determine important interproton distances.¹⁶ Data gathered from these experiments were evaluated by comparison to the corresponding distances obtained from in silico geometry optimization, and to values published for tetrabromostyloguanidine (5).^4c Geometry optimizations performed using the molecular modeling packages Maestro 5.0.019 with the AMBER* forcefield including solvation (H₂O) and Spartan 04 (B3LYP 6-31G*) returned consistent results.¹⁷

A selected set of diagnostic interproton distances obtained from NOESY experiments and the corresponding calculated values are given in Table 2 (for further details see the Supporting Information).

Table 2.

Selected experimental and calculated interproton distances.^a

Protons	3[a]	3[b]	4[a]	4[b]	1[b]	trans-3[b],[c]	trans-4[b],[c]	5[d]	5[b]	2[b]
11/12	221	221	228	224	226	304	304	-	304	303
11/13β	335	342	334	343	407	268	267	250	270	263
11/18	n.o.	405	n.o.	407	327	253	258	233	253	277
11/20	270	317	208	221	311	322	264	271	332	334
12/18	249	240	227	240	221	305	305	-	303	303
13α/18	313	299	292	297	381	346	345	-	343	334
13β/18	n.o.	349	n.o.	348	359	251	249	260	247	252

^aFor a more comprehensive dataset see the Supporting Information. Distances given in pm.

^(a)Average distances from NOESY spectra recorded at 100, 150 and 200 ms mixing times.

^(b)Distances obtained from molecular modeling using the software package Maestro 5.0.019 with the AMBER* forcefield including solvation (H₂O). Global minima identified by conformational searches were evaluated.

^(c)trans-3 and trans-4 denote structures corresponding to 3 and 4 having trans configured azabicyclo[3.3.0]octane ring systems.

^(d)Data from Ref. 4c.

n.o. = not observed.

Overall, experimentally determined interproton distances were in good agreement with results obtained from molecular modeling. The similar distances between H11 and H20 for 3 and tetrabromostyloguanidine (5) (270 and 271 pm) and the respective shorter distance seen in hemiaminal epimer 4 (208 pm), support a relative configuration at C20 of palau’amine identical to that of analog 3 and tetrabromostyloguanidine (5). As expected for the cis-fusion of the five-membered rings, short distances were obtained between the angular protons H11 and H12 (221 and 228 pm for 3 and 4, respectively). The corresponding distance in the trans-fused ring system, which is predicted by molecular modeling to be considerably larger (304 pm), unfortunately could not be quantified in the investigation of tetrabromostyloguanidine (5).^4c More diagnostic information was obtained from the examination of 1,3-interrelated proton pairs H11/H13β, H11/H18, and H13β/18, situated on the same side of the molecular plane. In accordance with the molecular model of cis-configured structure 1, all of these distances were found to be large (≥ 334 pm) for 3 and 4, whereas significantly shorter interproton distances (≤ 260 pm) were reported for tetrabromostyloguanidine (5), and calculated for 2 and hypothetical trans-configured diastereoisomers trans-3 and trans-4. In particular, the distance between H11 and H13β, which could be experimentally quantified in all cases, was found to be 85 pm larger for cis-fused 3 and 4 (335 and 334 pm) than for tetrabromostyloguanidine (5) (250 pm). No NOE correlations were observed for proton pairs H11/H18 and H13β/18 in the case of 3 and 4, whereas the corresponding distances for 5 were experimentally determined to be short (233 and 266 pm, respectively). In addition, the close proximity of H12 and H18 (249 and 227 pm) and a NOE correlation between H13α and H18 (313 and 292 pm), observed in the case of 3 and 4, were not mentioned in the quantitative analysis of tetrabromostyloguanidine (5). As highlighted by Grube and Köck,^4c this discrepancy is best explained by assuming a trans fusion of the central azabicyclic fragment of palau’amine and congeners.

Conclusions

In summary, the first synthesis of hexacyclic palau’amine congeners that incorporate both guanidine functional groups has been accomplished. These palau’amine analogs, 3 and 4, have the cis configuration of their azabicyclo[3.3.0]octane cores. Synthetic access to these analogs allowed the first direct comparison of NMR data for hexacyclic diguanidine structures having the originally proposed cis-azabicyclo[ 3.3.0]octane fragment with data for natural alkaloids of the palau’amine family. This comparison provides additional strong evidence in favor of the recently proposed structural revision of these compounds, fully supporting the trans configuration of the central azabicyclo[3.3.0]octane ring system of palau’amine and congeners.

Experimental Section¹⁸

Intermediate 17

n-Tetrabutylammonium fluoride (155 µL of a 1 m solution in THF, 0.155 mmol) was added at room temperature to a solution of bis(spirocycle) 15 (37 mg, 0.031 mmol) in THF (2 mL), and the yellowish solution was stirred at room temperature for 8 min., then partitioned between saturated aqueous NH₄Cl solution and EtOAc. The organic phase was dried over Na₂SO₄ and concentrated. The residue was purified by column chromatography (SiO₂; EtOAc/MeOH 14:1) to afford 24.5 mg (95%) of an inseparable mixture (1.5:1) of hemiaminal diastereoisomers 17 as a colorless, amorphous solid. ¹H NMR (500 MHz, CD₃OD) δ 8.04 (d, J = 7.9 Hz, 1 H), 7.90 (d, J = 7.8 Hz, 0.66 H), 7.66 (t, J = 7.9 Hz, 1 H), 7.53-7.45 (m, 3.98 H), 7.36-7.23 (m, 8.3 H), 6.95 (s, 0.66 H), 6.94 (s, 1 H), 6.22 (s, 1 H), 5.81 (s, 0.66 H), 5.06-5.01 (m, 5.64 H), 4.78 (d, J = 17.4 Hz, 1 H), 4.63 (m, 1.66 H), 4.44-4.37 (m, 2.66 H), 3.46 (m, 1.66 H), 3.37 (m, 0.66 H), 2.75-2.59 (m, 3.32 H), 2.52-2.45 (m, 5.64 H), 2.02 (bd, J = 10.3 Hz, 1 H); ¹³C NMR (125 MHz, CD₃OD) δ 169.9, 149.4, 165.3, 165.2, 163.7, 162.8, 155.3, 150.3, 149.9, 138.8, 138.6, 134.8, 134.5, 134.2, 133.5, 131.8, 130.4, 130.0, 129.61, 129.59, 129.5, 129.14, 129.07, 129.0, 126.2, 126.1, 124.7, 124.4, 117.3, 117.2, 109.3, 109.0, 93.0, 92.5, 89.3, 88.5, 76.8, 76.5, 71.8, 70.5, 69.9, 68.5, 68.3, 60.4, 56.1, 50.7, 50.4, 44.1, 43.3, 40.8, 30.9, 14.6, 13.9; FTIR (film) 3371, 3263, 2933, 1636, 1590, 1524, 1497, 1443, 1426, 1383, 1337, 1287, 1266, 1119, 1063, 982, 799, 735, 700 cm⁻¹; HRMS (ESI) m/z calcd. for C₃₂H₃₀Br₂N₈NaO₇S (M+Na): 851.0223, found: 851.0219.

Intermediate 20

A solution of m-chloroperoxybenzoic acid (washed with saturated aqueous NaHCO₃ solution; 5.4 mg, 0.031 mmol) in CH₂Cl₂ (1 mL) was added at 0 °C to a solution of hemiaminal diastereoisomers 19 (8.6 mg, 0.01 mmol) in CH₂Cl₂ (2 mL) in a sealable high-pressure reaction tube. The resulting clear solution was stirred at 0 °C for 10 min., then allowed to warm to room temperature and stirred for another 30 min. This solution was cooled to −78 °C, and NH₃ (ca. 3 mL) was condensed into the solution. The reaction tube was sealed, and the resulting cloudy solution was allowed to warm to room temperature (clear solution after ca. 10 min), and kept at this temperature for 14 h. The solution was then re-cooled to −78 °C, the tube was unsealed, and excess NH₃ was allowed to evaporate with warming to room temperature. The resulting suspension was concentrated, and the residue was purified by RP-HPLC (Phenomenex C18, 5 µm, 250 × 21.2 mm, H₂O (with 0.1% TFA) / MeOH linear gradient 50:50 → 10:90 in 20 min, flow rate 10 mL/min, t_R = 14.8 min) to provide 7.5 mg (79%) of an inseparable mixture (5:1) of bis(guanidine) diastereoisomers 20 (as the trifluoroacetate salts) as a colorless, glass-like solid. ¹H NMR (500 MHz, CD₃OD) δ 8.17 (d, J = 8.1 Hz, 1 H), 8.09 (d, J = 8.1 Hz, 0.2 H), 7.78 (t, J = 7.6 Hz, 1 H), 7.71 (t, J = 7.7 Hz, 0.2 H), 7.61 (t, J = 7.7 Hz, 1.2 H), 7.55 (d, J = 7.7 Hz, 1 H), 7.41-7.31 (m, 6.2 H), 7.07 (s, 0.2 H), 7.06 (s, 1 H), 6.57 (s, 1 H), 6.25 (s, 0.2 H), 5.31 (d, J = 17.4 Hz, 1 H), 5.29 (d, J = 12.2 Hz, 0.2 H), 5.26 (d, J = 12.2 Hz, 0.2 H), 5.23 (s, 2 H), 4.97 (d, J = 17.4 Hz, 1 H), 4.84 (d, J = 16.6 Hz, 0.2 H), 4.31 (m, 1.2 H), 4.24 (dd, J = 9.9, 12.4 Hz, 1 H), 4.05 (dd, J = 8.9, 12.4 Hz, 0.2 H), 3.86 (d, J = 12.2 Hz, 1 H), 3.77 (dd, J = 3.8, 12.4 Hz, 0.2 H), 3.67 (dd, J = 6.5, 12.4 Hz, 1 H), 3.11 (dd, J = 6.4, 15.5 Hz, 0.2 H), 3.04 (m, 1.2 H), 2.32 (d, J = 13.8 Hz, 1 H), 2.28 (d, J = 13.8 Hz, 1 H), 2.16 (dd, J = 3.1, 15.5 Hz, 0.2 H); ¹³C NMR (125 MHz, CD₃OD) δ 158.95, 158.93, 158.88, 158.6, 155.8, 155.4, 150.1, 149.7, 137.1, 136.9, 135.4, 135.3, 134.0, 132.2, 132.1, 131.4, 131.3, 130.9, 130.7, 130.5, 130.3, 129.8, 129.6, 129.4, 129.2, 126.8, 126.7, 124.7, 124.5, 118.6, 118.2, 109.3, 109.0, 104.9, 104.5, 90.8, 89.3, 83.5, 83.2, 72.2, 71.8, 70.4, 70.1, 70.0, 69.9, 69.4, 69.0, 54.8, 52.8, 47.2, 45.4, 45.1, 44.8, 44.1, 43.0, 42.5; FTIR (film) 2244, 3261, 2916, 2873, 2831, 1766, 1702, 1671, 1594, 1528, 1439, 1345, 1272, 1202, 1135, 801, 724 cm⁻¹; HRMS (ESI) m/z calcd. for C₃₁H₂₉Br₂N₉O₇ (M+H): 798.0635, found: 798.0668.

Products 3 and 4

A solution of bis(guanidine) diastereoisomers 20 (25 mg, 0.027 mmol) in dioxane (5 mL) was irradiated at room temperature for 2.5 h using a sunlamp (275 W). Pd/C (10%, 10 mg) was added to the resulting yellow solution, and the suspension was stirred under a H₂ atmosphere for 4 h. The suspension was filtered through Celite, and the Celite was washed with dioxane (1 mL) and H₂O/0.1%TFA (1 mL). Pd/C (10%, 20 mg) was added to the yellowish filtrate, and the suspension was stirred under a H₂ atmosphere for 24 h, then filtered (45 µm nylon filter). The filtrate was concentrated, and the residue was redissolved in H₂O/0.1%TFA and purified by RP-HPLC (Phenomenex C18, 5 µm, 250 × 21.2 mm, H₂O (with 0.1% TFA) / CH₃CN linear gradient 95:5 → 80:20 in 20 min, flow rate 10 mL/min) to afford 8 mg (43%) and 4.1 mg (22%) of bis(guanidine) hemiaminal diastereoisomers 3 and 4 respectively, (enriched, as the bis(trifluoroacetate) salts), as colorless, glass-like solids.¹⁹ Data for 3: t_R = 14.9 min; ¹H NMR (500 MHz, D₂O) δ 7.13 (d, J = 1.3, 2.7 Hz, 1 H), 6.97 (dd, J = 1.3, 4.0 Hz, 1 H), 6.47 (dd, J = 2.7, 4.0 Hz, 1 H), 6.36 (s, 1 H), 5.34 (s, 1 H), 4.34 (m, 1 H), 4.16 (dd, J = 10.1, 12.3 Hz, 1 H), 3.82 (d, J = 12.0 Hz, 1 H), 3.65 (dd, J = 6.1, 12.3 Hz, 1 H), 3.07 (m, 1 H), 2.35 (dd, J = 3.7, 14.3 Hz, 1 H), 2.16 (d, J = 14.3 Hz, 1 H); ¹³C NMR (125 MHz, D₂O) δ 158.7, 157.4, 156.9, 124.7, 120.5, 115.0, 113.0, 85.8, 82.0, 71.9, 70.1, 68.1, 53.1, 49.9, 45.3, 42.2; FTIR (film) 3188, 2836, 1671, 1578, 1557, 1472, 1432, 1389, 1326, 1191, 1135, 1092, 1038, 843, 801, 724 cm⁻¹; HRMS (ESI) m/z calcd. for C₁₆H₂₀N₈O₃ (M+H): 373.1737, found: 373.1736. Data for 4: t_R = 13.9 min; ¹H NMR (500 MHz, D₂O) δ 7.10 (d, J = 1.3, 2.7 Hz, 1 H), 6.97 (dd, J = 1.3, 4.0 Hz, 1 H), 6.47 (dd, J = 2.7, 4.0 Hz, 1 H), 6.24 (s, 1 H), 5.19 (s, 1 H), 4.34 (m, 1 H), 4.07 (dd, J = 9.9, 12.3 Hz, 1 H), 3.72 (dd, J = 4.6, 12.3 Hz, 1 H), 3.35 (d, J = 10.7 Hz, 1 H), 3.15 (m, 1 H), 2.79 (dd, J = 5.1, 15.4 Hz, 1 H), 2.08 (dd, J = 2.5, 15.4 Hz, 1 H); ¹³C NMR (125 MHz, D₂O) δ 158.7, 157.4, 156.7, 124.5, 120.3, 115.0, 113.2, 87.9, 81.8, 70.7, 69.2, 68.7, 59.9, 44.2, 42.7, 41.2.
