Calcium dynamics integrated into signalling pathways that influence vertebrate axial patterning

Abstract

Many aspects of animal development including fertilization as well as organ formation and function are dependent upon the dynamic release of calcium (Ca²⁺) ions. Although the controlled release and/or accumulation of Ca²⁺ ions has been extensively studied, how the release dynamics produce a specific biological output in embryonic development is less clear. We will briefly summarize Ca²⁺ sources, highlight data on endogenous Ca²⁺ release in vertebrate embryos relevant to body plan formation and cell movement, and integrate pharmacological and molecular-genetic studies to lend insight into the signalling pathways involved. Finally, based on in vivo imaging in zebrafish genetic mutants, we will put forward the model that distinct Ca²⁺ release dynamics lead to antagonism of the developmentally important Wnt/β-catenin signalling pathway, while sustained Ca²⁺ release modulates cell polarization or directed migration.

1. Calcium sources

Although critical for many processes, calcium ions (Ca²⁺) are not metabolized by the cell. Instead, Ca²⁺ enters the cell across either the plasma membrane or the membrane of intracellular organelles. Depending on the location of the ion channels and the extent and duration of the channel opening, local or global changes in Ca²⁺ levels in the cytosol of the cell can result. Intricate crosstalk and feedback between release circuits can stimulate Ca²⁺-induced Ca²⁺ release, influencing neighbouring receptors and potentially triggering a regenerative wave (Berridge 1997; Berridge et al. 2003; Roderick et al. 2003). In addition, continued stimulation and/or depletion of endoplasmic reticulum (ER) stores activate a store-operated Ca²⁺ entry influx pathway located at the plasma membrane (Parekh & Putney 2005).

In non-excitable (non-neuronal) cells, a majority of intracellular Ca²⁺ release occurs through inositol 1,4,5-trisphosphate (IP₃)-sensitive Ca²⁺ channels present in the ER membrane (reviewed in Berridge et al. 2003). The phosphatidylinositol (PI) cycle is activated in response to many hormones and growth factors that bind to cell surface receptors. Two predominant receptor classes are the G-protein-coupled receptor class and the receptor tyrosine kinase class. Extracellular ligand stimulation of these receptors activates a PI-specific phospholipase C (PLC). Activated PLC converts membrane-bound phosphatidylinositol (4,5)-bisphosphate (PIP₂) into IP₃ and lipophilic diacylglycerol (DAG). IP₃ subsequently binds to receptors (IP₃R) located principally on the ER triggering the rapid release of Ca²⁺ into the cytosol of the cell. At the same time, DAG produced by PIP₂ hydrolysis can act as an additional second messenger to further activate downstream targets such as protein kinase C (PKC).

Relevant to this discussion is the fact that Ca²⁺ release is heterogeneous. Specific cellular responses can be triggered by differences in the amplitude, frequency and duration of intracellular Ca²⁺ oscillations. Such oscillations can be derived from changes in upstream steps within the PI cycle, such as G-protein activity, PLC activity and IP₃ levels (Hirose et al. 1999; Luo et al. 2001; McCarron et al. 2004; Thore et al. 2004; Nomikos et al. 2005; Rey et al. 2005). Oscillatory small molecules such as IP₃ may be transmitted to other cells via gap junctions (Lin et al. 2004), a phenomenon that may be of significance in the regulation of axis induction in the zebrafish blastula (see below). Feedback from activated Ca²⁺-binding proteins adds another layer of complexity to the dynamics of Ca²⁺ release and removal. For example, IP₃R activity integrates signals from small molecules and proteins, including PKC and Ca²⁺/calmodulin-dependent protein kinase II (CaMKII; Nadif Kasri et al. 2002; Assefa et al. 2004; Patterson et al. 2004).

2. Calcium and the vertebrate body plan

After fertilization, the next major developmental programme involves the establishment of the primary axes, in which regions of the embryo receive signals to determine the cells that will contribute to the dorsal (back) or ventral (belly) tissue as well as anterior (head/top) and posterior (tail/bottom) regions. A number of studies have linked PI-cycle activity with body plan formation. Classical work using lithium, an inhibitor of inositol turnover (Berridge et al. 1989), induced expansion of dorsal structures in Xenopus (Kao et al. 1986; Kao & Elinson 1989, 1998), and similar effects were obtained in the zebrafish (Danio rerio) embryo (Stachel et al. 1993; Aanstad & Whitaker 1999). Lithium-induced embryonic defects are rescued by supplying an intermediate of the PI cycle, myo-inositol (Busa & Gimlich 1989). In further support, zebrafish and Xenopus embryos injected with antibodies that disrupt IP₃R function displayed expanded dorsal structures with the loss of ventral structures (Kume et al. 1997; Westfall et al. 2003b). Treatment of zebrafish embryos with inhibitors that target different steps in the PI cycle generated dorsalized or axis-duplication phenotypes (figure 1a, inset). The dorsalization defects generated by the use of pharmacological inhibitors that target inositol turnover in the zebrafish were likewise rescued by myo-inositol (Westfall et al. 2003b). The findings of an involvement for PI-cycle activity in axis induction are consistent with the observed spontaneous increase in IP₃ levels in the Xenopus embryo at the blastula stage (Busa & Gimlich 1989; Maslanski et al. 1992). Moreover, in vivo imaging of calcium release dynamics in the zebrafish embryo identified rapid aperiodic Ca²⁺ release that persists until the midblastula transition stage (Reinhard et al. 1995; Slusarski et al. 1997b; Slusarski & Corces 2000). The idea that increased IP₃ levels may trigger Ca²⁺ release during these stages has been corroborated by drug inhibition studies (Slusarski et al. 1997a). The effects of lithium were most pronounced when exposure occurred on the ventral side of the embryo, suggesting that in the embryo PI-cycle activity is normally high on the ventral side and low on the dorsal side. Consistent with this is the described role of activated CaMKII for ventral fates in Xenopus embryos (Kühl et al. 2000a).

Figure 1.

Signal transduction pathways in vertebrate axis formation. During embryogenesis, the basic body plan generates a dorsal–ventral and anterior–posterior orientation of tissues and organs. (a) Lateral view of a wild-type zebrafish 48 hour larvae with normal axial patterning with anterior to the right and dorsal to the top. Key tissues are noted. Inset: a two-headed embryo as a result of PI-cycle inhibition. (b) A simplified schematic of the Wnt signalling network. β-catenin-independent pathways are encased in green region and β-catenin-dependent components are in the yellow region. β-cat, β-catenin. (c) A single ratiometric image taken from a time course during the cellular blastoderm stage of a fura-2-injected zebrafish embryo. The image is pseudo-coloured to represent high calcium levels as warm colouring (yellow) and low calcium levels as blue. Arrows denote transient fluxes observed in the enveloping layer and the arrowhead designates the yolk syncytial layer region. (d) hecate mutant embryo lacking dorsal–anterior structures such as the eyes and brain reflective of a ventralized phenotype. (e) ppt mutant embryo with a shortened anterior–posterior axis and kinked tail.

3. The Wnt signalling network

The Wnt family of growth factors and components of their signalling pathways have diverse roles in development and disease. Wnt signalling influences many aspects of embryonic patterning, cell proliferation as well as the maintenance and differentiation of stem cells, and is critical in axis formation (figure 1b; reviewed in Moon et al. 2004; Kohn & Moon 2005; Clevers 2006). In the absence of the so-called canonical Wnt signalling (Wnt/β-catenin), β-catenin is rapidly sequestered in a cytoplasmic degradation complex containing axin, the adenomatous polyposis tumour suppressor protein (APC) and the serine threonine kinase GSK-3β. GSK-3 phosphorylation of β-catenin targets the latter for proteasomal degradation (figure 1b). Wnt binding to its co-receptors Frizzled and LRP5/6 (low-density lipoprotein receptor-related protein) activates a cytoplasmic phosphoprotein (Dishevelled, Dsh) which downregulates GSK-3 and inhibits the degradation of β-catenin. Stabilized β-catenin protein interacts with the members of the LEF/TCF transcription factor family in the nucleus to promote the activation of downstream target genes involved in axis specification. Another endogenous target of lithium is the β-catenin degradation complex component GSK-3, which when inhibited promotes dorsal axis induction (Klein & Melton 1996; Stambolic et al. 1996). The fact that exogenous myo-inositol can suppress the effects of GSK-3 inhibition (Hedgepeth et al. 1997) further supports the notion of communication between PI-cycle activity and Wnt/β-catenin signalling to regulate axis induction.

The Wnt network has layers of complexity including the fact that different Wnt ligands can activate distinct cellular outputs. In vertebrate embryos, overexpression of a subset of Wnts induces hyperdorsalization and ectopic axes by virtue of increased Wnt/β-catenin signalling activity (Moon et al. 1993b; Moon & Kimelman 1998). Additional Wnts (including Wnt-5, -4 and -11) appear to act independently of β-catenin function (Dale 1998; Kühl et al. 2000b). Emerging evidence suggests that the ability of Wnt ligands to activate different signalling pathways, β-catenin dependent (canonical) and β-catenin independent (non-canonical), appears to be controlled by the timing of expression and receptor context, not to mention the correct combination of intracellular effectors. In the zebrafish embryo, Wnt-5 overexpression results in an increase in the frequency of intracellular Ca²⁺ release in a manner that is dependent on G-protein activity and the PI cycle (Slusarski et al. 1997a,b), thus linking Wnt activity to IP₃-dependent Ca²⁺ release and defining the Wnt/Ca²⁺ signalling pathway.

The concept that Wnt/Ca²⁺, either in parallel or as part of a complex signalling network, appears to interact with the Wnt/β-catenin pathway in early axis specification was initially suggested by the apparent antagonism of certain pairs of Wnt ligands when expressed in Xenopus and zebrafish embryos (Moon et al. 1993b; Slusarski et al. 1997b). Expression of ligands that activate Wnt/β-catenin signalling in these embryos, such as Wnt-8, results in ectopic axis induction. However, when Wnt-5 is co-expressed with Wnt-8, the Wnt-8 axis induction phenotype is suppressed. Stimulating Ca²⁺ release, via activated serotonin receptor, also antagonizes Wnt-8-induced expansion of dorsal domains (Slusarski et al. 1997b), supporting that Wnt-5 antagonism of Wnt/β-catenin is mediated by Ca²⁺ release. On the other hand, pharmacological or genetic reduction of the Wnt/Ca²⁺ pathway in zebrafish embryos or mouse limb buds generates ectopic accumulation of nuclear β-catenin and activation of β-catenin transcriptional targets (Topol et al. 2003; Westfall et al. 2003a,b). Additionally, inhibition of G-protein function dorsalizes Xenopus embryos (Kume et al. 2000). These observations are consistent with a model in which IP₃-dependent Ca²⁺ release, promoted by Wnt/Ca²⁺ signalling activity, negatively regulate the Wnt/β-catenin signalling pathway and therefore axis induction (figure 1b).

Various studies have shown that there are common components between the Wnt/Ca²⁺ and the planar cell polarity pathways (Wnt/PCP), another non-canonical Wnt pathway involved in the polarization of cells in Drosophila and vertebrate species (Kohn & Moon 2005; Solnica-Krezel 2005). During gastrulation, vertebrate embryos undergo a variety of morphogenetic movements to thicken (dorsal convergence) and elongate (axis extension) the embryo, also called convergence extension (CE; Keller 2002). Ca²⁺ mobilization associated with waves of tissue contraction can be observed in Xenopus explants (Wallingford et al. 2001a). In intact zebrafish embryos, intercellular Ca²⁺ waves have been observed at the margin during gastrulation (Gilland et al. 1999). The relationship between Ca²⁺ waves and cell movement is supported by the finding that, in Xenopus embryos, pharmacological inhibition of such waves results in CE defects without altering cell fate (Wallingford et al. 2001a,b). Wnt genes that result in the activation of Ca²⁺ release in the blastula embryo, such as Wnt-5 (Slusarski et al. 1997b; Westfall et al. 2003a), can also alter morphogenetic movements later during gastrulation when misexpressed (Moon et al. 1993a; Ungar & Moon 1995). Core components involved in the polarization of epithelial cells in the Drosophila cuticle are also necessary for the polarization of migrating cells during vertebrate gastrulation (Solnica-Krezel 2005). Indeed, several core components of Wnt/PCP have been shown to activate Ca²⁺ release in zebrafish including Frizzled-2, Dsh and the intracellular protein Prickle (Slusarski et al. 1997a; Sheldahl et al. 2003; Veeman et al. 2003). The fact that interference with either Ca²⁺ release or Wnt/PCP signalling results in CE defects suggests non-canonical Wnt signalling activity can be characterized as a complex network with cellular outputs defined by Ca²⁺ modulation and polarized cell movement (figure 1b).

4. Calcium dynamics and biological outputs

The Ca²⁺ activity in the zebrafish blastula is observed in the enveloping layer (EVL) and yolk syncytial layer (YSL; figure 1c; Reinhard et al. 1995; Slusarski et al. 1997b; Slusarski & Corces 2000). Although present in overlapping stages, the EVL-specific Ca²⁺ fluxes are present in a cell or small cluster of cells lasting for short intervals. The YSL-specific Ca²⁺, on the other hand, displays sustained elevation in a population of cells. The distinct dynamics of Ca²⁺ increases and the bimodal role of Wnt/Ca²⁺_, in β-catenin antagonism and polarized cell movement, led us to hypothesize that the rapid aperiodic Ca²⁺ release is coupled to Wnt/β-catenin antagonism and the sustained Ca²⁺ levels integrates into polarizing cells or their directed migration.

Support for this theory comes from the analysis of Ca²⁺ release dynamics in zebrafish mutants. A mutation in the zebrafish maternal gene hecate produces ventralized embryos (figure 1d) that lack nuclear β-catenin (Lyman Gingerich et al. 2005). Consistent with our theory, these mutant embryos display increased Ca²⁺ release frequency in the EVL (Lyman Gingerich et al. 2005). Suppression of the Ca²⁺ dynamics with pharmacological reagents was sufficient to rescue the defects in dorsal cell fate specification observed in these mutants (Lyman Gingerich et al. 2005), highlighting the relationship between Ca²⁺ release and β-catenin antagonism in a genetic context.

In the zebrafish, Wnt-5 has been shown to correspond to the genetic mutation pipetail (ppt; Rauch et al. 1997). The ppt zygotic mutants have axis extension defects, reflected in a shorter anterior–posterior length and kinks in the tail, resembling a pipe (figure 1e; Hammerschmidt et al. 1996; Kilian et al. 2003). Analysis of zygotic ppt mutant embryos revealed reduced Ca²⁺ levels in the YSL region (Westfall et al. 2003a). Suggestive that reduced Ca²⁺ levels are central to the ppt defects is the ability to rescue the mutant phenotype with the expression of activated CaMKII (Westfall et al. 2003a). These data raise the possibility that the YSL-specific Ca²⁺ dynamics contributes to polarized cell movements during vertebrate gastrulation.

5. Calcium and left–right asymmetry

There are many cases in development where a signalling cassette is used in multiple processes. Thus, it would be predicted that transient Ca²⁺ release will correlate with β-catenin antagonism or sustained Ca²⁺ signalling with cell polarization at additional stages or in different tissues. Section 6 describes the orientation of organs relative to the body axis and the implications of both transient and sustained Ca²⁺ modulations in this process. Although vertebrates appear bilaterally symmetrical from the outside, the heart, lungs, liver and gut are carefully positioned across the left–right (LR) axis. The development of this asymmetry is highly conserved across species and most likely will use conserved signalling molecules.

Embryonic organ laterality is preceded by molecular and physiological asymmetries. Shown in figure 2a is a schematic of developmental structures and gene products implicated in LR patterning with a focus on zebrafish. At the morphological level, non-involuting dorsal mesoderm cells, the dorsal forerunner cells (DFCs), migrate ahead of the dorsal blastoderm during gastrulation (figure 2b, arrow; Cooper & D'Amico 1996; Melby et al. 1996). At the start of gastrulation, these cells express key signalling molecules such as nodal-related squint, a Brachyury homologue no tail and left–right dynein (lrdr1; Schulte-Merker et al. 1994; Feldman et al. 1998; Essner et al. 2002). The DFCs are highly endocytotic and readily take up vital dyes (Cooper & D'Amico 1996) allowing for the visualization of their migration to the tailbud region where they undergo morphogenesis and form a ciliated structure, the Kupffer's vesicle (KV), during early somite stages (figure 2c; Cooper & D'Amico 1996; Melby et al. 1996). Ablation of the DFCs or mechanical disruption of the KV disrupts LR patterning (Amack & Yost 2004; Essner et al. 2005). Endogenous Ca²⁺ release activity in and around the DFC region during epiboly suggests striking similarities to the transient activity both in a cell or a few cells (figure 2d, arrow) and in a region of sustained high Ca²⁺ (figure 2d, arrowhead) previously described during the cellular blastoderm stages (figure 1c; Schneider et al. 2008). Whether this activity correlates with β-catenin antagonism and polarized cell movement bears further study.

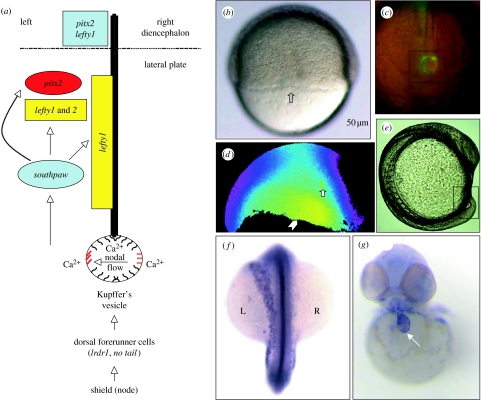

Figure 2.

Left–right pattern formation in the zebrafish. (a) Schematic noting key structures and gene products implicated in LR patterning. (b) Epiboly-staged embryo oriented with the animal pole towards the top, yolk region at the bottom and the dorsal shield region in the centre. The arrow notes the DFCs migrating ahead of the shield region. (c) Vital-dye-labelled DFCs (with Syto-11) at the early somite stages. The combined bright field and fluorescent image focused on the tailbud showing the DFCs forming the KV in the black box. The midline of the embryo can be distinguished by the compact notochord cells above the KV. (d) A ratiometric image taken from a time course of an epiboly-staged fura-2-injected embryo. Arrow notes a transient flux while the arrowhead notes a region of high sustained Ca²⁺_. (e) Lateral view of a somite-stage embryo at a time molecular asymmetric markers begin to be expressed. The KV is morphologically visible in the tail (black box). (f) Whole-mount in situ hybridization at approximately 22 somite stage with the southpaw and no tail probes. A dorsal view, anterior to the top, shows left-sided expression of southpaw and midline expression of no tail. (g) Whole-mount in situ hybridization of a 48 hours post-fertilization larva with cardiac myosin light chain to illustrate heart morphogenesis. The arrow points to the heart tube.

The LR signals have been proposed to be modulated by gap junctional communication and/or asymmetrical H⁺/K⁺-ATPase expression during Xenopus early cleavage (reviewed in Levin 2005). However, conserved molecular asymmetries in vertebrates become apparent only during later somite stages after the KV/node has formed (figure 2e). Of note is the conserved left-sided expression of the secreted transforming growth factor-β (TGF-β) related factor nodal (reviewed in Ahmad et al. 2004). In zebrafish, the nodal-related gene southpaw (spaw; Long et al. 2003) is the earliest asymmetric marker expressed in the left lateral plate mesoderm (figure 2f). Downstream targets of southpaw, including lefty1 and pitx2, also have conserved asymmetric expression in vertebrates (reviewed in Hamada et al. 2002; Wright & Halpern 2002). lefty1 contributes to a barrier at the midline of the embryo, preventing the left-sided signal from propagating to the right, and pitx2 contributes to the subsequent morphogenetic changes in the organs, such as looping to form the chambers of the heart (figure 2g).

Asymmetric Ca²⁺ levels across the mouse and chick node have been implicated in LR axis determination (McGrath et al. 2003; Raya et al. 2004). Elevated Ca²⁺ is thought to act via an unknown mechanism to induce left-sided gene expression in concert with or independent of nodal activity (Brennan et al. 2002; Hashimoto et al. 2004; Marques et al. 2004). Rotation of monocilia generates a leftward fluid flow in the node (Nonaka et al. 1998; Okada et al. 1999) and has been proposed to stimulate mechanosensory cilia and trigger elevated intracellular Ca²⁺ levels at the left edge of the mouse node (McGrath et al. 2003). The zebrafish KV contains monociliated cells similar to those found in the mouse node (Supp et al. 1997, 1999; Brueckner 2001; Hashimoto et al. 2004; Essner et al. 2005) and these cilia have been shown to beat in the same direction, possibly establishing Ca²⁺ asymmetries (Kramer-Zucker et al. 2005). Indeed, an intracellular Ca²⁺ flux with a left-sided bias near the zebrafish KV has been detected and is proposed to be required for normal LR patterning (Sarmah et al. 2005). In an alternate model, leftward flow of vesicular particles containing sonic hedgehog (shh) acts in a distinct atypical signalling pathway to activate Ca²⁺on the left side of the node (Tanaka et al. 2005).

In contrast to intracellular Ca²⁺ release, a role for left-sided elevation of extracellular Ca²⁺ has also been proposed. In the chick node, extracellular Ca²⁺ levels appear to be higher transiently on the left side, although it is unclear whether intracellular Ca²⁺ is also increased. This asymmetry was abolished after a treatment with ompremazole, an inhibitor of H⁺/K⁺ ATPase, which also caused LR defects. This led to the proposal that differential H⁺/K⁺ ATPase activity during gastrulation sets up a spatial gradient of extracellular Ca²⁺, which is subsequently transduced through Notch to activate asymmetric gene expression (Raya et al. 2004). In zebrafish, pharmacological disruption of H⁺/K⁺ ATPase activity leads to LR asymmetry defects (Kawakami et al. 2005) and early H⁺/K⁺ ATPase inhibition disrupts cilia number and length in the KV (Adams et al. 2006). However, immunodetection of H⁺/K⁺ ATPase did not display obvious asymmetries in zebrafish (Kawakami et al. 2005). Moreover, the H⁺/K⁺ ATPase inhibitor used, ompremazole, also induces ectopic shh expression in chick (Raya et al. 2004). Although it is unclear whether extracellular Ca²⁺ regulation is conserved in other organisms, mouse embryos that are homozygous for mutations in the Polycystin-2 (Pkd2) gene, a Ca²⁺-permeable cation-selective channel, exhibit loss of asymmetric Ca²⁺ levels across the node and LR defects (McGrath et al. 2003). Thus, several vertebrate models support a role for Ca²⁺ signalling in the establishment of LR asymmetry, but many questions and issues remain to be addressed, such as the Ca²⁺ sources, the Ca²⁺-dependent responders and the mechanism linking the Ca²⁺ flux in and around the node to asymmetry in the lateral plate mesoderm. Also, it has not been investigated whether there are multiple stages of Ca²⁺-dependent events involving the polarized migration and coalescence of the DFCs into a KV, initiation of asymmetric expression and the subsequent maintenance of laterality signals.

6. Conclusions and future directions

In conclusion, progression from egg to embryo requires a dynamic interaction of signal transduction networks. The continuous exchange of information between cells, through both direct contact and diffusible molecules, influences gene expression and cell behaviour. In vivo imaging studies are a critical step in the comprehensive analysis of Ca²⁺ signalling in development. Coupling in vivo imaging with molecular, genetic or pharmacological tools will determine the mechanism by which Ca²⁺ signalling is modulated and interpreted in the embryo. Future studies will reconstruct the spatial and temporal dynamics of Ca²⁺ release and incorporate this activity into known signalling pathways, thus providing the capacity to discern the true nature of the cellular basis of pattern formation. Knowledge about how intricate Ca²⁺ signals are integrated into developmental pathways, in particular the Wnt growth factors, raises the possibility to address the pathophysiology of diseases that result from misregulation of this network.
