Sonic Hedgehog Ligand Partners with Caveolin-1 for Intracellular Transportation

Abstract

Prenatal alcohol exposure is the most common environmental factor leading to congenital birth defects in the United States. Although significant progress has been made in this field, the detailed molecular pathology of Fetal Alcohol Syndrome (FAS) remains to be determined. Previously, we have shown that alcohol exposure perturbs Hedgehog signal transduction in zebrafish embryos by inhibiting the post-translational cholesterol modification of Sonic hedgehog (Shh), leading to decreased levels of mature Shh ligand that is associated with the plasma membrane, and causing transient loss of Hh signaling, resulting in permanent FAS-related morphological abnormalities. In the present study, we further elucidate the mechanisms that regulate the intracellular transportation and secretion of Shh using the hepatic stellate cell line, HSC8B. We have found that Shh physically interacts with Caveolin-1 in the Golgi apparatus to form protein complexes and that these complexes are packaged as large punctuate structures (transport vesicles) that are transported to the plasma membrane in lipid raft microdomains. Alcohol exposure does not significantly interrupt translation of shh mRNA in endoplasmic reticulum (ER) or the trafficking of Shh from the ER to the Golgi apparatus, however, alcohol does prevent the entry of Shh into transport vesicles from Golgi to plasma membrane and specifically decreases the amount of Caveolin-1/Shh complex found in lipid rafts, causing an cytoplasmic accumulation of Shh and leading to a deficiency of Shh ligand secretion into the extracellular matrix.

Introduction

Alcohol consumption during pregnancy is one of the leading causes of human fetal teratogenic exposure, and can cause a variety of irreversible phenotypic abnormalities, generally referred to as Fetal Alcohol Spectrum Disorders (FASD). The most extreme of these disorders, Fetal Alcohol Syndrome (FAS), is characterized by craniofacial malformations, physical and mental retardation, cardiac septal defects and minor joint abnormalities (1). FASD is a significant clinical challenge and is also an important social problem. Although progress has been made toward delineating the mechanisms that contribute to alcohol-induced birth defects, significant questions remain. For instance, how does alcohol preferentially induce a spectrum of reproducible defects in developing embryo and why are these defects limited to specific organs?

Sonic hedgehog (Shh), an embryonic morphogen that initiates an evolutionarily conserved signal transduction pathway, plays a central role in regulating cell proliferation, differentiation, and morphological patterning during embryogenesis (2, 3). This signaling pathway also helps maintain adult stem cells, and, on occasion, plays an important role in the initiation of tumorigenesis. We recently determined that alcohol inhibits post-translational cholesterol modification of Shh and simultaneously disrupts hedgehog-related cell differentiation, organogenesis, and morphological patterning.

In vertebrates, extracellular lipid-modified Shh glycoproteins alleviate Patched (Ptc)-mediated inhibition of the signal transducer Smoothened by binding to Ptc receptors (4). Smoothened signaling results in the decoupling of the negative regulator Suppressor of Fused (Su(fu)) from Gli transcription factors (5) . These Gli transcription factors can then be translocated to the nucleus, where they induce increased expression of several genes, including ptc (6), nkx2.2 (7), and pax6 (8); Gli transcription factors also repress the expression of several genes, including SFRP-1,SFRP-2, Mip1-γ and Amh (9).

Proteolytic cleavage and cholesterol modification of the 45 kDa Shh precursor protein, which is mediated by the carboxyl-terminal domain of the precursor itself, result in a cholesterol modified N-terminal peptide that serves as the mature Shh ligand (10). The tightly regulated post-translational cholesterol modification of Shh is required for efficient Shh signal transduction, which plays a critical role in normal embryonic development (11).

Lipid modifications of Shh are critical to its transport, and play key roles in establishing Shh concentration gradients in developing embryos. In addition to being modified by cholesterol, the 20 kDa N-terminal peptide is modified by a covalent linkage of a fatty acid (12 , 13). These modified Shh signaling peptides form large multimers, which are packaged into micelles for long-range transport (14) . Recent work has demonstrated that the activity and function of Shh largely depends on the fatty acid and sterol modification of the ligand (15). Since Shh plays roles in many facets of embryogenesis, the profound effect that sterol modification has on Shh activity may explain some of the teratogenic effects caused by perturbed cholesterol biosynthesis (16). For example, mutations in genes that encode enzymes involved in cholesterol biosynthesis, as is seen in patients having Smith-Lemli-Opitz Syndrome (17, 18), and inhibitors of cholesterol biosynthesis, whether consumed by range sheep that eat native plants containing natural inhibitors or applied to early embryos in a laboratory setting, produce a spectrum of phenotypes similar to those found in embryos harboring mutations in genes that encode components of the Hh signal transduction pathway (19). Similar congenital defects also occur in fetuses carried by women who drink alcohol during pregnancy.

Caveolin is a cholesterol-binding protein which can be sequestered in caveolae — small (50–100 nanometer) invaginations in the plasma membranes of many vertebrate cell types that are characterized by a coalescence of lipid rafts. Caveolin appears to play important roles in both signal transduction and in cholesterol transport. Intriguingly, these two functions may be interrelated. Caveolin, which is an important regulator of cholesterol trafficking, is required for the transport of newly synthesized cholesterol from the (ER) to the plasma membrane; therefore, increased Caveolin expression causes an increased efflux of cholesterol to the plasma membrane (20, 21). Roy and his co-workers (22) have identified a dominant-negative mutant form of Caveolin that causes cholesterol to accumulate in cytoplasmic vesicles, resulting in decreased cholesterol content in plasma membranes. Caveolin can also modulate the activity of signal transduction pathways. Excessive levels of Caveolin-1 inhibit the mitogen-activated protein kinase signaling pathway, and reduced levels of Caveolin-1 activity has the opposite effect (23, 24). It has also been shown that Caveolin can affect signal transduction by directly binding signaling receptors such as Ptc (25).

We have recently shown that exposure of zebrafish embryos to low levels of alcohol during gastrulation blocks covalent cholesterol modification of Shh, leading to impaired hedgehog signal transduction and resulting in a dose-dependent spectrum of permanent developmental defects that closely resemble the spectrum of defects observed in patients having FASD (26). One key observation is that alcohol exposure leads to decreased Shh in the plasma membrane. In this study, we have focused on determining the biochemical and cellular mechanisms that lead to lower levels of mature Shh ligand in the plasma membrane after alcohol exposure. Tissue growth and differentiation is rapid during embryogenesis and the expression of Shh is tempo-spatially regulated, therefore, it is a relatively difficult to study Shh intracellular trafficking in embryos. However, the rat hepatic stellate cell line, HSC8B (27), expresses high levels of Shh ligands that can be easily detected by Western blot analysis, immunostaining or ELISA assay. These features make this cell line an ideal in vitro model for studying the intracellular transportation of Shh. Using this cell line, we have determined that Shh interacts with Caveolin-1 to form a protein complex that associates with lipid rafts. Alcohol exposure disrupts the intracellular transport of Shh from the Golgi apparatus to plasma membranes and leads to decreased Shh/Caveolin-1 located in lipid raft domains. These findings help elucidate the mechanisms responsible for intracellular transport of Shh and provide further insights into the molecular mechanisms underlying alcohol-induced congenital disorders.

Materials and methods

Preparation of Lipid raft cells and Western Blot analysis

Cell membranes and lipid rafts were isolated as previously described with slight modifications (13, 25, 28). Briefly, rat hepatic cell pellets were washed three times with ice cold PBS. Cells from a 60-mm dish were lysed and collected in 1.5 mL of lysis solution (10mM NaHPO4 at pH 6.5, 150 mM NaCl, 0.5 mM PMSF, 1% Triton X-100, 2 μg/mL Pepstatin A, 10 μg/mL leupeptin, 5 μg/mL aprotinin) at 4°C, and homogenized in a Dounce homogenizer, followed by centrifugation at 1,000 X g for 10 minutes. The supernatant were collected and adjusted to 1.4 M sucrose, then gently overlaid on top of equal volumes of 1.0 M sucrose, 0.5 M sucrose, or 0.1 M sucrose in TNE buffer and then centrifuged at 4° C for 18 h at 25,000 rpm in an SW55Ti rotor (Beckman Coulter). Sucrose gradient fractions (500 μl) were collected and each fraction was added to an equal volume of prechilled 2% Triton X-114; this solution was allowed to stand on ice for 30 min. We loaded each fraction into a polyacrylamide gel to resolve the proteins by electrophoresis; the resolved proteins were transferred from the gel to nitrocellulose membranes for Western blot detection of Shh by anti-Shh (sc-1194, Santa Cruz) and anti-Caveolin-1 antibodies (sc-894, Santa Cruz). Calnexin ER membrane markers (ab13504) and 58 K Golgi markers (ab27043) were purchased from Abcam Inc. (Cambridge, MA). Secondary anti-goat antibody was purchased from Santa Cruz and anti-mouse and anti-rabbit antibodies were purchased from Jackson ImmunoResearch. We detected signals using an ECL™ kit (Amersham) & West Pico Kit (Pierce Biotech).

Immunoprecipitation assays

Immunoprecipitations were performed using the One-Step Complete IP-Western Kit (GenScript). Equal amounts of each hepatic cell lysate were loaded onto a SDS-PAGE gel to allow determination of protein expression levels by Western blot analysis. The lysates were precleared using protein A/G PLUS-Agarose beads (Santa Cruz). Beads were removed by centrifugation at 3,000 x g for 5 min. The precleared lysates were incubated with the appropriate antibody, either anti-Shh antibody (SC-1194, Santa Cruz, CA), or anti-Caveolin-1 antibody (sc-894, Santa Cruz, CA), for 1 h before adding the protein A/G beads, followed by overnight incubation with rotation at 4°C. The next day, beads were washed three times with PBS, and the protein was eluted with 2x loading buffer. The immunoprecipitates were then subjected to 4–20% gradient SDS-PAGE (Bio-Rad, Hercules, CA) and subsequently transferred to nitrocellulose membranes. After the transfer, the membranes were pretreated and rinsed with pre-blocking buffer provided in the kit. Meanwhile, the solution was prepared and incubated with appropriate primary antibodies at 1:1000 dilutions [Antibodies for Shh and Caveolin-1 are described above, anti-Patched (G-19) (sc-6149, Santa Cruz, CA)]; protein A&G blocker was added to the solution to prevent leaked protein from the A/G beads. The membrane was then washed three times with Tris-HCl-buffered saline (10mM Tris-HCl, pH 7.2, 150mM NaCl, and 0.1% Tween 20), and then incubated with secondary antibody for 1h at room temperature. Secondary antibody anti-goat (sc-2033) was purchased from Santa Cruz. Anti-mouse (NA931V) and anti-rabbit (NA934V) were purchased from Jackson ImmunoResearch (West Grove, PA). The signal was detected using the West Pico Kit (Pierce Biotech, Rockford, IL) or the detection reagents provided in the One-Step Complete IP-Western Kit.

Immunohistochemistry

Briefly, HSC8B cells cultured in the 8-well Lab-Tek™ Chambered Coverglass system (Nunc, Rochester, NY) were washed three times with PBS and then fixed with 4% formaldehyde for 20 min, followed by incubation in 0.1%Triton X-100 for 5 minutes; cells were blocked in 10% fetal bovine serum and 10% donkey serum for one hour, then incubated with anti-Shh (sc-1194, Santa Cruz) and anti-Caveolin-1 (sc-53564, FITC, Santa Cruz), or anti-LAMP1 rabbit polyclonal antibody (Lysosome Marker, ab24170, Abcam) at 1:200 dilutions for 2 hours at room temperature. Cells were washed three times with PBS, and incubated with either Alexa Fluor594 conjugated anti-goat antibody (A11079, Invitrogen) or Alexa Fluor488 conjugated anti-mouse antibody (A21200, Invitrogen) for 45 minutes. For ER and Golgi staining, the cells were fixed in methanol free paraformaldehyde. The ER staining was performed using the SelecFX Alexa Fluor 488 Endoplasmic Reticulum Labeling Assay Kit (S34200, Invitrogen, CA). Golgi organelles were stained with an appropriate antibody (ab27043, Abcam) at a 1:200 dilution. After incubation with the secondary antibodies, the cells were washed five times with PBS, and Z-stack images were collected by Zeiss LSM 5LIVE confocal microscopy.

Concentrating Proteins from culture medium and Elisa assay

HSC8B cells were cultured in DMEM medium with 10% FBS. When cells reached 75% confluence, the culture medium was replaced with fresh DMEM containing 1% FBS and various concentrations of alcohol and the cells were incubated for an additional 3 hours. After alcohol treatment, the cells were incubated in alcohol-free DMEM medium containing 1% FBS for an additional 16 hrs to allow Shh protein to be secreted into medium. The collected media were first filtered through Millipore Centricon plus-100 to remove proteins having molecular weights higher than 100 kD, then concentrated using Centricon plus-10, enriching for proteins with molecular weights ranging from 10 to 100 kD. The enriched protein was used for Western blot analysis (sc-1194, Santa Cruz) and Elisa assay analysis (Mouse Sonic Hedgehog ELISA development Kit, DY461, R&D System, Inc.).

Cell apoptotic activity

Cell apoptosis was assayed using the Apo-ONE Homogeneous Caspase 3/7 Apoptosis Assay kit (G7791, Promega, Madison, WI) according to the manufacturer’s instructions (29).

Results

Caveolin-1 binds with Shh to form a protein complex

We have determined that alcohol exposure results in defective Shh-cholesterol modification and impairs association of Shh with the plasma membrane, suggesting that alcohol causes a defect in the intracellular transport of this ligand (26). As a first step toward determining the mechanisms underlying Shh intracellular trafficking, we extracted proteins from HSC8B cells with non-ionic detergent and used density gradient ultracentrifugation to fractionate the protein extract and isolate proteins from different cellular compartments (13). After ultracentrifugation, we collected 17 individual gradient fractions (each fraction contained 500 μL), from the lowest density (at the top of the centrifuge tube) to the highest (at the bottom of the tube). The distribution of lipid raft proteins was primarily confined to fractions 4 through 11, as indicated by the presence of the lipid raft-associated protein Caveolin-1 (Fig. 1A, bottom panel). In addition, we found that the distribution of Shh was confined to fractions 6 through 17; Shh co-localized with Caveolin-1 in fractions 6 through 11 (Fig. 1A, top panel).

Figure 1.

A. Shh protein co-distributes with Caveolin-1 in lipid raft fractions. Hepatic stellate cells were lysed in 1% Triton X-100 and subjected to raft isolation by sucrose density gradient ultracentrifugation. Fractions were analyzed by Western blotting for Shh (top panel) and Caveolin-1 (bottom panel). B, C. Shh and Caveolin-1 reciprocally co-precipitate suggesting close physical interaction. Total cell lysates and corresponding immunoprecipitates from beads loaded with control IgG and caveolin-1 antibodies (B) or control IgG and Shh antibodies (C) were analyzed by western blot for caveolin-1 and Shh as indicated.

Physical co-localization of Shh and Caveolin-1 in the gradient fractions suggests that these two proteins have some similar physical characteristics or that they functionally interact. Since Caveolin-1 plays an important role in protein and cholesterol transport and cholesterol modification is crucial for Shh trafficking, one intriguing possibility is that Cav-1 and Shh forms a protein complex that is involved in intracellular trafficking of Shh. In order to test this possibility, we performed a series of immunoprecipitation assays on whole cell lysates isolated from the cell line HSC8B. We used an anti-Caveolin-1 antibody to pull down proteins from the lysates, then performed Western blots analyses using anti-Caveolin-1 and anti-Shh antibodies. We confirmed that loading was approximately equal in each lane using the anti-Caveolin-1 antibody (Fig. 1B, top panel). As expected, the anti-Caveolin-1 antibody precipitated the 22 kDa Caveolin-1 protein (Fig. 1B, middle panel, lane 2). Furthermore, it precipitated the mature 20 kDa Shh ligand (Fig. 1B, bottom panel, lane 2), indicating that Caveolin-1 physically associates with Shh in a protein complex (possible not directly). The negative control IgG antibody was unable to precipitate either Caveolin-1 or Shh (Fig. 1B, lane 1, middle and bottom panel). Moreover, we confirmed the interaction between Cav-1 and Shh using an anti-Shh antibody for immunoprecipitation assay to pull down its counterpart, Cav-1. The conditions used in this experiment paralleled those used in the previous immunoprecipitation assay; in this case, equal protein loading was confirmed using the anti-Shh antibody (Fig. 1C, top panel). We found that the anti-Shh antibody immunoprecipitates both Shh (Fig. 1C, middle panel) and Caveolin-1 (Fig. 1 C, bottom panel) from HSC8B cell lysates. Since anti-Shh antibodies and anti-Caveolin-1 antibodies independently co-precipitate Caveolin-1 and Shh from HSC8B cell lysates, it is likely that Caveolin-1 and Shh both exist in a same protein complex in this cell line.

Alcohol specifically decreases the formation of the Caveolin-1/Shh complex in lipid rafts

The observation that Shh and Caveolin-1 exist in a same protein complex raises an interesting question regarding our previous work. We showed that alcohol exposure does not affect total Shh levels, but rather results in defective Hh signal transduction by causing a dose-dependent decrease in the concentration of cholesterol-modified, mature Shh ligand at the cell plasma membrane (26). To determine whether this decrease in plasma membrane-associated Shh ligand is specifically linked to the interaction between Caveolin-1 and Shh, we investigated the effect of alcohol exposure on the interaction of Caveolin-1/Shh in lipid rafts and in whole cell lysates. As described in Figure 1, cellular proteins isolated by non-ionic, detergent resistant extraction were fractionated by density gradient ultracentrifugation (13). Lipid raft associated proteins were present in fractions 4 through 11, as indicated by the presence of Caveolin-1 (Fig. 1A, middle panel and Fig. 4A, second panel); we specifically performed co-immunoprecipitation assays on fractions containing lipid raft associated proteins (fractions 7-9) using an anti-Caveolin-1 antibody. HSC8B cells were exposed to various concentrations of alcohol (0, 0.2, 0.4, 0.6, and 0.8% w/v corresponding to 0, 43, 87, 130 and 174 mM) for two hours prior to protein extraction and density gradient ultracentrifugation. Fractions 7 through 9 from the density gradient were pooled and used in the immunoprecipitation assays. Prior to performing the assays, equivalent protein loading by Western blot analysis was confirmed using an anti-Caveolin-1 antibody (Fig. 2A, 2B). Anti-Caveolin-1 antibody was used to immunoprecipite proteins from lipid raft (Fig. 2A, C, E and G) or whole cell lysate preparations (Fig. 2B, D, F and H); and the immnunoprecipitates were probed with both the anti-Caveolin-1 (Fig. 2C, D), anti-Shh antibodies (Fig. 2E, F) and anti-Ptc antibody (Fig. 2G, H). The amount of Caveolin-1 protein in the lipid raft and whole cell lysate preparations were not significantly affected by alcohol exposure (Fig. 2C, D); however, alcohol exposure decreased the amount of Caveolin-1-associated Shh in lipid raft fractions (Fig. 2E), but not in whole cell lysate preparations, in a dose-depended manner (Fig. 2F). Meanwhile, the amount of Ptc that was pulled down by anti-Caveolin-1 antibody was not affected by alcohol exposure, either in lipid raft fraction (Fig. 2G) or in whole cell lysate (Fig. 2H), suggesting that alcohol treatments do not increase the endocytosis of Ptc/Shh/Cav-1 complex.

Figure 4.

Alcohol disturbs Shh co-localization with Caveolin-1 in lipid rafts and causes Shh to co-localize with markers for the Golgi and ER organelles. HSC8B cells were or were not treated 0.6% alcohol for 2 hours prior to lipid raft preparation. Raft fractions from control (A) or ethanol-treated (B) cells were analyzed for Shh, Caveolin-1, a 58 Kd Golgi protein or the ER marker, calnexin, as indicated. Alcohol treatment causes loss of Shh from lipid raft fractions 7-11 and movement to denser fractions containing Golgi and ER markers.

Figure 2.

Alcohol exposure decreases Caveolin-1/Shh complex levels in lipid raft fractions, but not in whole cell lysates. Triton lipid rafts and total extracts were prepared from HSC8B cells treated with various alcohol concentrations (w/v: 0%, 0.2%, 0.4%, 0.6% and 0.8%) for 2 hours. Combined raft fractions (left) and total extracts (right) from cells at each alcohol concentration were directly probed for caveolin-1 (A and B) or subjected to immunoprecipitation with anti-caveolin antibody beads prior to western blot analysis for caveolin-1 (C and D), Shh (E and F) and Ptc (G and H). All experiments were repeated three times.

We also used immunohistochemistry to evaluate the effect of alcohol on Caveolin-1/Shh complex formation. Double-staining HSC8B cells with the anti-Caveolin-1 antibodies (Fig. 3A, green) and anti-Shh antibodies (Fig. 3B, red) revealed a punctate, salt-and-pepper, co-localized distribution of Shh and Caveolin-1 in the cytoplasm, particularly approximate to the plasma membranes (Fig. 3C, yellow as indicated by arrows). Exposure of the cells to 0.4% (w/v) (Fig. 3 D-F) or 0.8% (w/v) (Fig. 3 G-I) alcohol for thirty minutes did not cause a noticeable change in either the total amount of Caveolin-1 (Fig. 3D and 3 G, green) or of Shh (Fig. 3E and 3H, red). In contrast, the amount of punctate co-localized particles dramatically decreased in an alcohol dose related manner, nearly disappearing from the cell plasma membranes at high alcohol concentrations (Fig. 3F and 3I, yellow). Both biochemical and immunohistochemical analyses indicated that Caveolin-1 and Shh form a protein complex, and that this complex enriches in lipid raft domains at the plasma membrane. Alcohol exposure disrupts the trafficking of the Caveolin-1/Shh complex to plasma membranes, particularly into the lipid raft structures. These observations suggest that alcohol exposure causes a defect in the transport of the Shh ligand, resulting in decreased levels of secreted ligand.

Figure 3.

Immunohistochemistry revealed co-localization of Caveolin-1 and Shh. In untreated hepatic stellate cells, Caveolin-1 (A, green) and Shh (B, red) co-localized in the cytoplasm, and particularly in the cell plasma membrane (C, yellow, indicated by arrows). When cells were exposed to 0.6% (w/v) alcohol for 30 minutes, Shh levels were not affected; however, the punctate structures and amount of Shh co-localizing with Caveolin-1 at the plasma membrane dramatically decreased.

Alcohol exposure causes defective transport of Shh from the Golgi compartment into transport vesicles and leads to Shh accumulation in the cytoplasm

In order to begin delineating the detailed molecular mechanisms that underlie the deleterious effect of alcohol on Shh transport in ligand-producing cells, we first compared the distribution of Shh among fractions generated by density gradient ultracentrifugation to the distribution of lipid rafts (Caveolin-1), Golgi and ER compartment markers in the same fractions. In protein extracts isolated from cells not exposed to alcohol, Western blot analyses indicated that Shh was broadly distributed in fractions 7 through 17 (Fig. 4A, top panel); in these extracts, lipid raft associated proteins were distributed in fractions 4 through 11, as indicated by the presence of Caveolin-1 (Fig. 4A, second panel). Golgi-associated proteins were present in fractions 12 through 17 (Fig. 4A, third panel); and endoplasmic reticulum-associated proteins were located in fractions of 6 through 9 and 16 and 17 (Fig. 4A, bottom panel), as demonstrated by the presence of specific Golgi/ER markers. In protein extracts isolated from HSC8B cells that were exposed to 0.6% alcohol (w/v, 130 mM) for 2 hours, the density gradient distribution of Shh was restricted to fractions 12 through 17 (Fig. 4B, top panel). These fractions contain proteins associated with the Golgi and rough ER (Fig. 4B, third panel), indicating that alcohol exposure shifts Shh distribution away from the compartments that contain lipid rafts (Fig. 4B, middle panel) and smooth ER compartments (Fig. 4B, bottom panel).

To further elucidate the defects that alcohol exposure causes, we used confocal microscopy to examine cells stained with anti-Shh antibodies and antibodies generated against either Golgi or ER compartment markers. In untreated cells (A0, Fig. 5 top panel), the ER marker (identified using an anti-PID antibody) (Fig. 5A, left column, green) and Shh (Fig. 5A, middle column, red) co-localized in the cytoplasm in large punctate structures (Fig. 5A, right column, yellow); however, when HSC8B cells were exposed to 0.4% and 0.8% (w/v) alcohol for one hour or two hours (Fig. 5, 2^nd-5^th panel), although the ER marker and Shh levels and their co-localization were unaffected, rather than many large punctate structures (transport vesicles) (30), we observed a diffuse, homogeneous distribution pattern for Shh. Using the same experimental conditions, we determined whether the Golgi marker (Fig. 5B, left column, green) and Shh (Fig. 5B, middle column, red) co-localized by overlaying the corresponding images (Fig. 5B, right column, yellow) and found that alcohol treatment did not significantly alter Shh distribution in the Golgi apparatus. Hence, the observation that Shh is distributed in a diffuse and homogenous manner indicates that the primary defect in Shh transport caused by alcohol exposure occurs during trafficking from the Golgi to cell plasma membrane. In order to rule out that the accumulation of Shh in cytoplasm is not due to increased endocytosis of the Ptc/Shh complex, we performed immunohistochemistry analysis using an anti-Shh antibody and a lysosome marker. Alcohol exposure slightly increased the amount of lysosome marker detected, but cytoplasmic Shh was distributed in a homogenous pattern in which most Shh protein was not located in lysosomal structures (data not show).

Figure 5.

Alcohol exposure causes defective transport of Shh from the Golgi apparatus to plasma membrane and leads to Shh accumulation in the cytoplasm. Cells were prepared for immunohistochemical analysis by co-staining with A: ER marker (green) and Shh (red); or B: Golgi apparatus marker (green) and Shh (red). In untreated cells (A0, top panel), some of Shh proteins were located in ER and Golgi apparatus indicated by their co-localizations (yellow) of Shh and ER/Golgi markers, however, a lot of Shh proteins forms as a large punctate structures outside of Golgi apparatus in cytoplasm. When HSC8B cells were exposed to 0.4% and 0.8% (w/v) alcohol for one hour or two hours (2^nd-5^th panel), although the amount of Shh (A, B, middle column, red) and its localization in ER and its entry into Golgi apparatus were unaffected (A, B, right column, yellow), rather than many large punctate structures (transport vesicles), it revealed a diffuse, homogeneous distribution pattern for Shh that is accumulated in cytoplasm. Scale bar = 50 nm.

Previously, we demonstrated that alcohol exposure inhibits the post-translational modification of Shh by cholesterol, decreases the amount of the mature Shh ligand associated with the cell membrane, and leads to a spectrum of defects in our zebrafish model that are similar to the defects observed in patients having Fetal Alcohol Syndrome (26). In this study, we have determined that alcohol exposure leads to defective intracellular transport of the Shh ligand. This is accomplished by inhibiting the ability of the Caveolin-1/Shh complexes entering into transport vesicles (large punctate structures), thus preventing transport from the trans-end of Golgi into the plasma membrane in lipid raft domains.

Alcohol exposure disrupts Shh secretion

Alcohol exposure inhibits Shh in the Golgi from entering transport vesicles and therefore prevents the formation of Shh/Caveolin-1 protein complexes in lipid raft domains, leading to defective transport of the ligand to the plasma membrane and resulting in Shh accumulation in cytoplasm. We deduced that defective intracellular transport of Shh can lead to decreased secretion of the Shh ligand into the extracellular matrix. To confirm this hypothesis, we focused on the effect of alcohol exposure on Shh accumulation in the medium of a cultured HSC8B cells. We analyzed proteins collected from the HSC8B culture medium for Shh ligand content using two independent methods: Western blot analysis and Elisa assay. When cell density in culture dishes reached 75% confluence, the cells were exposed to different concentrations of alcohol (0, 0.2, 0.4, 0.6 and 0.8% w/v corresponding to 0, 43, 87, 130 and 174 mM), for 3 hours in fresh DMEM medium containing 1% FBS. The cells were then incubated in alcohol-free DMEM medium containing 1% FBS for an additional 16 hrs to allow Shh secretion. The collected media were filtered through Millipore Centricon plus-100 to remove proteins having molecular weights higher than 100 kD, and were then enriched, using the Centricon plus-10 filtration system, for proteins having molecular weights ranging from 10 to 100 kD. As shown in Fig 6A, Western blot analysis of these proteins indicated that alcohol inhibits Shh secretion in a dose-dependent manner; Elisa assays indicated similar results. In detail, exposure of HSC8B cells to 0.2%, 0.4%, 0.6% and 0.8% (43, 87, 130 and 174 mM) alcohol concentrations corresponded to 1.1, 1.7, 2.9 and and 5.3 fold decreases in Shh secretion (Fig.6B). Western blot and Elisa experiments were performed in triplicate. To determine whether reduced Shh secretion might be due to cell death, cells were treated with different concentrations of alcohol (0.2%-1.6%) for one and four hours then assayed for Caspase 3/7 apoptotic activity measurements. No significant differences were observed between the treated and untreated groups when alcohol concentrations were under 0.8% (w/v), but at alcohol concentrations above 1.6% (w/v) four hour treatments caused a small increase in cell apoptotic activity (Fig.6C).

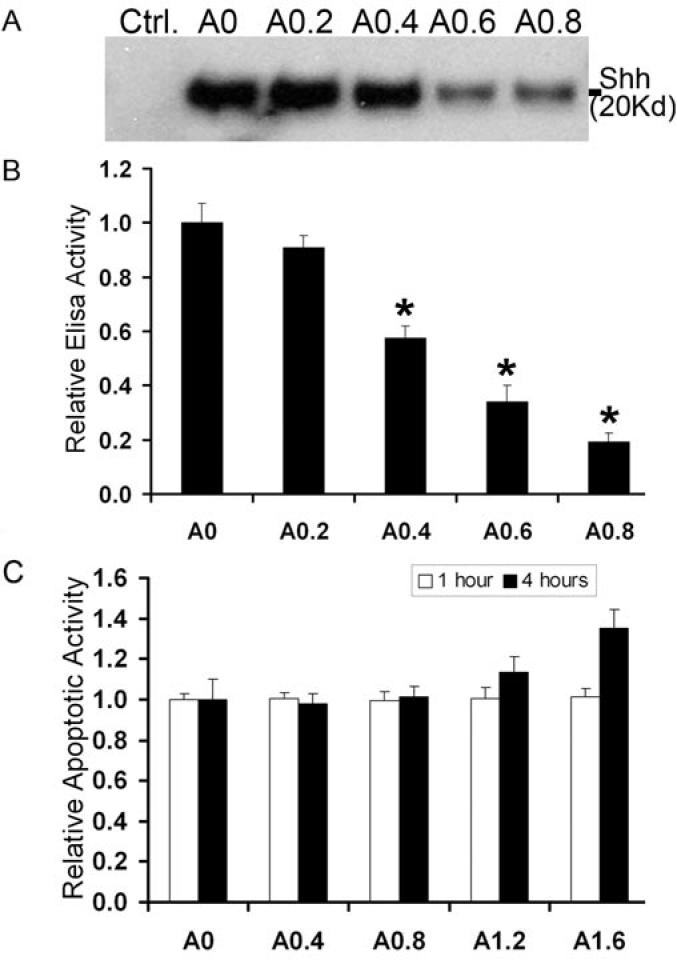

Figure 6.

Alcohol exposure disrupts Shh secretion in a dose-dependent manner. Cultured HSC8B cells were exposed to various alcohol concentrations (0, 0.2%, 0.4%, 0.6% and 0.8% w/v) for 3 hours, after which media was collected and concentrated for analysis of Shh levels by Western blot (A, medium alone severs as empty control) and Elisa assays (B). C. Cell apoptotic activities have been measured by Caspase 3/7 Apoptosis Assay under different concentrations of alcohol exposure for 1 and 4 hours. All of the experiments were repeated three times. Bars represent mean +/- s.e.m. *p<0.05.

Our results indicate that alcohol inhibition of the hedgehog signal transduction pathway is mediated through inhibition of the cholesterol-modification of Shh, hindering Shh binding to Caveolin-1 and preventing entry of Shh into transport vesicles from the trans-end of the Golgi apparatus. This results in an accumulation of Shh in cytoplasm. Therefore, less Shh reaches the plasma membrane, leading to a deficiency of ligand secretion into the extracellular matrix.

Discussion

Recently, we observed that physiological amounts of alcohol cause defects in cellular differentiation and organogenesis in a zebrafish model of FASD. The affected tissues and organs in FASD and in our zebrafish model are all targets of Hedgehog signaling regulation during development. Transient loss of Hh signal transduction during specific developmental stages can result in permanent morphological abnormalities in these organs. Alcohol exposure results in defective post-translational cholesterol modification of Shh, leading to a decreased association of mature Shh ligand with the plasma membrane (26). In this study, we further illuminate the effects of alcohol on the mechanisms that mediate Shh ligand intracellular transport and secretion. First, we have determined that Caveolin-1 physically interacts with the Shh ligand to form a protein complex. Second, we have determined that alcohol exposure does not significantly disrupt Shh mRNA translated into Shh protein in the ER or the trafficking of Shh from the ER to the Golgi apparatus, and that alcohol exposure specifically causes a decrease in the amount of the Caveolin-1/Shh complex found in lipid rafts. Third, alcohol treatment prevents the entry of Shh into vesicles that mediate transport from the Golgi to the plasma membrane, causing Shh to accumulate in the cytoplasm Anderson leading to a deficiency of Shh secretion into the extracellular matrix (Fig. 7).

Figure 7.

A model for Shh intercellular trafficking. Shh mRNA is translated in rough endoplasmic reticulum and transported into Golgi apparatus. The maturation of Shh precursor is taken place in Golgi apparatus by proteolysis and lipid modifications. Cholesterol modified Shh interacts with Caveolin-1 and be packed as transport vesicles budding out from the trans-end of Golgi apparatus. These transport vesicles deliver mature Shh ligand into the lipid raft domain on the plasma membrane for secretion. Alcohol exposure does not significantly inhibit Shh mRNA translation in rough endoplasmic reticulum and its trafficking form ER to Golgi, but specifically interrupts Shh entering the transport vesicle from the Golgi, causing Shh accumulation in cytoplasm that leads to decreased secretion into the cellular matrix.

During embryogenesis, forget ventral endoderm cells that express high levels of Shh prior to mouse embryonic day 8.5 (31) will ultimately be involved in liver development; ventral endoderm cells that do not express Shh are specified to pancreatic lineages (32, 33). During the developmental window starting at embryonic day 12 and lasting until day 16, hepatoblasts proliferate rapidly and differentiate into hepatocytes and cholangiocytes. Simultaneously, the expression levels of Shh and Ptc in these cells gradually decrease until they are undetectable on day 16. In the adult liver, Shh and other components of the Hh signaling pathway are found at levels that are barely detectable by immunostaining. However, using RT-PCR, expression of the genes that encode these proteins can be detected in purified stellate cells, immature cholangiocytes and hepatic progenitor cells. Recently, we found that Shh and Hh signaling is involved in the molecular pathology of liver disease in animal model systems. Sonic hedgehog is an autocrine viability factor for myofibroblastic hepatic stellate cells (27). Activation of hepatic stellate cells correlates with increased expression of Shh and Hh pathway components, and decreased expression of the Hh inhibitor, Hip. Increased Shh expression is induced by platelet derived growth factor (PDGF) and is mediated through AKT. Factors, such as PDGF, that are released during liver injury promote the accumulation of myofibroblastic hepatic stellate cells, which can lead to cirrhosis of the liver (34). Hedgehog mediates mesenchymal-epithelial interactions that modulate hepatic responses to bile duct ligation (35). Hedgehog signaling also regulates epithelial-mesenchymal transitions during biliary fibrosis in rodents and humans (36). Following biliary duct injury, the activation of the Hh signaling pathway during cholestasis regulates ductular cell accumulation (37). Human hepatocarcinogenesis can involve defective regulation of the Hh signaling pathway (38). The maintenance of resident hepatic progenitors requires Hedgehog signaling (39). The accumulation of hedgehog-responsive hepatic progenitor cells parallels the severity of alcoholic liver disease in mice and in humans.

The most common alcoholic liver diseases include fatty liver or steatosis, which can ultimately progress to cirrhosis. Most animals that chronically consume alcohol are more susceptible to steatosis than to fibrosis. Our finding of alcohol interrupts Shh transportation and secretion will help dissect out the Hh signaling defect in Fetal Alcohol Syndrome. Furthermore, our study may provide insights into the pathological processes that lead to alcoholic liver diseases.

The Hh ligand is a morphogen which has a significant impact on embryonic development in species ranging from Drosophila melanogaster to Homo sapiens. Morphogens are factors that guide morphogenesis of a developmental field in a concentration dependent manner. Cells in a single development field can differentiate into a variety of cell lineages depending on their positions in the field and the gradient concentration of the morphogen (40). Therefore, the intercellular transport and intracellular trafficking of Hh ligands has attracted a significant amount of attention from developmental biologists. For instance, it has been determined that release of the Hh ligand from the plasma membrane requires the Dispatched (Disp) protein. Disp is a transmembrane protein, having a sterol sensitive domain (SSD) that is required for release of the cholesterol-anchored Hh ligand. A glycosyl-phosphatidynositol (GPI) moiety can replace cholesterol in effectively tethering Shh to the surface of expressing cells; however, Shh-GPI cannot be liberated from the cell membrane, indicating that cholesterol is an essential determinant of the Disp-dependent release mechanism of Hh ligand tethered to the cell membrane (41)

Several proteins in tissues that respond to Hh signaling affect the range and distribution of Hh after it is released from secreting cells. These proteins include those in the Heparan Sulfate Proteoglycans (HSPGs) protein family, which include those proteins encoded by dally and dally-like (dlp) (42, 43). HSPGs contribute to Hh transport and are essential for establishing the Hh concentration gradient in a developmental field during embryogenesis (44, 45). More importantly, the cholesterol modification of Hh affects the spread of Hh within tissues. Gallet et al found that cholesterol is required for long-range signaling (46), however, Callejo et al have reported that the absence of cholesterol modification results in widespread activation of two Hh targets (47). Determining the cause of these seemingly contradictory observations will require further study; however, it is clear that the cholesterol modification of Shh plays an important role in the intercellular transportation. We have now found that even prior to secretion into the extracellular matrix, cholesterol modification plays an important role in the intracellular transportation of Shh, particularly from the trans-end of the Golgi apparatus to the plasma membrane. We have identified a key step in the intracellular transport of Shh is formation of a protein complex with Caveolin-1, which we have shown requires for the destination of Shh located in lipid raft of plasma membrane. To our knowledge, we are the first to report that Caveolin-1 is involved in the intracellular transport of the Shh.

The cells of Caveolin-1 null mutant mice lack caveolae organelles. Surprisingly, these mice are viable and fertile (48, 49). In striking contrast, zebrafish lacking Caveolin-1 display significant developmental abnormalities and do not survive embryogenesis (50). Targeted depletion of Cav-1, using antisense morpholino oligomers, results in a substantial loss of caveolae and dramatic neural, eye, and somite defects in zebrafish. Interestingly, these phenotypes are very similar to the phenotypes caused by defective Shh signaling and developmental malformations induced by alcohol exposure. The variation in the severity of the phenotypes caused by careolin-1 deficiency in mammals and zebrafish can be explained by differences in the proteomes of fish and mammals. Mammalian genomes contain three genes that each encodes a different caveolin isoform: Caveolin-1, Caveolin-2 and Caveolin-3. Most likely, null mutants for any one of these isoforms do not display severe phenotypes because the functions of the deleted isoform can be compensated for by the other isoforms. Zebrafish genomes express only a single caveolin isoform, homologous to mammalian Cav-1. While alternate mechanisms for Shh intracellular transport may exist in species other than zebrafish, the existing evidence indicates that the key components of Shh transport are highly conserved during evolution. Dispatched, a protein involved in the release of the Hh ligand from the membrane, is highly evolutionarily conserved in species that range from Drosophila melanogaster to Homo sapiens. Shh sequences are highly conserved between species, particularly the amino acid sequences (SGGCF) required for cholesterol modification of the protein, which are identical in zebrafish, mouse and human. Finally, cholesterol modification of the Shh ligand is necessary, not only to activate the ligand, but also for Shh transportation and gradient establishment.

It had been reported that the Hh receptor Ptc is associated with Caveolin-1 in cholesterol-rich lipid raft microdomians of the plasma membrane, which may be related to the sequestration of Hh signaling (25). One way cells reduce the level of Shh signaling is by internalizing the Shh/Ptc complex via endocytosis, followed by proteolysis of the ligand. Here, we report that the Shh ligand also forms a protein complex with Caveolin-1. This complex is required for Shh intracellular trafficking and for enriching cell membrane lipid raft domains with Shh. Our findings indicate that Hh ligand intracellular trafficking and secretion is probably one of the primary functions of Caveolin-1. This observation is also in agreement with results from a previous report that showed that the sterol-linked Hedgehog N-terminal fragment associates specifically with membrane lipid rafts in Drosophila, suggesting that sterol modification is a novel mechanism for targeting proteins to raft membranes and that polarized intracellular transport of Hedgehog requires lipid raft association (28). Indeed, this mechanism has been confirmed using a bio-engineered green fluorescent protein (GFP)/Hedgehog C-terminal fragment fusion protein; this hedgehog C-terminal fragment leads to a hedgehog-like, auto-processing reaction and produces a cholesterol modification of GFP, which results in high affinity of the modified GFP with plasma membranes (51).

In summary, we have shown that under normal circumstances, the mature Shh ligand binds to Caveolin-1, forming a protein complex in the Golgi apparatus, and enters the transport vesicles for delivery in lipid raft domains to the plasma membrane. Furthermore, alcohol exposure decreases the formation of Shh/Caveolin-1 complexes in lipid rafts, consequently leading to the accumulation of Shh in cytoplasm and deficient secretion into the extracellular matrix.
