Structural Characterization and Comparative Phylogenetic Analysis of Escherichia coli HemK, a Protein (N5)-glutamine Methyltransferase

Abstract

Protein glutamine methylation at GGQ sites of protein chain release factors plays a pivotal role in the termination of translation. We report here the crystal structure of the Escherichia coli HemK protein (N5)-glutamine methyltransferase (MTase) in a binary complex with the methyl-donor product S-adenosyl-l-homocysteine (AdoHcy). HemK contains two domains: a putative substrate binding domain at the N terminus consisting of a five helix bundle and a seven-stranded catalytic domain at the C terminus that harbors the binding site for AdoHcy. The two domains are linked by a β-hairpin. Structure-guided sequence analysis of the HemK family revealed 11 invariant residues functioning in methyl-donor binding and catalysis of methyl transfer. The putative substrate-binding domains of HemK from E. coli and Thermotoga maritima are structurally similar, despite the fact that they share very little sequence similarity. When the two proteins are aligned structurally, the helical N-terminal domain is subject to approximately 10° of hinge movement relative to the C-terminal domain. The apparent hinge mobility of the two domains may reflect functional importance during the reaction cycle. Comparative phylogenetic analysis of the hemK gene and its frequent neighbor gene, prfA, which encodes a major substrate, provides evidence for several examples of lateral gene transfer.

Introduction

Two recent studies showed how HemK, the product of the hemK gene, functions as a protein (N5)-glutamine MTase modulating the termination activity of release factors in ribosomal protein synthesis.^1,2 Prior to these studies, the function of HemK had been misidentified twice. The hemK gene was initially discovered in Escherichia coli during a genetic screen designed to reveal new types of heme biosynthesis mutants, prompting the suggestion that its gene product might function as a protoporphyrinogen oxidase.³ Despite this mutant phenotype, subsequent biochemical and genetic studies revealed that the hemK gene product appeared to have no direct involvement in the heme biosynthetic pathway.⁴ It is still unclear exactly what caused the defects in heme metabolism observed for hemK mutants.

Sequence analysis of HemK revealed the presence of an NPPY motif, thought to be restricted to members of the (adenine N6 and cytosine N4) DNA amino MTases.⁵ This led to the suggestion that HemK was itself an AdoMet-dependent DNA MTase;⁶ however, no evidence could be found that HemK was able to methylate DNA (M.Z. & R.J.R., unpublished results).

With the tremendous growth of protein sequence databases, it has been observed that hemK homologs are nearly omnipresent in species from all three domains of life, suggesting a function of ancient origin and broad importance,⁷ consistent with its elucidated role in protein translation. In E. coli, the gene is present in the hemA-prfA-hemK operon, where prfA encodes RF1, one of two class I protein chain release factors (RFs). The most highly conserved sequence feature of class I RFs from prokaryotic and eukaryotic organisms is a GGQ motif. Mass spectral analysis provided evidence that Gln252 of E. coli RF2, within this GGQ motif, is methylated at the N5 position. Furthermore, it was shown that this modification correlates with a large increase in the efficiency of the RF2 termination reaction in E. coli K12.⁸ This observation and the sequence similarities between HemK and known MTases led to the experiments that demonstrated HemK is the MTase that methylates both RF1 and RF2 in vitro.^1,2 Here, we present the structure of E. coli HemK–AdoHcy. The structure reveals active-site residues and indicates the location of the substrate-binding surface. In addition, the effects of conserved residues and the relative hinge movement between the substrate and catalytic domains are discussed in comparison with the HemK homolog from Thermotoga maritima.⁹

Results

Structure of E. coli HemK and structural comparisons

E. coli HemK, a 277 residue protein, contains two structural domains (Figure 1A): a five helix N-terminal bundle (residues 2–73), and a C-terminal catalytic domain (residues 87–276) with a seven-stranded β-sheet, a characteristic feature of the class I AdoMet-dependent MTases.¹⁰ A β-hairpin (residues 74–86) connects the two domains. The linker hairpin interacts with the C-terminal domain via two hydrogen bonds formed by the main-chain atoms (N–H and C—O) of Phe83 and the side-chain atoms (O^δ1 and N^δ2) of the conserved Asn152. The hairpin also interacts with the N-terminal domain via one salt-bridge interaction (Glu75-Arg22). The overall molecular dimensions of HemK are approximately 65 Å × 40 Å × 30 Å, with an interdomain cleft forming a large concave surface between the two domains (Figure 1B).

Figure 1.

The binary structure of E. coli HemK–AdoHcy. A, Ribbon representation. The N-terminal domain is in green, the MTase catalytic domain is in yellow and the β-hairpin linker is in red. The AdoHcy is shown as a stick model. B, The GRASP surface representation uses the same color scheme as in A. The invariant residues (see Figure 2) are colored light blue. C, Superposition of E. coli HemK (red) and T. maritima HemK homolog (blue). D, The GRASP charge distribution. The surface is colored according to charge: positively charged groups (Arg and Lys) are blue; negatively charged groups (Glu and Asp) are red; and uncharged groups are white. E, Comparison of the HemK N-terminal domain with its structural homologs: (from left to right) E. coli HemK (PDB 1T43), EPS homology domain (PDB 1EH2), domain I of TFIIS (PDB 1EO0), and KIX domain of CBP (PDB 1KDX). The green regions indicate the residues (composed of three longer helices N1, N2, and N4) used in the alignment.

Recently, a structure was determined for the HemK analog in T. maritima.⁹ We used the coordinates of the T. maritima HemK for molecular replacement (see Materials and Methods). When the two proteins are aligned structurally, the root-mean-square deviation (rmsd) between the corresponding backbone atoms is 1.6 Å for the whole protein, 1.2 Å for the C-terminal domain, and 1.4 Å for the N-terminal domain and the linker hairpin. When the two structures are superimposed on the basis of the C-terminal domain, the helical N-terminal domain is subject to approximately 10° of hinge movement, with a closer interdomain distance in E. coli HemK than in T. maritima HemK (Figure 1C). The hinge movement between the two domains may be of functional importance during the reaction cycle, induced by enzyme-cofactor and/or enzyme–substrate interactions, as observed in M.HhaI–DNA interactions.¹¹ In addition, we have found that there is one preferred protease V8 cleavage site, on the carboxyl side of Glu76, between the two domains of the E. coli HemK (data not shown).

A DALI¹² homology search with the coordinates of the N-terminal helical domain identified 13 weakly similar structures with Z-scores >3.0. The majority of top “hits” are proteins or domains involved in protein–protein interactions. Three of these are shown in Figure 1E. The first is the EPS15 homology domain (Z= 3.8); which is a eukaryotic signaling module that recognizes proteins containing NPF sequences.¹³ The second is domain I of the transcription factor TFIIS (Z= 3.7); which has homologous regions in transcription elongation factor A and CRSP70 and which may be involved in functional interactions with the transcriptional machinery.¹⁴ The third is the KIX domain of CBP (Z = 3.6); which interacts directly with the nuclear transcription factor CREB.¹⁵ Collectively, the structural homology with protein-interacting domains is suggestive of a possible involvement of the HemK N-terminal domain in recognition of the protein substrate. The C-terminal catalytic domain is similar to many class-I MTases, with the highest DALI score (Z= 21:1; PDB 1dus, with 1.8 Å rmsd and 24 sequence identities over 172 amino acid residues) to the structure of Methanococcus jannaschii mj0882,¹⁶ which was annotated as a putative RNA MTase.

Conserved residues

A sequence alignment of 47 bacterial and mitochondrial members of the HemK protein family (HBG002674) from HOBACGEN¹⁷ revealed 11 conserved amino acids scattered throughout the C-terminal domain (Figure 2). These completely conserved residues include Pro91, Arg92 and Glu96 from the region between the linker hairpin and the C-terminal domain, the Gly-rich motif between strand β1 and helix αA (Gly119 and Gly121), Asn152 of helix αB, the Asn183-Pro184-Pro185-Tyr186 (NPPY) motif after strand β4, and the carboxyl end of strand β5 (Glu237). Also included in the alignment are four related proteins that contain most of these same conserved residues. PapM catalyzes two successive N-methylation steps of 4-amino-l-phenylalanine leading to 4-dimethylamino-l-phenylalanine (DMPAPA),¹⁸ a precursor of pristinamycin I. YfcB is also a protein (N5)-glutamine MTases, methyl-ating the ribosomal protein L3 at Gln150.¹

Figure 2.

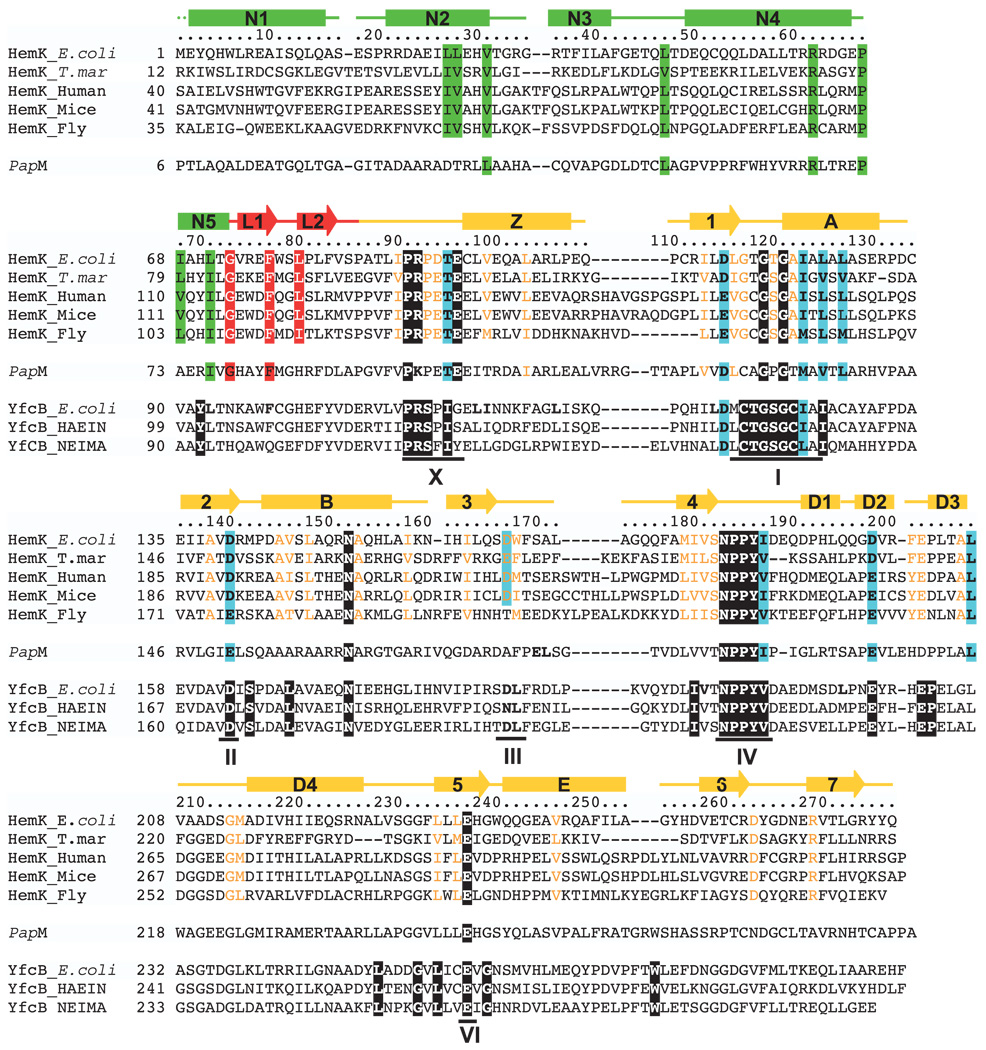

Structure-based sequence alignment of some selected HemK orthologs from eubacteria and mitochondria. From the original alignment of 47 sequences, five are shown here: E. coli (P37186), T. maritima (Q9WYV8), human mitochondria (Q9Y5R4), mouse mitochondria (Q921L7), and fly mitochondria (Q9VMD3). Mitochondrial localization of eukaryotic HemK homologs was predicted using the program TargetP.⁵³ The secondary structure of E. coli HemK is indicated above the sequence with cylinders for helices and arrows for strands; the N-terminal domain is in green, the MTase catalytic domain is in orange, and the β-hairpin linker is in red. Conserved sequence motifs characteristic of class I MTases are indicated below the sequence, labeled with roman numerals according to Malone et al.⁵ Residues invariant among the 47 HemK family members are in black, and conserved residues are colored in blue. These residues are all in the catalytic domain. Additional residues conserved among the five members shown here, but not necessarily among the larger set, are colored according to the corresponding protein domain (green, red, or orange). Four other proteins exhibiting sequence similarity with E. coli HemK are included in the alignment: E. coli YfcB and two homologs, and S. pristinaespiralis PapM (P72542). E. coli YfcB is 32% identical with and 53% similar to E. coli HemK in the catalytic domain, from helix N5 to strand β5. The invariant residues of the YfcB family (white against black in the E. coli YfcB sequence) are based on 44 BLAST hits (three are shown here: E. coli (P39199), HAEIN (Haemophilus influenzae, P45106), NEIMA (Neisseria meningitidis A, Q9JTA1), from the NCBI non-redundant sequence database with E-values below 2e-56. PapM is 29% identical with and 44% similar to E. coli HemK.

The folded structure shows that these conserved residues are clustered on two surface patches (Figure 1B). Except Glu96, which is exposed to the concave surface of the cleft, the remaining residues surround the bound AdoHcy (Figure 3A). We suggest that the conserved surface patches have functional importance, being involved in one of three steps in the methylation reaction: AdoMet binding (Gly119 and Gly121), catalysis of methyl transfer (NPPY motif), and substrate binding via electrostatic interactions (Glu96). We note that the region immediately prior to the GGQ motif of prokaryotic RF1 and RF2 contains a conserved arginine residue (IDTFRSSGAGGQHVNT of E. coli RF1)¹⁹ that might be involved in electrostatic interactions.

Figure 3.

AdoHcy binding and the active site. A, The locations of 11 invariant residues (see Figure 2). B, The ball-and-stick representation of AdoHcy is superimposed with a simulated annealing omit map (F_o − F_c) that contoured at 2.5σ. The hydrogen bonds are shown as broken lines. C, The superposition of the active site of E. coli HemK–AdoHcy (red) and T. maritima HemK-Gln (light blue) complexes. D, The superposition of the active site of E. coli HemK–AdoHcy (red) and M.TaqI-DNA (light blue) complexes. E, A representative electron density map (in stereo), contoured at 1.0σ, phased with combined molecular replacement and experimental phases, showing the central βsheet of the catalytic domain, superimposed with the refined structure.

In addition, Pro91, Arg92, Asn152, and Glu237 (see Figure 3A) play a role in the structural stability of the active site by connecting conserved residues together. Arg92, forming a salt-bridge with Glu202 (a residue following the NPPY motif), is flanked by two conserved proline residues that provide structural rigidity to the Pro-Arg-Pro loop. Glu237, the last residue of strand β5, contributes two hydrogen bonds: one with the hydroxyl oxygen atom of Tyr186 of the NPPY motif and the other with the side-chain oxygen atom of Thr95 after the hairpin linker; the interaction connects two conserved segments together. Similarly, Asn152, located within the helix αB, connects the linker strand L2 and the Gly-rich motif: its side-chain carbonyl oxygen atom (O^δ1) forms a hydrogen bond to the backbone nitrogen atom of Phe83, while its side-chain amide nitrogen atom (N^δ2) forms hydrogen bonds with the backbone carbonyl groups of Phe83 and Thr120.

The active site and HemK–AdoHcy interactions

The AdoHcy molecule is clearly observed in the F_o − F_c electron density map (Figure 3B). It is located in a deep acidic pocket on the surface of the C-terminal domain (Figure 1D), with approximately 2% of its surface accessible to solvent as calculated by the program AREAIMOL.²⁰ The sulfur group of AdoHcy is visible through a narrow and negatively charged channel (Figure 1D), where the target glutamine residue is likely to be inserted. The loop after strand β4 contributes most of the residues (NPPY motif) in the active-site pocket. The invariant NPPY of the E. coli HemK–AdoHcy binary complex is superimposable onto the corresponding motif in the ternary complex of T. maritima HemK-AdoMet-Gln (free Gln) (Figure 3C), as well as the ternary complex of DNA MTase M.TaqI with DNA and a non-reactive AdoMet analog (Figure 3D), suggesting that the conformation of NPPY is quite stable and the interactions with the target amino group will be highly conserved among DNA adenine N6 and cytosine N4 MTases and protein (N5) glutamine MTases.^9,21,22 The NPPY motif is not nucleotide-specific, but is selective for nitrogen atoms conjugated to a planar system such as an amide moiety in proteins (Gln, Asn) or a nucleotide base in DNA or RNA (adenine, cytosine).^9,10

HemK–AdoHcy interactions can be grouped according to the three components of AdoHcy (Figure 3B). (i) The adenine ring of the bound AdoHcy is sandwiched through van der Waals contacts between the aromatic side-chain of Trp168 after strand β3 and the side-chain methyl-ene portion of Arg141 after strand β2. An Arg residue in this position is present in the closest members of the E. coli HemK family of homologs, such as Salmonella typhimurium (71% sequence identity)²³ and Pasteurella multocida (46% identity).²⁴ It is often replaced by Ile/Leu/Val in more distantly related HemK homologs, such as T. maritima (23% identity). The exocyclic N6 amino group of the adenine ring forms a hydrogen bond with the backbone carbonyl oxygen atom of Asp167 after strand β3. (ii) The hydroxyl groups of the ribose ring form bifurcated hydrogen bonds with an acidic residue (Asp140) of strand β2; this is nearly universal to class I MTases.²⁵ (iii) The homocysteine moiety of AdoHcy is surrounded by three segments of conserved amino acids: residues 88–92 after the hairpin linker, residues 117–123 (the Gly-rich motif I), and residues 183–186 (the NPPY motif). The oxygen atoms from the carboxyl and amino groups of the homocysteine form hydrogen bonds either with side-chain atoms pointing towards the binding cleft or with the surrounding backbone atoms of the protein.

Sequence analysis and phylogeny of HemK and PF1

In E. coli, prfA and hemK form the second and third genes in what appears to be a tightly linked operon with hemA, which encodes a glutamyl-tRNA reductase required for an early step in heme biosynthesis. The initiation codon for hemK overlaps with the termination codon of prfA. We have examined a total of 126 bacterial HemK protein sequences to explore both the syntenic relationship between the two genes and their phylogenetic properties. A summary of the syntenic analysis is shown in Table 2, where it can be seen that in 79 of the genomes, the two genes lie adjacent to one another with prfA upstream, as in E. coli. (More detailed results of the analysis are available as Supplementary Material.)

Table 2.

Summary of gene synteny data for bacterial prfA and hemK (see the Supplementary Material for detailed analysis)

Groupa	No. Taxa	Gene arrangementb
		P + H + c	H + P + c	P + [1–2]H +	P + [>2]H + d	P + [>2]H − d	N/D
Actinobacteria	10	9 (2)	0	0	0	0	1
Bact/Chlor group	4	0	0	0	1	2	1
Bacteroidetes	3	0	0	0	0	2	1
Chlorobi	1	0	0	0	1	0	0
Chlam/Spiro	6	5 (4)	0	0	1	0	0
Chlamydia	3	3 (3)	0	0	0	0	0
Spirochaetes	3	2 (1)	0	0	1	0	0
Chloroflexi	1	0	0	0	0	0	1
Cyanobacteria	8	0	0	0	2	4	2
Deinococcales	1	0	0	0	1	0	0
Firmicutes	31	25 (21)	4 (0)	1	0	0	1
Bacillales	19	18 (16)	0	1	0	0	0
Clostridia	6	1 (1)	4 (0)	0	0	0	1
Mollicutes	6	6 (4)	0	0	0	0	0
Fusobacteria	1	1 (1)	0	0	0	0	0
Hyperthermophiles	2	0	0	0	2	0	0
Aquificae	1	0	0	0	1	0	0
Thermotogae	1	0	0	0	1	0	0
Planctomycetes	1	1 (0)	0	0	0	0	0
Proteobacteria	59	35 (20)	0	7	4 [4]	10 [4]	3
Alpha	13	9 (8)	0	1	1 [1]	3 [2]	0
Beta	8	3 (1)	0	2	0	2	1
Gamma	27	20 (9)	0	4	0	3	0
Delta	4	3 (2)	0	0	0	0	1
Epsilon	5	0	0	0	3 [3]	2 [2]	0
Other	1	0	0	0	0	0	1
Total	124e	76 (48)	4 (0)	8	11	16	9

^aMajor bacterial taxonomic groups are indicated in boldface. Subgroups of each group, if any, are separated beneath.

^bP represents prfA, H represents hemK, numerals represent the number of intervening genes, if any. Signs represent strands (++, same strand; + − opposite strands). N/D indicates that the sequence is incomplete and the arrangement is indeterminate. No gene arrangements were found other than those listed here.

^cFor adjacent gene arrangements, the number in parentheses indicates the number of cases in which the genes overlap by at least one nucleotide.

^dThe number in brackets indicates the number of taxa from Rickettsieae or ∈-Proteobacteria, both of which are significantly misplaced on the HemK phylogenetic tree.

^eAside from the outgroup, two other bacterial proteins were included in the phylogenetic analysis; namely, secondary putative HemK homologs in D. hafniense (Clostridia group) and M. magnetotacticum (α-Proteobacteria group), whose genes are both located distal to the prfA-hemK gene pair, for a total of 126 bacterial proteins.

Bayesian inference methods were used to construct phylogenetic trees for HemK, RF1 and RF2. Given the close functional relationship between the prfA and hemK genes, and their synteny in so many genomes, it was anticipated that the phylogenies of their products would be comparable. Whereas the RF1 and RF2 phylogenies were similar to the 16 S rRNA phylogeny for the organisms examined, the HemK tree was incongruent in a number of specific instances. In at least two notable cases, the phylogeny of the HemK protein was strikingly different from that of RF1 and RF2 (Figure 4). The RF proteins of Helicobacter and its close relatives group with the other proteobacteria, but the HemK proteins are more closely related to those of the Clostridia and Mycoplasmas. Similarly, RF1 and RF2 of the Rickettsieae group with the proteobacteria, but the HemK proteins are much more closely related to those of the Bacilli and Bacteroides. In all eight species comprising these two cases, many open reading frames separate the prfA and hemK genes, a rare condition among the proteobacteria (15 of 59 species examined). These anomalies are highly suggestive of lateral gene transfer.

Figure 4.

Summary of Bayesian phylogenetic analyses of 126 HemK proteins and comparable sets of RF1 and RF2 proteins and 16 S rRNA showing the displacement of the Rickettsieae (green) and ∈-Proteobacteria (red) in the HemK tree relative to the other three trees. The general topology of the HemK tree is shown on the left, with posterior probabilities for certain nodes indicated. Major bacterial taxonomic groups that are largely monophyletic with high posterior probability are represented as single entries in the summary tree, with an example species listed for each. A consensus of the corresponding RF1, RF2, and 16 S rRNA trees is shown on the right. Only the topology of the proteobacterial groups is shown explicitly (continuous lines), with the relationship of the remaining groups shown as unresolved (dotted lines) for simplicity. The proteobacterial topology is that of the RF2 tree; RF1 and 16 rRNA are closely comparable, but other resolutions are possible. The original HemK tree is a majority rule consensus of 11,001 likely trees (1,500,000 generations, sampling every 100 trees, discarding the first 4000 trees as burn-in), rooted using an outgroup of putative archaeal HemK homologs. RF1 consensus: 1,000,000 generations, sampling every 100 trees, discarding the first 1250; RF2 consensus: 250,000 generations, sampling every 100 trees, discarding the first 500; 16 S rRNA consensus: 1,000,000 generations, sampling every 100 trees, discarding the first 4250. RF1 and RF2 trees were rooted using an outgroup of archaeal aRF1 sequences, and the 16 S rRNA tree was rooted using an outgroup of archaeal 16 S sequences.

Discussion

Comparison of the HemK and substrate RF1 and RF2 phylogenies gave the surprising finding that while the RF trees are largely congruent with a 16 S rRNA tree for the same organisms (not shown), the HemK tree is not. Congruence of the RF1, RF2 and 16 S rRNA trees suggests that frequent lateral transfer of prfA and hemK together does not explain the widespread synteny observed for these two genes. Improved fitness from tightly regulated expression of these two genes provides a more likely explanation of their close physical linkage.

Aberrancies in the HemK phylogeny suggest that lateral transfer of the hemK gene alone may have occurred in at least two instances (Figure 4). Although loss of hemK is not lethal,² the ubiquity of the gene in all domains of life suggests some important advantage is conferred by its presence. In a lineage where mutations in the hemK gene had affected, perhaps deleteriously, the ability of HemK to methylate its substrates, there would be an opportunity for a horizontally transferred gene to establish itself. Since there are only two known substrates, RF1 and RF2, this would make it much easier for a foreign hemK gene to become established than if multiple substrates were involved or if many protein–protein interactions were required for viability. Oddly, the precise advantage conferred by hemK remains unclear. Loss or reduction of RF2 methylation by hemK, whether by hemK knockout or RF2 overexpression, strongly inhibits growth of E. coli K12 strains.^1,2,26 However, the RF2 proteins of K12 strains contain an Ala246Thr mutation relative to other E. coli strains, rendering them partially defective and particularly sensitive to loss of HemK methylation. The effect of hemK loss in strains with fully functional RF2 proteins has yet to be examined.

We determined the crystal structure of HemK from E. coli. We found that the highly conserved residues are clustered in the catalytic domain, essential for cofactor binding and methyl transfer. Structure-based sequence alignment among 47 members of HemK family revealed the N-terminal helical domain, putatively involved with substrate recognition, displays little sequence conservation despite structural similarity of the domain between the two family members from E. coli and T. maritima. In the N-terminal domain, eight conserved residues among the five HemK members shown in Figure 2 (green colored) are associated with the hydrophobic core or intra-molecular interaction, while the surface residues, potentially important for substrate recognition, are not conserved. To date, among the suspected substrates, only the structures of E. coli RF2^27,28 and the eukaryotic class I release factor eRF1²⁹ have been solved. Nonetheless, RF2 and eRF1 have little structural similarity, aside from the GGQ motif positioned within a surface loop, suggesting broad latitude in enzyme–substrate interactions. Taken further, this work provides an example of a conserved sequence motif (NPPY) that carries out a common function (amino methylation) on a range of substrates that are distinct chemically (guanine versus cytosine versus glutamine) as well as structurally (DNA versus RNA versus protein). With this information, our structure provides useful starting points for more detailed studies of this interesting enzyme.

Materials and Methods

E. coli HemK expression and purification

The full-length E. coli hemK gene was amplified by polymerase chain reaction (PCR) using the forward primer containing an NdeI restriction site (GGGA ATTCCATATGGAATATCAACACTGG) and a reverse primer containing a BamHI restriction site (CGCGGATCCTTGTCATTGATAATAGCGGCCGAG). The amplified insert was cloned into the expression vector pAII17³⁰ and transformed into E. coli ER2566. The cells were grown in LB medium overnight, diluted tenfold with LB medium and grown for one hour before induction. HemK expression was induced with 0.5 mM isopropyl-1-thio-d-galactoside (IPTG) for three hours. The cells were then harvested by centrifugation, re-suspended in buffer A (20 mM Hepes (pH 7.5), 50 mM NaCl, 0.5 mM EDTA), and lysed using a French press. After centrifugation, ammonium sulfate was added to the clarified supernatant to 25% saturation; the supernatant was again collected, and more ammonium sulfate was added to reach 45% saturation. The pellet of 45% saturation was collected and dissolved in 20 mM sodium phosphate (pH 6.5), 50 mM NaCl, 0.5 mM EDTA. The solution was then loaded onto a hydroxy-apatite column equilibrated with the same buffer, and the bound proteins were eluted with a linear gradient from 20 mM to 500 mM sodium phosphate. Fractions containing the HemK protein were pooled and dialyzed against buffer A. For further purification, the partially purified HemK was loaded onto a Q Sepharose column (Pharmacia) equilibrated with buffer A, and eluted with a linear gradient from 50 mM to 500 mM NaCl. Fractions containing HemK were then combined and loaded onto a Superdex 75 column (Pharmacia) equilibrated with 20 mM Hepes (pH 7.0), 50 mM NaCl, and 0.5 mM EDTA. Finally, the purified HemK protein was concentrated to 10 mg/ml prior to crystallization.

Crystallography

Native crystals of HemK were grown at 16 °C by the hanging-drop method. A 1 µl volume of 10 mg/ml of protein in 0.5 M NaCl, 20 mM Hepes (pH 7.0) was mixed with 1 µl of a well solution containing 1.3–1.6 M ammonium sulfate, 50 mM Tris (pH 7.5). The mixture was then allowed to equilibrate over the well solution. Both native and SeMet-incorporated crystals were small needles, diffracted X-rays to ~ 3.6 Å resolution or lower, and suffered severe radiation damage. However, a native crystal soaked briefly in mercury solution diffracted better, improved resolution to 3.2Å and lasted longer in the synchrotron X-ray beam, producing a derivative suitable for multiwavelength anomalous dispersion (MAD) phase determination. This is reminiscent of a yeast proliferating cell nuclear antigen (PCNA) crystal, whose mercury derivative diffracted better than the native crystal.³¹

Diffraction data were collected at Brookhaven National Laboratory using beamline X25 of the National Synchrotron Light Source. The mercury MAD data sets were collected at three wavelengths; only the inflection and the edge wavelengths were used (Table 1), and the data from the remote wavelength were discarded due to intensities decay and non-isomorphism. The data were subsequently reduced and scaled using the DENZO/SCALEPACK package.³² The crystal belongs to the P6₃ space group, with one molecule per asymmetric unit.

Table 1 .

Crystallographic data and refinement statistics

Parameters	Hg peak	Hg inflection
Wavelength(Å)	1.0069	1.0090
Space group	P63
Unit cell dimensions (Å)
a = b	139.7
c	40.7
Resolution range (Å)	25.0 – 3.19
Completeness (%)	99.8
Rmergea	0.092	0.075
〈I/σ〉	13.8	15.3
Observed reflections	39,812	39,431
Unique reflections	7749	7675
Anomalous sites	4
Highest resolutions shell
Resolution range (Å)	3.30 – 3.19
Completeness (%)	99.9	100
Rmergea	0.343	0.250
〈I/σ〉	4.6	6.0
Refinement
Resolution range (Å)		20.0 – 3.2
Molecules/asym. unit		1
Rfactorb		0.289
Rfreec		0.315
rms deviation from ideal
Bond lengths (Å)		0.009
Bond angles (deg.)		1.8
Dihedrals (deg.)		23.0
Improper (deg.)		1.1

^aR_merge = ∑|I − 〈I〉|/∑I, where I is the observed intensity and 〈I〉 is the averaged intensity from multiple observations.

^bR_factor = ∑|F_o −F_c|/∑|F_o|.

^cR_free was calculated using a subset (5%) of the reflections not used in refinement.

The HemK structure was first solved by molecular replacement with AMoRe.³³ The starting model was a HemK homolog from T. maritima (PDB code 1NV8). E. coli and T. maritima HemK proteins share 23% sequence identity (Table 2). However, only after extensive modification of the T. maritima HemK model by deleting the non-conserved side-chains was the correct solution obtained in the inflection dataset with a correlation coefficient of 0.19 and an R factor of 0.48 over the resolution range of 10-4.0 Å. The molecular replacement phases were used to locate the mercury sites via an anomalous difference Fourier map in the MAD data. The experimental phases were calculated using the program SHARP.³⁴ A combination of the molecular replacement and experimental phases, implemented in DMMULTI,³⁵ improved the quality of the electron density map greatly (Figure 3E) and made it suitable for interpretation of the structure. The initial chain tracing and all subsequent model buildings were performed using O.³⁶

Crystallographic refinement in the resolution range of 25-3.19 Å employed the programs CNS³⁷ and Refmac³⁸ alternately. The two programs gave options of strong (CNS) and loose (Refmac) restraints on the protein geometry during each individual refinement cycle, followed by manual refitting. The final model includes all the residues of E. coli HemK, with an R-value of 0.289 and a free R-value of 0.315. Because of the limited resolution (3.19 Å ), we took a conservative approach: discontinuous densities do exist and assignment of solvent molecules to these densities would further reduce the value of the R-factor but had little effect on R_free. Thus, we did not add any solvent molecules to the final model. Furthermore, we compared our structure to other structures deposited in the PDB with a similar resolution (3.2 Å ): our R_free value of 0.315 is comparable, for example, to 0.305 of PDB 1A9B,³⁹ and 0.336 of 1ADV.⁴⁰ However, the R-value varies from 0.206 in 1ADV (13% difference between R and R_free), 0.251 in 1A9B (5.4% difference), to 0.289 in our structure (2.6% difference). It is interesting to note the non-conserved residues in the surface mediate the protein–protein contacts in the crystal lattice, and thus contribute to the diffraction limit:⁴¹ while T. maritima HemK diffracted X-rays to 2.2 Å resolution,⁹ E. coli HemK with 23% sequence identity diffracted to 3.2 Å; similarly, human monoamine oxidase (MAO) B diffracted X-rays up to 1.7 Å resolution,⁴² rat MAO A with 70% sequence identity diffracted X-ray to 3.2 Å .⁴³

The Figures were drawn with the programs XtalView,⁴⁴ MOLSCRIPTS,⁴⁵ GRASP⁴⁶ and Raster3D.⁴⁷

Phylogenetic analysis

The hemK and prfA orthologs were identified using BLAST.⁴⁸ Corresponding protein sequences were conceptual translations obtained from GenBank, and were aligned with CLUSTAL X v1.83⁴⁹ using the default parameters, followed by minor manual refinement. Phylogenies were calculated using MrBayes v3.0b4,^50,51 using the WAG rate matrix as the amino acid substitution model.⁵²
