A bonding model for gold(I) carbene complexes

Abstract

The last decade has witnessed dramatic growth in the number of reactions catalyzed by electrophilic gold complexes. While proposed mechanisms often invoke the intermediacy of gold-stabilized cationic species, the nature of bonding in these intermediates remains unclear. Herein, we propose that the carbon-gold bond in these intermediates is comprised of varying degrees of both σ and π-bonding; however, the overall bond order is generally less than or equal to unity. The bonding in a given gold-stabilized intermediate, and the position of this intermediate on a continuum ranging from gold-stabilized singlet carbene to gold-coordinated carbocation, is dictated by the carbene substituents and the ancillary ligand. Experiments show that the correlation between bonding and reactivity is reflected in the yield of gold-catalyzed cyclopropanation reactions.

The unique reactivity of organogold intermediates¹ has recently enabled the development of a wide variety of new carbon–carbon bond forming reactions². Based on the reactivity patterns that have emerged³, several mechanistic pathways⁴ and bonding models⁵ for key intermediates have been proposed, including intermediates ranging from gold carbenes⁶ to gold-stabilized carbocations⁷. In the last year, theoretical investigations⁸ and experimental observations⁹ have further polarized the discussion surrounding the carbenoid or cationic character of organogold species, mostly in support of their carbocationic character¹⁰. However, gold catalysis has been applied successfully to perform reactions that are traditionally carried out with carbenic systems^11–16. Given this apparent lack of a consistent and clear understanding of the Au–CR₂⁺ bond, we have performed a broad theoretical analysis on key intermediates relevant to gold(I) catalysis. Experimental results in support of our analysis are also presented.

The study of carbon–metal multiple bonds has been an area of intense discussion since their conception. For example, after the discovery of rhodium carbenoids, debate ensued as to the nature of the rhodium–carbon bond¹⁷. While certain calculations and experiments showed that the rhodium–carbon bond order was close to unity, eventually it was accepted, on the basis of reactivity, that a metal–carbon double bond¹⁸ was a more useful and convenient descriptor¹⁹. A similar discussion has recently emerged concerning the nature of gold–carbon bond. While partially semantic in nature, the correct description is useful for both predicting and explaining reactivity.

Results and Discussion

Barrier to bond rotation energy

The magnitude of rotational barriers is a practical way of estimating the strength of π-bonds. Fürstner and co-workers devised a clever experiment to evaluate the carbenic/carbocationic character of (Z)-Au_O^PPh and (Z)-Au_OMe^PMe by measuring the rotational barrier of bonds adjacent to gold¹⁰. They concluded that the contribution of the “carbene” resonance was marginal. We used Fürstner’s experiments to validate our theoretical methodology based on the M06 flavor²⁰ of density functional theory (DFT).

Recently, the M06 flavor of DFT has been shown to accurately describe^21,22 transition metal catalyzed organic transformations. To confirm this, we calculated rotational barriers for (Z)-Au_O^PPh and (Z)-Au_OMe^PMe (Figure 1) and obtained ΔG^‡=10.6 kcal mol⁻¹ for (Z)-Au_O^PPh, in excellent agreement with experiment (ΔG^‡=11.0) and ΔG^‡=5.8 for (Z)-Au_OMe^PMe, also consistent with experiment (<7.2 kcal mol⁻¹). Previous DFT studies⁸ used either B3LYP or BP86 functionals. Although these methods have proven valuable for many organometallic studies, we find that they are insufficient to resolve the issues of interest here. For example, B3LYP predicts rotational barriers of ΔG^‡=9.1 and 7.9 kcal mol⁻¹, while BP86 predicts ΔG^‡=8.9 and 7.4 kcal mol⁻¹ for (Z)-Au_O^PPh and (Z)-Au_OMe^PMe, respectively. This suggests that both B3LYP and BP86 cannot resolve the effects of the more electron donating PMe₃ from the less electron donating PPh₃.

Figure 1.

Calculated and experimental activation energies to bond rotation (indicated with arrows). C³-C² bond rotation barriers are decreased when C³ is substituted with carbocation-stabilizing oxygen atoms. Throughout the text gold complexes will be referred to according to the Au_X^L notation, where L indicates the auxiliary ligand on gold and X indicates the C³ substituents (Me = methyl, O = 1,3-dioxanyl, OMe = methoxy, E = methyl ester).

Using our validated computational method, we calculated the barriers to bond rotation for metal-free allyl cations 1, 2, and 3, as well as the gold species (Z)-Au_Me^PMe. The results confirm the conclusion of Fürstner and coworkers¹⁰ that the gold-moiety has little effect on the barrier to rotation in (Z)-Au_O^PPh ((Z)-Au_O^PPh versus 1 ~ 1.4 kcal mol⁻¹); however, this conclusion is only valid in the presence of the highly carbocation-stabilizing oxygen atoms. When these heteroatoms are absent, the effect of the gold moiety is quite large ((Z)-Au_Me^PMe versus 2 ~ 8.1 kcal mol⁻¹). For comparison, the highly stabilizing methoxy group in 3 increases the barrier to rotation by 8.9 kcal mol⁻¹ versus 2.

These results suggest that the reactivity of a given gold-stabilized carbene is highly dependent upon the carbene substituents. To gain further insight into the nature of the gold-carbon bond, we examined the structures of these types of intermediates, while varying both carbene and auxiliary ligand substituents.

Impact of the carbene

As a basis for comparison, we began by calculating the structures and natural atomic charges²³ of metal-free allyl cations 4, 5, and 6 (Figure 2a). We also defined parameter A as the ratio of the bond lengths: A ≡ (C¹-C²)/(C²-C³), so that A indicates roughly whether the partial positive charge on the substrate is more stabilized by its C¹ or C³ substituents. The low value of A in 4 (0.926) is indicative of the stabilizing nature of the oxygen lone pairs. The magnitude of A increases with less-donating C³-methyl substituents (A = 0.955) and even further for ester-substituted substrate 6 (A = 0.983). The corresponding gold-coordinated structures Au_O^PMe, Au_Me^PMe and Au_E^PMe, all show increased A values as a result of the ability of the gold moiety to stabilize positive charge at C¹. In Au_Me^PMe, A is close to 1 (0.993), suggesting that a secondary gold-stabilized carbocation is as stabilized as a tertiary carbocation. For the diester-substituted allyl carbene Au_E^PMe, the π system is now polarized towards the electron deficient C³ leading to A=1.029. Importantly, the magnitude of stabilization from the gold-moiety increases with increasing electrophilicity of the allyl-cation. This conclusion can also be reached by considering the natural atomic charge on C³. This charge is essentially unaffected in 4 (0.86) versus Au_O^PMe (0.83), while it is significantly reduced in 5 (0.43) versus Au_Me^PMe (0.34) and 6 (0.21) versus Au_E^PMe (0.10).

Figure 2.

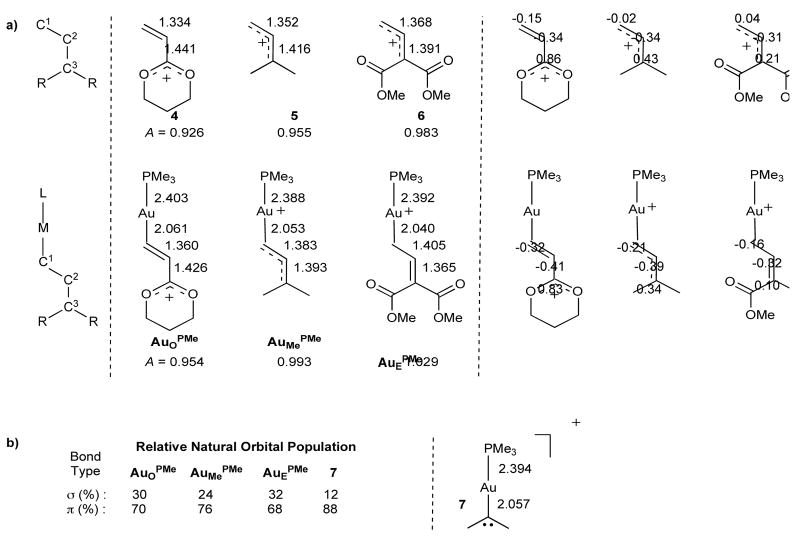

Structural and electronic comparison of cationic metal-free and [AuPMe₃]⁺ substituted substrates. (a) On the left, calculated bond distances (Å), and on the right, natural charges for C¹, C², and C³. Parameter A is defined as the ratio of bond distances (C¹–C²)/(C²–C³) and correlates to the polarization of the π-electrons along the delocalized C¹–C²–C³ system. (b) A comparison of with Au-alkylidene 7 showing the relative natural orbital populations of σ and π contributions to the Au-C bond. On the right calculated bond distances (Å) for 7.

In order to examine the bonding and reactivity of non-vinylic gold(I) intermediates, we also examined gold alkylidene 7 and compared it to the gold vinylic carbene species (Figure 2b). Our results show that the gold–carbon bond distance (2.057 Å) varies little from the vinyl carbenes. However, in the absence of a delocalized neighboring vinyl group, the Au–C bond possesses a higher π-character, with decreased σ-donation from alkylidene to gold²⁴. This demonstrates the ability of the gold moiety to stabilize carbenes of varying electrophilicity by modulating the nature of the gold carbon bond.

A direct consequence of the differences between Au_O^PMe and Au_Me^PMe is the increased barrier to C²–C³ bond rotation in Au_Me^PMe (Figure 1). In addition, a difference in reactivity could be expected: Au_O^PMe may react as a gold-stabilized carbocation, while Au_Me^PMe may react more as a gold-stabilized carbene. We tested and confirmed this hypothesis experimentally. We were unable to observe productive cyclopropanation of intermediates resulting from the gold-catalyzed reaction of cyclopropene 8 (as a precursor to Au_O^PMe, Figure 3a). On the other hand, gold-catalyzed reaction of cyclopropene 9 (which should decompose to an intermediate similar to Au_Me^PMe) with cis-stilbene provided the product of stereospecific olefin cyclopropanation (Figure 3b). As the yield of this reaction was highly dependent on the auxiliary ligand, we next examined the effect of this ligand on nature of the Au–C¹ bond.

Figure 3.

Experimental and theoretical comparison for the carbene reactivity of the substrate with different ancillary ligands. (a) Attempted and (b) observed carbene-like reactivity, demonstrating the impact of the auxiliary ligand on the yield of cyclopropanation product. (c) Bond distances in Au_Me^L complexes. (d) A stylized depiction of the most important bonding interactions in L-Au(I)-CR₂⁺ species.

Impact of the ligand^1,25

The computed structures of Au_Me^L, for various ligands (L) are shown in Figure 3c. The L-Au–C¹ bonding network can be partitioned into three components (Figure 3d)^26,27. Since there is only one vacant valence orbital on Au (6s), the Pauli exclusion principle tells us that a 3c/4e σ-hyperbond²⁸ (where hyperbond refers to bonding beyond the reduced 12e valence space) must be formed for the P–Au–C triad as [P:Au–C↔P–Au:C] (or C–Au–C triad for NHC ligand). As a result, the Au–C¹ bond order decreases with increasing trans ligand σ-donation (trans influence). In the absence of a trans ligand, the gold–carbon bond in Au_Me is notably shorter (1.985 Å); whereas, in Au_Me^PMe, the electron donating PMe₃ (strong trans influence) results in a correspondingly long Au–C¹ bond length of 2.053 Å.

In addition, the metal center is able to form two π-bonds by donation from perpendicular filled d-orbitals into empty π-acceptors on the ligand and C¹. While these two bonds are not mutually exclusive, they compete for electron density from gold. As a result, strongly π-acidic ligands decrease back donation to the substrate, resulting in even longer Au–C¹ bonds (2.057 Å for Au_Me^POMe). In contrast, the π-donating chloride ligand in Au_Me^Cl increases back-donation to C¹ resulting in a very short gold–carbon bond (1.969 Å). In general, the strength of the back-donation to C¹ is dependent on both ligand and, (as demonstrated in the previous section) the electrophilicity of the π-acceptor on C¹.

The impact of these changes on reactivity is directly apparent in the yield of cyclopropanation product (Figure 3b). π-Acidic ligands are expected to increase carbocation-like reactivity by decreasing gold to C¹ π-donation. Accordingly, we found that strongly π-acidic phosphite ligands provide only traces of the desired product and significant polymerization. Conversely, ligands which increase gold to C¹ π-donation are expected to reduce carbocation-like reactivity, while those ligands that decrease C¹ to gold σ-donation should increase carbene-like reactivity. The N-heterocyclic ligand IPr (1,3-bis(2,6-diisopropylphenyl)imidazol-2-ylidene) should affect both of these changes (it is strongly σ-donating and only weakly π-acidic). Gratifyingly, we found that IPrAu⁺ provides the product of stereospecific cyclopropanation in excellent yield and with high diastereoselectivity (80% yield, 11:1 cis:trans). Phosphine ligands fell in between these two extremes. Finally, AuCl was unreactive under these conditions.

Charge distribution

In order to provide a better and more general view of the bonding in gold vinyl carbene species, we calculated natural charge distributions for the ligand (L), Au, and substrate using NBO analyses. Table 1 shows that the charge is relatively equally distributed between the substrate, gold, and the ligand. Across Au_Me^L and Au_O^L series the charge on ligand and Au is well correlated: a change in ligand that results in an increase in ligand charge is correlated with a similar decrease in charge on gold, but these changes have little effect on the charge on the substrate. On the other hand, changing the substrate from Au_Me^L to Au_O^L results in an increase in substrate charge. This correlates with a decrease in the charges on both Au and ligand. These results again demonstrate that both the ligand and the substrate play important roles in determining the overall electronic structure.

Table 1.

Calculated natural populations (charge) for the ancillary ligand, gold atom, and substrate.

	AuMeNHC	AuMePMe	AuMePOMe	AuONHC	AuOPMe	AuOPOMe
Ligand	0.32	0.40	0.45	0.31	0.37	0.42
Metal	0.39	0.30	0.25	0.36	0.27	0.23
Substrate	0.29	0.31	0.31	0.33	0.36	0.35

Bonding and reactivity

The model in Figure 3d for bonding in gold-stabilized carbenes proposes that these intermediates possess highly electron-deficient α-carbons that are stabilized, to varying degrees, by back-donation from the metal to the vacant pπ-orbital of the singlet carbene. This electronic deficiency reduces donation from the filled sp² σ-orbital of the carbene to the metal, therefore minimizing gold–carbon σ-bonding. Thus, our model suggests that the conversion of a vinylgold intermediate into a gold-stabilized carbene, which is commonly proposed in gold-catalyzed reactions^29–34, occurs with an increase in gold–carbon π-bonding and a decrease in the σ-bonding (Figure 4). The bonding situation in these carbene intermediates has often been depicted by two extreme resonance structures: a carbocation with a gold-carbon single bond or a carbene with a gold-carbon double bond. Much like the double “half-bond” model proposed for rhodium-carbenoid intermediates^35,36, the depiction of a gold-stabilized carbene with a gold-carbon double bond should not be taken as an indication of a bond order of 2; but rather a means to convey that both σ and π components to the bond are present. To illustrate this, we calculated gold-carbon natural bond orders for Au_O^PMe (0.53), Au_Me^PMe (0.91), and 7 (1.14). Nucleophilic attack on the now highly electrophilic pπ-orbital of the carbon adjacent to gold restores the gold-carbon sigma bond^37–39. In this scenario, divergence towards carbocation-like or carbene-like reactivity may also be influenced by the potential of the nucleophile to intercept the developing positive charge. Alternatively, gold-stabilized carbene intermediates may react with concerted carbene-like reactivity (i.e. cyclopropanation), especially when the gold is coordinated to electron donating ligands.

Figure 4.

Arrow pushing in the formation of gold-stabilized carbenes is a useful mnemonic for keeping track of electrons, but it can lead to misconceptions about bonding. While the Au-C bonsd in the intermediate carbene has both σ and π components, the overall bond order is generally less than or equal to unity.

Conclusions

We suggest the reactivity in Au(I)-coordinated carbenes is best accounted for by a continuum ranging from metal stabilized singlet carbene to metal-coordinated carbocation. The position of a given gold species on this continuum is largely determined by the carbene substituents and the ancillary ligand. Consideration of the bonding description described herein provides insight into previously reported gold-catalyzed transformations and a basis for the ab initio prediction of reactivity, optimization of ligand effects, and design of new gold-catalyzed reactions.

Methods

Calculations were performed using density functional theory (DFT) with the M06 functional, as implemented in Jaguar 7.6⁴⁰. All calculations used the Hay and Wadt small core-valence relativistic effective-core-potential⁴¹ (ECP) to describe the 1s-3d core electrons of the gold atom, leaving the outer 16 electrons (4s, 4p, 4d, 5s, etc.) to be treated explicitly. The LACVP** basis set was used for all geometry optimizations and LACV3P++**(2f) for energies. LACV3P++**(2f) utilizes the LACV3P++** basis set as implemented in Jaguar plus a double-zeta f-shell with exponents from Martin and Sundermann⁴². All electrons were described for all other atoms using the 6-31G** or 6-311++G** basis sets^43,44. For each optimized structure, the M06 analytic Hessian was calculated to obtain the vibrational frequencies, which in turn were used to obtain the zero point energies and free energy corrections (without translational or rotational components). Solvent corrections were based on single point self-consistent Poisson-Boltzmann continuum solvation calculations for CH₂Cl₂ (ε = 8.93 and R₀= 2.33 Å using the PBF⁴⁵ module in Jaguar.
