A 62-year-old female with a history of hypertension, atrial fibrillation and pulmonary embolism was admitted for dyspnoea.
An echocardiogram showed heavy midwall and subendocardial calcification of the septum, lateral wall and apex of the left ventricle (LV) (figure 1A), which correlated with findings on a chest CT scan (figure 1B and C). The calcifications, which could be described as ‘snow balls’ inside the myocardium on the echocardiogram, did not respect the distribution territory of a coronary artery.

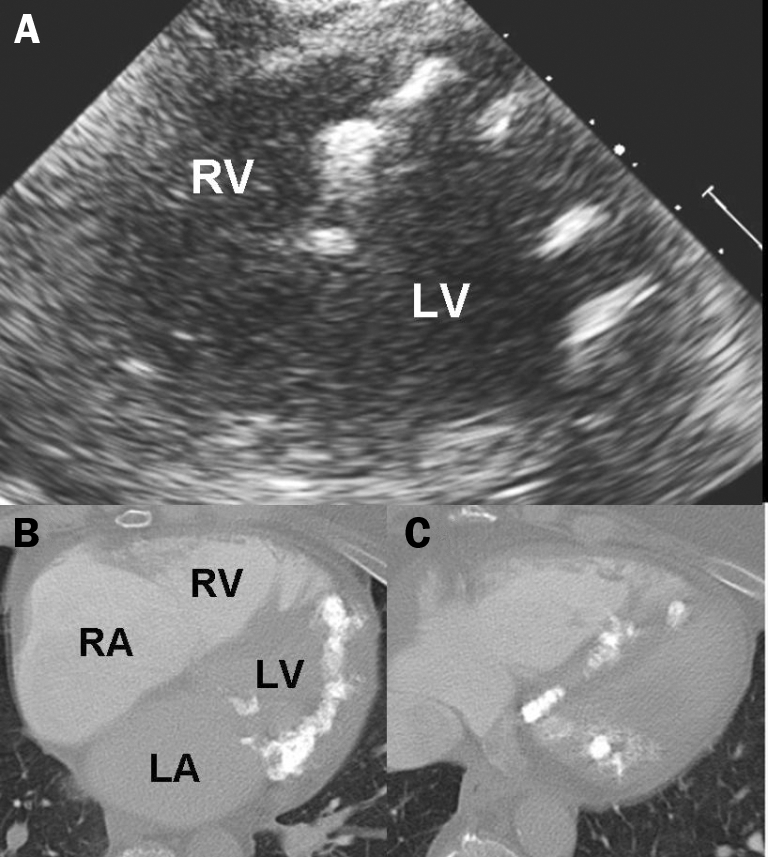

Figure 1.
A) Apical four-chamber view of a transthoracic echocardiogram showing the left ventricle calcifications in the septal and lateral wall with ‘snow ball’ appearance. B and C) Chest computer tomography showing severe calcifications of the left ventricular lateral wall (B) and of the left ventricular septal wall and mitral annular calcifications (C). RV=right ventricle, LV=left ventricle, RA=right atrium, LA=left atrium.
Various patterns of LV calcification have been reported. Old myocardial infarction or calcification of intracavitary thrombus are common causes as are the calcium-phosphate metabolism disturbances of chronic kidney disease.1 Other conditions reported to result in LV calcification are myeloproliferative diseases, severe sepsis or endomyocardial fibrosis.2-4
Unfortunately the patient declined further workup and was discharged with a diagnosis of left ventricular calcification of unknown aetiology.
In this section a remarkable ‘image’ is presented and a short comment is given.
We invite you to send in images (in triplicate) with a short comment (one page at the most) to Bohn Stafleu van Loghum, PO Box 246, 3990 GA Houten, the Netherlands, Email: l.meester@bsl.nl. ‘Moving images’ are also welcomed and (after acceptance) will be published as aWeb Site Feature and shown on our website: www.cardiologie.nl
This section is edited by M.J.M. Cramer and J.J. Bax.
References
- 1.Kempf AE, Momeni MG, Saremi F. Myocardial calcinosis in chronic renal failure. Radiology Case. 2009;3:16–19. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 2.Canesin MF, Gama RF, Smith DL, Kazuma FJ, Takiuchi A, Barretto AC. Endomyocardial fibrosis associated with massive calcification of the left ventricle. Arq Bras Cardiol. 1999;73:499–506. [DOI] [PubMed] [Google Scholar]
- 3.Aras D, Topaloglu S, Demirkan B, Deveci B, Ozeke O, Korkmaz S. Porcelain heart: a case of massive myocardial calcification. Int J Cardiovasc Imaging. 2006;22:123–126. [DOI] [PubMed] [Google Scholar]
- 4.Simonson S, Miller WT Jr, Perl A, Torigian DA. Diffuse left ventricular myocardial calcification in the setting of sepsis on CT imaging. J Thorac Imaging. 2007;22:343–5. [DOI] [PubMed] [Google Scholar]
