Anti-Cancer Activity of Nitrones in the Apc^Min/+ Model of Colorectal Cancer

Abstract

The nitrones of α-phenyl-tert-butyl nitrone (PBN) and 4-hydroxyl-PBN (4-OH-PBN) that have anti-cancer activity in models of liver cancer and glioblastomas, were tested in the ApcMin/+ mouse model. Mice were administered PBN and 4-OH-PBN in drinking water and intestinal tumor size and number assessed after 3–4 months. Throughout the experiment, contrast-enhanced magnetic resonance imaging (MRI) was used to monitor colon tumors. MRI data showed a time-dependent significant increase in total colonic signal intensity in sham-treated mice, but a significant decrease for PBN-treated mice, and slight decrease for 4-OHPBN treated mice probably due to the limited water solubility of 4-OH-PBN. Final pathological and percent survival data agreed with the MRI data. PBN had little effect on oxaliplatin-mediated killing of HCT116 colon cancer cells and caused only a slight decrease in the amount of active fraction caspase 3 in oxaliplatin-treated cells. PBN has significant anti-cancer activity in this model of intestinal neoplasia.

Introduction

Colorectal cancer (CRC) is the third leading cause of cancer death in the United States with an overall 5 year survival rate of only 65% [14]. Approximately half of the patients with CRC develop liver metastases—a complication that substantially contributes to mortality. Despite recent advances in therapy for advanced CRC, only limited survival advantages have been achieved [7]. There is an urgent need for novel therapeutics to augment current chemotherapeutic approaches, especially for metastatic disease. Nitrones are a class of compounds known for their ability to trap free radicals (R•) and offer potential as anti-cancer agents. These chemicals are typified by the general structure of X-CH=NO-Y where the nitrone moiety can form stable radical adducts (X-CHR=NO•-Y). Nitrones were recently noted to have potent anti-cancer activity in an animal model of liver cancer [11,33–35] and glioblastoma [6] but, to date, have not been studied in other cancer models to better define their promise.

Nitrones have been extensively used in electron paramagnetic resonance (EPR) to characterize short-lived free radicals [18]. For example, α-phenyl-tert-butyl-nitrone (PBN), a prototypic nitrone where X represents a phenyl moiety and Y a tert butyl group, can identify radicals by forming unique spin adducts [5]. After initial use of nitrones to identify radical intermediates in analytical chemistry, these compounds were subsequently found to be powerful tools for studying free radical intermediates in biochemical reactions [19,30,37] and whole animals [3,4,24,29].

The utility of nitrones in animal models led to the recognition that PBN has significant protective effects against ischemic stroke [8,10,11,28] and, in a few studies, against cancer [6,10,11,34,35]. Both of these diseases are believed to involve free radicals, although mechanisms for the therapeutic action of PBN may involve anti-inflammatory properties rather than radical trapping [9,10,28].

The preliminary observations on the potential anti-cancer activity of nitrones led us to consider the effect of PBN and 4-hydroxy-PBN (4-OH-PBN), a closely related nitrone, in the Apc^Min/+ model of intestinal neoplasia. This murine model harbors a germline mutation in Apc at codon 850 that leads to a truncation of the protein. Heterozygosity in one Apc allele occasionally generates the inactivation of the other allele by somatic recombination and when this occurs in intestinal epithelial cells adenomas form [32]. The molecular consequences of losing Apc, a multi-functional protein that binds microtubules, proteins in the Wnt/Wg pathway, β-catenin and axin, cytoskeletal regulators, and the Rac guanine-nucleotide-exchange factor, leads to the activation of β-catenin and induction of WNT signaling [2,13,26]. In Apc^Min/+ mice adenomas begin to develop in infancy with death occurring at 16–20 weeks due to chronic intestinal hemorrhage [31,42]. Mice with this mutation on the C57BL/6 background develop an average of 30 small intestinal and 5 colonic adenomas per mouse. On occasion, adenomas progress to adenocarcinoma but metastases are not seen, most likely because mice do not live long enough for this late complication to occur.

In contrast to Apc^Min/+ mice, other murine models with targeted inactivation of Apc develop 10-fold more adenomas [36]. We selected the Apc^Min/+ model to investigate the effect of orally administered PBN and 4-OHPBN on tumor formation because the model has been used to study chemoprevention and relates well to human CRC [16,17,39]. We also applied magnetic resonance imaging (MRI) with gadolinium contrast to estimate in vivo rates of tumor change [45,46]. This imaging technique allowed us to collect time-dependent data on individual mice as treatments proceeded. Our results clearly show that PBN has potent chemopreventive activity in the Apc^Min/+ model. In addition, MRI findings indicated that PBN caused a time-dependent loss of total signal intensity, suggesting that this nitrone has a potential role as a therapeutic agent.

For chemotherapeutic agents to be effective they usually must be compatible with existing treatments. For mid- to late-stage CRC, after resection of the primary tumor and dissection of regional lymph nodes, adjunctive chemotherapy, when indicated, typically involves platinum-based agents [7]. Given this standard approach, we wanted to determine whether PBN interfered with oxaliplatin-induced killing of human cancer cells. In vitro testing using HCT116 human CRC cells demonstrated that PBN had no effect on oxaliplatin killing at concentrations considered effective in the Apc^Min/+ model. These findings demonstrate that nitrones are promising compounds for the prevention and/or treatment of colon adenomas and CRC.

Materials and Methods

Synthesis of PBN and 4-OH-PBN

PBN and 4-OH-PBN were synthesized using a straightforward chemical reaction followed by an extraction and crystallization procedure as previously described [15]. PBN requires benzaldehyde and 2-methyl-2-nitro propane as starting chemicals, whereas 4-OHPBN utilizes 4-hydroxy-benzaldehyde in place of benzaldehyde. Nitrones synthesized in our laboratory have been characterized by mass spectroscopy, NMR, and melting point analysis and found to be superior in terms of purity than commercially available nitrones.

Mouse Breeding

Breeder pairs for C57BL/6J Apc^Min/+ mice were obtained from Jackson Laboratory (Bar Harbor, ME). The genotype of mice were confirmed by allele-specific PCR using DNA isolated from tail nicks and a kit supplied by Jackson Laboratory. At weaning mice were randomly assigned to one of three treatment groups consisting of untreated drinking water (sham) (n=10) and drinking water to which PBN (n=17) or 4-OHPBN (n=19) was added. These compounds were administered at a rate of 100 mg/kg-day in drinking water. Water bottles were changed to fresh solutions twice weekly. Water consumption was assessed by weighing the water bottles to assure that PBN administration was about 100 mg/kg daily and that there was no difference in water consumption between experimental groups. Mice were group housed at five per cage and fed lab chow ad libitum. All experiments involving mice were approved by the animal committee at OMRF and performed according to NIH guidelines on the use of experimental animals.

Enumeration of tumors

Necropsies were performed on mice when individual animals began to show signs of illness. To determine the number and size of tumors, small and large intestines were removed in their entirety, flushed with cold PBS, and the small intestine divided into equal portions (proximal, mid, and distal segments). All segments including colons were longitudinally opened, spread flat with the mucosal surface facing upward on black blotting paper, and tumors immediately counted and measured to the nearest mm using a 10×-magnifying lens. Volumes were calculated assuming tumors were spherical in shape and using the diameter to calculate the tumor size.

Magnetic Resonance Imaging

MRI was performed using a Bruker Biospec 7.0 Tesla 30 cm bore horizontal small animal imaging system at the OMRF Small Animal MRI Core Facility. Gadolinium-enhanced MRI analysis was done on a subset of 5 mice in each group at 4–6 time points (variances due to MR imaging scheduling) during the experiment. To fully delineate the complex three-dimensional anatomy of the murine colon, we initially performed a luminal and tissue contrast-enhanced study on several mice. A Ferumoxide injectable solution (Feridex^®) was instilled into the colon as a negative contrast agent and gadolinium injected intravenously as a positive contrast agent. For this pilot, the colon was surgically backfilled with Ferumoxide because timing the delivery of an orally administered contrast agent with intravenous gadolinium was considered difficult. Mice were anesthetized with isoflurane and through a 5 mm midline abdominal incision the proximal colon was identified at its juncture to the cecum. Two ligatures 0.5 cm apart were loosely placed around the colon and a 2 mm incision made into the colon. A gavage needle was inserted and colon contents flushed per rectum using sterile PBS. The rectum was closed with a purse string ligature and the colon backfilled through the proximal colon incision with 1.0 ml of 1:10 dilution of Ferumoxide in saline. Both colonic ligatures were then tied to prevent backflow of the instilled contrast. The surgical area was washed with sterile PBS, the colon gently returned to the peritoneal cavity, the abdominal incision closed, and mice allowed to recover. Gadolinium was then administered via a tail vein injection and serial gated transverse scans of the colon were performed from the upper abdomen to anus (approximately 50 slices of 1 mm thickness). Only signal intensities from the colon were analyzed as tumors in the small intestine were difficult to reliably identify.

For the remainder of the study, intravenous contrast-enhanced MRI, without Ferumoxide, was performed on Apc^Min/+ mice to assess adenoma formation. MRI analysis was done on mice at approximately 7, 12, 16 and 18 weeks of age. Images were obtained using a multi-slice, multi-echo spin echo sequence with the following parameters: TR (repetition time) of 800 ms, TE (echo time) of 11.64 ms, 2 averages, a field-of-view of 30.88 mm × 17.49 mm, a matrix size of 256 × 171, a 1 mm slice thickness, 27 slices throughout the distal region, axial slice orientation, and a spatial resolution of 121 × 102 mm²/pixel. Initially, scout images were obtained to plan slices through the distal colon region (from kidneys to the rectum). Pre- and post-Gd-DTPA contrast agent administration was done (gadolinium diethylene triamine penta acetic acid; 0.2 mmol/kg, 110 µl volume via a tail-vein catheter). The post-contrast image was obtained 10 min following administration of Gd-DTPA.

For the signal intensity measurements, image analysis was done using Bruker Paravision 4.0 software. Regions of interest (ROIs) in the colon lumen (outer and inner contours) were delineated and the signal intensity due to Gd-DTPA measured using the ROI tool. An arbitrary area of normal muscle was outlined on each slice for referencing. Signal intensity values were added for all slices, and referenced to the signal intensity of the dorsal back muscle. Average mean signal intensity (± SD) was obtained for each treatment group at different time-points. Trends by treatment group were estimated using linear equations for data fitting. Another independent group used perfusion maps to depict Gd-DTPA uptake in colon adenomas with pixel values outlined for analysis. The dynamic contrast enhancement (DCE-MRI) data were evaluated by a General Linear Model (GLM) to compare differences in slopes of mean signal intensity over time. Only data from 6 to 16 weeks were considered in the analysis since relatively few animals (particularly in the untreated group) survived beyond 16 weeks, and inclusion of outlying data points would have inaccurately weighted their impact and biased results.

Percent Survival

Survival of each treatment group (untreated, PBN-treated and 4-OH-PBN-treated) were represented as the percent of mice still surviving at given time points over the course of 156 days.

Cell Culture

Stock cultures of HCT116 cells (ATCC) were grown in Dulbecco’s Modification of Eagle’s Medium (DMEM) containing L-glutamine and supplemented with 10% FBS, 100 U/mL penicillin and 100 mg/mL streptomycin. When 80% confluent, cells were plated onto 24-well plates. Once 80% confluent again, the medium was replaced with fresh medium containing treatment compounds.

The amount of cell killing due to oxaliplatin (Sigma Chemical Company) was determined by analyzing cells using 3-(4,5-dimethylthiazol-2-yl)-5(3-carboxymethoxphenyl)-2-(4-sulfophenyl)-2H-tetrazolium (Promega) and phenazine ethosulfate as an electron coupling reagent reduced by mitochondria to produce a chromophore with maximum absorption at 540 nm. HCT116 cells were cultured for 24 or 48 hrs in medium containing either oxaliplatin or oxaliplatin plus various concentrations of PBN. Treated cells were then washed twice with PBS and cell viability determined. Linearity with cell number was achieved at 25 min of incubation and therefore this time was used to estimate the proportion of live cells.

Statistics

Comparisons among treatment groups were made using ANOVA assuming unequal variances with P < 0.05 considered significant (JMP version 5.0.1, SAS, Cary, NC).

Results

Tumor Enumeration

Three groups of Apc^Min/+ mice were treated with PBN, 4-OHPBN, or sham and at necropsy a significant decrease in the total number of intestinal tumors, tumor volume per mouse, and tumor volume per tumor per mouse was seen for the PBN group compared to the other groups (Table 1). An increased weight gain was consistent with the lack of any sign of toxicity caused by administering either of the nitrones. Since anemia from intestinal hemorrhage is the primary cause of death in this model, increased survival in the PBN group was likely due to lesser tumor burden. In contrast, no significant differences were found between the sham and 4-OH-PBN groups. This observation, viz. that 4-OH-PBN was no different than sham, was unexpected and, compared to PBN, may have been due to the retrospective recognition that this compound had low solubility in water (see discussion below).

Table 1.

Age and intestinal tumor multiplicity in Apc^Min/+ mice orally treated with nitrone compounds following weaning.

	Treatment groups (± SE)
	Sham (n = 10)	4OH-PBN (n = 20)	PBN (n = 15)	P value*	P value†
Age (days)	127 ± 5	135 ± 4	148 ± 4	0.007	0.001
Tumor no. per mouse	58.9 ± 9.2	65.6 ± 6.5	42.1 ± 7.5	0.070	0.02
Tumor volume (mm3) per mouse	177 ± 32	210 ± 23	95 ± 26	0.007	0.01
Tumor volume (mm3) per tumor per mouse	8.8 ± 1.6	9.6 ± 1.2	3.1 ± 1.3	0.002	<0.0001

When the average number of colon adenomas was analyzed, no significant differences were found between shams and 4-OH-PBN-treated mice. Because we suspected that the 4-OHPBN-treated group had been undertreated, and since the average number of colon adenomas in the Apc^Min/+ mice is typically less than five per mouse, we performed a post-hoc analysis that compared PBN-treated mice to combined data for sham- and 4-OHPBN-treated groups. Using these assumptions, PBN-treated mice showed a non-significant trend toward fewer average number of colon adenomas compared to controls (1.8 ± 0.3 vs. 2.3 ± 0.2, P > 0.05), but tumor volumes (mm³) were significantly decreased (17 ± 11 vs. 55 ± 8, P < 0.01) as were adenoma volume (mm³) per adenoma (26 ± 3.7 vs. 6.9 ± 4.9, P < 0.01).

Percent Survival

PBN treatment was associated with significantly improved survival compared to the other groups. The percent survival of mice in untreated, PBN-treated and 4-OH-PBN-treated mice are shown in Figure 1, which shows the PBN-treated animals with the best median survival of 152 days (all mice were sacrificed at 156 days) and 35% of these mice still surviving at 154 days. Comparatively, the untreated mice with the worst survival, had a median survival of 124 days with only 10% surviving at 154 days; and the 4-OH-PBN-treated mice had a mean survival of 131 days with 11% surviving at 154 days.

Fig. 1.

Calculation of percent survival for non-treated, PBN-treated, and 4-OH-PBN-treated mice over a period of 156 days of age when remaining mice were sacrificed. PBN-treated mice have increased percent survival (n=17; median survival 152 days with 35% surviving to 154 days) in comparison to non-treated mice (n=10; median survival 124 days with 10% surviving to 154 days) and 4-OH-PBN-treated mice (n=19; median survival 131 days with 11% surviving to 154 days).

Morphological MRI Assessment

To verify our ability to identify colon tumors by MRI, we tested a dual contrast method in several Apc^Min/+ mice using Ferumoxide instilled into the colon as a negative contrast agent, and Gd-DTPA injected intravenously as a positive contrast agent. MRI scans showed that adenomas were readily detected in the wall of the colon (Fig. 2). Next, a subset of sham and PBN- or 4-OHPBN-treated mice were followed longitudinally for 6 to 18 weeks of age for changes in colonic MRI signal intensity following Gd-DTPA administration. Analysis at 18 weeks was not feasible because too many sham- and 4-OHPBN-treated mice died between 16 and 18 weeks of age to permit valid comparisons. For other time points, the relative MRI signal intensities (referenced to back muscle) were measured for each colon image slice and all slices compiled to obtain a total colonic MRI signal intensity. Sham-treated mice showed a significant increase in MRI signal intensity over 7 to 16 weeks of age (Fig. 3A, P < 0.05). In contrast, PBN treatment resulted in a significant decrease in MRI signal intensity (Fig. 3B, P < 0.05). 4-OH-PBN treatment showed a non-significant decrease in MRI signal intensity (P > 0.05), and was not significantly different compared to shams (P > 0.05). Representative colon adenomas detected by contrast-enhanced MRI are illustrated in Fig. 3D and 3E.

Fig. 2.

MRI of colon regions (A) lower to mid-colon, and (C) mid to upper colon of non-treated wild type mice in the supine position pre- (i) and post-contrast (ii) following administration of Ferumoxides by intra-colonic injection and intravenous Gd-DTPA via tail vein. Note that colon lumen (1) is better defined in contrast-enhanced images, and that possible small adenomas are highlighted in Bii (4). Other anatomical features include the spinal cord and vertebrae (2), and back muscles (3). In the lower to mid-colon regions (A), peristalsis resulted in slight differences in co-registration of pre- and post-contrast images.

Fig. 3.

MRI signal intensity (A–C) from uptake of Gd-DTPA in colon adenomas in Apc^Min/+ mice that over 16 weeks were treated with (A) sham (n = 15), (B) PBN (n = 13), or (C) 4-OHPBN (n = 14). Note that PBN-treated mice show decreased MRI signal intensity compared to increased signals in sham-treated mice. MRI images (D and E) depicts adenomas (arrow) that have taken up Gd-DTPA and have increased MRI signal intensities in a non-treated mouse. Linear slopes were calculated for each treatment group over 7–16 weeks of observation.

Finally, a second MRI analysis was performed on these same data using pixel values by an independent MRI group (Fig. 4). Perfusion maps were used to depict Gd-DTPA uptake in colon adenomas with pixel values outlined for analysis (Fig. 4D). The slopes across the 3 groups (untreated, PBN and 4-OH-PBN) were evaluated with respect to days of treatment. This produced an F(2,123) of 6.44 which indicated significant differences between the regression coefficients (P < 0.0055). Consistent with prior findings, shams (untreated) showed a significant increase in MRI pixel values for colon adenomas over time (Fig. 4A, P < 0.05). In contrast, nitrone-treated mice demonstrated decreased MRI pixel values over time, compared to shams, that were significant for both the PBN-treated group (Fig. 4B, P < 0.01) and the 4-OH-PBN-treated mice (Fig. 4C, P < 0.05). Regarding 4-OH-PBN treatment, although the MR signal intensity analyses were not significantly different compared to shams (Fig. 3C), a decreasing trend was apparent.

Fig. 4.

Calculation of MRI pixel values from perfusion maps obtained following Gd-DTPA uptake in (A) sham-treated, (B) PBN-treated, and (C) 4-OH-PBN-treated mice from 7–16 weeks of age. (D) Perfusion map of Gd-DTPA uptake in adenomas (arrows). PBN- and 4-OH-PBN-treated mice show decreased pixel values in colon lumen compared to sham-treated mice.

PBN Effect on Oxaliplatin Killing of Colon Cancer Cells

We next sought to determine the effect PBN on oxaliplatin-mediated killing of cancer cells. HCT116 colon cancer cells were treated with 10 µM oxaliplatin and after 2 days showed significant cell death (Table 2). In contrast, PBN showed no significant effect on killing up to 1 mM. When PBN was combined with oxaliplatin, slight protection was noted against oxaliplatin toxicity at 2 mM PBN with a decrease relative to control from 29.3% to 24.7% at 2 mM. The effect of PBN on HCT116 cells at 2 mM was then tested across a range of oxaliplatin concentrations (0 to 20 µM). This concentration of PBN, in the absence of oxaliplatin, had no discernable toxic effects on HCT116 cells. When oxaliplatin was added to cells there was only slightly decreased susceptibility at the lower concentrations compared to oxaliplatin alone (Fig. 5). Finally, we evaluated the effect of PBN on oxaliplatin-mediated apoptosis in HCT116 cells. HCT116 cells generated the active fragment of caspase 3 following treatment with oxaliplatin at 10 and 20 µM for 24 and 48 hrs (Fig. 6). Addition of PBN at 2 mM slightly decreased the amount of active fragment caspase 3 for cells exposed to oxaliplatin at 24 hrs but showed no effect at 48 hrs.

Table 2.

PBN Effect on Oxaliplatin (OXPN) Killing of HCT-116 Cells

Optical Density of MTS Reduction Product
PBN Added (mM)	Control No OXPN	Treated 10µM OXPN	% Decrease Relative to Control
0	0.700 (± 0.003)	0.495 (± 0.006)	29.3
0.5	0.745 (± 0.004)	0.498 (± 0.023)	33.1
1.0	0.740 (± 0.001)	0.536 (± 0.002)	29.0
2.0	0.772 (± 0.006)	0.581 (±0.014)	24.7

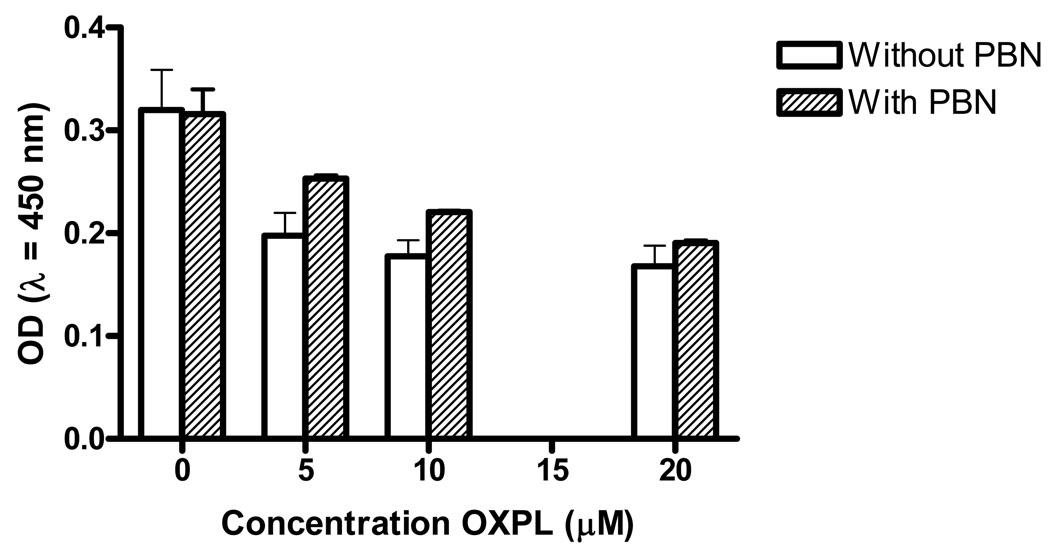

Fig. 5.

Killing of HCT116 cells at 48 hrs post-incubation by oxaliplatin in the presence of 2 mM PBN (shaded bars). Increased optical density is directly proportional to the number of live cells present.

Fig. 6.

Western blotting of active fragment of caspase 3 in HCT116 cells treated with either 10 µM or 20 µM oxaliplatin or in the presence of 2 mM PBN (OX10-P; OX20-P).

Discussion

This study is the first to demonstrate the anti-cancer activity of orally administered PBN in the Apc^Min/+ model of intestinal neoplasia. The PBN-induced decrease in intestinal tumors (Table 1) was confirmed by contrast-enhanced MRI studies of the colon (Figs. 2 and 3). The MRI data also suggested that PBN maintained effectiveness throughout the treatment period with a steady downward trend in colon tumor volume over 10 weeks of observation using this technique. In contrast, and as expected, sham-treated mice showed a gradual time-dependent increase in total colon MRI signal intensity (Figs. 2B and 3B). These data indicate that PBN was able to diminish tumor volume in Apc^Min/+ mice over time—a therapeutic effect—and, by enumerating adenomas in both large and small intestines, also decrease the total number of adenomas—a preventive effect. The percent survival data (Fig. 1) supports the anti-cancer effect of PBN.

For 4-OH-PBN treatment, percent survival data was not as strong as observed for PBN, but a slight increase in survivability was seen in comparison to shams. The discrepancies in these data (tumor enumeration, MRI evaluations, and percent survival) for 4-OH-PBN compared to shams was unexpected since 4-OH-PBN had been previously shown to have anti-cancer activity in the choline deficient model of liver cancer [33,35]. We should note, however, that in the liver cancer study 4-OH-PBN was administered as a dietary additive and not in drinking water as was done in this study. Because of differences in route of administration, and despite one authoritative publication indicating that 4-OH-PBN is more water soluble than PBN [20], we retested the solubility of 4-OH-PBN and PBN to determine whether the route of administration might explain the discrepancy in 4-OH-PBN results. PBN proved to be readily soluble in drinking water to about 150 mM, a 35-fold higher concentration than needed to deliver 100 mg/kg-day as designed for this study. The maximum solubility of 4-OH-PBN, however, was only 500 µM, a concentration that provided only 13 mg/kg-day rather than 100 mg/kg-day as intended. The previously reported water solubility for 4-OH-PBN was based on data collected in an octanol/water partition experiment [20]. Under these conditions, large quantities of 4-OH-PBN was found in the aqueous phase, probably due to octanol-induced and micelle-enhanced solubility. In the present study, however, we only added a small amount of crystalline 4-OH-PBN to drinking water (37 mg per 100 mL) and failed to visually detect inadequate dissolution. This 10-fold smaller available dose of 4-OH-PBN likely explains the less than expected observations, and the activity of this nitrone in Apc^Min/+ mice remains to be determined. Future studies using 4-OH-PBN may need to take into consideration alternative treatment preparations (e.g., different routes of administration).

After confirming the anti-cancer activity of PBN in the Apc^Min/+ model, we next wanted to determine whether PBN, as a representative nitrone, was compatible with at least one chemotherapeutic agent currently used in the treatment of CRC. We exposed a human CRC cell line with oxaliplatin and found that at a high concentration of PBN (2 mM) there was only a small suppressive effect on oxaliplatin killing. PBN also suppressed killing at lower oxaliplatin concentrations although the overall effect was even smaller (Fig. 5). To ascertain whether PBN altered apoptotic processes due to oxaliplatin killing, we measured the active fragment of caspase 3 at several oxaliplatin concentrations while PBN was fixed at 2 mM. The amount of caspase 3 active fragment at 24 and 48 hrs generally reflected the number of surviving cells as assessed by the MTS assay (data not shown). These data suggested that PBN had only a slight negative effect on oxaliplatin killing of cancer cells in vitro and this effect was enhanced at high PBN to oxaliplatin ratios. Perhaps at high concentration PBN decreases oxaliplatin uptake, although, by whatever mechanism, the effect appeared small when the ratio of PBN to oxaliplatin was 100 to 1 (2 mM PBN and 20 µM oxaliplatin). A concentration of 2 mM PBN is much higher than would be expected in vivo (approximately 100 µM), and so little if any effect on oxaliplatin killing of cancer cells is anticipated in vivo, although this remains to be tested.

Three separate cancer models now show that PBN-related nitrones have broad anti-cancer activity. We initially discovered this property using a choline deficient model of liver cancer [11,33–35]. In those studies, PBN and 4-OHPBN demonstrated significant anti-cancer activity when administered in the diet. Similarly, PBN showed anti-cancer activity in the rat orthotopic (C6 cells) glioblastoma model [6]. These observations, and the finding that PBN reduces tumor burden in the Apc^Min/+ model, provide strong evidence for the potential of nitrones in cancer treatment and/or prevention.

The mechanistic basis for the anti-cancer activity of nitrones is unknown. Clearly PBN does not act as a classical cancer chemotherapeutic agent to directly kill cancer cells (Table 2). One possible hypothesis involves the anti-inflammatory properties of these compounds [10]. Our group [12], along with Lala and Chakraborty [25] and Lirk et al. [27], reviewed the field and noted enhanced iNOS expression in many human tumors, including CRC, and for multiple experimental models of cancer including Apc^Min/+ mice [47]. Based on these findings and our own experimental observations [12,22,34] we speculate that PBN inhibits tumor growth by suppressing iNOS and NO [10]. Mechanisms by which NO might promote cancer are unclear, but the formation of S-nitrosylation adducts in key cysteines of essential proteins and enzymes is probably important [10]. For example, S-nitrosylation of caspases can inhibit apoptosis and prevent cancer cell death [38,41,44]. Data from the choline deficient model of liver cancer supports such a mechanism. Our observations using this model show that PBN 1) decreased the size of preneoplastic liver lesions, 2) decreased iNOS and NO production in the liver, and 3) enhanced apoptosis in preneoplastic “islands” but not in cells of surrounding normal tissue [34]. These findings suggest that administering PBN decreases NO production and accelerates caspase-mediated apoptosis resulting in enhanced death of preneoplastic “islands” [34].

Several animal models of intestinal neoplasia have demonstrated the importance of iNOS and NO in cancer development. In the azoxymethane-induced rat model, Rao and Reddy showed that inhibition of iNOS slowed cancer development [39,40]. Another approach using Apc^Min/+ mice produced similar supportive data [1]. In a study by Ahn and Ohshima, aminoguanidine, a specific iNOS inhibitor, administered in drinking water suppressed adenoma formation. These investigators also knocked out Nos2, the iNOS gene, and noted that Apc^Min/+iNOS^−/− mice as well as Apc^Min/+iNOS^+/− mice had significantly fewer adenomas than Apc^Min/+iNOS^+/+ mice. This observation clearly implicates iNOS and NO in the development of intestinal adenomas in this model.

Finally, COX-2, an inducible pro-inflammatory enzyme, is strongly associated with adenoma and CRC formation. Expression of COX-2 is also inhibited by PBN [23]. In previous work by our group, we showed that PBN suppressed COX-2 by inhibiting signal transduction [43]. In the choline deficient model of liver cancer, PBN also suppressed PGE₂, a downstream product of COX-2, but showed little effect on COX-2 mRNA or protein expression in the liver [34]. It should be noted that PBN levels in the liver are insufficient to alter the catalytic activity of COX-2. Recent studies indicate that NO from iNOS enhances COX-2 activity through S-nitrosylation of the protein [21]. Therefore, decreased COX-2 activity due to PBN could be, in part, the result of iNOS inhibition. We were unable to examine tumors from PBN-treated and control Apc^Min/+ mice for iNOS and COX-2 expression in this study, but this is an area for future investigation.

In summary, PBN, a prototypical nitrone, showed significant anti-cancer activity in the Apc^Min/+ model. Although 4-OH-PBN, a related nitrone, had less activity than PBN, this was likely related to the poor water solubility of this compound and its efficacy remains to be established. These data indicate that nitrones are highly promising novel agents for the prevention and/or treatment of CRC.

Abbreviations

CRC

colorectal cancer

PBN

α-phenyl-tert-butyl nitrone

MRI

magnetic resonance imaging

4-OHPBN

4-hydroxy-phenyl-tert-butyl nitrone

EPR

electron paramagnetic resonance

DMEM

Dulbecco’s Modification of Eagle’s Medium

MTS

3-(4,5-dimethylthiozol-2-yl)-5(3-carboxymethoxyphenyl)-2H-tetrazoluim)

Gd-DTPA

gadolinium-diethylenetriamine penta-acetic acid

iNOS

inducible Nitric Oxide Synthase

NO

nitric oxide
