A randomized, controlled, double-blind trial of air vs carbon dioxide insufflation during ERCP

Abstract

Background:

Visualization during gastrointestinal endoscopy requires distention of the bowel lumen. Carbon dioxide (CO₂) insufflation decreases post-procedure abdominal discomfort and distension after colonoscopy, but there have been few published studies on its use in endoscopic retrograde cholangiopancreatography (ERCP).

Objective:

To assess the safety and efficacy of CO₂ insufflation during ERCP.

Design:

Double-blind, controlled, randomized trial

Setting:

Tertiary care referral center.

Patients:

Consecutive patients referred for ERCP, excluding those with known CO₂ retention or taking chronic opiate medications.

Interventions:

Insufflation of CO₂ vs insufflation of air.

Main outcome measurements:

Primary outcomes were abdominal pain assessed on a visual analogue scale, and abdominal distension. Secondary outcomes included transcutaneous CO₂ levels (pCO₂) and procedural complications.

Results:

74 patients were analyzed, 38 in the air group and 36 in the CO₂ group. Pain scores were similar in both groups one-hour post-procedure (16 vs 11mm in the CO₂ and air groups, respectively; p = 0.29), as well as over the subsequent 24 hours. There were also no significant differences between groups in abdominal distension or pCO₂ levels. There were 13 patients with complications in the air group and 5 in the CO₂ group (p = 0.04; nominal significance removed by Bonferroni correction), though most were minor in nature.

Limitations:

Single center.

Conclusions:

The use of CO₂ for insufflation during ERCP was safe in a tertiary care referral population. However, use of CO₂ during ERCP did not lead to decreased post-procedural pain or less abdominal distension, so its role in this procedure remains in question.

Introduction

Adequate visualization during gastrointestinal endoscopy requires distention of the bowel lumen. While it is standard practice in the United States to use ambient, or “room” air for this purpose, there are potential disadvantages. After insufflation, air is not absorbed and must be passed from the GI tract, which can lead to bowel distension and abdominal discomfort. Carbon dioxide (CO₂) has been previously suggested as an alternative to air,^1-7 and subsequent studies have examined its safety and efficacy as compared to air.^8-19 Results have been consistent, particularly in colonoscopy but also with flexible sigmoidoscopy and double-balloon enteroscopy, that the use of CO₂ insufflation leads to less post-procedural abdominal pain and distension.²⁰ The explanation for this is that CO₂ is rapidly absorbed from the bowel, thus allowing the bowel to deflate quickly and decreasing patient discomfort.

Though the use of CO₂ for endoscopic retrograde cholangiopancreatography (ERCP) has been less well studied, two recent randomized control trials suggested that patients experienced less pain and distention with CO₂ as compared to air.^{18, 19} Because ERCP is arguably the endoscopic procedure with the highest risk of complications,^{21, 22} and because ERCP can be a longer procedure with higher doses of sedation medications administered and potentially greater amount of air insufflated, it is an attractive candidate for CO₂ use. However, questions remain about the safety and efficacy of CO₂ insufflation during ERCP.

The aims of this randomized, controlled, double-blind trial were to assess the safety, as measured by transcutaneous partial arterial pressure of CO₂ (pCO₂) levels, and efficacy, as measured by post-procedural abdominal pain and distention, of CO₂ insufflation during ERCP. We hypothesized that CO₂ insufflation would be as safe as air insufflation, and that it would be associated with less post-procedural abdominal pain and distension.

Methods

Participants

Between June 2008 and January 2009, all consecutive adult patients undergoing ERCP at University of North Carolina (UNC) Hospitals GI procedures unit were screened for recruitment. Patients were excluded if they: were ≤ 18 years old; had chronic obstructive pulmonary disease (COPD) requiring oxygen; had known CO₂ retention (defined as diagnosed in the medical record); had a same-day second endoscopy that would require additional bowel insufflation; required general anesthesia for the procedure; used chronic opiates for pain (defined as the use of a long-acting opiate at least daily for greater than 45 days); were unable to read or understand English; were pregnant; were incarcerated, or had any medical instability making the procedure unsafe. All participants provided informed consent prior to study enrollment.

Randomization and blinding

Randomization was 1:1 by variable block size using a computer-generated sequence. Allocation was concealed with opaque envelopes. A research nurse not involved with patient recruitment or data collection determined assignment and masked the equipment. The procedure room set-up was the same for every study procedure regardless of gas used. Both the CO₂ insufflator (see below) and the air button and indicator on the scope processor were covered so the settings and type of gas being insufflated could not be determined. All patients were tracked with a unique identifier unrelated to their treatment assignment. Overall, patients, endoscopists, ERCP nurses, and recovery nurses, as well as the data collectors and analysts (for the initial analysis) were all blinded as to study status.

ERCP, CO₂ insufflation, and capnography

ERCP and patient monitoring were performed as per standard protocol at our center. Conscious sedation with fentanyl and midazolam was administered. The procedure was performed at the discretion of the endoscopist as dictated by the clinical indication and findings. For the intervention, patients either received standard air insufflation through the scope processor, or CO₂ insufflation.

CO₂ was insufflated using the Olympus Endoscopic CO₂ Regulation Unit (UCR, Olympus Medical, Central Valley, PA; Figure 1A), an FDA-approved device. This unit connects to a CO₂ tank and dispenses CO₂ through the gas outlet on the front of the machine. In turn, this connects to a specialized water bottle lid (Figure 1B) that also has a standard adaptor for attaching the water bottle to the scope (Figure 2). The flow rate of CO₂ is designed to be similar to the flow rate of air when the processor is set on “high”, so the endoscopist does not detect a difference at the level of the air button. The insufflator was turned on for all procedures and is essentially silent; when it is activated to deliver flow, there is no appreciable additional noise.

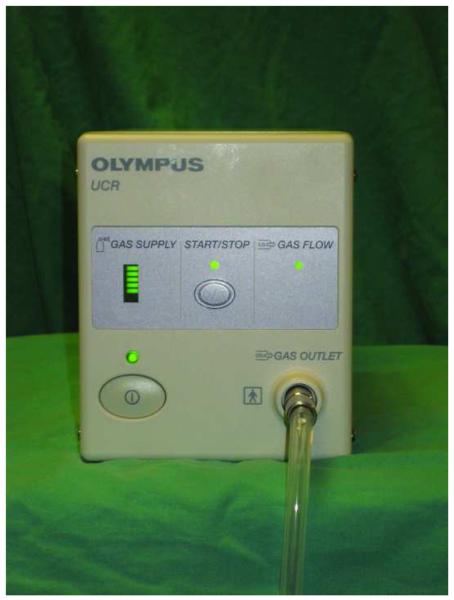

Figure 1.

(A) The Olympus UCR Endoscopic CO₂ Regulation Unit (UCR, Olympus Medical, Central Valley, PA. There is a power button (lower left side), a gas supply indicator lamp, a button in the center of the device that starts and stops the flow of CO₂, and a gas flow indicator. The back of this unit connects to a CO₂ tank, and CO₂ is dispensed through the gas outlet on the lower right side of the front of the machine. This, in turn, connects to the lid of a specialized water bottle (B) that also has a standard adaptor which connects the water bottle to the scope.

Figure 2.

The study set up. The CO₂ insufflator is connected to the CO₂ tank as well as to the specialized water bottle lid. For all cases in the study, both the insufflator and the air indicator on the scope processor were completely covered in order to mask treatment assignment.

Transcutaneous capnography was performed using the TOSCA 500 monitor (Radiometer America Inc., Westlake, OH). This non-invasive monitor was selected because it has previously been shown to measure the pCO₂ with outstanding accuracy as compared with blood gas assessment.^{23, 24}

Outcomes

The primary outcomes were abdominal pain, as recorded on a 100 mm visual analogue scale (VAS) and measured pre- and 1, 3, 6, and 24-hours post-ERCP, and abdominal girth as measured at the level of the umbilicus pre- and immediately post-ERCP (defined as when the patient was transferred from fluoroscopy table to stretcher) by a research assistant blinded to allocation. These time frames were picked for comparison to previously conducted studies in the field.^{9, 11, 12, 16, 18} The 1-hour post-procedure time point was the main outcome of interest overall, and was assessed post-procedure either in the recovery area, in the waiting room for patients who were already discharged, or on the hospital ward for inpatients. Patients were given a form with the pain scales for the 3, 6, and 24 hour time points and returned them via mail. All patients were contacted approximately 24 hours post-procedure to assess for complications.

The main secondary outcomes were transcutaneous pCO2 levels (baseline, maximum, and mean), and procedural complications. Complications included: respiratory depression requiring reversal agents; CO₂ retention with pCO₂ > 55; hypotension requiring fluid boluses, reversal agents, or pressors; cardiac arrhythmias; immediate and delayed bleeding (defined as requiring endoscopic intervention for hemostasis); cholangitis; pancreatitis (defined by standard conventions²⁵); perforation; and death. Delayed complications were assessed with a follow-up phone call 24 hours post-procedure. Other outcomes of interest included time to discharge from the recovery room, procedure costs as measured by billing charges, medication doses, time to cannulation (measured as time from cannula deployment to fluoroscopy confirmed cannulation), cannulation success rate, total ERCP time, and procedure success rate. Intra- and post-procedure data collection was performed by a research assistant or the lead author, all of whom were blinded as to patient allocation.

Data were also collected for other factors of interest such as patient demographics, body mass index (BMI), ERCP indication, final diagnosis, whether the patient had undergone a prior ERCP, comorbidities, surgical history, and, for procedures in which a fellow was involved, the fellow experience level (prior number of ERCPs).

Statistical analysis

Analyses were performed on an intention-to-treat basis for patients who received the intervention. Data analysts were unmasked as to treatment assignment only after data collection, editing for quality, and initial analysis (using blinded study groups) were complete. Characteristics of the study groups were compared with a t-test for continuous variables and chi-square (or Fisher's exact test, when appropriate) for categorical variables. General estimating equations (GEE) were used to analyze the serial pain scores as repeated measures over time. Multiple linear regression was used to adjust for potential confounding factors. Statistical significance was taken as p < 0.05. In recognizing that there were several statistical tests performed on some outcome data arising from individual patients, the uncorrected p-values are presented along with the effect of correction utilizing the method of Bonferroni whenever that correction would remove statistical significance at the p < 0.05 level. All analyses were performed with Stata version 9 (StataCorp, College Station, TX).

Sample size was determined by power calculation. We aimed to detect what we felt would be a clinically significant difference in the primary outcome of 1-hour post-procedure abdominal pain, specifically a 20mm decrease in the VAS. Based on data available at the time of study design,^{6, 9, 11, 12, 16, 18} we estimated that the room air group would have a mean VAS of 40mm and the CO₂ group would have a mean score of 20mm. To detect this difference with a power of 0.9 and alpha of 0.05, complete data would be required on at least 33 patients per group, so assuming drop-out, our recruitment goal was 74 patients total.

This study was approved by the UNC Institutional Review Board. It was an investigator-initiated trial, funded in part by Olympus. Study design and reporting complied with the CONSORT statement.²⁶ This trial was registered at www.clinicaltrials.gov (NCT00685386).

Results

Patient and ERCP characteristics

Of the 157 patients assessed for eligibility, 78 patients were randomized and 74 were included in data analysis (Figure 3). Three of the four patients not included were found to be ineligible after randomization (they were undergoing a second endoscopic procedure that day); technical difficulties precluded patient participation in the other procedure.

Figure 3.

CONSORT patient flow diagram. Of the patients not meeting inclusion criteria, 2 were known CO₂ retainers, 6 were unable to provide consent due to dementia, 9 were medically unstable, 5 required general anesthesia, 9 were on chronic opioids, 4 were non-English speaking, 4 were < 18 years old, 3 had Billroth II post-surgical anatomy precluding use of the duodenoscope, 1 was incarcerated, and 5 were scheduled for other non-ERCP procedures. The 16 cases excluded for other reasons included 5 patients who were screened but did not come for their appointment, and 11 patients who were missed for recruitment. Of the 4 patients who were randomized but not included, 3 were found to be ineligible after randomization (they were undergoing a second endoscopic procedure that day), and technical difficulties precluded patient participation in the other procedure.

The baseline characteristics were similar across the study groups, including demographics, BMI, comorbidities, previous surgeries, and the proportion of patients who had undergone prior ERCP (Table 1).

Table 1.

Characteristics of the study population

Characteristic	Air insufflation (n = 38)	CO2 insufflation (n = 36)	p value*
Mean age (years (SD); range)	59.7 (16.6) (18-90)	60.1 (15.0) (26-84)	0.90
Female (n, %)	18 (47)	18 (50)	0.82
Race (n, %)
White	27 (71)	26 (72)	0.56
African-American	11 (29)	9 (27)
Hispanic	0 (0)	1 (3)
Mean BMI (kg/m2 (SD); range)	27.4 (7.2) (19-62)	25.5 (5.8) (17-44)	0.21
Comorbidities (n, %)
COPD	2 (5)	3 (8)	0.60
Coronary artery disease	5 (13)	6 (17)	0.67
Hypertension	15 (39)	19 (53)	0.25
Diabetes	11 (29)	11 (31)	0.88
Obstructive sleep apnea	1 (3)	2 (6)	0.52
Previous surgeries (n, %)
Any prior abdominal surgery	24 (63)	22 (61)	0.86
Gastric (Heller; Nissen; etc)	0 (0)	0 (0)	--
Cholecystectomy	15 (39)	14 (39)	0.96
Bowel resection	2 (5)	3 (8)	0.60
Liver transplantation	5 (13)	4 (11)	0.79
Hysterectomy	5 (13)	4 (11)	0.79
Other†	8 (21)	4 (11)	0.25
Prior ERCP (n, %)	11 (29)	15 (42)	0.25
Prior sphincterotomy (n, %)	4 (36)	4 (27)	0.60

^*By t-test for continuous variables and Chi-square (or Fisher's exact test) for categorical variables.

^†Other surgeries include: appendectomy (3), hernia repair (2), retroperitoneal mass resection, Roux-en-Y cyst-jejunostomy, pancreatic debridement, enterotomy repair during cholecystectomy, mesoatrial shunt, ovarian cystectomy, abdominal aortic aneurysm repair.

Abbreviations: BMI = body mass index; COPD = chronic obstructive pulmonary disease

ERCP indications were also similar in both study groups, as was the proportion of cases in which a GI fellow was involved and the number of cases in which sphincterotomy was performed (Table 2). The most common ERCP indications were choledocholithiasis, pancreatitis, and abnormal LFTs. While there were trends towards some differences between the groups, for example more stents were placed in the air group (34% vs 19% in the CO₂ group), there were more normal cholangiograms in the air group (16% vs 6% in the CO₂ group), and there was less choledocholithiasis in the air group (21% vs 42%), these were not statistically significant.

Table 2.

ERCP characteristics

Characteristic	Air insufflation (n = 38)	CO2 insufflation (n = 36)	p value*
ERCP main indication – general (n, %)
Biliary	32 (84)	27 (75)	0.33
Pancreatic	6 (16)	9 (25)
ERCP all indications – detailed (n, %)†
Choledocholithiasis	9 (24)	13 (36)	0.24
Pancreatitis	5 (13)	8 (22)	0.31
Bile leak	2 (5)	2 (6)	0.96
Jaundice	1 (3)	1 (3)	0.97
Abnormal LFTs	17 (45)	8 (22)	0.04
Mass	2 (5)	4 (11)	0.36
Post-liver transplant evaluation	5 (13)	4 (11)	0.79
Biliary stricture	3 (8)	3 (8)	0.95
Question PSC	4 (11)	3 (8)	0.75
Stent change	3 (8)	7 (19)	0.15
Cholangitis	3 (8)	1 (3)	0.33
Biliary dilation	4 (11)	2 (6)	0.43
Choledochal cyst	1 (3)	0 (0)	0.33
Fellow present in case (n, %)	34 (89)	33 (92)	0.75
Experience: fellow case number (mean (SD))	80.5 (60.6) (1-199)	88.8 (59.7) (3-200)	0.57
Sphincterotomy performed (n, %)	19 (50)	18 (50)	0.99
Stent placed (n, %)	13 (34)	7 (19)	0.15
Final diagnosis (%)
Normal	6 (16)	2 (6)	0.16
Choledocholithiasis	8 (21)	15 (42)	0.06
Biliary sludge	0 (0)	1 (3)	0.30
Pancreatitis	3 (8)	4 (11)	0.64
Bile duct leak	1 (3)	0 (0)	0.33
Pancreatic duct leak	1 (3)	1 (3)	0.97
Mass	2 (5)	4 (11)	0.36
Biliary stricture	9 (24)	4 (11)	0.16
Cholangitis	1 (3)	0 (0)	0.33
Ampullary stenosis	2 (5)	0 (0)	0.16
PSC	3 (8)	1 (3)	0.33
Stent change	0 (0)	1 (3)	0.30
Aborted procedure	1 (3)	2 (6)	0.52
Other‡	1 (3)	1 (3)	0.97

^*By t-test for continuous variables and Chi-square (or Fisher's exact test) for categorical variables.

^†Percentages total more than 100%, as some patients had more than one ERCP indication.

^‡Other final diagnoses include: stent migration into bile duct, and pancreatic stent migration out of the pancreatic duct.

Abbreviations: LFT = liver function tests; PSC = primary sclerosing cholangitis

Abdominal pain and distension

For the primary outcome of abdominal pain, there were no significant differences in baseline scores (Table 3). One-hour post-procedure, the pain score was slightly higher in the CO₂ group as compared to the air group (16 vs 11 mm; p = 0.29). Over the following 24 hours, there were also no significant differences in pain scores at any of the individual time points, or when considered as measurements over time on GEE analysis (p = 0.52; Figure 4).

Table 3.

Effects of air insufflation vs CO₂

Primary outcomes	Air insufflation (n = 38)	CO2 insufflation (n = 36)	p value*
Mean abdominal pain scores (SD)
Prior to procedure	10.5 (21.0)	12.8 (19.6)	0.63
1-hr post procedure	10.8 (19.3)	16.4 (25.2)	0.29
3-hr post (nAir = 34; nCO2 = 32)	22.3 (27.8)	20.8 (32.2)	0.95
6-hr post (nAir = 34; nCO2 = 32)	19.5 (26.7)	18.3 (25.4)	0.85
24-hr post (nAir = 34; nCO2 = 32)	15.5 (24.0)	15.0 (24.7)	0.94
Mean abdominal girth (cm) (SD)
Pre-procedure	105.5 (16.6)	101.5 (15.1)	0.28
Post-procedure (nA = 36; nB = 36)	106.2 (17.4)	102.2 (14.7)	0.30
Change in abdominal girth (cm)	0.8 (4.8)	0.7 (3.8)	0.96
Secondary outcomes
CO2 safety data (levels in mmHg)
Mean baseline CO2 level (SD)	40.5 (6.2)	40.3 (4.6)	0.89
Mean CO2 level (SD)	46.1 (8.8)	45.2 (5.7)	0.61
Maximum CO2 level (mean (SD))	50.0 (11.8)	48.7 (6.4)	0.56
Mean change in CO2 level (SD)	9.4 (10.1)	8.8 (4.8)	0.60
Mean fentanyl dose (mcg) (SD)	162.2 (58.6)	155.6 (66.8)	0.65
Mean midazolam dose (mg) (SD)	10.7 (4.5)	9.1 (3.1)	0.08
Promethazine used (n, %)	6 (16)	6 (17)	0.92
Mean promethazine dose (mg) (SD)	25.0 (0)	17.0 (6.2)	0.01
Glucagon used (n, %)	22 (58)	24 (67)	0.44
Mean glucagon dose (mg) (SD)	0.3 (0.2)	0.5 (0.3)	0.003
Mean cannulation time (mins) (SD)	4.3 (3.9)	8.1 (10.4)	0.05
Cannulation success rate (n, %)	36 (95)	33 (92)	0.60
Mean total procedure time (mins) (SD)	35.1 (18.7)	39.3 (20.2)	0.35
Mean recovery discharge time (mins) (SD)	78.8 (37.9)	67.4 (19.7)	0.12
Mean procedure cost (dollars) (SD)	7000 (2560)	7170 (2200)	0.76
Mean equipment costs	2000 (1390)	1860 (1340)	0.67
Mean radiology costs	94 (42)	96 (36)	0.83
Mean hospital costs	2420 (550)	2570 (320)	0.14
Mean physician costs	2490 (1350)	2630 (1070)	0.63
Complications (n, %)†
Patients with any complication	13 (34)	5 (14)	0.04††
Respiratory depression	2 (5)	0 (0)	0.16
CO2 retention (max level > 45)	22 (58)	25 (69)	0.30
CO2 retention (max level > 50)	18 (47)	15 (42)	0.62
CO2 retention (max level > 55)‡	8 (22)	5 (15)	0.49
Hypotension	0 (0)	0 (0)	--
Cardiac arrhythmia (brady to 52)#	1 (3)	0 (0)	0.33
Immediate bleeding	0 (0)	0 (0)	--
Delayed bleeding	0 (0)	0 (0)	--
Cholangitis	0 (0)	0 (0)	--
Pancreatitis	2 (5)	1 (3)	0.57
Perforation	0 (0)	0 (0)	--
Death	0 (0)	0 (0)	--
Other**	3 (8)	0 (0)	0.08

^*By t-test for continuous variables and Chi-square (or Fisher's exact test) for categorical variables.

^†Complications total more than 13 because several patients have more than one event.

^‡Only CO₂ > 55 was considered a complication.

^#The arrhythmia was bradycardia to a nadir of 52 beats per minute; no atropine administered.

^**Other complications include: one patient fell in recovery and bumped head but had no injury; one patient had a post-procedure fever, was admitted and observed for 24 hours, but had no localizing infection and the fever resolved; and one patient had post-procedure abdominal pain, was admitted and observed for 24 hours, but had no structural cause of the pain, which subsequently resolved.

^††P-value for a single test of hypothesis; however, correction for multiple testing removes this nominal statistical significance

Figure 4.

Abdominal pain scores as measured on a 100 mm VAS before and 1, 3, 6, and 24-hours post-ERCP. The air insufflation group is in blue and the CO₂ group is in green. The arrow points to the primary outcome at 1 hour post-procedure. As measured by GEE, there is no difference between pain scores over the time course of the study.

For abdominal distension, there were no significant differences between the two groups before or after ERCP, and abdominal girth did not change appreciably in either group; there was a mean increase in girth in both groups of just under 1 cm (p = 0.96; Table 3).

CO₂ levels and complications

For pCO₂ levels, the groups were approximately equal at baseline at 40 mmHg (Table 3). Patients in both the air and CO₂ group had an increase in pCO₂ during the procedure, with the air group having slightly higher maximum levels (50 vs 49 mmHg), but these were not statistically significant (p = 0.56).

Overall, there were 13 patients with complications in the air group and 5 in the CO₂ group (p = 0.04; nominal significance removed by correction for multiple testing of data; Table 3), though most of these were minor. Two of the complications in the air group were related to respiratory depression and required reversal agents; there were no respiratory events in the CO₂ group. There were 8 patients in the air group and 5 in the CO₂ group that reached the complication threshold of pCO₂ > 55. Rates of pancreatitis were approximately the same between the groups.

Other outcomes

While the mean fentanyl dose was similar between groups, the midazolam dosing was somewhat higher in the air group (11 vs 9 mg; p = 0.08; Table 3). Cannulation rate was similar between the groups, but cannulation time was longer in the CO₂ group (8 vs 4 minutes; p = 0.05); total procedure times were similar between the two groups. The mean time to discharge from recovery was almost 12 minutes shorter in the CO₂ group than in the air group (67 vs 79 minutes), but this was not statistically significant (p = 0.12). Finally, there was no difference between groups in the cost of the procedure.

Discussion

CO₂ insufflation during ERCP seems logical. Because procedure times can be long and sedation doses high, there may be greater volumes of gas insufflated required to maintain visualization of the lumen. We performed a randomized, double-blind, controlled trial to assess the safety and efficacy of CO₂ insufflation during ERCP. Based on prior literature, we expected CO₂ insufflation to be safe and associated with decreased post-procedural abdominal pain and distension as compared to air insufflation. Our results, however, showed that while CO₂ was safe to use, there were no significant differences between the air and the CO₂ group for the primary outcomes of abdominal pain and distension. This is in contrast to two recent clinical trials examining the same issue.

In the first trial,¹⁸ Bretthauer and colleagues randomized 118 patients to either air or CO₂ insufflation for ERCP. Patients with COPD were excluded, and midazolam with or without pethidine was used for sedation. Abdominal pain was measured with a 100mm VAS before and 1, 3, 6, and 24-hours post-procedure, abdominal distension was assessed by abdominal x-ray, and transcutaneous pCO₂ levels were measured in 62 patients. In the second trial,¹⁹ Maple and colleagues randomized 100 patients to the same intervention, but used propofol for sedation. They also excluded patients with COPD as well as those with significant pre-procedure pain. Abdominal pain was measured with a 10 point VAS before the procedure, on arrival to recovery, on discharge, and approximately 24-48 hours post-procedure. Abdominal girth was measured directly, but pCO₂ levels were not recorded. Despite the methodologic differences in these studies and the use of different CO₂ insufflation devices, the results were similar: there was less pain and distension in the pCO₂ group as compared to the air group.

How can we interpret the results from our study in the context of the two prior ERCP trials, as well as the findings from trials of other endoscopic modalities?^{6, 9-12, 16-18, 20, 27} There are several possibilities. First, we detected a smaller than expected effect size. The study was powered for pain scores in the 20-40 mm range, with a 20mm decrease in VAS which we felt would be clinically meaningful, not the 10-20 mm range that we observed, with score changes of 5-10 mm. Second, pain-assessment 1-hour post-ERCP may have been too soon given the midazolam and fentanyl doses administered. In particular, doses of midazolam were higher in the air group, and this may explain the lower than expected 1-hour scores in that group. The sedation protocol is a major difference between our study and that of Maple and colleagues. Third, variation in measurement of abdominal girth may have obscured differences between the study groups, particularly when previously reported differences are on the magnitude of 2-3 cm.¹⁹

Because of these reasons, and because it was possible that our heterogenous patient population could mask an effect in subgroups, we performed a sensitivity analysis. However, regardless of whether we stratified by a biliary or pancreatic indication for ERCP, by baseline pain score, by presence of post-ERCP pancreatitis, or if we controlled for possible confounding factors, we did not detect a difference in outcomes. Therefore, because we feel the design of this trial was methodologically sound, it appears that CO₂ insufflation was not effective for decreasing abdominal pain or distension in our population of unselected patients undergoing ERCP for a wide range of indications at a tertiary care referral center.

There are several other findings of note in our study, however. First, we generated safety data and pCO₂ levels on all patients in the study and showed that CO₂ insufflation was well tolerated. Because pCO₂ levels rose in both groups, the increase was likely attributable to the effect of sedation, rather than to the effect of CO₂ insufflation. Moreover, as compared to almost all prior studies, we did not exclude all patients with COPD or obstructive sleep apnea from participating. This is important information which speaks to the tolerability of CO₂ insufflation in patients with comorbidities. In addition, while CO₂ monitoring during ERCP with air insufflation has been shown to decrease respiratory complications,²⁸ given the safety data we have presented, we do not feel CO₂ insufflation in and of itself would require routine capnography. A final point is that though not statistically significant, time to discharge from recovery was somewhat shorter in the CO₂ group, and future studies could address in more detail whether CO₂ insufflation could impact the efficiency of GI procedure units where fentanyl and midazolam are used.

In conclusion, the use of CO₂ for insufflation during ERCP was safe in a heterogenous tertiary care referral population. The mild rise we observed in pCO₂ in both groups was not attributable to CO₂ insufflation, but rather to conscious sedation. We feel that this is the most extensive safety data using pCO₂ levels reported to date for use of CO₂ in GI endoscopy, and in contrast to other studies, we included patients with pulmonary disease. Finally, because use of CO₂ during ERCP did not lead to decreased post-procedural pain or less abdominal distension, which were the primary outcomes of this study, its role in this procedure for these purposes remains in question.

ABBREVIATION PAGE

BMI

body mass index

CO₂

carbon dioxide

COPD

chronic obstructive pulmonary disease

ERCP

endoscopic retrograde cholangiopancreatography

GEE

general estimating equation

pCO₂

partial arterial pressure of CO₂

UNC

University of North Carolina

VAS

visual analogue scale
