Insights into MCM functional mechanism: lessons learned from the archaeal MCM complex

Abstract

The helicase function of the Minichromosome Maintenance protein (MCM) is essential for genomic DNA replication in archaea and eukaryotes. There has been rapid progress in the studies of the structure and function of MCM proteins from different organisms, leading to better understanding of MCM helicase mechanism. Because there are a number of excellent reviews on this topic, we will use this review to summarize some of the recent progress, with particular focus on the structural aspects of MCM and their implications for helicase function. Given the hexameric and double hexameric architecture observed by X-ray crystallography and electron microscopy for the MCMs from archaeal and eukaryotic cells, we summarize and discuss possible unwinding modes by either a hexameric or a double hexameric helicase. Additionally, our recent crystal structure of a full length archaeal MCM has provided structural information on an intact, multi-domain MCM protein, which includes the salient features of four unusual β-hairpins from each monomer, and the side channels of a hexamer/double hexamer. These new structural data enable a closer examination of the structural basis of the unwinding mechanisms by MCM.

Introduction

Minichromosome Maintenance protein (MCM) is a DNA helicase essential for genomic DNA replication (Forsburg, 2004, Moyer et al., 2006, Bochman and Schwacha, 2008). As a critical protein for cell division, MCM is also the target of various checkpoint pathways, such as the S-phase entry and S-phase arrest checkpoints (Forsburg, 2008). Both the loading and activation of MCM helicase are strictly regulated and are coupled to cell growth cycles. Deregulation of MCM function has been linked to genomic instability and a variety of carcinomas (Forsburg, 2004, Lau et al., 2007).

Eukaryotic MCM consists of six gene products, MCM2–7, which form a heterohexamer (Bell and Dutta, 2002). While for years in vitro helicase activity could not be observed, recent reports have identified such activity for the heterohexamer (Moyer et al., 2006, Bochman and Schwacha, 2008). A great deal of biochemical data has been collected regarding the heterohexamer, as well as the dimer of the trimer MCM 4, 6, 7, which also exhibits helicase activity (Lee and Hurwitz, 2001, Ishimi, 1997, You et al., 1999). However, high resolution structural studies with heterohexameric eukaryotic proteins are lagging behind.

Archaeal replication systems share many similarities to eukaryotic systems, including archaeal MCM proteins that are homologous to the eukaryotic MCM proteins (Kelman and White, 2005). Most archaeal genomes sequenced so far have revealed the presence of only one MCM gene, which makes archaeal MCM a simpler system for understanding the MCM structure and function relationship. So far, perhaps the best studied MCM proteins are from the species M. thermoautotrophicum (mthMCM) and S. solfataricus (ssoMCM). Both proteins oligomerize to form double-hexamers or hexamers in solution (Kelman et al., 1999, Chong et al., 2000, Fletcher et al., 2003, Carpentieri et al., 2002). Both exhibit single- and double-stranded DNA binding, a basal ATPase activity stimulated by the addition of DNA, and 3′→5′ helicase activity on forked DNA substrate in vitro (Kelman et al., 1999, Chong et al., 2000, Fletcher et al., 2003, Carpentieri et al., 2002, Pucci et al., 2004).

In contrast to the lagging eukaryotic structural studies, recently there has been great progress in the structural studies of archaeal MCM proteins, which has provided valuable information for understanding MCM helicase mechanism. Currently, the following X-ray structures have been determined: the N-terminal structures for mthMCM (Fletcher et al., 2003) and ssoMCM (Liu et al., 2008), a near full-length ssoMCM structure (Figure 1) (Brewster et al., 2008), and an MCM homolog from another archaeon, M. kandleri (mkaMCM2) (Bae et al., 2009) (reviewed in (Sakakibara et al., 2009)).

Figure 1. The salient features of the four β-hairpins of ssoMCM.

(A) SsoMCM monomer (Brewster et al., 2008). N- and C-terminal ends are labeled. Pink sphere: zinc atom. The four β-hairpins are colored and labeled. NT-hp (red): N-domain hairpin. H2I-hp (yellow): helix-2 insert. PS1-hp (green): pre-sensor 1 hairpin. EXT-hp (blue): exterior hairpin. (B) Two different views of the ssoMCM hexamer structural model. Individual subunits are colored differently. (C) Side view of ssoMCM hexamer colored as in A, with two monomers in the front are removed to reveal the β-hairpins in the central and side channels. (D) Top view of ssoMCM hexamer, showing the β-hairpins in the central and side channels. Most of the N-domain, except the NT-hp, has been removed for clarity.

The two recent structures have issues that affect analysis. The near full-length ssoMCM was solved to a low resolution (4.35Å) and is therefore a poly-alanine structure. The registry of the amino-acid sequence was verified through identification of heavy atom seleno-methionine peaks in the electron density maps, but caution should still be exercised. Also, while mkaMCM2 was solved to higher resolution (1.9 Å), it has a natural deletion of a critical zinc-binding subdomain in the N-terminal domain, which prevents hexamerization and thus helicase activity. MkaMCM2 also lacks canonical ATP-binding residues resulting in no ATPase activity (Bae et al., 2009). Finally, while full-length ssoMCM crystals were available, in the final structure the most C-terminal 85 residues (residues 602–686, predicted to form a winged helix fold), are missing, likely due to the flexibility of this domain. This domain is also naturally deleted in mkaMCM2. We will mainly focus on the interpretation of the near full-length ssoMCM structure in the following discussion, but most of the structural features of mkaMCM2 bear out the conclusions.

Regardless of the above issues, the new structures allow us to predict models relating to the structure-function relationship of MCM. In this article we first briefly review MCM structure, then examine how current biochemical data combines with the structures to present models for DNA unwinding, both in regards to where in the enzyme DNA is bound, and how ATP binding and hydrolysis may trigger conformational changes (domain and hairpin movement) to catalyze strand separation.

Overview of MCM structure

The ssoMCM structure reveals an elongated fold, with two large N- and C-terminal domains (Figure 1). The N-terminal domain (or N-domain, residues 1–266) consists of three small sub-domains and appears to be used mainly for structural organization (Fletcher et al., 2003, Liu et al., 2008), and possibly for processivity (Barry et al., 2007). The N-domain can coordinate with a neighboring subunit’s C-terminal AAA+ (ATPases Associated with diverse cellular Activities) helicase domain (residues 276–601) through a long and conserved loop (Brewster et al., 2008). This conserved loop, named the allosteric control loop (ACL), has been shown to play a role in regulating interactions between N- and C-terminal regions by facilitating communication between the domains in response to ATP hydrolysis (Sakakibara et al., 2008, Barry et al., 2009, Brewster et al., 2008). Further, the N-domain establishes the in vitro 3′→5′ directionality of ssoMCM when added in trans- to the separated C-terminal domain in vitro (Barry et al., 2007).

The sequence of the C-terminal domain (or C-domain, residues 276–686) is well conserved across species and between MCM subfamilies (Tye and Sawyer, 2000). The C-domain consists of an AAA+ ATPase core and a small winged helix bundle, and is the site of ATP hydrolysis and DNA unwinding. ATP binding and hydrolysis occurs at an interface between two monomers; one monomer provides the tri-phosphate binding loop (p-loop or Walker A/B motifs) for ATP binding in cis- and the other monomer contributes residues in trans-to interact with the ATP (Brewster et al., 2008, Iyer et al., 2004).

MkaMCM2 was crystallized as a monomer, as was the full length ssoMCM, despite the fact that ssoMCM forms a hexamer in solution and shows helicase activity (Brewster et al., 2008, Bae et al., 2009). However, the mthMCM N-domain (N-mthMCM ) was crystallized as a double-hexamer, with two hexamers stacked in a “head to head” configuration (Fletcher et al., 2003), and the ssoMCM N-domain (N-ssoMCM) was crystallized as a single hexamer (Liu et al., 2008). Not so surprisingly, the structures of the N-mthMCM and the N-ssoMCM hexamers are very similar to each other, and can be aligned reasonably quite well. Thus, these hexamers of the N-domains of MCMs can be used to model the hexamer conformation of the full-length ssoMCM protein (Figure 1B).

Based on the N-mthMCM hexameric structure, a hexamer model for the near full length ssoMCM structure was generated (Brewster et al., 2008). The near full length (FL) hexameric model exhibits a dumbbell appearance from the side, with a slim or narrow “waist” between the N- and C-domains. This general shape has been confirmed by electron-microscopy (EM) studies (Pape et al., 2003, Gómez-Llorente et al., 2005, Costa et al., 2006a). The central channel of the modeled hexamer has dimensions that can accommodate ssDNA or dsDNA (Fletcher et al., 2003, Brewster et al., 2008). Further, six side channels extend radially through the side “wall” of the C-terminal helicase domain near the N-terminal side of the ATP binding pocket. These side channels are visible by EM in archaea (Pape et al., 2003, Gómez-Llorente et al., 2005, Costa et al., 2006a) and eukaryotes (Remus et al., 2009) and appear wide enough to allow ssDNA to be threaded through, as was proposed for the side channels seen in the SV40 Large T antigen (LTag) hexameric helicase structures (Li et al., 2003, Gai et al., 2004b). Another salient feature is that each monomer has four types of β-hairpin structures that are located around the central and side channels: one in the N-domain called the NT-hairpin (or NT-hp), and three in the C-domain, named exterior hairpin (EXT-hp), helix 2 insert hairpin (H2I-hp), and pre-sensor 1 hairpin (PS1-hp) (see Figure 1A, 1C, 1D, Figure 2A and B).

Figure 2. Possible DNA unwinding modes by MCM helicase.

(A), (B) Schematic representation of MCM helicase as a hexamer (A) or double hexamer (B). The 4 β-hairpins (NT, H2I, PS1, and EXT hairpins) are represented by short solid bars; the central channel and the side channels are in darker shades. (C), (D) Steric exclusion model for a single hexameric (C) or double hexameric (D) MCM helicase. (E) Double side extrusion model, showing ssDNA exiting from two different side channels. (F) Double side extrusion model adapted to a double hexamer becomes the looping model. (G) Single side-channel extrusion model, showing one ssDNA strand extruding from a single side channel, while the other ssDNA strand remaining in the central channel. (H) Asymmetric looping model, ssDNA is extruded from N- and C- terminal side channels. DNA is shown as black lines. Arrows indicate direction of DNA translocation movement. Figure and caption adapted from (Brewster et al., 2008).

The NT-hp projects into the central channel where it binds DNA (Fletcher et al., 2003, McGeoch et al., 2005). Mutations involving important basic residues on the tip of this hairpin weaken ssDNA and dsDNA binding, and proportionally affect helicase activity in line with the lessening of DNA binding (McGeoch et al., 2005). The PS1-hp located N-terminal to the sensor-1 asparagine in the C-terminal AAA+ domain also has a critical lysine on its tip which affects DNA binding (McGeoch et al., 2005). Unlike the NT-hp, this mutation abrogates helicase activity completely. The double mutant with mutations on both the NT-hp and the PS1-hp lost DNA binding (McGeoch et al., 2005). Thus, these two hairpins are vital for interacting with DNA in the channel, while the PS1-hp within the helicase domain has an additional and more direct impact on helicase activity. Interestingly, the hairpin in SV40 LTag equivalent to the MCM PS1-hp extends into the central channel and is shown to move large distances within the channel in response to ATP binding/hydrolysis, likely to provide a “power stroke” for DNA unwinding (Li et al., 2003, Gai et al., 2004b). However, the PS1-hp in ssoMCM is recessed from the central channel and resides close to the side channel in our hexamer structure model (Brewster et al., 2008). Whether this β-hairpin of ssoMCM will move to the main channel upon ATP binding like LTag will need to be determined by future X-ray studies with nucleotides.

Two other hairpins present in the C-terminus include the H2I-hp and the EXT-hp (Figure 1A, 1C, 1D), (Brewster et al., 2008)). The H2I-hp is a β-hairpin insertion into helix 2 of the C-domain that projects directly into the central channel, with the tip of the β-hairpin carrying a small 3₁₀-like helix that appears to present a steric block in the central channel (Brewster et al., 2008). The central channel location of this structural element is predicted based on EM studies (Jenkinson and Chong, 2006, Costa et al., 2006a)). Deletion of residues within the H2I-hp greatly enhances ssDNA and dsDNA binding, but eliminates helicase activity (Jenkinson and Chong, 2006). Further, the ATPase activity of this mutant is not affected by the absence or presence of ssDNA, but was stimulated 12-fold by the addition of dsDNA. These data led to the proposition that this hairpin may act as a “plowshare” to separate the two DNA strands during unwinding (see below) (Jenkinson and Chong, 2006).

The EXT-hp (not present in mkaMCM2) is peculiarly situated near the side channel exit on the exterior side of the hexamer model of ssoMCM. A triple mutation on the tip of the EXT-hp (E326A/D327A/R329A) compromises helicase activity, suggesting the importance of this EXT-hp for DNA unwinding in MCM (Brewster et al., 2008). Our recent biochemical analysis also suggests that this hairpin is involved in DNA binding (Brewster et. al., in preparation).

Assaying MCM Helicase Activity

Before going into the details regarding the unwinding models, we will comment briefly on the large amount of biochemical and helicase studies available in the literature. Normally, small, synthetic DNA substrates are used for in helicase studies. These substrates are typically two oligonucleotide primers with complementary regions annealed together to produce small, forked, Y-shaped DNAs, or overhang DNAs. One strand is radio-labeled, and assays are performed in vitro with purified helicase, with the unwound products analyzed by poly-acrylamide gel electrophoresis. It is important to note that the synthetic forked and overhang substrates used in most helicase assays (including ours) should not be biologically relevant. Forked substrates with single stranded ends presumably do not form during melting at the origin in vivo. The free single stranded DNA ends available in vitro assay may allow the hexameric helicase ring to latch onto a ssDNA overhang and translocate along the ssDNA to displace the complementary strand, resulting in unwound ssDNA products. In this sense, a forked DNA unwinding assay is similar to a translocation assay.

An in vitro unwinding assay system that can initiate melting and unwinding from an origin sequence in the middle of a blunt-ended dsDNA substrate would likely mimic the unwinding mode that is most closely related to in vivo DNA replication. While no such assay system is available for MCM yet, SV40 LTag can robustly unwind blunt ended dsDNA with an origin sequence in the middle (Bullock, 1997). Also, the recent progress in being able to assemble a double hexamer of scMCM on dsDNA may very well render such an assay system feasible for MCM in the future (Remus et al., 2009). For this reason, it seems that the helicase data collected so far for eukaryotic hexameric or double-hexameric helicases should be viewed with caution.

Oligomerization of MCM

While it is well accepted that MCM forms hexameric complexes, it is unclear if MCMs from different organisms will form double hexamers. Interestingly, some parallels exist between what is already observed for SV40 LTag and MCM. Currently, there is a large amount of evidence supporting a double hexamer as the active helicase for SV40 LTag for viral DNA replication (see (Sclafani et al., 2004) and references therein). Further, double hexamerization of LTag greatly stimulates helicase activity (Smelkova and Borowiec, 1998, Alexandrov et al., 2002), and is generally important for viral DNA replication (Smelkova and Borowiec, 1997, Mastrangelo et al., 1989, Simmons, 2000). As SV40 relies on cellular co-factors, it is conceivable that the process used by LTag would mimic that of MCM’s in eukaryotic cells. In eukaryotes, the hexamer composed of two MCM4, 6 and 7 trimers has also been shown to be more processive as a double hexamer than a hexamer, although it is unclear whether the two hexamers were in a head to head configuration in that report (Lee and Hurwitz, 2001).

While much less is known about the active form of the MCM helicase during genomic replication in archaea and eukaryotes, crystal structure and EM studies from our group and others reveal a double hexamer architecture for mthMCM (Fletcher et al., 2003, Fletcher et al., 2005, Gomez-Llorente et al., 2005, Costa et al., 2006b). Further, recent work has established that the MCMs from S. cerevisiae (scMCM) are loaded as a double hexamer onto origin dsDNA (Remus et al., 2009). These emerging data in archaea and eukaryotes may suggest a unified theme for a functional double hexamer in vivo, despite the fact that details describing how a double hexamer works to unwind two replication forks bi-directionally still remain largely unknown (Sclafani et al., 2004).

SsoMCM has so far been mainly reported as hexamers (Carpentieri et al., 2002), with a hint of evidence indicating larger oligomers, some of which may contain double hexamers (Barry et al., 2007). We also have some data indicating ssoMCM double hexamerization may be salt dependent (Brewster et. al., in preparation), and it has been recently shown this is the case for mthMCM (Shin et al., 2009) (discussed more below). Thus, double hexamerization of archaeal MCM may be dependent on local conditions.

Double hexamerization of mthMCM is well studied, by X-Ray Crystallography (Fletcher et al., 2003) and by cryo-EM, where sample conditions were in the presence and absence of DNA. MthMCM’s N-domains come together in a “head to head” configuration (Fletcher et al., 2005, Gómez-Llorente et al., 2005, Costa et al., 2006b). This double hexamerization appears to affect helicase activity in vitro, because the mutation of an N-terminal arginine (R161A) at the double hexamer interface prevents formation of double hexamers and weakens helicase activity, especially at lower protein concentrations (Fletcher et al., 2005). This is reminiscent of the case in SV40 large T antigen, where the double hexamer has ~10–15 fold higher helicase activity than the single hexamer (Smelkova and Borowiec, 1997). However, a recent report shows that mthMCM’s oligomerization state is salt and protein concentration dependant in the absence of nucleotide and DNA (Shin et al., 2009). They found that lower protein concentrations yield more monomers, higher concentrations favor hexamers, and even higher concentration favor double hexamers. Further, helicase activity was shown to be inhibited at high concentrations, as was noted previously for mthMCM (Fletcher et al., 2005), for the viral replicative helicase SV40 LTag (Gai et al., 2004a) and as we have seen for ssoMCM (unpublished data). Importantly, they found optimal activity at concentrations sufficient to form a hexamer. Higher concentrations conducive to double-hexamerization were inhibitory.

Next they analyzed the activity of the R161A mutation versus protein concentration. In contrast to our report, they found that the single hexamer’s activity did not fall off as concentration increased. The source of this contradiction is unknown, but it seems likely helicase activity is affected by oligomerization state, and potentially experimental conditions. Perhaps the above note regarding the relevance of forked DNA substrates is applicable, but clearly future experiments are needed to provide illuminating insights into these seemingly conflicting results.

A parallel to LTag is applicable here. In vitro conditions can drive double hexamerization of LTag or inhibit it, and this in turn can change fork topology during unwinding. Electron microscopy data of LTag-dsDNA unwinding complex shows a population of “rabbit ear” structures indicative of bidirectional fork unwinding localized to a single double-hexamer (or dodecameric) complex (Wessel et al., 1992). The population of these double loop structures vs. two-fork bubble structures can be changed depending on the assay conditions. For example, a monoclonal antibody was added that theoretically bound to both hexamers. It was argued this stabilized the double hexamer, and correspondingly it raised the population of rabbit ear loops. Conversely, incubating with ETDA decreased the population. In vivo, the local conditions are unknown; the double hexamer may be destabilized, or there could exist bridging co-factors to stabilize double hexamerization. If local conditions can change LTag’s fork topology, perhaps they can alter that of mthMCM’s as well.

Whether MCM operates as a single or double hexamer in vivo directly affects how DNA replication is organized in the cell (reviewed in (Cook, 1999, Sclafani et al., 2004, Takahashi et al., 2005, Sakakibara et al., 2009)). A single hexamer model often leads to the idea that two replication forks travel away from each other, creating a bubble centered on the origin of replication. In this model, the DNA would be stationary and large replication machinery, including a large body of co-factors, accessory clamps, primase and polymerase, would travel along the DNA. An alternate model is the stationary factory model. Rather than a large replication protein complex moving along the DNA, the chromosomal DNA would be pulled into a replication complex that may be anchored on the nucleo-matrix. Currently, evidence is building that the latter model of stationary factories is the favored in vivo model (Cook, 1999, Anachkova et al., 2005). If the MCM helicase operates as a double hexamer, the two growing replication forks would be held close to each other by the helicase, which could act as an anchoring platform for assembling other replication proteins on the growing forks. This would necessitate a factory model; and the traveling model would not be possible. We note, however, the converse is not true; a factory model does not necessitate double hexamerization. Two single hexamers connected through other factors in a factory is also conceivable.

Possible models of DNA unwinding by the single hexamer

While it is still in debate which hexameric state is the biologically active form for cellular DNA replication in vivo, it is clear that a single hexamer of MCM, as well as LTag, can unwind DNA substrates with 3′-end ssDNA overhangs in in vitro assays (Morris et al., 2002, Ishimi, 1997). This is similar to the case for the DnaB family helicases in prokaryotic cells and phages, which require a 5′-end ssDNA overhang to unwind the dsDNA substrate (reviewed in (Patel and Picha, 2000, Donmez and Patel, 2006)). In this regard, substantial biochemical evidence has been gathered indicating probable sites of DNA interaction in ssoMCM and mthMCM (outlined below), which can help elaborate models for MCM-DNA interactions during unwinding using dsDNA substrates with ssDNA available as a 3′-overhang. Currently, there are several unwinding models that are proposed for MCM as a single hexamer: the steric exclusion model, the rotary pump model, the strand extrusion model, and the plowshare model.

Steric exclusion

Steric exclusion is proposed as the unwinding mechanism for DnaB family helicases in prokaryotes, which likely work as a single hexamer for genomic DNA replication (Patel and Picha, 2000). In this model, a hexameric helicase encircles and translocates along ssDNA towards the fork, unwinding the DNA fork by excluding the opposite strand from the hexamer (Figure 2C). The MCM 4, 6, 7 hexamer has been shown to use this mechanism on synthetic fork substrates in vitro (Kaplan et al., 2003). Further, FRET data seems to show that the 5′ tail in a forked substrate dynamically interacts with the exterior of the ssoMCM protein, rapidly binding and unbinding during unwinding (Rothenberg et al., 2007).

The viral E1 helicase ssDNA-bound crystal structure also indicates steric exclusion may be one of the unwinding mechanisms for E1 (Enemark and Joshua-Tor, 2006). Recent debate surrounding E1 and LTag mechanisms has centered on whether LTag double hexamerization is relevant to its biological function, meaning whether the rabbit-ear structures observed by in vitro EM represent the in vivo unwinding mechanism (as discussed earlier) (Wessel et al., 1992). It is argued that the E1 crystal structure with ssDNA bound suggests a possible steric exclusion mode (Enemark and Joshua-Tor, 2006, Enemark and Joshua-Tor, 2008), which should be extended to other hexameric helicases. It is further argued the central channel of LTag is too small to accommodate dsDNA. We have contended that LTag’s central channel can accommodate dsDNA (Li et al., 2003), as suggested by EM studies and biochemistry studies (reviewed in (Fanning and Zhao, 2009)). Additionally, as noted above, there is also strong evidence that LTag double-hexamerization is relevant in vivo. We await a DNA-bound LTag structure to help resolve the question, but note it is possible that the enzymes can have multiple modes of unwinding depending on whether a single or a double hexamer is at work and depending on if it’s operating in vitro or in vivo. Of course, available evidence does not exclude the possibility that these enzymes may simply operate by different means.

Rotary pump

Another model is the rotary pump, wherein many single hexamers bind at an origin, spread out along the chromosome, then are anchored in place and rotate DNA—thus, introducing negative supercoiling to unwind it (Laskey and Madine, 2003, Takahashi et al., 2005, Sakakibara et al., 2009). This model is proposed partially based on the observation that large numbers of excess MCM are loaded during replication on the chromosome (reviewed in (Forsburg, 2004)). Considering the large number of replication proteins and chromosomal associated proteins bound to the DNA, it would require large scale coordination between these proteins for this mechanism to work.

Strand extrusion and plowshare

Analysis of DNA binding in the different regions of the hexamer suggests a change from double to single stranded DNA occurs at point buried in the central channel of the enzyme. If such a change occurs, it seems likely the two single strands would emerge from the enzyme from different pores, leading to the strand extrusion model (Figure 2G). The evidence comes from two reports which analyzed DNA binding to ssoMCM mutants consisting of only the N- or C-domains. The first report found that N-ssoMCM binds ssDNA with an affinity at least comparable to wild type but that C-terminal ssoMCM (C-ssoMCM) has greatly compromised ssDNA binding (Pucci et al., 2007). The second report found that C-ssoMCM can bind dsDNA with good affinity (and in a highly cooperative manner), but N-ssoMCM cannot (Liu et al., 2008). The N-ssoMCM structure bears this out, as the central channel seems too narrow to encircle dsDNA (Liu et al., 2008). However, the N-terminal double hexamer of mthMCM clearly can bind dsDNA and ssDNA (Fletcher et al., 2003). Interestingly, an EM study of mthMCM in the presence of dsDNA reveals dsDNA in the channel bound to one of the hexamers in the double hexamer, and possibly only in the C-domain (Costa et al., 2006a). Together these data all seem to indicate that the hexamer can accommodate both dsDNA and ssDNA in the C-domain and the N-domain, but may possess a preference for dsDNA in the C-domain and for ssDNA in the N-domain. During DNA unwinding by a single hexamer, if the C-domain binds dsDNA and the N-domain binds ssDNA, then the other ssDNA strand may be extruded between the two domains through one of the six side channels near the ATP binding site. The other strand would continue in the central channel and exit through the N-terminal central channel. Some of the earliest work on archaeal MCMs found that the ssDNA binding site and the ATP binding site may overlap (Chong et al., 2000). This could be due to conformational shifts upon ATP binding directly affecting ssDNA affinity. However, it may also be due to the proximity of the ATP binding site to the side channel that may serve to passage ssDNA.

Extruding both strands out of two side channels (Figure 2E) could be an alternative unwinding mode. However, this model does not seem to agree with the findings that the interaction of the N-terminal NT-hp with DNA is important for helicase activity (Fletcher et al., 2003, McGeoch et al., 2005). At this moment, it requires further investigation as to whether this interaction of NT-hp with DNA is important only for the initial DNA binding at the beginning of unwinding or critical during unwinding as well.

A previously proposed model for DNA unwinding by a rigid motif, the “plowshare” (Takahashi et al., 2005), can be adapted to the strand exclusion model. The plowshare was thought to be at the end of a single hexamer with respect to the direction of dsDNA movement and would be dragged behind the hexamer as it translocated on dsDNA, splitting the two strands during the translocation process in a manner similar to the RecBCD pin (Takahashi et al., 2005, Singleton et al., 2004). Such a pin is not present at the exit of the central channel in our ssoMCM hexamer structure model. While the NT-hp is situated near a likely DNA exit pore (the N-domain central channel), it is dispensable for helicase activity (McGeoch et al., 2005, Barry et al., 2009). An element of the C-terminal winged helix domain could be a candidate; however its deletion results in higher ATPase and helicase activity (Barry et al., 2007). Thus, the most reasonable proposal is that the H2I-hp in the middle of the channel fills the role of the plowshare (Jenkinson and Chong, 2006). The presence and location of the H2I-hp is confirmed in the crystal structure of the near full length ssoMCM (Brewster et al., 2008).

Further supporting side channel utilization, the crystal structure reveals an unexpected (acidic) EXT-hp that is situated on the exterior of the protein near the side-channel, not at the central channel. It is intriguing that EXT-hp is critical for ssoMCM helicase function (Brewster et al., 2008), and involved in DNA binding (Brewster et. al., in preparation). This suggests that the side-channel may be used for DNA unwinding, possibly for direct ssDNA binding, as shown in model Figure 2G. The exact mechanism for the involvement of this EXT-hp in DNA unwinding is worth further investigation.

The model in Figure 2G is attractive in that it satisfies all of the DNA binding data discussed above, including the encircling of dsDNA by MCM that likely is biologically relevant (reviewed in (Takahashi et al., 2005)), and the involvement of each of the 4 hairpins in binding DNA (see discussion below). However, it runs afoul of an unwinding result obtained in vitro, in which MCM 4, 6, 7 heterohexamer cannot unwind forked substrate with a biotin/streptavidin block on the middle of the 3′→5′ strand, but it can unwind substrate with a block on the 5′→3′ strand (Kaplan et al., 2003). This result argues for the strand exclusion model in Figure 2C: MCM can bind the 3′ end of a forked substrate and translocate on it, unwinding the other strand, as long as there is no block on the 3′ strand. Because the 5′ strand is excluded in this model, a block is permissible on that strand as the block would not enter the central channel. Clearly more data is needed to resolve the issue.

Models of DNA unwinding by the double hexamer

As discussed above, various structural and biological data suggest that SV40 LTag works as a double hexamer for viral DNA replication in vivo, and available evidence also suggests that MCM may function as a double hexamer. If these ring-shaped helicases function as a double hexamer to unwind two replication forks bi-directionally, how do the two DNA forks propagate and how are they organized by the double hexamer? We present several hypothetical models and discuss how they fit the present body of research data.

Steric exclusion

Simply expanding the model for a single hexamer in Figure 2C to a double hexamer is impossible, as it would lead to non-complementary ssDNA strands sliding across one another in the N-terminal central channel. However, if a side channel is utilized for the ssDNA exit so that the N-domain no longer binds DNA (Figure 2D), then the steric exclusion model can be adapted to a double hexamer. Interestingly, this satisfies many of the observations made above with regards to the single hexameric strand extrusion model, but it does not engage the NT-hairpin. However, in this model, the NT-hp could be utilized during initial melting and/or loading of the complex. This is seen in S. cerevisiae MCM5; a triple mutant on the NT-hp affects replication initiation and origin binding (Leon et al., 2008, Bochman and Schwacha, 2009). It also suggests a different role for the H2I-hp than a plowshare: as the deletion of the H2I-hp increases DNA binding (Jenkinson and Chong, 2006), perhaps it serves to direct DNA in the central channel towards a side channel, where it is picked up by the PS1-hp and extruded.

Looping models

A double looping model (Figure 2F) has been proposed for LTag previously (Li et al., 2003, Gai et al., 2004b). This looping model can be directly extended from the unwinding model for a single hexamer shown in Figure 2E. Again, the NT-hp is not utilized for DNA unwinding, but perhaps initial N-terminal DNA binding is necessary for establishing unwinding conformation, with DNA relocating to the side-channel after initiation and conformational rearrangement. Because the AAA+ helicase domain alone of ssoMCM showed helicase activity (Barry et al., 2007), this suggests that the N-domain is dispensable for unwinding, which is consistent with this model. However, evidence also seems to suggest that dsDNA and/or ssDNA interactions within the N-terminal central channel are important for mthMCM beyond initiation (Fletcher et al., 2003, McGeoch et al., 2005). More investigation will be needed to understand the N-terminal role in DNA unwinding in vitro and in vivo, however we discuss below the possibilities arising from the presence of either dsDNA or ssDNA in the N-terminal channel.

If dsDNA moves through the N-domain of one of the two hexamers during unwinding, then an odd situation of a double hexamer unwinding a single replication fork arises (model not shown). It is noteworthy that mthMCM EM models bound to dsDNA show an asymmetry lengthwise through the double hexamer (Costa et al., 2006a). One possibility is that one hexamer translocates on dsDNA in front of the DNA fork while the other hexamer at the fork separates it and extrudes ssDNA, leading to asymmetry in the structure. In this case, instead of two single hexamers moving at two forks, or one stationary double hexamer holding two separate forks together, there would be two double hexamers, possibly mobile, each with a single fork. However, given the double hexamer architecture observed in SV40 large T, archaeal MCM, and eukaryotic MCM (Valle et al., 2006, Gómez-Llorente et al., 2005, Remus et al., 2009), the model of one double hexamer on one replication fork is less likely, although we cannot exclude it. We note here that recent work has shown that eukaryotic MCM double hexamers can at least “slide” along dsDNA (Remus et al., 2009).

If ssDNA moves through the N-domain, as proposed during unwinding for a single hexamer shown in Figure 2G, it can be easily adapted to unwinding by a double hexamer (Figure 2H). ssDNA would pass through part of the central channel and then loop out from N- and C-domain side channels observed in crystal structures of N-mthMCM, as well as in the hexamer model of ssoMCM (Fletcher et al., 2003, Brewster et al., 2008). This model is reminiscent of past asymmetric looping models proposed or SV40 large T (Gai et al., 2004b, Valle et al., 2006). Here, one DNA strand is extruded out of a C-terminal side channel, and the other is extruded out of a putative N-terminal secondary side channel. Secondary N-terminal side channels can be visualized in the EM structure of double hexameric LTag (Valle et al., 2006). Further, these channels are also visible in mthMCM EM maps (Pape et al., 2003) (Figure 3A, B), and the recent eukaryotic EM MCM map (Remus et al., 2009). Additionally, they are also visible in the N-mthMCM double hexamer structure (Figure 3C), and the hexamer model generated from the X-ray structure of ssoMCM. While this channel can, in principle, allow ssDNA passage, we stress that whether it could be used as a ssDNA exit is highly hypothetical at this stage. In this model, both C-terminal central channels contain dsDNA, both N-terminal central channels contain ssDNA, and all the functionally important structural motifs in the ssoMCM structure are engaged. As such, this unwinding model by a double hexamer seems to satisfy the structural and DNA binding data the most.

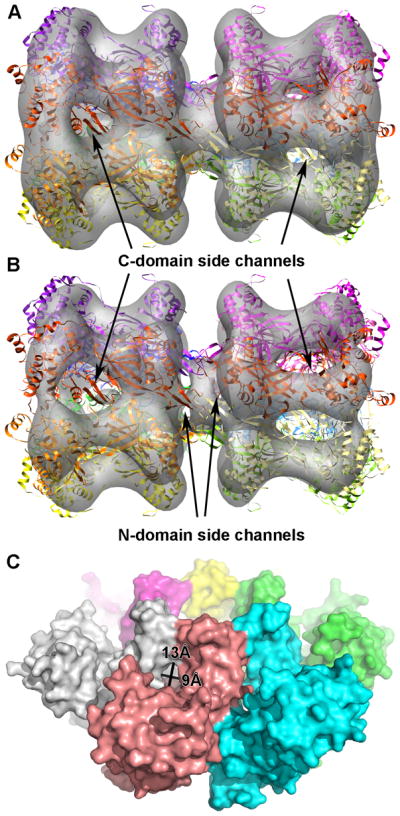

Figure 3. The side channels at the C-domain and N-domains.

A) Electron-microscopy map of double hexamer mthMCM (Gómez-Llorente et al., 2005) in which a double hexamer model of ssoMCM fits. B) The EM map shown in panel A, but with a higher threshold. The visible side channels in the N- and C- domains are indicated. C) Space filling model of N-mthMCM with N-terminal side channel measurements indicated (Fletcher et al., 2003). Note, the N-ssoMCM space-filling model (Liu et al., 2008) does not show these gaps, but its zinc binding domain is substantially shifted compared to either the N-mthMCM structure (Fletcher et al., 2003) or the near full-length ssoMCM structure (Brewster et al., 2008).

Detailed structural features for DNA unwinding

The ATP bound structure of LTag reveals a tight ATP binding pocket, with key residues bonding with the ATP from both the cis- and trans- side (Gai et al., 2004b) (Figures 4, 5). In the ssoMCM hexamer model, key trans- residues (such as the arginine finger) are within a reasonable distance, but are more recessed from the pocket, similar to, but to a greater extent than the apo LTag hexamer structure (Brewster et al., 2008, Gai et al., 2004b). Recent work established that a residue at the base of the EXT-hp, R331, is critical for ATPase and helicase activity (Moreau et al., 2007).

Figure 4. Overview of LTag hexamer conformations and the β-hairpin structure in different nucleotide binding states.

Three nucleotide binding states of LTag hexameric helicase, seen from above (N-terminal face). Monomers are colored, with their central β-hairpins in red (equivalent to the PS1-hp of ssoMCM). The N-domain, D1, has been removed for clarity. Adapted from (Gai et al., 2004b).

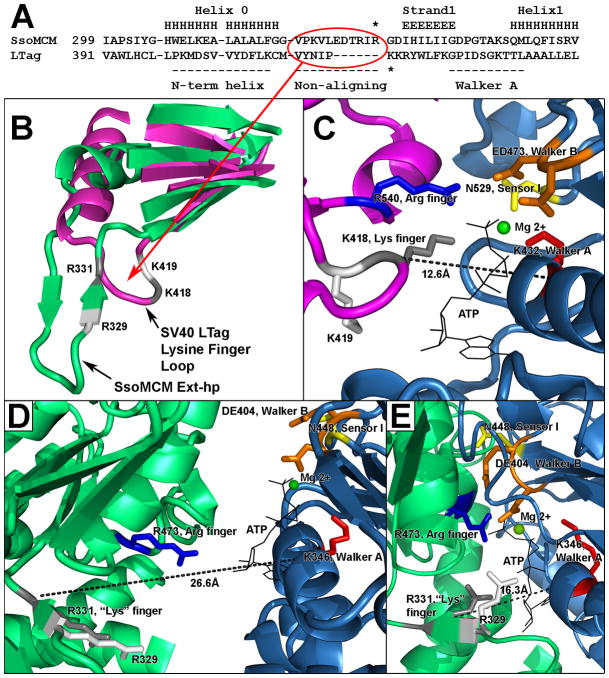

Figure 5. The nucleotide pocket configurations in LTag and SsoMCM.

A) The sequence alignment between ssoMCM and LTag around the EXT-hp of ssoMCM, adapted from (Iyer et al., 2004). Secondary structure is listed above (H: helix, E: strand). The circled region is an 11 AA region (ssoMCM) or a 5 AA region (SV40 LTag) that is not conserved among AAA+ ATPases. This region corresponds to the Ext-hp (ssoMCM) or a small loop in LTag that houses its lysine finger (K418). The * indicates ssoMCM R331 (top sequence). Another * indicates LTag K418 (lower sequence). B) Structural alignment of a portion of ssoMCM (green), and LTag (magenta). The 5 strand β-sheet from the AAA+ ATPase core is in the upper right; helix 0 from the C-domain is in the upper left. Residues which may have functional equivalence are colored the same (such as ssoMCM R331 and LTag K418 in gray). C) LTag ATP binding pocket, with an ATP bound. Cis- residues (named such due to residence on the monomer presenting the p-loop) are on the right, from the blue monomer; trans- residues are on the left, from the magenta monomer. The nucleotide pocket distance is indicated, measured from K418 to K432 (main-chain to main-chain). D) SsoMCM nucleotide pocket from the hexamer model. The pocket distance is measured from R331 to K346. Amino acid side chains and the ATP position are modeled in. E) A simulated ssoMCM closed ATP binding pocket. Amino acid side chains and the ATP are modeled in to approach the ATP without altering the protein backbone.

It is possible that this residue has an analog in the LTag binding pocket. In the sequence alignments of AAA+ ATPases including ssoMCM and LTag, a stretch of 11 amino acids in ssoMCM or 5 amino acids in LTag in the C-domain do not align in the majority of the AAA+ ATPases (Figure 5A) (Iyer et al., 2004). In ssoMCM, these 11 amino acids are the EXT-hp (residues 321–331). In LTag, the 5 amino acids form a small loop (residues 413–417, Figure 5B). It appears that ssoMCM R331 may align structurally with LTag K418. LTag’s K418, has been identified as a “lysine finger” that works with the arginine finger to coordinate the ATP gamma phosphate (Li et al., 2003, Gai et al., 2004b). Mutation of LTag K418 to alanine abrogates both ATPase and helicase activity (Greenleaf et al., 2008).

Adjacent to LTag K418 is another lysine, K419, that is also involved in ATP hydrolysis (Figure 5B). LTag K419 interacts with the ribose in the ATP bound structure (Gai et al., 2004b), and has a much less severe phenotype than K418 (Greenleaf et al., 2008). Our triple mutant that included ssoMCM R329 also had a less severe phenotype than was reported for ssoMCM R331 (Brewster et al., 2008, Moreau et al., 2007). While the k_cat remained unchanged, the k_m for binding was significantly affected, and in the presence of Y-DNA, the k_m was high enough to make the k_cat immeasurable. We have preliminary data for the R329 mutant alone that shows ab reduction, but not elimination of ATPase activity (Brewster et. al., in preparation). Thus, the phenotypes suggest that ssoMCM R331 is equivalent to LTag lysine finger K418, and ssoMCM R329 is equivalent to LTag K419. This hypothesis requires further verification with a structure of ssoMCM hexamer bound to nucleotide.

In the ssoMCM hexamer model, we measured the main chain-main chain distance of R331 (“lysine” finger) to K346 (Walker A) in angstroms. This “pocket distance” was compared to the pocket distance of LTag (between equivalent LTag residues K418 and K432), in both ATP bound and apo forms (Figure 5C, D). The LTag ATP bound pocket distance is 12.6 angstroms compared to its apo distance of 18.4 angstroms. The ssoMCM hexamer model has a pocket distance of 26.6 angstroms, which seems excessively large for a residue that needs to interact with the ATP. If these two residues are directly interacting with the ATP, it seems they need to close a 14 angstrom gap first.

Similarly, LTag’s arginine finger moves in response to ATP binding, from 20.4 angstroms to 14.7. The ssoMCM distance is 16.9 angstroms, indicating the gap is much less severe for this residue (only 2.2 angstroms instead of 14). Thus, we will focus on the R331–K346 pocket distance.

Based on the discussion above and comparison with what is known about SV40 LTag, we propose a mechanism for conformational changes of ssoMCM in response to the ATP binding cycle, which probably can couple the movement of the β-hairpins for DNA unwinding and translocation. First, ATP binding on the p-loop will bring R331 on the EXT-hp of a neighboring monomer close to the ATP/p-loop to make bonding contacts, closing the gap between the two monomers, and leading to the shift and rotation of the C-terminal AAA+ domain relative to the N-domain, very much like the iris-movement observed in the SV40 LTag in response to ATP binding cycle (Figures 4, 6) (Gai et al., 2004b). The N- and C-domains have been shown to operate independently; separately purified N- and C- terminal ssoMCM mixed together have stimulated helicase activity compared to the C-terminal alone (Barry et al., 2007). This domain shift and rotation of the AAA+ domain should also lead to the coordinated movement of the three β-hairpins in the main and side channels, which can be coupled with DNA translocation and remodeling (Figure 6). A movie simulating such conformational changes is shown as part of the Figure 6 supplement.

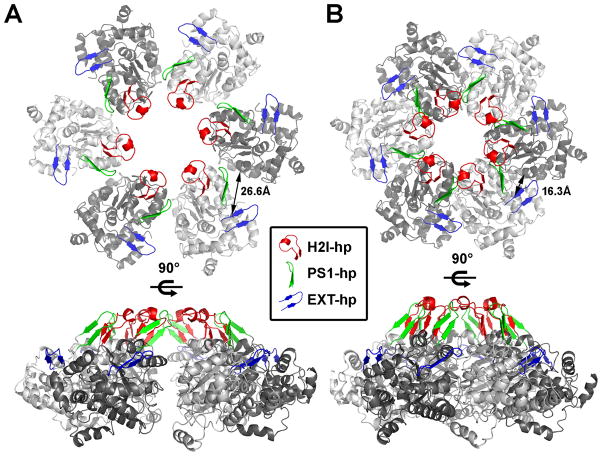

Figure 6. Nucleotide pocket closure in ssoMCM and the conformational changes of the hexamer.

A) Top and Side views of the ssoMCM hexamer model in the absence of nucleotide binding (Brewster et al., 2008). The N-domain, as well as some surface loops, are hidden for clarity. The three C-terminal β-hairpins are colored. Red: helix-2 insert hairpin (H2I-hp). Green: pre-sensor 1 hairpin (PS1-hp). Blue: exterior hairpin (EXT-hp). The main-chain to main-chain distance from the EXT-hp residue R331 (“lysine” finger) to the Walker A residue K346 is shown in angstroms (the pocket distance). B) Same orientations shown as in panel A, but with simulated nucleotide pocket closure triggered by ATP binding, resulting in the rotations and a translation of the C- domain of each monomer. See text for details.

Potential roles of the β-hairpins in DNA unwinding

In the simulation of the conformational changes triggered by ATP binding shown in Figure 6, we modeled the tightening of the ATP binding pocket through a series of 5 steps. The final pocket distance (R331 to K346) after these movements is 16.3 angstroms. The arginine finger distance narrowed to 13.7 angstroms. The end result of these movements is a tightening of the central channel, and an upward movement (toward the N-terminus) of the PS1-hp and H2I-hp. These results parallel the tightening of the LTag hexamer upon ATP binding (Figure 4) (Gai et al., 2004b).

The PS1-hp, required for helicase activity and involved in DNA binding in MCM and LTag, lies recessed from the central channel in our hexamer model of ssoMCM. In our simulation, closing the ATP pocket upon ATP binding seems to move the PS1-hp further into the channel and up toward the N-terminus. If movement of this β-hairpin into the central channel upon ATP binding facilitates DNA binding, then perhaps hydrolysis of ATP would restore the PS1-hp closer to the side channel, which could move separated ssDNA with it and promote ssDNA extrusion through the side channel. Further, this movement could cause a shift of the NT-hairpin, mediated through the ACL, facilitating the C- to N-domain communication seen previously (Sakakibara et al., 2008, Barry et al., 2009). Indeed, it was reported that the distance between the ACL and the PS1-hp (in trans-) increases when ATP is bound (Barry et al., 2009), which is supported by our modeling result.

The hexamer model of ssoMCM shows that the H2I-hp extends away from core subunit structure and protrudes into the central channel (Brewster et al., 2008). Further, the H2I-hp lies between two side channels and under the NT-hp of an adjacent subunit, forming a helical arrangement of hairpins within the central channel (Figure 1C, 1D). The simulation suggests that ATP pocket closure through ATP binding may recess the H2I-hp away from central channel as the PS1-hp projects further into it. ATP hydrolysis and release would restore the H2I-hp to the central channel, which could split new base pairs along dsDNA. In this sense, it may act as a structural element to insert into the dsDNA between strands in a plowshare manner as discussed above. Indeed, while the H2I-hp itself is conserved, poor sequence conservation within the H2I-hp has led to the idea that its interactions are non-amino acid specific, presumably steric (Jenkinson and Chong, 2006). We note, however, that this hypothesis would carry more weight if the H2I-hp projected further into the central channel in the apo hexamer model.

FRET data shows the 5′ tail of a forked DNA substrate binding and releasing to the hexamer dynamically during unwinding, presumably to the exterior (Rothenberg et al., 2007). The EXT-hp could be in a place suited to disengage the 5′ strand from the exterior of the protein. This could be accomplished through its hydrophobic and acidic tip (VLED, 324–327), leaving R329 and R331 to be involved in ATP hydrolysis only. However, our newly obtained analysis of this hairpin shows E326, D327, R329 and R331 are all involved in DNA binding, making this theory unlikely (Brewster et. al., in preparation). Further, in the ATP pocket closure model, we see the EXT-hp moving directly around the exit of the side channel, a location suitable for the engagement with DNA from the side channel.

These features all seem to suggest that the side-channel may be utilized for ssDNA passage. If the strand separation occurs at the H2I-hp in the central channel near the internal exit of the side channel, the separated ssDNA would be able to make its way out of the hexamer through the nearby side channel. Thus, the unwinding models for a single hexamer proposed in Figure 2E and 2G, or for a double hexamer in Figure 2F and 2H could all be likely modes of action for unwinding in in vitro experimental conditions and in vivo replication.

The side channel paradox

In most of the unwinding models described in Figure 2, the side channels between pairs of subunits are proposed as a possible route of extruding single stranded DNA during unwinding. These side channels may simply be a byproduct of the structure during hexamer assembly, and could play no functional roles. However, as discussed above, the positioning of the important hairpins in the side channels, together with mutational evidence showing the relevance of side channel residues for unwinding in MCM (Brewster et al., 2008, McGeoch et al., 2005) and LTag (Wang et al., 2007), gives tantalizing evidence that the side channels may be utilized during DNA unwinding. The paradox: there are six side channels per hexamer (12 in a double hexamer), but only one or two of the six side channels will be used for ssDNA exit in these unwinding models.

We find a recent study on MCM using mutant doping experiments relevant to this discussion (Moreau et al., 2007). In these tests, wild-type and ATP hydrolysis mutants are mixed in varying proportions and activity is measured. From these assays, it can be determined if the 6 binding sites randomly hydrolyze ATP independent of each other (probabilistic mechanism) or if there is a sequential mechanism, where one hydrolysis event enables or stimulates the adjacent subunit’s ATP hydrolysis. In a probabilistic model, activity falls off linearly as the %mutant increases; in a sequential model, one mutated subunit will poison the entire hexamer and activity will fall off exponentially. The data shows a semi-sequential model in this study for ssoMCM (Moreau et al., 2007). Specifically, up to three mutants can be tolerated, as long as the remaining three WT subunits are sequential. This implies that only half of the hexamer is needed to unwind DNA, which in turn means that only one or two side channels are necessary. Also, it may imply that only 2–3 H2I hairpins are required to split DNA in a plowshare model.

If only a few ATP sites are necessary and only one side channel is needed, the rest of the subunits may have no evolutionary pressure in terms of helicase function and can evolve to specialize. This point may bear some relevance to what we see in eukaryotic MCMs with six different subunits (MCM2–7): dimers of 3/7, 7/4 and 4/6 have ATPase activity while the others do not (Davey et al., 2003, Bochman et al., 2008). Further, mutations in Walker B or arginine finger in the 7/4 and 4/6 dimers affect helicase activity while the same mutations in the other dimers have a smaller effect (see (Bochman and Schwacha, 2009)). Finally, the MCM 2/5 interface has been recently theorized to form a “gate” which both regulates helicase activity and allows for loading onto dsDNA, thus not directly participating in active unwinding (Bochman and Schwacha, 2007, Bochman and Schwacha, 2008). The 2/5 interface is likely opposite the 7/4 interface (Davey et al., 2003, Yu et al., 2004), where ATPase and helicase activity seems to be present.

Thus, one of these MCM dimers could be specialized to serve as a side channel for ssDNA extrusion, such as the 7/4 side channel for example, or perhaps at the 2/5 gate, with ATP hydrolysis occurring opposite the side channel. Further, evolutionarily specialized proteins could also allow consistent docking of accessory proteins, such as kinase or polymerase, to a single subunit, allowing a specific arrangement of accessory factors with respect to the side channel orientation, an advantage over the symmetric (or non-differentiated) archaeal MCMs.

Conclusion

The wealth of new data regarding MCM structures and functions have significantly aided the understanding of how MCM works in DNA unwinding and replication. Here, we presented recent progress and insights into the structure and functional relationship of MCM complex. Many of the detailed mechanisms remain to be resolved by future studies, and clearly more data are needed to have a better understanding of the unwinding by these replicative helicases in a cellular setting. We hope the discussion here can serve as a basis for future studies of MCM functions in DNA unwinding and replication.
