Leg Ulcers in Sickle Cell Disease

Introduction

The clinical manifestations of sickle cell disease (SCD) are diverse. Among them, leg ulcers are relatively common and can be disabling. Leg ulcerations have been a long recognized complication of SCD and even the first SCD patient to be described in North America in 1910 had chronic leg ulcerations(1, 2). The prevalence of leg ulceration varies, being low before age 10 years. It is most common in sickle cell anemia (homozygosity for HBB glu6val; HbSS) and less often seen in HbSC disease or HbS-β thalessemia. Its geographical distribution is also variable, affecting 75% of HbSS patients in Jamaica but only 8–10% of North American patients (3–5). The pathogenesis of chronic ulcers in SCD is complex, and may include the following: Mechanical obstruction by dense sickled red cells, venous incompetence, bacterial infections, abnormal autonomic control with excessive vasoconstriction when in the dependent position, in situ thrombosis, anemia with decrease in oxygen carrying capacity, and decreased nitric oxide bioavailability leading to impaired endothelial function have all been proposed as potential contributing factors (6, 7).

Venographic studies have shown that venous insufficiency is not a primary cause of sickle cell ulcerations. Instead, it is the arteriovenous shunting which has been postulated as a factor in ulcer formation. This shunting deprives the skin of oxygen promoting ulceration. Furthermore, trauma, infection and inflammation have all been cited as potential causes of lower extremity ulcerations in SCD. It is the combination of these factors, along with the interrupted microcirculation that contribute to the pathophysiology of lower extremity ulcerations in patients with SCD.

Leg ulcers occur in areas with less subcutaneous fat, thin skin, and with decreased blood flow (8). The commonest sites are the medial and lateral malleoli (ankles), often becoming circumferential if not controlled early; the medial malleolus is more commonly involved than the lateral malleolus. Less common sites are the anterior tibial area, dorsum of the foot, and Achilles tendon(9).

Severity index

Many severity indices for leg ulcers are based on size, depth, and duration. Staging based on depth is as follows:

• Stage 1: Nonblanchable erythema of intact skin, the heralding lesion of skin ulceration. In individuals with darker skin, discoloration of the skin, warmth, edema, induration, or hardness may also be indicators.

• Stage 2: Partial-thickness skin loss involving epidermis, dermis, or both. The ulcer is superficial and presents clinically as an abrasion, blister, or shallow crater.

• Stage 3: Full-thickness skin loss involving damage to or necrosis of subcutaneous tissue that may extend down to, but not through, underlying fascia. The ulcer presents clinically as a deep crater with or without undermining of adjacent tissue.

• Stage 4: Full-thickness skin loss with extensive destruction, tissue necrosis, or damage to muscle, bone, or supporting structures (eg, tendon, joint capsule). Undermining and sinus tracts also may be present.

Classification

Leg ulcers may be classified as acute or chronic according to their duration, however, there is no consensus as to a specific length of time to define chronicity. An acute ulcer usually should heal in less than a month. Among chronic ulcers, a duration of six months seems to define the most recalcitrant ulcers. It is not uncommon for ulcers to last many years, often closing and re-opening repeatedly times.

Clinical Features

Leg ulcers are painful and often disabling complications of SCD. They tend to be indolent, intractable and heal slowly over months to years. The pain may be severe, excruciating, penetrating, sharp and stinging in nature. In most patients, oral or parenteral opioid analgesics are needed to achieve some pain relief. Leg ulcers are more common in males in some studies and their incidence increases with age. Their association with the severity of hemolysis, is suggested by their reduced incidence in carriers of coincident ∝ thalassemia, individuals with higher hemoglobin concentrations and those with high levels of HbF. They are also associated with priapism and pulmonary hypertension, both felt to be markers of advanced sickle vasculopathy. Moreover, leg ulcers have been reported to be more common in carriers of the CAR β-globin gene cluster haplotype.

Management

Treatment of leg ulcers includes wound care using wet to dry dressings. With regular and good localized treatment, many small ulcers may heal within a few months. Leg ulcers that persist beyond 6 months may require other modalities including, among other things, blood transfusion, skin grafting, Unna boots, zinc sulphate, hyperbaric oxygen, arginine butyrate, topical herbal applications, etc. Unfortunately success or failure of these measures has been anecdotal in nature without the advantage of controlled clinical trials to identify the best approach to management.

Principles of management of leg ulcers include education, protection, infection control, debridement and compression bandages. Debridement could be surgical, medical or biological. Osteomyelitis may complicate chronic leg ulcers, especially those with deep wounds, and it is advisable to rule out this complication with a bone scan or MRI and bone biopsy if needed. Rarely, a leg ulcer is the cause of systemic infections, and occasional deaths attributable to sepsis secondary to a leg ulcer infection have been reported. Also exceedingly rare is the need for amputation of the leg or the foot affected by the ulcer.

Recent advances in the management of leg ulcers include topical applications of analgesics, including opioids for pain, topical application of a platelet-derived growth factor prepared either autologously (Procuren) or by recombinant technology (Regranex) and the use of cultured skin grafts. The use of semi-permeable polymeric membrane dressing seems to promote healing in diabetic foot ulcers. Moreover, manuka honey (from New Zealand) has been reported to heal diabetic foot ulcers.

The role of hydroxyurea in the treatment of sickle leg ulcers is presently unclear, however, the weight of evidence suggests the hydroxyurea does not cause, prevent, or speed healing of these ulcers in sickle cell disease. Chronic transfusion has been advocated for treatment of sickle leg ulcers; however, there is no systematic or controlled data that shows its efficacy. While it is common for the ulcer to heal when therapy is initiated, they often recur.

Leg Ulcers Prevention

Old studies of nutritional deficiencies in sickle cell disease demonstrated that zinc deficiency is common in individuals with sickle cell disease. The mineral is thought to play an important role in immune function and wound healing. Early, small but randomized studies showed that administration of zinc sulfate 220 mg t.i.d. resulted in more rapid healing of leg ulcers(10).

Clinical observations and epidemiological studies document the important role of local trauma in onset of leg ulcers. This provides a number of simple interventions that can be taught to older children and young adults which will potentially reduce the prevalence of this troubling complication, such as protective legging with non-elastic lower extremity orthoses with ankle straps, to be worn during working hours. Educational interventions should be targeted to health professionals so that the lower extremities are avoided as sites for venipuncture and vascular access unless absolutely necessary. Although not all studies support the importance of venous stasis in the development of leg ulcers, the most systematic epidemiological studies and clinical experience suggest that this may be a major determinant of the success of treatment and prevention. Control of venous stasis requires behavioral modification, may result in need for occupational rehabilitation, and may be common to all successful interventions. Venous stasis may also explain the causal link between pulmonary hypertension and occurrence of leg ulcers. Bed rest and in general limiting the amount of standing time, seems to have an impact on wound healing as well.

Finally, well done epidemiological studies from Jamaica suggest that socioeconomic status has a major effect on the frequency of leg ulcers in their cohort study.

Linkage of Leg Ulcers to Hemolysis-Associated Pulmonary Hypertension in Adults with SCD

Recent evidence suggests that patients with SCD and leg ulcers may be also at risk to develop other, much more serious disease complications like pulmonary hypertension (defined by tricuspid regurgitant velocity (TRV) or NT- proBNP levels, priapism and, possibly renal disease. Taylor et al, analyzed a large sample of patients, which included the NIH data base and the Cooperative Study of Sickle cell Disease (CSSD) database and found that hyper-hemolysis subjects, defined by the top quartile of serum LDH level had a higher prevalence of leg ulcers (OR 3.27, 95% CI 1.92–5.53, P<0.0001), priapism (OR 2.62, 95% CI 1.13–6.90, P = 0.03) and pulmonary hypertension (OR 4.32, 95% CI 2.12–8.60, P<0.0001), while osteonecrosis (OR 0.32, 95% CI 0.19–0.54, P<0.0001) and pain (OR 0.23, 95% CI 0.09–0.55, P = 0.0004) were less prevalent(11). Hyper-hemolysis was influenced by HbF and alfa thalassemia, and was a risk factor for early death in the larger CSSCD population (Hazard Ratio = 1.97, P = 0.02). De Castro et al reported that 37% of HbSS patients with pulmonary hypertension defined by TRV had an history of chronic leg ulcers compared with 15% of those without increased TRV (12). More recently a Turkish group reported on the results of Echo Doppler analysis on of 88 HBSS patients; 12 patients (10 male, 2 female) had active ulcer or healed scar (group I) and 76 patients (40 male, 36 female) had no active leg ulcer or history of (group II). The prevalence of pulmonary hypertension in group I and group II were 91.6% (n = 11) and 31.6% (n = 24), respectively (p = 0.0001). Patients with leg ulceration had increased left atrium and right ventricular diameters at diastole and also had increased left ventricular end-diastolic and end-systolic diameters. They concluded that patients with HbSS, especially those with leg ulcers should be screened for pulmonary hypertension.

We have recently examined an NIH cohort of almost 400 adult patients and found that 18 % of all subjects had a history of leg ulceration (21.4% of HbSS and 9.6% of HbSC patients). (Table 1) Patients affected were older, had markers of significantly more severe hemolysis, high serum uric acid, alkaline phosphatase, NT-proBNP and lower serum albumin. They had a significantly higher prevalence of elevated TRV, suggestive of pulmonary hypertension. Significantly, patients with a history of leg ulcers were more likely to have died by the time of data analysis (21% vs. 9%, P=0.02), with a similar trend on Kaplan-Meier analysis. None of the other parameters evaluated were significantly associated with leg ulceration, including history of pain, acute chest syndrome, stroke or priapism. Patients on hydroxyurea therapy or chronic transfusions did not have a lower incidence of leg ulcers, and HbF was not protective.

Table 1.

Characteristics of Study participants by History of leg ulcers, NIH Sickle Cell Cohort.

Characteristic		No Leg Ulcers		History of Leg Ulcers		P Value2
		N	Median (IQR)1	N	Median (IQR)
Age, y		325	31 (25–42)	71	42 (32–49)	<0.0001
Chronic transfusions	Yes	118		30		0.3
	No	171		32
Hydroxyurea treatment, N (%)		317	123 (39%)	71	25 (35%)	0.6
TRV	≥ 2.5	122		38		0.02
	> 2.9	37		15		0.006
Oxygen saturation, %		242	98 (96–99)	45	96 (92–98)	0.01
Hemoglobin, g/dL		309	9.8 (8.5–10.9)	69	8.2 (7.3–9.2)	<0.0001
Reticulocyte count, × 10−3/μL		299	207 (136–313)	68	278 (160.5–404)	0.003
Lactate dehydrogenase, U/L		279	311 (288–405)	64	371.5 (274–497.5)	0.004
Aspartate aminotransferase, U/L		306	35 (25–49)	68	41.5 (31.5–54)	0.02
Albumin, g/dL		307	4.2 (3.8–4.4)	69	4.0 (3.7–4.2)	0.001
Alkaline phosphatase, IU/L		308	87 (66–117)	68	97 (79–140)	0.02
Blood urea nitrogen, mg/dL		308	7 (5–10)	68	8 (6–15.5)	0.01
Uric acid, mg/dL		307	5.6 (4.5–7.0)	69	6.8 (4.8–8.3)	0.0004
NT-proBNP		259	58 (29–131)	59	132 (77–321)	<0.0001
Deaths, N (%)		295	25 (8.5)	68	14 (20.6)	0.02

¹Except where otherwise noted.

²From Wilcoxon rank-sum test or Pearson chi square statistic between history of leg ulcer groups.

From this data it is reasonable to conclude that sickle cell leg ulcers are a marker of disease severity. In patients without SCD, high uric acid is identified as a possible cause of hypertension and a marker of risk for cardiovascular disease, pulmonary hypertension, and early mortality. The epidemiological relationship between leg ulcers and pulmonary hypertension supports an overlap of pathobiological mechanisms.

Genetic Modifiers of Sickle Cell Leg Ulcers

Twin studies have shown strong heritability of venous functions in humans and suggest that there may be genetic modifiers that modulate the risk for leg ulcers in patients with sickle cell anemia (13). This hypothesis is consistent with the large patient to patient variability in developing this complication. However, the literature on genetic associations with leg ulcer is very limited. We review results from candidate gene studies and then report preliminary results of a genome-wide association study (GWAS) for an unbiased discovery of genetic modifiers of this phenotype.

Candidate Gene Studies

Limited results are available linking susceptibility to leg ulcer and genetic variants. A small study of 9 cases and 29 controls showed possible associations of HLA-B35 and CW14 alleles: the study showed that carriers of both alleles increase the risk for the complication by 17 fold(14). This study however was very small, and the region identified is very difficult to study because of the long range linkage disequilibrium.

In a candidate gene study of 243 cases (aged 34.8 +/− 12.5 yrs) and 516 controls (aged 30.7 +/− 9.4 yrs) from the CS SCD, Nolan et al examined the associations of 250 single nucleotide polymorphisms (SNPs) in 60 candidate genes that were selected for their putative role in the pathophysiology of sickle cell anemia(15). The analysis found associations with SNPs in Klotho, TEK and several genes in the TGF-β/BMP signaling pathway by genotypic association analyses (15). KL directly or indirectly promotes endothelial NO production and the TEK receptor tyrosine kinase is involved in angiogenesis. The TGF-β/BMP signaling pathway modulates wound healing and angiogenesis, among its other functions. Some of the same SNPs were also associated with risk for stroke, priapism and pulmonary hypertension (16–18). The results are consistent with the observation that leg ulcer is associated with the intensity of hemolytic anemia, and other sub-phenotypes of HbSS(11).

Genome-Wide Association Study

In the past few years, high-throughput technology has changed the field of human genetics. Commercial arrays can be used to genotype up to 2M SNPs simultaneously and they allow for an unbiased screening of the a large number of variants of the human genome(19). We recently completed a GWAS of leg ulcer in almost 1,400 sickle cell anemia patients from the CSSCD that included 219 leg ulcer cases and 1180 disease free subjects. We used innovative statistical techniques to discover robust associations of both individual SNPs and genes with leg ulcer (19). . Single SNP analysis identified 30 SNPs that are associated with leg-ulcer after we adjusted the analysis by age and gender. The results included SNPs in ALCAM, supposed to regulate endothelian functions, and several SNPs in gene desert regions. These associations with variants in gene-desert regions suggested that gene regulation may be involved with the disease.

Because the study is seriously underpowered, we also used a SNP-set analysis that, rather than looking at the association of one SNP at a time, looks at the global associations of a set of SNPs. We showed that this approach has better power to capture associations that individually do not meet genome-wide significance, but can point to region of interest when they are analyzed as a group (20). This analysis identified several genes that appear to be globally associated with leg ulcer, and the full analysis will be reported elsewhere. Interestingly, this analysis showed that a cluster of genes in the major histocompatibility complex class III region in chromosome 6 are strongly associated with leg ulcer. This region is in strong linkage disequilibrium with the HLA-B complex that was linked to leg ulcers in the candidate gene analysis of Ofosu et al(14). Furthermore, the same group of genes was found associated with increased susceptibility to venous leg ulcer in older subjects who do not have SCD (14, 21).

Conclusions

These results are very preliminary and need to be followed by replication in independent studies to distinguish between true positive and false positive associations, and then resequencing to target the functional variants that can be used for treatment and development of risk prediction models. Because SCD is a rare disease in developed countries, it is very difficult to find independent studies that can be used for replication and have a sufficiently large sample size. A consortium of sickle cell anemia centers interested in genetic analysis, the SickleGen Consortium, is being developed, in order to facilitate future collaborations.

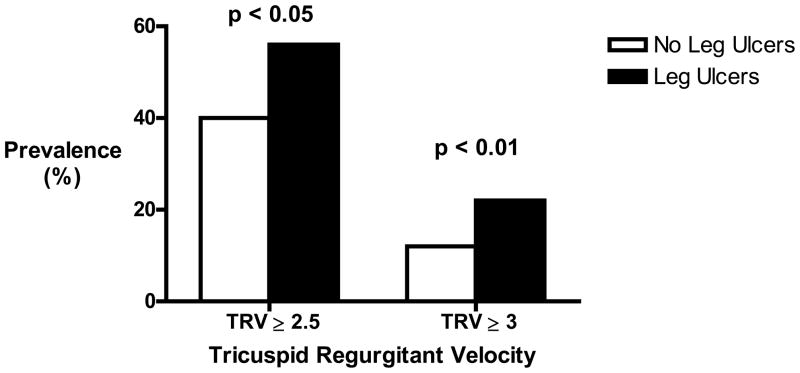

Figure 1.

Prevalence of elevated TRV among study participants by History of leg ulcers. P value from chi-square test of independence between grouped TRV and history of leg ulcers (yes/no).

Figure 2.

Kaplan-Meier Survival Curve by History of leg ulcers.
