Redermination of 9,9′-bianthracene-10,10′(9H,9′H)-dione

Abstract

The crystal structure of the title compound, C₂₈H₁₈O₂, was originally determined by Ehrenberg [(1967 ▶). Acta Cryst. 22, 482–487] using intensity data obtained from Weissenberg photographs. The current determination provides a crystal and mol­ecular structure with a significantly higher precision and presents standard uncertainties on geometric parameters which are not available from the original work. The mol­ecule lies on a crystallographic twofold rotation axis which bis­ects the C—C bond [1.603 (3) Å] which joins the two anthracen-9(10H)-one units.

Related literature

For general background, see: Li et al. (2002 ▶); Shi et al. (2004 ▶); Müller et al. (1996 ▶, 1998 ▶, 2001 ▶); Prinz, Burgemeister & Wiegrebe (1996 ▶); Prinz, Wiegrebe & Müller (1996 ▶). For related structures, see: Ehrenberg (1967 ▶).

Experimental

Crystal data

• C₂₈H₁₈O₂

• M _r = 386.42

• Monoclinic,

• a = 22.295 (4) Å

• b = 7.7297 (12) Å

• c = 13.643 (2) Å

• β = 126.768 (2)°

• V = 1883.4 (5) ų

• Z = 4

• Mo Kα radiation

• μ = 0.09 mm⁻¹

• T = 273 (2) K

• 0.22 × 0.18 × 0.15 mm

Data collection

• Bruker SMART CCD diffractometer

• Absorption correction: multi-scan (SADABS; Sheldrick, 1996 ▶) T _min = 0.982, T _max = 0.987

• 4785 measured reflections

• 1669 independent reflections

• 1172 reflections with I > 2σ(I)

• R _int = 0.025

Refinement

• R[F ² > 2σ(F ²)] = 0.040

• wR(F ²) = 0.105

• S = 1.03

• 1669 reflections

• 136 parameters

• H-atom parameters constrained

• Δρ_max = 0.12 e Å⁻³

• Δρ_min = −0.17 e Å⁻³

Data collection: SMART (Bruker, 2003 ▶); cell refinement: SAINT (Bruker, 2003 ▶); data reduction: SAINT; program(s) used to solve structure: SHELXS97 (Sheldrick, 2008 ▶); program(s) used to refine structure: SHELXL97 (Sheldrick, 2008 ▶); molecular graphics: SHELXTL (Sheldrick, 2008 ▶); software used to prepare material for publication: SHELXTL.

Supplementary Material

Additional supplementary materials: crystallographic information; 3D view; checkCIF report

supplementary crystallographic information

Comment

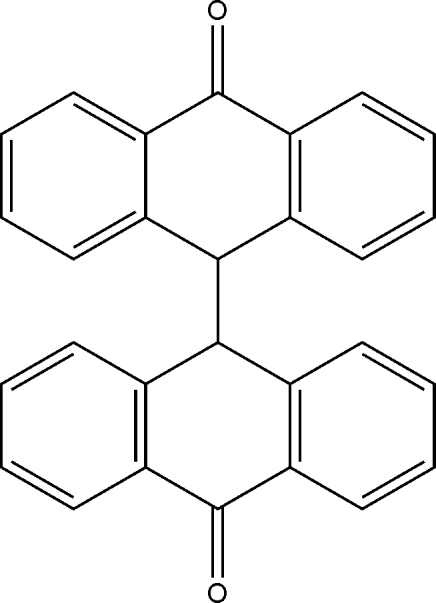

Synthesis of anthracenone derivatives have attracted great interest due to their interesting biological activities (Müller et al., 1996, 1998, 2001; Prinz, Burgemeister & Wiegrebe, 1996; Prinz, Wiegrebe & Müller, 1996). Herein, we present a redetermination of the crystal structure of the title compound (I) which was originally refined in the non-conventional space group setting I2/a with unit cell parameters; a = 13.68 (4), b = 7.751 (3), c = 17.92 (4), β = 91.1 (3) (Ehrenberg, 1967). The current structure is of significantly higher precision than the orginal determination which was refined using intensity data obtained from Weissenberg photographs. The molecular structure of (I) is shown in Fig. 1. The molecule consists of two anthracen-9(10H)-one moieties linked together by a C—C [1.603 (3) Å] bond. A crystallographic twofold rotation axis bisects this bond.

Experimental

Reagents and solvents used were of commercially available quality. The title complex (I) was synthesized according to the method of Shi et al. (2004) and Li et al. (2002). CF₃COOH (40 ml) was added dropwise with stirring to a solution of anthracene-9,10-dione (5.0 mmol) in 15 ml of anhydrous CH₂Cl₂. The mixture was then placed in an ice bath and NaBH₄ (0.95 g, 25 mmol) was added in portions. The resulting mixture was stirred for 24 h at room temperature. The reaction mixture was poured into 200 ml ice-water. The organic layer was extracted with CH₂Cl₂, dried over Na₂SO₄ and evaporated in vacuo. The crude product was recrystallized from toluene twice to give the main product 9,9'-bianthracene-10,10'(9H,9'H)-dione.

Refinement

H atoms were positioned geometrically and refined using a riding model, with C—H = 0.93–0.98 Å and with U_iso(H) = 1.2 times U_eq(C).

Figures

Fig. 1.

The molecular structure with displacement ellipsoids at the 30% probability level [symmetry code: (A) -x+2, y, -z+1/2].

Crystal data

C28H18O2	F(000) = 808
Mr = 386.42	Dx = 1.363 Mg m−3
Monoclinic, C2/c	Mo Kα radiation, λ = 0.71073 Å
Hall symbol: -C 2yc	Cell parameters from 1069 reflections
a = 22.295 (4) Å	θ = 2.9–24.7°
b = 7.7297 (12) Å	µ = 0.09 mm−1
c = 13.643 (2) Å	T = 273 K
β = 126.768 (2)°	Block, yellow
V = 1883.4 (5) Å3	0.22 × 0.18 × 0.15 mm
Z = 4

Data collection

Bruker SMART CCD diffractometer	1669 independent reflections
Radiation source: fine-focus sealed tube	1172 reflections with I > 2σ(I)
graphite	Rint = 0.025
φ and ω scans	θmax = 25.1°, θmin = 2.3°
Absorption correction: multi-scan (SADABS; Sheldrick, 1996)	h = −20→26
Tmin = 0.982, Tmax = 0.987	k = −9→9
4785 measured reflections	l = −16→8

Refinement

Refinement on F2	Primary atom site location: structure-invariant direct methods
Least-squares matrix: full	Secondary atom site location: difference Fourier map
R[F2 > 2σ(F2)] = 0.040	Hydrogen site location: inferred from neighbouring sites
wR(F2) = 0.106	H-atom parameters constrained
S = 1.03	w = 1/[σ2(Fo2) + (0.0478P)2 + 0.4019P] where P = (Fo2 + 2Fc2)/3
1669 reflections	(Δ/σ)max = 0.001
136 parameters	Δρmax = 0.12 e Å−3
0 restraints	Δρmin = −0.17 e Å−3

Special details

Geometry. All e.s.d.'s (except the e.s.d. in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell e.s.d.'s are taken into account individually in the estimation of e.s.d.'s in distances, angles and torsion angles; correlations between e.s.d.'s in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell e.s.d.'s is used for estimating e.s.d.'s involving l.s. planes.

Refinement. Refinement of F2 against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F2, conventional R-factors R are based on F, with F set to zero for negative F2. The threshold expression of F2 > σ(F2) is used only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2 are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Ų)

	x	y	z	Uiso*/Ueq
O1	0.86707 (8)	−0.25682 (16)	0.29866 (15)	0.0855 (5)
C1	0.90675 (10)	−0.1382 (2)	0.30813 (16)	0.0503 (4)
C2	0.98793 (9)	−0.16248 (19)	0.37296 (14)	0.0423 (4)
C3	1.02019 (10)	−0.3196 (2)	0.43139 (15)	0.0546 (5)
H3	0.9900	−0.4083	0.4254	0.066*
C4	1.09595 (11)	−0.3451 (2)	0.49762 (16)	0.0616 (5)
H4	1.1169	−0.4513	0.5346	0.074*
C5	1.14056 (10)	−0.2121 (2)	0.50886 (15)	0.0572 (5)
H5	1.1921	−0.2277	0.5553	0.069*
C6	1.10969 (8)	−0.0560 (2)	0.45207 (13)	0.0457 (4)
H6	1.1408	0.0332	0.4616	0.055*
C7	1.03286 (8)	−0.02957 (19)	0.38070 (13)	0.0379 (4)
C8	0.99831 (8)	0.13334 (18)	0.30704 (13)	0.0370 (4)
H8	1.0288	0.2306	0.3599	0.044*
C9	0.91944 (8)	0.16565 (19)	0.26300 (13)	0.0393 (4)
C10	0.88717 (9)	0.3276 (2)	0.21705 (15)	0.0491 (4)
H10	0.9158	0.4170	0.2191	0.059*
C11	0.81329 (10)	0.3570 (2)	0.16860 (16)	0.0591 (5)
H11	0.7926	0.4660	0.1382	0.071*
C12	0.76987 (10)	0.2268 (3)	0.16480 (16)	0.0589 (5)
H12	0.7199	0.2471	0.1314	0.071*
C13	0.80076 (9)	0.0673 (2)	0.21051 (15)	0.0535 (5)
H13	0.7716	−0.0207	0.2086	0.064*
C14	0.87527 (8)	0.0352 (2)	0.25983 (14)	0.0426 (4)

Atomic displacement parameters (Ų)

	U11	U22	U33	U12	U13	U23
O1	0.0740 (10)	0.0554 (8)	0.1455 (14)	−0.0116 (7)	0.0756 (10)	0.0060 (8)
C1	0.0571 (11)	0.0449 (10)	0.0648 (11)	−0.0082 (8)	0.0450 (9)	−0.0049 (8)
C2	0.0527 (10)	0.0383 (9)	0.0436 (9)	−0.0017 (7)	0.0331 (8)	−0.0012 (7)
C3	0.0705 (13)	0.0430 (10)	0.0553 (11)	−0.0008 (9)	0.0403 (10)	0.0061 (8)
C4	0.0735 (14)	0.0512 (11)	0.0535 (11)	0.0147 (10)	0.0344 (10)	0.0138 (9)
C5	0.0496 (11)	0.0651 (12)	0.0458 (10)	0.0120 (9)	0.0227 (8)	0.0111 (9)
C6	0.0446 (10)	0.0512 (10)	0.0392 (9)	0.0003 (8)	0.0240 (8)	0.0024 (8)
C7	0.0447 (9)	0.0388 (9)	0.0327 (8)	0.0000 (7)	0.0245 (7)	−0.0022 (7)
C8	0.0394 (9)	0.0327 (8)	0.0406 (9)	−0.0041 (6)	0.0247 (7)	−0.0050 (7)
C9	0.0427 (9)	0.0384 (8)	0.0414 (9)	−0.0003 (7)	0.0276 (7)	−0.0074 (7)
C10	0.0502 (11)	0.0421 (9)	0.0571 (11)	0.0027 (8)	0.0333 (9)	−0.0037 (8)
C11	0.0568 (12)	0.0566 (11)	0.0606 (12)	0.0179 (9)	0.0333 (9)	0.0026 (9)
C12	0.0414 (10)	0.0781 (14)	0.0570 (11)	0.0074 (9)	0.0293 (9)	−0.0030 (10)
C13	0.0464 (10)	0.0645 (12)	0.0558 (11)	−0.0060 (9)	0.0339 (9)	−0.0081 (9)
C14	0.0429 (9)	0.0472 (9)	0.0451 (9)	−0.0033 (7)	0.0303 (8)	−0.0070 (7)

Geometric parameters (Å, °)

O1—C1	1.2260 (18)	C8—C9	1.500 (2)
C1—C14	1.473 (2)	C8—C8i	1.603 (3)
C1—C2	1.475 (2)	C8—H8	0.9800
C2—C3	1.393 (2)	C9—C10	1.392 (2)
C2—C7	1.394 (2)	C9—C14	1.392 (2)
C3—C4	1.372 (2)	C10—C11	1.378 (2)
C3—H3	0.9300	C10—H10	0.9300
C4—C5	1.374 (2)	C11—C12	1.376 (3)
C4—H4	0.9300	C11—H11	0.9300
C5—C6	1.375 (2)	C12—C13	1.367 (2)
C5—H5	0.9300	C12—H12	0.9300
C6—C7	1.388 (2)	C13—C14	1.391 (2)
C6—H6	0.9300	C13—H13	0.9300
C7—C8	1.504 (2)
O1—C1—C14	120.85 (16)	C7—C8—C8i	110.23 (10)
O1—C1—C2	121.12 (16)	C9—C8—H8	107.4
C14—C1—C2	117.97 (14)	C7—C8—H8	107.4
C3—C2—C7	119.84 (16)	C8i—C8—H8	107.4
C3—C2—C1	118.80 (15)	C10—C9—C14	118.18 (15)
C7—C2—C1	121.31 (14)	C10—C9—C8	119.74 (14)
C4—C3—C2	120.84 (17)	C14—C9—C8	121.98 (13)
C4—C3—H3	119.6	C11—C10—C9	120.78 (16)
C2—C3—H3	119.6	C11—C10—H10	119.6
C3—C4—C5	119.33 (17)	C9—C10—H10	119.6
C3—C4—H4	120.3	C12—C11—C10	120.62 (17)
C5—C4—H4	120.3	C12—C11—H11	119.7
C4—C5—C6	120.59 (17)	C10—C11—H11	119.7
C4—C5—H5	119.7	C13—C12—C11	119.45 (17)
C6—C5—H5	119.7	C13—C12—H12	120.3
C5—C6—C7	121.03 (16)	C11—C12—H12	120.3
C5—C6—H6	119.5	C12—C13—C14	120.73 (17)
C7—C6—H6	119.5	C12—C13—H13	119.6
C6—C7—C2	118.28 (14)	C14—C13—H13	119.6
C6—C7—C8	121.01 (14)	C13—C14—C9	120.23 (15)
C2—C7—C8	120.59 (14)	C13—C14—C1	119.33 (15)
C9—C8—C7	114.57 (13)	C9—C14—C1	120.43 (14)
C9—C8—C8i	109.65 (14)
O1—C1—C2—C3	−4.6 (2)	C7—C8—C9—C10	166.38 (13)
C14—C1—C2—C3	172.72 (15)	C8i—C8—C9—C10	−69.07 (14)
O1—C1—C2—C7	178.00 (16)	C7—C8—C9—C14	−17.4 (2)
C14—C1—C2—C7	−4.7 (2)	C8i—C8—C9—C14	107.14 (13)
C7—C2—C3—C4	0.6 (2)	C14—C9—C10—C11	−0.7 (2)
C1—C2—C3—C4	−176.90 (15)	C8—C9—C10—C11	175.66 (14)
C2—C3—C4—C5	1.7 (3)	C9—C10—C11—C12	0.1 (3)
C3—C4—C5—C6	−1.5 (3)	C10—C11—C12—C13	0.5 (3)
C4—C5—C6—C7	−1.0 (3)	C11—C12—C13—C14	−0.5 (3)
C5—C6—C7—C2	3.2 (2)	C12—C13—C14—C9	−0.1 (2)
C5—C6—C7—C8	−172.91 (15)	C12—C13—C14—C1	−179.91 (16)
C3—C2—C7—C6	−3.0 (2)	C10—C9—C14—C13	0.7 (2)
C1—C2—C7—C6	174.42 (14)	C8—C9—C14—C13	−175.56 (13)
C3—C2—C7—C8	173.14 (14)	C10—C9—C14—C1	−179.51 (14)
C1—C2—C7—C8	−9.5 (2)	C8—C9—C14—C1	4.2 (2)
C6—C7—C8—C9	−164.09 (13)	O1—C1—C14—C13	4.5 (3)
C2—C7—C8—C9	19.91 (19)	C2—C1—C14—C13	−172.84 (14)
C6—C7—C8—C8i	71.68 (18)	O1—C1—C14—C9	−175.31 (16)
C2—C7—C8—C8i	−104.32 (17)	C2—C1—C14—C9	7.4 (2)

Symmetry codes: (i) −x+2, y, −z+1/2.
