3-(4-Methoxy­benzo­yl)propionic acid

Sajid Ali; Nasim Hassan Rama; Ghulam Qadeer; Ales Ruzicka

doi:10.1107/S1600536808034508

. 2008 Oct 25;64(Pt 11):o2197. doi: 10.1107/S1600536808034508

3-(4-Methoxybenzoyl)propionic acid

Sajid Ali ^a, Nasim Hassan Rama ^a, Ghulam Qadeer ^a,^*, Ales Ruzicka ^b

PMCID: PMC2959507 PMID: 21581055

Abstract

In the crystal of the title compound, C₁₁H₁₂O₄, inversion dimers arise from pairs of intermolecular O—H⋯O hydrogen bonds and C—H⋯O bonds further consolidate the packing. There is also a C—H⋯π contact between the benzene ring and the methylene group.

Related literature

For general background, see: Hashem et al. (2007 ▶); Husain et al. (2005 ▶). For bond-length data, see: Allen et al. (1987 ▶).

Experimental

Crystal data

C₁₁H₁₂O₄
M _r = 208.21
Monoclinic,
a = 5.0511 (3) Å
b = 10.0219 (7) Å
c = 20.0840 (12) Å
β = 90.107 (6)°
V = 1016.67 (11) Å³
Z = 4
Mo Kα radiation
μ = 0.10 mm⁻¹
T = 150 (1) K
0.20 × 0.18 × 0.13 mm

Data collection

Bruker–Nonius KappaCCD area-detector diffractometer
Absorption correction: integration (Coppens, 1970 ▶) T _min = 0.979, T _max = 0.987
8320 measured reflections
2236 independent reflections
1662 reflections with I > 2σ(I)
R _int = 0.048

Refinement

R[F ² > 2σ(F ²)] = 0.048
wR(F ²) = 0.112
S = 1.13
2236 reflections
136 parameters
H-atom parameters constrained
Δρ_max = 0.18 e Å⁻³
Δρ_min = −0.20 e Å⁻³

Data collection: COLLECT (Hooft, 1998 ▶); cell refinement: COLLECT and DENZO (Otwinowski & Minor, 1997 ▶); data reduction: COLLECT and DENZO; program(s) used to solve structure: SIR92 (Altomare et al., 1994 ▶); program(s) used to refine structure: SHELXL97 (Sheldrick, 2008 ▶); molecular graphics: PLATON (Spek, 2003 ▶); software used to prepare material for publication: SHELXL97.

Supplementary Material

Crystal structure: contains datablocks I, global. DOI: 10.1107/S1600536808034508/hk2556sup1.cif

e-64-o2197-sup1.cif^{(15KB, cif)}

Structure factors: contains datablocks I. DOI: 10.1107/S1600536808034508/hk2556Isup2.hkl

e-64-o2197-Isup2.hkl^{(109.9KB, hkl)}

Additional supplementary materials: crystallographic information; 3D view; checkCIF report

Table 1. Hydrogen-bond geometry (Å, °).

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
O2—H2⋯O1ⁱ	0.82	1.81	2.628 (3)	173
C6—H6⋯O3ⁱⁱ	0.93	2.34	3.247 (3)	164
C11—H11B⋯O4ⁱⁱⁱ	0.96	2.60	3.328 (3)	133
C3—H3B⋯Cg1^iv	0.97	2.74	3.591 (3)	146

Open in a new tab

Symmetry codes: (i) Inline graphic ; (ii) ; (iii) ; (iv) . Cg1 is the centroid of the phenyl ring.

Acknowledgments

The authors gratefully acknowledge funds from the Higher Education Commission, Islamabad, Pakistan.

supplementary crystallographic information

Comment

Benzoyl propionic acids are important intermediates in heterocyclic chemistry and have been used for the synthesis of various biologically active five -membered heterocyles such as butenolides, pyrrolones (Husain et al., 2005), oxadiazoles and triazoles (Hashem et al., 2007). In view of the versatility of these compounds, we synthesized the title compound and reported herein its crystal structure.

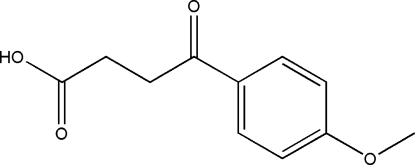

In the title compound (Fig. 1), the bond lengths (Allen et al., 1987) and angles are within normal ranges. O3, O4, C2, C3 and C4 atoms are 0.067 (3), -0.003 (3), -0.163 (4), -0.013 (3) and 0.016 (3) Å away from the phenyl plane, respectively.

In the crystal structure, intermolecular O-H···O and C-H···O hydrogen bonds (Table 1) link the molecules (Fig. 2), in which they may be effective in the stabilization of the structure. There also exist a C—H···π contact (Table 1) between the phenyl ring and the methylene group.

Experimental

The title compound was synthesized by the condensation of succinic anhydride (2 g, 20 mmol) with anisol (10 ml) in the presence of alumium chloride (6 g, 42 mmol). The reaction mixture was refluxed for 4 h. After completion of the reaction, excess solvent (anisol) was removed by steam distillation. The resultant solid product was purified by dissolving it in sodium hydroxide solution (5%, w/v), filtering followed by addition of hydrochloric acid. The obtained solid mass was filtered, washed with cold water, dried and crystallized from methanol (yield; 55%, m.p. 419-420 K)
