2,2′-{1,1′-[Pentane-1,5-diyl­bis(oxy­nitrilo)]­diethyl­idyne}diphenol

Abstract

In the title compound, C₂₁H₂₆N₂O₄, there is half a mol­ecule in the asymmetric unit with a crystallographic twofold rotation axis passing through the central C atom of the –CH=N—O—(CH₂)₅—O—N=CH– bridge. The dihedral angle formed by the two benzene rings is 80.85 (2)°. Strong intra­molecular O—H⋯N and C—H⋯O hydrogen bonds help to establish the molecular conformation. There are also weak inter­molecular π–π stacking inter­actions between neighbouring benzene rings [centroid–centroid separation = 3.502 (3) Å].

Related literature

For general background, see: Bhadbhade & Srinivas (1993 ▶). For related structures, see: Dong et al. (2007 ▶, 2008 ▶); Wang et al. (2007 ▶); Xu et al. (2007 ▶).

Experimental

Crystal data

• C₂₁H₂₆N₂O₄

• M _r = 370.44

• Monoclinic,

• a = 12.9691 (13) Å

• b = 4.601 (1) Å

• c = 16.3639 (16) Å

• β = 91.621 (1)°

• V = 976.1 (3) ų

• Z = 2

• Mo Kα radiation

• μ = 0.09 mm⁻¹

• T = 298 (2) K

• 0.48 × 0.40 × 0.32 mm

Data collection

• Siemens SMART 1000 CCD area-detector diffractometer

• Absorption correction: multi-scan (SADABS; Sheldrick, 1996 ▶) T _min = 0.959, T _max = 0.973

• 2421 measured reflections

• 972 independent reflections

• 646 reflections with I > 2σ(I)

• R _int = 0.038

Refinement

• R[F ² > 2σ(F ²)] = 0.042

• wR(F ²) = 0.123

• S = 1.04

• 972 reflections

• 123 parameters

• 2 restraints

• H-atom parameters constrained

• Δρ_max = 0.15 e Å⁻³

• Δρ_min = −0.12 e Å⁻³

Data collection: SMART (Siemens, 1996 ▶); cell refinement: SAINT (Siemens, 1996 ▶); data reduction: SAINT; program(s) used to solve structure: SHELXS97 (Sheldrick, 2008 ▶); program(s) used to refine structure: SHELXL97 (Sheldrick, 2008 ▶); molecular graphics: SHELXTL (Sheldrick, 2008 ▶); software used to prepare material for publication: SHELXTL.

Supplementary Material

Additional supplementary materials: crystallographic information; 3D view; checkCIF report

Table 1. Hydrogen-bond geometry (Å, °).

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
O2—H2⋯N1	0.82	1.84	2.553 (4)	144
C4—H4A⋯O1	0.96	2.16	2.631 (5)	109

supplementary crystallographic information

Comment

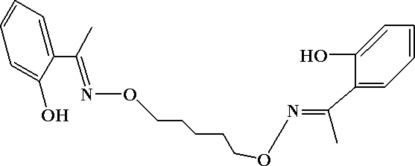

salen-type compounds containing strong donor sites such as oxygen and imine nitrogen atoms and their metal complexes have been the subject of extensive investigation (Bhadbhade & Srinivas, 1993). Structures of salen-type compounds derived from O-alkyl oxime moiety (–CH═N—O-(CH₂)_n-O—N═CH–) instead of the imine moiety and closely related to the title compound (Wang et al., 2007; Dong et al., 2008; Dong et al., 2007), are known. In this research, we report the synthesis and crystal structure of the title compound, and shown in Fig. 1.

The single-crystal structure of the title compound is built up by discrete C₂₁H₂₆N₂O₄ molecules, within all bond lengths are in normal ranges. There is 1/2 molecule per asymmetric unit with a crystallographic twofold rotation axis passing through the central carbon (symmetry code: -x, y, -z) of the five carbon atoms in the (—CH═N—O—(CH₂)₅—O—N═CH—) bridge. The dihedral angle formed by the two benzene rings in the molecule of the title compound is 80.85 (2)°. The strong intramolecular O2—H2···N1 and C4—H4A···O1 hydrogen bonds play an important role in the stability of the crystal structure in the title compound. The five carbon atoms in the C1—C2—C3—C2A—C1A bridge are almost in the same plane with slight deviation of 0.015 and 0.029 Å below for C1, C2A, 0.015 and 0.029 Å above the plane for C2 and C1A (symmetry code A: -x, y, -z + 1), respectively. In the crystal structure, there is weak intermolecular π–π stacking interaction between the neighbouring benzene rings, and the inter-molecular plane-to-plane distance is 3.502 (3) Å along b axis. This structure is not similar to what was observed in our previously reported series of salen-type compound containing two- (Wang et al., 2007), three- (Dong et al., 2008) and four-methene (Dong et al., 2007) bridge.

Experimental

2,2'-[1,1'-(Pentane-1,5-diyldioxydinitrilo)diethylidyne]diphenol was synthesized according to an analogous method reported earlier (Wang et al., 2007; Xu et al., 2007). To an ethanol solution (5 ml) of 2'-hydroxyacetophenone (516.2 mg, 4.00 mmol) was added an ethanol solution (3 ml) of 1,5-bis(aminooxy)pentane (268.4 mg, 2.00 mmol). The reaction mixture was stirred at 328 K for 4 h. The formed precipitate was separated by filtration, and washed successively with ethanol and ethanol–hexane (1:4), respectively. The product was dried under vacuum to yield 410.9 mg of the title compound. Yield, 55.5%. mp. 344–345 K. Anal. Calc. for C₁₇H₁₆Cl₂N₂O₂: C, 68.09; H, 7.07; N, 7.56. Found: C, 68.19; H, 7.21; N, 7.42.

Colorless block-like single crystals suitable for X-ray diffraction studies were obtained after two weeks by slow evaporation from a diethyl-ether solution of the title compound.

Refinement

Non-H atoms were refined anisotropically. H atoms were treated as riding atoms with distances C—H = 0.97 (CH₂), 0.93 Å (CH), O—H = 0.82 Å and U_iso(H) = 1.2 U_eq(C) and 1.5 U_eq(O).

Figures

Fig. 1.

The molecular structure of the title compound with atom numbering scheme [Symmetry codes: A: -x, y, -z + 1]. Displacement ellipsoids for non-hydrogen atoms are drawn at the 30% probability level.

Crystal data

C21H26N2O4	F(000) = 396
Mr = 370.44	Dx = 1.260 Mg m−3
Monoclinic, C2	Mo Kα radiation, λ = 0.71073 Å
Hall symbol: C 2y	Cell parameters from 813 reflections
a = 12.9691 (13) Å	θ = 2.5–23.2°
b = 4.601 (1) Å	µ = 0.09 mm−1
c = 16.3639 (16) Å	T = 298 K
β = 91.621 (1)°	Needle-like, colourless
V = 976.1 (3) Å3	0.48 × 0.40 × 0.32 mm
Z = 2

Data collection

Siemens SMART 1000 CCD area-detector diffractometer	972 independent reflections
Radiation source: fine-focus sealed tube	646 reflections with I > 2σ(I)
graphite	Rint = 0.038
φ and ω scans	θmax = 25.0°, θmin = 2.5°
Absorption correction: multi-scan (SADABS; Sheldrick, 1996)	h = −15→15
Tmin = 0.959, Tmax = 0.973	k = −5→5
2421 measured reflections	l = −19→10

Refinement

Refinement on F2	Primary atom site location: structure-invariant direct methods
Least-squares matrix: full	Secondary atom site location: difference Fourier map
R[F2 > 2σ(F2)] = 0.042	Hydrogen site location: inferred from neighbouring sites
wR(F2) = 0.123	H-atom parameters constrained
S = 1.04	w = 1/[σ2(Fo2) + (0.0568P)2 + 0.2844P] where P = (Fo2 + 2Fc2)/3
972 reflections	(Δ/σ)max < 0.001
123 parameters	Δρmax = 0.15 e Å−3
2 restraints	Δρmin = −0.12 e Å−3

Special details

Geometry. All e.s.d.'s (except the e.s.d. in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell e.s.d.'s are taken into account individually in the estimation of e.s.d.'s in distances, angles and torsion angles; correlations between e.s.d.'s in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell e.s.d.'s is used for estimating e.s.d.'s involving l.s. planes.

Refinement. Refinement of F2 against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F2, conventional R-factors R are based on F, with F set to zero for negative F2. The threshold expression of F2 > σ(F2) is used only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2 are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Ų)

	x	y	z	Uiso*/Ueq	Occ. (<1)
N1	0.1857 (2)	0.7552 (7)	0.30501 (17)	0.0533 (8)
O1	0.23002 (19)	0.6005 (8)	0.37063 (14)	0.0656 (7)
O2	0.0337 (2)	0.9262 (9)	0.21462 (17)	0.0796 (9)
H2	0.0629	0.8223	0.2488	0.119*
C1	0.1512 (3)	0.4342 (11)	0.4082 (2)	0.0607 (10)
H1A	0.1834	0.2927	0.4447	0.073*
H1B	0.1126	0.3286	0.3662	0.073*
C2	0.0778 (3)	0.6170 (10)	0.4558 (2)	0.0551 (9)
H2A	0.1169	0.7333	0.4952	0.066*
H2B	0.0418	0.7489	0.4186	0.066*
C3	0.0000	0.4391 (13)	0.5000	0.0526 (12)
H3A	0.0361	0.3147	0.5392	0.063*	0.50
H3B	−0.0361	0.3147	0.4608	0.063*	0.50
C4	0.3610 (3)	0.9300 (15)	0.2926 (2)	0.0836 (14)
H4A	0.3736	0.8041	0.3386	0.125*
H4B	0.3787	1.1259	0.3074	0.125*
H4C	0.4023	0.8688	0.2479	0.125*
C5	0.2494 (3)	0.9162 (9)	0.2673 (2)	0.0494 (9)
C6	0.2084 (3)	1.0860 (9)	0.1985 (2)	0.0485 (9)
C7	0.1043 (3)	1.0870 (11)	0.1759 (2)	0.0573 (9)
C8	0.0682 (3)	1.2544 (12)	0.1116 (2)	0.0745 (12)
H8	−0.0017	1.2535	0.0971	0.089*
C9	0.1348 (4)	1.4212 (13)	0.0693 (2)	0.0773 (13)
H9	0.1099	1.5343	0.0260	0.093*
C10	0.2363 (4)	1.4250 (12)	0.0892 (2)	0.0735 (12)
H10	0.2812	1.5389	0.0595	0.088*
C11	0.2732 (3)	1.2605 (10)	0.1533 (2)	0.0610 (11)
H11	0.3433	1.2656	0.1670	0.073*

Atomic displacement parameters (Ų)

	U11	U22	U33	U12	U13	U23
N1	0.0547 (18)	0.0514 (18)	0.0545 (16)	0.0036 (18)	0.0125 (14)	−0.0018 (17)
O1	0.0574 (15)	0.0702 (16)	0.0701 (15)	0.0067 (17)	0.0167 (12)	0.0136 (17)
O2	0.0532 (16)	0.0868 (19)	0.099 (2)	−0.006 (2)	0.0049 (14)	0.018 (2)
C1	0.065 (2)	0.053 (2)	0.066 (2)	0.011 (3)	0.0173 (19)	0.009 (2)
C2	0.062 (2)	0.045 (2)	0.059 (2)	−0.001 (2)	0.0143 (17)	−0.002 (2)
C3	0.062 (3)	0.041 (3)	0.054 (3)	0.000	0.009 (2)	0.000
C4	0.055 (2)	0.107 (4)	0.089 (3)	−0.014 (3)	0.004 (2)	0.015 (4)
C5	0.0469 (19)	0.048 (2)	0.0541 (19)	−0.003 (2)	0.0155 (17)	−0.010 (2)
C6	0.053 (2)	0.0447 (19)	0.0478 (18)	−0.011 (2)	0.0105 (16)	−0.010 (2)
C7	0.056 (2)	0.055 (2)	0.062 (2)	−0.004 (3)	0.0132 (18)	−0.005 (3)
C8	0.071 (3)	0.078 (3)	0.074 (3)	−0.001 (3)	−0.004 (2)	0.005 (3)
C9	0.106 (4)	0.067 (3)	0.058 (2)	0.001 (3)	0.000 (2)	0.001 (3)
C10	0.098 (4)	0.066 (3)	0.058 (2)	−0.023 (3)	0.014 (2)	−0.004 (3)
C11	0.063 (2)	0.062 (3)	0.059 (2)	−0.014 (3)	0.013 (2)	−0.012 (3)

Geometric parameters (Å, °)

N1—C5	1.282 (4)	C4—H4A	0.9600
N1—O1	1.398 (4)	C4—H4B	0.9600
O1—C1	1.430 (5)	C4—H4C	0.9600
O2—C7	1.349 (5)	C5—C6	1.459 (5)
O2—H2	0.8200	C6—C7	1.389 (5)
C1—C2	1.504 (5)	C6—C11	1.390 (5)
C1—H1A	0.9700	C7—C8	1.375 (5)
C1—H1B	0.9700	C8—C9	1.360 (6)
C2—C3	1.501 (5)	C8—H8	0.9300
C2—H2A	0.9700	C9—C10	1.348 (6)
C2—H2B	0.9700	C9—H9	0.9300
C3—C2i	1.501 (5)	C10—C11	1.370 (6)
C3—H3A	0.9700	C10—H10	0.9300
C3—H3B	0.9700	C11—H11	0.9300
C4—C5	1.495 (5)
C5—N1—O1	114.0 (3)	C5—C4—H4C	109.5
N1—O1—C1	108.6 (3)	H4A—C4—H4C	109.5
C7—O2—H2	109.5	H4B—C4—H4C	109.5
O1—C1—C2	113.2 (4)	N1—C5—C6	117.0 (3)
O1—C1—H1A	108.9	N1—C5—C4	121.6 (4)
C2—C1—H1A	108.9	C6—C5—C4	121.3 (4)
O1—C1—H1B	108.9	C7—C6—C11	117.0 (4)
C2—C1—H1B	108.9	C7—C6—C5	122.5 (3)
H1A—C1—H1B	107.7	C11—C6—C5	120.4 (3)
C3—C2—C1	112.9 (3)	O2—C7—C8	116.4 (4)
C3—C2—H2A	109.0	O2—C7—C6	122.7 (4)
C1—C2—H2A	109.0	C8—C7—C6	120.8 (4)
C3—C2—H2B	109.0	C9—C8—C7	119.9 (4)
C1—C2—H2B	109.0	C9—C8—H8	120.1
H2A—C2—H2B	107.8	C7—C8—H8	120.1
C2—C3—C2i	113.9 (5)	C10—C9—C8	121.0 (5)
C2—C3—H3A	108.8	C10—C9—H9	119.5
C2i—C3—H3A	108.8	C8—C9—H9	119.5
C2—C3—H3B	108.8	C9—C10—C11	119.7 (4)
C2i—C3—H3B	108.8	C9—C10—H10	120.2
H3A—C3—H3B	107.7	C11—C10—H10	120.2
C5—C4—H4A	109.5	C10—C11—C6	121.6 (4)
C5—C4—H4B	109.5	C10—C11—H11	119.2
H4A—C4—H4B	109.5	C6—C11—H11	119.2
C5—N1—O1—C1	179.0 (3)	C5—C6—C7—O2	−1.6 (6)
N1—O1—C1—C2	−72.2 (4)	C11—C6—C7—C8	0.0 (6)
O1—C1—C2—C3	−175.9 (3)	C5—C6—C7—C8	178.7 (4)
C1—C2—C3—C2i	−176.9 (4)	O2—C7—C8—C9	−179.6 (4)
O1—N1—C5—C6	−179.5 (3)	C6—C7—C8—C9	0.1 (6)
O1—N1—C5—C4	0.5 (5)	C7—C8—C9—C10	0.2 (7)
N1—C5—C6—C7	2.9 (5)	C8—C9—C10—C11	−0.5 (8)
C4—C5—C6—C7	−177.1 (4)	C9—C10—C11—C6	0.6 (7)
N1—C5—C6—C11	−178.5 (3)	C7—C6—C11—C10	−0.3 (6)
C4—C5—C6—C11	1.5 (6)	C5—C6—C11—C10	−179.1 (4)
C11—C6—C7—O2	179.7 (4)

Symmetry codes: (i) −x, y, −z+1.

Hydrogen-bond geometry (Å, °)

D—H···A	D—H	H···A	D···A	D—H···A
O2—H2···N1	0.82	1.84	2.553 (4)	144
C4—H4A···O1	0.96	2.16	2.631 (5)	109
