Bis(carboxy­meth­yl)ammonium 4-toluene­sulfonate

Abstract

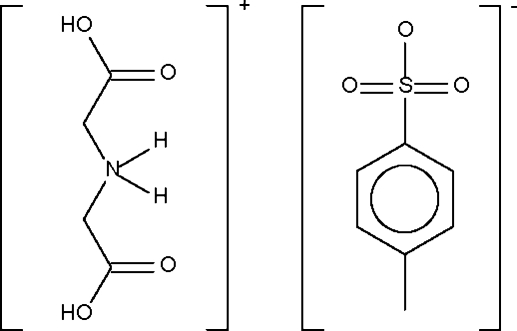

The imino­diacetic acid component of the title salt, C₄H₈NO₄ ⁺·C₇H₇SO₃ ⁻, is protonated at the N atom. The cation uses the ammonium group to form hydrogen bonds to the O atoms of two adjacent sulfonate groups. In addition, the carboxylic acid portions of the cation form hydrogen bonds to the sulfonate groups. The hydrogen-bonding inter­actions give rise to a layer structure.

Related literature

For the crystal structures of imino­diacetic acid hydro­halides, see: Oskarsson (1973 ▶, 1974a ▶,b ▶, 1976 ▶).

Experimental

Crystal data

• C₄H₈NO₄ ⁺·C₇H₇O₃S⁻

• M _r = 305.30

• Orthorhombic,

• a = 9.9291 (2) Å

• b = 10.3636 (2) Å

• c = 25.8862 (5) Å

• V = 2663.72 (9) ų

• Z = 8

• Mo Kα radiation

• μ = 0.28 mm⁻¹

• T = 100 (2) K

• 0.27 × 0.27 × 0.27 mm

Data collection

• Bruker SMART APEX diffractometer

• Absorption correction: multi-scan (SADABS; Sheldrick, 1996 ▶) T _min = 0.929, T _max = 0.929

• 20842 measured reflections

• 3059 independent reflections

• 2560 reflections with I > 2σ(I)

• R _int = 0.048

Refinement

• R[F ² > 2σ(F ²)] = 0.038

• wR(F ²) = 0.119

• S = 1.15

• 3059 reflections

• 198 parameters

• 4 restraints

• H atoms treated by a mixture of independent and constrained refinement

• Δρ_max = 0.42 e Å⁻³

• Δρ_min = −0.50 e Å⁻³

Data collection: APEX2 (Bruker, 2007 ▶); cell refinement: SAINT (Bruker, 2007 ▶); data reduction: SAINT); program(s) used to solve structure: SHELXS97 (Sheldrick, 2008 ▶); program(s) used to refine structure: SHELXL97 (Sheldrick, 2008 ▶); molecular graphics: X-SEED (Barbour, 2001 ▶); software used to prepare material for publication: publCIF (Westrip, 2008 ▶).

Supplementary Material

Additional supplementary materials: crystallographic information; 3D view; checkCIF report

Table 1. Hydrogen-bond geometry (Å, °).

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
N1—H1N1⋯O2i	0.88 (1)	2.02 (1)	2.885 (2)	167 (2)
N1—H1N2⋯O3ii	0.88 (1)	2.06 (2)	2.792 (2)	140 (2)
O5—H5O⋯O1	0.84 (1)	1.79 (1)	2.607 (2)	164 (3)
O7—H7O⋯O2iii	0.84 (1)	1.85 (1)	2.659 (2)	160 (3)

Symmetry codes: (i) ; (ii) ; (iii) .

supplementary crystallographic information

Comment

(type here to add)

Experimental

Iminodiacetic acid (0.55 g, 4 mmol) and p-toluenesulfonic acid (0.65 g, 4 mmol) were heated in toluene (100 ml) for 1 h. Crystals were isolated from the cool solution after several days.

Refinement

Carbon-bound H-atoms were placed in calculated positions (C—H 0.95 to 0.99 Å) and were included in the refinement in the riding model approximation, with U_iso(H) set to 1.2 to 1.5U_eq(carrier C). The acid and ammonium H atoms were refined with distance restraints of O—H = 0.84 (1) and N—H = 0.88 (1) Å; their isotropic displacement parameters were freely refined.

Figures

Fig. 1.

Thermal ellipsoid plot (Barbour, 2001) of (C4H8NO4)+(C7H7O3S)- at the 70% probability level. Hydrogen atoms are drawn as spheres of arbitrary radius.

Crystal data

C4H8NO4+·C7H7O3S–	F000 = 1280
Mr = 305.30	Dx = 1.523 Mg m−3
Orthorhombic, Pbca	Mo Kα radiation λ = 0.71073 Å
Hall symbol: -P 2ac 2ab	Cell parameters from 4293 reflections
a = 9.9291 (2) Å	θ = 2.9–27.2º
b = 10.3636 (2) Å	µ = 0.28 mm−1
c = 25.8862 (5) Å	T = 100 (2) K
V = 2663.72 (9) Å3	Triangular block, colorless
Z = 8	0.27 × 0.27 × 0.27 mm

Data collection

Bruker SMART APEX diffractometer	3059 independent reflections
Radiation source: fine-focus sealed tube	2560 reflections with I > 2σ(I)
Monochromator: graphite	Rint = 0.048
T = 100(2) K	θmax = 27.5º
ω scans	θmin = 1.6º
Absorption correction: multi-scan(SADABS; Sheldrick, 1996)	h = −12→7
Tmin = 0.930, Tmax = 0.930	k = −13→13
20842 measured reflections	l = −33→33

Refinement

Refinement on F2	Secondary atom site location: difference Fourier map
Least-squares matrix: full	Hydrogen site location: inferred from neighbouring sites
R[F2 > 2σ(F2)] = 0.038	H atoms treated by a mixture of independent and constrained refinement
wR(F2) = 0.119	w = 1/[σ2(Fo2) + (0.0644P)2 + 0.8206P] where P = (Fo2 + 2Fc2)/3
S = 1.15	(Δ/σ)max = 0.001
3059 reflections	Δρmax = 0.42 e Å−3
198 parameters	Δρmin = −0.50 e Å−3
4 restraints	Extinction correction: none
Primary atom site location: structure-invariant direct methods

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Ų)

	x	y	z	Uiso*/Ueq
S1	0.49041 (5)	0.84948 (4)	0.358654 (17)	0.01248 (14)
O1	0.55419 (15)	0.74172 (13)	0.38508 (5)	0.0195 (3)
O2	0.56209 (14)	0.88382 (13)	0.31102 (5)	0.0163 (3)
O3	0.34727 (14)	0.83294 (13)	0.35029 (5)	0.0190 (3)
O4	0.40223 (14)	0.52637 (13)	0.30853 (5)	0.0171 (3)
O5	0.51261 (16)	0.49339 (13)	0.38301 (5)	0.0199 (3)
H5O	0.510 (3)	0.5747 (10)	0.3841 (10)	0.034 (7)*
O6	0.20627 (14)	0.17528 (13)	0.21695 (5)	0.0176 (3)
O7	0.29656 (14)	−0.02406 (13)	0.22217 (5)	0.0163 (3)
H7O	0.229 (2)	−0.047 (3)	0.2048 (10)	0.051 (9)*
N1	0.37466 (17)	0.27383 (15)	0.28845 (6)	0.0129 (3)
H1N1	0.402 (3)	0.316 (2)	0.2610 (7)	0.031 (7)*
H1N2	0.2899 (11)	0.296 (2)	0.2924 (8)	0.014 (5)*
C1	0.50864 (19)	0.98391 (18)	0.40013 (7)	0.0141 (4)
C2	0.3995 (2)	1.02980 (19)	0.42797 (8)	0.0187 (4)
H2	0.3146	0.9879	0.4256	0.022*
C3	0.4152 (2)	1.1376 (2)	0.45941 (8)	0.0212 (4)
H3	0.3404	1.1681	0.4788	0.025*
C4	0.5374 (2)	1.20164 (19)	0.46306 (7)	0.0183 (4)
C5	0.6471 (2)	1.15329 (19)	0.43556 (8)	0.0191 (4)
H5	0.7319	1.1952	0.4380	0.023*
C6	0.6335 (2)	1.04440 (19)	0.40462 (7)	0.0171 (4)
H6	0.7093	1.0112	0.3866	0.021*
C7	0.5517 (2)	1.3217 (2)	0.49545 (8)	0.0247 (5)
H7A	0.4636	1.3631	0.4993	0.037*
H7B	0.6142	1.3815	0.4785	0.037*
H7C	0.5868	1.2985	0.5296	0.037*
C8	0.45172 (19)	0.45546 (18)	0.34029 (7)	0.0137 (4)
C9	0.45326 (19)	0.31071 (18)	0.33494 (7)	0.0137 (4)
H9A	0.5472	0.2798	0.3315	0.016*
H9B	0.4132	0.2705	0.3660	0.016*
C10	0.3811 (2)	0.13288 (17)	0.27813 (7)	0.0142 (4)
H10A	0.3570	0.0845	0.3098	0.017*
H10B	0.4738	0.1085	0.2680	0.017*
C11	0.28461 (19)	0.09925 (18)	0.23534 (7)	0.0132 (4)

Atomic displacement parameters (Ų)

	U11	U22	U33	U12	U13	U23
S1	0.0104 (2)	0.0118 (2)	0.0153 (2)	−0.00084 (17)	−0.00072 (16)	0.00057 (16)
O1	0.0240 (8)	0.0125 (7)	0.0221 (7)	−0.0013 (6)	−0.0072 (6)	0.0031 (5)
O2	0.0164 (7)	0.0158 (7)	0.0168 (7)	−0.0021 (6)	0.0028 (5)	−0.0016 (5)
O3	0.0109 (7)	0.0226 (8)	0.0233 (7)	−0.0016 (6)	−0.0006 (6)	−0.0024 (5)
O4	0.0169 (7)	0.0148 (7)	0.0197 (7)	0.0007 (6)	−0.0025 (5)	0.0007 (5)
O5	0.0293 (9)	0.0111 (7)	0.0192 (7)	−0.0007 (6)	−0.0092 (6)	−0.0014 (5)
O6	0.0156 (7)	0.0155 (7)	0.0217 (7)	−0.0016 (6)	−0.0030 (5)	0.0033 (5)
O7	0.0134 (7)	0.0143 (7)	0.0211 (7)	−0.0023 (6)	−0.0006 (6)	−0.0043 (5)
N1	0.0123 (8)	0.0109 (8)	0.0154 (8)	0.0011 (6)	−0.0002 (6)	0.0000 (6)
C1	0.0144 (9)	0.0131 (9)	0.0149 (8)	−0.0001 (7)	−0.0003 (7)	0.0010 (7)
C2	0.0148 (10)	0.0198 (10)	0.0215 (9)	−0.0019 (8)	0.0032 (8)	0.0004 (8)
C3	0.0190 (11)	0.0217 (10)	0.0228 (10)	0.0025 (8)	0.0066 (8)	−0.0020 (8)
C4	0.0237 (11)	0.0162 (10)	0.0150 (9)	0.0007 (8)	−0.0001 (8)	0.0004 (7)
C5	0.0145 (10)	0.0225 (10)	0.0202 (9)	−0.0045 (8)	0.0002 (8)	−0.0023 (8)
C6	0.0130 (9)	0.0199 (10)	0.0183 (9)	0.0004 (8)	0.0014 (7)	−0.0027 (7)
C7	0.0276 (12)	0.0219 (11)	0.0247 (10)	−0.0011 (9)	0.0010 (9)	−0.0067 (8)
C8	0.0102 (9)	0.0150 (9)	0.0161 (8)	−0.0005 (7)	0.0005 (7)	0.0004 (7)
C9	0.0125 (9)	0.0133 (9)	0.0152 (9)	0.0002 (7)	−0.0026 (7)	0.0000 (7)
C10	0.0132 (9)	0.0095 (8)	0.0200 (9)	0.0004 (7)	−0.0017 (7)	−0.0009 (7)
C11	0.0108 (9)	0.0132 (9)	0.0157 (8)	−0.0019 (7)	0.0028 (7)	0.0012 (7)

Geometric parameters (Å, °)

S1—O3	1.4478 (14)	C2—H2	0.9500
S1—O1	1.4547 (14)	C3—C4	1.386 (3)
S1—O2	1.4675 (13)	C3—H3	0.9500
S1—C1	1.768 (2)	C4—C5	1.394 (3)
O4—C8	1.207 (2)	C4—C7	1.507 (3)
O5—C8	1.320 (2)	C5—C6	1.390 (3)
O5—H5o	0.84 (1)	C5—H5	0.9500
O6—C11	1.205 (2)	C6—H6	0.9500
O7—C11	1.328 (2)	C7—H7A	0.9800
O7—H7o	0.84 (1)	C7—H7B	0.9800
N1—C9	1.484 (2)	C7—H7C	0.9800
N1—C10	1.486 (2)	C8—C9	1.507 (3)
N1—H1n1	0.88 (1)	C9—H9A	0.9900
N1—H1n2	0.88 (1)	C9—H9B	0.9900
C1—C2	1.385 (3)	C10—C11	1.505 (3)
C1—C6	1.394 (3)	C10—H10A	0.9900
C2—C3	1.391 (3)	C10—H10B	0.9900
O3—S1—O1	114.00 (9)	C4—C5—H5	119.7
O3—S1—O2	112.28 (8)	C5—C6—C1	119.93 (18)
O1—S1—O2	111.72 (8)	C5—C6—H6	120.0
O3—S1—C1	106.53 (9)	C1—C6—H6	120.0
O1—S1—C1	105.95 (9)	C4—C7—H7A	109.5
O2—S1—C1	105.63 (8)	C4—C7—H7B	109.5
C8—O5—H5O	108.2 (18)	H7A—C7—H7B	109.5
C11—O7—H7O	110 (2)	C4—C7—H7C	109.5
C9—N1—C10	112.10 (14)	H7A—C7—H7C	109.5
C9—N1—H1N1	111.7 (17)	H7B—C7—H7C	109.5
C10—N1—H1N1	109.4 (16)	O4—C8—O5	125.13 (18)
C9—N1—H1N2	110.2 (14)	O4—C8—C9	123.20 (17)
C10—N1—H1N2	108.3 (15)	O5—C8—C9	111.66 (15)
H1N1—N1—H1N2	105 (2)	N1—C9—C8	109.01 (15)
C2—C1—C6	119.85 (18)	N1—C9—H9A	109.9
C2—C1—S1	120.41 (15)	C8—C9—H9A	109.9
C6—C1—S1	119.73 (15)	N1—C9—H9B	109.9
C1—C2—C3	119.53 (19)	C8—C9—H9B	109.9
C1—C2—H2	120.2	H9A—C9—H9B	108.3
C3—C2—H2	120.2	N1—C10—C11	109.43 (15)
C4—C3—C2	121.46 (18)	N1—C10—H10A	109.8
C4—C3—H3	119.3	C11—C10—H10A	109.8
C2—C3—H3	119.3	N1—C10—H10B	109.8
C3—C4—C5	118.49 (18)	C11—C10—H10B	109.8
C3—C4—C7	121.06 (19)	H10A—C10—H10B	108.2
C5—C4—C7	120.4 (2)	O6—C11—O7	125.83 (17)
C6—C5—C4	120.68 (19)	O6—C11—C10	123.36 (17)
C6—C5—H5	119.7	O7—C11—C10	110.79 (16)
O3—S1—C1—C2	16.35 (19)	C3—C4—C5—C6	0.9 (3)
O1—S1—C1—C2	−105.40 (17)	C7—C4—C5—C6	−178.42 (18)
O2—S1—C1—C2	135.94 (16)	C4—C5—C6—C1	1.2 (3)
O3—S1—C1—C6	−163.36 (15)	C2—C1—C6—C5	−2.3 (3)
O1—S1—C1—C6	74.89 (17)	S1—C1—C6—C5	177.39 (15)
O2—S1—C1—C6	−43.77 (18)	C10—N1—C9—C8	175.26 (15)
C6—C1—C2—C3	1.3 (3)	O4—C8—C9—N1	−5.4 (3)
S1—C1—C2—C3	−178.42 (15)	O5—C8—C9—N1	175.76 (15)
C1—C2—C3—C4	0.9 (3)	C9—N1—C10—C11	172.17 (15)
C2—C3—C4—C5	−1.9 (3)	N1—C10—C11—O6	−6.8 (3)
C2—C3—C4—C7	177.37 (19)	N1—C10—C11—O7	174.56 (14)

Hydrogen-bond geometry (Å, °)

D—H···A	D—H	H···A	D···A	D—H···A
N1—H1N1···O2i	0.88 (1)	2.02 (1)	2.885 (2)	167 (2)
N1—H1N2···O3ii	0.88 (1)	2.06 (2)	2.792 (2)	140 (2)
O5—H5O···O1	0.84 (1)	1.79 (1)	2.607 (2)	164 (3)
O7—H7O···O2iii	0.84 (1)	1.85 (1)	2.659 (2)	160 (3)

Symmetry codes: (i) −x+1, y−1/2, −z+1/2; (ii) −x+1/2, y−1/2, z; (iii) x−1/2, y−1, −z+1/2.
