catena-Poly[[[aqua­(1,10-phenan­throline)cadmium(II)]-μ-benzene-1,4-dicarboxyl­ato] benzene-1,4-dicarboxylic acid hemisolvate]

Zhuanzhuan Wang; Weihe Han; Zhihong Liu

doi:10.1107/S1600536809000889

. 2009 Jan 14;65(Pt 2):m184–m185. doi: 10.1107/S1600536809000889

catena-Poly[[[aqua(1,10-phenanthroline)cadmium(II)]-μ-benzene-1,4-dicarboxylato] benzene-1,4-dicarboxylic acid hemisolvate]

Zhuanzhuan Wang ^a, Weihe Han ^a, Zhihong Liu ^a,^*

PMCID: PMC2968137 PMID: 21581788

Abstract

A new cadmium(II) coordination polymer, {[Cd(C₈H₄O₄)(C₁₂H₈N₂)(H₂O)]·0.5C₈H₆O₄}_n, has been synthesized under hydrothermal conditions. The asymmetric unit contains one Cd^II atom, one benzene-1,4-dicarboxylate anion, one 1,10-phenanthroline ligand, one coordinated water molecule and half of an uncoordinated benzene-1,4-dicaboxylic acid solvent molecule. The Cd^II atom is in the centre of a monocapped distorted octahedron made up of four O atoms of two chelating benzene-1,4-dicarboxylate anions, one water O atom and two 1,10-phenanthroline N atoms. The metal centres are connected via bis-chelating benzene-1,4-dicarboxylate anions into a zigzag chain structure along [001]. These chains are further connected by O—H⋯O hydrogen bonds between the water molecules and adjacent carboxylate O atoms. Additional O—H⋯O hydrogen bonding between the uncoordinated benzene-1,4-dicaboxylic acid molecules along [010] consolidates the structure.

Related literature

For background to coordination polymers, see: Liang et al. (2002 ▶); McGarrah et al. (2001 ▶); Moulton et al. (2002 ▶); Wu et al. (2007 ▶). Zheng et al. (2004 ▶). For related structures, see: Shi et al. (2004 ▶); Wang et al. (2004 ▶).

Experimental

Crystal data

[Cd(C₈H₄O₄)(C₁₂H₈N₂)(H₂O)]·0.5C₈H₆O₄
M _r = 557.80
Monoclinic,
a = 26.108 (2) Å
b = 9.6928 (10) Å
c = 21.161 (2) Å
β = 126.494 (2)°
V = 4304.9 (7) Å³
Z = 8
Mo Kα radiation
μ = 1.07 mm⁻¹
T = 298 (2) K
0.42 × 0.18 × 0.02 mm

Data collection

Bruker SMART CCD diffractometer
Absorption correction: multi-scan (SADABS; Sheldrick, 2004 ▶) T _min = 0.663, T _max = 0.984
10895 measured reflections
3793 independent reflections
3061 reflections with I > 2σ(I)
R _int = 0.021

Refinement

R[F ² > 2σ(F ²)] = 0.025
wR(F ²) = 0.062
S = 1.07
3793 reflections
309 parameters
H-atom parameters constrained
Δρ_max = 0.57 e Å⁻³
Δρ_min = −0.28 e Å⁻³

Data collection: SMART (Bruker, 2001 ▶); cell refinement: SAINT (Bruker, 2001 ▶); data reduction: SAINT; program(s) used to solve structure: SHELXS97 (Sheldrick, 2008 ▶); program(s) used to refine structure: SHELXL97 (Sheldrick, 2008 ▶); molecular graphics: SHELXTL (Sheldrick, 2008 ▶); software used to prepare material for publication: SHELXTL.

Supplementary Material

Crystal structure: contains datablocks I, global. DOI: 10.1107/S1600536809000889/wm2211sup1.cif

e-65-0m184-sup1.cif^{(25.9KB, cif)}

Structure factors: contains datablocks I. DOI: 10.1107/S1600536809000889/wm2211Isup2.hkl

e-65-0m184-Isup2.hkl^{(186KB, hkl)}

Additional supplementary materials: crystallographic information; 3D view; checkCIF report

Table 1. Selected bond lengths (Å).

Cd1—O1	2.284 (3)
Cd1—O3	2.357 (2)
Cd1—N2	2.358 (2)
Cd1—N1	2.362 (2)
Cd1—O7	2.375 (2)
Cd1—O4	2.377 (2)
Cd1—O2	2.601 (3)

Open in a new tab

Table 2. Hydrogen-bond geometry (Å, °).

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
O5—H5⋯O6ⁱ	0.82	1.92	2.728 (3)	167
O7—H7A⋯O2ⁱⁱ	0.85	1.88	2.665 (3)	154
O7—H7B⋯O4ⁱⁱ	0.85	2.28	3.019 (3)	146

Open in a new tab

Symmetry codes: (i) Inline graphic ; (ii) .

supplementary crystallographic information

Comment

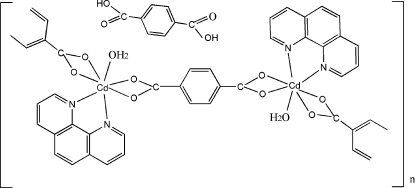

Carboxylic acid coordination polymers have an important position in coordination chemistry due to their interesting topologies and their potential applications in functional materials (Wu et al., 2007). The coordination ability of the 1,10-phenanthroline ligand stems from its chelate effect which frequently results in the formation of low-dimensional coordination polymers because of its terminal-group effect (Moulton et al., 2002). In this work, we report a new cadmium coordination polymer with a one-dimensional zigzag chain, {[Cd(C₈H₄O₄)(C₁₂H₈N₂)(H₂O)]₂(C₈H₆O₄)}_n, (I), that was synthesized from benzene-1,4-dicarboxylic acid, 1,10-phenanthroline and cadmium nitrate under hydrothermal conditions.

Each [Cd(C₈H₄O₄)(C₁₂H₈N₂)(H₂O)]₂(C₈H₆O₄)] unit is composed of two Cd²⁺ ions, two 1,10-phenanthroline ligands, two benzene-1,4-dicarboxylate anions, two coordinated water molecules, and one uncoordinated neutral benzene-1,4-dicaboxylic acid solvent molecule. The Cd²⁺ ion in the complex is seven-coordinated with four oxygen atoms (O1, O2, O3 and O4) of two chelating bidentate carboxyl groups from two deprotonated benzene-1,4-dicaboxylic acid ligands, one O atom (O7) of a water molecule, and two nitrogen atoms (N1 and N2) from the chelating 1,10-phenanthroline ligand (Fig. 1). The Cd—O bond distances are between 2.284 (2) Å and 2.601 (2) Å, while the Cd—N bond distances are 2.358 (2) Å and 2.362 (2) Å, which all are in agreement with those of other reported Cd—O and Cd—N bond lengths (Wang et al., 2004; Shi et al., 2004). One Cd²⁺ ion connects two benzene-1,4-dicarboxylate ligands, and one benzene-1,4-dicarboxylic acid ligand also connects two Cd²⁺ ions, leading to a zigzag chain along [001], as shown in Fig. 2. These chains are further connected through O—H···O hydrogen bonding interactions between the water molecules and the oxygen atoms of the coordinated carboxyl groups of benzene-1,4-dicarboxylate ligands in neighboring chains to give an extended supramolecular two-dimensional layer structure, as illustrated in Fig. 3. Additional O—H···O hydrogen bonding between the uncoordinated benzene-1,4-dicaboxylic acid molecules along [010] consolidates the structure.

Experimental

All regents used in the synthesis were of analytic grade and were used without further purification. A mixture of Cd(NO₃)₂^.6H₂O (0.3085 g), 1,10-phenanthroline (0.099 g), benzene-1,4-dicarboxylic acid (0.083 g) and water (20 mL) was sealed in a 40 mL stainless steel reactor with a Teflon inlay after adjustment of the pH to 7 by addition of a dilute NaOH solution. The autoclave was heated to 448 K for 6 d, and then cooled to room temperature. Colorless hexagonal-prismatic crystals were obtained. Elemental analysis, calculated: C, 51.68, H, 3.07, N 5.02; found: C, 50.87, H, 3.22, N 4.96.

The title compoud was further characterized by FT-IR spectroscopy (recorded over the 400 to 4000 cm^-1 region on a Nicolet NEXUS 670 spectrometer with KBr pellets at room temperature); by thermogravimetric analysis (TGA) (performed on a Universal V4.1D TA-SDT Q600 thermal analyzer in N₂ atmosphere with a heating rate of 10 °/min) and by its luminescent properties of the solid state under room temperature.
